Supercharging Marketo's Campaign Engine

Alternate title: Supercharging Marketo's Multi-Tenant Platform By Going Reactive

A case study by Marketo's Campaign team on how they built their next generation Marketing Campaign Processing Engine following Reactive System design principles. The system leverages various Akka modules and features - including but not limited to Akka Cluster, Cluster Sharding and Persistence - to build a near real-time, multi-tenant and stateful distributed system that is resilient and scalable.

The case study will cover the following topics: A unique multi-cluster architecture that can be deployed as a combination of dispatcher clusters and executor clusters for horizontal scalability on both cluster and tenant level. Dynamically controlling throughput, parallelism and fairness per tenant with exact once execution semantics.

Without being highly CPU intensive, the cluster can process more than 500 Million campaigns per day with as little as 11 VMs. Comparing to its homegrown legacy engine that ran on physical cores, this new Campaign Engine achieves 20 times throughput per tenant.

Transcript

2. Apurva Pawar Daniel Pugliese Dennis Bronnikov Pei-Chiang Ma Supercharging Marketo’s Campaign Engine OCTOBER 2018
3. Introduction 01
4. © 2018 Marketo, Inc. About Marketo

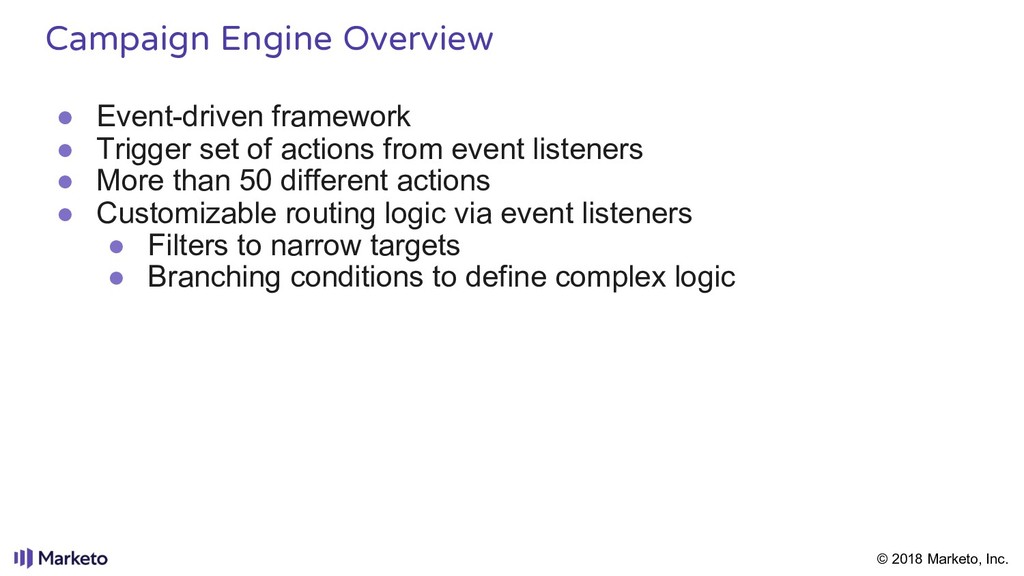

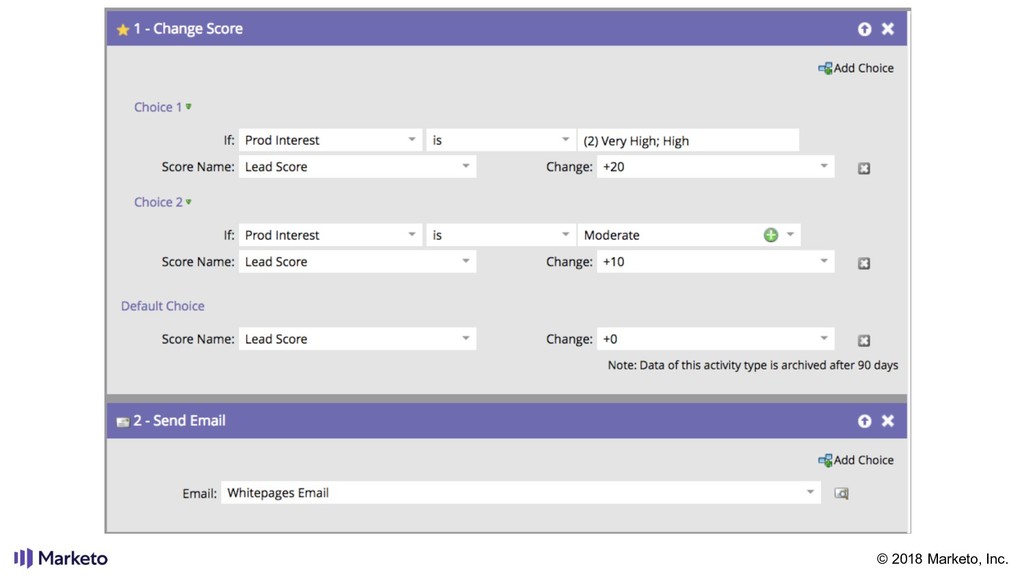

5. © 2018 Marketo, Inc. • Event-driven framework • Trigger set of actions from event listeners • More than 50 different actions • Customizable routing logic via event listeners • Filters to narrow targets • Branching conditions to define complex logic Campaign Engine Overview

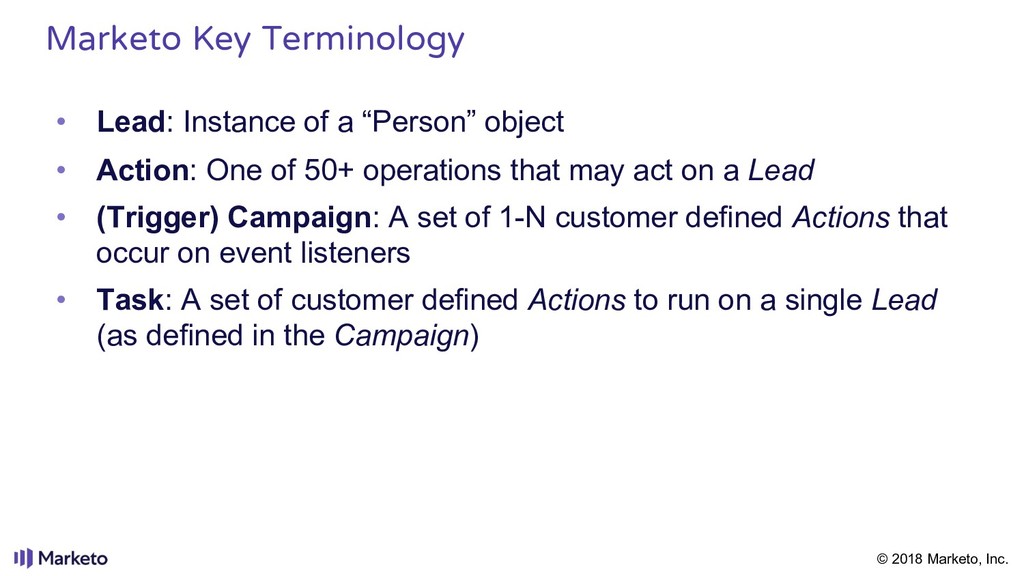

6. © 2018 Marketo, Inc. Marketo Key Terminology • Lead: Instance of a “Person” object • Action: One of 50+ operations that may act on a Lead • (Trigger) Campaign: A set of 1-N customer defined Actions that occur on event listeners • Task: A set of customer defined Actions to run on a single Lead (as defined in the Campaign)
7. © 2018 Marketo, Inc.
8. © 2018 Marketo, Inc.

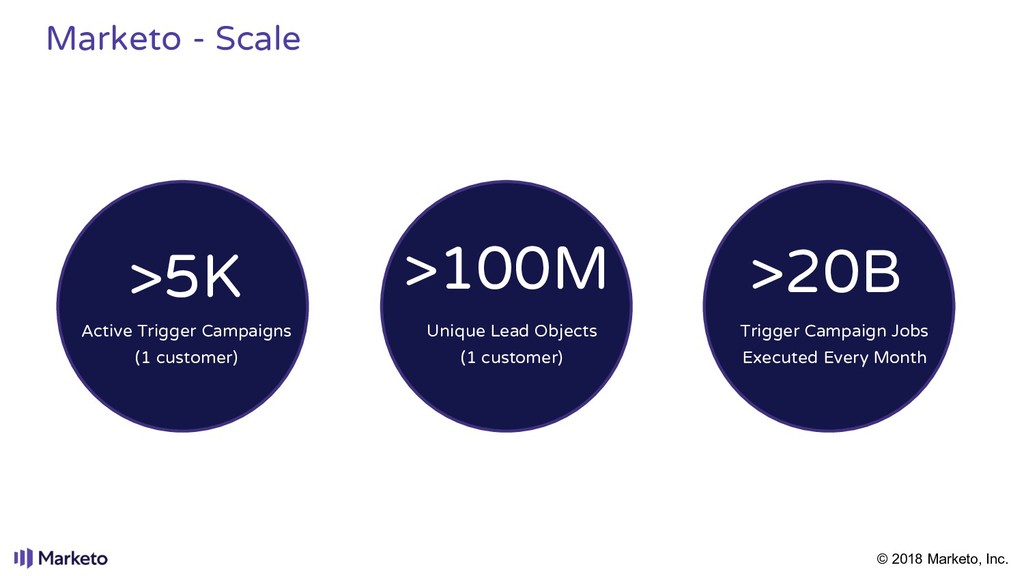

9. © 2018 Marketo, Inc. Marketo - Scale >5K Active Trigger Campaigns (1 customer) >100M Unique Lead Objects (1 customer) >20B Trigger Campaign Jobs Executed Every Month

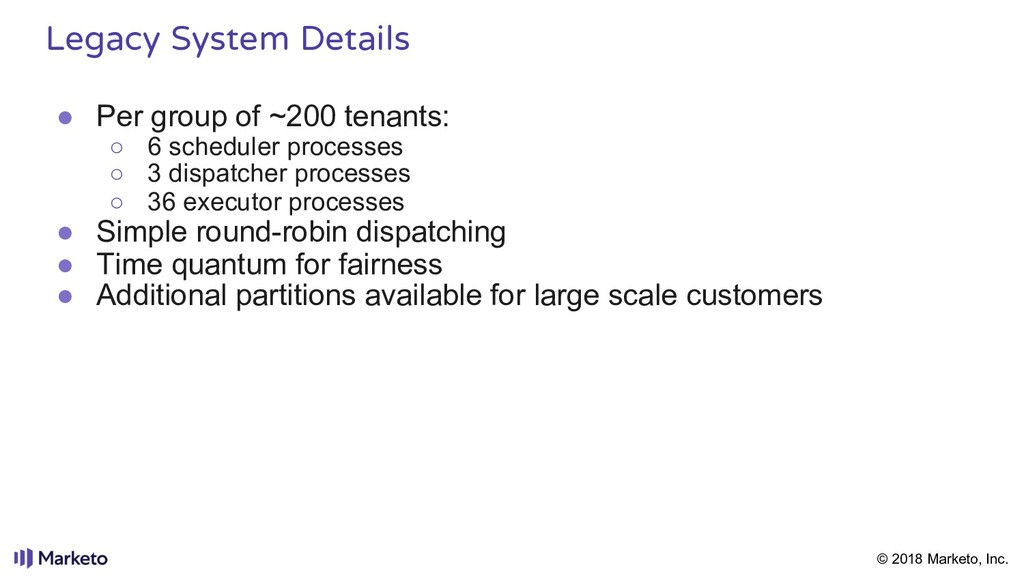

10. © 2018 Marketo, Inc. • Per group of ~200 tenants: ◦ 6 scheduler processes ◦ 3 dispatcher processes ◦ 36 executor processes • Simple round-robin dispatching • Time quantum for fairness • Additional partitions available for large scale customers Legacy System Details

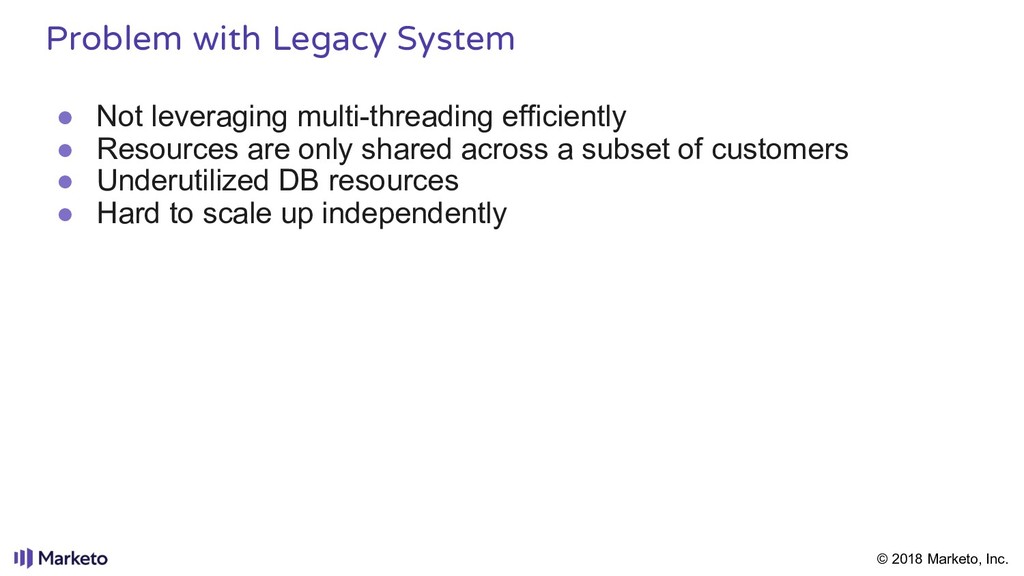

11. © 2018 Marketo, Inc. • Not leveraging multi-threading efficiently • Resources are only shared across a subset of customers • Underutilized DB resources • Hard to scale up independently Problem with Legacy System
12. The Journey Starts... 01

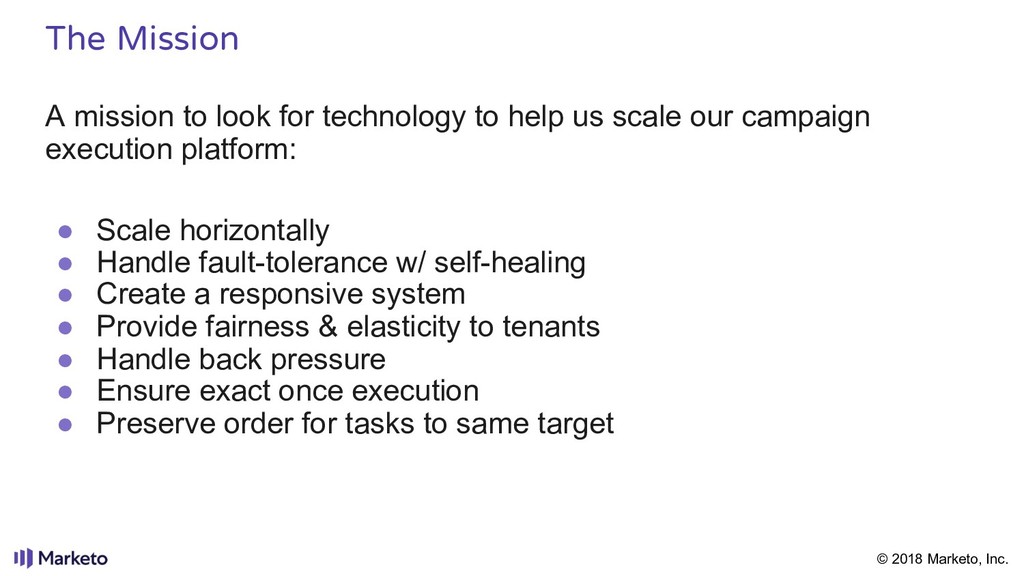

13. © 2018 Marketo, Inc. A mission to look for technology to help us scale our campaign execution platform: • Scale horizontally • Handle fault-tolerance w/ self-healing • Create a responsive system • Provide fairness & elasticity to tenants • Handle back pressure • Ensure exact once execution • Preserve order for tasks to same target The Mission

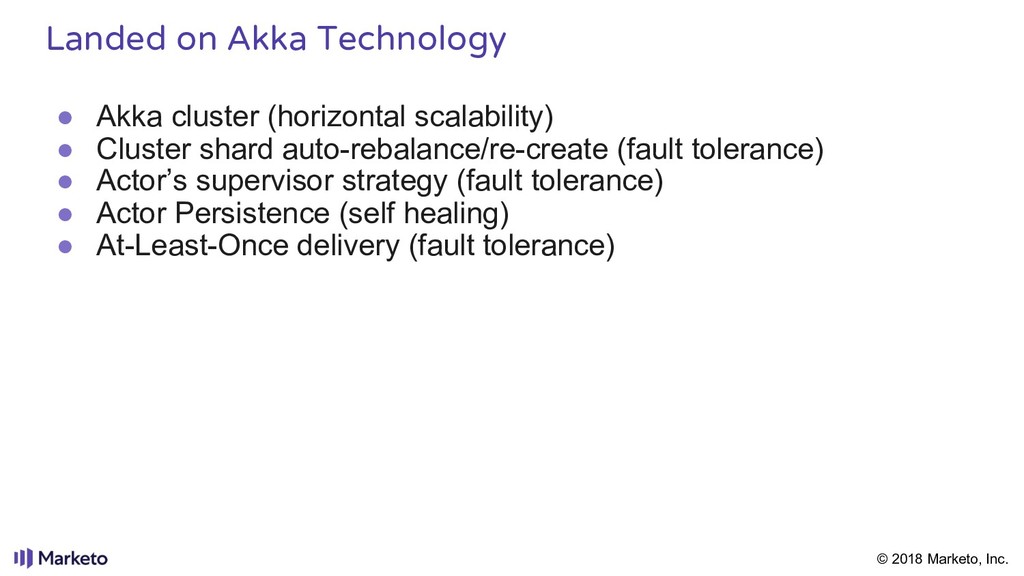

14. © 2018 Marketo, Inc. • Akka cluster (horizontal scalability) • Cluster shard auto-rebalance/re-create (fault tolerance) • Actor’s supervisor strategy (fault tolerance) • Actor Persistence (self healing) • At-Least-Once delivery (fault tolerance) Landed on Akka Technology
15. Actor Design 01

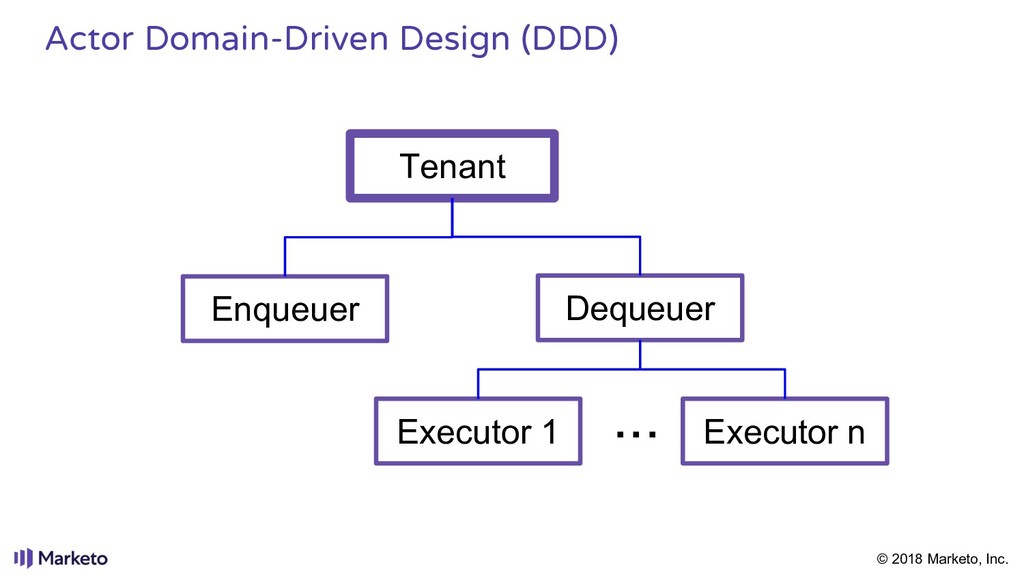

16. © 2018 Marketo, Inc. Enqueuer Dequeuer Executor 1 Executor n Tenant ... Actor Domain-Driven Design (DDD)

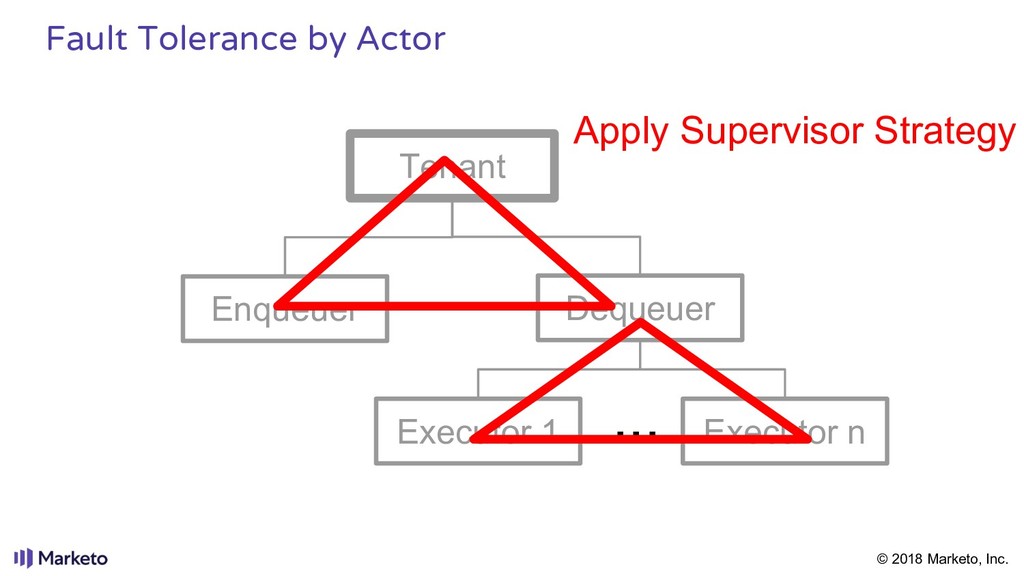

17. © 2018 Marketo, Inc. Enqueuer Dequeuer Executor 1 Executor n Tenant ... Apply Supervisor Strategy Fault Tolerance by Actor

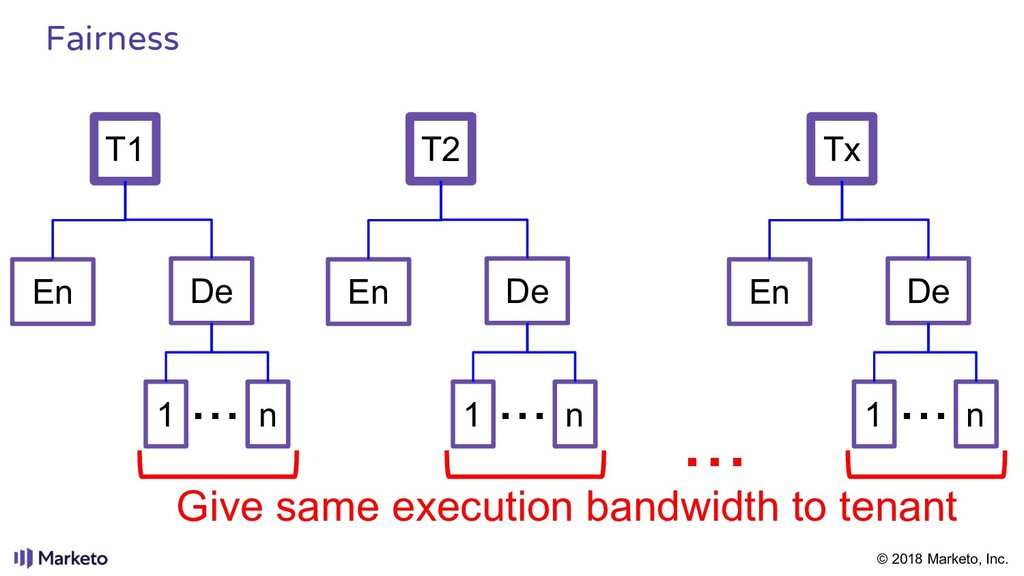

18. © 2018 Marketo, Inc. En De 1 n T1 ... En De 1 n T2 En De 1 n Tx Give same execution bandwidth to tenant ... ... ... Fairness

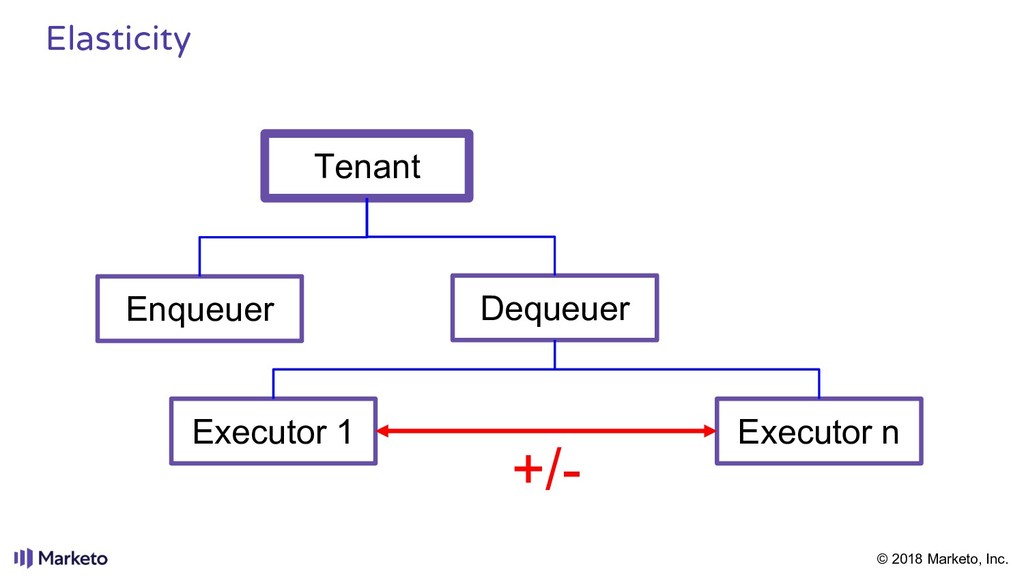

19. © 2018 Marketo, Inc. Enqueuer Dequeuer Executor 1 Executor n Tenant +/- Elasticity
20. © 2018 Marketo, Inc. Enqueuer Dequeuer 1 n Tenant ... Push mode Pull mode Pull mode Back Pressure Handling
21. © 2018 Marketo, Inc. Enqueuer Dequeuer 1 n Tenant ... Task #2 (George) Task #1 (Jane) Task #3 (Jane) 2 Partial Order Preservation

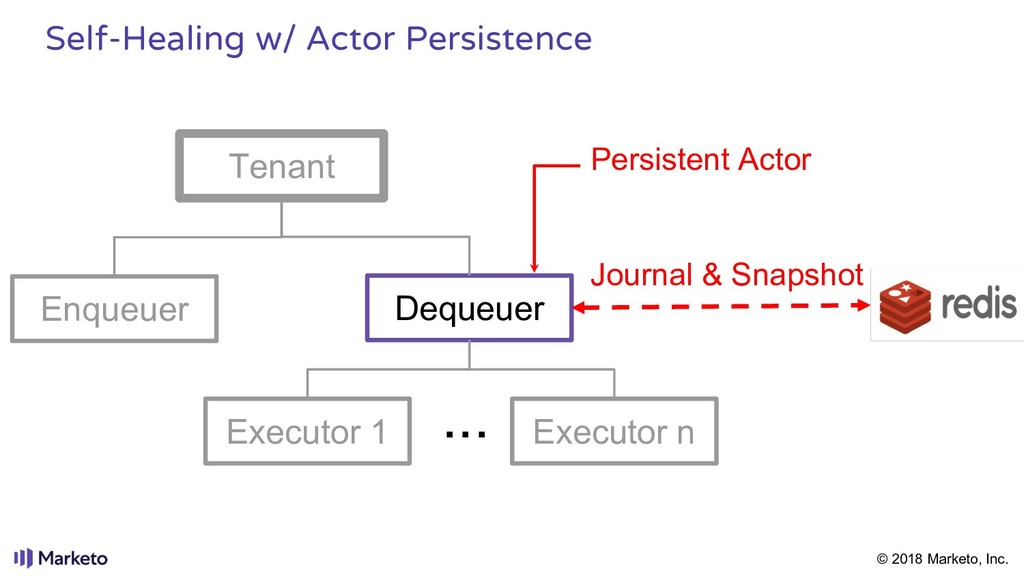

22. © 2018 Marketo, Inc. Enqueuer Dequeuer Executor 1 Executor n Tenant ... Journal & Snapshot Persistent Actor Self-Healing w/ Actor Persistence
23. Cluster Design 01

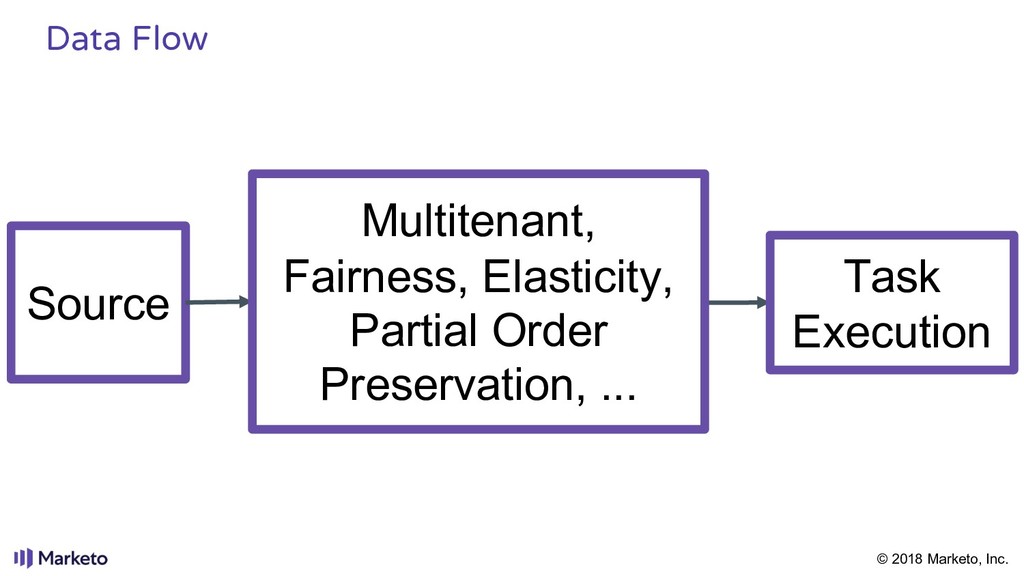

24. © 2018 Marketo, Inc. Source Multitenant, Fairness, Elasticity, Partial Order Preservation, ... Task Execution Data Flow

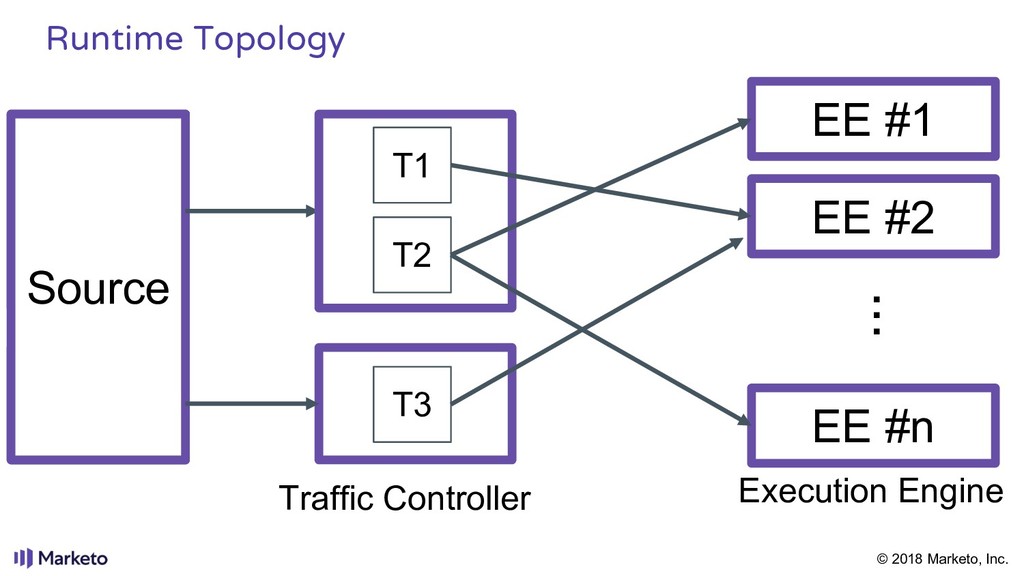

25. © 2018 Marketo, Inc. Source EE #1 T1 T2 T3 EE #2 EE #n ... Traffic Controller Execution Engine Runtime Topology
26. © 2018 Marketo, Inc. • Anticipate repeated messages • Handle idempotency when needed Design Guidelines

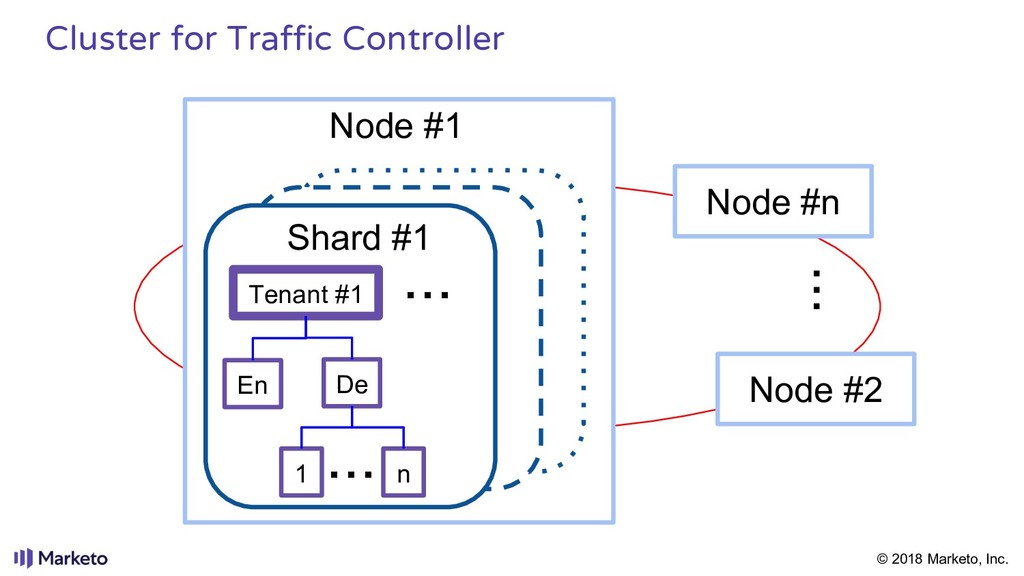

27. © 2018 Marketo, Inc. En De 1 n Tenant #1 ... ... Shard #1 Node #1 Node #2 Node #n ... Cluster for Traffic Controller
28. © 2018 Marketo, Inc. En De 1 n Engine #1 ... ... Node #1 Node #2 Node #n ... Cluster for Execution Engine Shard #1

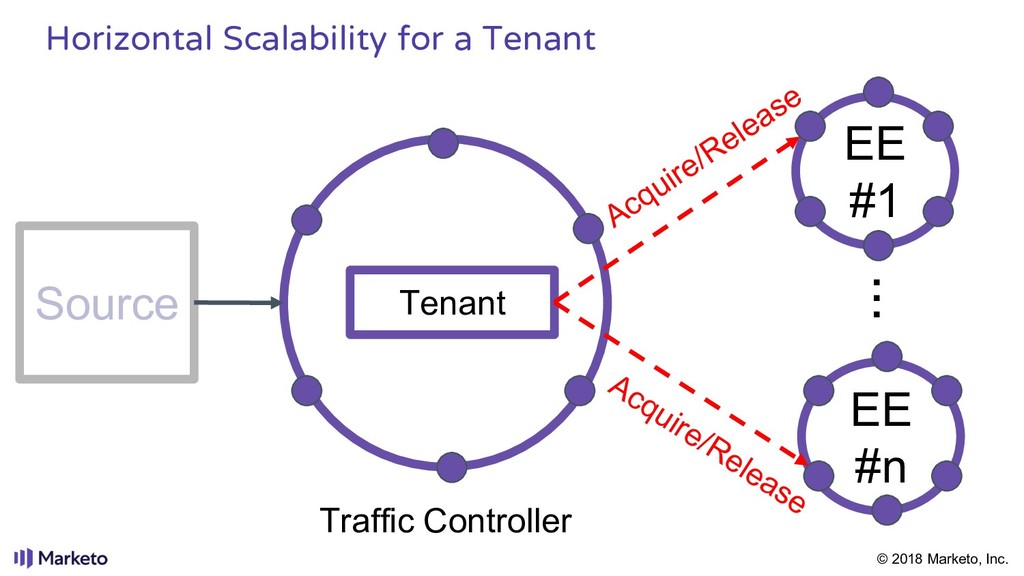

29. © 2018 Marketo, Inc. EE #1 EE #n ... Source Tenant Acquire/Release Acquire/Release Horizontal Scalability for a Tenant Traffic Controller

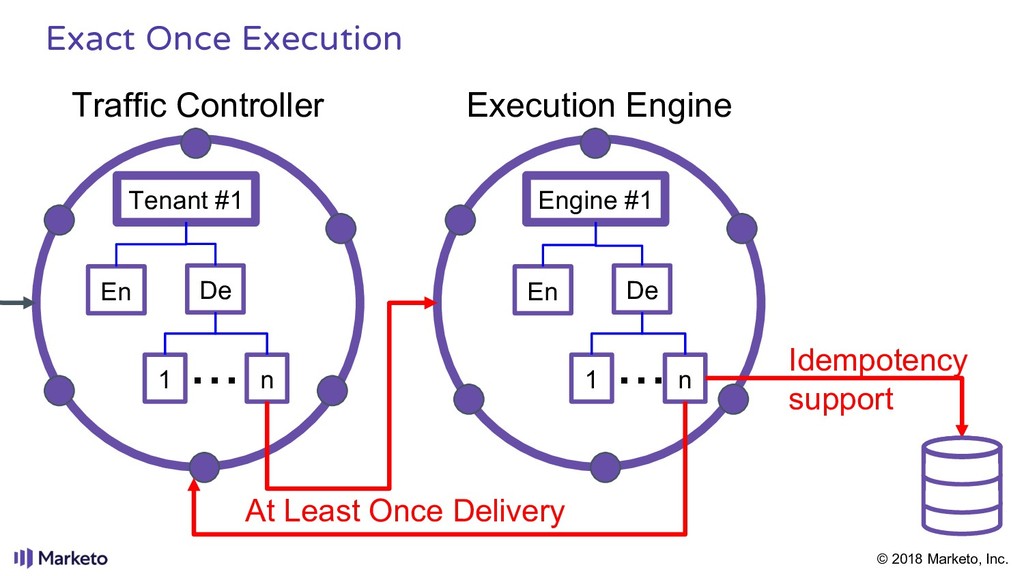

30. © 2018 Marketo, Inc. En De 1 n Tenant #1 ... En De 1 n Engine #1 ... At Least Once Delivery Idempotency support Exact Once Execution Traffic Controller Execution Engine

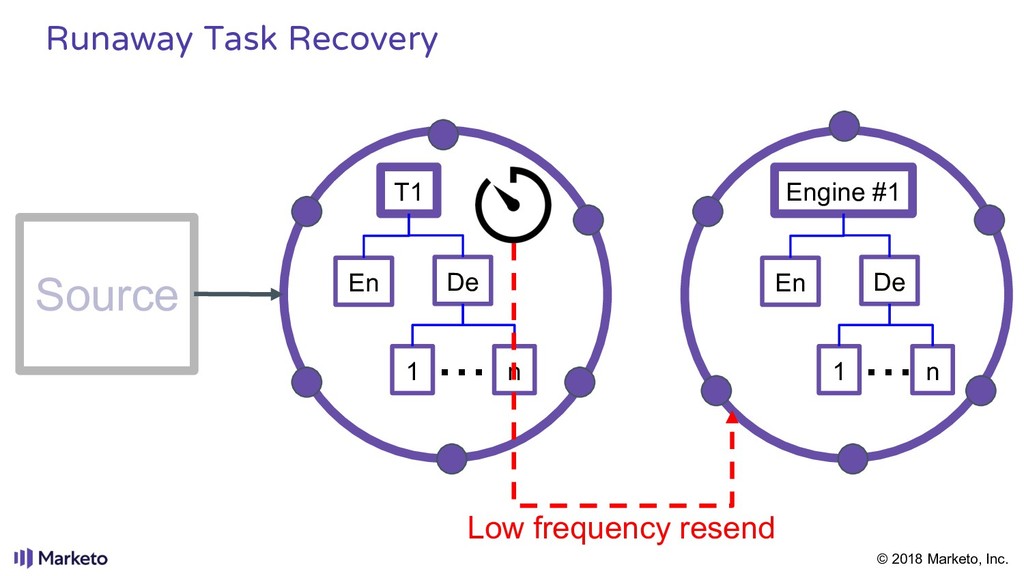

31. © 2018 Marketo, Inc. Source En De 1 n T1 ... En De 1 n Engine #1 ... Low frequency resend Runaway Task Recovery
32. Experiences with Akka
33. Shard Allocation Strategy

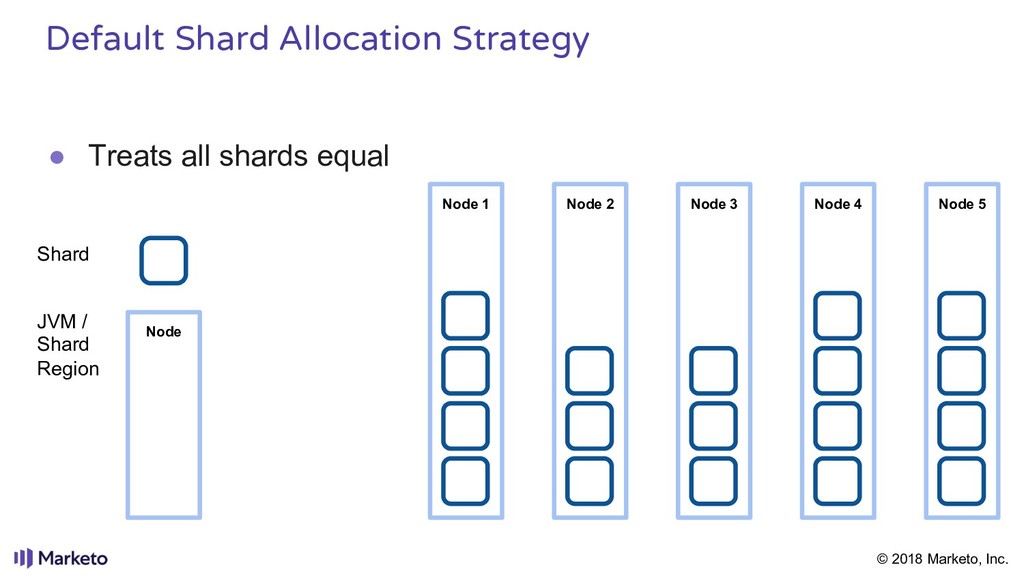

34. © 2018 Marketo, Inc. Node 1 Node 2 Node 3 Node 4 Node 5 Node Shard JVM / Shard Region Default Shard Allocation Strategy • Treats all shards equal

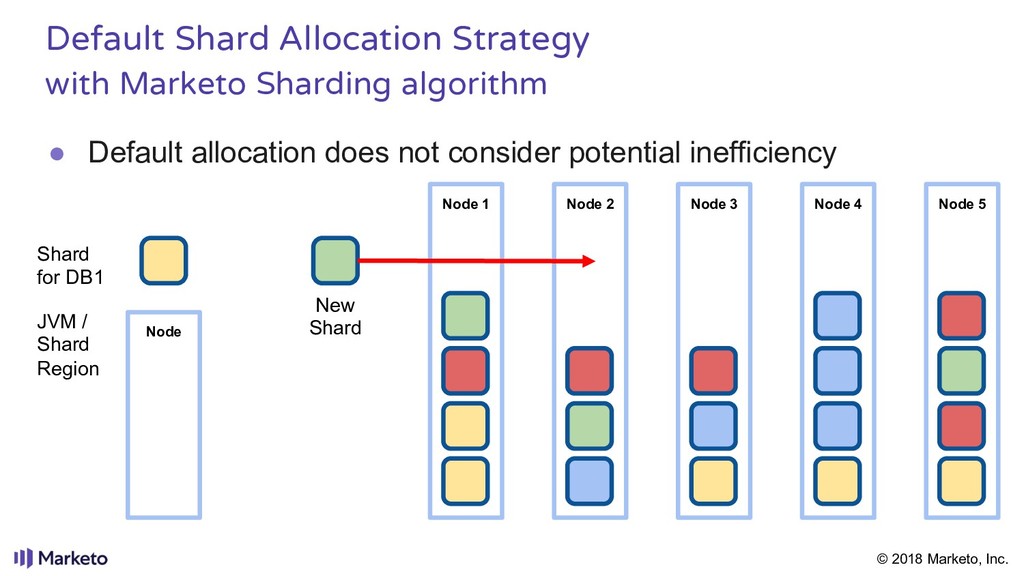

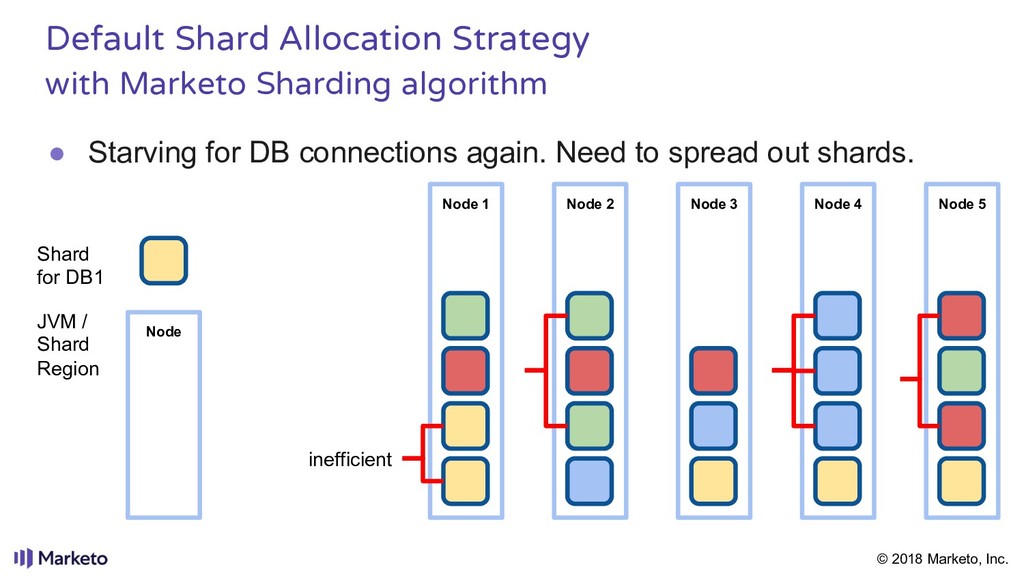

35. © 2018 Marketo, Inc. Default Shard Allocation Strategy with Marketo Sharding algorithm Node 1 Node 2 Node 3 Node 4 Node 5 Node Shard for DB1 JVM / Shard Region • Sharding logic introduces detail that cannot be read by default strategy
36. © 2018 Marketo, Inc. Default Shard Allocation Strategy with Marketo Sharding algorithm Node 1 Node 2 Node 3 Node 4 Node 5 Node Shard for DB1 JVM / Shard Region Inefficient • Starving for DB connections under high load

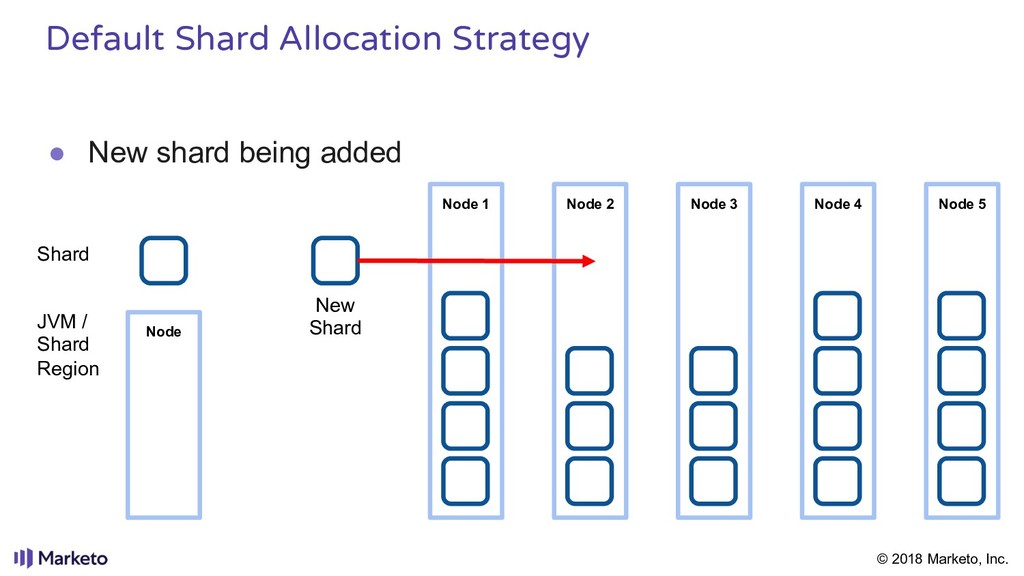

37. © 2018 Marketo, Inc. Node 1 Node 2 Node 3 Node 4 Node 5 Node Shard JVM / Shard Region New Shard Default Shard Allocation Strategy • New shard being added
38. © 2018 Marketo, Inc. Default Shard Allocation Strategy with Marketo Sharding algorithm Node 1 Node 2 Node 3 Node 4 Node 5 Node Shard for DB1 JVM / Shard Region New Shard • Default allocation does not consider potential inefficiency
39. © 2018 Marketo, Inc. Default Shard Allocation Strategy with Marketo Sharding algorithm Node 1 Node 2 Node 3 Node 4 Node 5 Node Shard for DB1 JVM / Shard Region inefficient • Starving for DB connections again. Need to spread out shards.

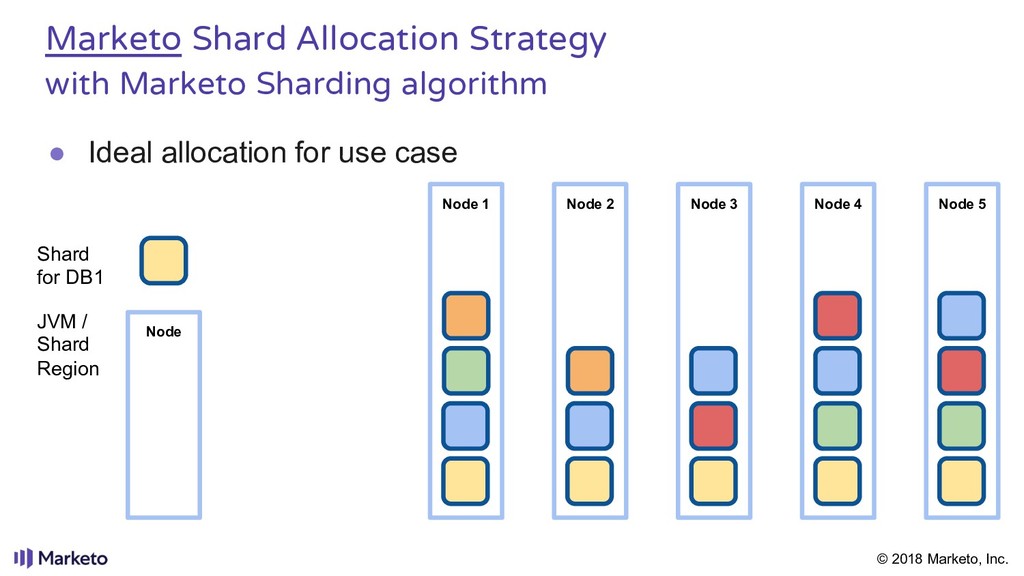

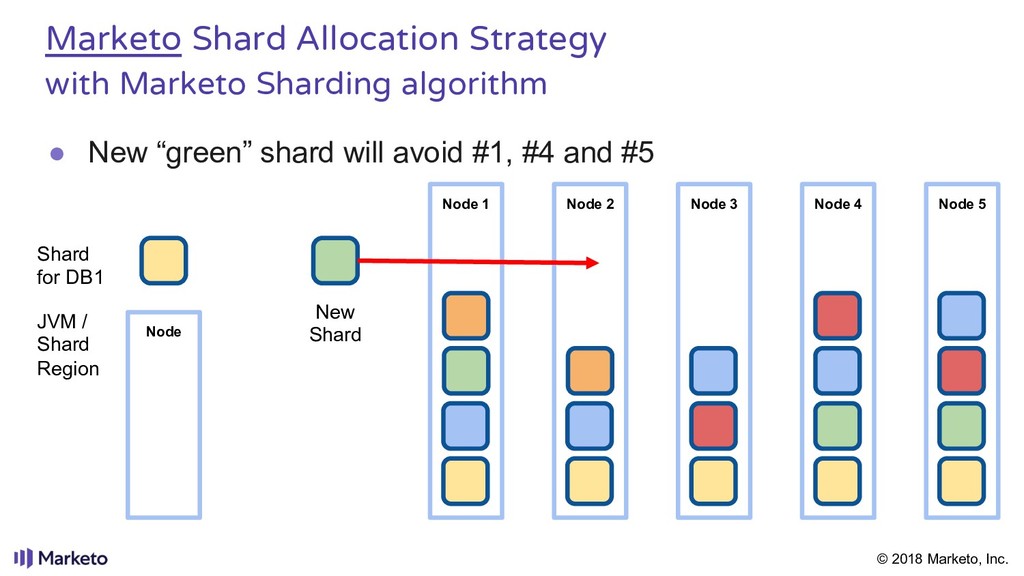

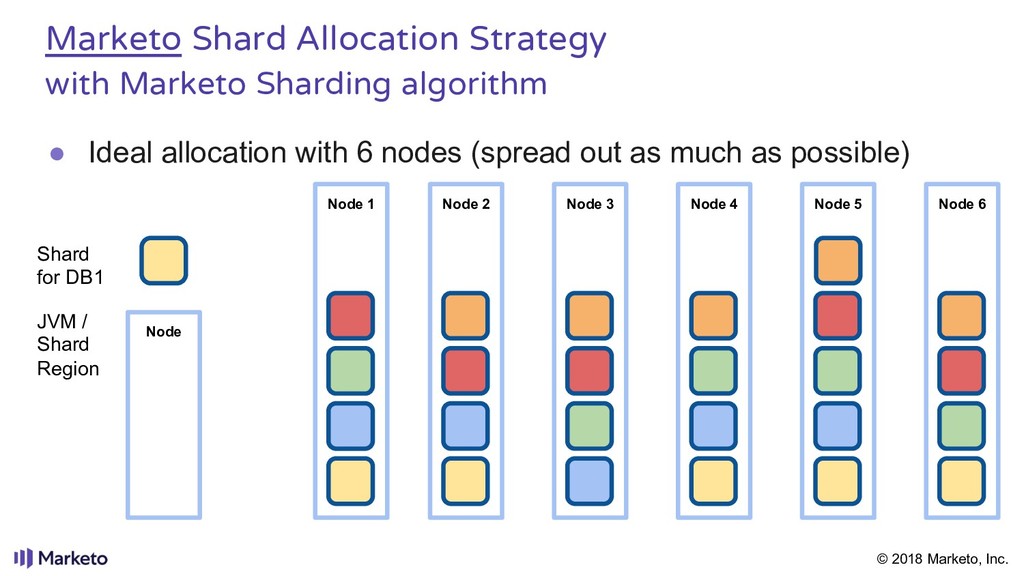

40. © 2018 Marketo, Inc. Node 1 Node 2 Node 3 Node 4 Node 5 Node Shard for DB1 JVM / Shard Region Marketo Shard Allocation Strategy with Marketo Sharding algorithm • Ideal allocation for use case

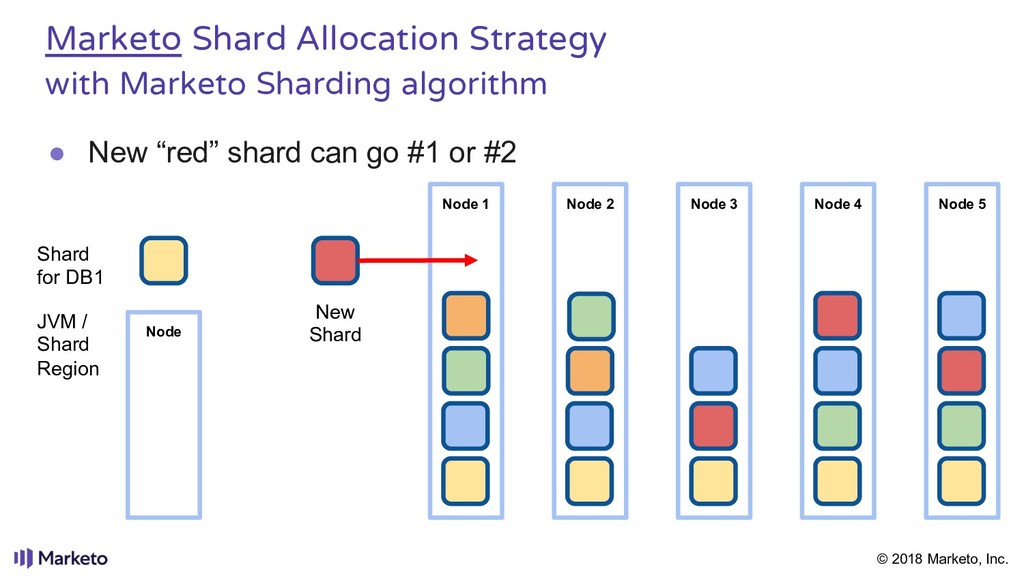

41. © 2018 Marketo, Inc. Node 1 Node 2 Node 3 Node 4 Node 5 Node Shard for DB1 JVM / Shard Region New Shard Marketo Shard Allocation Strategy with Marketo Sharding algorithm • New “green” shard will avoid #1, #4 and #5

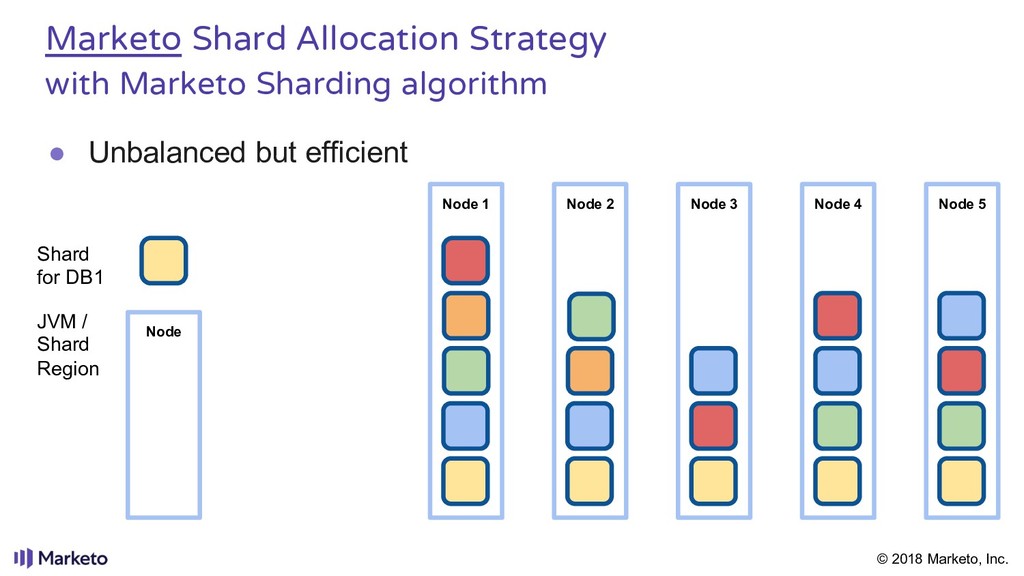

42. © 2018 Marketo, Inc. Node 1 Node 2 Node 3 Node 4 Node 5 Node Shard for DB1 JVM / Shard Region New Shard Marketo Shard Allocation Strategy with Marketo Sharding algorithm • New “red” shard can go #1 or #2
43. © 2018 Marketo, Inc. Node 1 Node 2 Node 3 Node 4 Node 5 Node Shard for DB1 JVM / Shard Region Marketo Shard Allocation Strategy with Marketo Sharding algorithm • Unbalanced but efficient
44. © 2018 Marketo, Inc. Node 2 Node 3 Node 4 Node 5 Node 6 Node Shard for DB1 JVM / Shard Region Node 1 Marketo Shard Allocation Strategy with Marketo Sharding algorithm • Ideal allocation with 6 nodes (spread out as much as possible)
45. © 2018 Marketo, Inc. Node 1 Node 2 Node 3 Node 4 Node Shard for DB1 JVM / Shard Region Marketo Shard Allocation Strategy with Marketo Sharding algorithm • Ideal allocation with 4 nodes (equally inefficient)

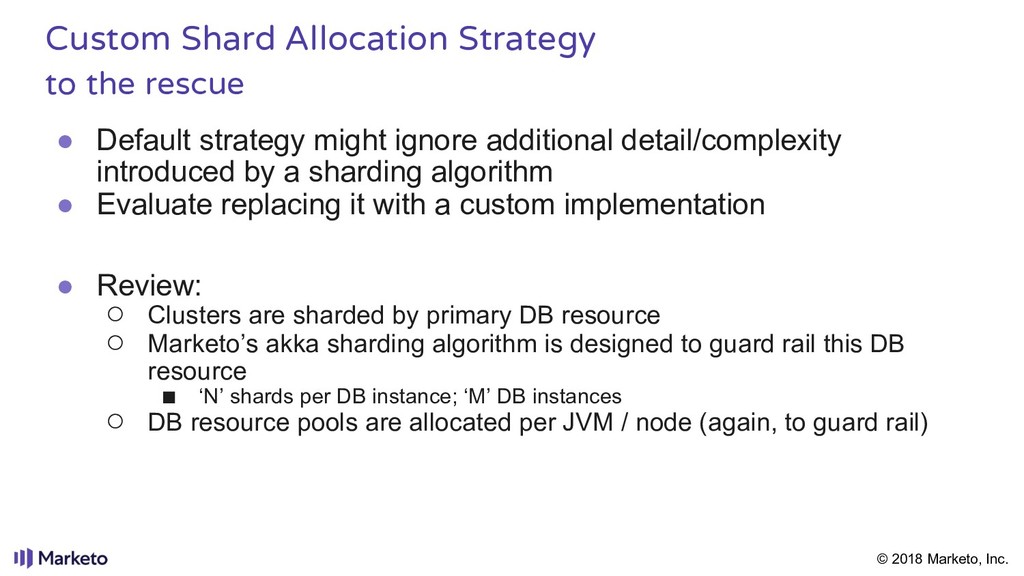

46. © 2018 Marketo, Inc. • Default strategy might ignore additional detail/complexity introduced by a sharding algorithm • Evaluate replacing it with a custom implementation • Review: ◦ Clusters are sharded by primary DB resource ◦ Marketo’s akka sharding algorithm is designed to guard rail this DB resource ▪ ‘N’ shards per DB instance; ‘M’ DB instances ◦ DB resource pools are allocated per JVM / node (again, to guard rail) Custom Shard Allocation Strategy to the rescue
47. Cluster Uptime & Deployment

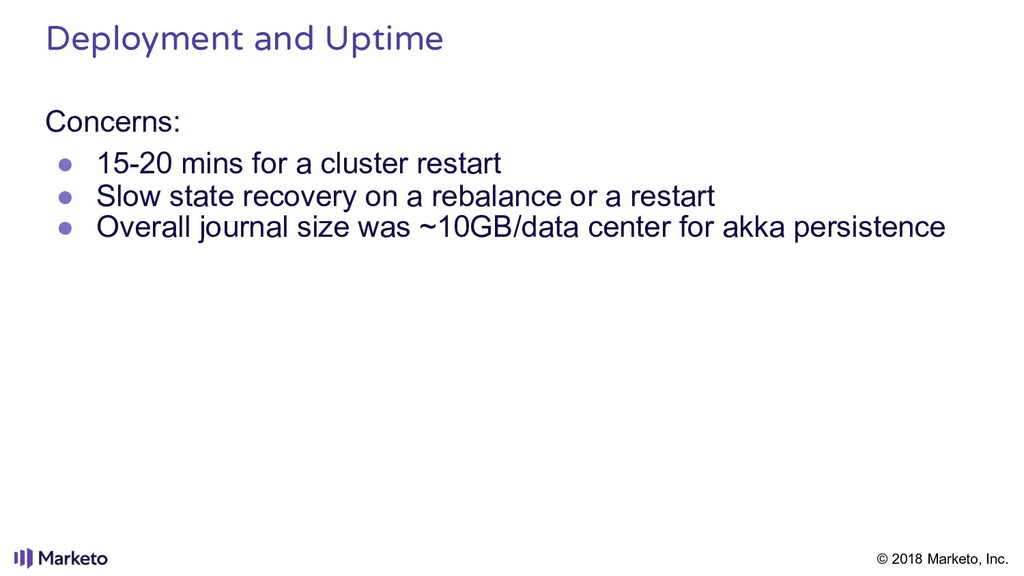

48. © 2018 Marketo, Inc. Deployment and Uptime Concerns: • 15-20 mins for a cluster restart • Slow state recovery on a rebalance or a restart • Overall journal size was ~10GB/data center for akka persistence

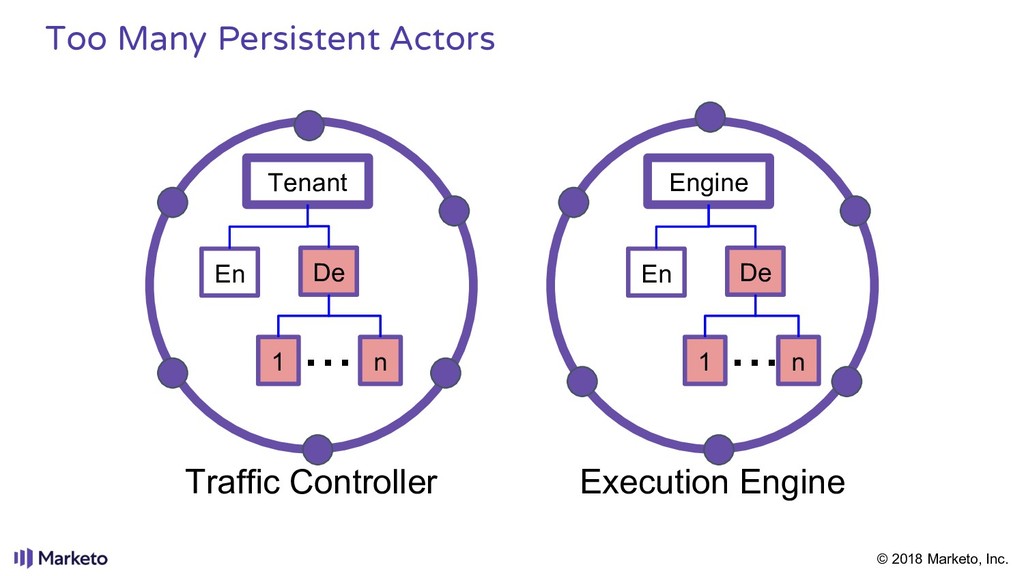

49. © 2018 Marketo, Inc. En De 1 n Tenant ... En De 1 n Engine ... Too Many Persistent Actors Traffic Controller Execution Engine

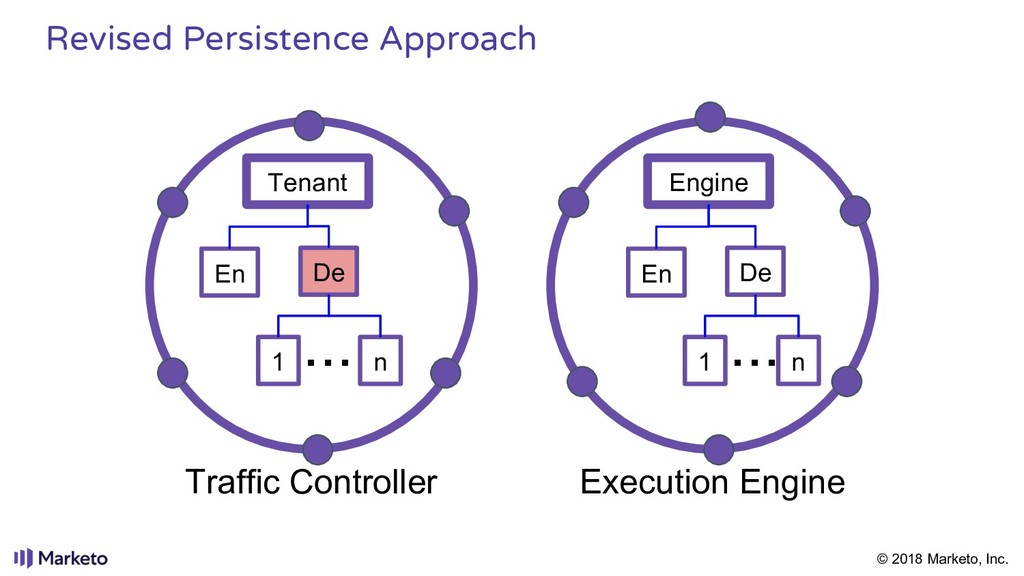

50. © 2018 Marketo, Inc. En De 1 n Tenant ... En De 1 n Engine ... Revised Persistence Approach Traffic Controller Execution Engine

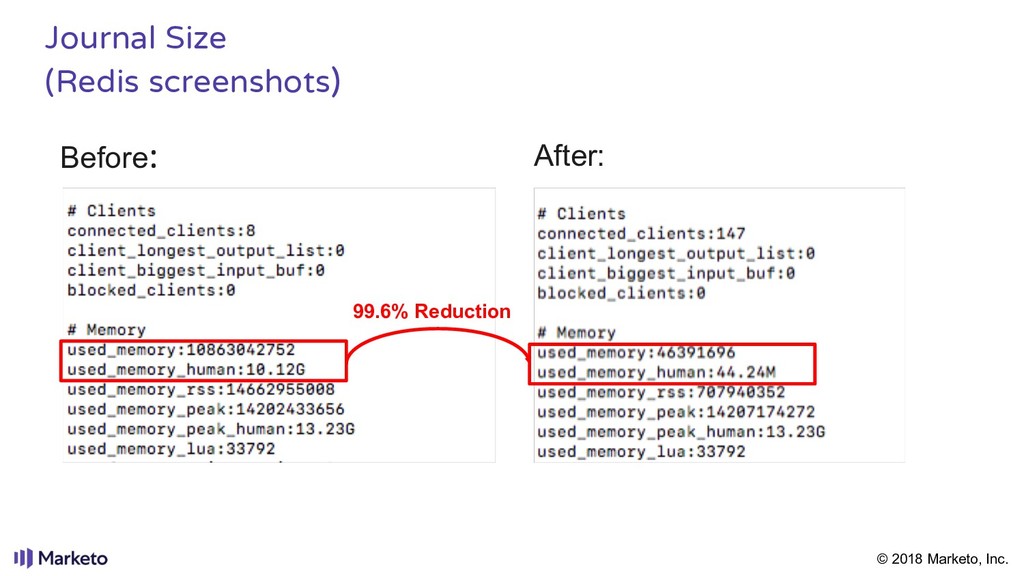

51. © 2018 Marketo, Inc. Journal Size (Redis screenshots) Before: After: 99.6% Reduction

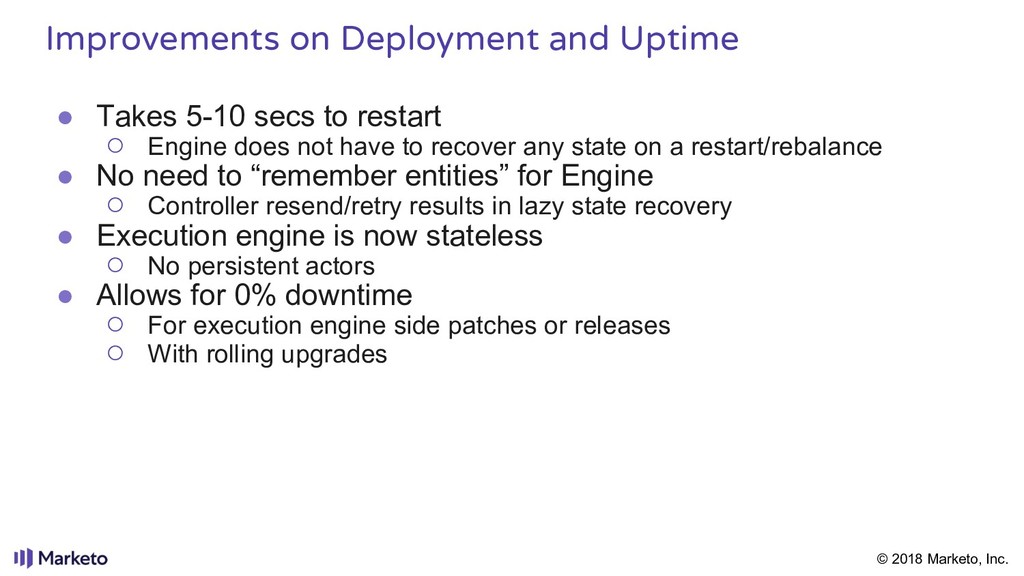

52. © 2018 Marketo, Inc. • Takes 5-10 secs to restart ◦ Engine does not have to recover any state on a restart/rebalance • No need to “remember entities” for Engine ◦ Controller resend/retry results in lazy state recovery • Execution engine is now stateless ◦ No persistent actors • Allows for 0% downtime ◦ For execution engine side patches or releases ◦ With rolling upgrades Improvements on Deployment and Uptime
53. Back Pressure Handling
54. © 2018 Marketo, Inc. • Uses a persistent queue for buffer • Flow control protocol involves 2 modes: ◦ Push Mode ◦ Pull Mode • Implemented in two phases ◦ Phase 1: Modes were simple but inefficient ◦ Phase 2 is the improvement Campaign Backpressure
55. © 2018 Marketo, Inc. Backpressure implementation (Phase 1 / Push Mode) Enqueuer Dequeuer 1 n Engine ... Push task to queue Send msg to Deq Deq pulls from queue till capacity Deq send back msg to change to pull mode
56. © 2018 Marketo, Inc. Backpressure implementation (Phase 1 / Pull Mode) Enqueuer Dequeuer 1 n Engine ... Deq pulls from queue till queue is empty Push task to queue Send back msg to change to push mode

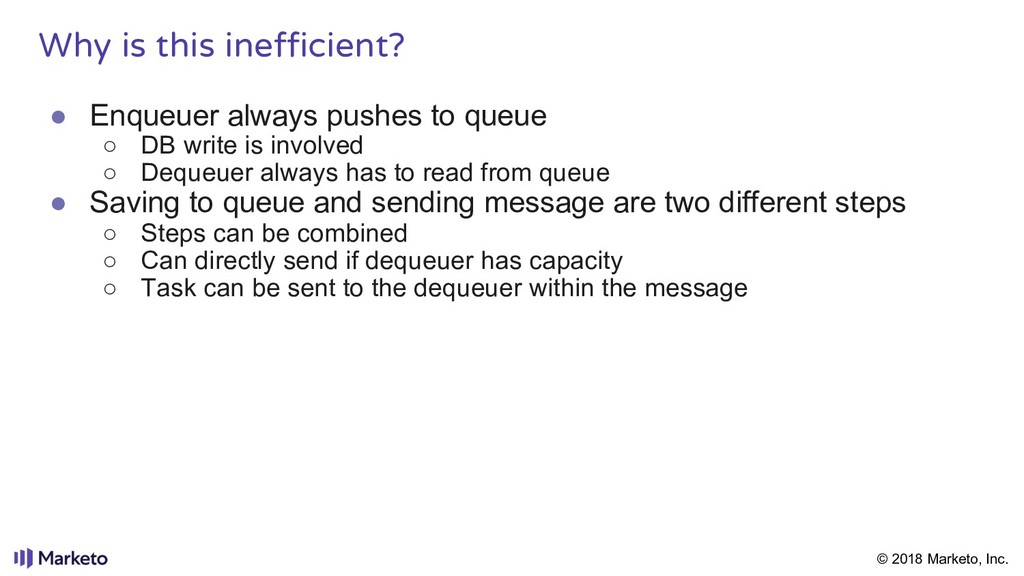

57. © 2018 Marketo, Inc. • Enqueuer always pushes to queue ◦ DB write is involved ◦ Dequeuer always has to read from queue • Saving to queue and sending message are two different steps ◦ Steps can be combined ◦ Can directly send if dequeuer has capacity ◦ Task can be sent to the dequeuer within the message Why is this inefficient?

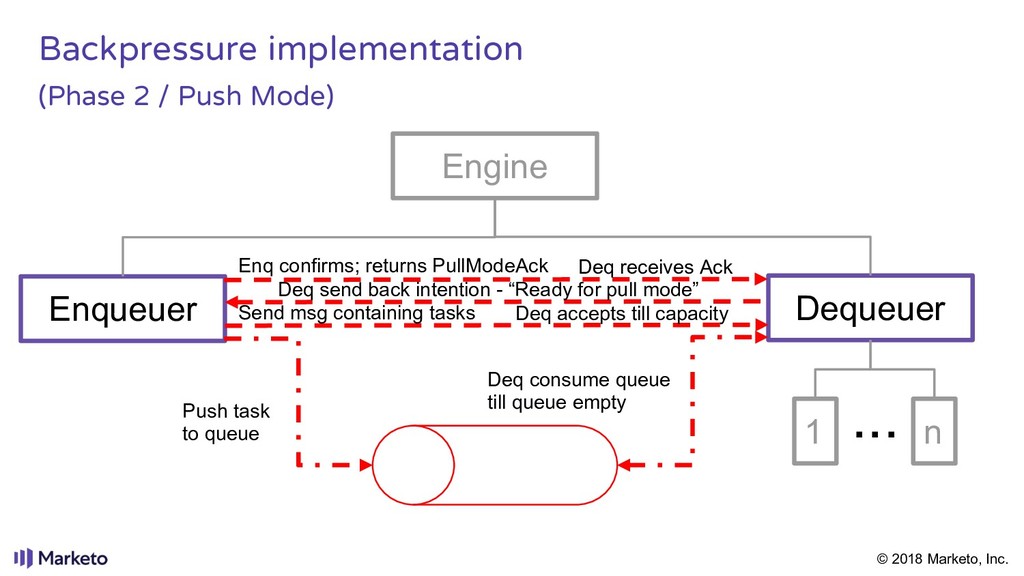

58. © 2018 Marketo, Inc. Backpressure implementation (Phase 2 / Push Mode) Enqueuer Dequeuer 1 n Engine ... Send msg containing tasks Deq accepts till capacity Deq send back intention - “Ready for pull mode” Deq consume queue till queue empty Push task to queue Enq confirms; returns PullModeAck Deq receives Ack

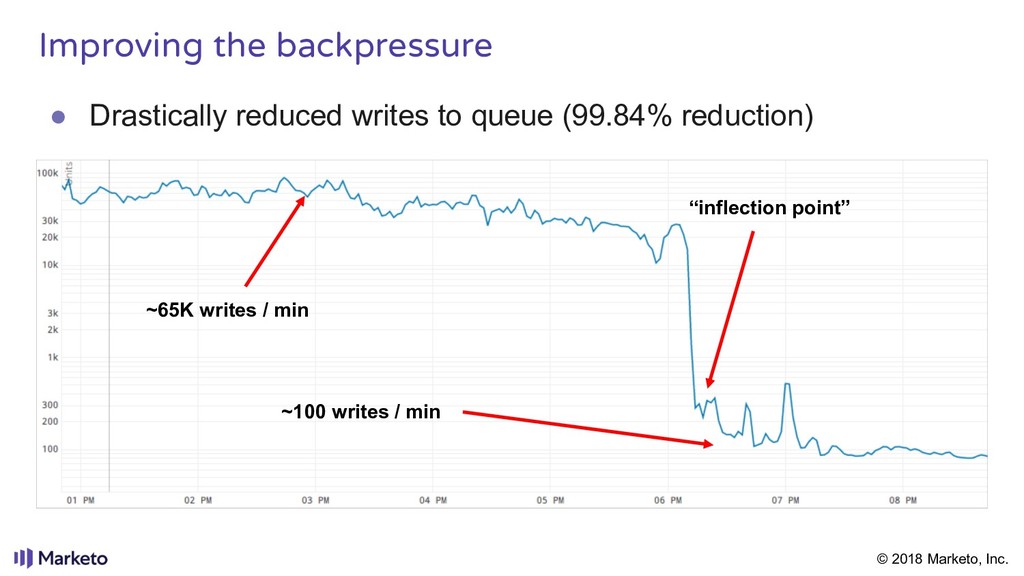

59. © 2018 Marketo, Inc. • Drastically reduced writes to queue (99.84% reduction) Improving the backpressure “inflection point” ~65K writes / min ~100 writes / min
60. Supporting Framework and Libraries

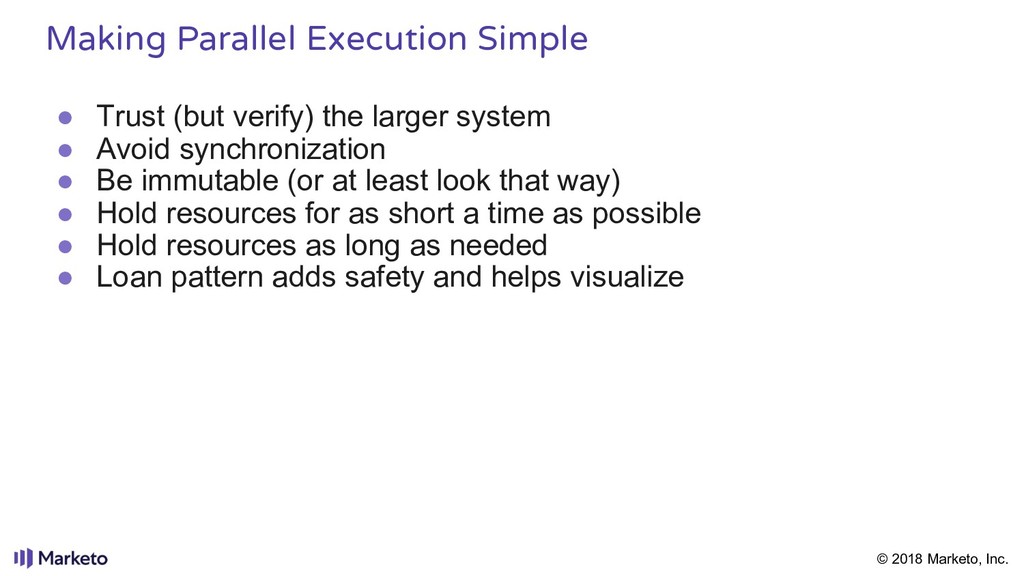

61. © 2018 Marketo, Inc. • Trust (but verify) the larger system • Avoid synchronization • Be immutable (or at least look that way) • Hold resources for as short a time as possible • Hold resources as long as needed • Loan pattern adds safety and helps visualize Making Parallel Execution Simple
62. Resource Pooling
63. © 2018 Marketo, Inc. Thread 1 Thread 2 Thread n . . . Holding resource Waiting for resource Working without resource Legacy System

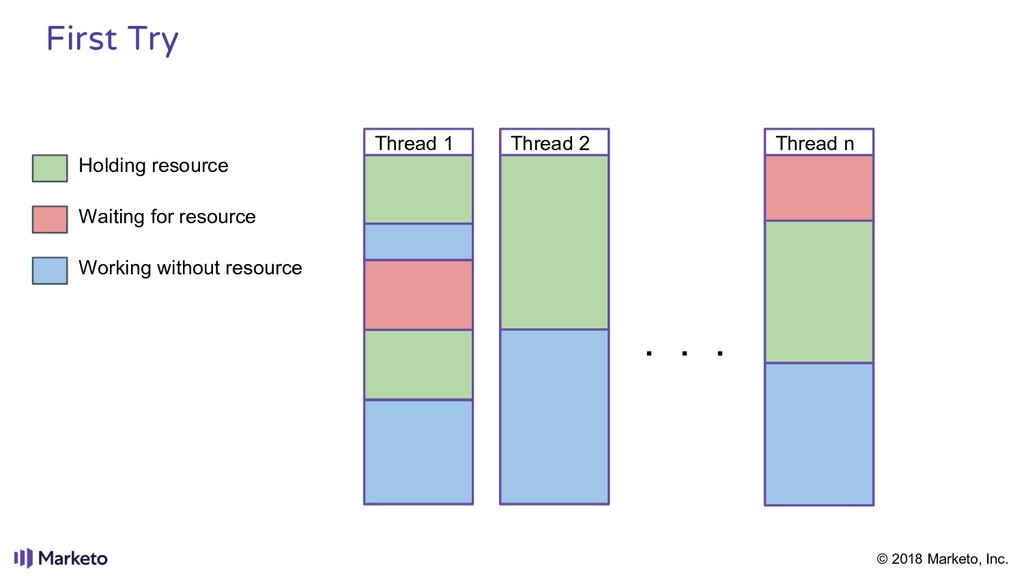

64. © 2018 Marketo, Inc. . . . Thread 1 Thread 2 Thread n Holding resource Waiting for resource Working without resource First Try

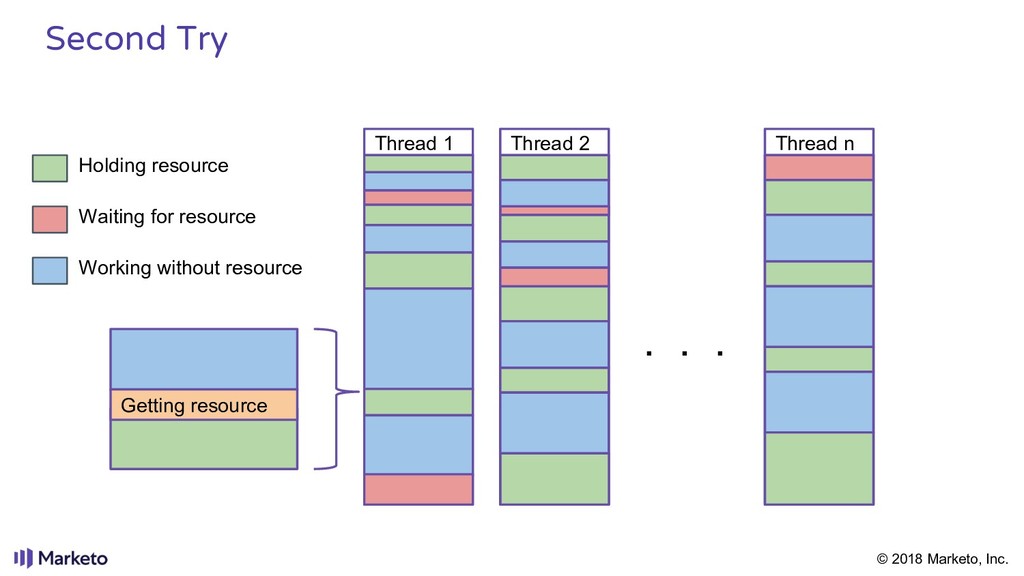

65. © 2018 Marketo, Inc. . . . Thread 1 Thread 2 Thread n Holding resource Waiting for resource Working without resource Second Try
66. © 2018 Marketo, Inc. . . . Getting resource Thread n Holding resource Waiting for resource Working without resource Second Try Thread 1 Thread 2

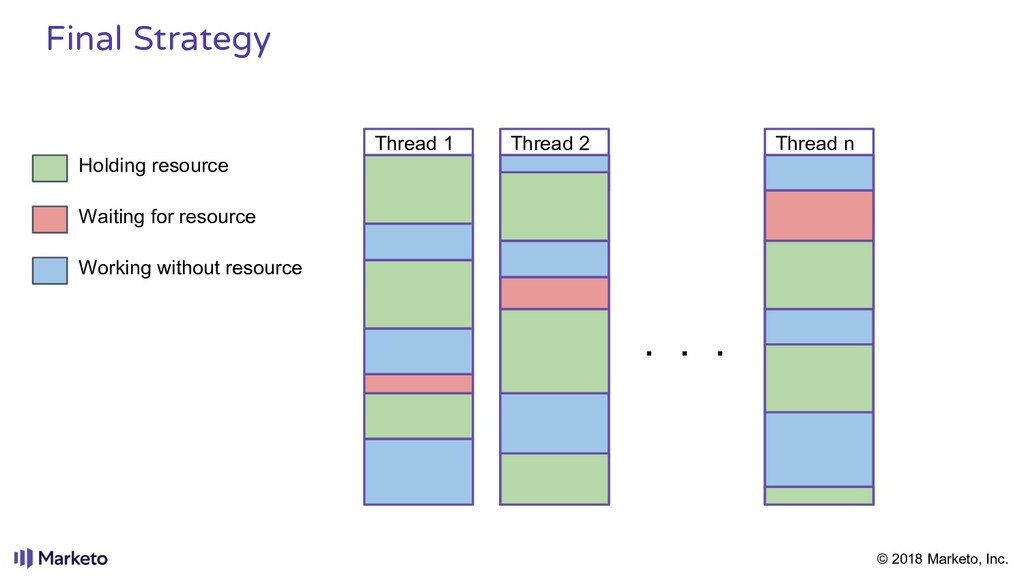

67. © 2018 Marketo, Inc. . . . Holding resource Waiting for resource Working without resource Thread 1 Thread 2 Thread n Final Strategy
68. Optimistic Updates
69. © 2018 Marketo, Inc. Tracking Change

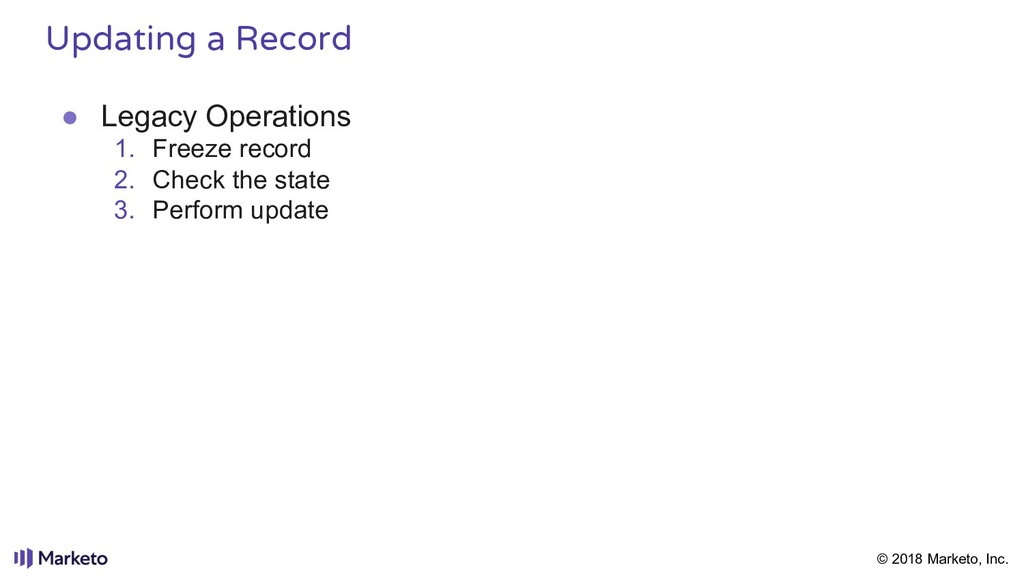

70. © 2018 Marketo, Inc. • Legacy Operations 1. Freeze record 2. Check the state 3. Perform update Updating a Record

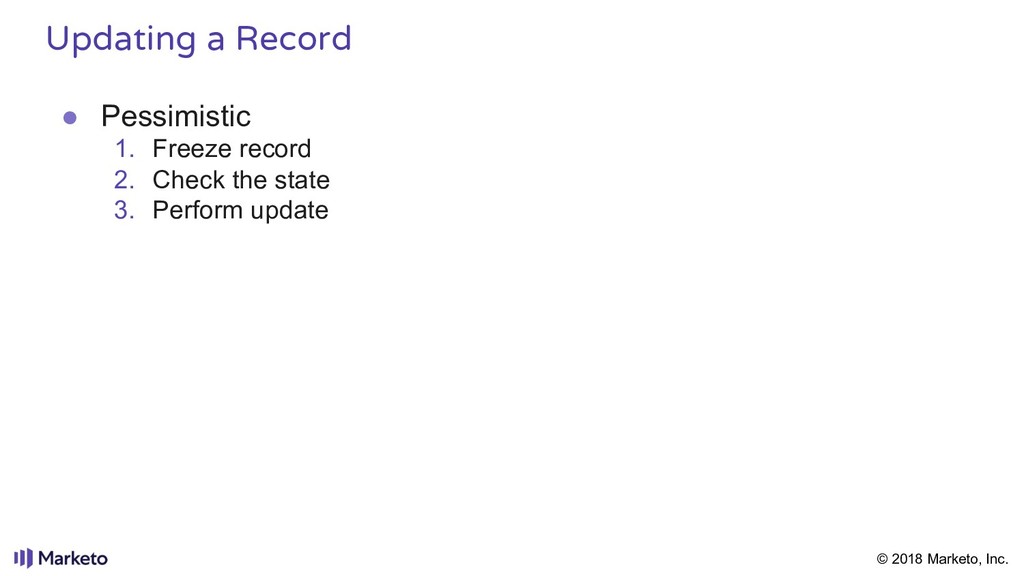

71. © 2018 Marketo, Inc. • Pessimistic 1. Freeze record 2. Check the state 3. Perform update Updating a Record

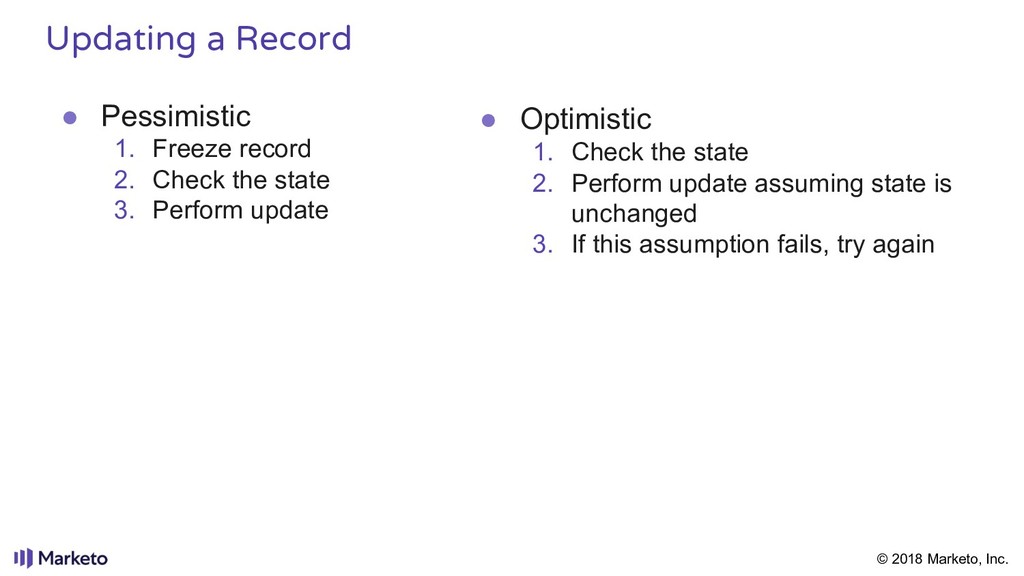

72. © 2018 Marketo, Inc. • Pessimistic 1. Freeze record 2. Check the state 3. Perform update • Optimistic 1. Check the state 2. Perform update assuming state is unchanged 3. If this assumption fails, try again Updating a Record

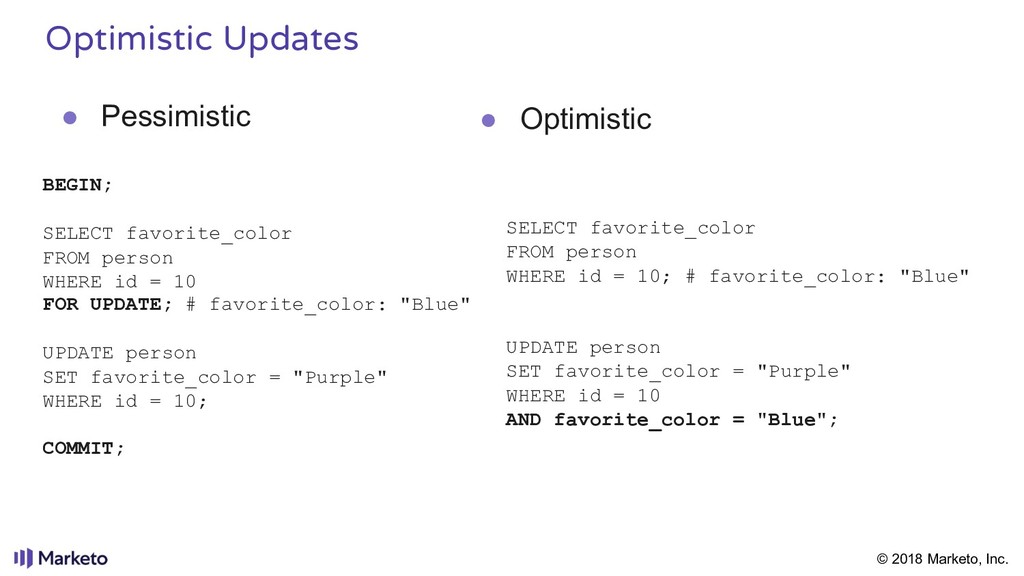

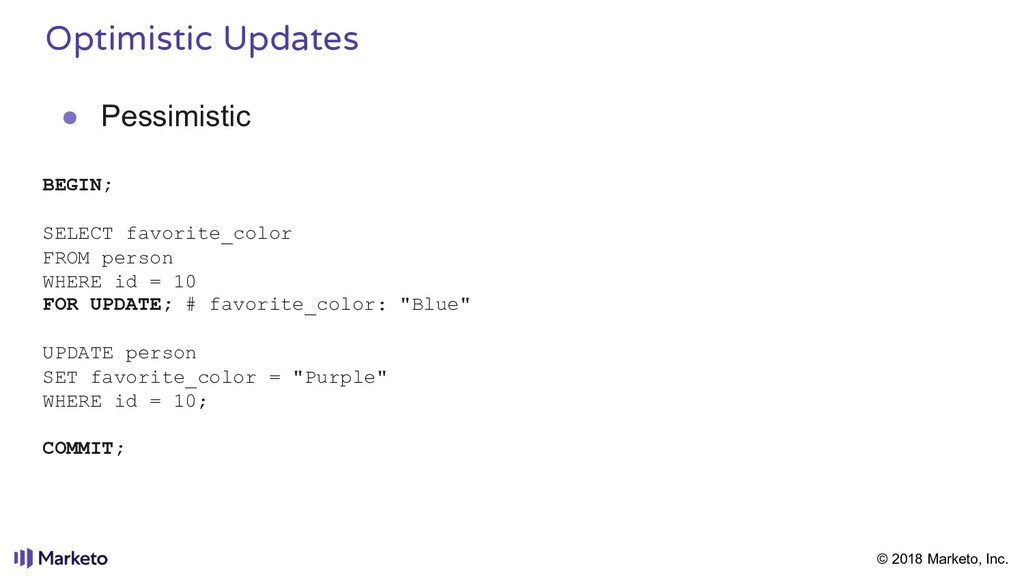

73. © 2018 Marketo, Inc. BEGIN; SELECT favorite_color FROM person WHERE id = 10 FOR UPDATE; # favorite_color: "Blue" UPDATE person SET favorite_color = "Purple" WHERE id = 10; COMMIT; Optimistic Updates • Pessimistic
74. © 2018 Marketo, Inc. • Optimistic BEGIN; SELECT favorite_color FROM person WHERE id = 10 FOR UPDATE; # favorite_color: "Blue" UPDATE person SET favorite_color = "Purple" WHERE id = 10; COMMIT; SELECT favorite_color FROM person WHERE id = 10; # favorite_color: "Blue" UPDATE person SET favorite_color = "Purple" WHERE id = 10 AND favorite_color = "Blue"; Optimistic Updates • Pessimistic
75. Loan Pattern

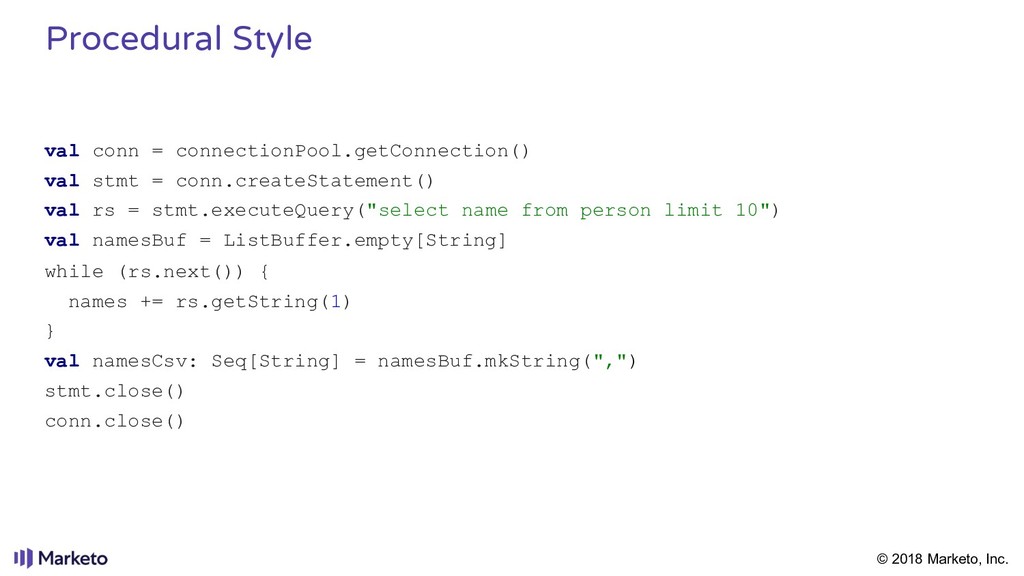

76. © 2018 Marketo, Inc. val conn = connectionPool.getConnection() val stmt = conn.createStatement() val rs = stmt.executeQuery("select name from person limit 10") val namesBuf = ListBuffer.empty[String] while (rs.next()) { names += rs.getString(1) } val namesCsv: Seq[String] = namesBuf.mkString(",") stmt.close() conn.close() Procedural Style

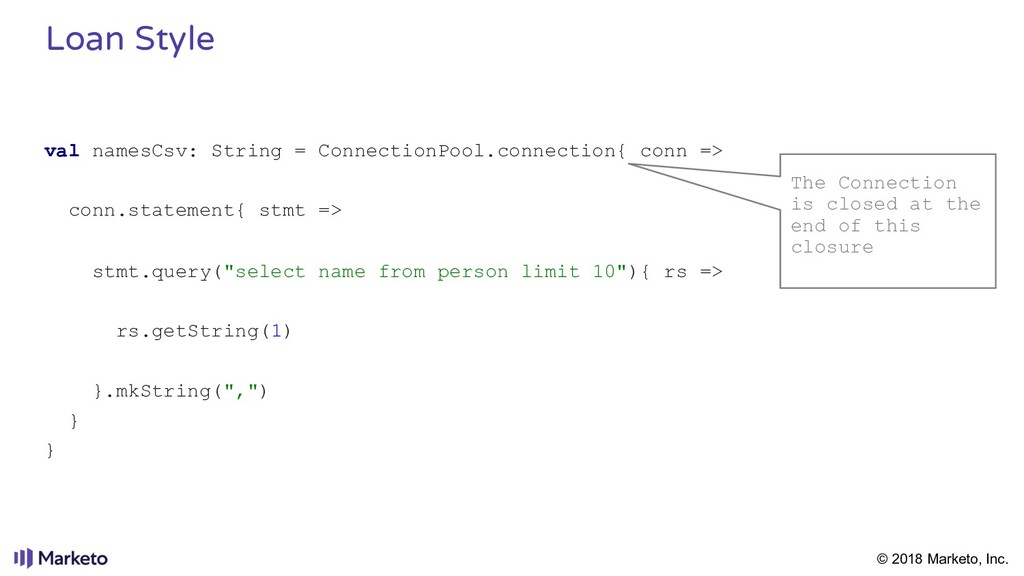

77. © 2018 Marketo, Inc. val namesCsv: String = ConnectionPool.connection{ conn => conn.statement{ stmt => stmt.query("select name from person limit 10"){ rs => rs.getString(1) }.mkString(",") } } Loan Style The Connection is closed at the end of this closure

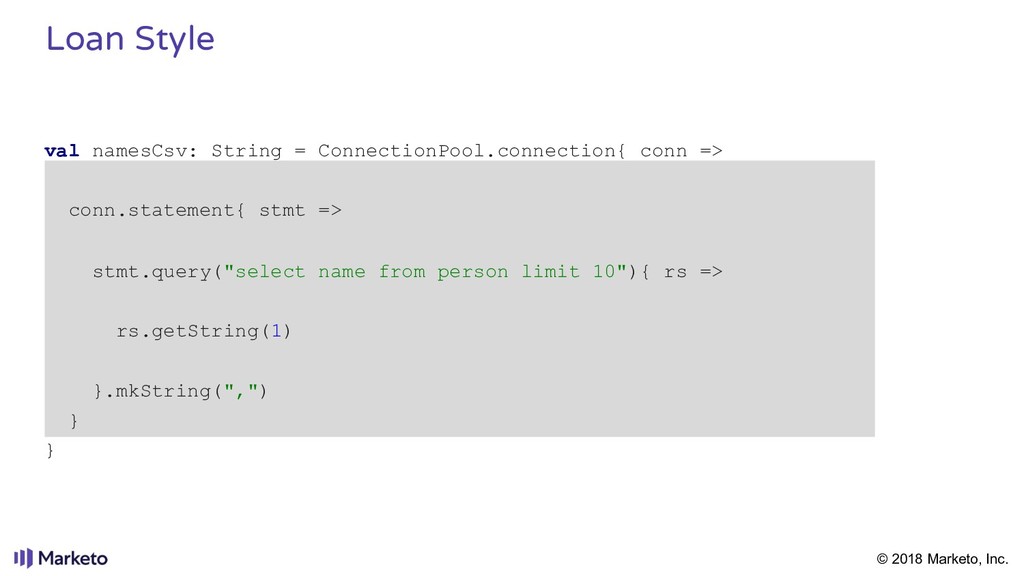

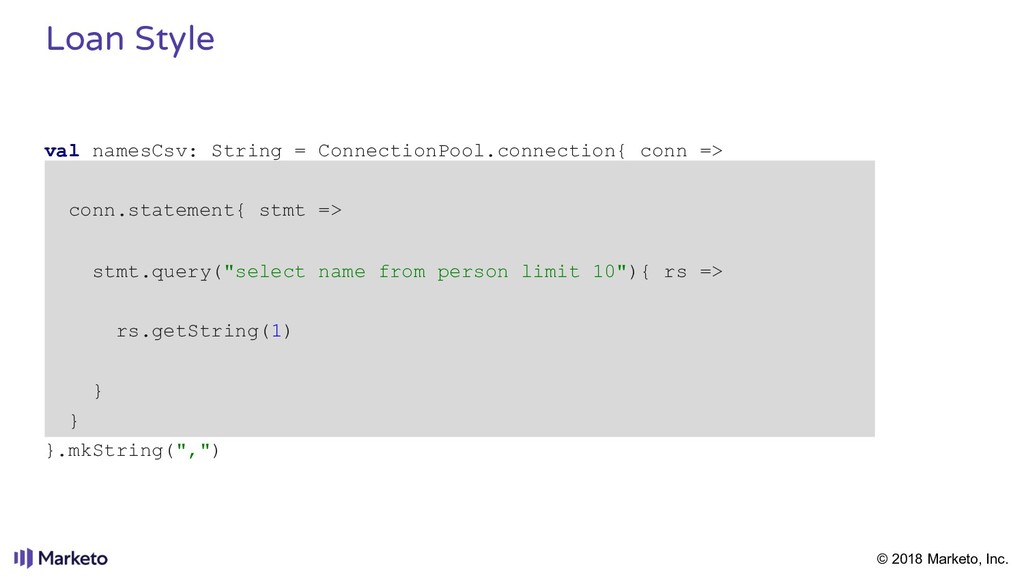

78. © 2018 Marketo, Inc. val namesCsv: String = ConnectionPool.connection{ conn => conn.statement{ stmt => stmt.query("select name from person limit 10"){ rs => rs.getString(1) }.mkString(",") } } Loan Style
79. © 2018 Marketo, Inc. val namesCsv: String = ConnectionPool.connection{ conn => conn.statement{ stmt => stmt.query("select name from person limit 10"){ rs => rs.getString(1) } } }.mkString(",") Loan Style
80. Reflection and the Road Ahead
81. © 2018 Marketo, Inc. • Legacy System runs on ◦ 3 physical machines, each with ▪ 40 Cores ▪ 32GB of RAM • Reactive System runs on ◦ 8 virtual machines, each with ▪ 4 Cores ▪ 8GB of RAM • Using ~¼ CPU and ~⅔ RAM we see a 20x increase in throughput per tenant Performance Statistics

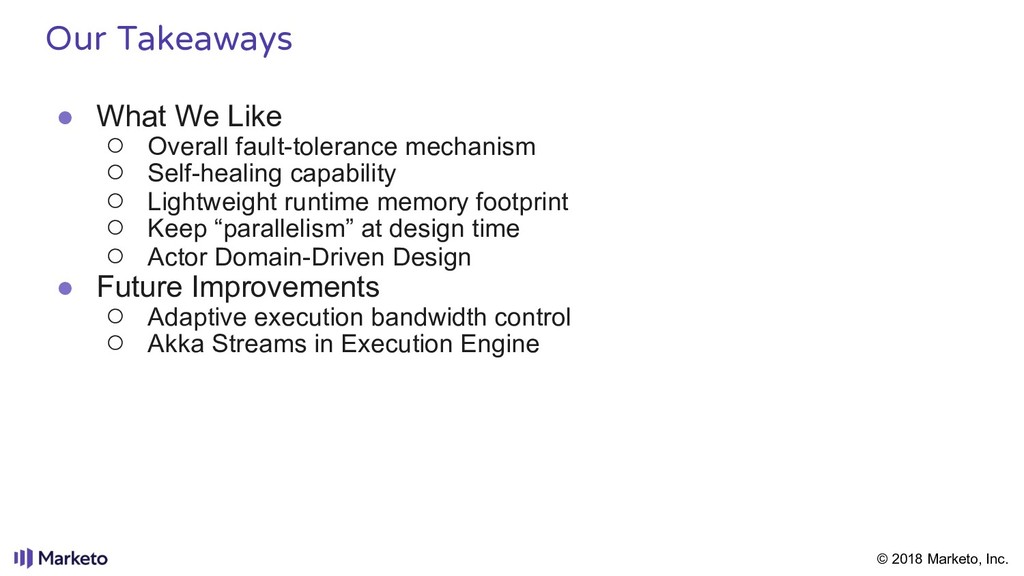

82. © 2018 Marketo, Inc. • What We Like ◦ Overall fault-tolerance mechanism ◦ Self-healing capability ◦ Lightweight runtime memory footprint ◦ Keep “parallelism” at design time ◦ Actor Domain-Driven Design • Future Improvements ◦ Adaptive execution bandwidth control ◦ Akka Streams in Execution Engine Our Takeaways
