Heuristics for Discovering Architectural Violations (WCRE 2013)

Software architecture conformance is a key software quality control activity that aims to reveal the progressive gap normally observed between concrete and planned software architectures. In this paper, we present ArchLint, a lightweight approach for architecture conformance based on a combination of static and historical source code analysis. For this purpose, ArchLint relies on four heuristics for detecting both absences and divergences in source code based architectures. We applied ArchLint in an industrial-strength system and as a result we detected 119 architectural violations, with an overall precision of 46.7% and a recall of 96.2%, for divergences. We also evaluated ArchLint with four open-source systems, used in an independent study on reflexion models. In this second study, ArchLint achieved precision results ranging from 57.1% to 89.4%.

Transcript

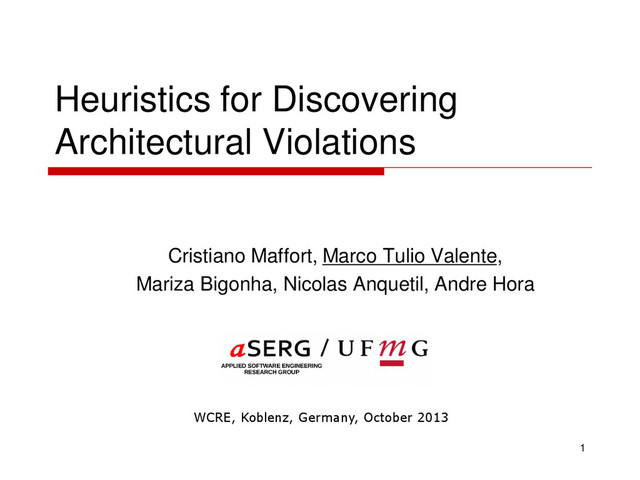

1. Heuristics for Discovering
   Architectural Violations
   Cristiano Maffort, Marco Tulio Valente,
   Mariza Bigonha, Nicolas Anquetil, Andre Hora
   1
   WCRE, Koblenz, Germany, October 2013


   View Slide

2. Software Architectures
   2
   Idealized


   View Slide

3. Software Architectures
   3
   Idealized Concrete


   View Slide

4. Architecture Conformance
    Goal: expose architectural violations
    Implementation decisions not following the planned
   architecture
   4


   View Slide

5. Architecture Conformance
    Goal: expose architectural violations
    Implementation decisions not following the planned
   architecture
    Two techniques:
    Domain-specific languages
    Model-based techniques
   5


   View Slide

6. Domain-Specific Languages
   6
   .QL DCL


   View Slide

7. Domain-Specific Languages
   7
   .QL DCL
   Problem: detailed definitions of constraints


   View Slide

8. Model-based Techniques
   8
   Reflexion Model


   View Slide

9. Model-based Techniques
   9
   Reflexion Model
   Problem: successive model refinements


   View Slide

10. Our Goal
    10
     Lightweight approach for conformance:
     Without constraints
     Without model refinements
     Minimal input information:
     Just a high-level component model (HLM)


    View Slide

11. ArchLint
     Our inspiration:
    11
    Bug Finding Tools
    (Lint, FindBugs, PMD,
    FxCop, etc)
    Warnings


    View Slide

12. ArchLint
     Our inspiration:
     Our approach:
    12
    Bug Finding Tools
    (Lint, FindBugs, PMD,
    FxCop, etc)
    Warnings


    View Slide

13. ArchLint
     Heuristics to detect absences and divergences
     Absences: dependencies prescribed by the HLM
     But that are not present in the concrete model
     Divergences: dependencies not prescribed by the HLM
     But that are present in the concrete model
     Heuristics:
     False positives are expected
    13


    View Slide

14. Heuristics
    14


    View Slide

15. Heuristics for Detecting Absences
    15
    Evidence #1: 4 classes dependend on TargetClass


    View Slide

16. Heuristics for Detecting Absences
    16
    Evidence #1: 4 classes dependend on TargetClass
    Evidence #2: 3 classes initially created without this
    dependency, but inserted it later


    View Slide

17. Heuristics for Detecting Absences
    17
    Evidence #1: 4 classes dependend on TargetClass
    Evidence #2: 3 classes initially created without this
    dependency, but inserted it later
    Evidence #1 && Evidence #2  architectural warning
    C2 missing a dependency with TargetClass


    View Slide

18. Heuristics #1 for Divergences
    18
    Evidence #1: cp2 is a heavy-user of TargetModule


    View Slide

19. Heuristics #1 for Divergences
    19
    Evidence #1: cp2 is a heavy-user of TargetModule
    Evidence #2: c2 is the only class in cp1 that depends on TargetModule


    View Slide

20. Heuristics #1 for Divergences
    20
    Evidence #1: cp2 is a heavy-user of TargetModule
    Evidence #2: c2 is the only class in cp1 that depends on TargetModule
    Evidence #3: dependency to TargetModule were removed from Cp1


    View Slide

21. Heuristics #1 for Divergences
    21
    Evidence #1: cp2 is a heavy-user of TargetModule
    Evidence #2: c2 is the only class in cp1 that depends on TargetModule
    Evidence #3: dependency to TargetModule were removed from Cp1
    Evidence #1 && Evidence #2 && Evidence #3  architectural warning
    C2 should not depend on TargetModule


    View Slide

22. Evaluation #1
    22


    View Slide

23. Evaluation
    23
     SGA System:
     EJB-based information system
     4,923 revisions
     March, 2009 to September, 2011
     1,852 classes and interfaces
     127 KLOC


    View Slide

24. Thresholds
     Absences:
     Asca
    = 0.9 -- 90% of the classes have dependency
     Ains
    = 0.35 -- 35% inserted the dependency
     Divergences
     Dsca
    = 0.05
     Ddel
    = 0.65
     Ddir
    = 0.05
    24


    View Slide

25. Precision and Recall
    25
     Classification made by the system’s architect
     For absences, architect classified each warning
     For divergences, architect classified existing
    dependencies


    View Slide

26. Precision and Recall
    26
     Classification made by the system’s architect
     For absences, architect classified each warning
     For divergences, architect classified existing
    dependencies


    View Slide

27. Precision and Recall
    27
     Classification made by the system’s architect
     For absences, architect classified each warning
     For divergences, architect classified existing
    dependencies


    View Slide

28. Evaluation #2
    28


    View Slide

29. RM Dataset
     RMs independently proposed by Bittencourt et al.
     Ant
     ArgoUML
     Lucene
     SweetHome3D
     False positives/negatives regarding such models
     Same thresholds from the 1st evaluation
    29


    View Slide

30.  Precision
    Results for Divergences
    30


    View Slide

31.  Precision
     Recall
    Results for Divergences
    31


    View Slide

32. Conclusion
     ArchLint:
     Lighweighted approach for architetcure conformance
     Minimal input
     Static and historical analysis
     Architetcural warnings
     Future work: heuristics based on data mining techniques
    (association rules)
    32


    View Slide

33. Thanks!
    Heuristics for Discovering Architectural Violations
    Cristiano Maffort, Marco Tulio Valente,
    Mariza Bigonha, Nicolas Anquetil, Andre Hora
    33
    WCRE, Koblenz, Germany, October 2013
