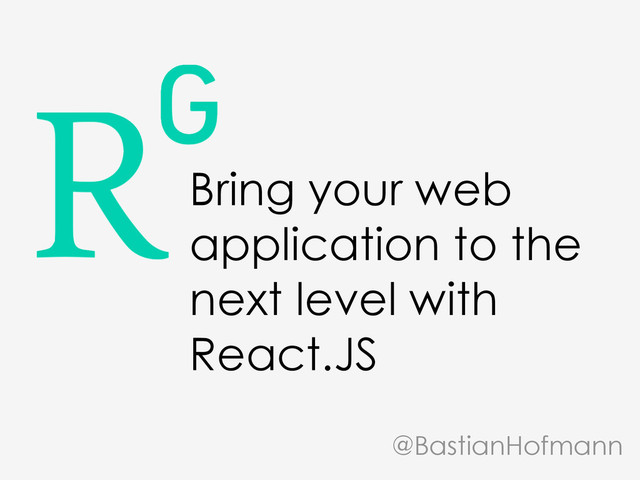

1. Bring your web application to the next level with React.JS @BastianHofmann
2. Let's talk about...
3. Application architecture
4. Code and component
   re-use
5. Rapid Development
6. Handling large code-bases
7. With PHP and React.js
8. webserver HTML browser JS controller
9. webserver HTML browser JS Ajax controller
10. webserver HTML browser JS Ajax controller
11. de duplication ode duplication code duplication code duplication code duplication code duplication code duplication code duplication code duplication code duplication code duplication code duplication code duplication code duplicatio code duplicat code duplic code dup code du code cod co co
12. So?
13. A few words about me
16. Questions? Ask
17. http://speakerdeck.com/u/bastianhofmann
18. Application architecture
19. many roads
21. status quo
22. webserver loadbalancer pgsql memcached mongodb services
23. webserver
24. webserver HTML browser JS Ajax controller
26. MVC
27. PHP templates
28. Duplication and only some Code re- use
29. We can do
    better
30. Small components over big controllers
39. Self contained
40. Can be used everywhere
41. Can be addressed and rendered separately
42. JS is part of the component
43. CSS can be part of the component
44. Share code between server and client
45. It needs to be fast
46. http://facebook.github.io/react/
47. JavaScript UI Library
48. Virtual DOM
49. Many small, self contained, reusable components
50. var HelloMessage = React.createClass(
 {
 render: function () {
 return <div>Hello {this.props.name}</div>;
 }
 }
 );

 React.render(<HelloMessage name="John" />, mountNode);
51. var Timer = React.createClass({
 getInitialState: function () {
 return {secs: 0};
 },
 tick: function () {
 this.setState({secs: this.state.secs + 1});
 },
 componentDidMount: function () {
 this.interval = setInterval(this.tick, 1000);
 },
 componentWillUnmount: function () {
 clearInterval(this.interval);
 },
 render: function () {
 return (<div> Seconds Elapsed: {this.state.secs}</div> );
 }
 });

 React.render(<Timer />, mountNode);
52. var TodoList = React.createClass(
 {
 render: function () {
 var createItem = function (itemText) {
 return <li>{itemText}</li>;
 };
 return ( <ul> {this.props.items.map(createItem)} </ul> );
 }
 }
 );
53. var TodoApp = React.createClass({
 getInitialState: function () {
 return {items: […]};
 },
 render: function () {
 return (
 <div>
 <h3>TODO</h3>
 <TodoList items={this.state.items} />
 </div>
 );
 }
 });
54. Getting the data in there
55. PHP Backend JSON React Frontend
56. PHP Backend JSON React Frontend
57. PHP Backend JSON React Frontend
58. PHP Backend JSON React Frontend
59. Problematic
60. Remember
61. Self-contained
62. Reusable
63. PHP Backend JSON React Frontend
64. PHP Backend JSON React Frontend
65. PHP Backend JSON React Frontend
66. Overfetching
67. Underfetching
68. Solutions
69. Flux Datastores
70. PHP Backend React Frontend Datastores
71. GraphQL https://gist.github.com/wincent/598fa75e22bdfa44cf47
72. Requirements
73. Profile Publications Publication Publication Publication AboutMe LeftColumn Image Institution Menu React Frontend
74. Profile Publications Publication Publication Publication AboutMe LeftColumn Image Menu PHP Backend Request Response Institution
75. LeftColumn Image Menu React Frontend
76. LeftColumn Image Menu Request Response PHP Backend
77. Remember:
    self contained
78. Profile Publications Publication Publication Publication AboutMe LeftColumn Image Menu Account Account Account Account Account Publication1 Publication2 Publication3 Institution
79. Do not fetch data directly
80. Sssssssllllooooowww
81. Require stuff
82. http://www.infoq.com/presentations/Evolution-of-Code- Design-at-Facebook/
84. Widget Widget Widget Widget Preparer Resolver Resolver Services Connector Interfaces Connector Implementations
85. Widget Widget Widget Widget Preparer Fetch Requirements Resolver Resolver Services Connector Interfaces Connector Implementations
86. Widget Widget Widget Widget Preparer Resolver Resolver Services Connector Interfaces Connector Implementations Batch requirements and pass them to resolvers
87. Widget Widget Widget Widget Preparer Resolver Resolver Services Connector Interfaces Connector Implementations Call Services as effective as possible (Multi-GET,...)
88. Widget Widget Widget Widget Preparer Resolver Resolver Services Connector Interfaces Connector Implementations Attach fetched data to Requirements and pass them back to the preparer
89. Widget Widget Widget Widget Preparer Resolver Resolver Services Connector Interfaces Connector Implementations Distribute fetched data to the widgets that required it
90. public function collect() {
 return [
 new EntityRequirement(
 'account',
 Account::class,
 ['id' => $this->request->get('id')]
 ),
 ];
 }
91. Request Cache
92. Multi-GET
93. Futures
94. Data dependencies within a widget
95. => Callbacks
96. public function collect() {
 return new RequirementCollection([
 new EntityRequirement(
 'account',
 Account::class,
 ['id' => $this->request->get('id')]
 ),
 ], function() {
 return new RequirementCollection([
 new ServiceRequirement(
 'scienceDisciplines',
 AccountService::class,
 'getScienceDisciplines',
 ['account' => $this->account]
 )
 ]);
 });
 }
97. PHP 5.5 Generators http://php.net/manual/de/language.generators.overview.php
98. public function collect() {
 yield [
 new EntityRequirement(
 'account',
 Account::class,
 ['id' => $this->request->get('id')]
 ),
 ];

 yield [
 new ServiceRequirement(
 'scienceDisciplines',
 AccountService::class,
 'getScienceDisciplines',
 ['account' => $this->account]
 )
 ];
 }
99. PHP 5.4 Traits http://us1.php.net/trait
100. yield [
 serviceRequirement( 'job',
 JobService::getCall()->getById(248)
 )
 ];
101. trait ServiceRequirementFactory {

 /** @return $this */
 public static function getCall() {
 return new ServiceRequirementFactoryProxy( static::class );
 }
 }
102. class ServiceRequirementFactoryProxy {

 private $className;

 public function __construct($className) {
 $this->className = $className;
 }

 public function __call($name, $arguments) {
 return [
 'serviceClass' => $this->className,
 'methodName' => $name,
 'arguments' => $arguments
 ];
 }

 }
103. Data dependencies between Widgets
104. Assembling the tree
105. Profile Publications Publication Publication Publication AboutMe LeftColumn Image Menu PHP Backend Request Response Institution
106. Widget
     Requirement
107. Prefills
108. Profile Publications Publication Publication Publication AboutMe LeftColumn Image Menu Institution
109. class PublicationKeywordSearch {

 public $publications;
 public $publicationListItems = [];

 public function collect() {
 yield [
 serviceRequirement(
 'publications',
 PublicationService::getCall()->getByKeywords(
 ['virology', 'cancer'], 10, 0
 )
 )
 ];
 foreach ($this->publications as $publication) {
 yield new WidgetRequirement(
 'publicationListItems',
 PublicationItem::CLASS,
 [ 'publicationId' => $publication->getId() ]
 );
 }
 }
 }
110. class PublicationItem {

 public $publicationId;
 public $publication;

 public function collect() {
 yield new RequestDataRequirement('publicationId');
 yield [
 new EntityRequirement(
 'publication',
 Publication::class,
 ['id' => $this->publicationId]
 )
 ];
 }
 }
111. Profile Publications Publication Publication Publication AboutMe LeftColumn Image Menu Institution
112. Institution Profile Publications Publication Publication Publication AboutMe LeftColumn Image Menu
113. Profile Publications Publication Publication Publication AboutMe LeftColumn Image Menu Institution
114. Profile Publications Publication Publication Publication AboutMe LeftColumn Image Menu Institution
115. Profile Publications Publication Publication Publication AboutMe LeftColumn Image Menu Institution
116. Profile Publications Publication Publication Publication AboutMe LeftColumn Image Menu Institution DONE
117. Getting the data to React.js
118. public function getData() {
 return [
 'key' => 'value',
 'other' => 'data',
 'number' => 42,
 'subComponent' => $this->subComponent,
 'someArray' => [1, 2, 3],
 'subComponentList' => [ $this->items[0], $this->items[1] ]
 ];
 }
119. {
 "component": "ParentComponent.jsx",
 "id": "ParentComponent-1234",
 "data": {
 "key": "value",
 "other": "data",
 "number": 42,
 "subComponent": {
 "component": "SubComponent.jsx",
 "id": "SubComponent",
 "data": { "boolValue": true }
 },
 "someArray": [1,2,3],
 "subComponentList": [
 {
 "component": "ListItem",
 "id": "ListItem-444",
 "data": { "title": "444s title“ }
 },
 {
 "component": "ListItem",
 "id": "ListItem-555",
 "data": { "title": "555s title“ }
 }
 ]
 }
 }
120. {
 "ParentComponent-1234": {
 "component": "ParentComponent.jsx",
 "id": "ParentComponent-1234",
 "data": {
 "key": "value",
 "other": "data",
 "number": 42,
 "subComponent": "SubComponent",
 "someArray": [1, 2, 3],
 "subComponentList": [ "ListItem-444", "ListItem-555"]
 }
 },
 "SubComponent": {
 "component": "SubComponent.jsx",
 "id": "SubComponent",
 "data": { "boolValue": true }
 },
 "ListItem-444": {
 "component": "ListItem",
 "id": "ListItem-444",
 "data": { "title": "444s title“ }
 },
 "ListItem-555": {
 "component": "ListItem",
 "id": "ListItem-555",
 "data": { "title": "555s title" }
 }
 }
121. var React = require('react');
 var SubComponent = require('SubComponent');
 var ListItem = require('ListItem');

 module.exports = React.createClass(
 {
 displayName: 'ParentComponent',
 render: function () {
 var items = [];

 for (var key in this.props.subComponentList) {
 if (this.props.subComponentList.hasOwnProperty(key)) {
 items.push(
 <li>
 <ListItem {...this.props.subComponentList[key]}></ListItem>
 </li>
 );
 }
 }

 return (
 <div className="{this.props.key}">
 <h1>{this.props.other} Hello PHP {this.props.number}</h1>
 <SubComponent {...this.props.subComponent}></SubComponent>
 <ul>{items}</ul>
 </div>
 );
 }
 }
 );
122. var React = require('react');

 module.exports = React.createClass(
 {
 displayName: 'ListItem',
 render: function () {
 return (
 <div>
 {this.props.title}
 </div>
 );
 }
 }
 );
123. Server side rendering
124. SEO
125. Better user experience
126. Several approaches
127. http://pecl.php.net/package/v8js V8js
128. Request HTML Preparer libV8 React PHP process Data array Rendered HTML string Hogan
129. NodeJS proxy
130. Request HTML Preparer nodeJS Proxy React PHP process Data JSON Rendered HTML string
131. NodeJS service
132. Request HTML Preparer nodeJS service PHP process Data JSON Rendered HTML string React Hogan
133. Bundling
134. http://webpack.github.io/
136. Whoa
137. This looks awfully complicated to debug
143. Benefits
144. Enables developers to only focus on their components
145. Rapid prototyping
146. Easier Refactoring
147. Easy re-using of components
148. Error Handling
149. Profile Publications Publication Publication Publication AboutMe LeftColumn Image Menu Institution
150. Profile Publications Publication Publication Publication AboutMe LeftColumn Image Menu EXCEPTION Institution
151. Profile Publications Publication Publication Publication LeftColumn Image Menu Institution
152. Experiments (A/B Testing)
153. Feature toggles
154. Profile Publications Publication Publication Publication AboutMe LeftColumn Image Menu Institution
155. Profile Publications Publication Publication Publication AboutMeNew LeftColumn Image Menu Institution
156. Caching of Components
157. Profile Publications Publication Publication Publication AboutMe LeftColumn Image Menu <esi:include src="..." /> Institution
158. Load components asynchronously
159. Profile Publications Publication Publication Publication AboutMe LeftColumn Image Menu <div id="placeholder"></div> <script>loadWidget('/aboutMe', function(w) { w.render({ replace : '#placeholder' }); })</script> Institution
160. Conclusion?
161. Think about your architecture
162. Refactor and make it better continuously
163. Frontend and backend are part of the same application
164. Don't rewrite your whole codebase in one go
165. http://twitter.com/BastianHofmann http://lanyrd.com/people/BastianHofmann http://speakerdeck.com/u/bastianhofmann mail@bastianhofmann.de
