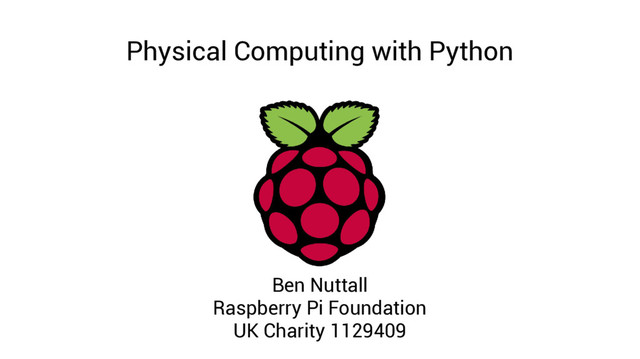

1. Physical Computing with Python
   Ben Nuttall
   Raspberry Pi Foundation
   UK Charity 1129409


   View Slide

2. Ben Nuttall
   ●
   Raspberry Pi Community Manager
   – Programmes & outreach
   – Software & project development
   – Learning resources & teacher training
   ●
   Hobbyist turned employee
   ●
   Based in Cambridge, UK
   ●
   @ben_nuttall on Twitter


   View Slide

3. Raspberry Pi


   View Slide

4. Raspberry Pi Foundation
   ●
   Educational charity founded
   in 2006
   ●
   Owns trading subsidiary
   Raspberry Pi Trading Ltd
   ●
   Trading profits fund
   educational programmes


   View Slide

5. A Computer (1981)


   View Slide

6. A Computer (2010)


   View Slide

7. Prototypes


   View Slide

8. Raspberry Pi (2012)
   Raspberry Pi Model B
   700MHz single core 32-bit CPU
   VideoCoreIV 3D GPU
   256MB RAM
   $35


   View Slide

9. Raspberry Pi Community


   View Slide

10. Raspberry Jam


    View Slide

11. Raspberry Jam
    raspberrypi.org/jam


    View Slide

12. Made in the UK
    ●
    Since 2013, Raspberry Pi has
    been manufactured by Sony
    in Wales
    ●
    20k units per day at peak


    View Slide

13. Raspberry Pi Compute Module
    Prototyping development board
    Build your product around the
    Raspberry Pi


    View Slide

14. Raspberry Pi Zero (2015)
    1GHz single core 32-bit CPU
    VideoCoreIV 3D GPU
    512MB RAM
    $5


    View Slide

15. Raspberry Pi 3 Model B (2016)
    1.2GHz quad core 64-bit CPU
    VideoCoreIV 3D GPU
    1GB RAM
    $35


    View Slide

16. Over 9 Million Raspberry Pis sold
    ●
    Minor revisions
    ●
    Model A
    ●
    Model B+
    ●
    Model A+
    ●
    Raspberry Pi 2 Model B
    ●
    Raspberry Pi Zero
    ●
    Raspberry Pi 3 Model B


    View Slide

17. Raspberry Pi Foundation Mission
    “Putting the power of digital making into the hands of people all
    over the world”


    View Slide

18. Raspberry Pi computers
    ●
    We produce low-cost high-
    power computers
    ●
    They keep getting better
    and/or cheaper :)
    ●
    Used in
    – education
    – hobby projects
    – industry


    View Slide

19. Raspberry Pi in Schools


    View Slide

20. Education
    ●
    We train teachers in
    computing
    ●
    We create free resources for
    use at home and school
    ●
    We run programmes to
    engage young people in
    digital making
    ●
    We support a network of Code
    Clubs in Primary Schools


    View Slide

21. Raspbian


    View Slide

22. Raspbian
    ●
    Launch programming
    applications
    ●
    Web browser
    ●
    Preferences and settings
    ●
    Shutdown & reboot
    ●
    Look – it's a real computer!


    View Slide

23. Physical computing
    ●
    Flashy lights
    ●
    Motors & robots
    ●
    Photo & video
    ●
    Sensors
    ●
    Internet of Things
    ●
    Engaging and empowering


    View Slide

24. GPIO Pins – General Purpose Input/Output


    View Slide

25. GPIO components


    View Slide

26. Add-on boards / HATs


    View Slide

27. Python - RPi.GPIO
    import RPi.GPIO as GPIO
    from time import sleep
    GPIO.setmode(GPIO.BCM)
    GPIO.setwarnings(False)
    GPIO.setup(17, GPIO.OUT)
    while True:
    GPIO.output(17, GPIO.HIGH)
    sleep(1)
    GPIO.output(17, GPIO.LOW)
    sleep(1)


    View Slide

28. GPIO in Scratch
    ●
    GPIO Server
    ●
    Use broadcast blocks
    ●
    Drag & drop programming
    – except when you have to
    write code in those broadcast
    blocks and get the syntax
    right as there's no error
    reporting...


    View Slide

29. Something more approachable?
    ●
    Teachers saying Python is too hard to teach with
    – Particularly RPi.GPIO and PyGame
    ●
    Teachers staying in Scratch too long
    – Need help moving to Python
    – GPIO in Scratch is difficult
    ●
    Problems with RPi.GPIO
    – Too much boilerplate code required for even simple examples
    – Lots of copy/paste for complex components
    – Not Pythonic


    View Slide

30. Python - GPIO Zero
    from gpiozero import LED
    from time import sleep
    led = LED(17)
    while True:
    led.on()
    sleep(1)
    led.off()
    sleep(1)


    View Slide

31. Python - GPIO Zero
    from gpiozero import LED
    led = LED(17)
    led.blink()


    View Slide

32. LED
    from gpiozero import LED
    led = LED(17)
    led.on() # on
    led.off() # off
    led.toggle() # on­>off or off­>on
    led.blink() # flash on/off continuously


    View Slide

33. Buzzer
    from gpiozero import Buzzer
    buzzer = Buzzer(18)
    buzzer.on() # on
    buzzer.off() # off
    buzzer.toggle() # on­>off or off­>on
    buzzer.beep() # beep on/off continuously


    View Slide

34. GitHub


    View Slide

35. Button polling (pull-up) – RPi.GPIO
    GPIO.setup(4, GPIO.IN, GPIO.PUD_UP)
    while True:
    if not GPIO.input(4):
    print(“Pressed”)


    View Slide

36. Button polling (pull-down) – RPi.GPIO
    GPIO.setup(4, GPIO.IN, GPIO.PUD_DOWN)
    while True:
    if GPIO.input(4):
    print(“Pressed”)


    View Slide

37. Button polling (pull-up) – GPIO Zero
    button = Button(4)
    while True:
    if button.is_pressed:
    print(“Pressed”)


    View Slide

38. Button polling (pull-down) – GPIO Zero
    button = Button(4, pull_up=False)
    while True:
    if button.is_pressed:
    print(“Pressed”)


    View Slide

39. Button wait_for_edge (pull-up) – RPi.GPIO
    GPIO.setup(4, GPIO.IN, GPIO.PUD_UP)
    while True:
    GPIO.wait_for_edge(4, GPIO.FALLING)
    print(“Pressed”)


    View Slide

40. Button wait_for_edge (pull-down) – RPi.GPIO
    GPIO.setup(4, GPIO.IN, GPIO.PUD_DOWN)
    while True:
    GPIO.wait_for_edge(4, GPIO.RISING)
    print(“Pressed”)


    View Slide

41. Button wait_for_press (pull-up) – GPIO Zero
    button = Button(4)
    while True:
    button.wait_for_press()
    print(“Pressed”)


    View Slide

42. Button wait_for_press (pull-down) – GPIO Zero
    button = Button(4, pull_up=False)
    while True:
    button.wait_for_press()
    print(“Pressed”)


    View Slide

43. Button callback – RPi.GPIO
    GPIO.setup(4, GPIO.IN, GPIO.PUD_UP)
    def pressed(pin):
    print(“Pressed”)
    GPIO.add_event_detect(4, GPIO.FALLING, pressed)


    View Slide

44. Button callback – GPIO Zero
    button = Button(4)
    def pressed():
    print(“Pressed”)
    button.when_pressed = pressed


    View Slide

45. Button callback – RPi.GPIO
    GPIO.setup(4, GPIO.IN, GPIO.PUD_UP)
    def pressed(pin):
    print(“Pin %s Pressed” % pin)
    GPIO.add_event_detect(4, GPIO.FALLING, pressed)


    View Slide

46. Button callback – GPIO Zero
    button = Button(4)
    def pressed(button):
    print(“Pin %s pressed” % button.pin.number)
    button.when_pressed = pressed


    View Slide

47. Button + LED
    from gpiozero import LED, Button
    led = LED(17)
    button = Button(4)
    button.when_pressed = led.on
    button.when_released = led.off


    View Slide

48. LED – PWM – RPi.GPIO
    GPIO.setup(17, GPIO.OUT) # pin 17
    p = GPIO.PWM(17, 100) # pin 17, frequency 100Hz
    p.start(0) # initial duty cycle
    for i in range(101):
    p.ChangeDutyCycle(i)
    sleep(0.01)


    View Slide

49. LED – PWM – GPIO Zero
    from gpiozero import PWMLED
    led = PWMLED(17)
    led.on() # on
    led.off() # off
    led.value = 0.5 # half brightness
    led.pulse() # blink with fade in/out


    View Slide

50. Full colour LED
    from gpiozero import RGBLED
    led = RGBLED(red=2, green=3, blue=4)
    led.red.on() # full red
    led.color = (1, 0, 1) # purple
    led.blue = 0.3 # dim the blue value to 0.3
    # now (1, 0, 0.3)


    View Slide

51. Traffic Lights
    from gpiozero import TrafficLights
    lights = TrafficLights(9, 10, 11)
    lights.on() # all on
    lights.off() # all off
    lights.red.on() # red on
    lights.toggle() # swap state of all lights


    View Slide

52. Traffic Lights sequence
    while True:
    lights.green.on()
    lights.amber.off()
    lights.red.off()
    sleep(10)
    lights.green.off()
    lights.amber.on()
    sleep(1)
    lights.amber.off()
    lights.red.on()
    sleep(10)
    lights.amber.on()
    sleep(1)
    lights.green.on()
    lights.amber.off()
    lights.red.off()


    View Slide

53. Traffic Lights sequence
    while True:
    lights.value = (1, 0, 0)
    sleep(10)
    lights.value = (0, 1, 0)
    sleep(1)
    lights.value = (0, 0, 1)
    sleep(10)
    lights.value = (0, 1, 1)
    sleep(1)


    View Slide

54. Traffic HAT
    from gpiozero import TrafficHat
    th = TrafficHat()
    th.lights.red.on()
    th.lights.amber.on()
    th.button.when_pressed = th.on
    th.button.when_released = th.off


    View Slide

55. TrafficHat - PWM
    from gpiozero import TrafficHat
    th = TrafficHat(pwm=True)
    th.lights.red.value = 0.2
    th.lights.amber.value = 0.4
    th.lights.green.value = 0.8


    View Slide

56. Motion sensor
    from gpiozero import LED, MotionSensor
    led = LED(2)
    sensor = MotionSensor(3)
    sensor.when_motion = led.on
    sensor.when_no_motion = led.off


    View Slide

57. Light sensor
    from gpiozero import LED, LightSensor
    led = LED(2)
    sensor = LightSensor(3)
    while True:
    sensor.wait_for_light()
    print("It's light!")
    sensor.wait_for_dark()
    print("It's dark")


    View Slide

58. Motor
    from gpiozero import Motor
    from time import sleep
    motor = Motor(forward=17, backward=18)
    while True:
    motor.forward()
    sleep(5)
    motor.backward()
    sleep(5)


    View Slide

59. Robot
    from gpiozero import Robot
    from time import sleep
    robot = Robot(left=(17, 18), right=(22, 23))
    while True:
    robot.forward()
    sleep(10)
    robot.left()
    sleep(1)


    View Slide

60. Pre-configured robot interfaces
    robot = RyanteckRobot()
    robot = CamJamKitRobot()


    View Slide

61. Button controlled Robot
    from gpiozero import RyanteckRobot, Button
    robot = RyanteckRobot()
    left = Button(26)
    right = Button(16)
    fw = Button(21)
    bw = Button(20)
    fw.when_pressed = robot.forward
    fw.when_released = robot.stop
    left.when_pressed = robot.left
    left.when_released = robot.stop
    right.when_pressed = robot.right
    right.when_released = robot.stop
    bw.when_pressed = robot.backward
    bw.when_released = robot.stop


    View Slide

62. Picamera
    from picamera import PiCamera
    from gpiozero import Button
    from datetime import datetime
    camera = PiCamera()
    left = Button(4)
    right = Button(5)
    def capture():
    dt = datetime.now().isoformat()
    camera.capture('/home/pi/%s.jpg' % dt)
    left.when_pressed = camera.start_preview
    left.when_released = camera.stop_preview
    right.when_pressed = capture


    View Slide

63. Push button stop motion
    from gpiozero import Button
    from picamera import PiCamera
    camera = PiCamera()
    button = Button(4)
    camera.start_preview()
    frame = 1
    while True:
    button.wait_for_press()
    camera.capture('/home/pi/frame%03d.jpg' % frame)
    frame += 1


    View Slide

64. Analogue - potentiometers
    from gpiozero import MCP3008
    pot = MCP3008()
    while True:
    print(pot.value)


    View Slide

65. Dial up the brightness!
    from gpiozero import PWMLED, MCP3008
    led = PWMLED(2)
    pot = MCP3008()
    while True:
    led.value = pot.value


    View Slide

66. Colour mixing
    from gpiozero import RGBLED, MCP3008
    led = RGBLED(red=2, green=3, blue=4)
    red_pot = MCP3008(channel=0)
    green_pot = MCP3008(channel=1)
    blue_pot = MCP3008(channel=2)
    while True:
    led.red = red_pot.value
    led.green = green_pot.value
    led.blue = blue_pot.value


    View Slide

67. #76 while True: led.red = pot.value


    View Slide

68. #76 while True: led.red = pot.value


    View Slide

69. #76 while True: led.red = pot.value


    View Slide

70. #76 while True: led.red = pot.value


    View Slide

71. Source / Values
    Output Device
    .value
    .values
    .source
    Input Device
    .value
    .values


    View Slide

72. Source / Values
    Output Device
    .value
    .values
    .source
    Input Device
    .value
    .values


    View Slide

73. Dial up the brightness!
    from gpiozero import PWMLED, MCP3008
    led = PWMLED(2)
    pot = MCP3008()
    led.source = pot.values


    View Slide

74. Colour mixing
    from gpiozero import RGBLED, MCP3008
    led = RGBLED(red=2, green=3, blue=4)
    red_pot = MCP3008(channel=0)
    green_pot = MCP3008(channel=1)
    blue_pot = MCP3008(channel=2)
    led.red.source = red_pot.values
    led.green.source = green_pot.values
    led.blue.source = blue_pot.values


    View Slide

75. Colour mixing
    from gpiozero import RGBLED, MCP3008
    led = RGBLED(red=2, green=3, blue=4)
    red_pot = MCP3008(channel=0)
    green_pot = MCP3008(channel=1)
    blue_pot = MCP3008(channel=2)
    led.source = zip(
    red_pot.values,
    green_pot.values,
    blue_pot.values
    )


    View Slide

76. Source / Values
    Output Device
    .value
    .values
    .source
    Custom generator
    while True:
    …
    yield value


    View Slide

77. Custom value generators
    blue = PWMLED(16)
    blue.source_delay = 0.1
    blue.source = (i / 10000 for i in range(10000))


    View Slide

78. Custom value generators
    Output Device
    .value
    .values
    .source
    Input Device
    .value
    .values
    Custom generator
    e.g. read_slowly


    View Slide

79. Custom value generators
    def read_slowly(values):
    for i in values:
    yield i
    sleep(0.1)
    blue.source = read_slowly(sensor.values)


    View Slide

80. Source Tools
    Output Device
    .value
    .values
    .source
    Input Device
    .value
    .values
    Source tool
    e.g. invert


    View Slide

81. Source Tools
    from gpiozero import PWMLED, MCP3008
    from gpiozero.tools import inverted
    led = PWMLED(4)
    pot = MCP3008(channel=0)
    led.source = inverted(pot.values)


    View Slide

82. LEDBoard
    from gpiozero import LEDBoard
    from time import sleep
    leds = LEDBoard(2, 3, 4, 5, 6)
    for led in leds:
    led.on()
    sleep(1)
    leds.off()


    View Slide

83. LEDBarGraph
    from gpiozero import LEDBoard
    from time import sleep
    leds = LEDBarGraph(2, 3, 4, 5, 6, 7)
    leds.value = 1/2 # (1, 1, 1, 0, 0, 0)
    leds.value = ­1/2 # (0, 0, 0, 1, 1, 1)
    leds.value = 1/4 # (1, 0, 0, 0, 0, 0)


    View Slide

84. LEDBarGraph - PWM
    from gpiozero import LEDBoard
    from time import sleep
    leds = LEDBarGraph(2, 3, 4, 5, 6, 7, pwm=True)
    leds.value = 1/4 # (1, 0.5, 0, 0, 0, 0)
    leds.value = 3/4 # (1, 1, 1, 1, 0.5, 0)


    View Slide

85. Supporting multiple back-ends
    1) RPi.GPIO
    2) RPIO
    3) pigpio
    4) Native


    View Slide

86. pigpio - remote GPIO from Pi or PC
    from gpiozero import LED
    from gpiozero.pins.pigpiod import PiGPIOPin
    led = LED(PiGPIOPin(12, host='192.168.0.2'))
    led.blink()


    View Slide

87. GPIO Zero Timeline
    ●
    12 Sept – Idea sparked
    ●
    14 Sept – Initial commit on GitHub
    ●
    15 Sept – Named GPIO Zero, first PR, first alpha released on PyPI
    ●
    28 Sept – v0.6 public beta 1
    ●
    25 Oct – v0.9 public beta 4
    ●
    16 Nov – v1.0 released
    ●
    21 Nov – Released in Raspbian Jessie
    ●
    8 Feb – v1.1 released
    ●
    10 Apr – v1.2 released


    View Slide

88. v1.0
    ●
    200 commits
    ●
    2 contributors (+4 minor contributions)
    ●
    103 GitHub issues (53 issues, 50 PRs)
    ●
    4 alpha releases
    ●
    4 beta releases
    ●
    68 days between initial commit and major release


    View Slide

89. v1.3 (a work in progress)
    ●
    522 commits
    ●
    5 contributors (+8 minor contributions)
    ●
    390 GitHub issues (178 issues, 212 PRs)


    View Slide

90. Future development
    ●
    Add more components
    ●
    Probably move default from RPi.GPIO to pigpio
    ●
    Better remote GPIO support
    ●
    Promote use of “gpiozero standard” to allow other modules to
    provide objects which plug-in to gpiozero objects easily (e.g.
    source/values)


    View Slide

91. Install GPIO Zero
    ●
    Pre-installed in Raspbian Jessie since November
    ●
    Update with:
    sudo apt­get update
    ●
    Install with:
    sudo apt­get install python3­gpiozero
    or:
    sudo apt­get install python­gpiozero


    View Slide

92. GPIO Zero
    ●
    gpiozero.readthedocs.io
    – Installation instructions
    – API Documentation
    – Examples
    ●
    GitHub Issues
    – Suggestions
    – Feedback
    ●
    Contact me
    – ben@raspberrypi.org
    – @ben_nuttall on Twitter
    ●
    #gpiozero on Twitter


    View Slide

93. Zero all the things!
    ●
    PyGame Zero
    ●
    GPIO Zero
    ●
    Network Zero
    ●
    BlueZero


    View Slide

94. How can you get involved?


    View Slide

95. www.raspberrypi.org
    ●
    Daily blog articles – news,
    projects and stories
    ●
    OS Downloads
    ●
    Help pages
    ●
    Documentation
    ●
    Community sites
    ●
    Forums


    View Slide

96. Raspberry Pi Learning Resources
    ●
    Teach, Learn and Make
    ●
    Free
    ●
    Open source
    ●
    Creative Commons
    ●
    Created by Raspberry Pi
    Education Team
    ●
    Scratch, Python and more


    View Slide

97. Raspberry Pi Weekly
    ●
    Free weekly email newsletter
    ●
    Raspberry Pi news, projects
    and articles
    ●
    3 years of issues on the
    website
    ●
    raspberrypi.org/weekly


    View Slide

98. The MagPi
    ●
    Community magazine established
    in 2012 (as free PDF download)
    ●
    Now the official Raspberry Pi
    magazine
    ●
    Paper copies on sale in UK shops
    and online
    ●
    Still a free PDF download
    ●
    Occasionally comes with a free
    computer
    ●
    Book series (also available for free)


    View Slide

99. Raspberry Jam in Russia
    ●
    Start a Raspberry Jam in your
    area
    ●
    Create opportunities for kids
    to learn programming
    ●
    Share skills and projects
    ●
    See www.raspberrypi.org/jam
    ●
    Contact me for support


    View Slide

100. Code Club in Russia
     ●
     Translate our projects
     ●
     Run a club for 9-11 year olds
     ●
     Become a country
     coordinator
     ●
     See www.codeclubworld.org
     ●
     Contact me or
     indra@codeclub.org.uk


     View Slide

101. How can you get involved?


     View Slide
