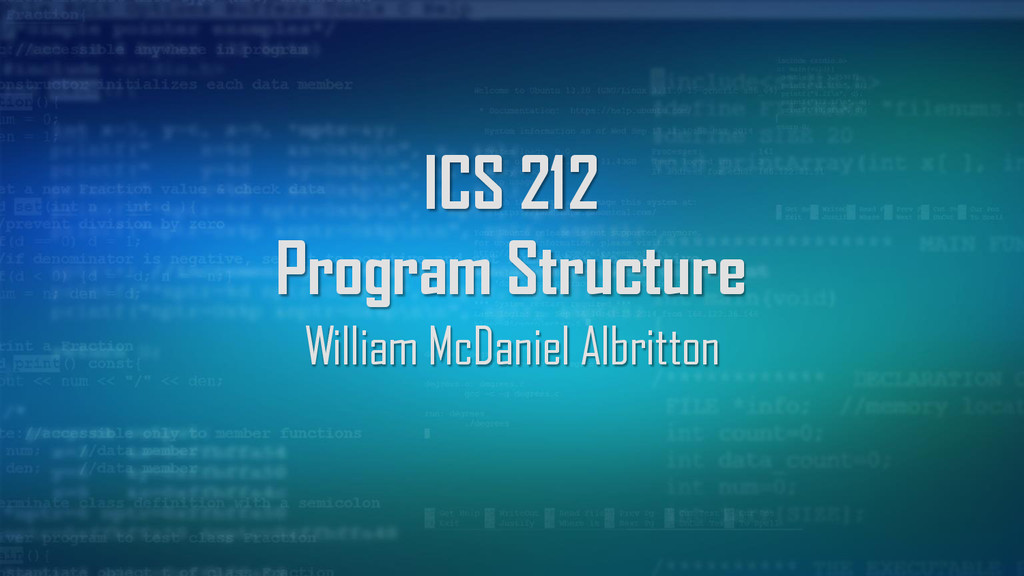

1. ICS 212 Program Structure William McDaniel Albritton

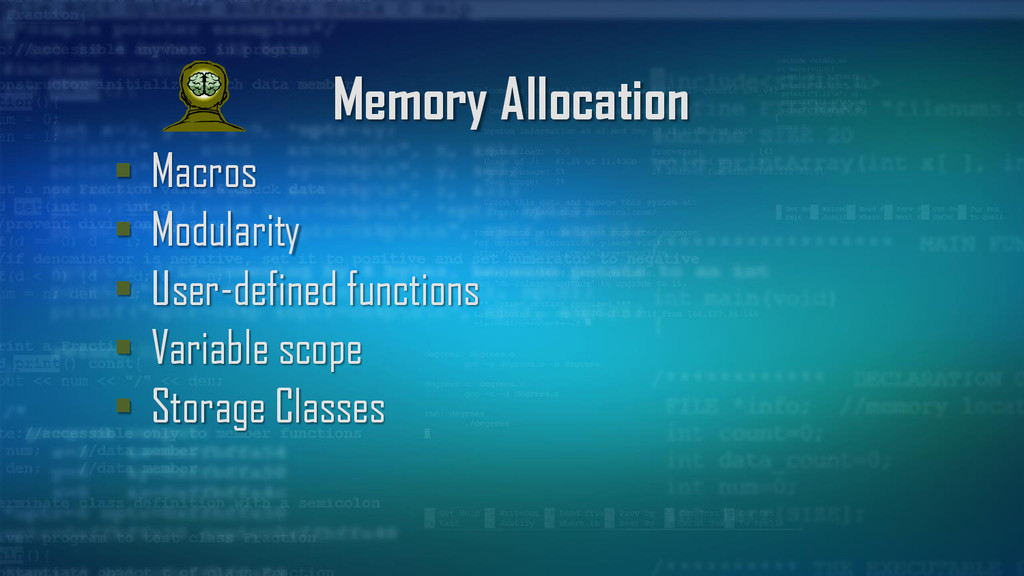

2. Memory Allocation  Macros  Modularity  User-defined functions  Variable scope  Storage Classes
4. Macros
5. Function-like Macros  A macro is an identifier defined in a #define preprocessor directive  Function-like macros look similar to functions, but they are actually text that is replacement before the program is compiled
6. Macro Example  This macro calculates the area of a circle #define PI 3.14159265358979323846 #define CIRCLE_AREA(R) PI*R*R int main(){ double radius = 10.0; double area = CIRCLE_AREA(radius);

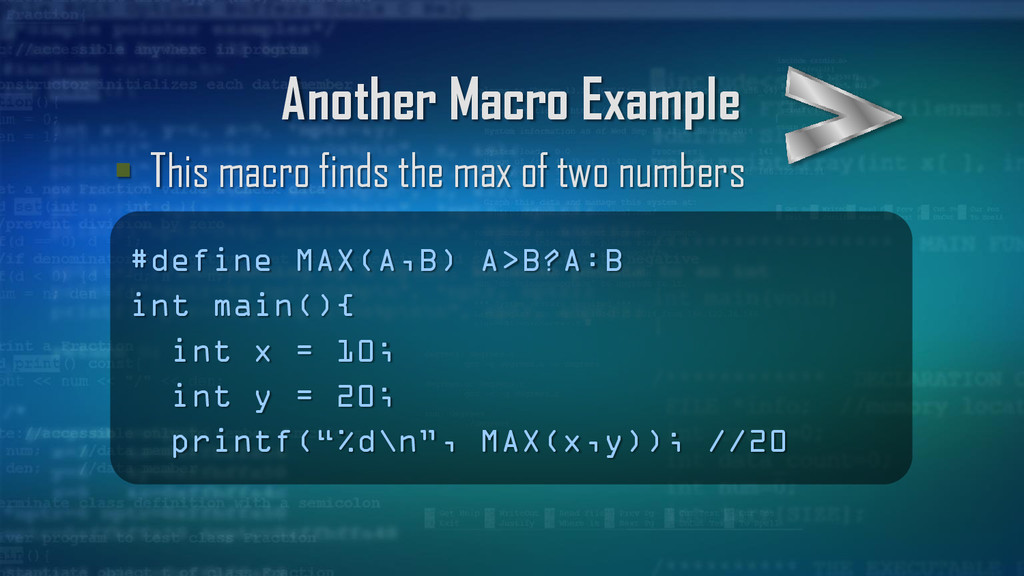

7. Another Macro Example  This macro finds the max of two numbers #define MAX(A,B) A>B?A:B int main(){ int x = 10; int y = 20; printf(“%d\n”, MAX(x,y)); //20

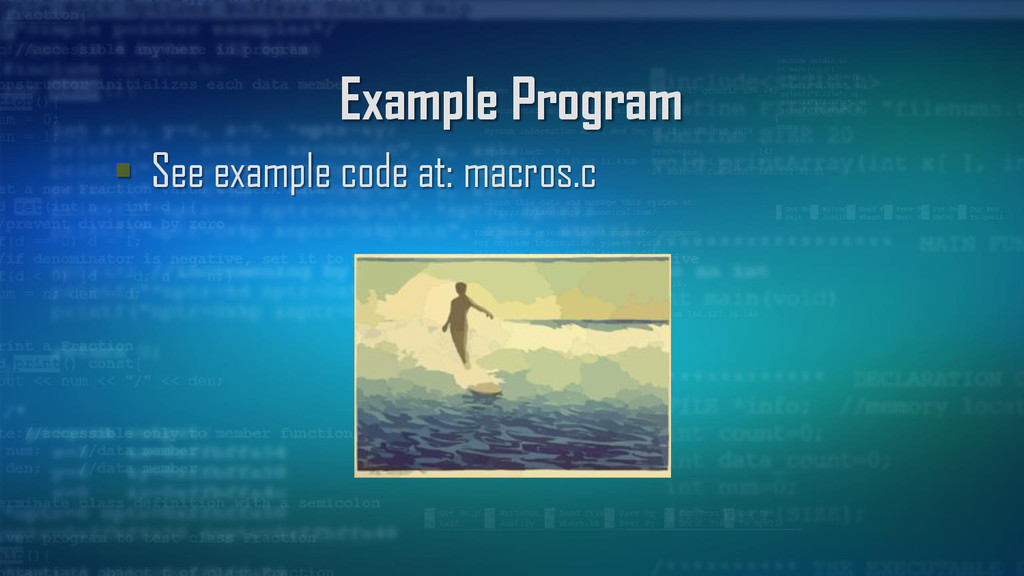

8. Example Program  See example code at: macros.c

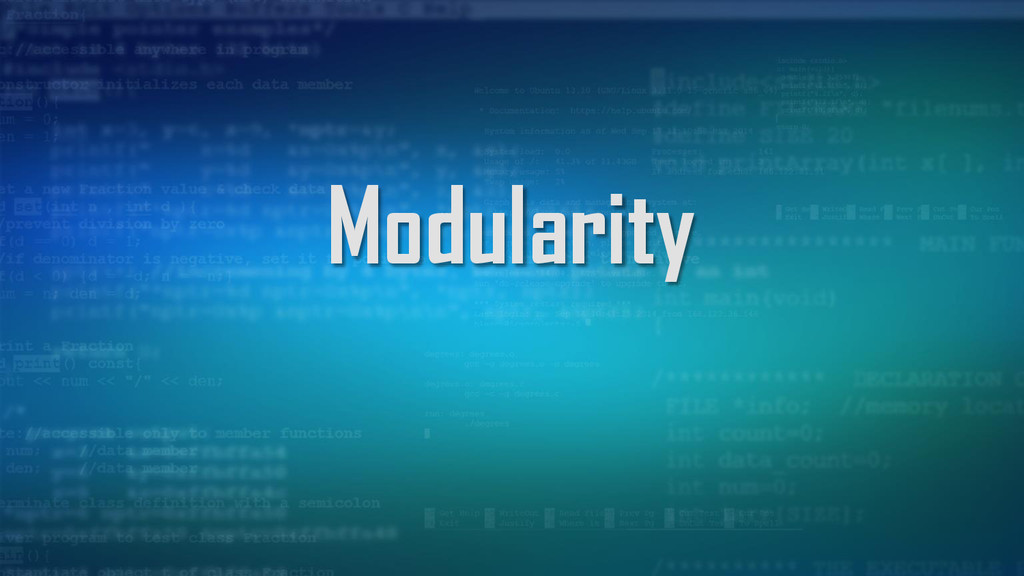

10. Modularity

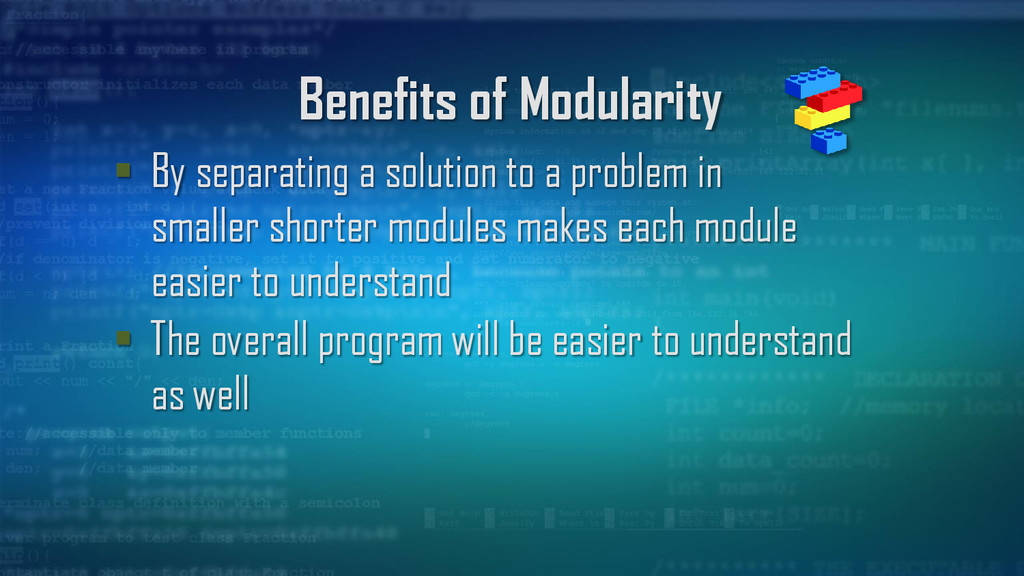

11. Benefits of Modularity  By separating a solution to a problem in smaller shorter modules makes each module easier to understand  The overall program will be easier to understand as well

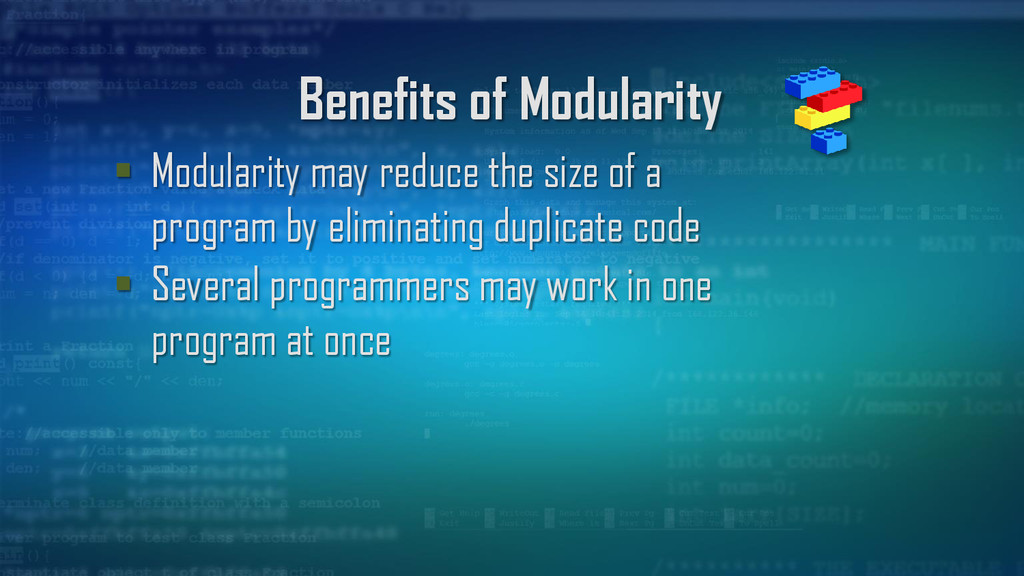

12. Benefits of Modularity  Modularity may reduce the size of a program by eliminating duplicate code  Several programmers may work in one program at once

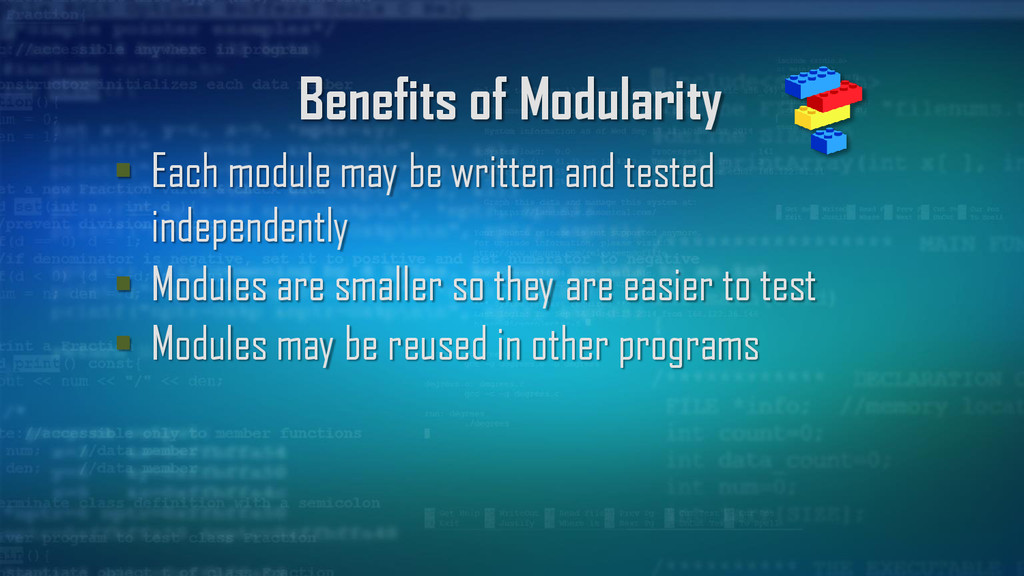

13. Benefits of Modularity  Each module may be written and tested independently  Modules are smaller so they are easier to test  Modules may be reused in other programs

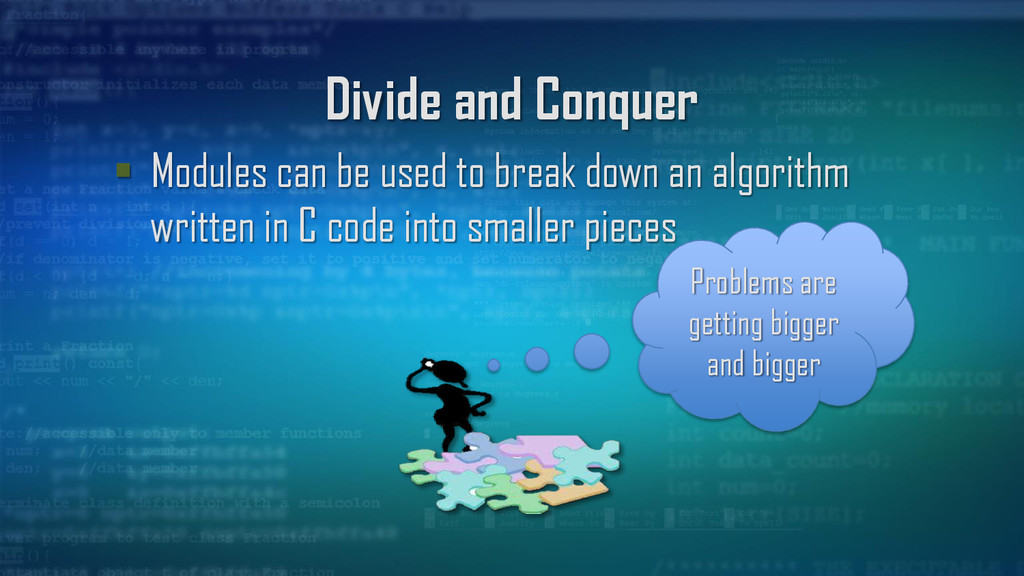

14. Divide and Conquer  Modules can be used to break down an algorithm written in C code into smaller pieces Problems are getting bigger and bigger

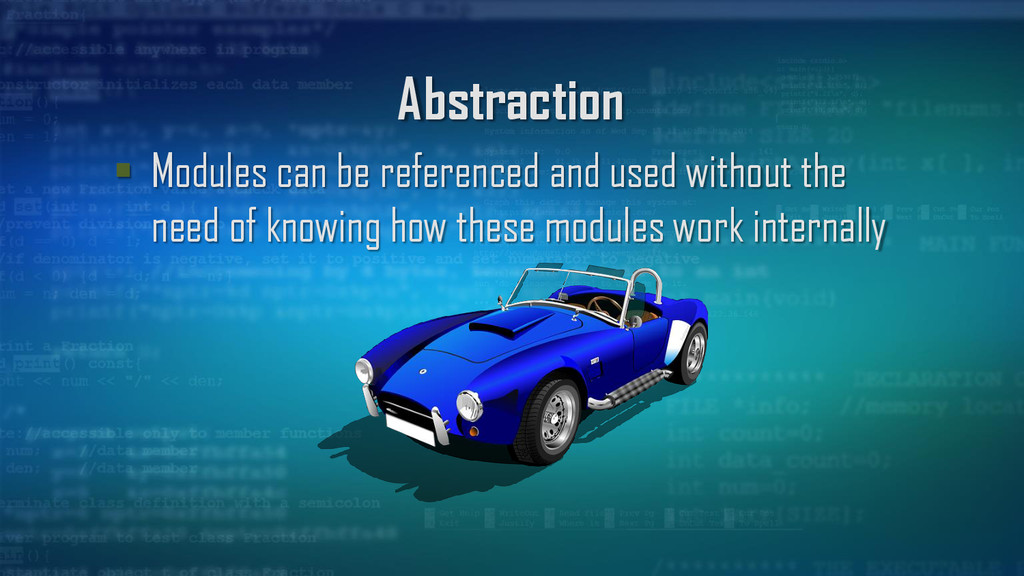

15. Abstraction  Modules can be referenced and used without the need of knowing how these modules work internally

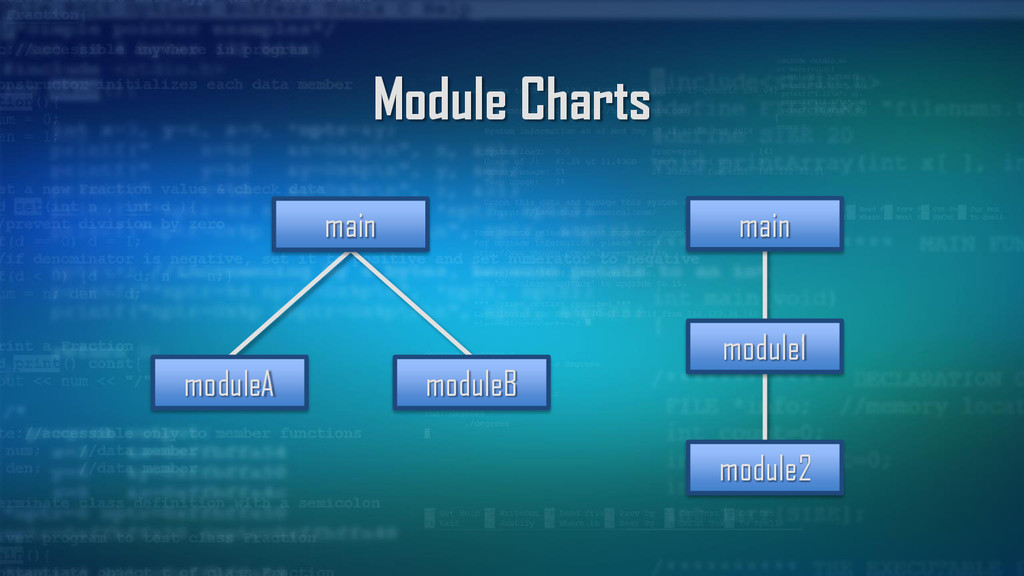

16. Module Charts main moduleA moduleB main module1 module2

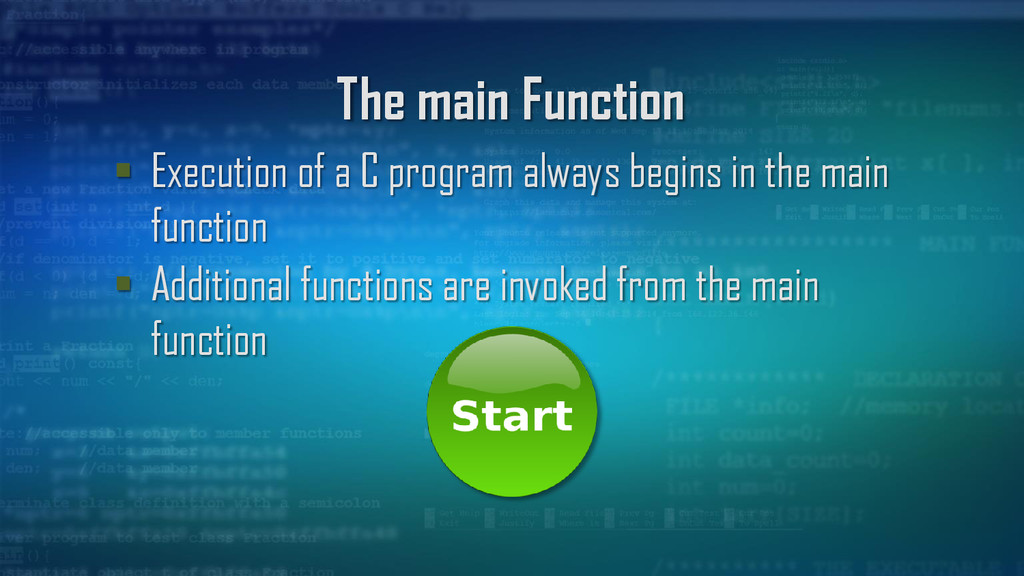

17. The main Function  Execution of a C program always begins in the main function  Additional functions are invoked from the main function

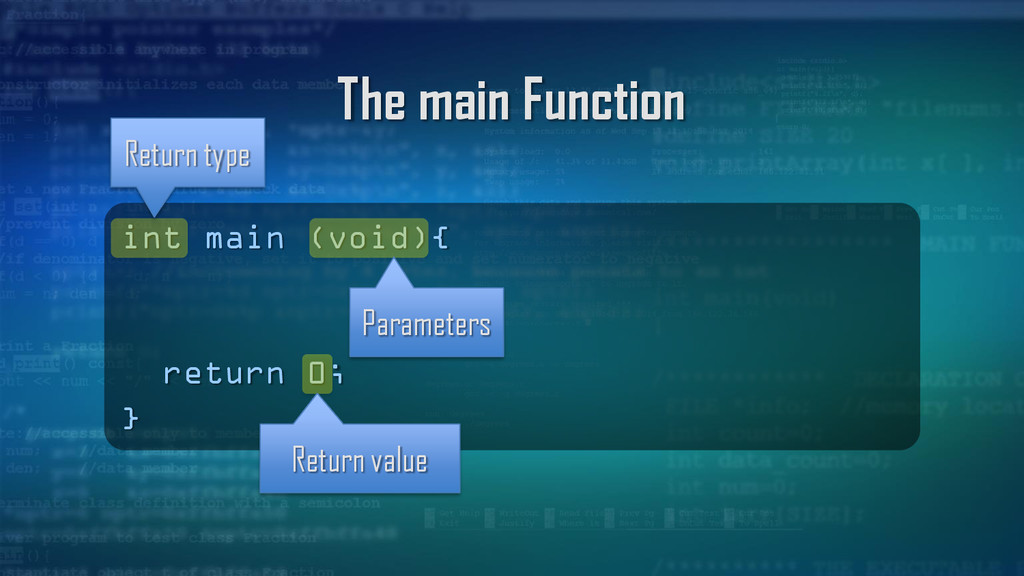

18. int main (void){ return 0; } The main Function Return type Parameters Return value

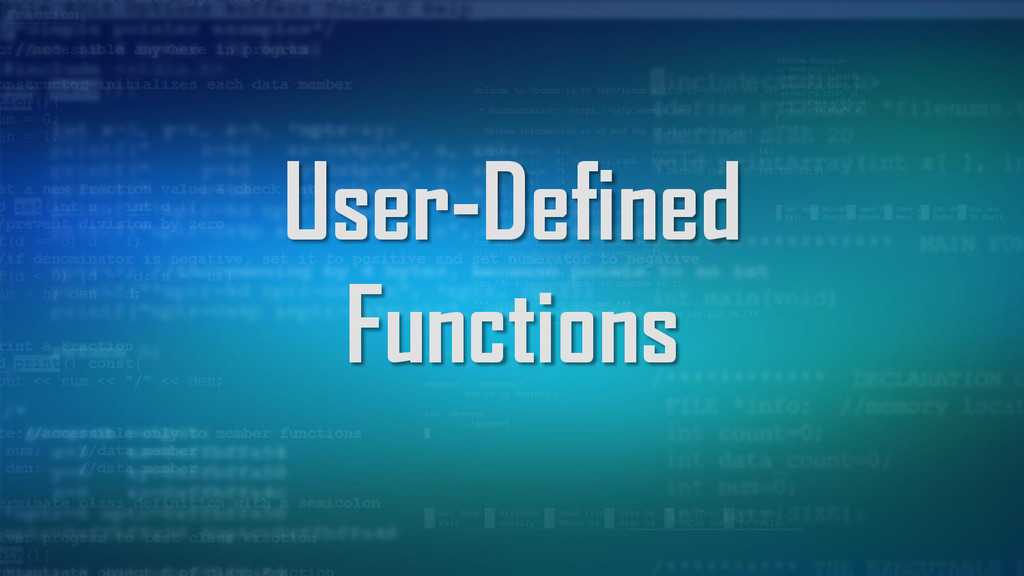

20. User-Defined Functions

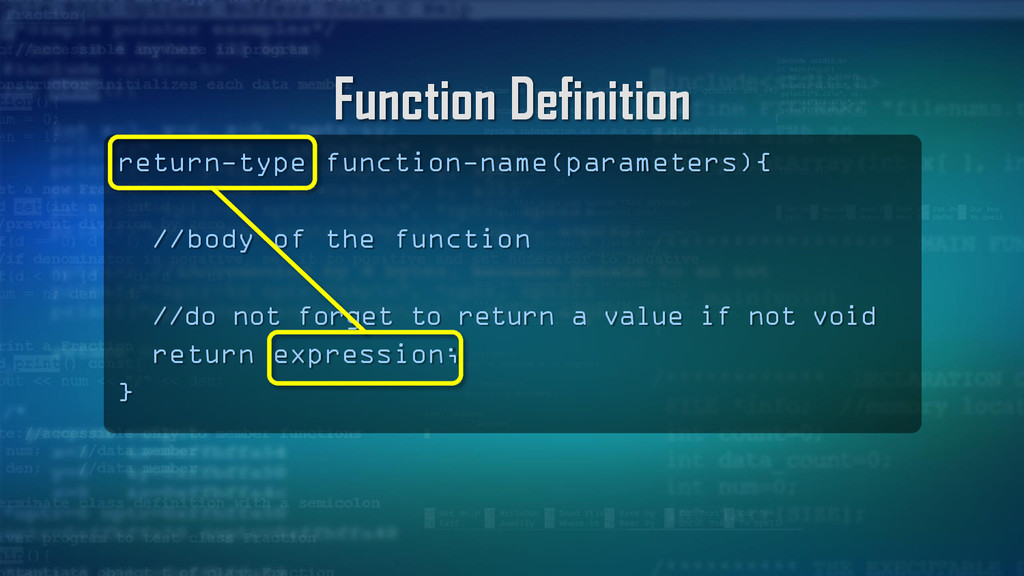

21. return-type function-name(parameters){ //body of the function //do not forget to return a value if not void return expression; } Function Definition

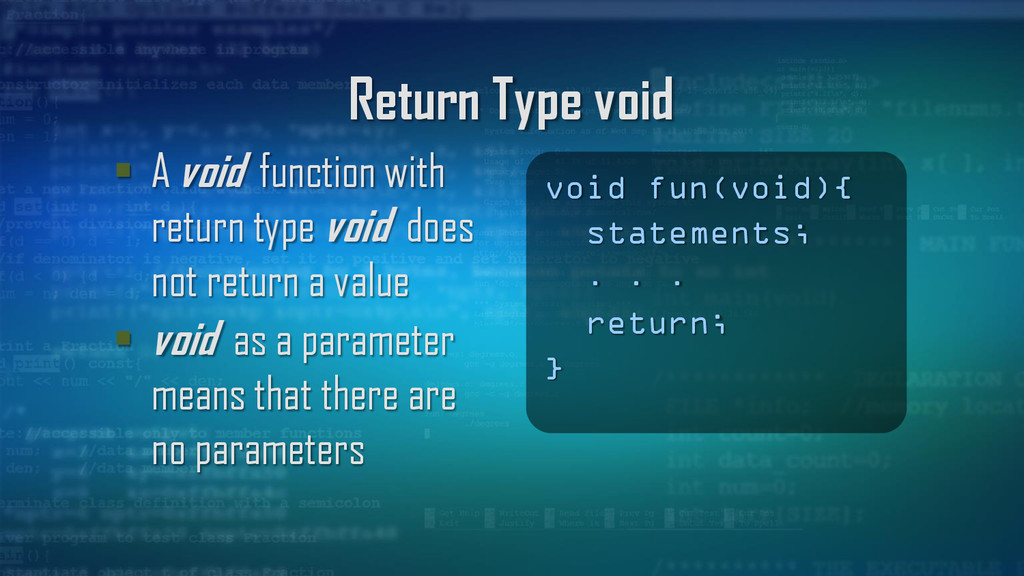

22. Return Type void  A void function with return type void does not return a value  void as a parameter means that there are no parameters void fun(void){ statements; . . . return; }

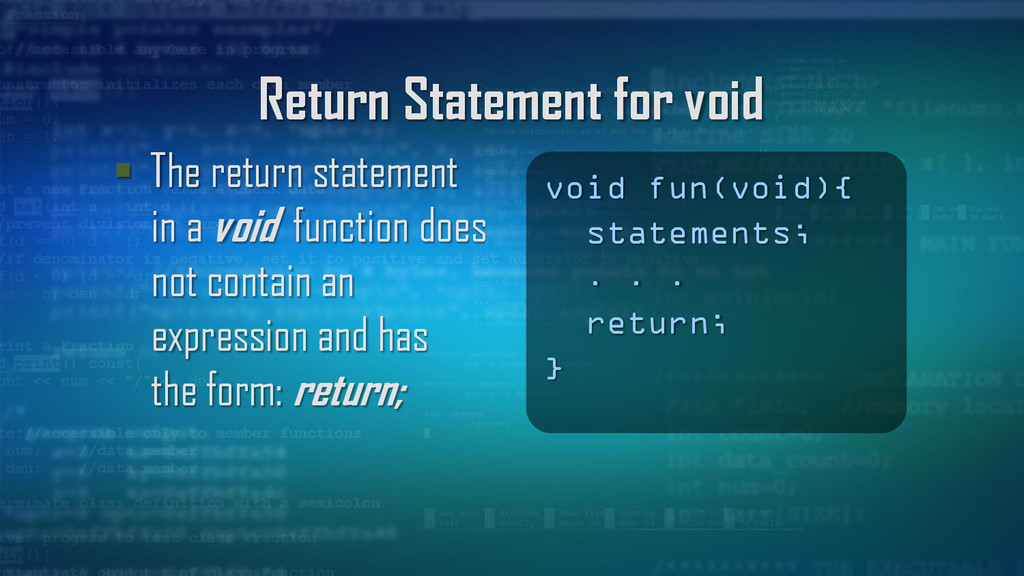

23. Return Statement for void  The return statement in a void function does not contain an expression and has the form: return; void fun(void){ statements; . . . return; }

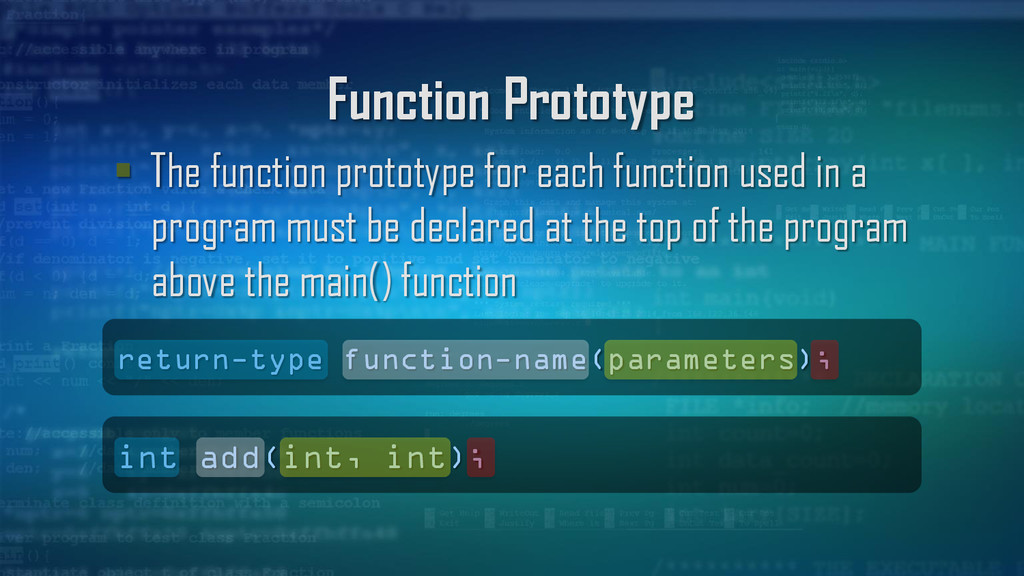

24. Function Prototype  The function prototype for each function used in a program must be declared at the top of the program above the main() function return-type function-name(parameters); int add(int, int);

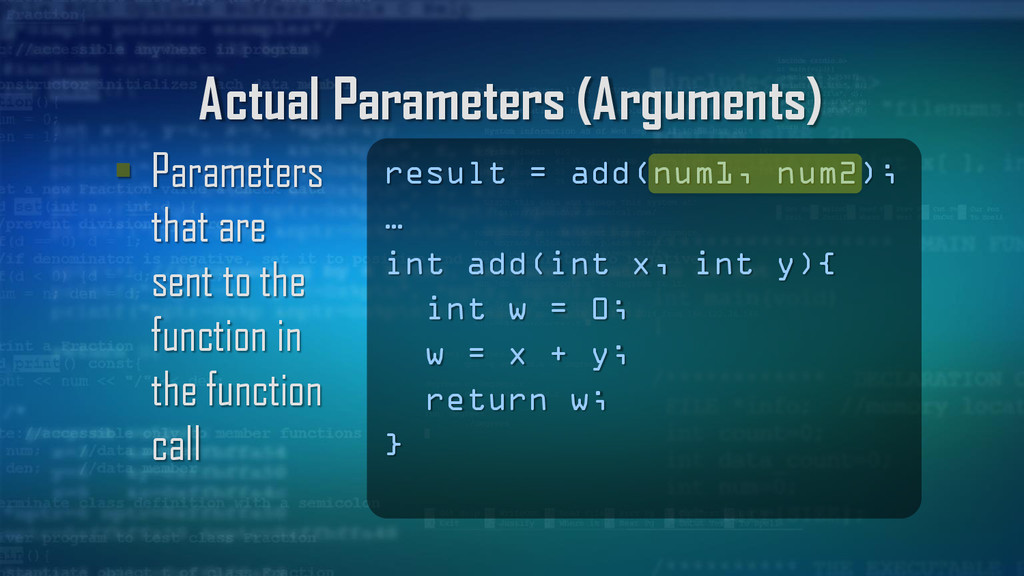

25. result = add(num1, num2); … int add(int x, int y){ int w = 0; w = x + y; return w; } Actual Parameters (Arguments)  Parameters that are sent to the function in the function call

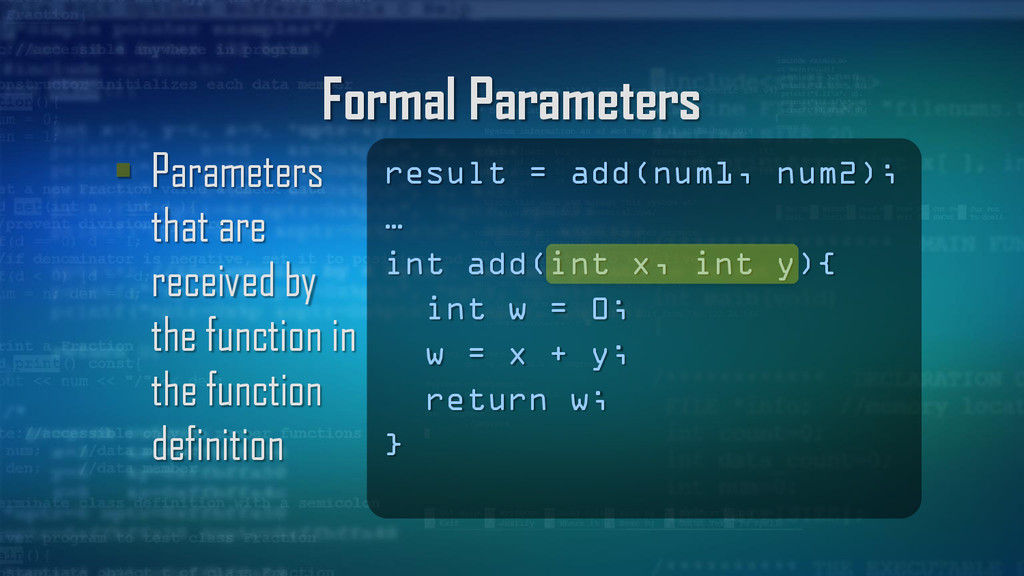

26. result = add(num1, num2); … int add(int x, int y){ int w = 0; w = x + y; return w; } Formal Parameters  Parameters that are received by the function in the function definition

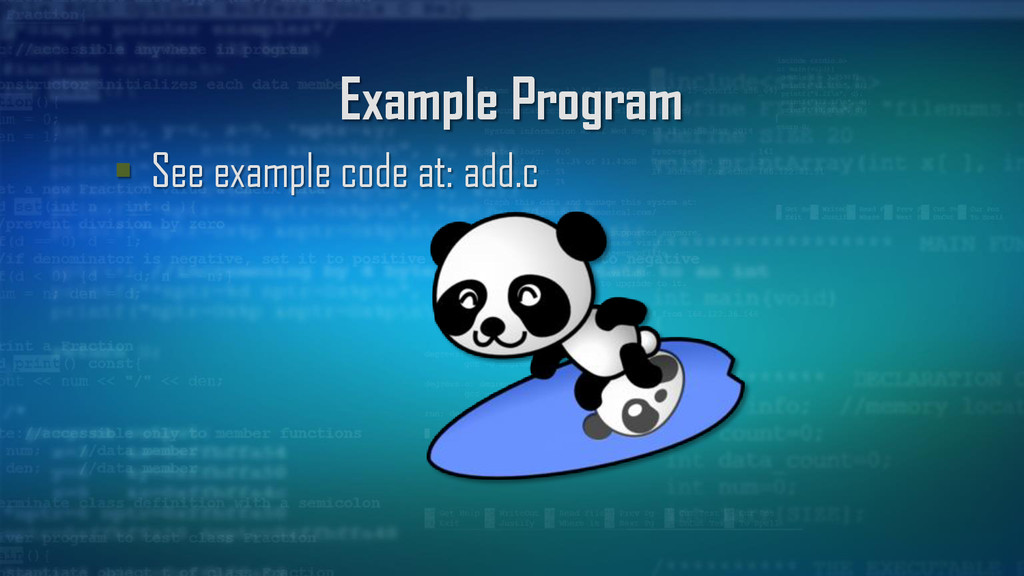

27. Example Program  See example code at: add.c
28. Pass by Value  Copy of argument’s value is passed to function  Changes in the copy do not affect the original variable (no “side effects”)  All calls are “call by value” in C

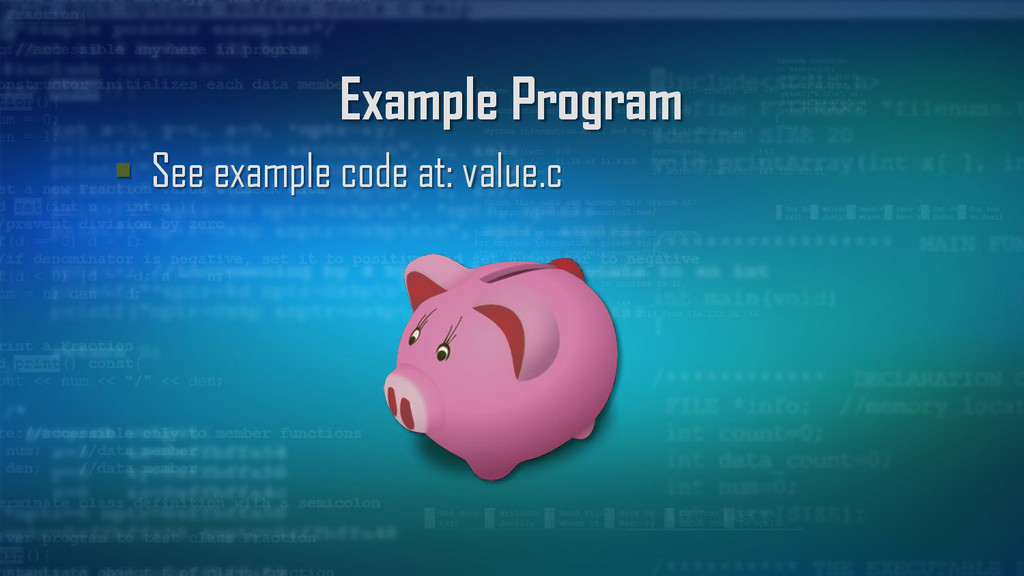

29. Example Program  See example code at: value.c

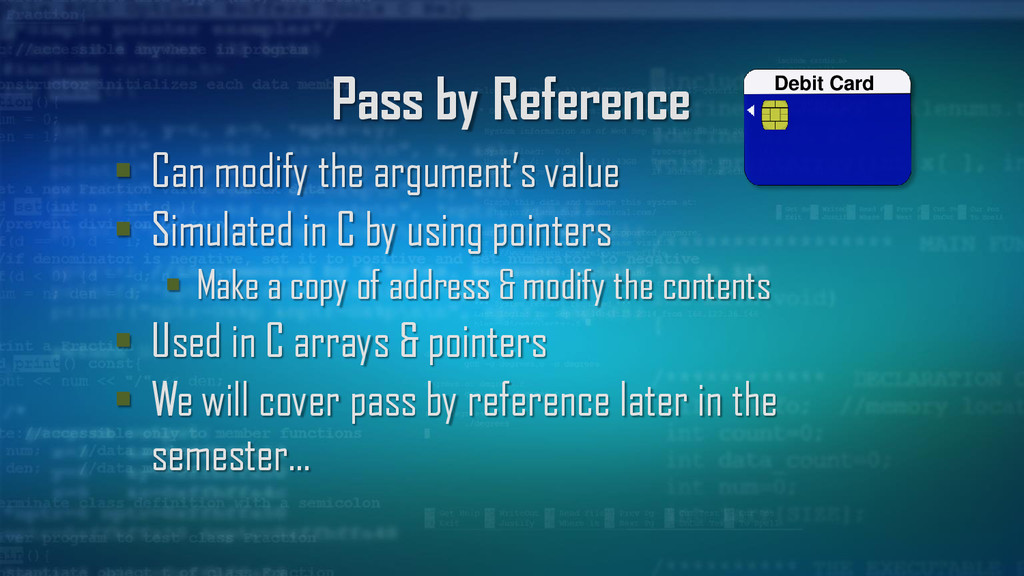

30. Pass by Reference  Can modify the argument’s value  Simulated in C by using pointers  Make a copy of address & modify the contents  Used in C arrays & pointers  We will cover pass by reference later in the semester… Debit Card

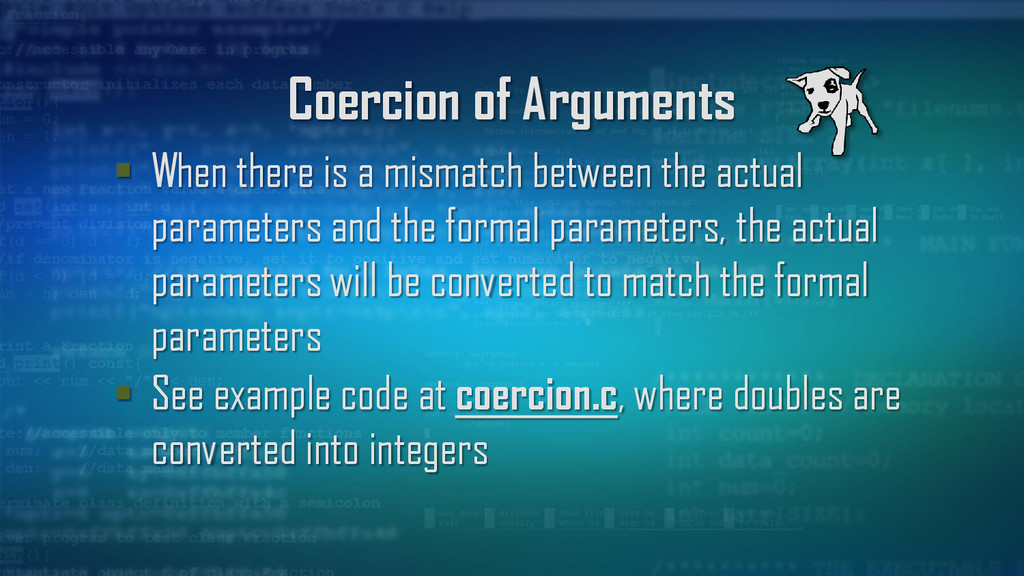

31. Coercion of Arguments  When there is a mismatch between the actual parameters and the formal parameters, the actual parameters will be converted to match the formal parameters  See example code at coercion.c, where doubles are converted into integers

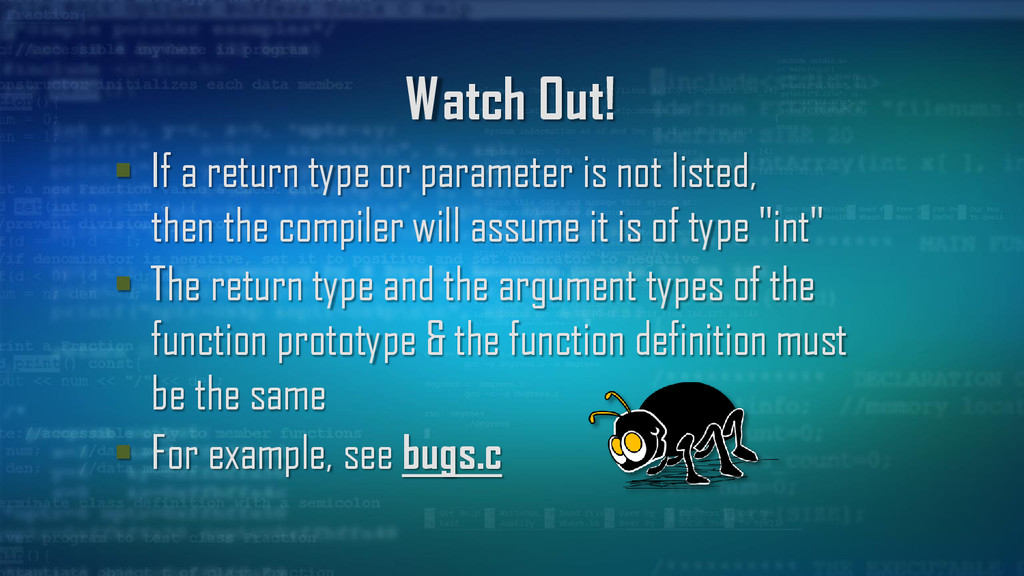

32. Watch Out!  If a return type or parameter is not listed, then the compiler will assume it is of type "int"  The return type and the argument types of the function prototype & the function definition must be the same  For example, see bugs.c

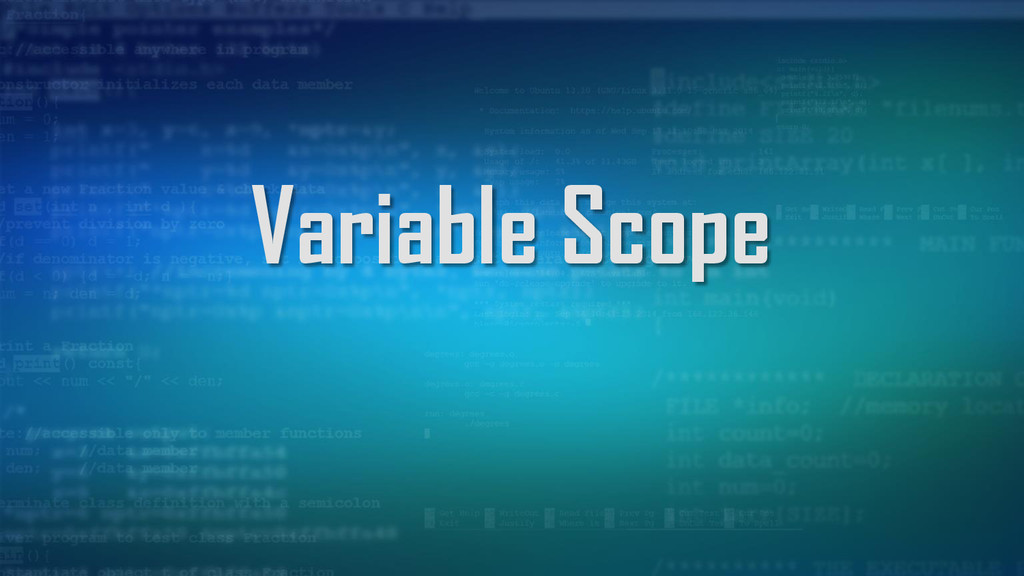

34. Variable Scope

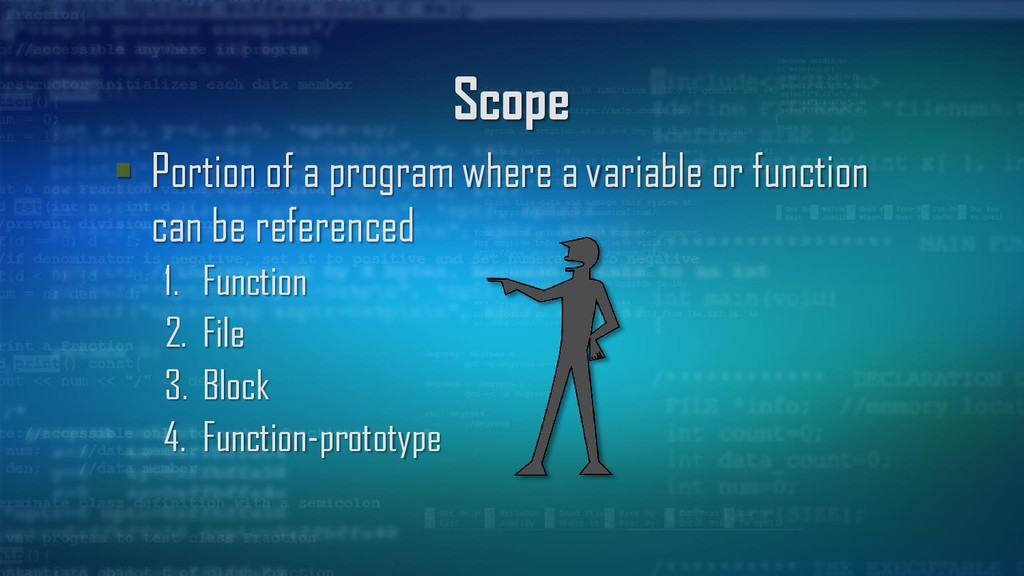

35. Scope  Portion of a program where a variable or function can be referenced 1. Function 2. File 3. Block 4. Function-prototype

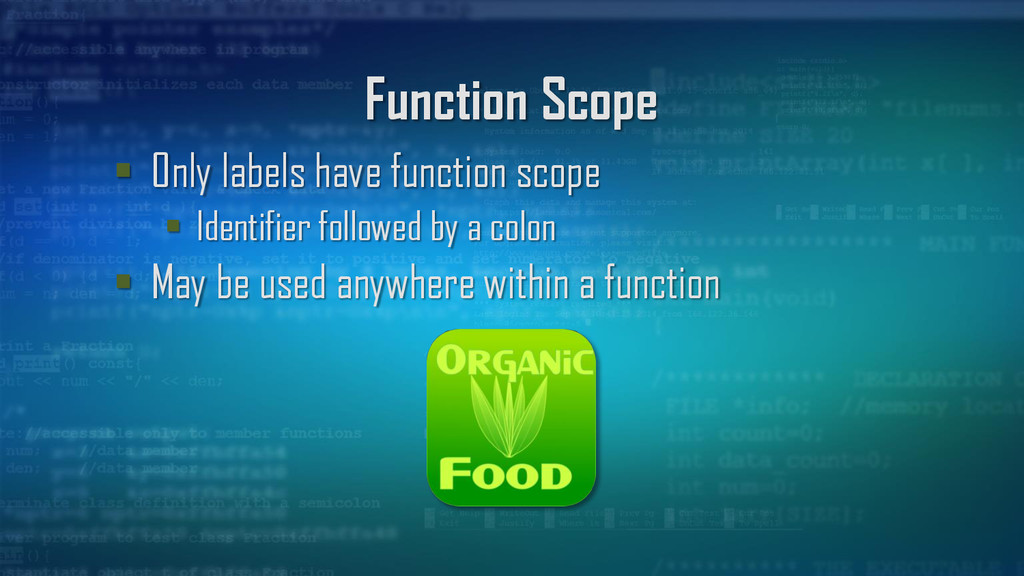

36. Function Scope  Only labels have function scope  Identifier followed by a colon  May be used anywhere within a function

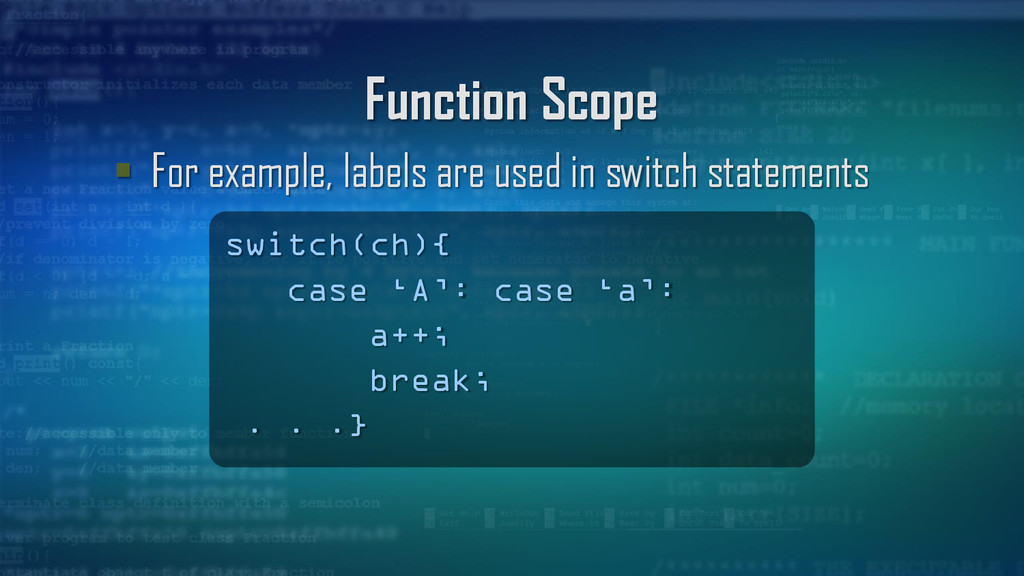

37. Function Scope  For example, labels are used in switch statements switch(ch){ case ‘A’: case ‘a’: a++; break; . . .}

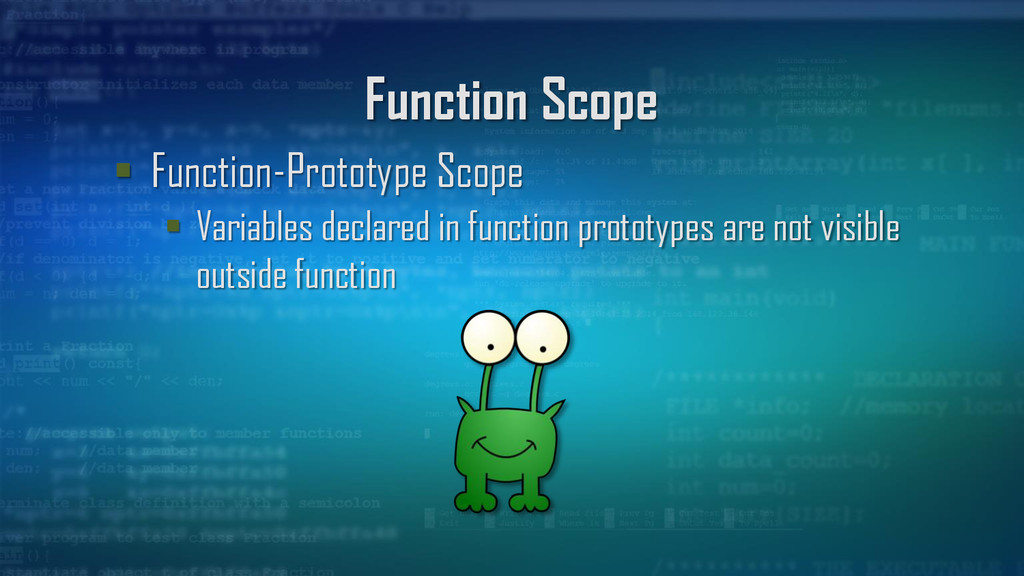

38. Function Scope  Function-Prototype Scope  Variables declared in function prototypes are not visible outside function

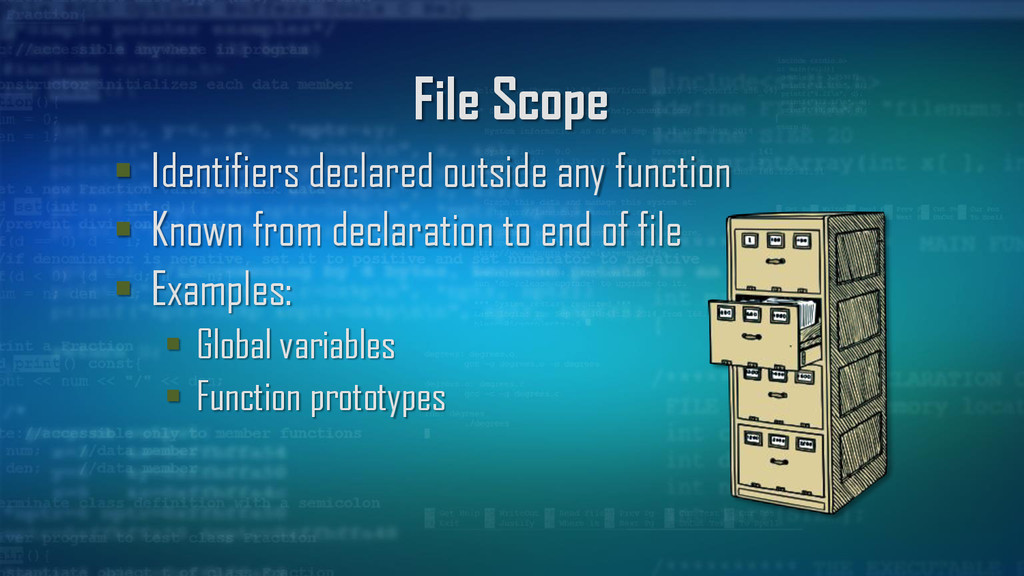

39. File Scope  Identifiers declared outside any function  Known from declaration to end of file  Examples:  Global variables  Function prototypes

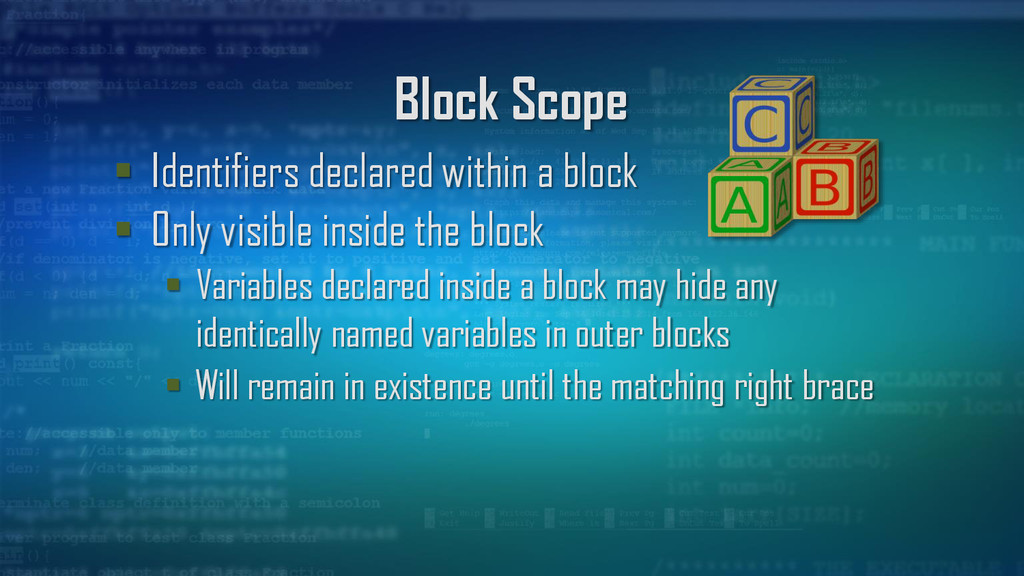

40. Block Scope  Identifiers declared within a block  Only visible inside the block  Variables declared inside a block may hide any identically named variables in outer blocks  Will remain in existence until the matching right brace

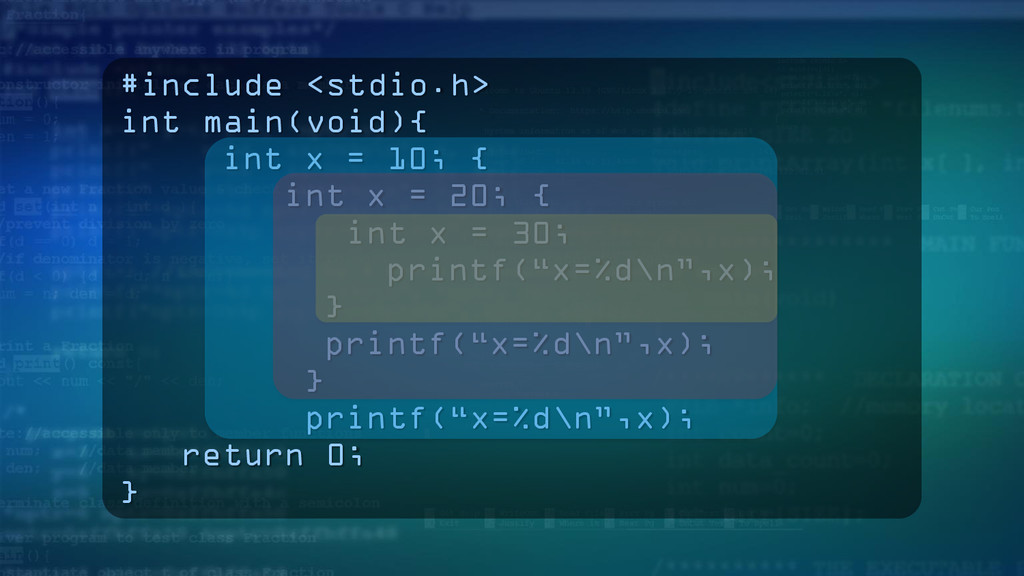

41. #include <stdio.h> int main(void){ int x = 10; { int x = 20; { int x = 30; printf(“x=%d\n”,x); } printf(“x=%d\n”,x); } printf(“x=%d\n”,x); return 0; }

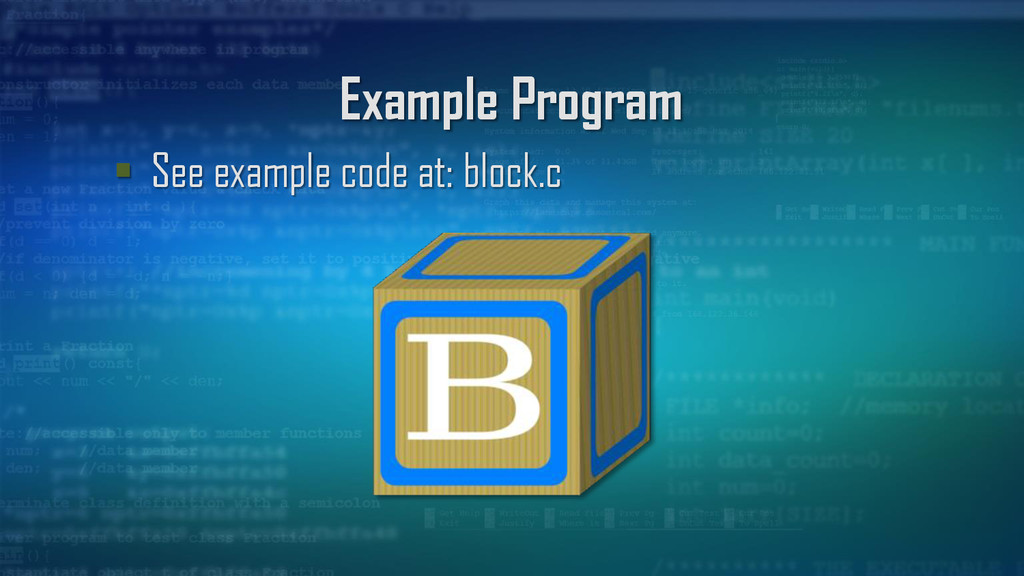

42. Example Program  See example code at: block.c

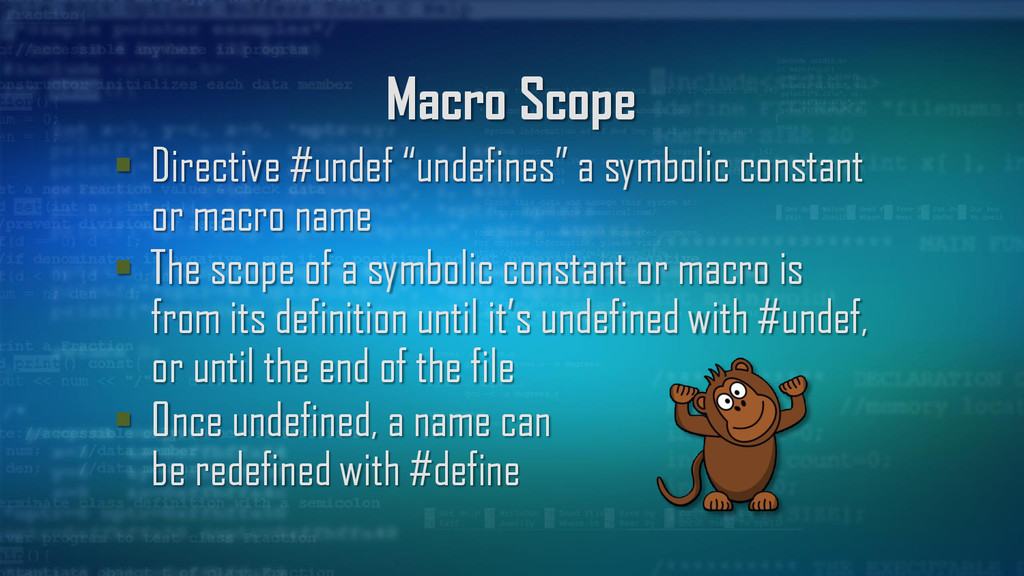

43. Macro Scope  Directive #undef “undefines” a symbolic constant or macro name  The scope of a symbolic constant or macro is from its definition until it’s undefined with #undef, or until the end of the file  Once undefined, a name can be redefined with #define

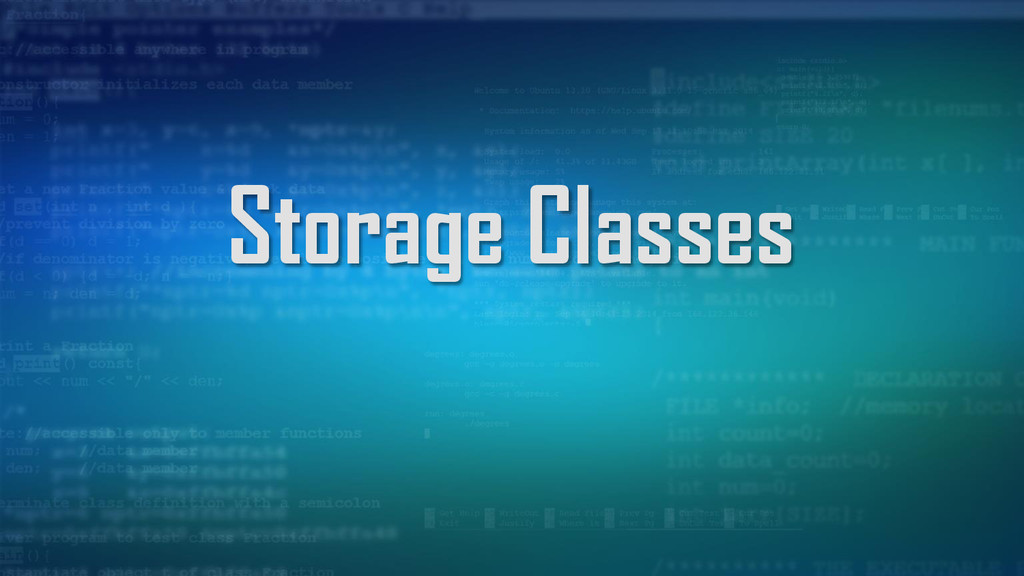

45. Storage Classes

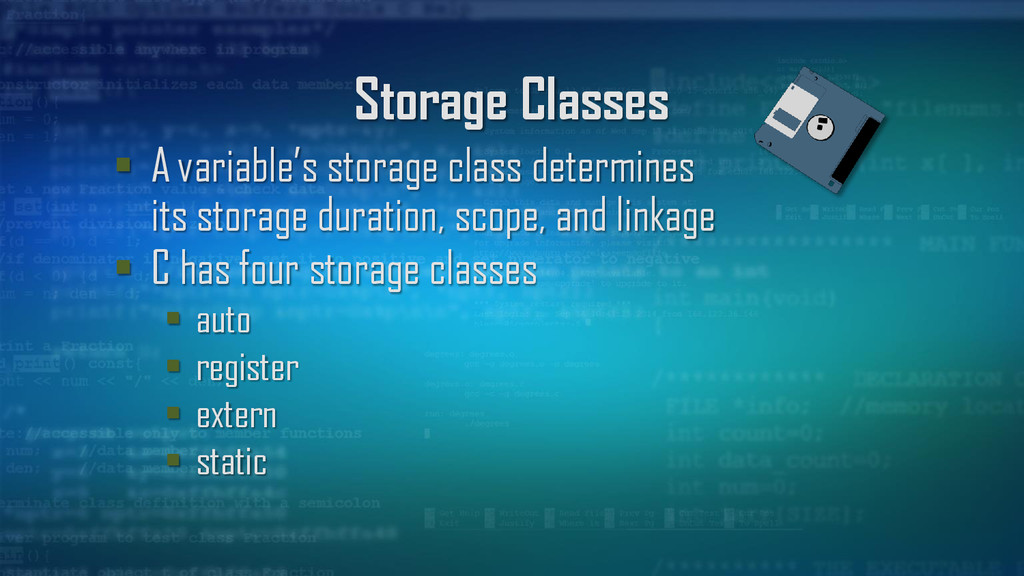

46. Storage Classes  A variable’s storage class determines its storage duration, scope, and linkage  C has four storage classes  auto  register  extern  static

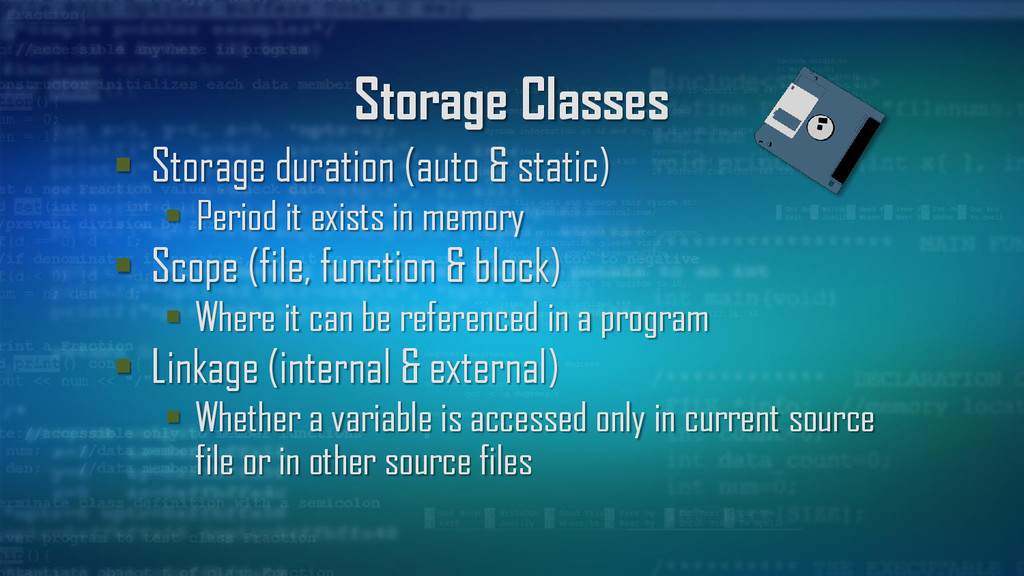

47. Storage Classes  Storage duration (auto & static)  Period it exists in memory  Scope (file, function & block)  Where it can be referenced in a program  Linkage (internal & external)  Whether a variable is accessed only in current source file or in other source files

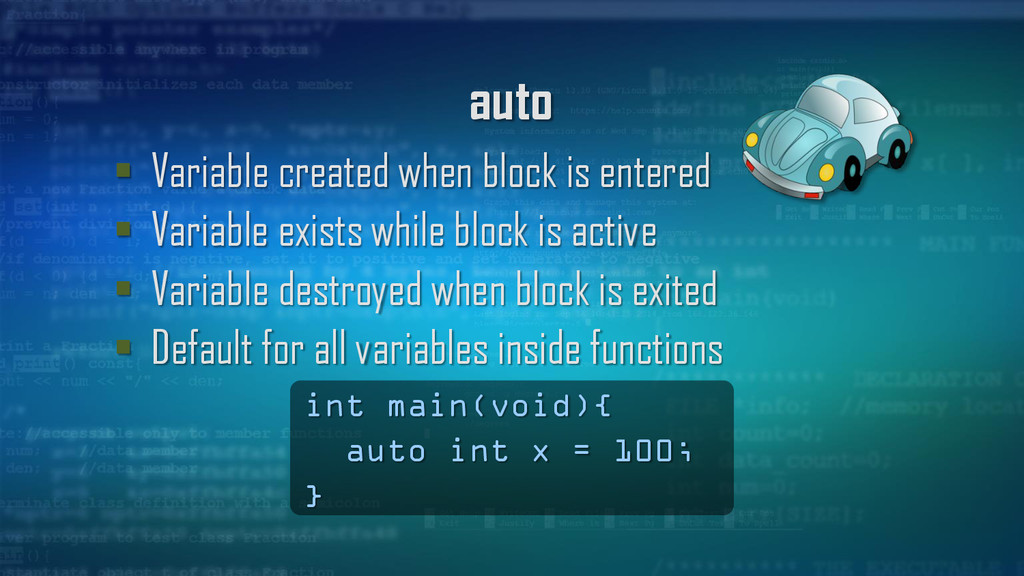

48. auto  Variable created when block is entered  Variable exists while block is active  Variable destroyed when block is exited  Default for all variables inside functions int main(void){ auto int x = 100; }
49. register  Put variable in high-speed register  Compiler is free to ignore it  It has automatic storage int main(void){ register int count = 0; }

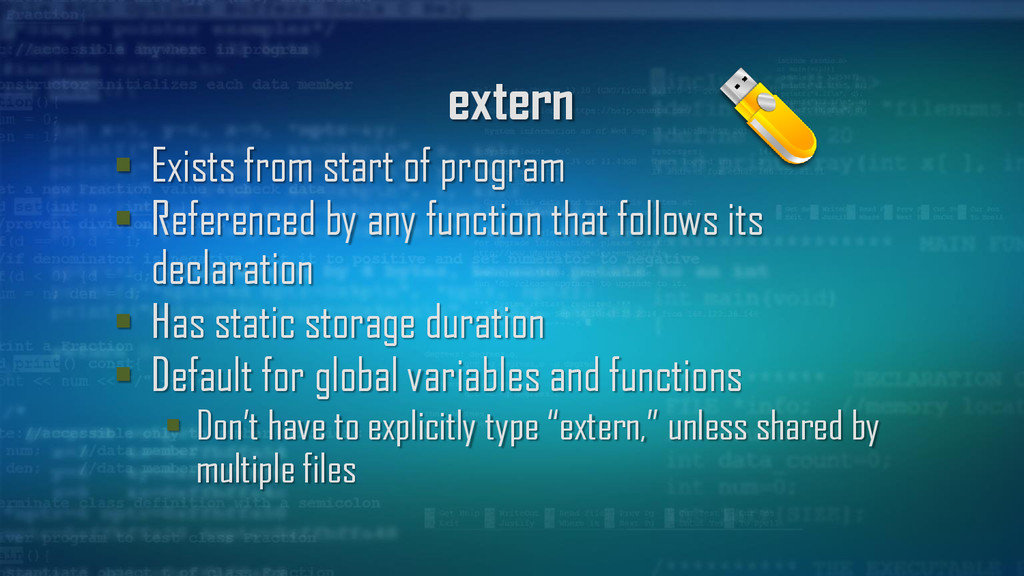

50. extern  Exists from start of program  Referenced by any function that follows its declaration  Has static storage duration  Default for global variables and functions  Don’t have to explicitly type “extern,” unless shared by multiple files

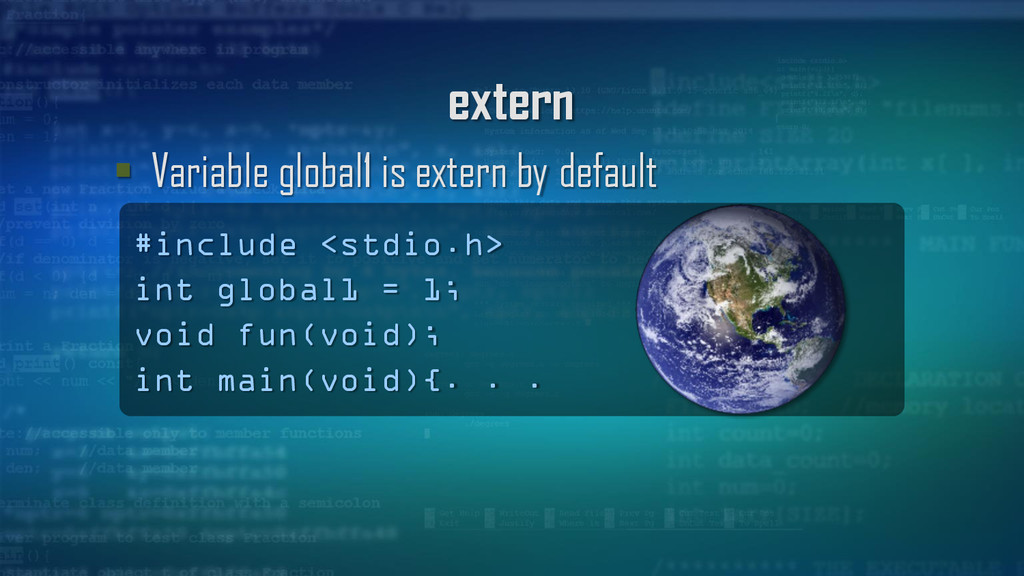

51. extern  Variable global1 is extern by default #include <stdio.h> int global1 = 1; void fun(void); int main(void){. . .

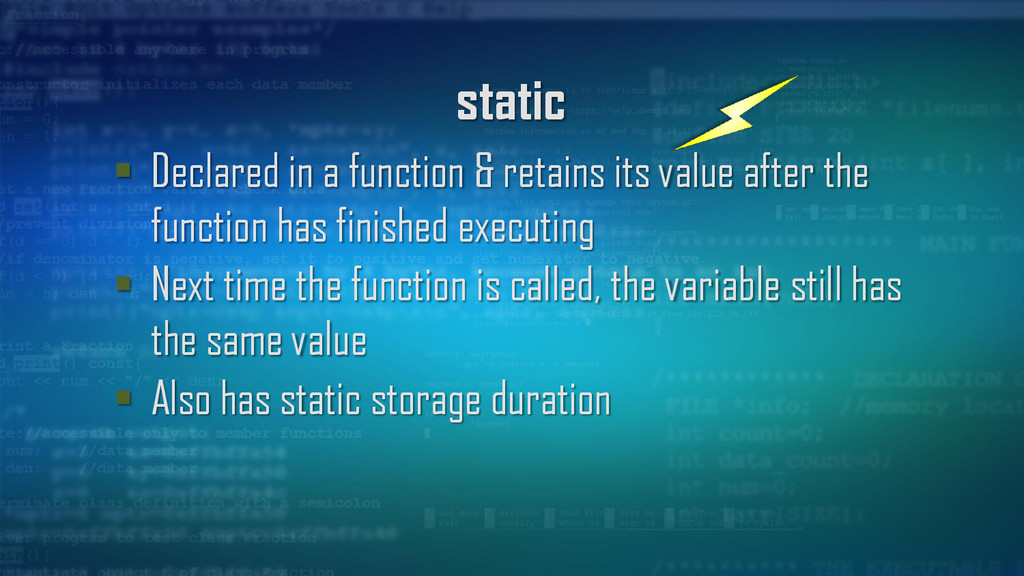

52. static  Declared in a function & retains its value after the function has finished executing  Next time the function is called, the variable still has the same value  Also has static storage duration

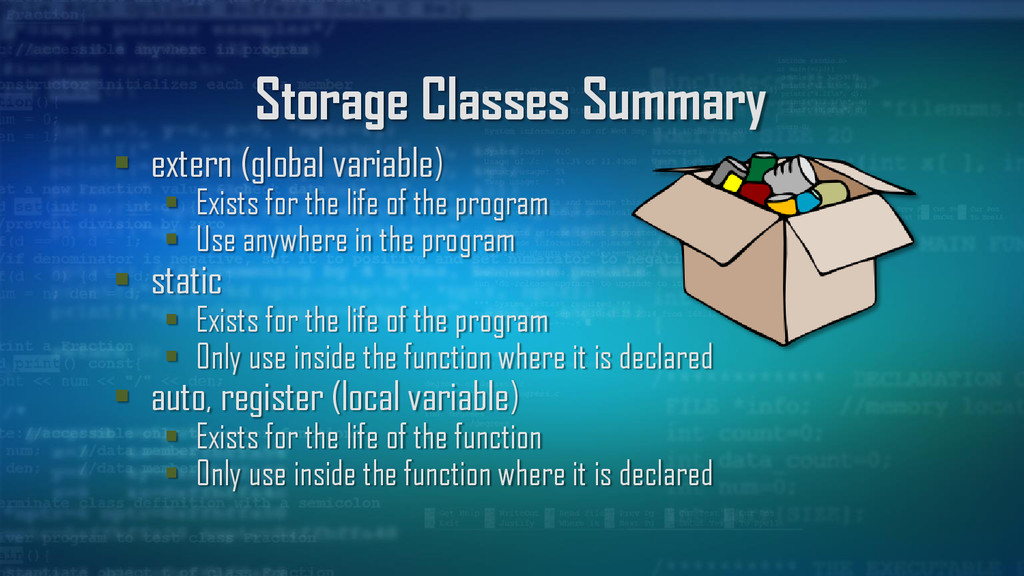

53. Storage Classes Summary  extern (global variable)  Exists for the life of the program  Use anywhere in the program  static  Exists for the life of the program  Only use inside the function where it is declared  auto, register (local variable)  Exists for the life of the function  Only use inside the function where it is declared

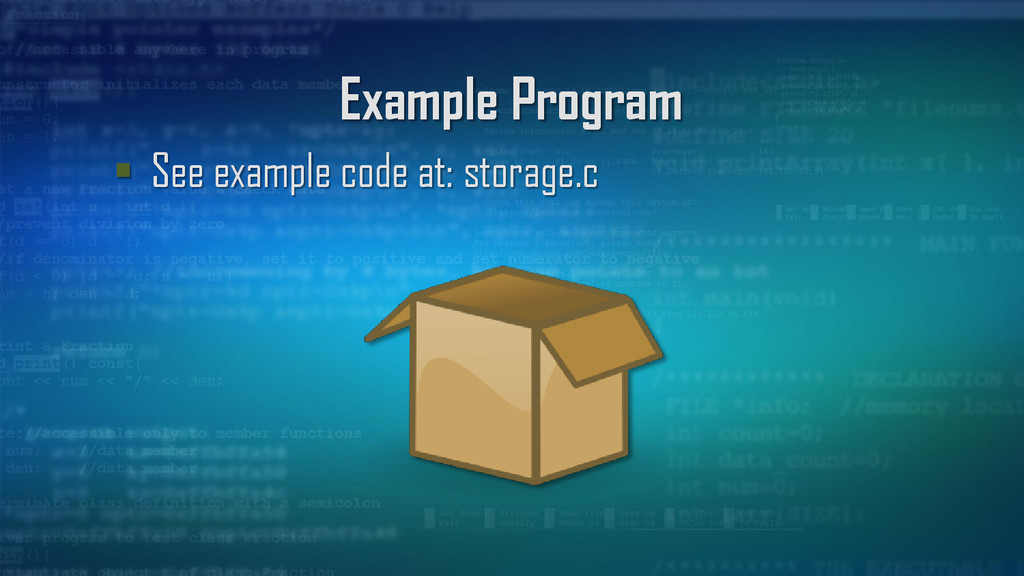

54. Example Program  See example code at: storage.c

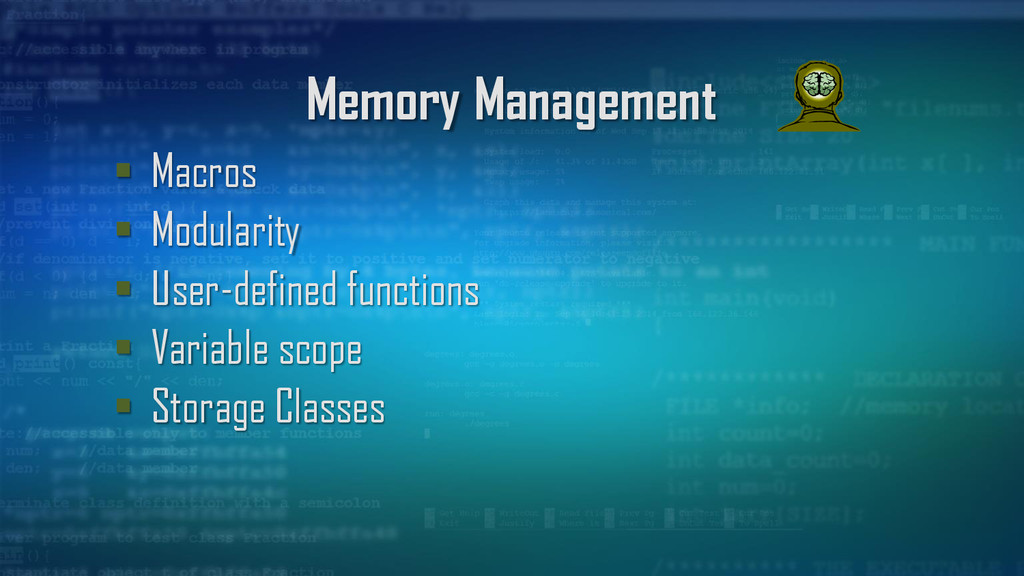

55. Memory Management  Macros  Modularity  User-defined functions  Variable scope  Storage Classes
