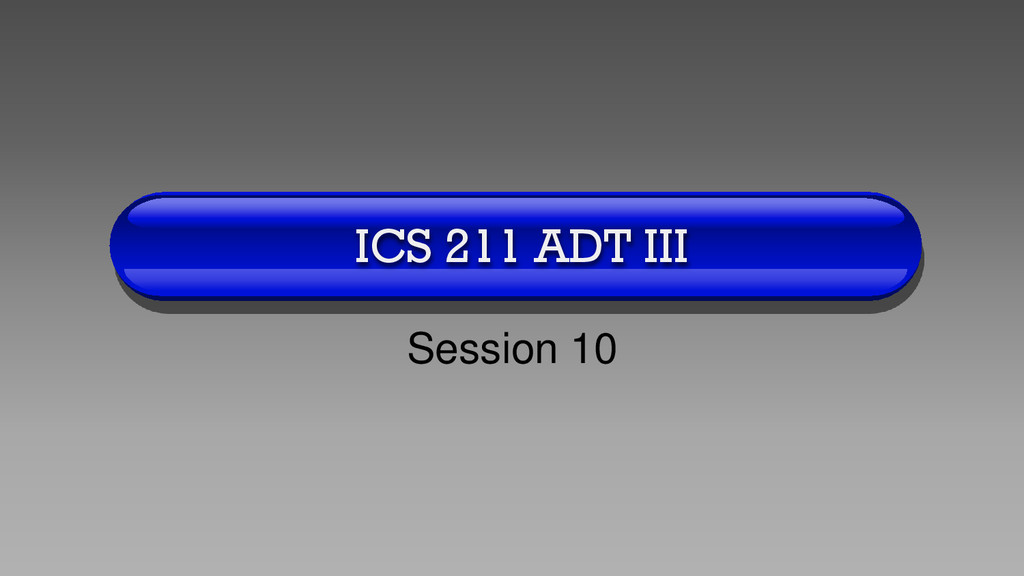

1. Session 10 ICS 211 ADT III

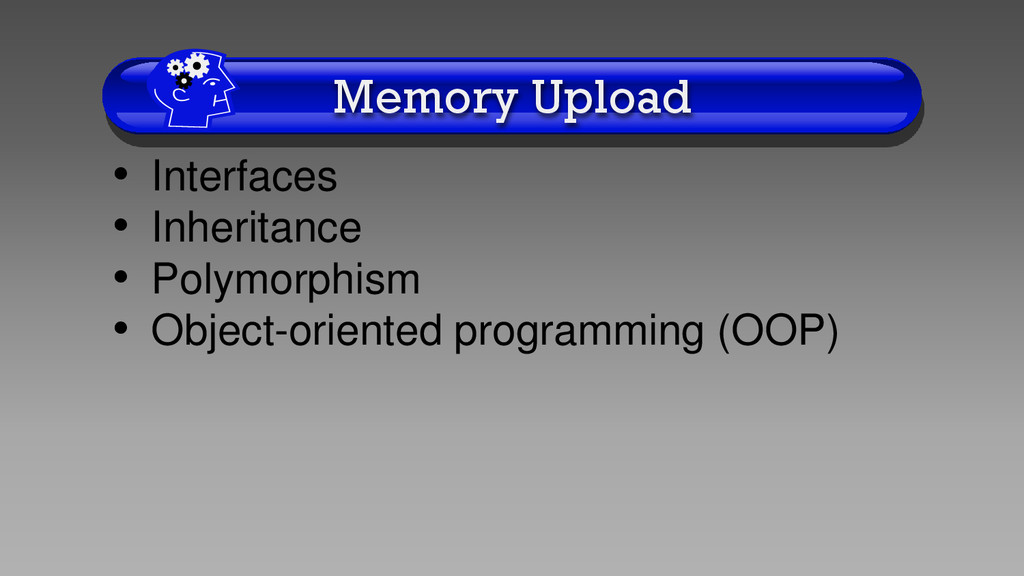

2. Memory Upload • Interfaces • Inheritance • Polymorphism • Object-oriented programming (OOP)
3. Interface • An interface is a list of method prototypes used to enforce the naming of method prototypes for a class • When a class implements a particular interface, this ensures that designers of the class and users of the class are using the same method names

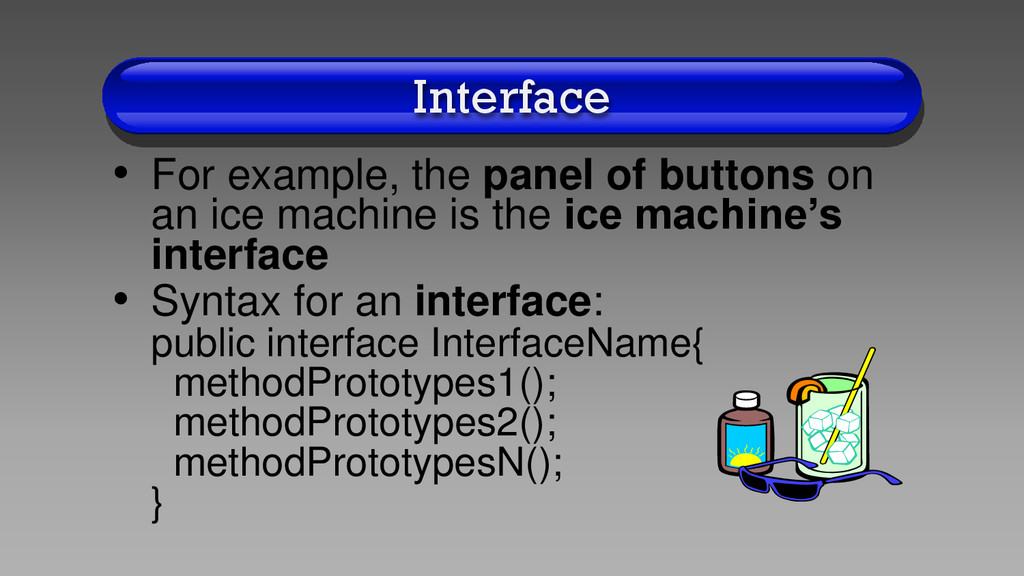

4. Interface • For example, the panel of buttons on an ice machine is the ice machine’s interface • Syntax for an interface: public interface InterfaceName{ methodPrototypes1(); methodPrototypes2(); methodPrototypesN(); }

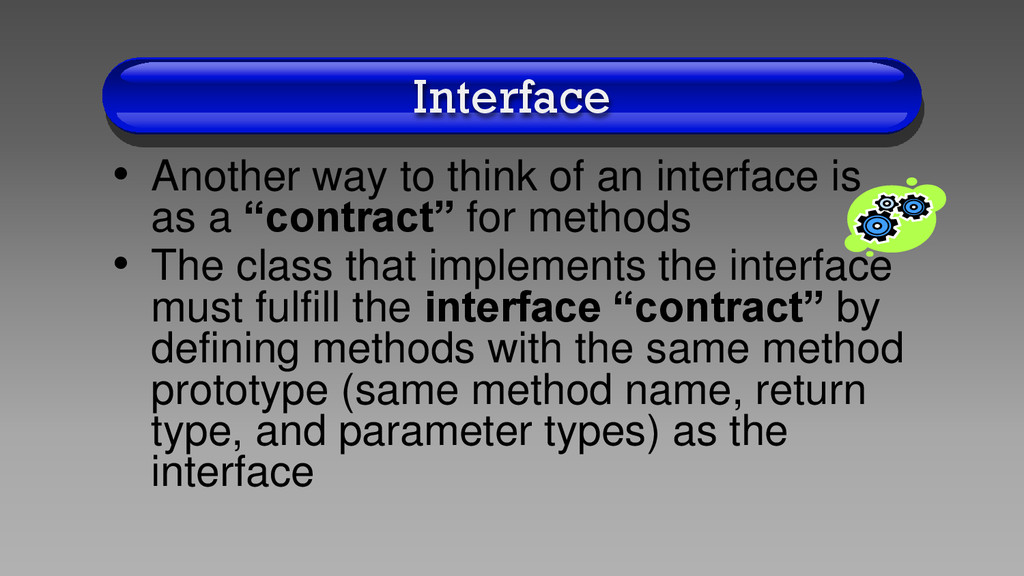

5. Interface • Another way to think of an interface is as a “contract” for methods • The class that implements the interface must fulfill the interface “contract” by defining methods with the same method prototype (same method name, return type, and parameter types) as the interface

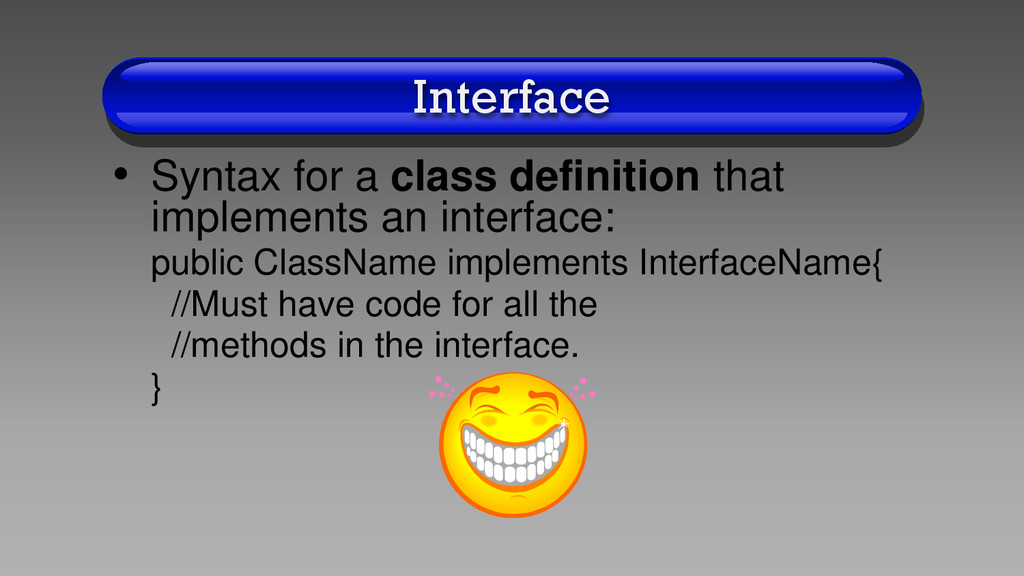

6. Interface • Syntax for a class definition that implements an interface: public ClassName implements InterfaceName{ //Must have code for all the //methods in the interface. }

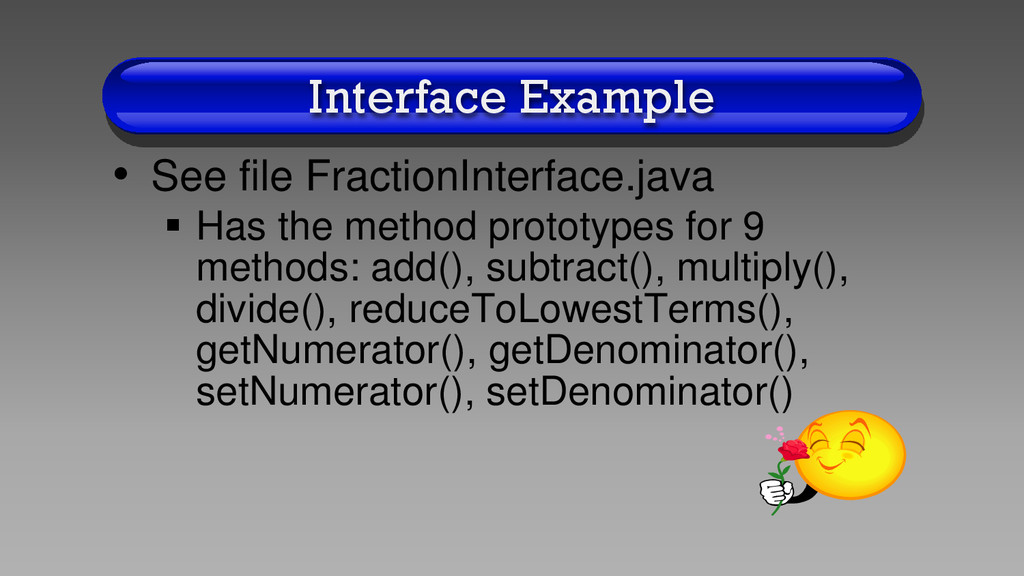

7. Interface Example • See file FractionInterface.java  Has the method prototypes for 9 methods: add(), subtract(), multiply(), divide(), reduceToLowestTerms(), getNumerator(), getDenominator(), setNumerator(), setDenominator()
8. Implementation Example • See file Fraction.java  Implements the 9 methods of FractionInterface.java, so it has the code for these 9 methods  Each method prototype has the same name, return type, and parameters as the method prototypes listed in FractionInterface.java

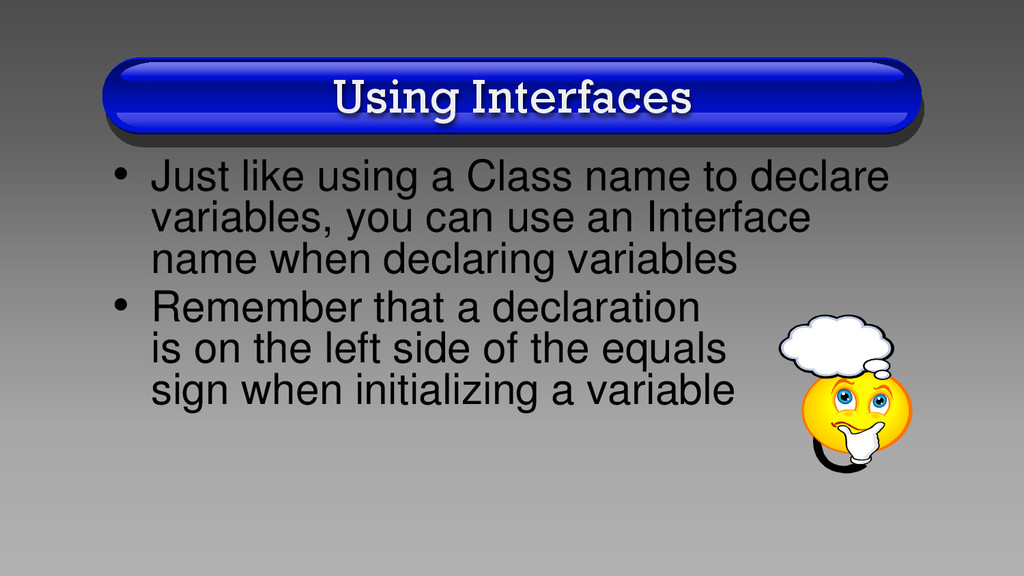

9. Using Interfaces • Just like using a Class name to declare variables, you can use an Interface name when declaring variables • Remember that a declaration is on the left side of the equals sign when initializing a variable
10. Using Interfaces • Syntax: InterfaceName variable=new ClassName(); • Example: FractionInterface f1 = new Fraction(2,5);
11. Using Interfaces • Visualize it as just drawing a box and assigning it the value that is on the right hand side of the assignment operator f1 Numerator denominator 2 5

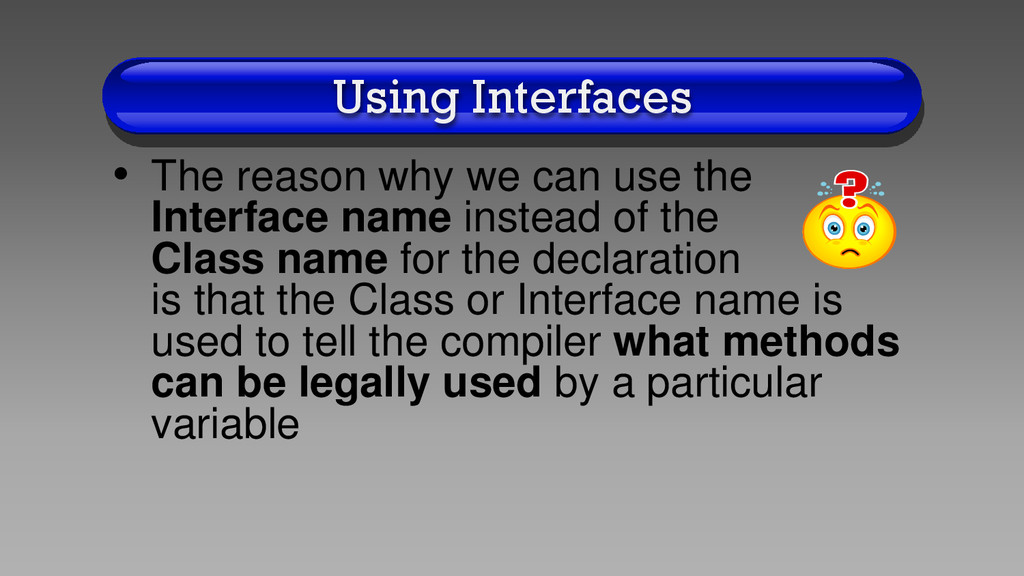

12. Using Interfaces • The reason why we can use the Interface name instead of the Class name for the declaration is that the Class or Interface name is used to tell the compiler what methods can be legally used by a particular variable

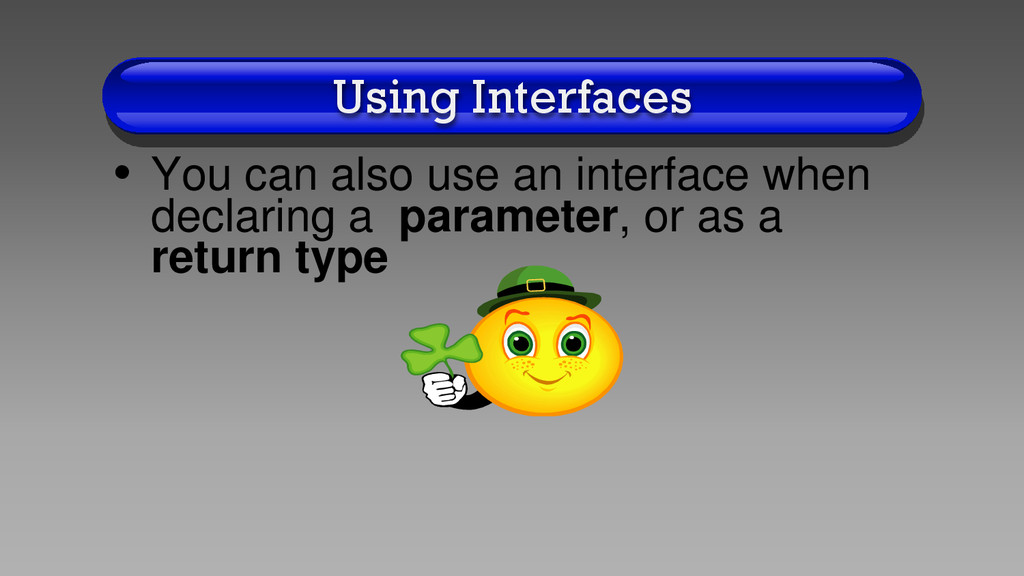

13. Using Interfaces • You can also use an interface when declaring a parameter, or as a return type
14. Using Interfaces • Syntax for method definition: public InterfaceName methodName(InterfaceName parameterName){ . . . //method’s code } • Example method definition: public FractionInterface add (FractionInterface f2){ . . . //method’s code }
15. Using Interfaces • FractionCalculator.java method call: FractionInterface fraction3 = fraction1.add(fraction2); • Fraction.java method definition: public FractionInterface add (FractionInterface f2){ . . . //method’s code } • Both fraction2 and f2 point to the same object (call by reference)

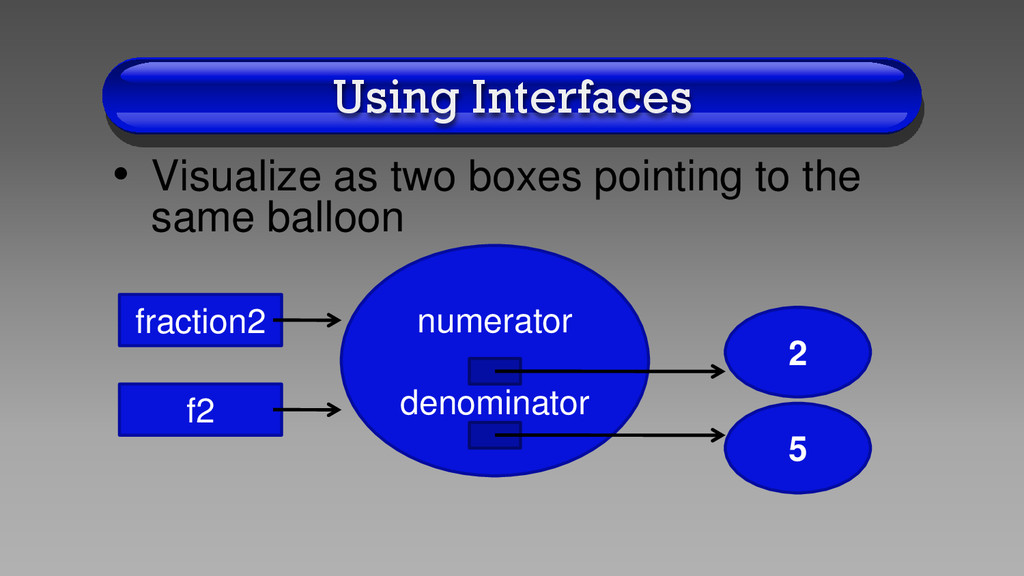

16. Using Interfaces • Visualize as two boxes pointing to the same balloon f2 numerator denominator 2 5 fraction2
17. Using Interfaces • FractionCalculator.java method call: FractionInterface fraction3 = fraction1.add(fraction2); • Fraction.java method definition: public FractionInterface add (FractionInterface f2){ FractionInterface result=new Fraction(n3,d3); return result; }
18. Using Interfaces • Both variables result and fraction3 point to same object
19. Using Interfaces • Visualize as two boxes pointing to the same balloon fraction3 numerator denominator 4 5 result

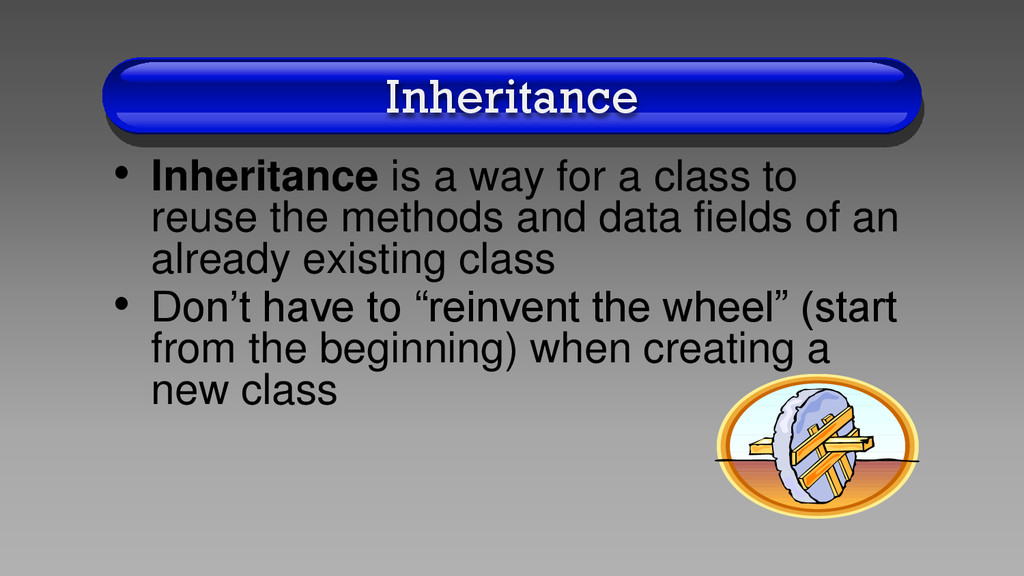

20. Inheritance • Inheritance is a way for a class to reuse the methods and data fields of an already existing class • Don’t have to “reinvent the wheel” (start from the beginning) when creating a new class
21. Inheritance • Inheritance is helpful for 1.Organizing code 2.Compiling code (large programs broken down into smaller parts) 3.Debugging code 4.Improving code
22. Inheritance • When you use inheritance, you have a superclass and a subclass • A superclass (base class) is the class from which other classes will be built • A subclass (derived class) is a new class built from an existing class

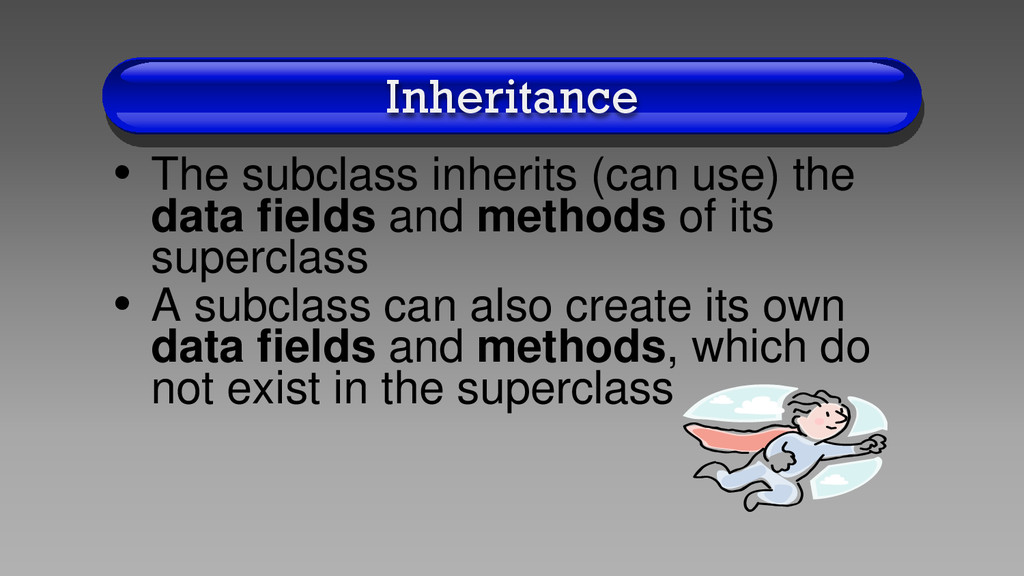

23. Inheritance • The subclass inherits (can use) the data fields and methods of its superclass • A subclass can also create its own data fields and methods, which do not exist in the superclass

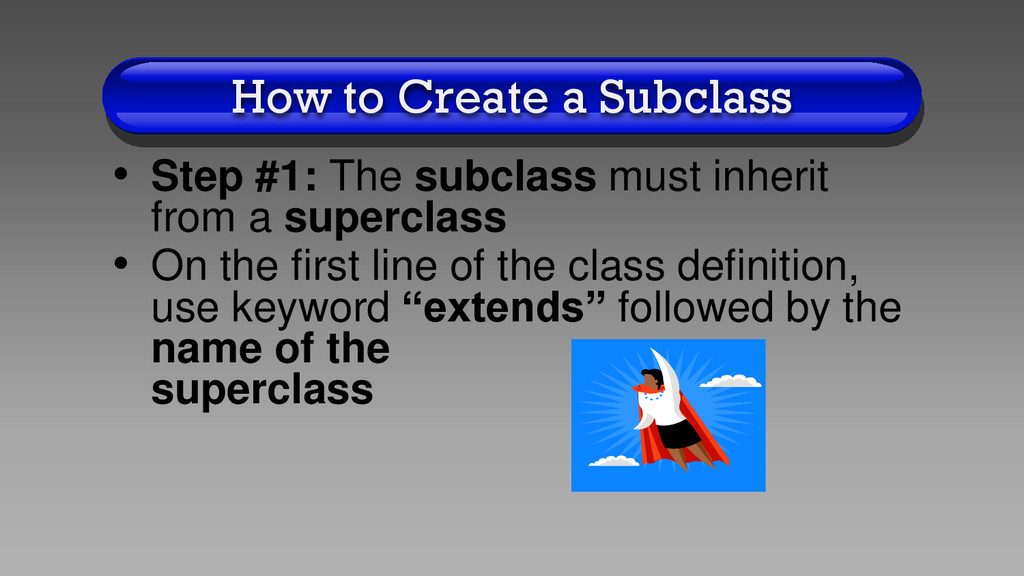

24. How to Create a Subclass • Step #1: The subclass must inherit from a superclass • On the first line of the class definition, use keyword “extends” followed by the name of the superclass

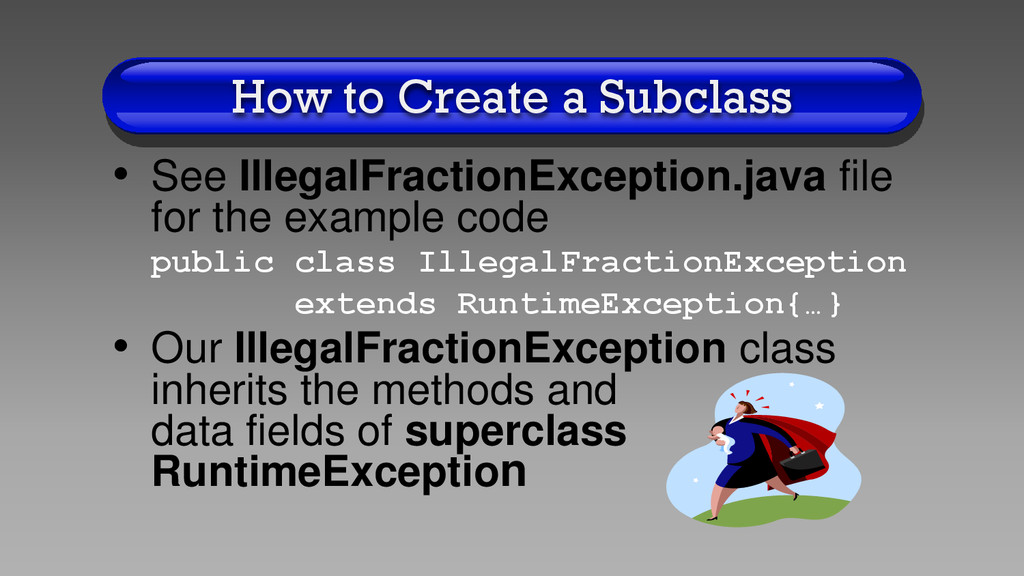

25. How to Create a Subclass • See IllegalFractionException.java file for the example code public class IllegalFractionException extends RuntimeException{…} • Our IllegalFractionException class inherits the methods and data fields of superclass RuntimeException

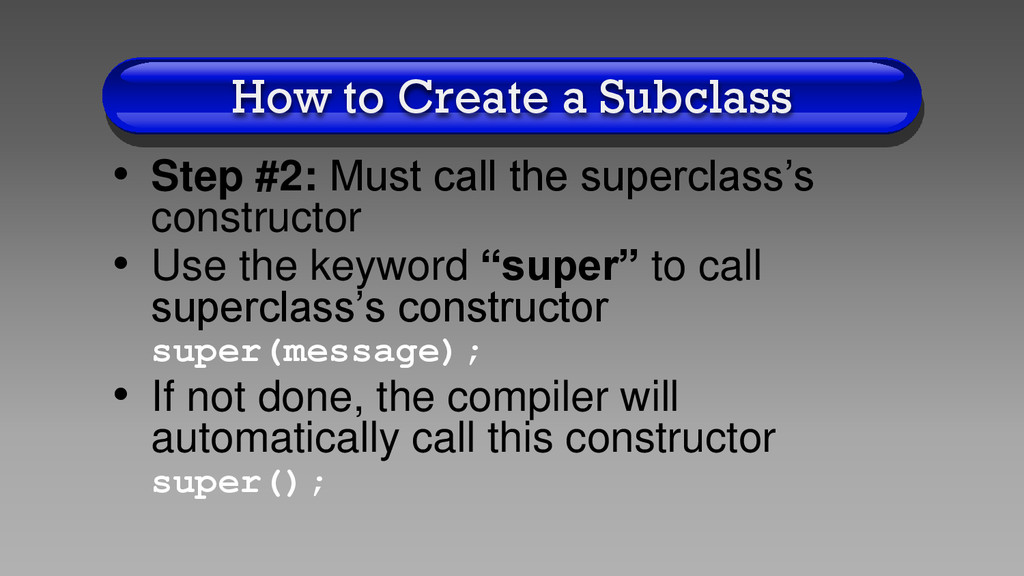

26. How to Create a Subclass • Step #2: Must call the superclass’s constructor • Use the keyword “super” to call superclass’s constructor super(message); • If not done, the compiler will automatically call this constructor super();

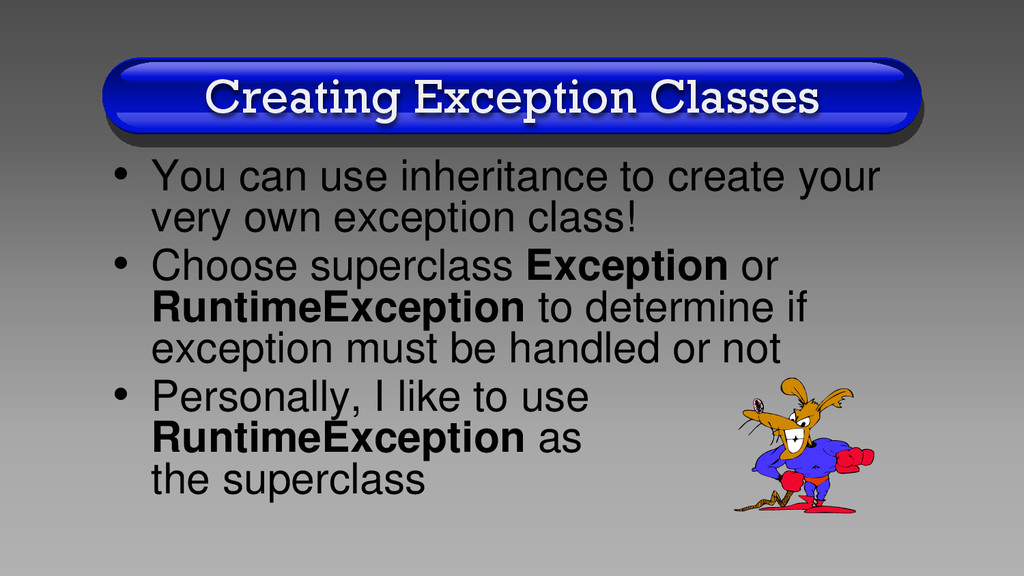

27. Creating Exception Classes • You can use inheritance to create your very own exception class! • Choose superclass Exception or RuntimeException to determine if exception must be handled or not • Personally, I like to use RuntimeException as the superclass

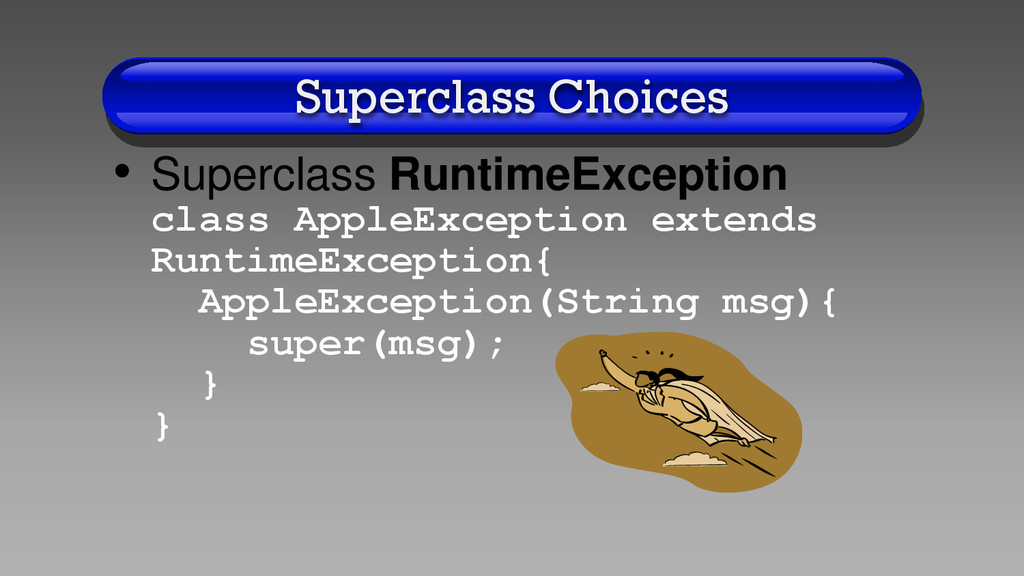

28. Superclass Choices • Superclass RuntimeException class AppleException extends RuntimeException{ AppleException(String msg){ super(msg); } }

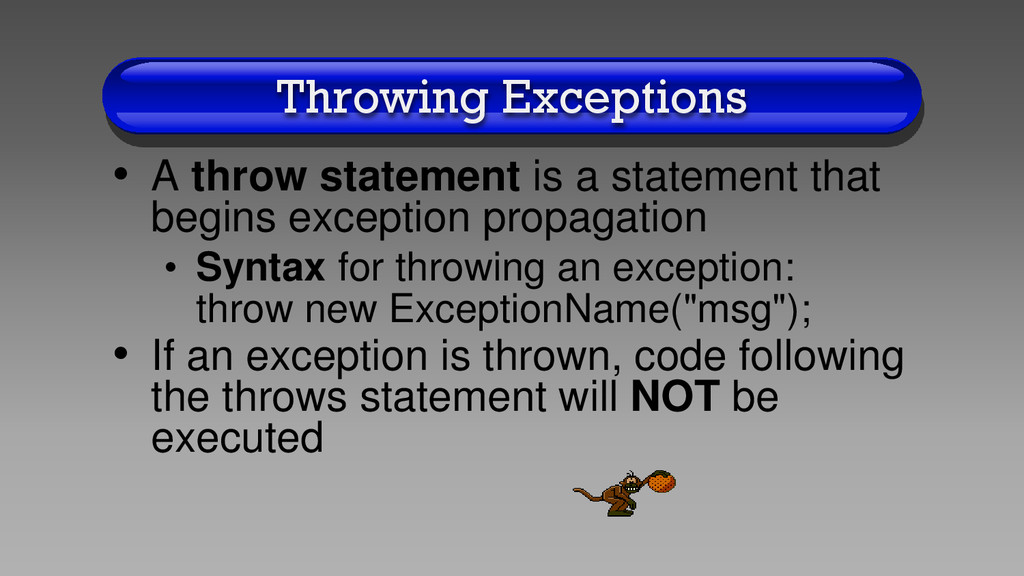

29. Throwing Exceptions • A throw statement is a statement that begins exception propagation • Syntax for throwing an exception: throw new ExceptionName("msg"); • If an exception is thrown, code following the throws statement will NOT be executed

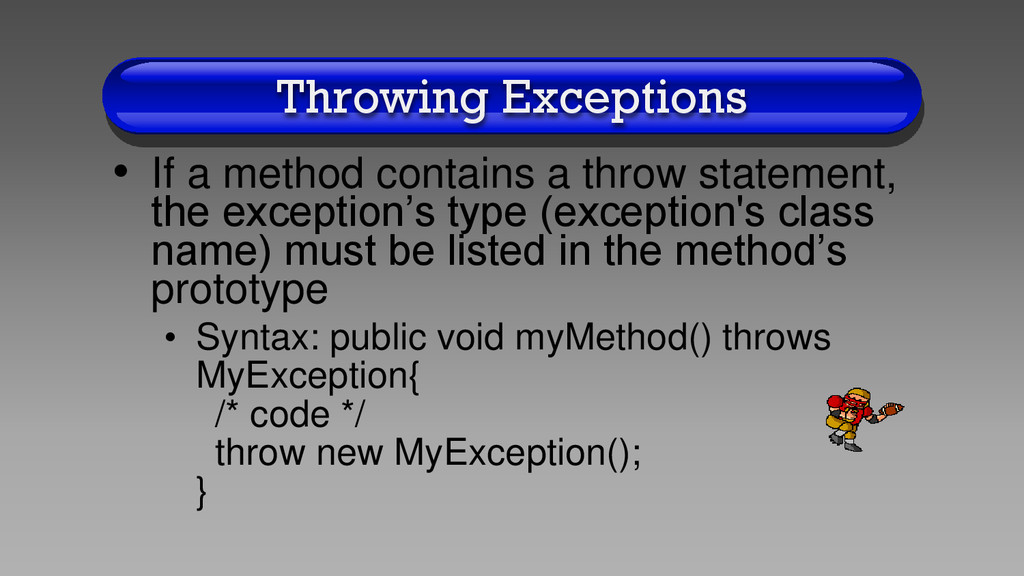

30. Throwing Exceptions • If a method contains a throw statement, the exception’s type (exception's class name) must be listed in the method’s prototype • Syntax: public void myMethod() throws MyException{ /* code */ throw new MyException(); }

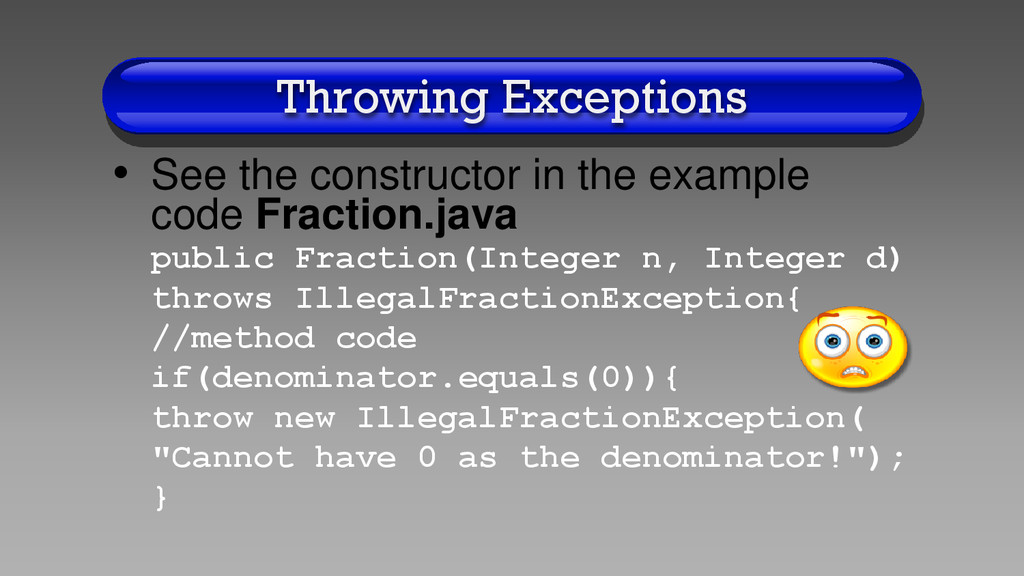

31. Throwing Exceptions • See the constructor in the example code Fraction.java public Fraction(Integer n, Integer d) throws IllegalFractionException{ //method code if(denominator.equals(0)){ throw new IllegalFractionException( "Cannot have 0 as the denominator!"); }

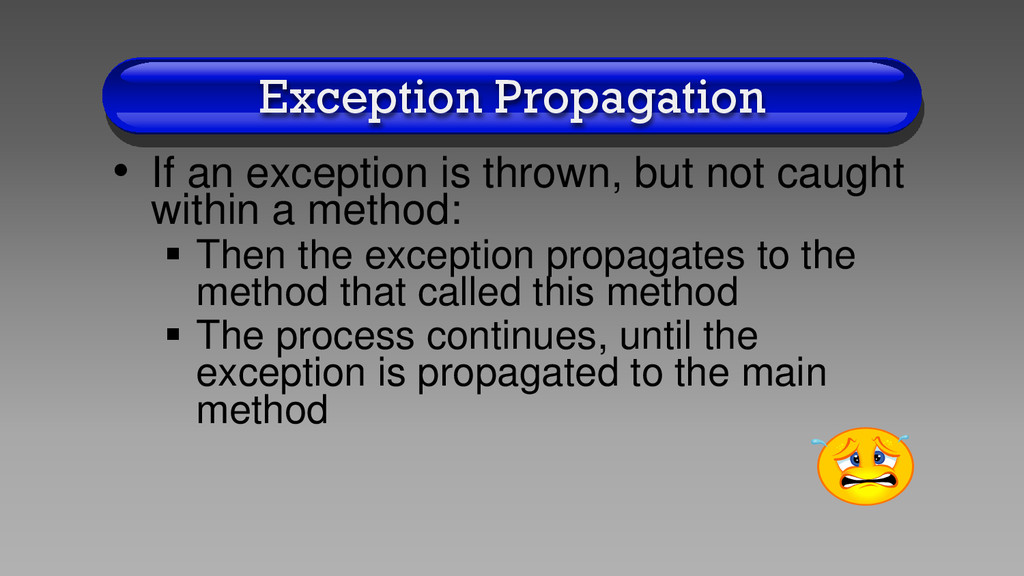

32. Exception Propagation • If an exception is thrown, but not caught within a method:  Then the exception propagates to the method that called this method  The process continues, until the exception is propagated to the main method

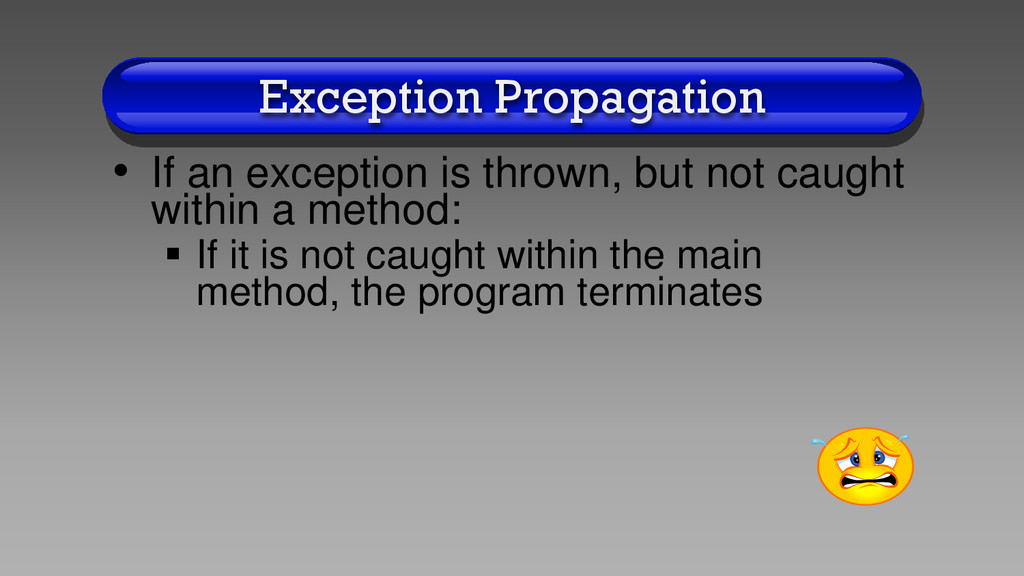

33. Exception Propagation • If an exception is thrown, but not caught within a method:  If it is not caught within the main method, the program terminates

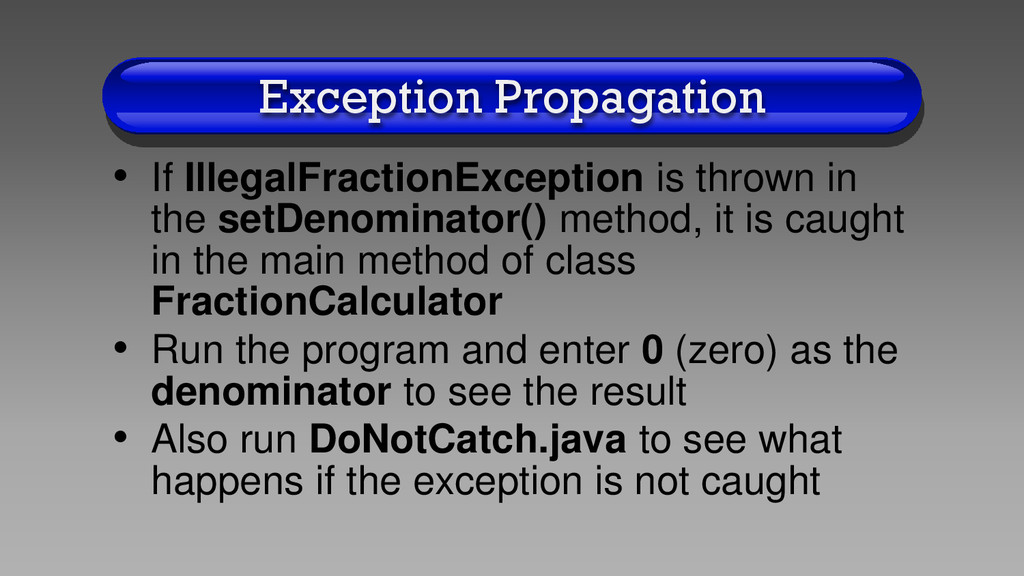

34. Exception Propagation • If IllegalFractionException is thrown in the setDenominator() method, it is caught in the main method of class FractionCalculator • Run the program and enter 0 (zero) as the denominator to see the result • Also run DoNotCatch.java to see what happens if the exception is not caught

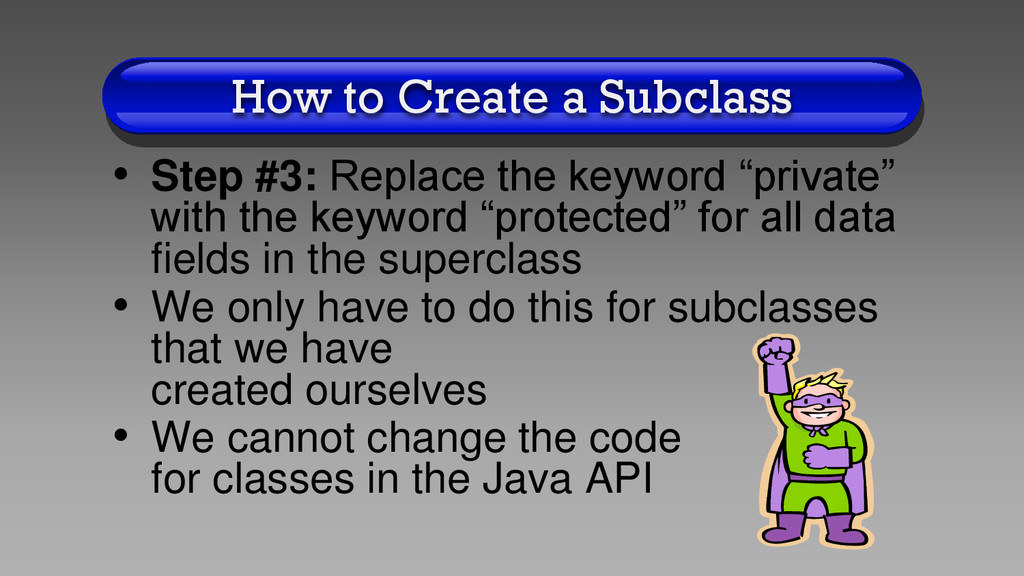

35. How to Create a Subclass • Step #3: Replace the keyword “private” with the keyword “protected” for all data fields in the superclass • We only have to do this for subclasses that we have created ourselves • We cannot change the code for classes in the Java API

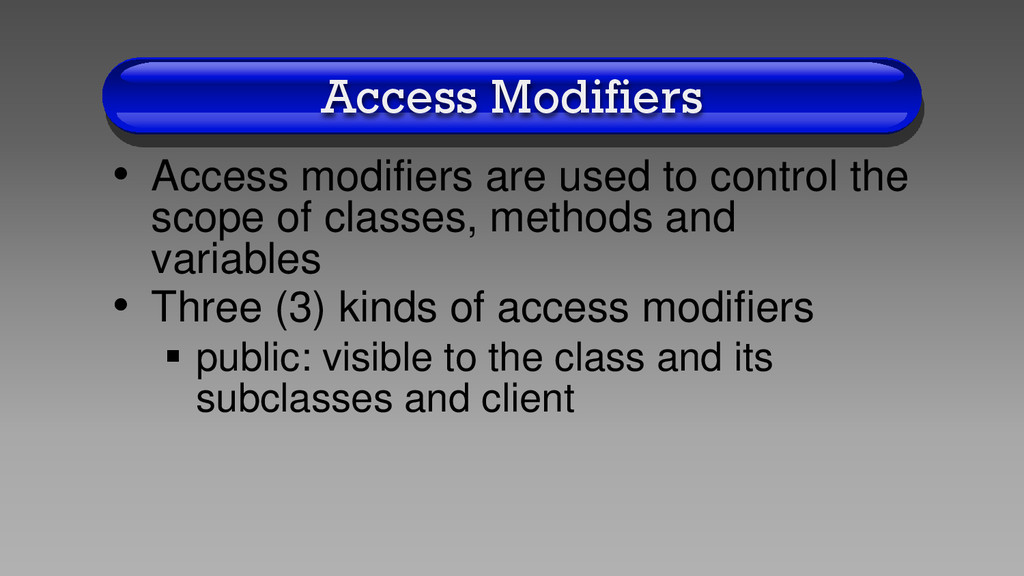

36. Access Modifiers • Access modifiers are used to control the scope of classes, methods and variables • Three (3) kinds of access modifiers  public: visible to the class and its subclasses and client

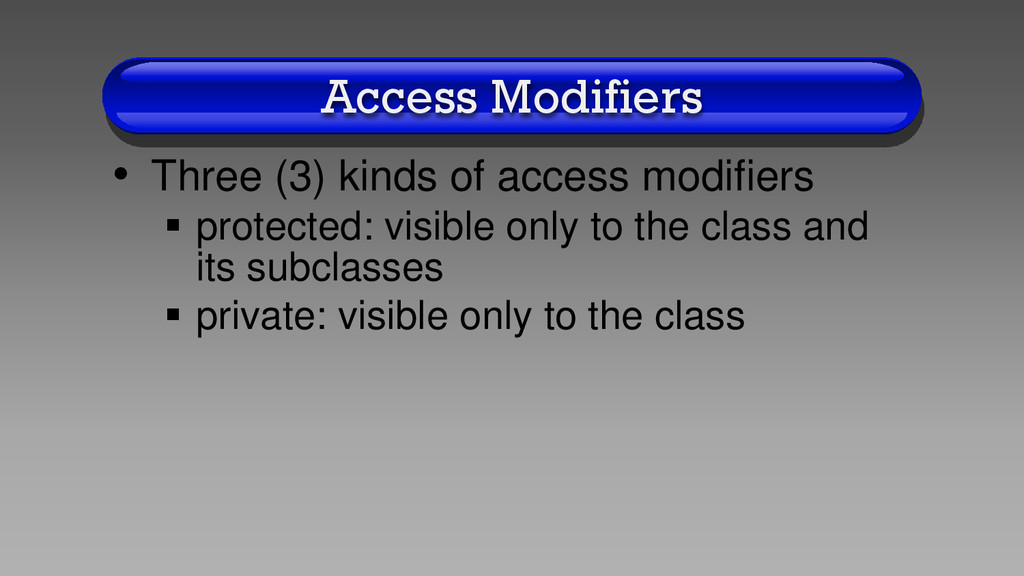

37. Access Modifiers • Three (3) kinds of access modifiers  protected: visible only to the class and its subclasses  private: visible only to the class

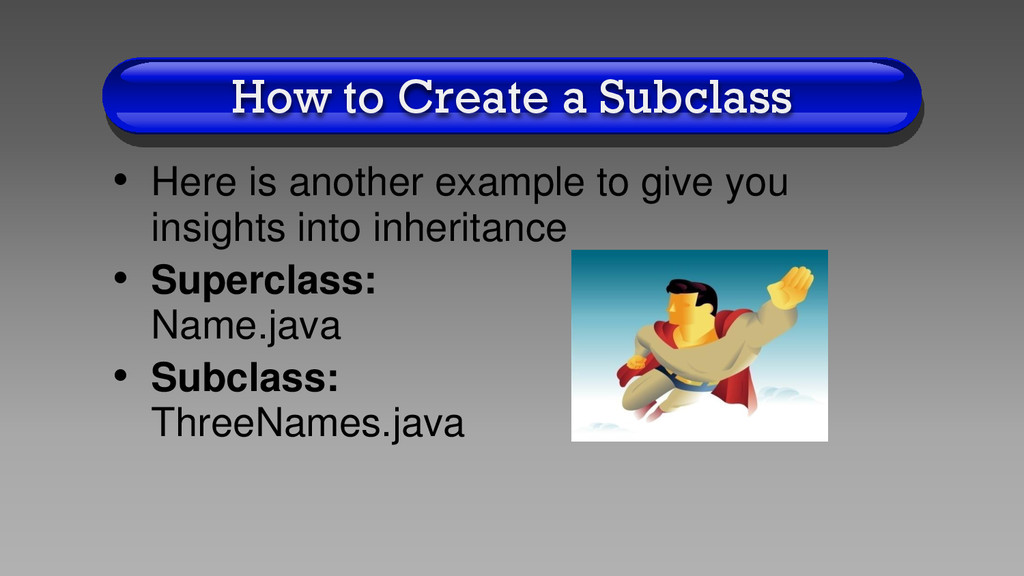

38. How to Create a Subclass • Here is another example to give you insights into inheritance • Superclass: Name.java • Subclass: ThreeNames.java

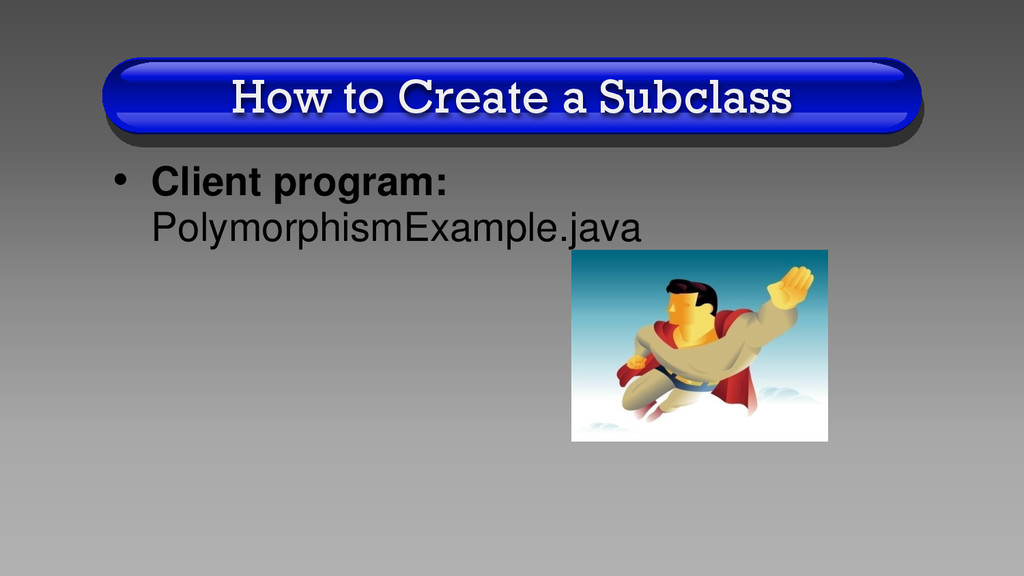

39. How to Create a Subclass • Client program: PolymorphismExample.java

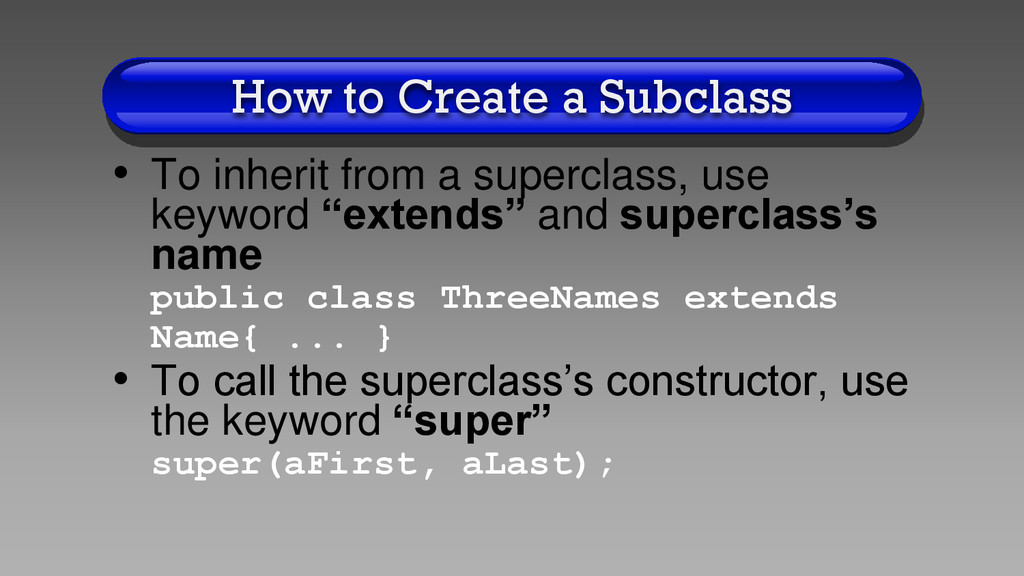

40. How to Create a Subclass • To inherit from a superclass, use keyword “extends” and superclass’s name public class ThreeNames extends Name{ ... } • To call the superclass’s constructor, use the keyword “super” super(aFirst, aLast);
41. Example Code • Superclass: Name • Class Name is composed of following two (2) String objects: protected String first; protected String last;

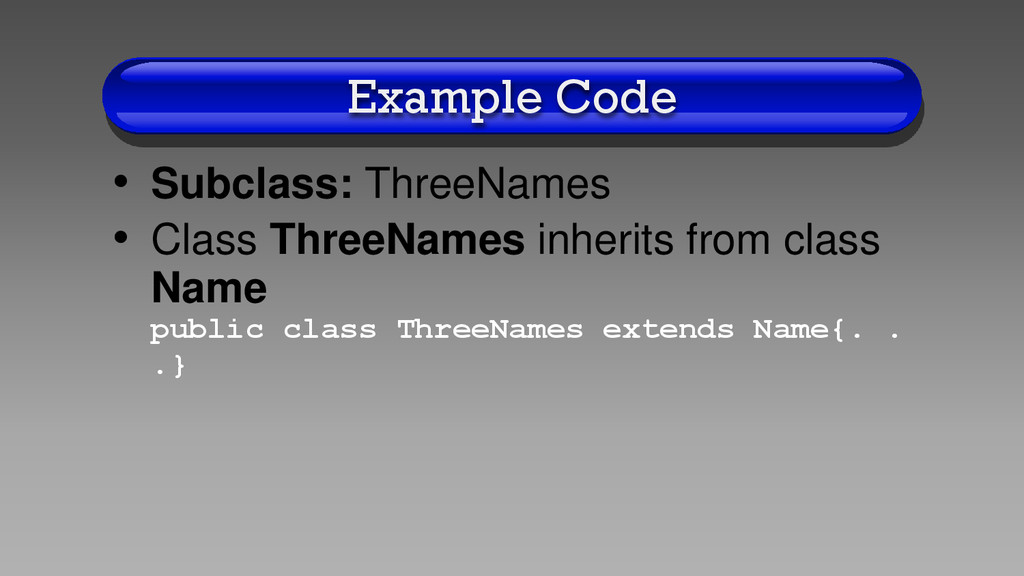

42. Example Code • Subclass: ThreeNames • Class ThreeNames inherits from class Name public class ThreeNames extends Name{. . .}

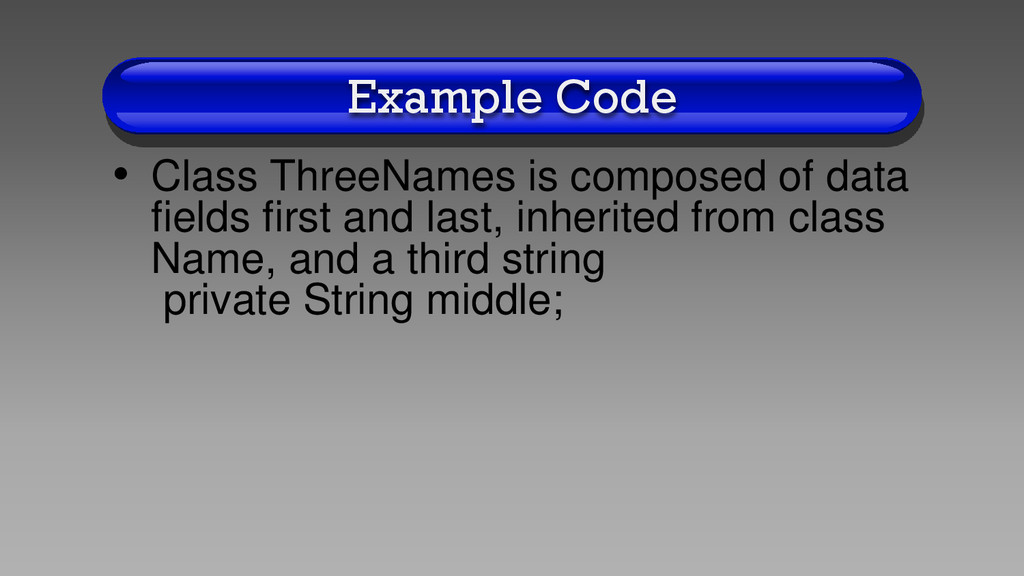

43. Example Code • Class ThreeNames is composed of data fields first and last, inherited from class Name, and a third string private String middle;

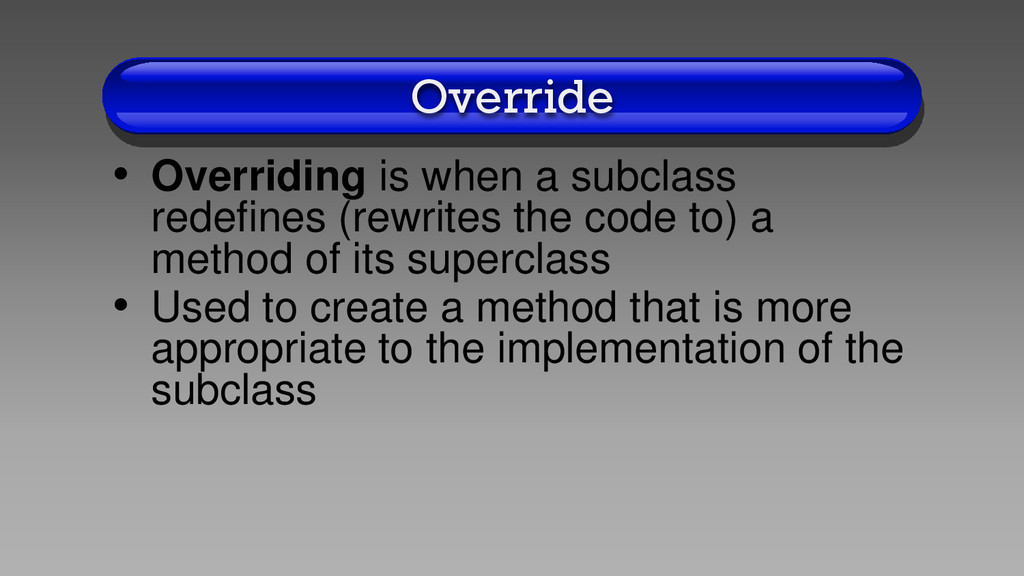

44. Override • Overriding is when a subclass redefines (rewrites the code to) a method of its superclass • Used to create a method that is more appropriate to the implementation of the subclass

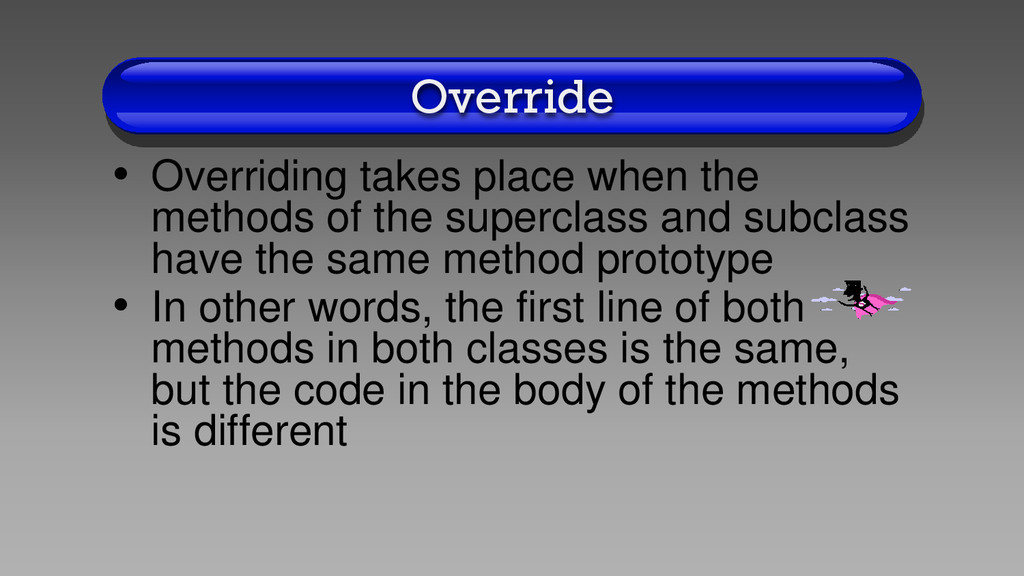

45. Override • Overriding takes place when the methods of the superclass and subclass have the same method prototype • In other words, the first line of both methods in both classes is the same, but the code in the body of the methods is different

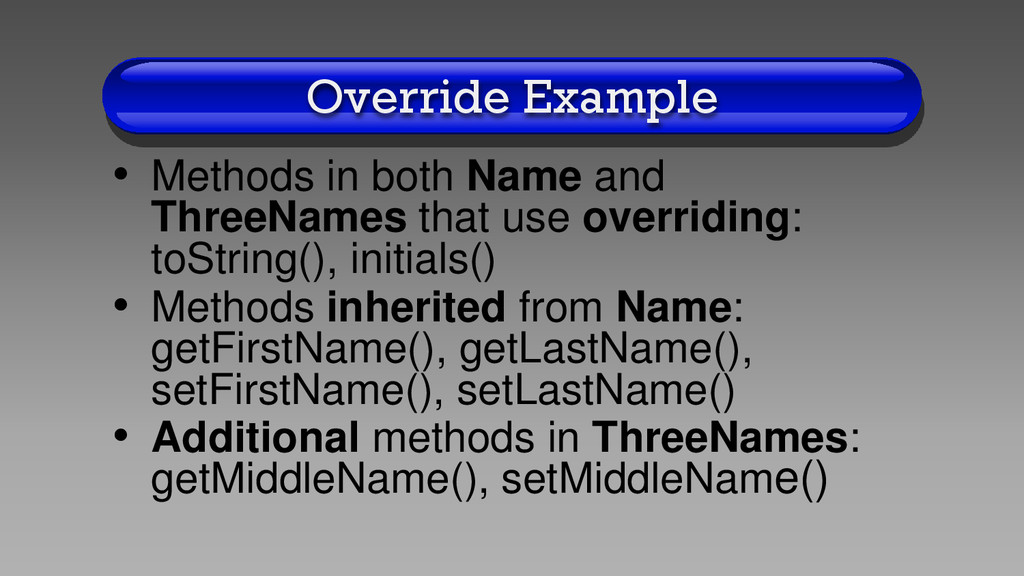

46. Override Example • Methods in both Name and ThreeNames that use overriding: toString(), initials() • Methods inherited from Name: getFirstName(), getLastName(), setFirstName(), setLastName() • Additional methods in ThreeNames: getMiddleName(), setMiddleName()

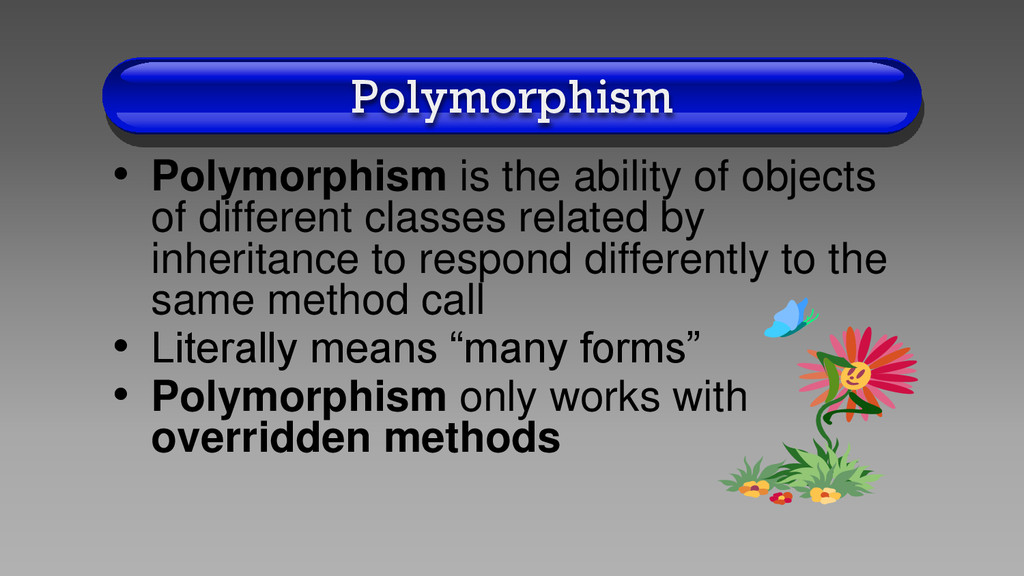

47. Polymorphism • Polymorphism is the ability of objects of different classes related by inheritance to respond differently to the same method call • Literally means “many forms” • Polymorphism only works with overridden methods

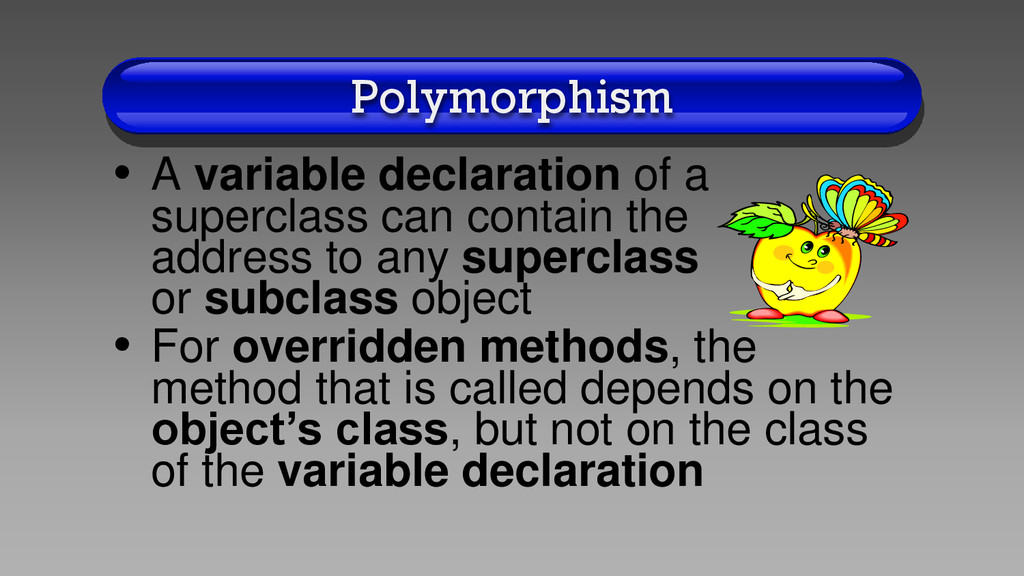

48. Polymorphism • A variable declaration of a superclass can contain the address to any superclass or subclass object • For overridden methods, the method that is called depends on the object’s class, but not on the class of the variable declaration

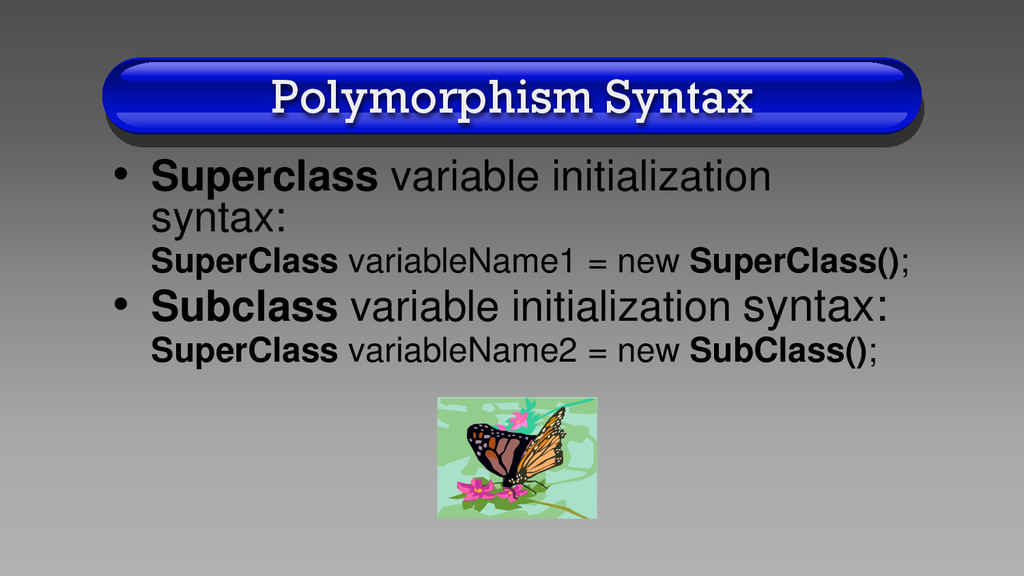

49. Polymorphism Syntax • Superclass variable initialization syntax: SuperClass variableName1 = new SuperClass(); • Subclass variable initialization syntax: SuperClass variableName2 = new SubClass();

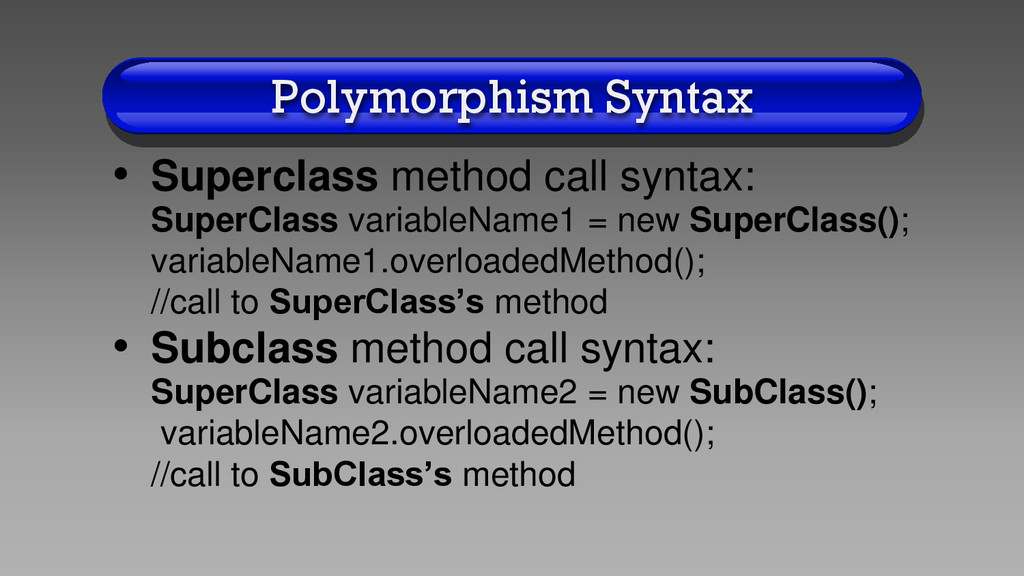

50. Polymorphism Syntax • Superclass method call syntax: SuperClass variableName1 = new SuperClass(); variableName1.overloadedMethod(); //call to SuperClass’s method • Subclass method call syntax: SuperClass variableName2 = new SubClass(); variableName2.overloadedMethod(); //call to SubClass’s method
51. Polymorphism Example • Method call to Name’s initials() Name name1 = new Name("Fujiko", "Suzuki"); System.out.println(name1.initials()); //Output is "F. S."

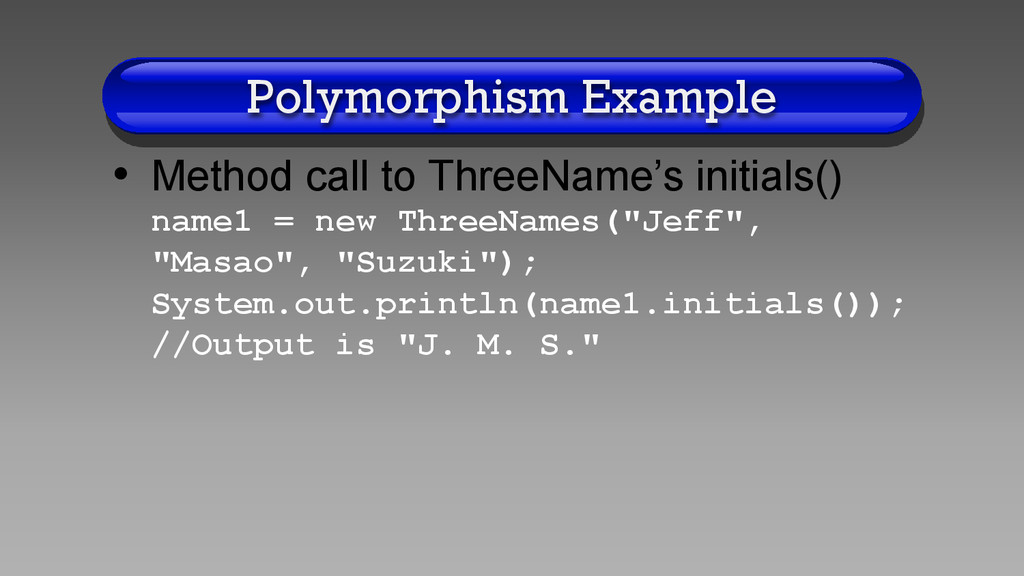

52. Polymorphism Example • Method call to ThreeName’s initials() name1 = new ThreeNames("Jeff", "Masao", "Suzuki"); System.out.println(name1.initials()); //Output is "J. M. S."

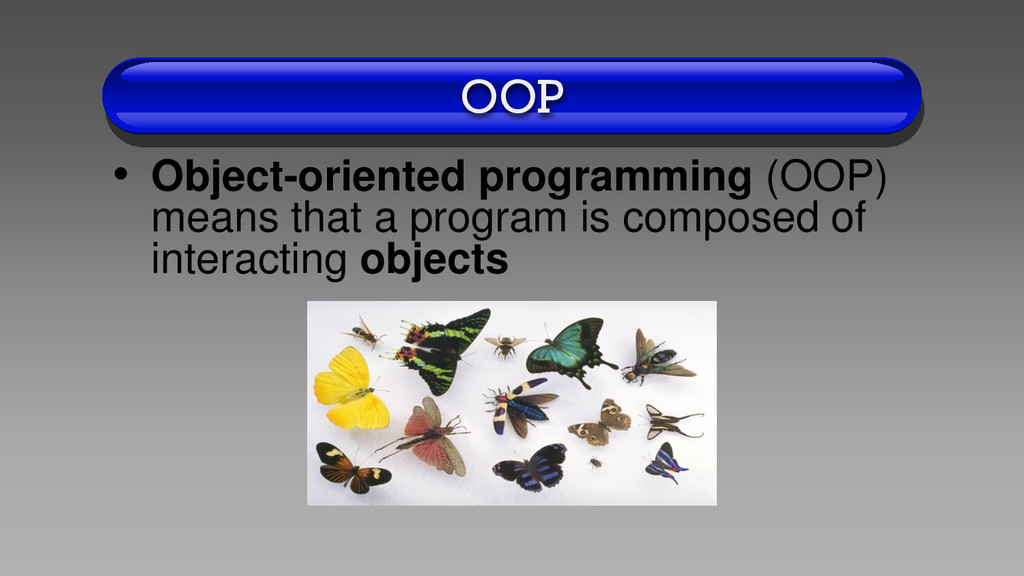

53. OOP • Object-oriented programming (OOP) means that a program is composed of interacting objects

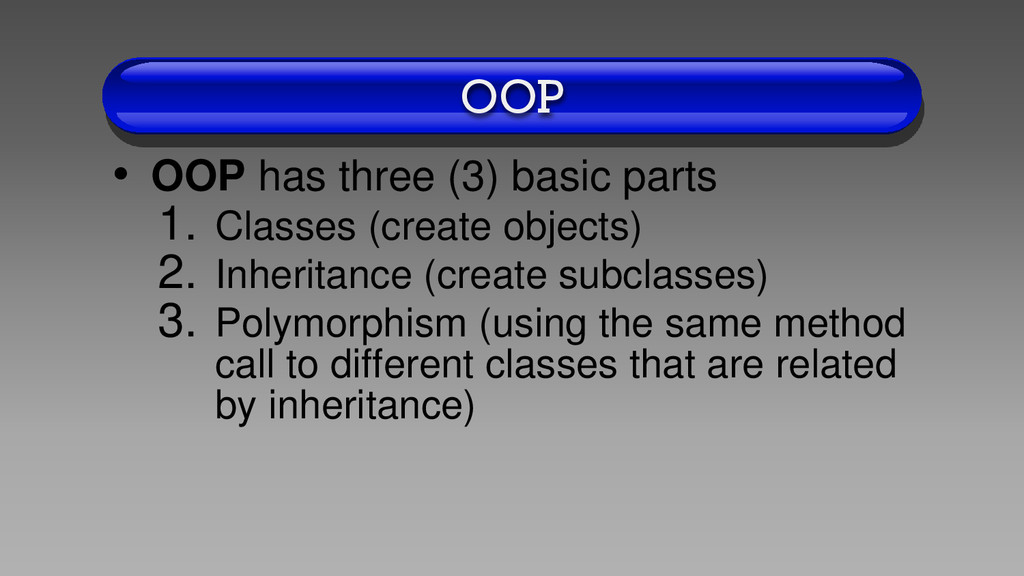

54. OOP • OOP has three (3) basic parts 1. Classes (create objects) 2. Inheritance (create subclasses) 3. Polymorphism (using the same method call to different classes that are related by inheritance)
55. Memory Defragmenter • Interfaces • Inheritance • Polymorphism • OOP (Object-Oriented Programming)

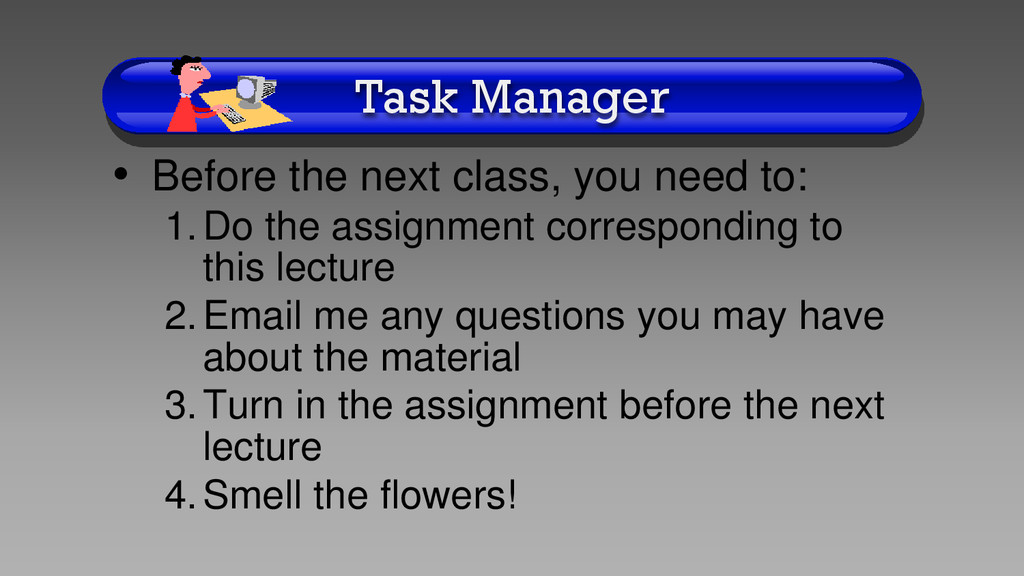

56. Task Manager • Before the next class, you need to: 1.Do the assignment corresponding to this lecture 2.Email me any questions you may have about the material 3.Turn in the assignment before the next lecture 4.Smell the flowers!
