1. Session 16 ICS 211 Linked Lists II

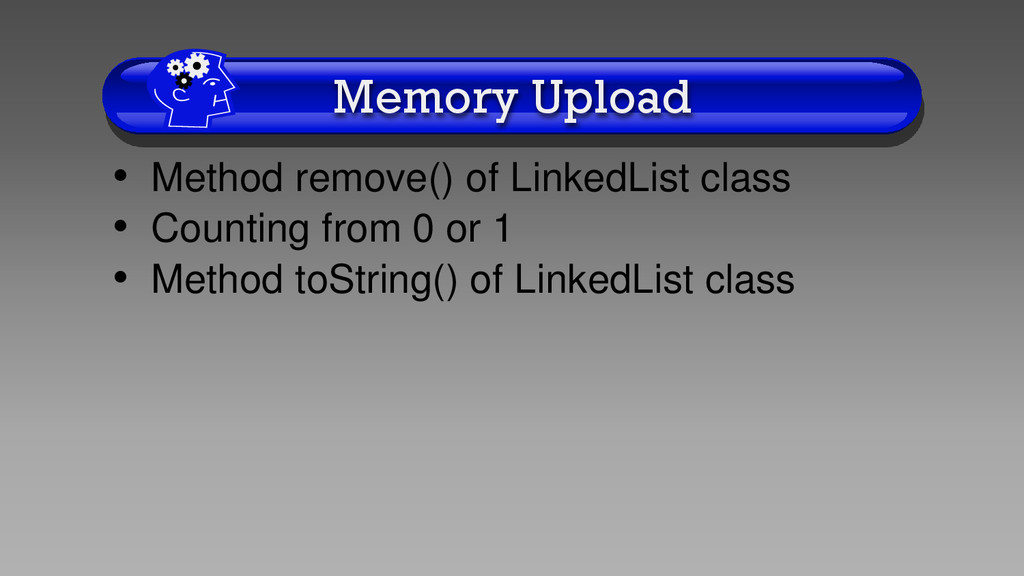

2. Memory Upload • Method remove() of LinkedList class • Counting from 0 or 1 • Method toString() of LinkedList class
3. Algorithm for Remove 1. If list is empty, throw ListException 2. If position is less than 1, or larger than list size, throw ListException 3. If the position is 1, change the address in head to the 2nd node 4. If the position is greater than 1 a. Point Node variable previous to 1st node b. Point Node variable current to 2nd node

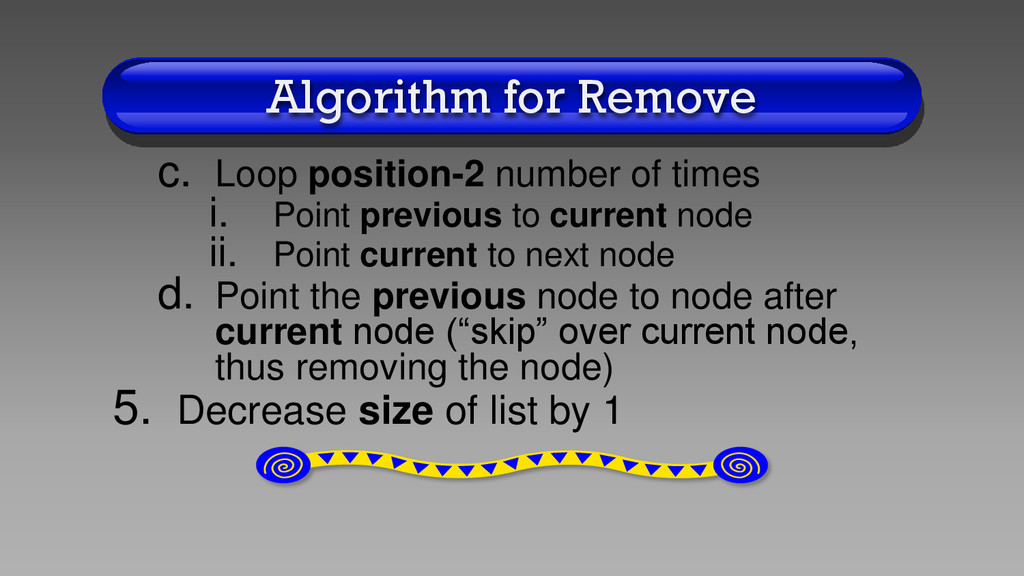

4. Algorithm for Remove c. Loop position-2 number of times i. Point previous to current node ii. Point current to next node d. Point the previous node to node after current node (“skip” over current node, thus removing the node) 5. Decrease size of list by 1

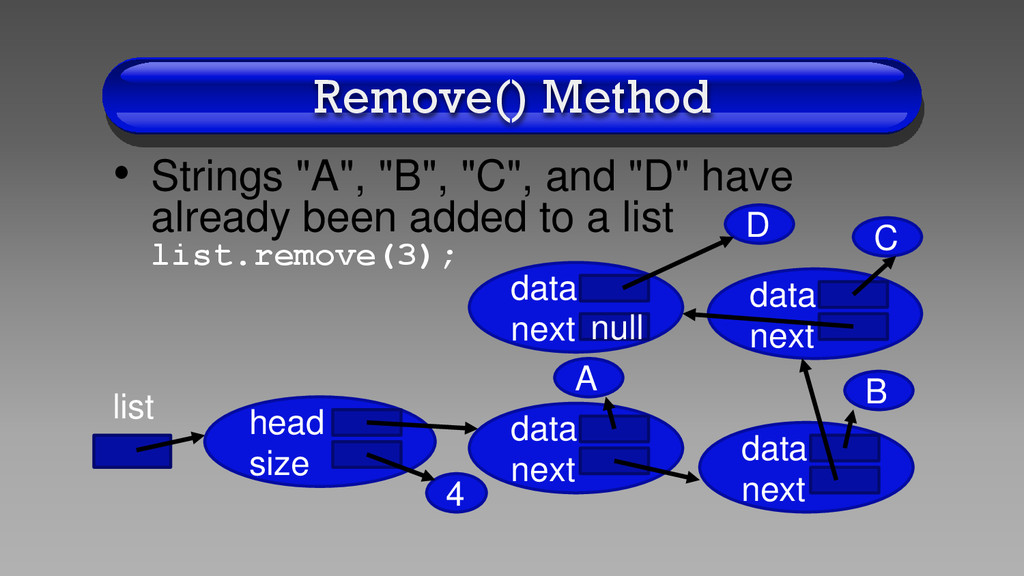

5. Remove() Method • Strings "A", "B", "C", and "D" have already been added to a list list.remove(3); list 4 head size A data next data next B C data next D data next null

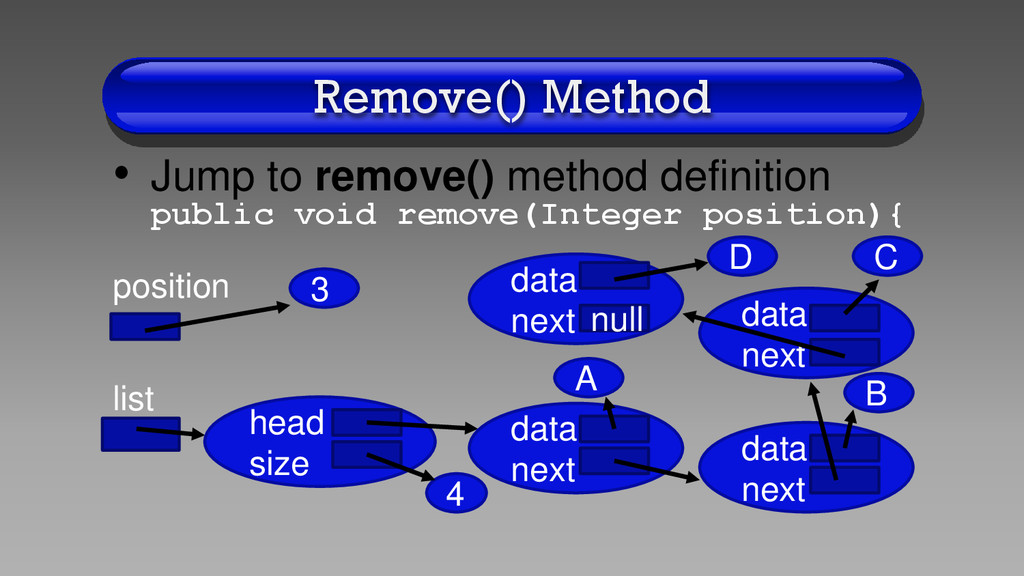

6. Remove() Method • Jump to remove() method definition public void remove(Integer position){ position list 4 head size A data next data next B C data next D data next null 3

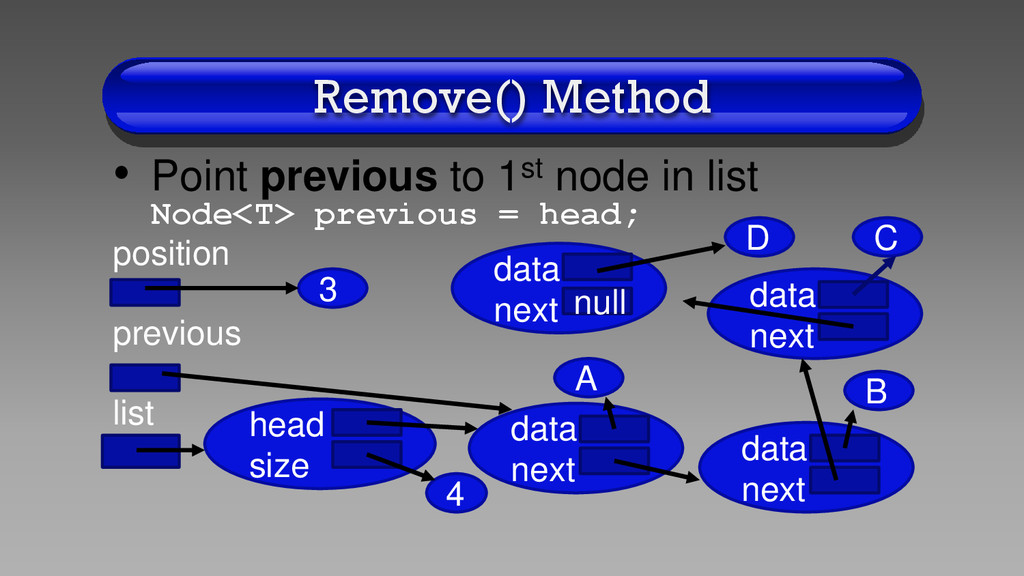

7. Remove() Method • Point previous to 1st node in list Node<T> previous = head; position previous list 4 head size A data next data next B C data next D data next null 3

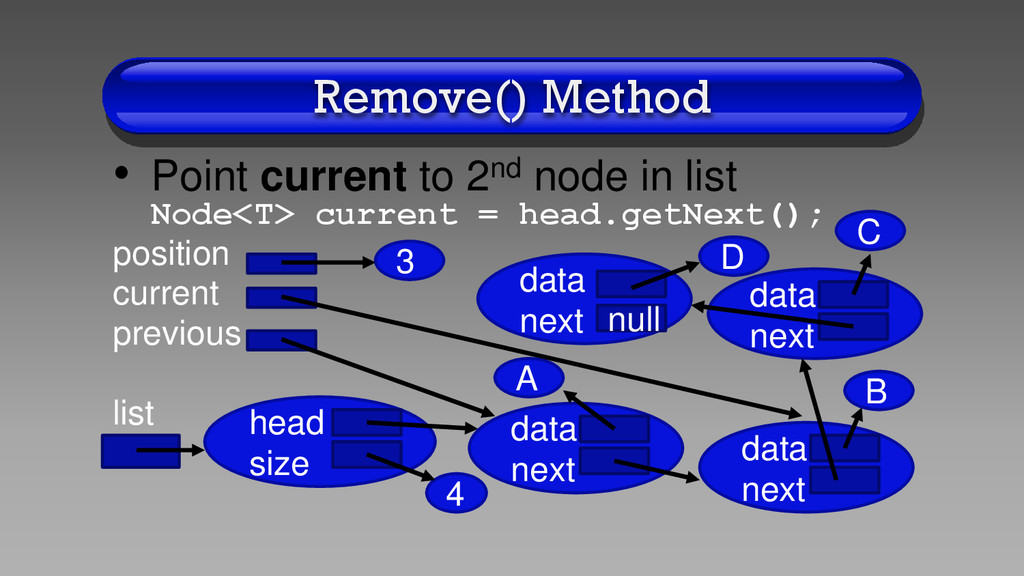

8. Remove() Method • Point current to 2nd node in list Node<T> current = head.getNext(); position current previous list 4 head size A data next data next B C data next D data next null 3

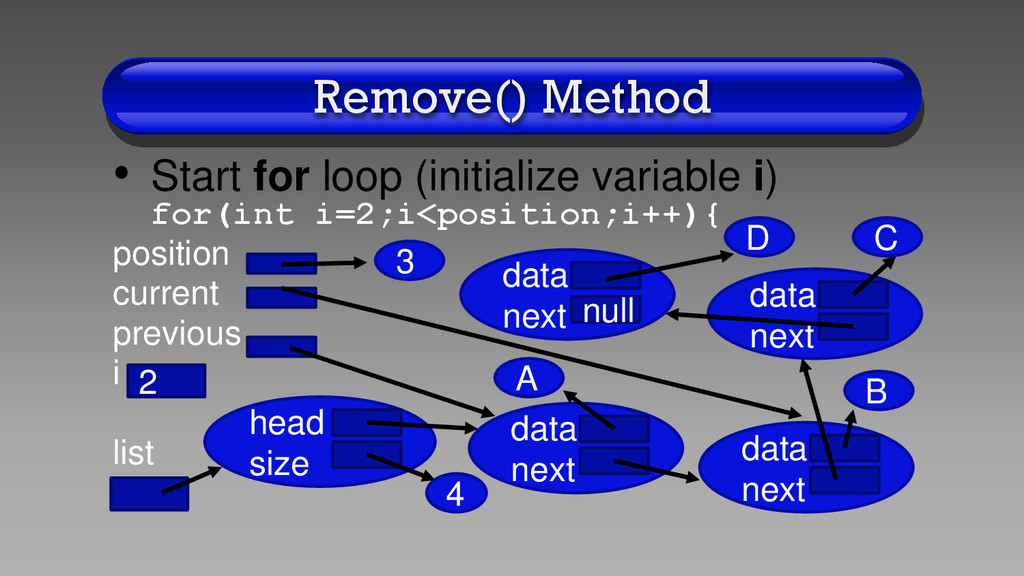

9. Remove() Method • Start for loop (initialize variable i) for(int i=2;i<position;i++){ position current previous i list 4 head size A data next data next B C data next D data next null 3 2

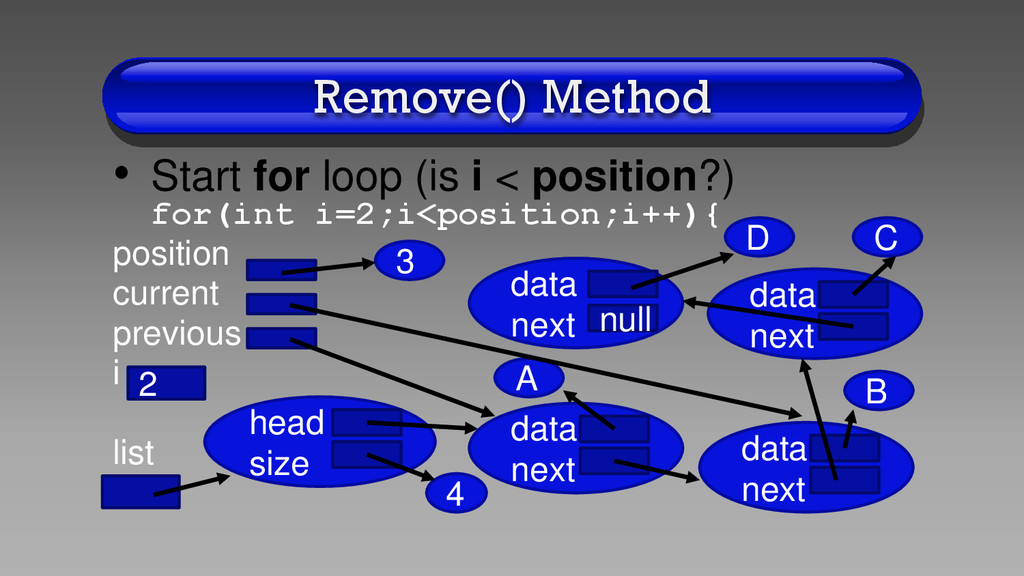

10. Remove() Method • Start for loop (is i < position?) for(int i=2;i<position;i++){ position current previous i list 4 head size A data next data next B C data next D data next null 3 2
11. Remove() Method • 1st loop: assign previous to current previous = current; position current previous i list 4 head size A data next data next B C data next D data next null 3 2
12. Remove() Method • 1st loop: assign current to next node current = current.getNext(); position current previous i list 4 head size A data next data next B C data next D data next null 3 2

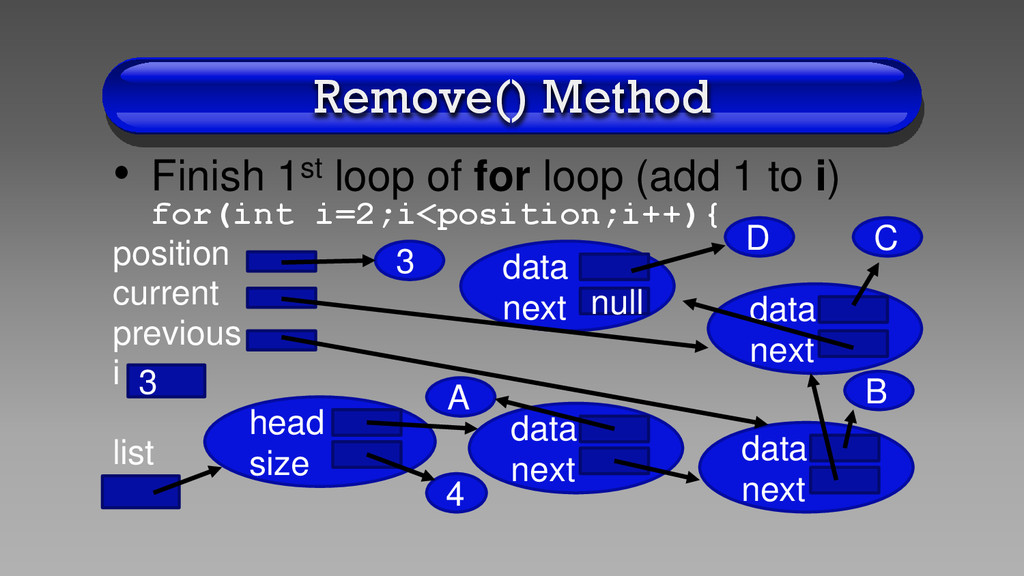

13. Remove() Method Remove() Method • Finish 1st loop of for loop (add 1 to i) for(int i=2;i<position;i++){ position current previous i list 4 head size A data next data next B C data next D data next null 3 3

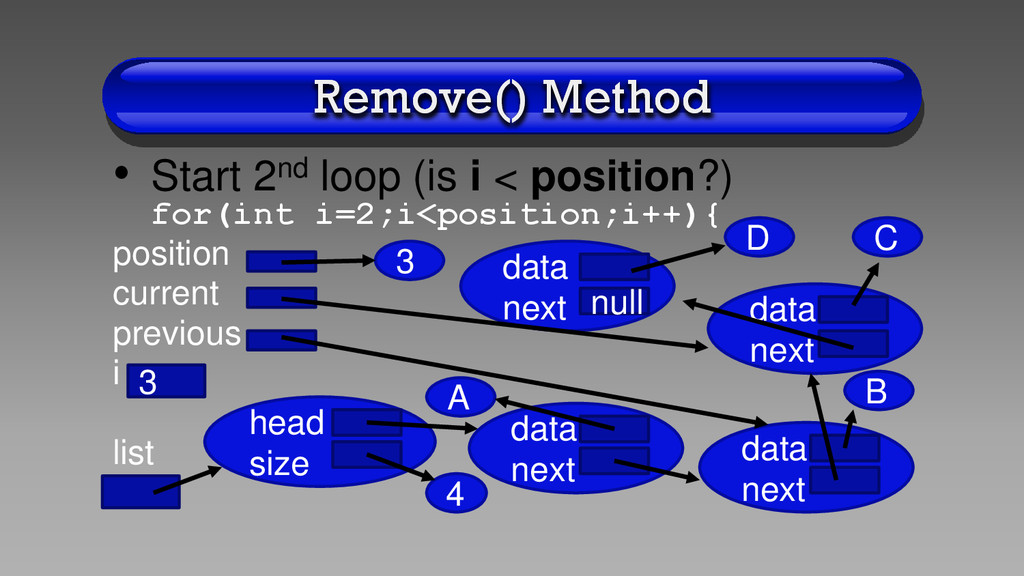

14. Remove() Method Remove() Method Remove() Method • Start 2nd loop (is i < position?) for(int i=2;i<position;i++){ position current previous i list 4 head size A data next data next B C data next D data next null 3 3
15. Remove() Method Remove() Method Remove() Method • Finish for loop (i popped off stack) for(int i=2;i<position;i++){ position current previous list 4 head size A data next data next B C data next D data next null 3

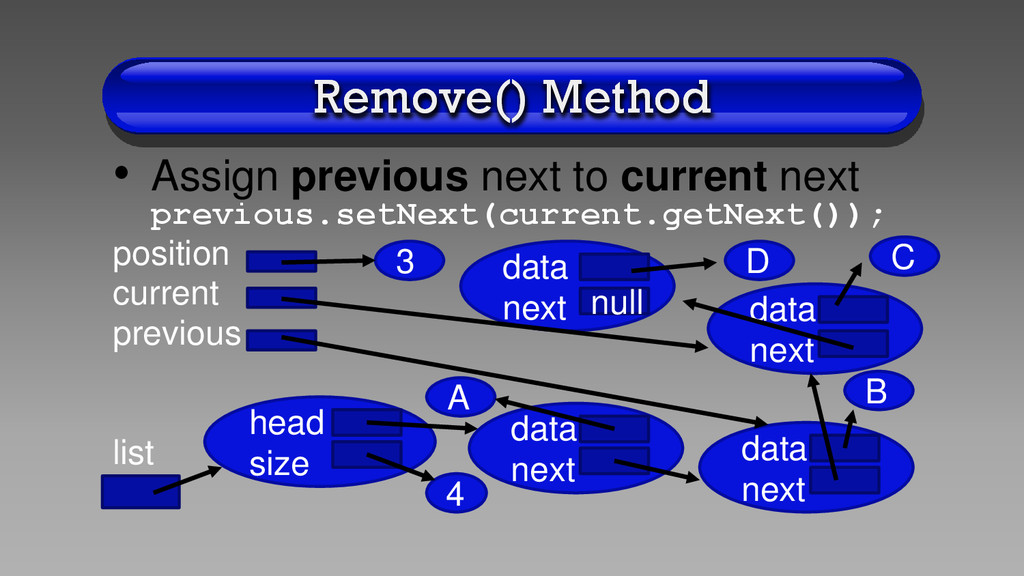

16. Remove() Method Remove() Method Remove() Method • Assign previous next to current next previous.setNext(current.getNext()); position current previous list 4 head size A data next data next B C data next D data next null 3

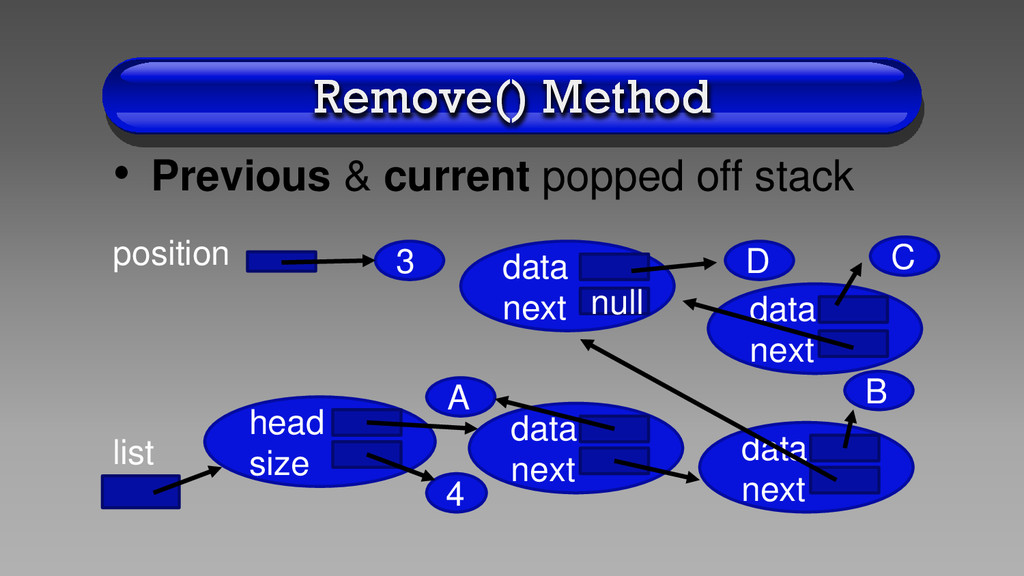

17. Remove() Method Remove() Method Remove() Method • Previous & current popped off stack position list 4 head size A data next data next B C data next D data next null 3

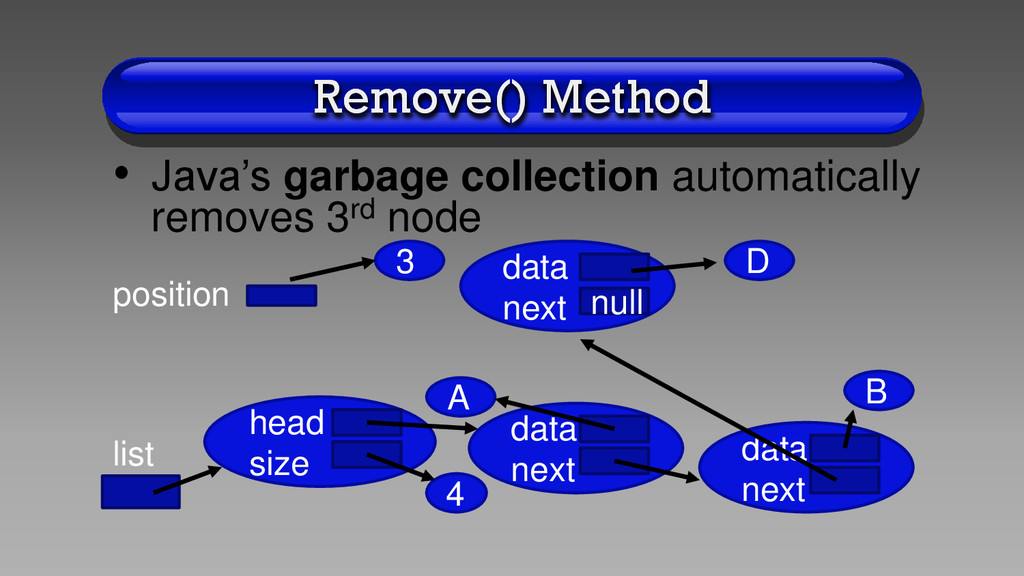

18. Remove() Method Remove() Method Remove() Method • Java’s garbage collection automatically removes 3rd node position list 4 head size A data next data next B D data next null 3

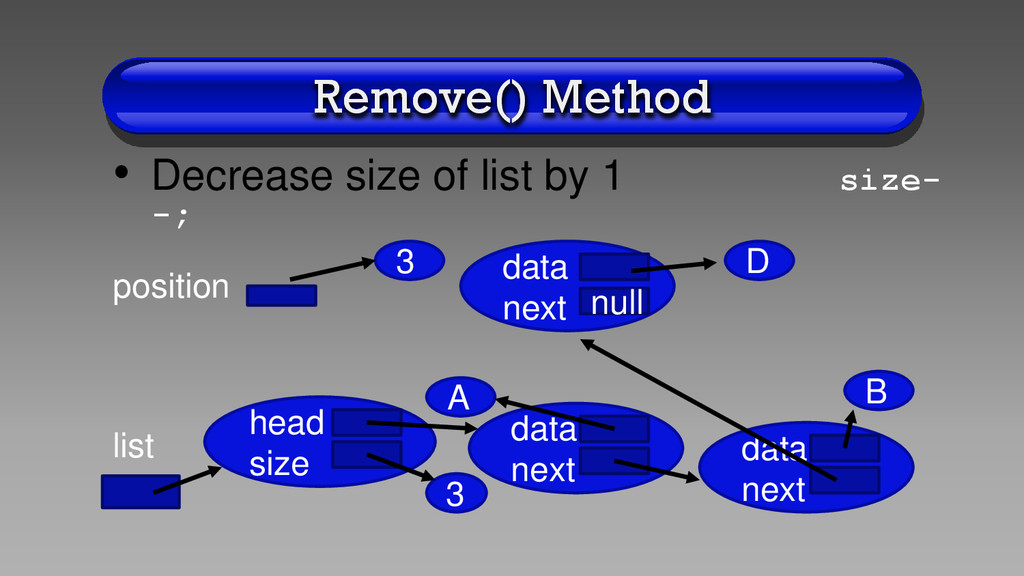

19. Remove() Method Remove() Method Remove() Method • Decrease size of list by 1 size- -; position list 3 head size A data next data next B D data next null 3

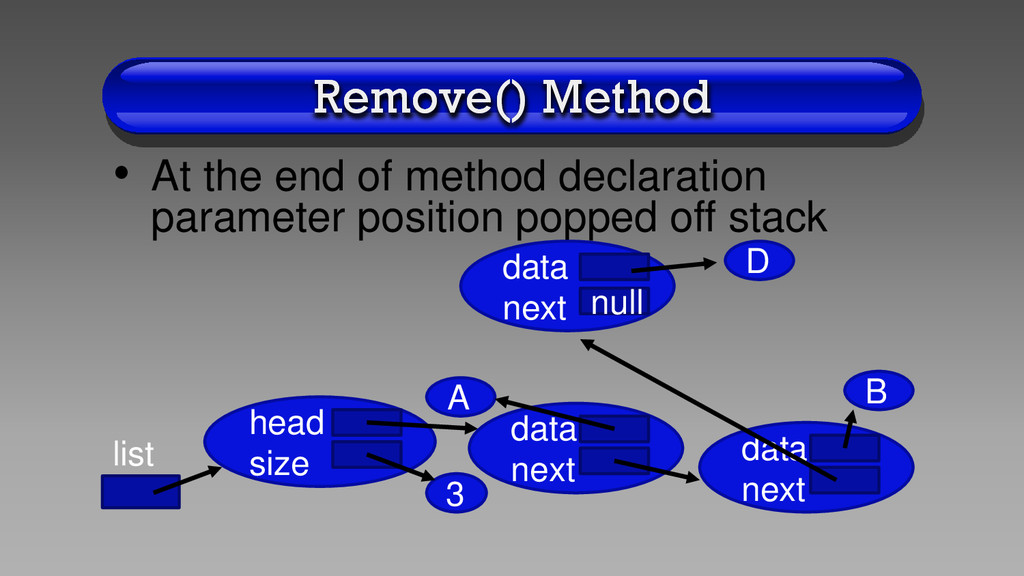

20. Remove() Method Remove() Method Remove() Method • At the end of method declaration parameter position popped off stack list 3 head size A data next data next B D data next null

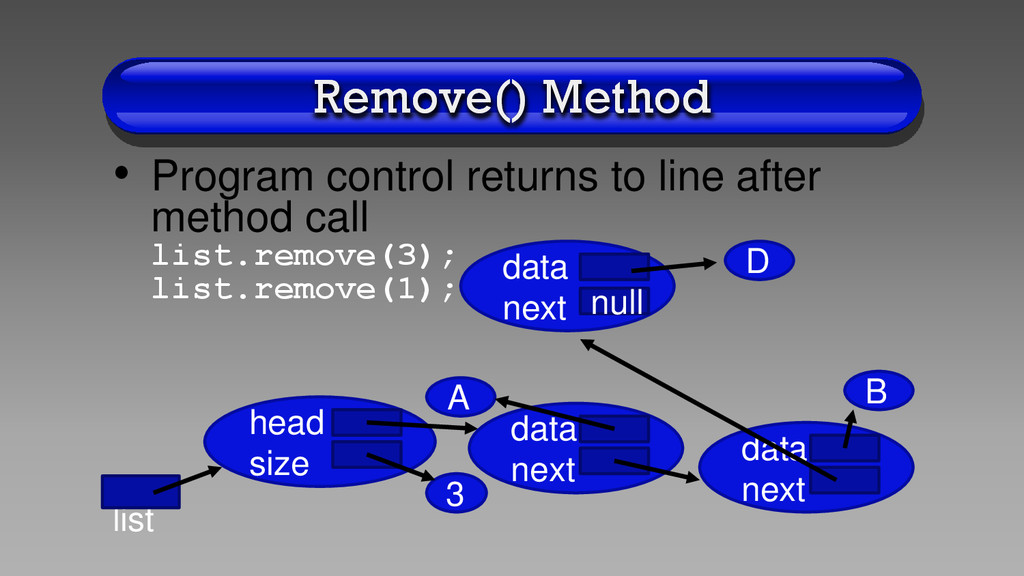

21. Remove() Method Remove() Method Remove() Method • Program control returns to line after method call list.remove(3); list.remove(1); list 3 head size A data next data next B D data next null

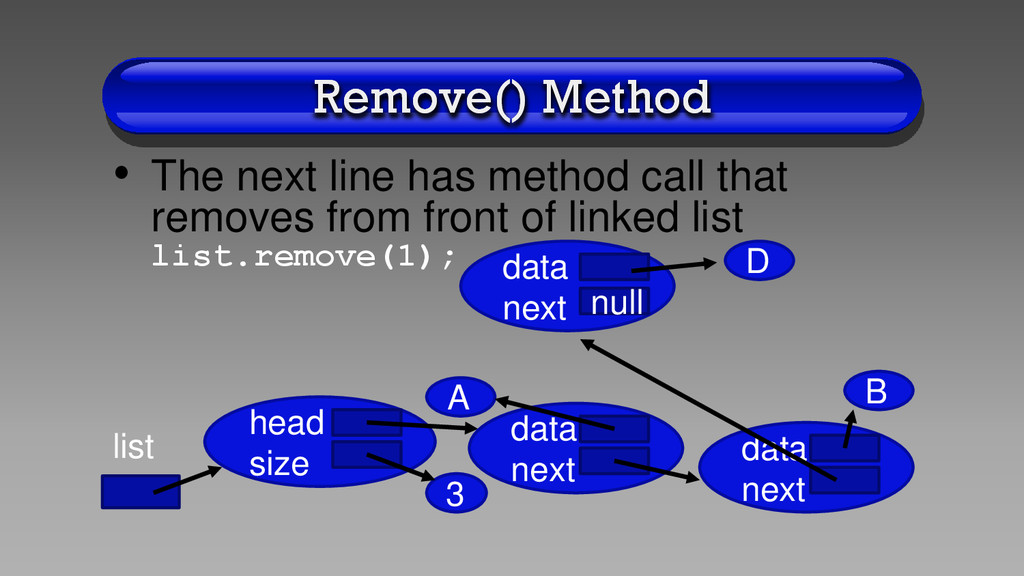

22. Remove() Method Remove() Method Remove() Method • The next line has method call that removes from front of linked list list.remove(1); list 3 head size A data next data next B D data next null

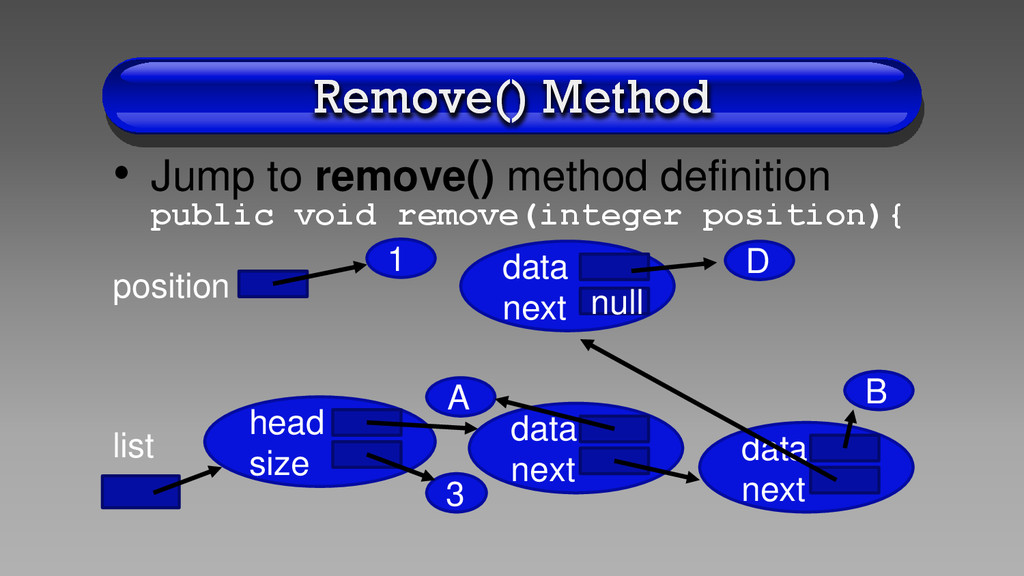

23. Remove() Method Remove() Method Remove() Method • Jump to remove() method definition public void remove(integer position){ position list 3 head size A data next data next B D data next null 1

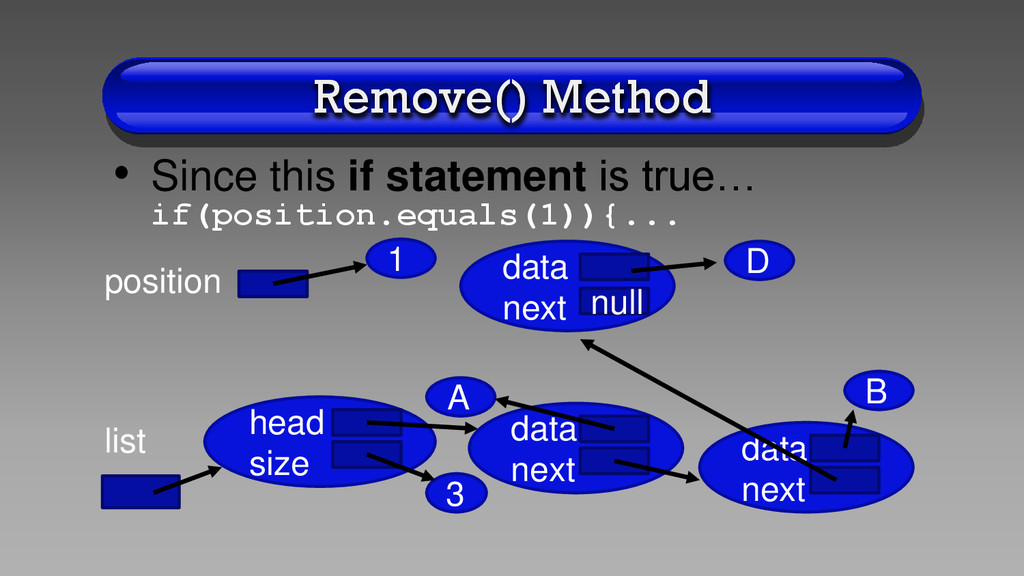

24. Remove() Method Remove() Method Remove() Method • Since this if statement is true… if(position.equals(1)){... 3 head size A data next data next B D data next null 1 position list

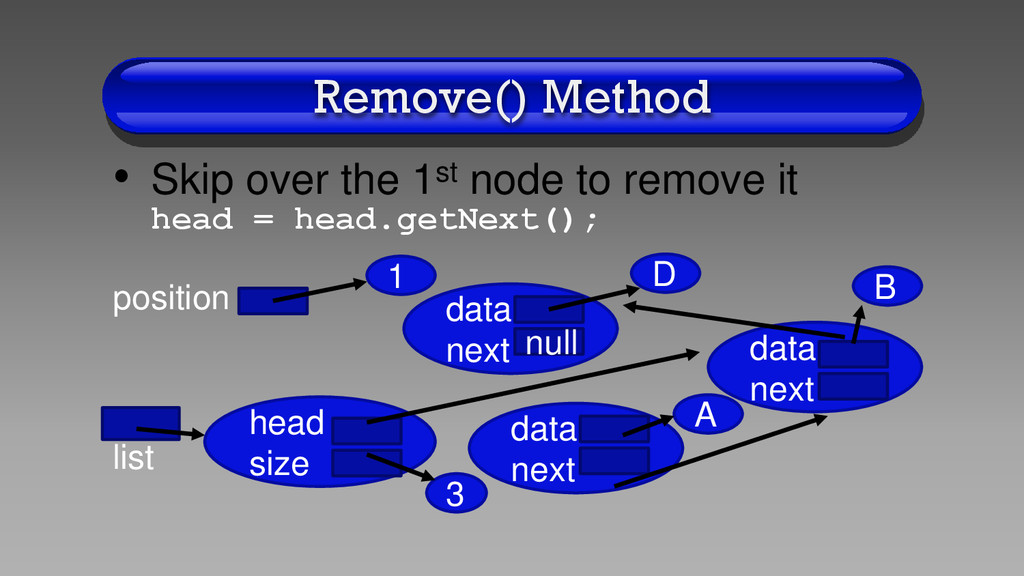

25. Remove() Method • Skip over the 1st node to remove it head = head.getNext(); position list 3 head size A data next data next B D data next null 1

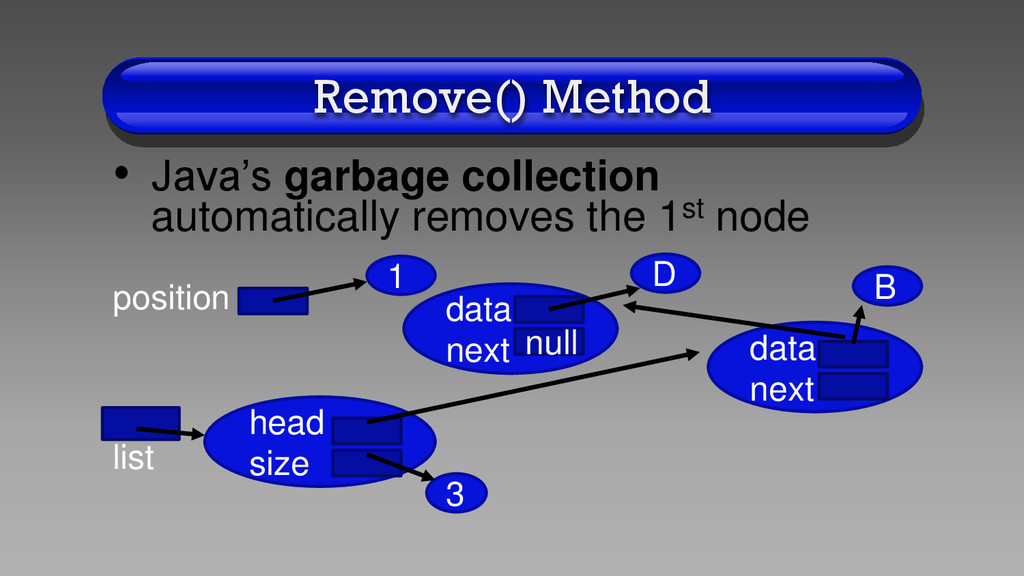

26. Remove() Method • Java’s garbage collection automatically removes the 1st node 3 head size data next B D data next null 1 position list
27. position list Remove() Method • Decrement size of list size-- ; 2 head size data next B D data next null 1

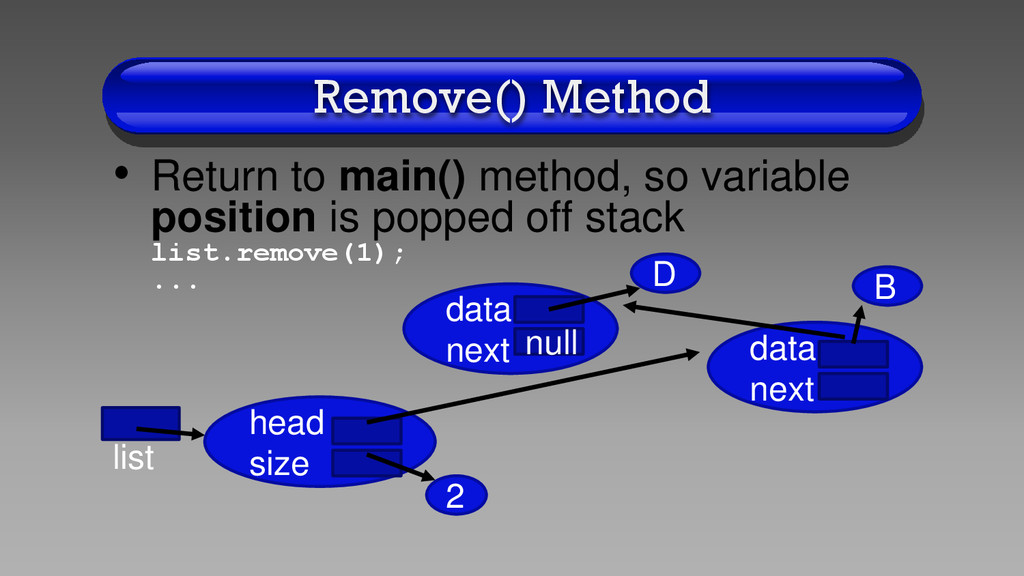

28. Remove() Method • Return to main() method, so variable position is popped off stack list.remove(1); ... 2 head size data next B D data next null list

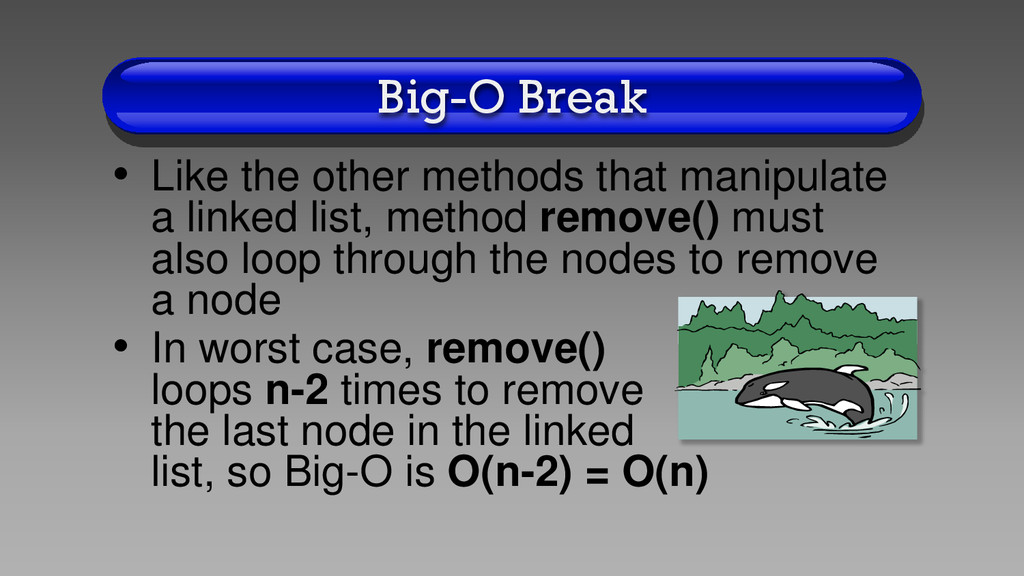

29. Big-O Break • Like the other methods that manipulate a linked list, method remove() must also loop through the nodes to remove a node • In worst case, remove() loops n-2 times to remove the last node in the linked list, so Big-O is O(n-2) = O(n)
30. A Note on Counting • The Java API has class LinkedList, which starts counting from zero (0) • However, my LinkedList class starts counting from one (1) • For me, counting from one (1) makes more sense, since people are using the linked list class • So if you use the Java API LinkedList class, be aware of the difference with my code for the LinkedList class

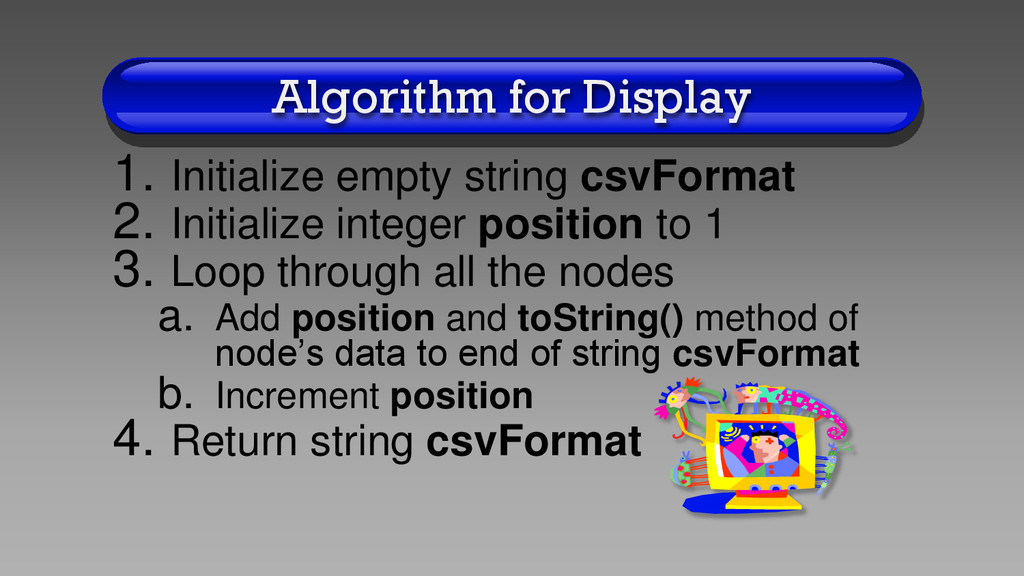

31. Algorithm for Display 1. Initialize empty string csvFormat 2. Initialize integer position to 1 3. Loop through all the nodes a. Add position and toString() method of node’s data to end of string csvFormat b. Increment position 4. Return string csvFormat

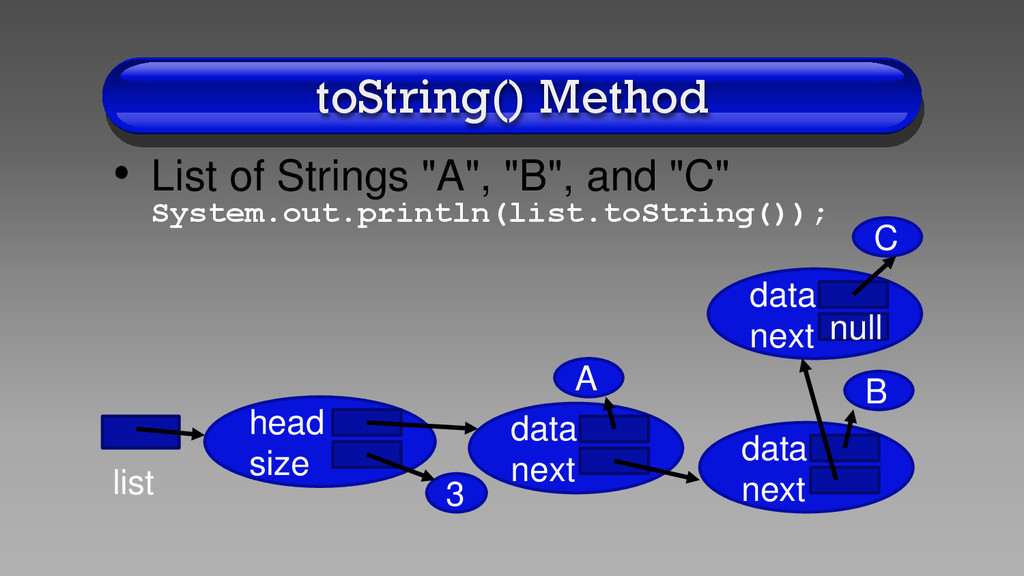

32. toString() Method • List of Strings "A", "B", and "C" System.out.println(list.toString()); 3 head size A data next data next B C data next null list

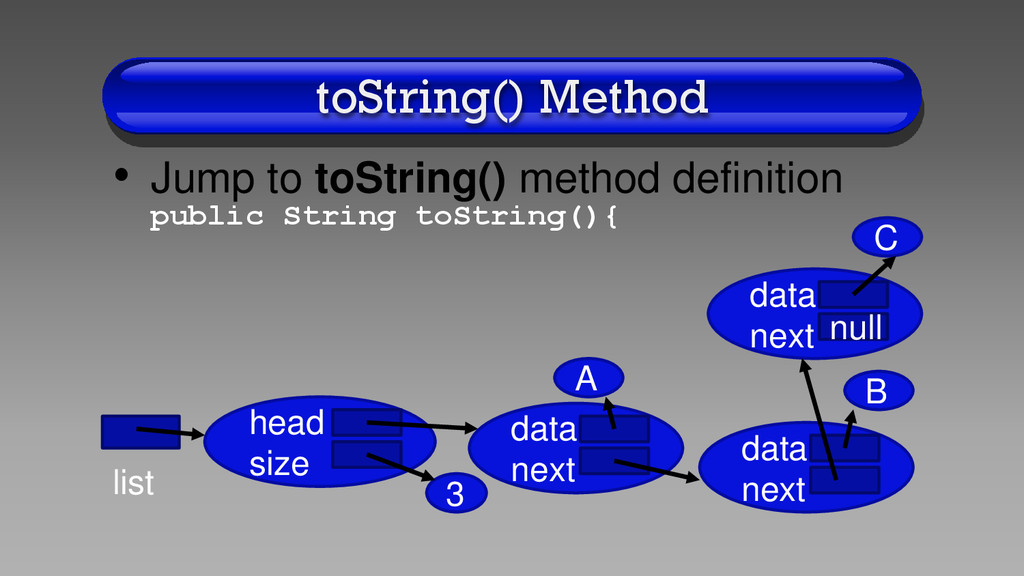

33. toString() Method • Jump to toString() method definition public String toString(){ 3 head size A data next data next B C data next null list

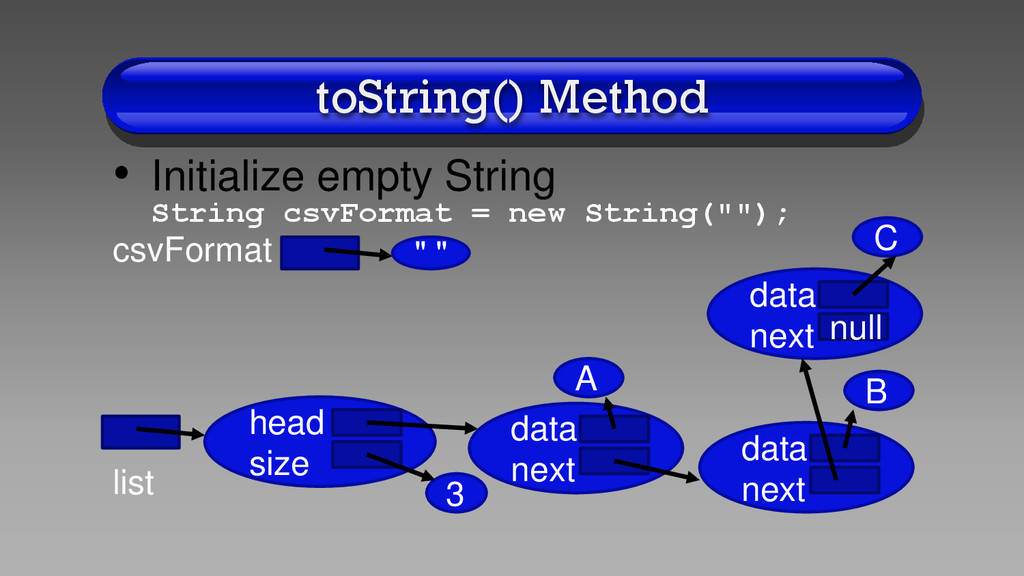

34. csvFormat list toString() Method • Initialize empty String String csvFormat = new String(""); 3 head size A data next data next B C data next null " "

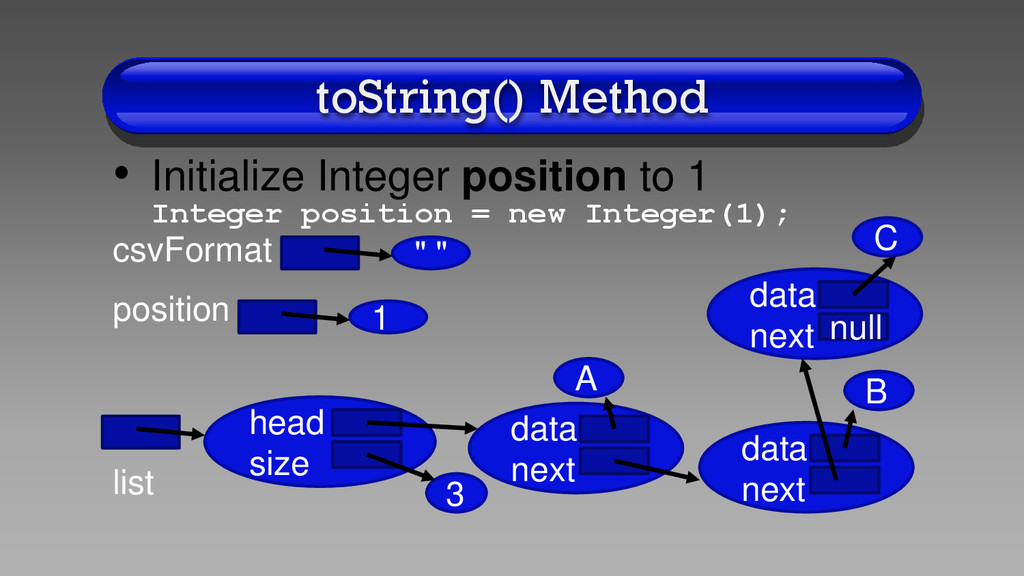

35. csvFormat list • Initialize Integer position to 1 Integer position = new Integer(1); toString() Method 3 head size A data next data next B C data next null " " 1 position

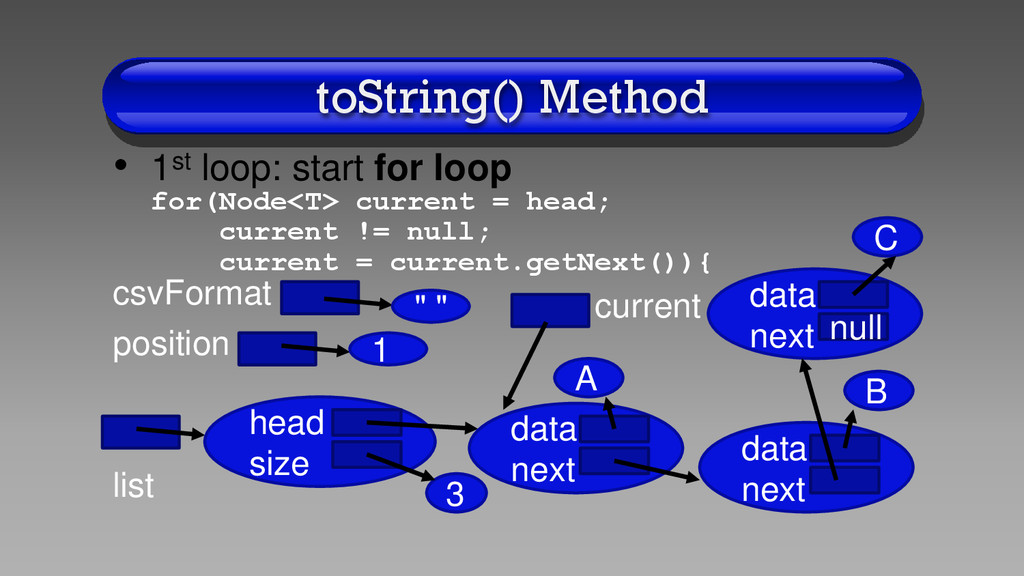

36. • 1st loop: start for loop for(Node<T> current = head; current != null; current = current.getNext()){ csvFormat list toString() Method 3 head size A data next data next B C data next null " " 1 position current

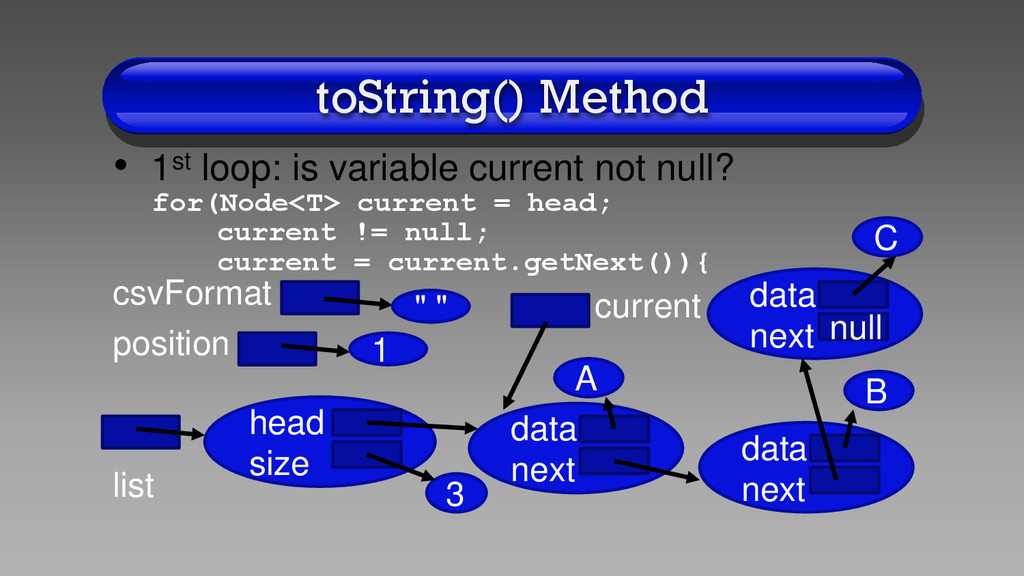

37. for(Node<T> current = head; current != null; current = current.getNext()){ • 1st loop: is variable current not null? csvFormat list toString() Method 3 head size A data next data next B C data next null " " 1 position current

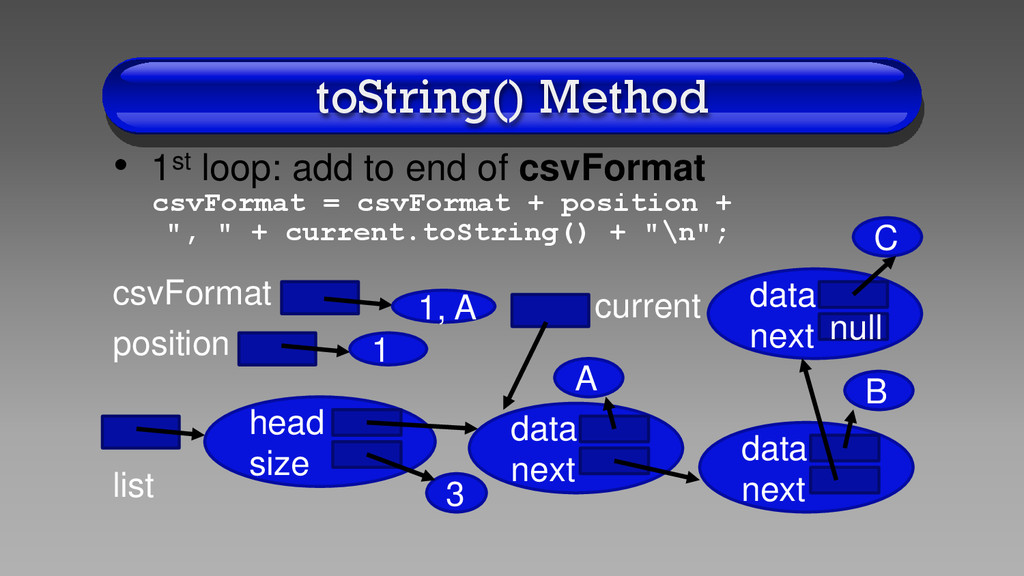

38. csvFormat = csvFormat + position + ", " + current.toString() + "\n"; • 1st loop: add to end of csvFormat csvFormat list toString() Method 3 head size A data next data next B C data next null 1 position current 1, A

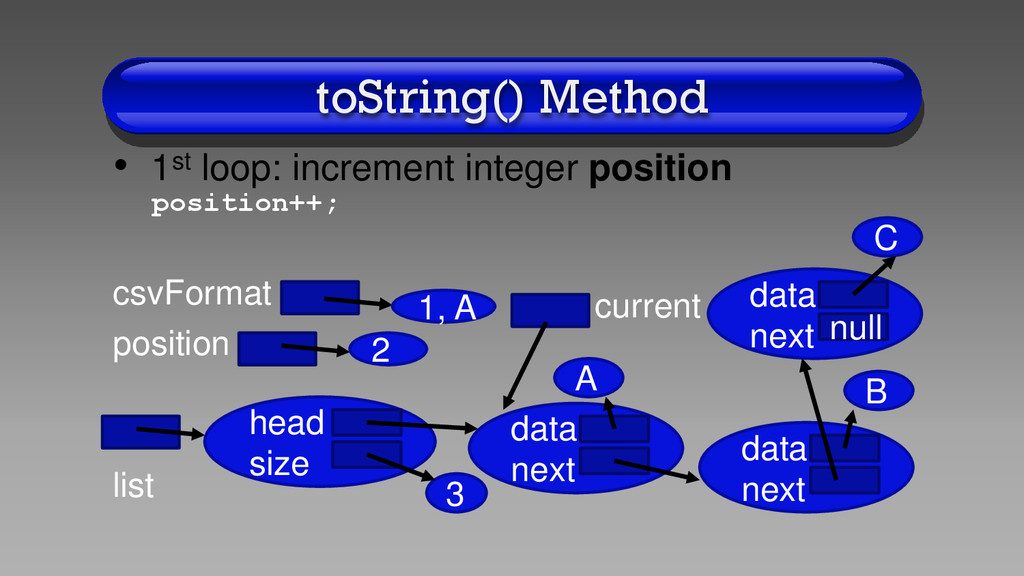

39. • 1st loop: increment integer position position++; csvFormat list toString() Method 3 head size A data next data next B C data next null 2 position current 1, A

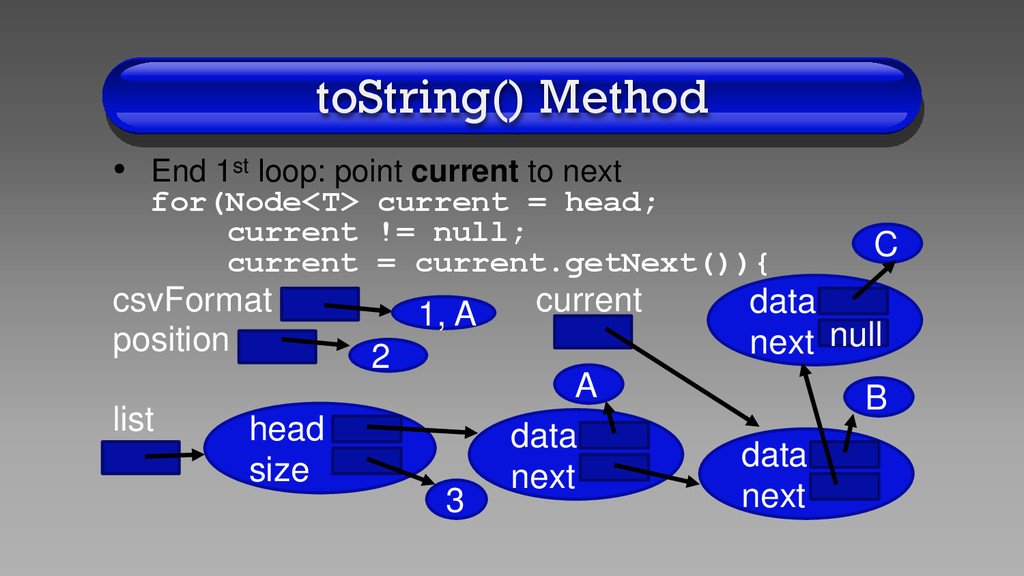

40. toString() Method • End 1st loop: point current to next for(Node<T> current = head; current != null; current = current.getNext()){ csvFormat current position list 3 head size A data next data next B C data next null 1, A 2

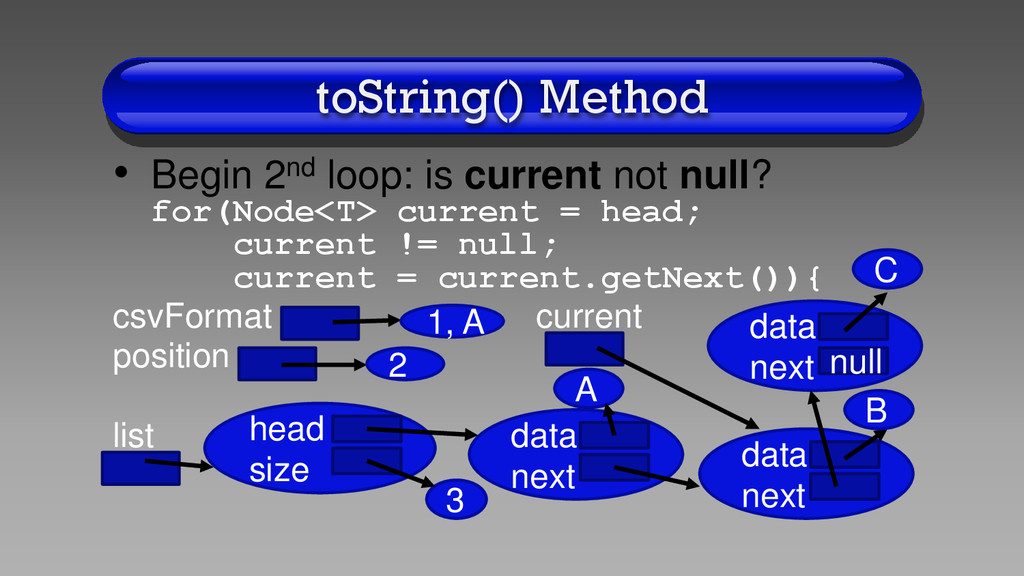

41. toString() Method • Begin 2nd loop: is current not null? for(Node<T> current = head; current != null; current = current.getNext()){ csvFormat current position list 3 head size A data next data next B C data next null 1, A 2

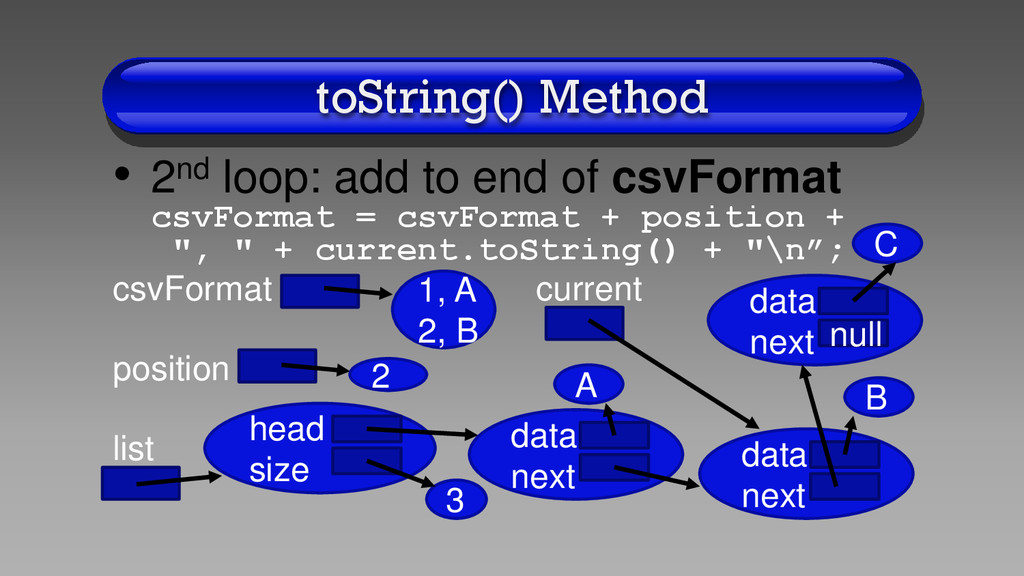

42. toString() Method • 2nd loop: add to end of csvFormat csvFormat = csvFormat + position + ", " + current.toString() + "\n”; csvFormat current position list 3 head size A data next data next B C data next null 1, A 2, B 2

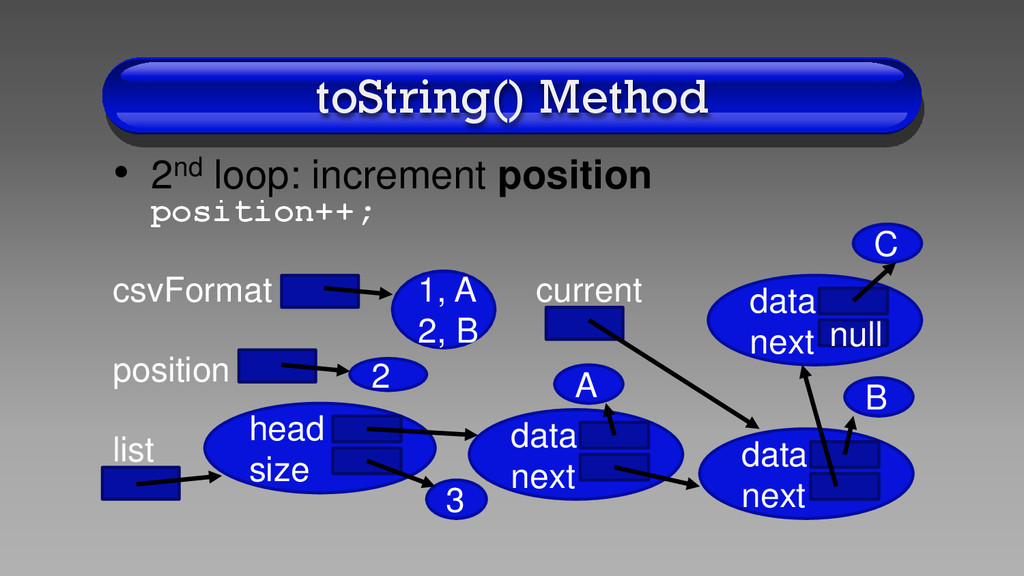

43. toString() Method • 2nd loop: increment position position++; csvFormat current position list 3 head size A data next data next B C data next null 1, A 2, B 2

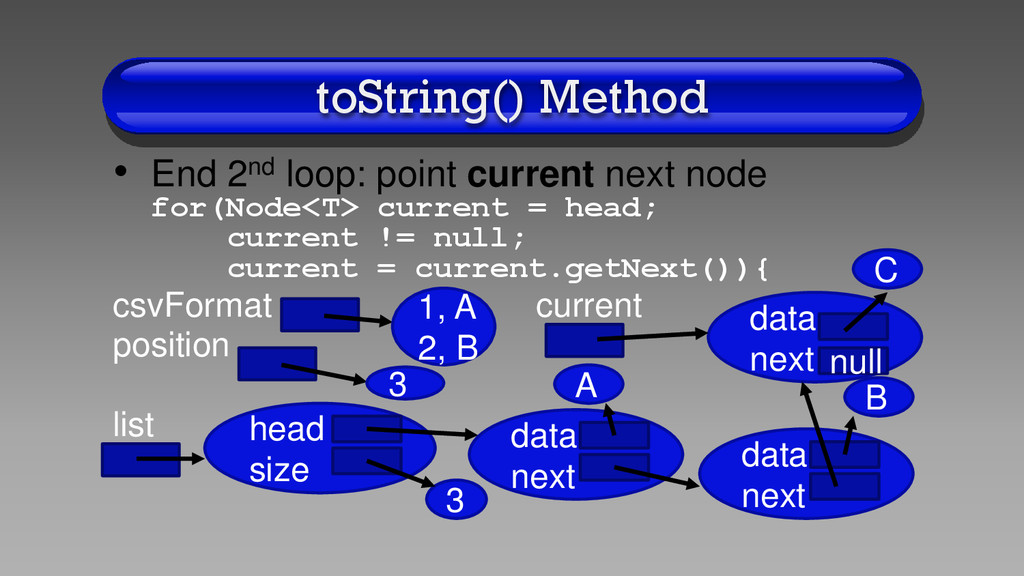

44. toString() Method • End 2nd loop: point current next node for(Node<T> current = head; current != null; current = current.getNext()){ csvFormat current position list 3 head size A data next data next B C data next null 1, A 2, B 3
45. toString() Method • Start 3rd loop: is current not null? for(Node<T> current = head; current != null; current = current.getNext()){ csvFormat current position list 3 head size A data next data next B C data next null 1, A 2, B 3

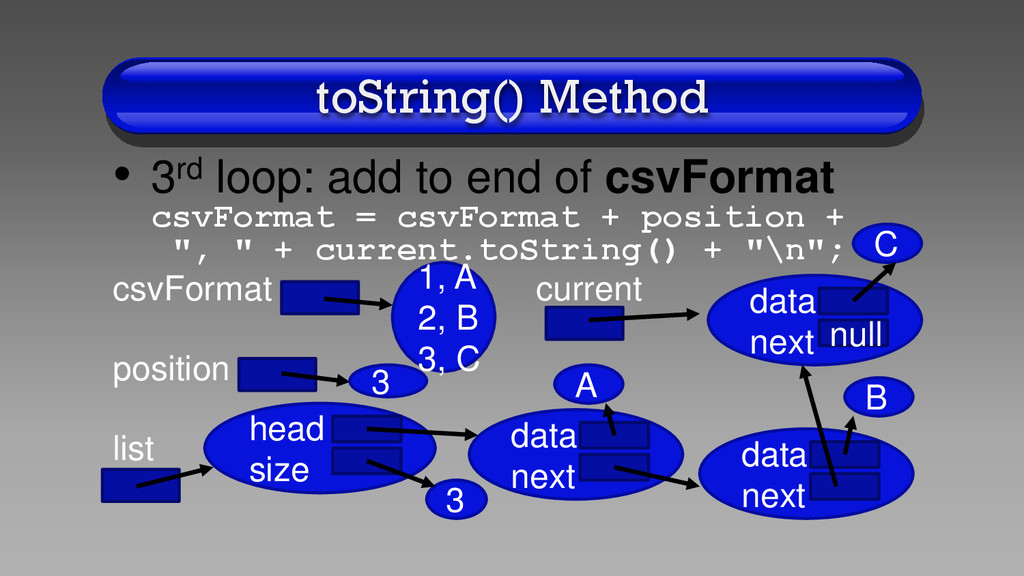

46. toString() Method • 3rd loop: add to end of csvFormat csvFormat = csvFormat + position + ", " + current.toString() + "\n"; csvFormat current position list 3 head size A data next data next B C data next null 1, A 2, B 3, C 3

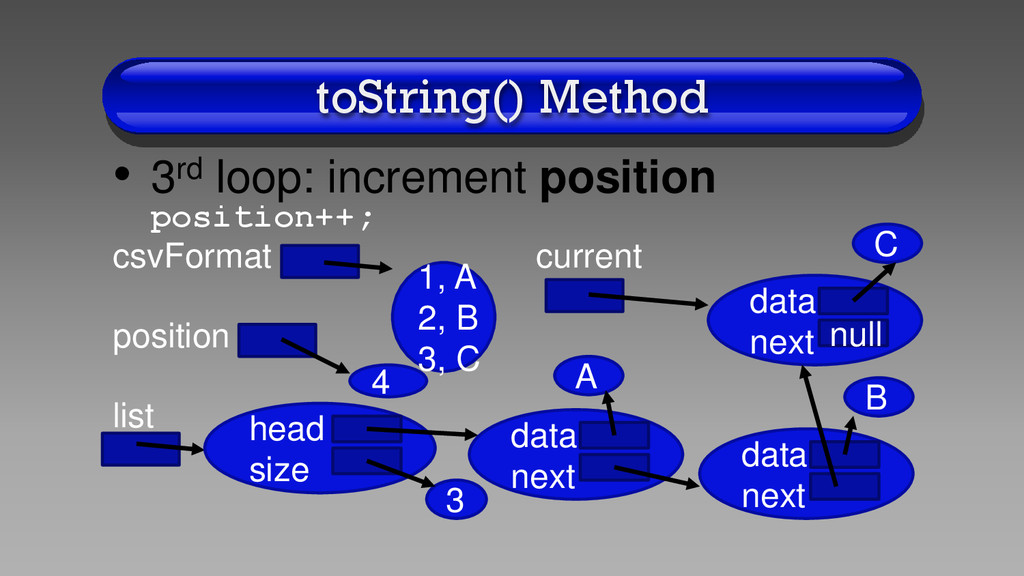

47. toString() Method • 3rd loop: increment position position++; csvFormat current position list 3 head size A data next data next B C data next null 1, A 2, B 3, C 4
48. toString() Method • End 3rd loop: point current to next for(Node<T> current = head; current != null; current = current.getNext()){ csvFormat current position list 3 head size A data next data next B C data next null 1, A 2, B 3, C 4 null

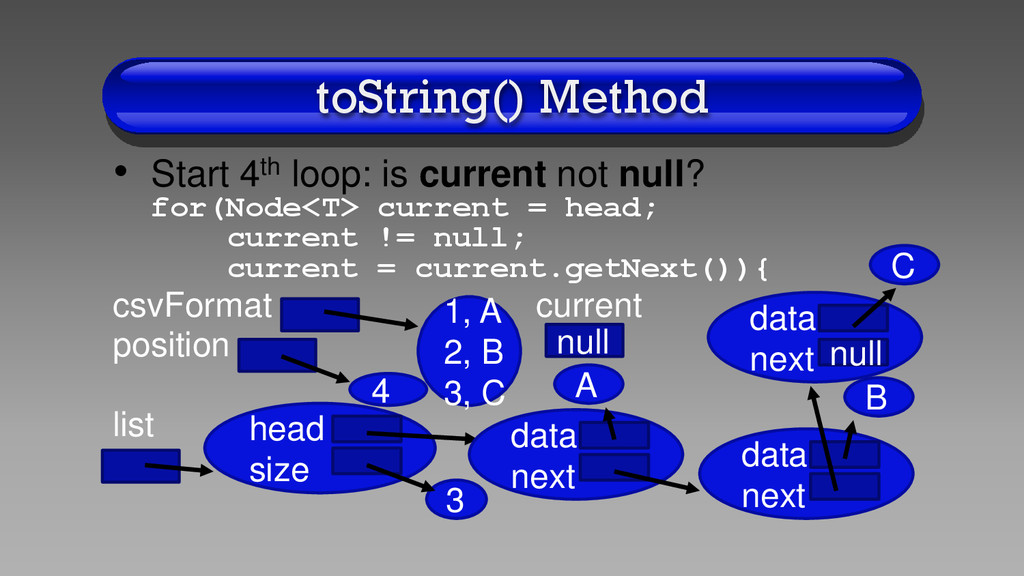

49. toString() Method • Start 4th loop: is current not null? for(Node<T> current = head; current != null; current = current.getNext()){ csvFormat current position list 3 head size A data next data next B C data next null 1, A 2, B 3, C 4 null

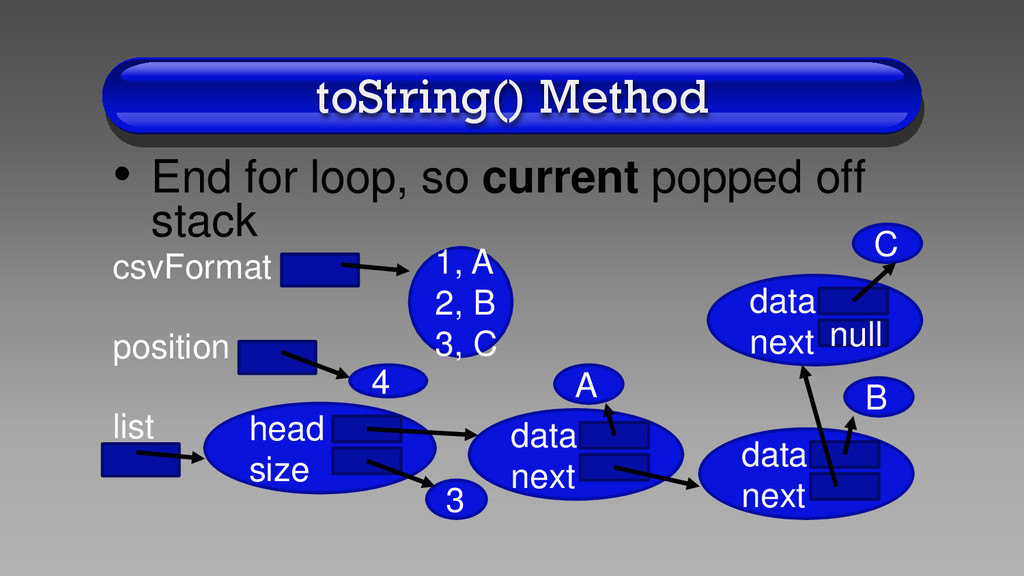

50. toString() Method • End for loop, so current popped off stack csvFormat position list 3 head size A data next data next B C data next null 1, A 2, B 3, C 4

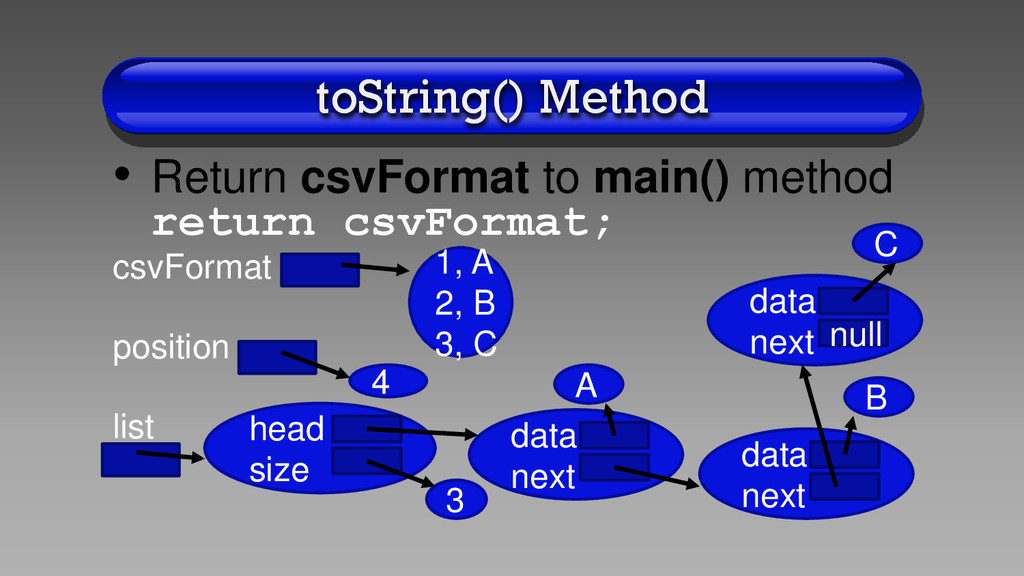

51. toString() Method • Return csvFormat to main() method return csvFormat; csvFormat position list toString() Method 3 head size A data next data next B C data next null 1, A 2, B 3, C 4

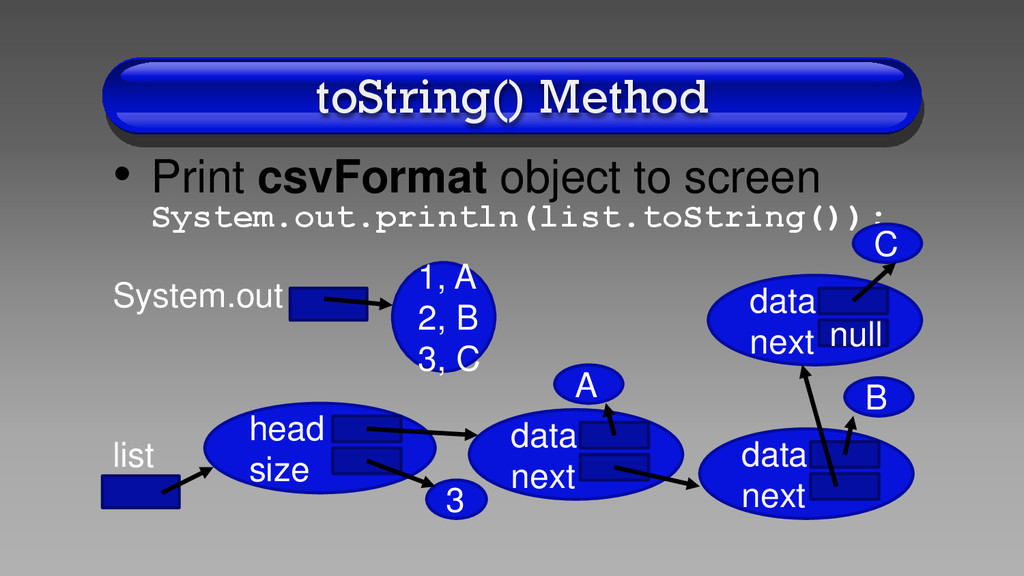

52. toString() Method • Print csvFormat object to screen System.out.println(list.toString()); System.out list 3 head size A data next data next B C data next null 1, A 2, B 3, C
53. Big-O Break • Even without looking at the code, we can see that the toString() method displays all n objects in the list • Therefore, Big-O is O(n)
54. Memory Defragmenter • LinkedList class remove() method • My LinkedList starts at 1, but Java API’s LinkedList starts at 0 • LinkedList class toString() method
55. Task Manager • Before the next class, you need to: 1.Do the assignment corresponding to this lecture 2.Email me any questions you may have about the material 3.Turn in the assignment before the next lecture
