Passkeys Authentication

Passwords are still the default authentication method, despite poor security and UX.

WebAuthn and Passkeys were created by the FIDO Alliance and standardized by W3C to enable secure, passwordless login using public-key cryptography and biometrics.

This talk explains how they work and how to add them to any Ruby app.

Transcript

1. Braulio Martinez Software Engineer brauliomlm brauliomartinezlm brauliomartinezlm@mastodon.social
2. Your Software Partner. Your Ally.
3. Passkeys Authentication

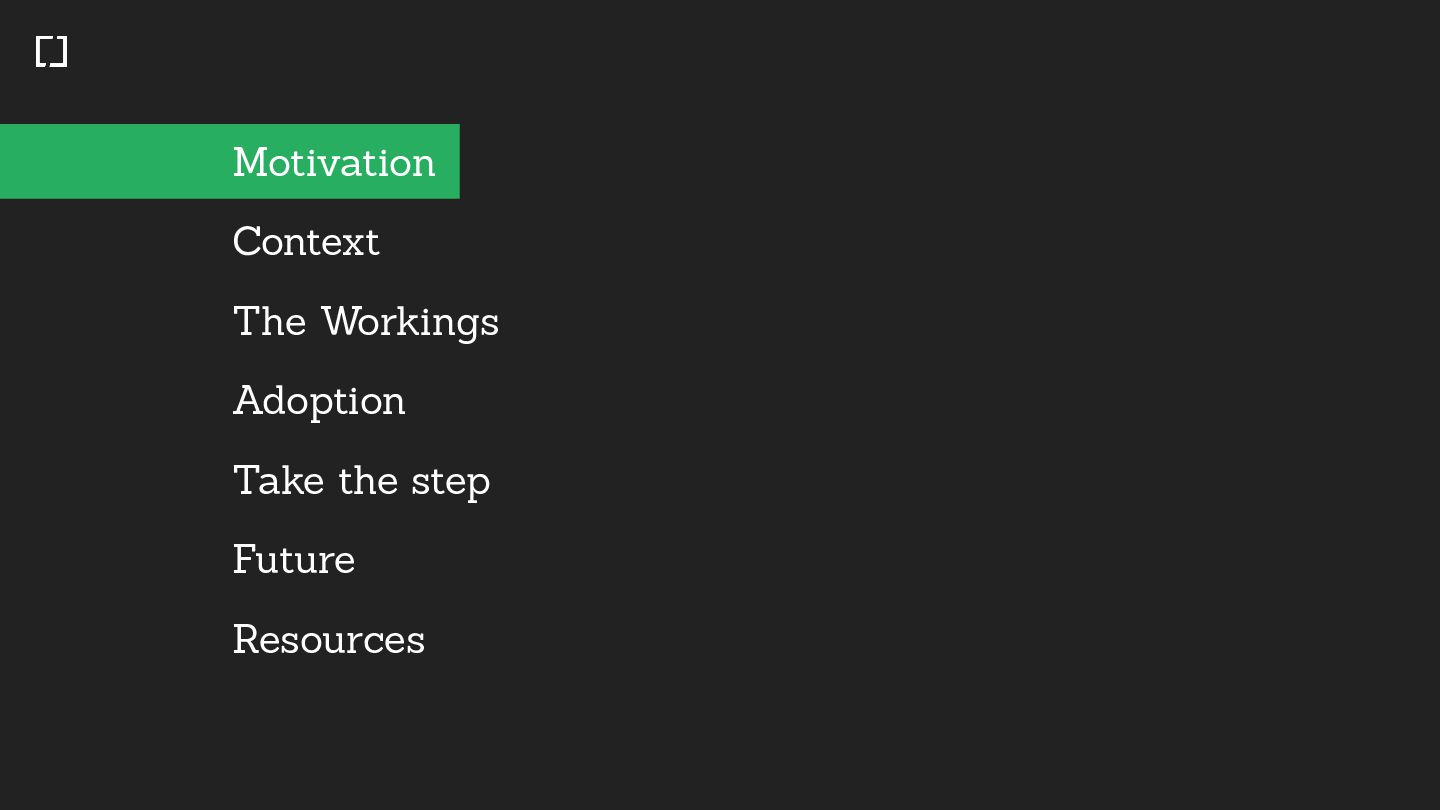

4. Motivation Context The Workings Adoption Take the step Future Resources

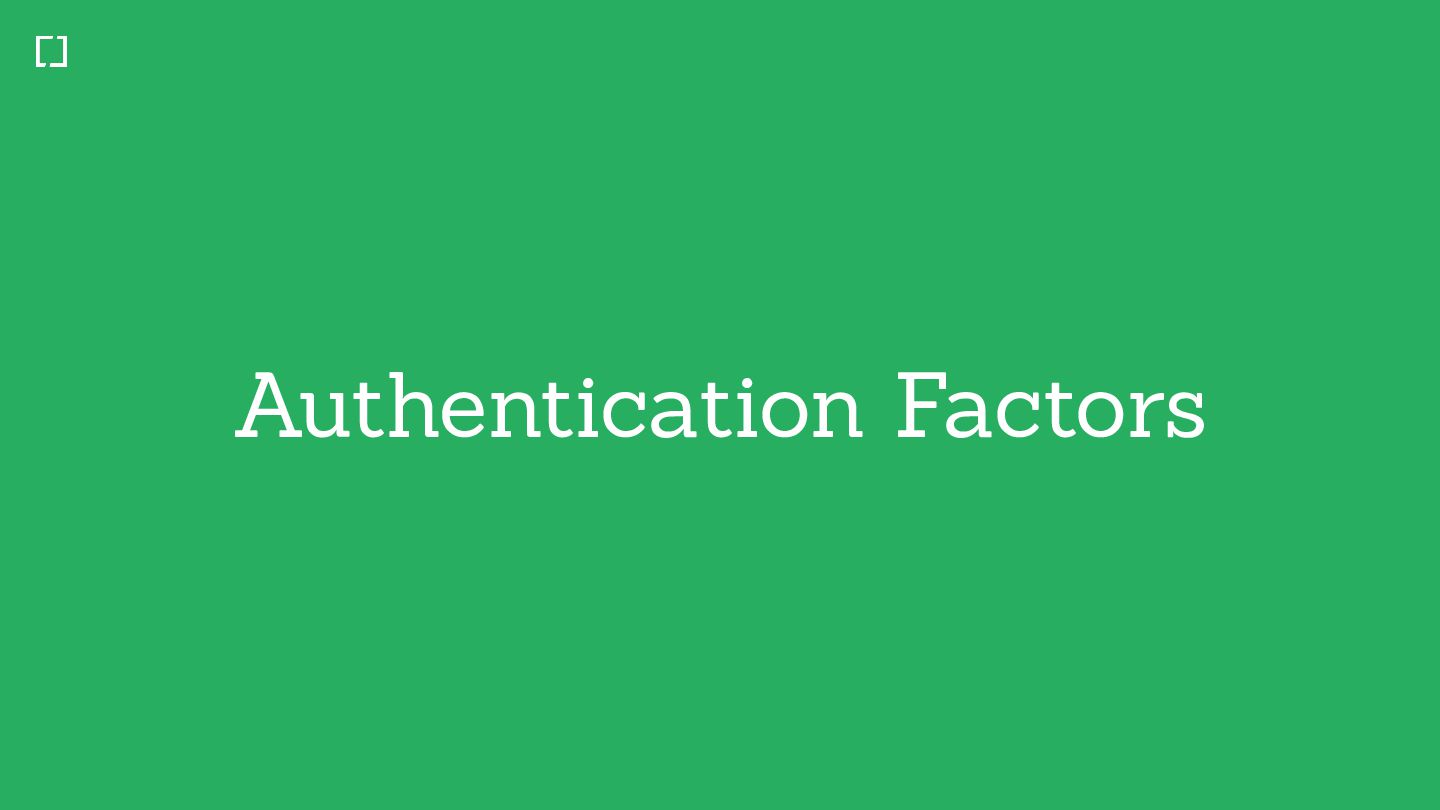

5. Authentication Factors
6. Knowledge factors ◦ Password ◦ PIN K

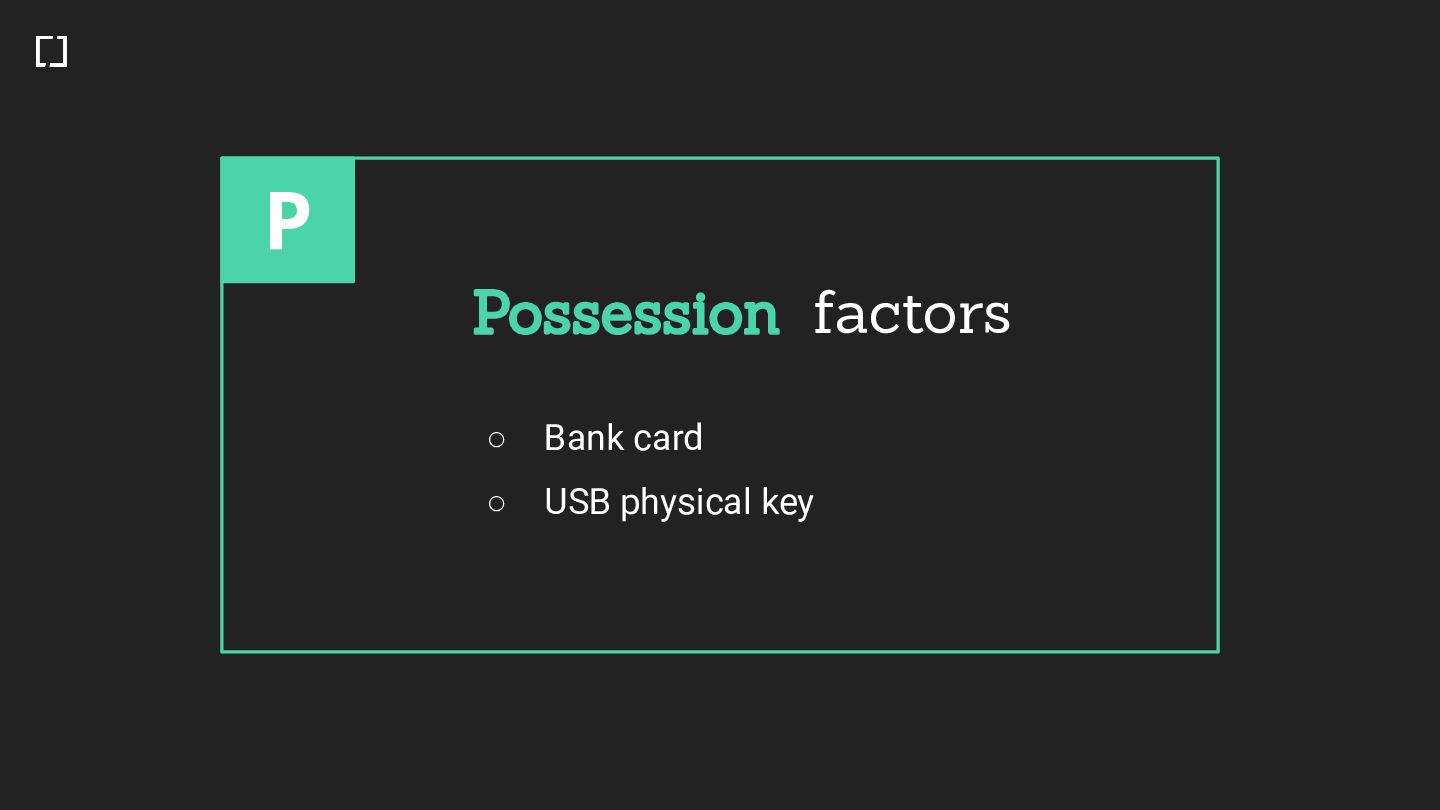

7. Possession factors ◦ Bank card ◦ USB physical key P

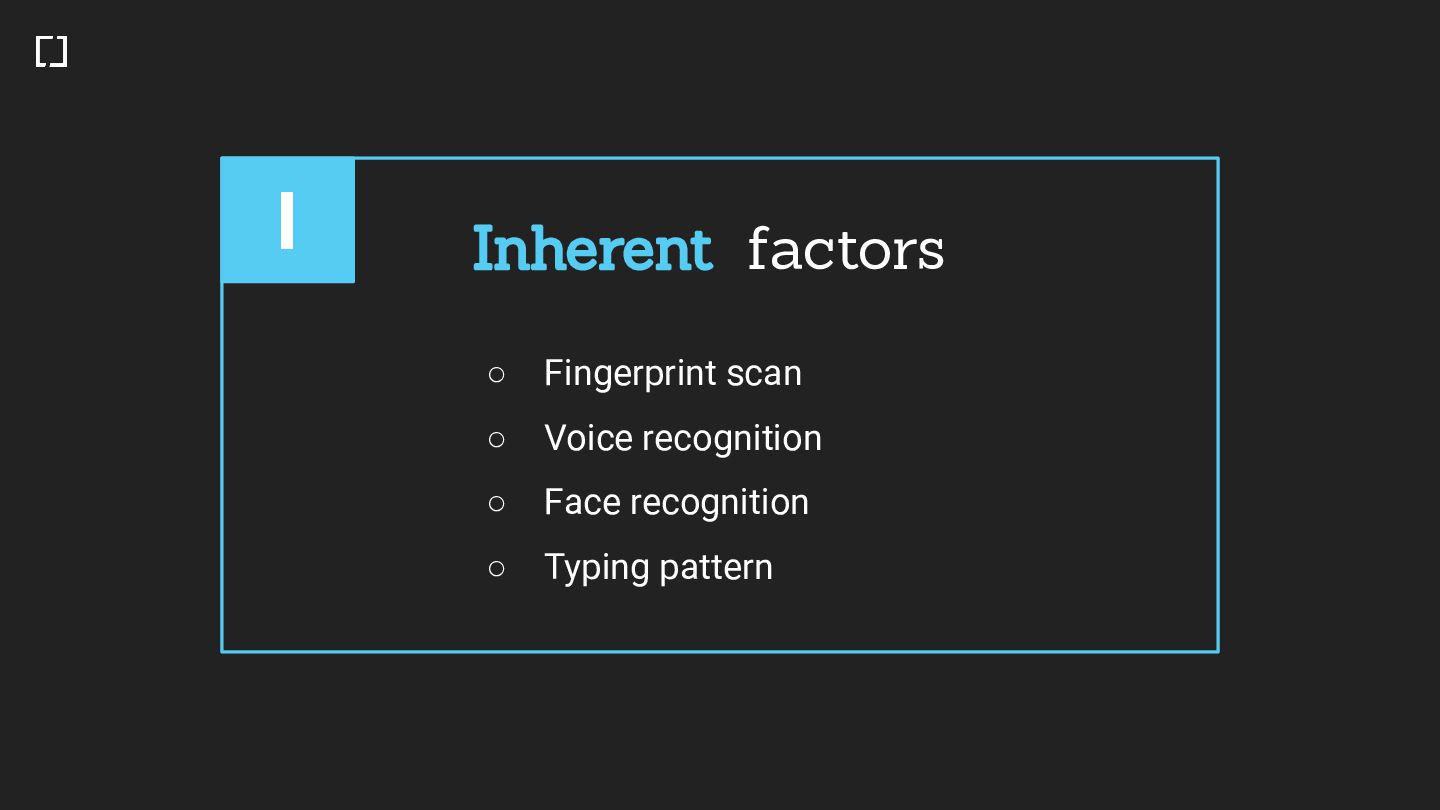

8. Inherent factors ◦ Fingerprint scan ◦ Voice recognition ◦ Face recognition ◦ Typing pattern I

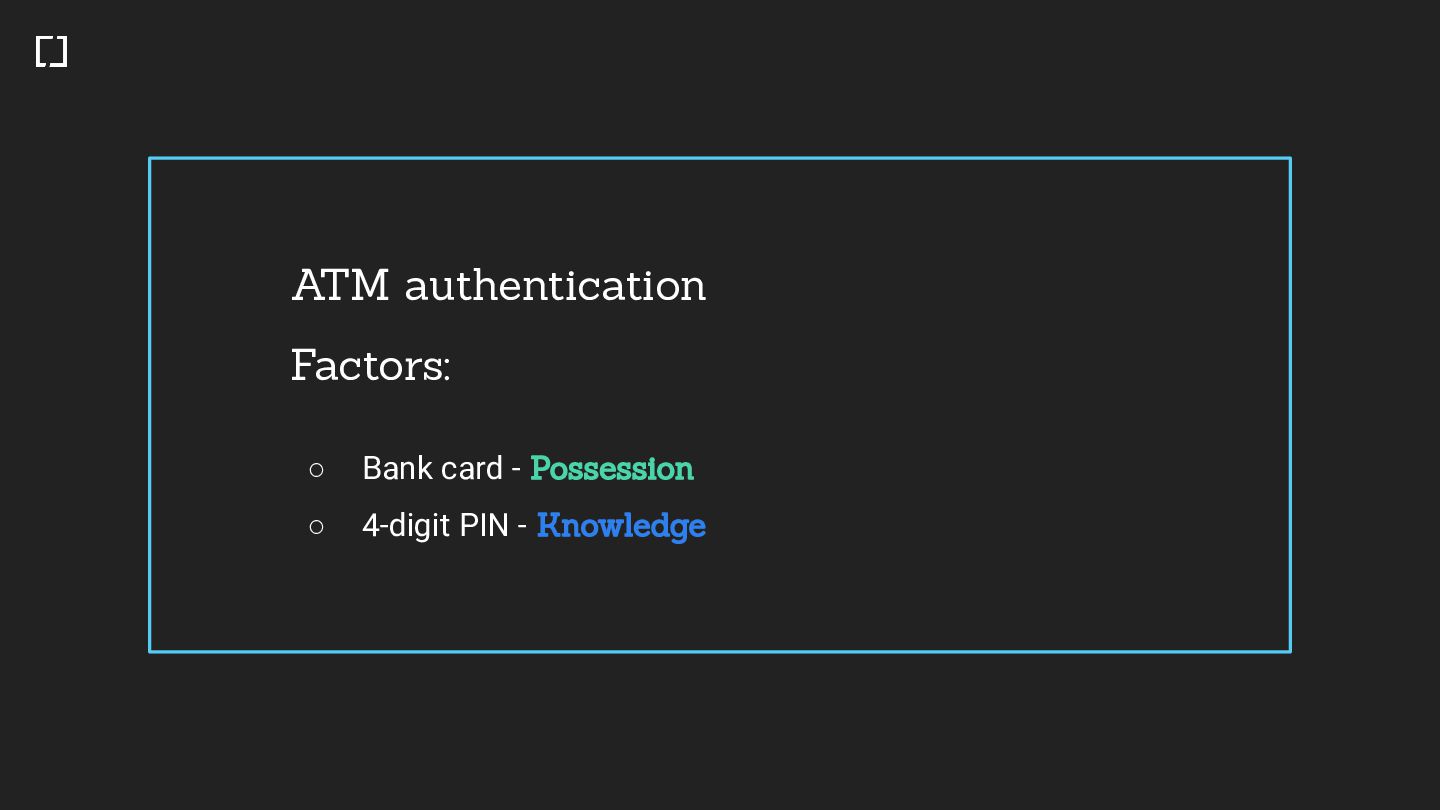

9. ATM authentication Factors: ◦ Bank card - Possession ◦ 4-digit PIN - Knowledge
10. WhatsApp’s authentication Factors: ◦ Phone number ownership - Possession ▪ Proved by typing a code received via SMS ◦ [Optional] 6-digit PIN - Knowledge

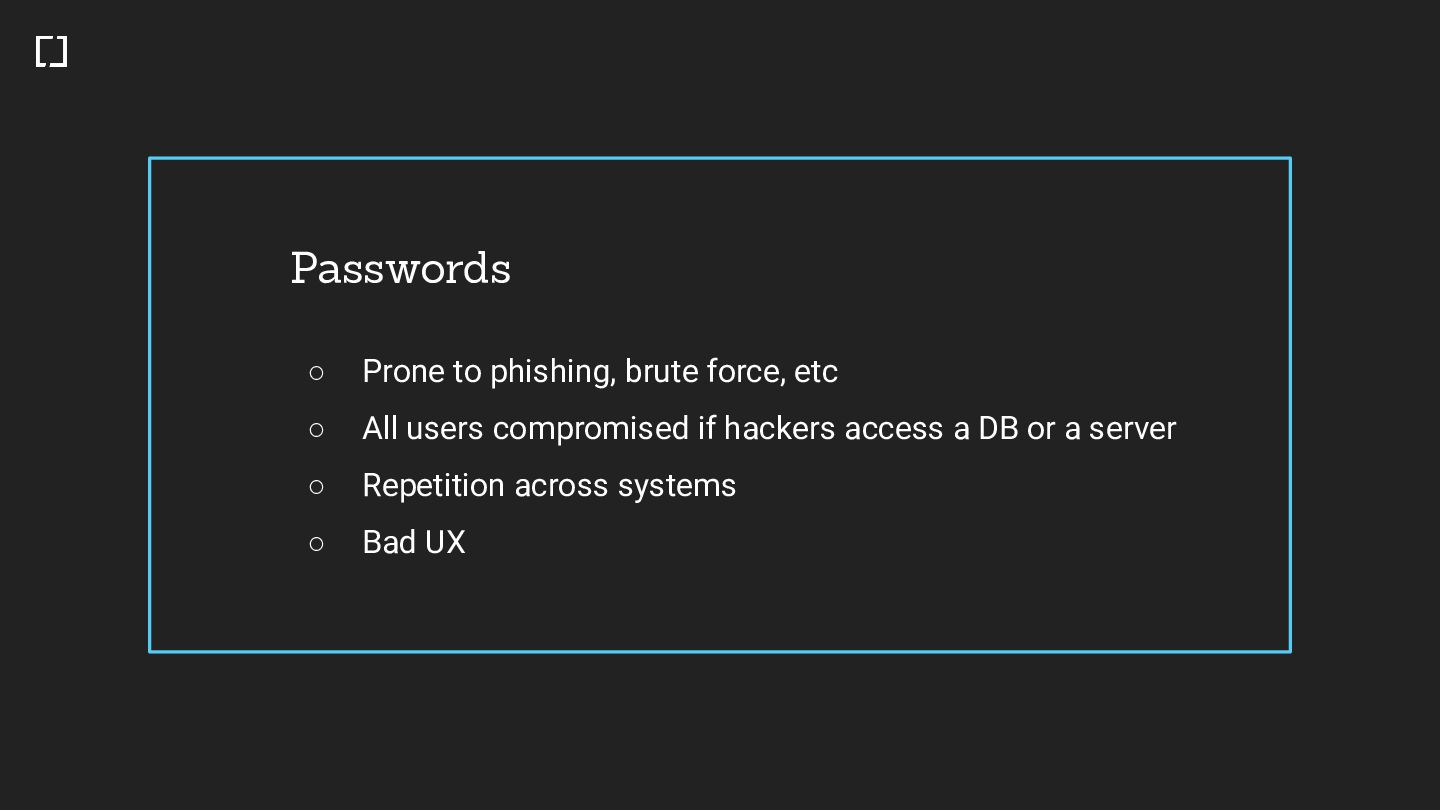

11. Passwords ◦ Prone to phishing, brute force, etc ◦ All users compromised if hackers access a DB or a server ◦ Repetition across systems ◦ Bad UX

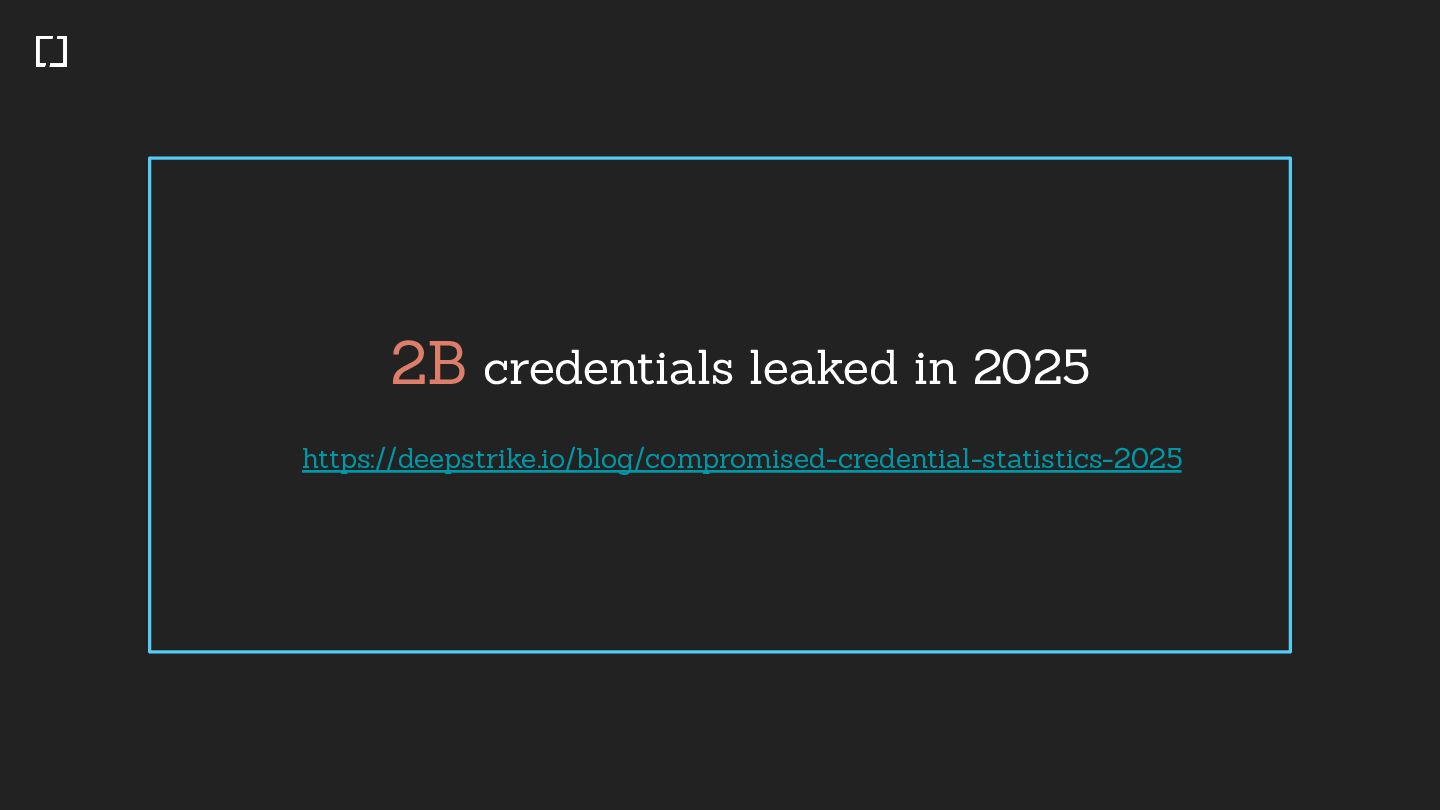

12. 2B credentials leaked in 2025 https://deepstrike.io/blog/compromised-credential-statistics-2025

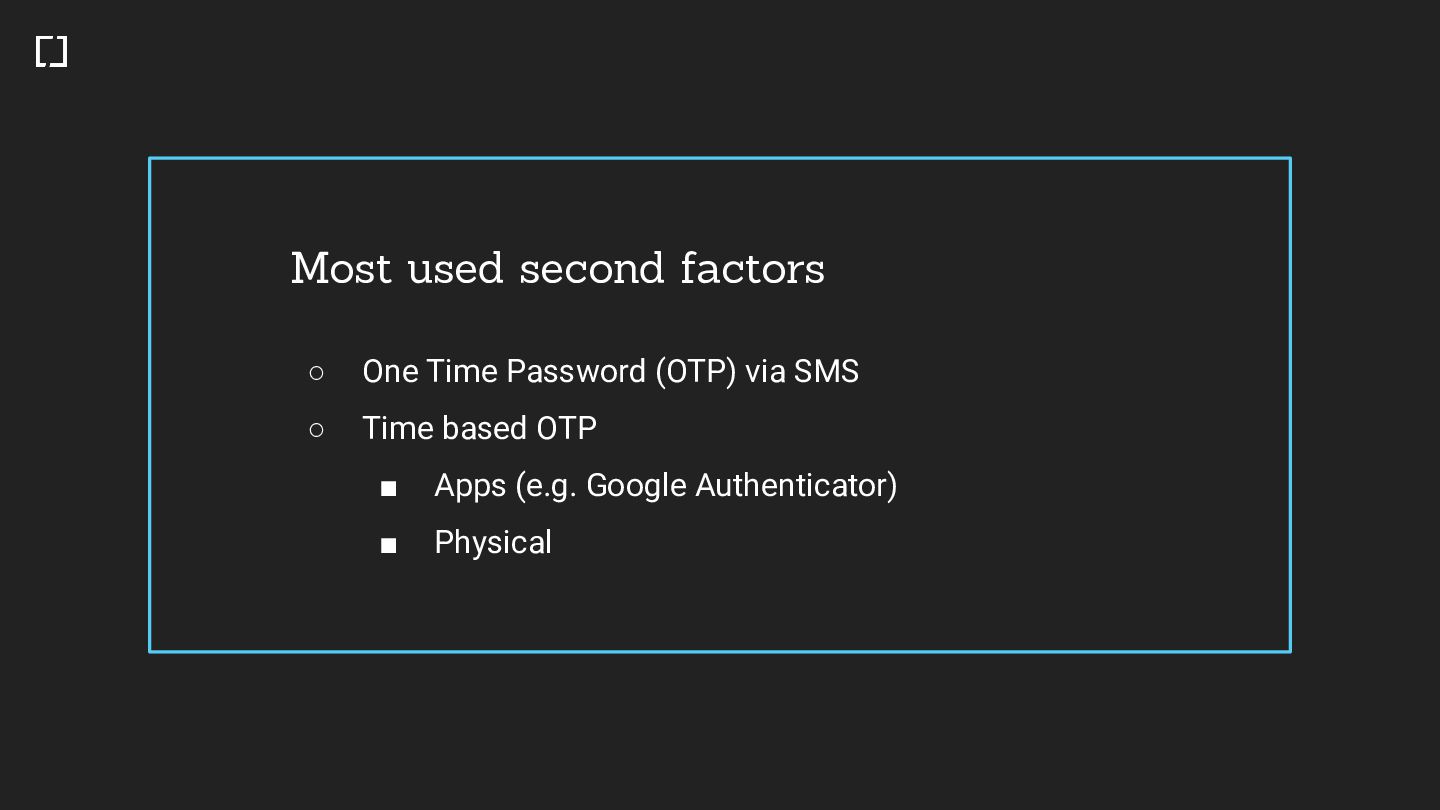

13. Most used second factors ◦ One Time Password (OTP) via SMS ◦ Time based OTP ▪ Apps (e.g. Google Authenticator) ▪ Physical

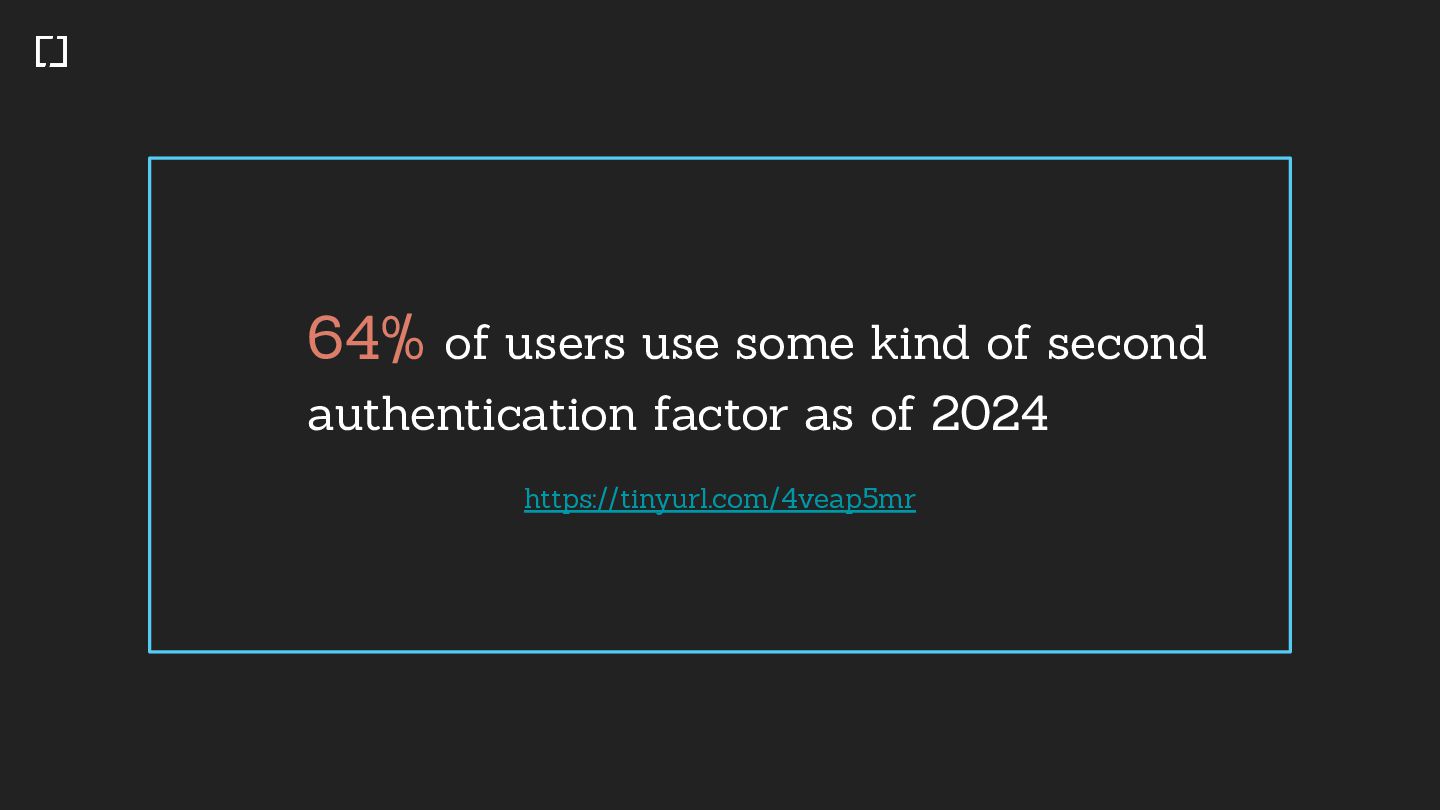

14. 64% of users use some kind of second authentication factor as of 2024 https://tinyurl.com/4veap5mr
15. By 2024, 90% of organizations in the world have suffered phishing attacks. The avg cost per breach of 4.88M https://zensec.co.uk/blog/2025-phishing-statistics-the-alarming-rise-in -attacks/

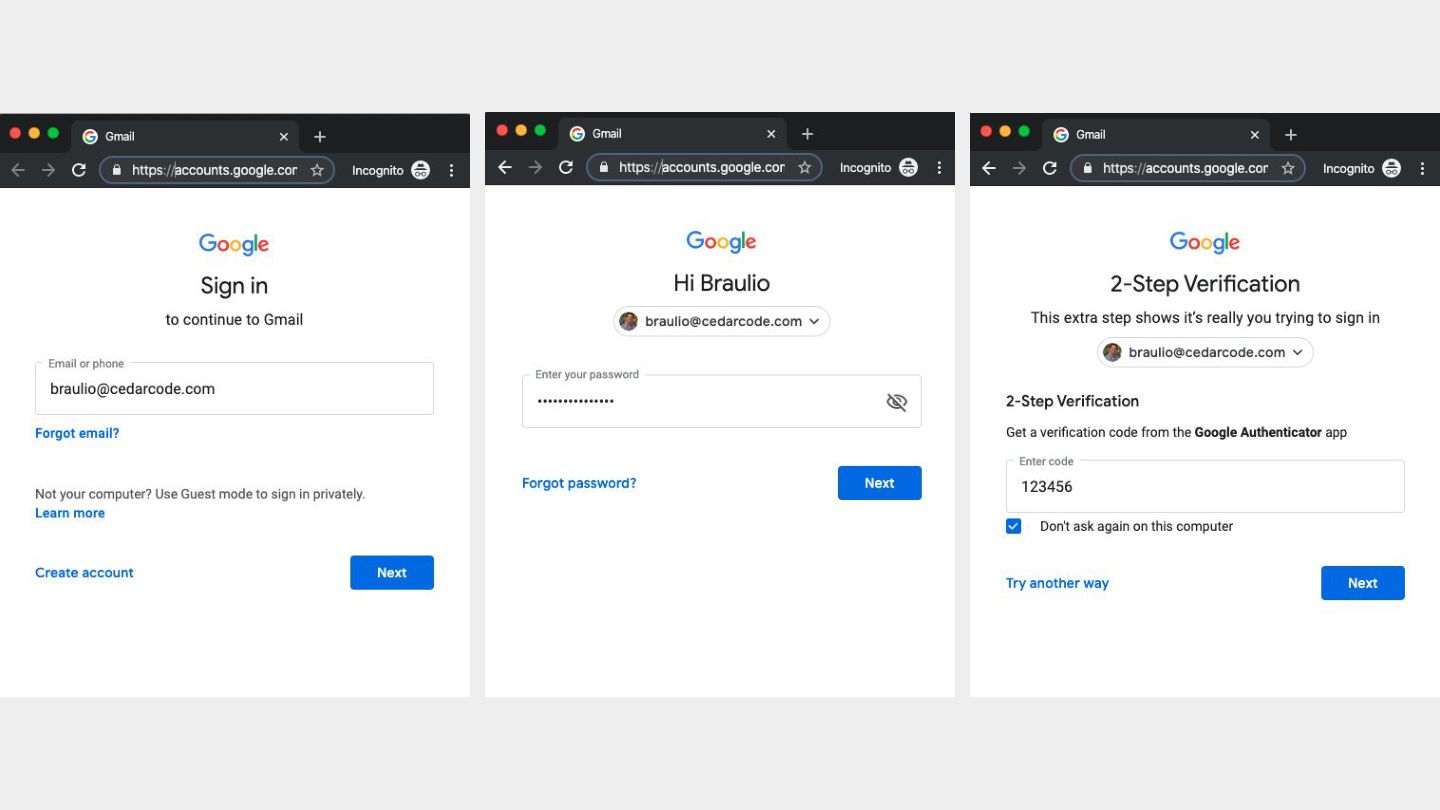

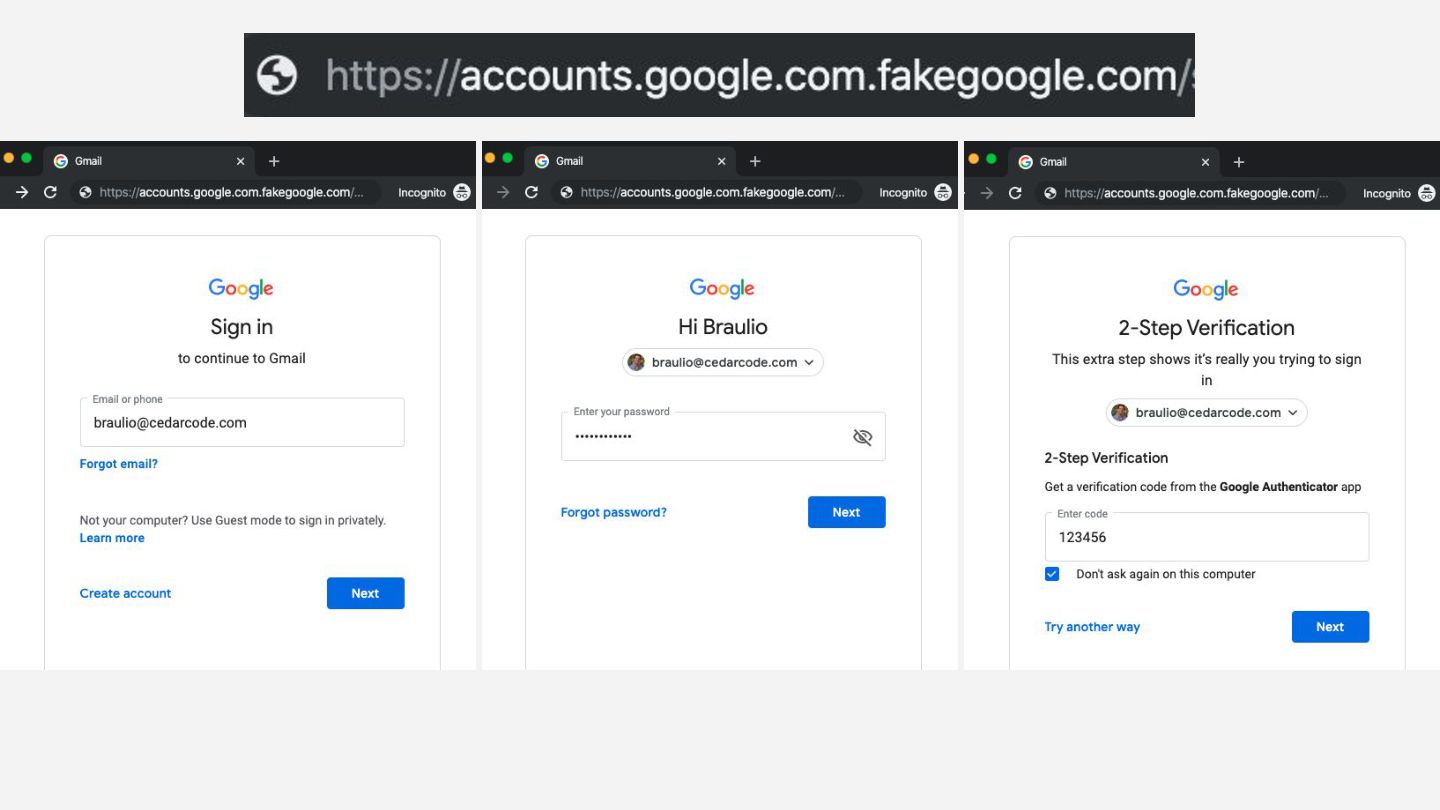

16. Phishing & Replay Attack Example (AiTM)
19. Attacks in the AI World
20. Traditional Auth Factors’ fundamental problem? Strong Reliance on Human Judgement
21. Motivation Context The Workings Adoption Take the step Future Resources
22. What is WebAuthn?

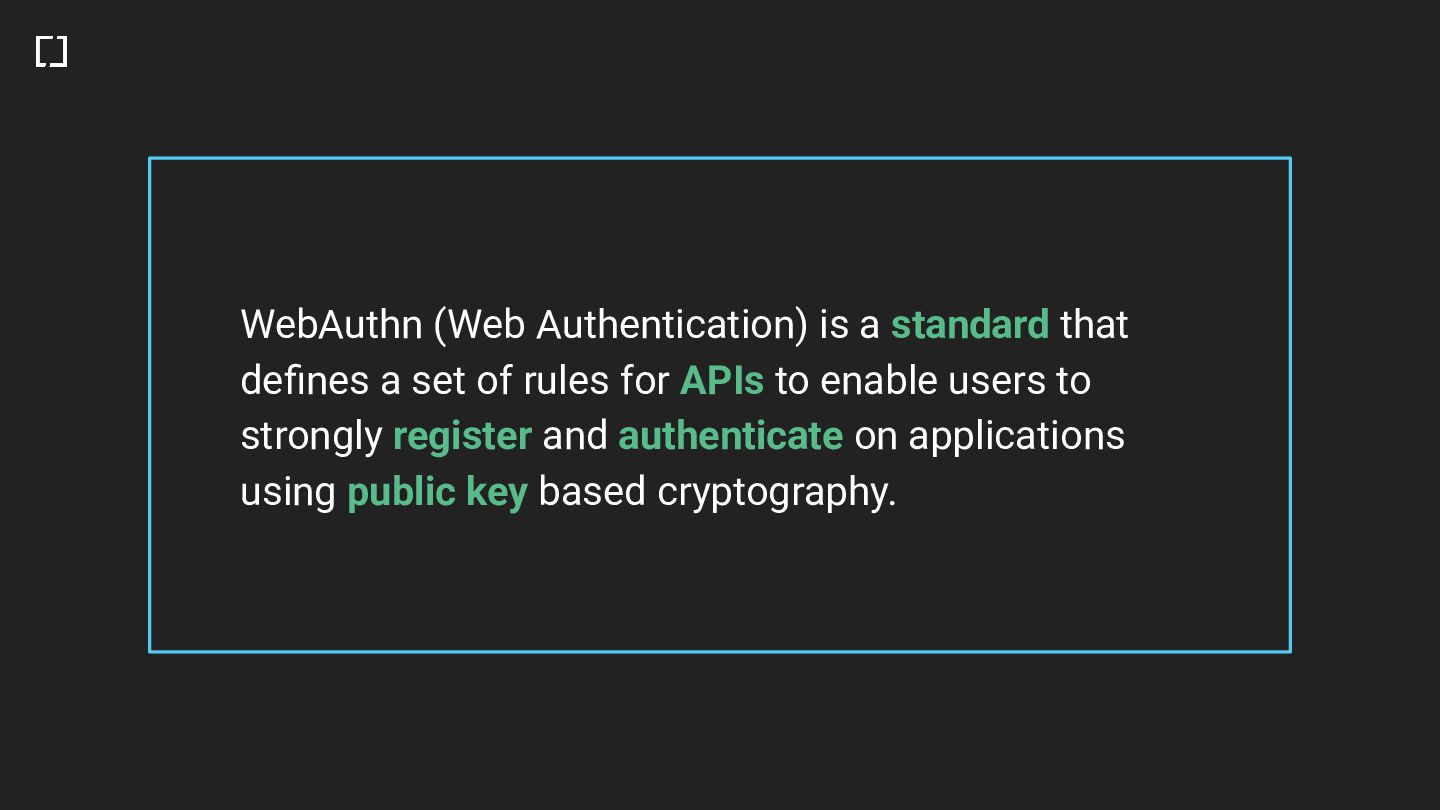

23. WebAuthn (Web Authentication) is a standard that defines a set of rules for APIs to enable users to strongly register and authenticate on applications using public key based cryptography.
24. Who created it?
25. +
27. What was the standardization process?

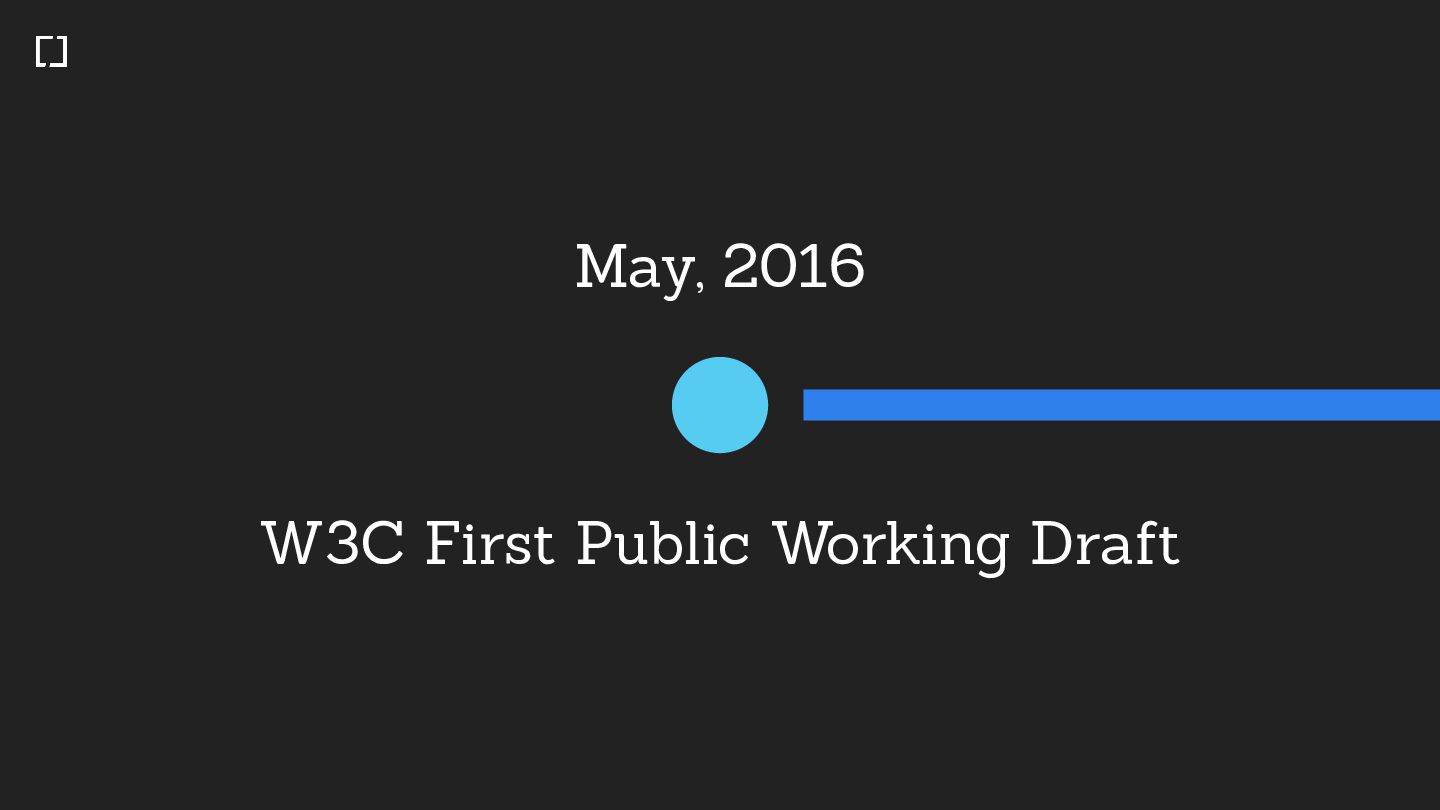

28. May, 2016 W3C First Public Working Draft

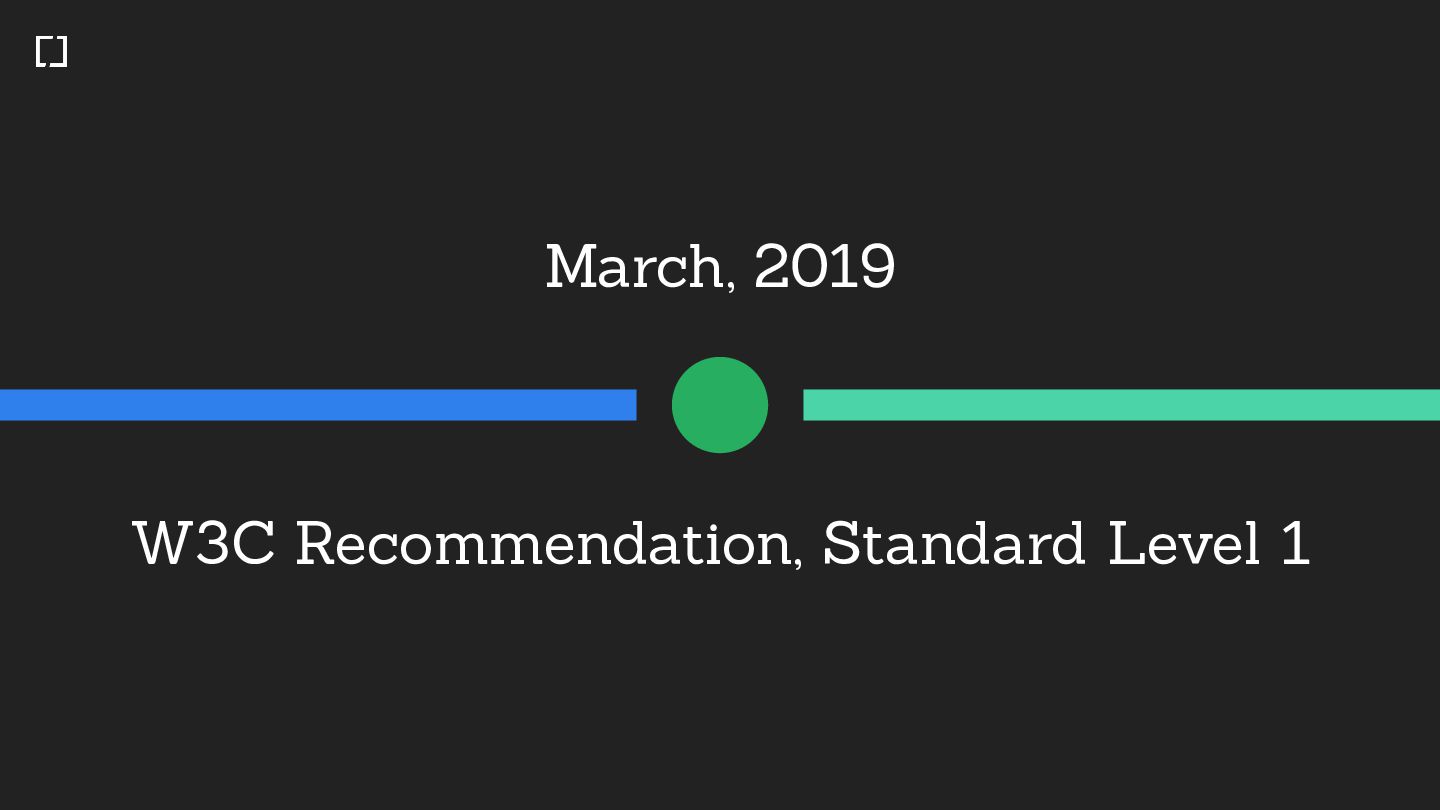

29. March, 2019 W3C Recommendation, Standard Level 1
30. April, 2021 W3C Recommendation, Standard Level 2
31. January, 2026 W3C Candidate Standard Level 3
32. Where do people collaborate on the standard?

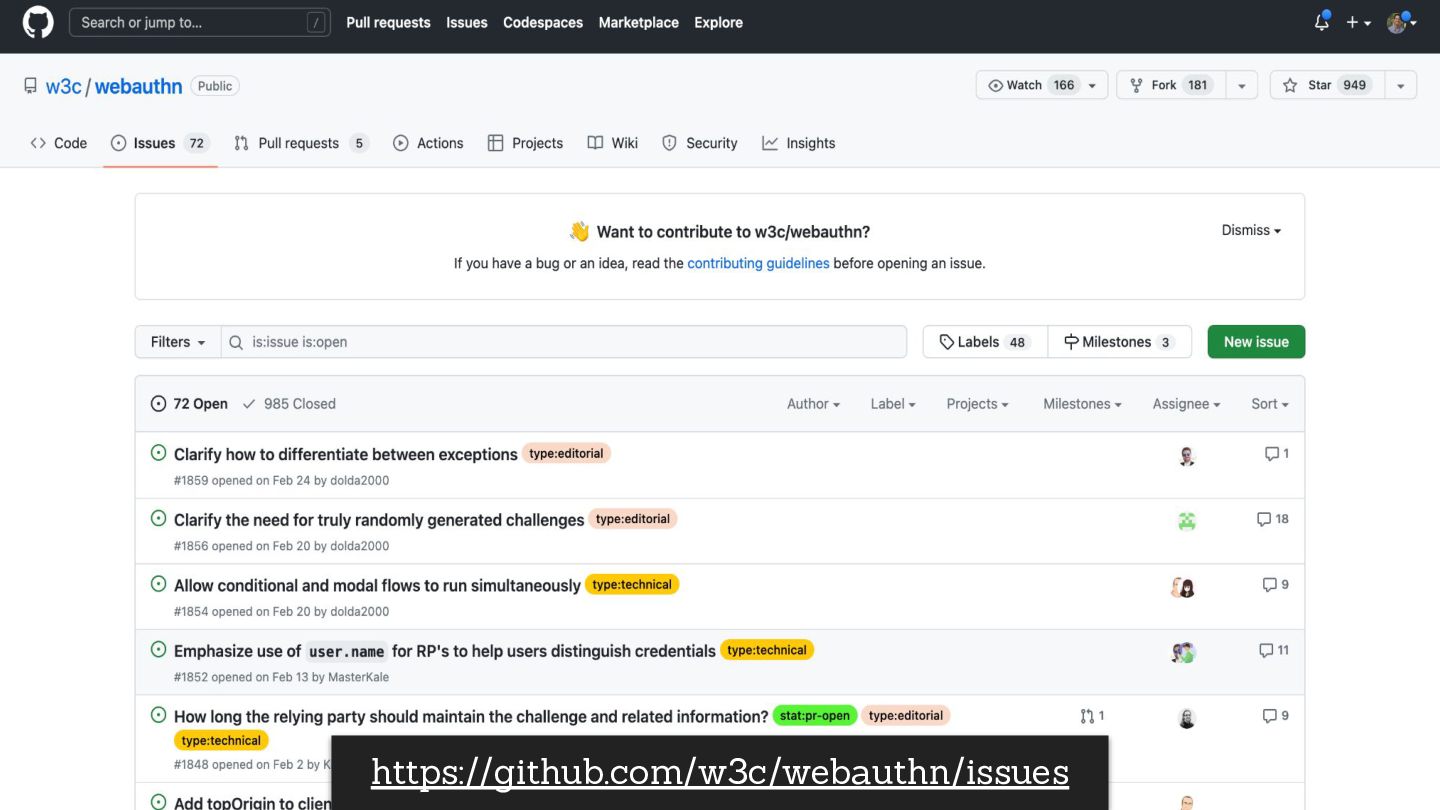

33. https://github.com/w3c/webauthn/issues
34. Motivation Context The Workings Adoption Take the step Future Resources
35. WebAuthn
36. What does it provide?
37. Possession factor

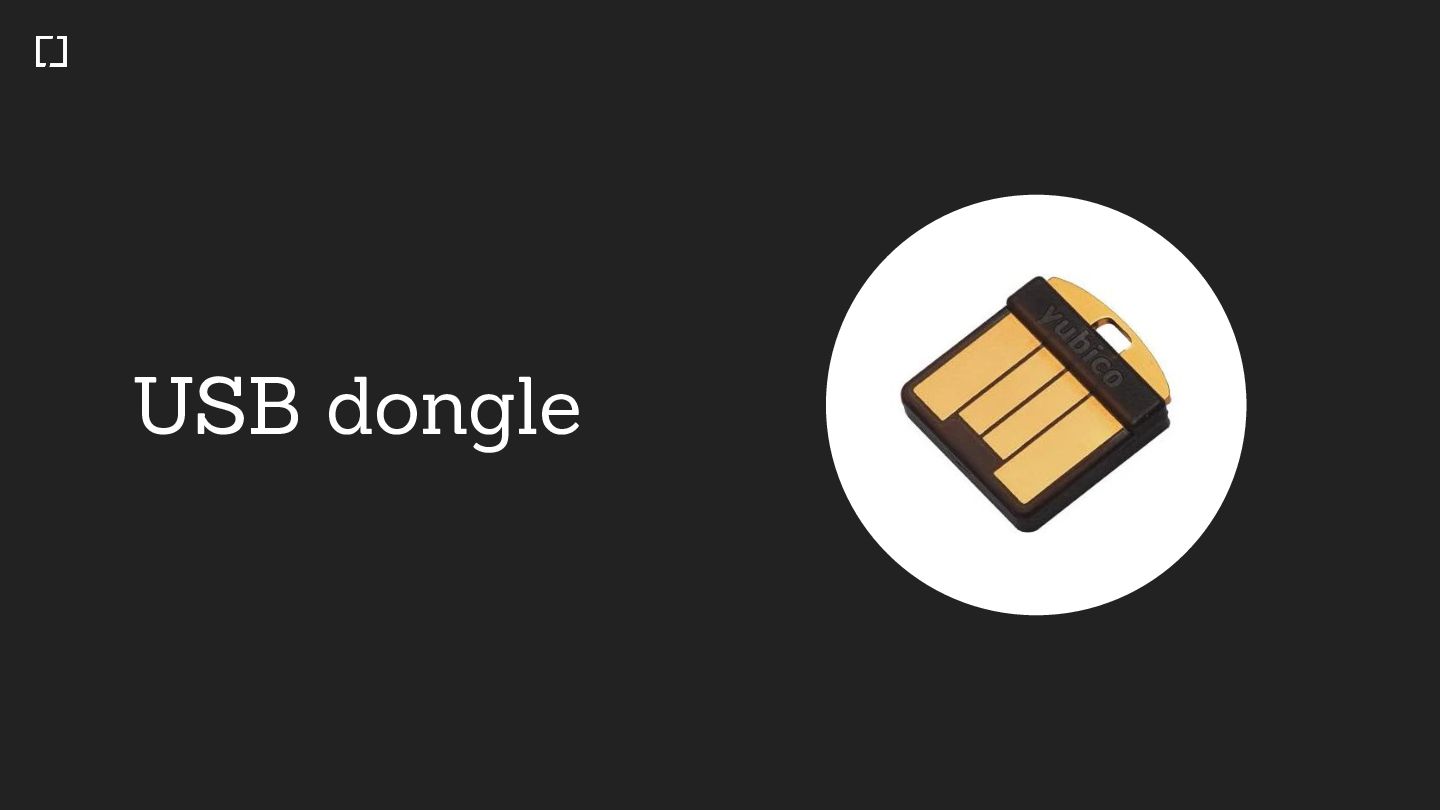

38. USB dongle
39. Phone
40. WebAuthn Spec
41. The WebAuthn Spec ◦ WebAuthn Credential ◦ 3 entities ◦ 2 user flows
42. WebAuthn Credential
43. 1. Strong
44. 2. Scoped
45. Digital Signatures

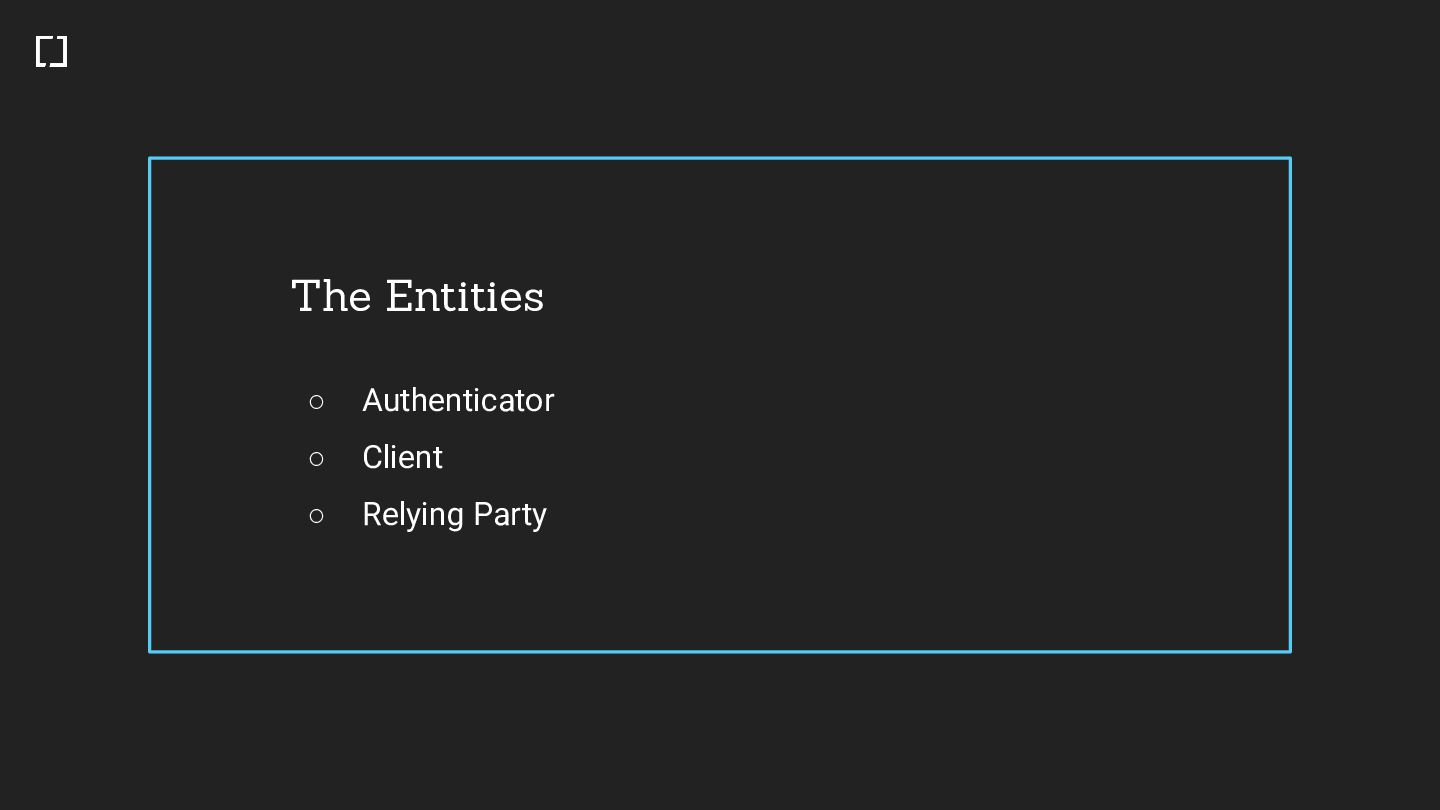

46. The Entities ◦ Authenticator ◦ Client ◦ Relying Party

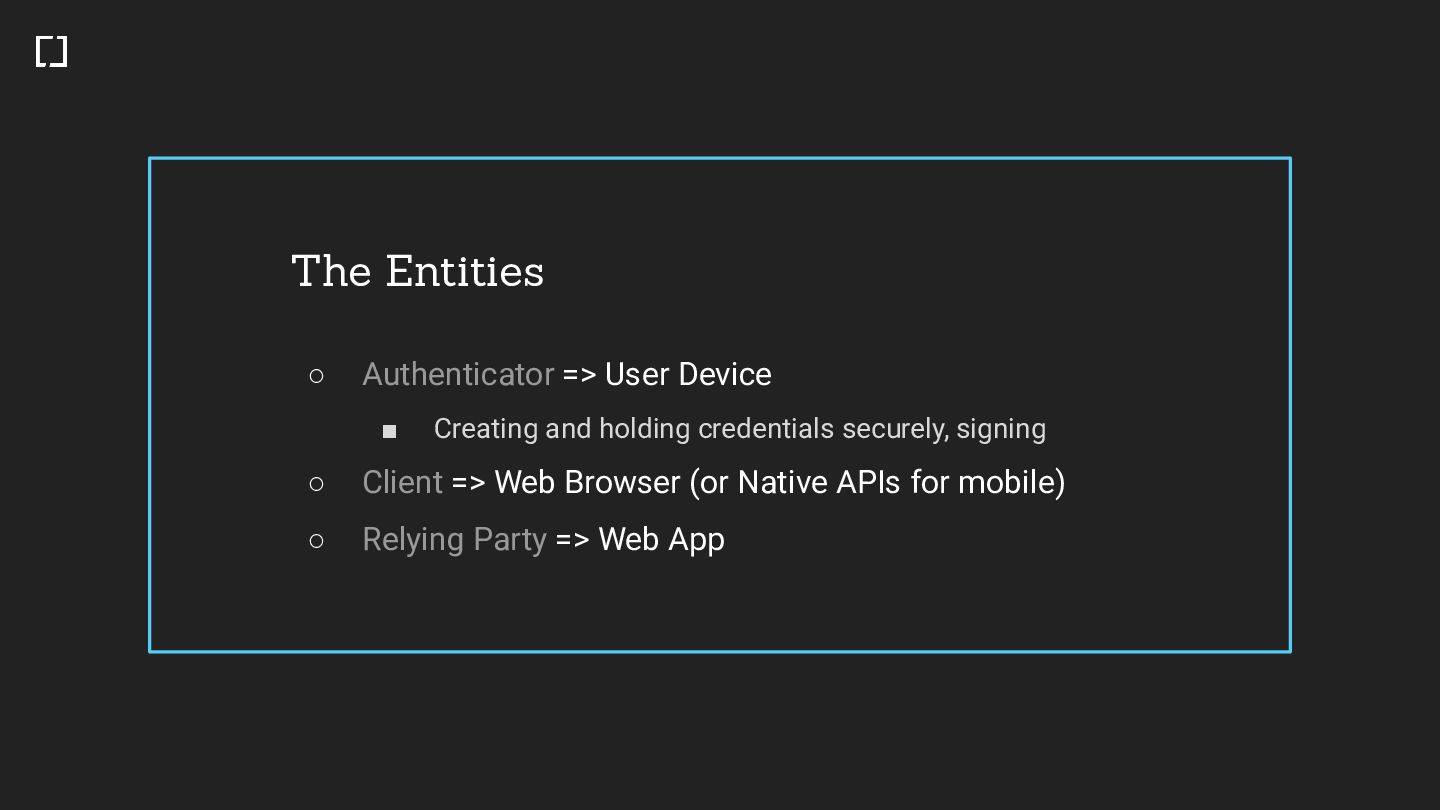

47. The Entities ◦ Authenticator => User Device ▪ Creating and holding credentials securely, signing ◦ Client => Web Browser (or Native APIs for mobile) ◦ Relying Party => Web App

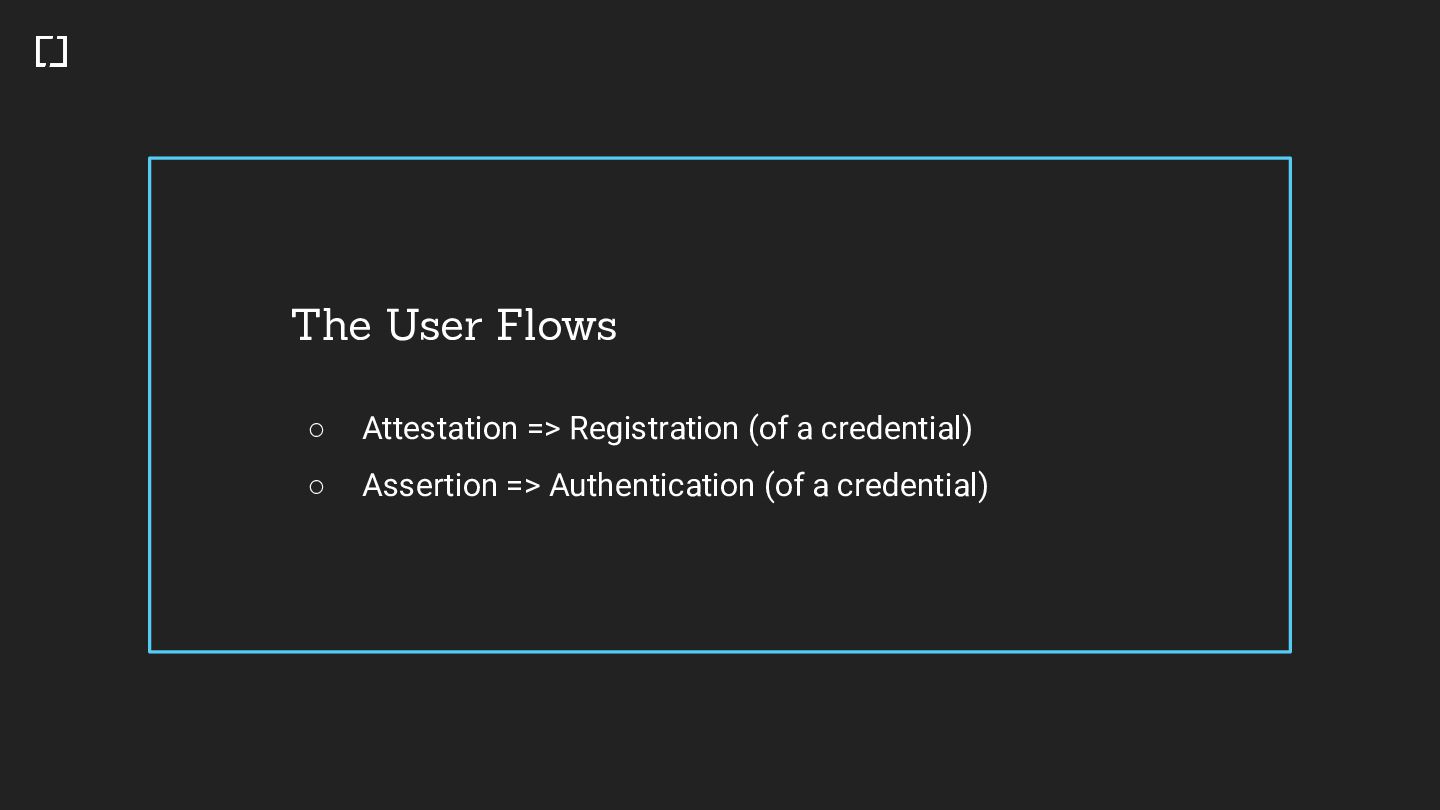

48. The User Flows ◦ Attestation => Registration (of a credential) ◦ Assertion => Authentication (of a credential)
49. Behind the scenes

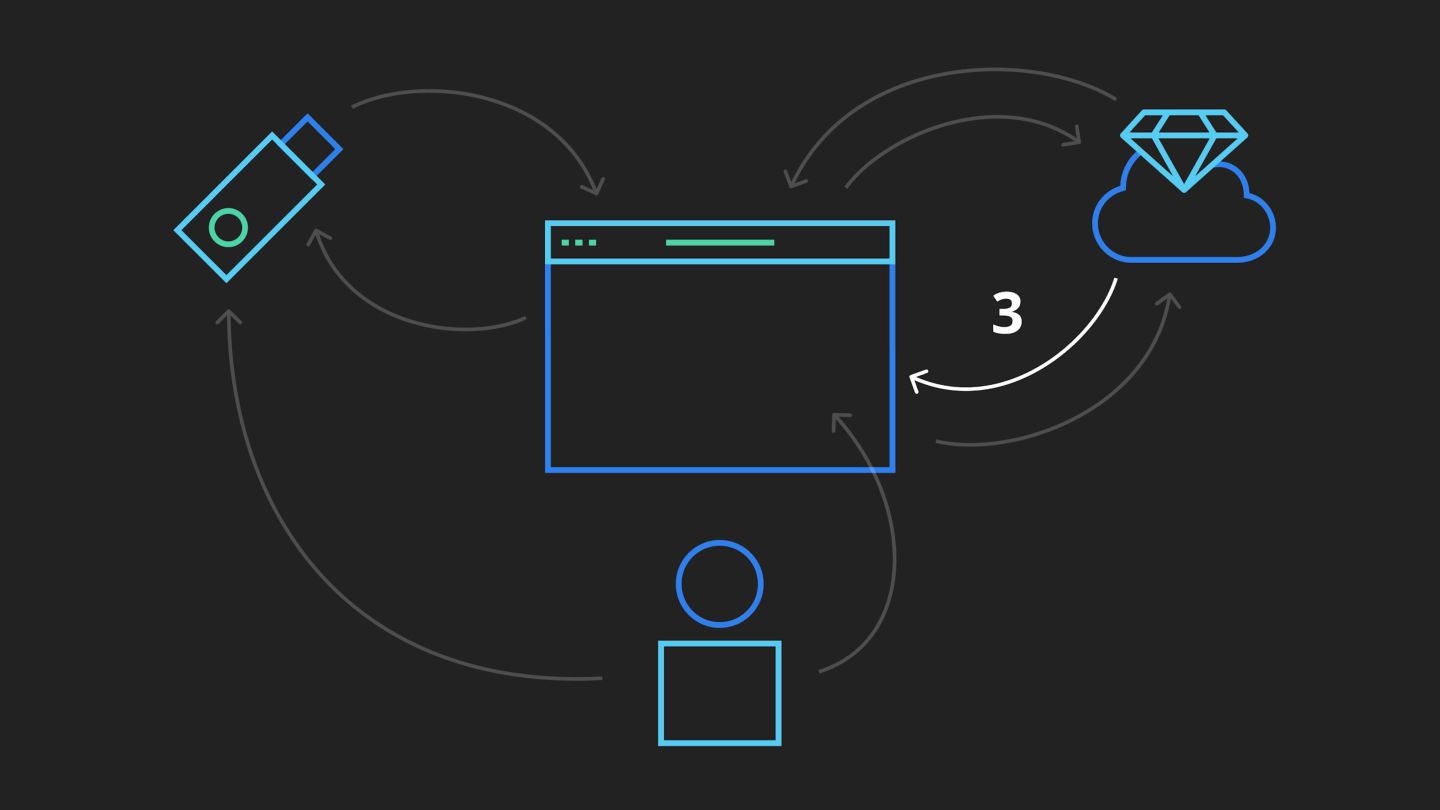

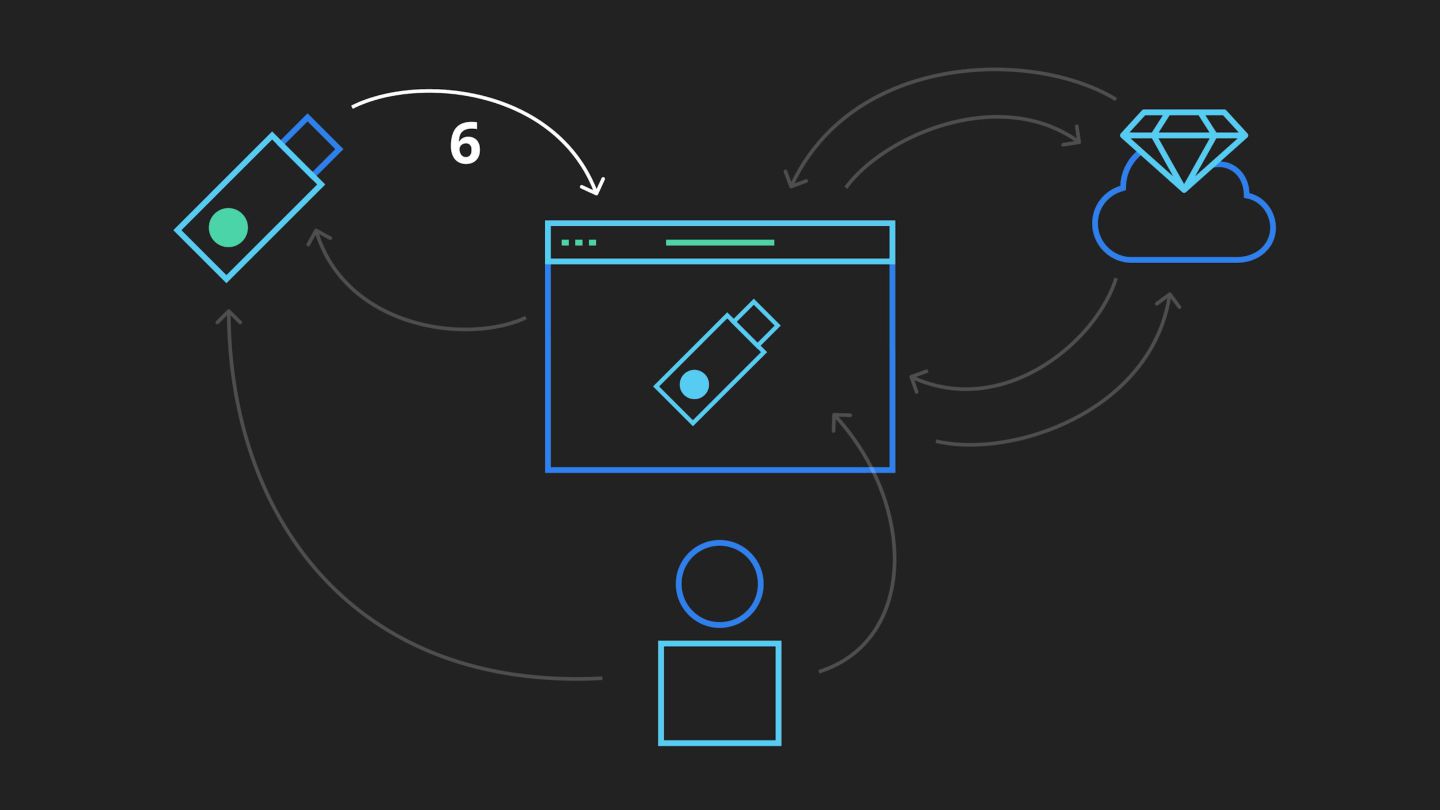

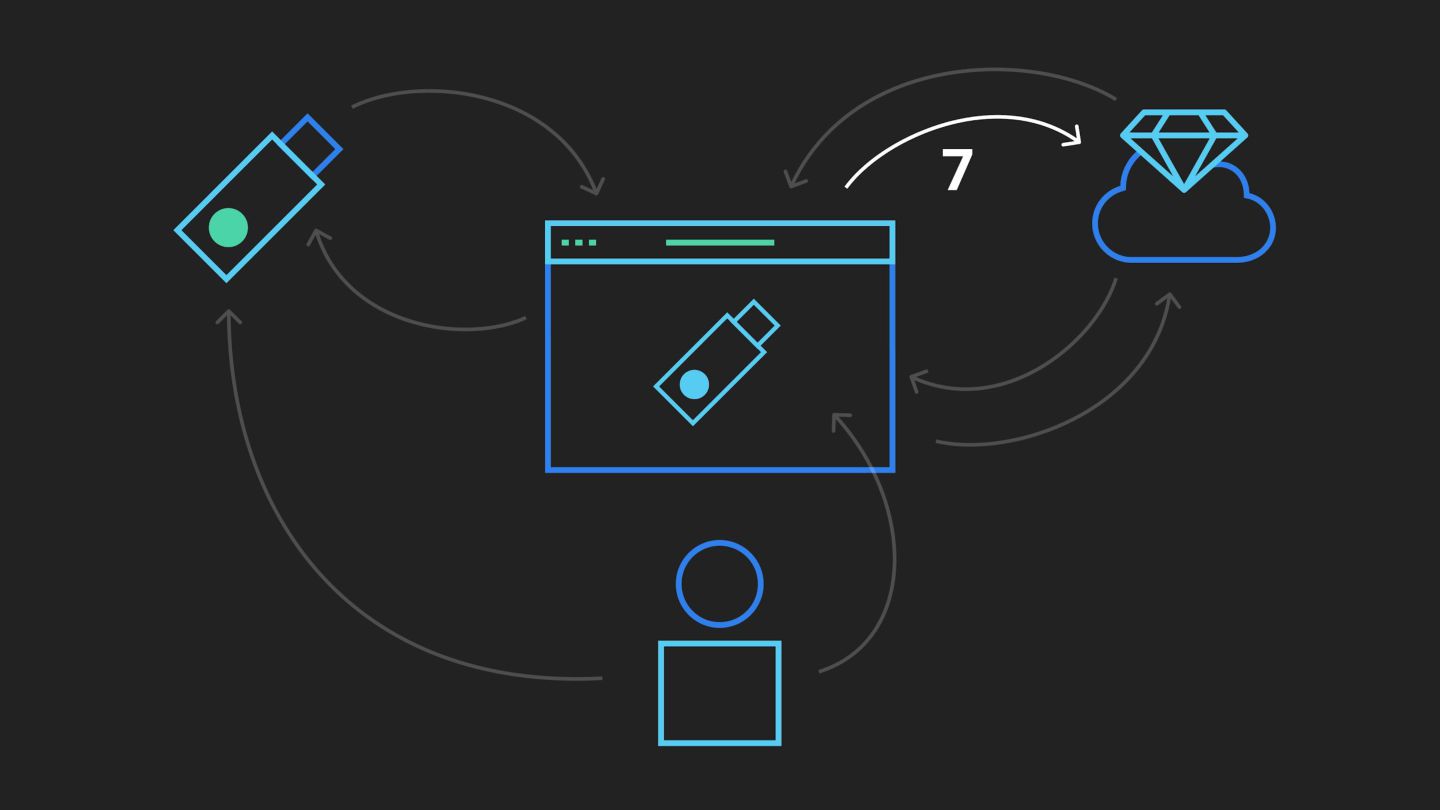

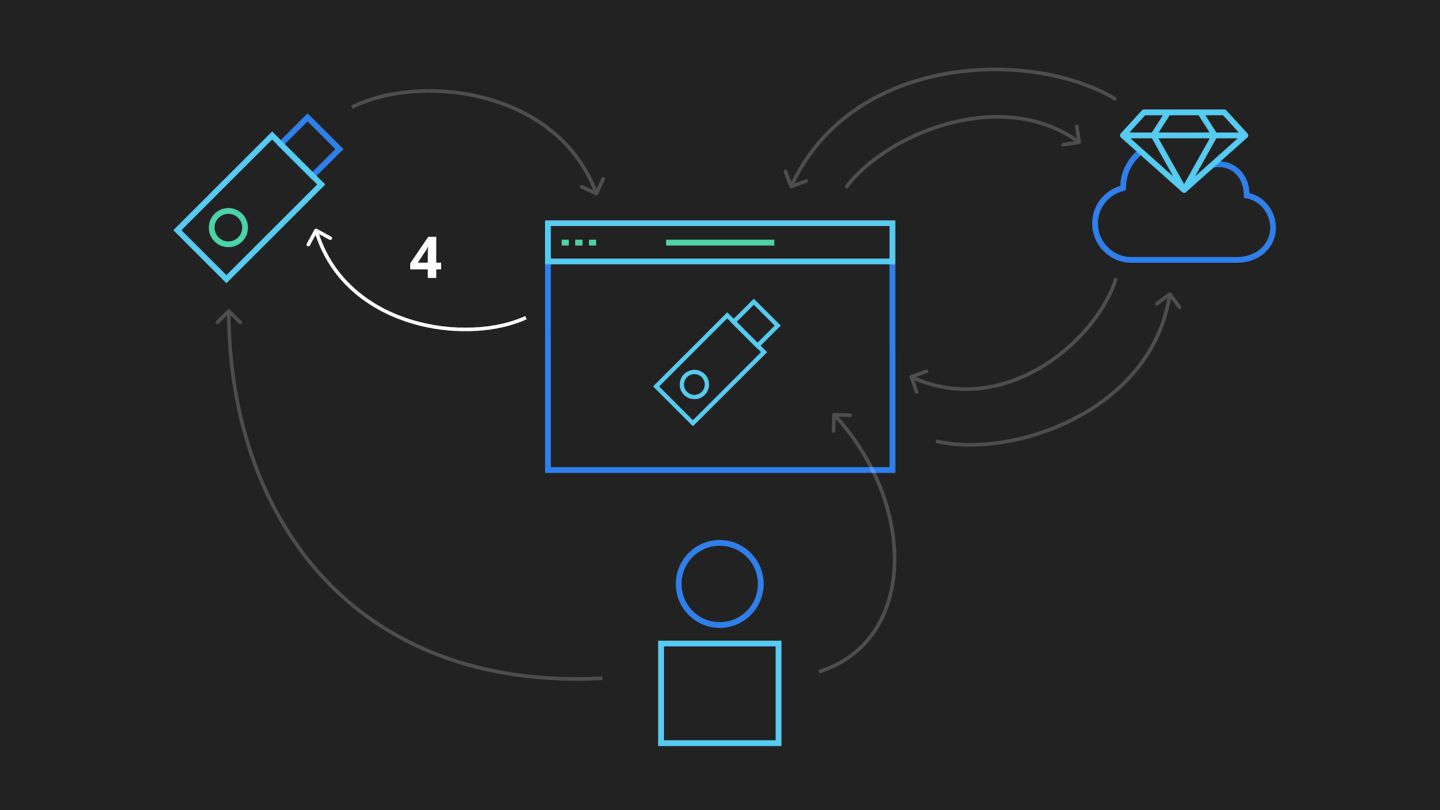

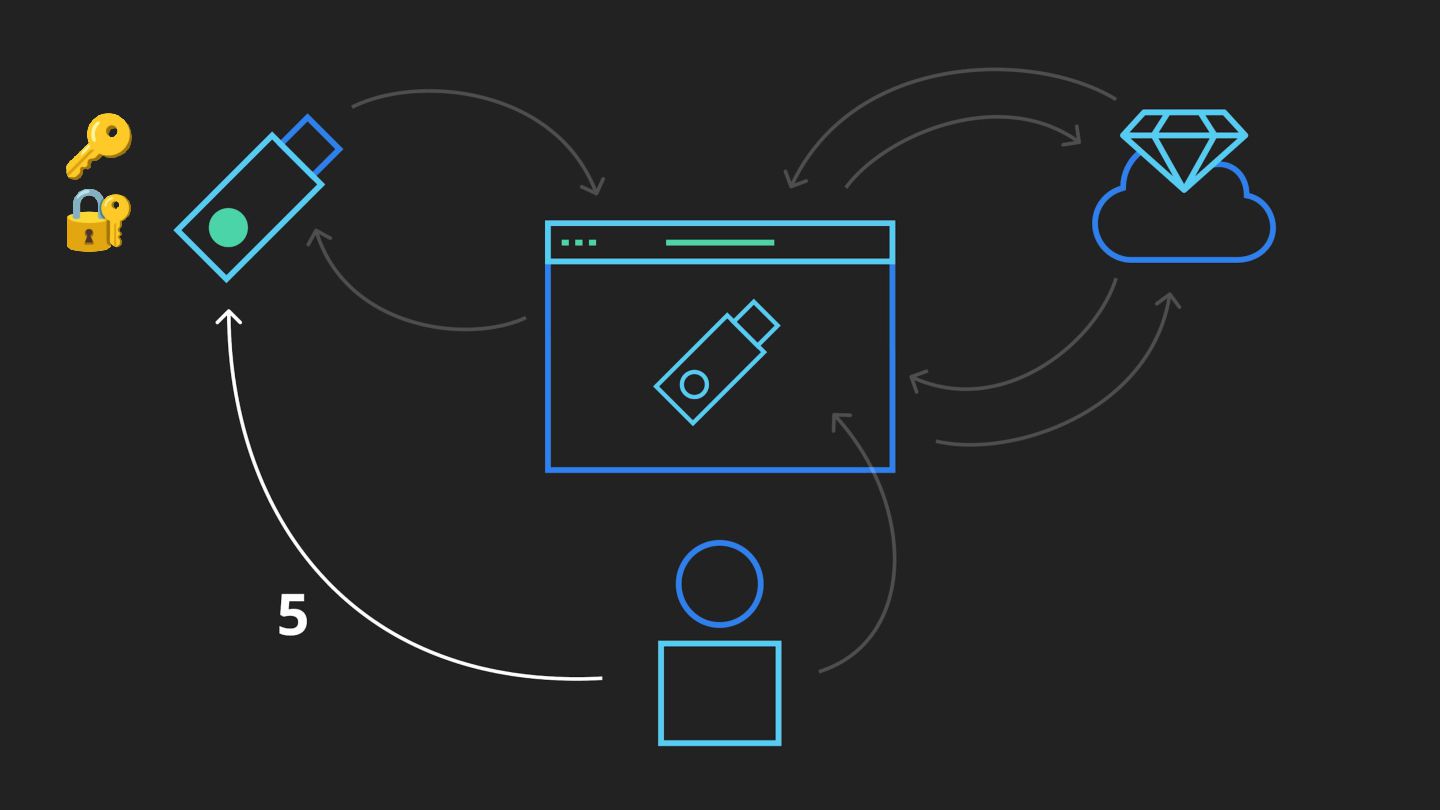

50. Registration
56. 🔑 🔐

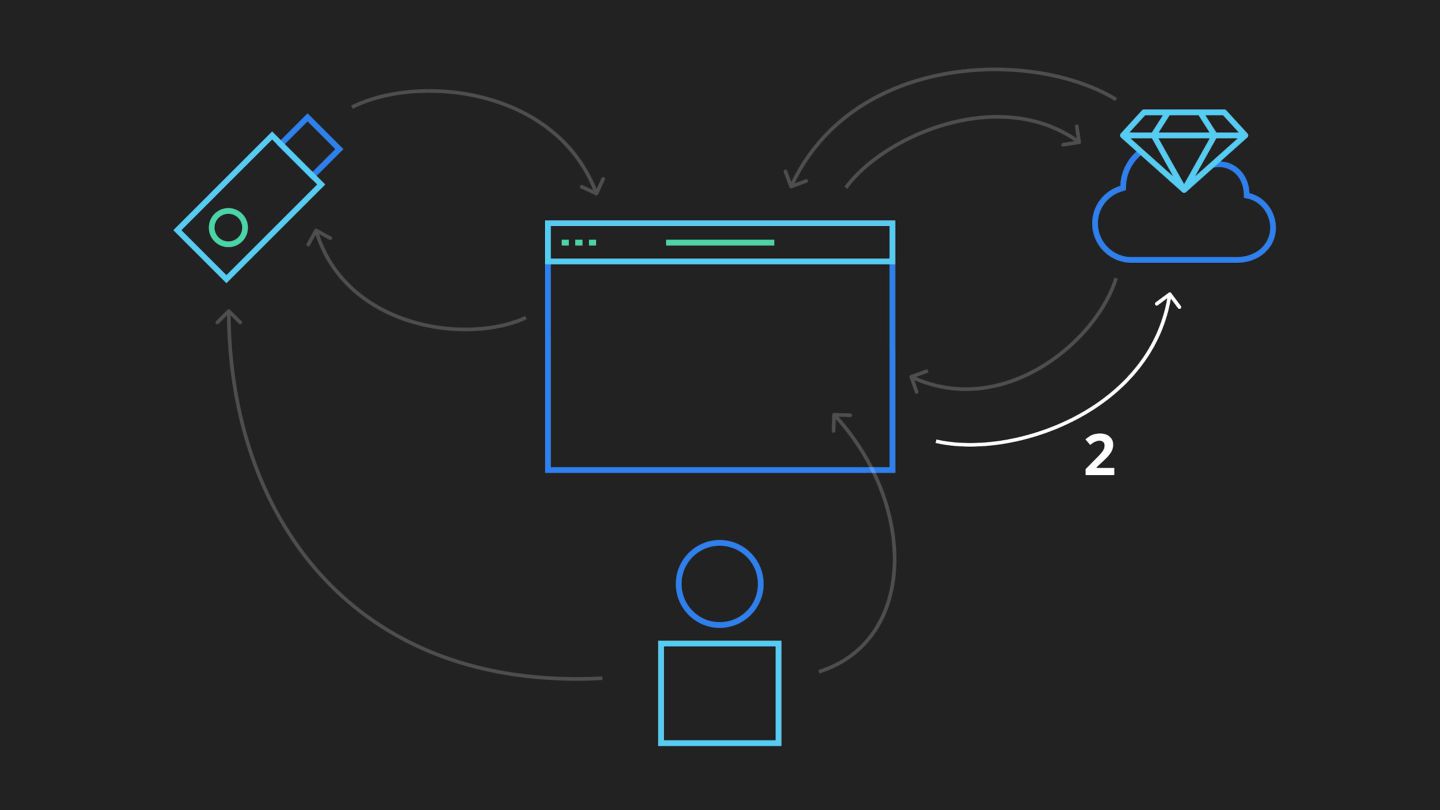

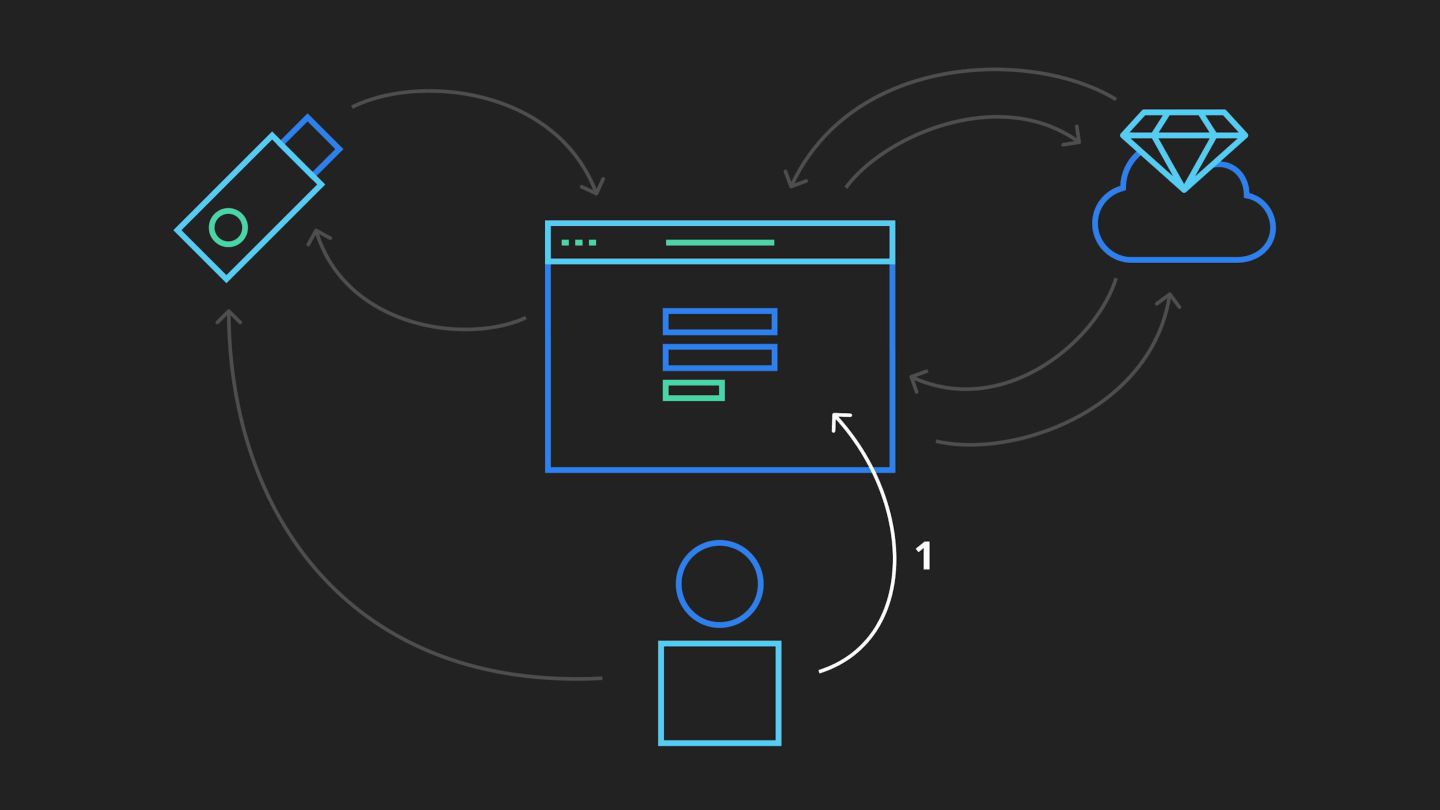

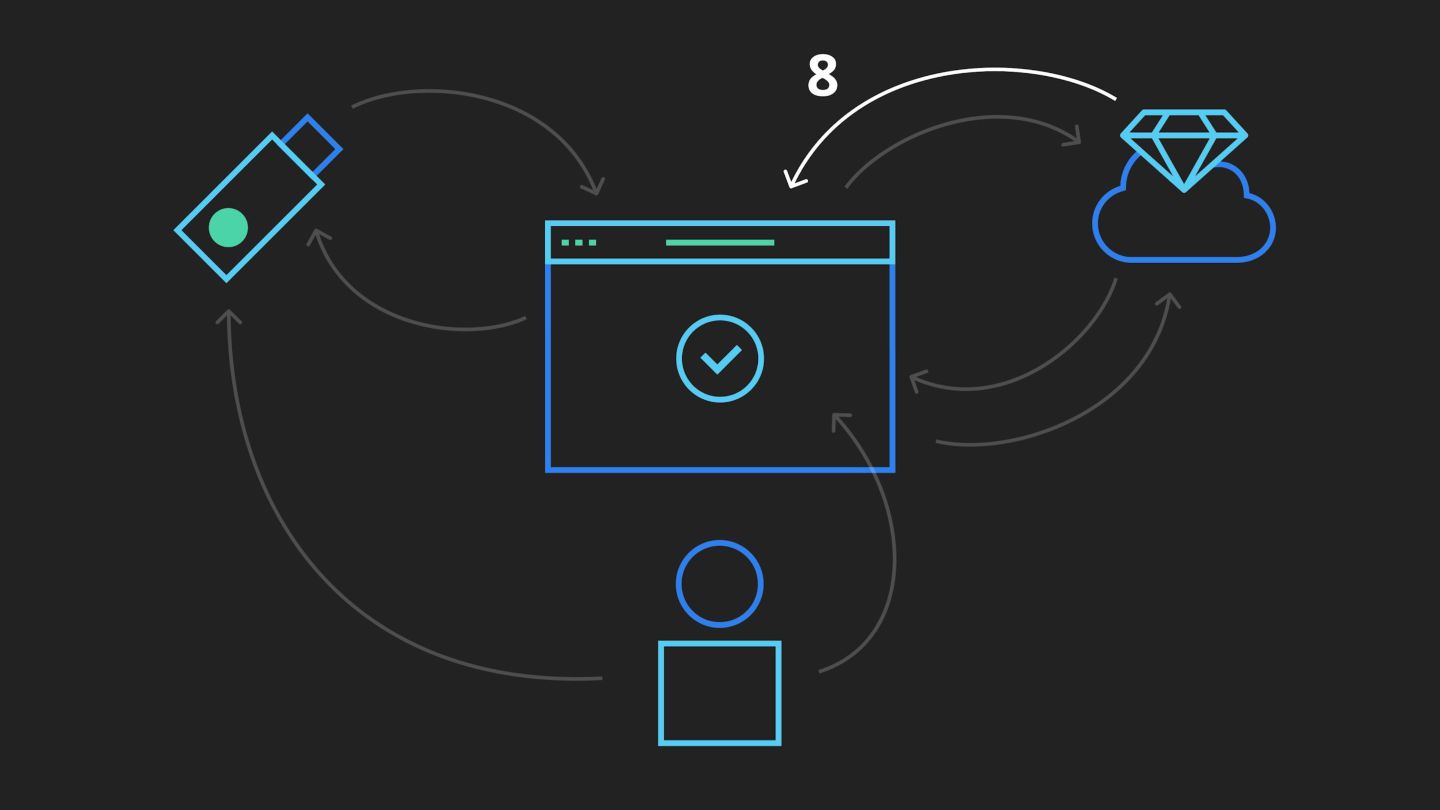

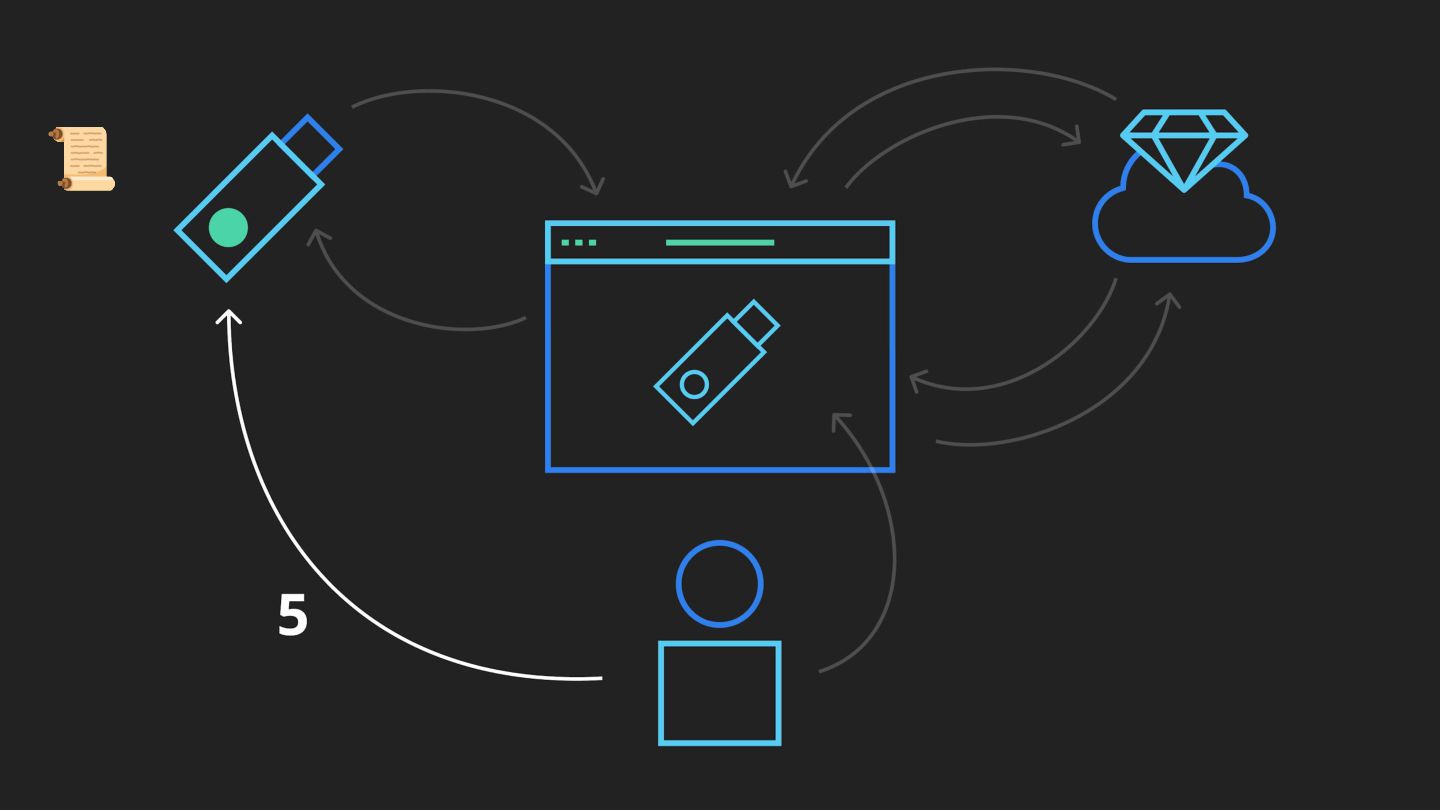

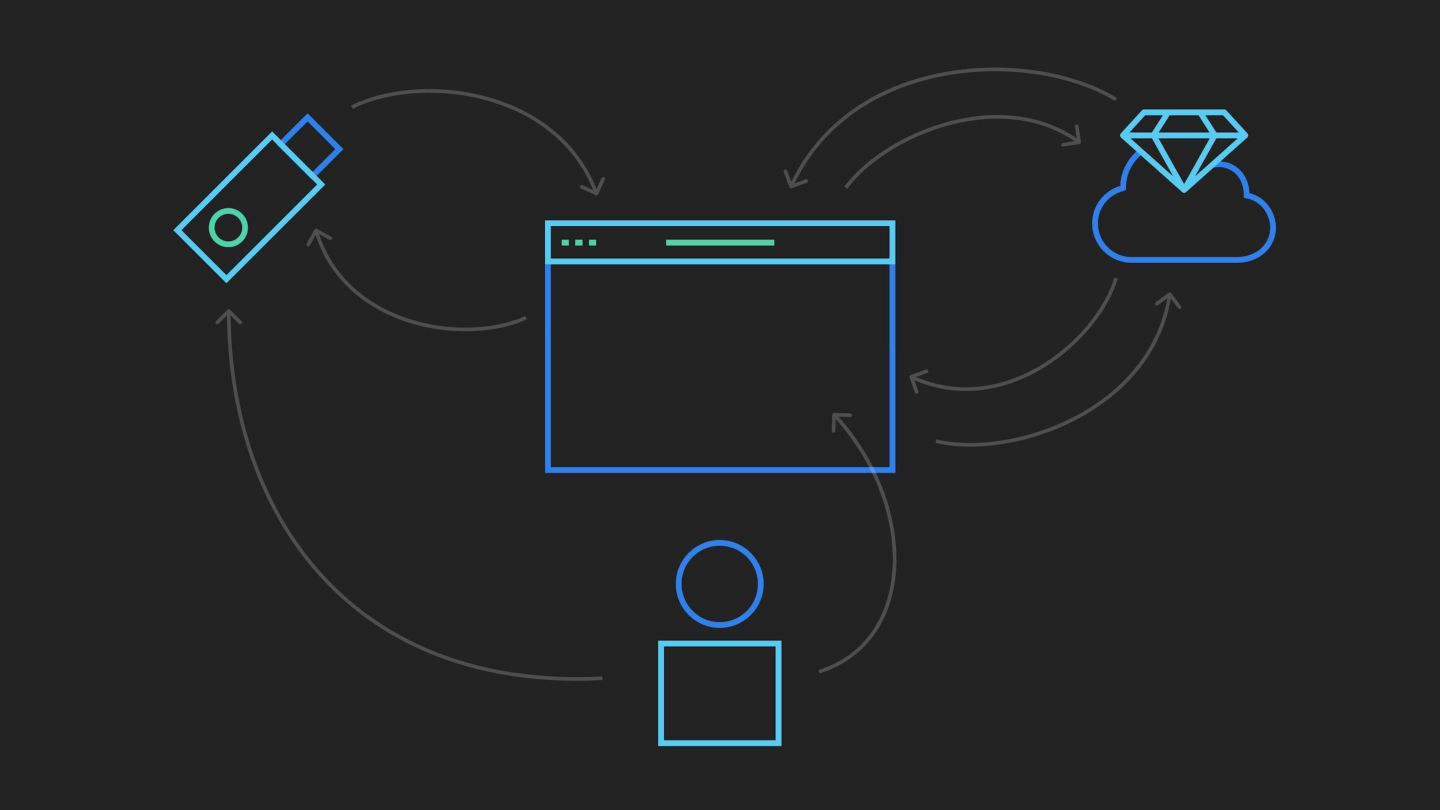

60. Authentication
66. 📜

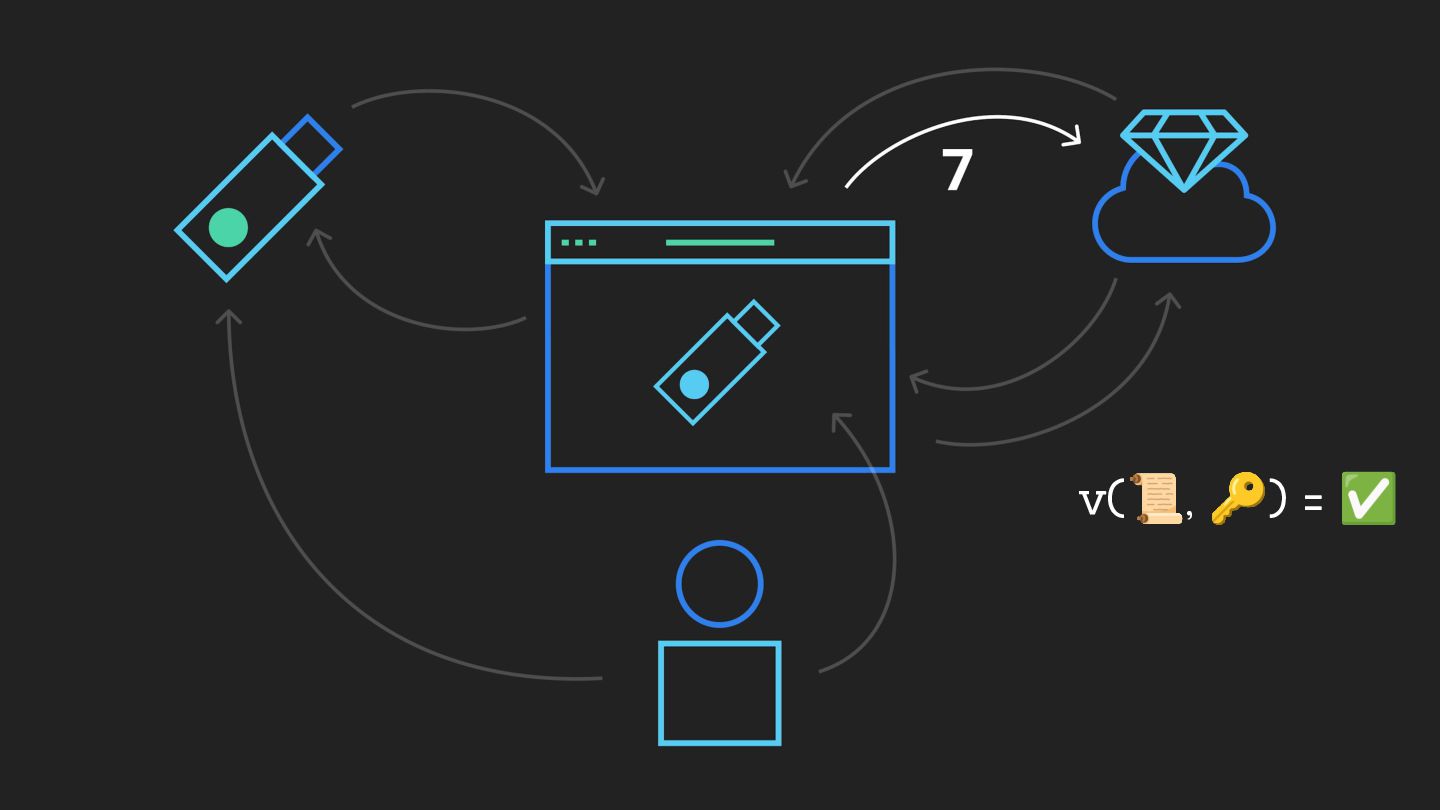

69. v(📜, 🔑) = ✅

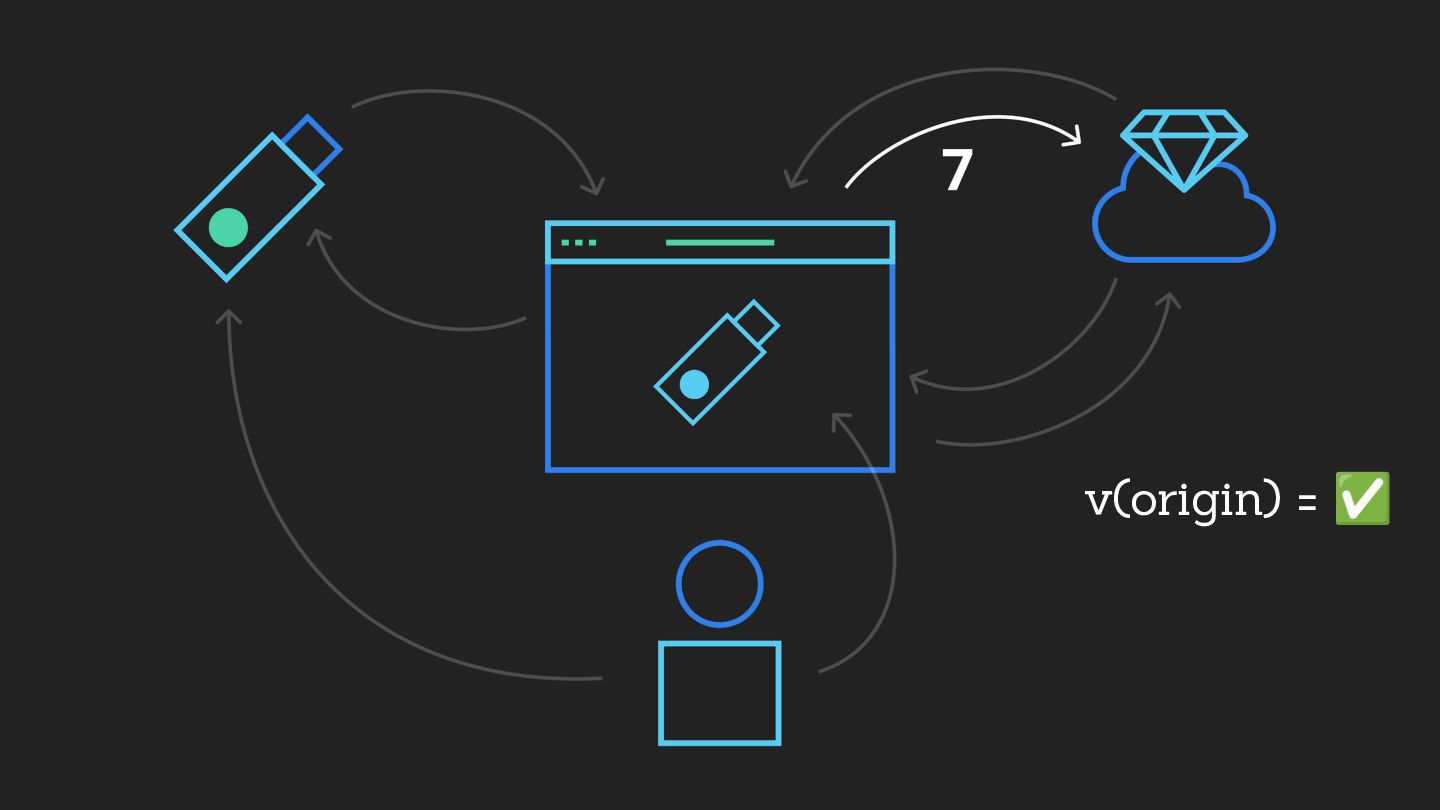

70. v(origin) = ✅
72. The Code

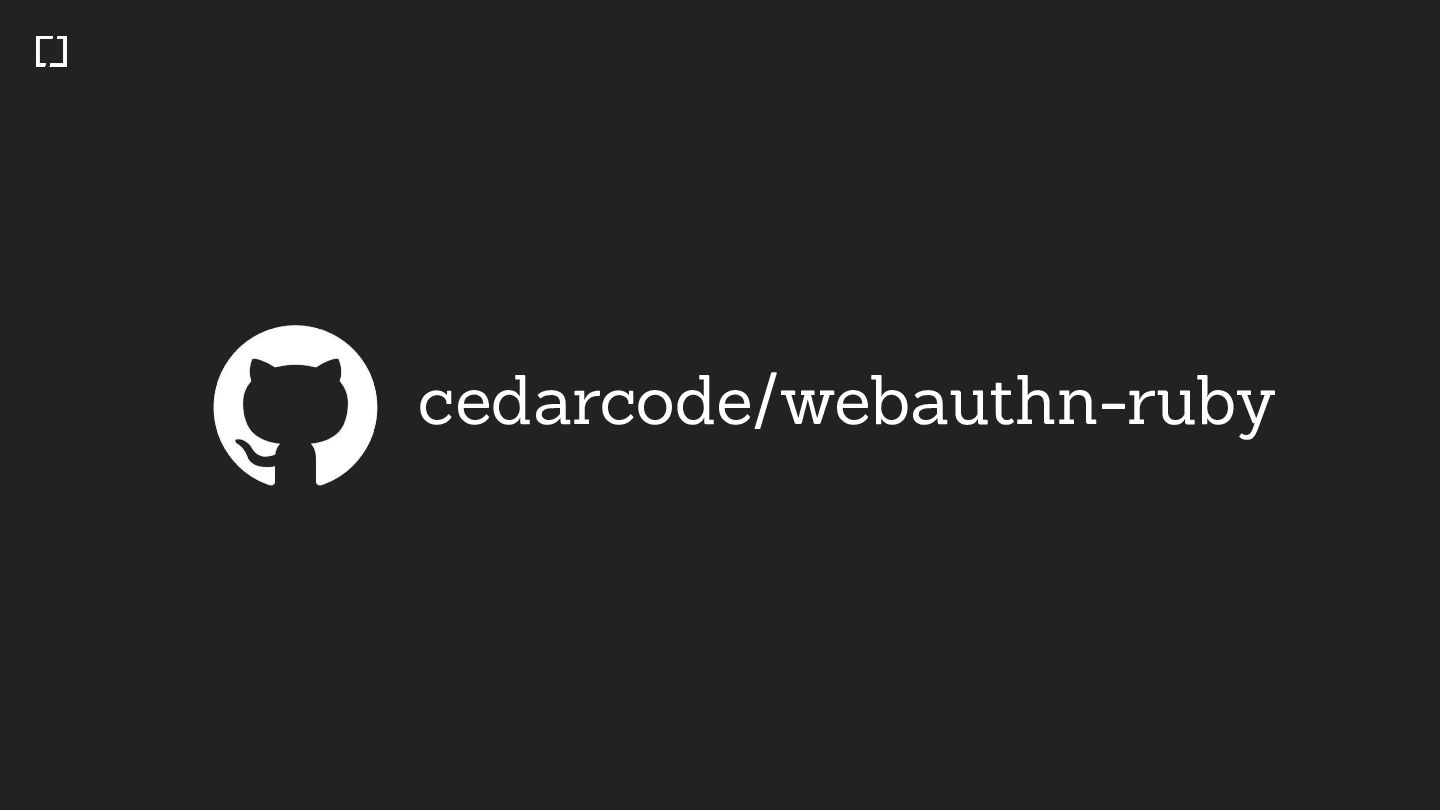

73. cedarcode/webauthn-ruby

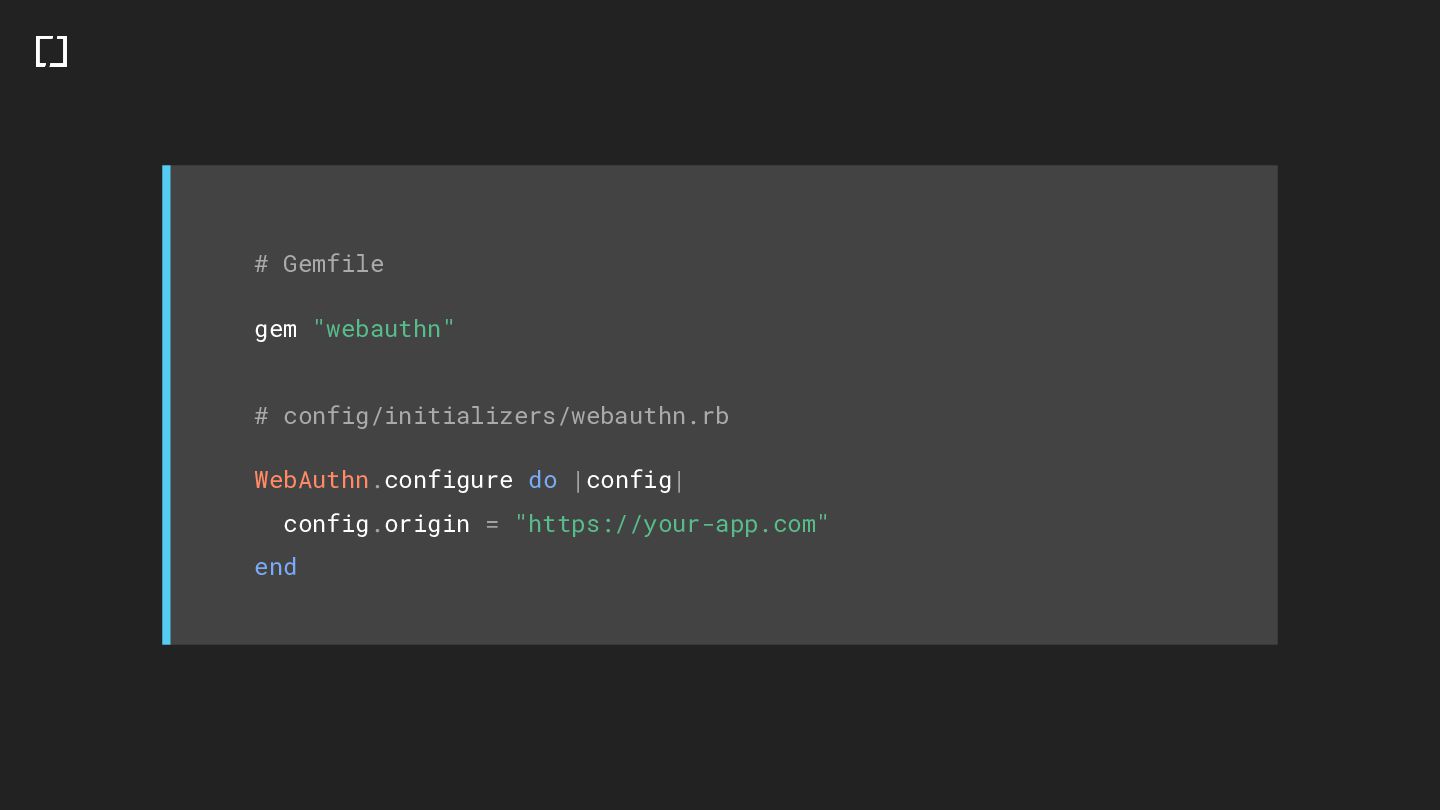

74. # Gemfile gem "webauthn" # config/initializers/webauthn.rb WebAuthn.configure do |config| config.origin = "https://your-app.com" end
75. Registration

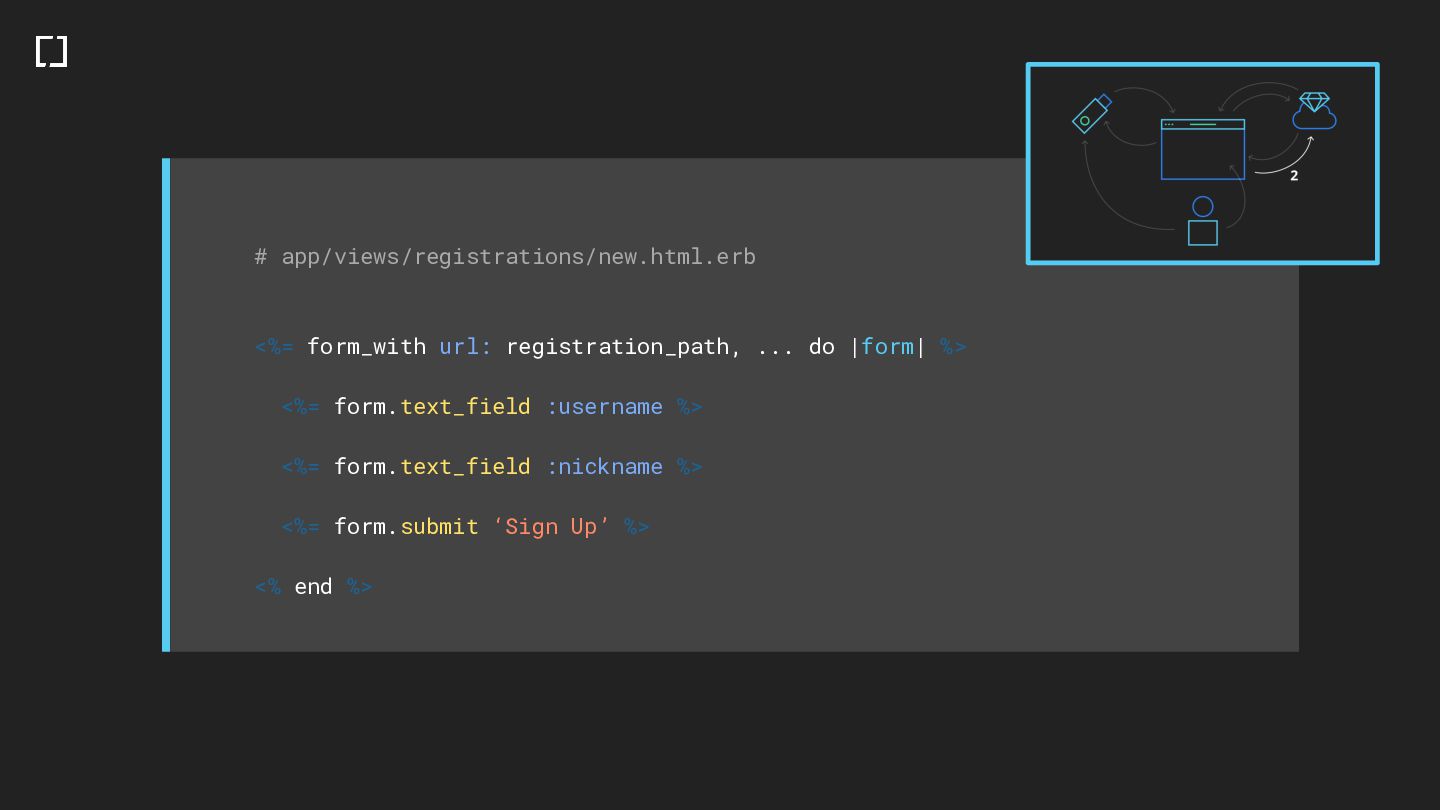

77. # app/views/registrations/new.html.erb <%= form_with url: registration_path, ... do |form| %> <%= form.text_field :username %> <%= form.text_field :nickname %> <%= form.submit ‘Sign Up’ %> <% end %>

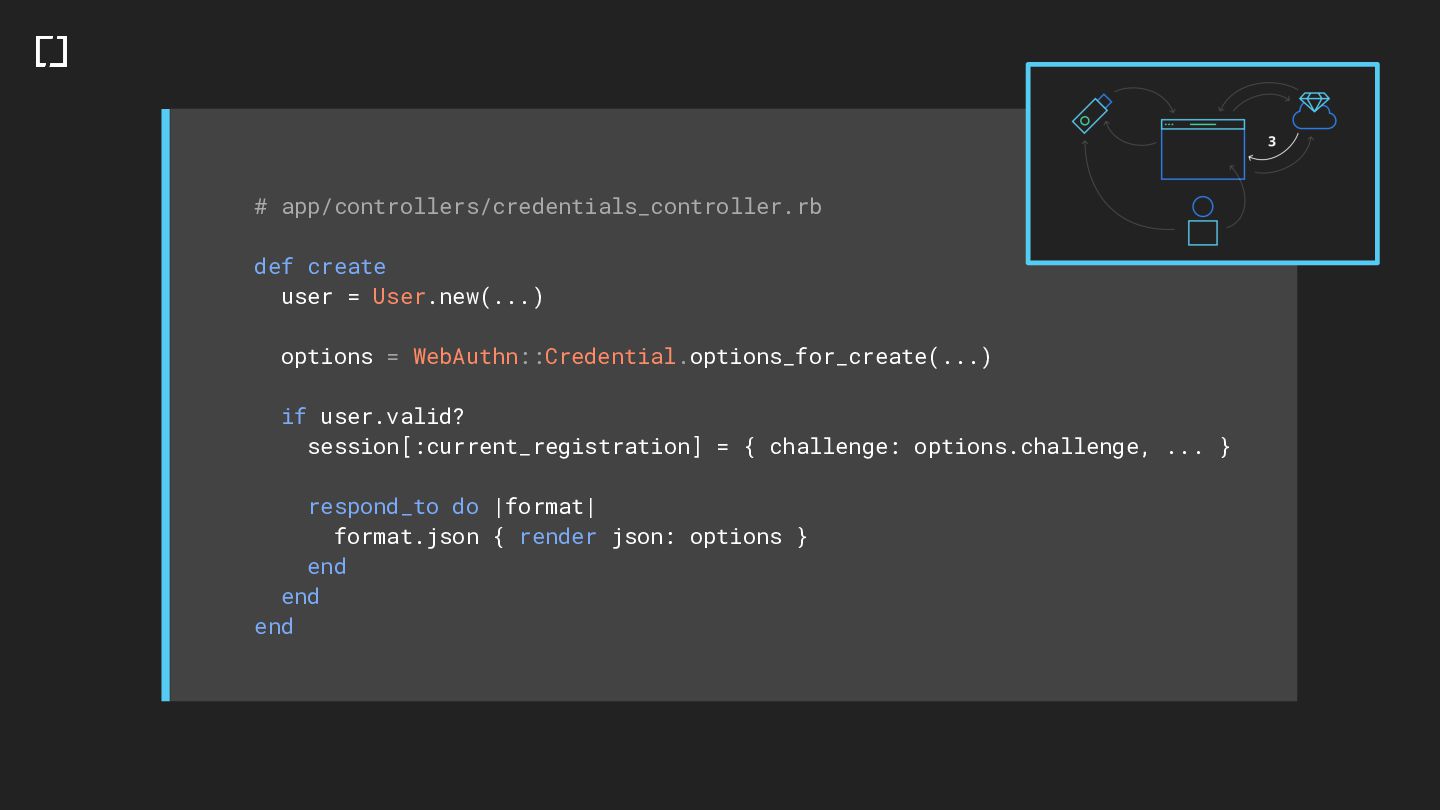

78. # app/controllers/credentials_controller.rb def create user = User.new(...) options = WebAuthn::Credential.options_for_create(...) if user.valid? session[:current_registration] = { challenge: options.challenge, ... } respond_to do |format| format.json { render json: options } end end end

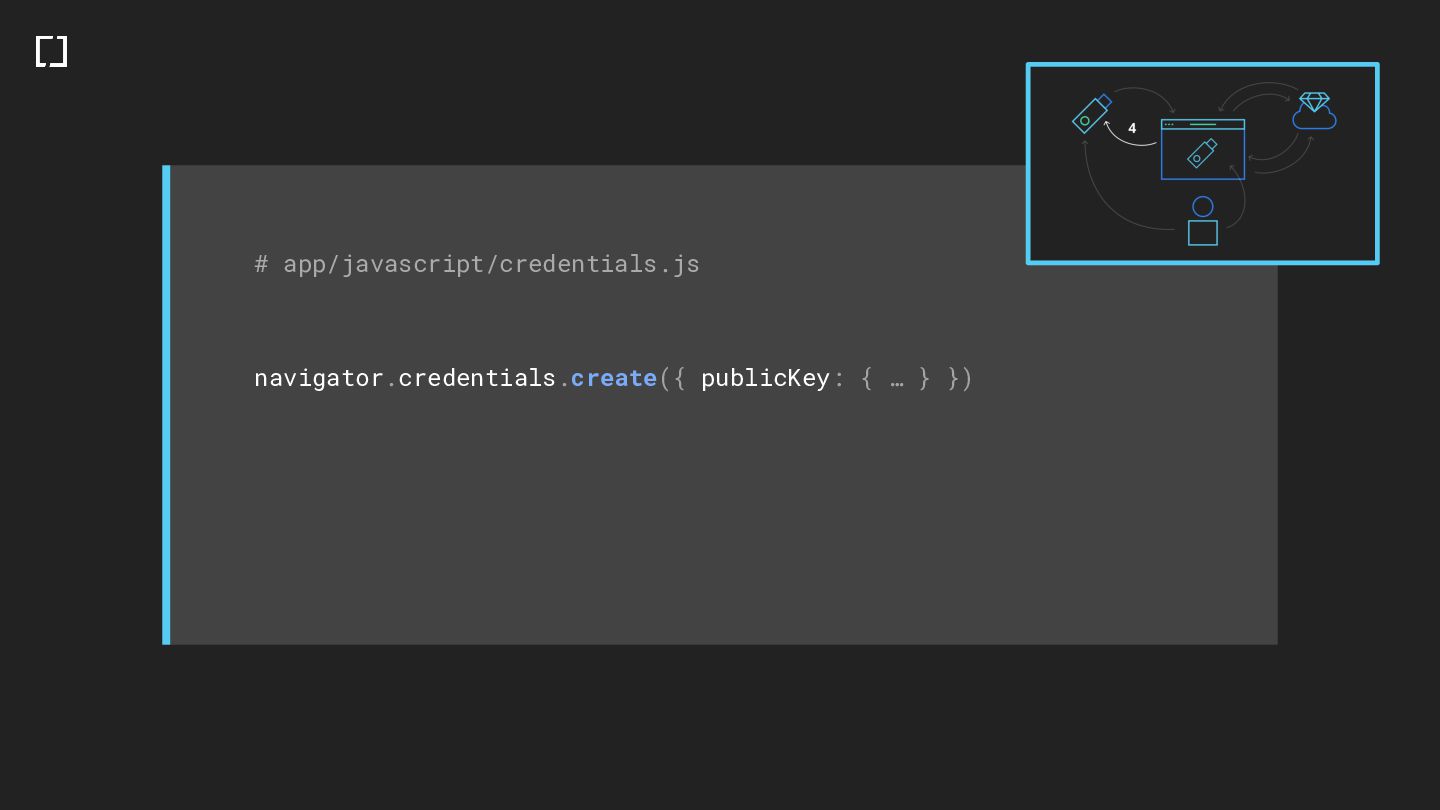

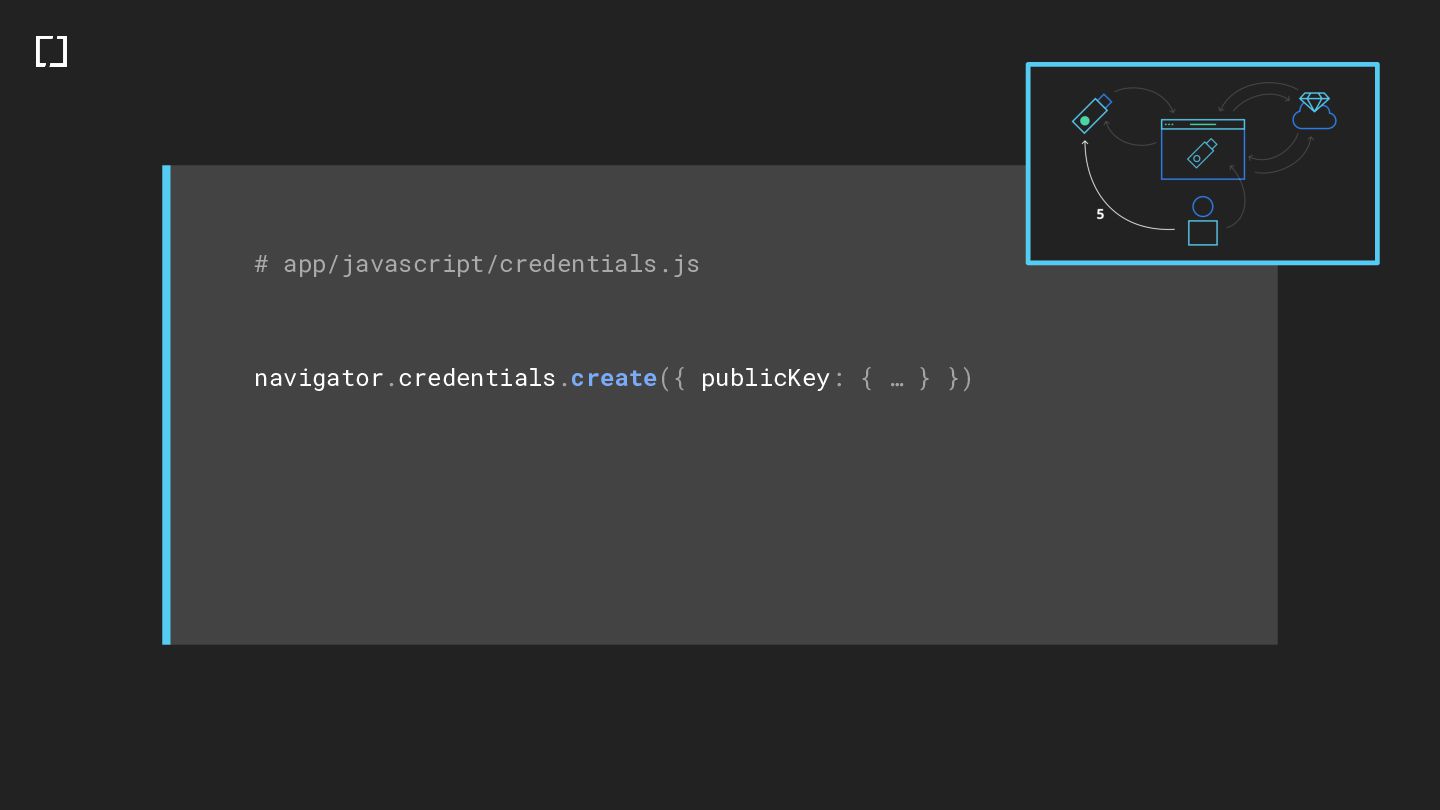

79. # app/javascript/credentials.js navigator.credentials.create({ publicKey: { … } })
80. # app/javascript/credentials.js navigator.credentials.create({ publicKey: { … } })

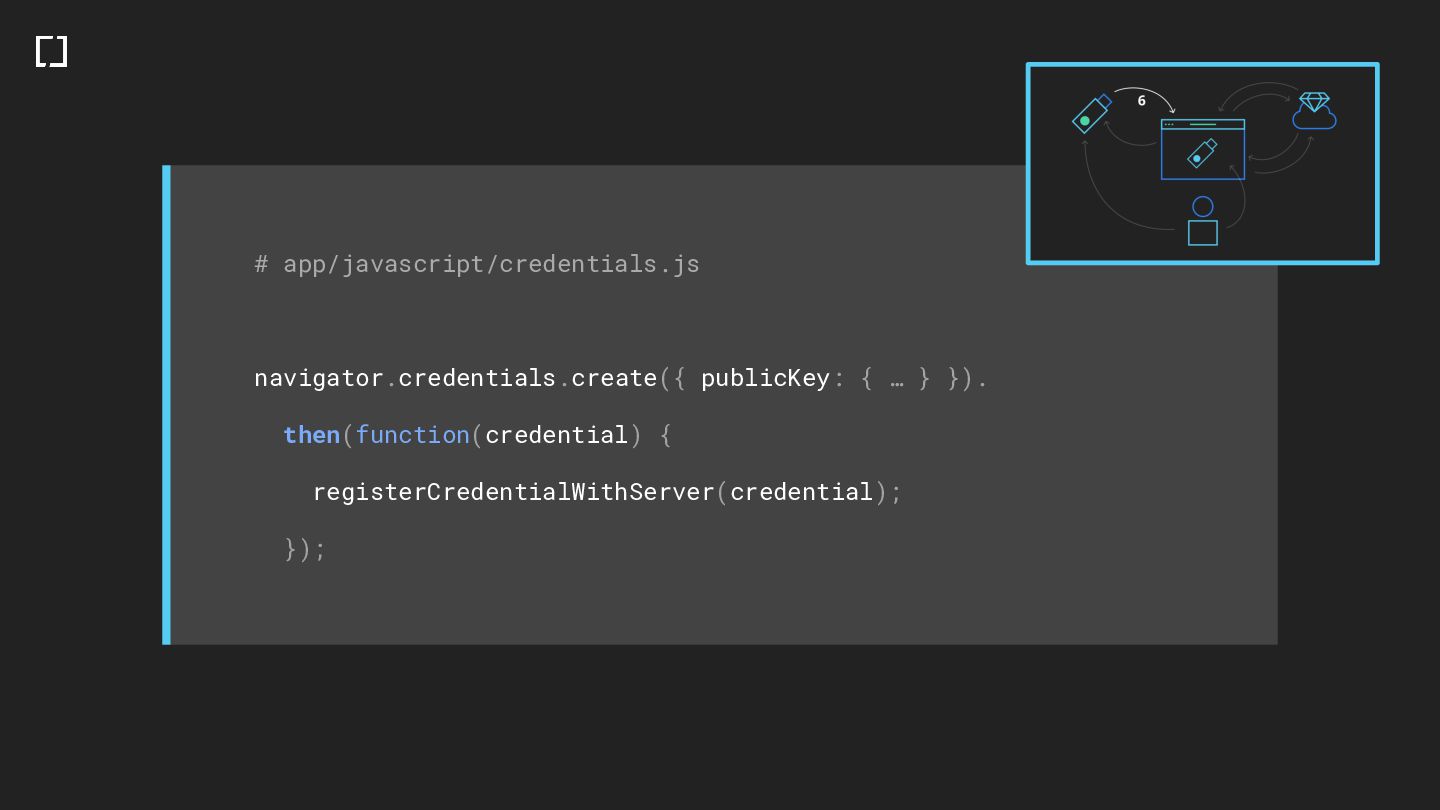

81. # app/javascript/credentials.js navigator.credentials.create({ publicKey: { … } }). then(function(credential) { registerCredentialWithServer(credential); });
82. # app/javascript/credentials.js navigator.credentials.create({ publicKey: { … } }). then(function(credential) { registerCredentialWithServer(credential); });

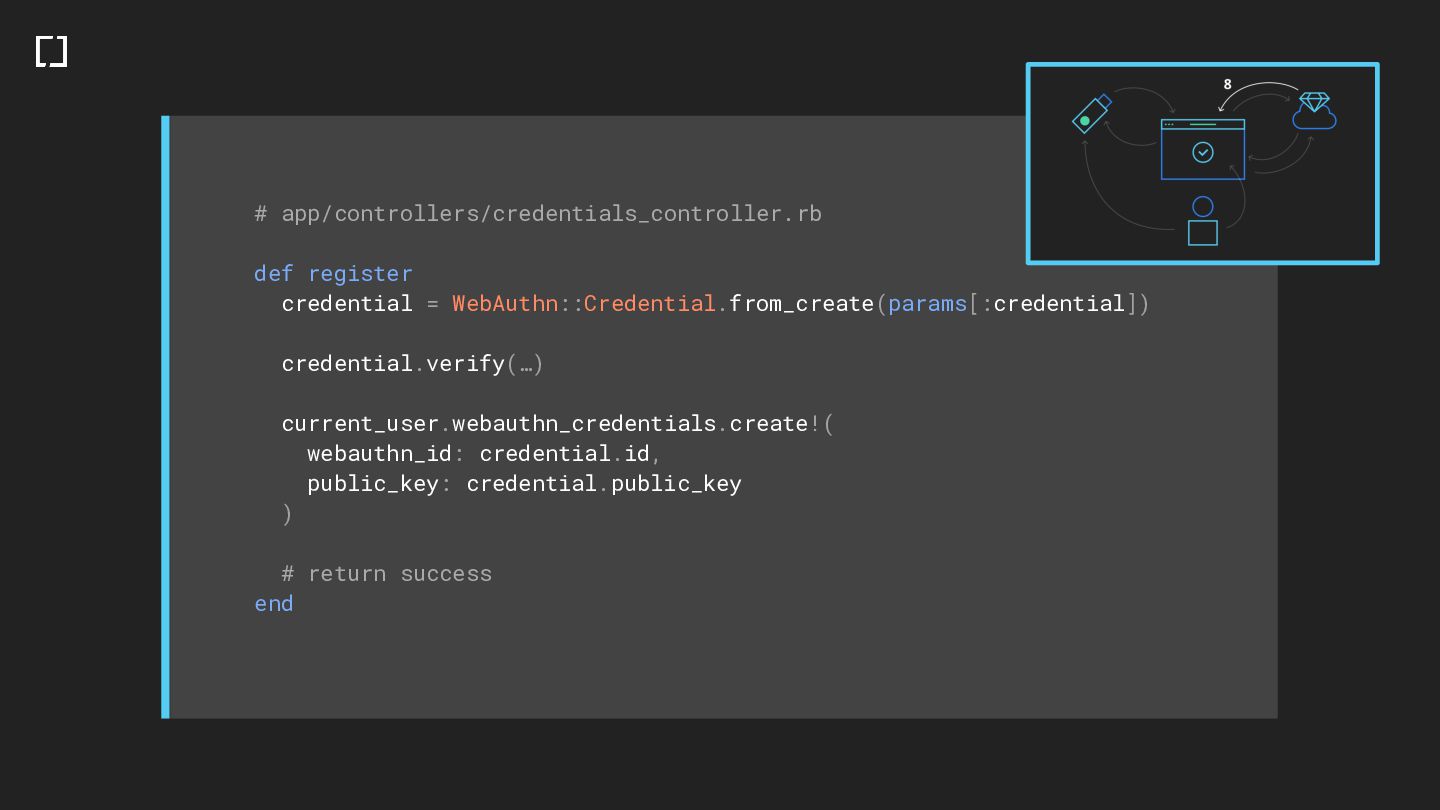

83. # app/controllers/credentials_controller.rb def register credential = WebAuthn::Credential.from_create(params[:credential]) credential.verify(…) current_user.webauthn_credentials.create!( webauthn_id: credential.id, public_key: credential.public_key ) # return success end
84. Authentication

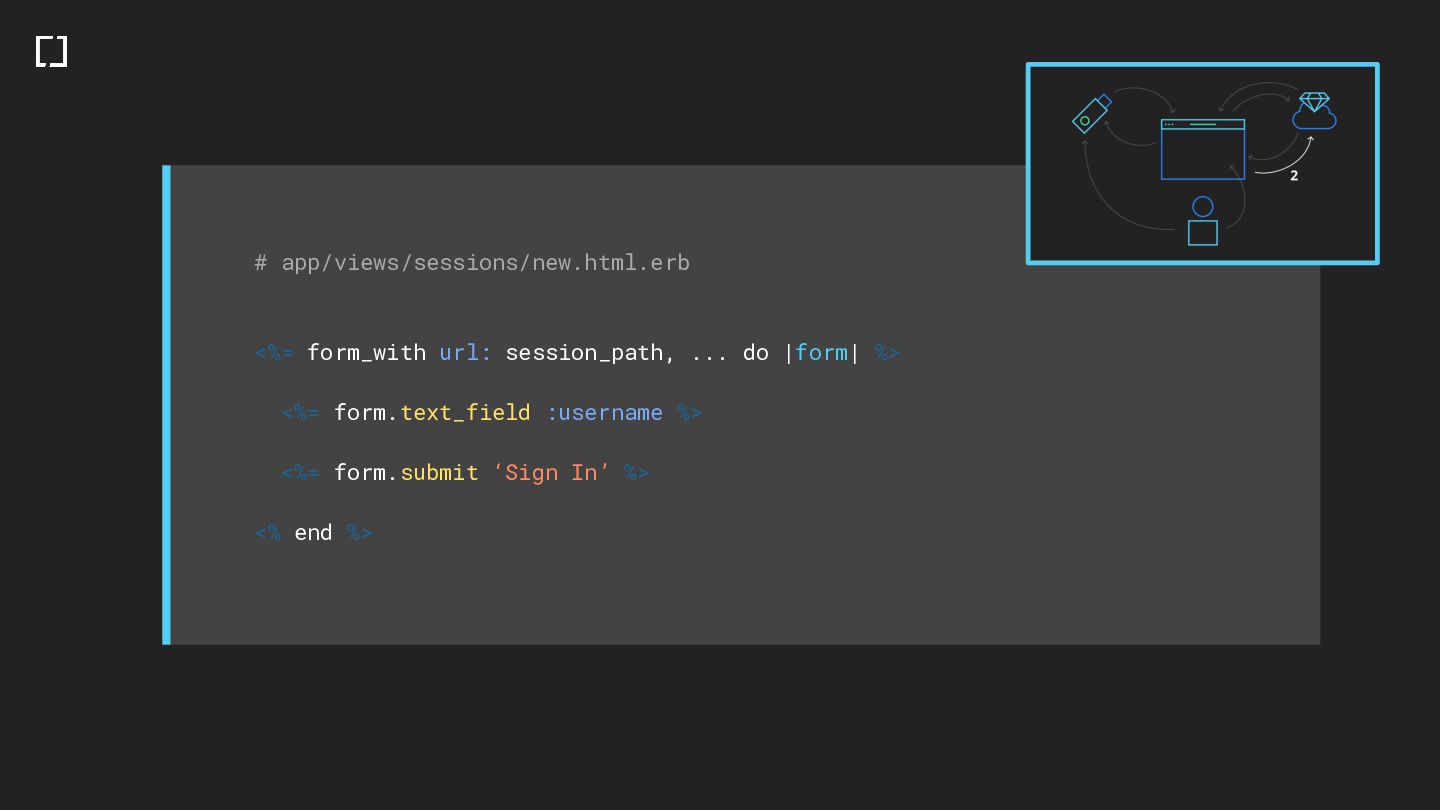

86. # app/views/sessions/new.html.erb <%= form_with url: session_path, ... do |form| %> <%= form.text_field :username %> <%= form.submit ‘Sign In’ %> <% end %>

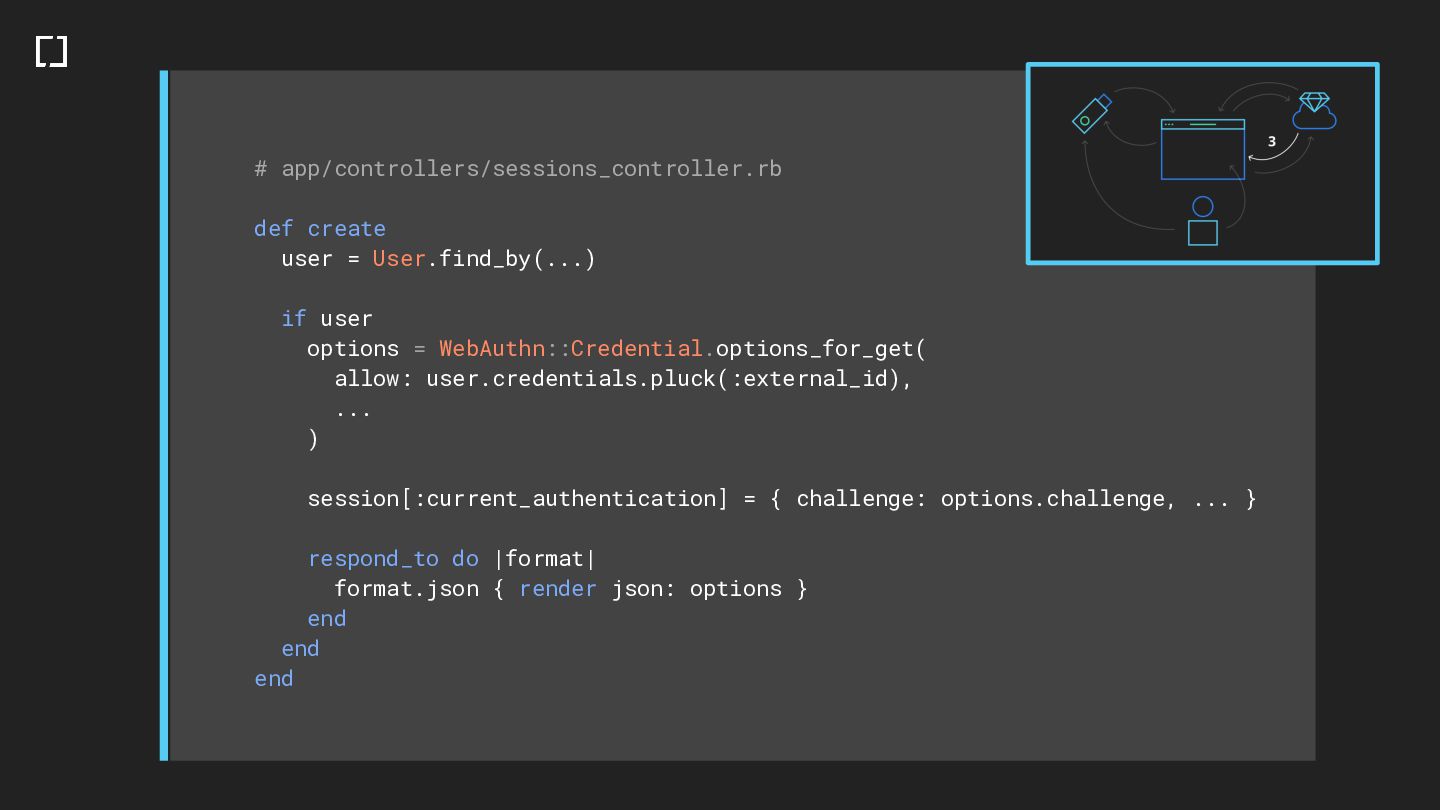

87. # app/controllers/sessions_controller.rb def create user = User.find_by(...) if user options = WebAuthn::Credential.options_for_get( allow: user.credentials.pluck(:external_id), ... ) session[:current_authentication] = { challenge: options.challenge, ... } respond_to do |format| format.json { render json: options } end end end

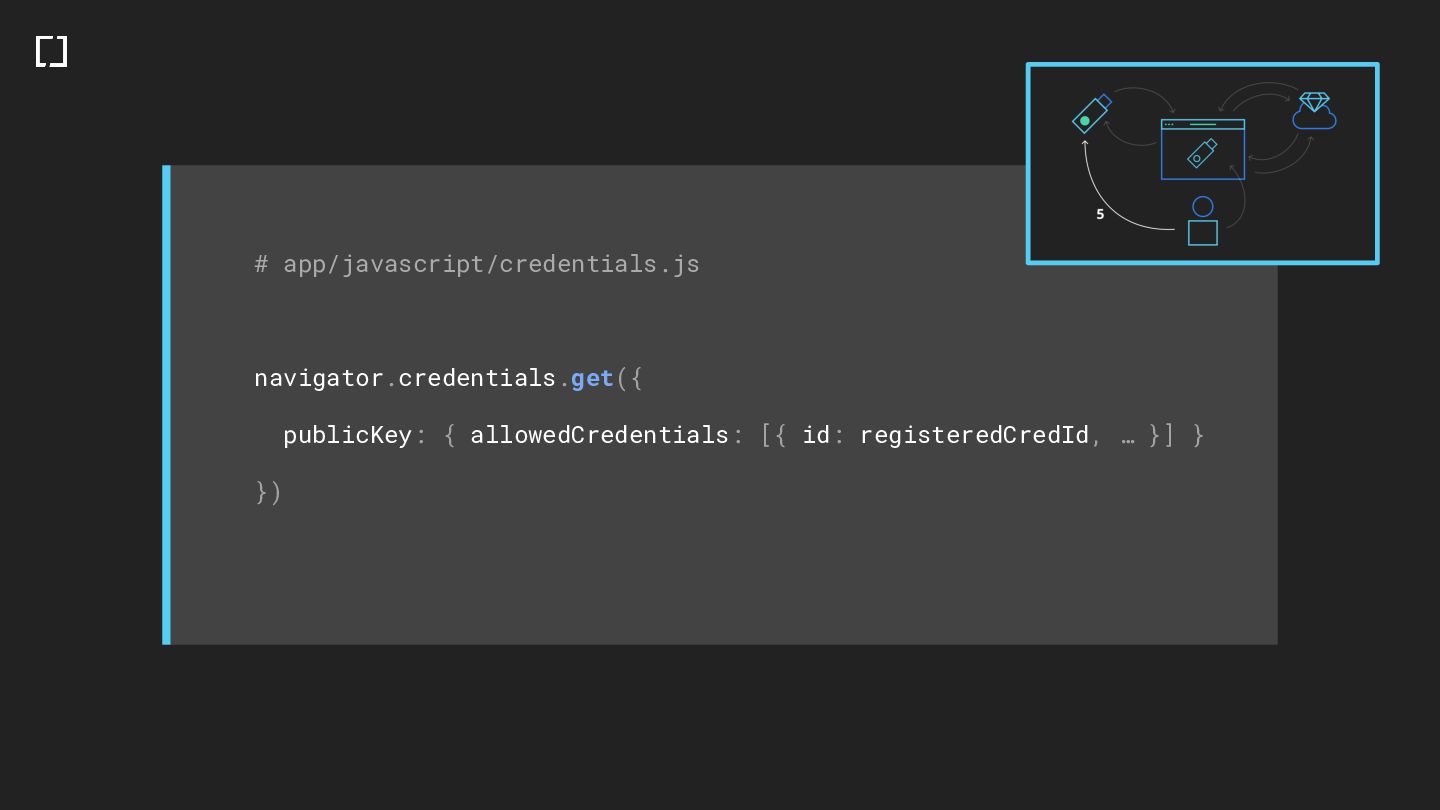

88. # app/javascript/credentials.js navigator.credentials.get({ publicKey: { allowedCredentials: [{ id: registeredCredId, … }] } })
89. # app/javascript/credentials.js navigator.credentials.get({ publicKey: { allowedCredentials: [{ id: registeredCredId, … }] } })

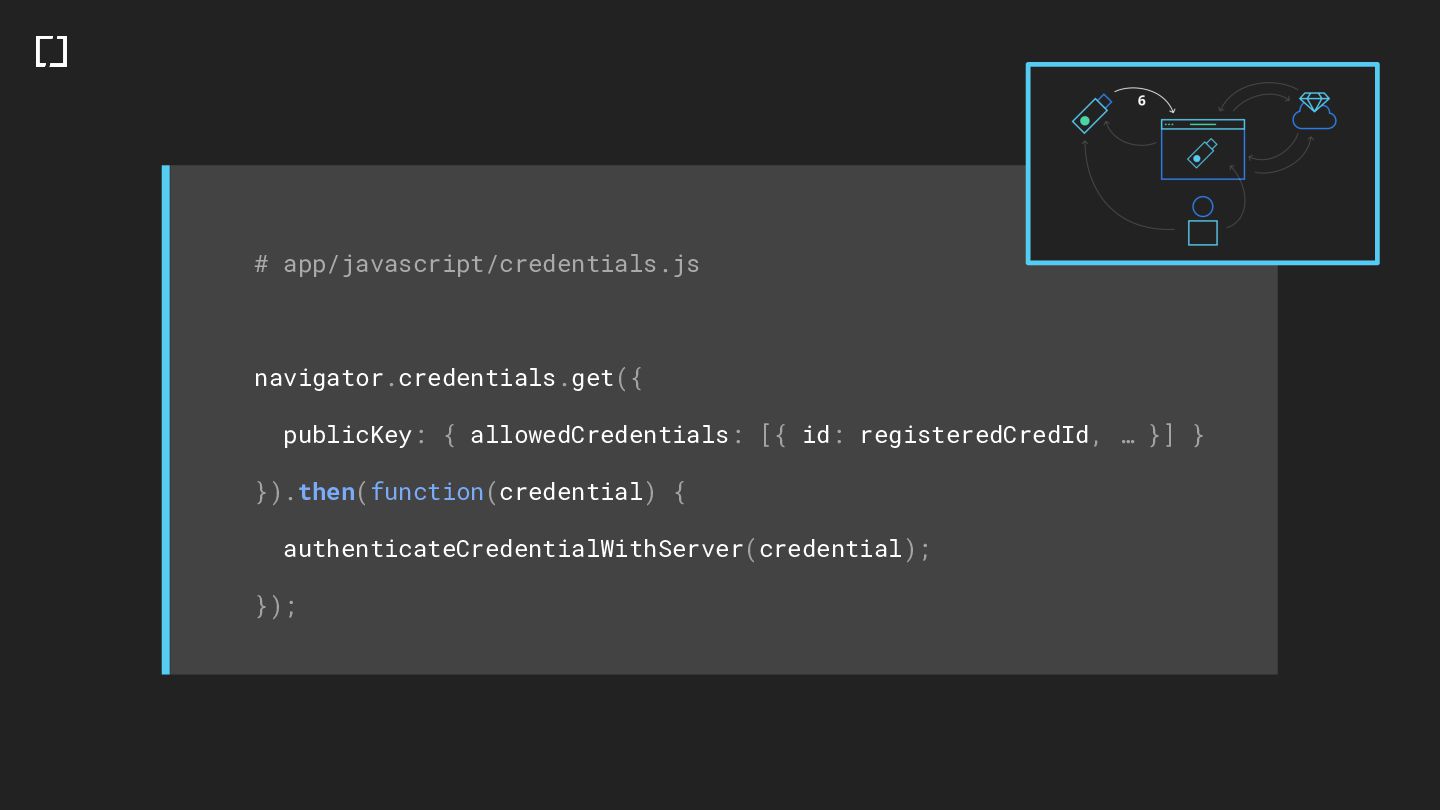

90. # app/javascript/credentials.js navigator.credentials.get({ publicKey: { allowedCredentials: [{ id: registeredCredId, … }] } }).then(function(credential) { authenticateCredentialWithServer(credential); });
91. # app/javascript/credentials.js navigator.credentials.get({ publicKey: { allowedCredentials: [{ id: registeredCredId, … }] } }).then(function(credential) { authenticateCredentialWithServer(credential); });

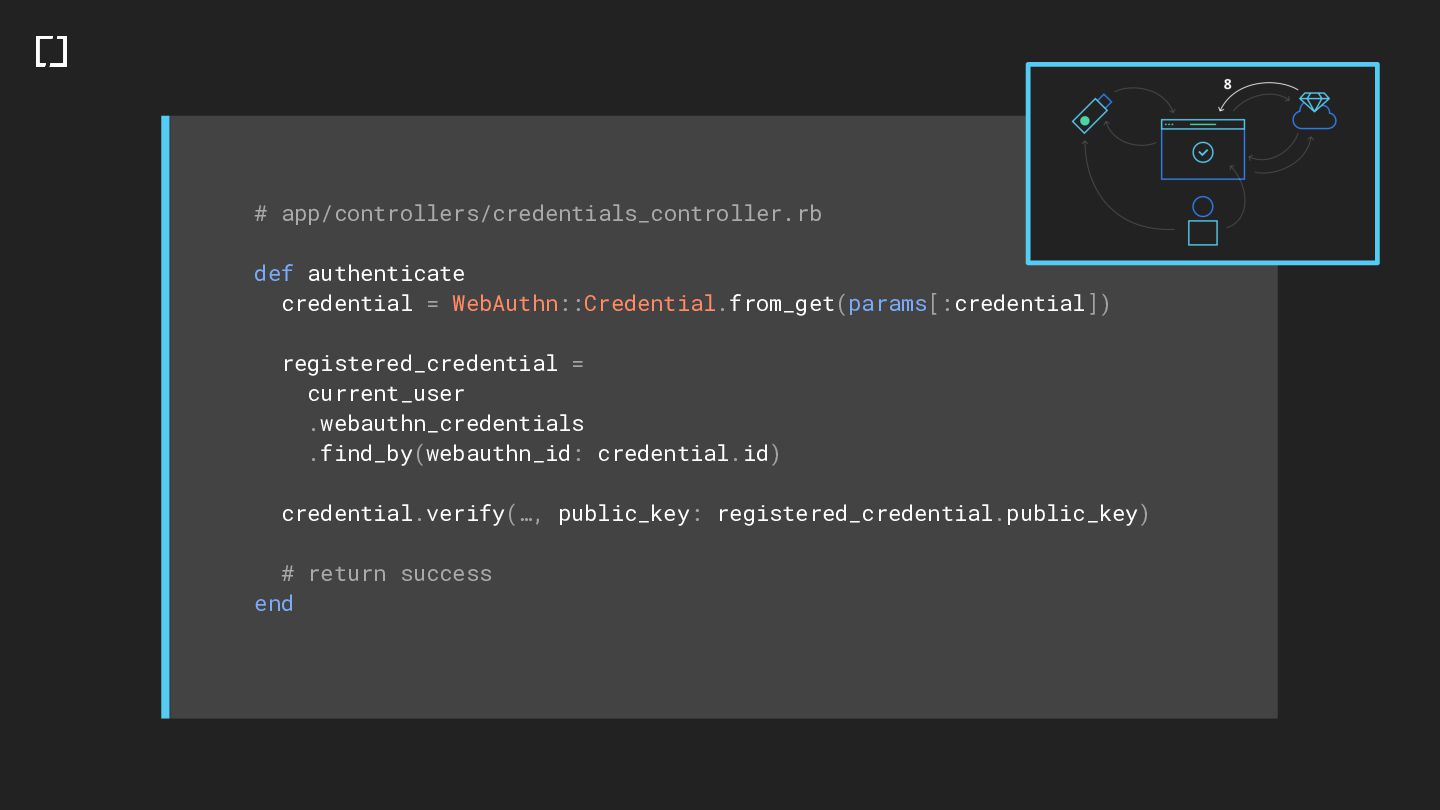

92. # app/controllers/credentials_controller.rb def authenticate credential = WebAuthn::Credential.from_get(params[:credential]) registered_credential = current_user .webauthn_credentials .find_by(webauthn_id: credential.id) credential.verify(…, public_key: registered_credential.public_key) # return success end

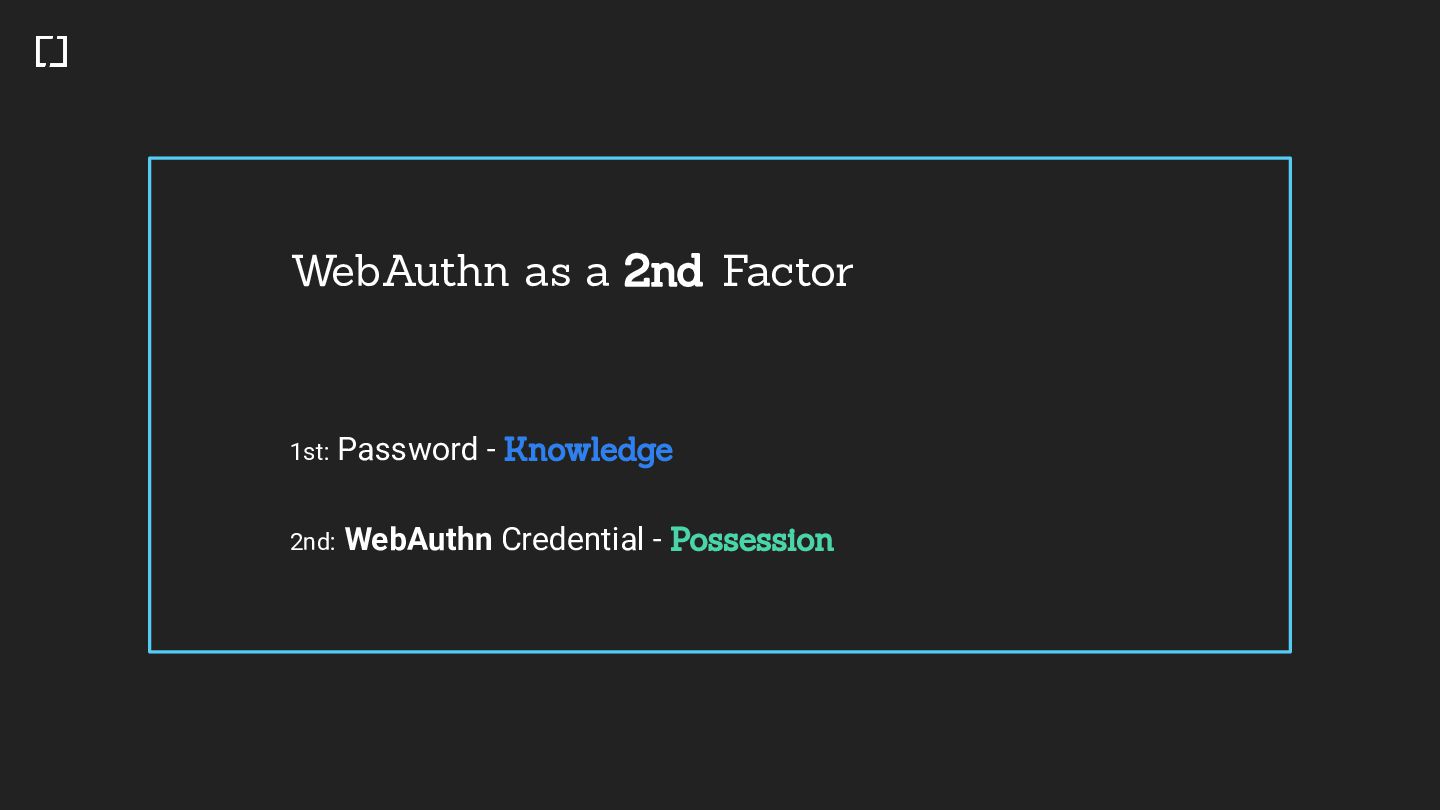

93. WebAuthn as a 2nd Factor 1st: Password - Knowledge 2nd: WebAuthn Credential - Possession
94. Optional: Local User Verification
95. Inherence
96. Knowledge
97. navigator.credentials.get({ publicKey: { …, “userVerification”: “required” }});

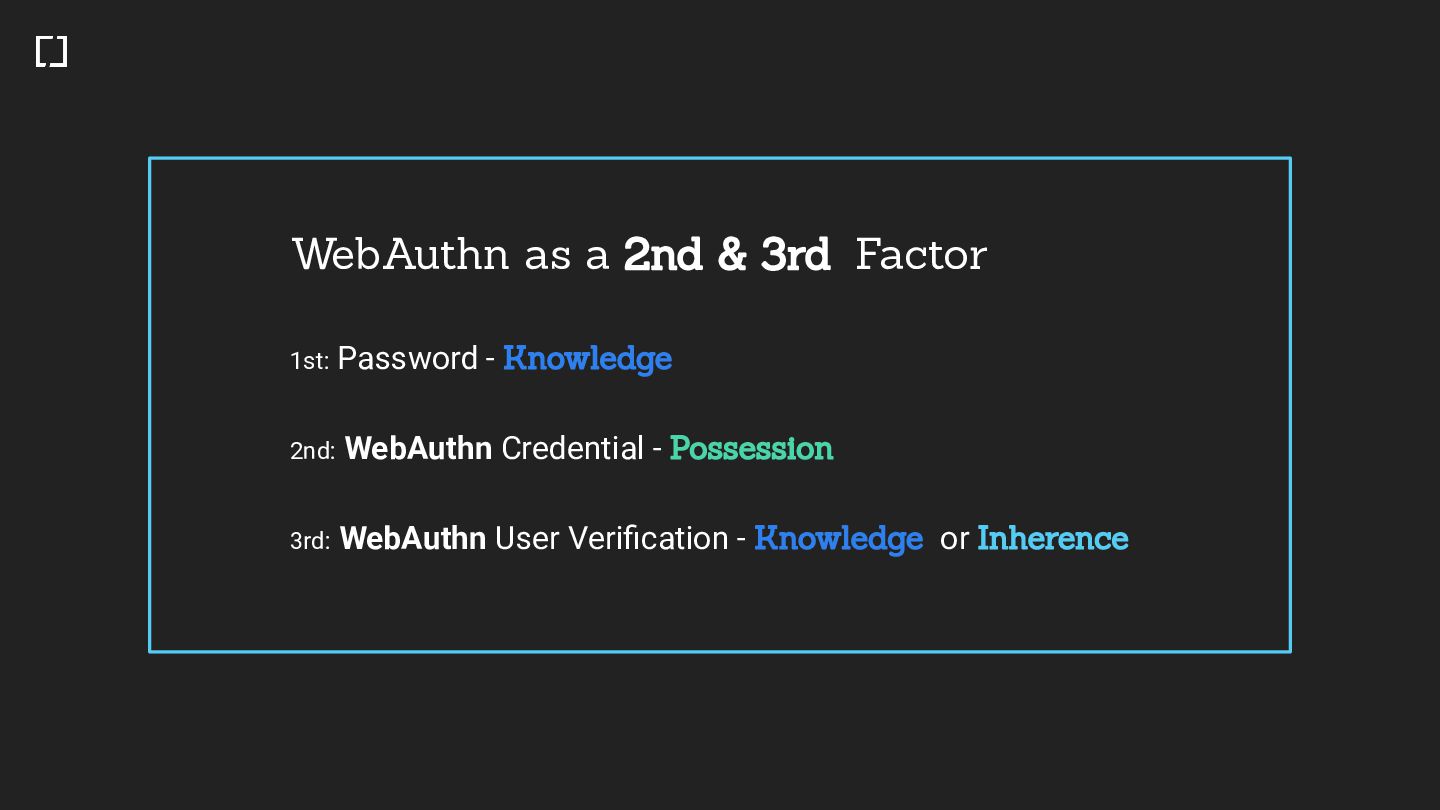

98. WebAuthn as a 2nd & 3rd Factor 1st: Password - Knowledge 2nd: WebAuthn Credential - Possession 3rd: WebAuthn User Verification - Knowledge or Inherence

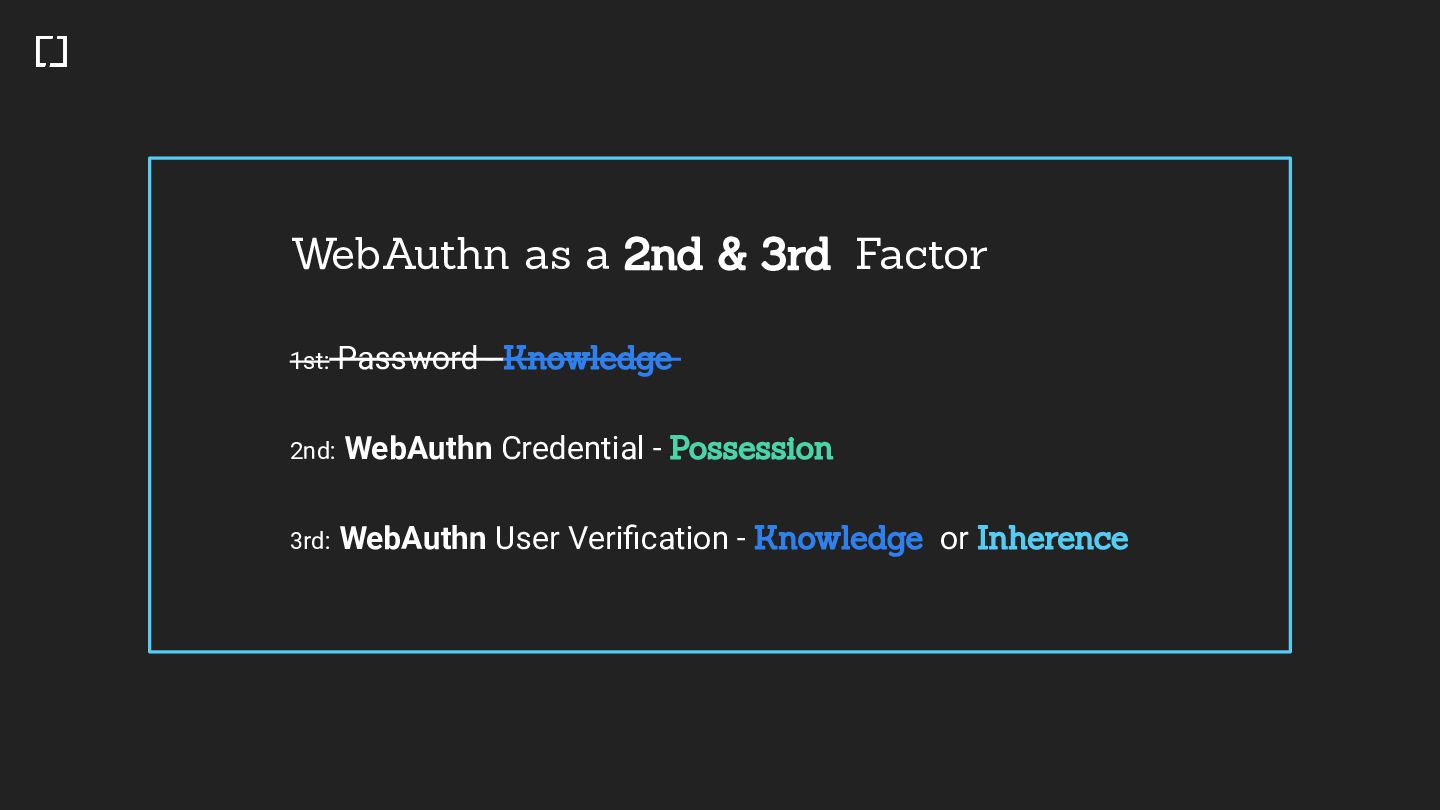

99. WebAuthn as a 2nd & 3rd Factor 1st: Password - Knowledge 2nd: WebAuthn Credential - Possession 3rd: WebAuthn User Verification - Knowledge or Inherence

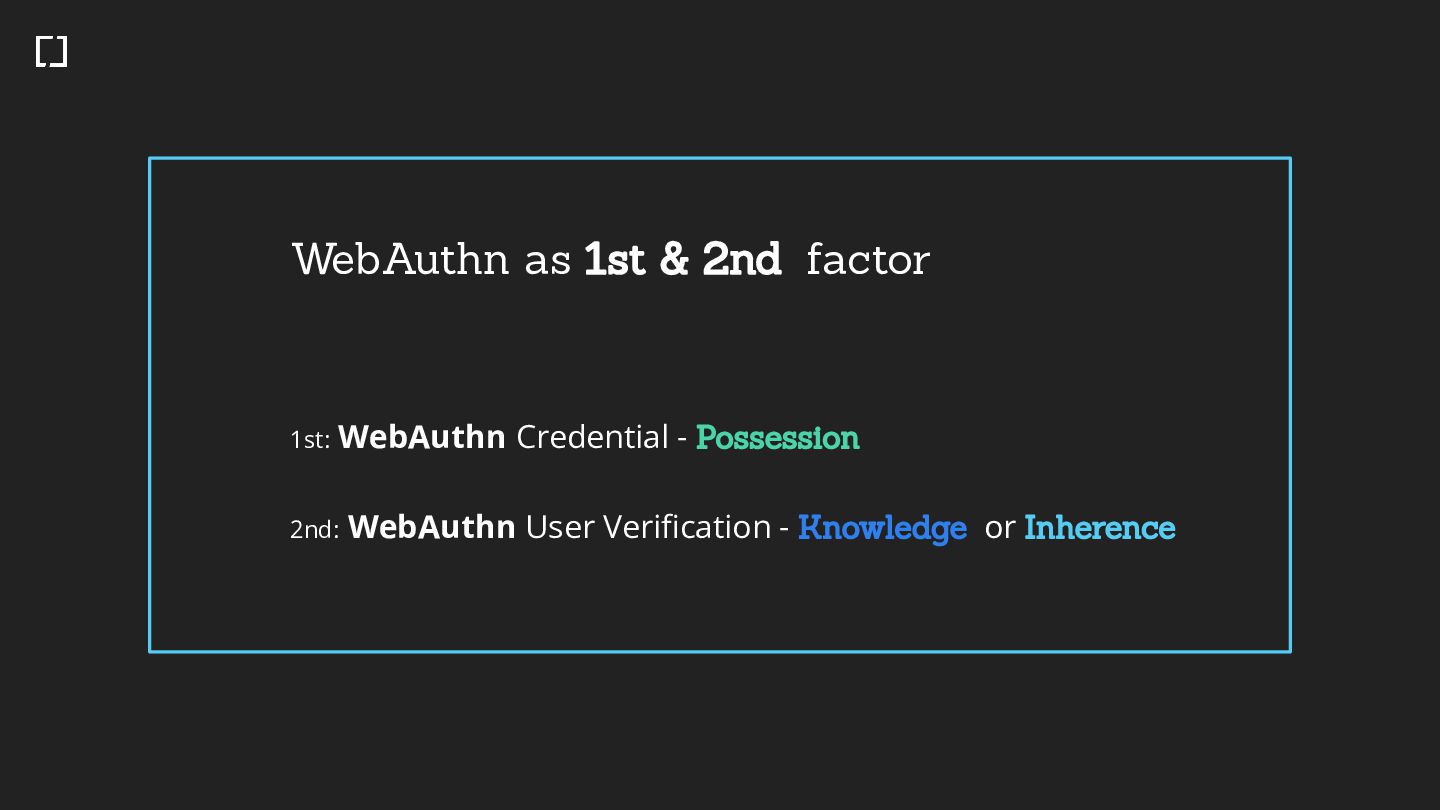

100. WebAuthn as 1st & 2nd factor 1st: WebAuthn Credential - Possession 2nd: WebAuthn User Verification - Knowledge or Inherence
101. Password-less 🙉

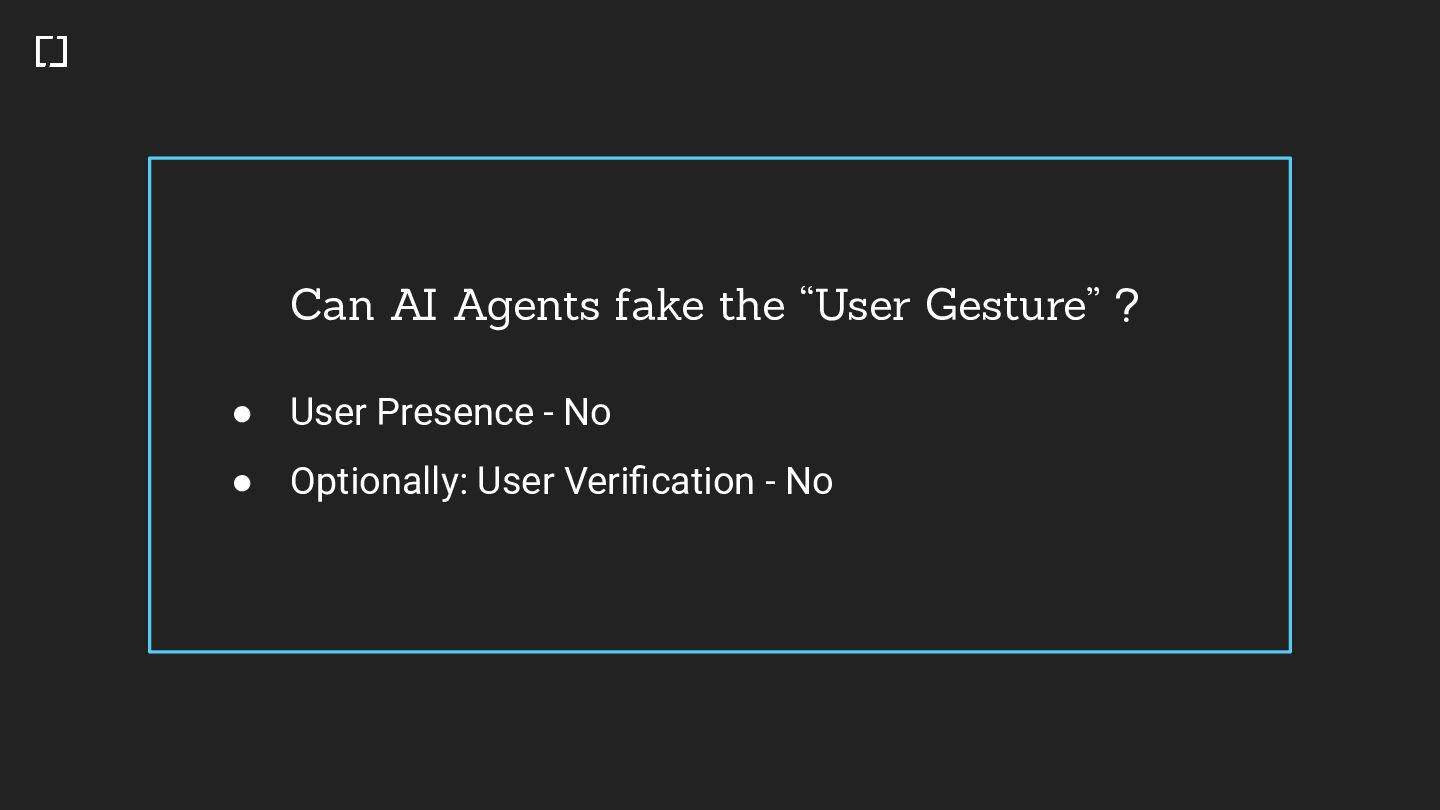

102. Can AI Agents fake the “User Gesture” ? • User Presence - No • Optionally: User Verification - No
103. Motivation Context The Workings Adoption Take the step Future Resources

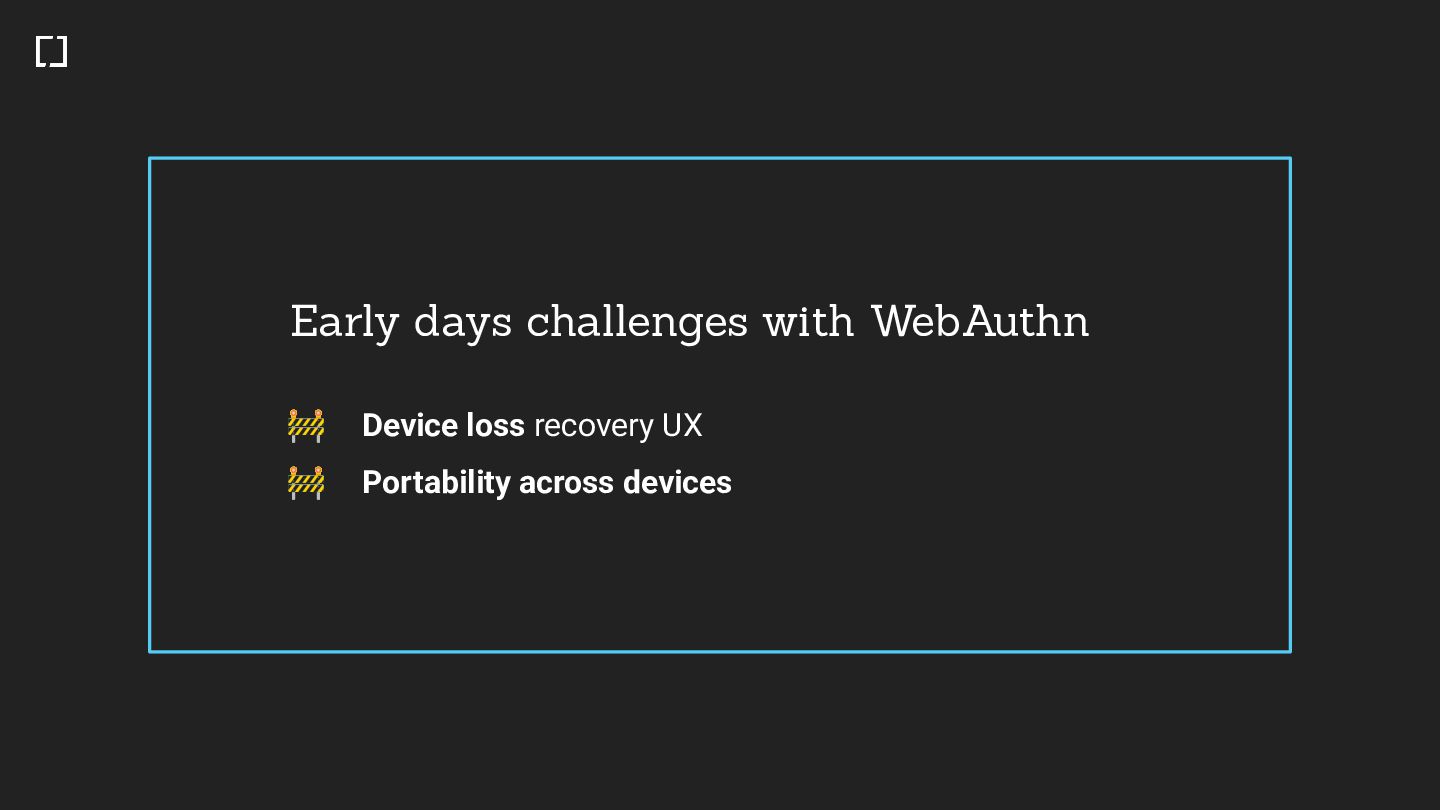

104. Early days challenges with WebAuthn 🚧 Device loss recovery UX 🚧 Portability across devices
105. How can we solve this for mass adoption?
106. Passkeys May, 2022 https://tinyurl.com/2m4h6yeh
107. Discoverable WebAuthn Credential
108. Multi device / Synced Passkeys

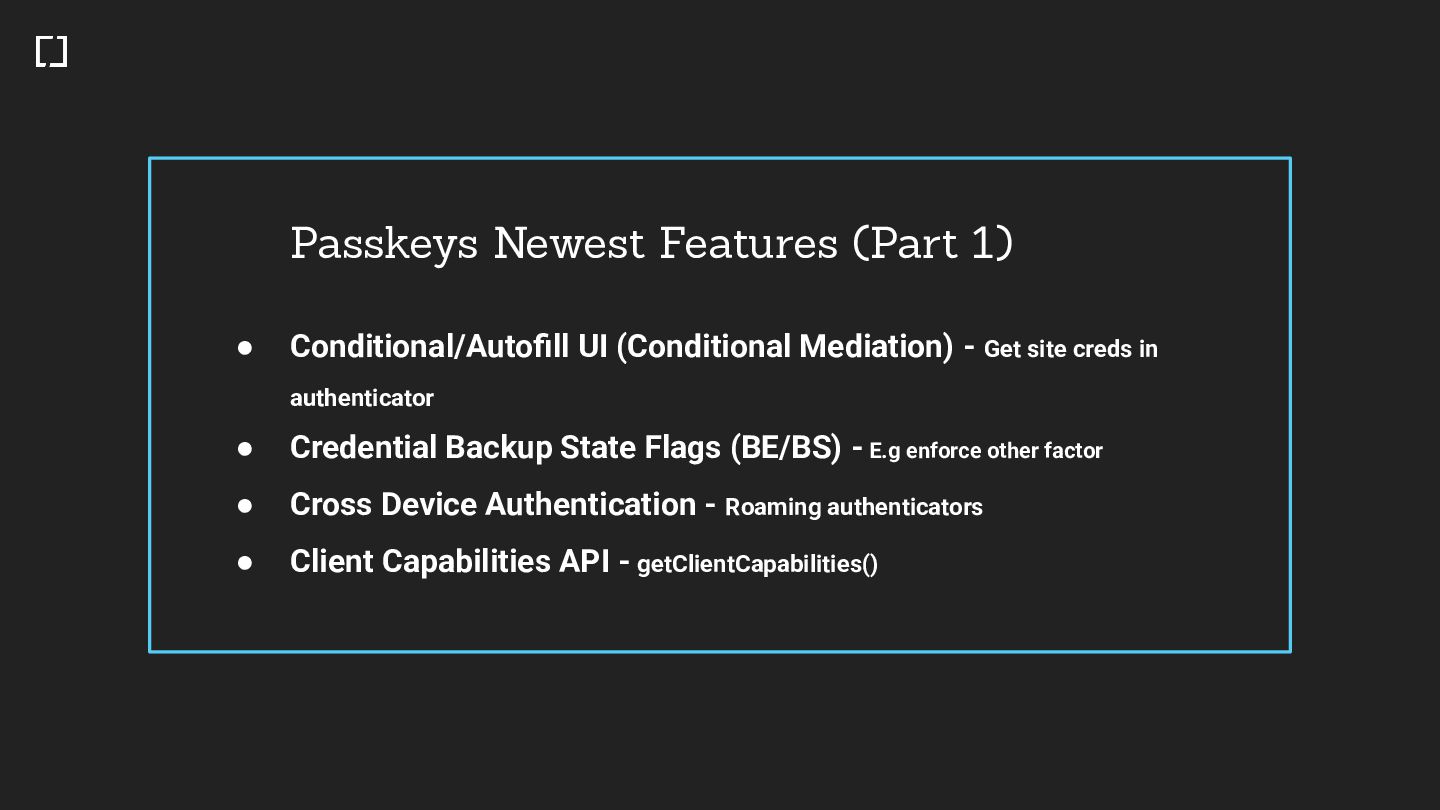

109. Passkeys Newest Features (Part 1) • Conditional/Autofill UI (Conditional Mediation) - Get site creds in authenticator • Credential Backup State Flags (BE/BS) - E.g enforce other factor • Cross Device Authentication - Roaming authenticators • Client Capabilities API - getClientCapabilities()

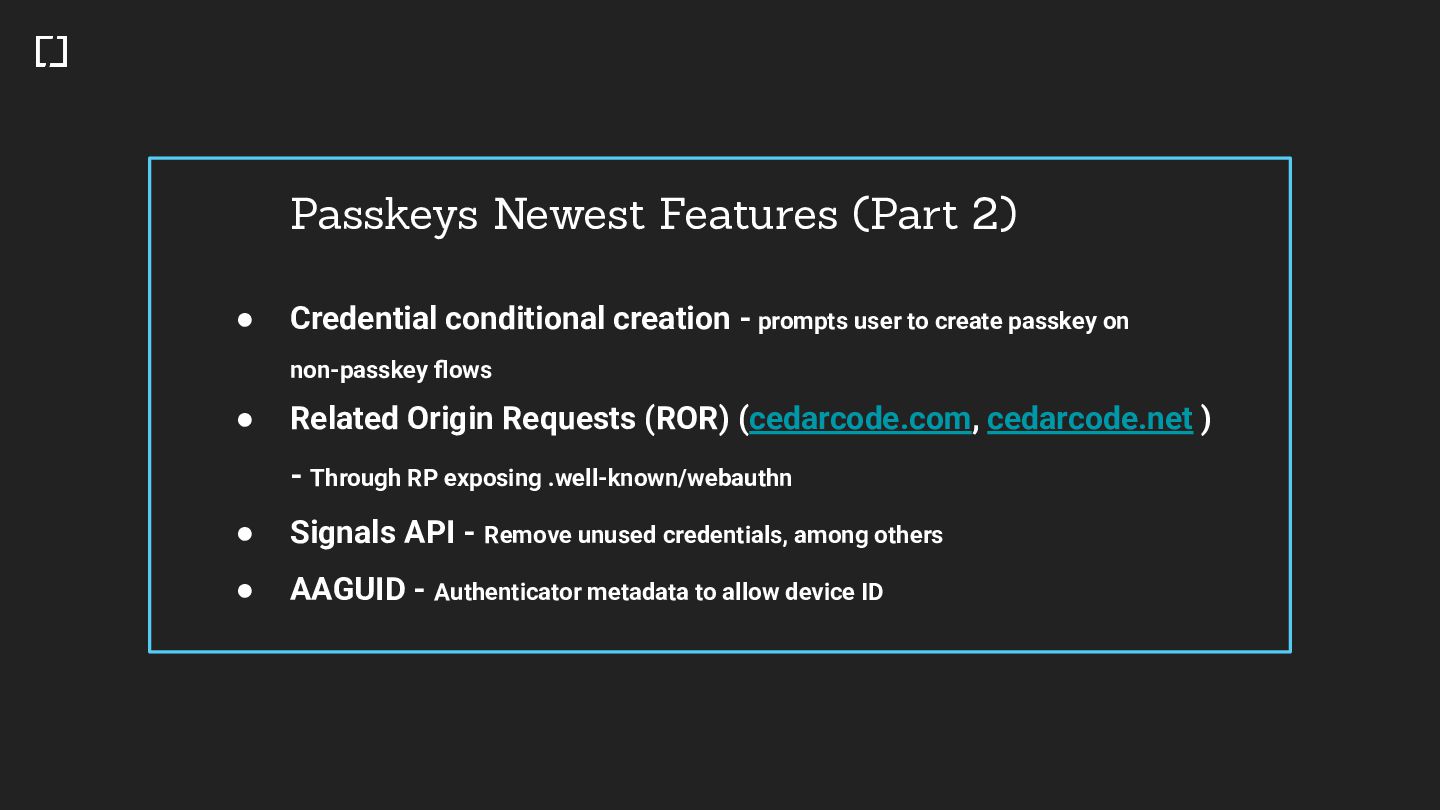

110. Passkeys Newest Features (Part 2) • Credential conditional creation - prompts user to create passkey on non-passkey flows • Related Origin Requests (ROR) (cedarcode.com, cedarcode.net ) - Through RP exposing .well-known/webauthn • Signals API - Remove unused credentials, among others • AAGUID - Authenticator metadata to allow device ID
111. Are multi device (synced) Passkeys as secure as device bound Passkeys? https://thehackernews.com/2025/10/how-attackers-bypass-synced-passkeys.html

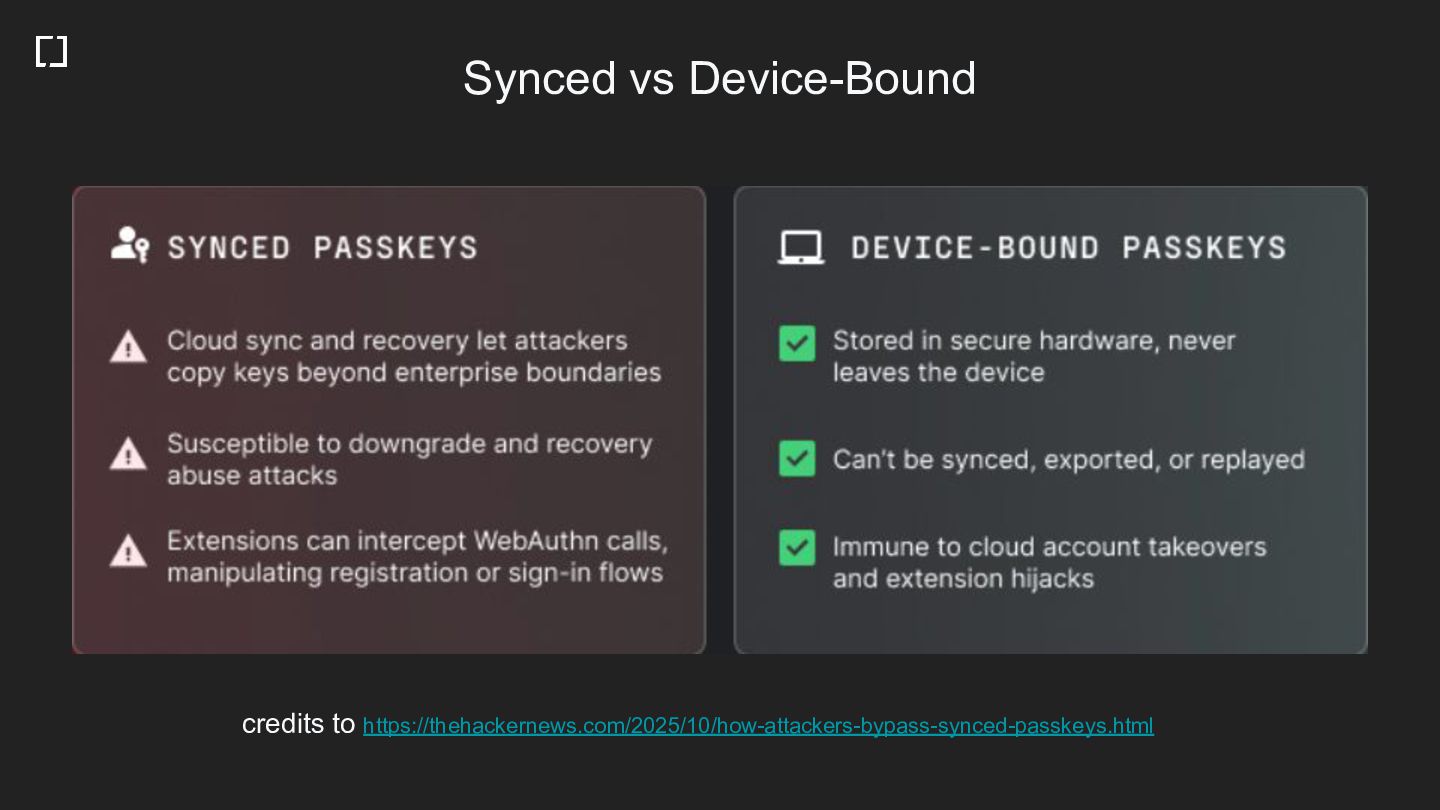

112. credits to https://thehackernews.com/2025/10/how-attackers-bypass-synced-passkeys.html Synced vs Device-Bound
113. Passkeys In Action

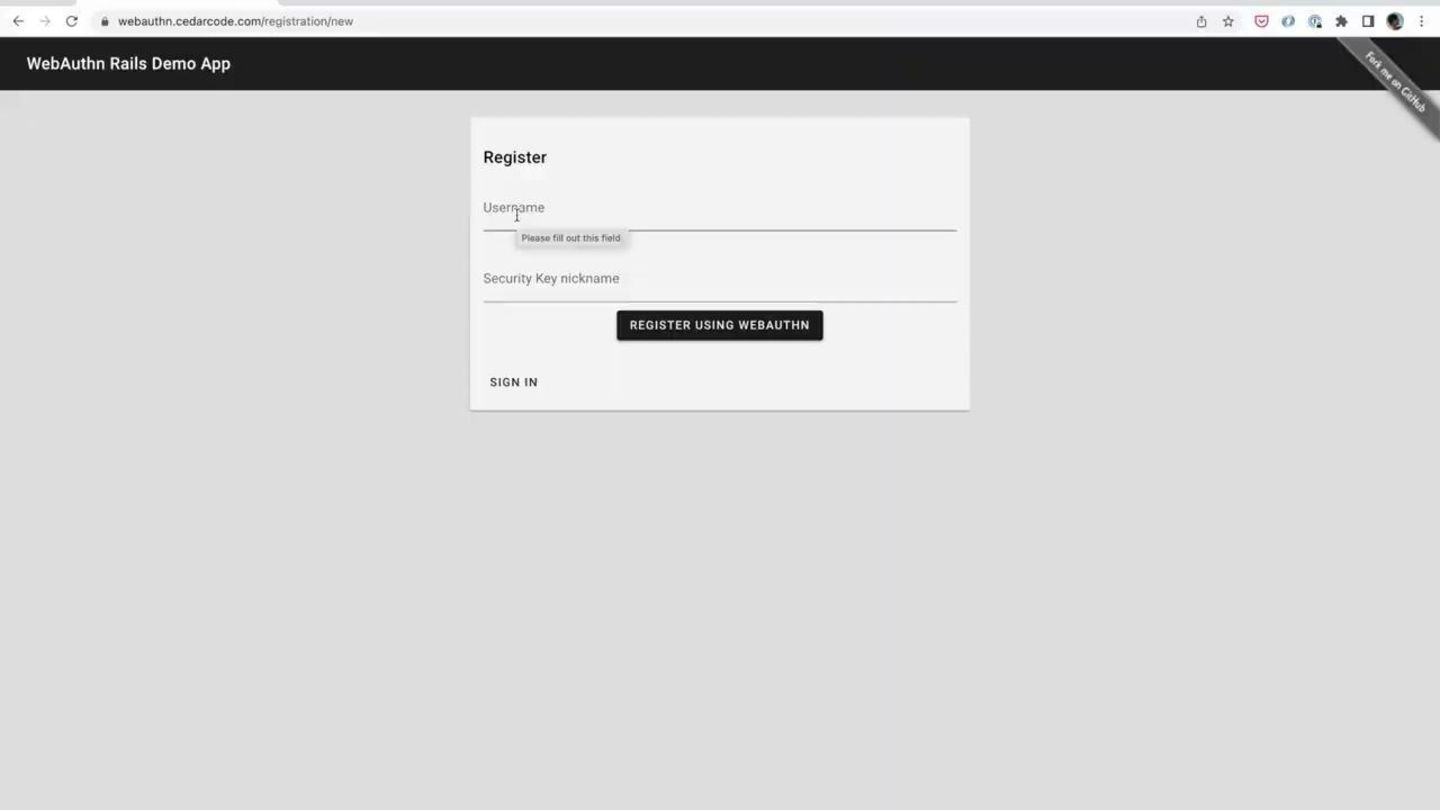

114. Registration

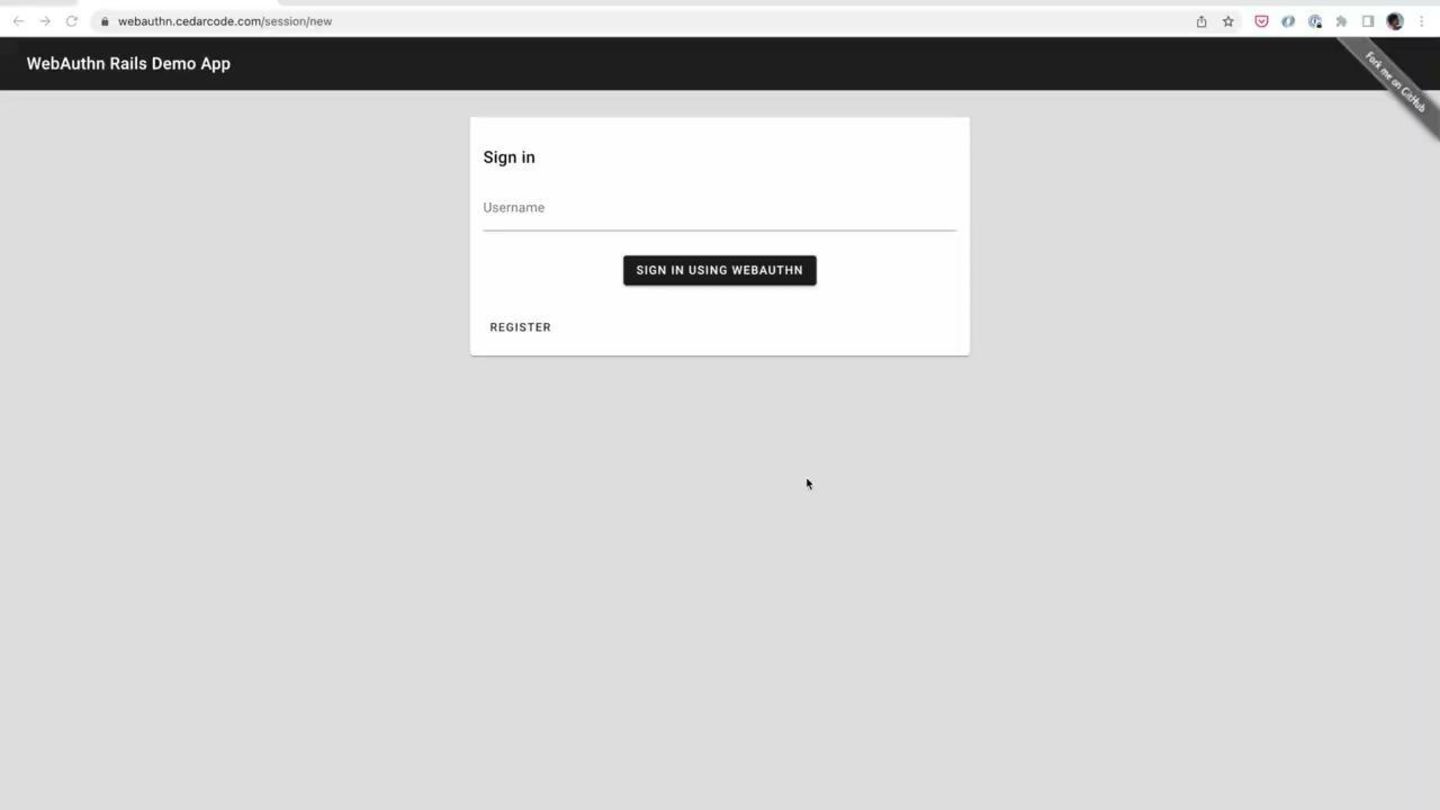

116. Authentication

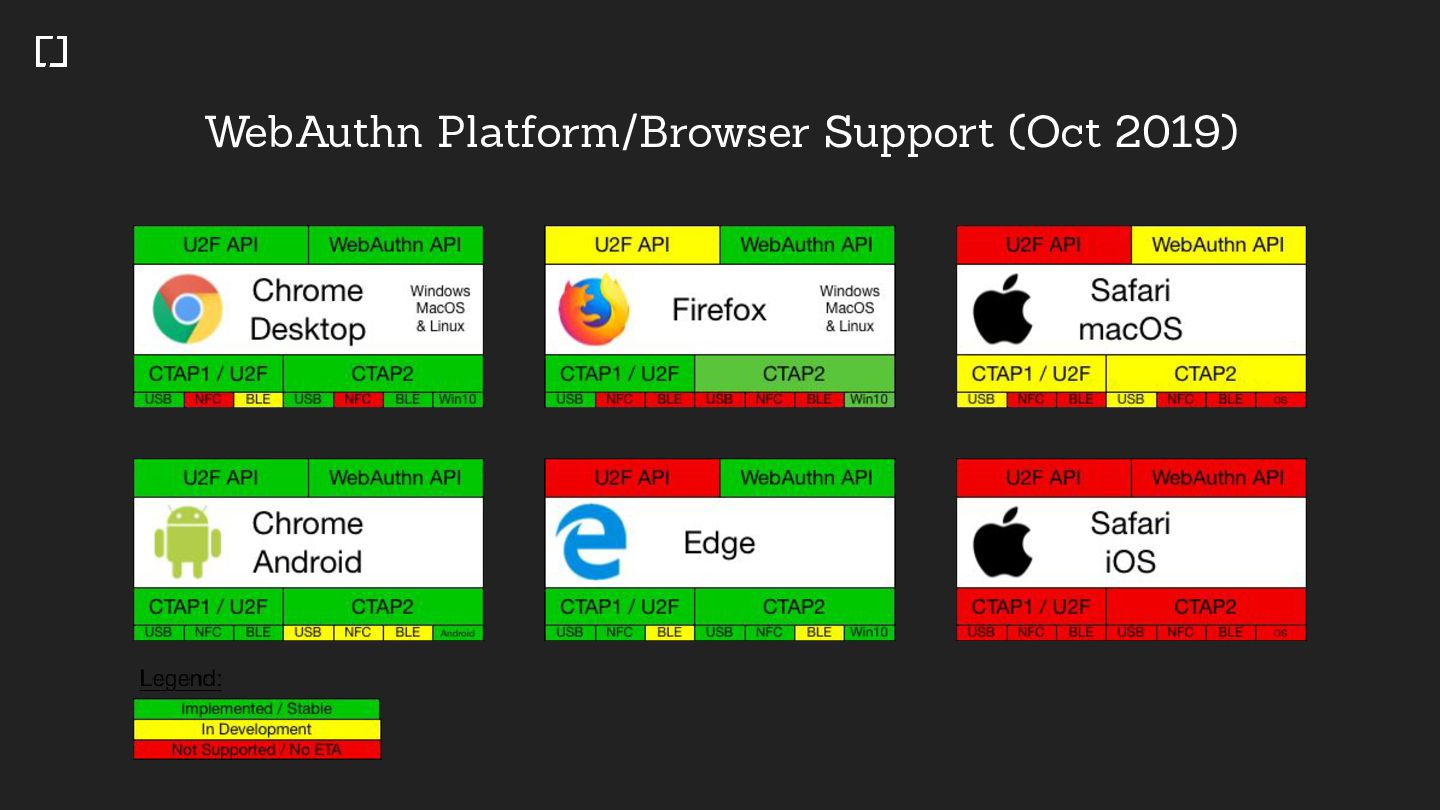

118. WebAuthn Platform/Browser Support (Oct 2019)

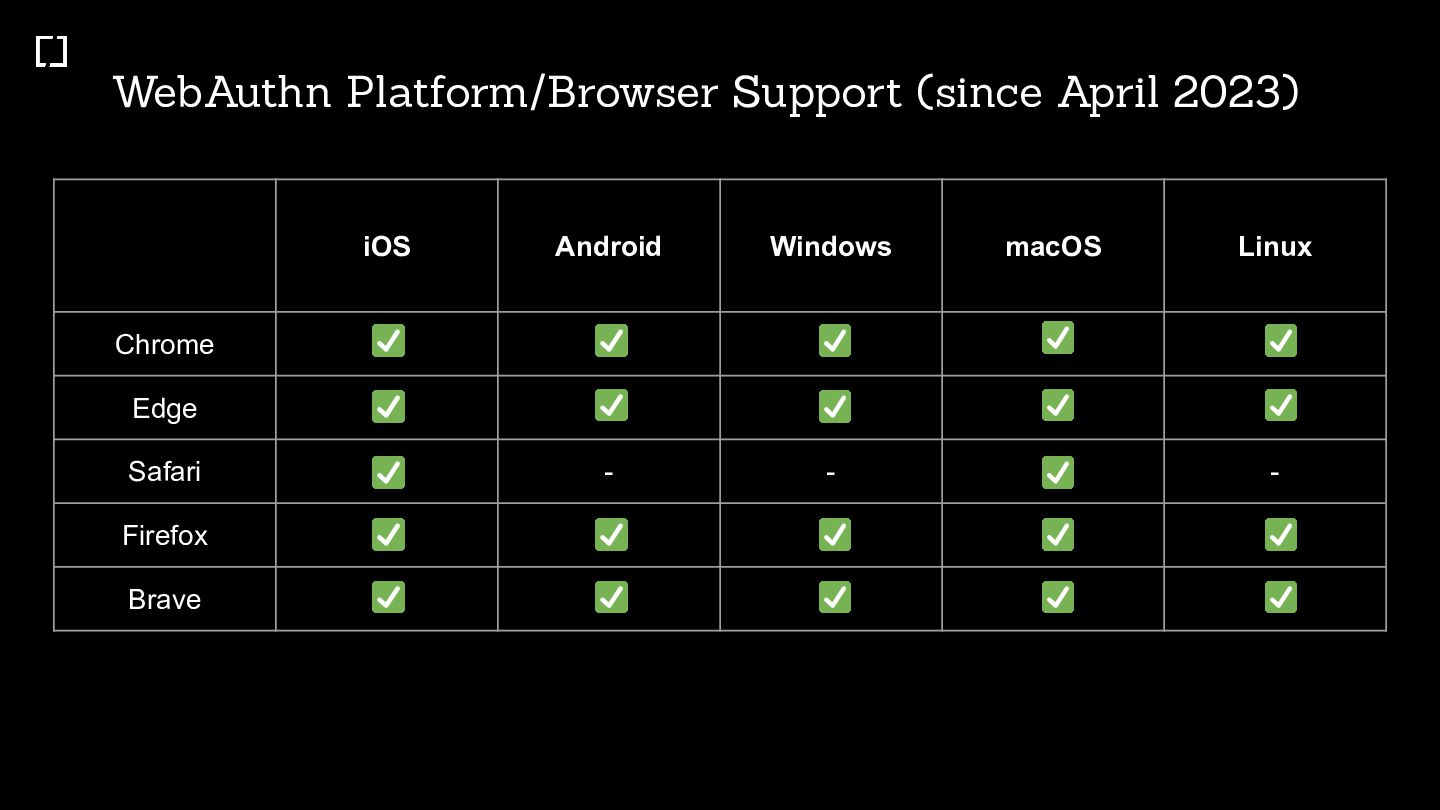

119. WebAuthn Platform/Browser Support (since April 2023) iOS Android Windows macOS Linux Chrome Edge Safari - - - Firefox Brave

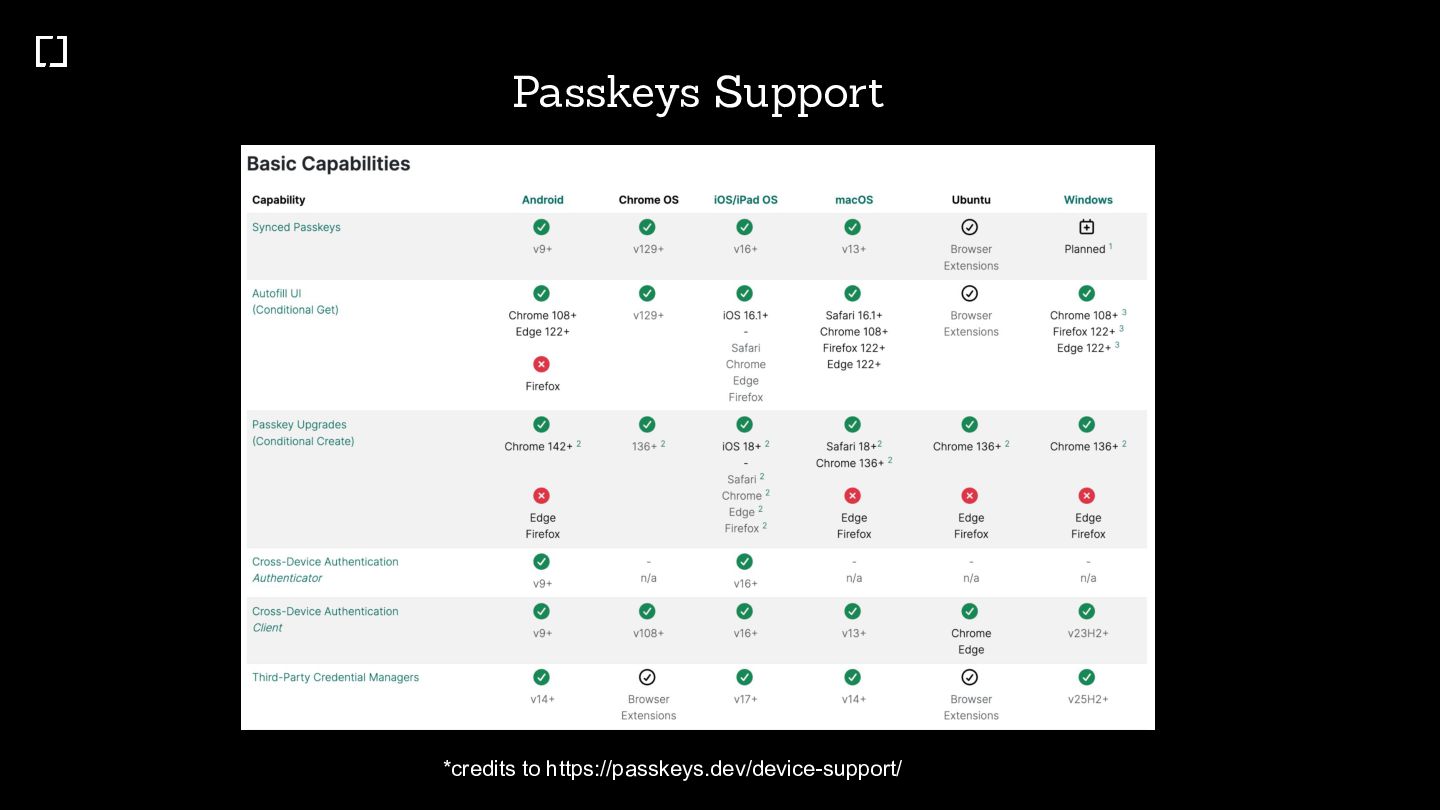

120. Passkeys Support *credits to https://passkeys.dev/device-support/

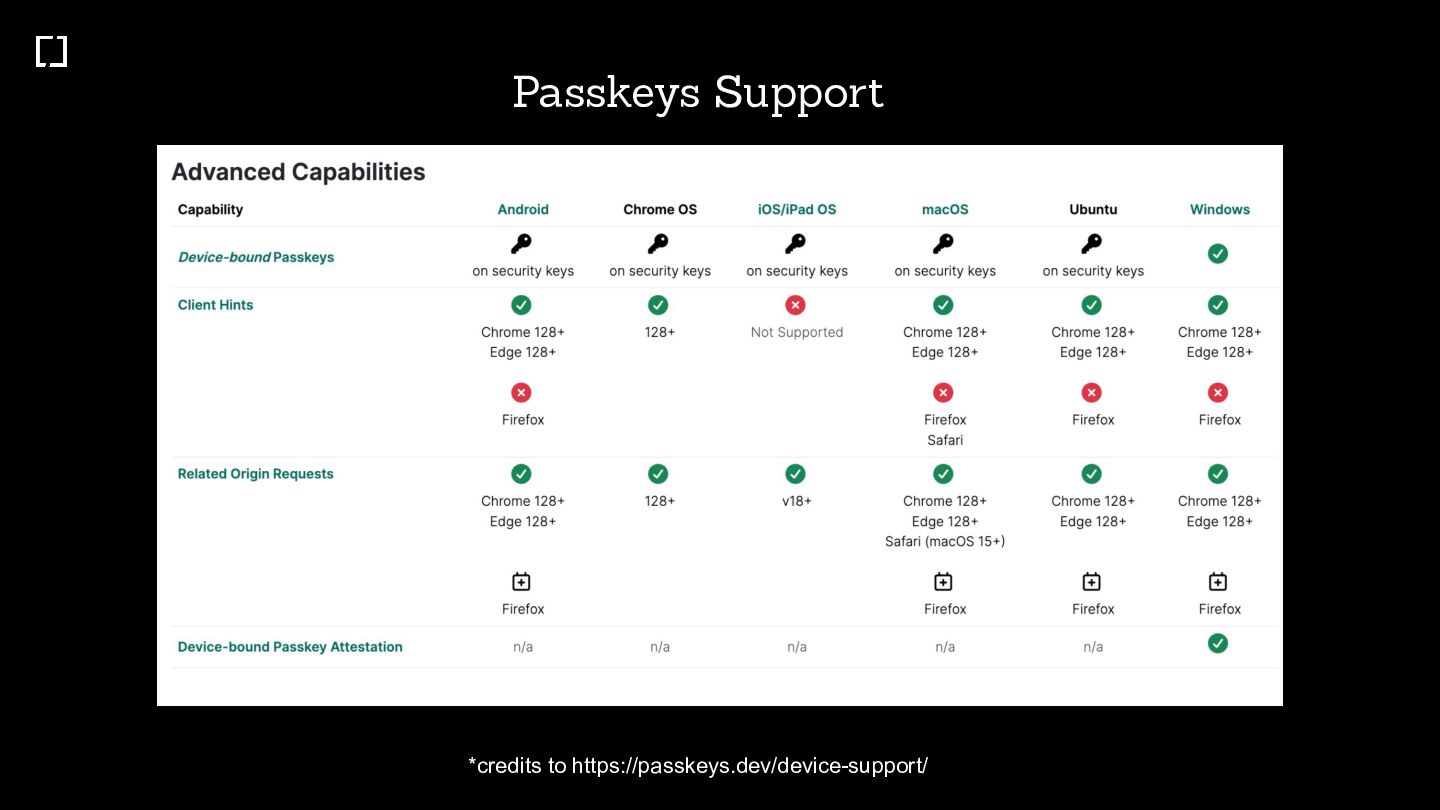

121. Passkeys Support *credits to https://passkeys.dev/device-support/
122. Some Apps & Companies - Passkey Adoption
123. Passkey Adoption - eCommerce Jornada Sem Redirecionamento (JSR) No-Redirection Journey
124. Motivation Context The Workings Adoption Take the step Future Resources
125. How can we Passkeys to our app?

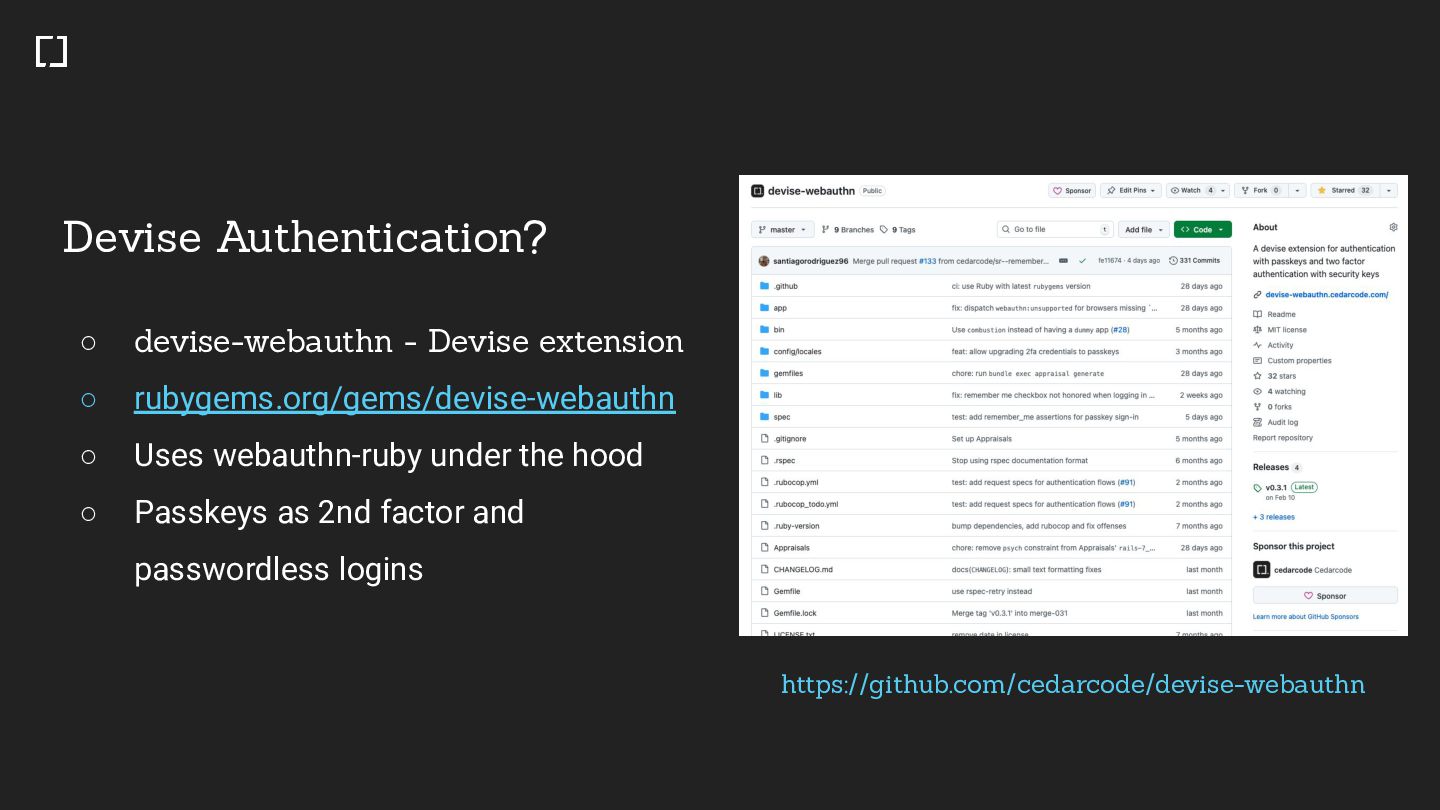

126. https://github.com/cedarcode/devise-webauthn Devise Authentication? ◦ devise-webauthn - Devise extension ◦ rubygems.org/gems/devise-webauthn ◦ Uses webauthn-ruby under the hood ◦ Passkeys as 2nd factor and passwordless logins

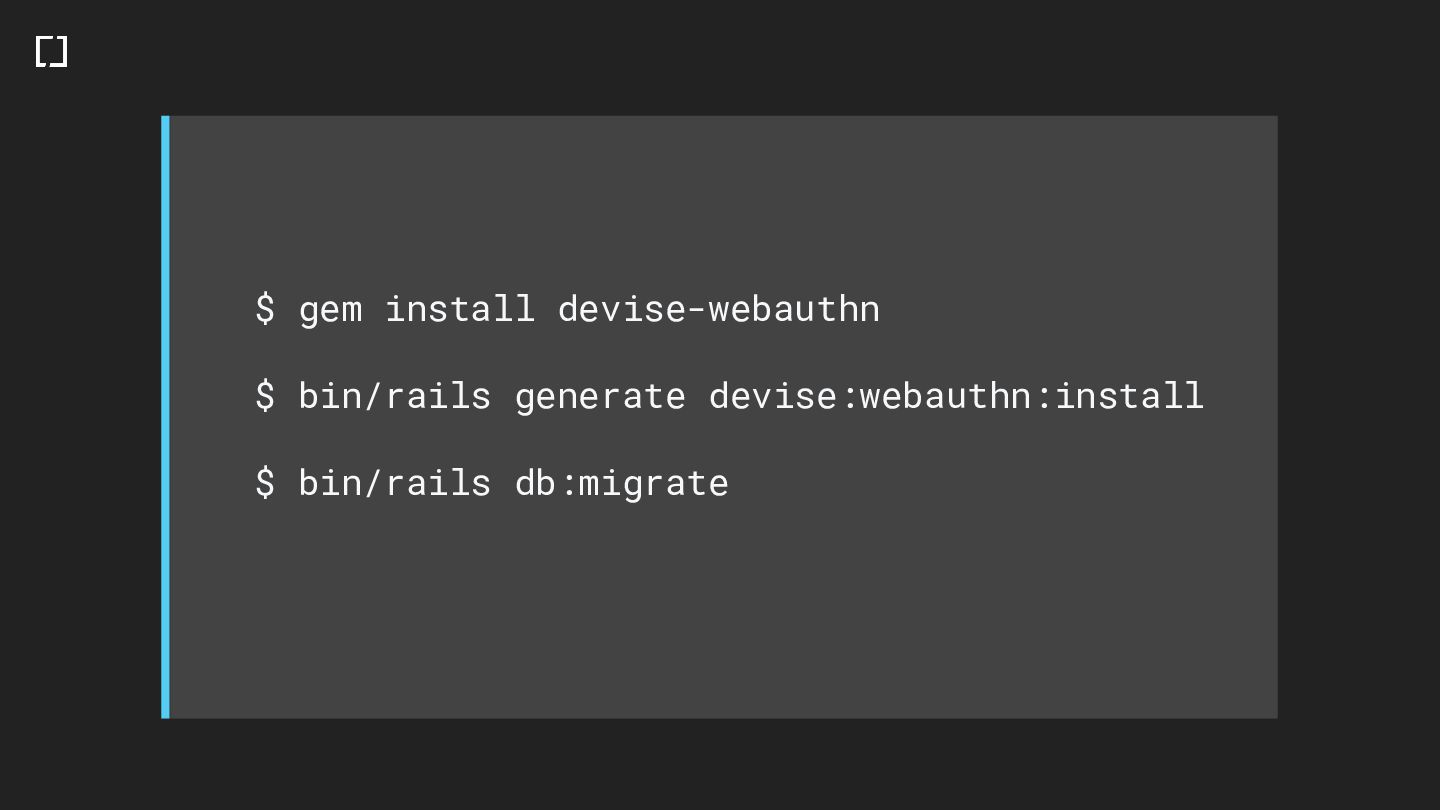

127. $ gem install devise-webauthn $ bin/rails generate devise:webauthn:install $ bin/rails db:migrate

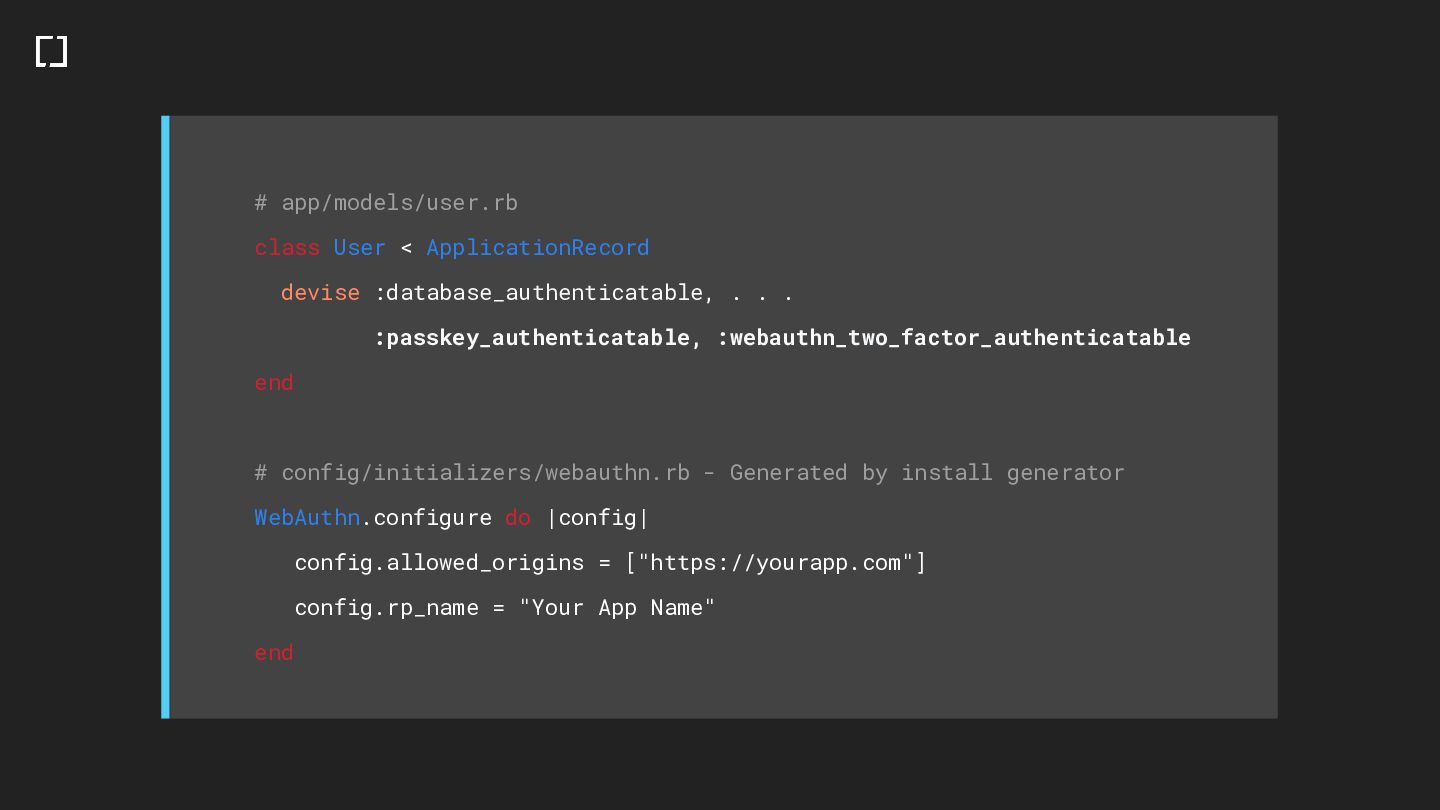

128. # app/models/user.rb class User < ApplicationRecord devise :database_authenticatable, . . . :passkey_authenticatable, :webauthn_two_factor_authenticatable end # config/initializers/webauthn.rb - Generated by install generator WebAuthn.configure do |config| config.allowed_origins = ["https://yourapp.com"] config.rp_name = "Your App Name" end
129. <%= login_with_passkey_form_for(:user) do |form| %> <%= form.submit "Log in with passkeys" %> <% end %> <%= login_with_security_key_form_for(@resource) do |form| %> <%= form.submit "Use security key" %> <% end %> <%= passkey_creation_form_for(:user) do |form| %> <%= form.label :name, 'Passkey name' %> <%= form.text_field :name, required: true %> <%= form.submit 'Create Passkey' %> <% end %> Passkey Authentication 1st & only Factor Passkey Authentication 2st Factor Passkey Registration

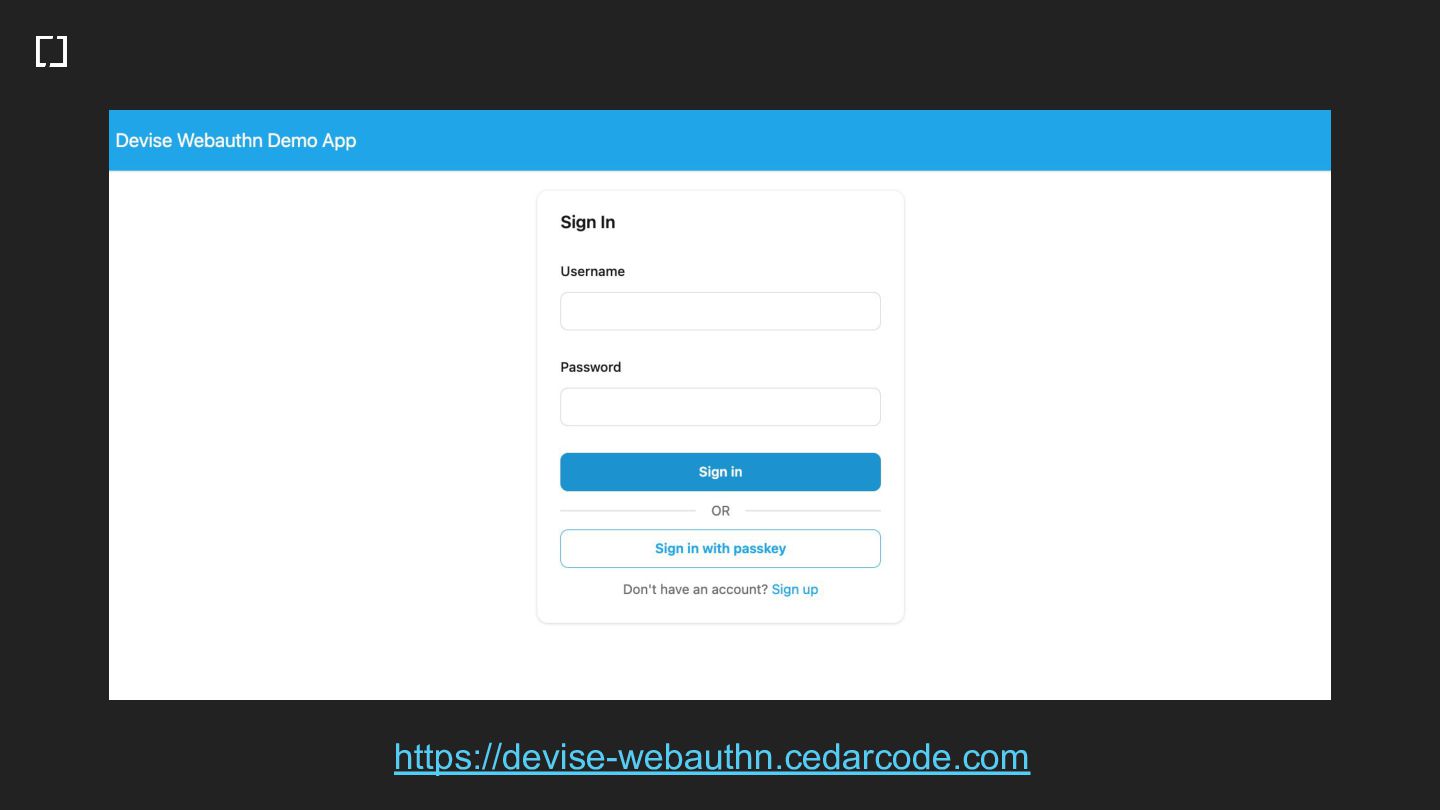

130. https://devise-webauthn.cedarcode.com

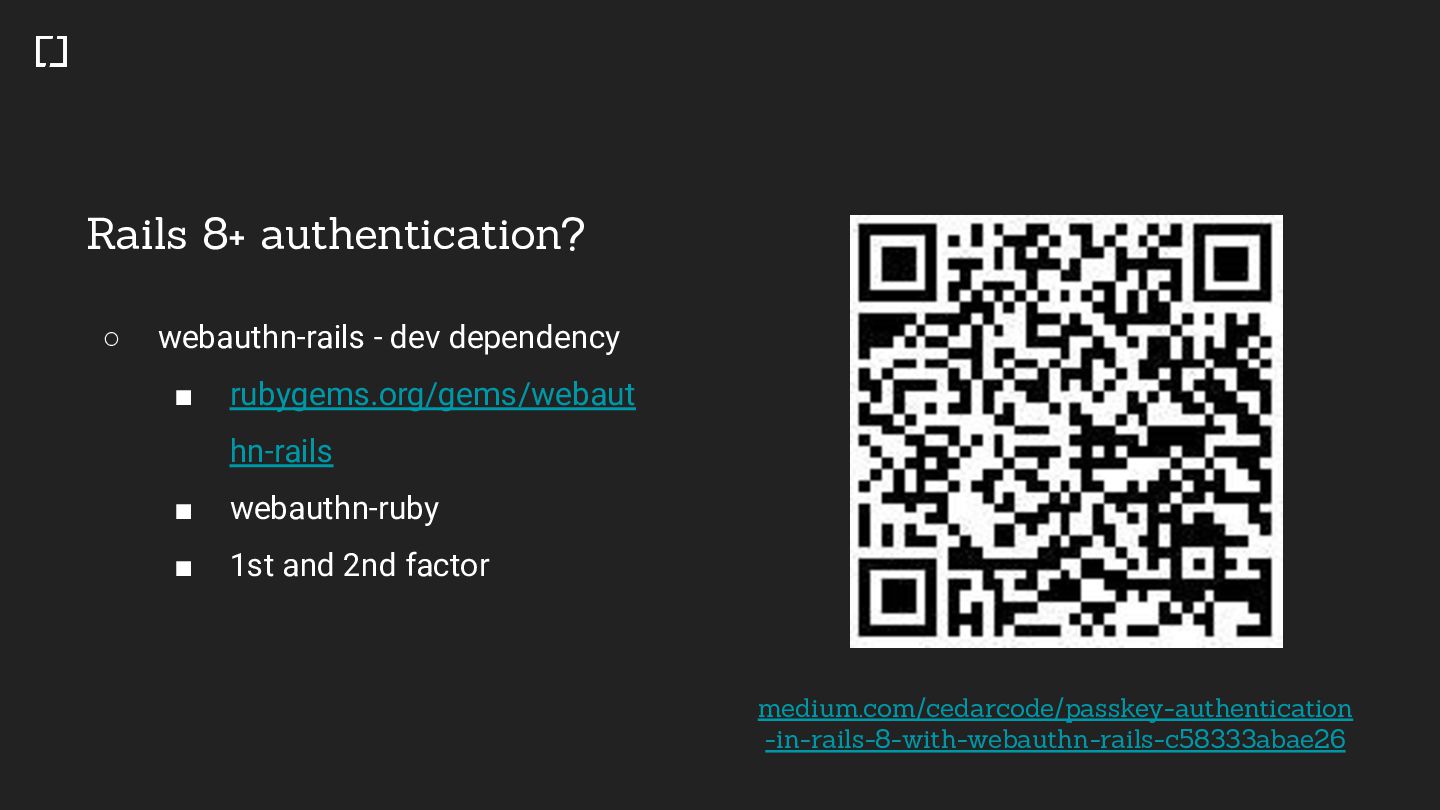

131. medium.com/cedarcode/passkey-authentication -in-rails-8-with-webauthn-rails-c58333abae26 Rails 8+ authentication? ◦ webauthn-rails - dev dependency ▪ rubygems.org/gems/webaut hn-rails ▪ webauthn-ruby ▪ 1st and 2nd factor

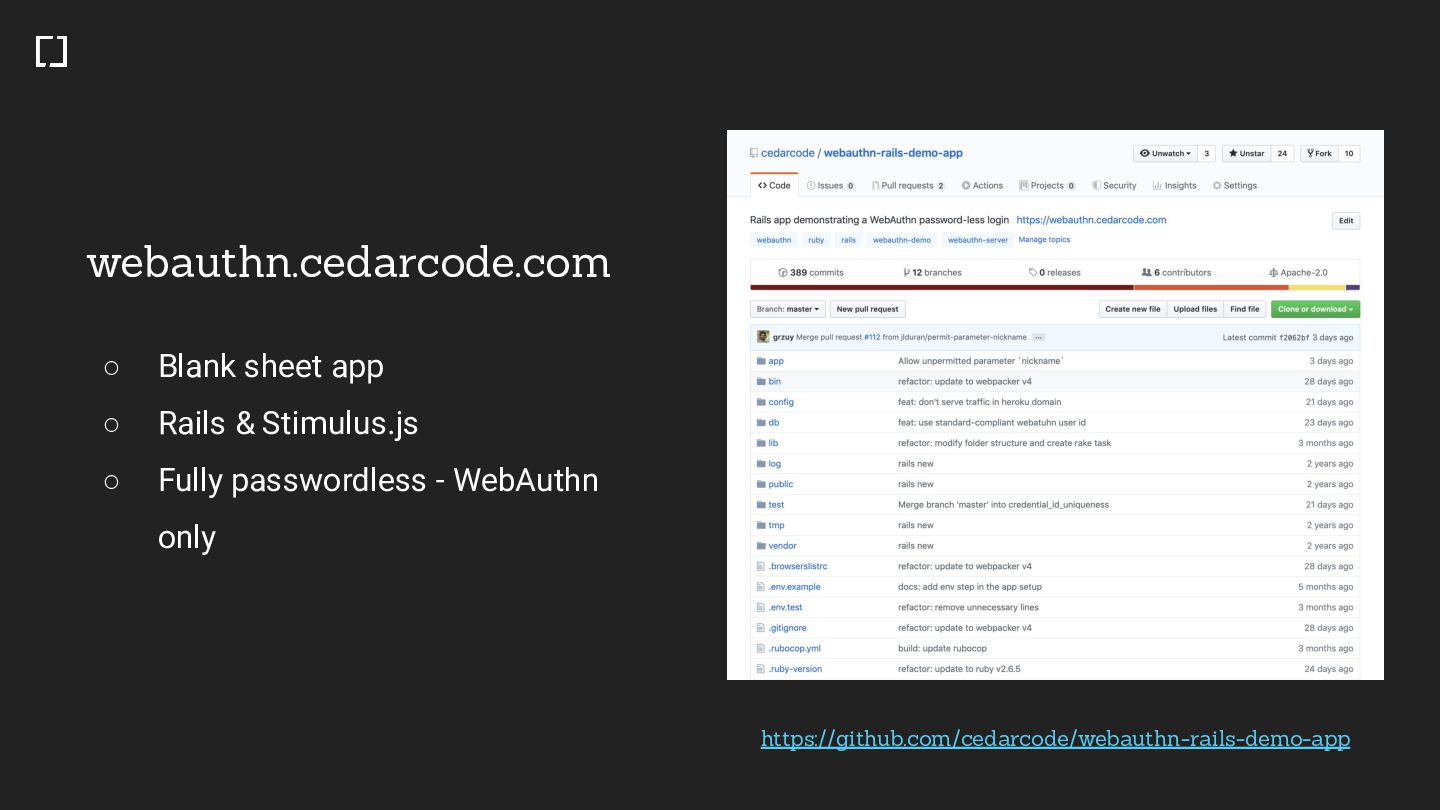

132. https://github.com/cedarcode/webauthn-rails-demo-app webauthn.cedarcode.com ◦ Blank sheet app ◦ Rails & Stimulus.js ◦ Fully passwordless - WebAuthn only

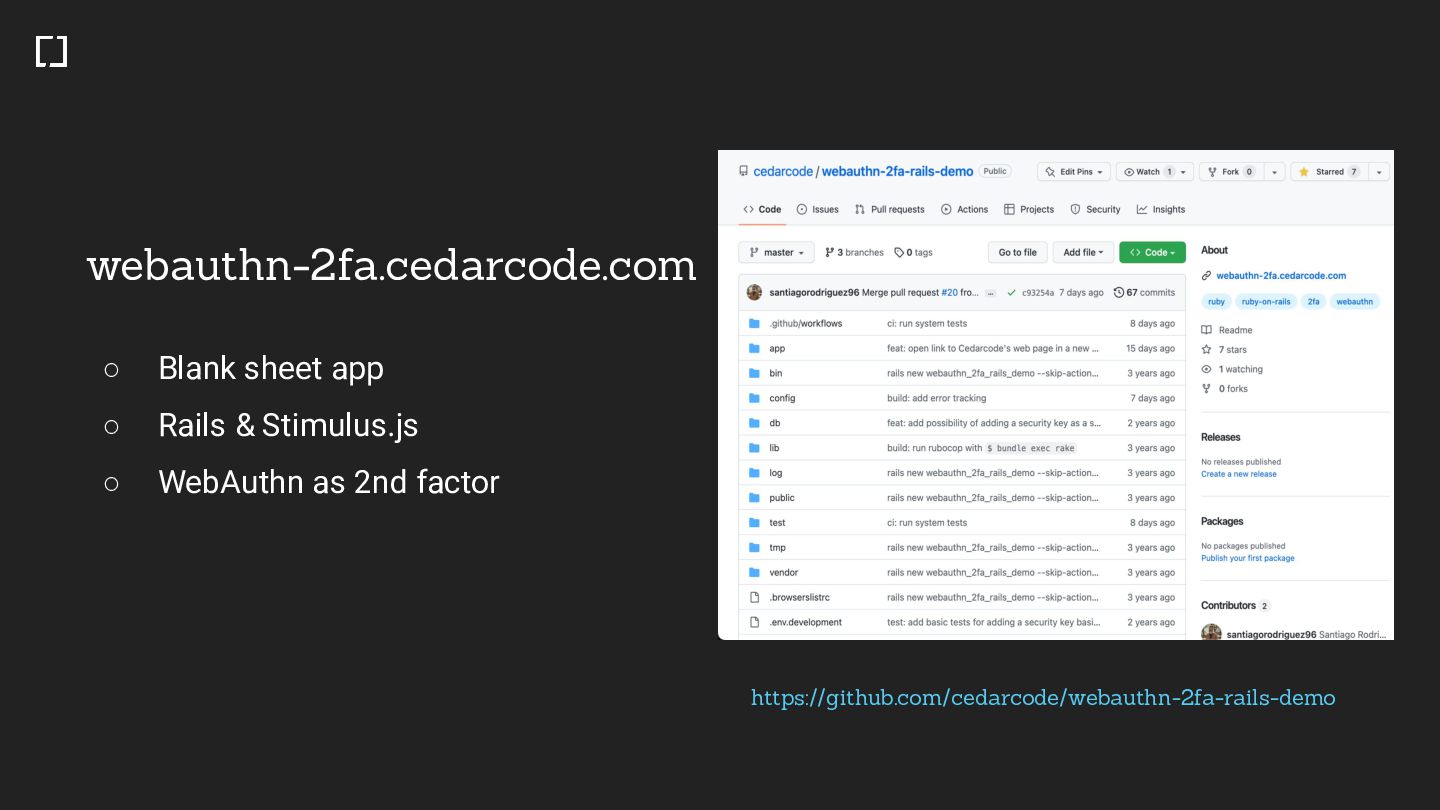

133. https://github.com/cedarcode/webauthn-2fa-rails-demo webauthn-2fa.cedarcode.com ◦ Blank sheet app ◦ Rails & Stimulus.js ◦ WebAuthn as 2nd factor

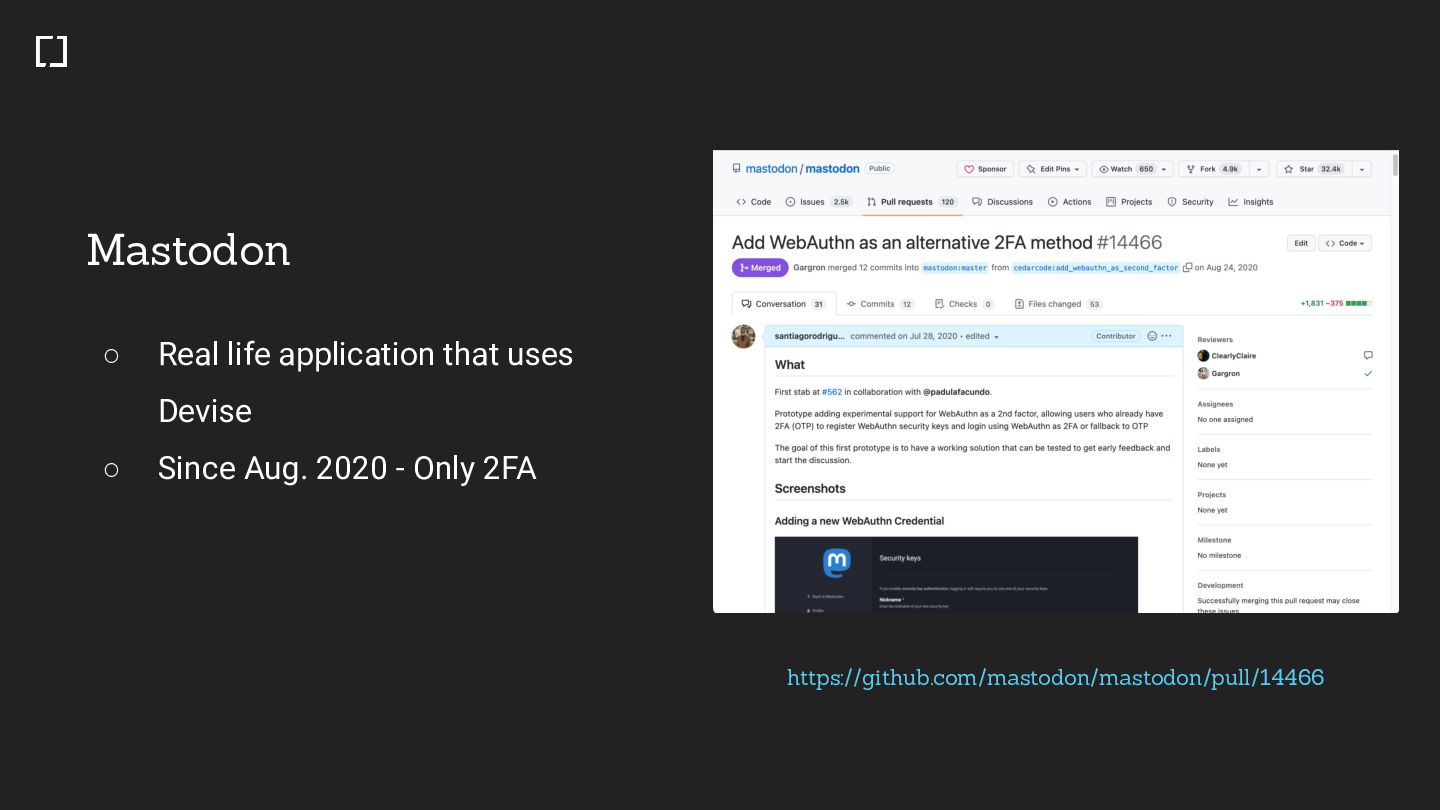

134. https://github.com/mastodon/mastodon/pull/14466 Mastodon ◦ Real life application that uses Devise ◦ Since Aug. 2020 - Only 2FA

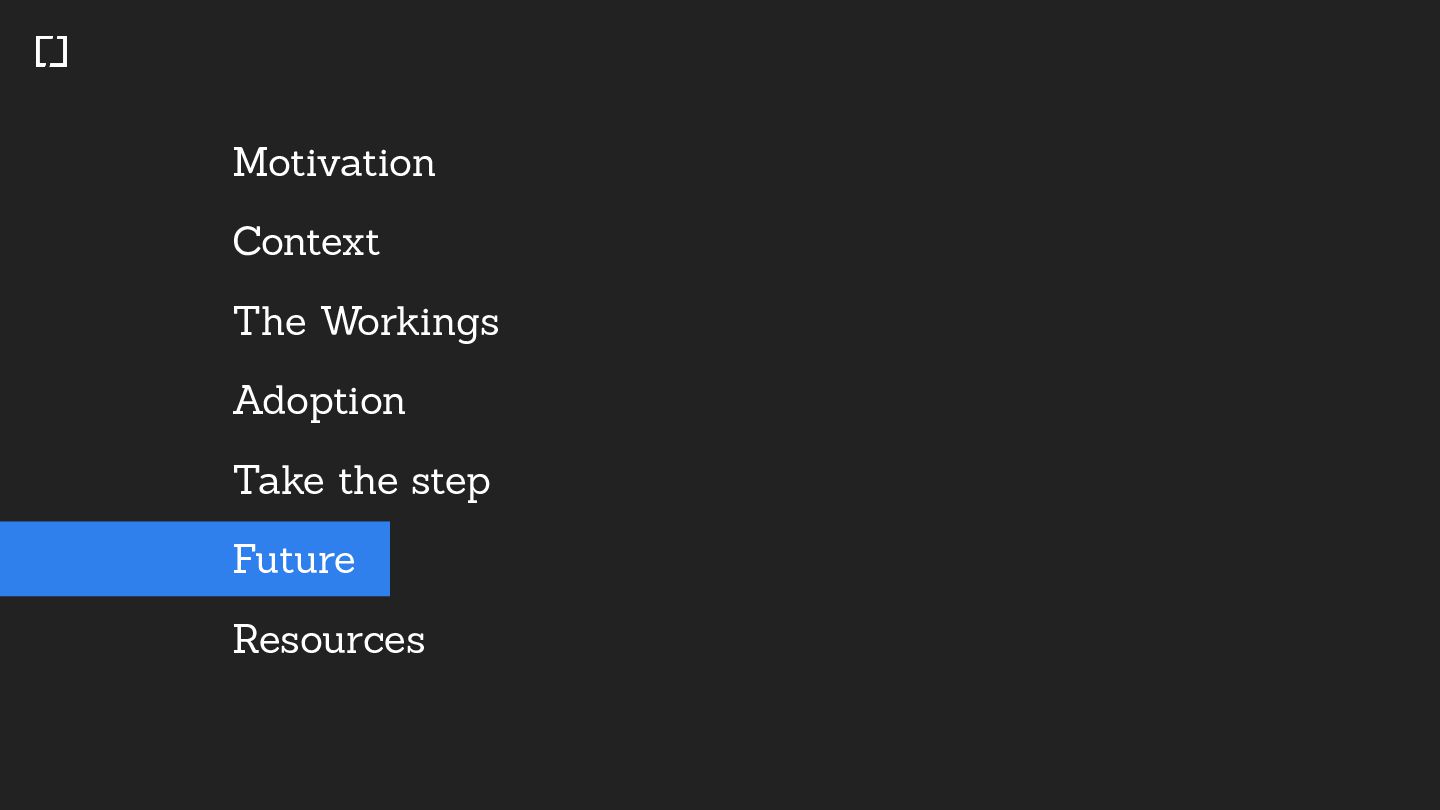

135. Motivation Context The Workings Adoption Take the step Future Resources

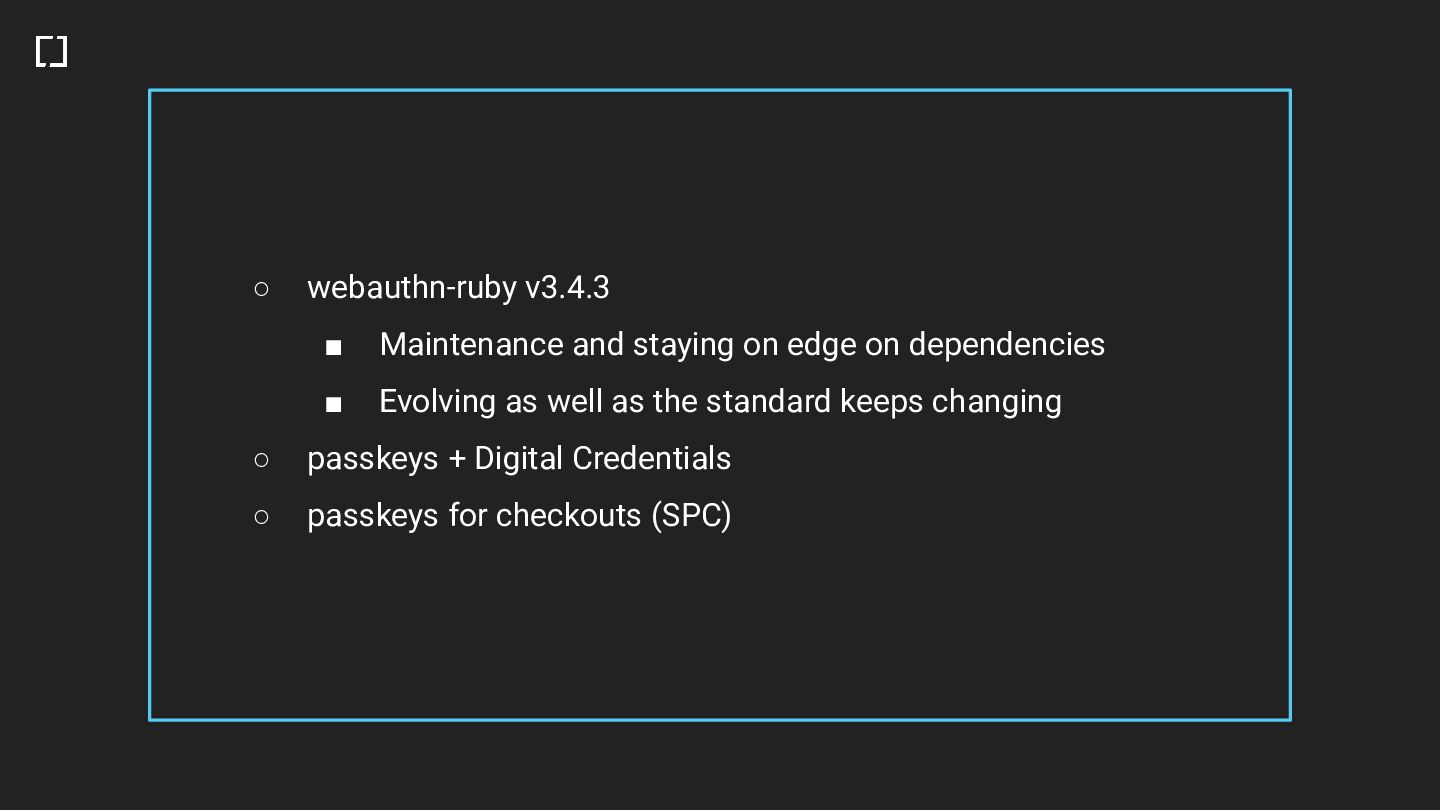

136. ◦ webauthn-ruby v3.4.3 ▪ Maintenance and staying on edge on dependencies ▪ Evolving as well as the standard keeps changing ◦ passkeys + Digital Credentials ◦ passkeys for checkouts (SPC)
137. Motivation Context The Workings Adoption Take the step Future Resources

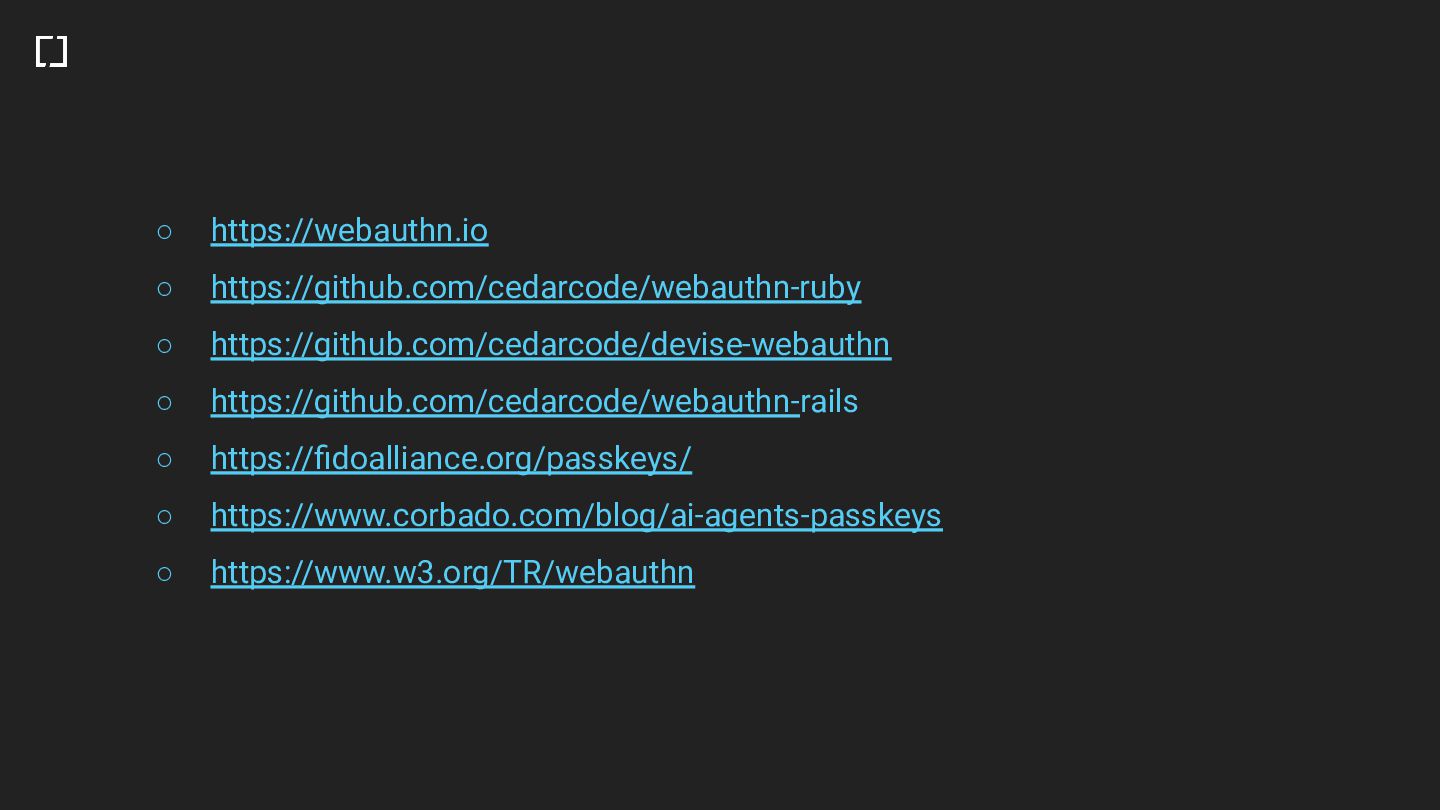

138. ◦ https://webauthn.io ◦ https://github.com/cedarcode/webauthn-ruby ◦ https://github.com/cedarcode/devise-webauthn ◦ https://github.com/cedarcode/webauthn-rails ◦ https://fidoalliance.org/passkeys/ ◦ https://www.corbado.com/blog/ai-agents-passkeys ◦ https://www.w3.org/TR/webauthn
139. Thanks!
140. Braulio Martinez Software Engineer brauliomlm brauliomartinezlm brauliomartinezlm@mastodon.social WebAuthn Demo
