Managing Business Processes in Microservice Architecture with Spring Ecosystem

Managing Business Processes in Microservice Architecture with Spring Ecosystem

74a9577769c489b07066e881764f4911?s=128

Bartłomiej Słota

March 28, 2019
Tweet

More Decks by Bartłomiej Słota

Other Decks in Programming

Transcript

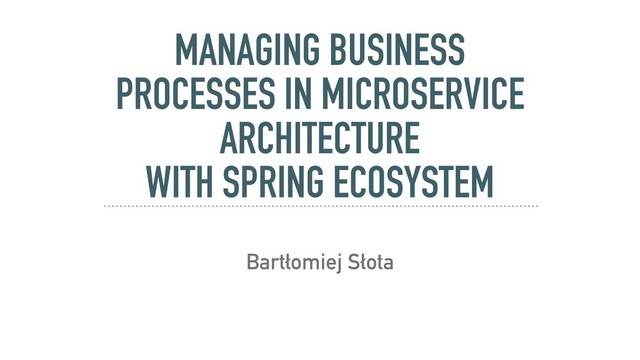

  1. MANAGING BUSINESS PROCESSES IN MICROSERVICE ARCHITECTURE WITH SPRING ECOSYSTEM Bartłomiej

    Słota
  2. BARTŁOMIEJ SŁOTA Consultant @ Speaker Blogger @bartekslota bartslota.blogspot.com bartlomiej.slota@gmail.com github.com/bslota

    linkedin.com/in/bslota
  3. GOALS ➤ Know the motivation for BPM solutions ➤ How

    to bring BPM and microservices together ➤ How EventStorming can help us understand business processes ➤ Give insight into BPM from perspectives of: ➤ Business ➤ Architecture ➤ Development ➤ Tools
  4. MICROSERVICES Autonomy Resilience Data Deployment Technology Scalability People

  5. MICROSERVICES Autonomy Resilience Data Deployment Technology Scalability People Source: Robert

    C. Martin Clean Architecture
  6. MICROSERVICES Autonomy Resilience Data Deployment Technology Scalability People App #1

    Source: www.trunkbaseddevelopment.com App #2 Source: www.leanpub.com/git-flow/read
  7. MICROSERVICES Autonomy Resilience Data Deployment Technology Scalability People App #1

    App #2 App #3
  8. MICROSERVICES Autonomy Resilience Data Deployment Technology Scalability People

  9. MICROSERVICES Autonomy Resilience Data Deployment Technology Scalability People App #2

    App #1
  10. Resilience MICROSERVICES Autonomy Data Deployment Technology Scalability People BE FE

    QA PO
  11. MICROSERVICES ARE PEOPLE

  12. None
  13. THE BUSINESS FLOW Source: Alberto Brandolini EventStorming

  14. THE BUSINESS FLOW Based on: Alberto Brandolini EventStorming HARD TO

    SOLVE HARD TO DISCUSS HARD TO VISUALIZE
  15. THE BUSINESS FLOW VS MICROSERVICES Source: Alberto Brandolini EventStorming App

    #2 App #3 App #4 App #1
  16. BPM - THE BUSINESS PERSPECTIVE Process Modeler Common UI System

    integration Reporting Workflow Engine
  17. BPM - ARCHITECTURE PERSPECTIVE

  18. BPM - ARCHITECTURE PERSPECTIVE Autonomy Resilience Data Deployment Technology Scalability

    People
  19. BPM - DEVELOPER PERSPECTIVE

  20. BPM - TOOLS PERSPECTIVE

  21. IS IT THAT BAD? ➤ Business first ➤ Strategy ➤

    Cost ➤ Time limits ➤ Resources available ➤ Skillset ➤ … Never bite more than you can chew!
  22. BUT WE WANT MICROSERVICES Source: Martin Fowler https://martinfowler.com/bliki/MicroservicePrerequisites.html RAPID PROVISIONING

    BASIC MONITORING RAPID APPLICATION DEPLOYMENT DEVOPS CULTURE
  23. BUT WE WANT MICROSERVICES Source: Martin Fowler https://martinfowler.com/bliki/MicroservicePrerequisites.html What if

    we are here?
  24. MONOLITH FIRST Source: Martin Fowler https://martinfowler.com/bliki/MonolithFirst.html

  25. WE ALL CAN DO IT! Source: Martin Fowler https://martinfowler.com/bliki/MicroservicePrerequisites.html

  26. SAMPLE PROCESS - EVENT STORMING

  27. SAMPLE PROCESS

  28. ASYNCHRONOUS CHOREOGRAPHY

  29. ASYNCHRONOUS ORCHESTRATION

  30. SAGAS

  31. ARCHITECTURE

  32. ARCHITECTURE

  33. ARCHITECTURE

  34. CONVENTION OVER CONFIGURATION @JsonSubTypes({ @JsonSubTypes.Type(name = „processInstanceCreated", value = ProcessInstanceCreated.class),

    @JsonSubTypes.Type(name = "processInstanceCancelled", value = ProcessInstanceCancelled.class), @JsonSubTypes.Type(name = "processInstanceCompleted", value = ProcessInstanceCompleted.class), @JsonSubTypes.Type(name = "taskCreated", value = TaskCreated.class), @JsonSubTypes.Type(name = "taskProcessingFailed", value = TaskProcessingFailed.class), @JsonSubTypes.Type(name = "taskCompleted", value = TaskCompleted.class), @JsonSubTypes.Type(name = "taskAssigned", value = TaskAssigned.class) }) public interface BPMEvent { }
  35. PROCESS ORCHESTRATION public interface AccessVerificationChannels { String ACCESS_EVENTS = "accessEvents";

    String ACCESS_COMMANDS = "accessCommands"; @Input(ACCESS_EVENTS) SubscribableChannel accessEvents(); @Output(ACCESS_COMMANDS) MessageChannel accessCommands(); } public interface AddressChangeProcessChannels { String ADDRESS_CHANGE_PROCESS_COMMANDS = "addressChangeProcessCommands"; String ADDRESS_CHANGE_PROCESS_EVENTS = "processEvents"; @Input(ADDRESS_CHANGE_PROCESS_COMMANDS) SubscribableChannel addressChangeProcessCommands(); @Output(ADDRESS_CHANGE_PROCESS_EVENTS) MessageChannel addressChangeProcessEvents(); } public interface AddressChannels { String ADDRESS_EVENTS = "addressEvents"; String ADDRESS_COMMANDS = "addressCommands"; @Input(ADDRESS_EVENTS) SubscribableChannel addressEvents(); @Output(ADDRESS_COMMANDS) MessageChannel addressCommands(); } public interface AMLChannels { String ADDRESS_EVENTS = "amlEvents"; String ADDRESS_COMMANDS = "amlCommands"; @Input(ADDRESS_EVENTS) SubscribableChannel amlEvents(); @Output(ADDRESS_COMMANDS) MessageChannel amlCommands(); }
  36. HOW DO I KNOW THAT THE SERVICE ANSWERS TO MY

    PROCESS? ➤ Add the header to every message in process manager ➤ Copy the header back with the response ignoring the content @JsonCreator public ProcessMetadata(@JsonProperty("processInstanceId") String processInstanceId, @JsonProperty("parentId") String parentId, @JsonProperty("processDefinitionId") String processDefinitionId) { this.processInstanceId = processInstanceId; this.parentId = parentId; this.processDefinitionId = processDefinitionId; } class AccessVerification { private final MessageChannel accessCommands; . . . private void sendVerifyAccessCommand(ProcessMetadata metadata, String clientId, String masterPassword) { final VerifyAccess verifyAccess = new VerifyAccess(clientId, masterPassword); accessCommands.send(MessageBuilder.withPayload(verifyAccess).copyHeaders(metadata.toMap()).build()); } }
  37. HOW DO I GET TASKS ASSIGNED TO A USER? KTable<User,

    Tasks> userTasks() { return streamsBuilder .stream(„processEvents”, Consumed.with(serdes.forA(String.class), serdes.forA(Task.class))) .groupBy((key, task) -> task.getUser(), Serialized.with(serdes.forA(User.class), serdes.forA(Task.class))) .aggregate(Tasks::empty, (TaskAggregator<User, Task, Tasks>) (user, task, tasks) -> tasks.add(task), materializedAs(„userTasks”)); }
  38. HOW DO I GET MY FANCY REPORTS?

  39. HOW DO I MONITOR MY PROCESSES? ➤ Spring Cloud Sleuth

    ➤ Zipkin ➤ ELK ➤ Prometheus ➤ Semantic monitoring
  40. PROCESS VS SERVICE OWNERSHIP PROCESS #3 PROCESS #2 PROCESS #1

    BE FE QA PO ?
  41. COMMON UI Source: Tom Söderlund https://bit.ly/2vJH8NJ

  42. ENTERPRISE INTEGRATION PATTERNS YOU WILL USE (SUB)CONSCIOUSLY ➤ Command message

    ➤ Event message ➤ Message identifier ➤ Routing slip ➤ Process manager ➤ Transactional client ➤ Polling consumer ➤ Event driven consumer ➤ Idempotent receiver ➤ Message History ➤ Message Store ➤ Message Dispatcher
  43. BPM - THE BUSINESS PERSPECTIVE REVISITED Process Modeler Common UI

    System integration Reporting Workflow Engine
  44. BPM - DEVELOPER PERSPECTIVE REVISITED

  45. BPM - TOOLS PERSPECTIVE REVISITED

  46. BPM - ARCHITECTURE PERSPECTIVE REVISITED Autonomy Resilience Data Deployment Technology

    Scalability People
  47. THANK YOU! @bartekslota bartslota.blogspot.com bartlomiej.slota@gmail.com github.com/bslota linkedin.com/in/bslota
