Getting Started with WebRTC

Chad Hart's presentation at Mobile Tea at Wistia. Covers:
*Major WebRTC deployment
*Other WebRTC use cases
*What WebRTC is and how it got here
*The WebRTC API's
*Ways to get started with WebRTC
*Back-end considerations and challenges
*Chad's favorite WebRTC resources

Transcript

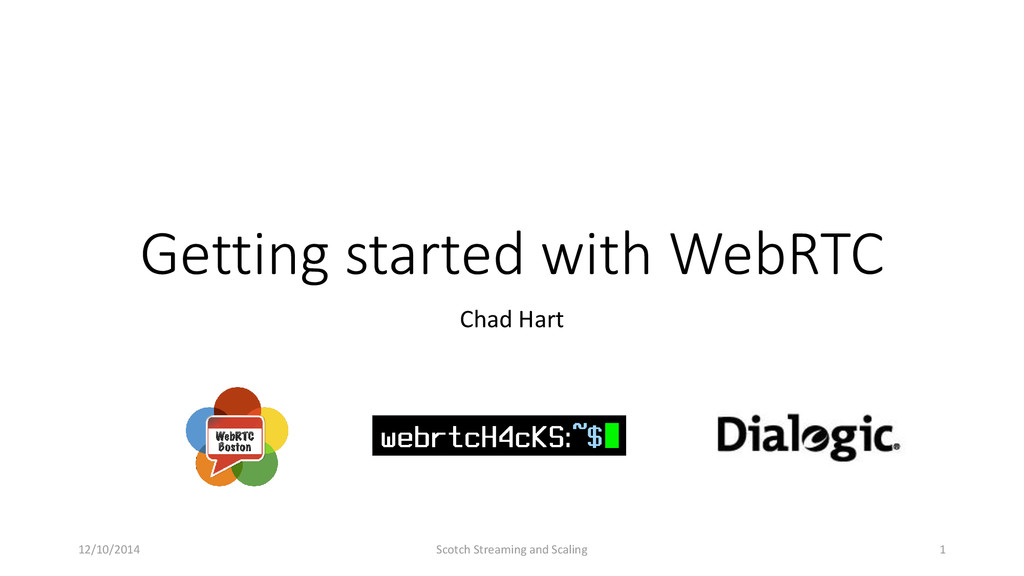

1. Getting started with WebRTC Chad Hart 12/10/2014 Scotch Streaming and Scaling 1

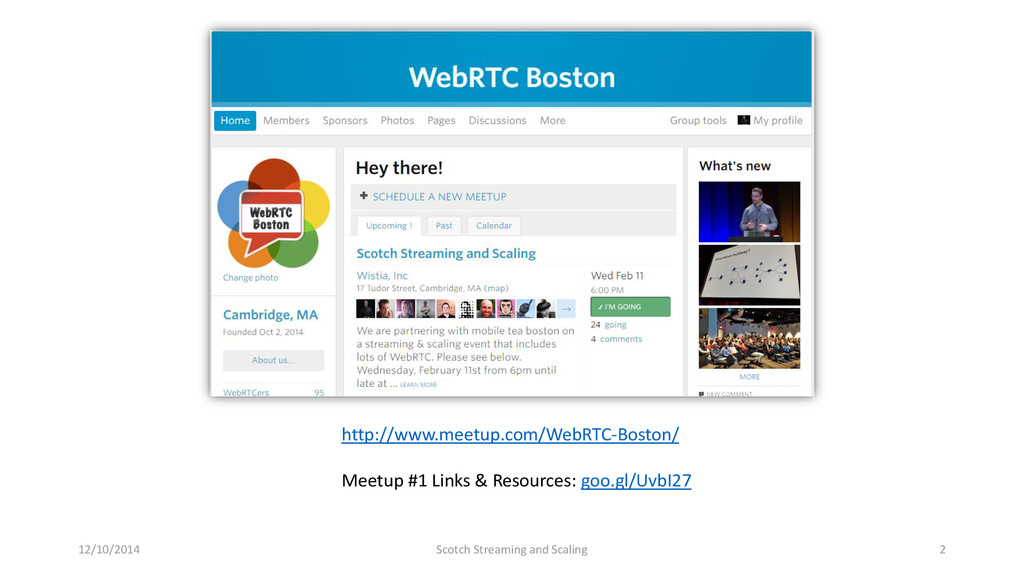

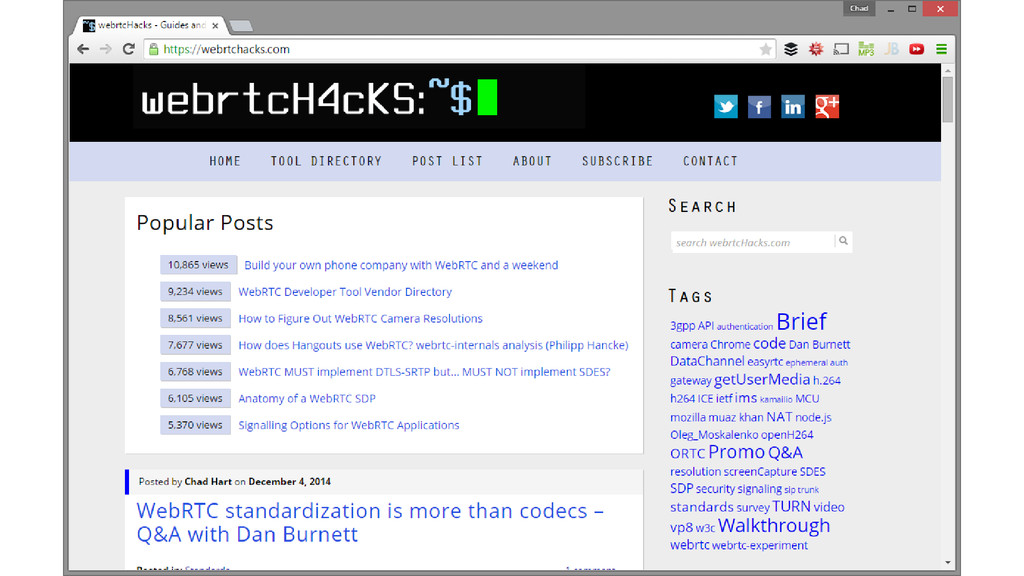

2. 12/10/2014 Scotch Streaming and Scaling 2 http://www.meetup.com/WebRTC-Boston/ Meetup #1 Links & Resources: goo.gl/UvbI27
3. 12/10/2014 Scotch Streaming and Scaling 3

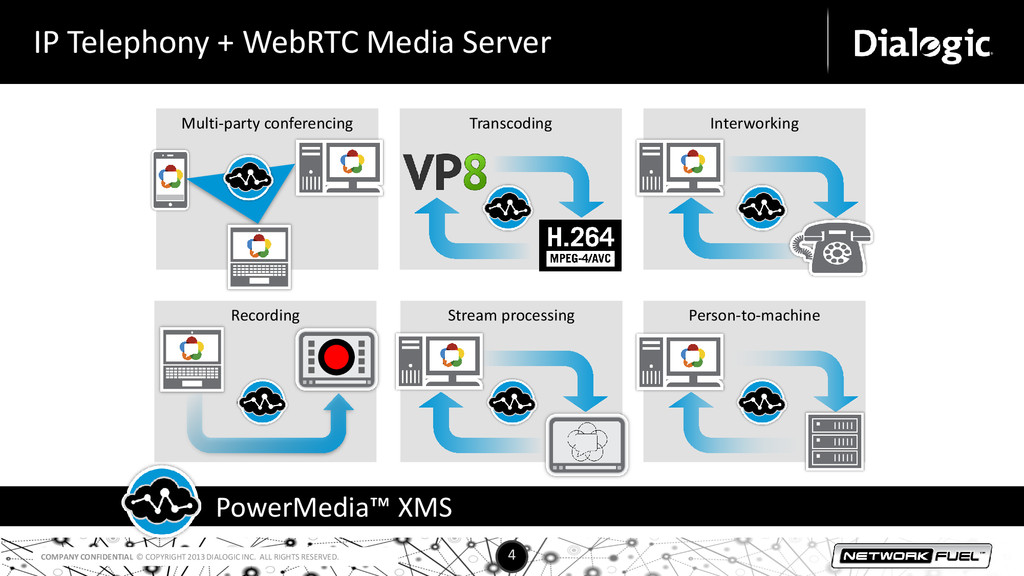

4. COMPANY CONFIDENTIAL © COPYRIGHT 2013 DIALOGIC INC. ALL RIGHTS RESERVED. 4 IP Telephony + WebRTC Media Server PowerMedia™ XMS Multi-party conferencing Interworking Transcoding Stream processing Person-to-machine Recording
5. Who uses WebRTC today? 12/10/2014 Scotch Streaming and Scaling 5

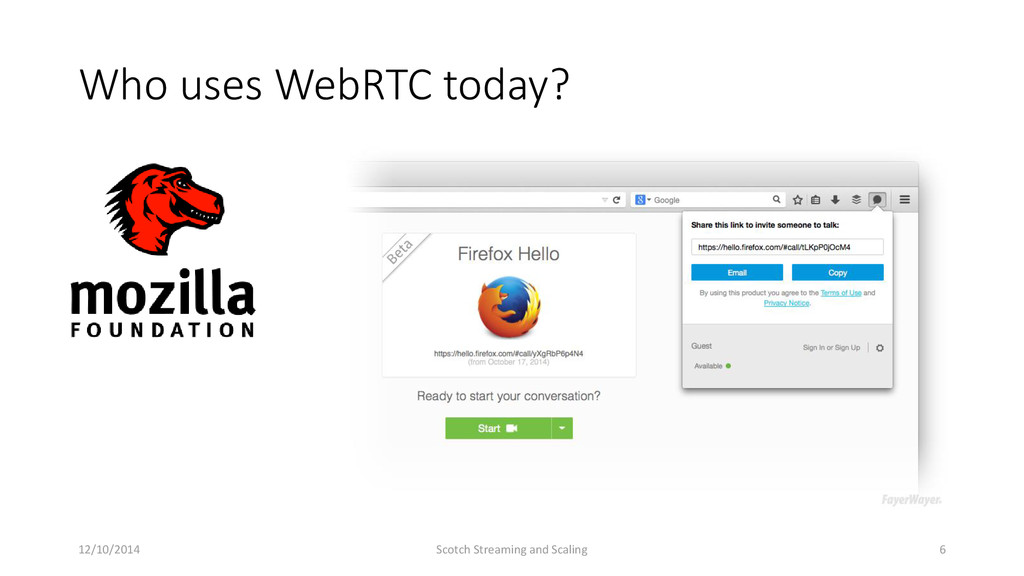

6. Who uses WebRTC today? 12/10/2014 Scotch Streaming and Scaling 6
7. Who uses WebRTC today?
8. Who uses WebRTC today? 12/10/2014 Scotch Streaming and Scaling 8

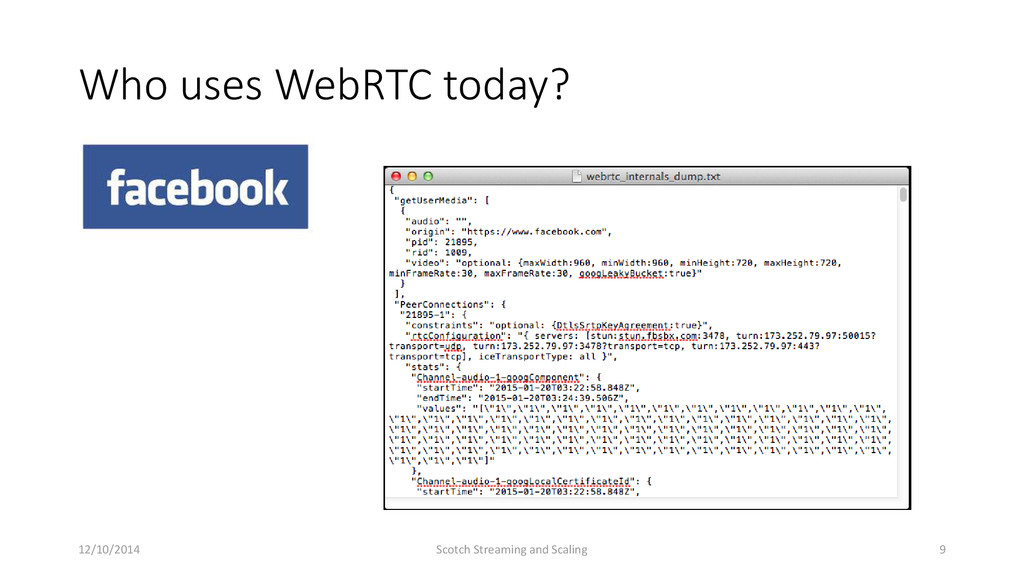

9. Who uses WebRTC today? 12/10/2014 Scotch Streaming and Scaling 9
10. Use case: Augmented Reality 12/10/2014 Scotch Streaming and Scaling 10

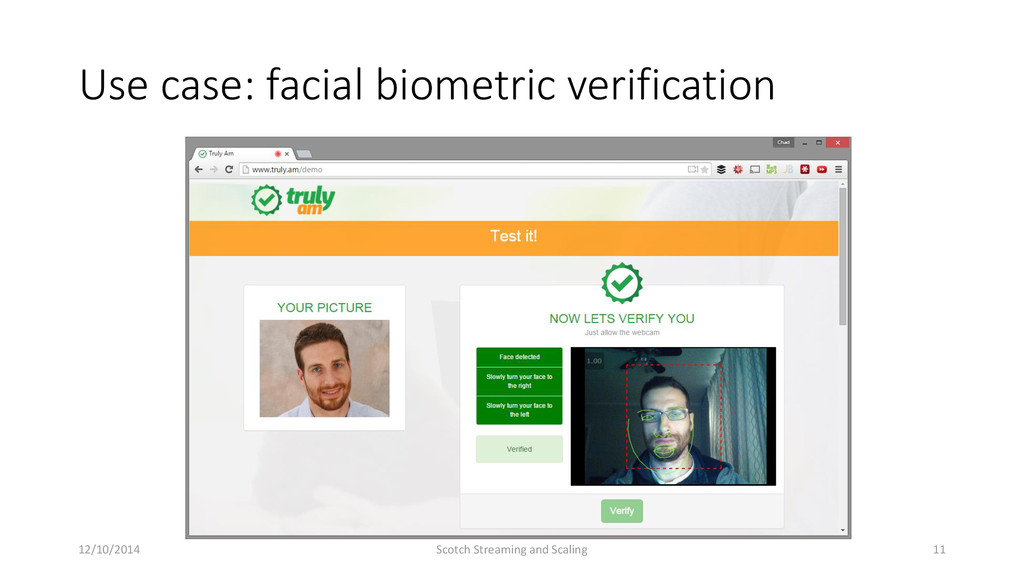

11. Use case: facial biometric verification 12/10/2014 Scotch Streaming and Scaling 11

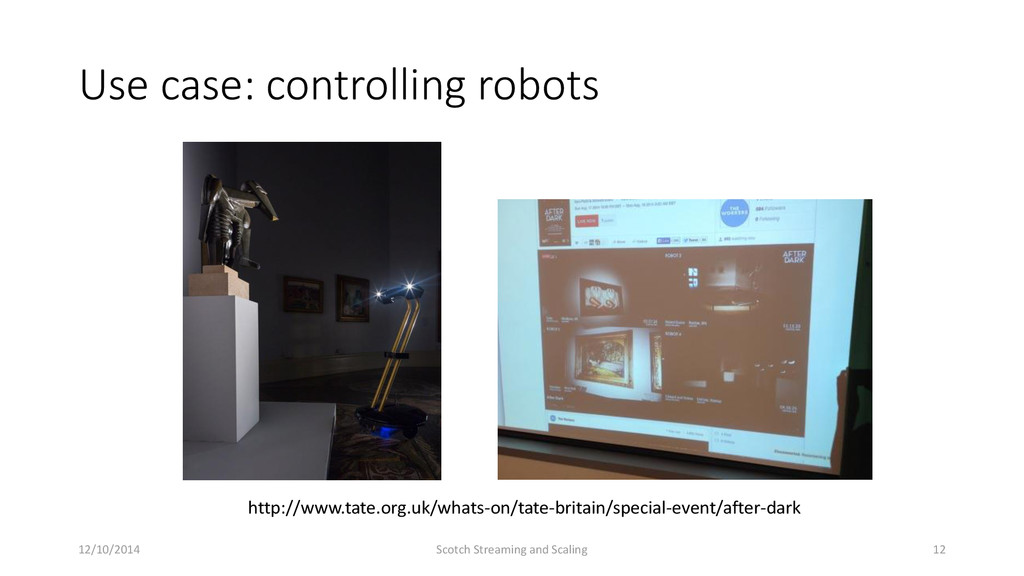

12. Use case: controlling robots 12/10/2014 Scotch Streaming and Scaling http://www.tate.org.uk/whats-on/tate-britain/special-event/after-dark 12

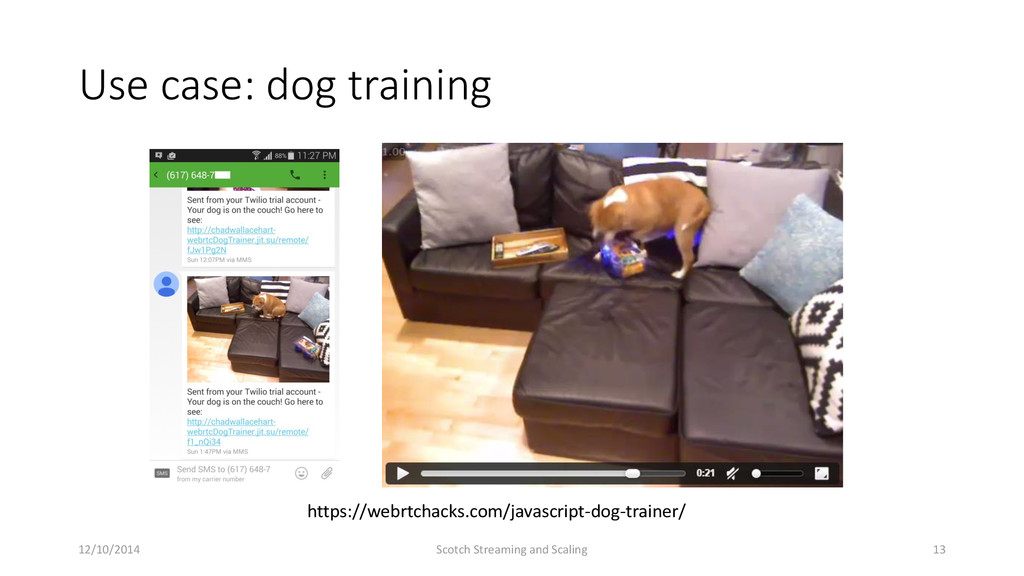

13. Use case: dog training 12/10/2014 Scotch Streaming and Scaling 13 https://webrtchacks.com/javascript-dog-trainer/
14. Use case: peer-to-peer data CDNs File Transfer Private Networks bitcoin Peer web-servers Internet of Things 12/10/2014 Scotch Streaming and Scaling 14 grimwire wearables, security, industrial machine vision, ???

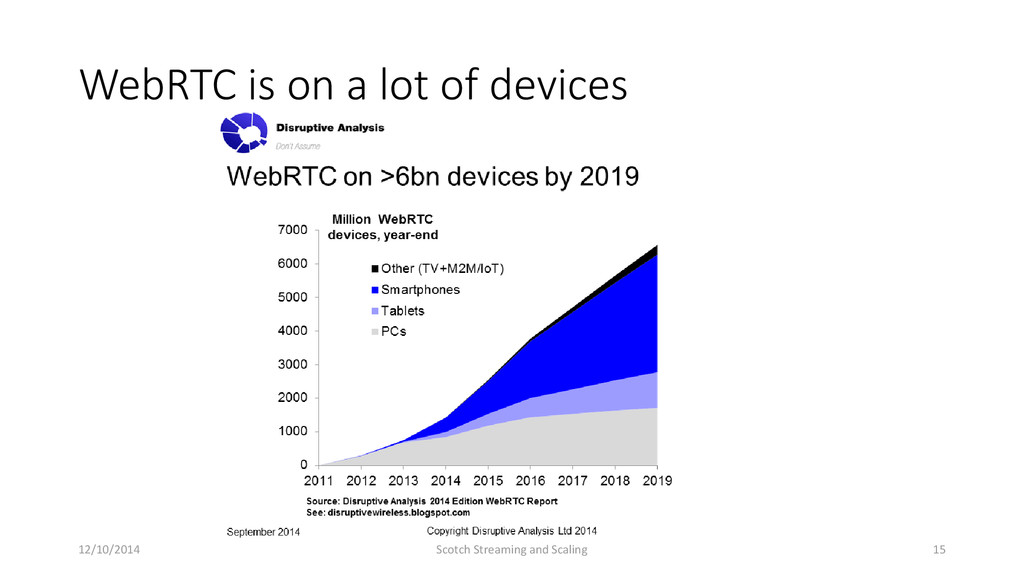

15. 12/10/2014 Scotch Streaming and Scaling 15 WebRTC is on a lot of devices

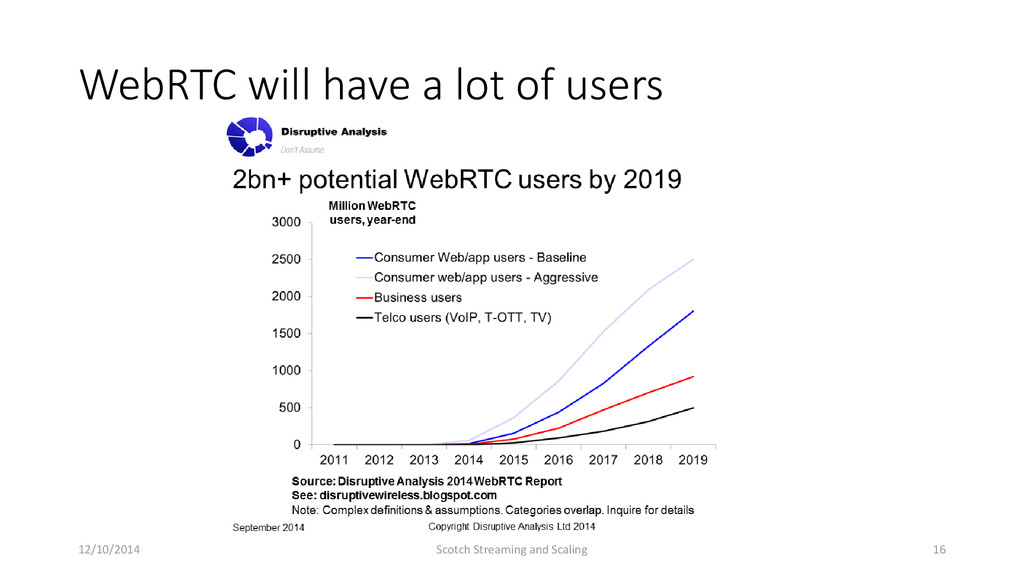

16. WebRTC will have a lot of users 12/10/2014 Scotch Streaming and Scaling 16

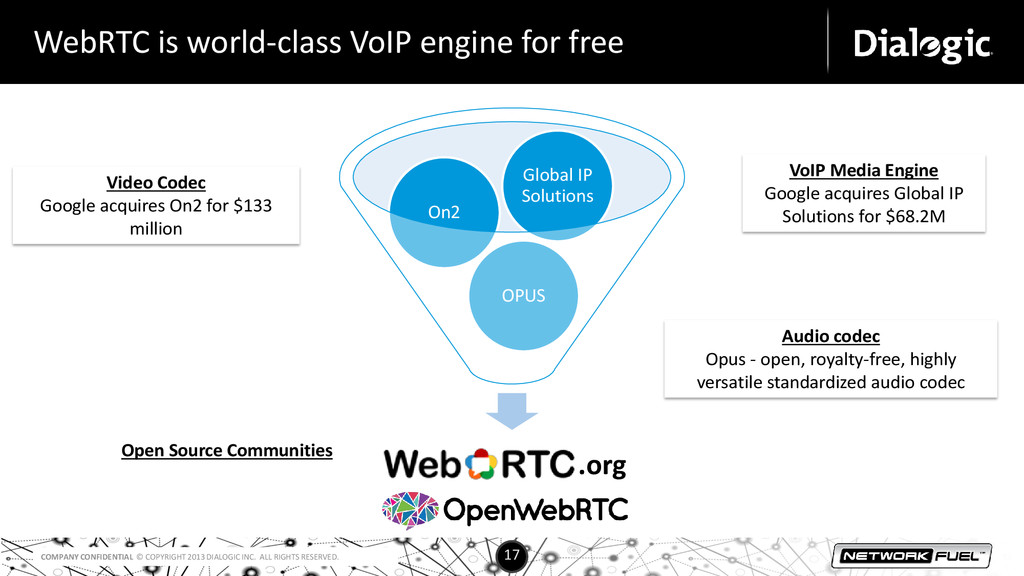

17. COMPANY CONFIDENTIAL © COPYRIGHT 2013 DIALOGIC INC. ALL RIGHTS RESERVED. 17 WebRTC is world-class VoIP engine for free OPUS On2 Global IP Solutions .org Video Codec Google acquires On2 for $133 million VoIP Media Engine Google acquires Global IP Solutions for $68.2M Audio codec Opus - open, royalty-free, highly versatile standardized audio codec Open Source Communities

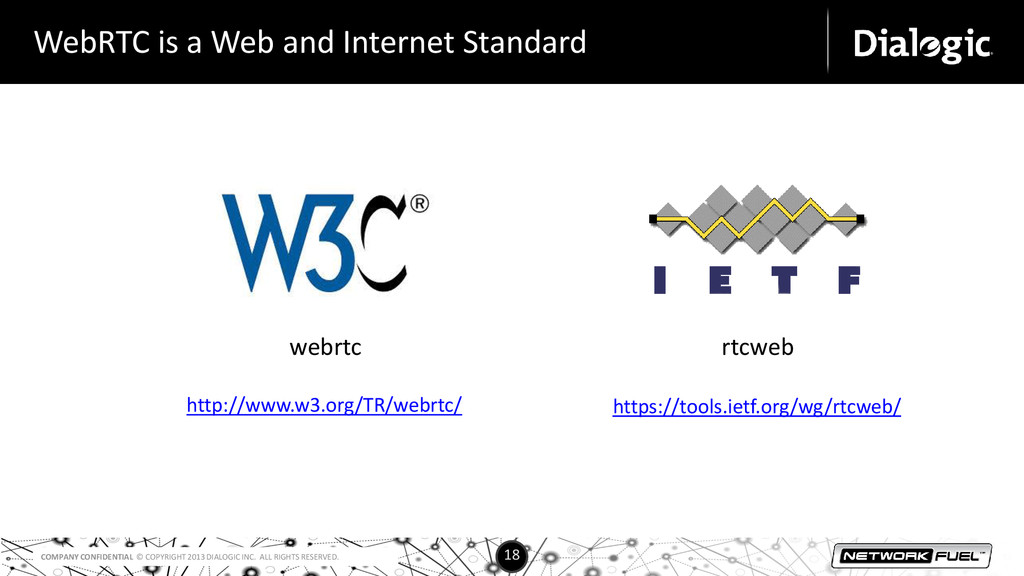

18. COMPANY CONFIDENTIAL © COPYRIGHT 2013 DIALOGIC INC. ALL RIGHTS RESERVED. 18 WebRTC is a Web and Internet Standard webrtc rtcweb http://www.w3.org/TR/webrtc/ https://tools.ietf.org/wg/rtcweb/

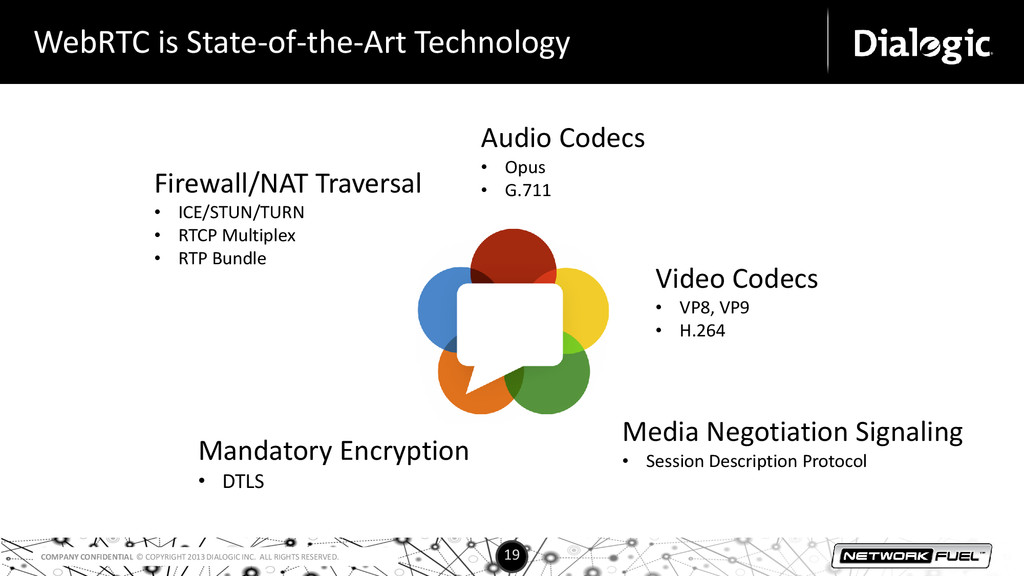

19. COMPANY CONFIDENTIAL © COPYRIGHT 2013 DIALOGIC INC. ALL RIGHTS RESERVED. 19 WebRTC is State-of-the-Art Technology Firewall/NAT Traversal • ICE/STUN/TURN • RTCP Multiplex • RTP Bundle Audio Codecs • Opus • G.711 Video Codecs • VP8, VP9 • H.264 Mandatory Encryption • DTLS Media Negotiation Signaling • Session Description Protocol
20. COMPANY CONFIDENTIAL © COPYRIGHT 2013 DIALOGIC INC. ALL RIGHTS RESERVED. 20 WebRTC is 3 JavaScript APIs (& Java) getUserMedia CreatePeer Connection Data Channel Creates a media connection (RTP) between 2 peers Grants access to local microphone, camera, or screen Allows the user to send arbitrary data between peers

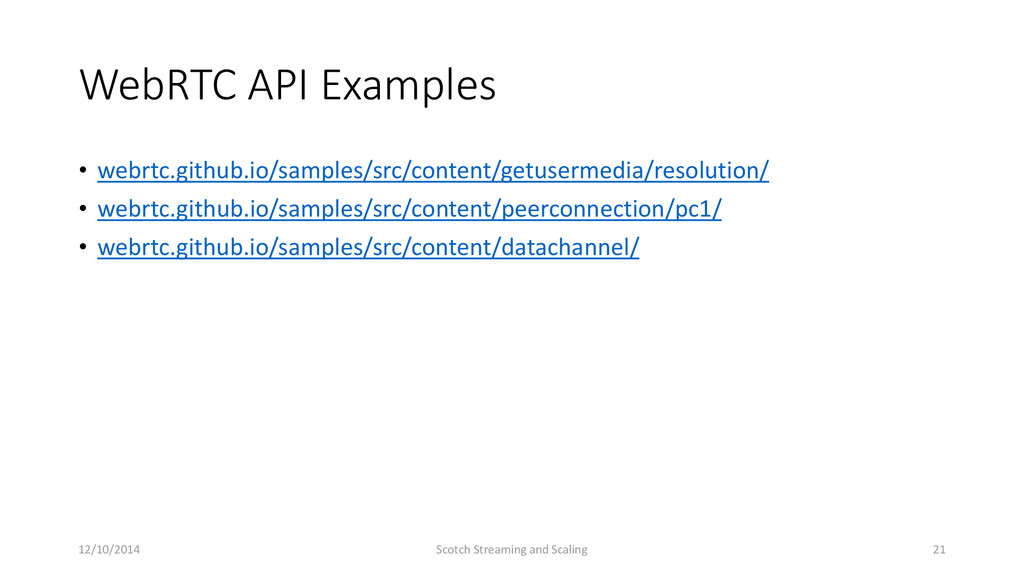

21. WebRTC API Examples • webrtc.github.io/samples/src/content/getusermedia/resolution/ • webrtc.github.io/samples/src/content/peerconnection/pc1/ • webrtc.github.io/samples/src/content/datachannel/ 12/10/2014 Scotch Streaming and Scaling 21

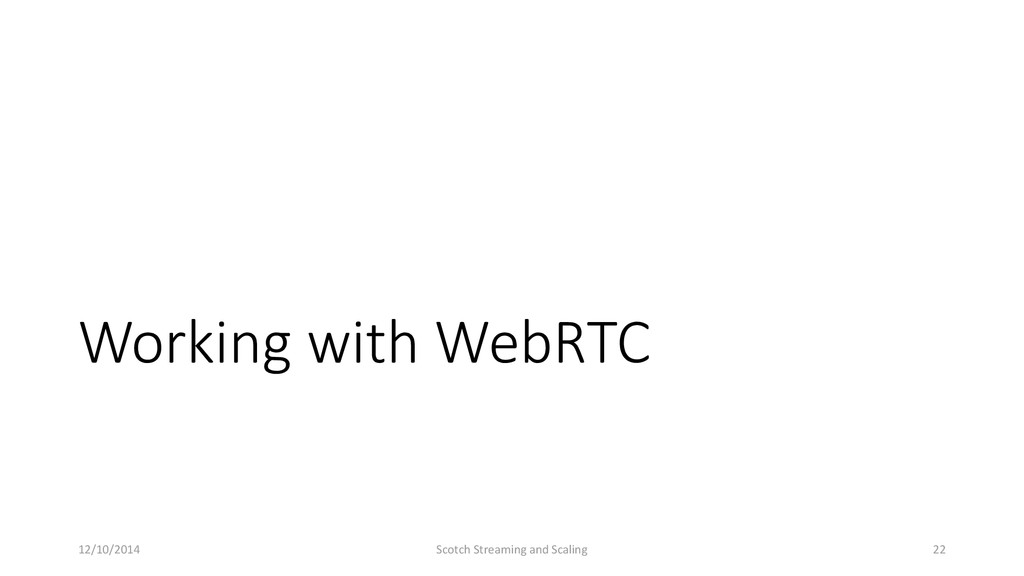

22. Working with WebRTC 12/10/2014 Scotch Streaming and Scaling 22

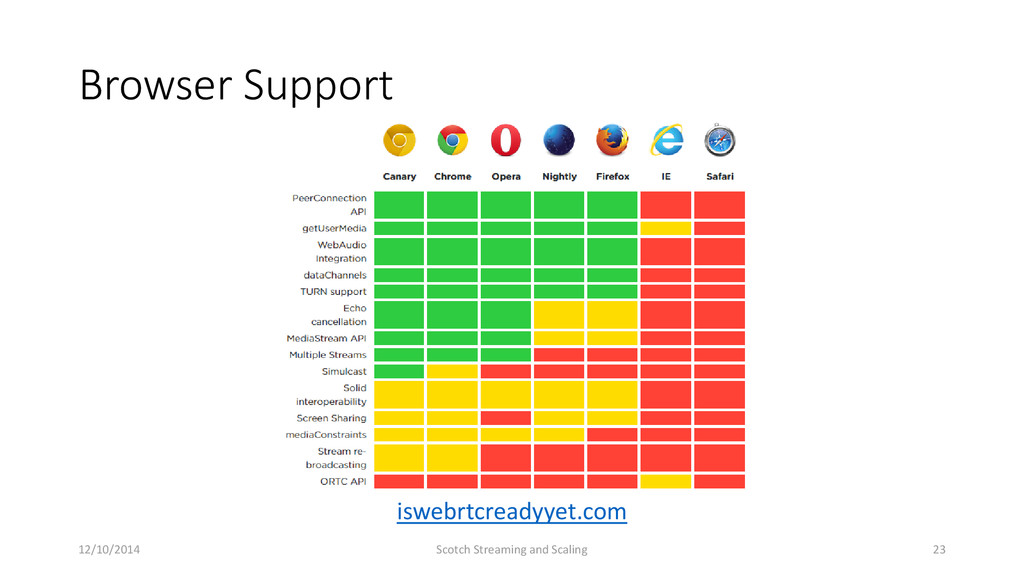

23. Browser Support 12/10/2014 Scotch Streaming and Scaling 23 iswebrtcreadyyet.com

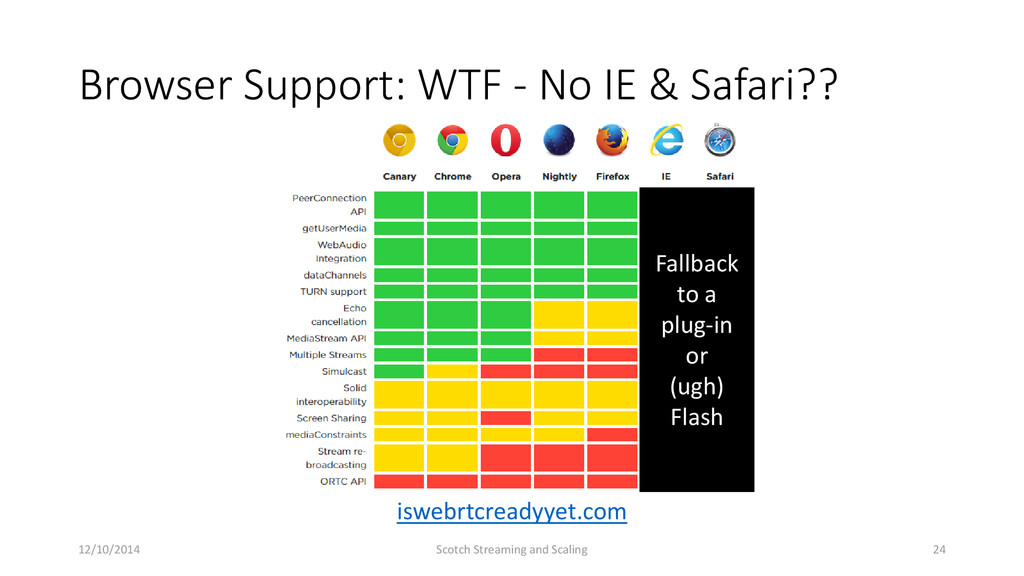

24. Browser Support: WTF - No IE & Safari?? 12/10/2014 Scotch Streaming and Scaling 24 iswebrtcreadyyet.com Fallback to a plug-in or (ugh) Flash
25. http://upliketoast.blogspot.com/2011/01/search-results-vintage-women-boxing.html 12/10/2014 Scotch Streaming and Scaling 25

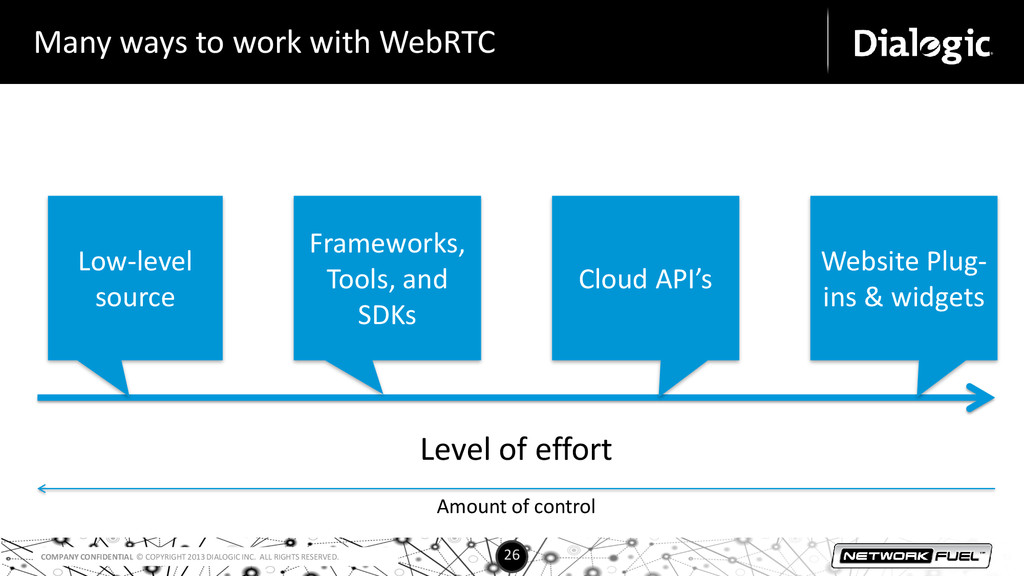

26. COMPANY CONFIDENTIAL © COPYRIGHT 2013 DIALOGIC INC. ALL RIGHTS RESERVED. 26 Many ways to work with WebRTC Level of effort Low-level source Frameworks, Tools, and SDKs Cloud API’s Amount of control Website Plug- ins & widgets

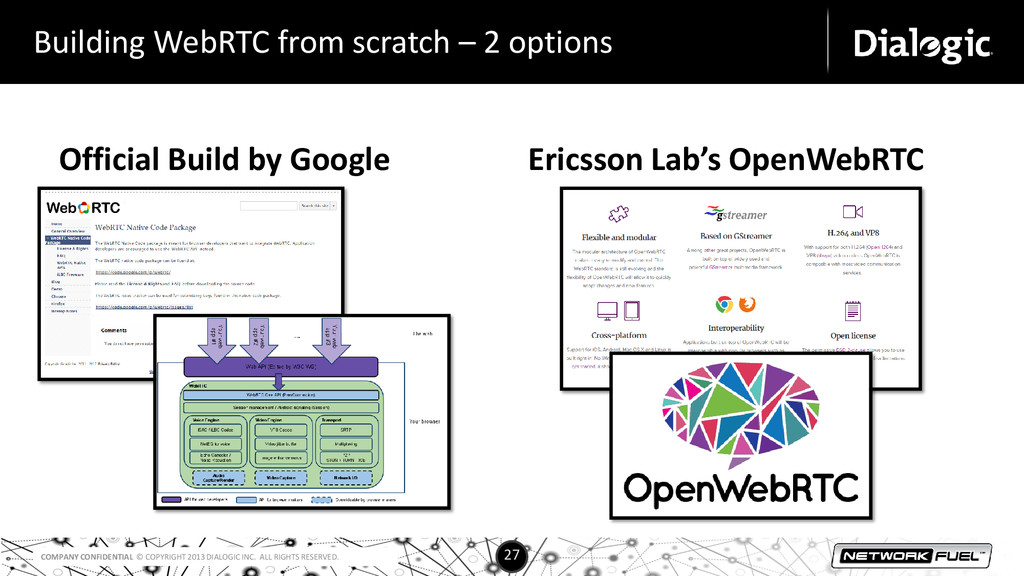

27. COMPANY CONFIDENTIAL © COPYRIGHT 2013 DIALOGIC INC. ALL RIGHTS RESERVED. 27 Building WebRTC from scratch – 2 options Official Build by Google Ericsson Lab’s OpenWebRTC
28. COMPANY CONFIDENTIAL © COPYRIGHT 2013 DIALOGIC INC. ALL RIGHTS RESERVED. 28 Build with tools Open Source Commercial Server-side libraries JavaScript libraries Mobile SDK’s Cross-platform frameworks Infrastructure elements
29. COMPANY CONFIDENTIAL © COPYRIGHT 2013 DIALOGIC INC. ALL RIGHTS RESERVED. 29 Consuming WebRTC API’s from the cloud Signaling Authentication Push Notifications SIP Gateway Transcoding STUN TURN Servers Low Latency Elasticity Recording Geographic redundancy Bandwidth Service monitoring Multi-party Identity

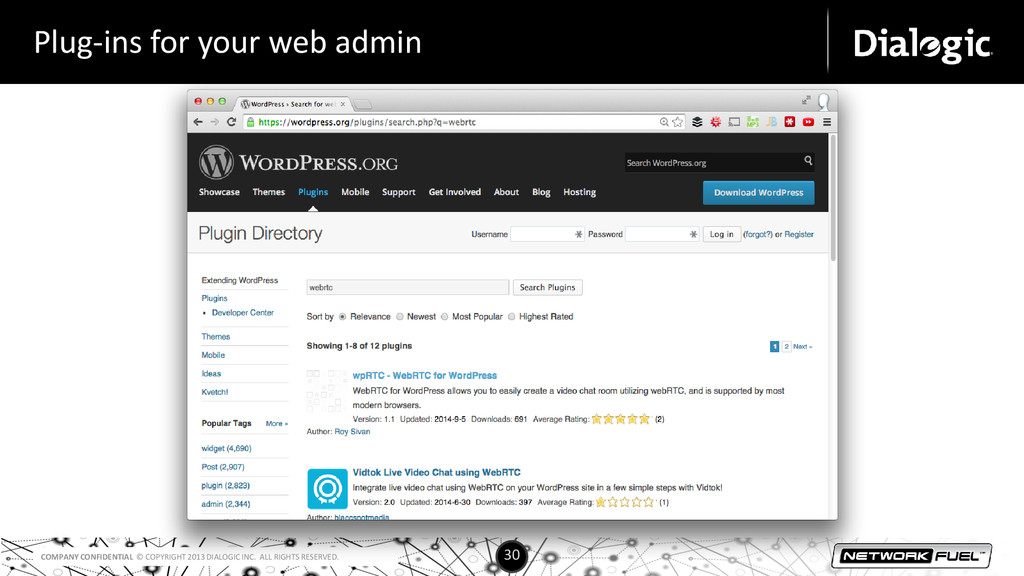

30. COMPANY CONFIDENTIAL © COPYRIGHT 2013 DIALOGIC INC. ALL RIGHTS RESERVED. 30 Plug-ins for your web admin

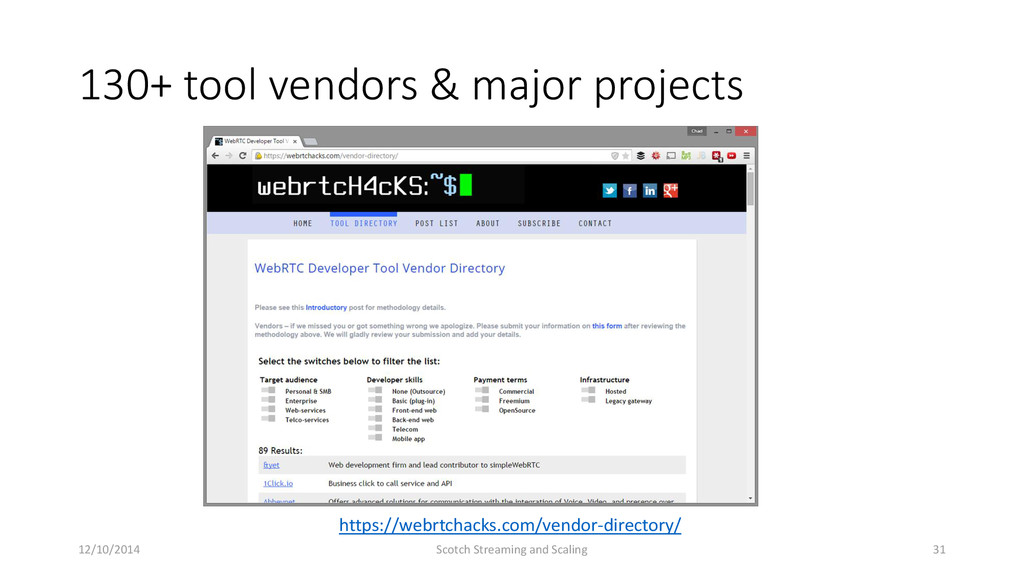

31. 130+ tool vendors & major projects https://webrtchacks.com/vendor-directory/ 12/10/2014 Scotch Streaming and Scaling 31

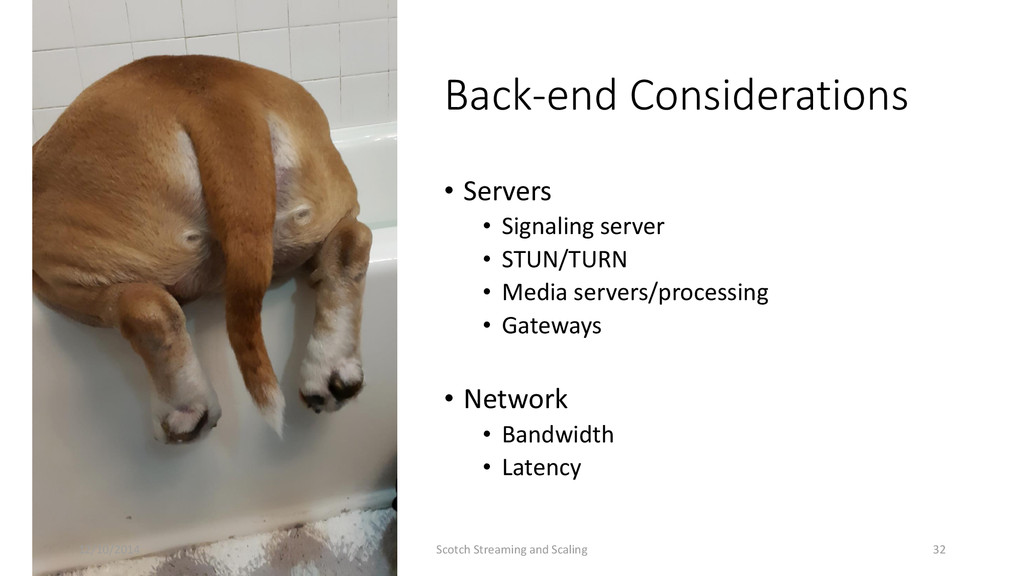

32. Back-end Considerations • Servers • Signaling server • STUN/TURN • Media servers/processing • Gateways • Network • Bandwidth • Latency 12/10/2014 Scotch Streaming and Scaling 32

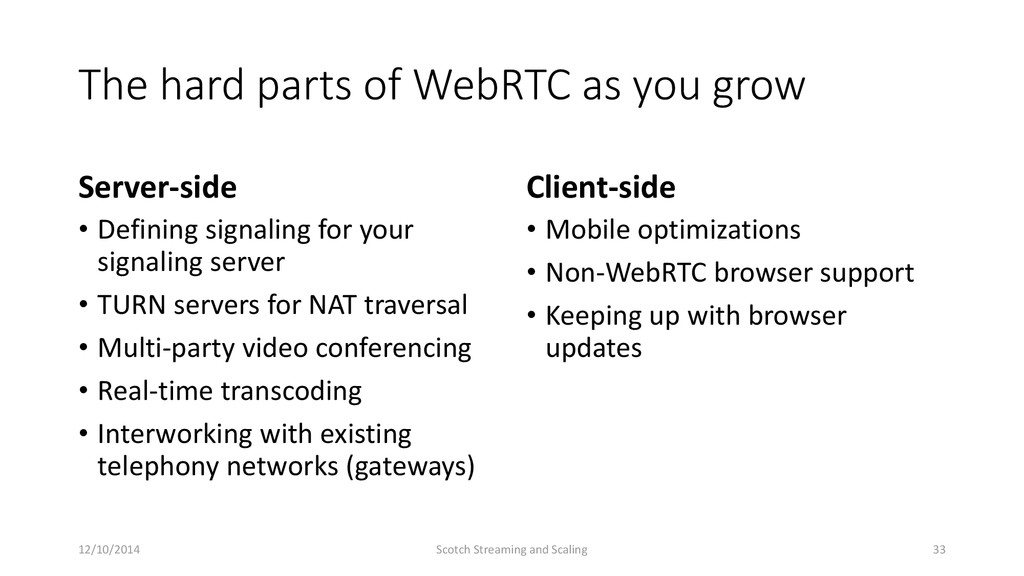

33. The hard parts of WebRTC as you grow Server-side • Defining signaling for your signaling server • TURN servers for NAT traversal • Multi-party video conferencing • Real-time transcoding • Interworking with existing telephony networks (gateways) Client-side • Mobile optimizations • Non-WebRTC browser support • Keeping up with browser updates 12/10/2014 Scotch Streaming and Scaling 33

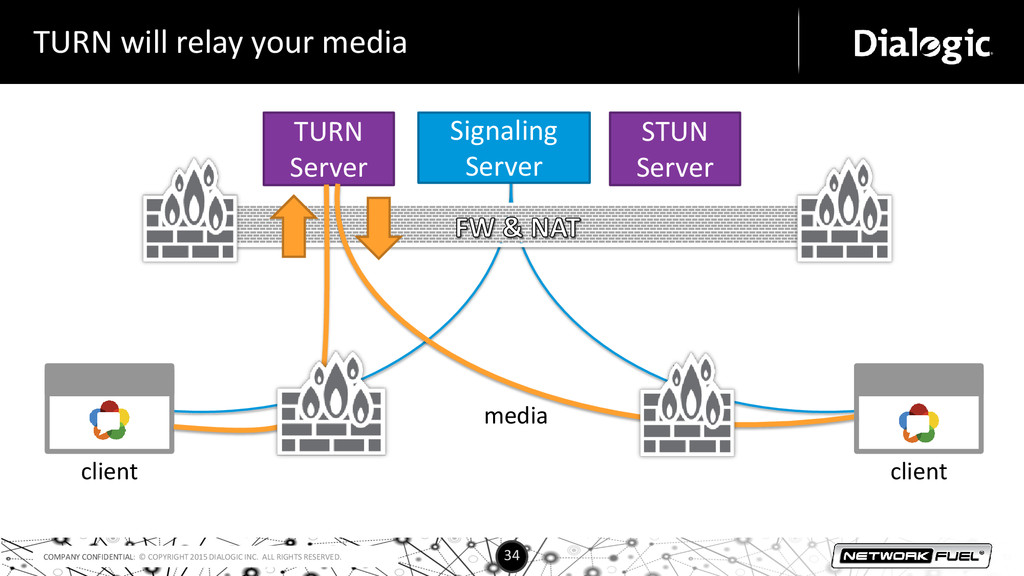

34. COMPANY CONFIDENTIAL: © COPYRIGHT 2015 DIALOGIC INC. ALL RIGHTS RESERVED. 34 TURN will relay your media media client Signaling Server TURN Server STUN Server client
35. COMPANY CONFIDENTIAL: © COPYRIGHT 2015 DIALOGIC INC. ALL RIGHTS RESERVED. 35 Mesh does not Scale for Many Video Conferees 35 Full Mesh Clients get overloaded Encode costs more than decode Limited uplink bandwidth Inconsistent performance across participants

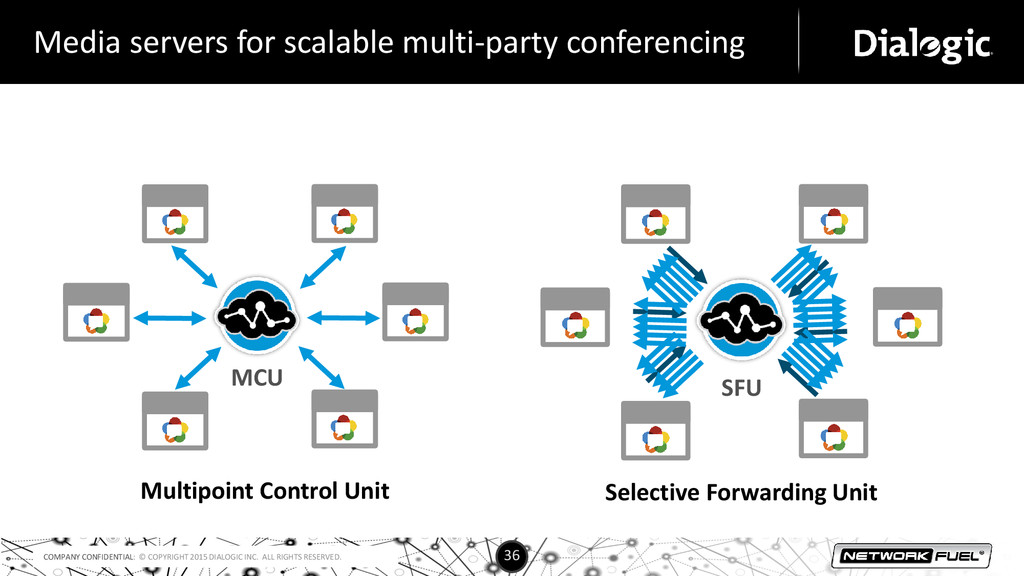

36. COMPANY CONFIDENTIAL: © COPYRIGHT 2015 DIALOGIC INC. ALL RIGHTS RESERVED. 36 Media servers for scalable multi-party conferencing MCU SFU Multipoint Control Unit Selective Forwarding Unit
37. COMPANY CONFIDENTIAL: © COPYRIGHT 2015 DIALOGIC INC. ALL RIGHTS RESERVED. 37 Core WebRTC Gateway & Peripheral Functions HTTP-to-SIP (H2S) Media GW Transcoder Web SIP SBC STUN Server TURN Server API Gateway Regulates API calls Provides media anchoring for NAT Traversal Tells a client what its IP address is Converts non- standard web signaling to SIP Web SDK/ Widget Mobile SDK/ Widget Kit for adding Calls to webpage Kit for adding Calls to native applications Converts one codec to another, trans-rates/sizing Encryption & transport interworking SIP interworking, media binding, and security

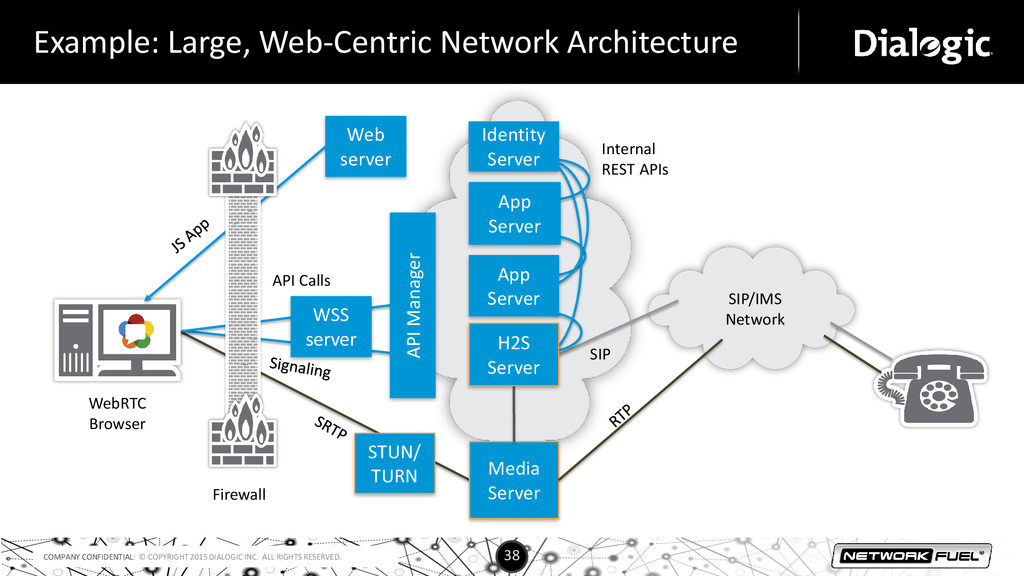

38. COMPANY CONFIDENTIAL: © COPYRIGHT 2015 DIALOGIC INC. ALL RIGHTS RESERVED. 38 Example: Large, Web-Centric Network Architecture Web server SIP/IMS Network SIP Media Server Firewall API Manager API Calls H2S Server Identity Server App Server App Server WSS server STUN/ TURN Internal REST APIs WebRTC Browser

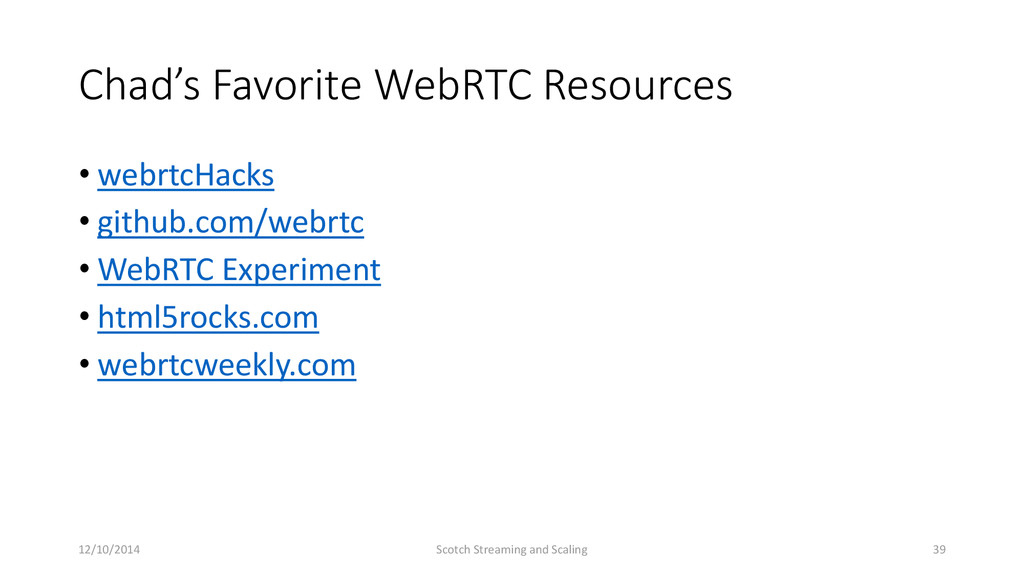

39. Chad’s Favorite WebRTC Resources • webrtcHacks • github.com/webrtc • WebRTC Experiment • html5rocks.com • webrtcweekly.com 12/10/2014 Scotch Streaming and Scaling 39
40. My contact info linkedin.com/in/chadwallacehart chad.hart@dialogic.com @chadwallacehart webrtcHacks.com chadwhart@gmail.com @webrtcHacks 12/10/2014 Scotch Streaming and Scaling 40
