So Long, Public Cloud

Lessons learned migrating 400 servers from Rackspace public cloud to a hosted OpenStack private cloud. Presented by Chris Snell at the Seattle DevOps Meetup Group.

Transcript

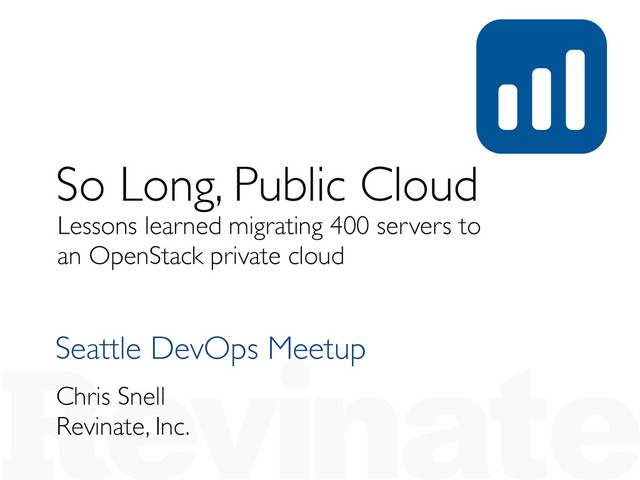

1. So Long, Public Cloud Seattle DevOps Meetup Lessons learned migrating 400 servers to an OpenStack private cloud Chris Snell Revinate, Inc.
2. Who is Revinate? SaaS for the hospitality industry We deliver rich guest data and feedback to hotels that improve their customers’ experiences
3. Genesis In Q1 2014, we were…
 …running ~200 instances in Rackspace Public Cloud …using about 800 GB of RAM in aggregate …and a bunch of Cloud Databases (DBaaS) instances …and a dozen Cloud Load Balancers (LBaaS) …and growing 20% month-over-month
4. Genesis It was really expensive. Five-figure hosting bill, every month.
5. Genesis And it was a crappy experience. We had… …unpredictable and often poor network performance. …noisy neighbor problems. …constant scanning from unknowns probing for vulnerabilities.
6. Why Private Cloud? Three reasons: - Cost - Performance - Security
7. Private Cloud: Cost Public Cloud 800 GB RAM Shared networks Shared SW load balancers
 IPtables firewalls $X / month Private Cloud 2.75 TB RAM 22 dedicated physical servers Dedicated Networks Dedicated HW load balancers Dedicated HW firewalls < 0.9 x $X / month
8. Private Cloud: Performance The network is incredible. 1 Gbit/sec (bidirectional) from any instance, no matter the size No more paying for larger instances than you need just to get the bandwidth you need.
9. Private Cloud: Performance You are your own noisy neighbor. Steal all the CPU and disk I/O you need! (We don’t use much)
10. Private Cloud: Security No more automated scans hitting instances No more maintaining complex IPtables rulesets Dom0 threat exposure greatly reduced IPsec VPN for errr’body! Dedicated, HA firewalls and load balancers in front of all instances
11. Other Benefits Flexible instance sizing Create any combination you desire!
12. Other Benefits API-driven Use the same tools you used in public cloud.
13. Division of Responsibilities DATACENTER NETWORK / LB / FW SERVER HARDWARE OPENSTACK INSTANCE APPLICATION Revinate Responsibility Revinate Visibility Rackspace Responsibility
14. The Migration
15. The Migration Problem: We had far too many moving pieces to move everything at once. Solution: Move component-by-component, connecting old to new with hybrid cloud
16. Connecting the Clouds RackConnect Rackspace’s networking technology to tie public & private clouds together
17. How We Moved Building a base OS image We used Ubuntu 14.04 LTS. Added a run-once /etc/rc.local to do first-boot provisioning: • Set up apt to use RAX mirrors • Set up /etc/hosts • Enable OpenStack ohai hints • Alert us via HipChat if anything goes wrong
18. How We Moved /etc/rc.local
19. How We Moved In preparation for the move, we built some infrastructure: DNS - Authoritative DNS servers (DJB’s djbdns) x 2 - DNS caches (DJB’s dnscache) x 2 Logging - rsyslog - forwarding to Papertrail Chef - Open Source Chef server SMTP - Postfix forwarders (Sendgrid, Mailgun, etc)
20. How We Moved Moving with Chef • We started with a fresh Chef repo. • Set up our own Chef Open Source server • Built cookbooks as we moved each service • Gangnam-style cookbook structure • Base role to install common components
21. How We Moved We started with the data layer It’s the hardest to move. Use replication to move the data. One cluster at a time. MYSQL MASTER MYSQL SLAVE MYSQL SLAVE PRIVATE CLOUD PUBLIC CLOUD MYSQL MASTER MYSQL SLAVE STEP 1 STEP 2
22. How We Moved Elasticsearch was much harder Playing the egg toss game while driving down the highway at 90 MPH
23. How We Moved The Elasticsearch Egg Toss Move one node at a time - recover to “green” cluster state after each move Designate master-only (no data) nodes Use cluster.routing.allocation.exclude._ip to exclude public cloud nodes when decommissioning public cloud nodes and turning on new private cloud nodes
24. Monitoring + Metrics
25. OpenStack Monitoring Built-in monitoring w/ OpenStack Havana is a joke. LOL, what?
26. OpenStack Monitoring Built-in monitoring w/ OpenStack Havana is a joke. • Inaccurate metrics displayed in Horizon • No historical trends/graphs • No cluster-wide metrics • Useless for capacity planning • No alerting • Ceilometer API is broken (in Havana, anyway…)
27. OpenStack Monitoring Built-in monitoring w/ OpenStack Havana is a joke. Rackspace’s response: “We’re working on it.” One year later and we still haven’t seen anything. We’re not holding our breath.
28. OpenStack Monitoring Solution: Build our own!
29. Datadog - Metrics + Alerting - Agents installed on every (production) instance - Many out-of-the-box app integrations - Custom checks written with Python (we have about 10 so far) - Very powerful graph builder - Cons: it’s expensive
30. Datadog Demo
31. Thanks! chris.snell@revinate.com http://github.com/chrissnell http://output.chrissnell.com https://www.linkedin.com/in/csnell I don’t tweet.
