GoBalloon: Automating a High Altitude Balloon Payload with Go

GoBalloon is a flight controller for a high altitude balloon payload that I wrote in the Go programming language. Go's easy-to-use concurrency made it easy to build powerful software that can still operate efficiently on a battery-powered embedded computer.

Transcript

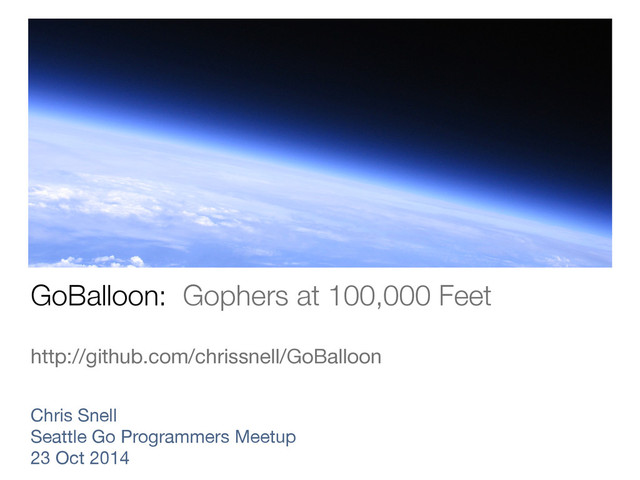

1. GoBalloon: Gophers at 100,000 Feet http://github.com/chrissnell/GoBalloon Chris Snell Seattle Go Programmers Meetup 23 Oct 2014
2. This Chris guy. • Live + work in Tacoma, WA • Lead the Technical Operations team @ San Francisco-based Revinate (we’re SaaS for hotel industry) • 20 years working w/ Linux systems • 1 year writing Go • My blerg:
 http://output.chrissnell.com
3. Balloons? • Reach 100,000+ Feet
 (near-space) • Carry up to a 12 lb. payload * • High-altitude photography • Wide-area communications
4. The view from 100,000 feet.
5. Is this legal? • Yes, with a few stipulations. • < 6 lbs (single payload) • < 12 lbs (double payload) • 50+ lb test rope • Radar-reflective device • Cut-down device • NOTAM
6. Construction • Weather Balloon
 (Hwoyee, Kaymont) • Dacron cord • Parachute • Dacron cord • Payload box
 (styrofoam, foamcore, soda bottle, etc.) • Antenna
7. Flight Controller Hardware • BeagleBone Black • TNCBlack
 http://tnc-x.com/TNCBlack.htm • GPIO interfaces • Cut-down • Buzzer • Strobe • Temperature/Barometer
8. Flight Profile • Launch • Ascent • Burst • Descent • Recovery
9. Communications • APRS over 2-meter ham radio • 500mW radio • J-pole antenna made from 300Ω twin-lead TV cable • Relayed to interwebs by a network of volunteer ground stations Radio footprint at 95,000’: 800 miles in diameter!
10. APRS Amateur Position Reporting System • A protocol and a network • 1200bps modem over 2m radio • Built on top of AX.25
 (Layer 2 protocol) • Position+Altitude • Telemetry • 1:1 messaging
11. APRS ↔ Internet • Digipeaters • Mountaintops/Towers • iGates • Somewhere with Internet access (typically, a home) • APRS-IS • aprs.fi
12. Go + Balloons!
13. The Flight Controller ./GoBalloon • APRS comms • GPS • Logging • Cut-down • Telemetry • Serial/GPIO • Low-powered • Lots of concurrency
14. The First Iteration • Written in Perl • One big loop • Poor handling of unexpected blocking • Used a lot of CPU (= battery) • Perl has excellent and very mature APRS library
15. The Second Iteration • Written in Go! • My first real Go project • ~3000 lines of code • Flight processes handled in separate goroutines • Very efficient on low- powered SBC • Little/no pre-existing APRS library support
16. Computers are hard. • Had to implement AX.25 and APRS libraries • AX.25 is ancient • APRS protocol is insane • 32 years of development • Mostly backwards-compatible • Wants to be everything to everybody • Sacrifices simplicity for efficiency • See http://www.aprs.org/doc/ APRS101.PDF
17. What I’ve built so far. • APRS library that decodes/ encodes (most) APRS packets • APRS controller - tx/rx position reports, cutdown command • GPS integration • Burst detection w/ strobe +buzzer activation • Geospatial calculations (Great Circle Distance, etc) • Chase console
18. ʕ◔ϖ◔ʔ GopherTrak http://github.com/chrissnell/gophertrak • Chase console for all chasers and home viewers • Leverages termbox-go • Track the balloon • Monitor telemetry • Track other chasers • Issue cutdown command* • Send messages to other chasers*
 * Not yet complete
19. Next Steps • Assemble the balloon • Write proper test code • Real-world testing • Race condition detection • Launch the damned thing
20. Questions?
