Infrastructure testing with Jenkins, Puppet and Vagrant

Extend Continuous Integration to automatically test your infrastructure.

Continuous Integration can be extended to test deployments and production environments, in a Continuous Delivery cycle, using infrastructure-as-code tools like Puppet, allowing to manage multiple servers and their configurations, and test the infrastructure the same way continuous integration tools do with developers’ code.

Puppet is an infrastructure-as-code tool that allows easy and automated provisioning of servers, defining the packages, configuration, services, … in code. Enabling DevOps culture, tools like Puppet help drive Agile development all the way to operations and systems administration, and along with continuous integration tools like Jenkins, it is a key piece to accomplish repeatability and continuous delivery, automating the operations side during development, QA or production, and enabling testing of systems configuration.

Using Vagrant, a command line automation layer for VirtualBox, we can easily spin off virtual machines with the same configuration as production servers, run our test suite, and tear them down afterwards.

We will show how to set up automated testing of an application and associated infrastructure and configurations, creating on demand virtual machines for testing, as part of your continuous integration process.

Transcript

1. Infrastructure testing with Jenkins, Puppet and Vagrant Carlos Sanchez @csanchez http://csanchez.org http://maestrodev.com
2. @csanchez Apache Maven ASF Member Eclipse Foundation csanchez.org maestrodev.com
3. How we got here

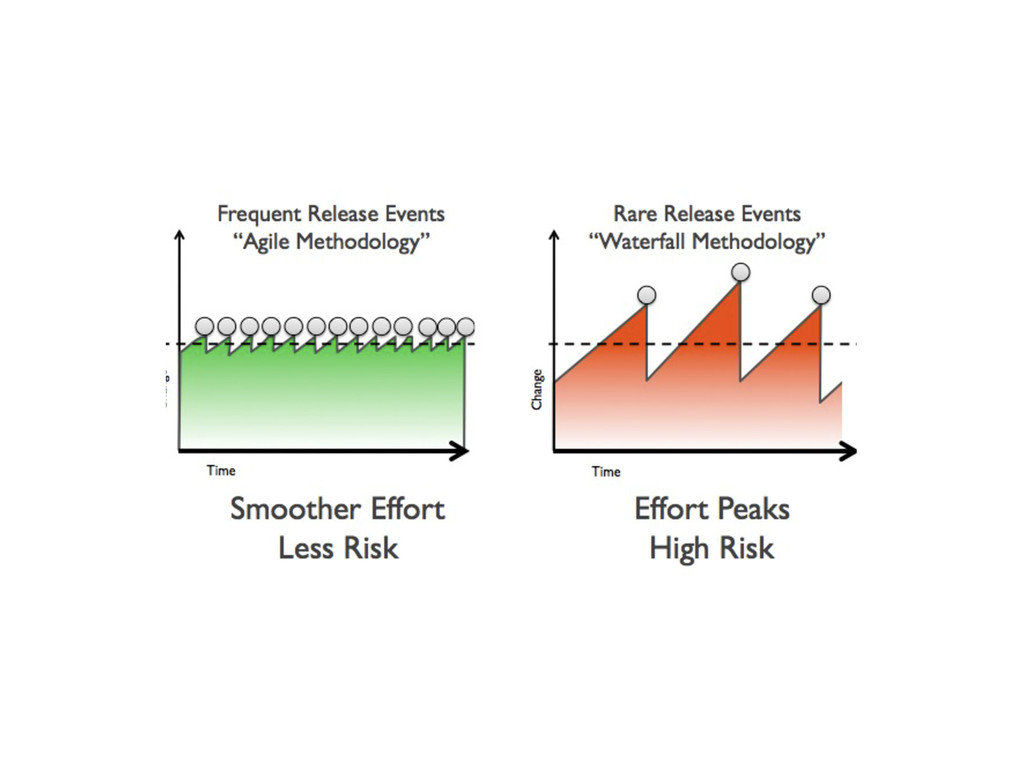

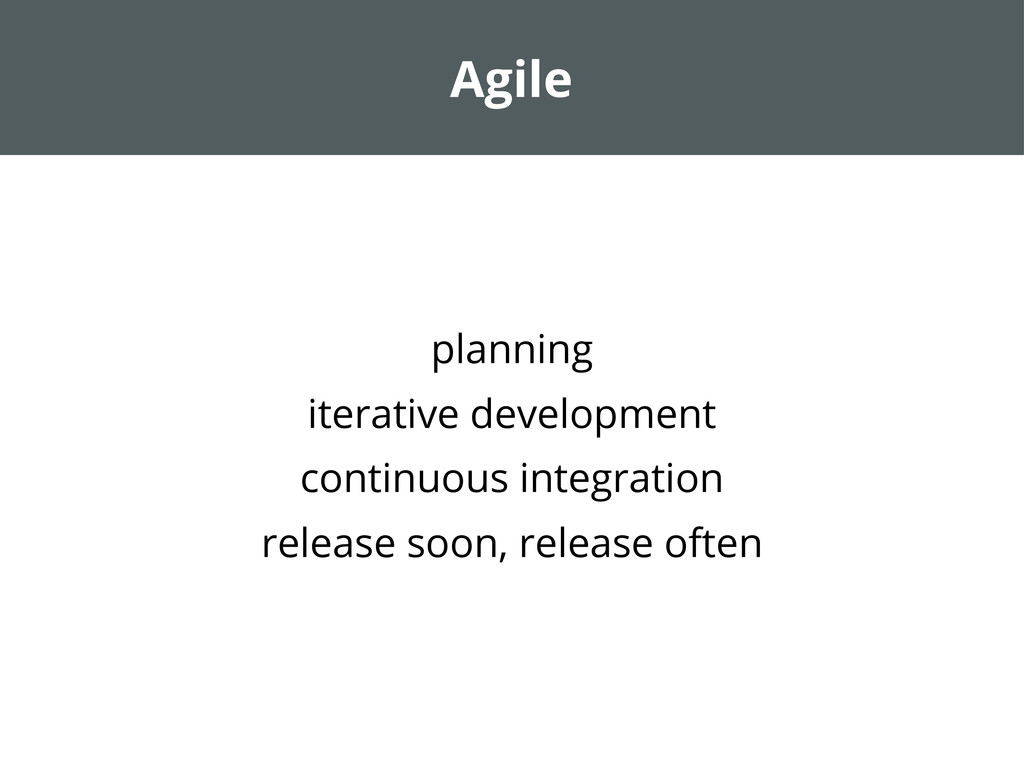

4. Agile planning iterative development continuous integration release soon, release often
7. Fear of change Risky deployments It works on my machine! Siloisation Dev Change vs. Ops stability
8. OPs requirements Operating System config files packages installed multi stage configurations dev QA pre-production production
9. Deployment How do I deploy this? documentation manual steps prone to errors
10. Cloud How do I deploy this? to hundreds of servers
12. DevOps

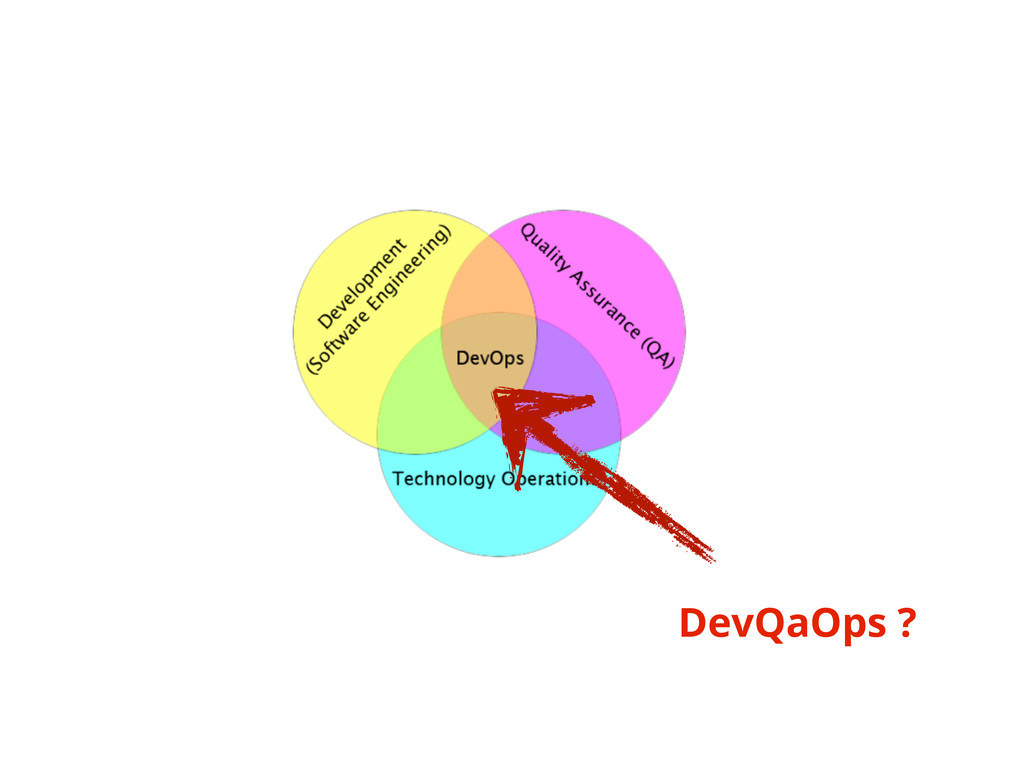

13. DevQaOps ?

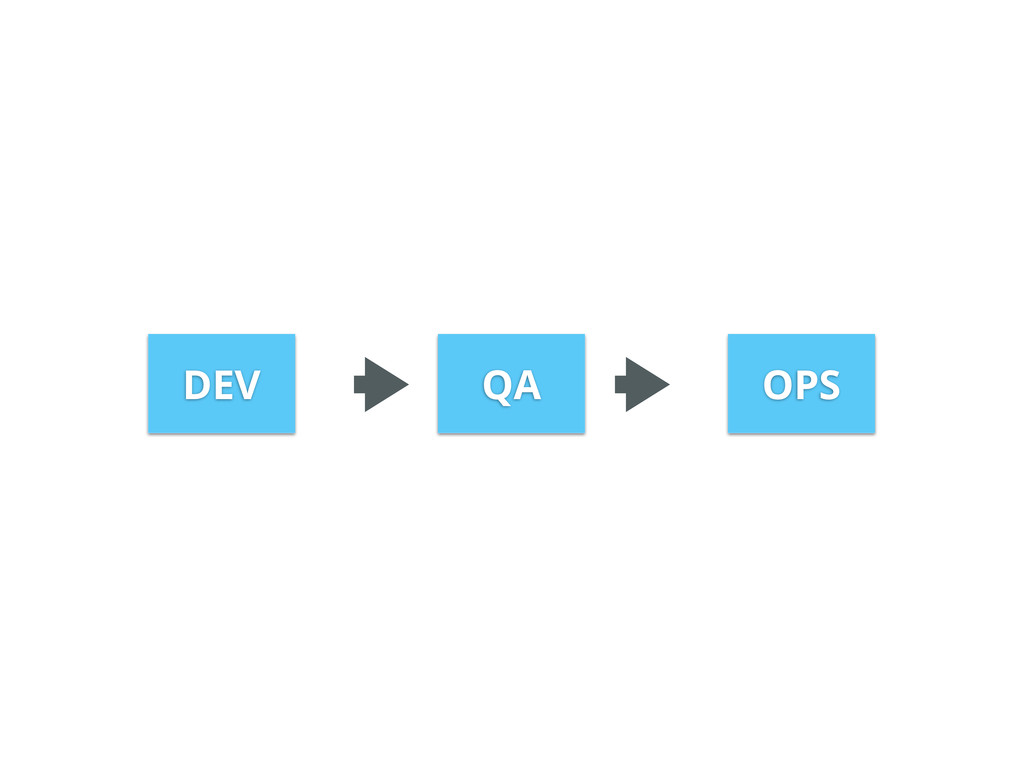

15. DEV QA OPS

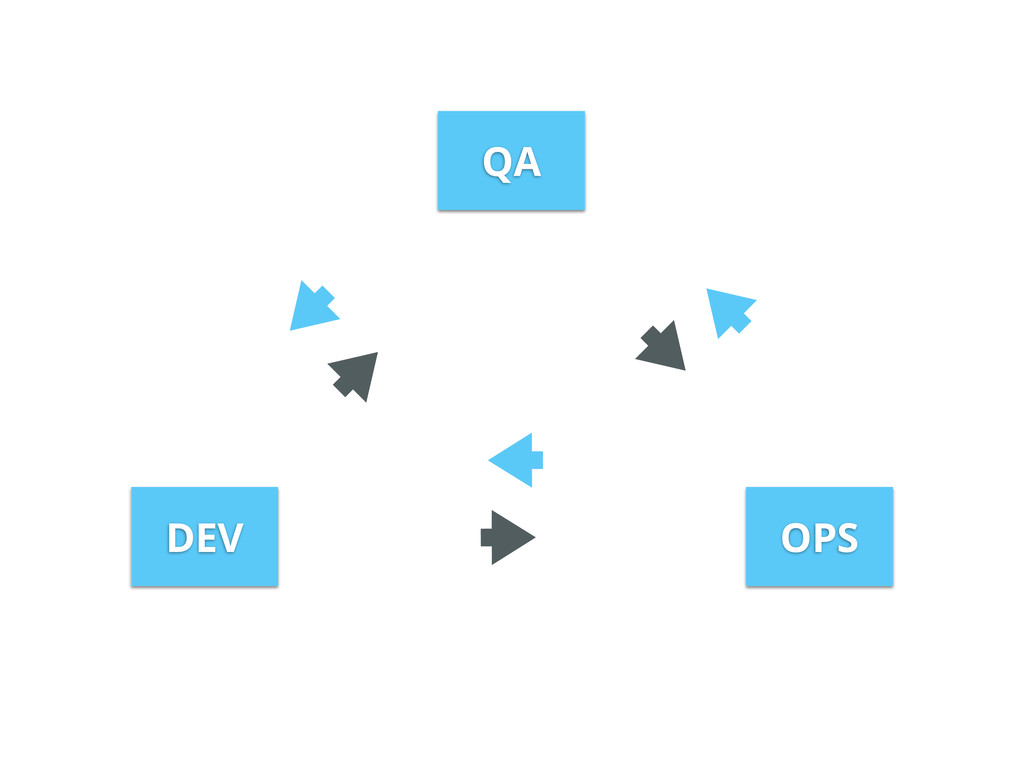

16. DEV QA OPS

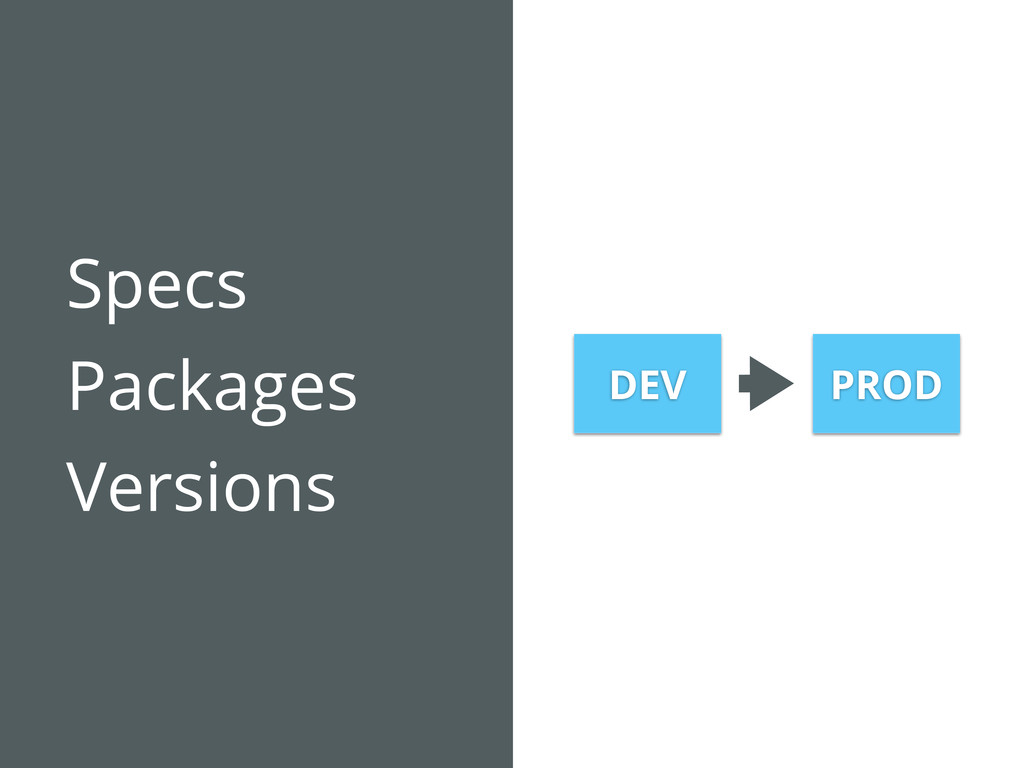

17. Specs Packages Versions DEV PROD

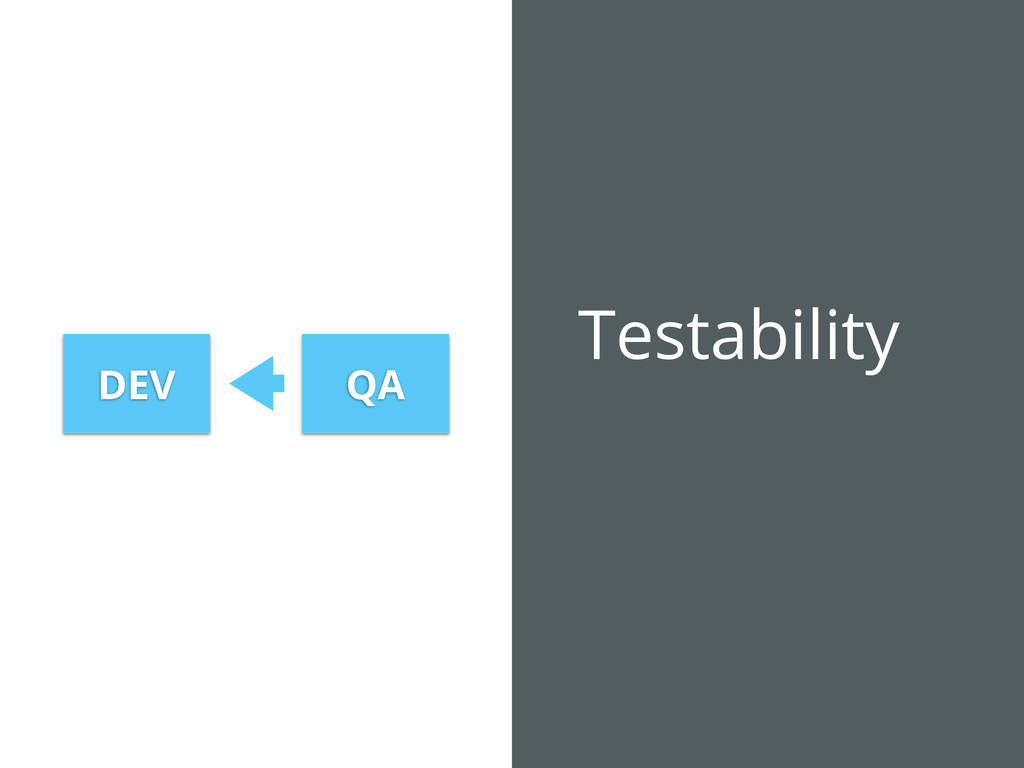

18. Testability DEV QA

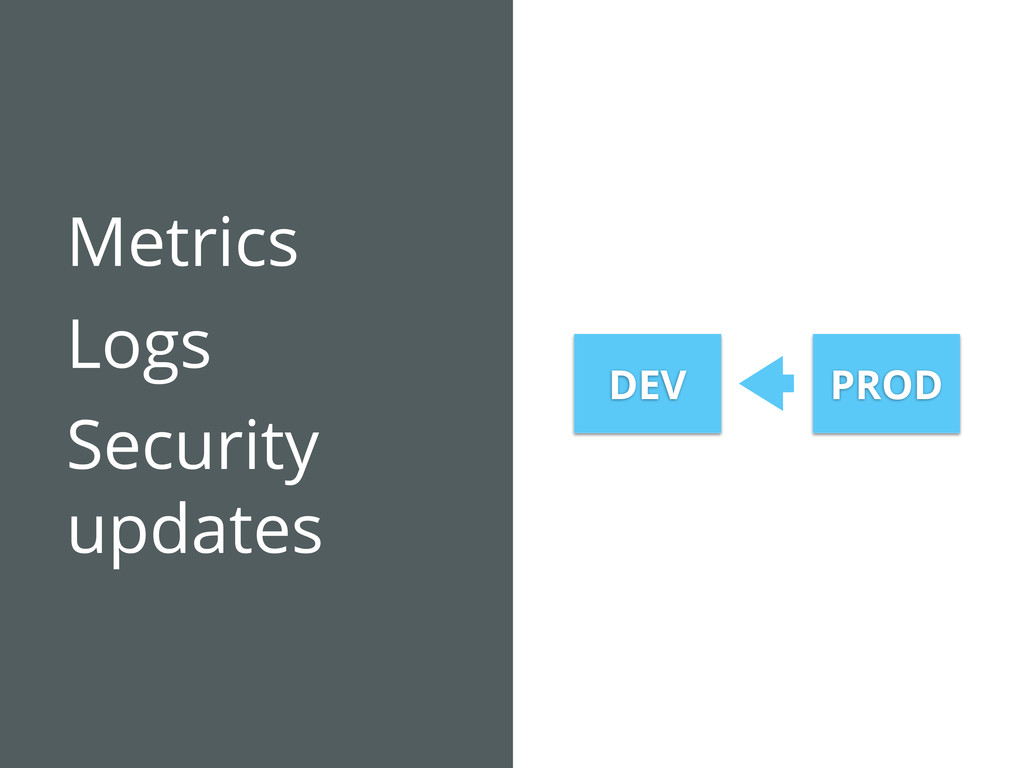

19. Metrics Logs Security updates DEV PROD
20. is not about the tools but how can I implement IT
21. Tools can enable change in behavior and eventually change culture Patrick Debois
22. everyone is intelligent enough every tool is cloud enabled every tool is DevOps(tm)
23. 3 key concepts
24. Continuous Delivery

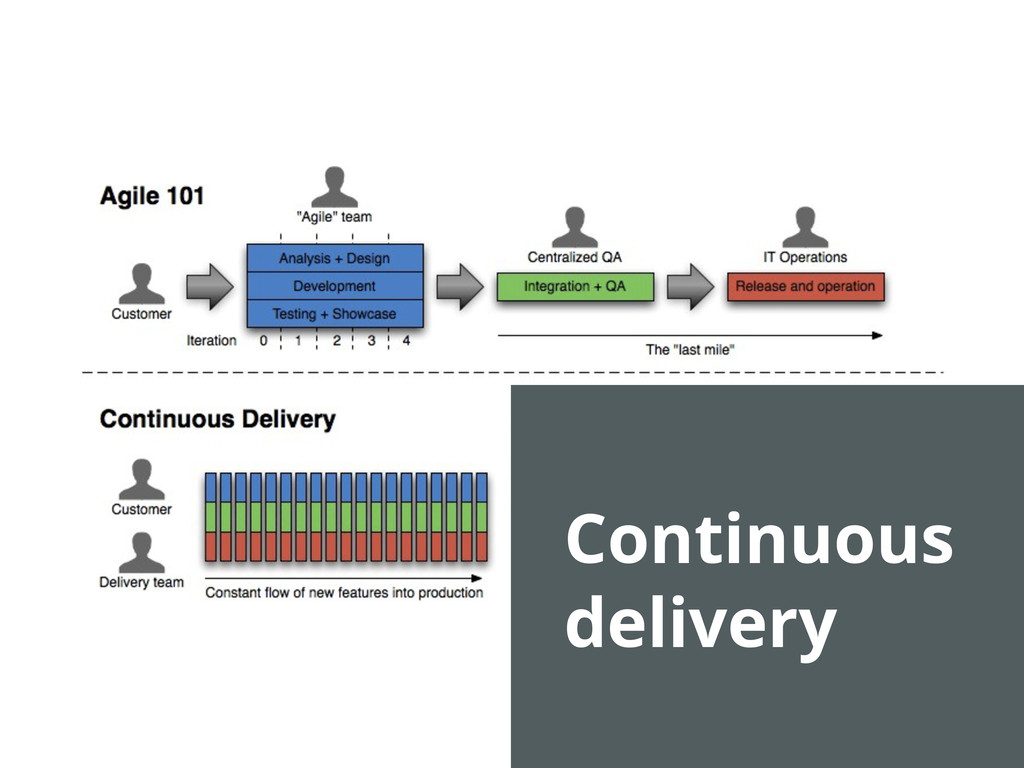

25. Continuous delivery
26. Infrastructure as Code it’s all been invented, now it’s standardized

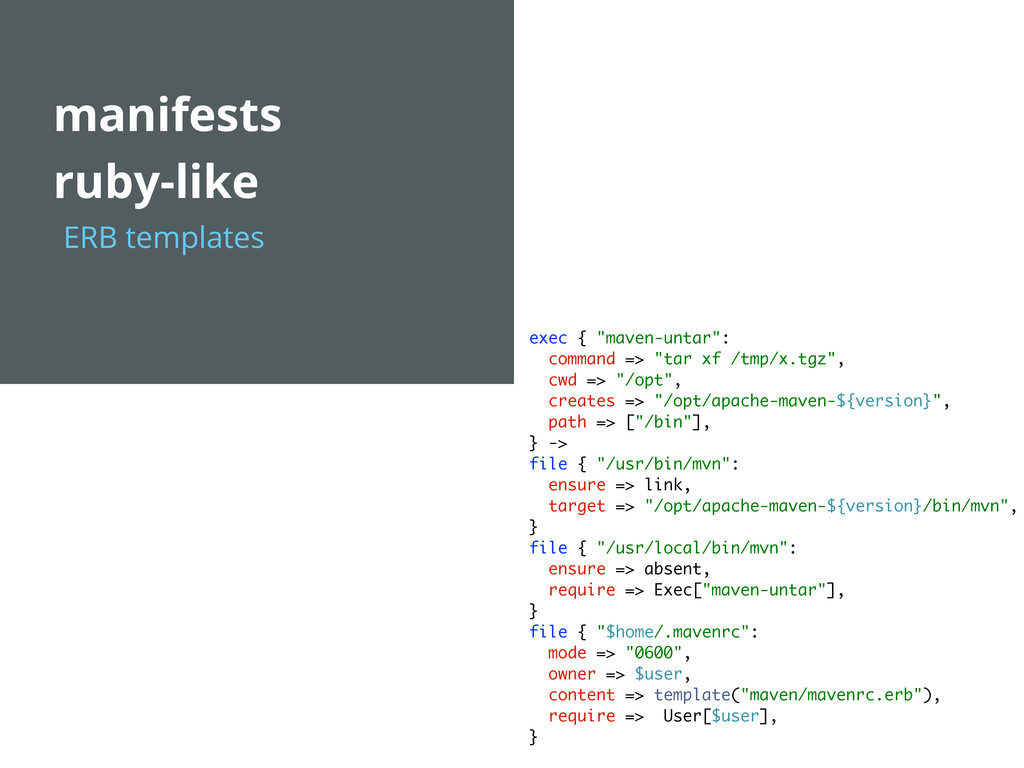

27. manifests ruby-like ERB templates exec { "maven-untar": command => "tar xf /tmp/x.tgz", cwd => "/opt", creates => "/opt/apache-maven-${version}", path => ["/bin"], } -> file { "/usr/bin/mvn": ensure => link, target => "/opt/apache-maven-${version}/bin/mvn", } file { "/usr/local/bin/mvn": ensure => absent, require => Exec["maven-untar"], } file { "$home/.mavenrc": mode => "0600", owner => $user, content => template("maven/mavenrc.erb"), require => User[$user], }

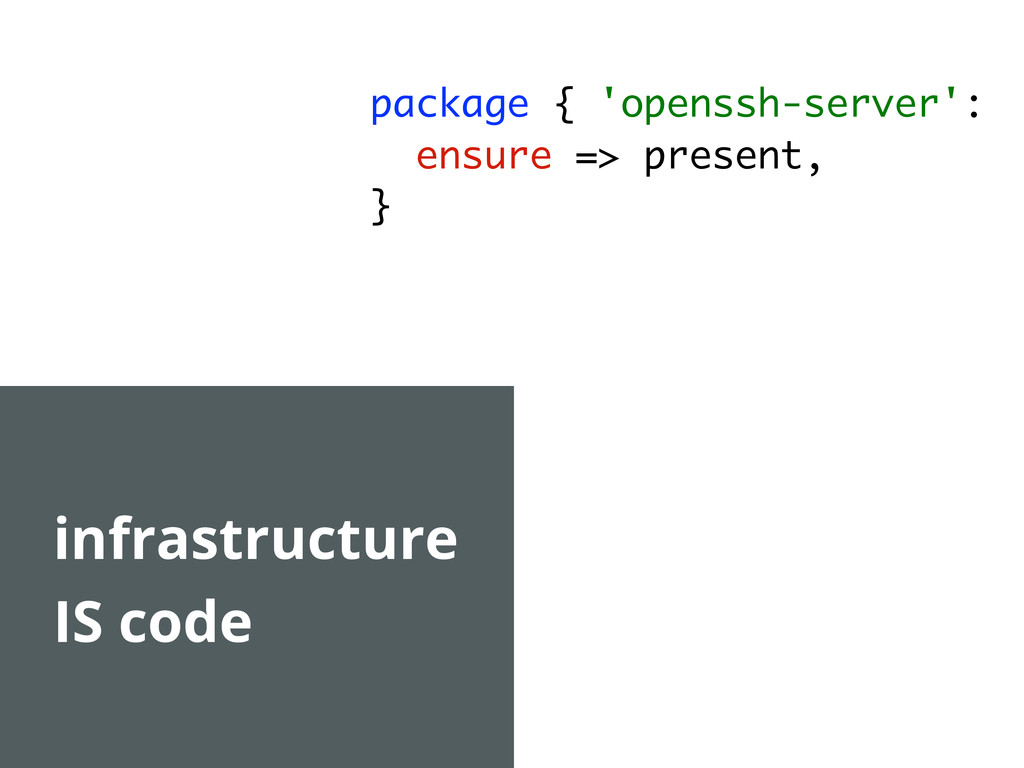

28. infrastructure IS code package { 'openssh-server': ensure => present, }

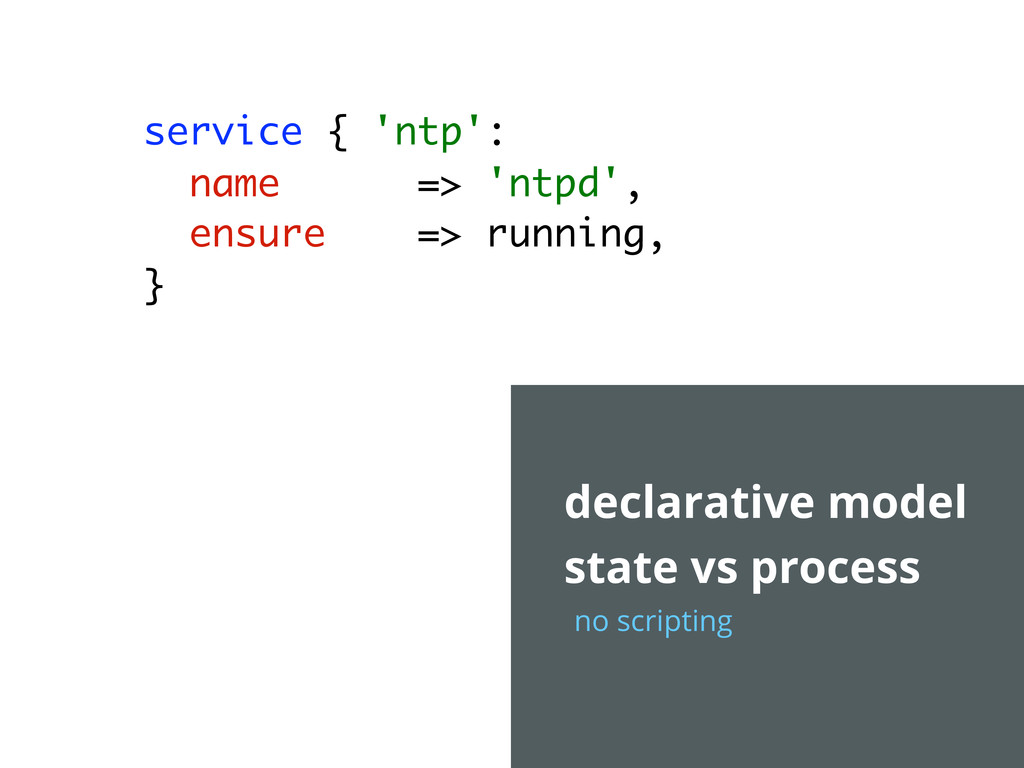

29. declarative model state vs process no scripting service { 'ntp': name => 'ntpd', ensure => running, }
30. Follow development best practices tagging branching releasing dev, QA, production new solutions new challenges
31. Self servicing
32. Infrastructure always available virtualization & cloud empower developers reduce time-to-market
33. devs buy-in With great power comes great responsibility
34. Vagrant empower developers dev-ops collaboration automation
35. Vagrant
36. Vagrant Virtual and cloud automation VirtualBox VMWare Fusion AWS Rackspace Easy Puppet and Chef provisioning Keep VM configuration for different projects Share boxes and configuration files across teams base box + configuration files

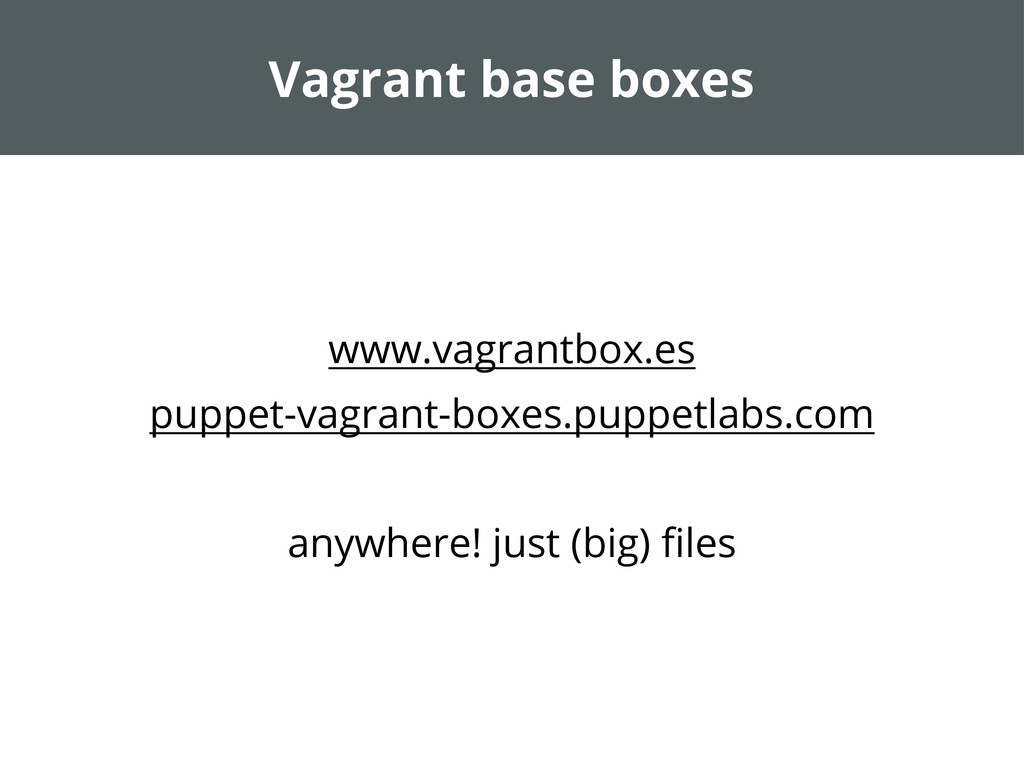

37. Vagrant base boxes www.vagrantbox.es puppet-vagrant-boxes.puppetlabs.com anywhere! just (big) files

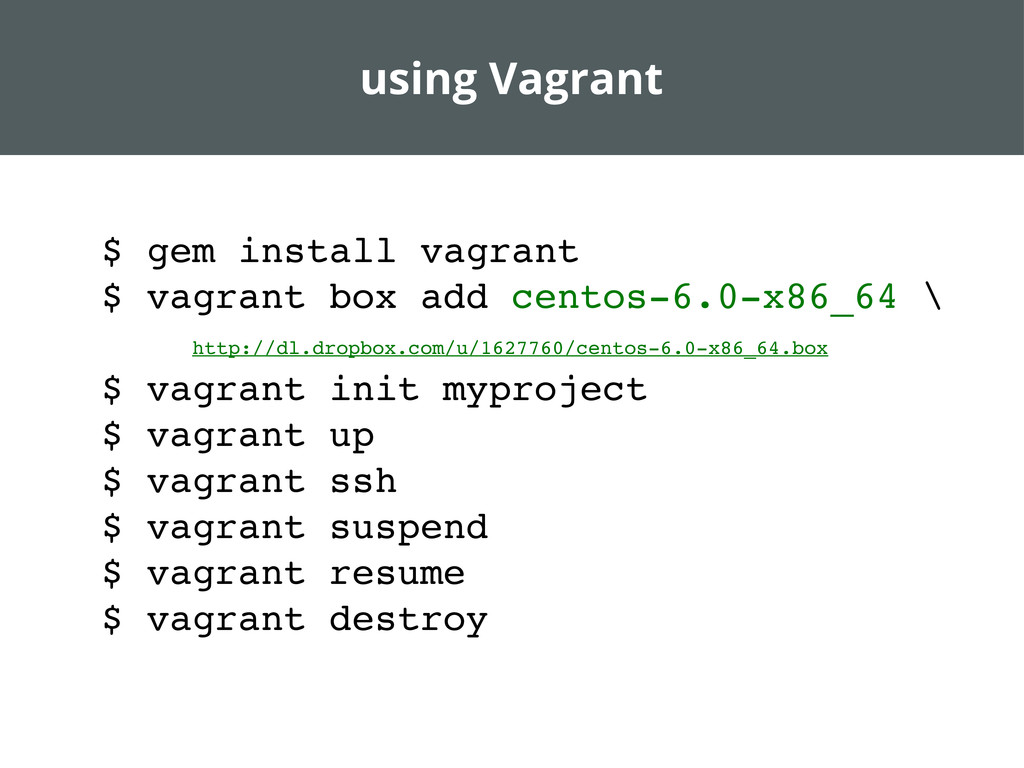

38. using Vagrant $ gem install vagrant $ vagrant box add centos-6.0-x86_64 \ http://dl.dropbox.com/u/1627760/centos-6.0-x86_64.box $ vagrant init myproject $ vagrant up $ vagrant ssh $ vagrant suspend $ vagrant resume $ vagrant destroy

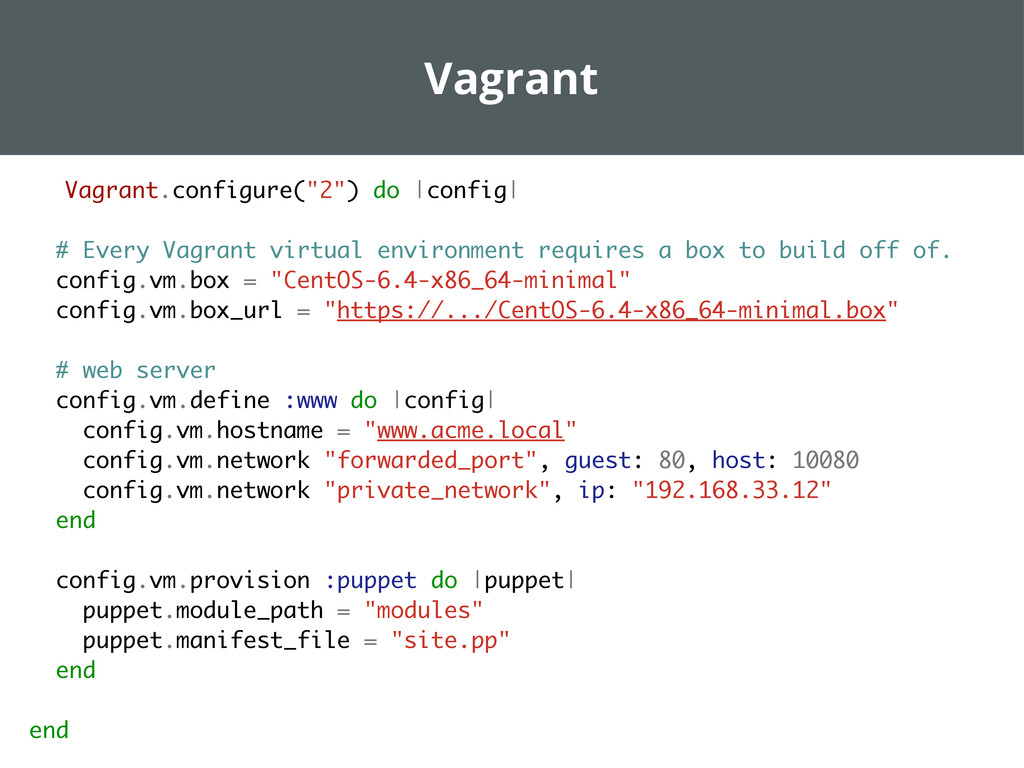

39. Vagrant.configure("2") do |config| # Every Vagrant virtual environment requires a box to build off of. config.vm.box = "CentOS-6.4-x86_64-minimal" config.vm.box_url = "https://.../CentOS-6.4-x86_64-minimal.box" # web server config.vm.define :www do |config| config.vm.hostname = "www.acme.local" config.vm.network "forwarded_port", guest: 80, host: 10080 config.vm.network "private_network", ip: "192.168.33.12" end config.vm.provision :puppet do |puppet| puppet.module_path = "modules" puppet.manifest_file = "site.pp" end end Vagrant

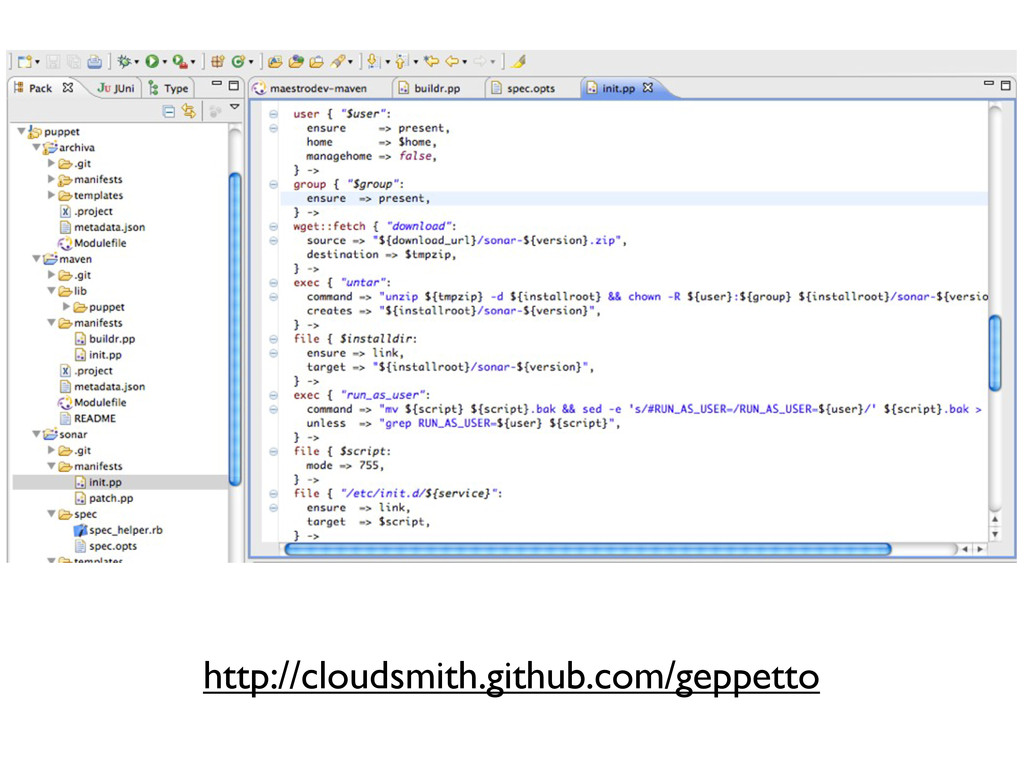

40. Geppetto
41. http://cloudsmith.github.com/geppetto
42. Maven and Puppet

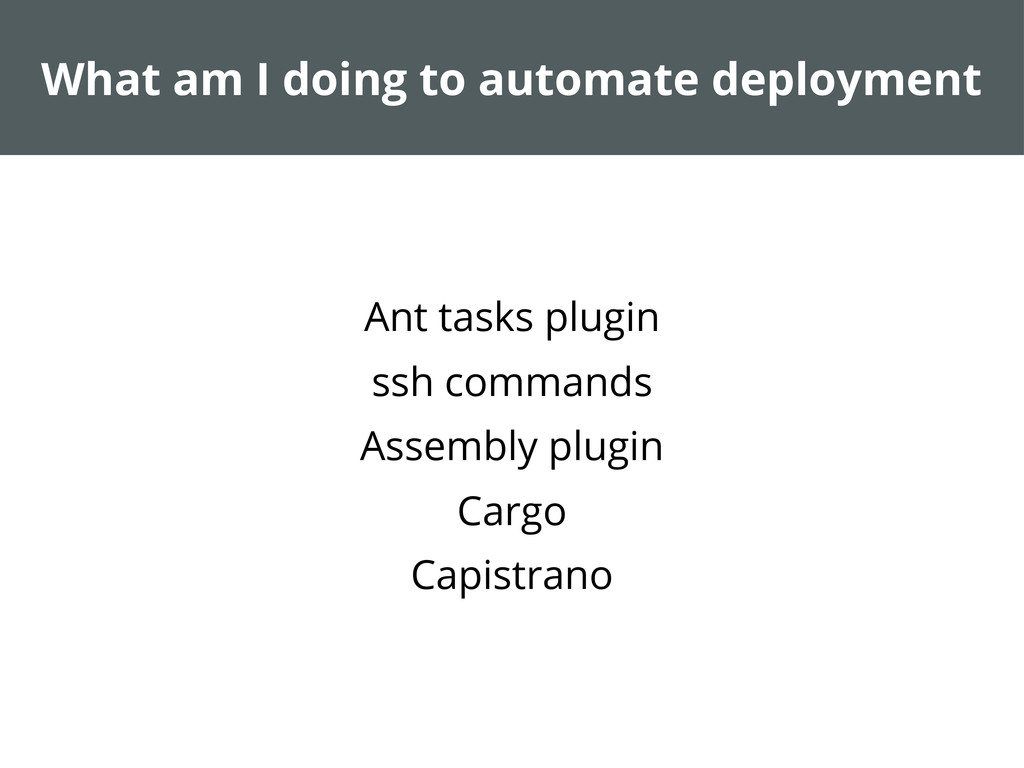

43. What am I doing to automate deployment Ant tasks plugin ssh commands Assembly plugin Cargo Capistrano

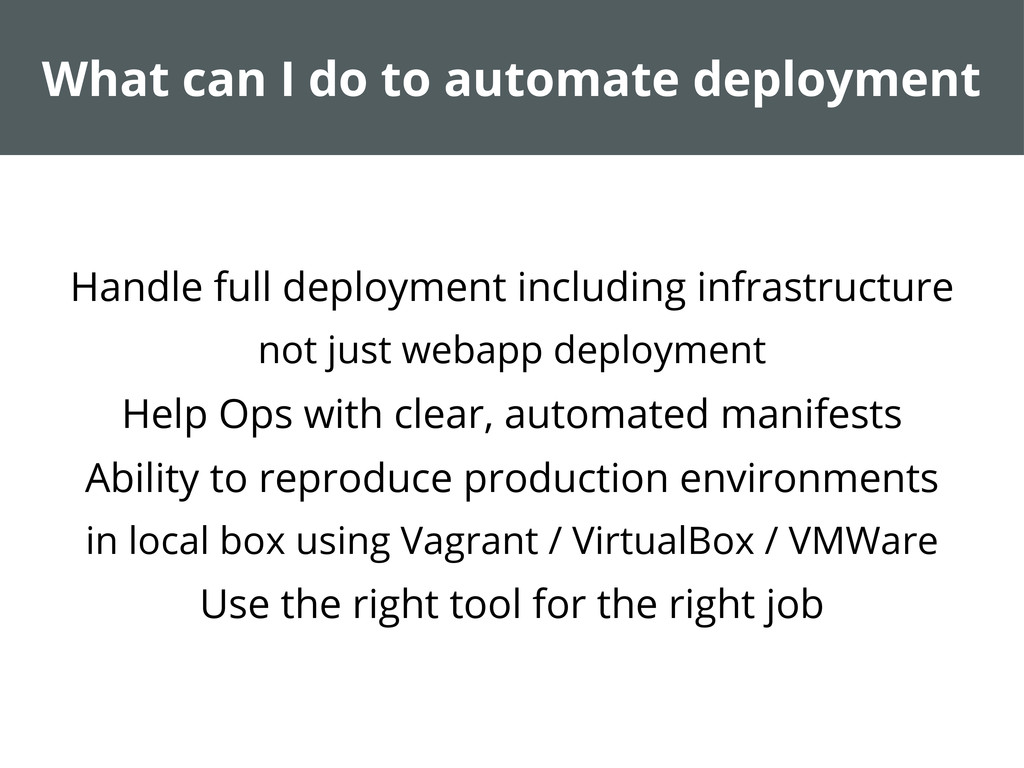

44. What can I do to automate deployment Handle full deployment including infrastructure not just webapp deployment Help Ops with clear, automated manifests Ability to reproduce production environments in local box using Vagrant / VirtualBox / VMWare Use the right tool for the right job

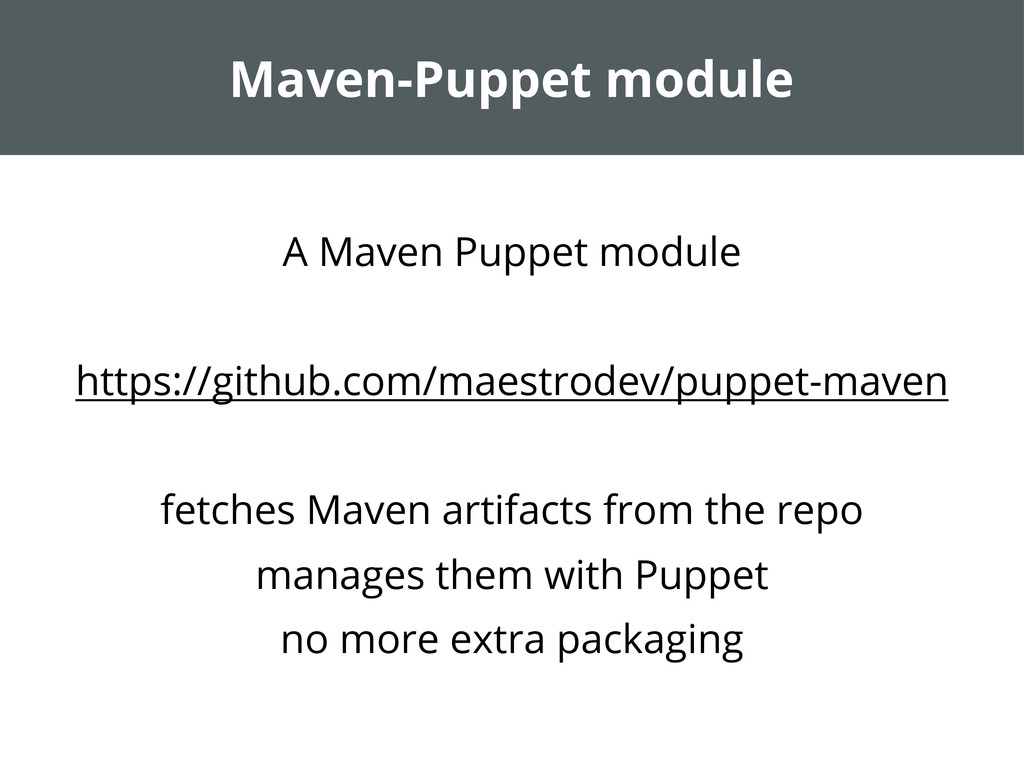

45. Maven-Puppet module A Maven Puppet module https://github.com/maestrodev/puppet-maven fetches Maven artifacts from the repo manages them with Puppet no more extra packaging

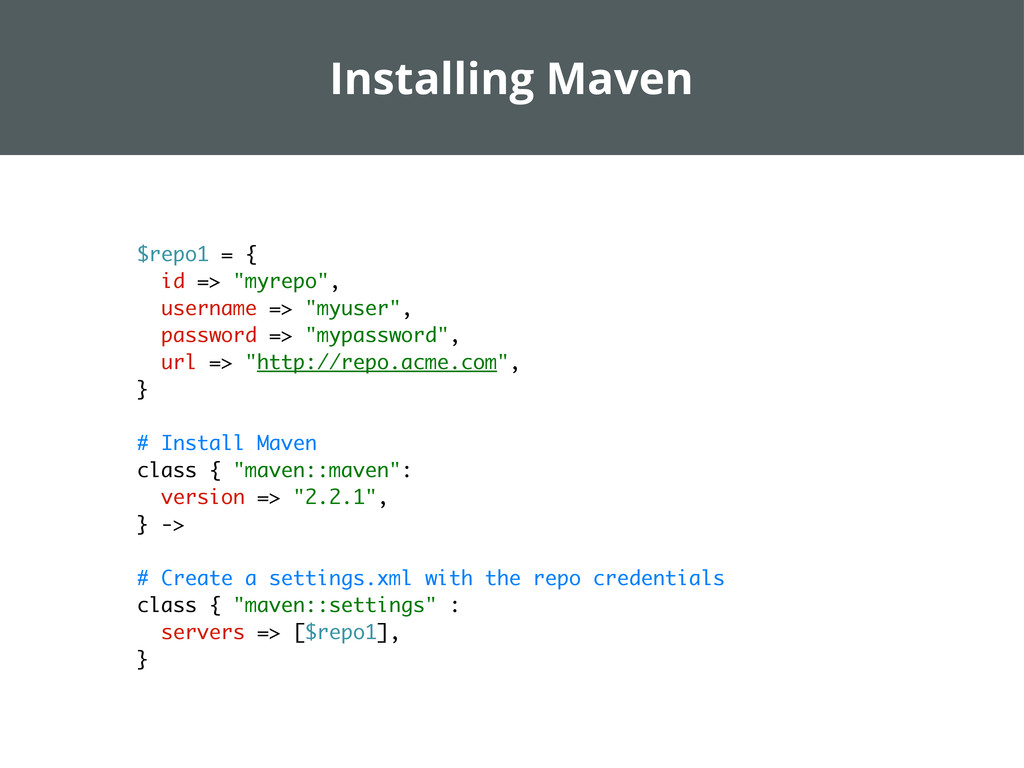

46. Installing Maven $repo1 = { id => "myrepo", username => "myuser", password => "mypassword", url => "http://repo.acme.com", } # Install Maven class { "maven::maven": version => "2.2.1", } -> # Create a settings.xml with the repo credentials class { "maven::settings" : servers => [$repo1], }

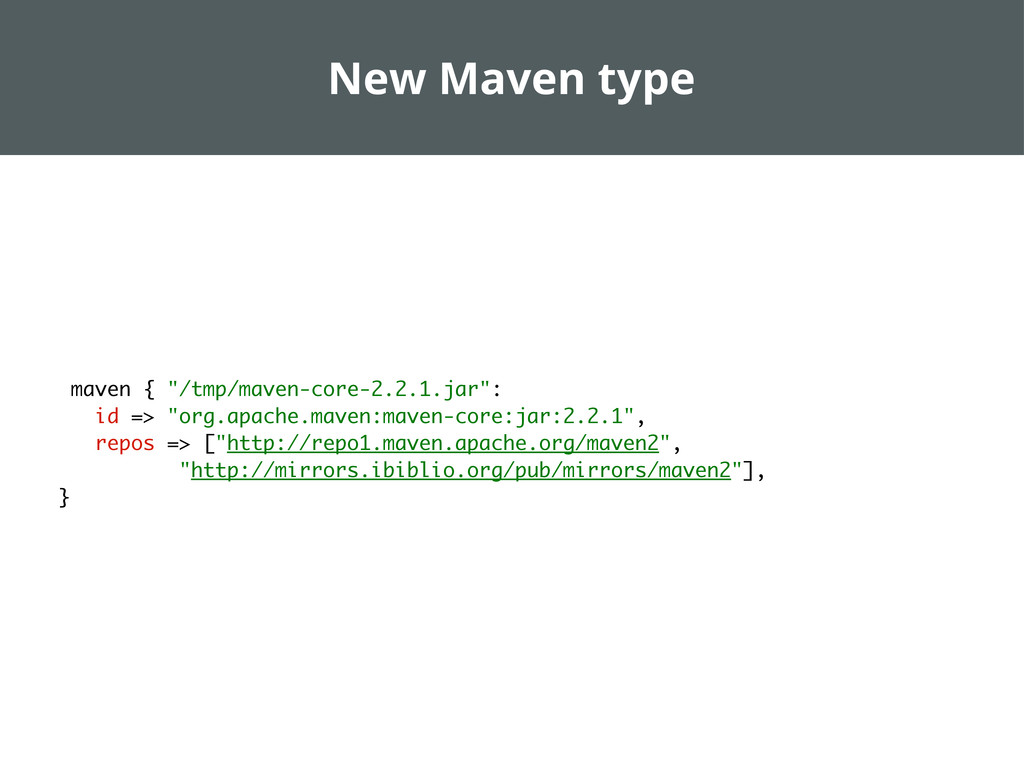

47. New Maven type maven { "/tmp/maven-core-2.2.1.jar": id => "org.apache.maven:maven-core:jar:2.2.1", repos => ["http://repo1.maven.apache.org/maven2", "http://mirrors.ibiblio.org/pub/mirrors/maven2"], }

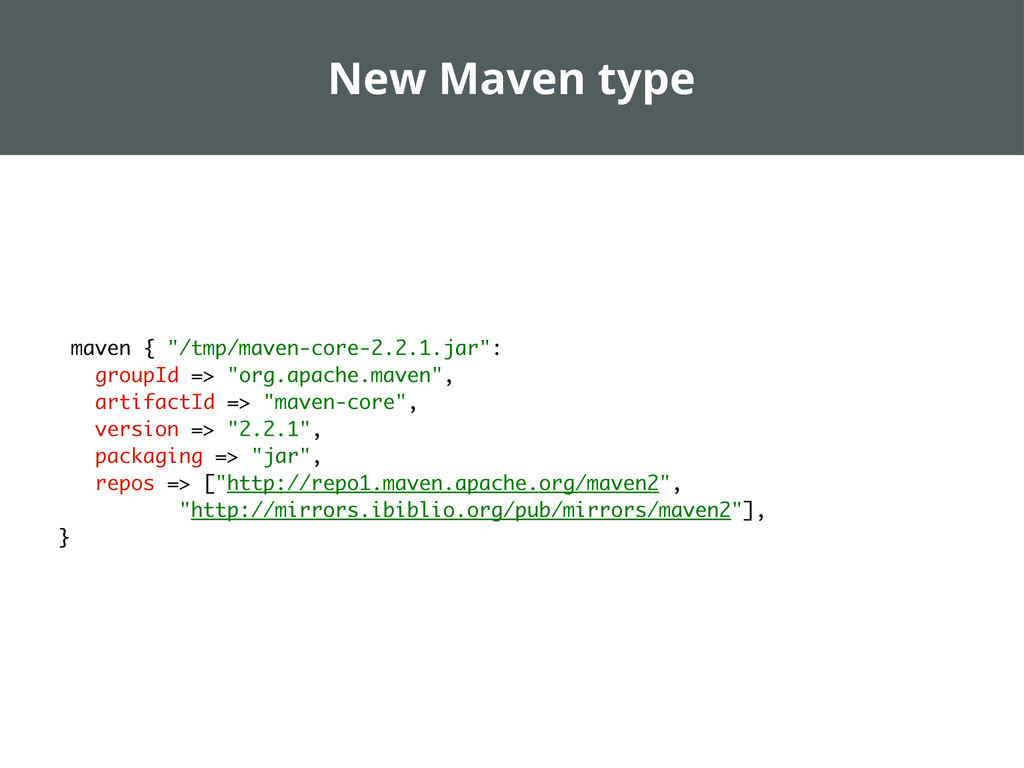

48. New Maven type maven { "/tmp/maven-core-2.2.1.jar": groupId => "org.apache.maven", artifactId => "maven-core", version => "2.2.1", packaging => "jar", repos => ["http://repo1.maven.apache.org/maven2", "http://mirrors.ibiblio.org/pub/mirrors/maven2"], }
49. Examples

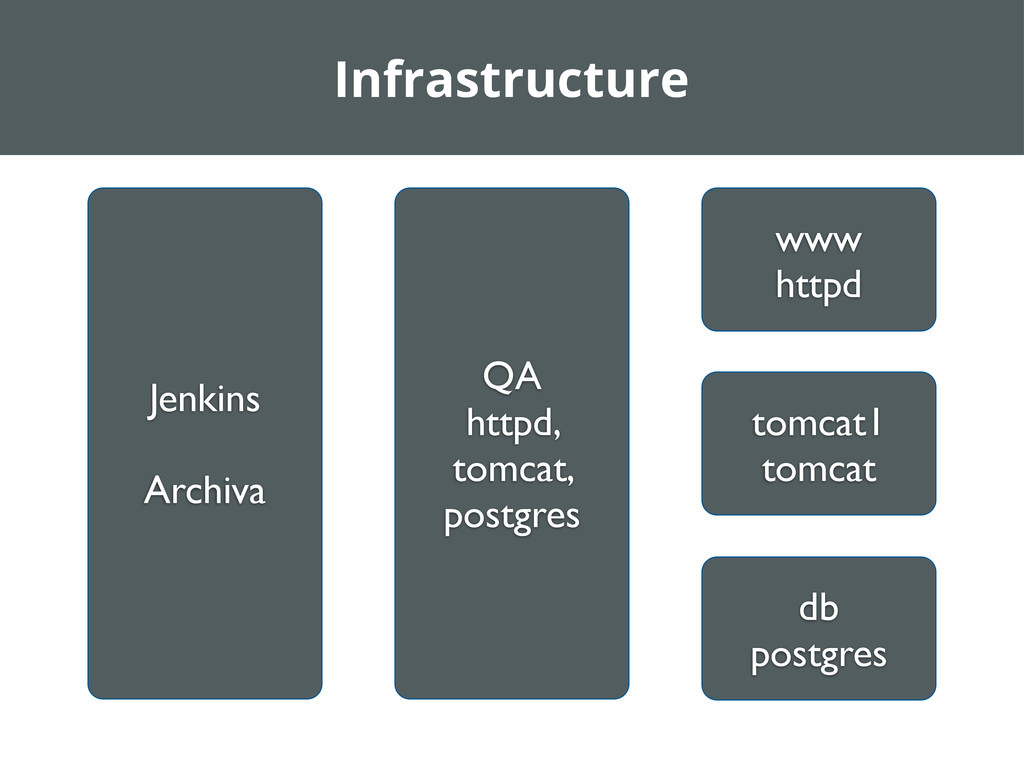

50. Infrastructure Jenkins Archiva www httpd QA httpd, tomcat, postgres tomcat1 tomcat db postgres

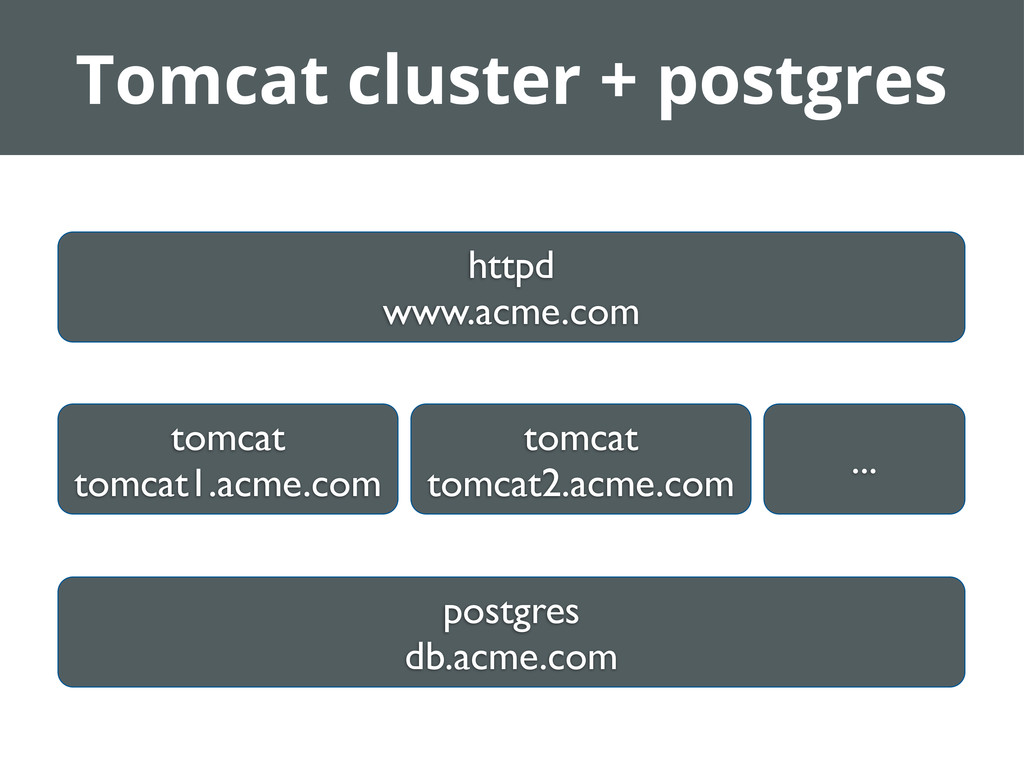

51. Tomcat cluster + postgres postgres db.acme.com tomcat tomcat1.acme.com httpd www.acme.com tomcat tomcat2.acme.com ...

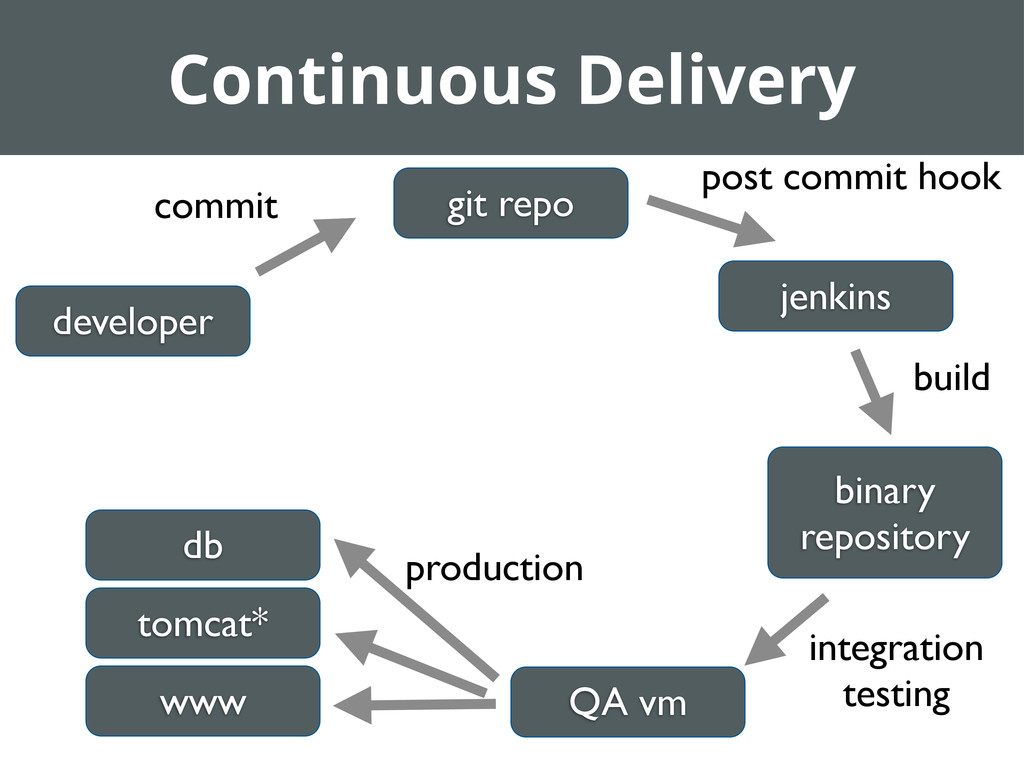

52. Continuous Delivery developer commit git repo jenkins binary repository QA vm db tomcat* www post commit hook build integration testing production

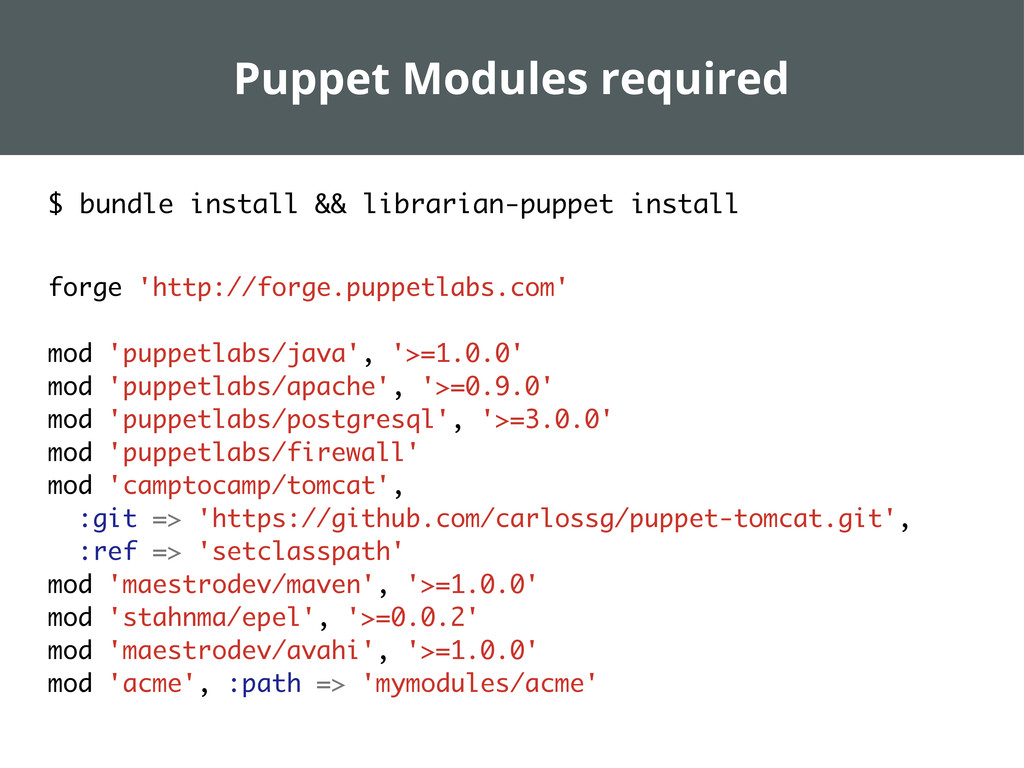

53. Puppet Modules required $ bundle install && librarian-puppet install forge 'http://forge.puppetlabs.com' mod 'puppetlabs/java', '>=1.0.0' mod 'puppetlabs/apache', '>=0.9.0' mod 'puppetlabs/postgresql', '>=3.0.0' mod 'puppetlabs/firewall' mod 'camptocamp/tomcat', :git => 'https://github.com/carlossg/puppet-tomcat.git', :ref => 'setclasspath' mod 'maestrodev/maven', '>=1.0.0' mod 'stahnma/epel', '>=0.0.2' mod 'maestrodev/avahi', '>=1.0.0' mod 'acme', :path => 'mymodules/acme'

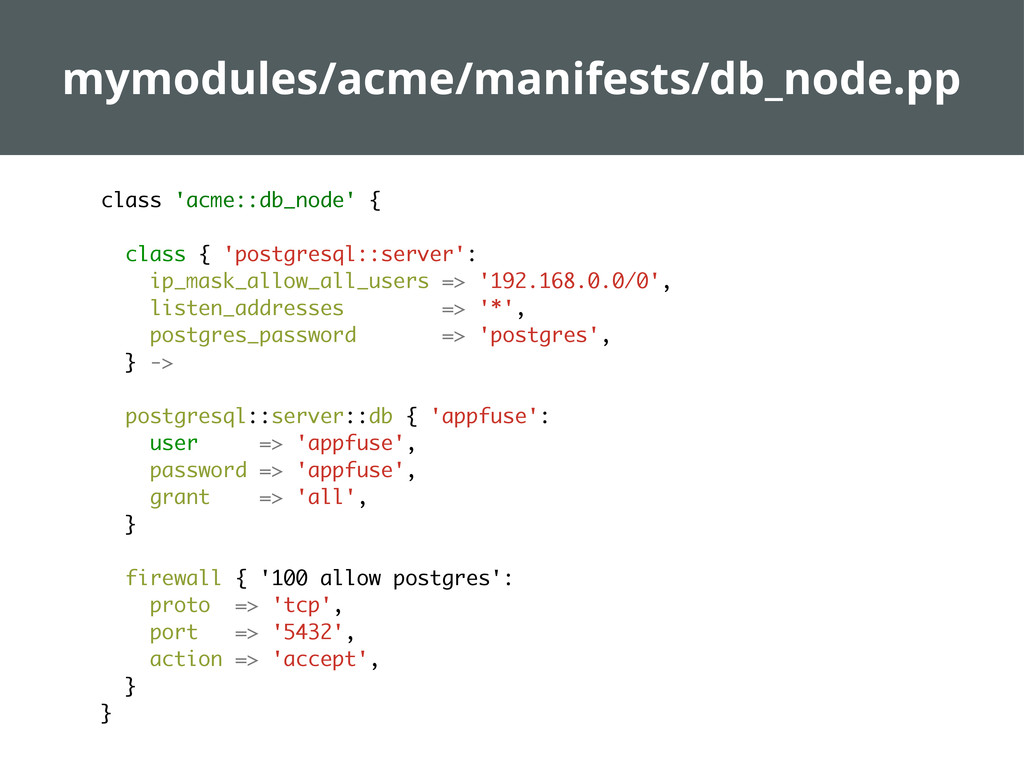

54. mymodules/acme/manifests/db_node.pp class 'acme::db_node' { class { 'postgresql::server': ip_mask_allow_all_users => '192.168.0.0/0', listen_addresses => '*', postgres_password => 'postgres', } -> postgresql::server::db { 'appfuse': user => 'appfuse', password => 'appfuse', grant => 'all', } firewall { '100 allow postgres': proto => 'tcp', port => '5432', action => 'accept', } }

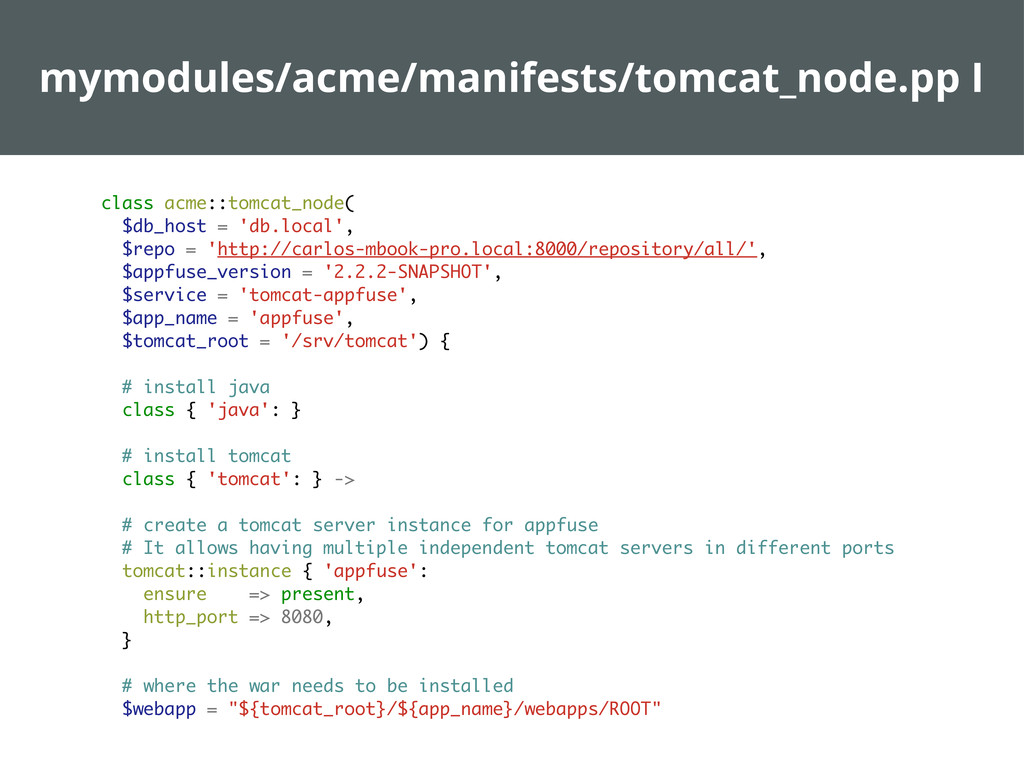

55. mymodules/acme/manifests/tomcat_node.pp I class acme::tomcat_node( $db_host = 'db.local', $repo = 'http://carlos-mbook-pro.local:8000/repository/all/', $appfuse_version = '2.2.2-SNAPSHOT', $service = 'tomcat-appfuse', $app_name = 'appfuse', $tomcat_root = '/srv/tomcat') { # install java class { 'java': } # install tomcat class { 'tomcat': } -> # create a tomcat server instance for appfuse # It allows having multiple independent tomcat servers in different ports tomcat::instance { 'appfuse': ensure => present, http_port => 8080, } # where the war needs to be installed $webapp = "${tomcat_root}/${app_name}/webapps/ROOT"

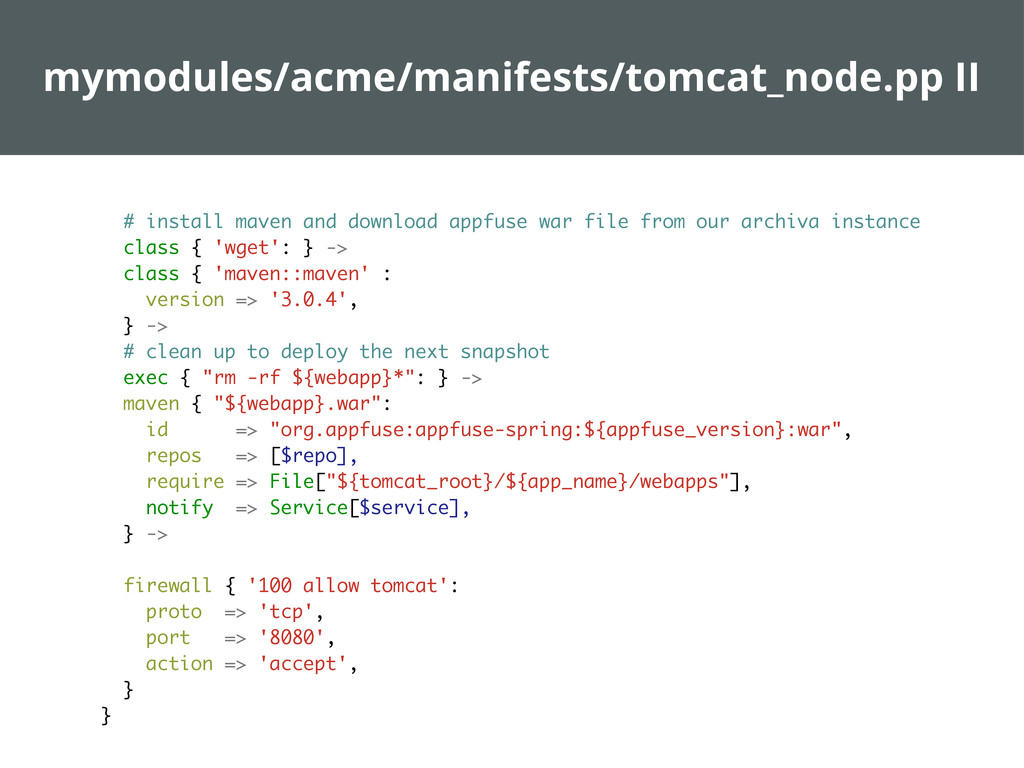

56. mymodules/acme/manifests/tomcat_node.pp II # install maven and download appfuse war file from our archiva instance class { 'wget': } -> class { 'maven::maven' : version => '3.0.4', } -> # clean up to deploy the next snapshot exec { "rm -rf ${webapp}*": } -> maven { "${webapp}.war": id => "org.appfuse:appfuse-spring:${appfuse_version}:war", repos => [$repo], require => File["${tomcat_root}/${app_name}/webapps"], notify => Service[$service], } -> firewall { '100 allow tomcat': proto => 'tcp', port => '8080', action => 'accept', } }

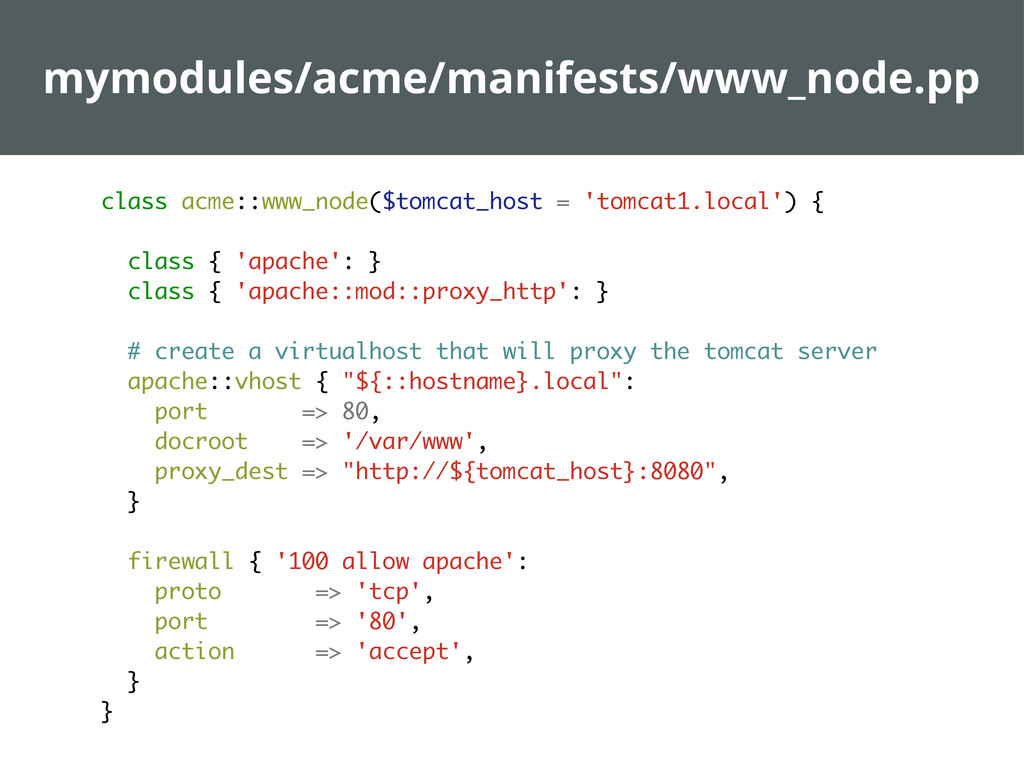

57. mymodules/acme/manifests/www_node.pp class acme::www_node($tomcat_host = 'tomcat1.local') { class { 'apache': } class { 'apache::mod::proxy_http': } # create a virtualhost that will proxy the tomcat server apache::vhost { "${::hostname}.local": port => 80, docroot => '/var/www', proxy_dest => "http://${tomcat_host}:8080", } firewall { '100 allow apache': proto => 'tcp', port => '80', action => 'accept', } }

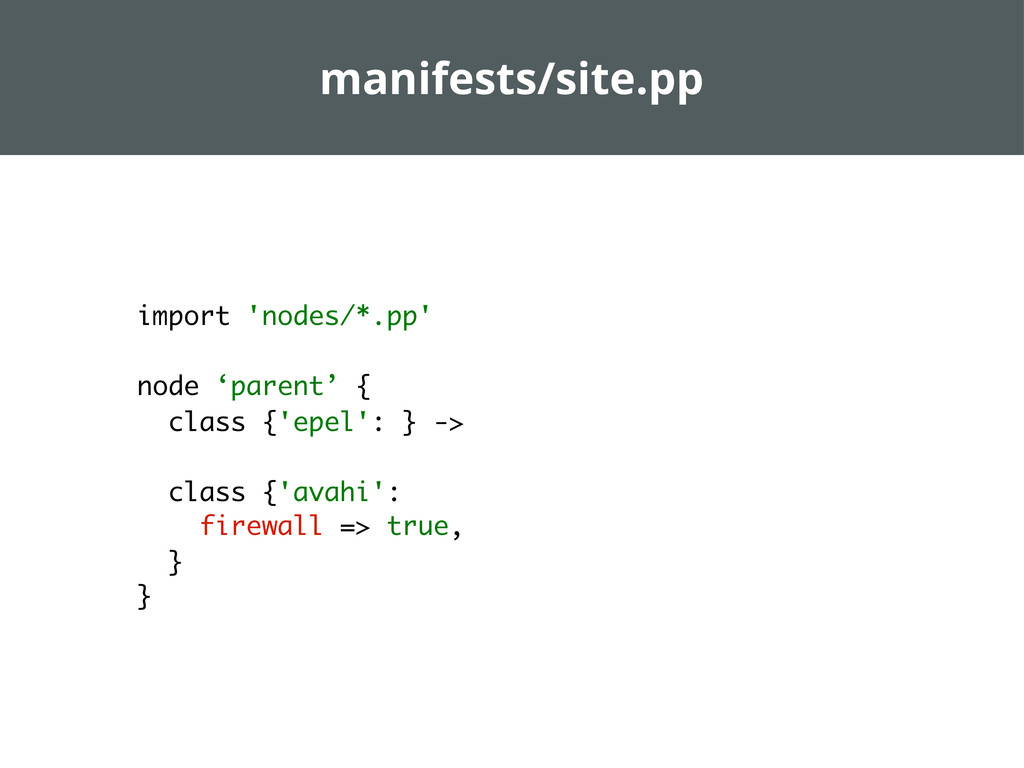

58. manifests/site.pp import 'nodes/*.pp' node ‘parent’ { class {'epel': } -> class {'avahi': firewall => true, } }

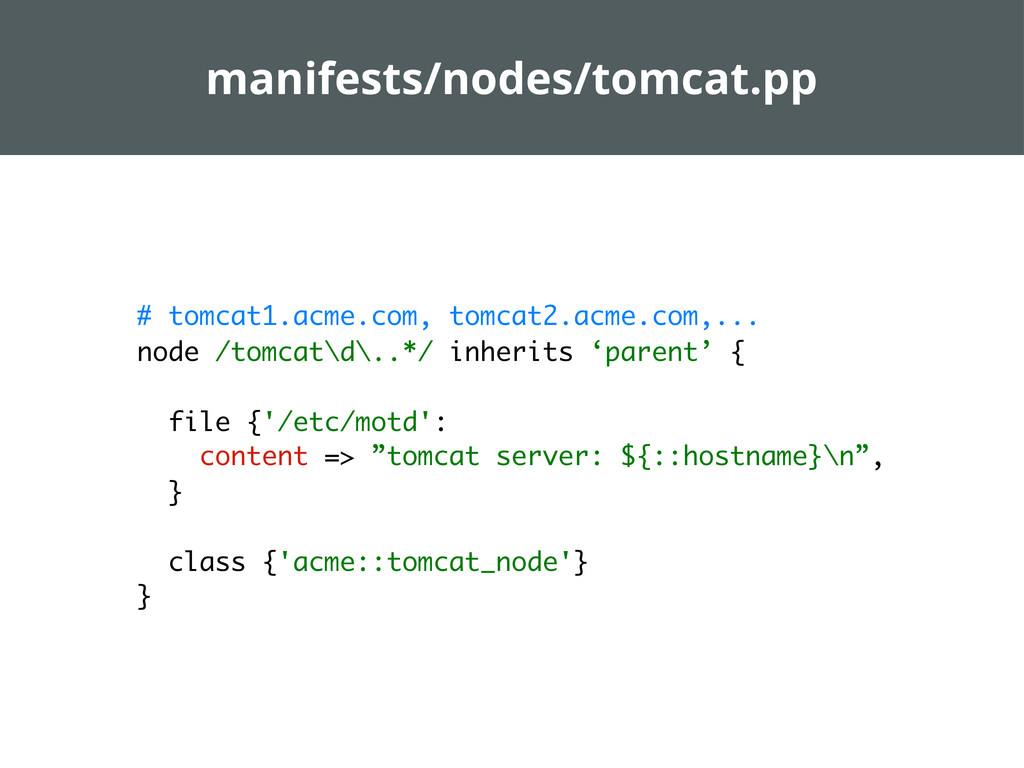

59. manifests/nodes/tomcat.pp # tomcat1.acme.com, tomcat2.acme.com,... node /tomcat\d\..*/ inherits ‘parent’ { file {'/etc/motd': content => ”tomcat server: ${::hostname}\n”, } class {'acme::tomcat_node'} }

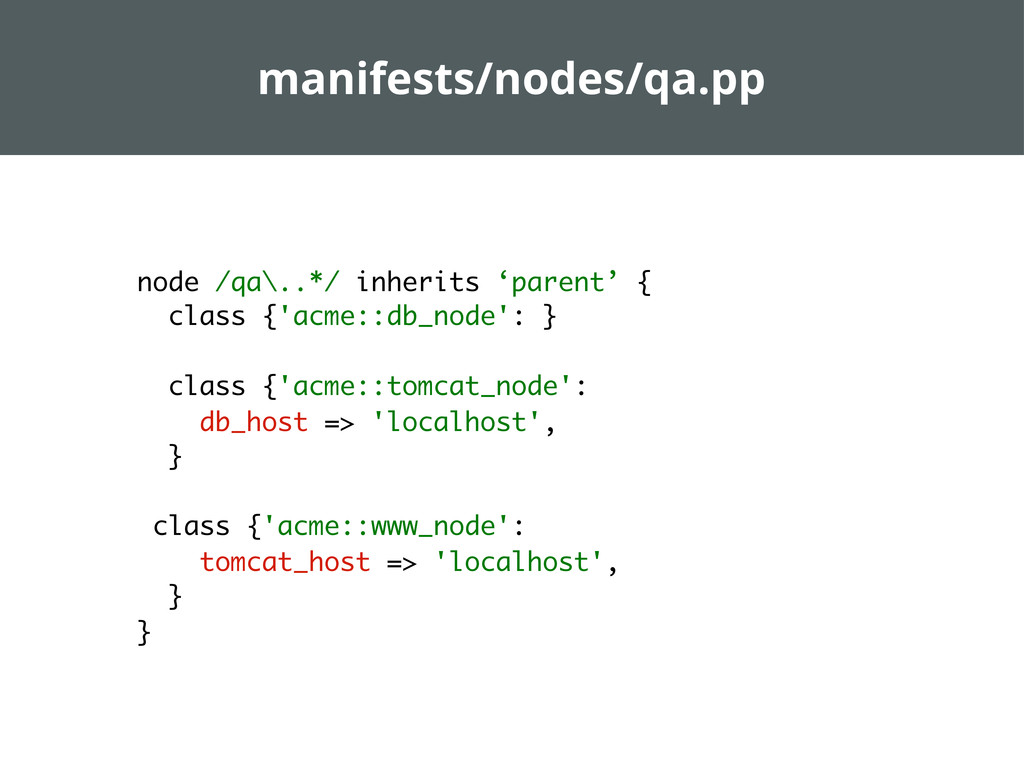

60. manifests/nodes/qa.pp node /qa\..*/ inherits ‘parent’ { class {'acme::db_node': } class {'acme::tomcat_node': db_host => 'localhost', } class {'acme::www_node': tomcat_host => 'localhost', } }
61. Infrastructure unit testing
62. rspec-puppet Unit testing your puppet manifests Ensuring packages, config files, services,...

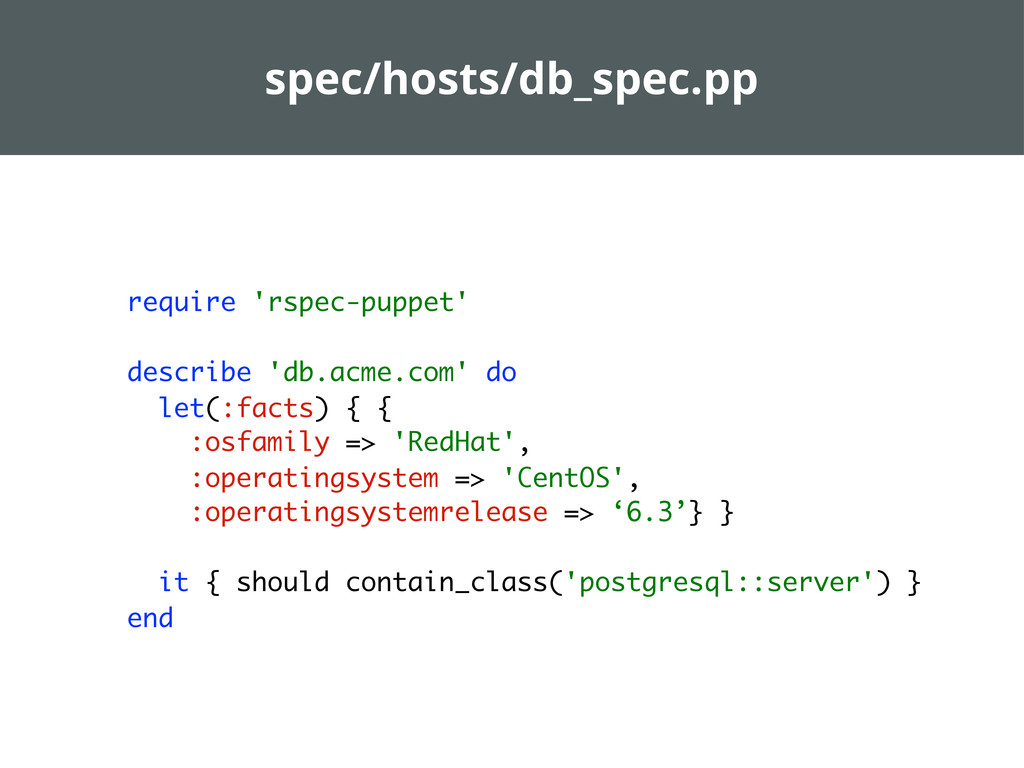

63. spec/hosts/db_spec.pp require 'rspec-puppet' describe 'db.acme.com' do let(:facts) { { :osfamily => 'RedHat', :operatingsystem => 'CentOS', :operatingsystemrelease => ‘6.3’} } it { should contain_class('postgresql::server') } end

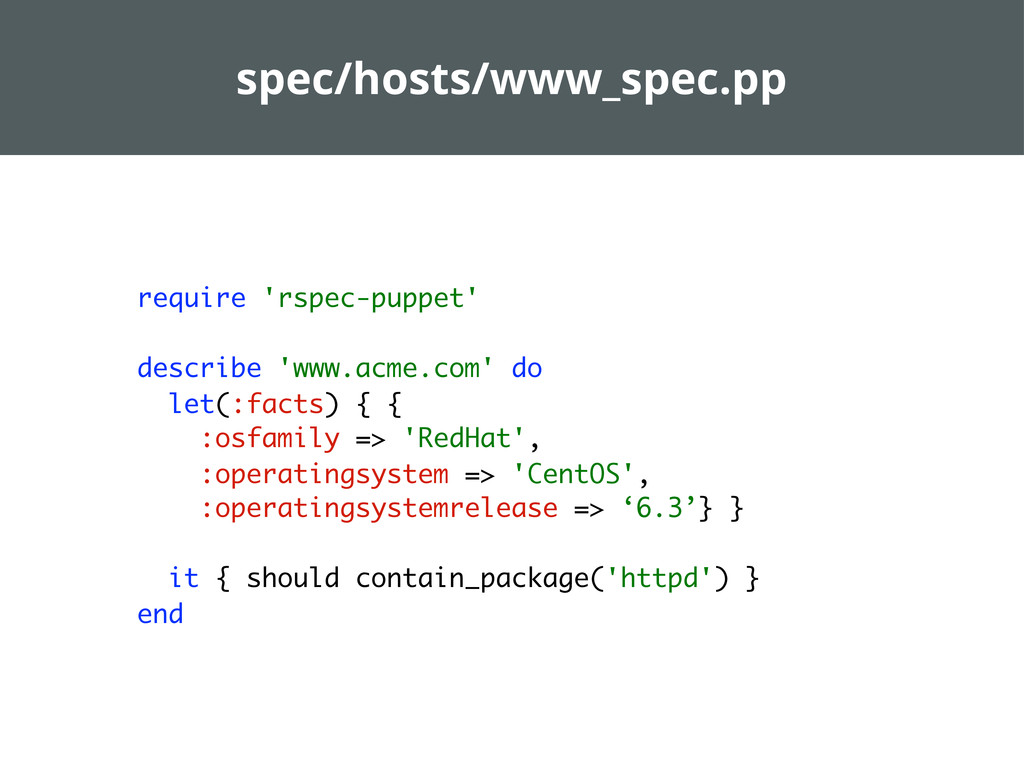

64. spec/hosts/www_spec.pp require 'rspec-puppet' describe 'www.acme.com' do let(:facts) { { :osfamily => 'RedHat', :operatingsystem => 'CentOS', :operatingsystemrelease => ‘6.3’} } it { should contain_package('httpd') } end
65. Example code and slides Available at http://slideshare.csanchez.org http://github.csanchez.org http://blog.csanchez.org
66. csanchez@maestrodev.com carlos@apache.org @csanchez Danke! http://csanchez.org http://maestrodev.com
67. Photo Credits Brick wall - Luis Argerich http://www.flickr.com/photos/lrargerich/4353397797/ Agile vs. Iterative flow - Christopher Little http://en.wikipedia.org/wiki/File:Agile-vs-iterative-flow.jpg DevOps - Rajiv.Pant http://en.wikipedia.org/wiki/File:Devops.png Pimientos de Padron - Howard Walfish http://www.flickr.com/photos/h-bomb/4868400647/ Compiling - XKCD http://xkcd.com/303/ Printer in 1568 - Meggs, Philip B http://en.wikipedia.org/wiki/File:Printer_in_1568-ce.png Relativity - M. C. Escher http://en.wikipedia.org/wiki/File:Escher%27s_Relativity.jpg Teacher and class - Herald Post http://www.flickr.com/photos/heraldpost/5169295832/
