Proofs without Words

Dana Ernst
October 01, 2013

Proofs without Words

In this FAMUS talk, we'll explore several cool mathematical theorems from a visual perspective.

This talk was given at the Northern Arizona University Friday Afternoon Mathematics Undergraduate Seminar (FAMUS) on Friday, September 20, 2013.

Dana Ernst

October 01, 2013
Tweet

More Decks by Dana Ernst

Other Decks in Education

Transcript

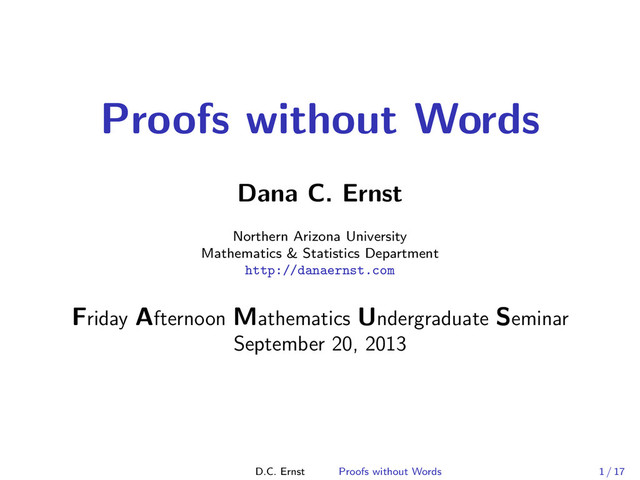

  1. Proofs without Words
    Dana C. Ernst
    Northern Arizona University
    Mathematics & Statistics Department
    http://danaernst.com
    Friday Afternoon Mathematics Undergraduate Seminar
    September 20, 2013
    D.C. Ernst Proofs without Words 1 / 17

    View Slide

  2. Warning!
    Pictures can be misleading!
    D.C. Ernst Proofs without Words 2 / 17

    View Slide

  3. Warning!
    Pictures can be misleading!
    D.C. Ernst Proofs without Words 2 / 17

    View Slide

  4. Warning!
    Pictures can be misleading!
    Theorem?
    Hmmm, it looks like 32.5 = 31.5.
    D.C. Ernst Proofs without Words 2 / 17

    View Slide

  5. D.C. Ernst Proofs without Words 3 / 17

    View Slide

  6. Theorem
    For all n ∈ N, 1 + 2 + · · · + n =
    n(n + 1)
    2
    .
    D.C. Ernst Proofs without Words 3 / 17

    View Slide

  7. Theorem
    For all n ∈ N, 1 + 2 + · · · + n =
    n(n + 1)
    2
    .
    Note
    The numbers Tn
    := 1 + 2 + · · · + n are called triangular numbers.
    D.C. Ernst Proofs without Words 3 / 17

    View Slide

  8. D.C. Ernst Proofs without Words 4 / 17

    View Slide

  9. Theorem
    For all n ∈ N, 1 + 2 + · · · + n = C(n + 1, 2) :=
    (n + 1)!
    2!(n − 1)!
    .
    D.C. Ernst Proofs without Words 4 / 17

    View Slide

  10. Theorem
    For all n ∈ N, 1 + 2 + · · · + n = C(n + 1, 2) :=
    (n + 1)!
    2!(n − 1)!
    .
    Corollary
    For all n ∈ N, C(n + 1, 2) =
    n(n + 1)
    2
    .
    D.C. Ernst Proofs without Words 4 / 17

    View Slide

  11. D.C. Ernst Proofs without Words 5 / 17

    View Slide

  12. Theorem
    For all n ∈ N, 1 + 3 + 5 + · · · + (2n − 1) = n2.
    D.C. Ernst Proofs without Words 5 / 17

    View Slide

  13. D.C. Ernst Proofs without Words 6 / 17

    View Slide

  14. Theorem
    For all n ∈ N, 1 + 3 + 5 + · · · + (2n − 1) = n2.
    D.C. Ernst Proofs without Words 6 / 17

    View Slide

  15. Theorem
    For all n ∈ N, 1 + 3 + 5 + · · · + (2n − 1) = n2.
    Note
    This the same as the previous theorem, but with a different visual
    proof.
    D.C. Ernst Proofs without Words 6 / 17

    View Slide

  16. D.C. Ernst Proofs without Words 7 / 17

    View Slide

  17. Theorem
    Let Pn
    be the nth pentagonal number. Then Pn
    = 3Tn−1
    + n.
    D.C. Ernst Proofs without Words 7 / 17

    View Slide

  18. Theorem
    Let Pn
    be the nth pentagonal number. Then Pn
    = 3Tn−1
    + n.
    Note
    The nth pentagonal number is given by Pn
    :=
    3n2 − n
    2
    .
    D.C. Ernst Proofs without Words 7 / 17

    View Slide

  19. D.C. Ernst Proofs without Words 8 / 17

    View Slide

  20. Theorem (Nicomachus’ Theorem)
    For all n ∈ N, 13 + 23 + · · · + n3 = (1 + 2 + · · · + n)2.
    D.C. Ernst Proofs without Words 8 / 17

    View Slide

  21. Theorem (Nicomachus’ Theorem)
    For all n ∈ N, 13 + 23 + · · · + n3 = (1 + 2 + · · · + n)2.
    Corollary
    For all n ∈ N, 13 + 23 + · · · + n3 =
    n(n + 1)
    2
    2
    .
    D.C. Ernst Proofs without Words 8 / 17

    View Slide

  22. D.C. Ernst Proofs without Words 9 / 17

    View Slide

  23. Theorem
    The alternating sum of the first n odd natural numbers is n. In
    other words, for all n ∈ N,
    n
    k=1
    (−1)n−k(2k − 1) = n.
    D.C. Ernst Proofs without Words 9 / 17

    View Slide

  24. D.C. Ernst Proofs without Words 10 / 17

    View Slide

  25. Theorem (Pythagorean Theorem)
    If a, b, c ∈ N are the lengths of the sides of a right triangle, where
    c the length of the hypotenuse, then a2 + b2 = c2.
    D.C. Ernst Proofs without Words 10 / 17

    View Slide

  26. D.C. Ernst Proofs without Words 11 / 17

    View Slide

  27. Theorem (Pythagorean Theorem)
    If a, b, c ∈ N are the lengths of the sides of a right triangle, where
    c the length of the hypotenuse, then a2 + b2 = c2.
    D.C. Ernst Proofs without Words 11 / 17

    View Slide

  28. D.C. Ernst Proofs without Words 12 / 17

    View Slide

  29. Theorem
    We have the following fact concerning integrals:
    π/2
    0
    sin2(x) dx =
    π
    4
    =
    π/2
    0
    cos2(x) dx.
    D.C. Ernst Proofs without Words 12 / 17

    View Slide

  30. D.C. Ernst Proofs without Words 13 / 17

    View Slide

  31. Theorem
    We have the following summation formula:

    k=1
    1
    2
    k
    = 1.
    D.C. Ernst Proofs without Words 13 / 17

    View Slide

  32. D.C. Ernst Proofs without Words 14 / 17

    View Slide

  33. Theorem
    We have the following summation formula:

    k=1
    1
    4
    k
    =
    1
    3
    .
    D.C. Ernst Proofs without Words 14 / 17

    View Slide

  34. D.C. Ernst Proofs without Words 15 / 17

    View Slide

  35. Theorem
    We have the following summation formula:

    k=1
    1
    3
    k
    =
    1
    2
    .
    D.C. Ernst Proofs without Words 15 / 17

    View Slide

  36. D.C. Ernst Proofs without Words 16 / 17

    View Slide

  37. Theorem
    A circle of radius r has area πr2.
    D.C. Ernst Proofs without Words 16 / 17

    View Slide

  38. Sources
    All the figures in this talk came from the following locations:
    • MathOverflow:
    http://mathoverflow.net/questions/8846/
    proofs-without-words
    • Art of Problem Solving:
    http://www.artofproblemsolving.com/Wiki/index.
    php/Proofs_without_words
    • Strogatz, NY Times:
    http://opinionator.blogs.nytimes.com/2010/04/04/
    take-it-to-the-limit/
    D.C. Ernst Proofs without Words 17 / 17

    View Slide
