DevOpsDaysPortugal 2019 - Hugo Amorim - The delivery pipeline @ Banco BPI

Context
This talk reports a real-world experience regarding a DevOps adoption at BancoBPI. BancoBPI is one of the top five banks in Portugal. Our IT division is bigger than most SME IT companies in Portugal are. We manage a vast and heterogeneous IT ecosystem. More than 80 development teams are responsible for developing hundreds of application components and thousands of services. These application components and services are spread across different platforms, that span from the decades-old Mainframe platform, where we still have some applications from the ’80s, to the cutting edge mobile platforms for iOS and Android apps. On top of all these platforms, we have dozens of different technologies. Applications components and services change at a very frequent pace to adapt to a quickly changing business in a heavily regulated market with strict audit requirements.

Challenge
How to handle the integration challenges of an IT ecosystem with thousands of services and where a significant percentage of business requests crosscut multiple systems? How to orchestrate all these changes from development to production, in compliance with regulatory demands, including strict traceability and audit requirements? How to assure the IT systems robustness and the information security expected from a bank?

The Journey
At the begging of this journey, we were faced with a set of issues that were split into two main vectors: 1. Diversity: different tools, different repositories, and different processes, which turned integration and traceability into challenging and time-consuming tasks; 2. Automation: or lack of it, since a significant part of the procedures on the application lifecycle were manual-based tasks which, besides being error-prone, limited the ability to get faster and accurate feedback.

Culture
We started by merging all SCM tools in a single SCM platform. Today, all teams use the same terminology, the same interface, the same way of managing changes and deliver them, the same processes regardless of the technology or platform. This merge gave us the necessary process standardization and the ability to orchestrate the delivery process with a single workflow that guides each change from DEV to PRD. The single SCM platform is now the starting point of all delivery processes, which simplifies traceability and shortens the feedback loop for delivery actions. Having a similar way of managing and deliver changes also allowed us to consolidate continuous integration practices, which in turn helped to integrate cross-platform changes by guaranteeing the necessary consistency between environments and technologies.

Automation
We also did a lot of work on Automation towards zero manual-based delivery processes. We added the support to several types of artifacts that were manually delivered (database as code, application configurations, infrastructure configurations, deploy configurations). Currently, the delivery of almost all types of artifacts is fully automated for all technologies and environments. This automation helped to eliminate failures due to human error, to reduce the feedback loop for all changes and to obtain the necessary consistency between multiple deploys across all environments in order to give development teams the confidence to repeat the delivery process as often as necessary.

Lean
An important role regarding the success of this initiative is played by development teams. The Scrum methodology adopted by all development teams was another important driver for this transformation. A methodology that relies on shorter feedback-back loops and continuous improvement is the perfect match for a DevOps adoption.

Benefits
Consistent deploys on all environments
Improved logging and traceability
Real-time feedback
No surprises
Future steps
Continuous Delivery *Application Catalog *Monitoring *KPIs

Transcript

1. THE DELIVERY PIPELINE @ BPI How we’ve been doing DevOps…
2. who we are
3. WHERE DO WE OPERATE? THE CONTEXT
4. demanding environment
5. complex environment +80 dev teams +500 application components thousands of services
6. multiple platforms
7. a lot of technologies!

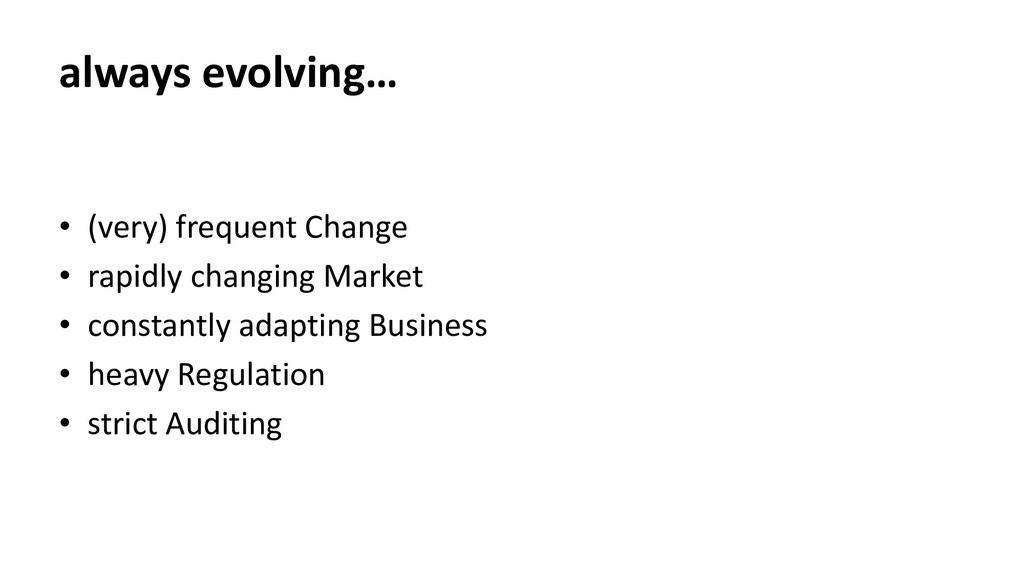

8. always evolving… • (very) frequent Change • rapidly changing Market • constantly adapting Business • heavy Regulation • strict Auditing
9. HOW TO MANAGE AND SUPPORT THIS EVER-CHANGING “IT COMPLEXITY”? THE CHALLENGE

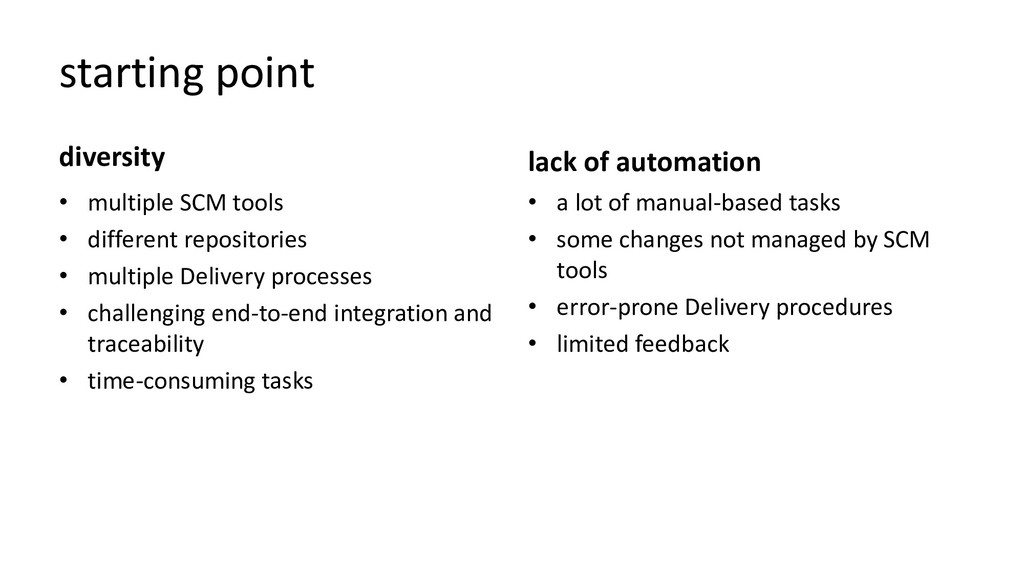

10. starting point diversity • multiple SCM tools • different repositories • multiple Delivery processes • challenging end-to-end integration and traceability • time-consuming tasks lack of automation • a lot of manual-based tasks • some changes not managed by SCM tools • error-prone Delivery procedures • limited feedback
12. MERGE, AUTOMATE, MONITOR THE JOURNEY

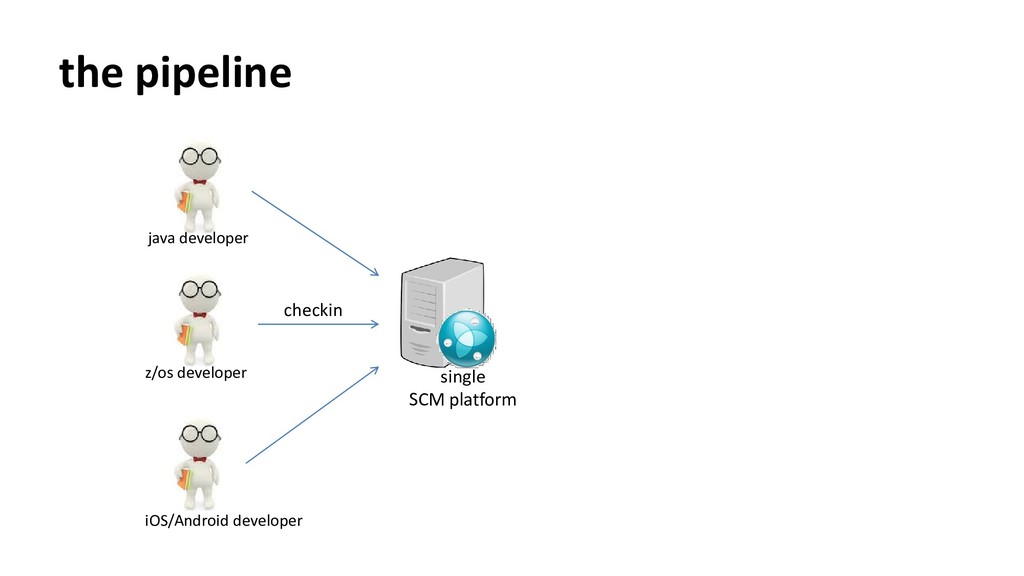

13. the pipeline single SCM platform checkin z/os developer java developer iOS/Android developer

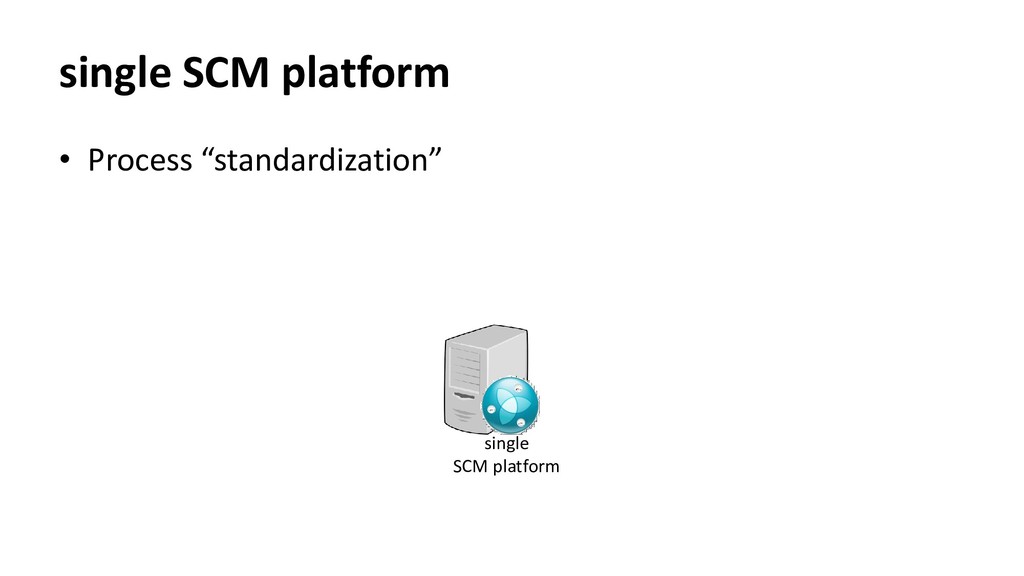

14. single SCM platform • Process “standardization” single SCM platform

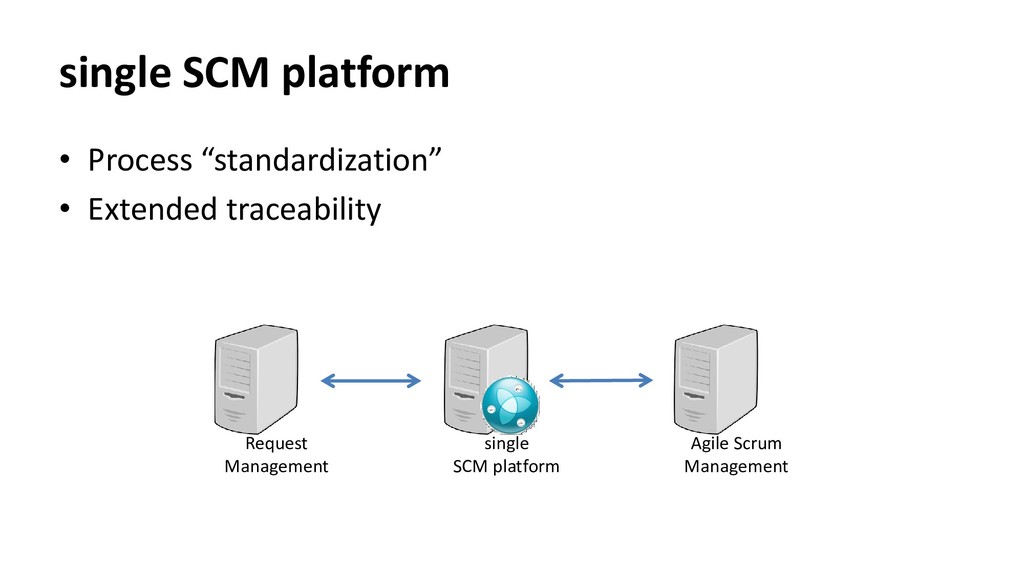

15. single SCM platform • Process “standardization” • Extended traceability single SCM platform Agile Scrum Management Request Management

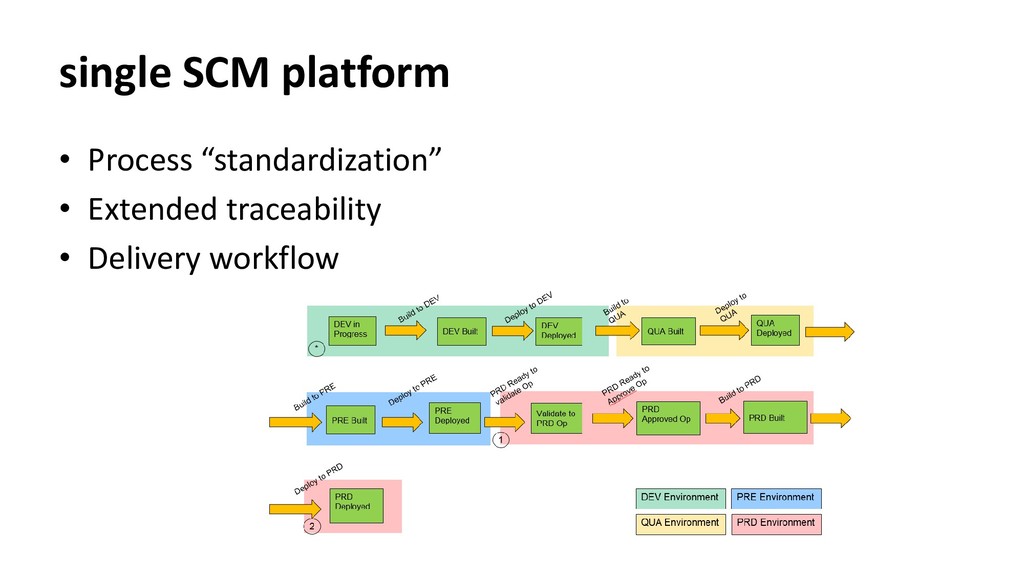

16. single SCM platform • Process “standardization” • Extended traceability • Delivery workflow

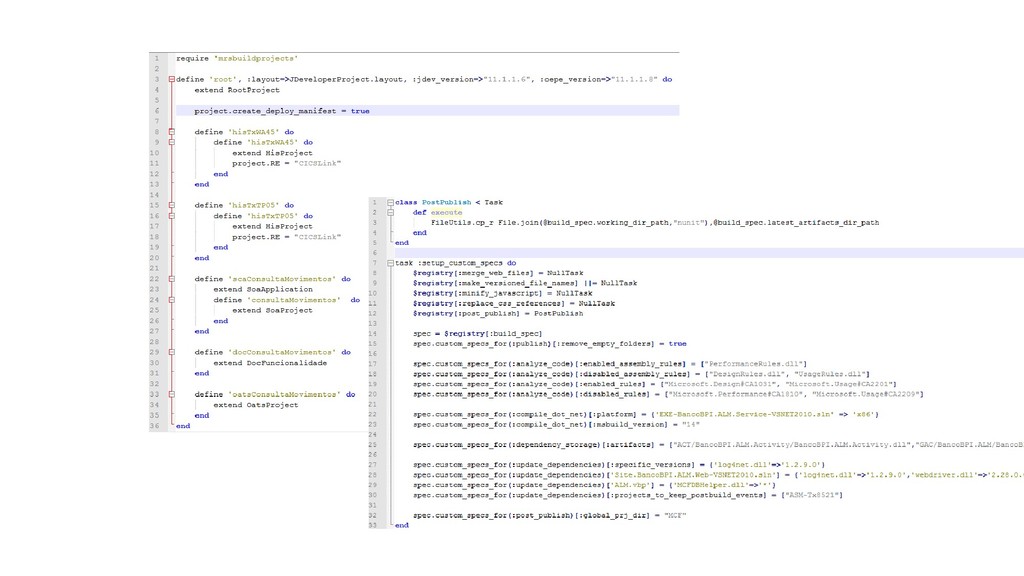

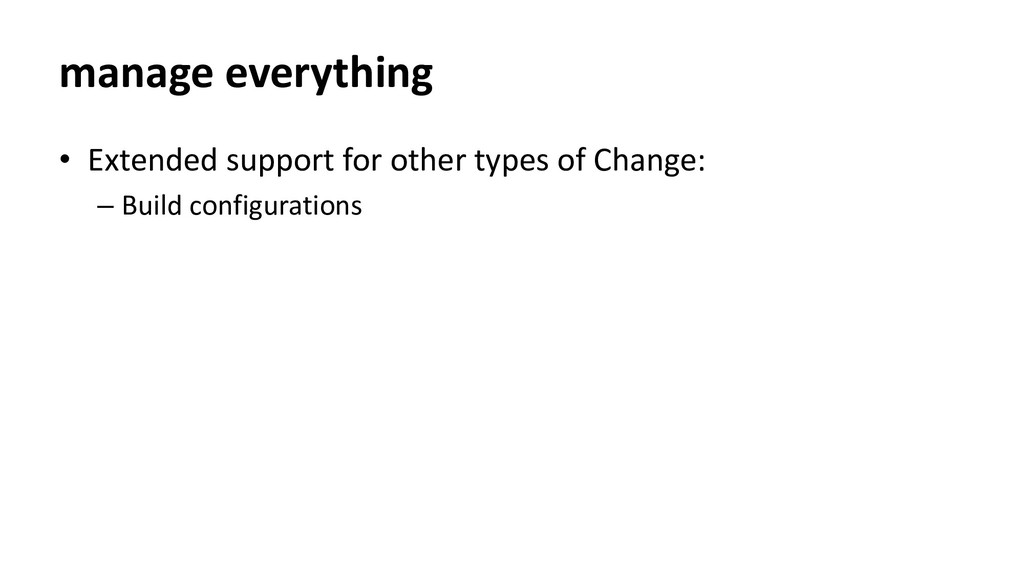

17. manage everything • Extended support for other types of Change: – Build configurations

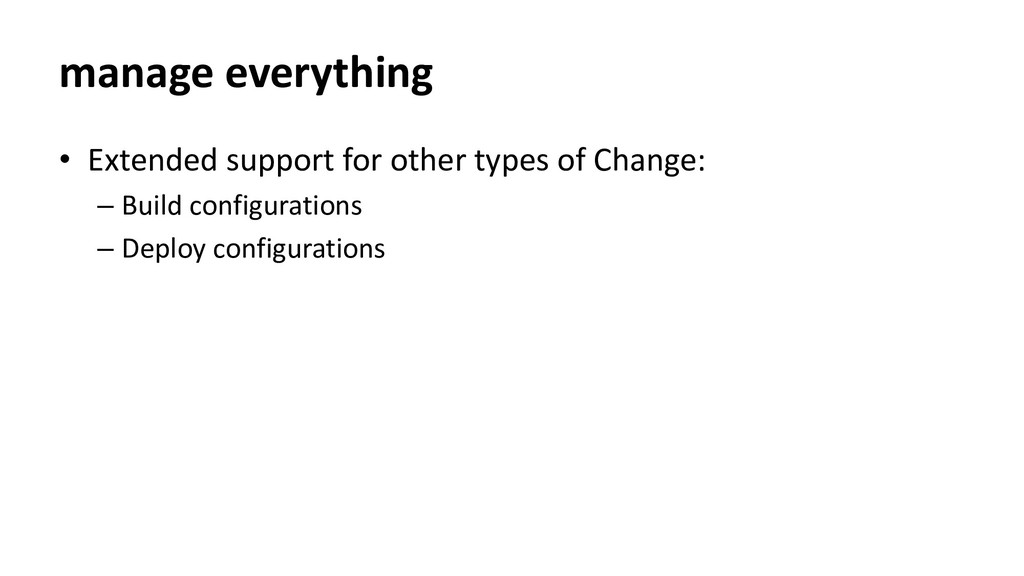

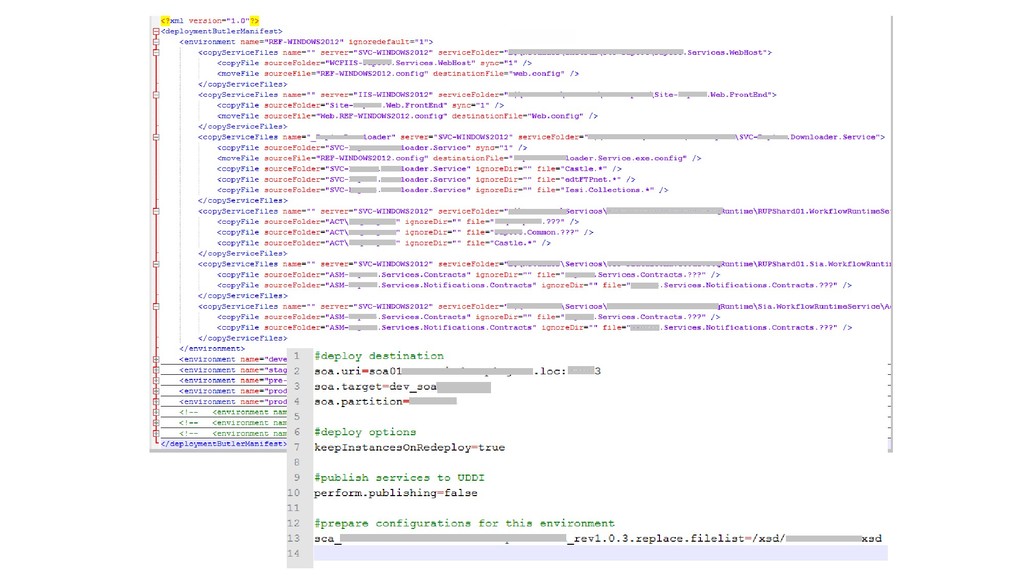

19. manage everything • Extended support for other types of Change: – Build configurations – Deploy configurations

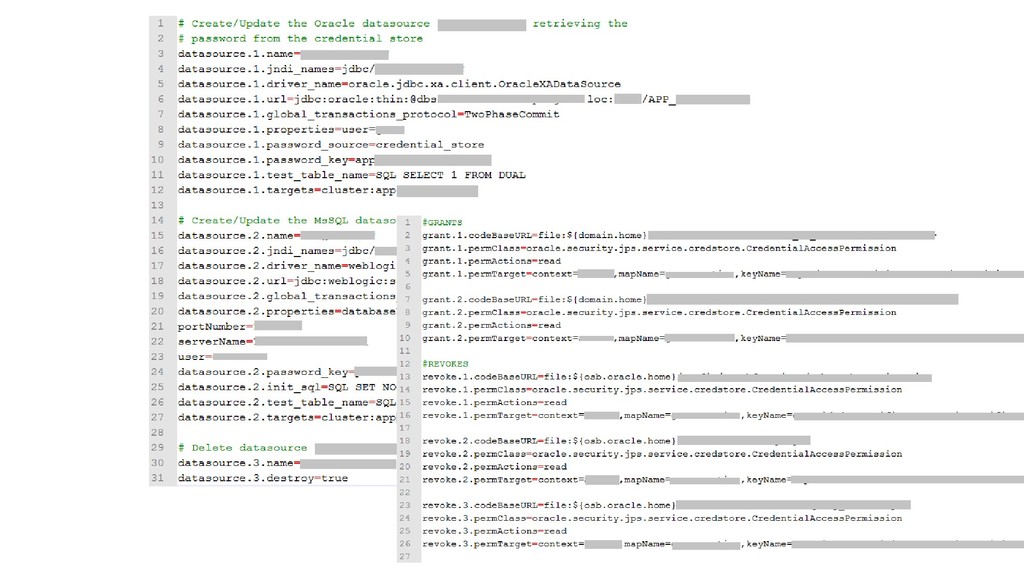

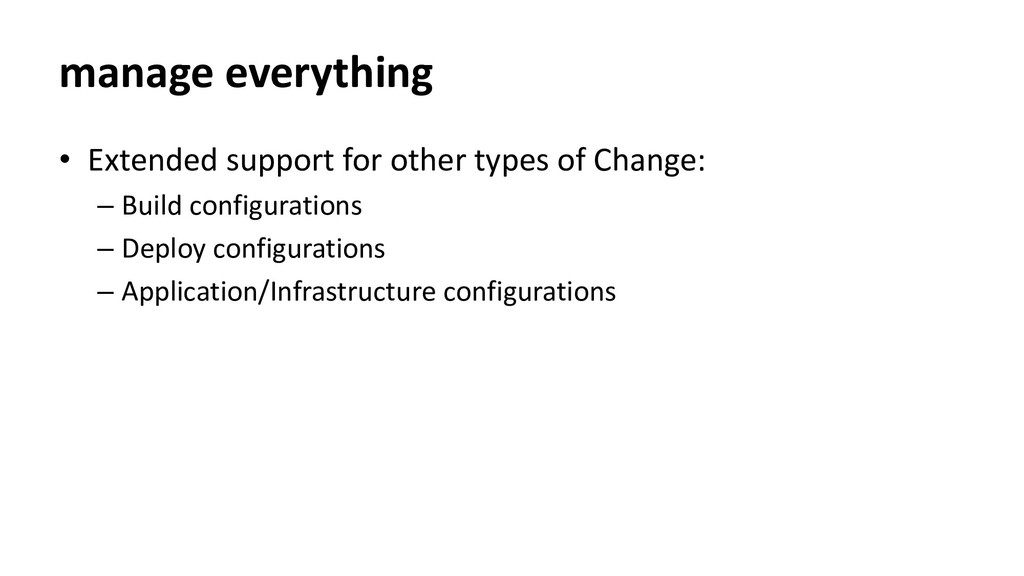

21. manage everything • Extended support for other types of Change: – Build configurations – Deploy configurations – Application/Infrastructure configurations

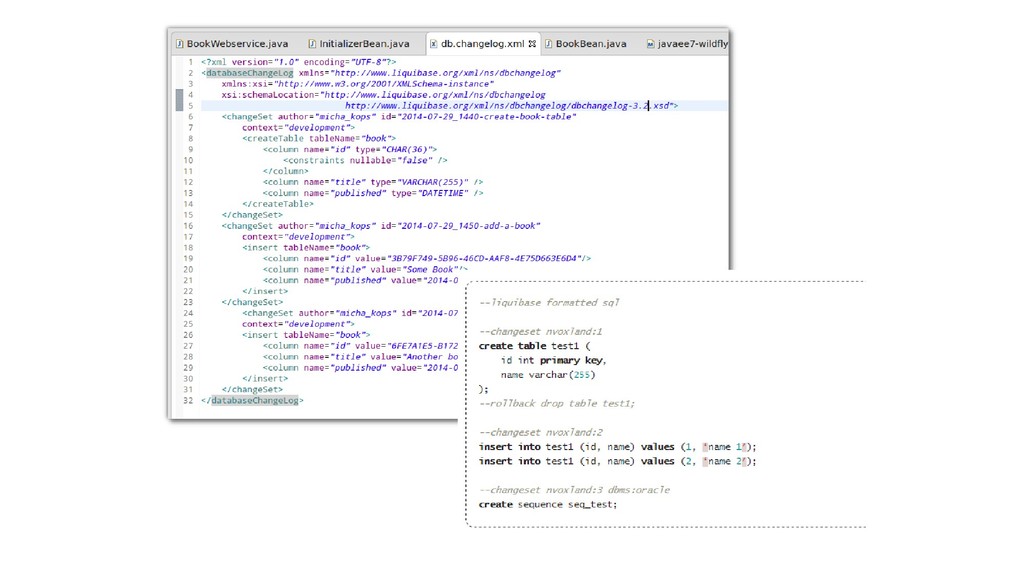

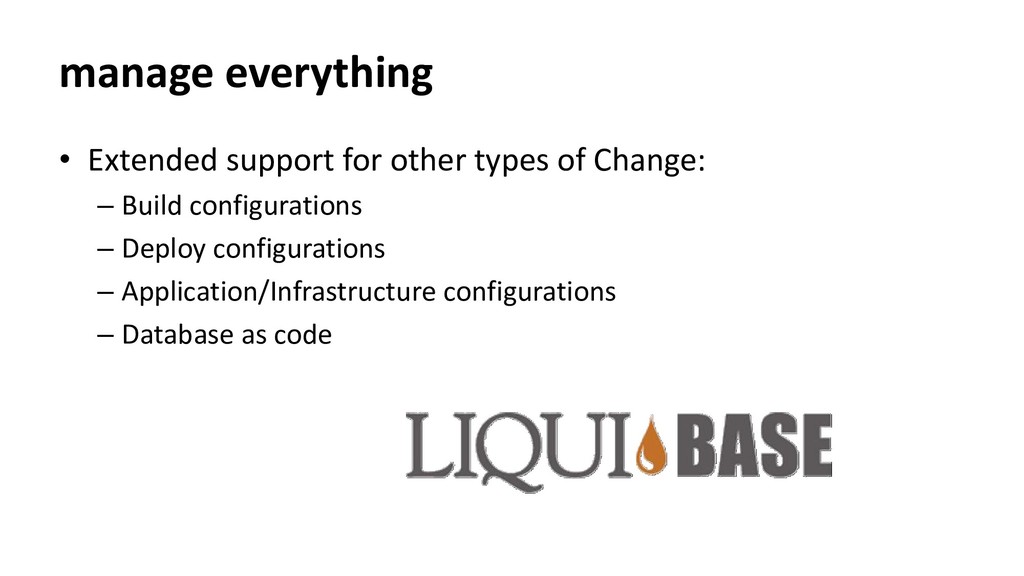

23. manage everything • Extended support for other types of Change: – Build configurations – Deploy configurations – Application/Infrastructure configurations – Database as code

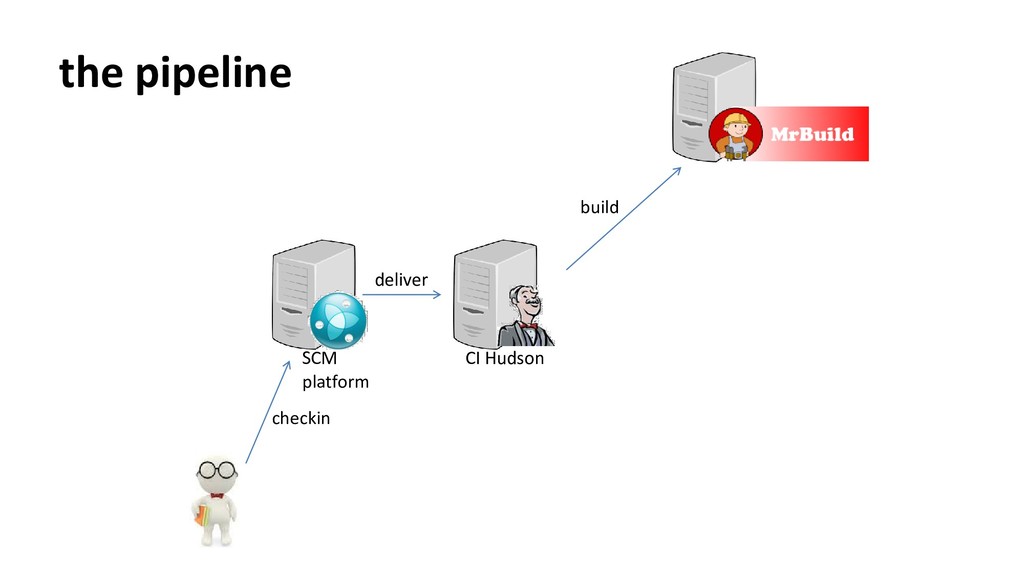

25. the pipeline SCM platform CI Hudson build deliver checkin

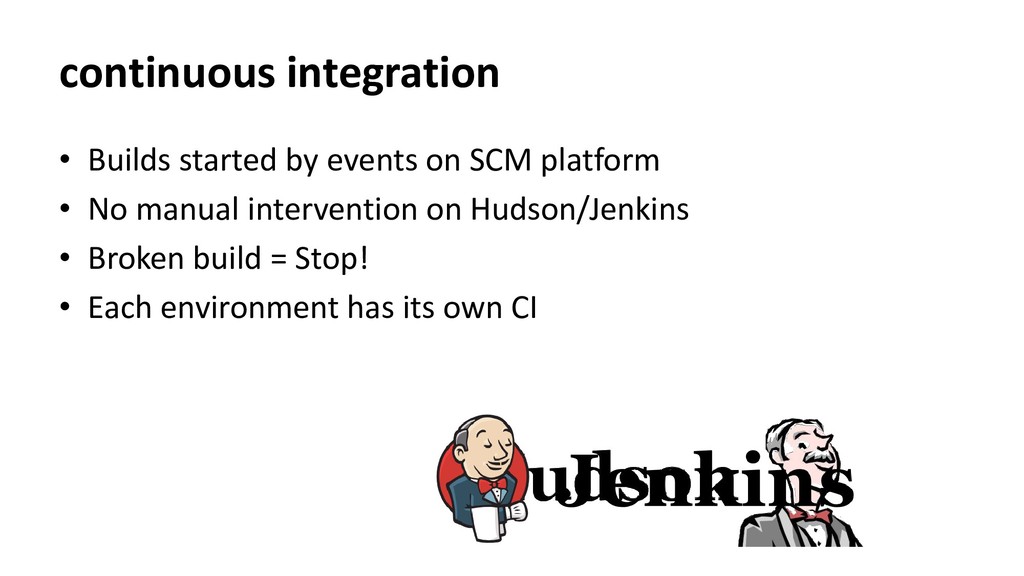

26. continuous integration • Builds started by events on SCM platform • No manual intervention on Hudson/Jenkins • Broken build = Stop! • Each environment has its own CI

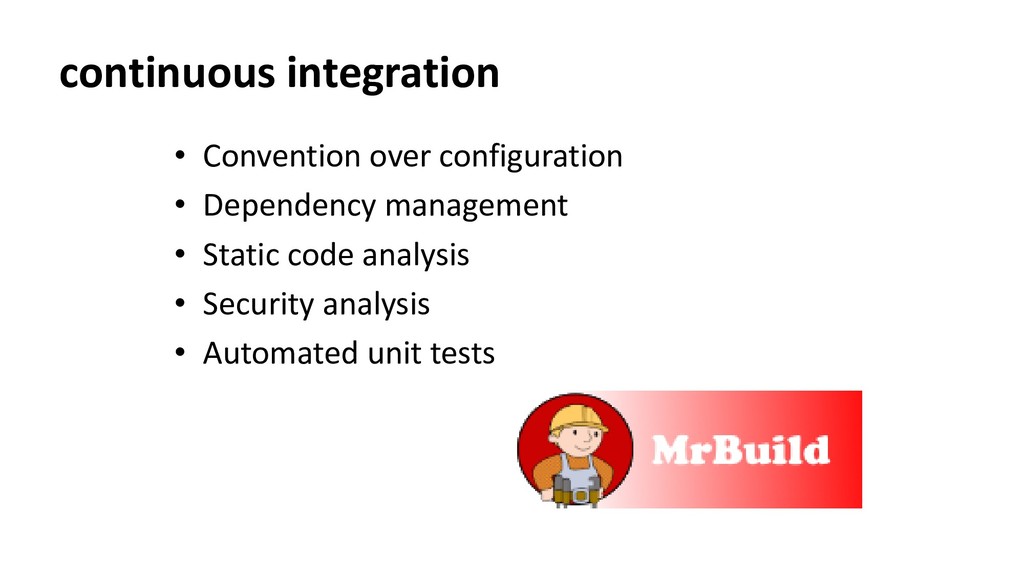

27. continuous integration • Convention over configuration • Dependency management • Static code analysis • Security analysis • Automated unit tests

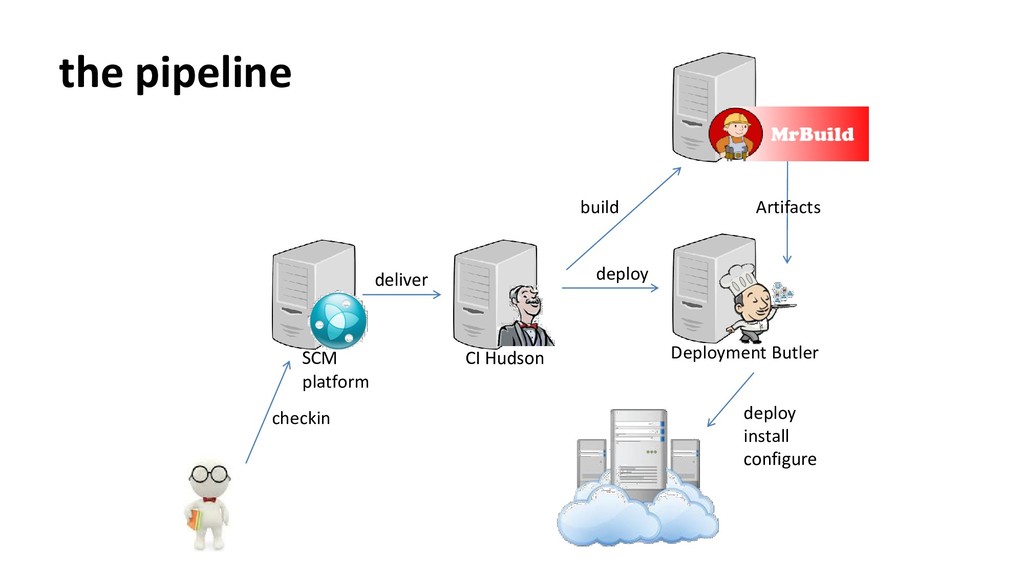

28. the pipeline SCM platform CI Hudson Deployment Butler Artifacts build deploy deliver checkin deploy install configure

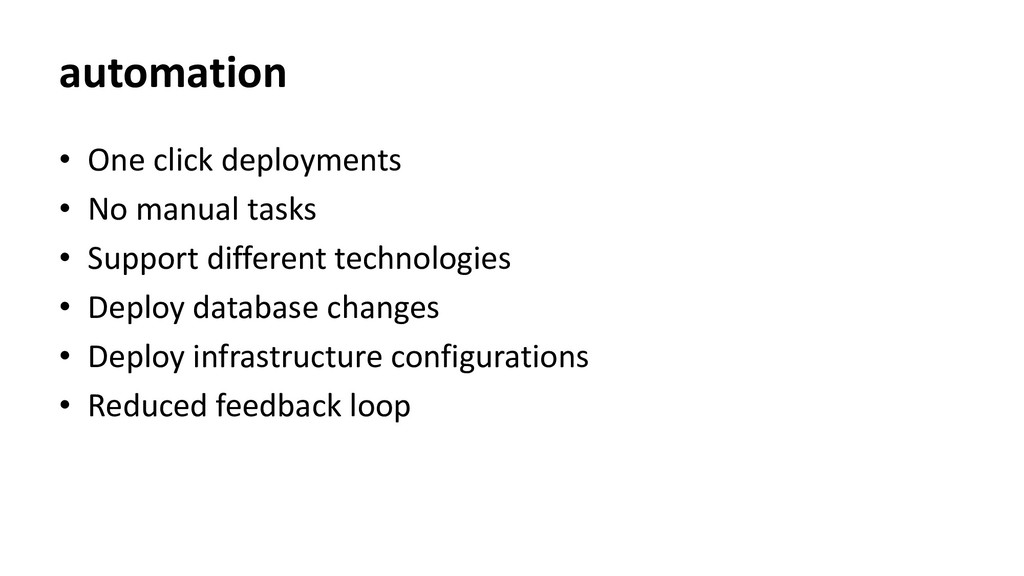

29. automation • One click deployments • No manual tasks • Support different technologies • Deploy database changes • Deploy infrastructure configurations • Reduced feedback loop
30. MAJOR BENEFITS THE JOURNEY

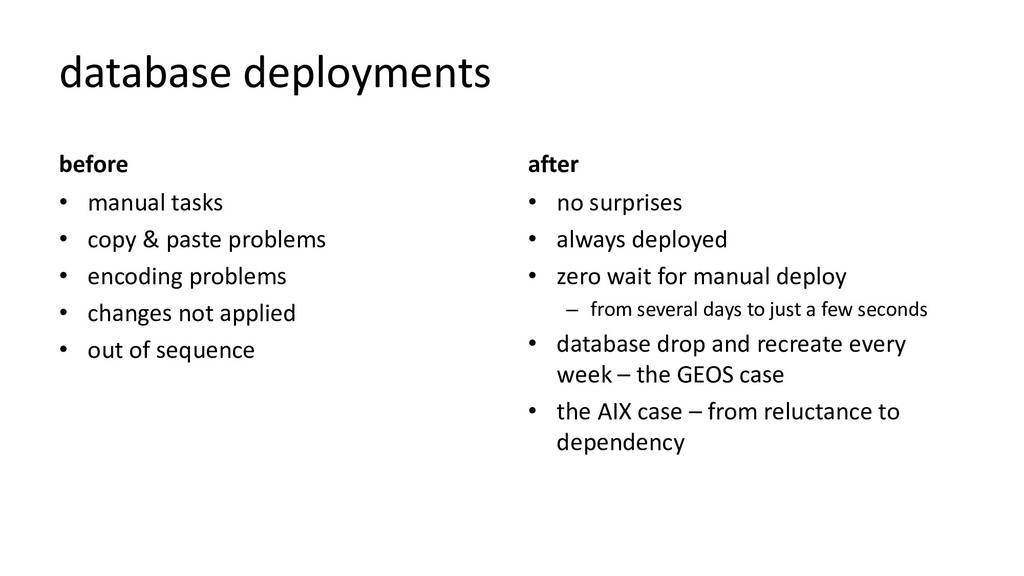

31. database deployments before • manual tasks • copy & paste problems • encoding problems • changes not applied • out of sequence after • no surprises • always deployed • zero wait for manual deploy – from several days to just a few seconds • database drop and recreate every week – the GEOS case • the AIX case – from reluctance to dependency

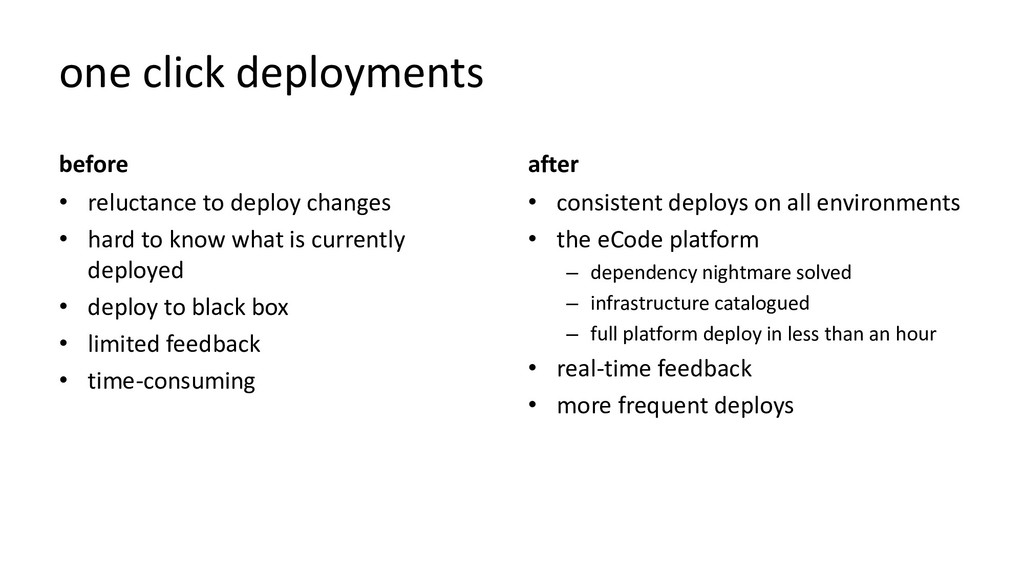

32. one click deployments before • reluctance to deploy changes • hard to know what is currently deployed • deploy to black box • limited feedback • time-consuming after • consistent deploys on all environments • the eCode platform – dependency nightmare solved – infrastructure catalogued – full platform deploy in less than an hour • real-time feedback • more frequent deploys

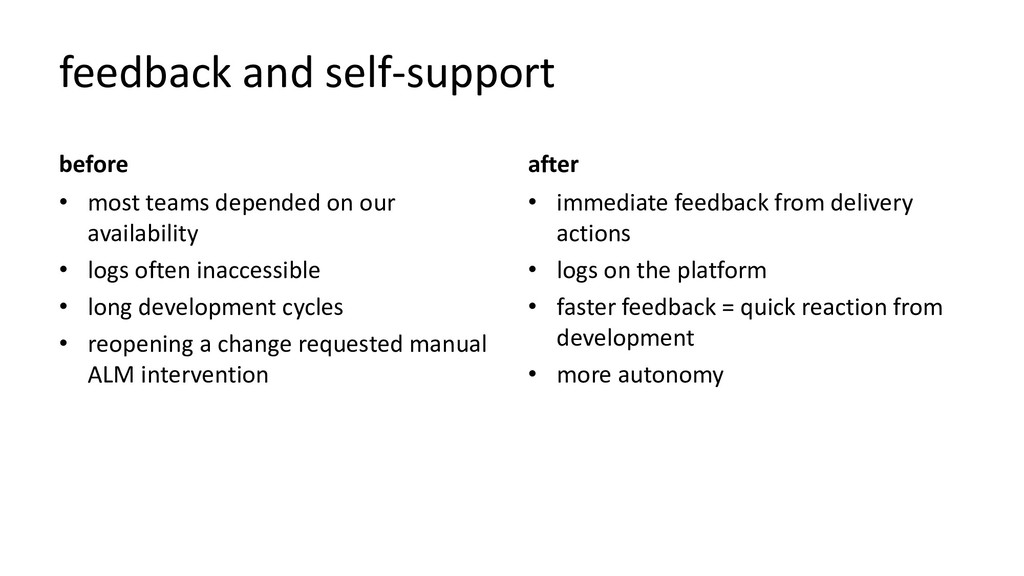

33. feedback and self-support before • most teams depended on our availability • logs often inaccessible • long development cycles • reopening a change requested manual ALM intervention after • immediate feedback from delivery actions • logs on the platform • faster feedback = quick reaction from development • more autonomy
34. ARE WE THERE YET? NEXT STEPS

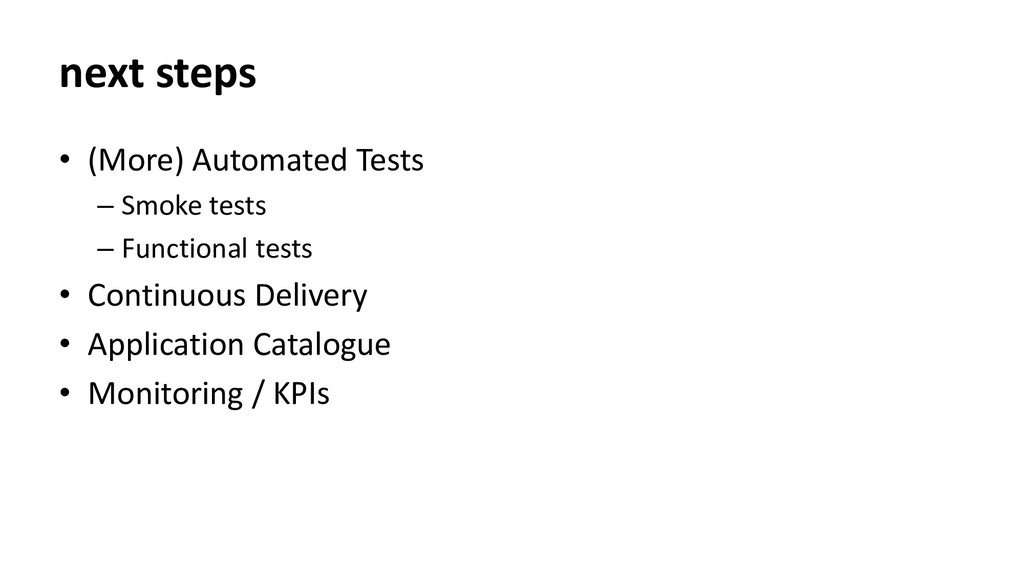

35. next steps • (More) Automated Tests – Smoke tests – Functional tests • Continuous Delivery • Application Catalogue • Monitoring / KPIs
