Kostiantyn Tarasenko & Hannes Dorfmann - Advanced_Model-View-Intent

Transcript

1. Advanced Model-View-Intent The Missing Guide
2. Kostiantyn Tarasenko Hannes Dorfmann
4. class PersonsPresenter : Presenter<PersonsView> { fun loadPersons(){ view?.showLoading(true) backend.loadPersons({ persons : List<Person> → view?.showLoading(false) view?.showPersons(persons) }, { error: Throwable → view?.showLoading(false) view?.showError(error) }) } }
5. class PersonsPresenter : Presenter<PersonsView> { fun loadPersons(){ view?.showLoading(true) backend.loadPersons({ persons : List<Person> → view?.showLoading(false) view?.showPersons(persons) }, { error: Throwable → view?.showLoading(false) view?.showError(error) }) } }
6. class PersonsViewModel : ViewModel { val loading : LiveData<Boolean> val persons : LiveData<List<Person>> val error : LiveData<Throwable> fun loadPersons(){ loading.setValue( true ) backend.loadPersons({ p : List<Person> → loading.setValue( false ) persons.setValue( p ) }, { e : Throwable → loading.setValue( false ) error.setValue( e ) }) }
7. class PersonsViewModel : ViewModel { val loading : LiveData<Boolean> val persons : LiveData<List<Person>> val error : LiveData<Throwable> fun loadPersons(){ loading.setValue( true ) backend.loadPersons({ p : List<Person> → loading.setValue( false ) persons.setValue( p ) }, { e : Throwable → loading.setValue( false ) error.setValue( e ) }) }
8. public TrainingSpotsPresenter(TrainingSpotsMvp.View view, TrainingSpotsMvp.Model model, NetworkManager networkManager, FreeleticsTracking tracking, ScreenTrackingDelegate screenTrackingDelegate, EventBuildConfigInfo eventBuildConfigInfo) { this.model = model; this.view = view; this.networkManager = networkManager; this.tracking = tracking; this.screenTrackingDelegate = screenTrackingDelegate; this.eventBuildConfigInfo = eventBuildConfigInfo; subscriptions = new CompositeDisposable(); } @Override public void setTrackingScreenName() { screenTrackingDelegate.setScreenName(tracking, TrainingSpotsEvents.TRAINING_SPOT_LIST_PAGE_ID); } @Override public void loadTrainingSpots() { if (!networkManager.isOnline()) { view.showNoInternetConnection(); return; } view.showProgress(true); if (model.hasNoGpsPermissions()) { loadDefaultTrainingSpots(); } else { subscriptions.add(model.checkForHighAccuracy() .subscribe(status -> loadDefaultTrainingSpots(), throwable -> loadDefaultTrainingSpots(), () -> subscriptions.add( model.getNextTrainingSpots() .subscribeOn(Schedulers.io()) .observeOn(AndroidSchedulers.mainThread()) .subscribe(trainingSpots -> { view.showProgress(false); view.showLocalTrainingSpots(trainingSpots, model.getNearbyTrainingSpotThreshold()); view.showShareNearbyTrainingSpotBanner( model.shouldShowBanner(trainingSpots)); tracking.trackEvent( TrainingSpotsEvents .pageImpressionTrainingSpotsList( eventBuildConfigInfo, true, trainingSpots));
9. model.shouldShowBanner(trainingSpots)); tracking.trackEvent( TrainingSpotsEvents .pageImpressionTrainingSpotsList( eventBuildConfigInfo, true, trainingSpots)); view.enablePaging(true); }, throwable -> { view.showProgress(false); if (throwable instanceof TimeoutException) { view.showTimeoutMessage(); } else { view.showConnectionError(); } })))); } } private void loadDefaultTrainingSpots() { subscriptions.add(model.getDefaultTrainingSpots() .subscribeOn(Schedulers.io()) .observeOn(AndroidSchedulers.mainThread()) .subscribe(trainingSpots -> { view.showProgress(false); view.showDefaultTrainingSpots(trainingSpots); tracking.trackEvent(TrainingSpotsEvents.pageImpressionTrainingSpotsList( eventBuildConfigInfo, false, trainingSpots)); view.enablePaging(false); }, throwable -> { view.showProgress(false); view.showConnectionError(); })); } @Override public void loadMoreTrainingSpots() { if (!networkManager.isOnline()) { view.showNoInternetConnectionMessage(); view.enablePaging(false); return; } view.showLoadingMoreTrainingSpotsProgress(true); Disposable disposable = model.getNextTrainingSpots() .subscribeOn(Schedulers.io()) .observeOn(AndroidSchedulers.mainThread()) .subscribe(trainingSpots -> { view.showLoadingMoreTrainingSpotsProgress(false);
10. .subscribe(trainingSpots -> { view.showLoadingMoreTrainingSpotsProgress(false); view.showMoreLocalTrainingSpots(trainingSpots, model.getNearbyTrainingSpotThreshold()); view.showShareNearbyTrainingSpotBanner(model.shouldShowBanner(trainingSpots)); }, throwable -> { view.showLoadingMoreTrainingSpotsProgress(false); view.showConnectionErrorMessage(); view.enablePaging(false); }); subscriptions.add(disposable); } @Override public void handleTrainingSpotSelection(TrainingSpot trainingSpot) { tracking.trackEvent(TrainingSpotsEvents.trainingSpotDetails(eventBuildConfigInfo, trainingSpot.id())); view.showTrainingSpotDetails(model.getLastKnownUserLocation(), trainingSpot); } @Override public void handleShareNearbyTrainingSpotAction() { view.openShareNearbySpotForm(model.getFormUrl()); } @Override public void handleFooterLocationAction() { if (model.hasNoGpsPermissions()) { view.showGpsPermissionDialog(GPS_PERMISSIONS_REQUEST_CODE); } else { checkForHighAccuracy(); } } @Override public void handleDisclaimerAction() { view.showDisclaimerPopUp(); } @Override public void handleChangeLocationSettingsResult(boolean success) { if (success) { if (model.hasNoGpsPermissions()) { view.showGpsPermissionDialog(GPS_PERMISSIONS_REQUEST_CODE); } else { loadTrainingSpots(); } } else { view.showEnableHighAccuracyModeErrorDialog(); }
15. intent
16. intent state render (state)
17. intent state render (state)
18. sealed class State { object Loading : State() data class Content(val persons : List<Person>) : State() data class Error(val error : Throwable) : State() }
19. https://youtu.be/YGmxbwI3a-4
20. intent state render (state)
21. State Management
22. View ViewModel / Presenter State Machine
23. View ViewModel / Presenter State Machine Intent
24. View ViewModel / Presenter State Machine Intent Input
25. View ViewModel / Presenter State Machine Intent Input State
26. View ViewModel / Presenter State Machine Intent Input State View State
27. Wednesday June 27 2:50 PM - Room Cupcake
28. Simple State Machines val httpRequest : Observable<List<Person>> = ... val state : Observable<State> = ???
29. sealed class State { object Loading : State() data class Content(val persons : List<Person>) : State() data class Error(val error : Throwable) : State() }
30. Simple State Machines val httpRequest : Observable<List<Person>> = ... val state : Observable<State> = httpRequest .map { persons → State.Content(persons) } .onErrorReturn { State.Error(it) } .startWith(State.Loading)
31. Simple State Machines val httpRequest : Observable<List<Person>> = ... val state : Observable<State> = httpRequest .map { persons → State.Content(persons) } .onErrorReturn { State.Error(it) } .startWith(State.Loading)
32. Simple State Machines val httpRequest : Observable<List<Person>> = ... val state : Observable<State> = httpRequest .map { persons → State.Content(persons) } .onErrorReturn { State.Error(it) } .startWith(State.Loading)
33. Simple State Machines val sm1: Observable<State> = … val sm2: Observable<State> = ... val combined: Observable<State> = Observable.zip(sm1, sm2){ s1,s2 → ... })
34. Simple State Machines val sm1: Observable<State> = … val sm2: Observable<State> = ... val combined: Observable<State> = Observable.zip(sm1, sm2){ s1,s2 → if (s1 is State.Error) s1 ... })
35. Simple State Machines val sm1: Observable<State> = … val sm2: Observable<State> = ... val combined: Observable<State> = Observable.zip(sm1, sm2){ s1,s2 → if (s1 is State.Error) s1 if (s2 is State.Error) s2 ... })
36. Simple State Machines val sm1: Observable<State> = … val sm2: Observable<State> = ... val combined: Observable<State> = Observable.zip(sm1, sm2){ s1,s2 → if (s1 is State.Error) s1 if (s2 is State.Error) s2 if (s1 == State.Loading || s2 == State.Loading) State.Loading ... })
37. Simple State Machines val http1: Observable<List<Person>> = … val http2: Observable<List<Person>> = ... val combined: Observable<State> = Observable.zip(http1, http2 ){ p1,p2 → p1 + p2 }) .map { persons → State.Content(persons) } .onErrorReturn { State.Error(it) } .startWith(State.Loading)
38. Advanced State Machines
39. class CalculatorStateMachine { }
40. class CalculatorStateMachine { sealed class Input { data class Add(val value: Int) : Input() data class Sub(val value: Int) : Input() data class Mul(val value: Int) : Input() data class Div(val value: Int) : Input() } }
41. class CalculatorStateMachine { sealed class Input { ... } sealed class State { data class Result(val value: Int) : State() data class Error(val error: Throwable) : State() } }
42. class CalculatorStateMachine { sealed class Input { ... } sealed class State { ... } private val inputRelay = PublishRelay.create<Input>() }
43. class CalculatorStateMachine { sealed class Input { ... } sealed class State { ... } private val inputRelay = PublishRelay.create<Input>() val input : Consumer<Input> = inputRelay }
44. class CalculatorStateMachine { sealed class Input { ... } sealed class State { ... } private val inputRelay = PublishRelay.create<Input>() val input : Consumer<Input> = inputRelay val state: Observable<State> = inputRelay.map { ... } }
45. class CalculatorStateMachine { sealed class Input { ... } sealed class State { ... } private val inputRelay = PublishRelay.create<Input>() val input : Consumer<Input> = inputRelay val state: Observable<State> = inputRelay.map { ... } }
46. State Reducer .scan(State.Loading) { currentState , input → // compute new state … }
47. Fancy Redux Based State Machines - Store → Observable for State - Actions as input - Reducer: (State , Action ) → State - Isolate Side Effects
48. Fancy Redux Based State Machines
49. Tuesday June 26 11:05 AM - Room Lollipop
50. Tuesday June 26 11:05 AM - Room Oreo
51. Intent? Action?
53. View ViewModel / Presenter State Machine Intent Intent State View State
54. View ViewModel / Presenter State Machine Intent Intent State View State .scan( )
55. View ViewModel / Presenter Redux State Machine Intent Action State View State Action triggered by side effect
57. View Redux State Machine reducer(state, action) : State nextPage(nextPageAction) : Action State
58. View Redux State Machine reducer(state, action) : State nextPage(nextPageAction) : Action State Next page
59. View Redux State Machine reducer(state, action) : State nextPage(nextPageAction) : Action State Next page Next page
60. View Redux State Machine reducer(state, action) : State nextPage(nextPageAction) : Action State Next page Next page
61. View Redux State Machine reducer(state, action) : State nextPage(nextPageAction) : Action State Next page
62. View Redux State Machine reducer(state, action) : State nextPage(nextPageAction) : Action State LoadingPage
63. View Redux State Machine reducer(state, action) : State nextPage(nextPageAction) : Action State LoadingPage
64. View Redux State Machine reducer(state, action) : State nextPage(nextPageAction) : Action State LoadingPage
65. View Redux State Machine reducer(state, action) : State nextPage(nextPageAction) : Action State
66. View Redux State Machine reducer(state, action) : State nextPage(nextPageAction) : Action State
67. View Redux State Machine reducer(state, action) : State nextPage(nextPageAction) : Action State ResultNextPage
68. View Redux State Machine reducer(state, action) : State nextPage(nextPageAction) : Action State ResultNextPage
69. View Redux State Machine reducer(state, action) : State nextPage(nextPageAction) : Action State ResultNextPage
70. View Redux State Machine reducer(state, action) : State nextPage(nextPageAction) : Action State
71. View Redux State Machine reducer(state, action) : State Side Effect 1 State Side Effect 2 Side Effect n ...
72. val sideEffects = listOf< SideEffect<State, Action> >( ... nextPageSideEffect, pullToRefreshSideEffect, ... ) intents .reduxStore(initialState, sideEffects, reducer) .subscribe { state → view.render(state) } https://github.com/freeletics/RxRedux
73. Testing
74. Testing is easy - assert(expectedState, actualState) - Just trigger intent, wait for state change - No need for idling resource needed - Prefer integration testing over unit testing
75. class MyActivity : Activity() { override fun onCreate(savedInstanceState: Bundle?) { ... val button = findViewById(R.id.button) ... } fun render(state: State) { ... } }
76. class MyActivity : Activity() { @Inject lateinit var binding : ViewBinding override fun onCreate(savedInstanceState: Bundle?) { super.onCreate(savedInstanceState) // inject binding ... } fun render(state: State) { binding.render() } }
77. class ViewBinding(val rootView : View) { val button = rootView.findViewById(R.id.button) fun render(state: State) { ... } }
78. class TestingViewBinding(rootView : View) : ViewBinding { val renderdStates : Observable<State> = replay private val replay = ReplayRelay.create<State>() override fun render(state: State) { super.render(state) replay.onNext(state) Screenshot.snap(rootView).record() } }
79. class TestingViewBinding(rootView : View) : ViewBinding { val renderdStates : Observable<State> = replay private val replay = ReplayRelay.create<State>() override fun render(state: State) { super.render(state) replay.onNext(state) Screenshot.snap(rootView).record() } }
80. class TestingViewBinding(rootView : View) : ViewBinding { val renderdStates : Observable<State> = replay private val replay = ReplayRelay.create<State>() override fun render(state: State) { super.render(state) replay.onNext(state) Screenshot.snap(rootView).record() } }
81. class TestingViewBinding(rootView : View) : ViewBinding { val renderdStates : Observable<State> = replay private val replay = ReplayRelay.create<State>() override fun render(state: State) { super.render(state) replay.onNext(state) Screenshot.snap(rootView).record() } }
82. class TestingViewBinding(rootView : View) : ViewBinding { val renderdStates : Observable<State> = replay private val replay = ReplayRelay.create<State>() override fun render(state: State) { super.render(state) replay.onNext(state) Screenshot.snap(rootView).record() } } https://facebook.github.io/screenshot-tests-for-android/
83. Tracking
84. Multicasting
85. RxJava By Example - Vol 3. the Multicast Edition
86. intents .share() .subscribe { intent -> when (intent) { NextButtonClick -> tracker.trackNextButtonClick() ... } }
87. stateMachine .share() .subscribe { state -> when (state) { is StateA -> tracker.trackStateA() ... } }
89. Navigation

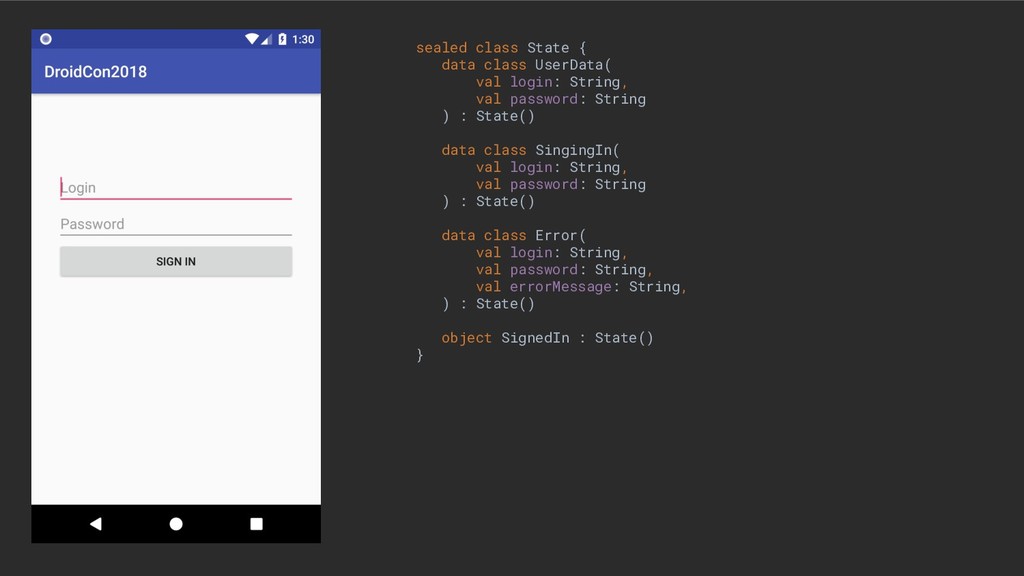

90. sealed class State { data class UserData( val login: String, val password: String ) : State() data class SingingIn( val login: String, val password: String ) : State() data class Error( val login: String, val password: String, val errorMessage: String, ) : State() object SignedIn : State() }

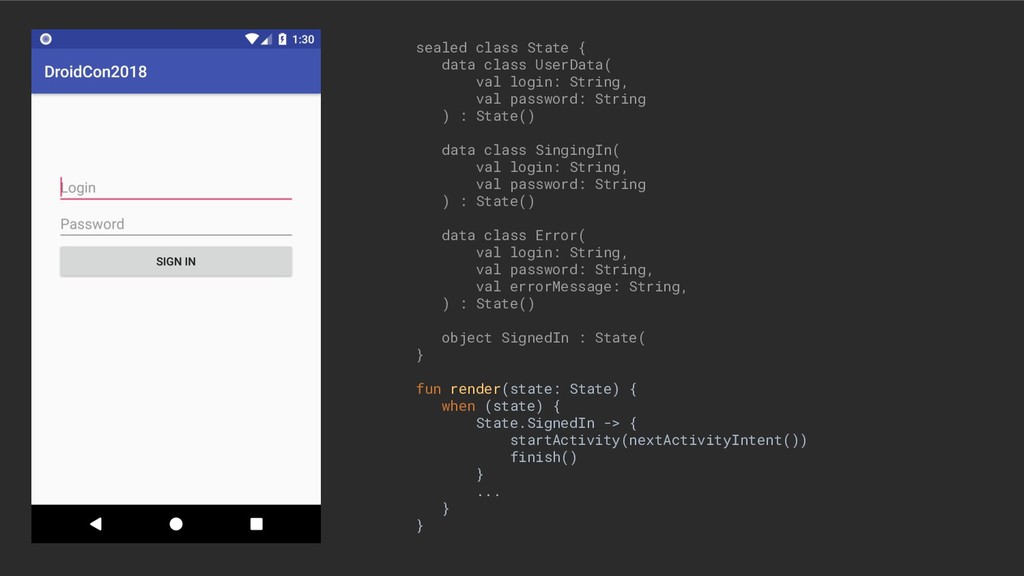

91. sealed class State { data class UserData( val login: String, val password: String ) : State() data class SingingIn( val login: String, val password: String ) : State() data class Error( val login: String, val password: String, val errorMessage: String, ) : State() object SignedIn : State( } fun render(state: State) { when (state) { State.SignedIn -> { startActivity(nextActivityIntent()) finish() } ... } }
93. Navigator stateMachine .share() .subscribe { state -> when (state) { ... -> navigator.navigateTo(Destination.OptionalQuestions) } }
94. Navigator stateMachine .share() .subscribe { state -> when (state) { ... -> navigator.navigateTo(Destination.OptionalQuestions) } } class WizardNavigator( private val activity: Activity, private val abTestProvider: AbTestProvider ) : Navigator { override fun navigateTo(dest: Destination) { when (dest) { Destination.Form -> showFormFragment() Destination.OptionalQuestions -> showOptionalQuestionsFragment() Destination.VariantSelector -> showVariantSelectorFragment() Destination.FromSaved -> activity.startActivity(abTestProvider.nextScreen()) } } }
95. Navigator implementation Deep inside, the Navigator implementation could be as simple as override fun navigateTo(dest: Destination) { when (dest) { Destination.Next -> showNextActivity() ... } } fun showNextActivity() { activity.startActivity( if (FeatureFlag.A) { activityOneIntent() } else { activityTwoIntent() } ) }
96. Navigator implementation Or be little bit modern override fun navigateTo(dest: Destination) { when (dest) { Destination.Next -> showNextActivity() ... } } fun showNextActivity() { view.findNavController().navigate(R.id.wizard_next_activity) }
97. Animation
98. Animation private sealed class InternalAnimationState { object InitialState : InternalAnimationState() object ProgressTransition : InternalAnimationState() data class Progress( val textResId: Int, val currentProgressPercent: Int, val totalProgressDuration: Long ) : InternalAnimationState() object GenerationFinished : InternalAnimationState() }
99. Animation object InitialState :InternalAnimationState()
100. Animation object ProgressTransition :InternalAnimationState()
101. Animation data class Progress( val textResId: Int, val currentProgressPercent: Int, val totalProgressDuration: Long ) :InternalAnimationState()
102. Animation object GenerationFinished :InternalAnimationState()
103. Animation private fun createAnimationStateObservable(): Observable<InternalAnimationState> = Observable.merge( intents.filter { it == GenerationClicked } .map { ProgressTransition }, intents.filter { it == GenerationStarted } .flatMap { Observable.intervalRange( 0, steps, 0, duration / steps, TimeUnit.MILLISECONDS ).map { it.toInt() } .map { if (step == size) { GenerationFinished } else { Progress(...) } } })
104. Animation private fun createAnimationState(): Observable<InternalAnimationState> = rxObservable { intents.consumeEach { intent -> when (intent) { GenerationClicked -> send(ProgressTransition) GenerationStarted -> { repeat(size) { step -> delay(duration / size) send(if (step == texts.size) { GenerationFinished } else { Progress(...) }) } } } } }
105. Animation private fun createAnimationState(): Observable<InternalAnimationState> = rxObservable { intentStream.consumeEach { intent -> when (intent) { GenerationClicked -> send(ProgressTransition) GenerationStarted -> { repeat(size) { step -> delay(duration / size) send(if (step == texts.size) { GenerationFinished } else { Progress(...) }) } } } } }
106. Restoring state
108. enum class Variant { Variant1, Variant2 } data class Step1State( val selected: Variant )
109. enum class Variant { Variant1, Variant2 } data class Step1State( val selected: Variant ) data class Step2State( val option1Checked: Boolean, val option2Checked: Boolean )
110. enum class Variant { Variant1, Variant2 } data class Step1State( val selected: Variant ) data class Step2State( val option1Checked: Boolean, val option2Checked: Boolean ) data class Step3State( val name : String, val description : String )
111. data class WizardState( val currentScreenIndex: Int, val step1State: Step1State, val step2State: Step2State, val step3State: Step3State )
112. Tips and tricks
113. How to handle onActivityResult?
115. onRequestPermissionResult()?
117. What about Lifecycle callback?
119. Rendering state too fast?
123. How to refactor existing code to MVI?
124. Refactoring 1. Define States 2. MVP: replace all view.showX() → view.render(state) MVVM: replace all LiveData<X> → LiveData<State> 3. Define a state machine with a clear API Inputs and Outputs 4. Define Intents that trigger inputs on state machine 5. Trigger Intents from view layer
125. Questions?
126. Links - The State of Representing State by Christina Lee - RxJava By Example - Vol 3. the Multicast Edition by Kaushik Gopal - Screenshot testing: https://facebook.github.io/screenshot-tests-for-android/ - https://github.com/freeletics/RxRedux
