FHIR (Fast Healthcare Interoperability Resources) is quickly becoming the standard for RESTful healthcare interoperability.

Many healthcare organizations, technology service providers and architects/developers are increasingly starting to invest time into FHIR.

When we Google the term FHIR, we get a ton of information; but the information can sometimes be a bit overwhelming. As healthcare IT professionals, it is essential that we understand the FHIR model and its various API conventions, be able to spin up a FHIR server and, in particular, be able to answer the question “how does FHIR fit with the cloud strategies” especially when everything is heading towards the cloud.

Thankfully, the people at Microsoft and Azure are not staying idle in this matter. They are making a lot of resources available for us, and providing the building blocks needed to get started quickly.

Transcript

1. Jumpstart Your Health Data Solutions with FHIR on Azure By Ahsan Alam October 16, 2019
2. Who Am I Heads Down Coder Developer/Architect Architect/Strategist
3. web console desktop device assembly c/c++ vb vb .net c# asp .net database ui control systems Who Am I middle tier
4. Finance Energy Trading Healthcare HR Supply Chain Insurance Life Science Healthcare Insurance Life Science Who Am I
5. Why Today’s Demo  Challenges with healthcare data exchange is not new  Cloud strategy has changed Enterprise Integration landscape  Hybrid integration is a reality (for many organization)  Organizations are also rethinking the usage of costly middleware FHIR on Azure simply made sense for me

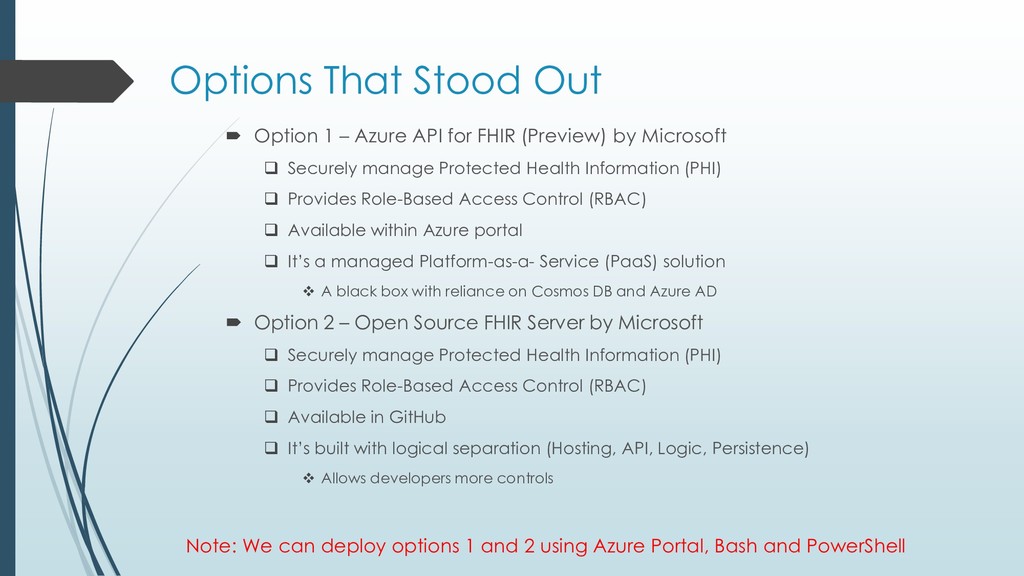

6.  Option 1 – Azure API for FHIR (Preview) by Microsoft  Securely manage Protected Health Information (PHI)  Provides Role-Based Access Control (RBAC)  Available within Azure portal  It’s a managed Platform-as-a- Service (PaaS) solution  A black box with reliance on Cosmos DB and Azure AD  Option 2 – Open Source FHIR Server by Microsoft  Securely manage Protected Health Information (PHI)  Provides Role-Based Access Control (RBAC)  Available in GitHub  It’s built with logical separation (Hosting, API, Logic, Persistence)  Allows developers more controls Options That Stood Out Note: We can deploy options 1 and 2 using Azure Portal, Bash and PowerShell

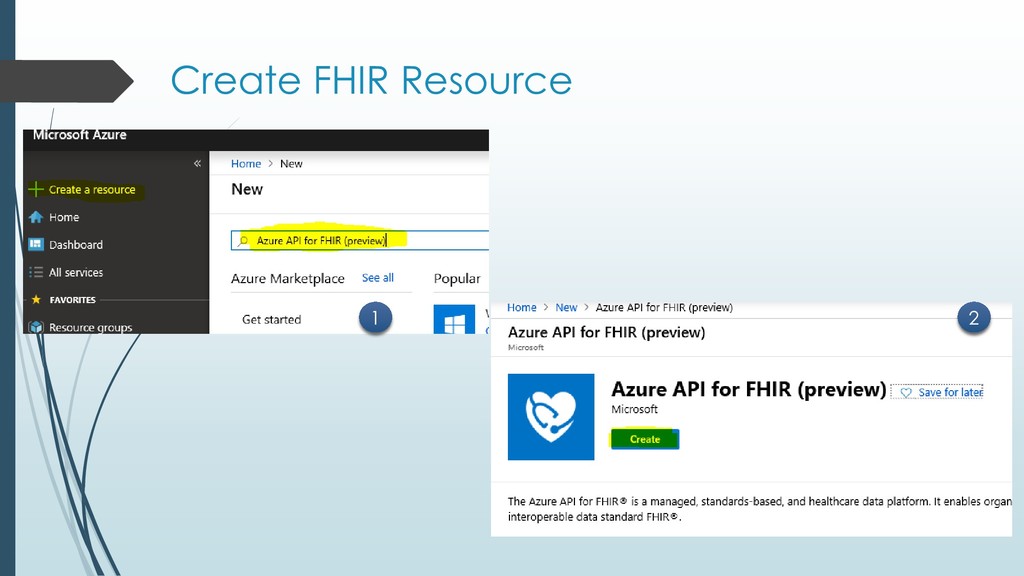

8. Create FHIR Resource 1 2

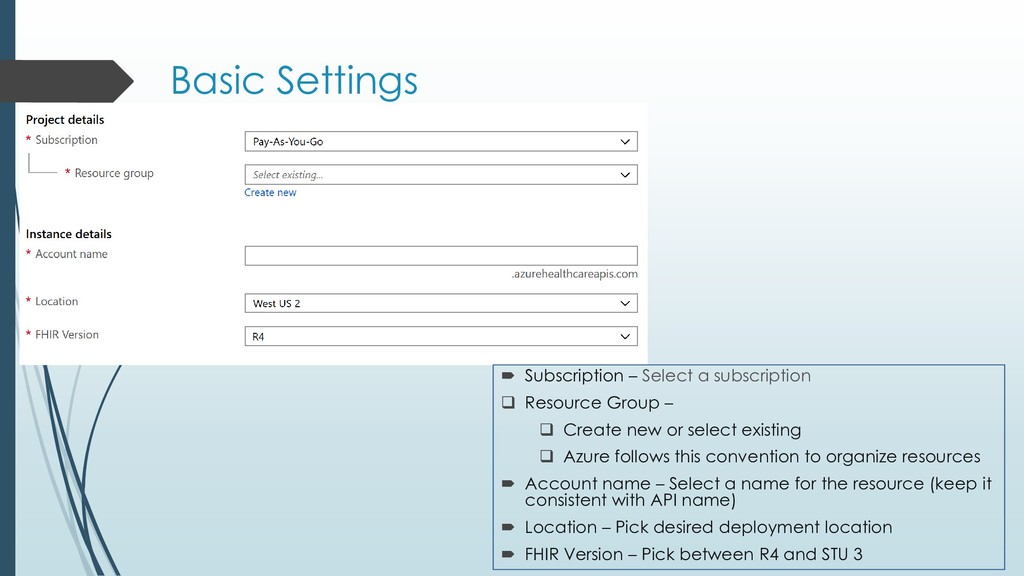

9. Basic Settings  Subscription – Select a subscription  Resource Group –  Create new or select existing  Azure follows this convention to organize resources  Account name – Select a name for the resource (keep it consistent with API name)  Location – Pick desired deployment location  FHIR Version – Pick between R4 and STU 3

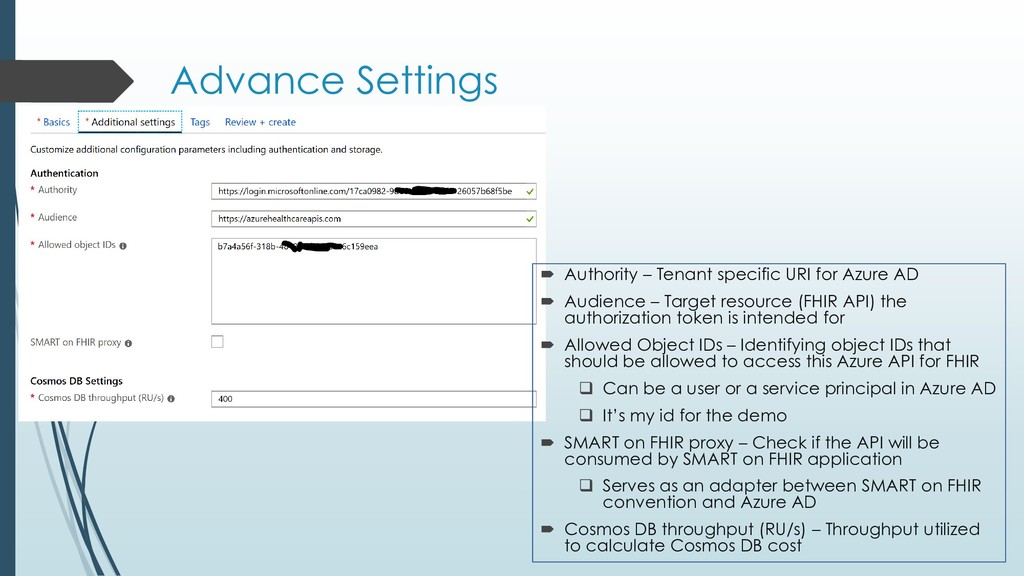

10. Advance Settings  Authority – Tenant specific URI for Azure AD  Audience – Target resource (FHIR API) the authorization token is intended for  Allowed Object IDs – Identifying object IDs that should be allowed to access this Azure API for FHIR  Can be a user or a service principal in Azure AD  It’s my id for the demo  SMART on FHIR proxy – Check if the API will be consumed by SMART on FHIR application  Serves as an adapter between SMART on FHIR convention and Azure AD  Cosmos DB throughput (RU/s) – Throughput utilized to calculate Cosmos DB cost

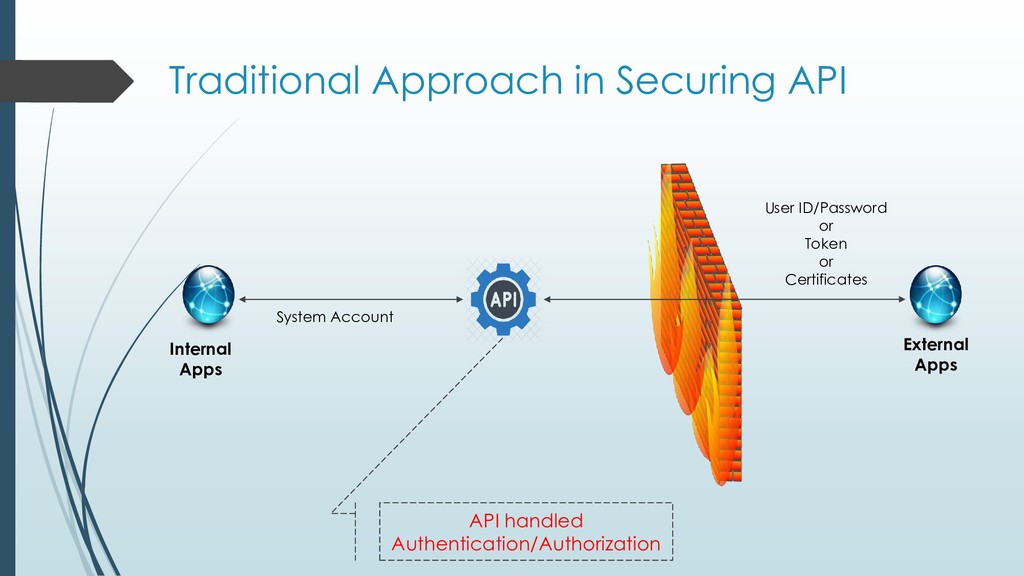

11. Traditional Approach in Securing API System Account Internal Apps External Apps User ID/Password or Token or Certificates API handled Authentication/Authorization

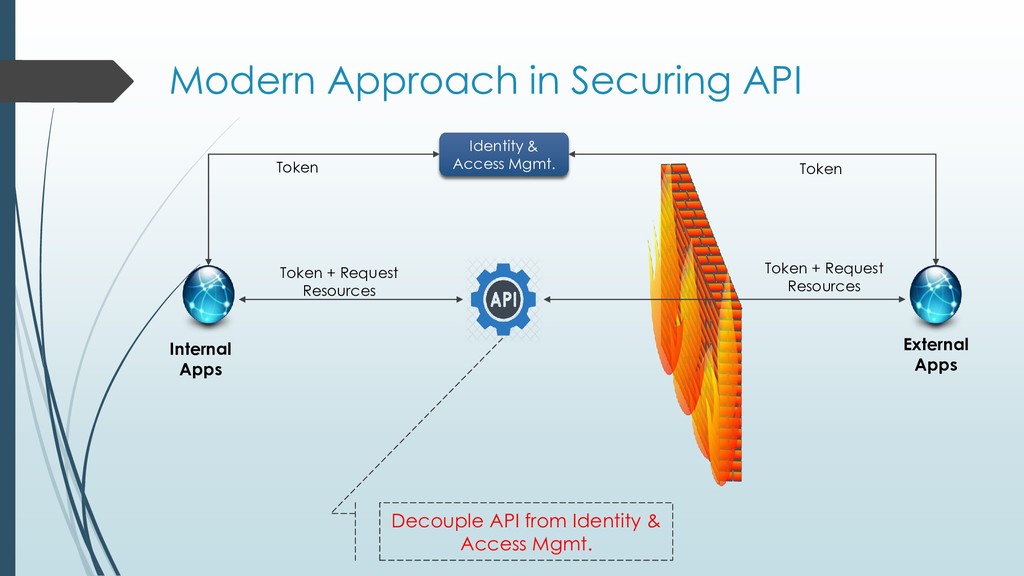

12. Modern Approach in Securing API Internal Apps External Apps Token Decouple API from Identity & Access Mgmt. Identity & Access Mgmt. Token Token + Request Resources Token + Request Resources

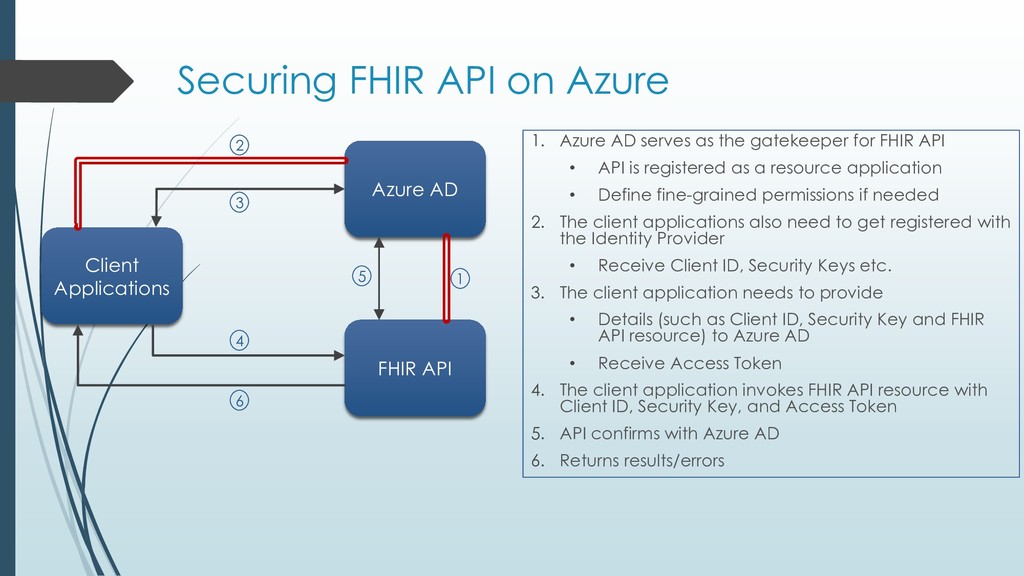

13. Securing FHIR API on Azure Azure AD FHIR API Client Applications 1 2 3 4 5 6 1. Azure AD serves as the gatekeeper for FHIR API • API is registered as a resource application • Define fine-grained permissions if needed 2. The client applications also need to get registered with the Identity Provider • Receive Client ID, Security Keys etc. 3. The client application needs to provide • Details (such as Client ID, Security Key and FHIR API resource) to Azure AD • Receive Access Token 4. The client application invokes FHIR API resource with Client ID, Security Key, and Access Token 5. API confirms with Azure AD 6. Returns results/errors

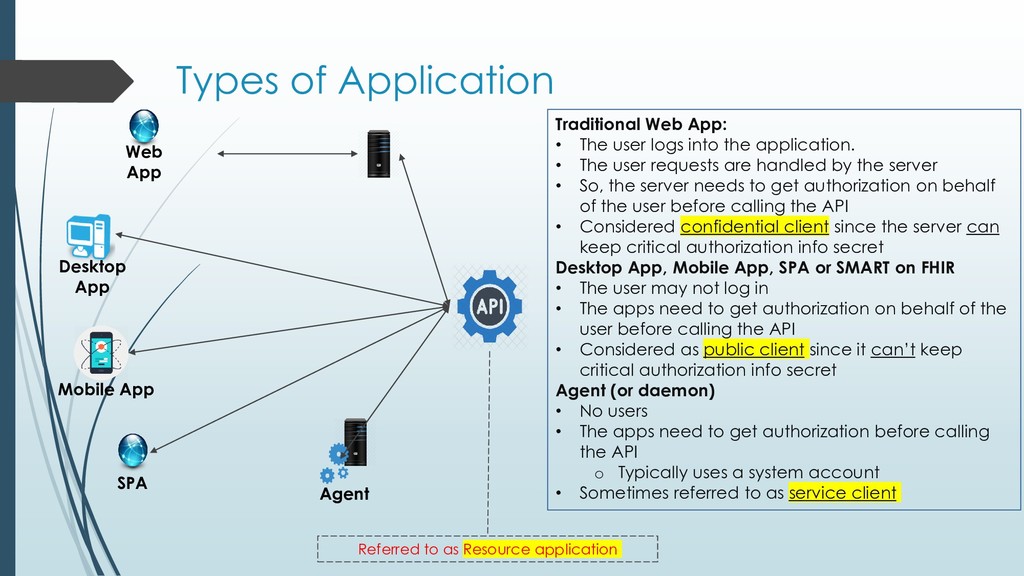

14. Types of Application Traditional Web App: • The user logs into the application. • The user requests are handled by the server • So, the server needs to get authorization on behalf of the user before calling the API • Considered confidential client since the server can keep critical authorization info secret Desktop App, Mobile App, SPA or SMART on FHIR • The user may not log in • The apps need to get authorization on behalf of the user before calling the API • Considered as public client since it can’t keep critical authorization info secret Agent (or daemon) • No users • The apps need to get authorization before calling the API o Typically uses a system account • Sometimes referred to as service client Web App Desktop App SPA Agent Mobile App Referred to as Resource application

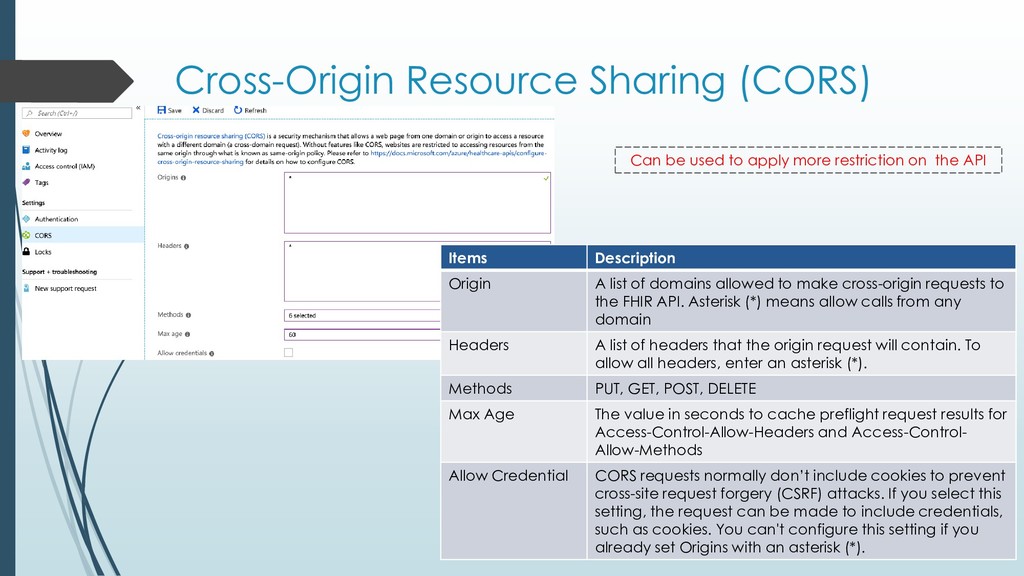

15. Cross-Origin Resource Sharing (CORS) Items Description Origin A list of domains allowed to make cross-origin requests to the FHIR API. Asterisk (*) means allow calls from any domain Headers A list of headers that the origin request will contain. To allow all headers, enter an asterisk (*). Methods PUT, GET, POST, DELETE Max Age The value in seconds to cache preflight request results for Access-Control-Allow-Headers and Access-Control- Allow-Methods Allow Credential CORS requests normally don’t include cookies to prevent cross-site request forgery (CSRF) attacks. If you select this setting, the request can be made to include credentials, such as cookies. You can't configure this setting if you already set Origins with an asterisk (*). Can be used to apply more restriction on the API
16. Register FHIR API as Resource Application 1 2 3 4

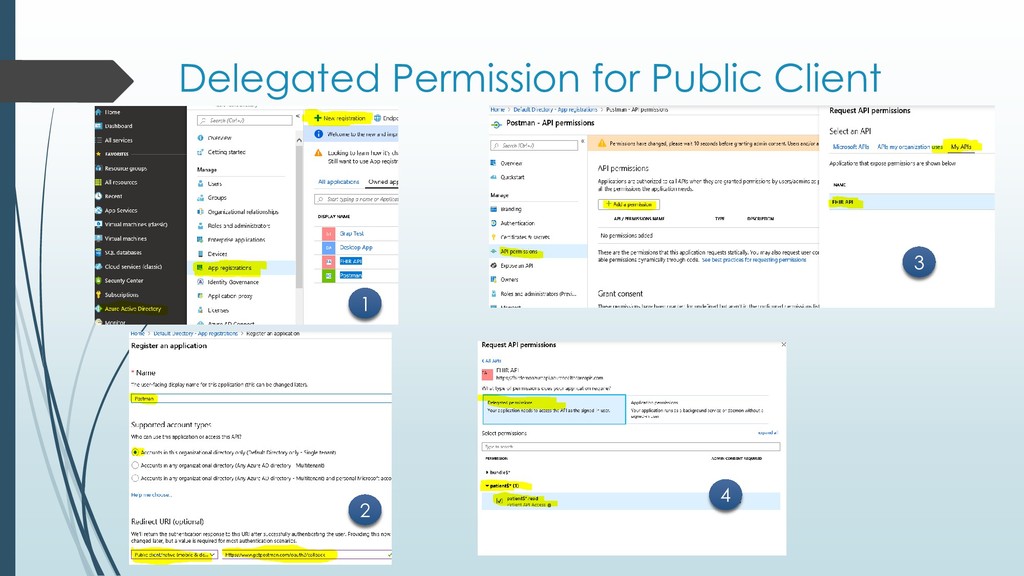

17. Delegated Permission for Public Client 1 2 3 4

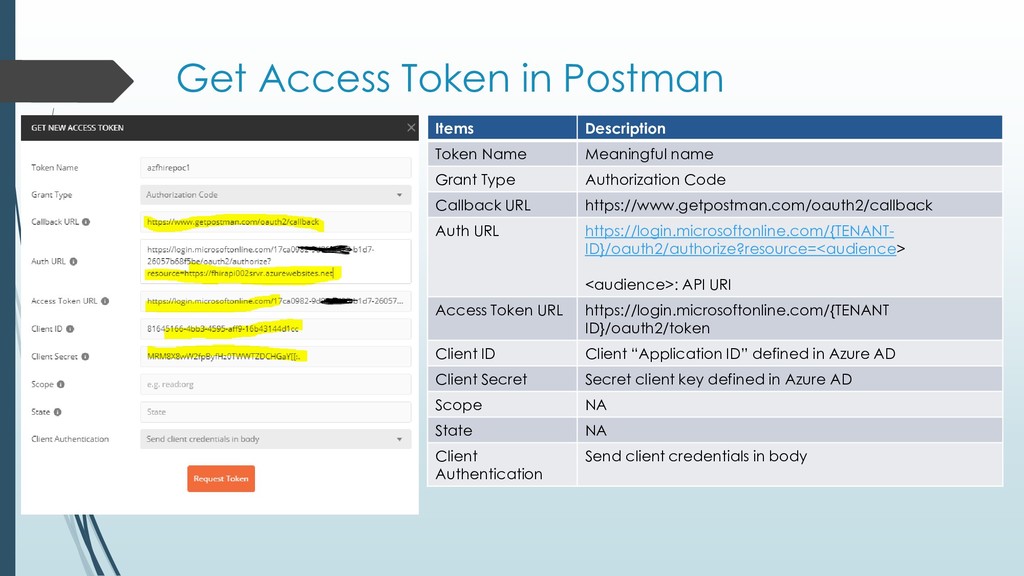

18. Get Access Token in Postman Items Description Token Name Meaningful name Grant Type Authorization Code Callback URL https://www.getpostman.com/oauth2/callback Auth URL https://login.microsoftonline.com/{TENANT- ID}/oauth2/authorize?resource=<audience> <audience>: API URI Access Token URL https://login.microsoftonline.com/{TENANT ID}/oauth2/token Client ID Client “Application ID” defined in Azure AD Client Secret Secret client key defined in Azure AD Scope NA State NA Client Authentication Send client credentials in body

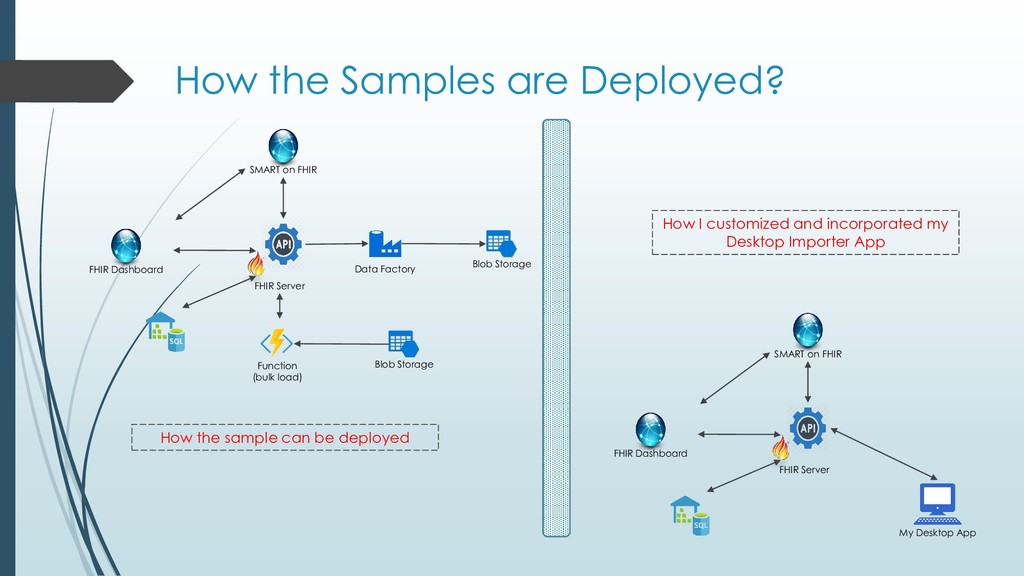

20. FHIR Dashboard SMART on FHIR FHIR Server Function (bulk load) Blob Storage Blob Storage Data Factory FHIR Dashboard SMART on FHIR FHIR Server My Desktop App How the Samples are Deployed? How the sample can be deployed How I customized and incorporated my Desktop Importer App

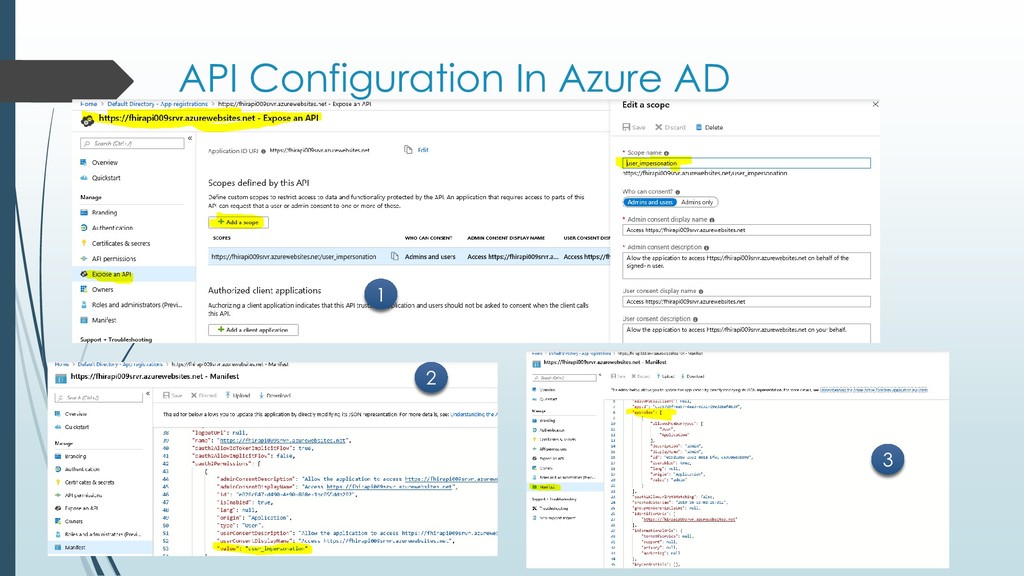

21. API Configuration In Azure AD 1 2 3
22. Register My Desktop App 1 2 3 4

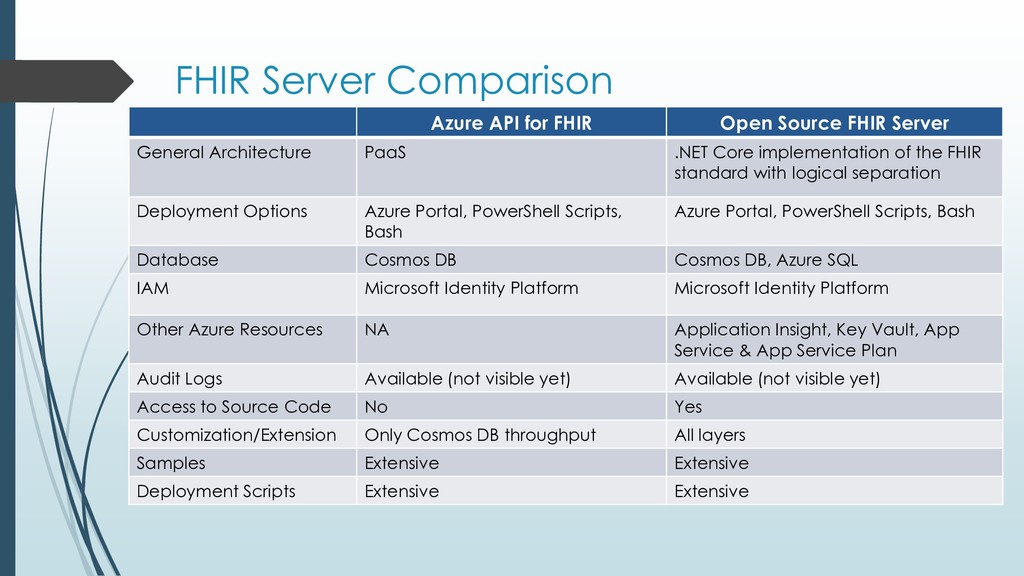

24. FHIR Server Comparison Azure API for FHIR Open Source FHIR Server General Architecture PaaS .NET Core implementation of the FHIR standard with logical separation Deployment Options Azure Portal, PowerShell Scripts, Bash Azure Portal, PowerShell Scripts, Bash Database Cosmos DB Cosmos DB, Azure SQL IAM Microsoft Identity Platform Microsoft Identity Platform Other Azure Resources NA Application Insight, Key Vault, App Service & App Service Plan Audit Logs Available (not visible yet) Available (not visible yet) Access to Source Code No Yes Customization/Extension Only Cosmos DB throughput All layers Samples Extensive Extensive Deployment Scripts Extensive Extensive

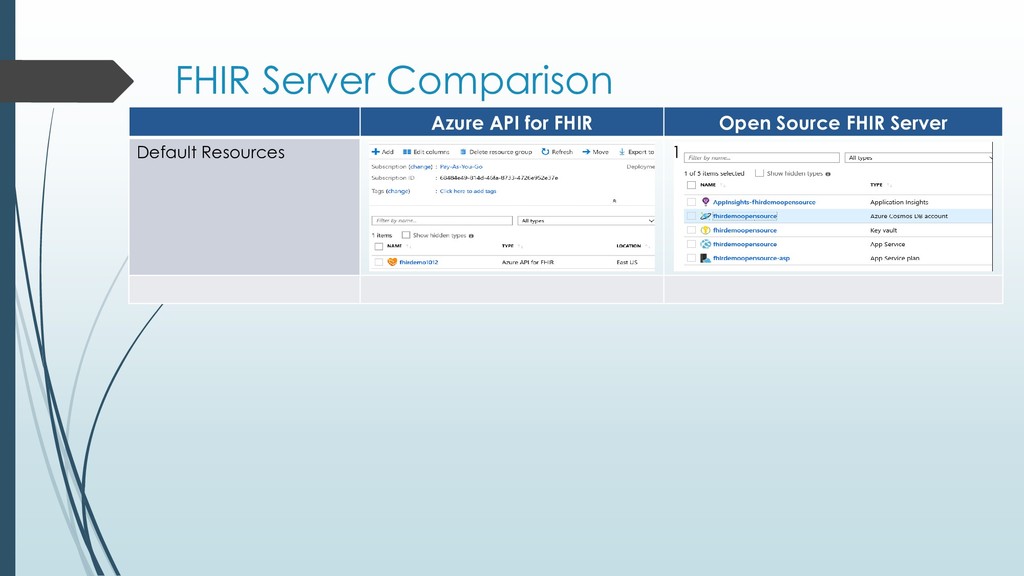

25. FHIR Server Comparison Azure API for FHIR Open Source FHIR Server Default Resources 1

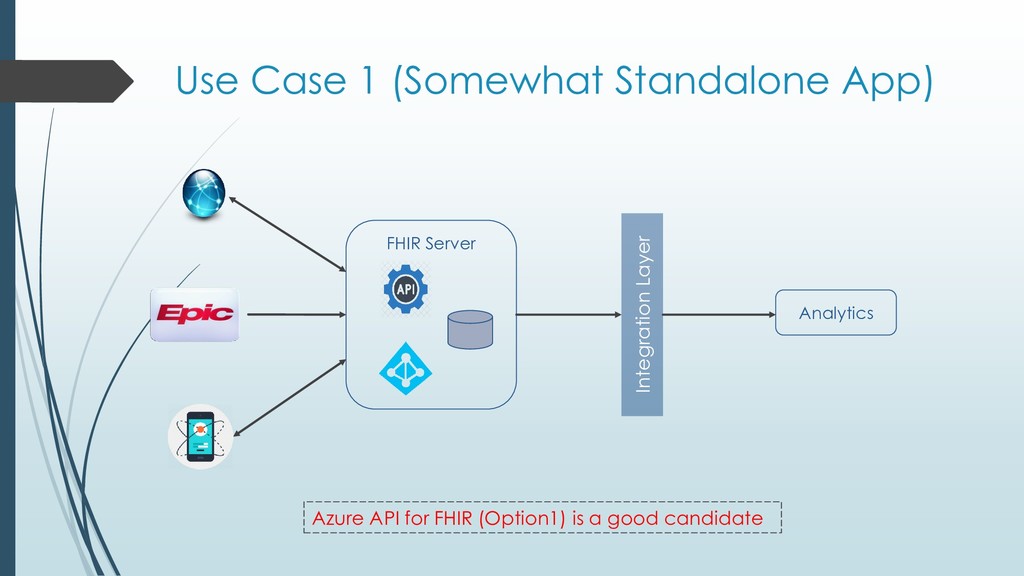

26. Use Case 1 (Somewhat Standalone App) Integration Layer FHIR Server Analytics Azure API for FHIR (Option1) is a good candidate

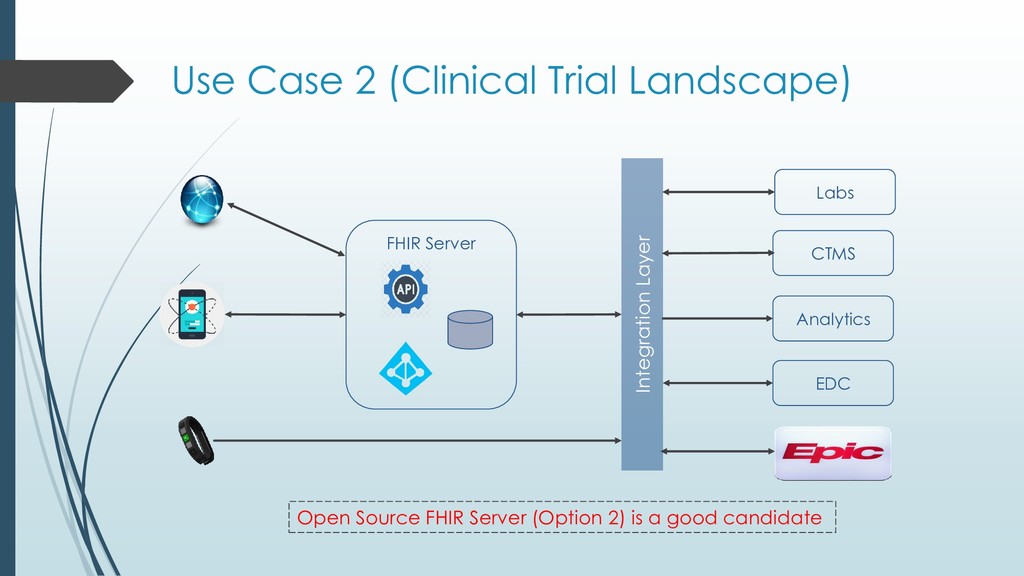

27. Use Case 2 (Clinical Trial Landscape) Integration Layer FHIR Server CTMS Analytics Labs EDC Open Source FHIR Server (Option 2) is a good candidate

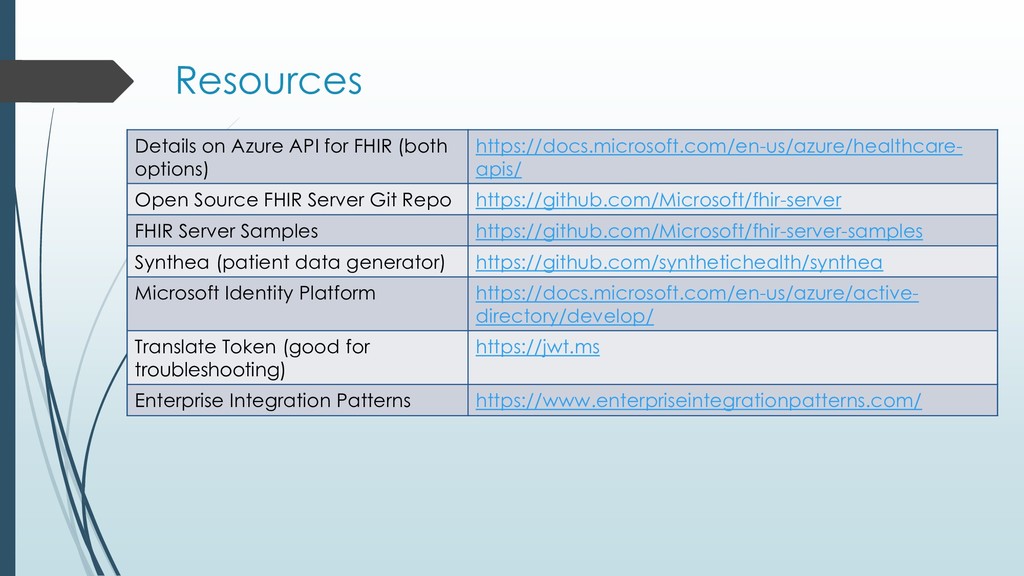

28. Resources Details on Azure API for FHIR (both options) https://docs.microsoft.com/en-us/azure/healthcare- apis/ Open Source FHIR Server Git Repo https://github.com/Microsoft/fhir-server FHIR Server Samples https://github.com/Microsoft/fhir-server-samples Synthea (patient data generator) https://github.com/synthetichealth/synthea Microsoft Identity Platform https://docs.microsoft.com/en-us/azure/active- directory/develop/ Translate Token (good for troubleshooting) https://jwt.ms Enterprise Integration Patterns https://www.enterpriseintegrationpatterns.com/
