Apereo 2013 Portlet Development Seminar

Slides for the 2013 Apereo Portlet Development Seminar.

Transcript

1. May 21, 2013 Portlet Development 1 Sunday, June 2, 13
2. May 21, 2013 2 What is a Portlet? Sunday, June 2, 13

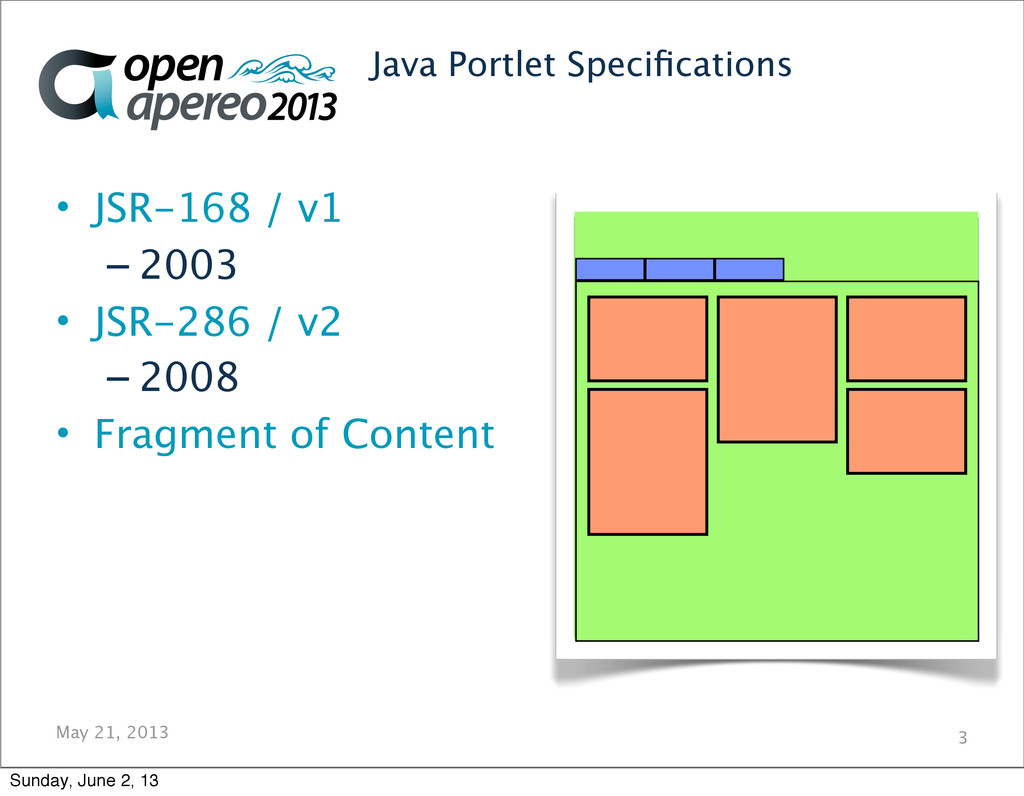

3. May 21, 2013 • JSR-168 / v1 – 2003 • JSR-286 / v2 – 2008 • Fragment of Content 3 Java Portlet Specifications Sunday, June 2, 13

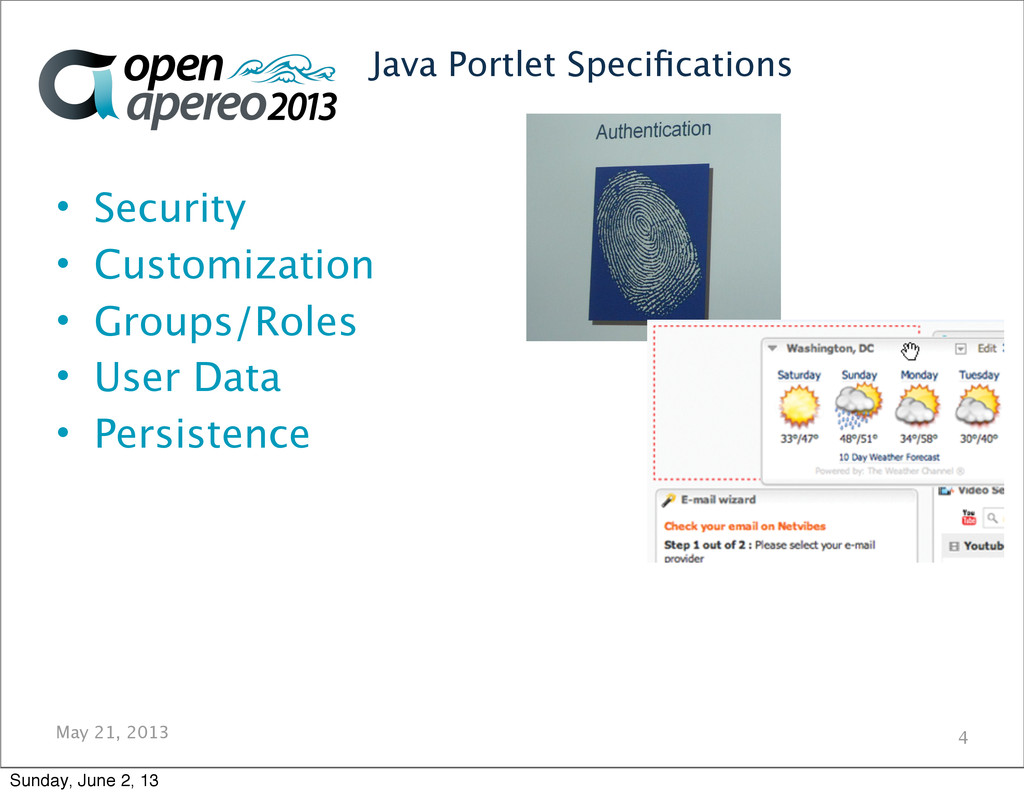

4. May 21, 2013 Java Portlet Specifications • Security • Customization • Groups/Roles • User Data • Persistence 4 Sunday, June 2, 13
5. May 21, 2013 5 Development Tools Sunday, June 2, 13

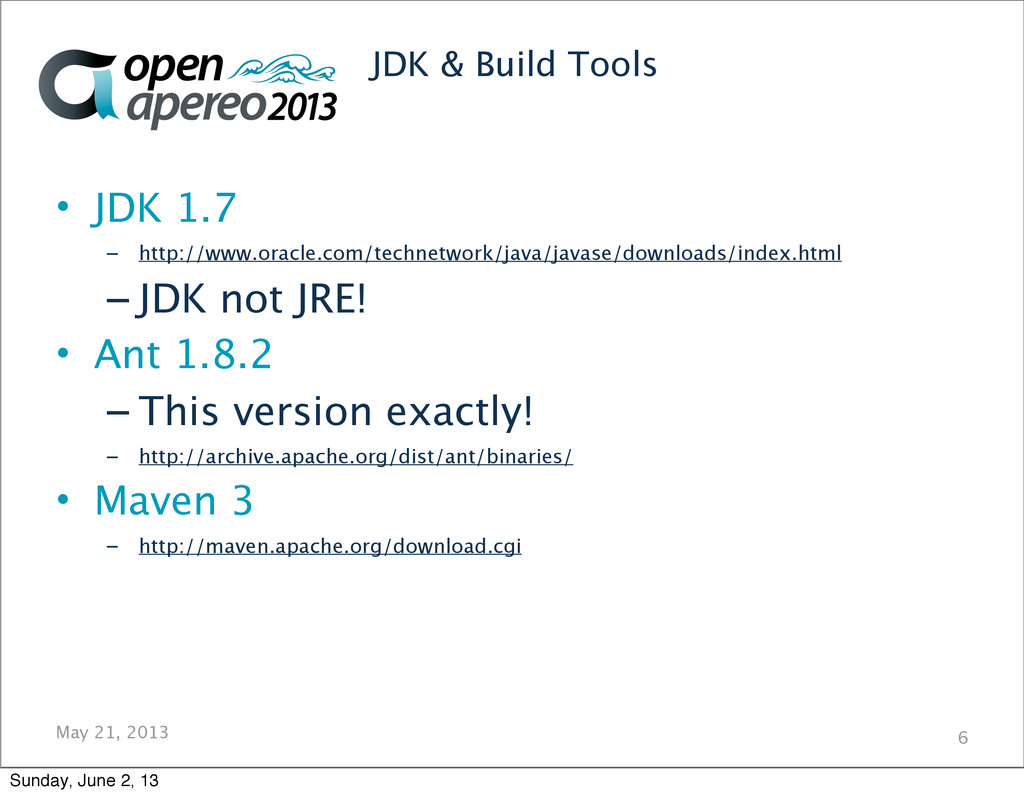

6. May 21, 2013 JDK & Build Tools • JDK 1.7 – http://www.oracle.com/technetwork/java/javase/downloads/index.html – JDK not JRE! • Ant 1.8.2 – This version exactly! – http://archive.apache.org/dist/ant/binaries/ • Maven 3 – http://maven.apache.org/download.cgi 6 Sunday, June 2, 13

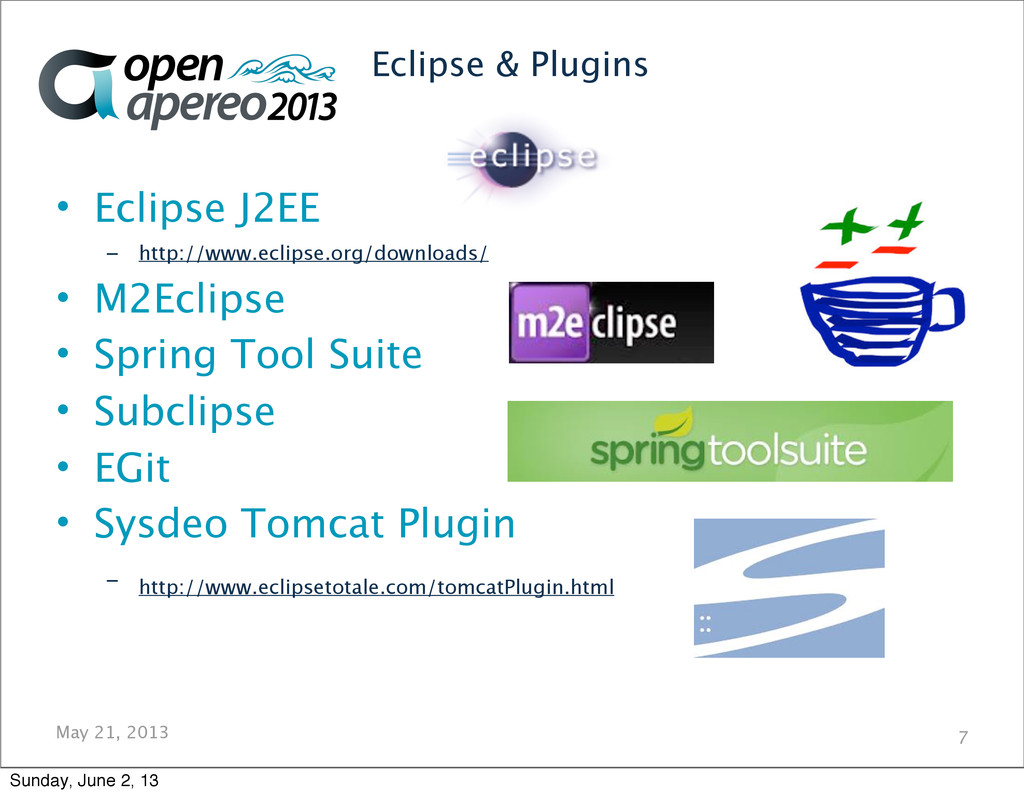

7. May 21, 2013 • Eclipse J2EE – http://www.eclipse.org/downloads/ • M2Eclipse • Spring Tool Suite • Subclipse • EGit • Sysdeo Tomcat Plugin – http://www.eclipsetotale.com/tomcatPlugin.html 7 Eclipse & Plugins Sunday, June 2, 13

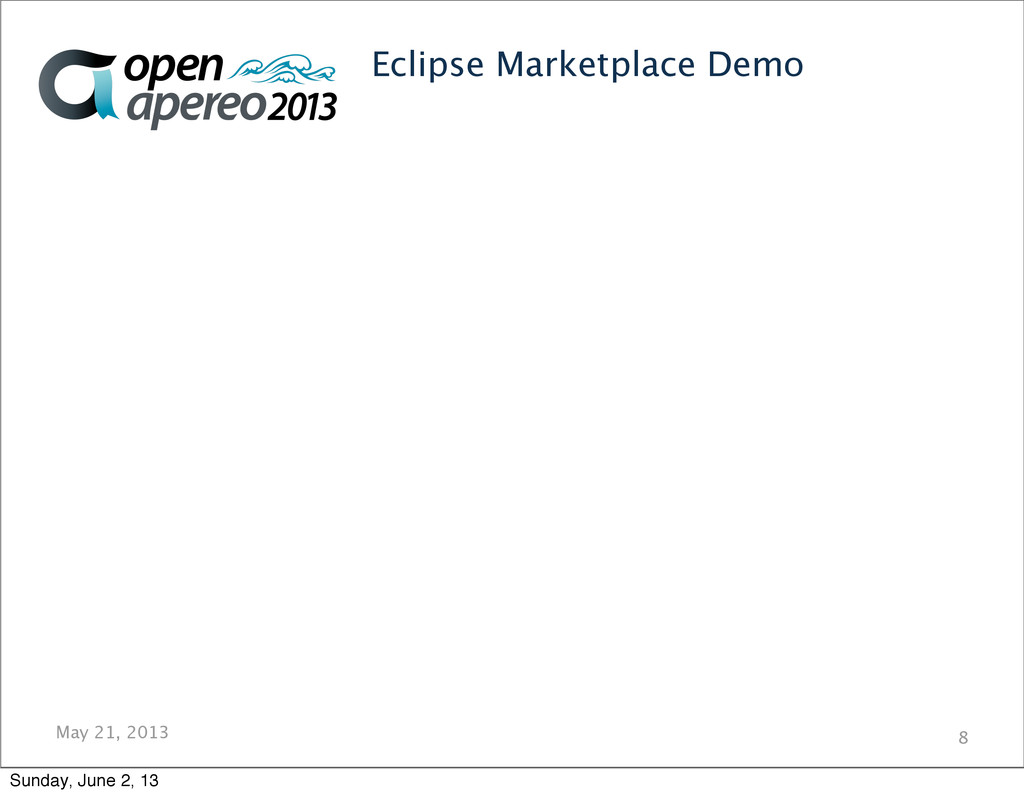

8. May 21, 2013 Eclipse Marketplace Demo 8 Sunday, June 2, 13

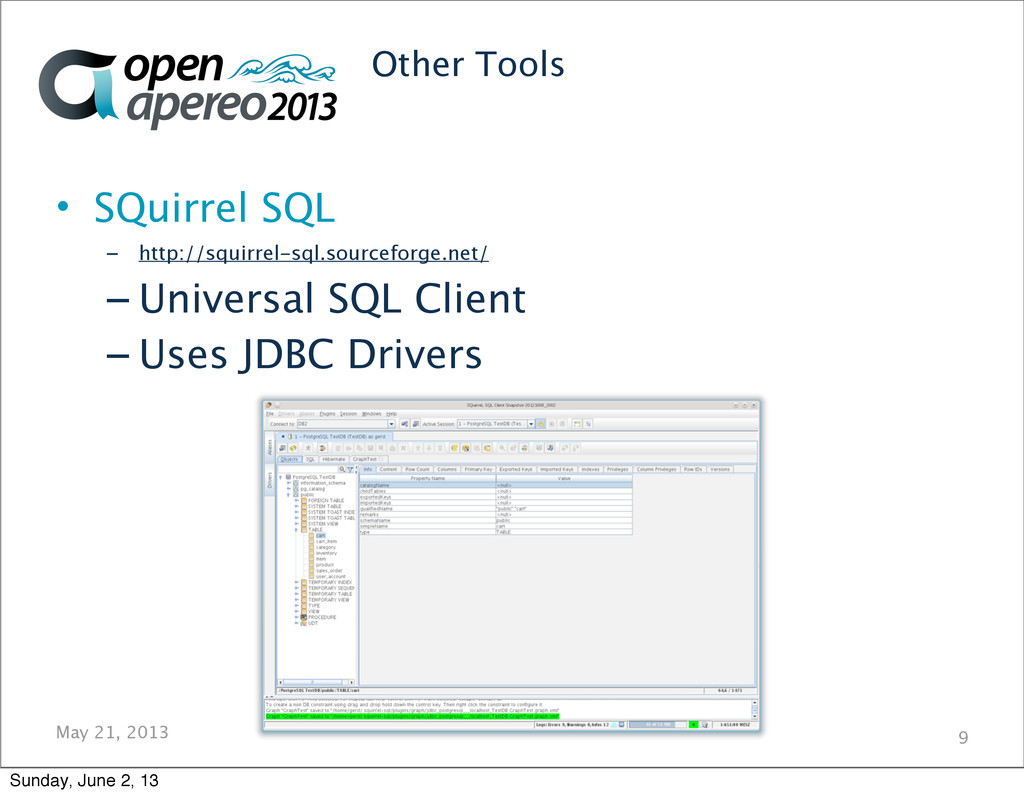

9. May 21, 2013 Other Tools • SQuirrel SQL – http://squirrel-sql.sourceforge.net/ – Universal SQL Client – Uses JDBC Drivers 9 Sunday, June 2, 13
10. May 21, 2013 10 Using uPortal Sunday, June 2, 13

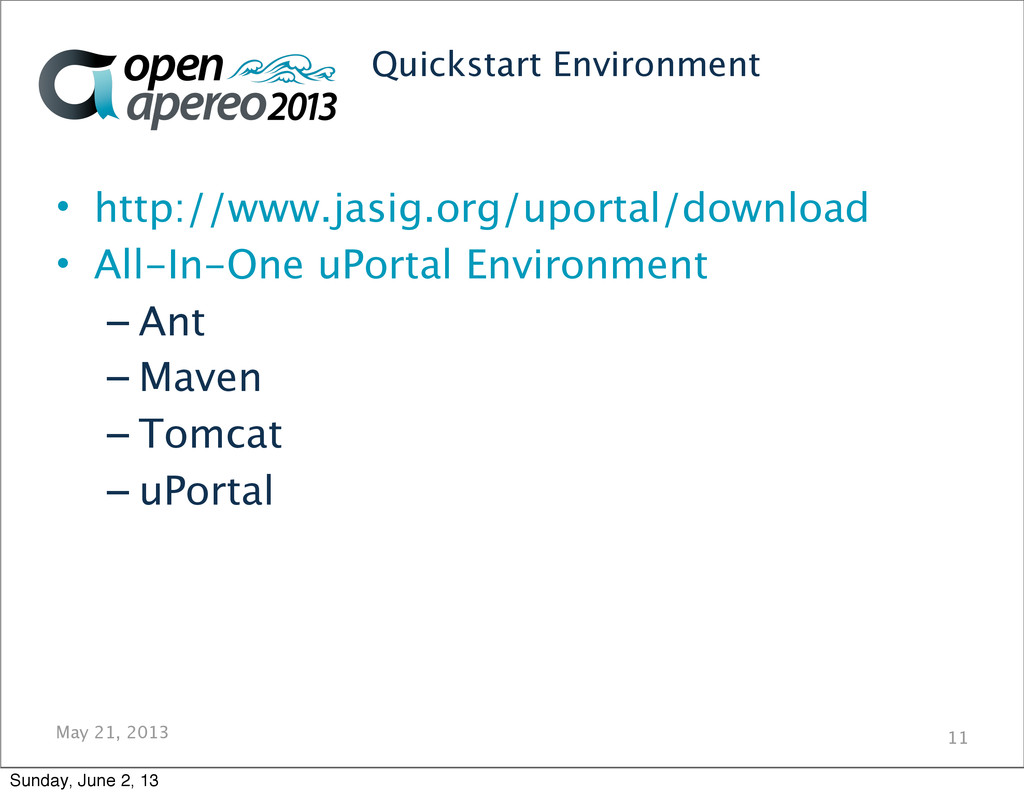

11. May 21, 2013 • http://www.jasig.org/uportal/download • All-In-One uPortal Environment – Ant – Maven – Tomcat – uPortal 11 Quickstart Environment Sunday, June 2, 13

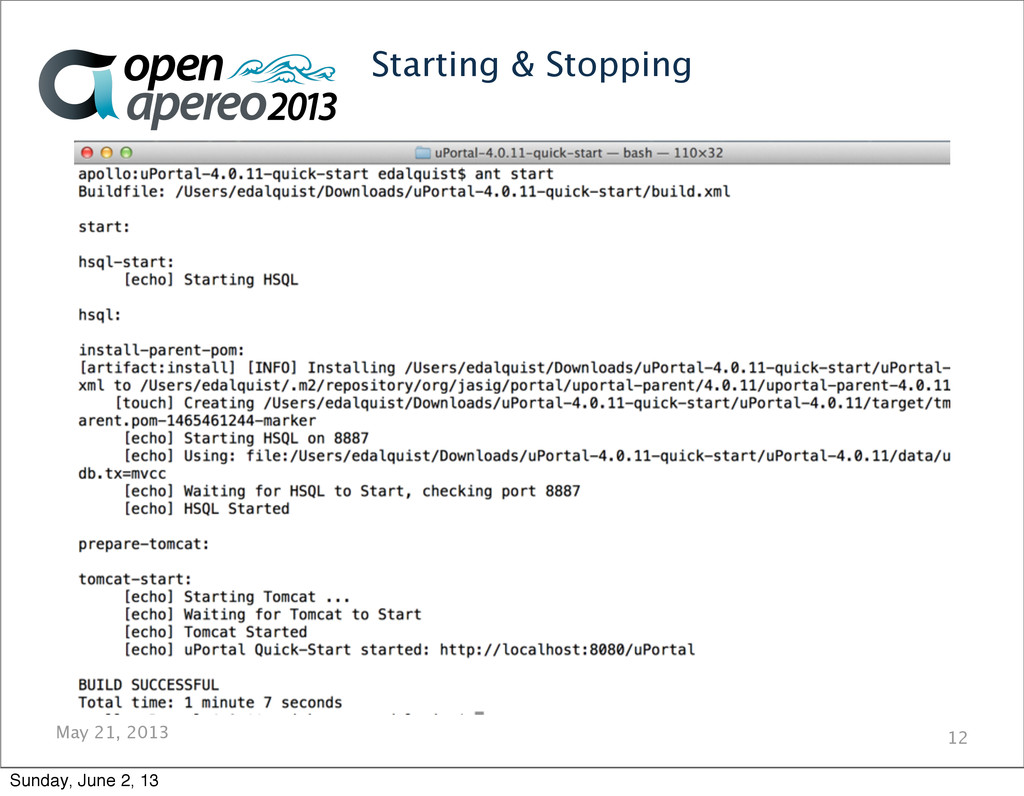

12. May 21, 2013 Starting & Stopping 12 Sunday, June 2, 13

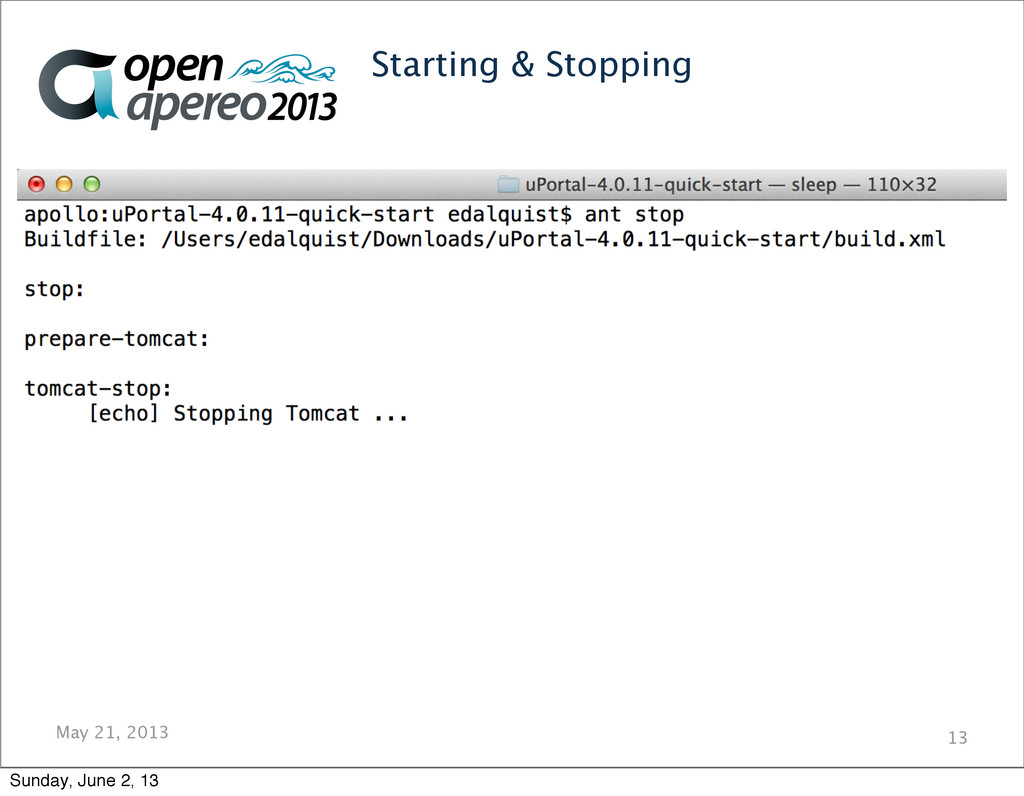

13. May 21, 2013 Starting & Stopping 13 Sunday, June 2, 13

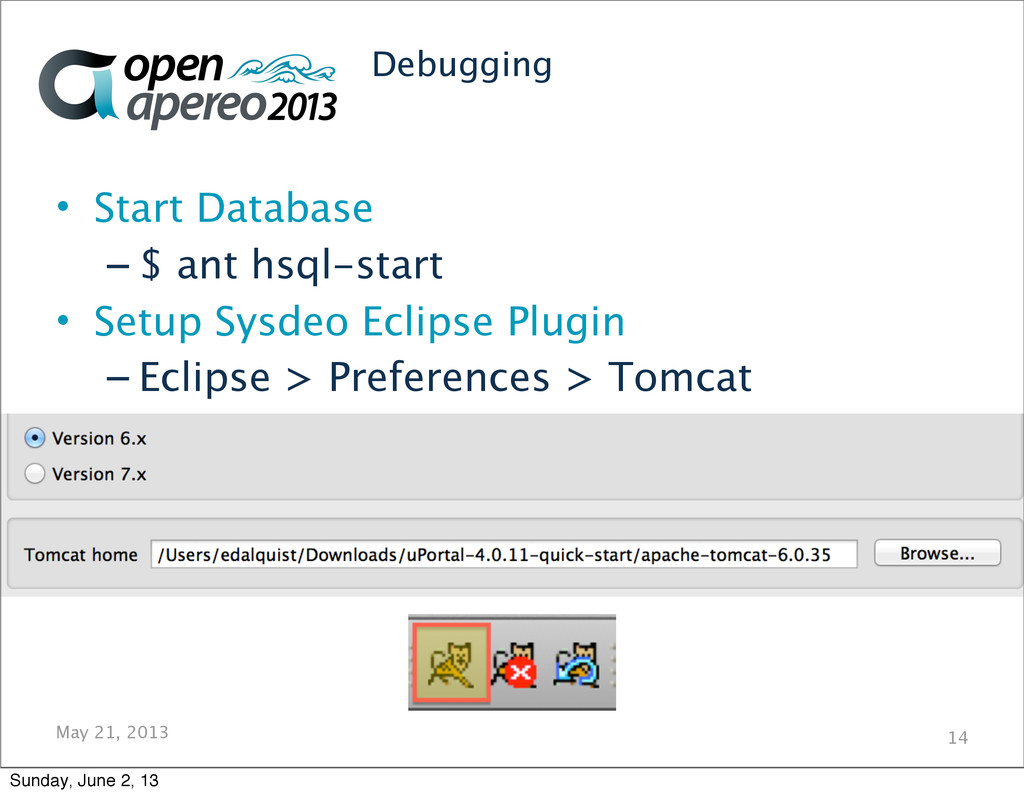

14. May 21, 2013 Debugging • Start Database – $ ant hsql-start • Setup Sysdeo Eclipse Plugin – Eclipse > Preferences > Tomcat 14 Sunday, June 2, 13

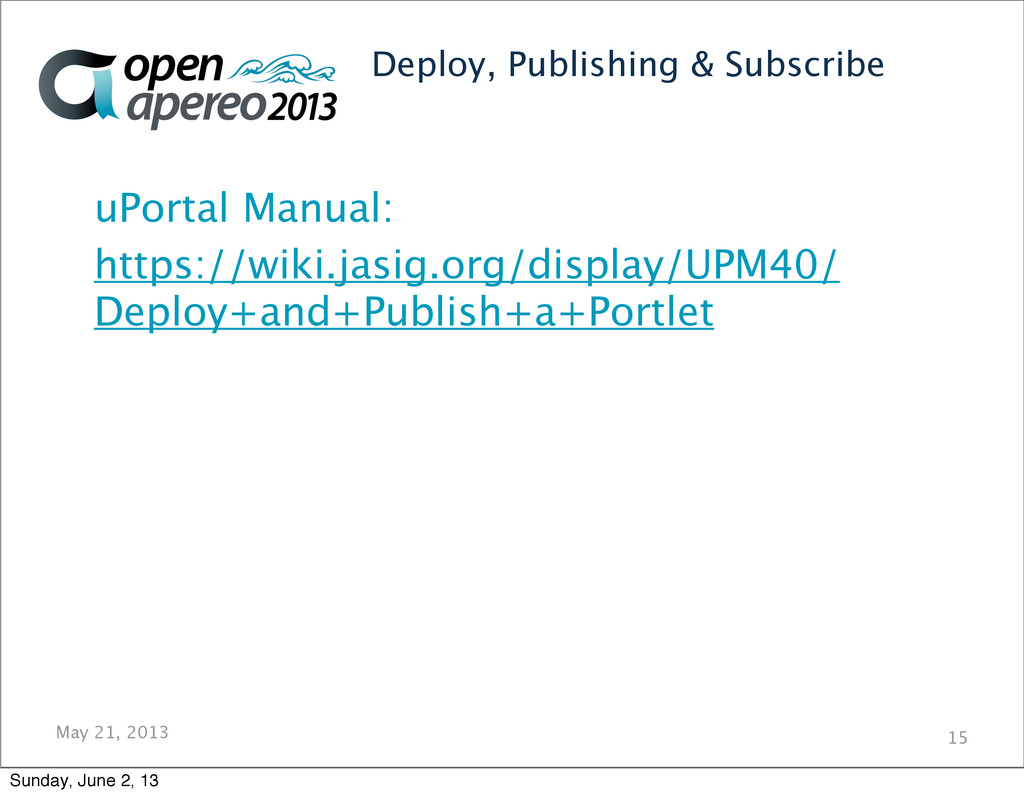

15. May 21, 2013 Deploy, Publishing & Subscribe uPortal Manual: https://wiki.jasig.org/display/UPM40/ Deploy+and+Publish+a+Portlet 15 Sunday, June 2, 13
16. May 21, 2013 16 WebApp vs Servlet PortletApp vs Portlet Sunday, June 2, 13

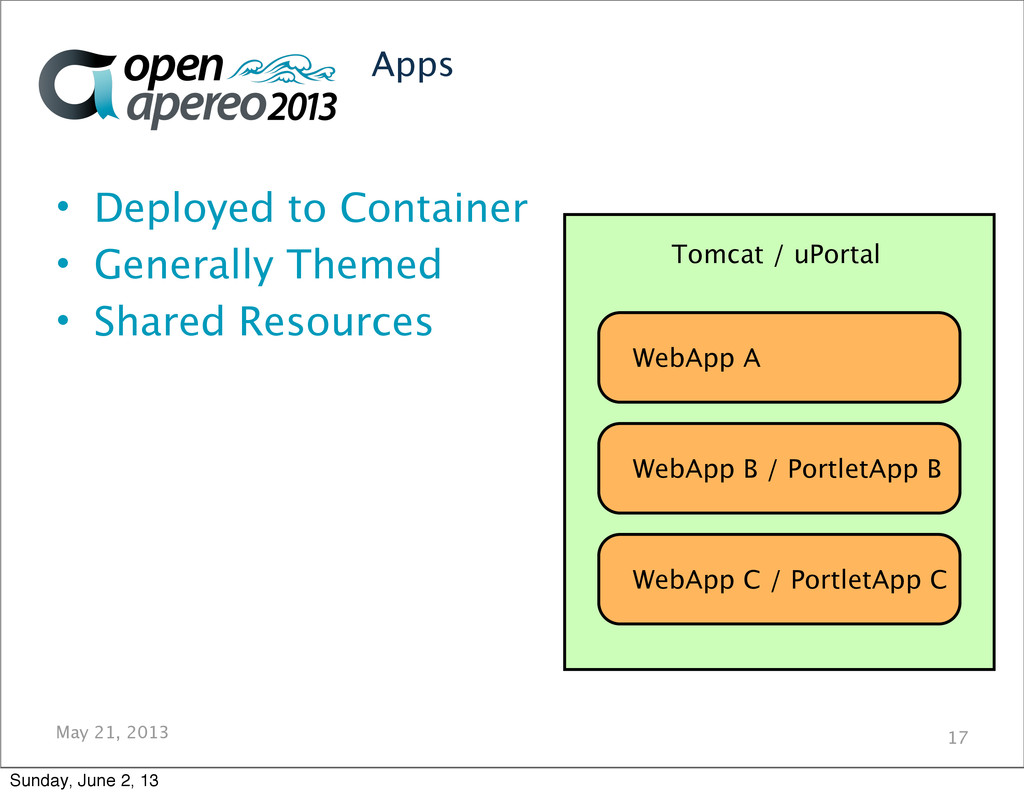

17. May 21, 2013 • Deployed to Container • Generally Themed • Shared Resources 17 Apps Tomcat / uPortal WebApp A WebApp B / PortletApp B WebApp C / PortletApp C Sunday, June 2, 13

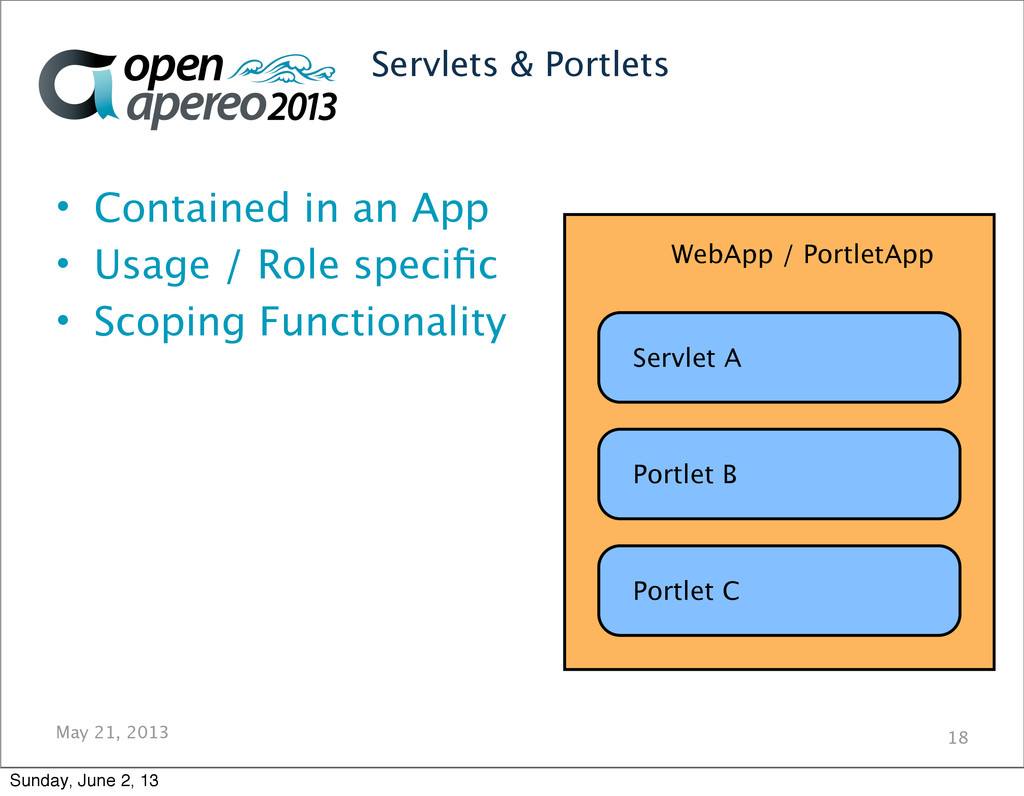

18. May 21, 2013 • Contained in an App • Usage / Role specific • Scoping Functionality 18 Servlets & Portlets WebApp / PortletApp Servlet A Portlet B Portlet C Sunday, June 2, 13
19. May 21, 2013 19 Servlets vs Portlets Sunday, June 2, 13
20. May 21, 2013 URLs & Parameters 20 Sunday, June 2, 13

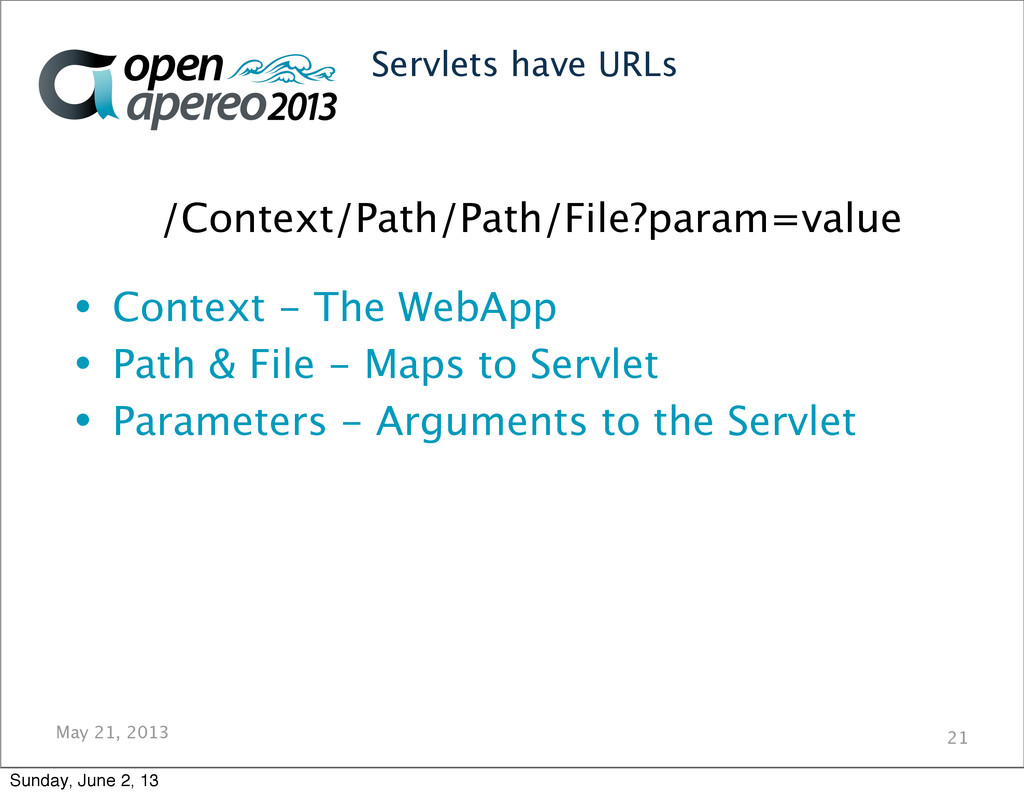

21. May 21, 2013 /Context/Path/Path/File?param=value 21 Servlets have URLs • Context - The WebApp • Path & File - Maps to Servlet • Parameters - Arguments to the Servlet Sunday, June 2, 13

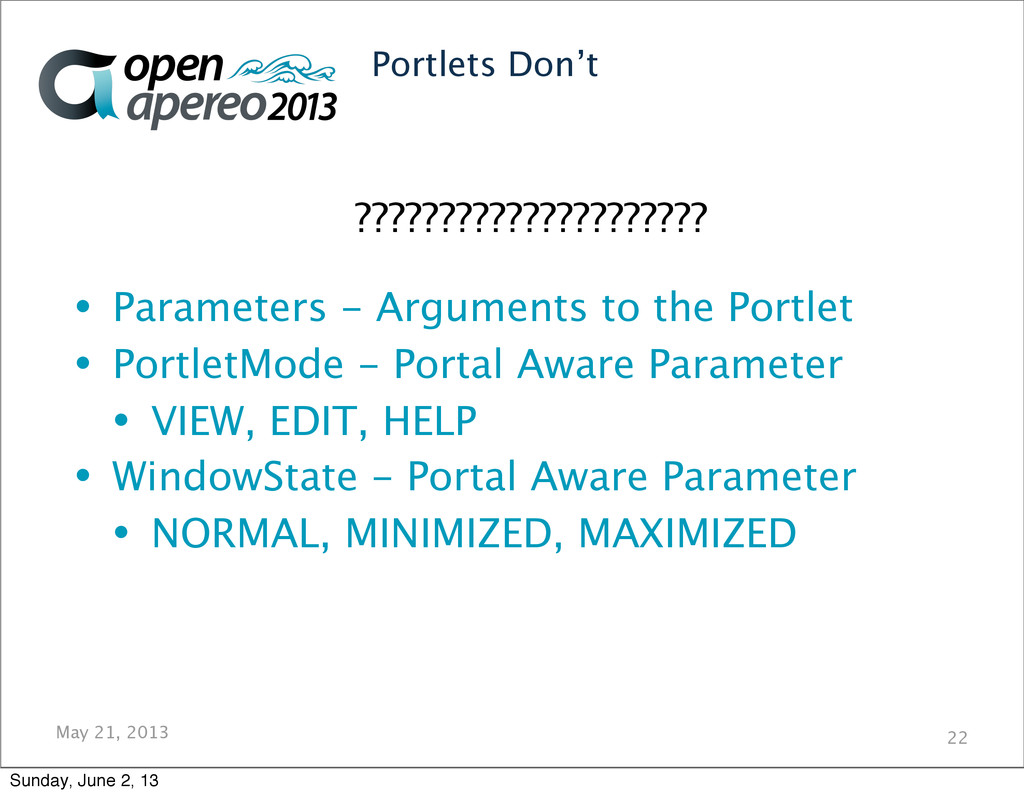

22. May 21, 2013 ????????????????????? 22 Portlets Don’t • Parameters - Arguments to the Portlet • PortletMode - Portal Aware Parameter • VIEW, EDIT, HELP • WindowState - Portal Aware Parameter • NORMAL, MINIMIZED, MAXIMIZED Sunday, June 2, 13
23. May 21, 2013 Request Types 23 Sunday, June 2, 13

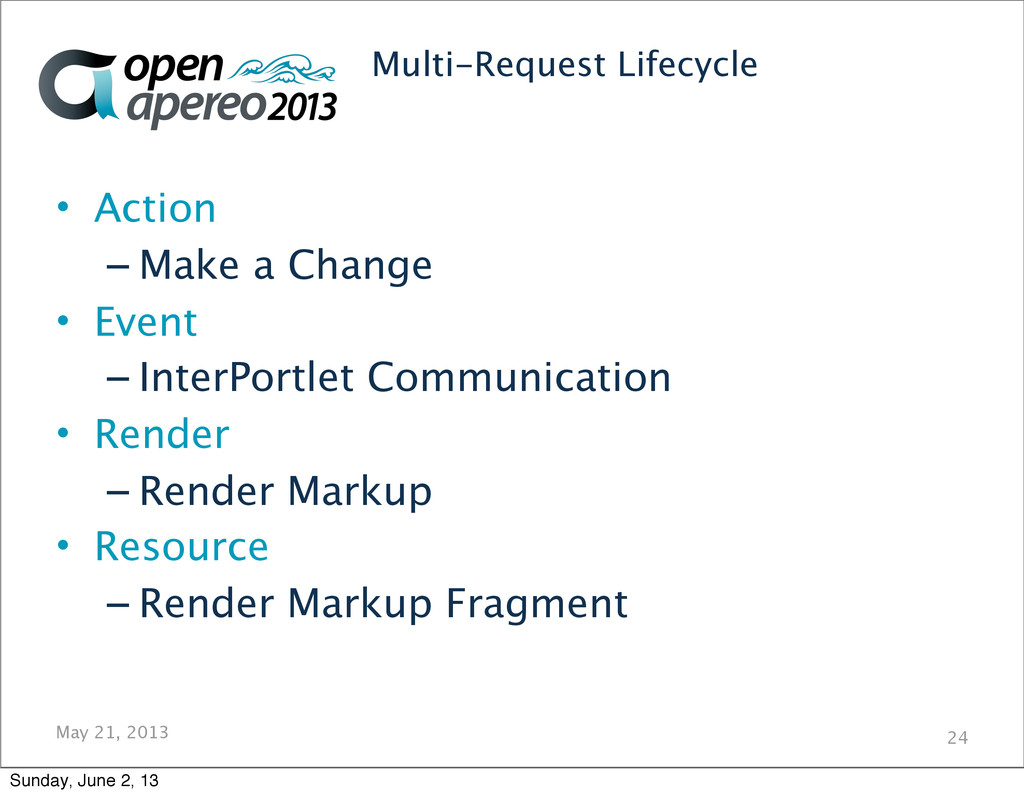

24. May 21, 2013 • Action – Make a Change • Event – InterPortlet Communication • Render – Render Markup • Resource – Render Markup Fragment 24 Multi-Request Lifecycle Sunday, June 2, 13

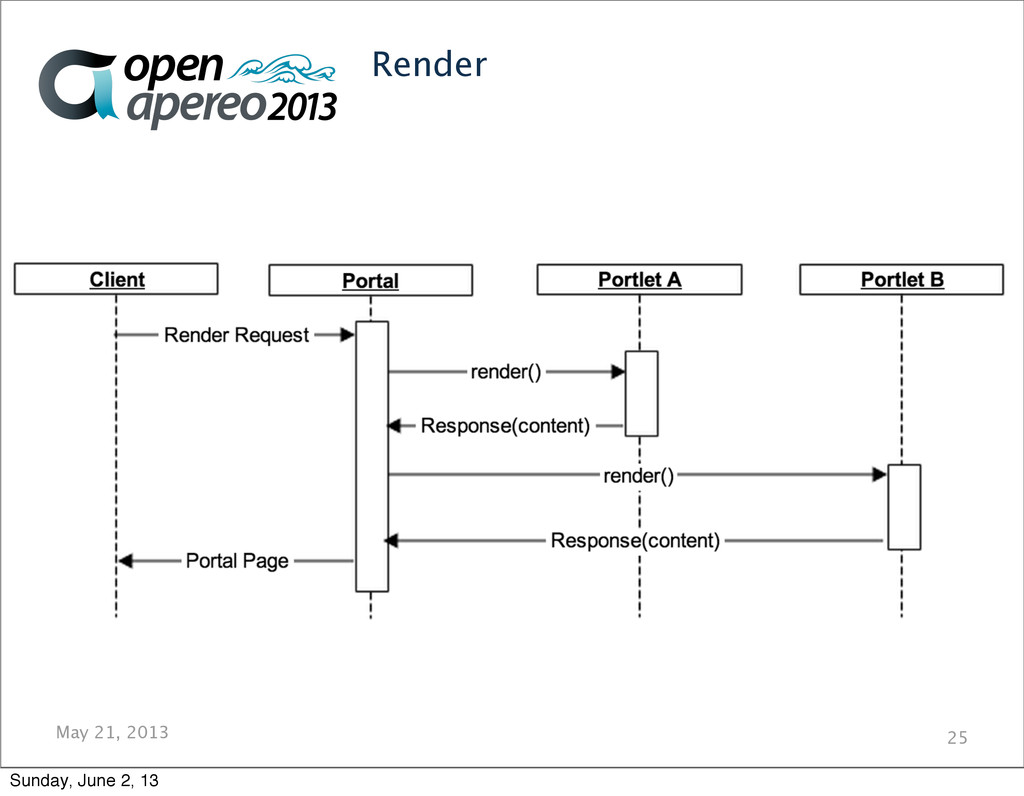

25. May 21, 2013 Render 25 Sunday, June 2, 13

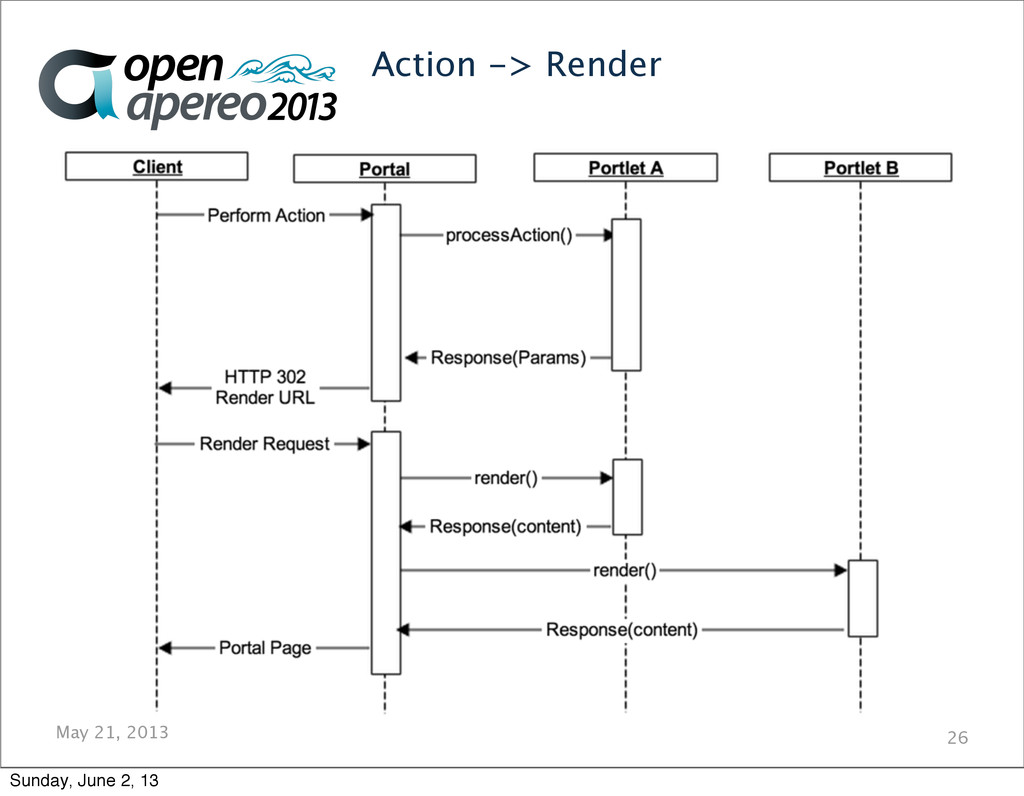

26. May 21, 2013 Action -> Render 26 Sunday, June 2, 13

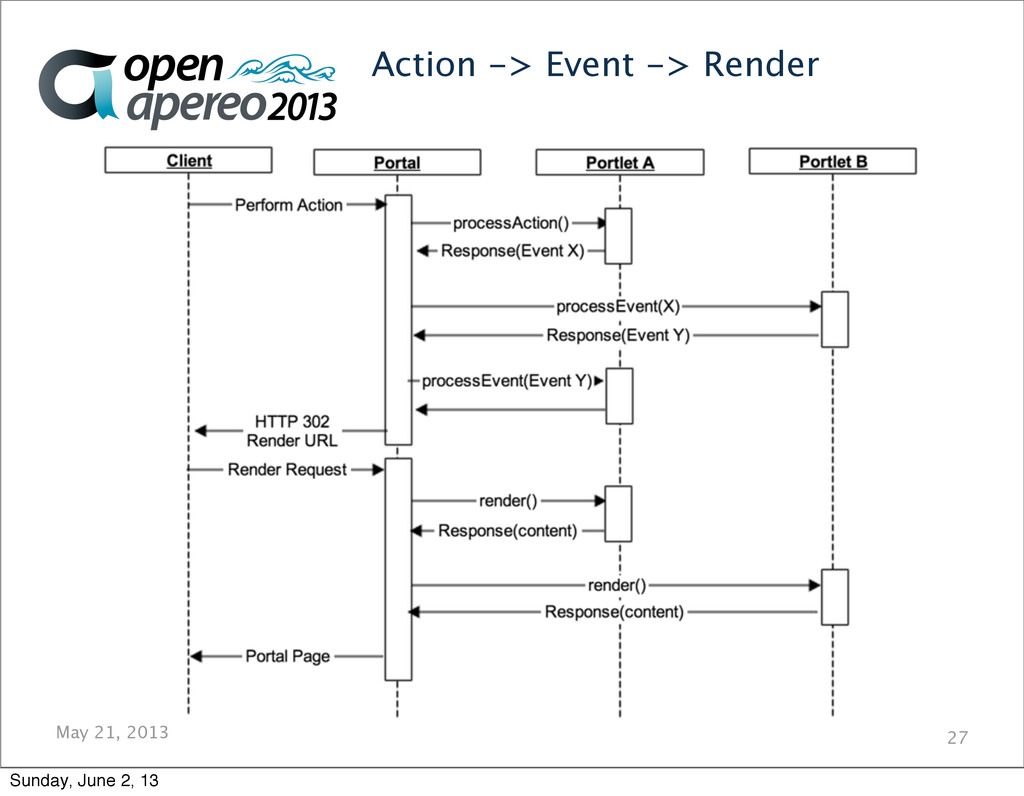

27. May 21, 2013 Action -> Event -> Render 27 Sunday, June 2, 13

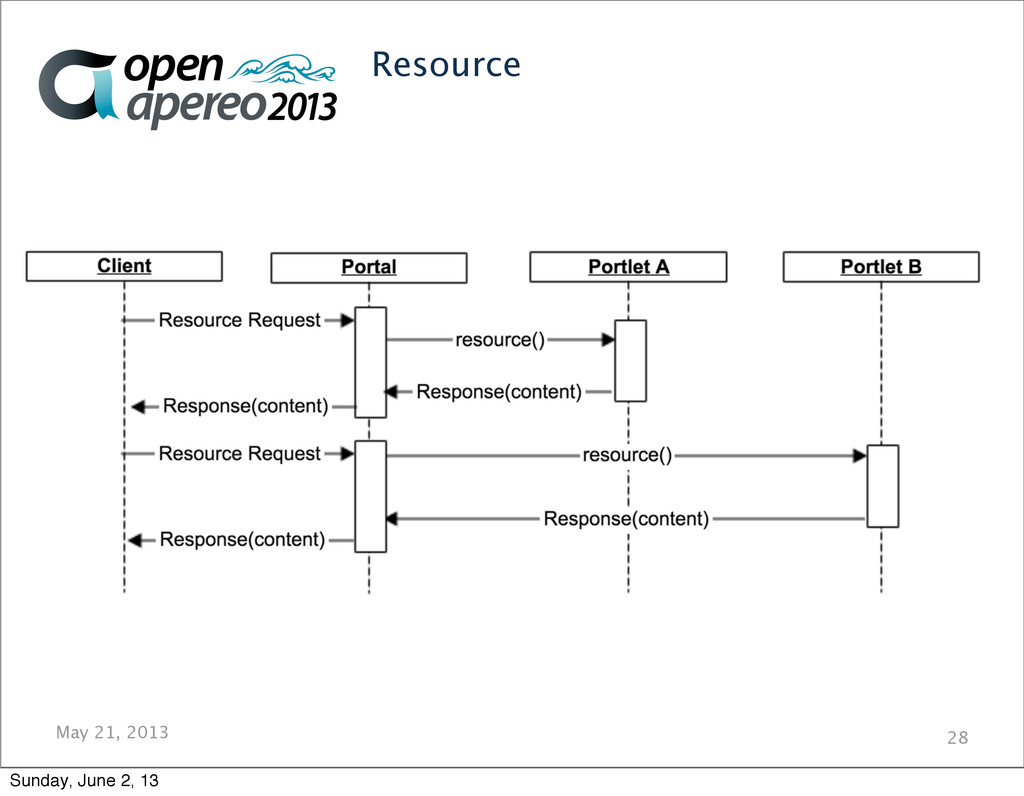

28. May 21, 2013 Resource 28 Sunday, June 2, 13
29. May 21, 2013 Preferences 29 Sunday, June 2, 13

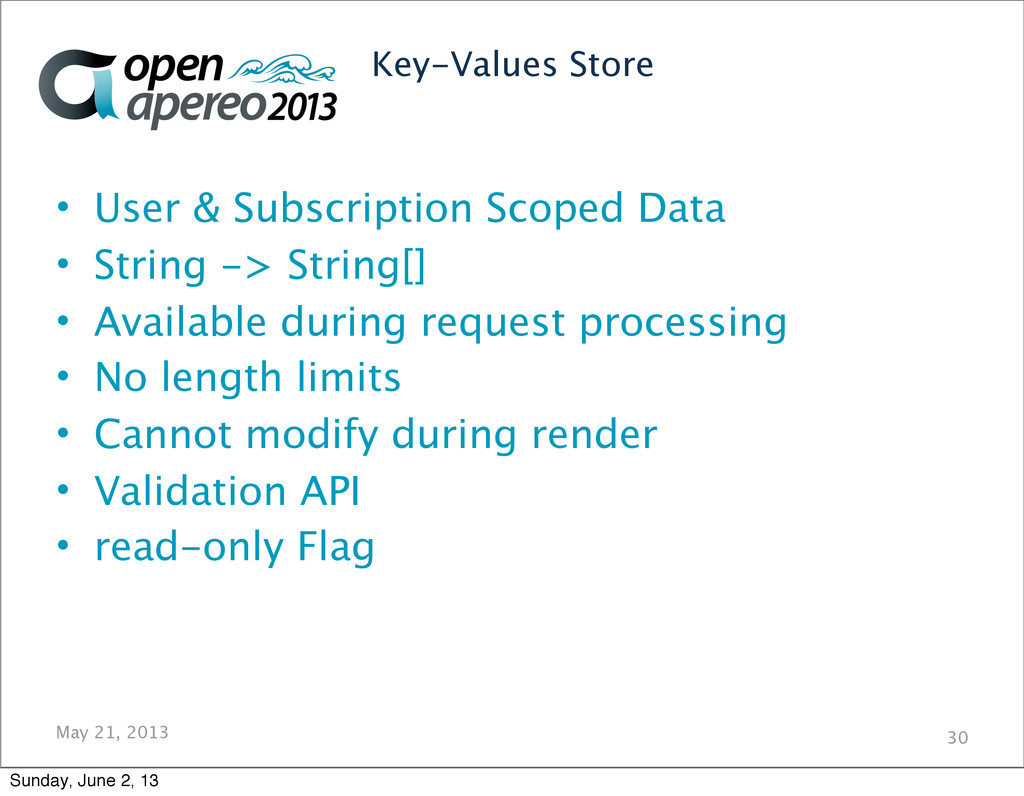

30. May 21, 2013 • User & Subscription Scoped Data • String -> String[] • Available during request processing • No length limits • Cannot modify during render • Validation API • read-only Flag 30 Key-Values Store Sunday, June 2, 13

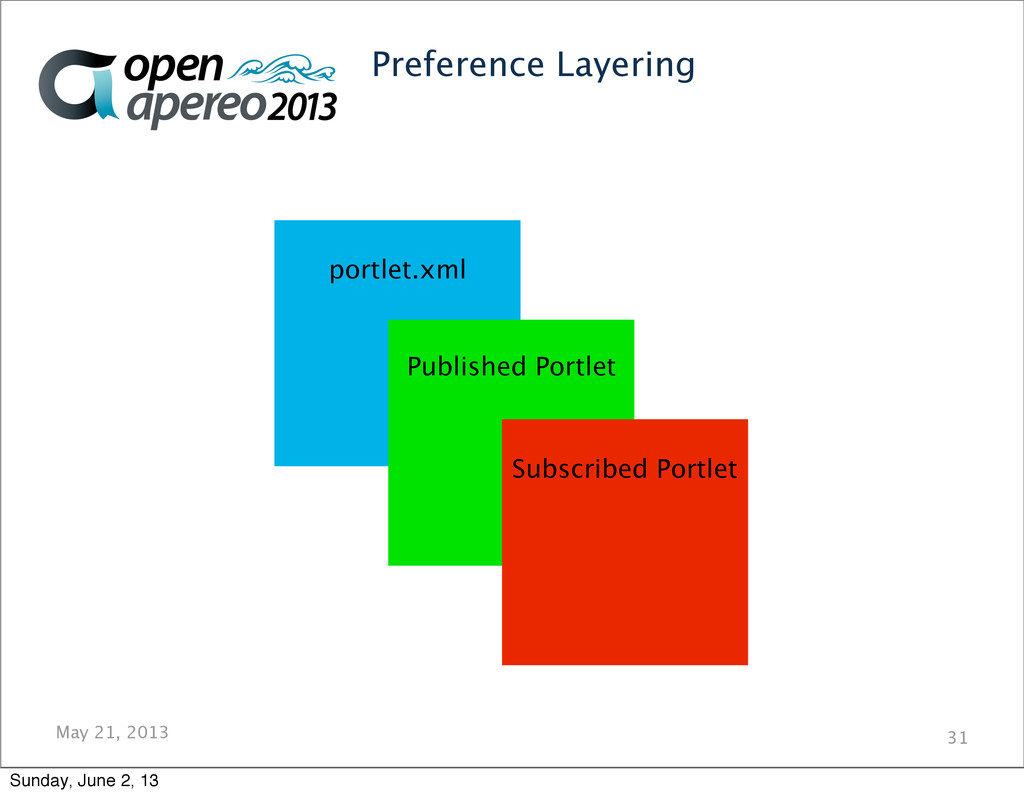

31. May 21, 2013 Preference Layering 31 portlet.xml Published Portlet Subscribed Portlet Sunday, June 2, 13
32. May 21, 2013 Session 32 Sunday, June 2, 13

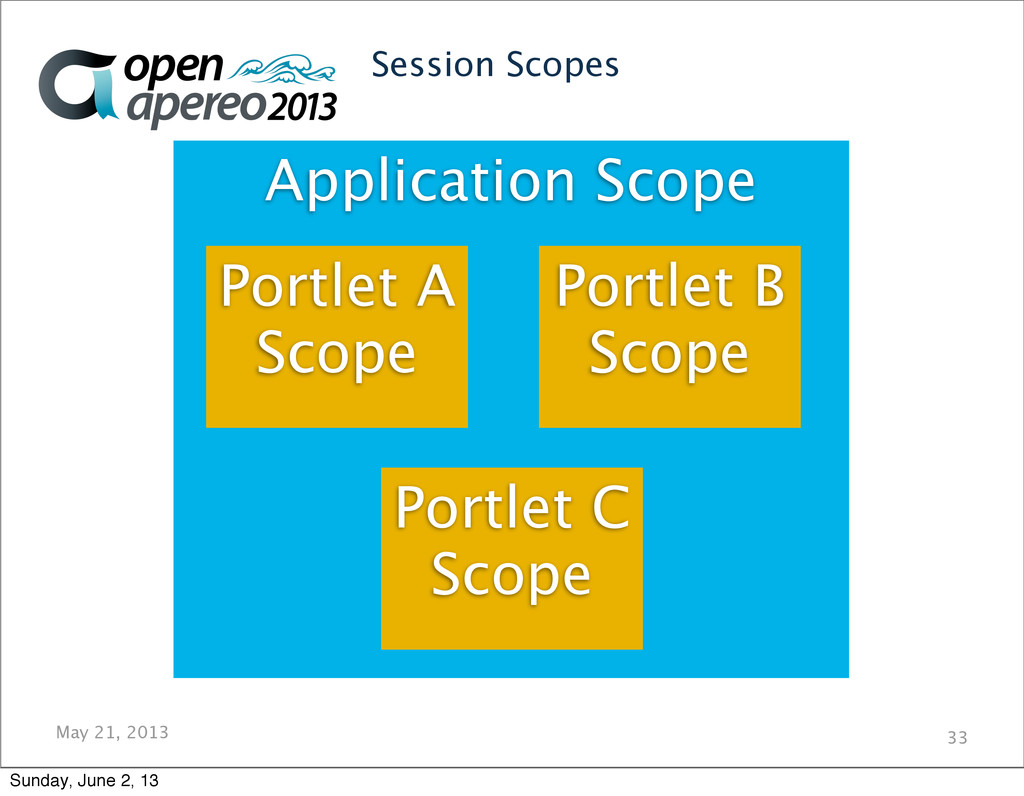

33. May 21, 2013 33 Session Scopes Application Scope Portlet A Scope Portlet B Scope Portlet C Scope Sunday, June 2, 13

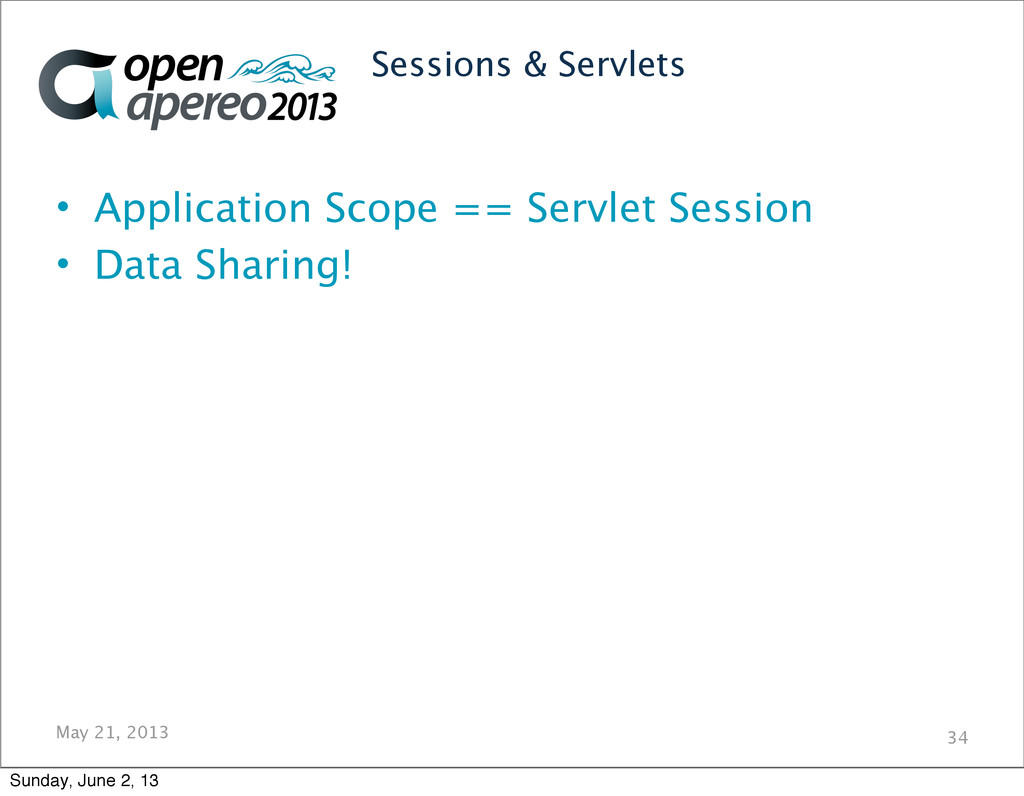

34. May 21, 2013 Sessions & Servlets • Application Scope == Servlet Session • Data Sharing! 34 Sunday, June 2, 13
35. May 21, 2013 Cookies 35 Sunday, June 2, 13

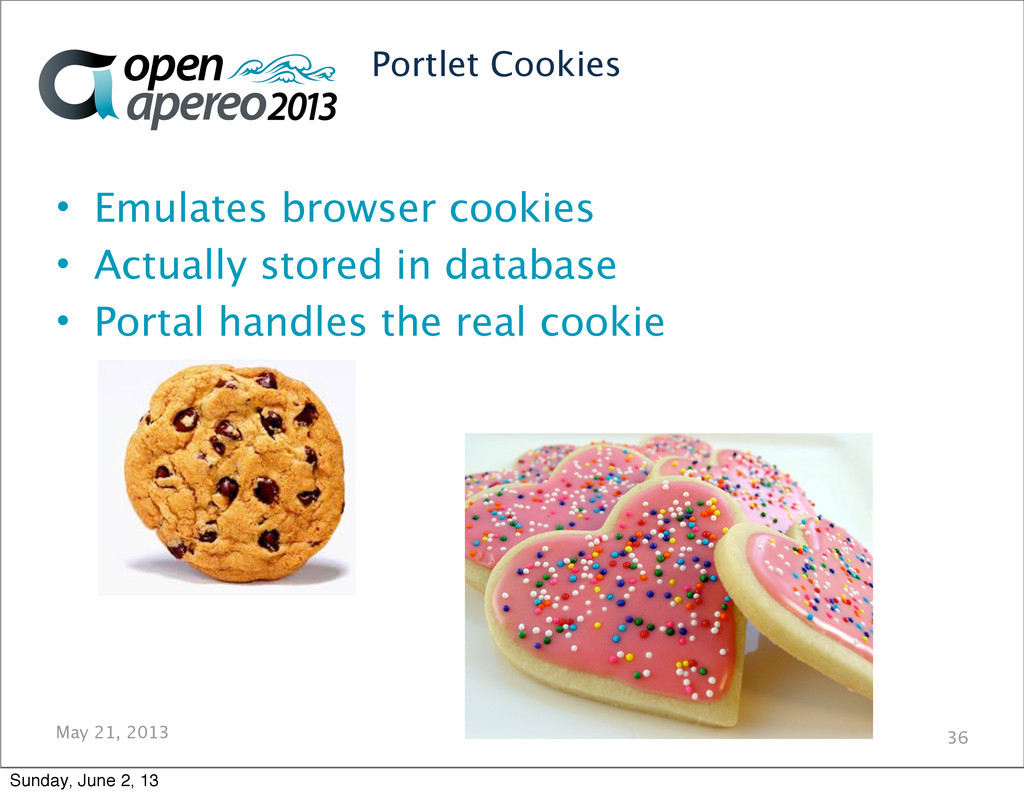

36. May 21, 2013 • Emulates browser cookies • Actually stored in database • Portal handles the real cookie 36 Portlet Cookies Sunday, June 2, 13
37. May 21, 2013 Caching 37 Sunday, June 2, 13

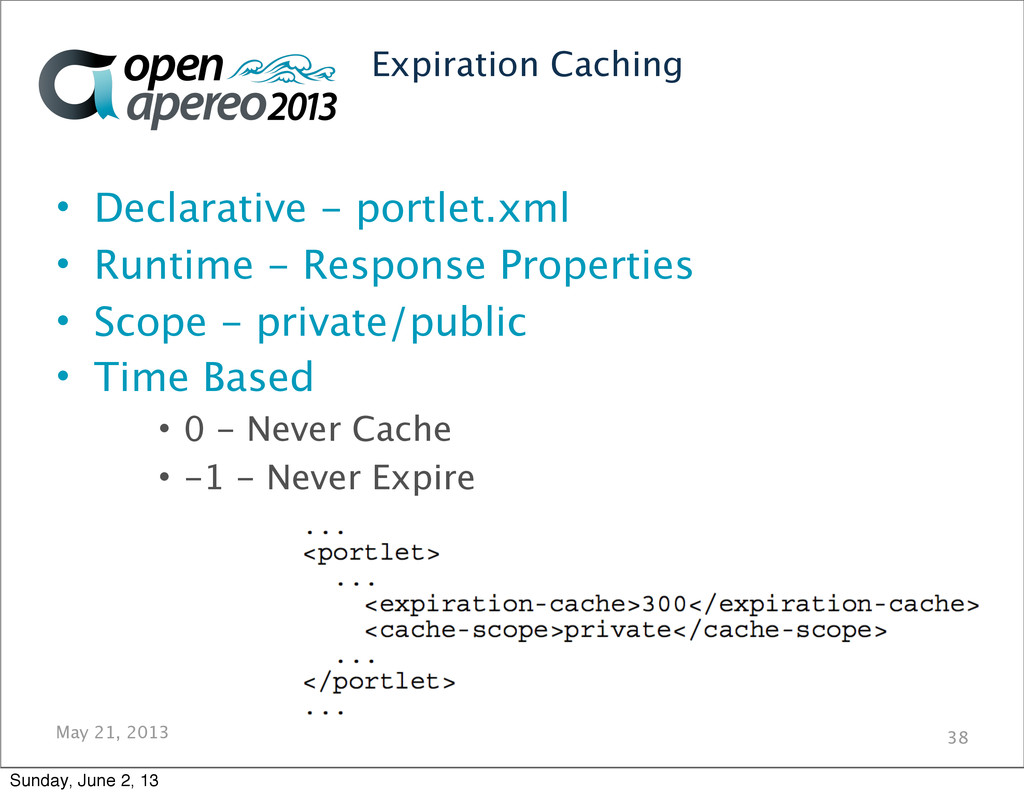

38. May 21, 2013 • Declarative - portlet.xml • Runtime - Response Properties • Scope - private/public • Time Based • 0 - Never Cache • -1 - Never Expire 38 Expiration Caching Sunday, June 2, 13

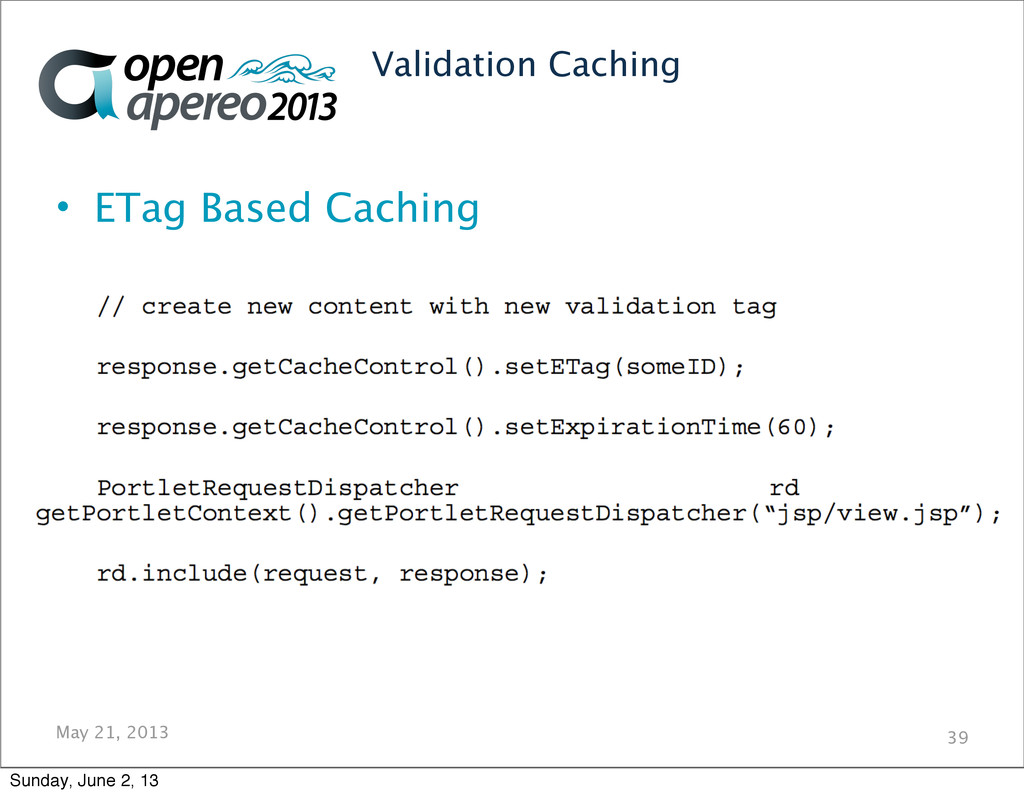

39. May 21, 2013 • ETag Based Caching 39 Validation Caching Sunday, June 2, 13

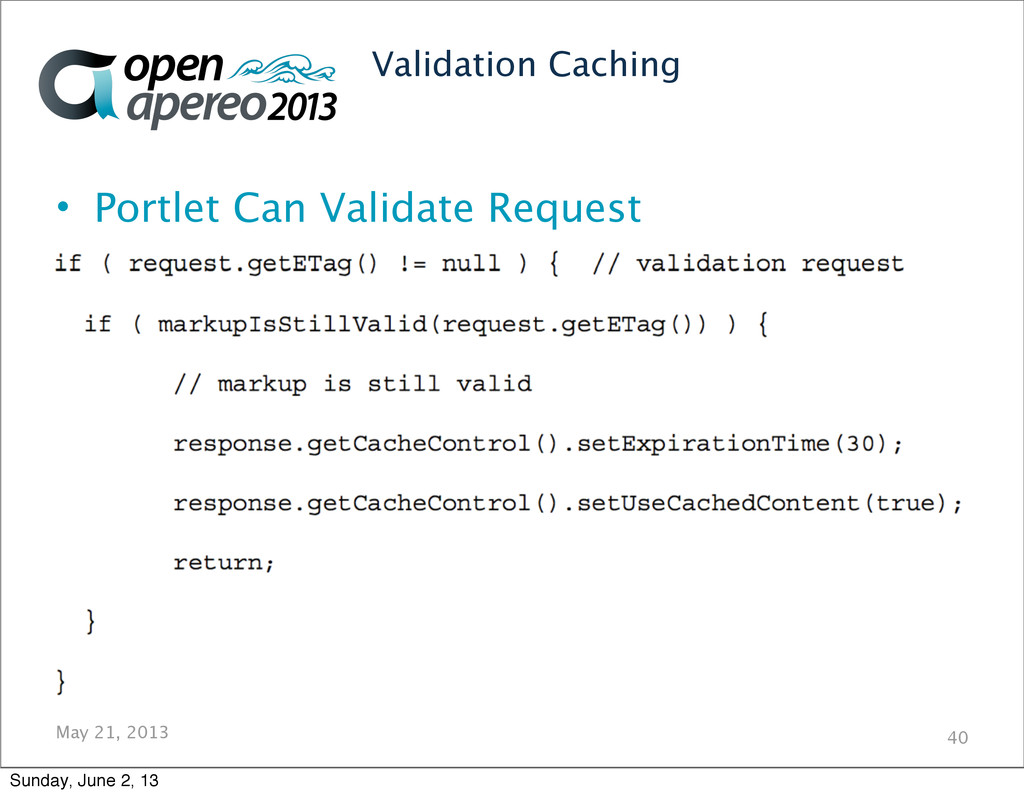

40. May 21, 2013 • Portlet Can Validate Request 40 Validation Caching Sunday, June 2, 13
41. May 21, 2013 Security & Roles 41 Sunday, June 2, 13

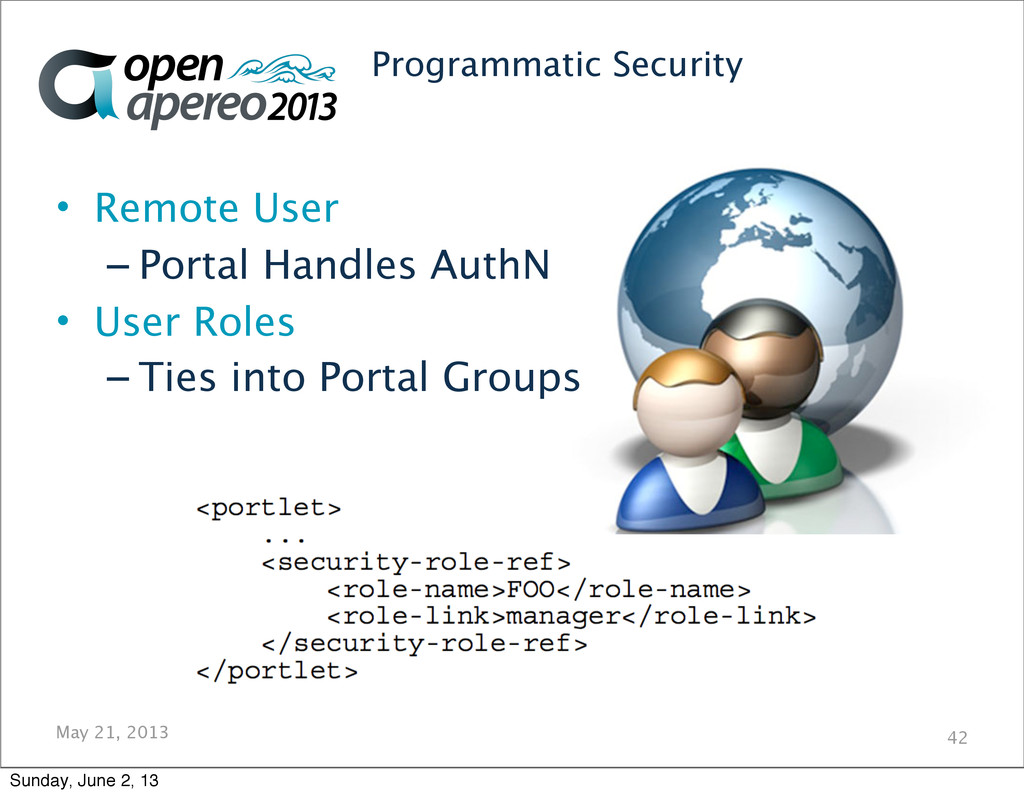

42. May 21, 2013 • Remote User – Portal Handles AuthN • User Roles – Ties into Portal Groups 42 Programmatic Security Sunday, June 2, 13
43. May 21, 2013 View Rendering 43 Sunday, June 2, 13

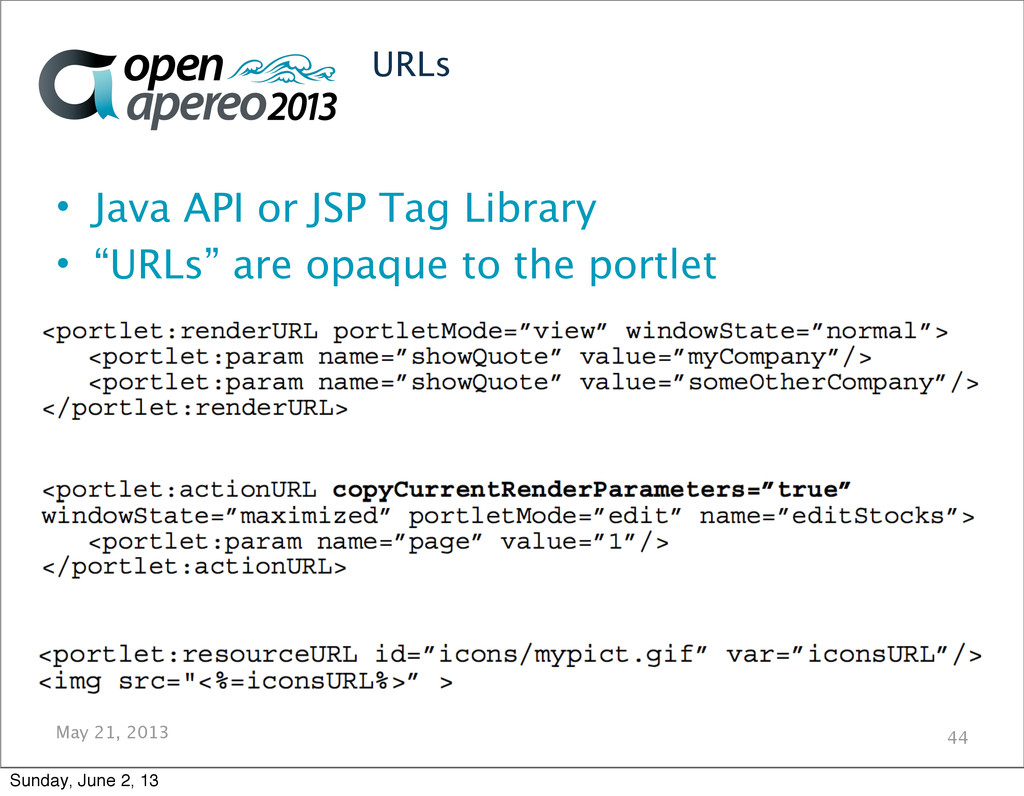

44. May 21, 2013 • Java API or JSP Tag Library • “URLs” are opaque to the portlet 44 URLs Sunday, June 2, 13

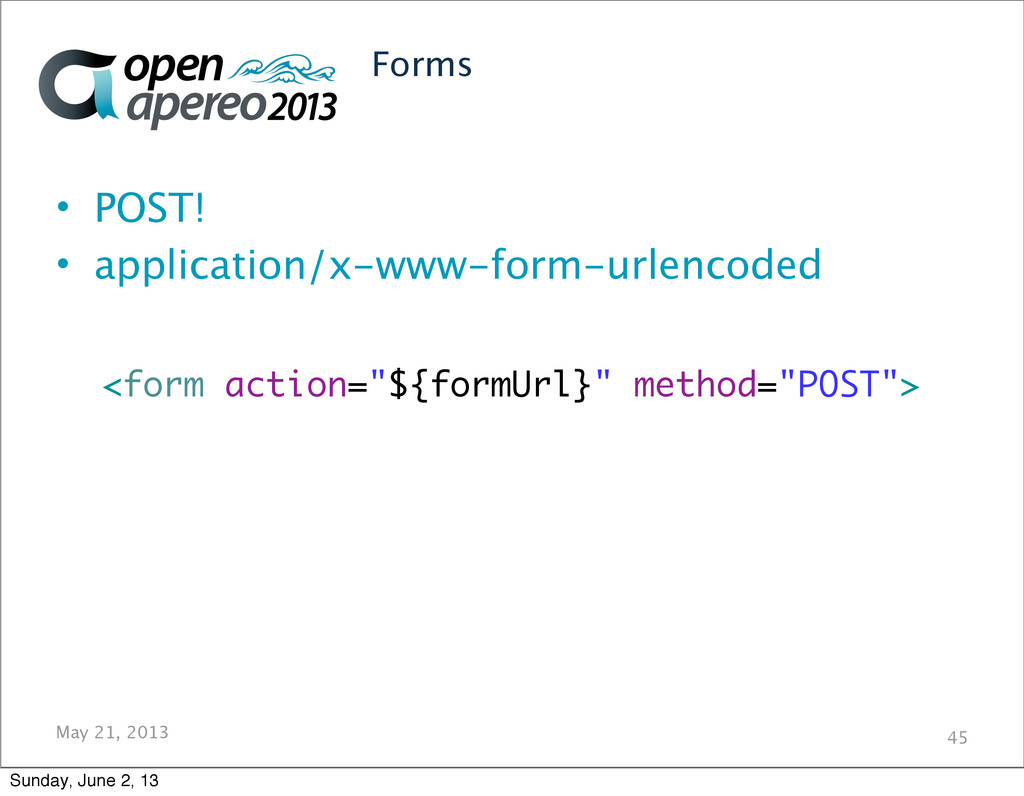

45. May 21, 2013 Forms • POST! • application/x-www-form-urlencoded 45 <form action="${formUrl}" method="POST"> Sunday, June 2, 13

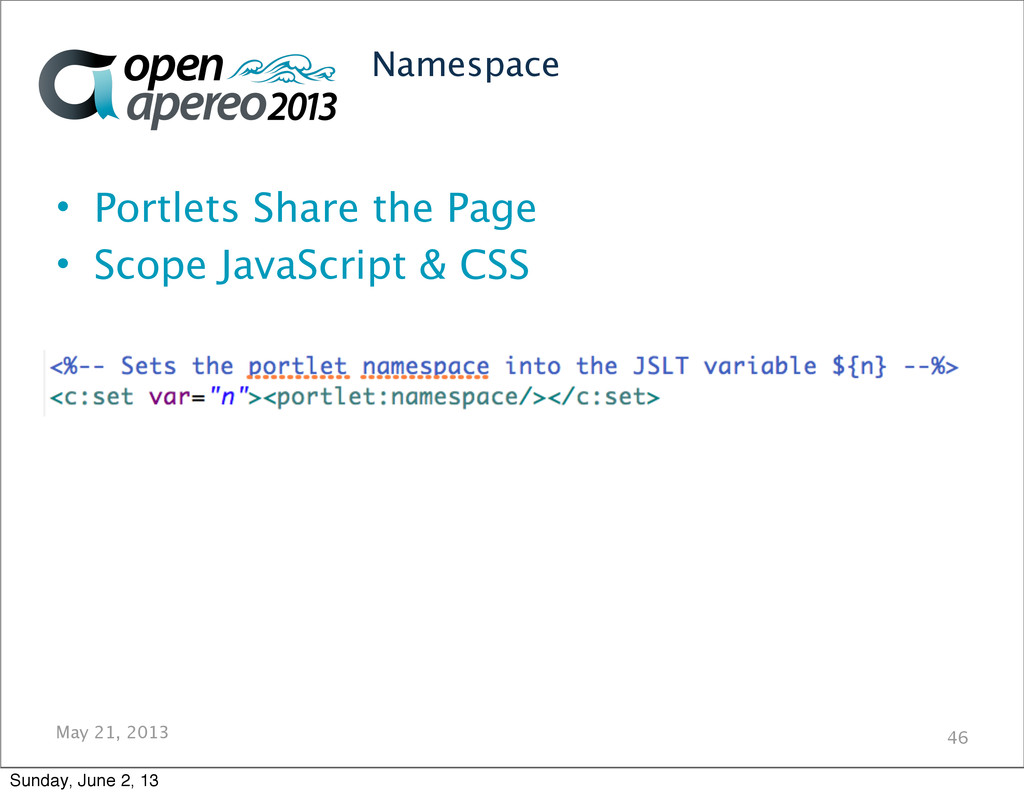

46. May 21, 2013 Namespace • Portlets Share the Page • Scope JavaScript & CSS 46 Sunday, June 2, 13

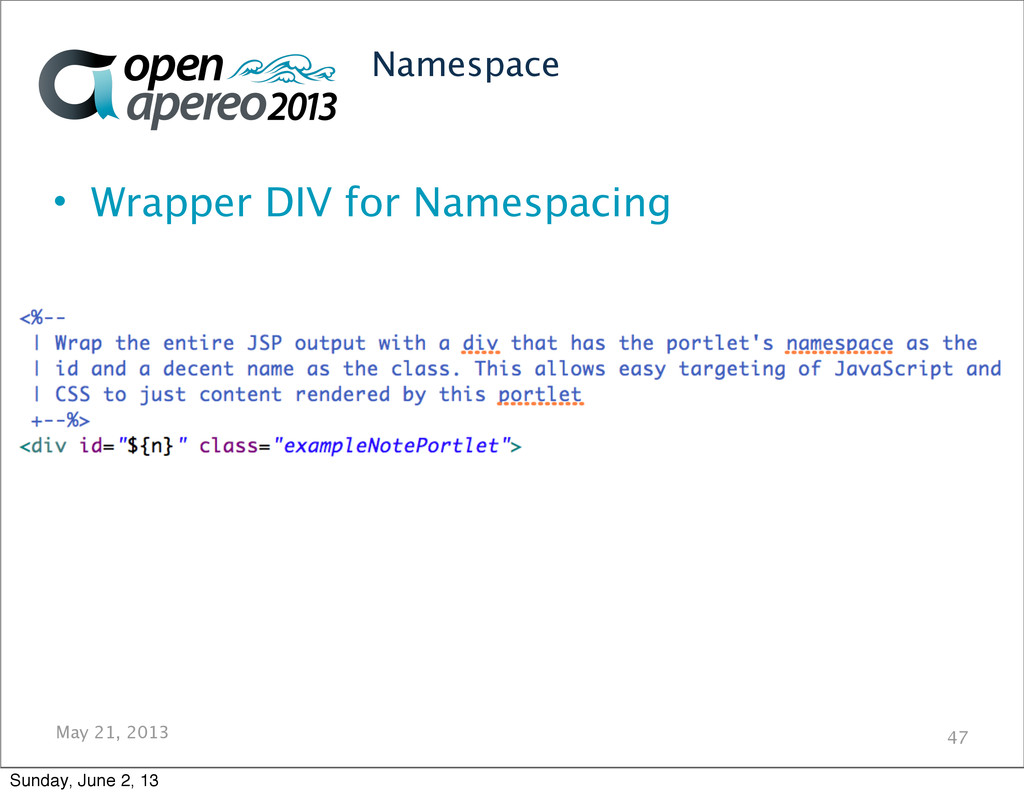

47. May 21, 2013 Namespace • Wrapper DIV for Namespacing 47 Sunday, June 2, 13

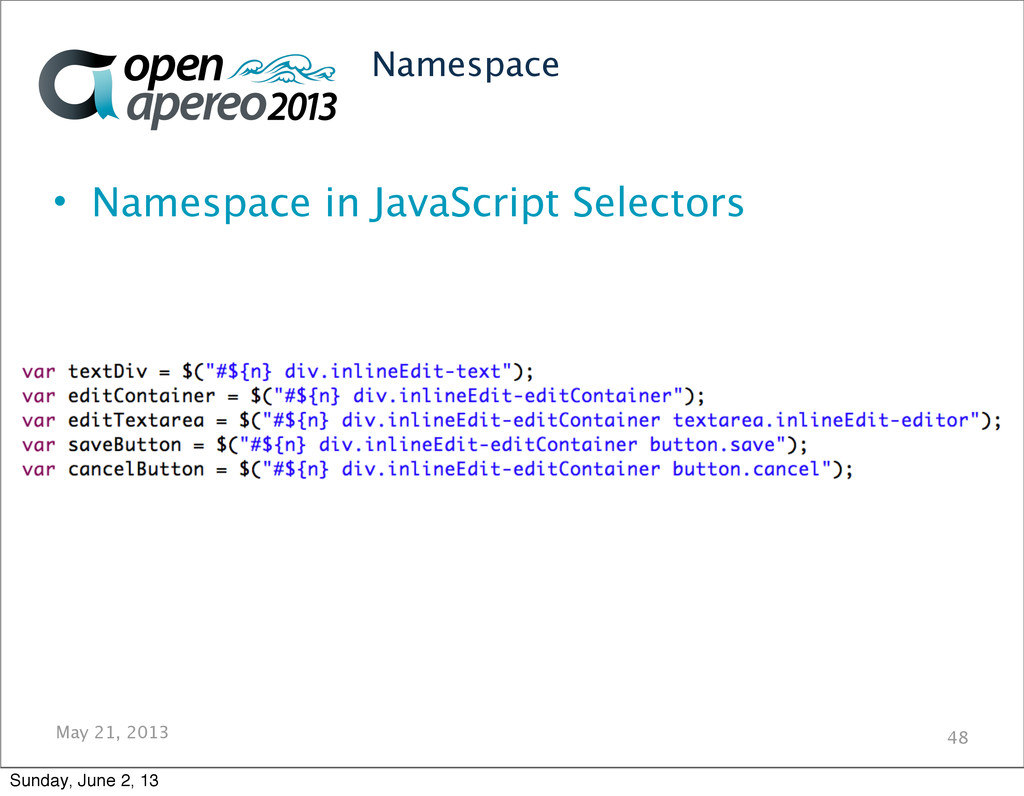

48. May 21, 2013 Namespace • Namespace in JavaScript Selectors 48 Sunday, June 2, 13

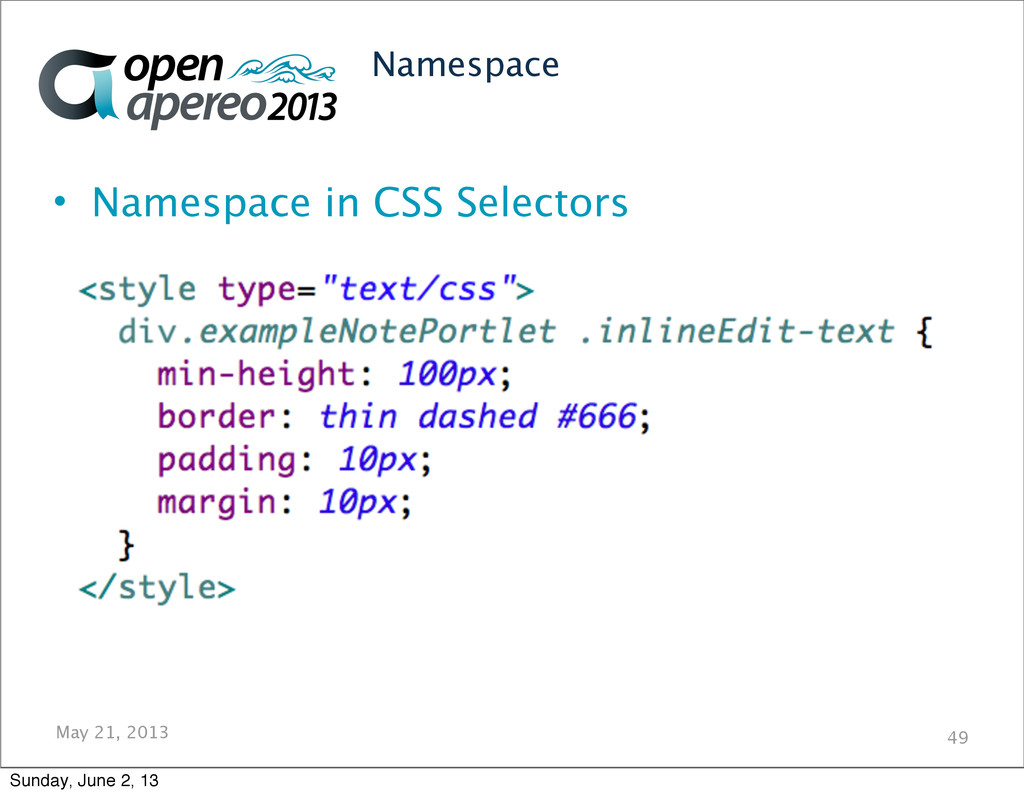

49. May 21, 2013 Namespace • Namespace in CSS Selectors 49 Sunday, June 2, 13

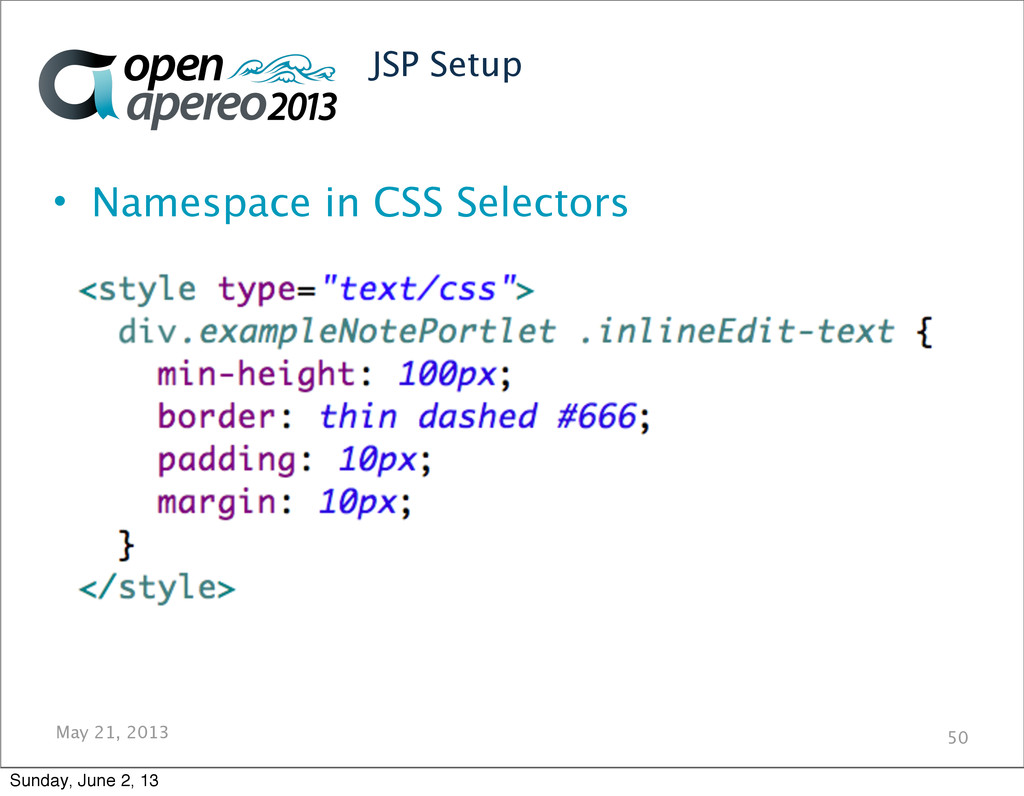

50. May 21, 2013 JSP Setup • Namespace in CSS Selectors 50 Sunday, June 2, 13
51. May 21, 2013 51 Spring Portlet MVC Sunday, June 2, 13

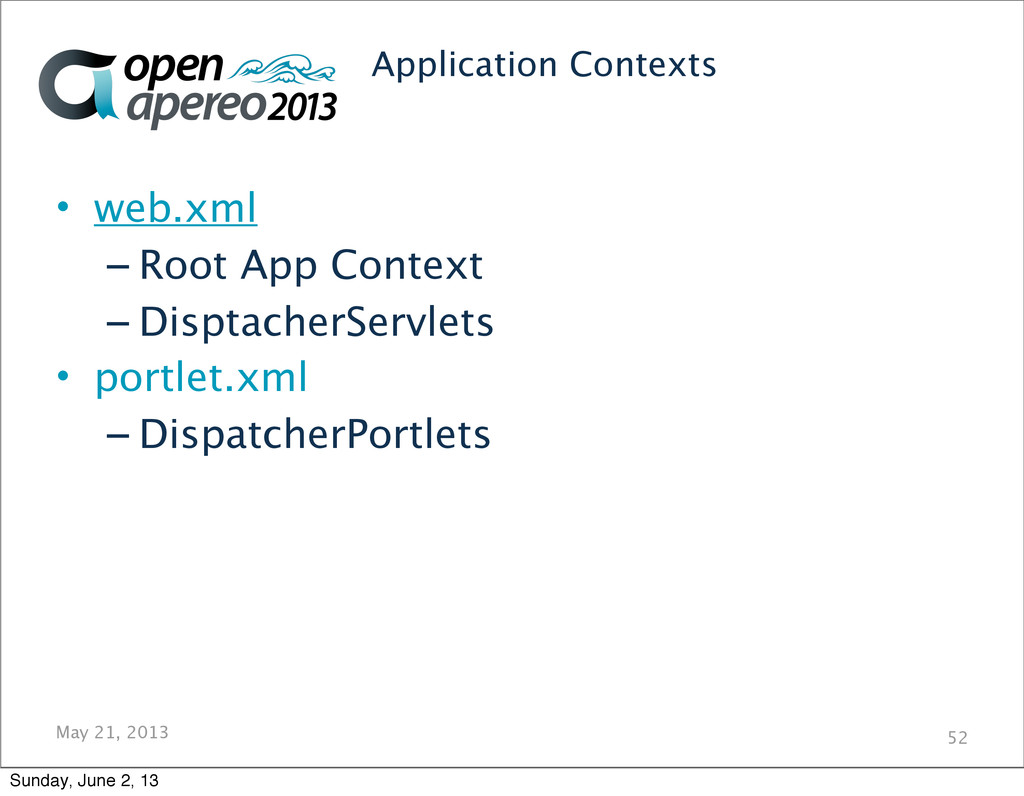

52. May 21, 2013 Application Contexts • web.xml – Root App Context – DisptacherServlets • portlet.xml – DispatcherPortlets 52 Sunday, June 2, 13

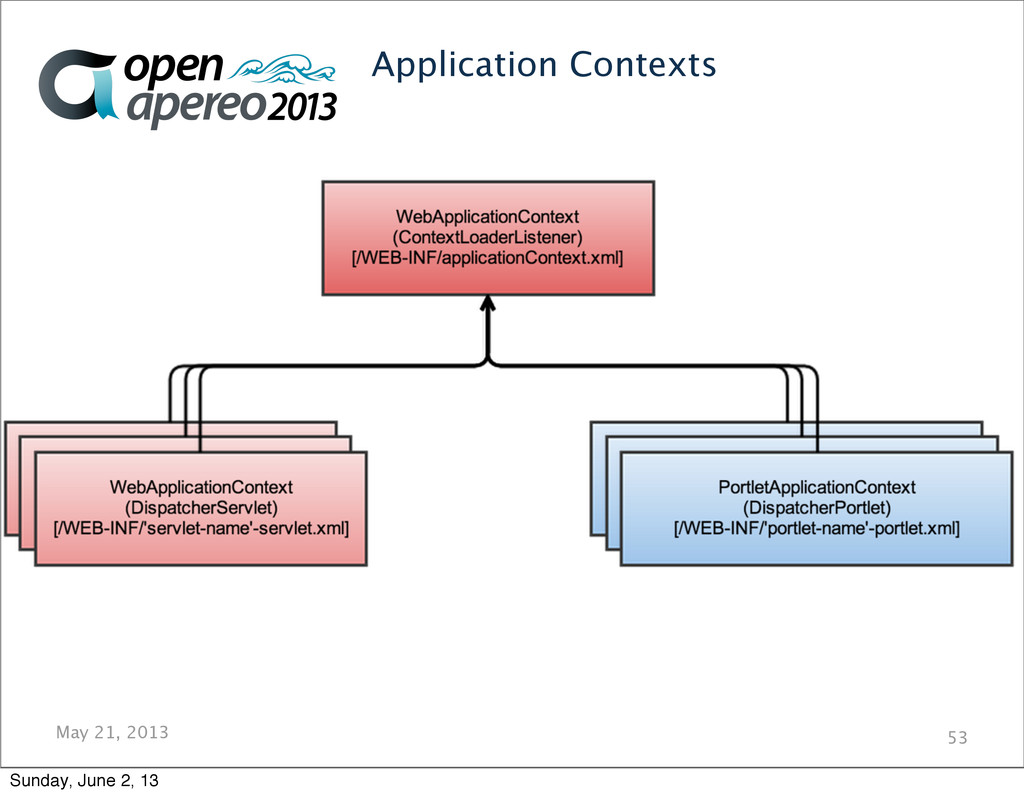

53. May 21, 2013 Application Contexts 53 Sunday, June 2, 13

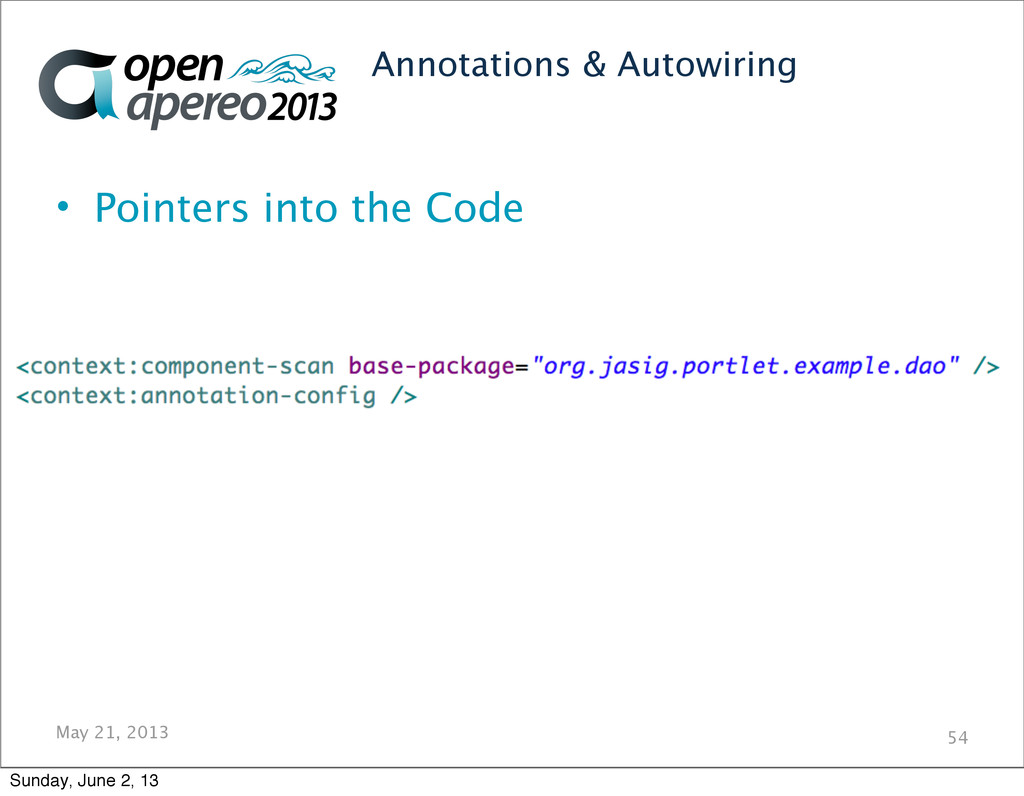

54. May 21, 2013 Annotations & Autowiring 54 • Pointers into the Code Sunday, June 2, 13

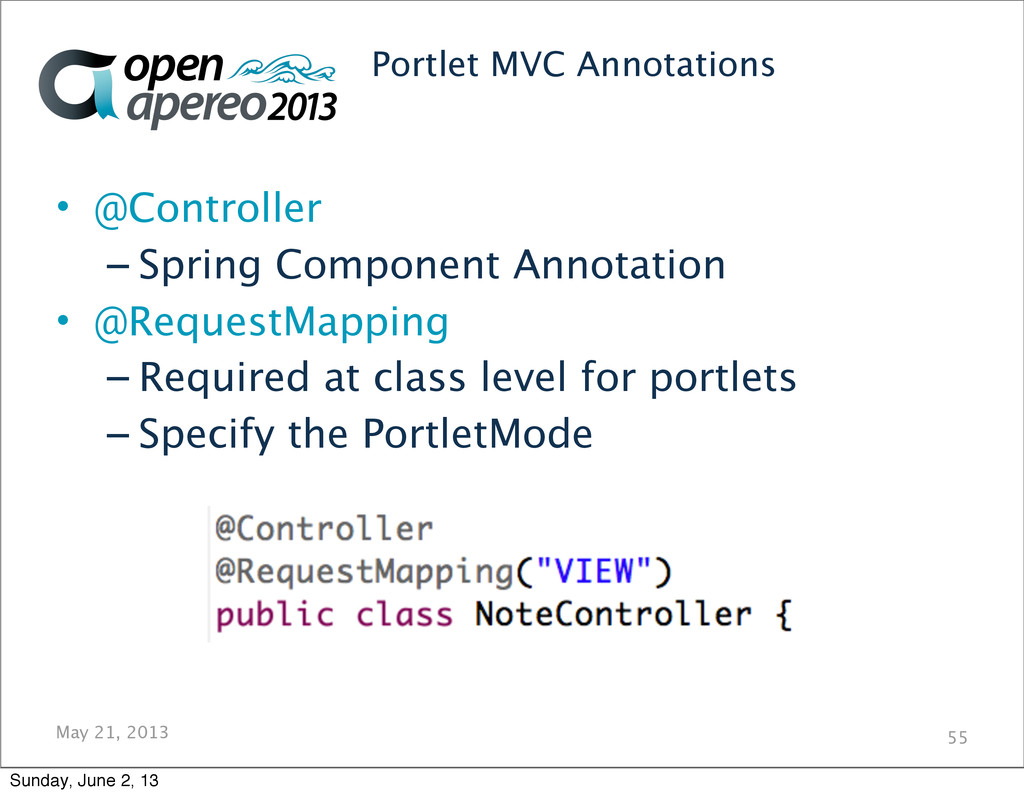

55. May 21, 2013 Portlet MVC Annotations • @Controller – Spring Component Annotation • @RequestMapping – Required at class level for portlets – Specify the PortletMode 55 Sunday, June 2, 13

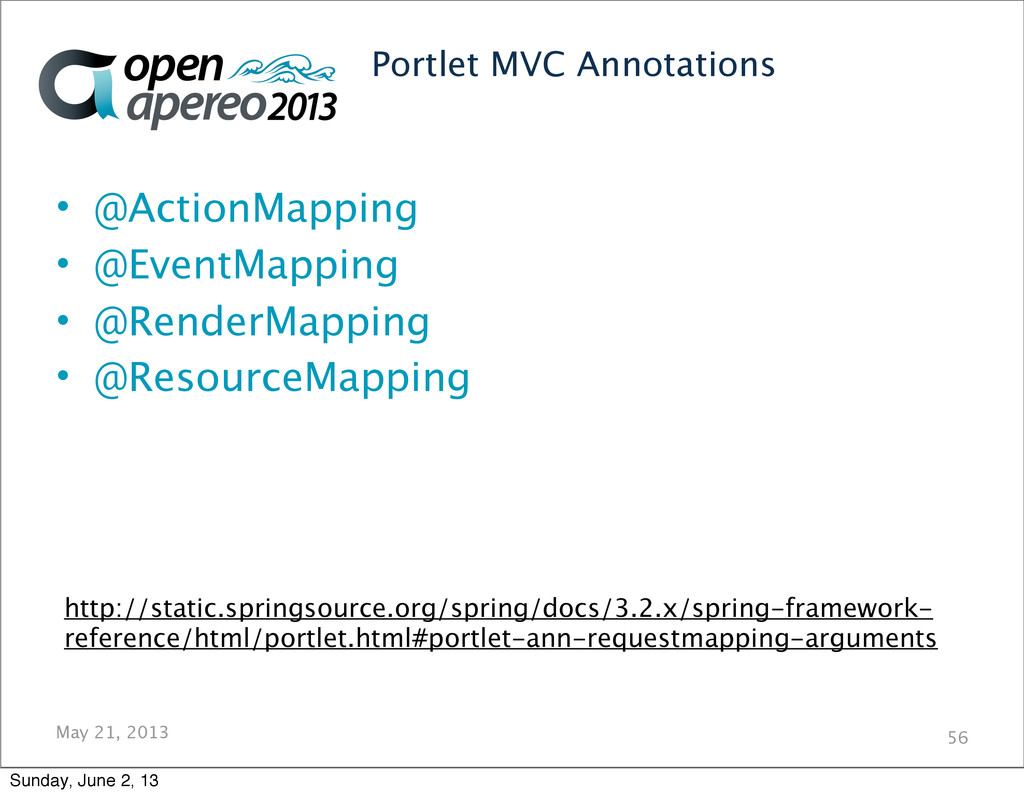

56. May 21, 2013 Portlet MVC Annotations • @ActionMapping • @EventMapping • @RenderMapping • @ResourceMapping 56 http://static.springsource.org/spring/docs/3.2.x/spring-framework- reference/html/portlet.html#portlet-ann-requestmapping-arguments Sunday, June 2, 13

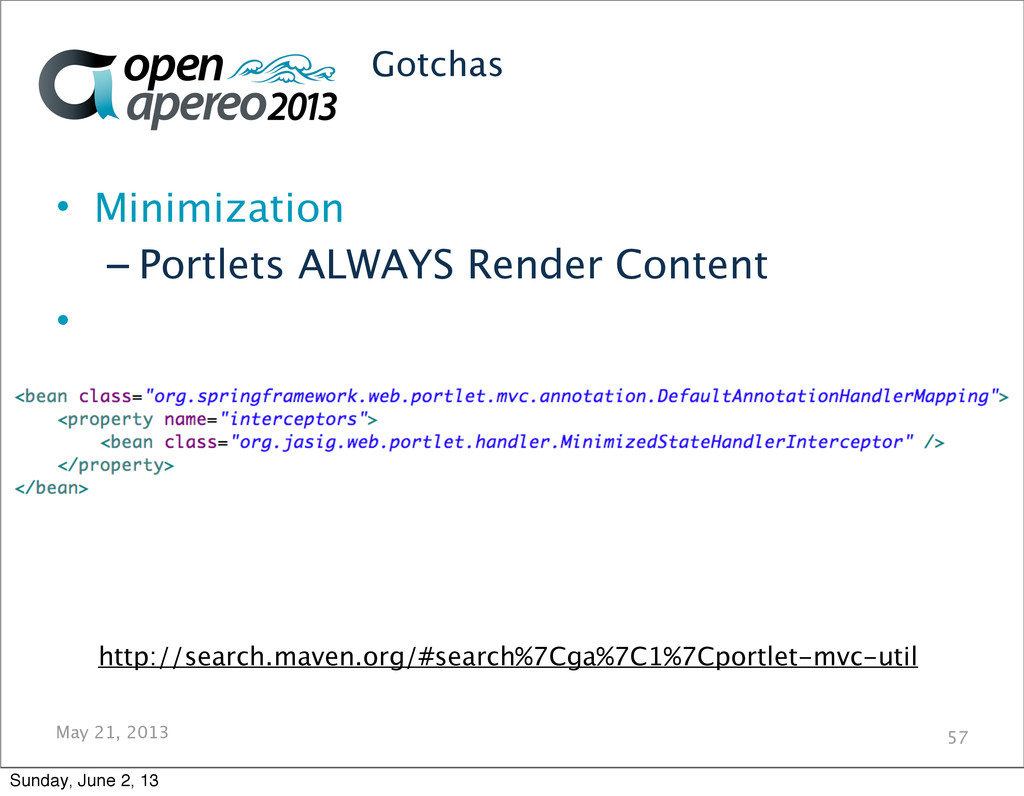

57. May 21, 2013 Gotchas • Minimization – Portlets ALWAYS Render Content • 57 http://search.maven.org/#search%7Cga%7C1%7Cportlet-mvc-util Sunday, June 2, 13
58. May 21, 2013 58 Getting Help Sunday, June 2, 13

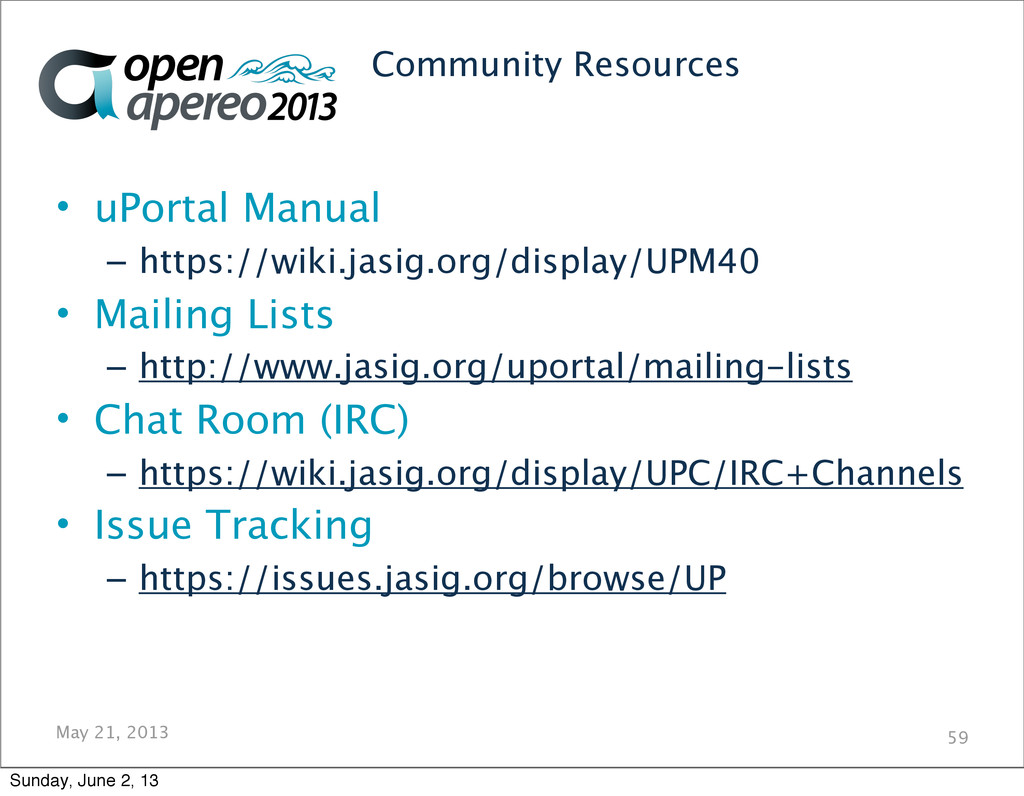

59. May 21, 2013 Community Resources • uPortal Manual – https://wiki.jasig.org/display/UPM40 • Mailing Lists – http://www.jasig.org/uportal/mailing-lists • Chat Room (IRC) – https://wiki.jasig.org/display/UPC/IRC+Channels • Issue Tracking – https://issues.jasig.org/browse/UP 59 Sunday, June 2, 13

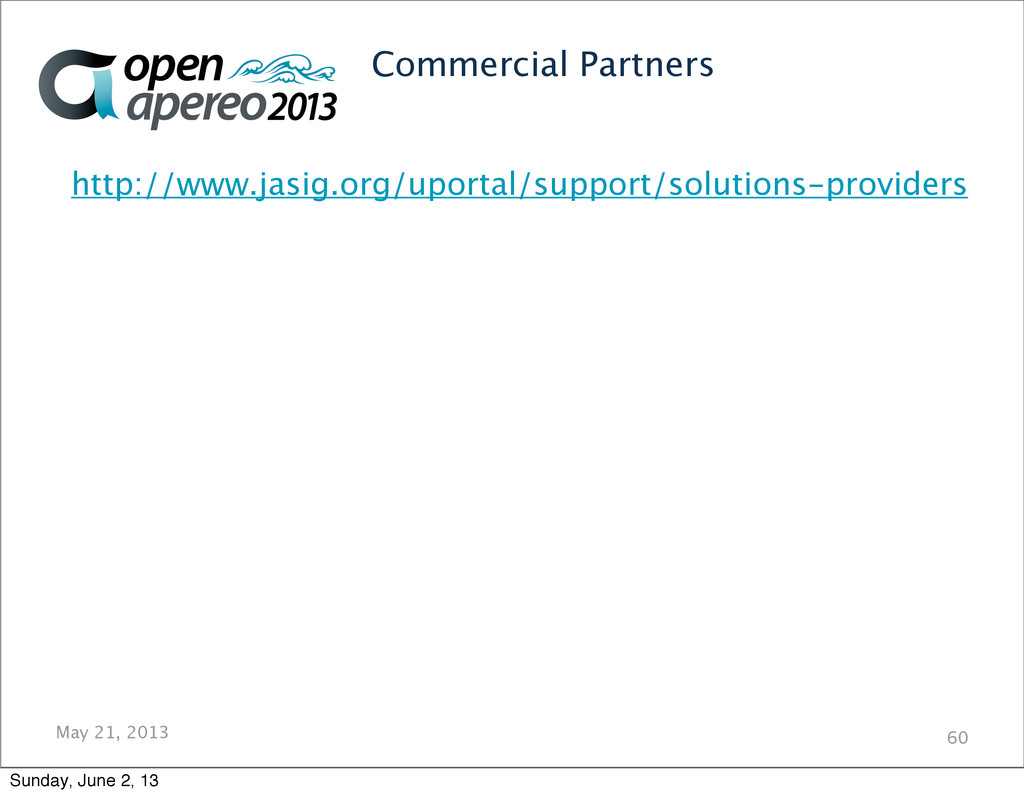

60. May 21, 2013 Commercial Partners http://www.jasig.org/uportal/support/solutions-providers 60 Sunday, June 2, 13
61. May 21, 2013 61 Mobile & Responsive User Interfaces Sunday, June 2, 13

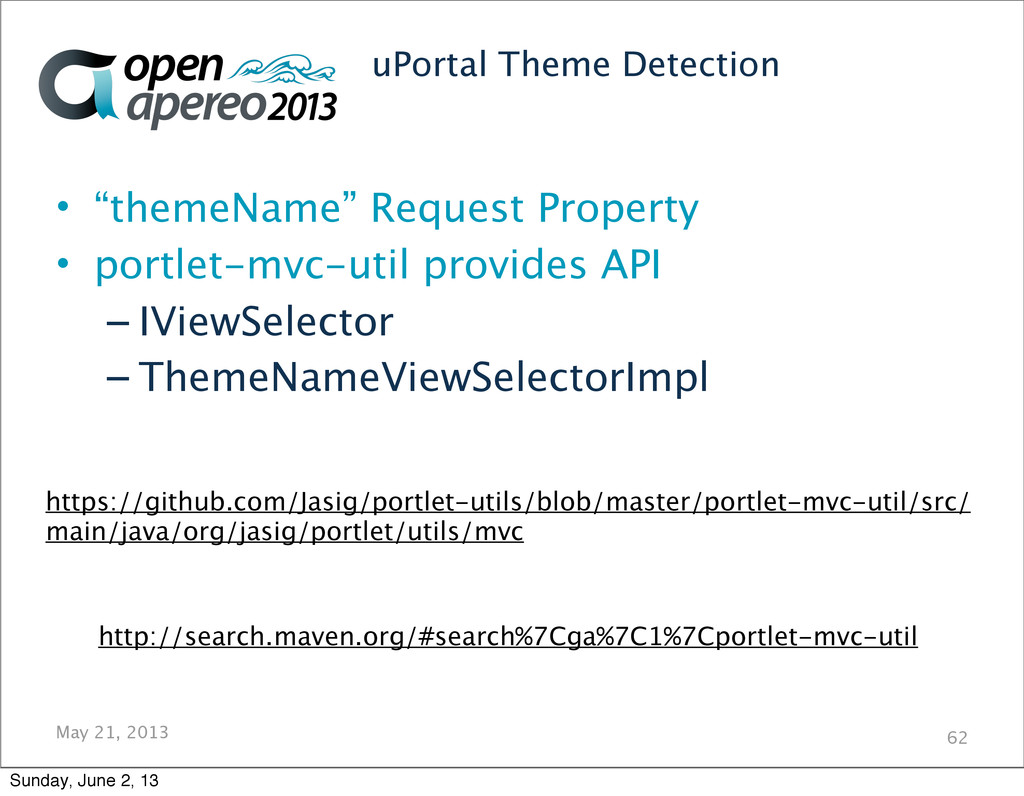

62. May 21, 2013 uPortal Theme Detection • “themeName” Request Property • portlet-mvc-util provides API – IViewSelector – ThemeNameViewSelectorImpl 62 https://github.com/Jasig/portlet-utils/blob/master/portlet-mvc-util/src/ main/java/org/jasig/portlet/utils/mvc http://search.maven.org/#search%7Cga%7C1%7Cportlet-mvc-util Sunday, June 2, 13
