Elastic Cloud Inside Out

Elastic Cloud runs thousands of clusters and is growing rapidly, while maintaining solid SLAs and allowing users to scale out, upgrade, and reliably monitor their clusters. Ever wonder how it works?

This session will go under the hood into how Elastic Cloud is built, how it handles complex tasks like efficient placement, zero-downtime upgrades, and host failures, as well as how the Elastic Cloud team uses it to orchestrate and manage thousands of clusters for Elastic Cloud customers.

Uri Cohen l Sr. Director, Product Management l Elastic
Ben Osborne l Site Reliability Engineer l Elastic
Christian Strzadala l Software Engineer l Elastic

Transcript

1. Elastic
   March 8, 2017
   Elastic Cloud Inside Out
   Ben Osborne @bj_osborne
   Christian Strzadala @cstrzadala
   Uri Cohen @uri1803


   View Slide

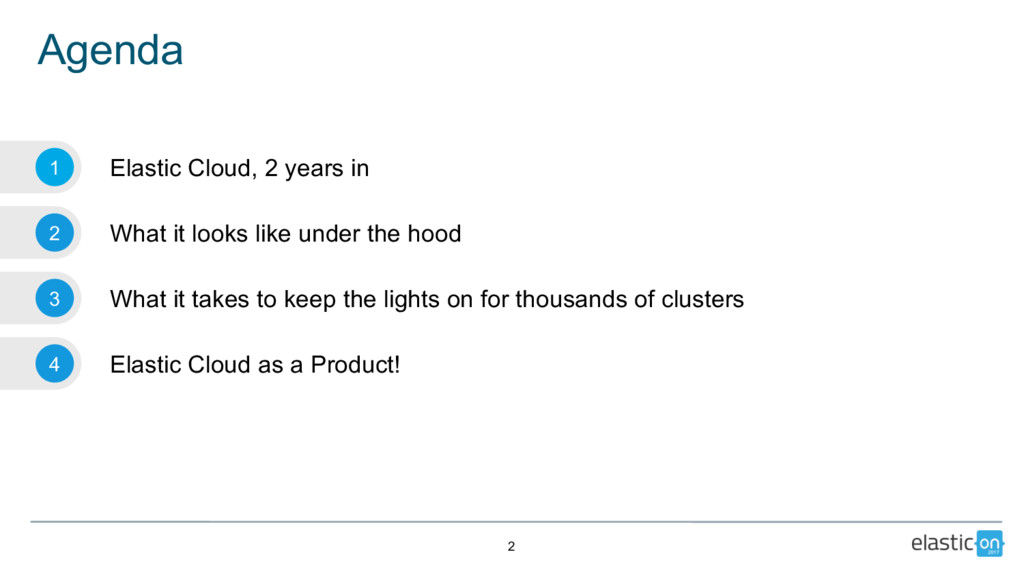

2. Agenda
   2
   1 Elastic Cloud, 2 years in
   2 What it looks like under the hood
   3 What it takes to keep the lights on for thousands of clusters
   4 Elastic Cloud as a Product!


   View Slide

3. 3
   Elastic Cloud
   Hosted Elasticsearch & Kibana
   Includes X-Pack features
   Starts at $45/mo


   View Slide

4. Brief History
   Found Beta
   Found GA
   Elastic
   acquires
   Found
   Found
   Gold &
   Platinum
   Elasticsearch
   2.0 available
   on Found
   Say Heya to
   Elastic
   Cloud
   Elasticsearch
   & Kibana 5.0
   on Cloud
   2012 2013 2015 2016 2017
   Elastic Cloud
   Enterprise
   Public Beta


   View Slide

5. We’ve Come a Long Way…
   Monthly Signups Growth


   View Slide

6. We’ve Come a Long Way…
   Clusters Growth


   View Slide

7. We’ve Come a Long Way…
   Customer Growth


   View Slide

8. We’ve Come a Long Way…
   Monthly Bookings Growth


   View Slide

9. Why Elastic Cloud?
   ● Fully managed
   ● Super easy scaling & upgrades
   ● Runs on top notch instances
   ● Always the latest and greatest
   ● X-Pack!
   ● Support right from the source
   ● All the APIs are there


   View Slide

10. Elastic Cloud Components & Architecture
    Under the hood


    View Slide

11. • Service orientated architecture
    • Utilise AWS
    • Immutable services
    • Docker for containerisation
    • Services created specifically for
    Elastic stack component
    deployment
    Key features


    View Slide

12. Demo: Let’s create a cluster


    View Slide

13. View Slide

14. Whoa, slow down cowboy!
    Zookeeper, Constructor, plans,
    where do these fit in?


    View Slide

15. View Slide

16. Zookeeper
    Our beloved coordination system
    • Distributed, strongly consistent datastore
    • CaP
    • Fast reads for small pieces of data
    • Watchers


    View Slide

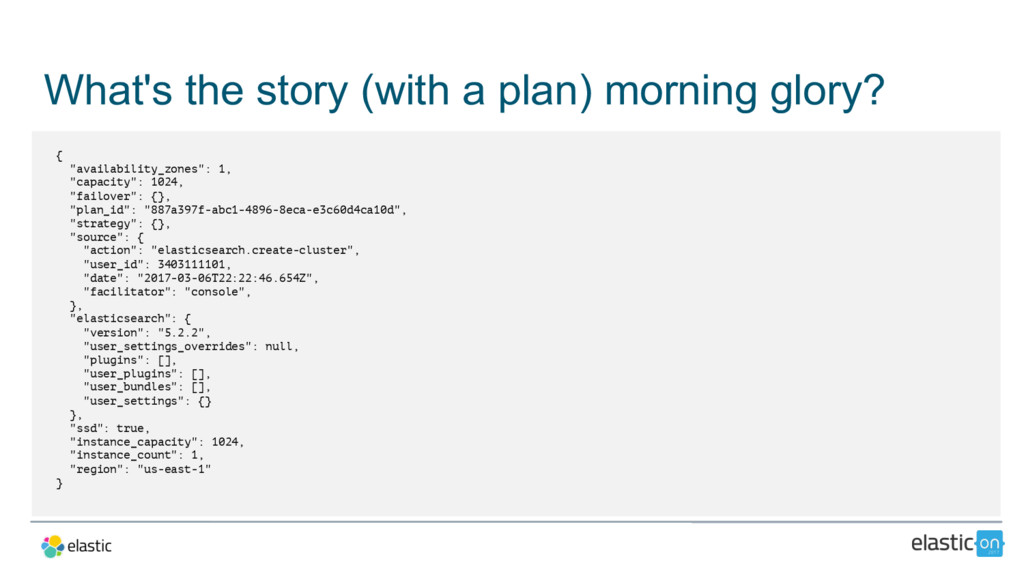

17. What's the story (with a plan) morning glory?
    {
    "availability_zones": 1,
    "capacity": 1024,
    "failover": {},
    "plan_id": "887a397f-abc1-4896-8eca-e3c60d4ca10d",
    "strategy": {},
    "source": {
    "action": "elasticsearch.create-cluster",
    "user_id": 3403111101,
    "date": "2017-03-06T22:22:46.654Z",
    "facilitator": "console",
    },
    "elasticsearch": {
    "version": "5.2.2",
    "user_settings_overrides": null,
    "plugins": [],
    "user_plugins": [],
    "user_bundles": [],
    "user_settings": {}
    },
    "ssd": true,
    "instance_capacity": 1024,
    "instance_count": 1,
    "region": "us-east-1"
    }


    View Slide

18. Cooking up clusters since 2012
    The Constructor


    View Slide

19. • Our cluster scheduler.
    • Calculates what needs to be changed when
    a cluster is added or reconfigured
    • Uses the concept of 'steps’ when
    processing a pending plan to progress the
    plan forward (or backward)
    The Constructor


    View Slide

20. • Steps are the stages that need to complete for a cluster to become available
    • Steps involve:
    • Querying Zookeeper data
    • Querying the cluster
    • Controlling allocation configuration, such as moving data away from a node
    it’s about to kill.
    • Rollbacks (Cluster changes can fail)
    Constructor Steps


    View Slide

21. We got to have a home for these instances
    Allocator


    View Slide

22. • Manages Elasticsearch and Kibana nodes
    • We use large AWS instances to house our services
    • We have a pool of allocators in each region
    • Each allocator advertises its resources in zookeeper
    • Each node that runs on an allocator gets its own docker container
    The Allocator


    View Slide

23. The Whale in the room


    View Slide

24. • All services including Elasticsearch and
    Kibana are deployed as Docker
    containers
    • The history of the platform has moved
    from a shared cluster to clusters deployed
    with containers
    • Guarantee a share of resources
    • Malicious attacks are limited to a
    container
    Docker


    View Slide

25. How we keep feeding the whale
    Docker container management


    View Slide

26. The Runner


    View Slide

27. View Slide

28. We love stunnels


    View Slide

29. View Slide

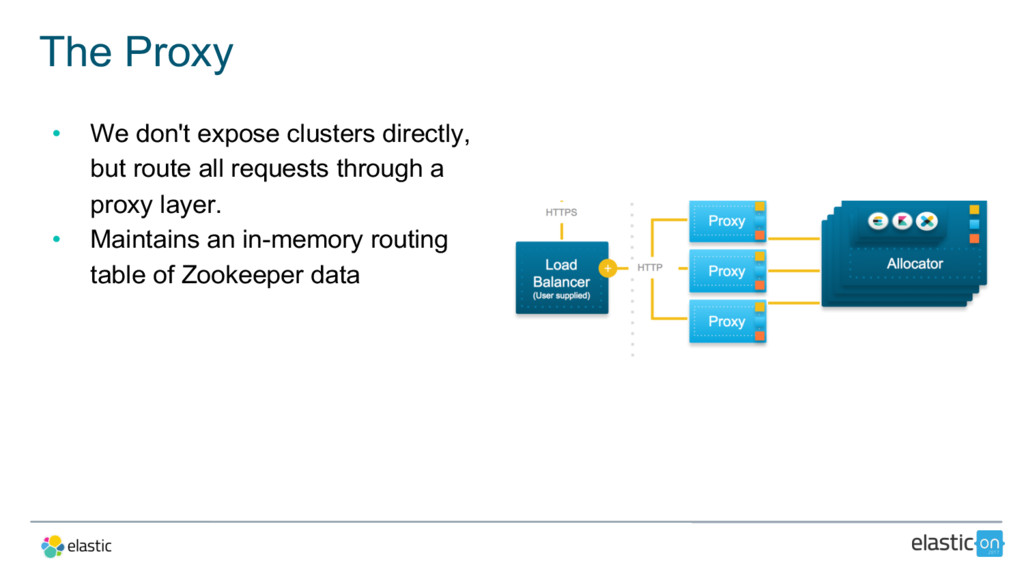

30. Where did I put that cluster?
    The Proxy


    View Slide

31. • We don't expose clusters directly,
    but route all requests through a
    proxy layer.
    • Maintains an in-memory routing
    table of Zookeeper data
    The Proxy


    View Slide

32. Running
    Elastic
    Cloud


    View Slide

33. 3
    Elastic Cloud Admin


    View Slide

34. Demo: Live Node Migration


    View Slide

35. So Many
    Clusters


    View Slide

36. >3 Billion
    requests
    per day


    View Slide

37. Elastic Cloud
    ‘s Beats


    View Slide

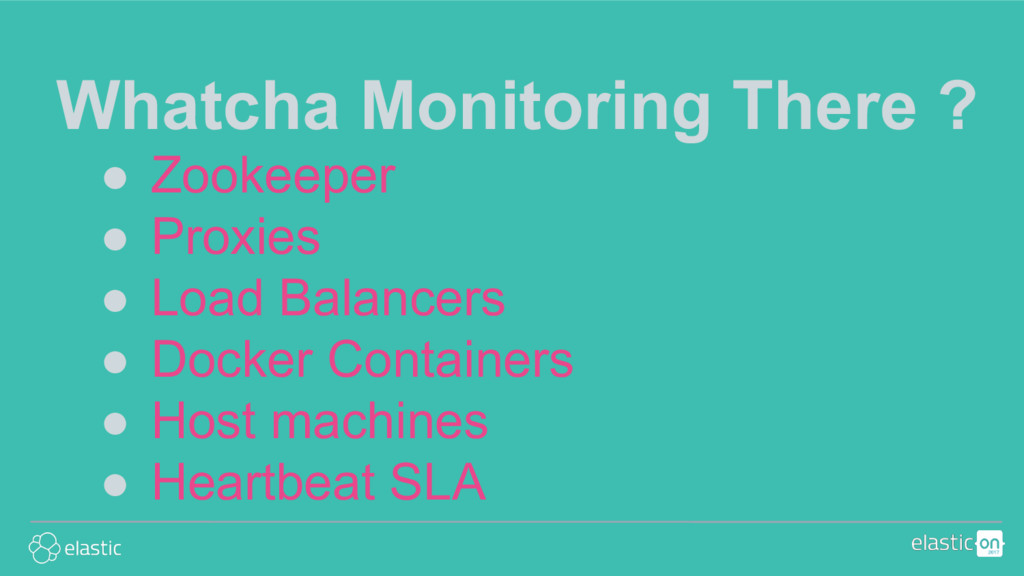

38. Whatcha Monitoring There ?
    ● Zookeeper
    ● Proxies
    ● Load Balancers
    ● Docker Containers
    ● Host machines
    ● Heartbeat SLA


    View Slide

39. 3
    ZooKeeper Stats


    View Slide

40. 4
    Proxy Stats


    View Slide

41. Elastic Cloud as a Product
    Introducing Elastic Cloud Enterprise


    View Slide

42. Provisioning, orchestration, and
    management of multiple clusters
    Deployed on-premise, in your private
    cloud … or wherever you want
    Leverages the same technology
    used in Elastic Cloud
    Automates frequent tasks such as
    snapshot/restore, upgrade and scale
    Public beta available; GA expected Q2 2017


    View Slide

43. 43
    More Questions?
    Visit us at the AMA


    View Slide

44. www.elastic.co


    View Slide

45. Except where otherwise noted, this work is licensed under
    http://creativecommons.org/licenses/by-nd/4.0/
    Creative Commons and the double C in a circle are
    registered trademarks of Creative Commons in the United States and other countries.
    Third party marks and brands are the property of their respective holders.
    45
    Please attribute Elastic with a link to
    elastic.co
