 Shield

While it has always been possible to secure Elasticsearch clusters by deploying them within well-secured environments, we continuously received requests from customers and users to have a more integrated solution. In response, we created Shield, our first security plugin for Elasticsearch, which went GA in late January.

In this talk, we’ll deep dive into this first release Shield. We went to great lengths preparing Elasticsearch itself for security, not just on its extensibility side, but also carefully rethinking how the data flows in it. We’ve built a foundation that not only delivers immediate tangible value when it comes to securing Elasticsearch clusters, but also enables us to extend its functionality incrementally and rapidly over time.

Among other topics, we’ll cover:
*Authentication
*Authorization
*Encrypted Communication & Node Authentication
*IP Filtering
*Audit Trails

Attendees will leave this talk with a solid understanding of Shield’s functionality, architecture and why it’s the best possible tool to secure Elasticsearch and your ELK cluster.

Dd9d954997353b37b4c2684f478192d3?s=128

Elastic Co

March 19, 2015
Tweet

More Decks by Elastic Co

Transcript

  1. shield Uri Boness

  2. { } 2 Why Security?

  3. { } 3

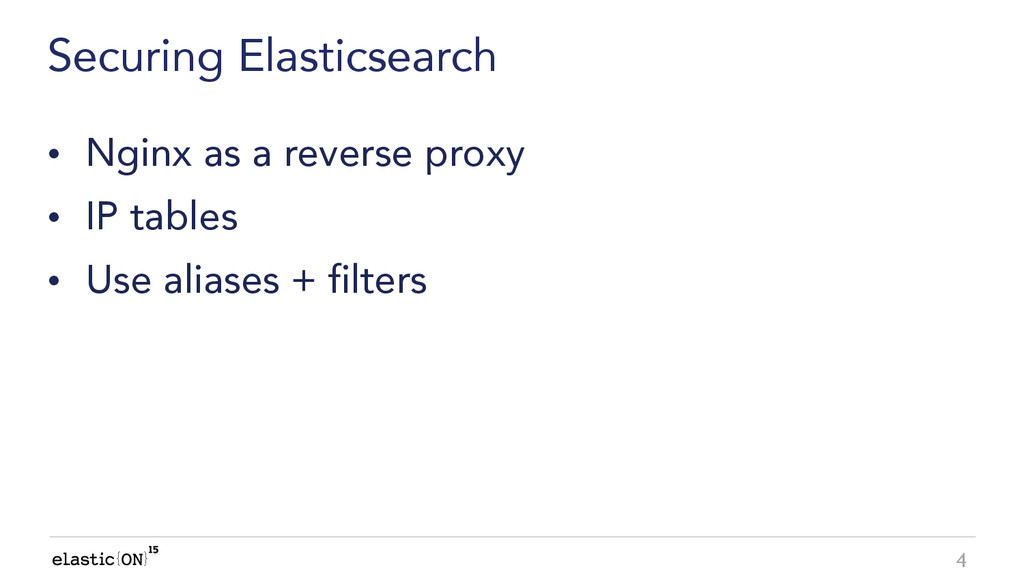

  4. { } Securing Elasticsearch • Nginx as a reverse proxy

    • IP tables • Use aliases + filters 4
  5. { } 5 Shield

  6. { } 6 SaaP

  7. { } 7 Security as a Plugin

  8. { } Shield Lifetime 8 2015 Q4 Q1 Q2 Shield

    1.0 GA Shield 1.1
  9. { } 9 Shield Authentication Authorization Securing the Wire Cluster

    Fencing Audit Trail
  10. { } 10 Authentication

  11. { } 11 (a.k.a) authc

  12. { } 12 (a.k.a) who are you? & are you

    really who you claim to be?
  13. { } The User • Represents the actor behind an

    API call – identified by a principal (username) – has credentials (e.g. password) • Users have roles • relates to authorization… so we’ll discuss it later • fyi, users without roles can’t do much… 13
  14. { } 14 Realms

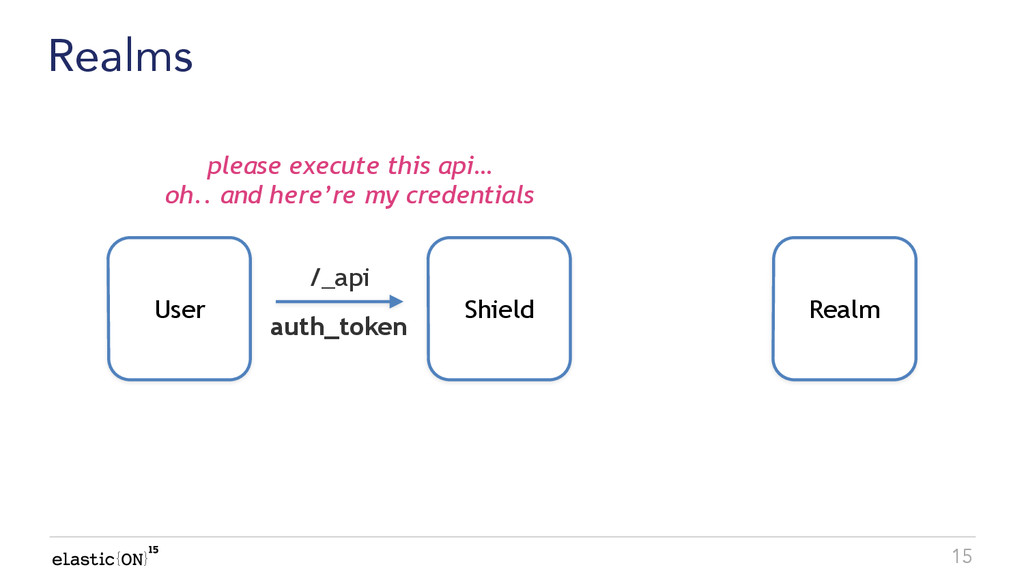

  15. { } Realms 15 /_api Realm Shield User auth_token please

    execute this api… oh.. and here’re my credentials
  16. { } Realms 16 please authentication auth_token Realm Shield User

    auth_token
  17. { } Realms 17 Realm Shield User failure

  18. { } Realms 18 Realm Shield User 401 failure

  19. { } Realms 19 Realm Shield User user success

  20. { } Realms 20 user Realm Shield User authorize

  21. { } Realms 21 Shield Realm Realm Realm auth_token failure

    auth_token failure user auth_token
  22. { } Realms • esusers – native file based user

    store • LDAP – integrating in the enterprise • Active Directory – more enterprises 22
  23. { } esusers • Simple & Native – file based,

    htpasswd-like config (bcrypt hashing) – no dependency on 3rd party systems • esusers tool will assist you manage users • Files are auto-loaded when changed • Great for small to medium deployments 23
  24. { } LDAP (you know.. for the enterprise) • Authenticate

    (bind) to LDAP server • Translate LDAP groups of user to Shield roles – using a dedicated role_mapping.yml file • Shield 1.1 – is able to search for the user before the bind – can load-balance between multiple LDAP servers 24
  25. { } Active Directory 25 same as LDAP… with simplified

    settings

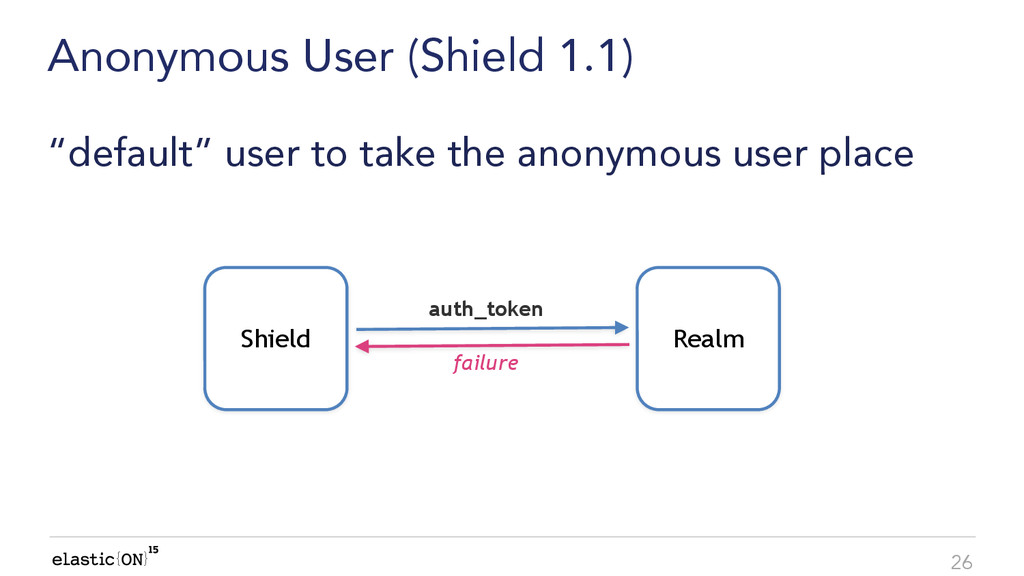

  26. { } Anonymous User (Shield 1.1) “default” user to take

    the anonymous user place 26 Realm Shield auth_token failure
  27. { } Anonymous User (Shield 1.1) 27 Realm Shield authorize

    anonymous_user
  28. { } 28 Shield Authentication Authorization Securing the Wire Cluster

    Fencing Audit Trail
  29. { } 29 Authorization

  30. { } 30 (a.k.a) authz

  31. { } 31 (a.k.a) are you allowed to do that?

  32. { } Role Based Access Control (RBAC) • role -

    a named set of permissions • permission – a set of cluster wide privileges – a set of privileges on one or more indices/aliases • privilege - a set of one or more action names 32
  33. { } Actions 33 /_search → indices:data/read/search API action name

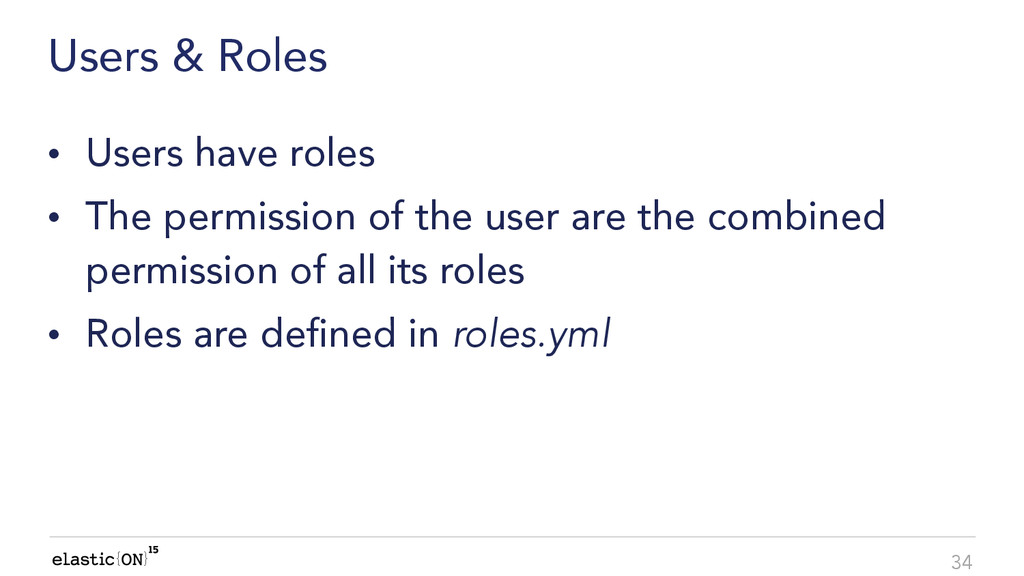

  34. { } Users & Roles • Users have roles •

    The permission of the user are the combined permission of all its roles • Roles are defined in roles.yml 34
  35. { } Users & Roles 35

  36. { } 36 Shield Authentication Authorization Securing the Wire Cluster

    Fencing Audit Trail
  37. { } 37 Securing the Wire

  38. { } Data Travels • Network Channels – transport: inter-node

    communication – http: REST interface • MITM (man-in-the-middle) – sniffing, tampering data, imposture 38
  39. { } SSL/TLS • This wheel was already invented •

    Based on native Java support • Integrated in all supported network channel – http/s & transport 39

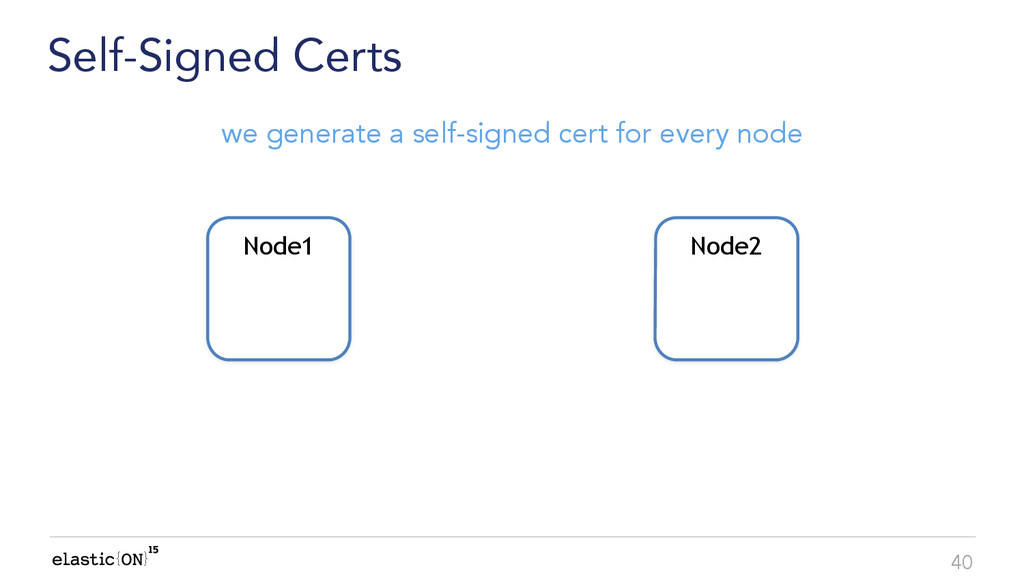

  40. { } Node2 Self-Signed Certs 40 Node1 we generate a

    self-signed cert for every node

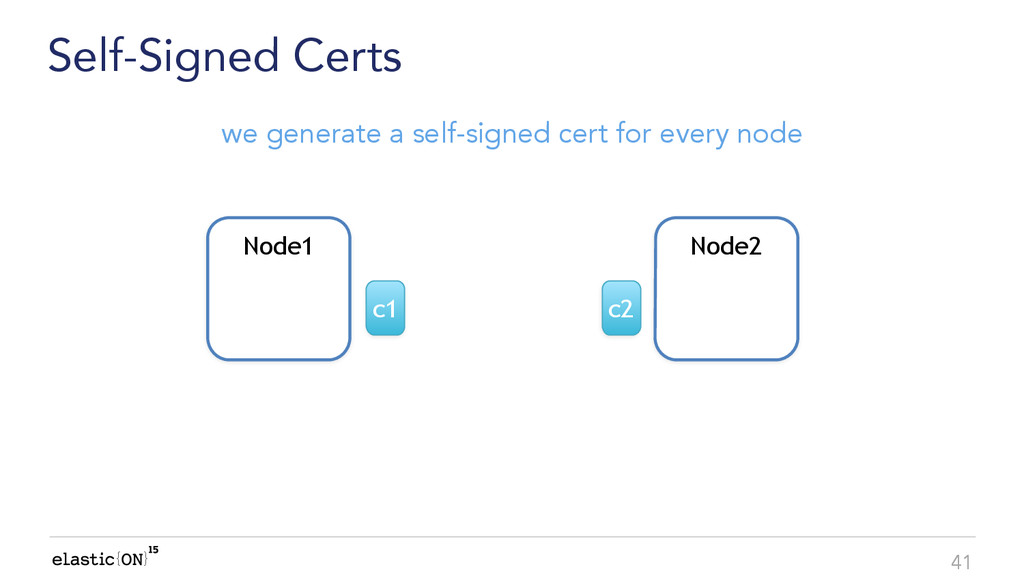

  41. { } Node2 Self-Signed Certs 41 Node1 c1 c2 we

    generate a self-signed cert for every node
  42. { } Node2 Self-Signed Certs 42 Node1 c1 c2 for

    every node, we import its generated cert on all other nodes
  43. { } Node2 Self-Signed Certs 43 Node1 c1 c2 for

    every node, we import its generated cert on all other nodes TLS handshake
  44. { } Node2 Self-Signed Certs 44 Node1 c1 c2 the

    challenge is the elastic nature of… well… elasticsearch TLS handshake
  45. { } Node2 Self-Signed Certs 45 Node1 c1 c2 the

    challenge is the elastic nature of… well… elasticsearch Node 3

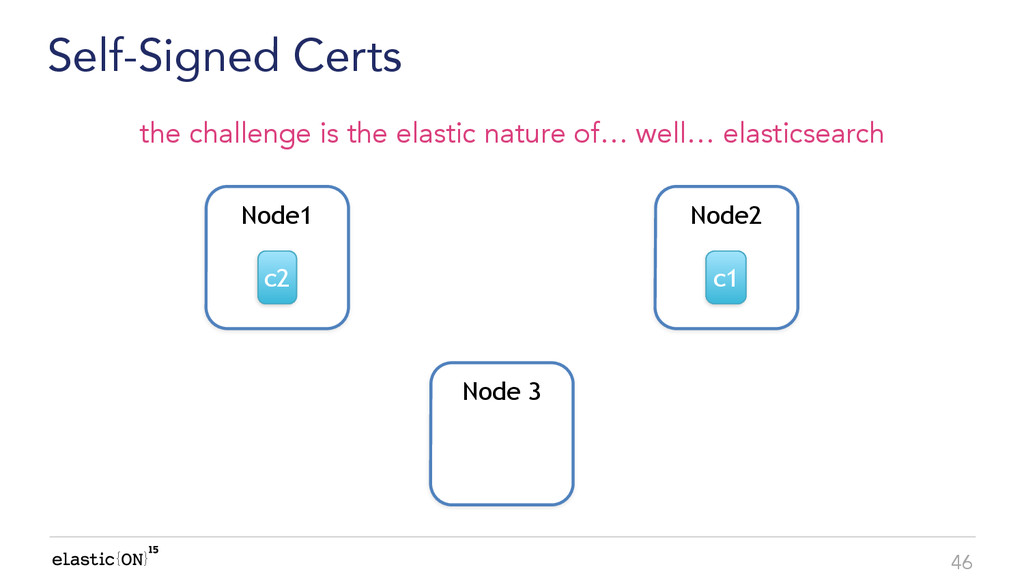

  46. { } Node2 Self-Signed Certs 46 Node1 c1 c2 the

    challenge is the elastic nature of… well… elasticsearch Node 3 c2 c1
  47. { } Node2 Self-Signed Certs 47 Node1 c1 c2 the

    challenge is the elastic nature of… well… elasticsearch Node 3 c2 c1

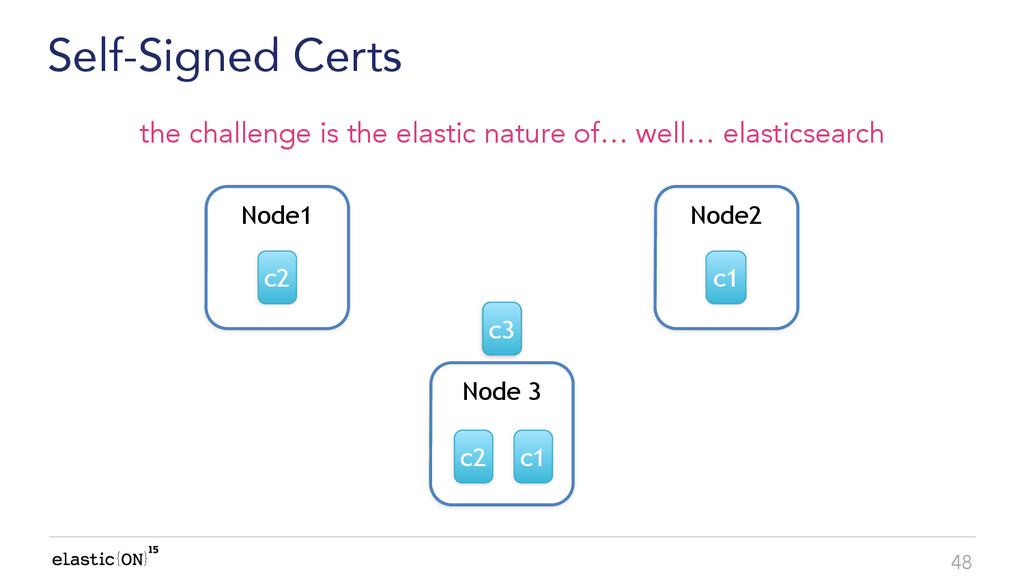

  48. { } Node2 Self-Signed Certs 48 Node1 c1 c2 the

    challenge is the elastic nature of… well… elasticsearch Node 3 c3 c2 c1 c3
  49. { } Node2 Self-Signed Certs 49 Node1 c1 c2 the

    challenge is the elastic nature of… well… elasticsearch c3 c3 Node 3 c2 c1
  50. { } Self-Signed Certs 50 the challenge is the elastic

    nature of… well… elasticsearch handshake Node2 Node1 c1 c2 c3 c3 Node 3 c2 c1
  51. { } Self-Signed Certs 51 the challenge is the elastic

    nature of… well… elasticsearch Node2 Node1 c1 c2 c3 c3 Node 3 c2 c1 requires cluster restart handshake
  52. { } Node2 CA-Signed Certs 52 Node1 we find a

    CA
  53. { } Node2 CA-Signed Certs 53 Node1 we find a

    CA CA
  54. { } Node2 CA-Signed Certs 54 Node1 c1 c2 we

    generate a cert for every node CA
  55. { } Node2 CA-Signed Certs 55 Node1 c1 c2 we

    ask the CA to sign it CA
  56. { } Node2 CA-Signed Certs 56 Node1 c1 c2 we

    ask the CA to sign it CA
  57. { } Node2 CA-Signed Certs 57 Node1 c1 c2 we

    ask the CA to sign it CA
  58. { } ca ca Node2 CA-Signed Certs 58 Node1 we

    also get the CA cert c1 c2 CA
  59. { } Node2 CA-Signed Certs 59 Node1 we also get

    the CA cert ca ca c1 c2 CA
  60. { } Node2 CA-Signed Certs 60 Node1 we can now

    open a secure channel between the nodes ca ca c1 c2 TLS handshake CA

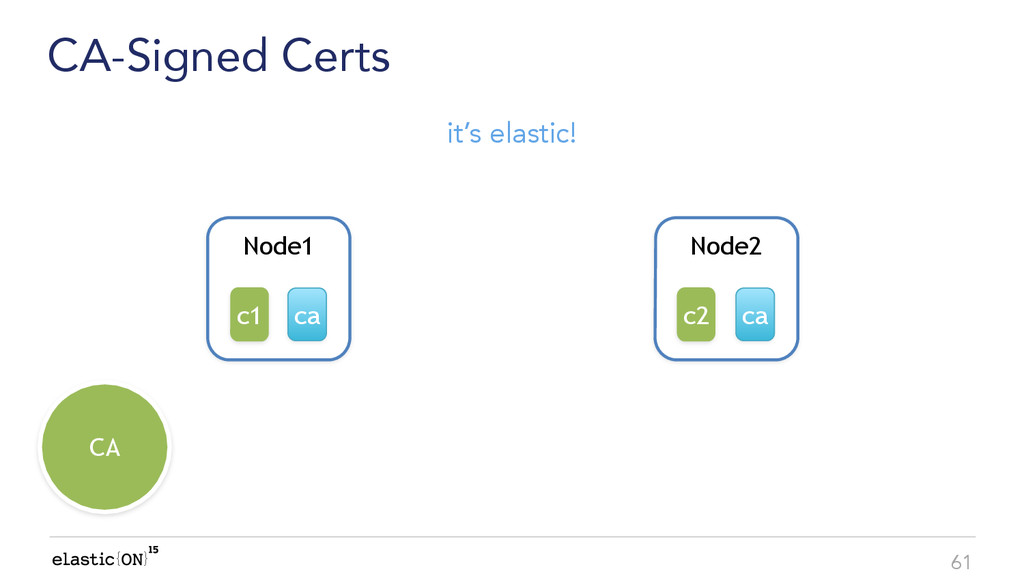

  61. { } Node2 CA-Signed Certs 61 Node1 it’s elastic! ca

    ca c1 c2 CA
  62. { } CA-Signed Certs 62 it’s elastic! Node1 ca c1

    Node2 ca c2 Node 3 CA

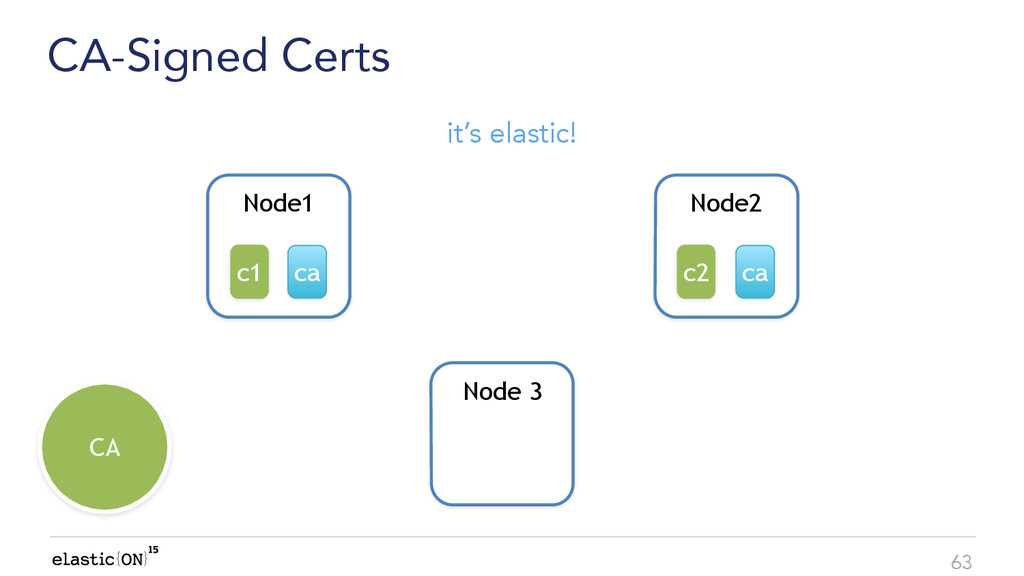

  63. { } CA-Signed Certs 63 it’s elastic! Node1 ca c1

    Node2 ca c2 Node 3 c3 ca CA
  64. { } CA-Signed Certs 64 it’s elastic! Node1 ca c1

    Node2 ca c2 Node 3 c3 ca handshake CA
  65. { } CA-Signed Certs 65 it’s elastic! Node1 ca c1

    Node2 ca c2 Node 3 c3 ca no cluster restart required! handshake CA
  66. { } 66 Shield Authentication Authorization Securing the Wire Cluster

    Fencing Audit Trail
  67. { } 67 Cluster Fencing

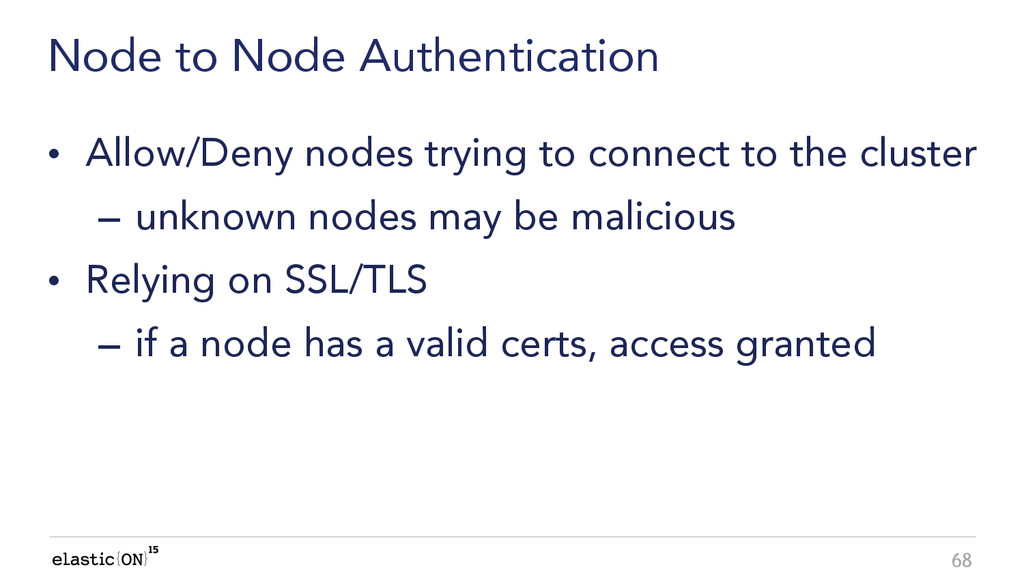

  68. { } Node to Node Authentication • Allow/Deny nodes trying

    to connect to the cluster – unknown nodes may be malicious • Relying on SSL/TLS – if a node has a valid certs, access granted 68
  69. { } Client to Node Authentication • Allow/deny connections from

    clients • usually SSL/TLS is a one way protection – the client trusts the server • with client certs, it is a two way protection – the client trusts the server – the server trusts the client 69
  70. { } Transport Profiles • Added to elasticsearch 1.4 •

    Enables binding to multiple host:port pairs • Enables clear separation between transport client and inter node communication • client certs within the cluster • transport client doesn’t need client certs 70
  71. { } IP Filtering • A simple alternative to IP

    tables • Control who can connect to the cluster based on hosts, IPs and CIDRs allow/deny rules. • Built into the internal networking layers in elasticsearch – transport & http • Shield 1.1 lets you update the filters dynamically 71

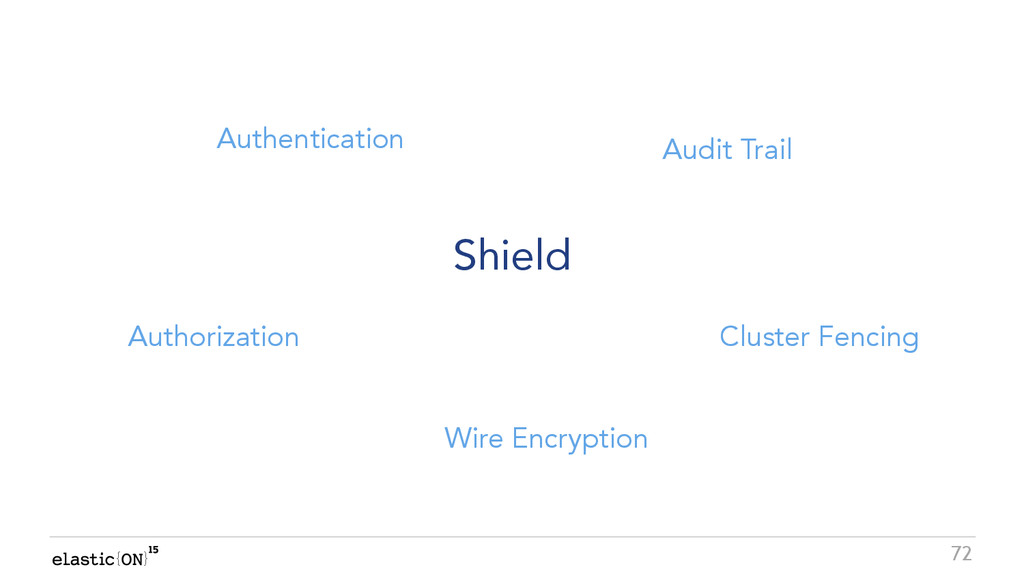

  72. { } 72 Shield Authentication Authorization Wire Encryption Cluster Fencing

    Audit Trail

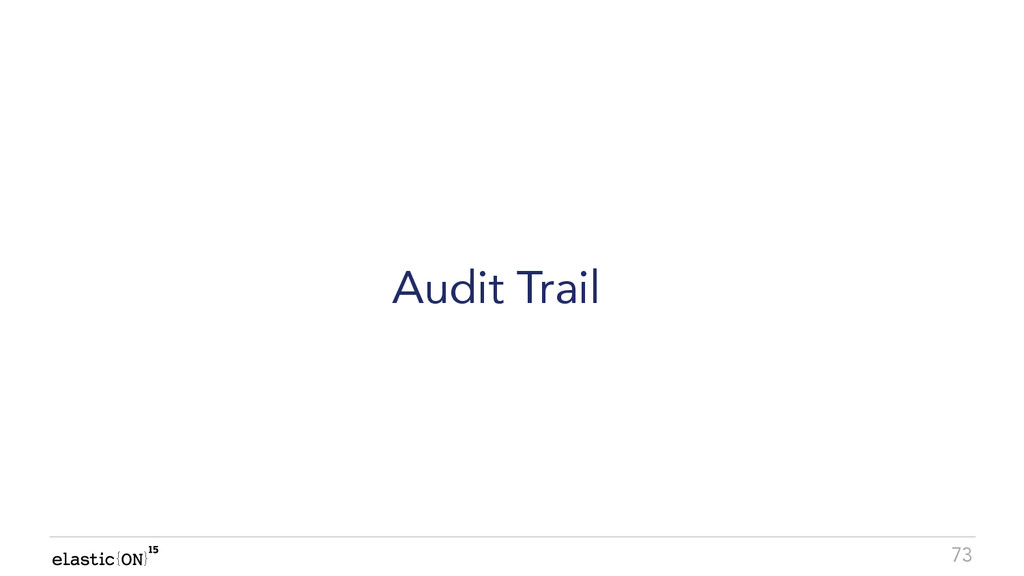

  73. { } 73 Audit Trail

  74. { } • Records the activity on each node in

    the cluster – anonymous_access_denied – authentication_failed – access_denied /access_granted – connection_denied / connection_granted 74 Audit Trail

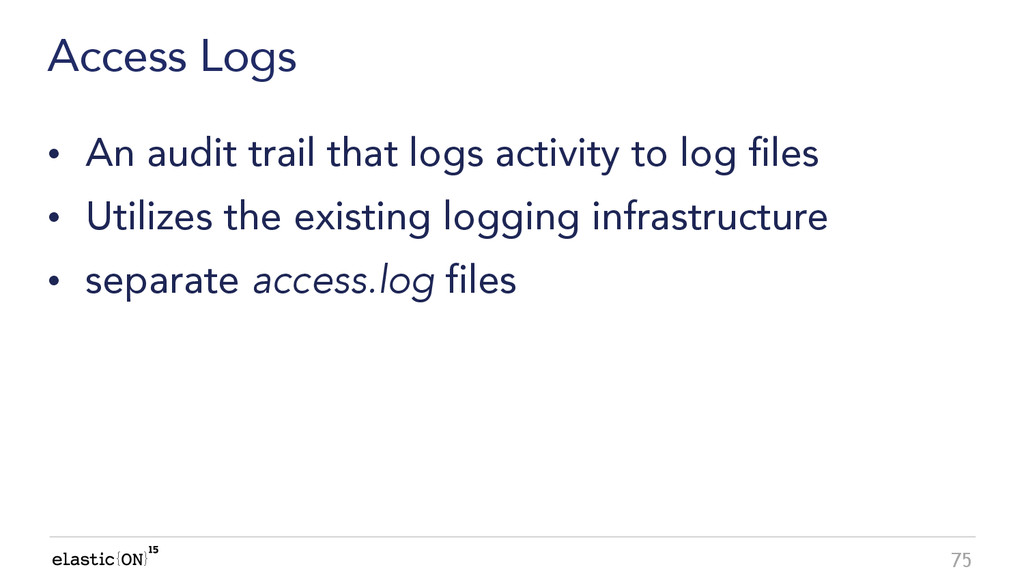

  75. { } Access Logs • An audit trail that logs

    activity to log files • Utilizes the existing logging infrastructure • separate access.log files 75
  76. { } 76 What’s Next?

  77. { } Shield 1.1 • Anonymous access • Enhanced LDAP

    support • Dynamically update IP filters 77
  78. { } Shield X.X • Additional Realms – new native

    realm managed via API – kerberos, other SSO mechanisms • Additional authentication methods • API token/key authentication • Enhanced support for kibana 78
  79. { } thank you! @uboness

  80. { } 80
