Introduction to Django Channels - ConFoo Vancouver 2016

Django has been the largest web framework in Python for more than 7 years. However, web development hasn't stood still, with tools like Node.js and Go taking a more asynchronous approach to web development.

Channels is Django's answer to this, giving Django an answer to other async web frameworks, allowing native support for WebSockets and more. This talk will be an introduction to the architecture and implementation of Django Channels.

Transcript

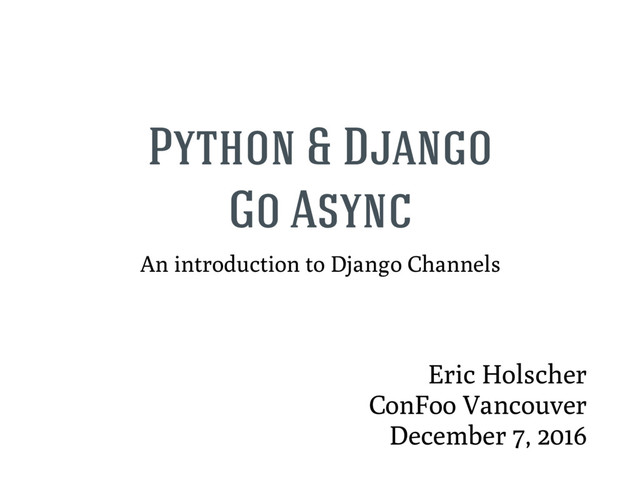

1. Eric Holscher ConFoo Vancouver December 7, 2016 Python & Django Go Async An introduction to Django Channels
2. Who am I • Co-Founder of Read the Docs • Co-Founder of Write the Docs • Longtime member of the Django community
3. Today • Understand the architecture of Channels • Understand the tradeoffs required • Know if it fits your use case and organization • Know how to get started
4. A bit of history first
5. Django was created in 2005. Web was static pages rendered on the server side.
6. Channels takes us from 2005 to 2015
7. Channels adds ability for Django to handle H P/2, websockets, and other things outside a normal request/response cycle
9. Architecture
10. Channels
11. Current Status • 1.0 imminent • Lives outside of Django itself • An official project of the Django team • Will perhaps merge into core for Django 2.0
12. A few different projects • ASGI • Daphne • Django Channels
13. Terms • Interface Server • Channels • Messages • Routes • Consumers • Groups
14. Interface Server • Holds connections open to the world • Speaks both H P and Websocket • Passes messages along the channels, doesn’t actually process anything
15. Channels • First In First Out • At most once delivery • No guaranteed ordering • Messages expire a er a set time • ‘websocket.connect’, ‘http.request’, ‘chat.message’
16. Messages • Send across the channels • Can have arbitrary content based on differing protocols • Usually JSON
17. # Sent on a ‘http.request’ channel { 'reply_channel': 'http.response!g23vD2x5', 'method': 'GET', 'http_version': '2', 'path': '/chat/socket/', 'query_string': 'foo=bar', 'headers': [['cookie', 'abcdef...']], } Messages
18. Routing • Similar to Django URLConf • Allows for matching arbitrary things on the incoming messages • Can match against `path` on H P requests, or `address` on email sending
19. routing = [ route( "websocket.receive", consumers.chat_receive, path=r"^/chat/socket/$", ), route( "email.receive", comment_response, address=r".*@example.com$" ) include("stats.routing", path="^/stats/"), ] Routing
20. Consumer • Similar to a Django View • Takes a `message` and… does something
21. # Consumer def ws_connect(message): message.reply_channel.send(message['text']) Consumer
22. Groups • Contain sets of channels • Only allow add/remove/send — because distributed systems • Useful for keeping state and sending messages across sets of channels
23. Architecture
24. Basic Examples
25. # Routing channel_routing = { 'http.request': consumers.http_consumer } # Message { 'reply_channel': 'http.response!g23vD2x5', 'method': 'GET', 'http_version': '2', 'path': '/chat/socket/', 'query_string': 'foo=bar', 'headers': [['cookie', 'abcdef...']], } # Consumer def http_consumer(message): response = HttpResponse('Hey there') message.reply_channel.send(response.channel_encode()) HTTP Request
26. # Routing channel_routing = { 'websocket.connect': consumers.ws_connect, 'websocket.receive': consumers.ws_receive, 'websocket.disconnect': consumers.ws_disconnect, } # Message { 'text': 'Hello, world!', 'path': '/chat/socket/', 'reply_channel': 'websocket.send!9m12in2p', } # Consumer def ws_connect(message): message.reply_channel.send(message['text']) Websocket Request
27. Major Features
28. Authentication & Sessions • Slightly tricky • ‘websocket.connect’ has H P cookies & auth • There are two sessions, “http_sessions” & “channel_sessions”
29. @channel_session_user_from_http def ws_add(message): Group( "chat-%s" % message.user.username[0] ).add(message.reply_channel) @channel_session_user def ws_message(message): Group("chat-%s" % message.user.username[0]).send({ "text": message['text'], }) Authentication & Sessions
30. Generic Consumers • Similar to Generic Views • Abstracts common use cases for simpler logic • Ships with Websocket & JSON generic consumers currently
31. class MyConsumer(JsonWebsocketConsumer): def connection_groups(self, **kwargs): return ["test"] def receive(self, content, **kwargs): """ Called when a message is received with decoded JSON content """ # Simple echo self.send(content) Generic Consumers
32. MultiPlexing • Allows you to send multiple data types over a single connection • Uses ‘stream’ and ‘payload’ keys • Sends the payload to the mapped stream
33. class Demultiplexer(WebsocketDemultiplexer): mapping = { "intval": "binding.intval", "stats": "internal.stats", } MultiPlexing
34. Data Binding • Lets you keep client & server data models in sync • Update each side on change to either side in realtime • Uses Django serialization and multiplexing as standard wire format
35. # Routing channel_routing = [ route_class(Demultiplexer, path="^/binding/"), route("binding.intval", IntegerValueBinding.consumer), ] # Consumer class IntegerValueBinding(WebsocketBinding): model = IntegerValue stream = "intval" fields = ["name", "value"] def group_names(self, instance, action): return ["intval-updates"] def has_permission(self, user, action, pk): return True Data Binding
36. # Message (Client) { "payload": { "action": "update", "data": { "value": "56" }, "pk": "2" }, "stream": "intval" } # Message (Server) { "payload": { "action": "update", "data": { "name": "Cool", "value": 56 }, "model": "values.integervalue", "pk": 2 }, "stream": "intval" } Data Binding
37. Additional niceties • Testing helpers • Optional guaranteed ordering • Zero Downtime Deployments
38. Deploying
39. # settings.py CHANNEL_LAYERS = { "default": { "BACKEND": "asgi_redis.RedisChannelLayer", "CONFIG": { "hosts": [("localhost", 6379)], }, "ROUTING": "myproject.routing.channel_routing", }, } # asgi.py import os from channels.asgi import get_channel_layer os.environ.setdefault("DJANGO_SETTINGS_MODULE", "my_project.settings") channel_layer = get_channel_layer() Configuration
40. You need a Channel Layer, an Interface Server, and a pool of Workers
41. # Run a Channel Layer redis-server # Run an Interface Server daphne my_project.asgi:channel_layer # Run the Workers ./manage.py runworker All services
42. You should run more than 1 worker, as it’s single threaded
43. Can limit the channels workers listen on, to split up long running and short running processes
44. Websockets require a different way of thinking about architecture. Channels embraces this
45. Slackbot
46. Usage of the same channel for Slack and IRC
47. { 'stream': ‘chat.mesage’, 'payload': { 'channel': 'general', 'user': 'eric', 'text', '!post general echo', } } Message
48. Demo
49. Recap
50. Channels & ASGI is a swiss army knife of async
51. Not just for Django, but a lot of the neat bits on top are
52. Still relatively new, but definitely the future of realtime with Django
53. Next steps are to get some real deployments in the world
54. Resources • https://channels.readthedocs.io/ • https://github.com/andrewgodwin/ channels-examples/
55. Image Credits • https://blog.heroku.com/ in_deep_with_django_channels_the_fut ure_of_real_time_apps_in_django
56. Questions? • @ericholscher • eric@ericholscher.com • Come talk to me around the conference
