Assessing Subjective Quality of Web Interaction with Neural Network as Context of Use Model
Maxim Bakaev, Vladimir Khvorostov, Tatiana Laricheva, Novosibirsk State Technical University

For video follow the link: https://youtu.be/rJjVFUr1F5Q
Would like to know more?
Visit our website:
www.tmpaconf.org
www.exactprosystems.com/events/tmpa

Follow us:
https://www.linkedin.com/company/exactpro-systems-llc?trk=biz-companies-cym
https://twitter.com/exactpro

Transcript

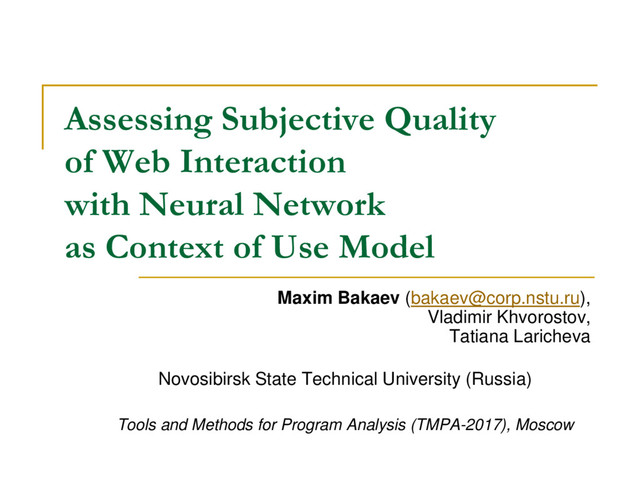

1. Assessing Subjective Quality of Web Interaction with Neural Network as Context of Use Model Maxim Bakaev (bakaev@corp.nstu.ru), Vladimir Khvorostov, Tatiana Laricheva Novosibirsk State Technical University (Russia) Tools and Methods for Program Analysis (TMPA-2017), Moscow
2. TMPA 2017, Moscow 2 Introduction – Motivation  Error removal is the most time-consuming phase of software life cycle (non-linear increase with complexity/scale)  The level of QA technologies advancement impose the limit on software size (currently, order of 108 lines of code)  Analysis, testing and error removal tools used to get less attention, compared to e.g. CASE for requirements or design  Web-based software:  Ubiquitous (100 millions active websites)  Often built by small and/or inexperienced development teams  But the complexity is increasing (even legacy IS migrate to the web)  Pressure for rapid development, frequent updates and fixes  Automation/support of QA activities is very much desired
3. TMPA 2017, Moscow 3 Introduction – web QA automation  Unit testing and integration testing – good (even emerging auto-generation of tests)  Validation/verification – fair (GUI testing automation tools, e.g. Selenium to write scripts for browser)  Load testing – excellent (naturally automatable)  Visual appearance (of web pages) – poor (very subjective, while image analysis is complex)  Usability and interaction quality  Objective dimension: effectiveness (perform functions), accessibility (compliance to standards), speed – fair  Subjective dimension: satisfaction, trust, etc. – poor (relative to context of use, i.e. user- and task-dependent)
4. METHODS: How accurately can we predict users’ subjective impression of a website without an actual user? TMPA 2017, Moscow 4 RESEARCH QUESTION: • Artificial Neural Network (NN) to model user preferences • Data collection in experimental survey, to train the network
5. TMPA 2017, Moscow 5 Automated Usability Evaluation  Interaction-based UE: based on data from interactions  mouse cursor behavior, “optimality” of interaction from logs, etc.  real users must do real work with potentially poor designs  Metric-based UE: defined and quantified website metrics  e.g. concordance to guidelines, complexity, ratio of graphics/ text  effect of user tasks and contexts on the metrics significance?  Model-based UE: simulation, CBR, data mining  rely on models (mainly Domain, User, and Tasks) and general knowledge about human behavior and web technologies  high computational complexity, work effort to maintain the models  Hybrid approaches: AI, machine learning  real-time processing of interaction data for interface augmentation, trained usability evaluation models, etc.
6. TMPA 2017, Moscow 6 Artificial Neural Networks  NN is a sophisticated way of specifying a function  Input layer, one or more hidden layers, output layer  Learning: find a function with the smallest possible “cost”  Model quality: classification accuracy (SS relative error)
7. TMPA 2017, Moscow 7 NNs for Web Usability Assessment  NNs in software testing automation:  predicting defects, resulting quality and costs, acting as test oracle, etc.  mostly focus on functional requirements  exception: Kansei Engineering that can use NNs to link design parameters (input neurons) with subjective evaluations per emotional scales (output neurons)  For our research problem:  input: factors of use context: User, Platform, and Environment + analyze importance of factors  output: subjective interaction quality attributes
8. TMPA 2017, Moscow 8 The NN Model Structure  Domain: fixed (Education and Career) – university websites, 11 from Germany and 10 from Russia  User-related factors:  Age, gender, language/culture group  Platform-related factors:  website country group, number of website sections, Flesch- Kincaid Grade Level (https://readability-score.com), number of errors plus warnings (https://validator.w3.org)  Environment-related factors:  page load time, global rank, bounce rate (http://alexa.com)  Output: evaluation for “emotional” scales  Beautiful, Evident, Fun, Trustworthy, and Usable
9. TMPA 2017, Moscow 9 Experiment – Description  Participants (82):  Procedure: each user evaluate 10 websites randomly selected from the 21, by the five subjective scales, with values for each ranging from 1 (worst) to 7 (best). German users Russian users Total number of participants 40 42 Gender Male 90% 71.4% Female 10% 28.6% Program Bachelor 35% 54.8% Master 65% 45.2% Age Range 19~33 20~28 Mean 24.5 21.7 SD 3.19 0.89 Native language Common German: 75% Russian: 90.5% Others 25% 9.5%
10. TMPA 2017, Moscow 10 Results – Descriptive Statistics  In total, 820 evaluations (divided into NN training, testing and holdout datasets as 80% - 10% - 10%). Scale German users Russian users Difference Beautiful 3.83 (0.59) 4.10 (0.98) Trustworthy 4.10 (0.37) 4.53 (0.76) p=0.058 Fun 3.54 (0.50) 4.20 (0.97) p=0.025 Evident 3.79 (0.27) 4.60 (0.66) p<0.001 Usable 3.78 (0.36) 4.52 (0.79) p=0.003 Scales Beautiful Trustworthy Fun Evident Usable Beautiful 1 0.670 0.767 0.563 0.605 Trustworthy 1 0.673 0.648 0.675 Fun 1 0.638 0.661 Evident 1 0.813 Usable 1
11. TMPA 2017, Moscow 11 Results – the NN Model  Multilayer Perceptron, 1 hidden layer with 10 neurons, optimization algorithm – gradient descent, activation functions – sigmoid (hidden) and identity (output).  Overall relative error: 0.737 (moderate)  Residuals for Usable evaluations (converted from ordinal to scale) Scale Error Beautiful 0.656 Fun 0.707 Evident 0.762 Trustworthy 0.786 Usable 0.792 Model 0.737
12. TMPA 2017, Moscow 12 Results – Factors and Scales  Prediction error is better for “common” (Beautiful, Fun) rather than “specialized” (Trustworthy, Usable) scales.  Factors’ importance (in building NN models):  Demographics: age diversity is important, unlike gender.  Cross-cultural: diversity in websites and users are moderately important  Websites: diversity of content and technical quality is important, but in scale – not very much Factor Normalized importance Flesch-Kincaid Grade Level 100.0% User Age 90.9% Alexa Bounce Rate 75.9% Page Load Time 73.0% Website Group 61.4% Errors + Warnings 59.4% User Language Group 39.0% Alexa Global Rank 30.6% Number of Sections 24.6% User Gender 8.8%
13. TMPA 2017, Moscow 13 Conclusions  Can we automate web interaction quality assessment?  websites are abundant, but experts’ and users’ time is not  ANN to predict subjective evaluations for a fixed domain (university websites) and target user group (students):  input: factors of use context – User, Platform, Environment  output: subjective interaction quality scales  Experimental survey to collect data for the NN training:  82 users, 21 websites, 5 scales (820 full evaluations)  Moderate predictive potential (error 0.737), but better for more “simple” scales (e.g. Beautiful: 0.656).  Further research prospects:  varying the factors of domain and target users  analyzing the effect of richer training data on the NN quality
