Animations: Swift vs React Native

How React Native animations work under the hood without dropping frames and a comparison on how to achieve some non-obvious animations in Swift vs React Native.

https://vimeo.com/283450221

Transcript

1. Animations: Swift vs React Native Flávio Caetano Senior Developer
2. Work & Co São Paulo
3. 1. Getting annoyed by Xcode since 2011 2. Objective-C is bae ❤ 3. [myObject retain]; 4. Swift from day 1 5. React Native is my new love
5. 1. Under the Hood 2. The Animated API in React Native 3. Swift vs React Native Animations
6. Under the Hood

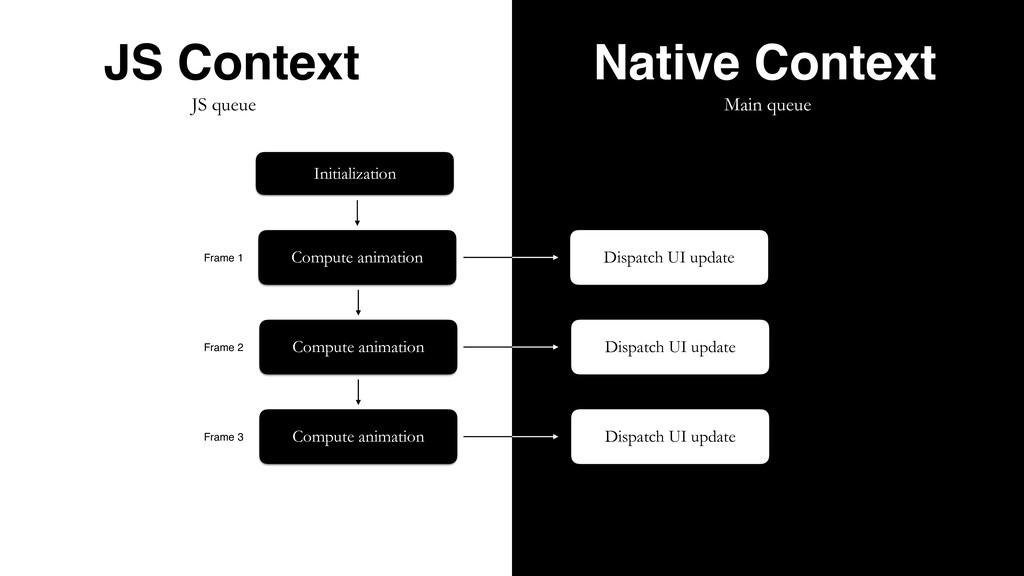

7. JS Context Native Context Initialization JS queue Main queue Dispatch UI update Dispatch UI update Dispatch UI update Compute animation Frame 1 Compute animation Frame 2 Compute animation Frame 3
8. Compute animation Frame 1 Compute animation Frame 2 Compute animation Frame 3 Initialization JS Context Native Context JS queue Main queue

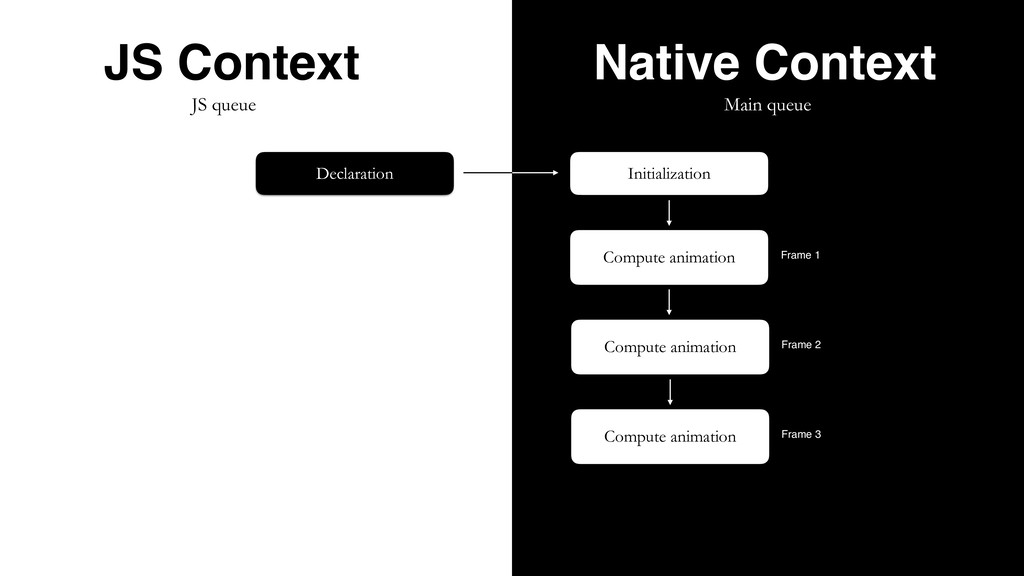

9. JS Context Native Context JS queue Main queue Declaration Initialization Compute animation Frame 1 Compute animation Frame 2 Compute animation Frame 3
10. 1. API is declarative 2. No need to keep bridging often 3. Described upon initialization (bridged once) 4. Custom physics driver THE BENEFITS OF WORKING WITH REACT NATIVE
11. Animated API
12. ANIMATED.VALUE

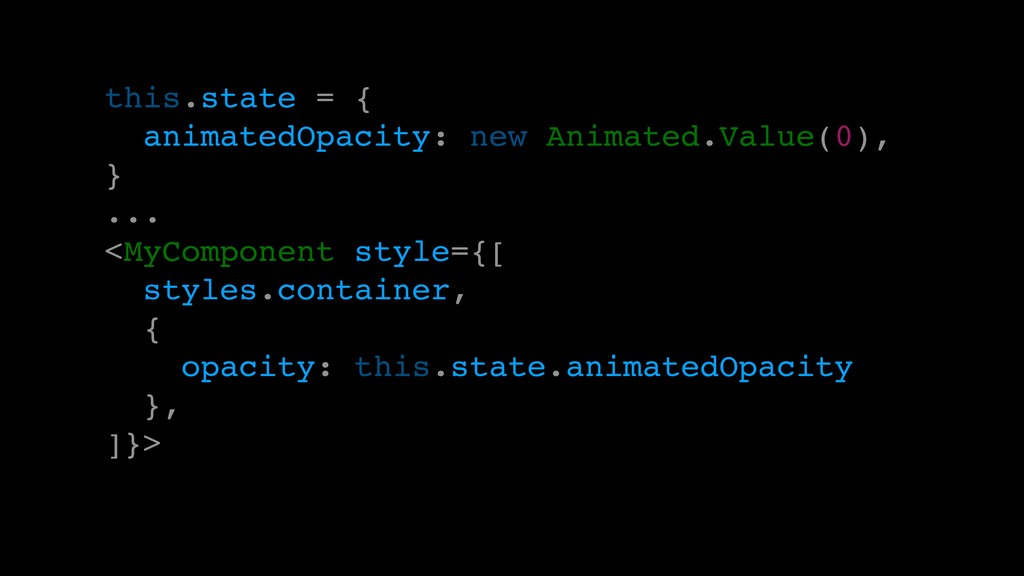

13. this.state = { animatedOpacity: new Animated.Value(0), } ... <MyComponent style={[ styles.container, { opacity: this.state.animatedOpacity }, ]}>
14. 1. Animated.timing() 2. Animated.decay() 3. Animated.spring()

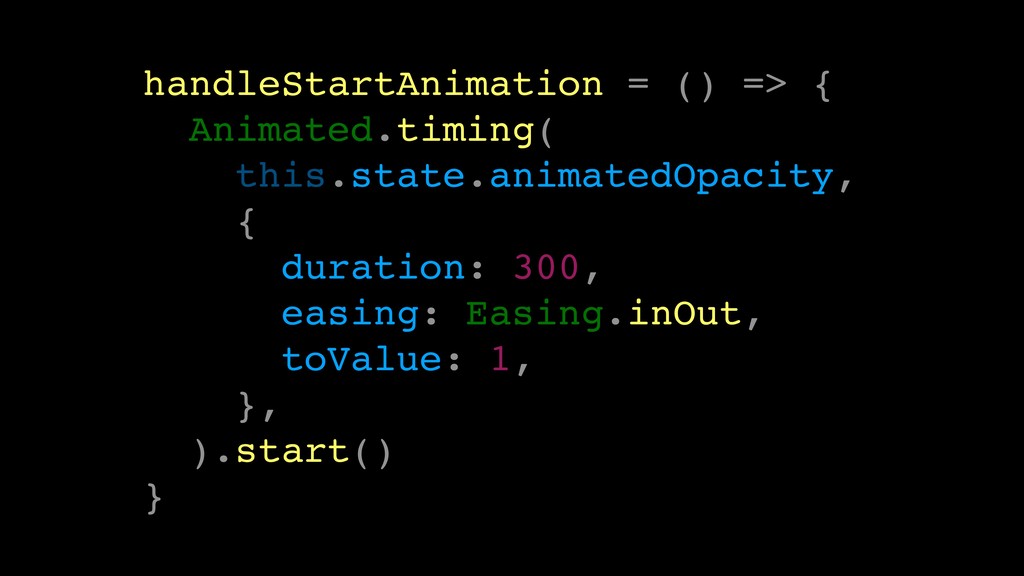

15. handleStartAnimation = () => { Animated.timing( this.state.animatedOpacity, { duration: 300, easing: Easing.inOut, toValue: 1, }, ).start() }
16. Simple Animations

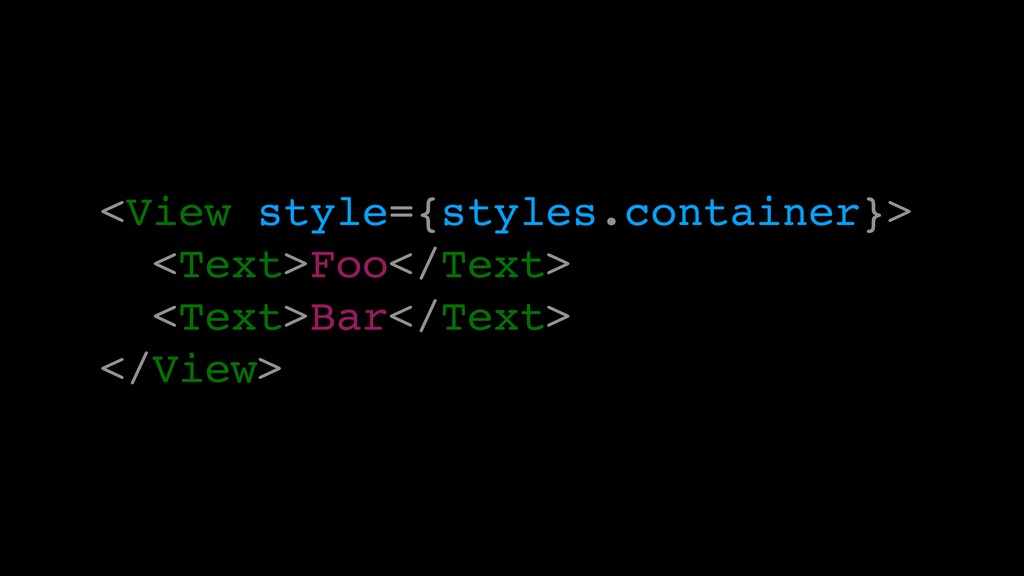

17. <View style={styles.container}> <Text>Foo</Text> <Text>Bar</Text> </View>

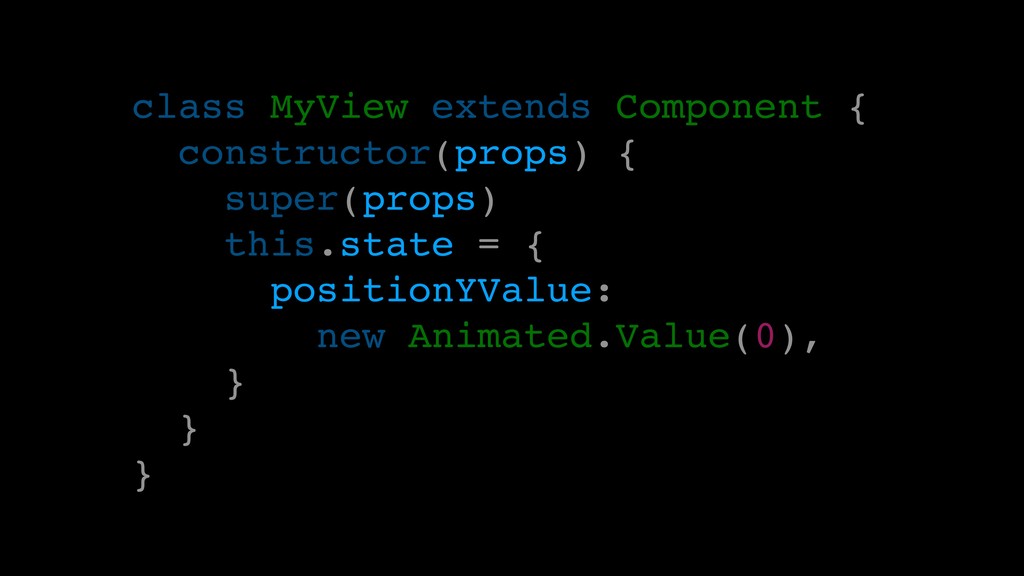

18. class MyView extends Component { constructor(props) { super(props) this.state = { positionYValue: new Animated.Value(0), } } }
19. <Animated.View style={[ styles.container, { transform: { translateY: this.state.positionYValue, }, }, ]}> <Text>Foo</Text> <Text>Bar</Text> </Animated.View>
20. INTERPOLATION
21. <Animated.View style={[ styles.container, { transform: { translateY: this.state.positionYValue.interpolate({ inputRange: [0, 1], outputRange: [0, 100], }), }, }, ]}> <Text>Foo</Text> <Text>Bar</Text> </Animated.View>
22. 1. Any number of values you want 2. May have easing 3. inputRange.length === outputRange.length 4. inputRange must be sorted INTERPOLATED RULES

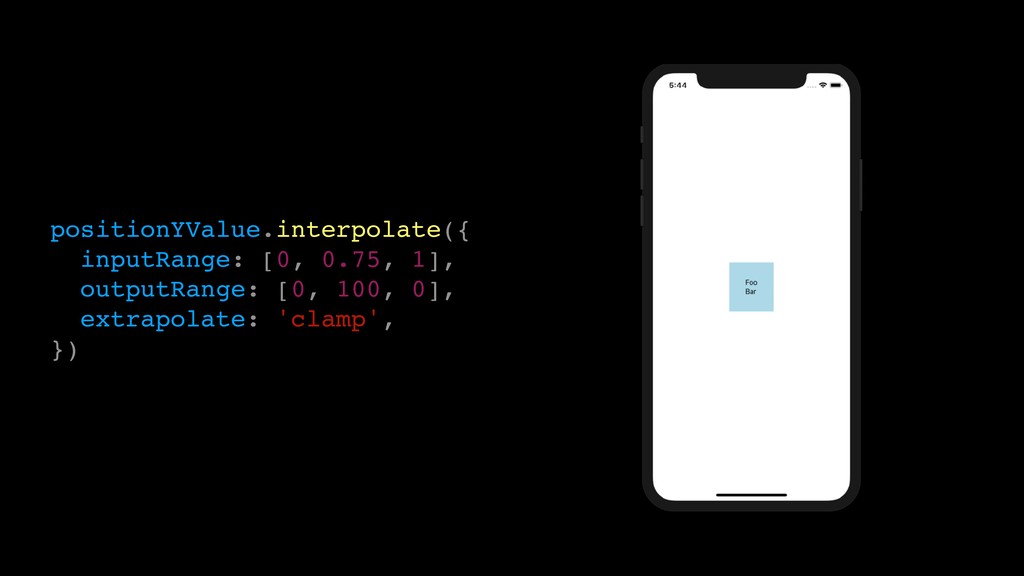

23. positionYValue.interpolate({ inputRange: [0, 0.75, 1], outputRange: [0, 100, 0], extrapolate: 'clamp', })

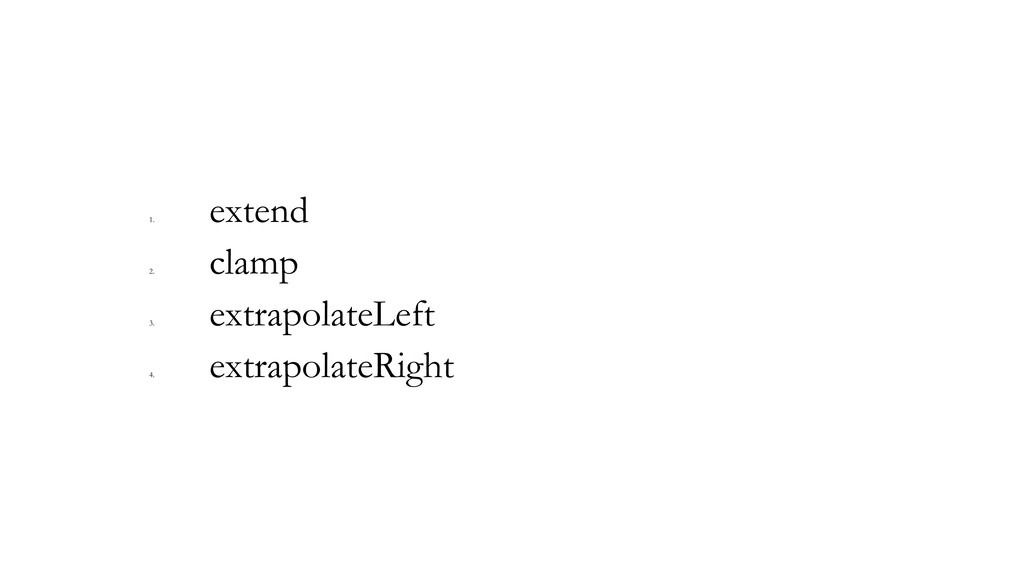

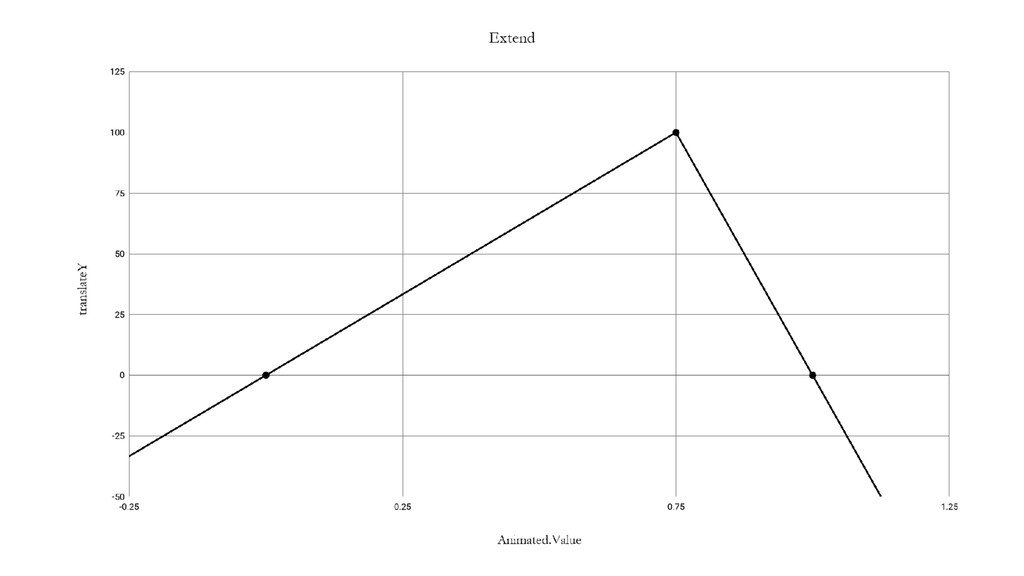

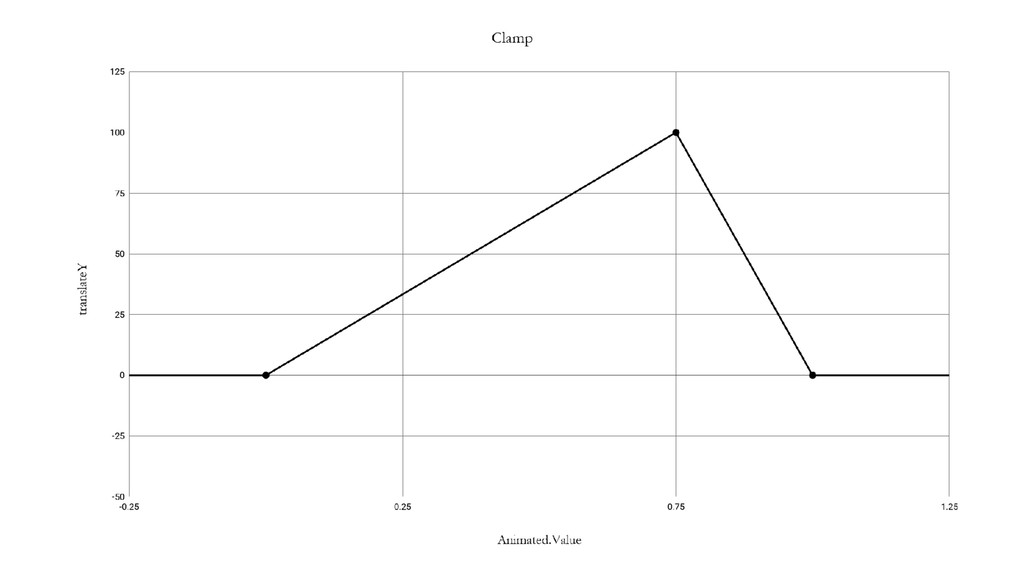

24. 1. extend 2. clamp 3. extrapolateLeft 4. extrapolateRight
27. Chaining Animations

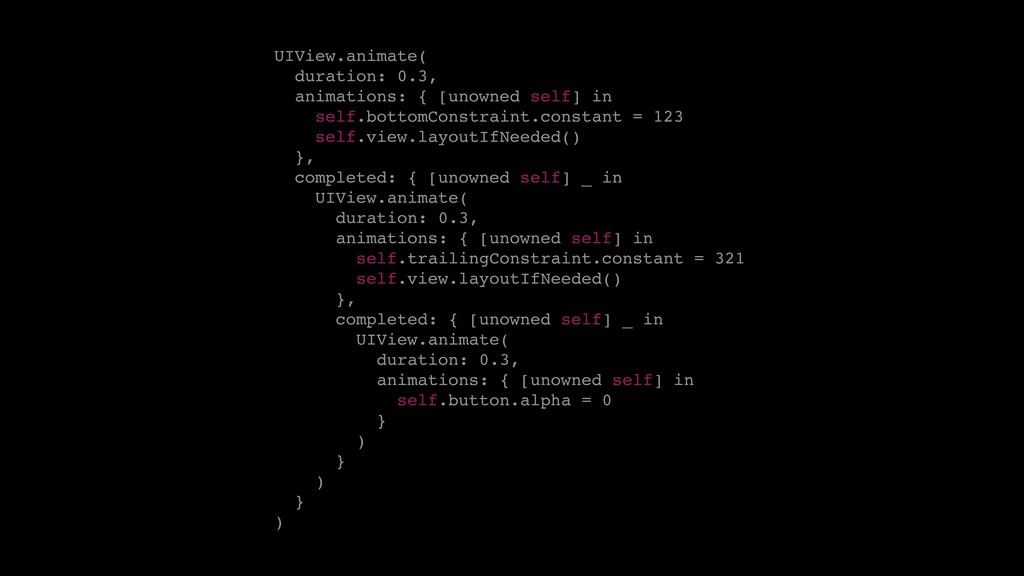

28. UIView.animate( duration: 0.3, animations: { [unowned self] in self.bottomConstraint.constant = 123 self.view.layoutIfNeeded() }, completed: { [unowned self] _ in UIView.animate( duration: 0.3, animations: { [unowned self] in self.trailingConstraint.constant = 321 self.view.layoutIfNeeded() }, completed: { [unowned self] _ in UIView.animate( duration: 0.3, animations: { [unowned self] in self.button.alpha = 0 } ) } ) } )

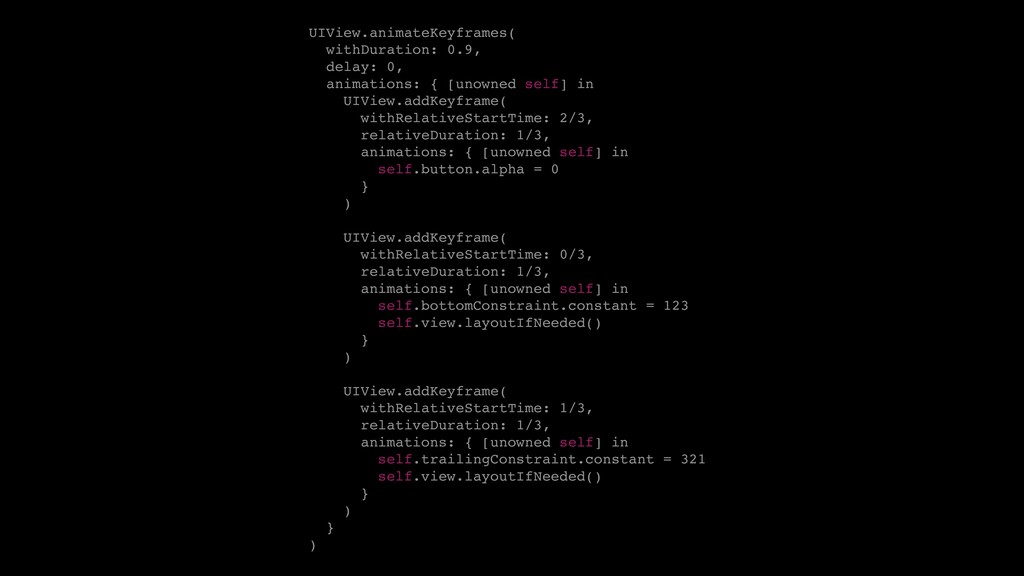

29. UIView.animateKeyframes( withDuration: 0.9, delay: 0, animations: { [unowned self] in UIView.addKeyframe( withRelativeStartTime: 2/3, relativeDuration: 1/3, animations: { [unowned self] in self.button.alpha = 0 } ) UIView.addKeyframe( withRelativeStartTime: 0/3, relativeDuration: 1/3, animations: { [unowned self] in self.bottomConstraint.constant = 123 self.view.layoutIfNeeded() } ) UIView.addKeyframe( withRelativeStartTime: 1/3, relativeDuration: 1/3, animations: { [unowned self] in self.trailingConstraint.constant = 321 self.view.layoutIfNeeded() } ) } )

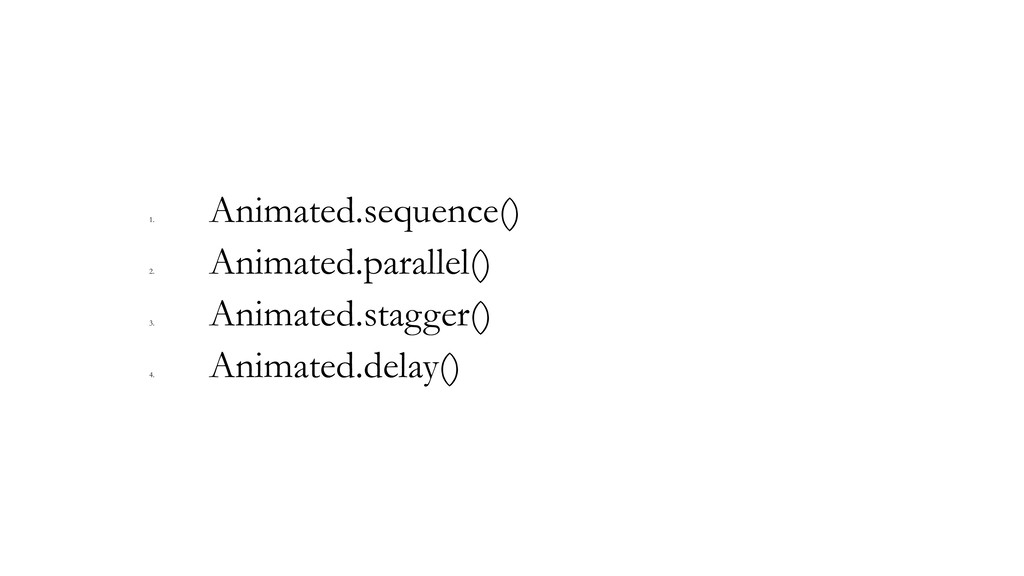

30. 1. Animated.sequence() 2. Animated.parallel() 3. Animated.stagger() 4. Animated.delay()
31. Animated.sequence([ Animated.timing( this.state.positionYValue, { toValue: 1, duration: 300, easing: Easing.bounce, } ), Animated.delay(3000), Animated.timing( this.state.positionYValue, { toValue: 0, duration: 300, easing: Easing.in, } ), ]).start()
32. Complex Animations
33. ASSIGNMENT Create the best mobile app experience for any airline

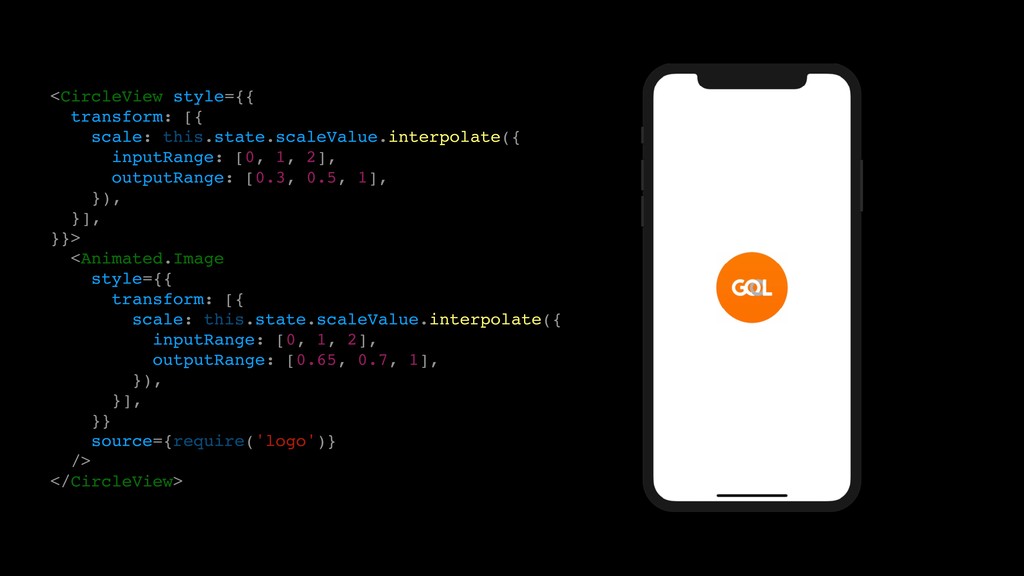

35. <CircleView style={{ transform: [{ scale: this.state.scaleValue.interpolate({ inputRange: [0, 1, 2], outputRange: [0.3, 0.5, 1], }), }], }}> <Animated.Image style={{ transform: [{ scale: this.state.scaleValue.interpolate({ inputRange: [0, 1, 2], outputRange: [0.65, 0.7, 1], }), }], }} source={require('logo')} /> </CircleView>
36. <View style={style.menu}> {this.props.menuItems.map((item, idx) => ( <MenuItem item={item} style={{ transform: [{ translateY: this.state.positionValue.interpolate({ inputRange: [idx * 0.2, 1 + idx * 0.2], outputRange: [MenuItem.height, 0], extrapolate: 'clamp', easing: Easing.out, } ), }], }} /> ))} </View>
37. Animated.timing(this.state.positionValue, { duration: 240 + ( 60 * this.props.menuItems.length ), toValue: 0.8 + ( 0.2 * this.props.menuItems.length ), }).start()
38. Screen Transitions
39. 1. UIViewControllerTransitioningDelegate 2. UIViewControllerAnimatedTransitioning 3. UIPercentDrivenInteractiveTransitioning
40. CONTAINER TRANSITIONS

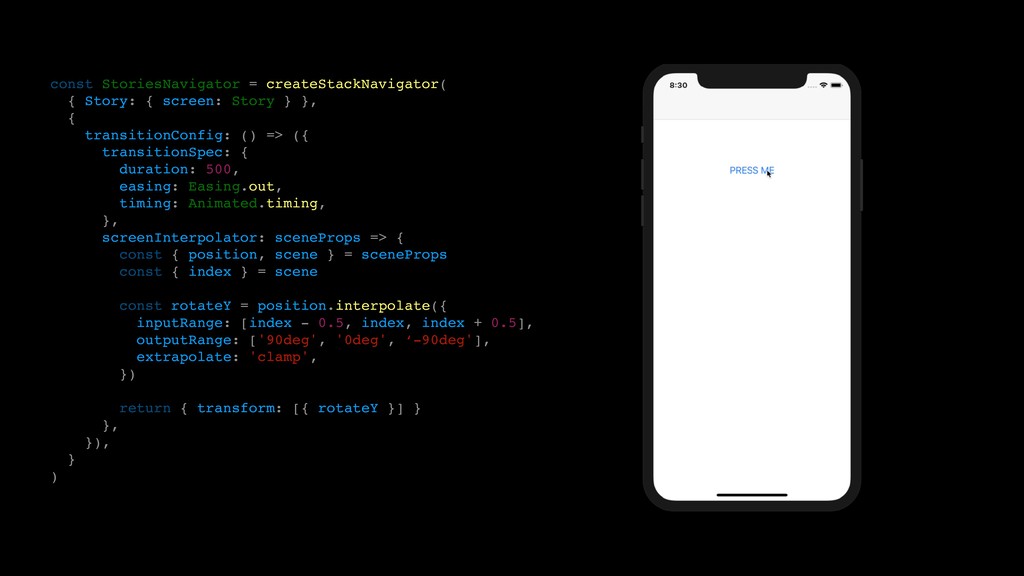

41. const StoriesNavigator = createStackNavigator( { Story: { screen: Story } }, { transitionConfig: () => ({ transitionSpec: { duration: 500, easing: Easing.out, timing: Animated.timing, }, screenInterpolator: sceneProps => { const { position, scene } = sceneProps const { index } = scene const rotateY = position.interpolate({ inputRange: [index - 0.5, index, index + 0.5], outputRange: ['90deg', '0deg', ‘-90deg'], extrapolate: 'clamp', }) return { transform: [{ rotateY }] } }, }), } )

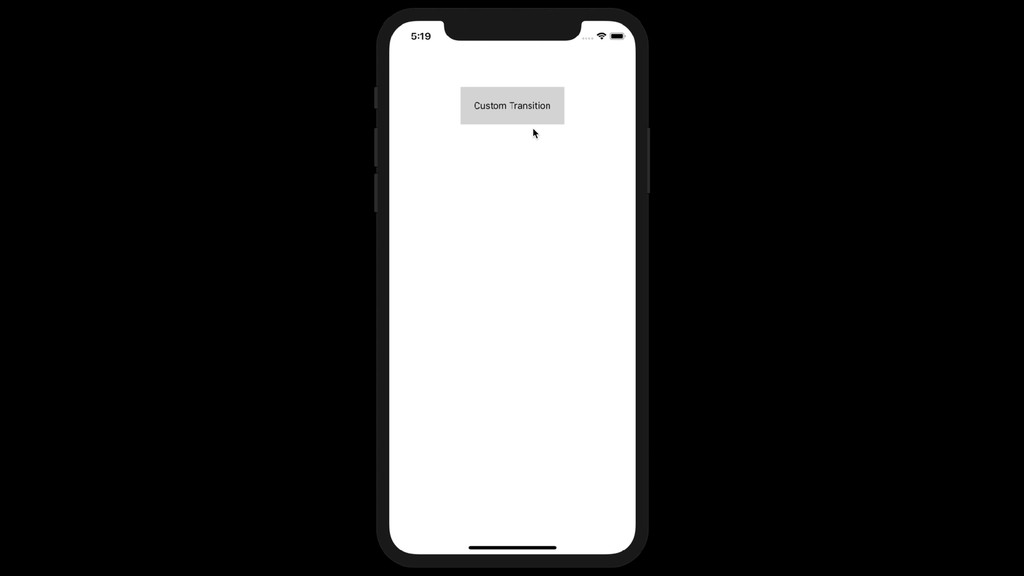

42. CONTEXTUAL TRANSITIONS

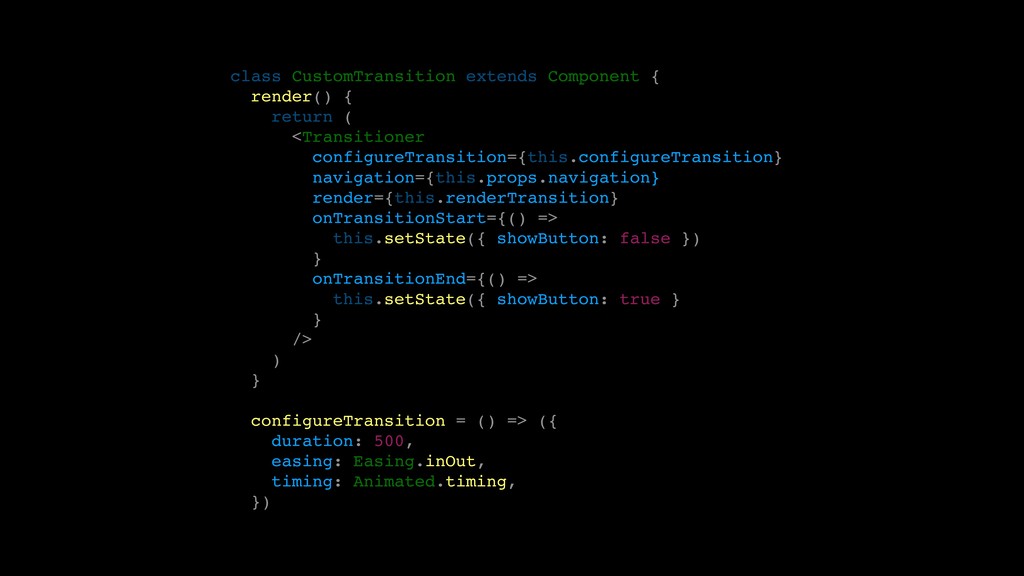

44. class CustomTransition extends Component { render() { return ( <Transitioner configureTransition={this.configureTransition} navigation={this.props.navigation} render={this.renderTransition} onTransitionStart={() => this.setState({ showButton: false }) } onTransitionEnd={() => this.setState({ showButton: true } } /> ) } configureTransition = () => ({ duration: 500, easing: Easing.inOut, timing: Animated.timing, })
45. renderTransition = (transitionProps) => { const translateY = transitionProps.position.interpolate({ inputRange: [indexOfScreenWithButton, indexOfScreenWithButton+1], outputRange: [100, 300], extrapolate: 'clamp', }) return ( <View style={styles.container}> { transitionProps.scenes.map( this.renderScene(transitionProps) ) } <ButtonSnapshot style={[styles.button, { transform: [{ translateY }] }]} /> </View> ) }
46. renderScene = ({ position }) => ({ index, route }) => { const { navigation } = this.props const opacity = position.interpolate({ inputRange: [index-1, index, index+1], outputRange: [0, 1, 0], extrapolate: 'clamp', }) const Scene = navigation.router.getComponentForRouteName(route.routeName); return ( <Animated.View style={[styles.sceneContainer, { opacity }]} key={route.key} > <Scene navigation={navigation} showButton={this.state.showButton} /> </Animated.View> ) }
48. 1. It just works ™ 2. The API is simpler 3. Infinite customizations 4. Screen transitions 5. Animations are First-Class citizen TAKEAWAYS
49. Sources React Native Docs https://facebook.github.io/react-native/docs/animations React Navigation Docs https://reactnavigation.org/docs/en/transitioner.html#docsNav Custom Transitions By Daniel Merril https://medium.com/async-la/custom-transitions-in-react-navigation-2f759408a053 Shared Element Transition By Linton YE http://www.reactnativediary.com/2017/01/23/react-navigation-shared-element-transition-1.html Source Code https://github.com/fjcaetano/react-native-animations Slides https://speakerdeck.com/fjcaetano
