Cooking with Cryptography - PyCon Australia 2015

Cooking with Cryptography - PyCon Australia 2015

Talk about python-cryptography library (https://cryptography.io).

Video: https://www.youtube.com/watch?v=c16jwvOmKxM

7c0f9b056604fe541691e18aeb679cf7?s=128

Fraser Tweedale

August 01, 2015
Tweet

More Decks by Fraser Tweedale

Other Decks in Programming

Transcript

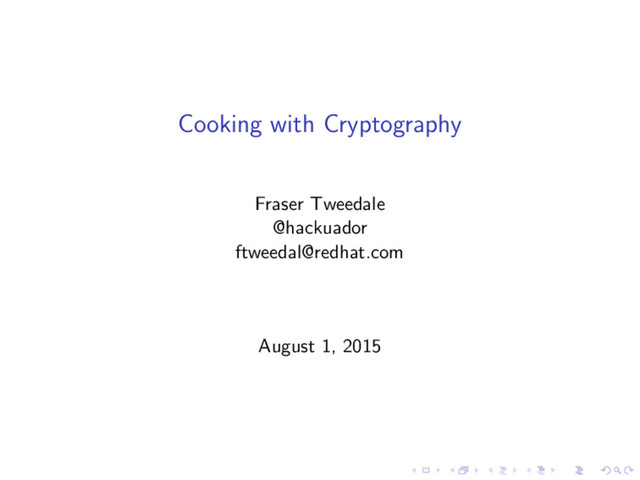

  1. Cooking with Cryptography Fraser Tweedale @hackuador ftweedal@redhat.com August 1, 2015

  2. Cryptography!

  3. (the library)

  4. Outline Background Library overview Case studies Resources

  5. Admonition Do not invent your own crypto primitives Do not

    write your own crypto implementations Do not use low-level crypto unless you know you have to Use the right primitive for the job, and use it right
  6. Background Existing libraries: M2Crypto, PyCrypto, PyOpenSSL Lagging in Python 3,

    PyPy support Insecure implementations, bad APIs, poor defaults Missing some modern primitives, cipher modes Lack of high-level APIs for common use cases GIL issues
  7. Enter Cryptography Started by Alex Gaynor in July 2013 Python

    Cryptographic Authority (PyCA) formed Oct 2013 Custodian of several crypto libs including Cryptography Supports Python 2.6, 2.7, 3.3+ and PyPy
  8. Goal To be Python’s cryptographic standard library Provide high-level human-friendly

    APIs for common use cases “Batteries included” c.f. NaCl (http://nacl.cr.yp.to/) Stable API
  9. Installation pip install cryptography

  10. Recipes layer Cryptography for humans Safe; few developer decisions needed

    Symmetric encryption, X.509
  11. Fernet Symmetric encryption recipe Implements the Fernet specification https://github.com/fernet/spec/blob/master/Spec.md AES-128-CBC

    with HMAC-SHA256 Simple key rotation (MultiFernet)
  12. Fernet - encryption from cryptography.fernet import Fernet message = b"for

    your eyes only" # 32-byte base64url-encoded string key = Fernet.generate_key() f = Fernet(key) # base64url-encoded token token = f.encrypt(message)
  13. Fernet - decryption # key storage/distribution is out of scope

    f = Fernet(key) try: message = f.decrypt(ciphertext) except cryptography.fernet.InvalidToken: print "decryption failed"
  14. X.509 The prevailing PKI for Internet Certificates and CRLs (RFC

    5280) Certificate requests (PKCS #10, RFC 2986) Supports common extensions
  15. X.509 - certificate request from cryptography import x509 cn =

    x509.NameAttribute(x509.OID_COMMON_NAME, u’foo.com’) alt_name = x509.DNSName(u’www.foo.com’) builder = x509.CertificateSigningRequestBuilder() \ .subject_name(x509.Name([cn])) \ .add_extension(x509.SubjectAlternativeName([alt_name]) csr = builder.sign( private_key, hashes.SHA256(), default_backend())
  16. Hazmat layer cryptography.hazmat Cryptographic primitives Safety off; up to you

    to use correctly
  17. Primitives Digests: SHA-1, SHA-2, . . . MACs: HMAC One-time

    pads: HOTP, TOTP Key-stretching: PBKDF2, HKDF Block ciphers: AES, 3DES, . . . Public-key algorithms: DSA, RSA, ECDSA, DH Serialisation: DER, PEM, OpenSSH
  18. Backends Implementations of primitives are provided by backends Backends implement

    interfaces CipherBackend, HashBackend, . . . Backends available: OpenSSL, CommonCrypto (OS X, iOS) Use MultiBackend to compose backends
  19. Case studies

  20. FreeIPA Vault User self-service secret store Key escrow Symmetric or

    asymmetric encryption http://www.freeipa.org/
  21. FreeIPA Vault def encrypt(self, data, symmetric_key=None, public_key=None): if symmetric_key: return

    Fernet(symmetric_key).encrypt(data) elif public_key: return public_key.encrypt( data, padding.PKCS1v15())
  22. FreeIPA Vault def decrypt(self, data, symmetric_key=None, private_key=None): try: if symmetric_key:

    return Fernet(symmetric_key).decrypt(data) elif private_key: return private_key.decrypt( data, padding.PKCS1v15()) except (InvalidToken, ValueError): raise errors.AuthenticationError( message=_(’Invalid credentials’))
  23. jwcrypto Python implementation of JWS / JWE / JWT https://github.com/simo5/jwcrypto

    Used by Custodia, a secure key distribution service
  24. jwcrypto - imports from cryptography.hazmat.primitives.asymmetric \ import padding, rsa from

    cryptography.hazmat.primitives import hashes padfn = padding.PKCS1v15() hashfn = hashes.SHA256()
  25. jwcrypto - read public key def _rsa_pub(jwk): return rsa.RSAPublicNumbers( _decode_int(jwk[’e’]),

    _decode_int(jwk[’n’]) )
  26. jwcrypto - read private key def _rsa_pri(jwk): return rsa.RSAPrivateNumbers( _decode_int(jwk[’p’]),

    _decode_int(jwk[’q’]), _decode_int(jwk[’d’]), _decode_int(jwk[’dp’]), _decode_int(jwk[’dq’]), _decode_int(jwk[’qi’]), _rsa_pub(jwk) )
  27. jwcrypto - sign def sign(jwk, payload): private_key = _rsa_pri(jwk) #

    get an AsymmetricSignatureContext signer = private_key.signer(padfn, hashfn) signer.update(payload) signature = signer.finalize() return signature
  28. jwcrypto - verify def verify(jwk, payload, signature): public_key = _rsa_pub(jwk)

    # get an AsymmetricVerificationContext verifier = \ public_key.verifier(signature, padfn, hashfn) verifier.update(payload) try: verifier.verify() except cryptography.exception.InvalidSignature: # ruh roh
  29. Wrapping up

  30. Security No memory wiping Has not been formally audited OpenSSL

    statically linked on Windows Use os.urandom for randomness
  31. Conclusion Avoid low-level crypto where possible Cryptography has: high-level APIs

    for common use cases most of the primitives you’re ever likely to need Consider making it your crypto standard library If Cryptography doesn’t meet your needs. . . are you doing the right thing? contribute!
  32. Resources Docs: https://cryptography.io/ Code: https://github.com/pyca/cryptography Mailing list: cryptography-dev@python.org IRC: #cryptography-dev

    (Freenode) Course: https://www.crypto101.io/
  33. Fin Copyright 2015 Red Hat, Inc. This work is licensed

    under the Creative Commons Attribution 4.0 International License. To view a copy of this license, visit http://creativecommons.org/licenses/by/4.0/. Slides https://github.com/frasertweedale/talks/ Email ftweedal@redhat.com Twitter @hackuador
