Two shockingly recurring problems

Two shockingly recurring problems

Developing Software architectures is a demanding task that is usually quite rewarding (aka "fun")

## Missing requirements

The whole thing would be even better, if somebody told the development team what exact problem they are supposed to solve.
In other words: Teams urgently need better requirements as the basis of their development work.
In our 20+ years of architecture and development experience, we consistently encountered teams around the world to complain about missing, incomplete or contradicting requirements.
Our brief and fast-paced tutorial summarizes some important and pragmatic approaches that architects and development teams can follow to improve their requirements. It starts with better stakeholder management, more efficient overview, elegant formulation of functional requirements and, last not least, a pragmatic approach to handling quality requirements.

## Technical and other Debt
Which leads to the second recurring issue: The existing systems which most of us regularly work on often carry a load of technical and organizational debt.

In other words: These existing systems are in serious need of improvements, to become maintainable and future-proof.

But how to start? Management does not listen to your pleas and demands more features.
Small refactorings don’t solve the root causes of evil problems.
That’s where systematic architecture improvement comes into play: A pragmatic and simple approach to methodically address all kinds of problems, technical and organizational.

In our workshop, we demonstrate the fundamental techniques and methods for architecture improvement, technology-agnostic and applicable to all kinds of development projects.

Dr. Gernot Starke

November 14, 2022
Tweet

More Decks by Dr. Gernot Starke

Other Decks in Programming

Transcript

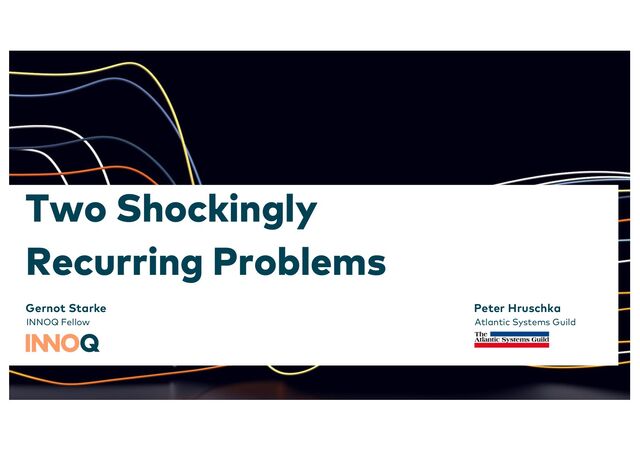

  1. Two Shockingly
    Recurring Problems
    Gernot Starke
    INNOQ Fellow
    Peter Hruschka
    Atlantic Systems Guild

    View full-size slide

  2. Re ● cur ● ring
    adjective
    Happening many times, or
    happening again
    Foto: Tabitha Turner on unsplash

    View full-size slide

  3. Re ● cur ● ring
    Have you ever made the same
    dumb mistake twice?
    Have you ever made the same
    mistake 100 times?
    Welcome to the
    real world!
    Welcome to
    software
    development
    Tom DeMarco

    View full-size slide

  4. Dr. Peter
    Hruschka
    üSystem Engineer
    üCoach, Trainer
    ü arc42, req42
    ü iSAQB, IREB

    View full-size slide

  5. Dr. Gernot Starke
    INNOQ Fellow
    üArchitecture-Improver
    üCoach, Trainer
    ü arc42, aim42
    ü iSAQB

    View full-size slide

  6. https://ahaslides.com/VVNJI
    action required

    View full-size slide

  7. Solutions to (some)
    recurring problems
    Agenda

    View full-size slide

  8. Bad
    Requirements.
    Technical
    and other
    Debt.
    Disclaimer:
    Of course there are other
    recurring problems J

    View full-size slide

  9. PROBLEM #1
    Good (enough) Requirements?

    View full-size slide

  10. garbage in,
    garbage out

    View full-size slide

  11. Input
    Requirements
    Output
    Software

    View full-size slide

  12. Input Output

    View full-size slide

  13. Input Output
    ?
    Photo by John Cameron on
    Unsplash

    View full-size slide

  14. Requirements-Chaos
    Instead of „true“ Product
    Owners:
    • competing business departments
    • constantly changing priorities
    • unclear requirements
    • diffuse Terms

    View full-size slide

  15. Who is
    blamed?
    Development Teams L
    Photo by Aimee Vogelsang on Unsplash

    View full-size slide

  16. On a scale from 1 (very good) to 5 (very bad)
    how would you rate your requirements?

    View full-size slide

  17. Requirements-Responsibility
    (Business Analysts,
    Product Owner,
    Requirements Engineer,
    …)
    Stakeholder
    (Users, Clients, Customers,
    Security-People, Legal Staff,
    Data Protection Agencies, …)
    Development Team
    (Architects, Developers,
    Testers, …)
    Only 2 ways
    to improve
    the situation

    View full-size slide

  18. Clarifying
    requirements (&
    constraints)
    is part of the tasks
    of architects
    evaluate
    architecture
    clarify requirements
    & constraints
    design
    technical
    concepts
    shepherd
    realization
    communicate
    architecture
    design
    structures

    View full-size slide

  19. Architecturally
    Significant
    Requirements
    Requirements,
    that (can) have special
    impact on architecture
    (decisions).
    These are much less
    than 25%
    evaluate
    architecture
    clarify requirements
    & constraints
    design
    technical
    concepts
    shepherd
    realization
    communicate
    architecture
    design
    structures

    View full-size slide

  20. Product Owner Universe *)
    *)
    www.req42.de
    Management
    Requirements
    Development
    Legend:

    View full-size slide

  21. Architecturally Significant Requirements
    MUST !!!
    At the beginning only overview,
    then ”Just in Time” details
    Top 3 – 5
    of each
    Top10

    View full-size slide

  22. 1 Business Goals
    2 Assets
    3 Stakeholder
    4 Business Scope
    5 Product Backlog
    (Functional
    Requirements)
    6 Domain Terminology
    7 Supporting Models
    8 Quality
    Requirements
    9 Org. Constraints
    10 Roadmaps
    11 Risks/Assumptions
    12 Teams
    req42 –
    The
    Requirements
    Framework
    linearized Form
    (e.g. for Confluence-
    Pages)
    MUST !!!
    At the beginning only overview,
    then ”Just in Time” details
    Top 3 – 5
    of each
    Top10

    View full-size slide

  23. needed (available)
    Visions/ Goals often implicit
    Stakeholders often incomplete, not documented
    Scope not at all or incomplete
    Functional Requirements
    Functions & Processes often given, mostly plain text
    Data often implicit, without glossary
    Quality Requirements often missing
    Constraints often known, but not documented

    View full-size slide

  24. Scope
    (Defining your
    „Playground“)
    Stakeholder
    Vision /Goals
    The successful
    (Project) Start
    Even agile projects need
    some „upfront“ work
    Clean Start

    View full-size slide

  25. Visions/Goals
    The vision describes why the project is being undertaken
    and what the desired end state is. (Ken Schwaber 2004)
    You should understand:
    • How does your product compare to existing product in your company or prodcuts of the
    competition. What are your „unique selling points“ (USPs)
    • What is critical for product success?
    Goals are Requirements
    that hopefully do not (constantly) change
    during the planned duration of the project (L)
    those
    Vision /Goals

    View full-size slide

  26. Stakeholder
    Missing Stakeholders
    =
    Missing Requirements Photo by Yiran Ding on Unsplash
    • Persons or organizations that have a direct or indirect
    influence on the requirements of a system.
    • All persons or groups that have an interest in the
    product or the project.
    • Stakeholders in this context can be more than just
    customer:
    – Domain Experts
    – Subject Matter Experts (SME)
    – Groups or Organizations (e.g. for standardization)
    – ...

    View full-size slide

  27. SCOPE = YOUR
    PLAYGROUND
    CONTEXT = NOT YOUR
    PLAYGROUND

    View full-size slide

  28. GPS
    System position
    Example: Traffic Pursuit Unit

    View full-size slide

  29. The minimum prerequisite
    for a clean start
    Know
    Your goals
    Your stakeholders
    Your scope

    View full-size slide

  30. You will find requirements of different granularity
    § coarse grained
    § .....
    § fine grained
    ... and stakeholder will constantly speak on these different
    levels
    Functional Requirements
    The final truth is in the
    implemented systems (i.e. its
    software and hardware
    Features
    User Stories
    Epics

    View full-size slide

  31. Epics
    Features
    User Storys
    Refinement “just in time”,
    driven by needs..
    The Product Backlog
    is a living repository,
    never finished
    You have to create a tree-like
    structure for your functional
    requirements

    View full-size slide

  32. The T-Model
    Concentrate on
    overview (Epics,
    Features)
    Delay details (user
    stories) until needed
    for implementation
    Enough
    overview
    Details only for
    the next
    iteration
    Degree of details
    Product Scope
    Requirements
    Architecture/Design
    Coding/Unit Testing
    Integration/Acceptance Testing

    View full-size slide

  33. You should at least agree on your 10 –
    15 most important terms of your
    domain!
    Trend: Epics, Features, Stories using
    natural language, but …
    …everything that improves communication
    (Use-Cases, Activity Diagrams,
    EPKs, Data Models, Wireframes, …)
    is good practice!

    View full-size slide

  34. Functional Requirements are only “one half of the story"
    Technical and organizational
    Constraints
    Often forgotten
    needed qualities

    View full-size slide

  35. If you don‘t get
    good enough requirements
    as development team ... ... help yourself!
    Clarify ASRs
    (Architecturally
    Significant
    Requirements)

    View full-size slide

  36. #1
    Ensure a „clean start“
    Never start
    without knowing
    • your visions/goals
    • your stakeholders
    • your scope

    View full-size slide

  37. #2
    Get an overview of
    functional requirements
    to allow for planning and
    risk management

    View full-size slide

  38. #3
    Clarify
    Quality Requirements
    and Constraints
    You will need them for
    making your
    architecture decisions

    View full-size slide

  39. PROBLEM #2
    Legacy

    View full-size slide

  40. system that is hard to maintain
    suffers from technical / organizational
    debt
    Legacy...

    View full-size slide

  41. 3
    https://www.flickr.com/photos/celestinechua/9661913835

    View full-size slide

  42. Action
    required

    View full-size slide

  43. Cannabidiol
    100mg/day
    treatment of neurological disorders:
    anxiety, chronic pain, epilepsy etc.

    View full-size slide

  44. Therefore:
    start by getting
    an overview
    avoid
    technology-/solution-driven
    actionism

    View full-size slide

  45. Systematic Improvement
    https://aim42.org

    View full-size slide

  46. Some Details

    View full-size slide

  47. Software
    Reviews
    ???

    View full-size slide

  48. https://www.flickr.com/photos/jonasb/24341
    322

    View full-size slide

  49. https://www.flickr.com/photos/emiliano-
    iko/5354414276

    View full-size slide

  50. The Microscope Trap
    If you ONLY look into code,
    you will only find problems
    THERE...

    View full-size slide

  51. One man's problem
    is another man's friend
    The Relativity Trap

    View full-size slide

  52. expect strange
    reactions...

    View full-size slide

  53. Analyze: Find Issues
    analyze
    e
    valuate
    improve
    https://aim42.org

    View full-size slide

  54. Iteration 2
    Analyze: Getting Overview
    Iteration 1
    Breadth-first search
    Stakeholder Code Context Quality Data Processes

    View full-size slide

  55. VENOM
    Data Warehouse
    (Business Intelligence)
    Buchhaltung,
    Lohn/Gehalt
    DATEV
    Support
    (Call Center)
    Buchhaltung
    Sage etc.
    Personal-
    wirtschaft
    Partner-
    management
    Lieferanten-
    management
    EMail +
    Kalender
    Sharepoint +
    Wiki
    CITRIX
    Facilities
    Contracts
    LDAP / SSO
    Context analysis / Scoping
    Clarify scope
    and external interfaces

    View full-size slide

  56. https://ahaslides.com/VVNJI
    action required

    View full-size slide

  57. Analyze: Quality...
    Breadth-first search
    • Are quality requirements met?
    • Performance
    • Robustness
    • Security/Safety
    • etc...
    • Method: ATAM
    Software
    Product
    Quality
    Functional
    Suitability
    Reliability
    Performance
    efficiency
    Operability Security Compatibility
    Maintain-
    ability
    Transfer-
    ability
    Appropriate-
    ness
    Accuracy
    Compliance
    Availability
    Fault
    tolerance
    Recover-
    ability
    Compliance
    Time-
    behaviour
    Resource-
    utilisation
    Compliance
    Appropriate-
    ness
    Recognise-
    ability
    Learnability
    Ease-of-use
    Helpfulness
    Attractiveness
    Technical
    accessibility
    Compliance
    Confidential-
    ity
    Integrity
    Non-
    repudiation
    Account-
    ability
    Authenticity
    Compliance
    Replace-
    ability
    Co-
    existence
    Inter-
    operability
    Compliance
    Modularity
    Reusability
    Analyzability
    Changeability
    Modification
    stability
    Testability
    Compliance
    Portability
    Adaptability
    Installability
    Compliance
    Stakehold
    er
    Code Contex
    t
    Quality Data Processes

    View full-size slide

  58. Analyze Quality...
    Software
    Product
    Quality
    Functional
    Suitability
    Reliability
    Performance
    efficiency
    Operability Security Compatibility
    Maintain-
    ability
    Transfer-
    ability
    Appropriate-
    ness
    Accuracy
    Compliance
    Availability
    Fault
    tolerance
    Recover-
    ability
    Compliance
    Time-
    behaviour
    Resource-
    utilisation
    Compliance
    Appropriate-
    ness
    Recognise-
    ability
    Learnability
    Ease-of-use
    Helpfulness
    Attractiveness
    Technical
    accessibility
    Compliance
    Confidential-
    ity
    Integrity
    Non-
    repudiation
    Account-
    ability
    Authenticity
    Compliance
    Replace-
    ability
    Co-
    existence
    Inter-
    operability
    Compliance
    Modularity
    Reusability
    Analyzability
    Changeability
    Modification
    stability
    Testability
    Compliance
    Portability
    Adaptability
    Installability
    Compliance
    Pri
    o
    Category Szenario
    1 Performance Configurator displays
    potential add-on-parts +
    services < 5 sec
    1 Operability Configuration (private
    customers) works on iOS &
    Android
    2 Performance Binding offer price displayed
    < 10 sec
    2 Changeabilit
    y
    New product category live <
    30d
    ...
    Approaches in Architecture / System
    storage of add-on parts in DB
    (no caching)
    multiple data sources for add-
    on and service-data
    Add-ons by wrong data in
    optical archive
    Configurator developed in
    Flash
    Binding offer price depends on
    client history, requires access
    to optical archive

    1
    2
    3
    4

    View full-size slide

  59. Analyse application data
    1. Structure
    2. Types
    3. Access
    • Read / write
    4. Volume
    • Query-results + indices
    5. Correctness
    6. Security requirements
    7. Distribution / decentralization
    8. Duplication / redundancy
    9. Throughput -> Runtime analysis
    Structure and types
    suitable for the problem
    read oder write
    optimization?
    Overly many of sth?
    Sth overly large?
    Wrong/incorrect data?
    sensitive data?
    duplicate data items?
    duplicate data items?

    View full-size slide

  60. Analyse Component Structure

    View full-size slide

  61. https://ahaslides.com/VVNJI
    action required

    View full-size slide

  62. Analyse Code
    • (manual) Reviews
    • Collect Metrics
    • automated (e.g. SonarQube)
    • manual (e.g. performance)
    • Analyse Code
    • Dependency checks
    • Hotspots

    View full-size slide

  63. Metrics
    • Coupling / Dependencies
    • Code complexity
    • Performance
    • …
    good

    View full-size slide

  64. Metrics
    • Coupling / Dependencies
    • Code complexity
    • Performance
    • …
    • Bugs per component
    • Know-How per component
    • Change frequency
    • …
    good better

    View full-size slide

  65. complex code, that‘s frequently modified.
    Consider Hotspots

    View full-size slide

  66. complex code, that‘s frequently modified.
    try for yourself...
    https://codescene.io/projects/1737/jobs/4353/results/code/hotspots/system-map
    https://bit.ly/hotspot-sample
    Hotspot analysis of
    Linux kernel...

    View full-size slide

  67. https://ahaslides.com/VVNJI
    action required

    View full-size slide

  68. Analyse Tests
    • Adequate tests available:
    • automated...
    • Unit-, integrationstests
    • acceptance tests
    • Others ...
    • Load tests
    • Penetration tests
    • Test infrastructure
    • Test data
    Important
    prerequisite
    for (low-risk)
    modification..

    View full-size slide

  69. Analyse Technology
    Base technology:
    • Hardware
    • Programming languages
    • Operating systems
    Frameworks, Libraries
    3rd-Party Products
    • Build-/CI-Server
    • Database
    • Middleware
    • Container-/Hypervisor

    current?
    adequate?
    used correctly?
    sufficient know-how

    View full-size slide

  70. Analyse Processes
    Requirements processes
    • elicit, clarify, manage
    Development- /design processes
    • Architecture, Implementation, Documentation
    Operations
    • Deployment, Rollout, Administration, Monitoring
    Management
    • Team- and Taskmanagement, Risk management

    View full-size slide

  71. https://ahaslides.com/VVNJI
    action required

    View full-size slide

  72. now you have..
    (large) collection of
    explicitly
    known
    problems
    Prob. 1
    Prob. 1
    Prob. 1
    Prob. 1
    Prob. 1
    Prob. 10
    Prob. 1
    Prob. 1
    Prob. 42

    View full-size slide

  73. Evaluate: Prioritize Issues
    analyze
    improve
    e
    valuate
    https://aim42.org

    View full-size slide

  74. minor
    Evaluate – Prioritize
    What problem is (currently) the worst:
    costing or hindering the most
    real
    minor
    really serious,
    dangerous,
    > 10.000 $
    serious,
    > 1000 $
    annoying,
    hindering a little,
    >> 100 $
    trivial,
    ok to have,
    < 100 $
    minor
    minor
    real real
    serious
    real
    extreme
    very
    bad

    View full-size slide

  75. Improve: Resolve Issues
    e
    valuate
    analyze
    improve
    https://aim42.org

    View full-size slide

  76. Improvement and Daily Business
    day-to-day development
    Practices
    Practices
    time
    Approaches
    Practices
    Practices
    Practices
    Practices

    View full-size slide

  77. Strategic Improvement Approaches...
    Build new
    system
    Migrate old data to new
    formats, rewrite
    corresponding code
    Make it
    smaller
    Partly rework
    system
    re-distribute
    responsibilities in code
    Separate domain from
    technology
    «category»
    Long-Term
    Improvement
    Approach
    «category»
    Rewrite
    «category»
    Restructure
    «category»
    Data Migration
    «category»
    Brainsize
    «category»
    Improve
    Modularization
    «category»
    Supporting
    Patterns
    Supportie improvements,
    e.g. in operations, test,
    development.

    View full-size slide

  78. Change by Extraction
    2
    1
    Client
    Flawed
    (incohesive)
    System
    Client
    „other“ other
    features
    Client Flawed
    System
    Client
    „other“
    other
    features
    Better
    other features
    Client
    (reduced)
    Flawed
    System
    Client
    „other“
    «category»
    Restructure
    «category»
    Downsize

    View full-size slide

  79. Decorating Collaborator
    Client
    Code
    Flawed
    Supplier
    «use»
    Client
    Code
    Flawed
    Supplier
    „Proxy“
    «use»
    «delegate»
    1.
    2.
    New
    functionality
    Client
    Code
    Flawed
    Supplier
    „Proxy“
    «use»
    «delegate»
    «decoration»
    1.
    2.
    3.
    1 2

    View full-size slide

  80. Get your POs trained -> IREB
    Get yourself trained in
    requirements –> ISAQB REQ4ARC
    Establish a culture of
    IMPROVEMENT
    Problems can be solved,
    but need actions
    Foto: brett-Jordan on unsplash

    View full-size slide

  81. THANX.
    Gernot Starke
    [email protected]
    Twitter: @gernotstarke
    Peter Hruschka
    [email protected]

    View full-size slide
