GreenDisc: A HW/SW energy optimization framework in globally distributed computation

Marina Zapater attends as speaker to UCAmI 2012.

The main goal of this conference is to provide a discussion forum where researchers and practitioners on Ubiquitous Computing and Ambient Intelligence can meet, disseminate and exchange ideas and problems, identify some of the key issues related to these topics, and explore together possible solutions and future works.

The Ubiquitous Computing (UC) idea envisioned by Weiser in 1991, has recently evolved to a more general paradigm known as Ambient Intelligence (AmI). Ambient Intelligence then represents a new generation of user-centred computing environments aiming to find new ways to obtain a better integration of the information technology in everyday life devices and activities.

Marina has presented our first results within the GreenDISC project, proposing several research lines that target the power optimization in computing systems. In particular, we deal with two novel and highly differentiated computer paradigms that, however, coexist and interact in the current application scenarios: the Wireless Sensor Networks (WSN) and the high-performance computing in Data Centers (DC).

For further information, please, refer to the paper:

M. Zapater, J. L. Ayala, and J. M. Moya, “GreenDisc: a HW/SW energy optimization framework in globally distributed computation,” , J. Bravo, D. López-de Ipiña, and F. Moya, Ed., Springer Berlin Heidelberg, 2012, pp. 1-8. doi:10.1007/978-3-642-35377-2_1

Transcript

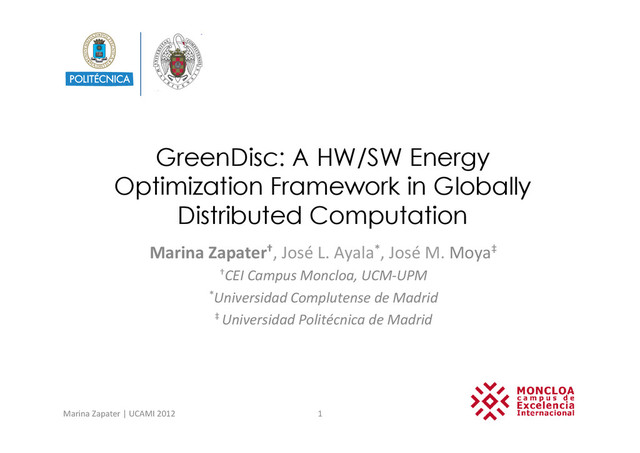

1. GreenDisc: A HW/SW Energy
   Optimization Framework in Globally
   Distributed Computation
   Marina  Zapater†,  José  L.  Ayala*,  José  M.  Moya‡
   †CEI  Campus  Moncloa,  UCM-­‐UPM
   *Universidad  Complutense  de  Madrid
   ‡  Universidad  Politécnica  de  Madrid

   Marina  Zapater  |  UCAMI  2012   1


   View Slide

2. Outline
   •  Mo?va?on
   •  Proposed  solu?on
   –  The  GreenDisc  PlaIorm
   •  Holis?c  Op?miza?on  Approach
   –  Power  op?miza?on  of  all  implied  agents
   •  Conclusions
   •  Future  Work
   Marina  Zapater  |  UCAMI  2012   2


   View Slide

3. Motivation
   •  The  key  to  next-­‐genera?on  e-­‐Health  solu?ons  are
   wearable  personal  health  systems
   –  Biomedical  monitoring    (European  ini?a?ves)
   •  World-­‐wide  sensor  deployment:
   –  Very  large  amount  of  data
   •  Electrocardiogram  sensor  (ECG),  Electromyogram  (EMG),  O2
    and
   CO2
   ,  temperature,  lactate,  movement  sensors.
   –  Raw  data  must  be  turned  into  useful  informa?on
   Marina  Zapater  |  UCAMI  2012   3
    FET      “Guardian  Angels”.  European  ini?a?ve:  FET  Flagships  2013  -­‐  hap://www.ga-­‐project.eu/home


   View Slide

4. Motivation
   •  Need  for  an  accurate,  integrated  and  long-­‐term
   assessment  and  feedback.
   –  Acquire,  monitor  and  analize  data  24/7
   •  Need  for  an  applica?on-­‐specific  architecture
   –  But  also  provide  flexibility  and  enough  performance
   •  Current  issues:  energy  and  heat
   –  High  energy  consump?on  and  short  baaery  lifespan  of  sensor
   nodes.
   •  Heat  produced  by  sensor  nodes  for  biomedical  applica?ons
   –  Tackle  the  computa?on  needs  to  obtain  useful  informa?on
   from  all  data
   •  Energy  consump?on  at  the  Data  Center  level  must  not  put  at  stake
   e-­‐Health  deployments
   Marina  Zapater  |  UCAMI  2012   4
   Current needs and issues


   View Slide

5. Contributions
   •  A  HW/SW  energy  op?miza?on  framework
   –  Versa?le  plaIorm  that  integrates  processing,  analysis  and
   wireless  communica?on  of  biomedical  data.
   –  Both  at  the  WSN-­‐level  and  at  the  Data  Center  level
   •  Supports  e-­‐Health  applica?ons  (and  future
   evolu?ons)  with  lower  costs  and  shorter  ?me-­‐to-­‐
   market
   Marina  Zapater  |  UCAMI  2012   5
   GreenDisc Platform


   View Slide

6. GreenDisc Platform
   •  Based  on  Wireless  Body  Sensor  Networks  (WBSN)
   –  All  sensors  transmit  to  a  PDA
   Marina  Zapater  |  UCAMI  2012   6
   Context and System Architecture


   View Slide

7. GreenDisc Platform
   •  Based  on  Wireless  Body  Sensor  Networks  (WBSN)
   –  All  sensors  transmit  to  a  PDA
   •  Computa?on  takes  place  at  Data  Centers
   –  Data  storage  and  processing
   Marina  Zapater  |  UCAMI  2012   7
   Context and System Architecture


   View Slide

8. GreenDisc Platform
   •  Power  op?miza?on  in  the  processing  nodes  of  the
   WBSN
   –  Design  of  embedded  processors  for  signal  processing
   –  Op?miza?on  at  the  radio  interface
   –  Design  automa?on  of  applica?ons  for  the  processing  node

   •  Power  op?miza?on  in  data  centers
   Marina  Zapater  |  UCAMI  2012   8
   Holistic Optimization Approach


   View Slide

9. Holistic Optimization
   •  Design  of  embedded  processors  for  signal  processing
   –  Architectural  modifica?ons  considering  the  applica?on
   mapping,  the  execu?on  profile,  and  the  compiler
   op?miza?ons
   –  Reducing  the  energy  consump?on  of  the  main  energy
   consump?on  sources
   •  Selec?on  of    instruc?on  memory  architecture
   •  Design  of  func?onal  units  with  tunable  architecture  (dynamic
   reconfigura?on)
   Marina  Zapater  |  UCAMI  2012   9
   Processing nodes of the WBSN (I)


   View Slide

10. Holistic Optimization
    •  Instruc?on  memory
    produces  highest  energy
    consump?on
    •  Proper  selec?on  of
    instruc?on  memory
    architecture  impacts  energy
    consump?on
    –  SPM  -­‐  scratch  pad  memory
    –  CELB  -­‐  central  loop
    buffer
    –  CLLB-­‐  clustered  loop  buffer
    Marina  Zapater  |  UCAMI  2012   10
    Processing nodes of the WBSN (I)


    View Slide

11. Holistic Optimization
    •  Power  op?miza?on  in  the  radio  interface
    –  Reducing  the  amount  of  informa?on  to  transmit:
    •  Framework  for  signal  analysis  to  develop  compressed  sensing
    techniques  for  several  bio-­‐signals
    •  Case  studies  for  monitoring  bio-­‐signals  with  a  QoS  study
    –  Reduce  the  overhead  of  the  transmision  protocol:
    •  Study  of  the  impact  of  tuning  several  parameters  of  the  MAC  layer
    (development  of  802.15.4  MAC  analy?cal  model)
    Marina  Zapater  |  UCAMI  2012   11
    Processing nodes of the WBSN (II)
     Compressed  sensing:    signal  processing  technique  for  efficiently  acquiring  and  reconstruc?ng  a
    signal.  Uses  the  signal  sparseness  or  compressibility  in  some  domain,  allowing  the  en?re  signal  to  be
    determined  from  rela?vely  few  measurements.
    Candes,  E.  J.  and  Wakin,  M.  B.  (2008)  An  IntroducEon  to  Compressive  Sampling.
    IEEE  Signal  Processing  Magazine.  Vol  2  (pp.  21-­‐30)


    View Slide

12. Holistic Optimization
    •  Design  automa?on  of  applica?ons  in  the  processing
    node
    –  Aims  to  reduce  the  amount  of  data  transmiaed  to  the
    backbone
    –  Providing  a  generic  high-­‐level  model  of  the  architecture
    •  Analysis  of  the  impact  of  design  parameters  in  power
    consump?on
    •  Framework  for  automa?c  design  and  op?miza?on  of
    applica?ons


    Marina  Zapater  |  UCAMI  2012   12
    Processing nodes of the WBSN (III)


    View Slide

13. Holistic Optimization
    •  Implementa?on  of  several  resource  managing
    techniques  at  different  abstrac?on  levels
    •  Exploi?ng  the  heterogeneity  of  applica?ons  and
    compu?ng  resources  for  energy  minimiza?on.
    –  Proper  usage  of  heterogeneity  can  lead  to  significant
    energy  savings
    •  Analysis  of  cooling  mechanisms  and  development  of
    control  techniques

    Marina  Zapater  |  UCAMI  2012   13
    Energy Optimization in Data Centers


    View Slide

14. Holistic Optimization
    •  Poten?al  benefits  of  workload  characteriza?on  and
    dynamic  assignment  policies
    Marina  Zapater  |  UCAMI  2012   14
    Energy Optimization in Data Centers


    View Slide

15. Conclusion and
    Future Work
    •  This  paper  shows  how  the  GreenDisc  plaIorm  can
    op?mize  the  energy  consump?on  of  next-­‐genera?on
    e-­‐Health  applica?on  by  combining  the  usage  of:
    –  Op?miza?on  policies  at  several  levels  of  the  WBSN
    –  Agressive  energy  efficiency  policies  at  the  Data  Center
    •  Future  work  will  integrate  all  steps  of  the  plaIorm
    and  show  the  overall  savings  for  a  par?cular  e-­‐Health
    workload.
    Marina  Zapater  |  UCAMI  2012   15


    View Slide

16. Questions?
    Marina  Zapater  |  UCAMI  2012   16
    Thank  you  for
     your  a9en:on
    Marina  Zapater
    Laboratorio  de  Sistemas  Integrados  (LSI)
    Universidad  Politécnica  de  Madrid
    marina@die.upm.es
    hap://greenlsi.die.upm.es


    View Slide
