Load Balancer Component Architecture Imesh Gunaratne Apache Committer, Technical Lead
- WSO2 Inc Apache Stratos 4.0.0
Agenda ➔ Load Balancer Component Architecture ◆ Apache Synapse Mediation
Framework ◆ Load Balance Extension on Synapse ◆ Event Driven Messaging Model ◆ Load Balancer Component Architecture ➔ Load Balancer Features ◆ Load Balancing Algorithm Interface ◆ Session Management ◆ Multi-Tenancy ◆ Statistics Reporting ◆ Service/Subscription Aware Load Balancing ➔ Load Balancer Extension API ◆ Extension API Model ◆ Reference Implementation for HAProxy 2
Load Balancer Component Architecture How it was designed 3
Apache Synapse Mediation Framework 4

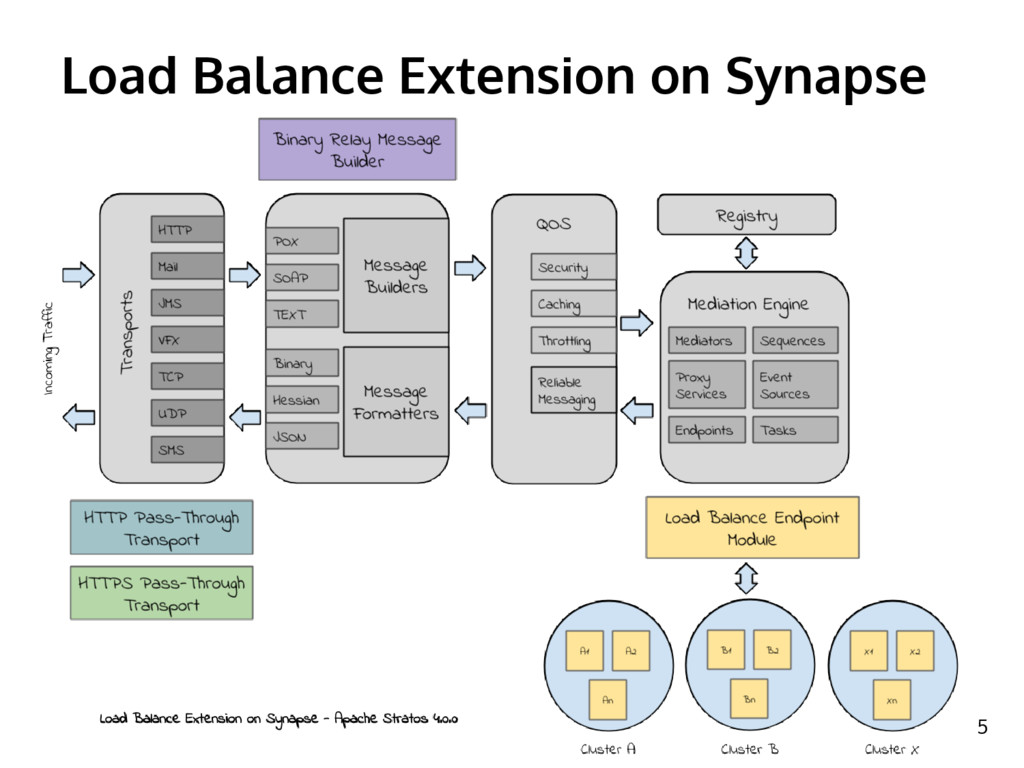

Load Balance Extension on Synapse 5
Event Driven Messaging Model 6

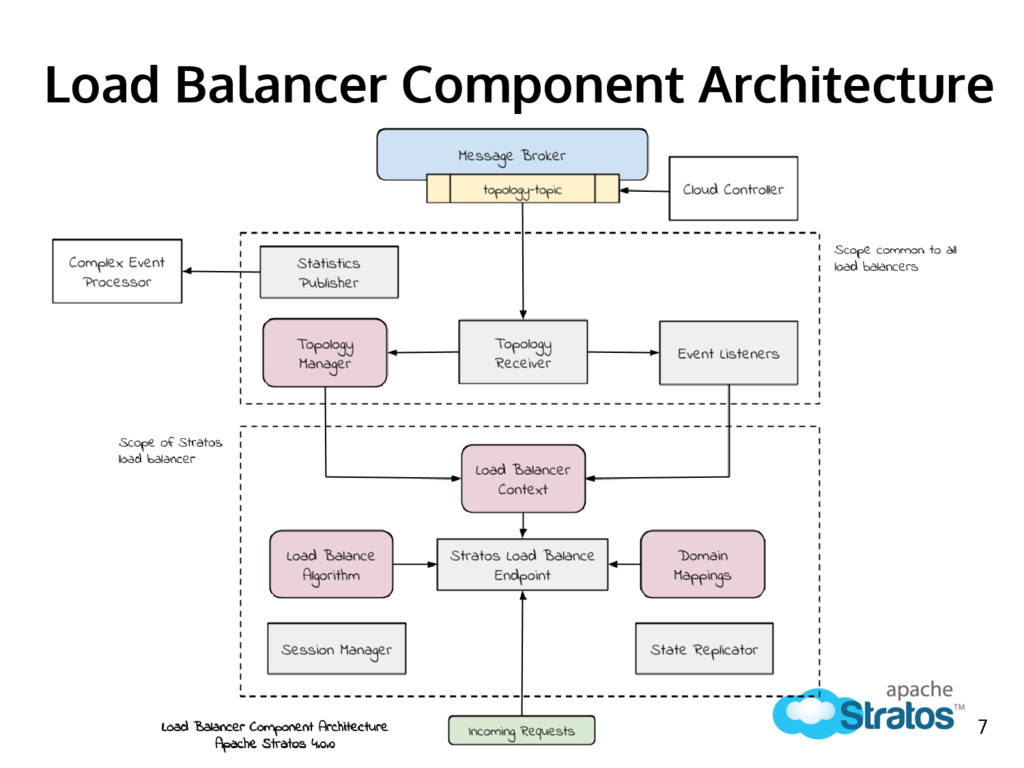

Load Balancer Component Architecture 7
org.apache.stratos.load.balancer 8
org.apache.stratos.load.balancer.common 9
Load Balancer Features Features Proposed 10
Load Balancing Algorithm Interface 11 package org.apache.stratos.load.balancer.algorithm;
Session Management 12 package org.apache.synapse.endpoints.dispatch;

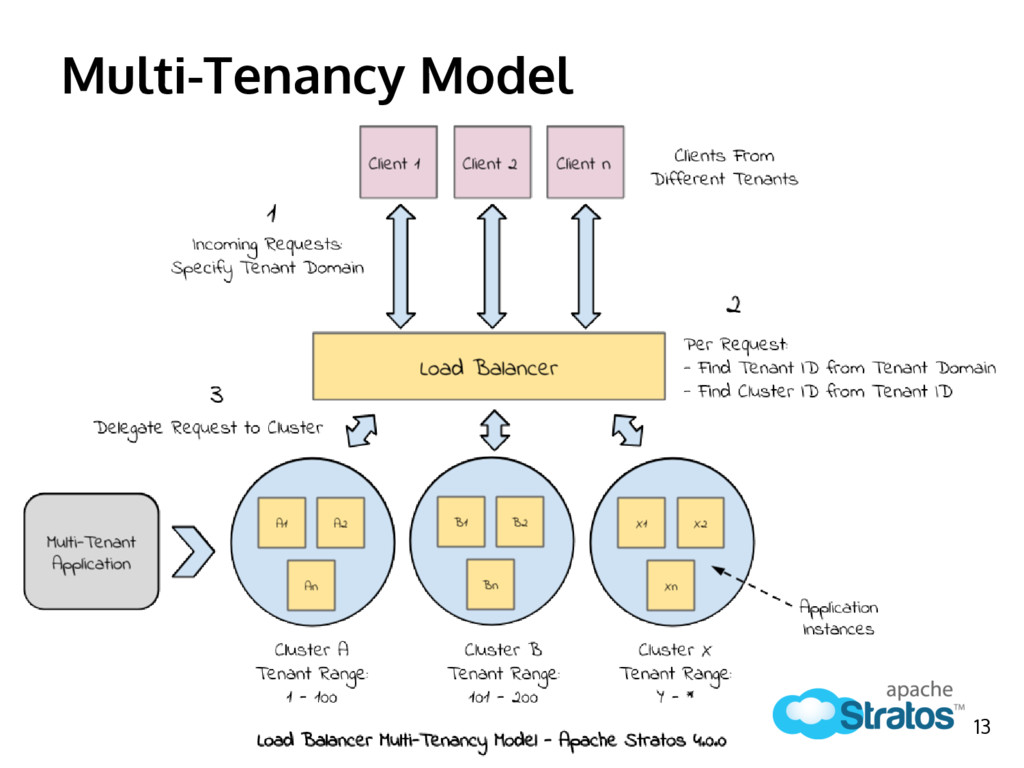

Multi-Tenancy Model 13
Statistics Reporting 14 package org.apache.stratos.load.balancer.statistics;
Service/Subscription Aware Load Balancing 15
Dedicated Load Balancing for Services 16
Dedicated Load Balancing for Subscriptions 17 Load Balancer could be
defined as a Cartridge
Load Balancer Extension API Support for Integrating Third Party Load
Balancers 18
Extension API Model 19 package org.apache.stratos.load.balancer.extension.api;

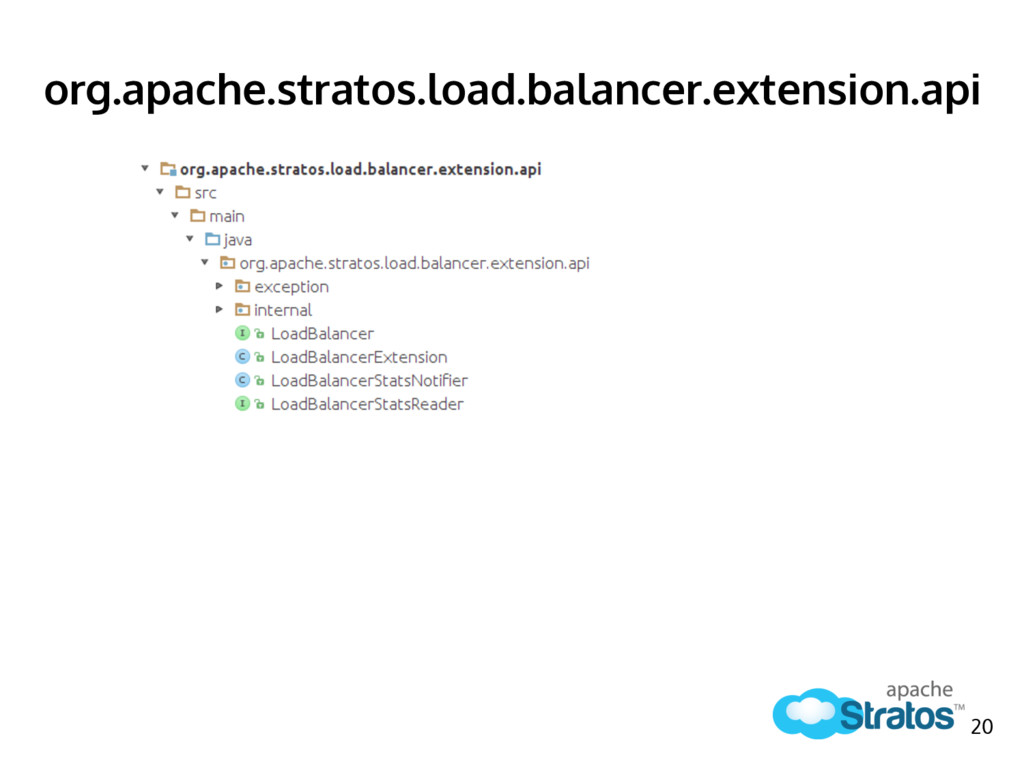

org.apache.stratos.load.balancer.extension.api 20
Reference Implementation - HAProxy 21 package org.apache.stratos.haproxy.extension;
org.apache.stratos.haproxy.extension 22
Questions/Feedback 23
References ◦ Apache Stratos Documentation https://cwiki.apache.org/confluence/display/STRATOS/Index 24
Website http://stratos.incubator.apache.org Mailing List Subscribe:
[email protected]
Post (After subscription):
[email protected]
Social Media Google+: https://plus.google.com/103515557134069849802 Twitter: https://twitter.com/ApacheStratos Facebook: https://www.facebook.com/apache.stratos LinkedIn: http://www.linkedin.com/groups?home=&gid=5131436 25 Join Us
Thank you 26
