Revolutionizing WSO2 PaaS with Kubernetes & App Factory

Transcript

1. Revolutionizing WSO2 PaaS with Kubernetes & App Factory Imesh Gunaratne Senior Technical Lead, WSO2 Dmitry Sotnikov Vice President - Cloud, WSO2
2. Agenda • An Introduction to Linux Containers • An Introduction to Docker • An Introduction to Kubernetes • Deploying WSO2 products on Kubernetes • Carbon cluster discovery on Kubernetes • Monitoring server health • Artifact distribution • Propagating software updates • Load balancing with Nginx • Demo
3. Agenda • App Factory and WSO2 App Cloud • Creating applications and uploading existing apps • Hosting web applications and API backends • Using databases in the Cloud • Coding and debugging applications with Cloud IDE or desktop tools • Application lifecycle management • Custom URLs • Teamwork and social development • Issue and task tracking
4. An Introduction to Linux Containers
5. Linux Containers Linux Container Brief for IEEE WG P2302, Boden Russell
6. Kernel features used by Linux Containers • Namespaces • cgroups ◦ Limit, account & Isolate resource usage (CPU, memory, disk, etc) • chroot ◦ Isolate access to disk • AppArmor • SELinux • seccomp - mnt (mount points, filesystems) - pid (processes) - net (NICs, routing) - ipc (inter-process communication) - uts (hostname) - user (user ids) - Secure computing/ application sandboxing - Security modules for controlling access to resources based on security policies
7. Linux Container Brief for IEEE WG P2302, Boden Russell LXC - A Hypervisor for Linux Containers
8. LXC Components https://linuxcontainers.org/lxc/introduction • The liblxc library • Language bindings for the API: ◦ python3, python2 ◦ lua ◦ Go ◦ ruby ◦ Haskell • A set of standard tools to control the containers • Distribution container templates
9. More Information on LXC https://linuxcontainers.org
10. An Introduction to Docker
11. Virtual Machines Vs Docker https://www.docker.com/what-docker

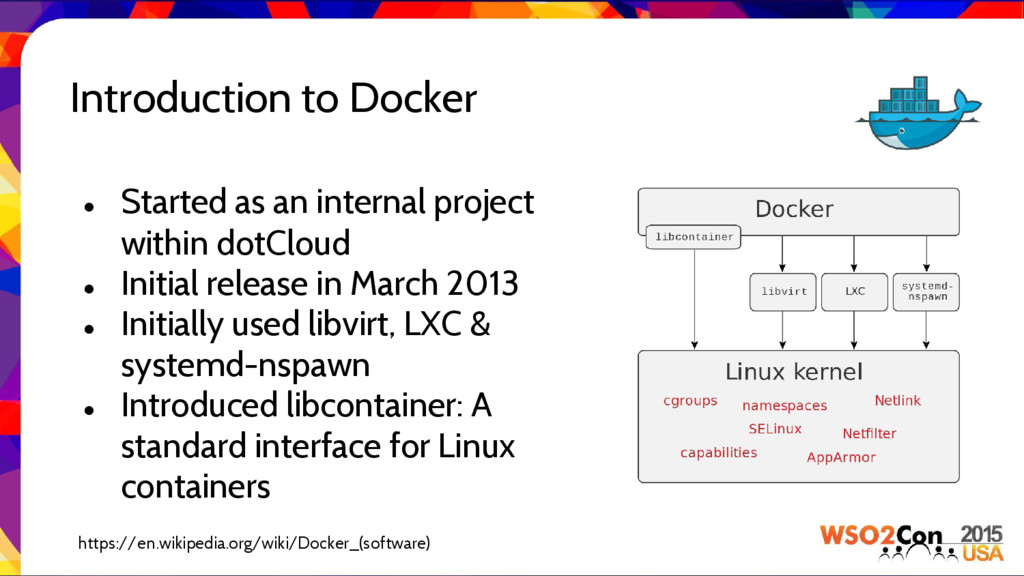

12. Introduction to Docker • Started as an internal project within dotCloud • Initial release in March 2013 • Initially used libvirt, LXC & systemd-nspawn • Introduced libcontainer: A standard interface for Linux containers https://en.wikipedia.org/wiki/Docker_(software)
13. Docker Ecosystem Enterprise Docker, Adrien BLIND, Aurelien GABET, Arnaud MAZIN

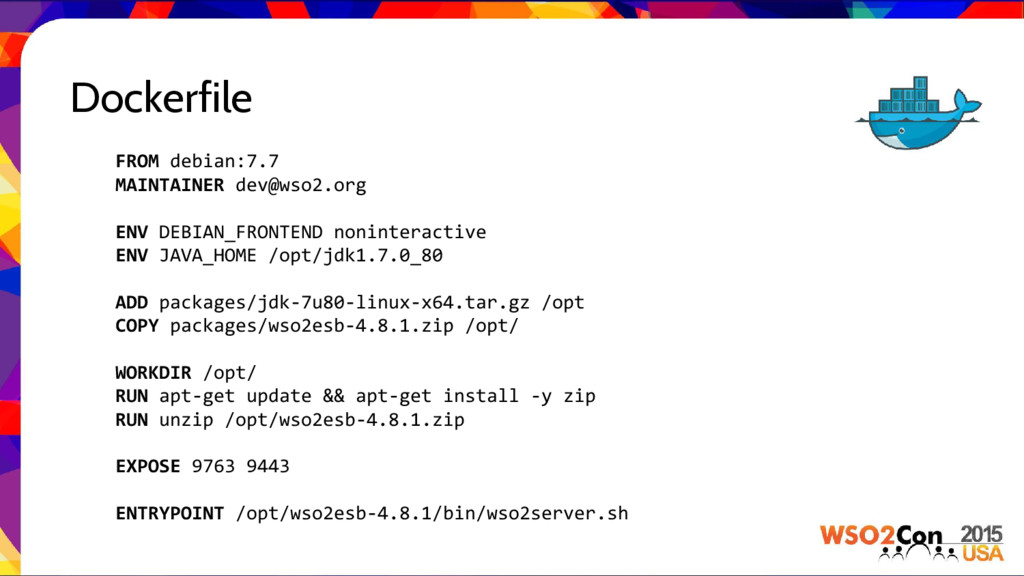

14. Dockerfile FROM debian:7.7 MAINTAINER dev@wso2.org ENV DEBIAN_FRONTEND noninteractive ENV JAVA_HOME /opt/jdk1.7.0_80 ADD packages/jdk-7u80-linux-x64.tar.gz /opt COPY packages/wso2esb-4.8.1.zip /opt/ WORKDIR /opt/ RUN apt-get update && apt-get install -y zip RUN unzip /opt/wso2esb-4.8.1.zip EXPOSE 9763 9443 ENTRYPOINT /opt/wso2esb-4.8.1/bin/wso2server.sh

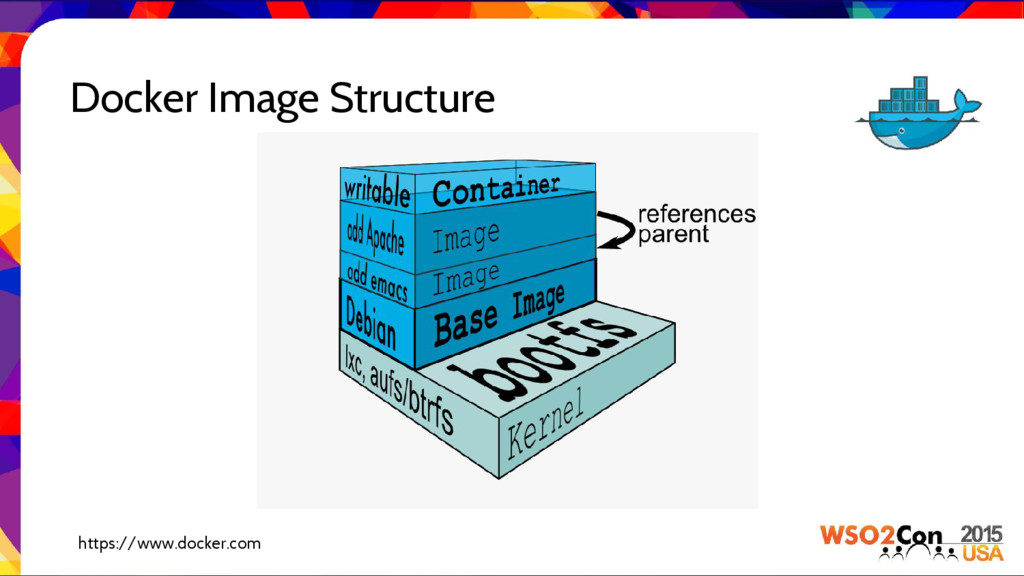

15. Docker Image Structure https://www.docker.com
16. An Introduction to Kubernetes
17. Why Container Clusters? • Avoid single point of failure • Make horizontally scalable • Have more granular management for distributed applications (microservices) • Self healing systems http://googlecloudplatform.blogspot.com/2015/01/what-makes-a-container-cluster.html [image ref] https://www.docker.com/what-docker

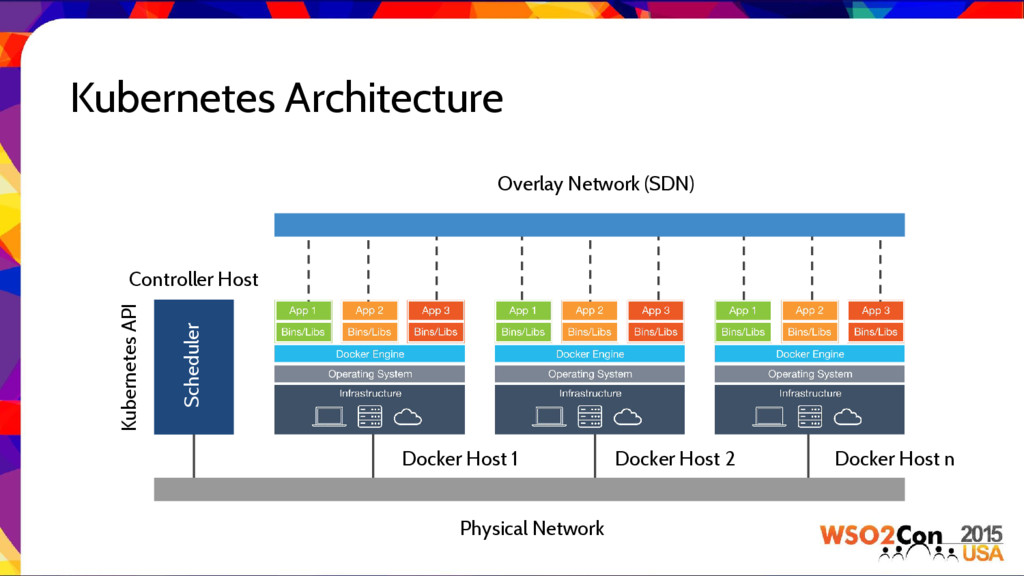

18. Kubernetes Architecture Docker Host 1 Docker Host 2 Docker Host n Physical Network Controller Host Kubernetes API Overlay Network (SDN) Scheduler
19. Kubernetes Component Architecture

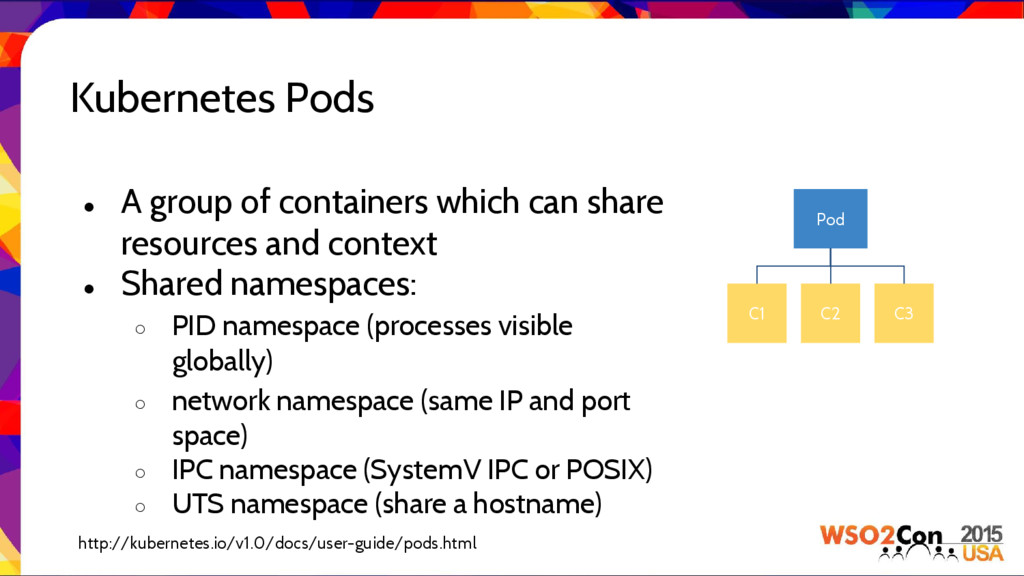

20. Kubernetes Pods • A group of containers which can share resources and context • Shared namespaces: ◦ PID namespace (processes visible globally) ◦ network namespace (same IP and port space) ◦ IPC namespace (SystemV IPC or POSIX) ◦ UTS namespace (share a hostname) Pod C1 C2 C3 http://kubernetes.io/v1.0/docs/user-guide/pods.html
21. Kubernetes Labels & Selectors • Labels are key/value pairs attached to objects • Selectors use the label key to find a collection of objects matched with the same value ◦ L1 -> ClusterID = C1 ◦ L2 -> ClusterID = C2 Pod 1 http://kubernetes.io/v1.0/docs/user-guide/labels.html L1 Pod 2 L1 Pod 3 L1 Pod 3 L2 Pod 4 L2
22. Pod Template Replicas = n Kubernetes Replication Controllers • Provides features for replicating pods: ◦ Auto-healing ◦ Scaling ◦ Rolling updates ◦ Multiple release tracks Pod 1 http://kubernetes.io/v1.0/docs/user-guide/replication-controller.html Pod 2 Pod n Replication Controller

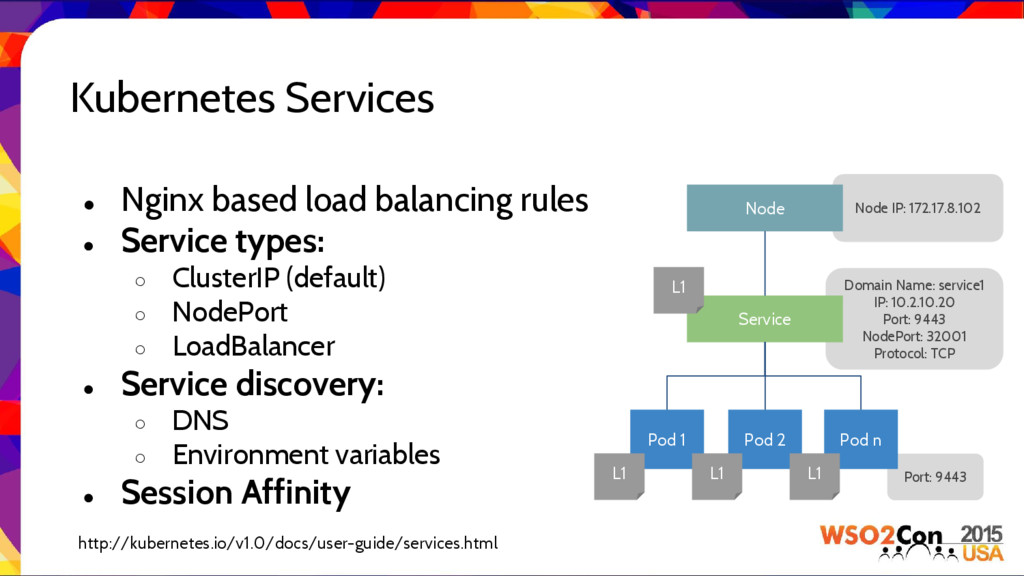

23. Node IP: 172.17.8.102 Port: 9443 Domain Name: service1 IP: 10.2.10.20 Port: 9443 NodePort: 32001 Protocol: TCP Kubernetes Services • Nginx based load balancing rules • Service types: ◦ ClusterIP (default) ◦ NodePort ◦ LoadBalancer • Service discovery: ◦ DNS ◦ Environment variables • Session Affinity Pod 1 http://kubernetes.io/v1.0/docs/user-guide/services.html Pod 2 Pod n Service L1 L1 L1 L1 Node
24. • A distributed key value store • Read and write values with curl and other HTTP libraries • Store data in directories, similar to a file system • Watch a key or directory for changes and react to the new values https://coreos.com/etcd/ etcd
25. • A software defined network • Runs an agent, flanneld, on each host • Uses etcd to store the network configuration, allocated subnets, and auxiliary data (host ips) https://github.com/coreos/flannel flannel
26. Deploying WSO2 products on Kubernetes
27. Carbon Cluster Discovery on Kubernetes Pod 1 Pod 2 Pod n Service Server 1 Server 2 Server n Pod 1 Service Server 1 Pod 1 Pod 2 Service Server 1 Server 2 Hazelcast member initialization Hazelcast member initialization Hazelcast member initialization 1 2 n
28. WSO2 Carbon Reference Architecture for Kubernetes Pod 1 Pod 2 Manager Cluster Services Pod 3 Pod 4 Pod n Worker Cluster Services Manager Replication Controller Worker Replication Controller Client Gov Reg Conf Reg User Store
29. WSO2 Configurator A python module written using Jinja2 template engine for configuring a product using a set of key/value pairs.
30. 4 1 2 3 Deployment Workflow Build Template Module Kubernetes Membership Scheme Build Docker Image Import DI to Kubernetes Nodes Application Artifacts Template Module Product Distribution Docker Image (DI) Configurator JDK Kernel & Security Patches Templates Deploy Kubernetes Artifacts Kubernetes Artifacts

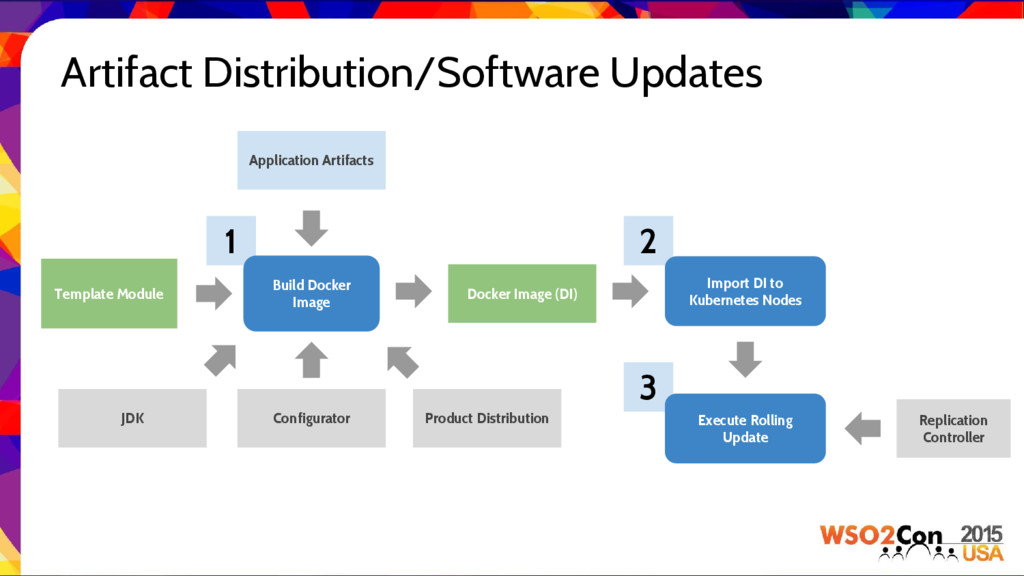

31. 3 1 2 Artifact Distribution/Software Updates Build Docker Image Import DI to Kubernetes Nodes Application Artifacts Template Module Product Distribution Docker Image (DI) Configurator JDK Execute Rolling Update Replication Controller

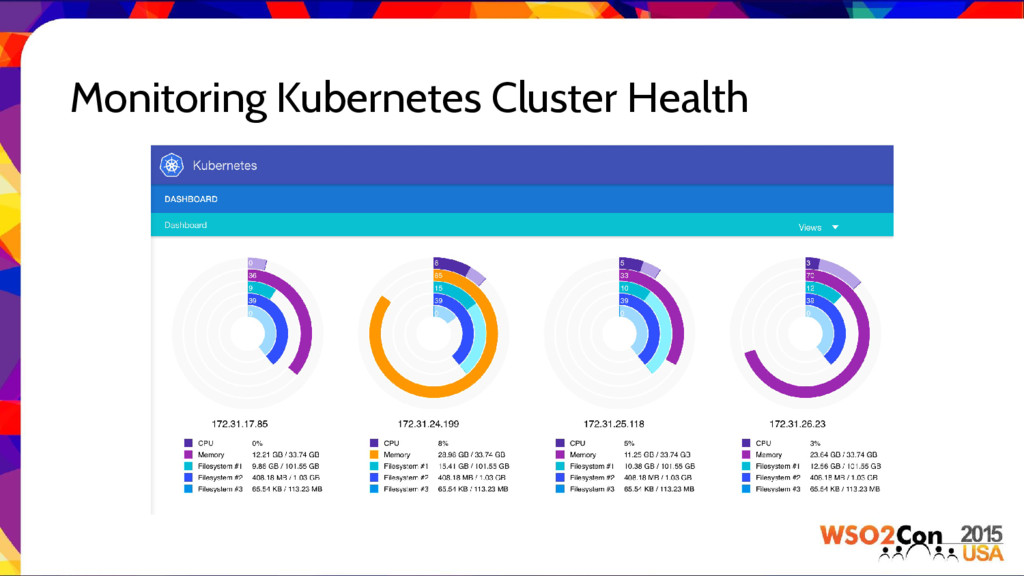

32. Monitoring Kubernetes Cluster Health
33. Monitoring Kubernetes Node/Pod Health
34. cAdvisor Monitoring Kubernetes Cluster/Node/Pod Health cAdvisor Node 1 cAdvisor Heapster Node 2 Node n Grafana InfluxDB
35. Demo: Deploying WSO2 ESB on Kubernetes
36. WSO2 App Factory & App Cloud
37. WSO2 Platform
38. Application PaaS from WSO2

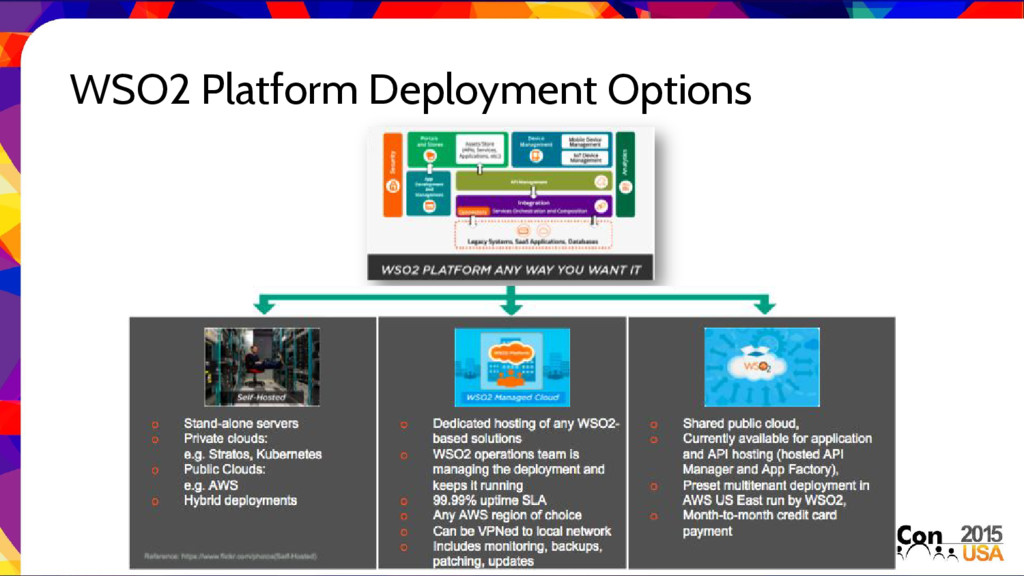

39. WSO2 Platform Deployment Options

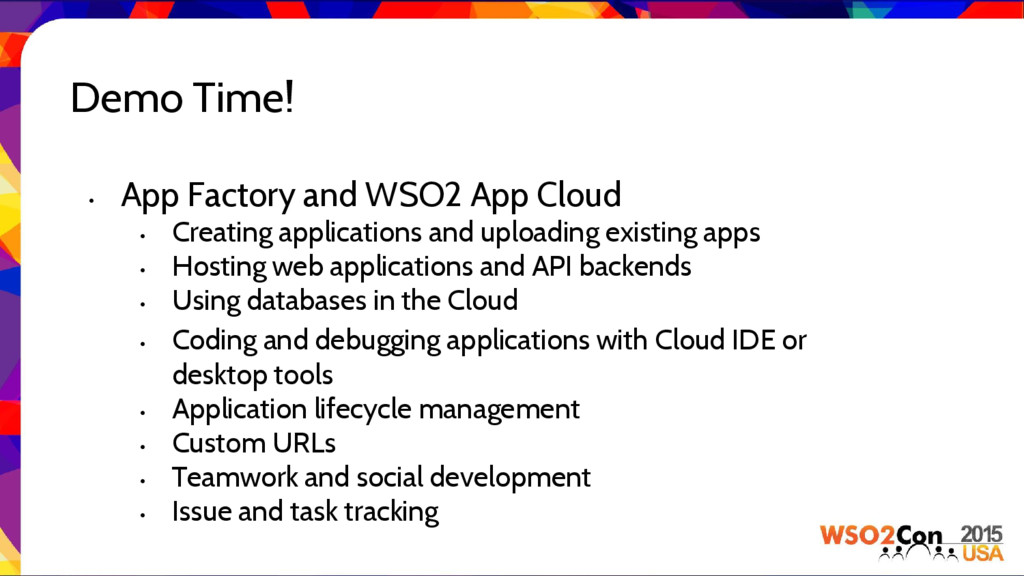

40. Demo Time! • App Factory and WSO2 App Cloud • Creating applications and uploading existing apps • Hosting web applications and API backends • Using databases in the Cloud • Coding and debugging applications with Cloud IDE or desktop tools • Application lifecycle management • Custom URLs • Teamwork and social development • Issue and task tracking
41. Announcing: ESB in App Cloud / App Factory
42. Demo Time! • Create ESB project • Create Properties pointing to endpoints • Move through lifecycle and observe change in endpoints invoked
43. Questions
44. Thank You
