1. CSC 5100 Modern Software Engineering Lecture 09. Application Programming Interfaces Dr. Javier Gonzalez-Sanchez javiergs@calpoly.edu www.javiergs.info ffi o ce: 14 -227

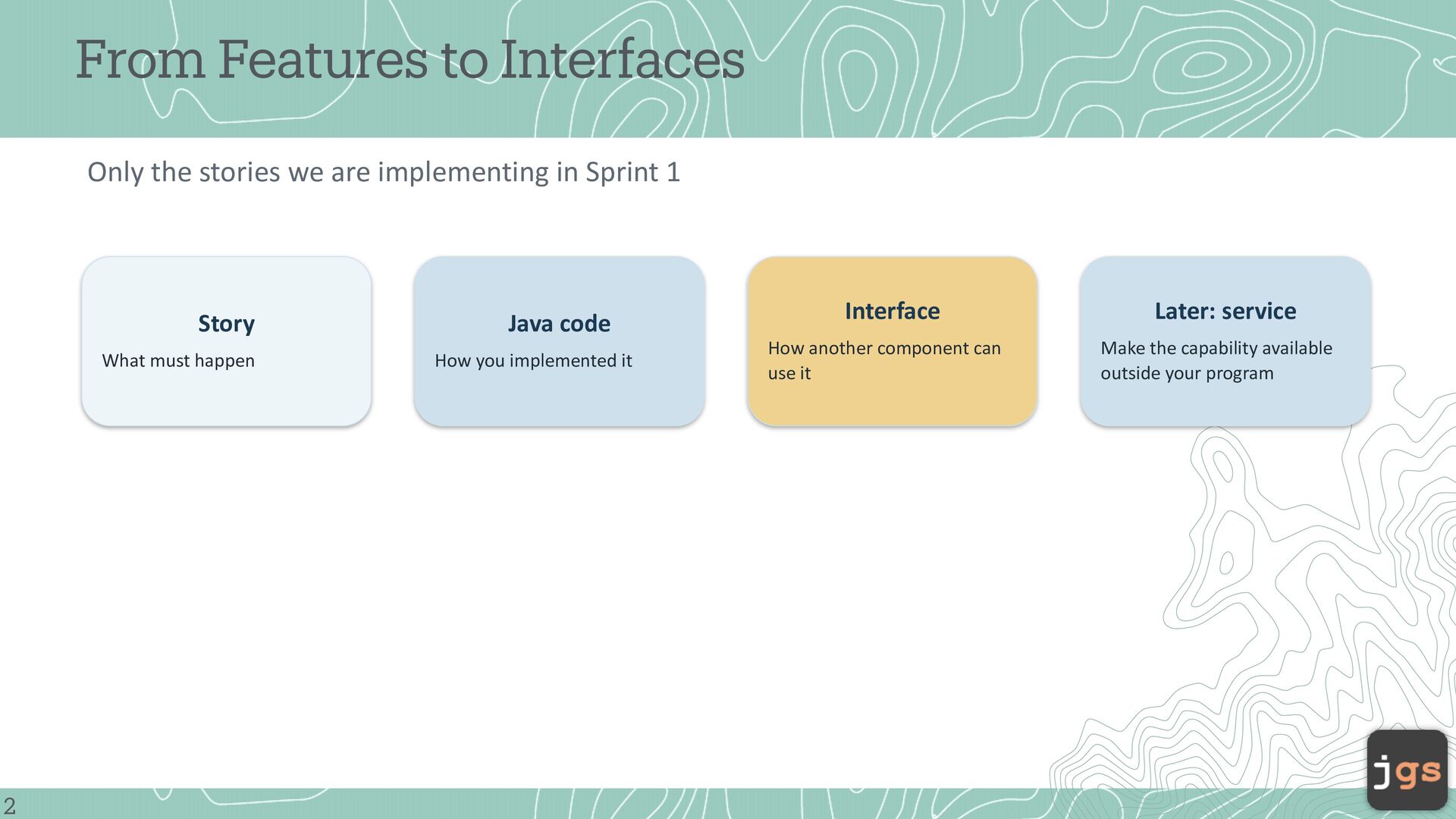

2. From Features to Interfaces Only the stories we are implementing in Sprint 1 Story What must happen 2 Java code How you implemented it Interface Later: service How another component can use it Make the capability available outside your program

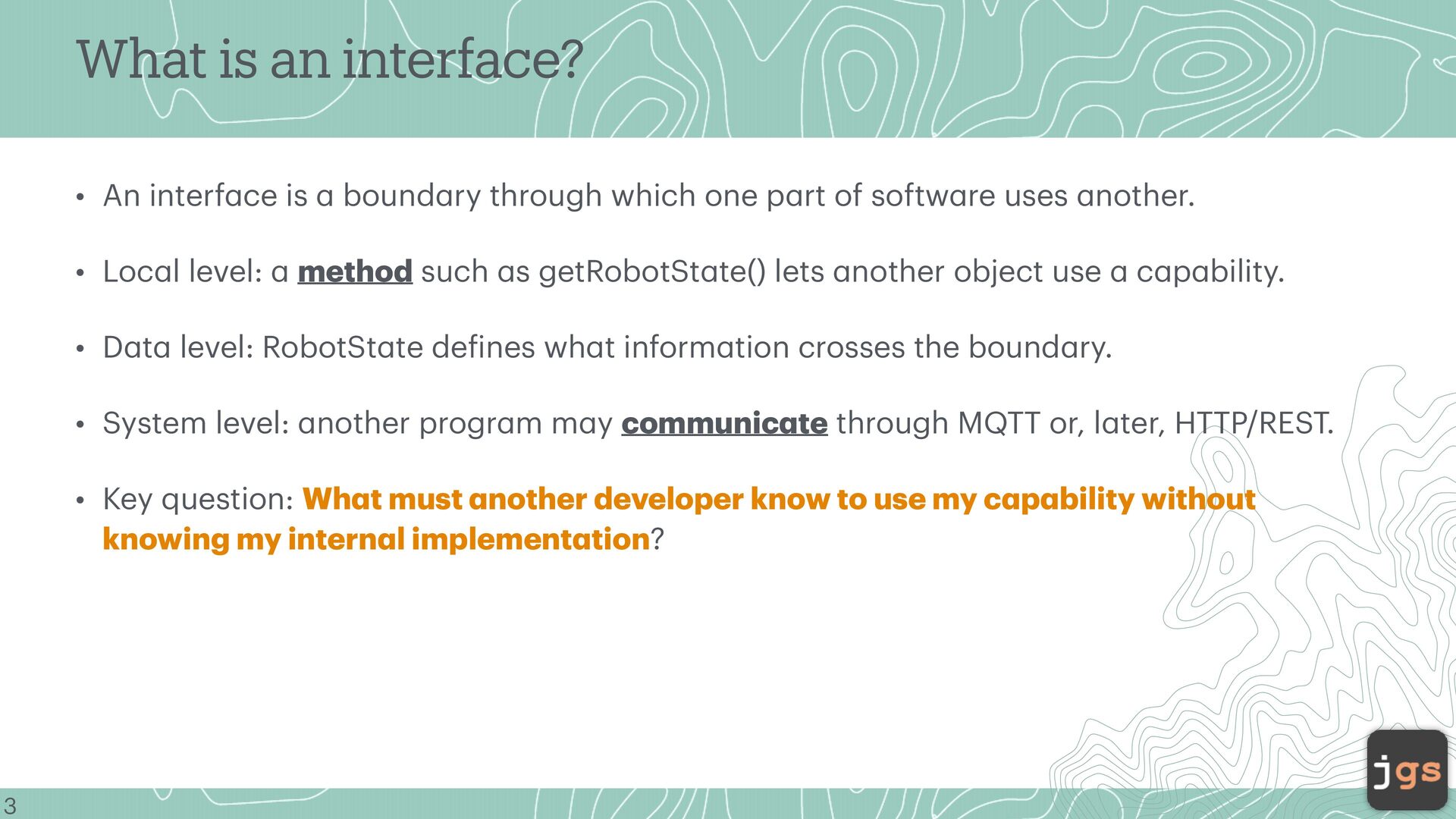

3. What is an interface? • An interf ce is • Loc l level: bound ry through which one p rt of softw re uses nother. method such s getRobotSt te() lets nother object use c p bility. • D t level: RobotSt te de ines wh t inform tion crosses the bound ry. • System level: nother progr m m y communic te through MQTT or, l ter, HTTP/REST. a a a a a a a a a a a a a a a a a a a f a a a a a a a a a a a 3 a • Key question: Wh t must nother developer know to use my c p bility without knowing my intern l implement tion?

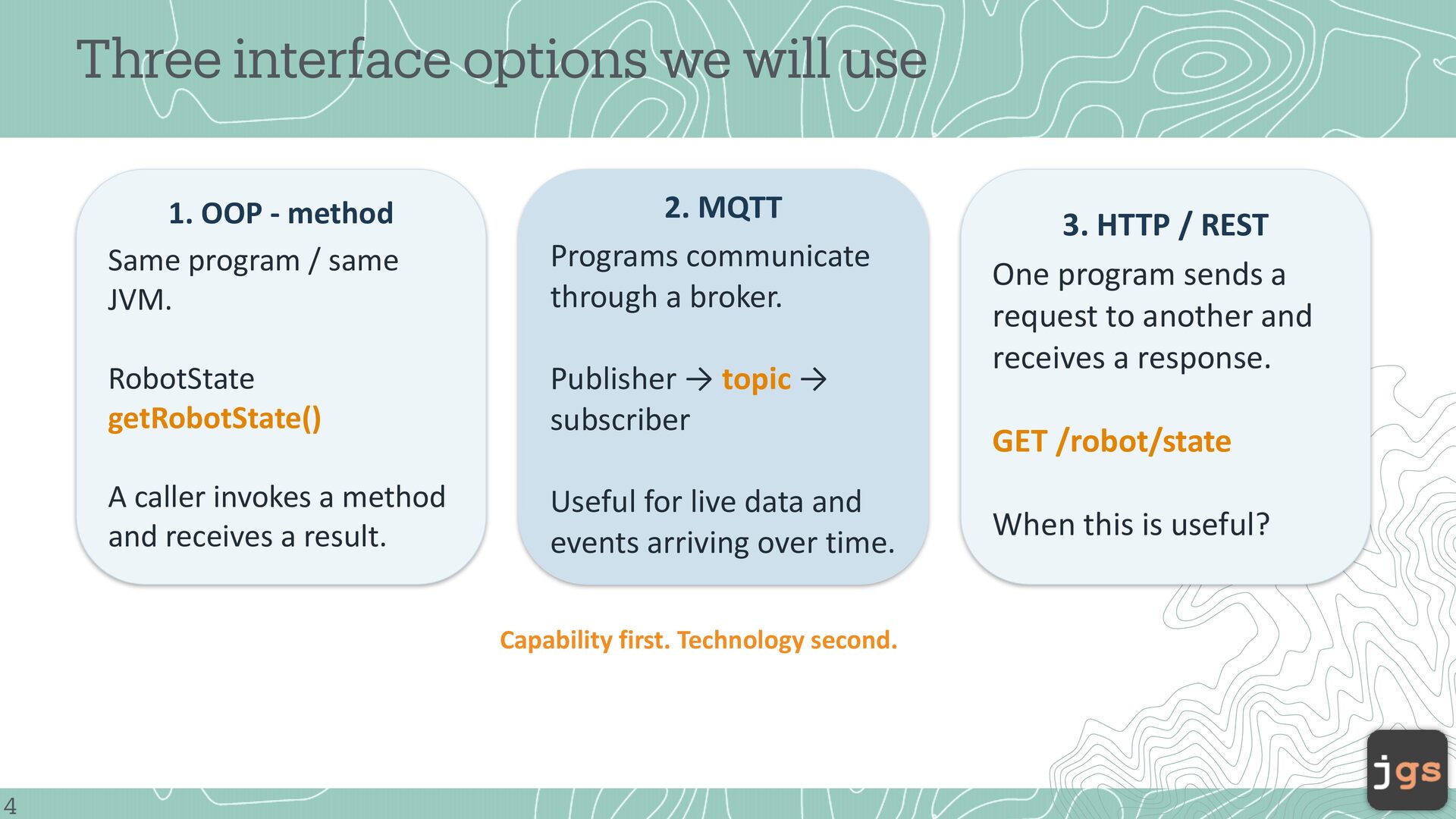

4. Three interface options we will use 1. OOP - method Same program / same JVM. 2. MQTT Programs communicate through a broker. RobotState getRobotState() Publisher → topic → subscriber A caller invokes a method and receives a result. Useful for live data and events arriving over time. Capability first. Technology second. 4 3. HTTP / REST One program sends a request to another and receives a response. GET /robot/state When this is useful?
5. Local OOP

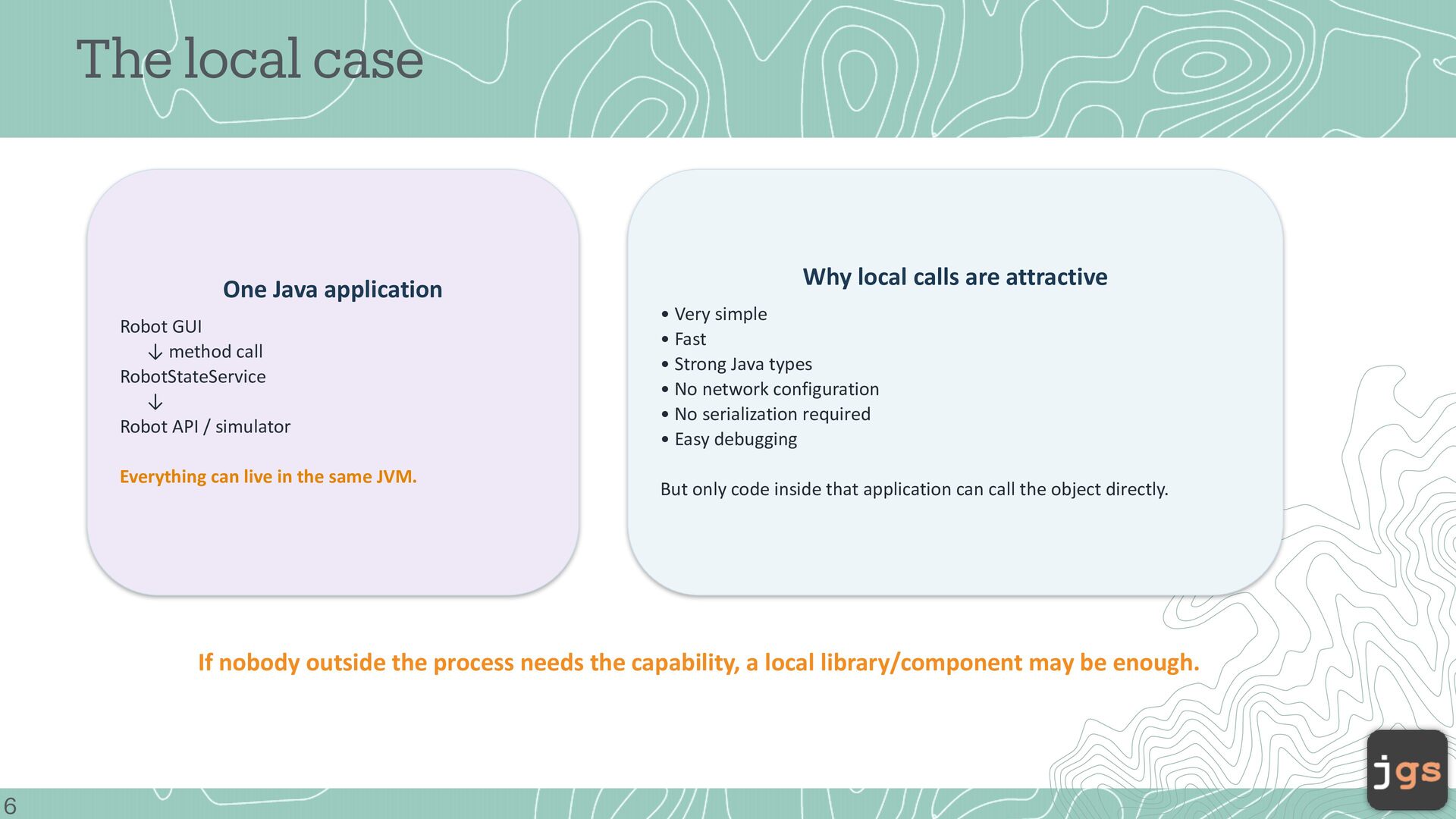

6. The local case One Java application Robot GUI ↓ method call RobotStateService ↓ Robot API / simulator Everything can live in the same JVM. Why local calls are attractive • Very simple • Fast • Strong Java types • No network configuration • No serialization required • Easy debugging But only code inside that application can call the object directly. If nobody outside the process needs the capability, a local library/component may be enough. 6

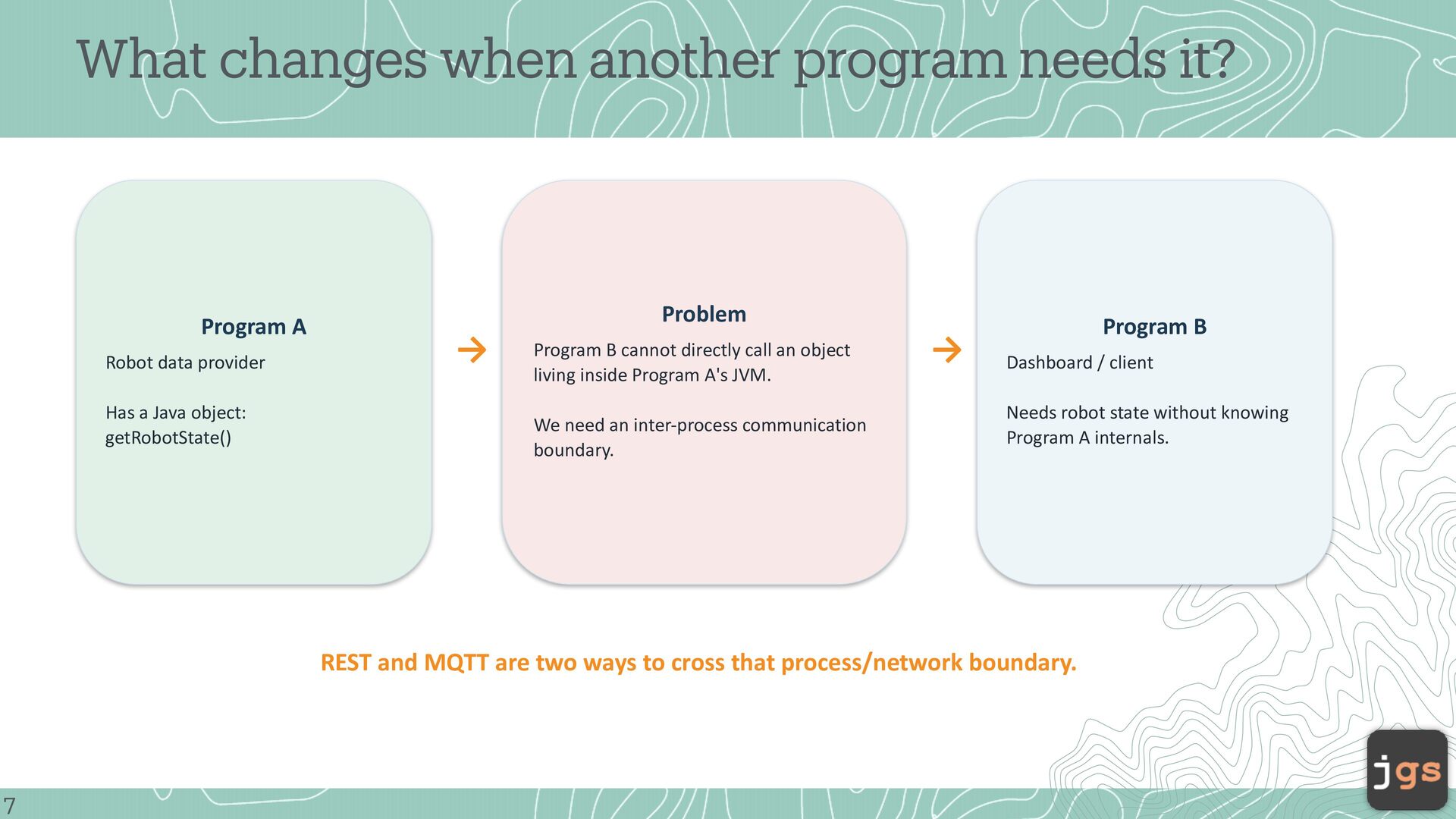

7. What changes when another program needs it? Program A Robot data provider Has a Java object: getRobotState() Problem → Program B cannot directly call an object living inside Program A's JVM. We need an inter-process communication boundary. → Program B Dashboard / client Needs robot state without knowing Program A internals. REST and MQTT are two ways to cross that process/network boundary. 7

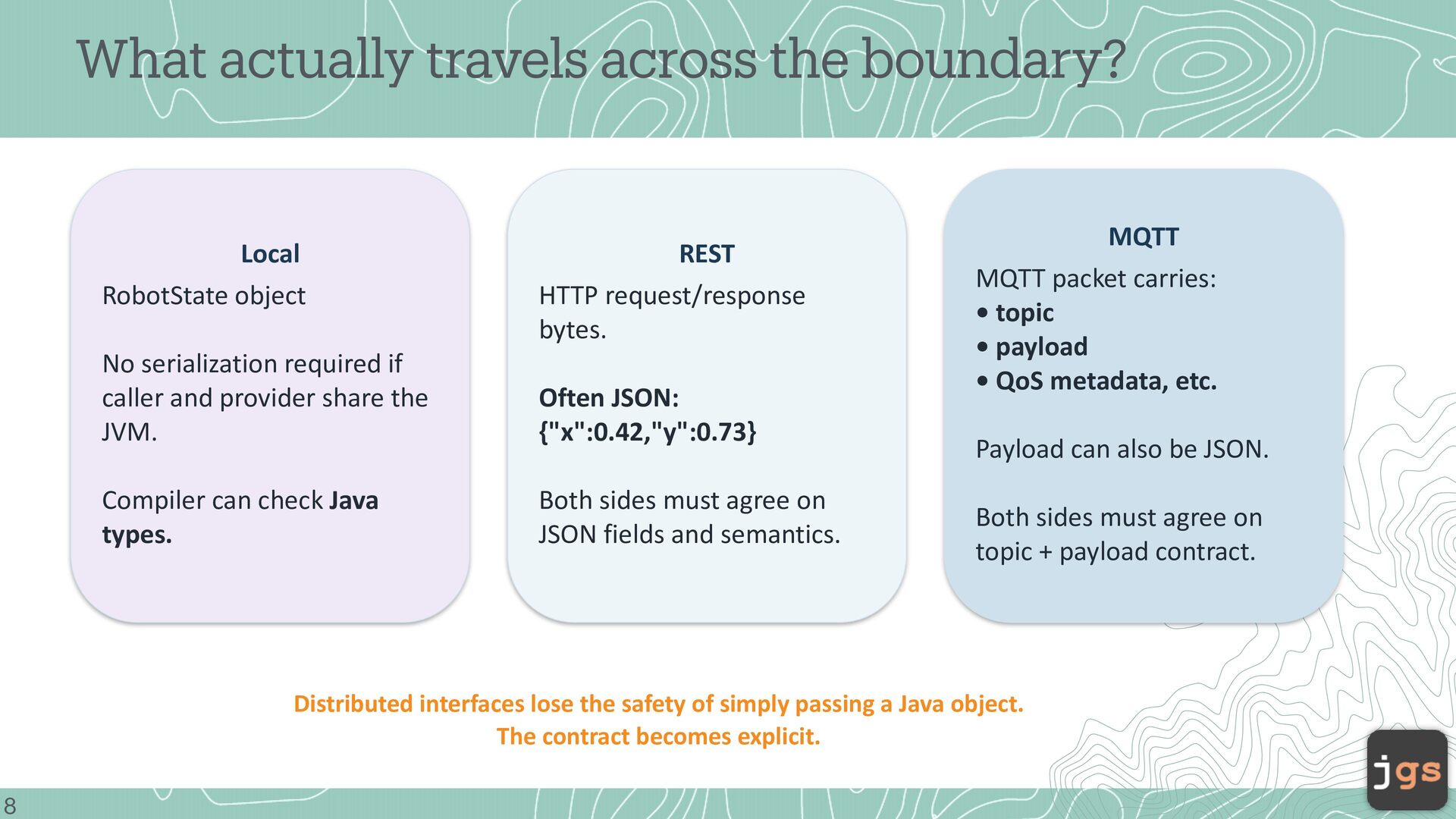

8. What actually travels across the boundary? Local RobotState object REST HTTP request/response bytes. No serialization required if caller and provider share the JVM. Often JSON: {"x":0.42,"y":0.73} Compiler can check Java types. Both sides must agree on JSON fields and semantics. MQTT MQTT packet carries: • topic • payload • QoS metadata, etc. Payload can also be JSON. Both sides must agree on topic + payload contract. Distributed interfaces lose the safety of simply passing a Java object. The contract becomes explicit. 8
9. REST HTTP

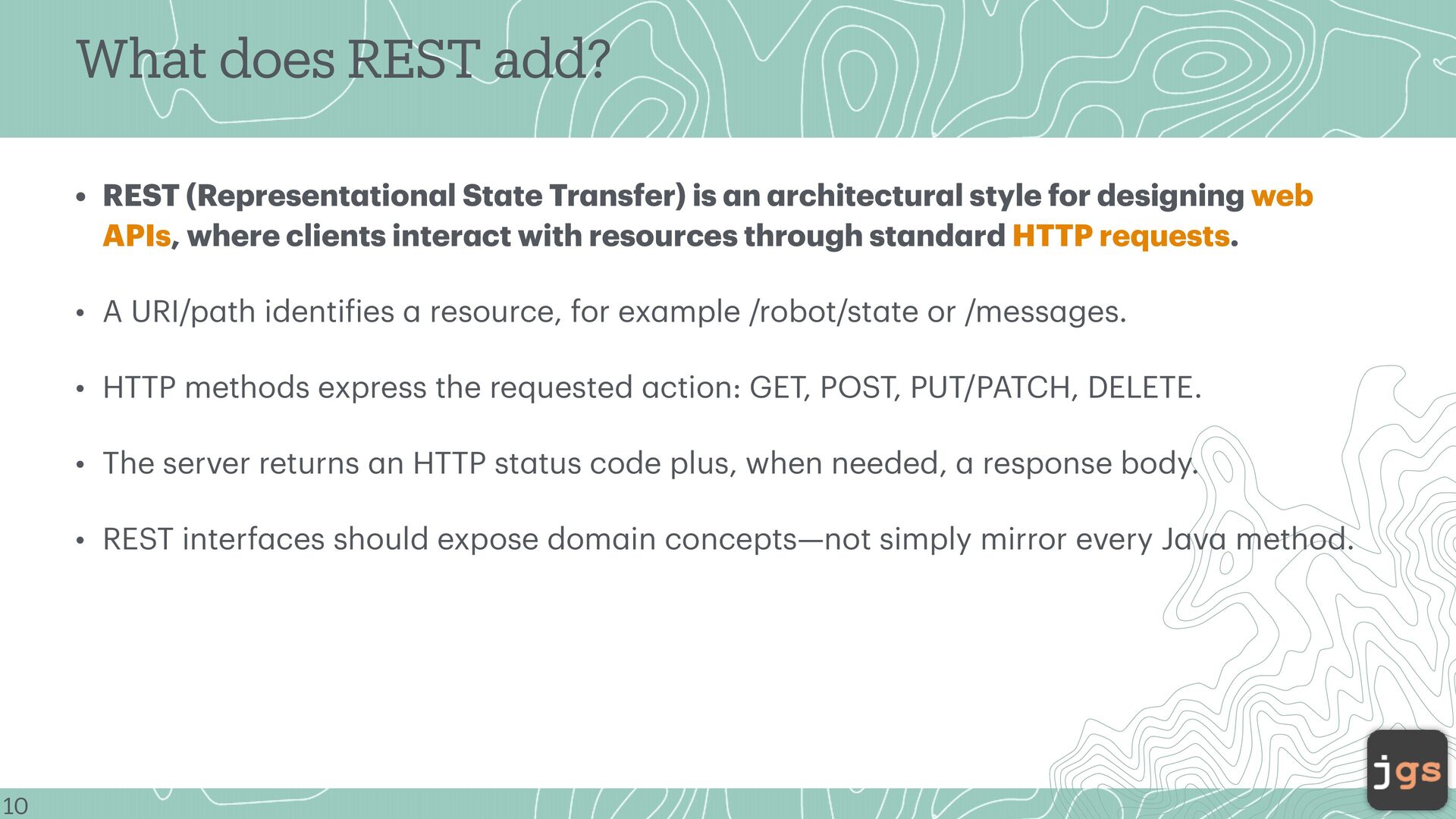

10. What does REST add? • REST (Represent tion l St te Tr nsfer) is n rchitectur l style for designing web APIs, where clients inter ct with resources through st nd rd HTTP requests. • A URI/p th identi ies resource, for ex mple /robot/st te or /mess ges. • HTTP methods express the requested ction: GET, POST, PUT/PATCH, DELETE. • The server returns n HTTP st tus code plus, when needed, response body. a a a a a a a a a a a a a a a a a a a a a f a 10 a • REST interf ces should expose dom in concepts—not simply mirror every J v method.

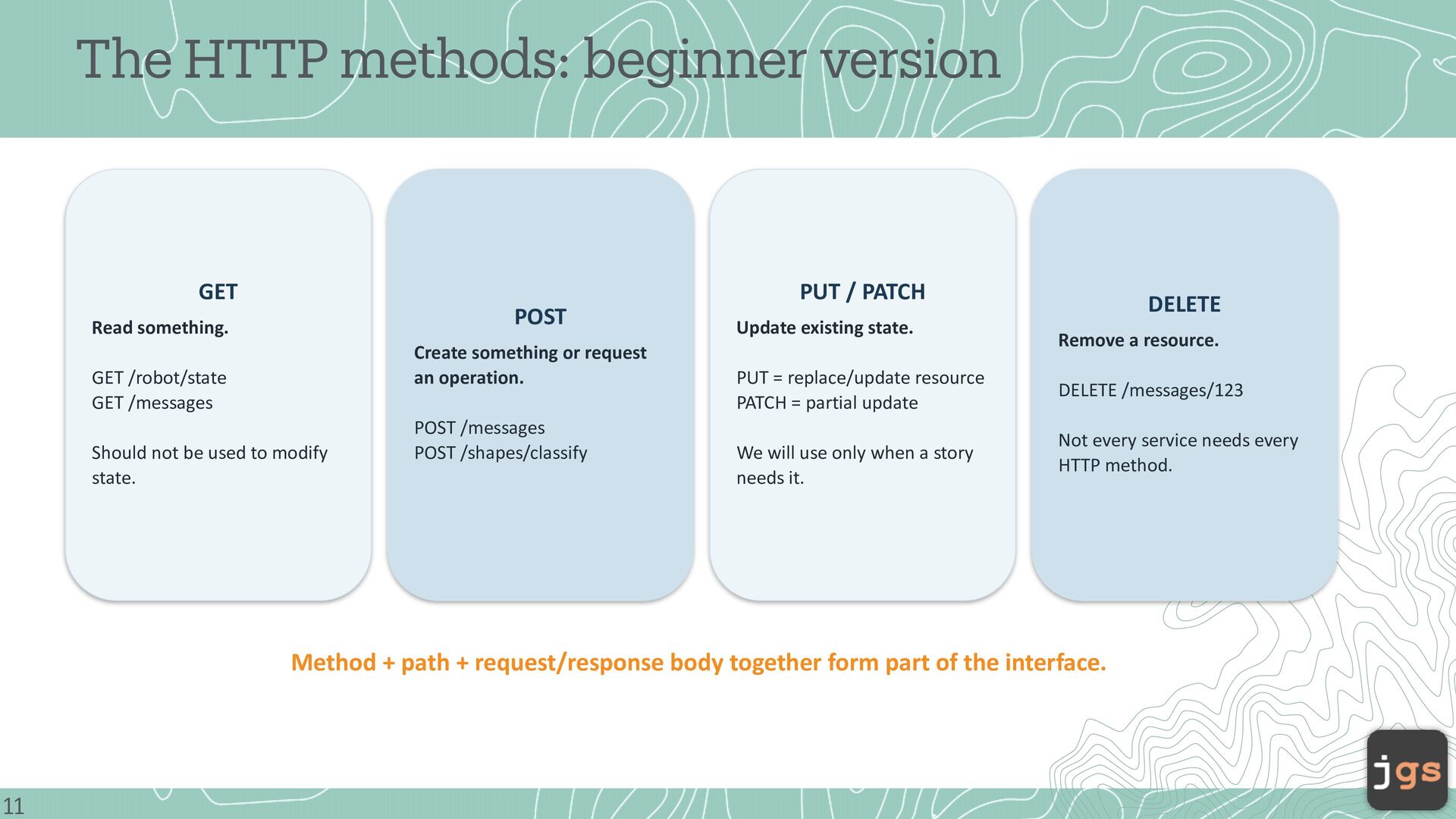

11. The HTTP methods: beginner version GET PUT / PATCH POST Read something. Create something or request an operation. GET /robot/state GET /messages Should not be used to modify state. POST /messages POST /shapes/classify Update existing state. PUT = replace/update resource PATCH = partial update We will use only when a story needs it. DELETE Remove a resource. DELETE /messages/123 Not every service needs every HTTP method. Method + path + request/response body together form part of the interface. 11

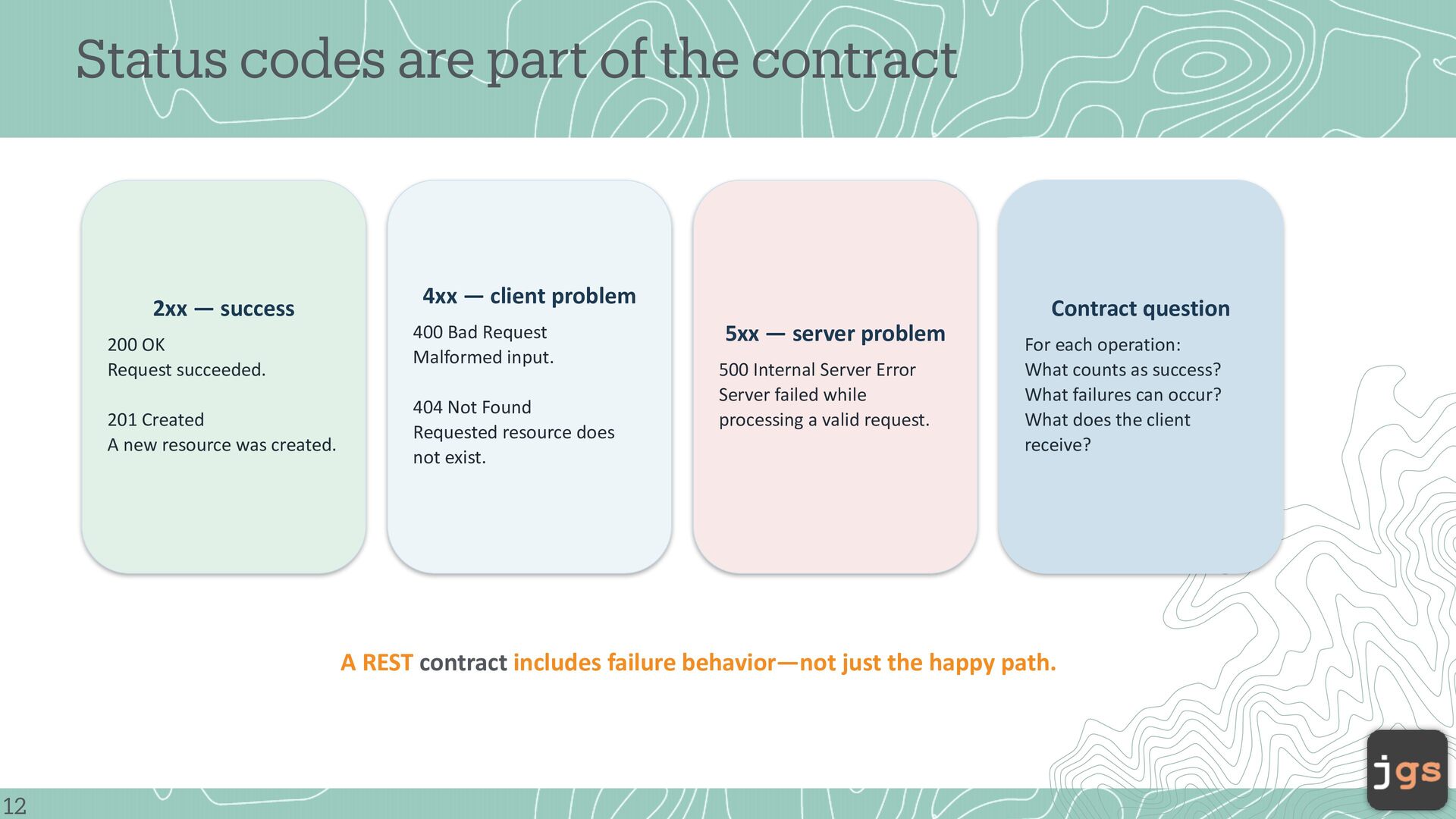

12. Status codes are part of the contract 2xx — success 200 OK Request succeeded. 201 Created A new resource was created. 4xx — client problem 400 Bad Request Malformed input. 404 Not Found Requested resource does not exist. Contract question 5xx — server problem 500 Internal Server Error Server failed while processing a valid request. For each operation: What counts as success? What failures can occur? What does the client receive? A REST contract includes failure behavior—not just the happy path. 12

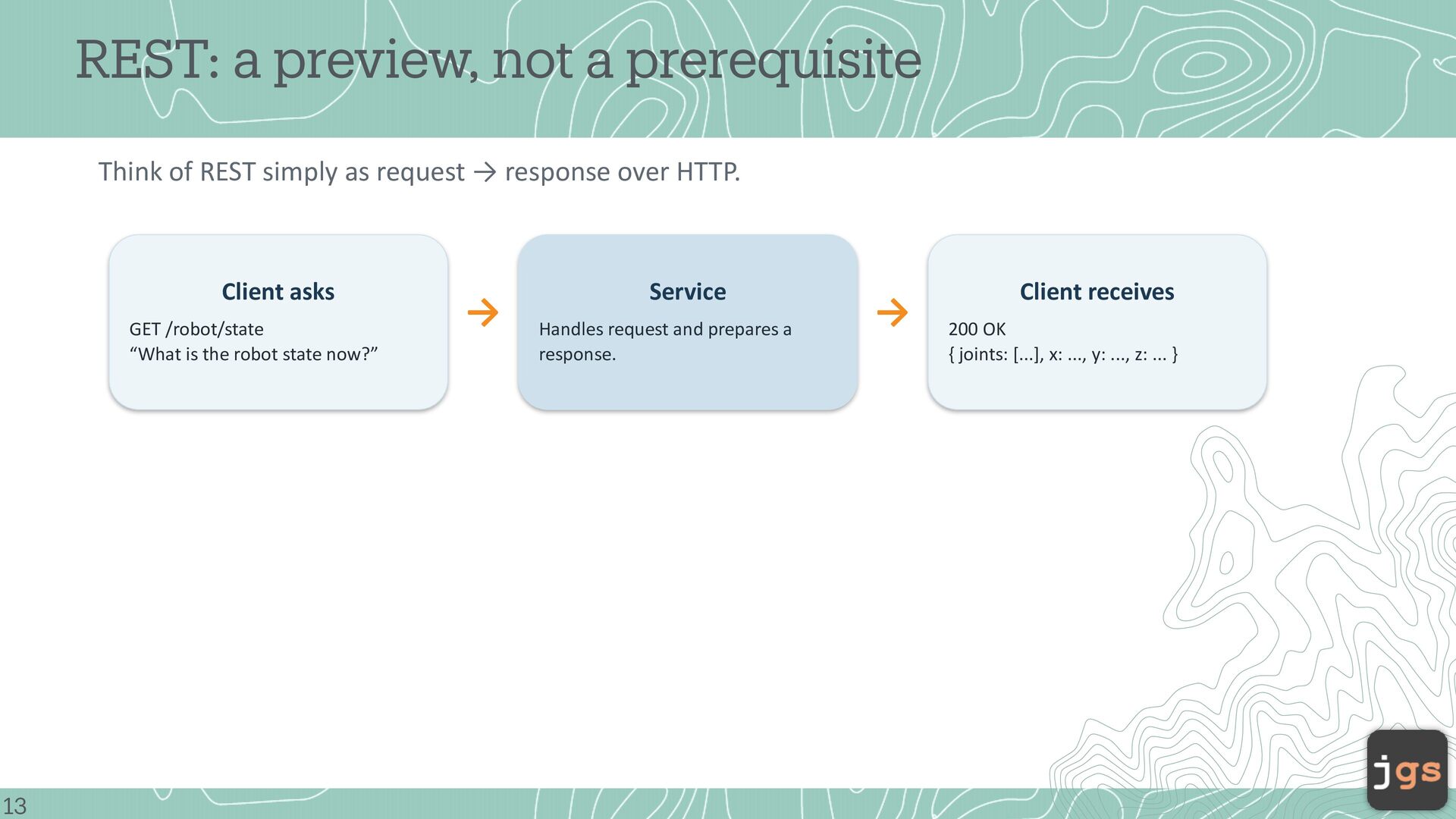

13. REST: a preview, not a prerequisite Think of REST simply as request → response over HTTP. Client asks GET /robot/state “What is the robot state now?” 13 → Service Handles request and prepares a response. → Client receives 200 OK { joints: [...], x: ..., y: ..., z: ... }

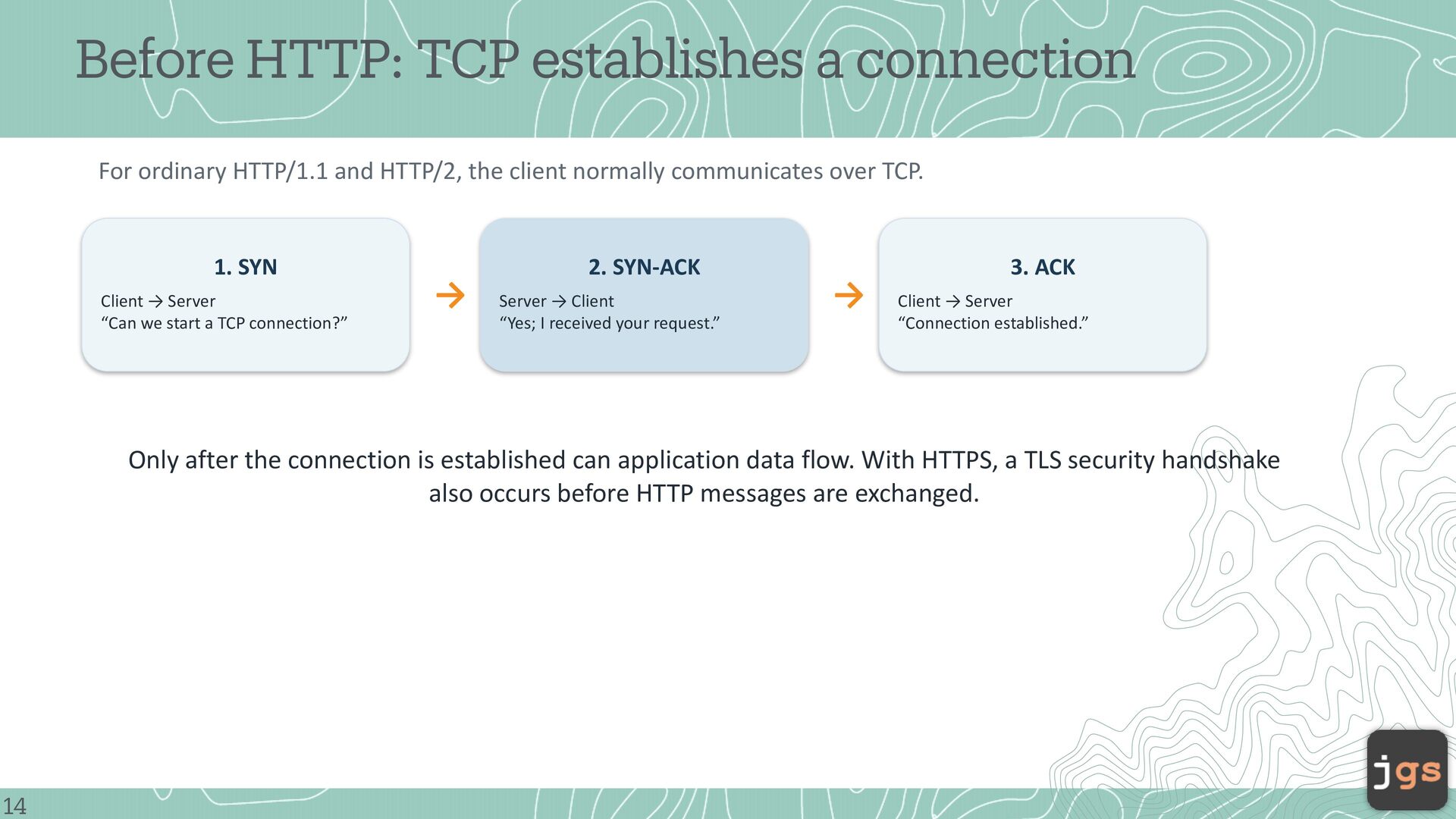

14. Before HTTP: TCP establishes a connection For ordinary HTTP/1.1 and HTTP/2, the client normally communicates over TCP. 1. SYN Client → Server “Can we start a TCP connection?” → 2. SYN-ACK Server → Client “Yes; I received your request.” → 3. ACK Client → Server “Connection established.” Only after the connection is established can application data flow. With HTTPS, a TLS security handshake also occurs before HTTP messages are exchanged. 14

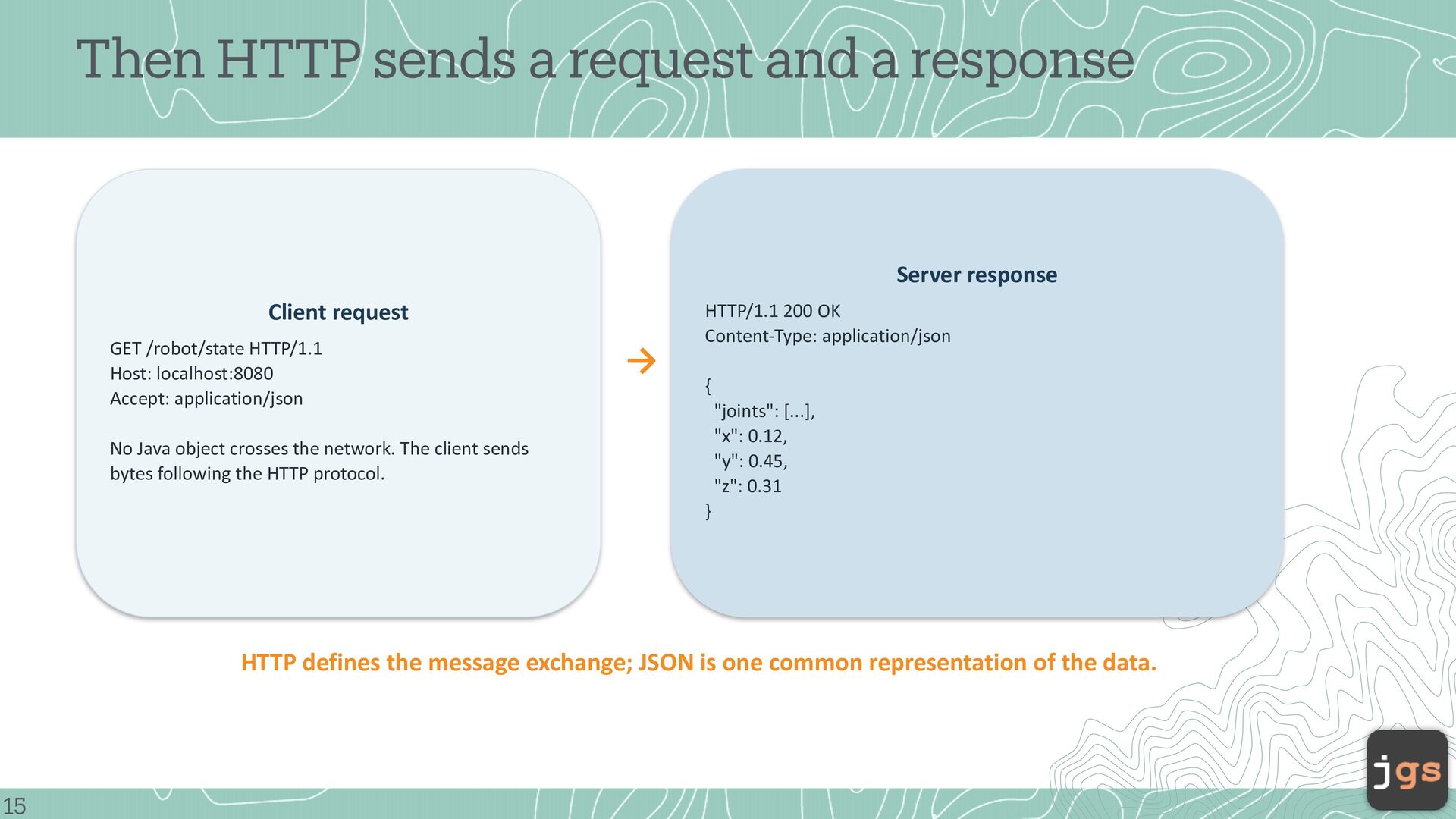

15. Then HTTP sends a request and a response Server response Client request GET /robot/state HTTP/1.1 Host: localhost:8080 Accept: application/json → HTTP/1.1 200 OK Content-Type: application/json { "joints": [...], "x": 0.12, "y": 0.45, "z": 0.31 No Java object crosses the network. The client sends bytes following the HTTP protocol. } HTTP defines the message exchange; JSON is one common representation of the data. 15

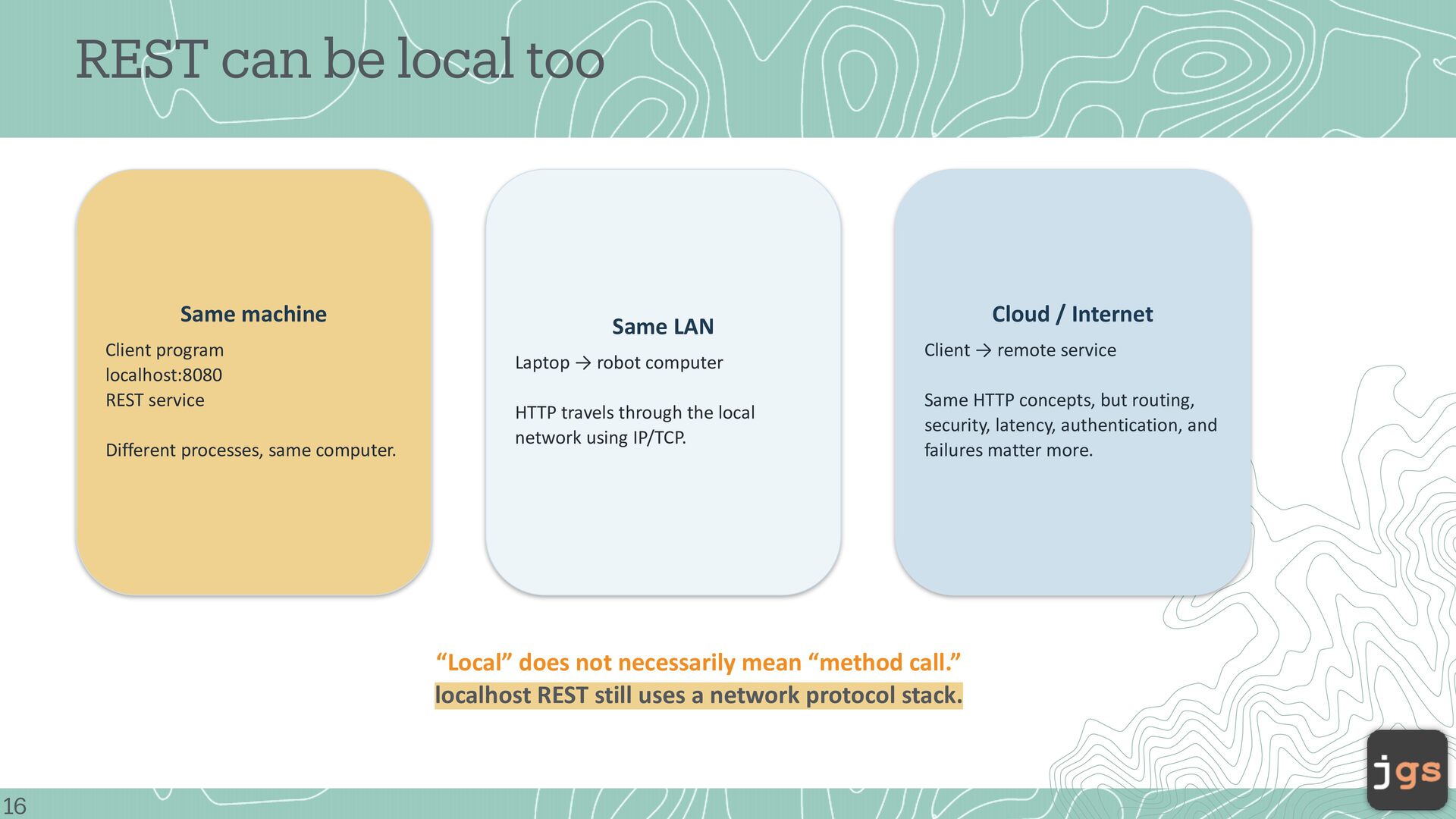

16. REST can be local too Same machine Client program localhost:8080 REST service Different processes, same computer. Cloud / Internet Same LAN Laptop → robot computer HTTP travels through the local network using IP/TCP. Client → remote service Same HTTP concepts, but routing, security, latency, authentication, and failures matter more. “Local” does not necessarily mean “method call.” localhost REST still uses a network protocol stack. 16

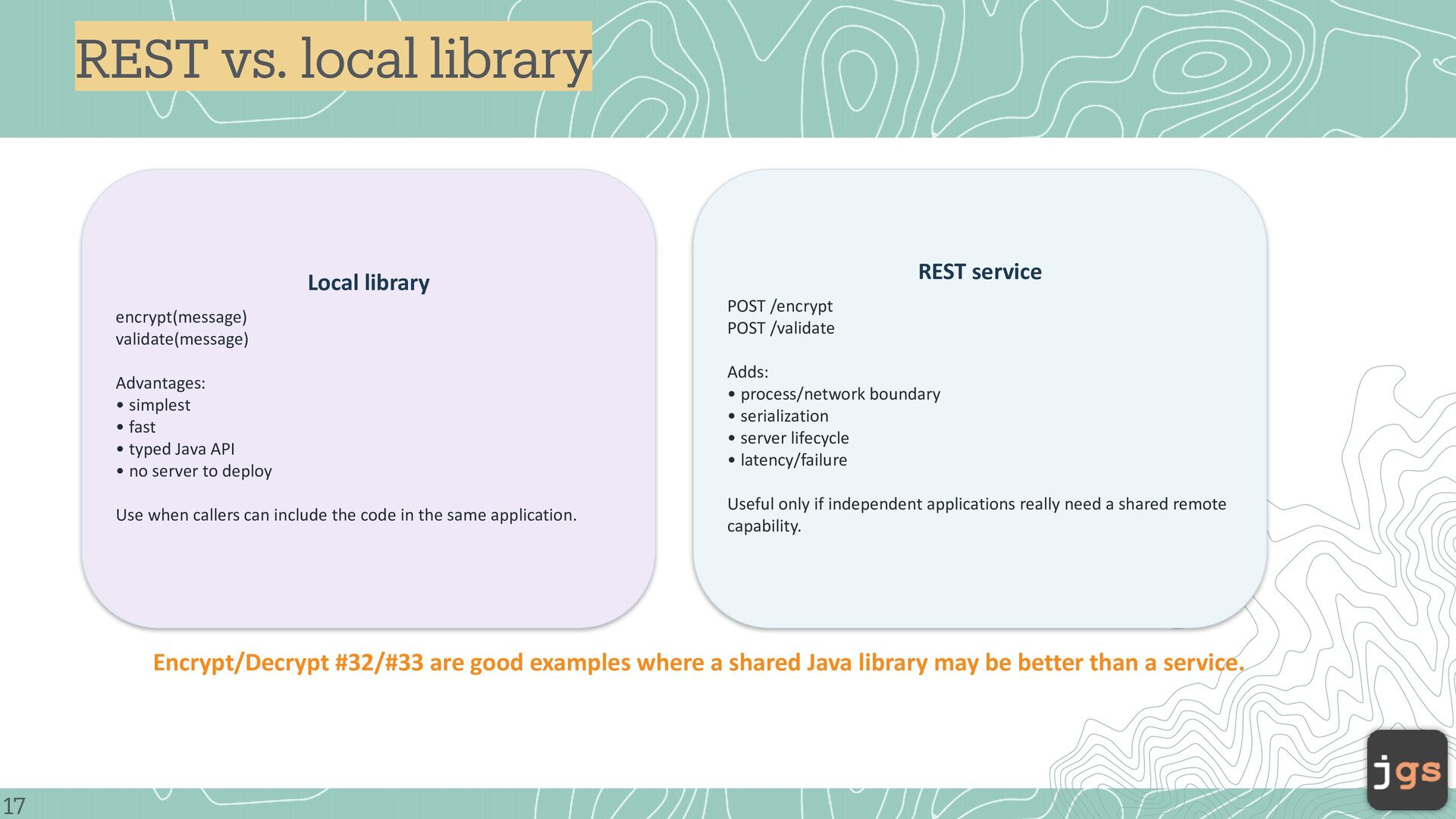

17. REST vs. local library REST service Local library encrypt(message) validate(message) Advantages: • simplest • fast • typed Java API • no server to deploy Use when callers can include the code in the same application. POST /encrypt POST /validate Adds: • process/network boundary • serialization • server lifecycle • latency/failure Useful only if independent applications really need a shared remote capability. Encrypt/Decrypt #32/#33 are good examples where a shared Java library may be better than a service. 17
18. Messages MQTT

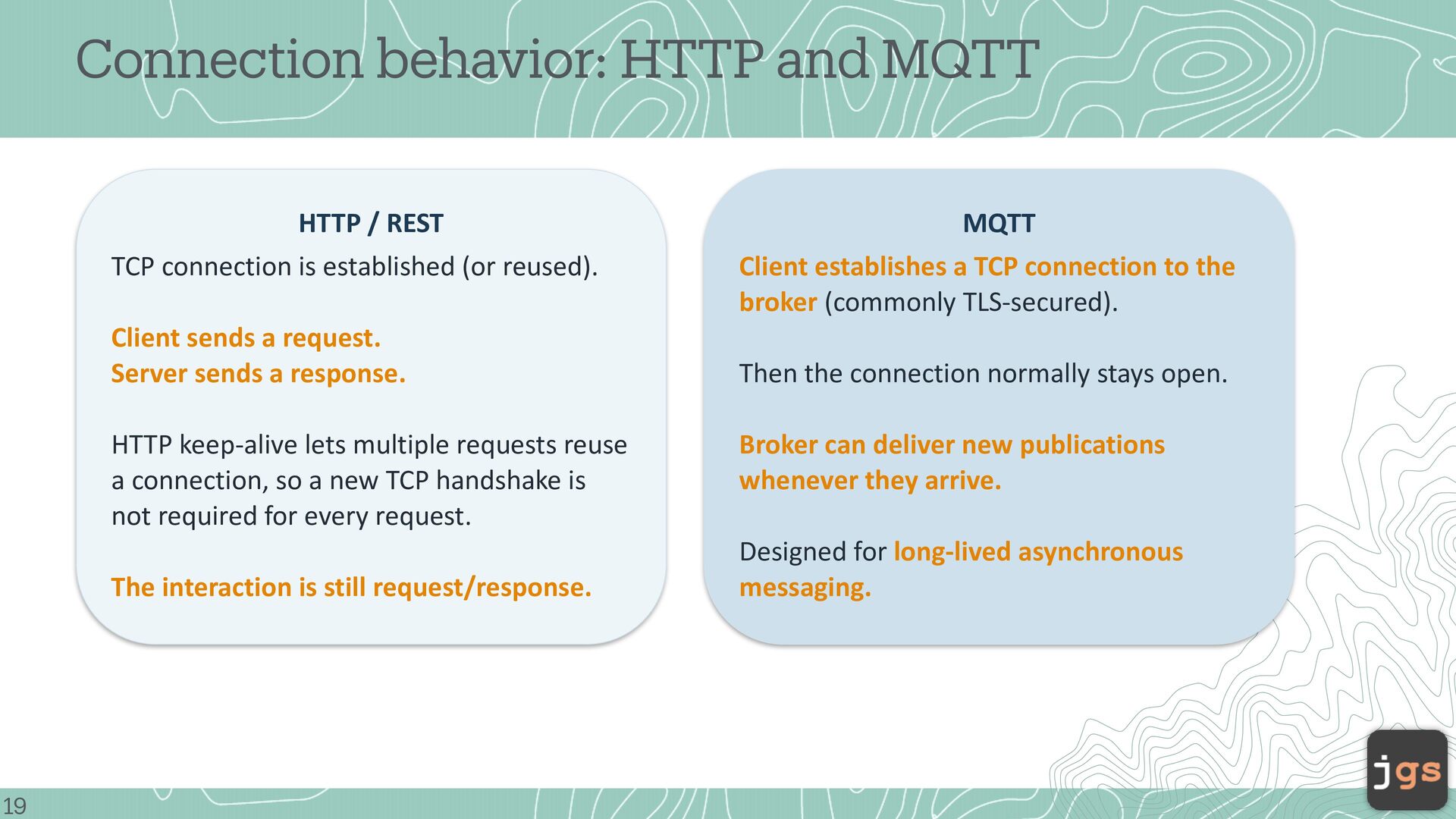

19. Connection behavior: HTTP and MQTT HTTP / REST TCP connection is established (or reused). Client sends a request. Server sends a response. HTTP keep-alive lets multiple requests reuse a connection, so a new TCP handshake is not required for every request. The interaction is still request/response. 19 MQTT Client establishes a TCP connection to the broker (commonly TLS-secured). Then the connection normally stays open. Broker can deliver new publications whenever they arrive. Designed for long-lived asynchronous messaging.

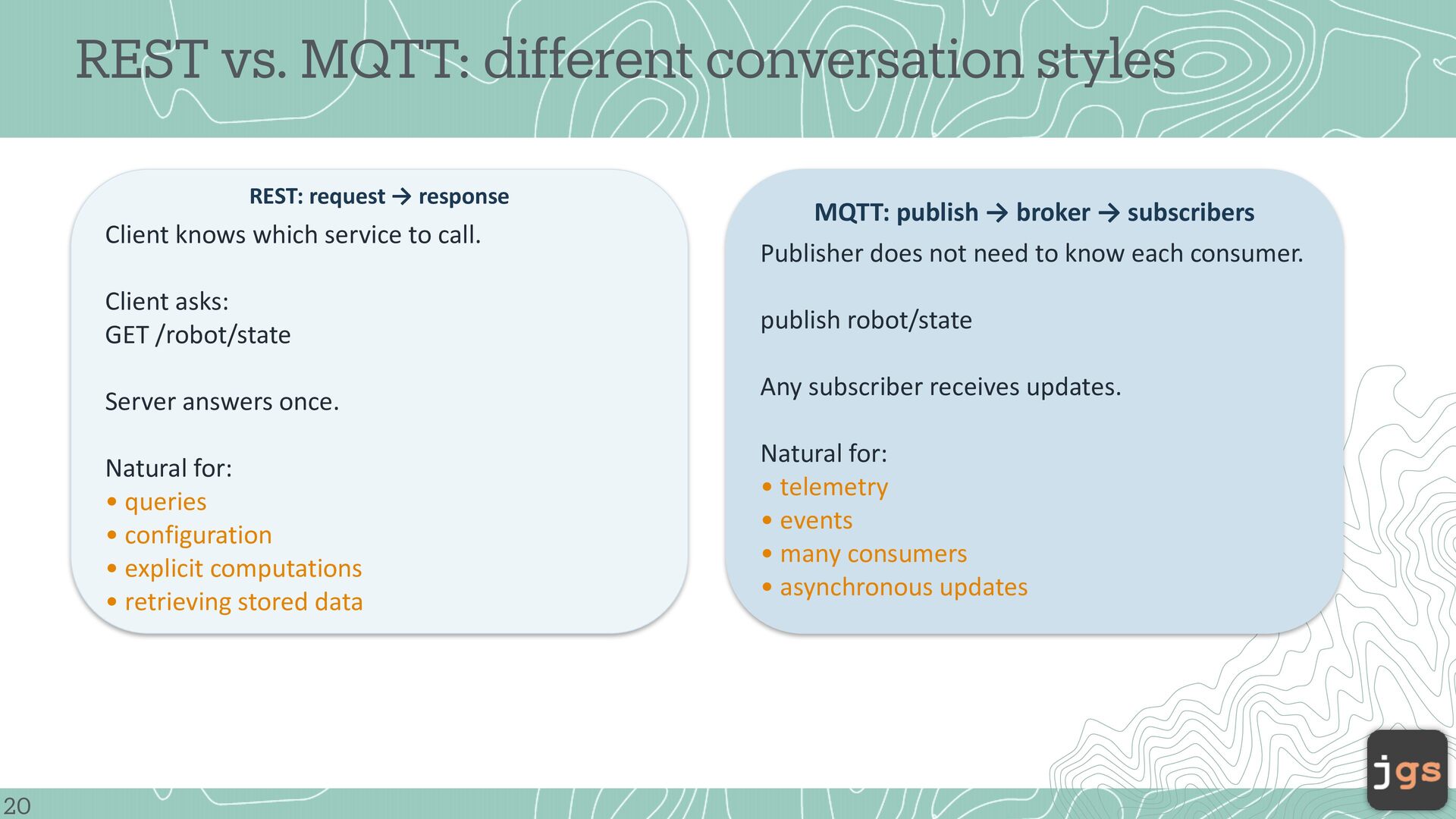

20. REST vs. MQTT: different conversation styles REST: request → response Client knows which service to call. MQTT: publish → broker → subscribers Publisher does not need to know each consumer. Client asks: GET /robot/state publish robot/state Server answers once. Natural for: • queries • configuration • explicit computations • retrieving stored data 20 Any subscriber receives updates. Natural for: • telemetry • events • many consumers • asynchronous updates

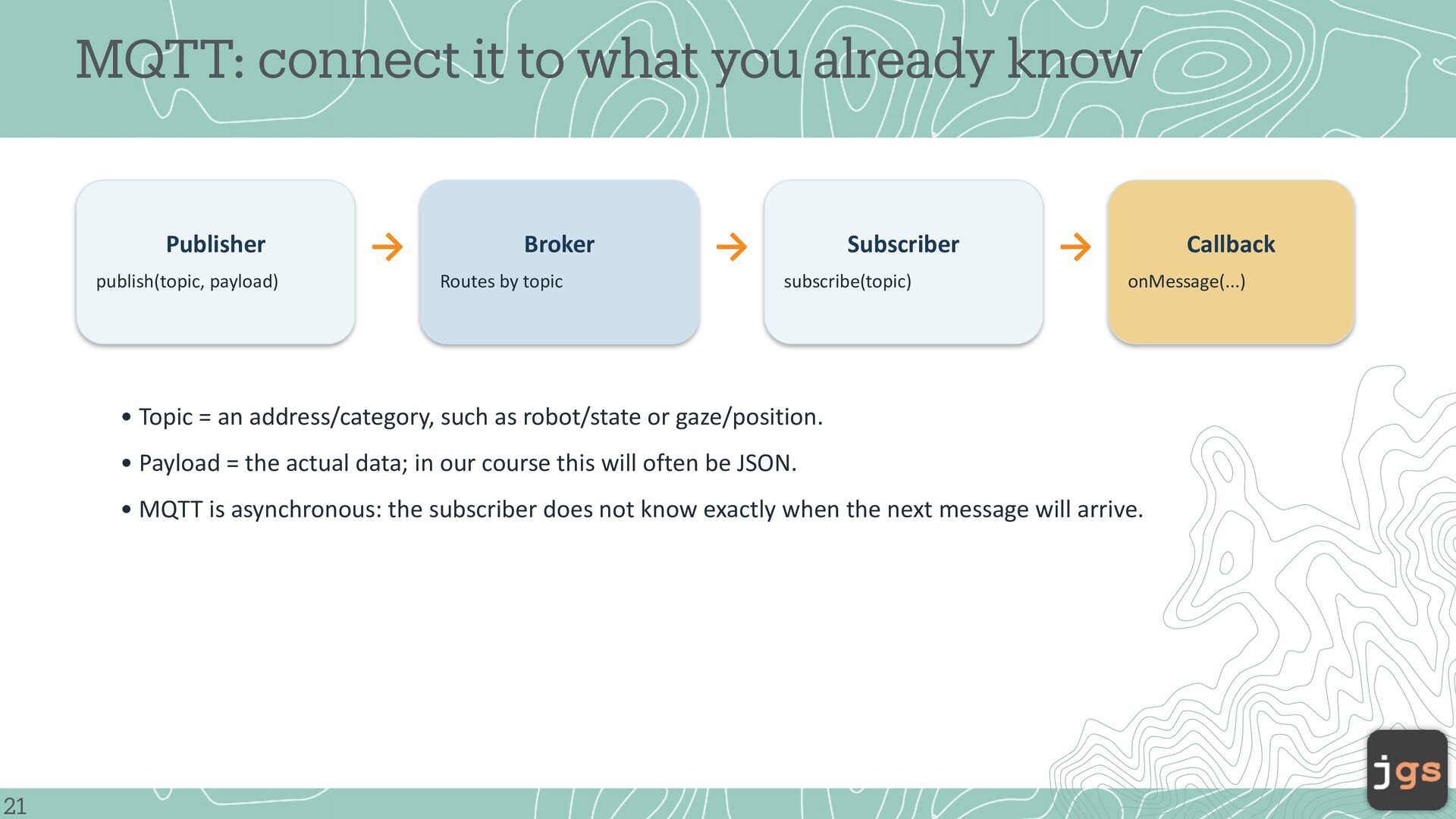

21. MQTT: connect it to what you already know Publisher publish(topic, payload) → Broker Routes by topic → Subscriber subscribe(topic) → Callback onMessage(...) • Topic = an address/category, such as robot/state or gaze/position. • Payload = the actual data; in our course this will often be JSON. • MQTT is asynchronous: the subscriber does not know exactly when the next message will arrive. 21
22. Questions 22
23. CSC 5100 Modern Software Engineering Javier Gonzalez-Sanchez, Ph.D. javiergs@calpoly.edu Fall 2026 Copyright. These slides may be used only as study material for CSC 5100 within the California State University system. They may not be distributed or used for any other purpose.
