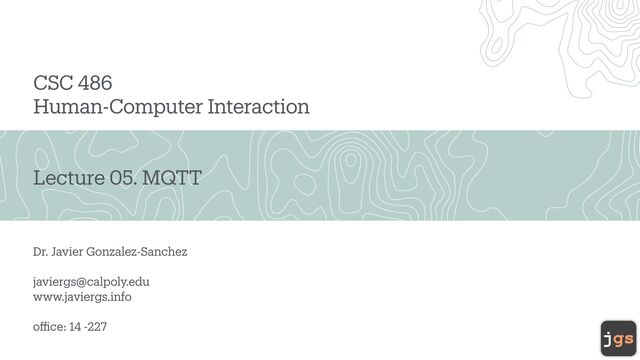

1. Dr. Javier Gonzalez-Sanchez javiergs@calpoly.edu www.javiergs.info o ffi ce: 14 -227 CSC 486 Human-Computer Interaction Lecture 05. MQTT
2. Project Proposal
3. Homework 3 Brain View Controller Client Blackboard PostOffice Model Server Publisher Subscriber
4. Environment
5. Cobot • Univers a l Robotics e-Series https://www.universal-robots.com/media/1802432/e-series-brochure.pdf • Comm a nds th a t c a n be used https://s3-eu-west-1.amazonaws.com/ur-support-site/29983/Script command Examples.pdf 5
6. Brain-Computer Interfaces • Emotiv He a dsets https://www.emotiv.com/ • D a t a S a mples https://emotiv.gitbook.io/cortex-api/data-subscription/data-sample-object 6
7. • Unity Development for HoloLens https://learn.microsoft.com/en-us/windows/mixed-reality/develop/unity/unity-development-overview • Met a Quest (3 a nd Pro) https://developers.meta.com/horizon/resources/compare-devices/ AR/VR 7
8. Eye Tracking • Tobii Sp a rk https://www.tobii.com/products/eye-trackers/screen-based/tobii-pro-spark • Tobii SDK https://www.tobii.com/products/softw a re/ a pplic a tions- a nd-developer-kits/tobii-pro-sdk 8
9. Eye Tracking • Petoi https://www.petoi.com/pages/software-apps • Arduino IoT (with MQTT) https://docs.arduino.cc/tutorials/uno-wifi-rev2/uno-wifi-r2-mqtt-device-to-device/ 9
10. Distributed System Architecture
11. Architecture 11
12. Communication Protocols Sockets • - Wh a t: Low-level communic a tion mech a nism for exch a nging d a t a between two systems. • - How: Utilizes TCP/UDP protocols for reli a ble/unreli a ble d a t a tr a nsfer. • - Use C a se: Direct communic a tion between client-server a pplic a tions (e.g., f ile tr a nsfer a nd ch a t). WebSockets • - Wh a t: Full-duplex communic a tion protocol over a single TCP connection. • - How: En a bles persistent, bidirection a l communic a tion between client a nd server in re a l- time. • - Use C a se: Re a l-time a pplic a tions like live ch a ts, g a ming, a nd stock tr a ding pl a tforms. MQTT (Mess a ge Queuing Telemetry Tr a nsport) • Wh a t: Lightweight mess a ging protocol designed for low-b a ndwidth, high-l a tency networks. • How: Uses a publish-subscribe p a ttern for e ff icient communic a tion between devices. • Use C a se: Ide a l for IoT a pplic a tions, sm a rt home devices, a nd sensor networks. 12
13. Pong 13 https://github.com/CSC3100/Pong-Game
14. Publisher-Subscriber MQTT
15. Message Queuing 15
16. Message Queuing (Topics) 16
17. MQTT Wh a t is MQTT? • MQTT (Mess a ge Queuing Telemetry Tr a nsport) is a lightweight, publish-subscribe network protocol. • Designed for constr a ined devices a nd low-b a ndwidth, high-l a tency, or unreli a ble networks. Key Fe a tures • Simple a nd e a sy to implement. • Low b a ndwidth consumption. • Reli a ble mess a ge delivery. • Sc a l a ble to millions of devices. 17
18. MQTT Architecture Broker • The centr a l server th a t h a ndles mess a ge distribution. • Ex a mples: Mosquitto, HiveMQ, EMQX, AWS MQ. Clients • Devices or a pplic a tions th a t publish (send) a nd subscribe (receive) mess a ges. • Ex a mples: Sensors, mobile a pps, a nd IoT devices. Topics • Hier a rchic a l n a mesp a ces for org a nizing mess a ges. • Ex a mple: home/livingRoom/temper a ture. 18
19. MQTT Work f low Connect • Clients connect to the broker. Subscribe • Clients subscribe to topics of interest. Publish • Clients publish mess a ges to topics. Receive • Clients receive mess a ges from topics they a re subscribed to. Disconnect • Clients disconnect from the broker. 19
20. Maven
21. Create a project with Maven support 21
22. POM.xml 22
23. Maven Repository 23
24. Adding a New Dependency 24
25. Right-Click POM.xml 25
26. Publisher-Subscriber MQTT
27. Eclipse Paho for Java Wh a t is Eclipse P a ho? • A set of MQTT client libr a ries developed by the Eclipse Found a tion. • It supports multiple l a ngu a ges, such a s J a v a , Python, J a v a Script, etc. J a v a Dependency (M a ven) <dependency> <groupId>org.eclipse.paho</groupId> <artifactId>org.eclipse.paho.client.mqttv3</artifactId> <version>1.2.5</version> </dependency> 27
28. https://github.com/CSC3100/MQTT
29. Quality-of-service options • 0 – "at most once": A.K.A. "fire-and-forget." This option is suitable when message loss is acceptable, as it doesn't require acknowledgment or persistence. • 1 – "at least once": This option should be chosen when message loss is unacceptable, and your subscribers can handle duplicate messages. • 2 – "Exactly once": This option is ideal when message loss is unacceptable, and your subscribers cannot handle duplicate messages. 29
30. https://github.com/CSC3100/MQTT
31. Summary • MQTT: Lightweight, e ff i cient protocol for IoT and other use cases. • Mosquitto: A popular open-source MQTT broker. • Eclipse Paho: A versatile MQTT client library. • Java Example: https://github.com/CSC3100/MQTT 31
32. Lab
33. Part 1. Publisher (only testing purposes) 33 1. Create a program in Java that read your data_file
34. Part 1. Publisher (only testing purposes) 34 2. Follow the Publisher example and make this program to “Publish” a line every 10 seconds. Customize your topic and clientID
35. Part 2. Subscriber (this will be part of your app) 35 1. Create a program in Java that subscribes to your published data.
36. Part 2. Subscriber (this will be part of your app) 36 2. Follow the example of the Subscriber code.
37. Part 2. Subscriber (this will be part of your app) 37 3. Every item received, store it in a data structure. When the data structure reaches 1000 values clean it (delete them all).
38. Questions 38
