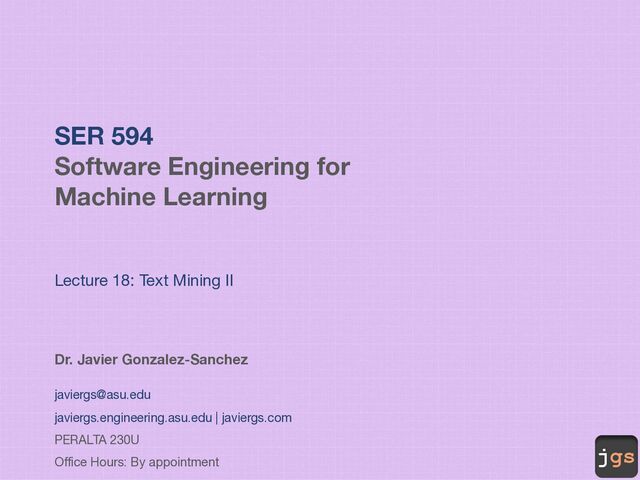

  1. jgs
    SER 594
    Software Engineering for
    Machine Learning
    Lecture 18: Text Mining II
    Dr. Javier Gonzalez-Sanchez
    [email protected]
    javiergs.engineering.asu.edu | javiergs.com
    PERALTA 230U
    Office Hours: By appointment

    View Slide

  2. jgs
    Previously …
    MALLET

    View Slide

  3. Javier Gonzalez-Sanchez | SER 594 | Spring 2022 | 3
    jgs
    Import Data
    import cc.mallet.pipe.iterator.FileIterator;
    import java.io.File;
    public class Main {
    public static void main(String[] args) {
    File[] directories = new File[1];
    directories[0] = new File ("/src/data/");
    FileIterator iterator = new FileIterator(
    directories,
    new TextFileFilter(),
    FileIterator.LAST_DIRECTORY
    );
    }
    }
    import java.io.File;
    import java.io.FileFilter;
    public class TextFileFilter implements FileFilter {
    @Override
    public boolean accept(File file) {
    return file.toString().endsWith(".txt");
    }
    }

    View Slide

  4. Javier Gonzalez-Sanchez | SER 594 | Spring 2022 | 4
    jgs
    Code

    View Slide

  5. Javier Gonzalez-Sanchez | SER 594 | Spring 2022 | 5
    jgs
    Pre-Processing
    § Pipeline
    a modification of Chain of Responsibilities Pattern
    // example
    ArrayList pipeList = new ArrayList ();
    // lowercase
    pipeList.add(new Input2CharSequence("UTF-8"));
    pipeList.add( new CharSequenceLowercase() );
    // remove stop words using a standard English stop list (case sensitive)
    pipeList.add( new TokenSequenceRemoveStopwords(false));
    // tokenize
    Pattern tokenPattern = Pattern.compile("[\\p{L}\\p{N}_]+");
    pipeList.add(new CharSequence2TokenSequence(tokenPattern));
    SerialPipes pipeline = new SerialPipes(pipeList);

    View Slide

  6. Javier Gonzalez-Sanchez | SER 594 | Spring 2022 | 6
    jgs
    java.util.regex.Pattern
    Pattern pattern =
    Pattern.compile("[\\p{L}\\p{N}_]+");
    Matcher matcher =
    pattern.matcher(inputString);
    boolean isOK = matcher.matches();

    View Slide

  7. jgs
    Mallet API
    Text Mining

    View Slide

  8. Javier Gonzalez-Sanchez | SER 594 | Spring 2022 | 8
    jgs
    Code

    View Slide

  9. Javier Gonzalez-Sanchez | SER 594 | Spring 2022 | 9
    jgs
    Model
    InstanceList instances = new InstanceList(pipeline);
    instances.addThruPipe(iterator);
    // topics, alpha, beta
    § High alpha value means that each document is likely to contain a mixture of most of the
    topics, and not any single topic specifically.
    § Low alpha value means that it is more likely that a document may contain mixture of just a
    few, or even only one, of the topics.
    § A high beta value means that a topic is likely to contain a mixture of most of the words
    § A low beta value means that a topic may contain a mixture of just a few of the words.
    § Griffiths and Steyvers (2004) suggest a value of 50/#topics for alpha and 0.1 for beta.
    ParallelTopicModel model = new ParallelTopicModel(5, 0.01, 0.01);
    model.addInstances(instances);
    model.setNumThreads(4);
    model.setNumIterations(1000); // 50 to 2000
    model.estimate();

    View Slide

  10. Javier Gonzalez-Sanchez | SER 594 | Spring 2022 | 10
    jgs
    Results
    LL/token
    the model's likelihood divided by the total
    number of tokens

    View Slide

  11. Javier Gonzalez-Sanchez | SER 594 | Spring 2022 | 11
    jgs
    Remove Words
    § Pipeline
    a modification of Chain of Responsibilities Pattern
    // example
    ArrayList pipeList = new ArrayList ();
    // remove stop words using a standard English stop list (case sensitive)
    pipeList.add(
    new TokenSequenceRemoveStopwords(
    new File(stopListFilePath), // file
    "utf-8", // encoding
    false, // include the default Mallet list
    false, // case sensitive
    false // mark deletions
    )
    );
    // pipeList.add( new TokenSequenceRemoveStopwords(false));
    // tokenize
    Pattern tokenPattern = Pattern.compile("[\\p{L}\\p{N}_]+");
    pipeList.add(new CharSequence2TokenSequence(tokenPattern));
    SerialPipes pipeline = new SerialPipes(pipeList);

    View Slide

  12. jgs
    Evaluation
    Text Mining

    View Slide

  13. Javier Gonzalez-Sanchez | SER 594 | Spring 2022 | 13
    jgs
    Evaluation
    § unsupervised nature
    § Estimate the model's ability to generalize topics
    § The likelihood of unseen documents can be used to compare models—
    higher likelihood implies a better model.
    (2009, Wallach et al.)

    View Slide

  14. Javier Gonzalez-Sanchez | SER 594 | Spring 2022 | 14
    jgs
    Evaluation
    // Split dataset
    InstanceList[] instanceSplit = instances.split(
    new double[] {0.9, 0.1, 0.0} // 90% training, 10% testing. 0% fold
    );
    // Use the first 90% for training
    model.addInstances(instanceSplit[0]);
    model.setNumThreads(4);
    model.setNumIterations(50);
    model.estimate();
    // Get estimator
    MarginalProbEstimator estimator = model.getProbEstimator();
    double loglike = estimator.evaluateLeftToRight(
    instanceSplit[1], // test instances
    10, // default # tokens
    false, //resampling allowed
    null); // printstream to write the output
    System.out.println("Total log likelihood: "+loglike);

    View Slide

  15. Javier Gonzalez-Sanchez | SER 594 | Spring 2022 | 15
    jgs
    Evaluation (50)

    View Slide

  16. Javier Gonzalez-Sanchez | SER 594 | Spring 2022 | 16
    jgs
    Evaluation (1000)

    View Slide

  17. jgs
    Summary
    Text Mining

    View Slide

  18. Javier Gonzalez-Sanchez | SER 594 | Spring 2022 | 18
    jgs
    Summary

    View Slide

  19. Javier Gonzalez-Sanchez | SER 594 | Spring 2022 | 19
    jgs
    Questions

    View Slide

  20. jgs
    SER 594 Software Engineering for Machine Learning
    Javier Gonzalez-Sanchez, Ph.D.
    [email protected]
    Spring 2022
    Copyright. These slides can only be used as study material for the class CSE205 at Arizona State University.
    They cannot be distributed or used for another purpose.
