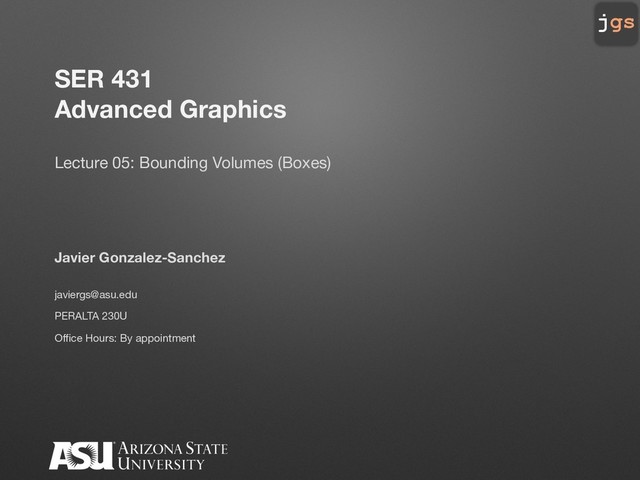

  1. jgs
    SER 431
    Advanced Graphics
    Lecture 05: Bounding Volumes (Boxes)
    Javier Gonzalez-Sanchez
    [email protected]
    PERALTA 230U
    Office Hours: By appointment

    View Slide

  2. jgs
    It could be time to do
    Software Engineering

    View Slide

  3. Javier Gonzalez-Sanchez | SER431 | Fall 2018 | 3
    jgs
    Think about this
    § A class Mesh
    All data is here
    § A class Renderer
    Render a mesh object with and without textures, normals, etc.
    Render a mesh object and visualize its AABB or its normal lines.
    § What about textures?
    § Where do we do collision detection?

    View Slide

  4. jgs
    Bounding Volumes (Boxes)

    View Slide

  5. Javier Gonzalez-Sanchez | SER431 | Fall 2018 | 5
    jgs
    Primitives as Bounding Volumes
    § Simple primitives are used as bounding volumes for more complex objects
    § Bounding volumes can be used for approximate intersection tests:
    § If the bounding volumes of two objects do not intersect à the objects
    themselves do not intersect.
    § If the bounding volumes of two objects overlap then maybe there is an
    intersection maybe not

    View Slide

  6. Javier Gonzalez-Sanchez | SER431 | Fall 2018 | 6
    jgs
    Bounding Volumes
    § Axis-aligned Bounding Box (AABB)
    The planes of the box are aligned
    with the world coordinates
    § Object-oriented Bounding Box (OBB)
    The planes are aligned to enclose the
    object as close as possible
    Minimum Volume bounding boxes

    View Slide

  7. Javier Gonzalez-Sanchez | SER431 | Fall 2018 | 7
    jgs
    Bounding Volumes
    § Spheres
    Enclosing sphere
    § Convex Hull
    Closest (convex) fit
    Smallest ratio

    View Slide

  8. Javier Gonzalez-Sanchez | SER431 | Fall 2018 | 8
    jgs
    §Axis-aligned Bounding Box (AABB)
    § An AABB is defined by its minimal and maximal positions in space
    Pmin=(xmin, ymin, zmin),
    Pmax = (xmax, ymax, zmax)
    § Calculate
    Initialize pmin to +infinite or the first vertex
    Initialize pmax to –infinite or the first vertex
    foreach vertex p do {
    if (p.x < pmin.x) then pmin.x = p.x
    if (p.y < pmin.y) then pmin.y = p.y
    if (p.z > pmax.z) then pmax.z = p.z
    }

    View Slide

  9. Javier Gonzalez-Sanchez | SER431 | Fall 2018 | 9
    jgs
    Snippet
    #define MIN2(a,b) (((a) < (b))?(a):(b))
    #define MAX2(a,b) (((a) > (b))?(a):(b))
    // calculate bounding box (AABB)
    void calculateAABB() {
    vector& v = m->dot_vertex;
    if (v.empty()) return;
    boundingMaxPoint = boundingMinPoint = v[0];
    for (unsigned int i = 1; i < v.size(); i++) {
    boundingMinPoint.x = MIN2(boundingMinPoint.x, v[i].x);
    boundingMinPoint.y = MIN2(boundingMinPoint.y, v[i].y);
    boundingMinPoint.z = MIN2(boundingMinPoint.z, v[i].z);
    boundingMaxPoint.x = MAX2(boundingMaxPoint.x, v[i].x);
    boundingMaxPoint.y = MAX2(boundingMaxPoint.y, v[i].y);
    boundingMaxPoint.z = MAX2(boundingMaxPoint.z, v[i].z);
    }
    }

    View Slide

  10. Javier Gonzalez-Sanchez | SER431 | Fall 2018 | 10
    jgs
    Intersection Computations (AABB)
    § Compare min and max in X, Y and Z directions
    § If all of them intersect, then the object intersects

    View Slide

  11. Javier Gonzalez-Sanchez | SER431 | Fall 2018 | 11
    jgs
    Snippet
    // use AABB bounding box to detect intersection
    bool intersect(Mesh* A Mesh* B) {
    Vec3f a1 = A->worldBoundingMinPoint;
    Vec3f b1 = A->worldBoundingMaxPoint;
    Vec3f a2 = B->worldBoundingMinPoint;
    Vec3f b2 = B->worldBoundingMaxPoint;
    int x = 0, y = 0, z = 0;
    if ((a1.x >= a2.x && a1.x <= b2.x) || (b1.x >= a2.x && a1.x <= b2.x) ||
    (a2.x >= a1.x && a2.x <= b1.x) || (b2.x >= a1.x && b2.x <= b1.x))
    x = 1;
    if ((a1.y >= a2.y && a1.y <= b2.y) || (b1.y >= a2.y && a1.y <= b2.y) ||
    (a2.y >= a1.y && a2.y <= b1.y) || (b2.y >= a1.y && b2.y <= b1.y))
    y = 1;
    if ((a1.z >= a2.z && a1.z <= b2.z) || (b1.z >= a2.z && a1.z <= b2.z) ||
    (a2.z >= a1.z && a2.z <= b1.z) || (b2.z >= a1.z && b2.z <= b1.z))
    z = 1;
    if (x == 1 && y == 1 && z == 1) {
    return true;
    }
    else
    return false;
    }

    View Slide

  12. Javier Gonzalez-Sanchez | SER431 | Fall 2018 | 12
    jgs
    Updating AABB
    § Translation invariant
    ✘ Any other kind of movements, box no longer
    remains axis-aligned
    ✘ Needs to be recomputed frame by frame
    § Very simple computation

    View Slide

  13. Javier Gonzalez-Sanchez | SER431 | Fall 2018 | 13
    jgs
    Hierarchical Bounding Volumes
    § At the bottom of such a hierarchy a primitive of one type bounds another
    § For instance, using axis aligned bounding boxes (AABB), to bound triangles.
    The overlap test between two AABBs less expensive than the triangle-
    triangle intersection test.

    View Slide

  14. Javier Gonzalez-Sanchez | SER431 | Fall 2018 | 14
    jgs
    Hierarchical Bounding Volumes
    § Similar to spatial subdivision
    § But for each object Slightly different
    § Union of children may not encompass the parent
    § If does not intersect, do not explore the children
    § If intersects, do bounding volume intersection on children
    § Continue till you get to the triangle-triangle intersection (Very few of them
    needs to be computed)

    View Slide

  15. Javier Gonzalez-Sanchez | SER431 | Fall 2018 | 15
    jgs
    Homework
    Add Objects to your world
    Calculate AABB
    Draw AABB with lines
    What about drawing the Normal lines?

    View Slide

  16. jgs
    SER431 Advanced Graphics
    Javier Gonzalez-Sanchez
    [email protected]
    Fall 2018
