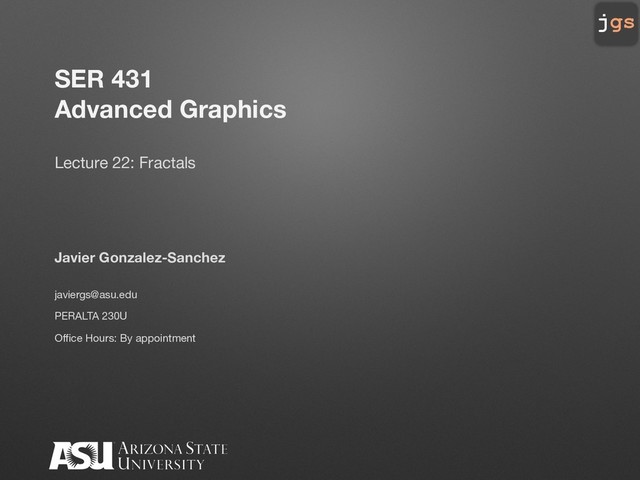

  1. jgs
    SER 431
    Advanced Graphics
    Lecture 22: Fractals
    Javier Gonzalez-Sanchez
    [email protected]
    PERALTA 230U
    Office Hours: By appointment

    View Slide

  2. Javier Gonzalez-Sanchez | SER431 | Fall 2018 | 1
    jgs
    Definition
    Fractal:
    “a fragmented geometric shape that can be split into parts, each of which is
    (at least approximately) a reduced-size copy of the whole.”
    Fundamental component of fractal geometry is recursion, i.e., fractals all have
    a recursive definition

    View Slide

  3. Javier Gonzalez-Sanchez | SER431 | Fall 2018 | 2
    jgs
    Definition
    Fractal:
    “a fragmented geometric shape that can be split into parts, each of which is
    (at least approximately) a reduced-size copy of the whole.”
    Fundamental component of fractal geometry is recursion, i.e., fractals all have
    a recursive definition
    https://goo.gl/images/XC8RWU

    View Slide

  4. Javier Gonzalez-Sanchez | SER431 | Fall 2018 | 3
    jgs
    https://goo.gl/images/aPyG6i

    View Slide

  5. Javier Gonzalez-Sanchez | SER431 | Fall 2018 | 4
    jgs
    Definition
    § Symmetrical fractal
    The parts are, in fact, exact replicas of the whole.
    § Stochastic fractal
    Built out of probabilities and randomness.

    View Slide

  6. jgs
    Case 1: Symmetrical
    Stack boxes

    View Slide

  7. Javier Gonzalez-Sanchez | SER431 | Fall 2018 | 6
    jgs
    Code
    // create a pile of boxes as fractal
    void stackBoxes(float x, float y, float z) {
    if (y >= 0) {
    glPushMatrix();
    glTranslatef(x, y*100, z*100/2);
    glCallList(display2);
    glPopMatrix();
    stackBoxes(x-50, y-1, z-1);
    stackBoxes(x-50, y-1, z+1);
    stackBoxes(x+50, y-1, z-1);
    stackBoxes(x+50, y-1, z+1);
    }
    }

    View Slide

  8. Javier Gonzalez-Sanchez | SER431 | Fall 2018 | 7
    jgs
    Case 1

    View Slide

  9. jgs
    Case 2: Stochastic ● ArrayList
    Lightning bolt

    View Slide

  10. Javier Gonzalez-Sanchez | SER431 | Fall 2018 | 9
    jgs
    Case 1
    Level = 0 Level = 1 Level = 2
    Level = 3 Level = 4

    View Slide

  11. Javier Gonzalez-Sanchez | SER431 | Fall 2018 | 10
    jgs
    Code
    vector thunderbolt;
    void createBolt(Vec3f p1, Vec3f p2, int level) {
    thunderbolt.push_back(Line(p1.x,p1.y,p1.z, p2.x,p2.y, p2.z));
    for (int t = 0; t < level; t++) {
    int tam = thunderbolt.size();
    Vec3f middle; int i;
    for (i = 0; i < tam; i++) {
    p1.x = thunderbolt[0].x1; p1.y = thunderbolt[0].y1; p1.z = thunderbolt[0].z1;
    p2.x = thunderbolt[0].x2; p2.y = thunderbolt[0].y2; p2.z = thunderbolt[0].z2;
    thunderbolt.erase(thunderbolt.begin());
    middle = calculateMiddle(p1, p2, t);
    thunderbolt.push_back(Line(p1.x, p1.y, p1.z, middle.x,middle.y, middle.z));
    thunderbolt.push_back(Line(middle.x, middle.y, middle.z, p2.x,p2.y, p2.z));
    }
    // extension line
    Vec3f direction = middle - p1;
    Vec3f pin = middle + direction * 0.7;
    thunderbolt.push_back(Line(middle.x, middle.y, middle.z, pin.x, pin.y, pin.z));
    }
    }

    View Slide

  12. Javier Gonzalez-Sanchez | SER431 | Fall 2018 | 11
    jgs
    // calculate middle points with a displacement for the thunderbolt
    Vec3f calculateMiddle(Vec3f p1, Vec3f p2, int level) {
    Vec3f O = (p2+p1)/2;
    float m1 = (p2.y - p1.y) / (p2.x - p1.x);
    int signo = (random_number()>0.5) ? 1 : -1;
    // higher level, small displacement
    float x = O.x + signo*((cos(PI/2 + atan(m1)))/ pow(2, level));
    float y = O.y + signo*((sin(PI/2 + atan(m1)))/ pow(2, level));
    return Vec3f(x, y, (signo*random_number() / pow(2, level)) );
    }

    View Slide

  13. Javier Gonzalez-Sanchez | SER431 | Fall 2018 | 12
    jgs
    void display(void) {
    // ...
    glPushMatrix();
    glTranslatef(-300,0,300);
    glScalef(100, 100, 100);
    for (Line line : thunderbolt) {
    glBegin(GL_QUADS);
    glVertex3f(line.x1, line.y1, line.z1);
    glVertex3f(line.x1+0.1, line.y1, line.z1 + 0.1);
    glVertex3f(line.x2, line.y2, line.z2);
    glVertex3f(line.x2 +0.1, line.y2, line.z2 + 0.1);
    glEnd();
    }
    glPopMatrix();
    // ...
    }

    View Slide

  14. jgs
    Case 3 Stochastic ● DisplayList
    Tree

    View Slide

  15. Javier Gonzalez-Sanchez | SER431 | Fall 2018 | 14
    jgs
    Case 1
    Level = 0 Level = 1 Level = 2
    Level = 3 Level = 10

    View Slide

  16. Javier Gonzalez-Sanchez | SER431 | Fall 2018 | 15
    jgs
    Code
    // Create display lists for a leaf, a set of leaves, and a stem
    void CreateTreeLists(void) {
    // steam
    glNewList(STEM, GL_COMPILE);
    glPushMatrix();
    glRotatef(-90, 1, 0, 0);
    gluCylinder(cylquad, 0.1, 0.08, 1, 10, 2);
    glPopMatrix();
    glEndList();
    // leaf
    glNewList(LEAF, GL_COMPILE);
    glBegin(GL_TRIANGLES);
    // vertex here
    glEnd();
    glEndList();

    View Slide

  17. Javier Gonzalez-Sanchez | SER431 | Fall 2018 | 16
    jgs
    // steam & leaf
    glNewList(STEMANDLEAVES, GL_COMPILE);
    glPushMatrix();
    glCallList(STEM);
    for (i = 0; i < 3; i++) {
    glTranslatef(0, 0.333, 0); glRotatef(90, 0, 1, 0);
    glPushMatrix();
    glRotatef(0, 0, 1, 0); glRotatef(50, 1, 0, 0); glCallList(LEAF);
    glPopMatrix();
    glPushMatrix();
    glRotatef(180, 0, 1, 0); glRotatef(60, 1, 0, 0); glCallList(LEAF);
    glPopMatrix();
    }
    glPopMatrix();
    glEndList();
    // full tree
    glNewList(FULLTREE, GL_COMPILE);
    glPushMatrix();
    glTranslatef(0, -1, 0);
    fractalTree(0);
    glPopMatrix();
    glEndList();
    }

    View Slide

  18. Javier Gonzalez-Sanchez | SER431 | Fall 2018 | 17
    jgs
    void fractalTree(int level) {
    long savedseed;
    if (level == MAX_LEVEL) {
    glPushMatrix();
    glRotatef(random_number() * 180, 0, 1, 0); glCallList(STEMANDLEAVES);
    glPopMatrix();
    } else {
    glCallList(STEM);
    glPushMatrix();
    glRotatef(random_number() * 180, 0, 1, 0); glTranslatef(0, 1, 0); glScalef(0.7, 0.7, 0.7);
    glPushMatrix();
    glRotatef(110 + random_number() * 40, 0, 1, 0);
    glRotatef(30 + random_number() * 20, 0, 0, 1);
    fractalTree(level + 1);
    glPopMatrix();glPushMatrix();
    glRotatef(-130 + random_number() * 40, 0, 1, 0);
    glRotatef(30 + random_number() * 20, 0, 0, 1);
    fractalTree(level + 1);
    glPopMatrix();glPushMatrix();
    glRotatef(-20 + random_number() * 40, 0, 1, 0);
    glRotatef(30 + random_number() * 20, 0, 0, 1);
    fractalTree(level + 1);
    glPopMatrix();
    glPopMatrix();
    }
    }

    View Slide

  19. jgs
    Test Yourselves

    View Slide

  20. Javier Gonzalez-Sanchez | SER431 | Fall 2018 | 19
    jgs
    Test Yourselves
    § Create a forest
    It could be possible to have 2 or 3 slightly different trees
    § Create a lightning bolt
    Is is possible to add glow?
    What about animation?
    How to create a Koch snowflake?

    View Slide

  21. Javier Gonzalez-Sanchez | SER431 | Fall 2018 | 20
    jgs
    Homework
    https://github.com/javiergs/SER431/blob/master/Lecture22/fractals.cpp
    § Review the source code

    View Slide

  22. jgs
    SER431 Advanced Graphics
    Javier Gonzalez-Sanchez
    [email protected]
    Fall 2018
    Disclaimer. These slides can only be used as study material for the class SER431 at ASU. They cannot be
    distributed or used for another purpose.

    View Slide
