1. GroupBy Query Performance Tuning Jihoon Son Imply Data

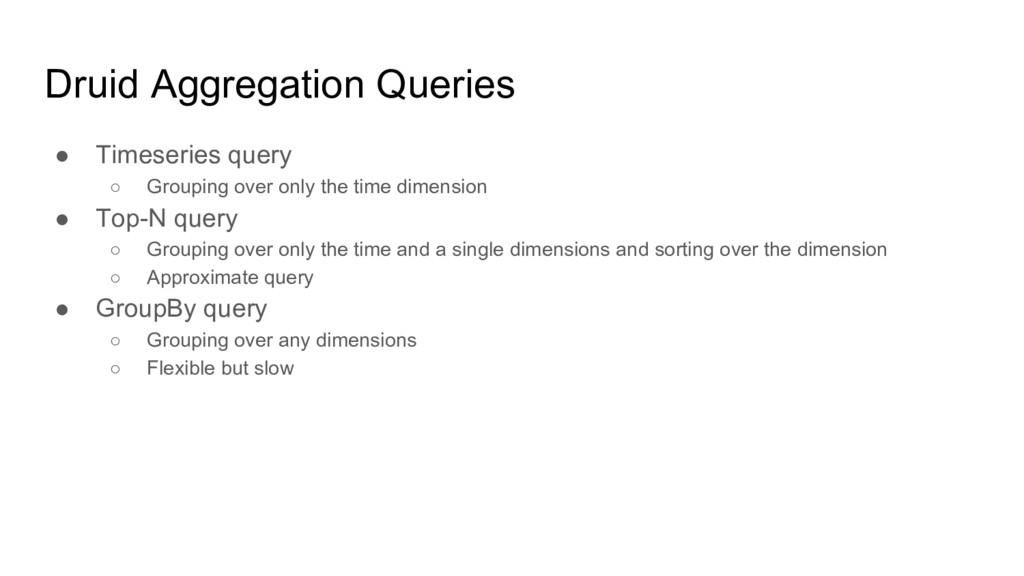

2. Druid Aggregation Queries • Timeseries query ◦ Grouping over only the time dimension • Top-N query ◦ Grouping over only the time and a single dimensions and sorting over the dimension ◦ Approximate query • GroupBy query ◦ Grouping over any dimensions ◦ Flexible but slow

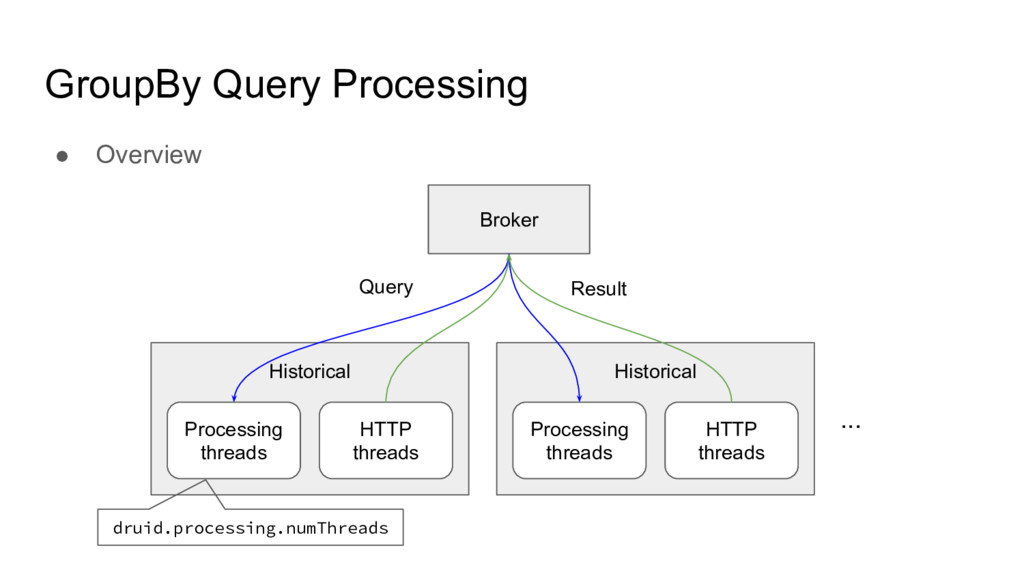

3. GroupBy Query Processing • Overview Broker Processing threads HTTP threads Historical Processing threads HTTP threads Historical ... Query Result druid.processing.numThreads

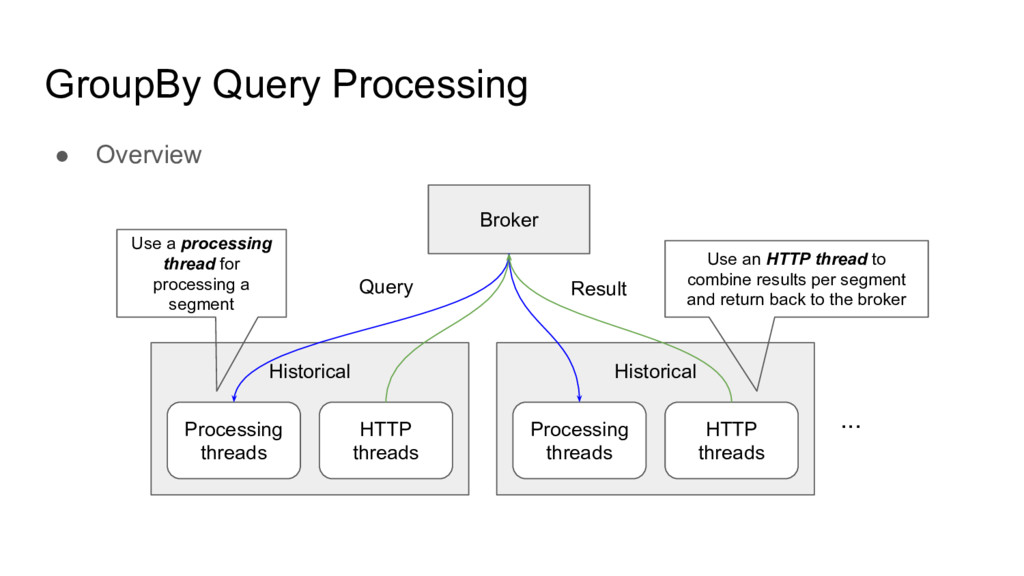

4. GroupBy Query Processing • Overview Broker Processing threads HTTP threads Historical Processing threads HTTP threads Historical ... Query Result Use a processing thread for processing a segment Use an HTTP thread to combine results per segment and return back to the broker

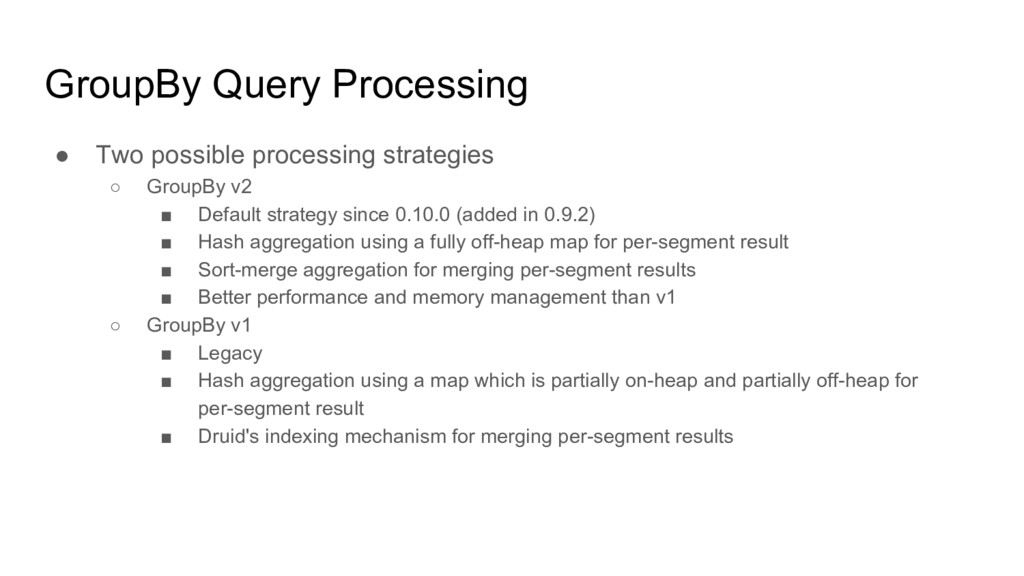

5. GroupBy Query Processing • Two possible processing strategies ◦ GroupBy v2 ▪ Default strategy since 0.10.0 (added in 0.9.2) ▪ Hash aggregation using a fully off-heap map for per-segment result ▪ Sort-merge aggregation for merging per-segment results ▪ Better performance and memory management than v1 ◦ GroupBy v1 ▪ Legacy ▪ Hash aggregation using a map which is partially on-heap and partially off-heap for per-segment result ▪ Druid's indexing mechanism for merging per-segment results

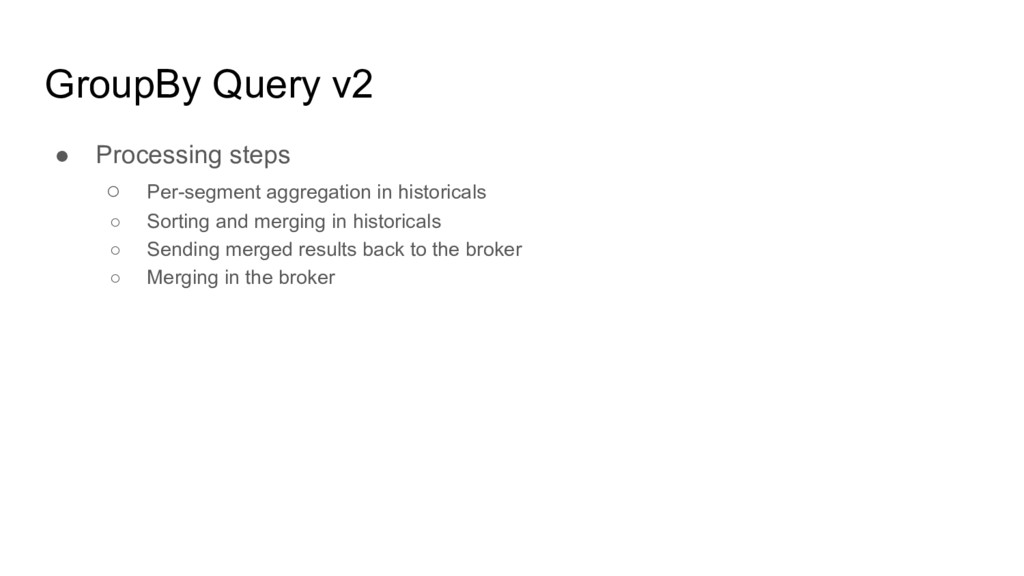

6. GroupBy Query v2 • Processing steps ◦ Per-segment aggregation in historicals ◦ Sorting and merging in historicals ◦ Sending merged results back to the broker ◦ Merging in the broker

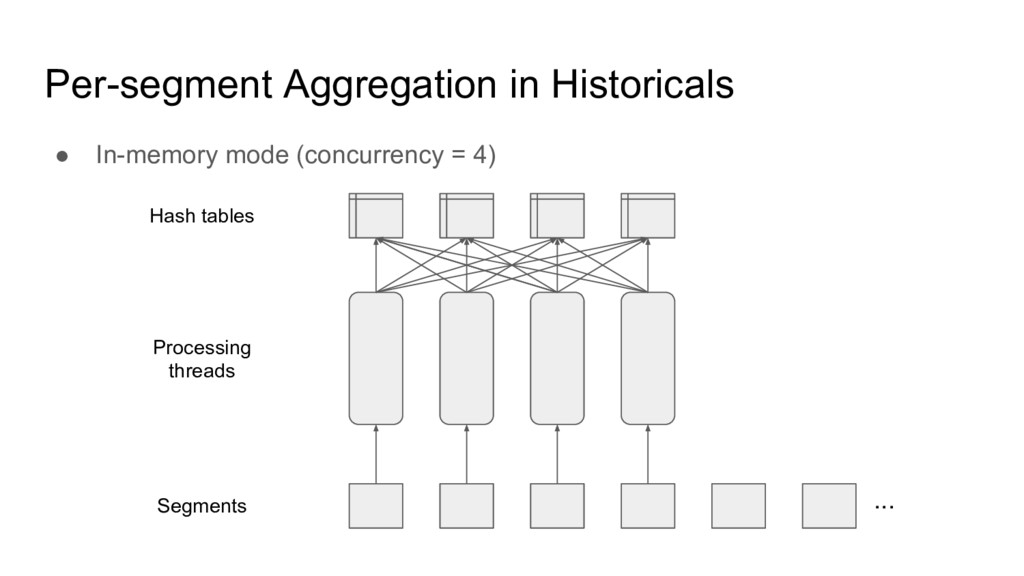

7. Per-segment Aggregation in Historicals • In-memory mode (concurrency = 4) Hash tables Processing threads Segments ...

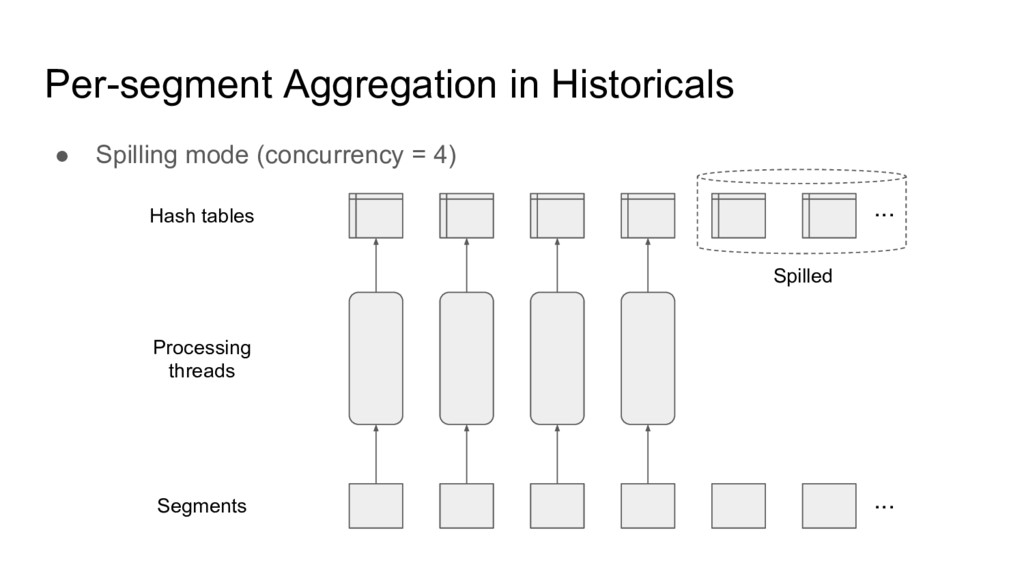

8. Per-segment Aggregation in Historicals • Spilling mode (concurrency = 4) Hash tables Processing threads Segments ... ... Spilled

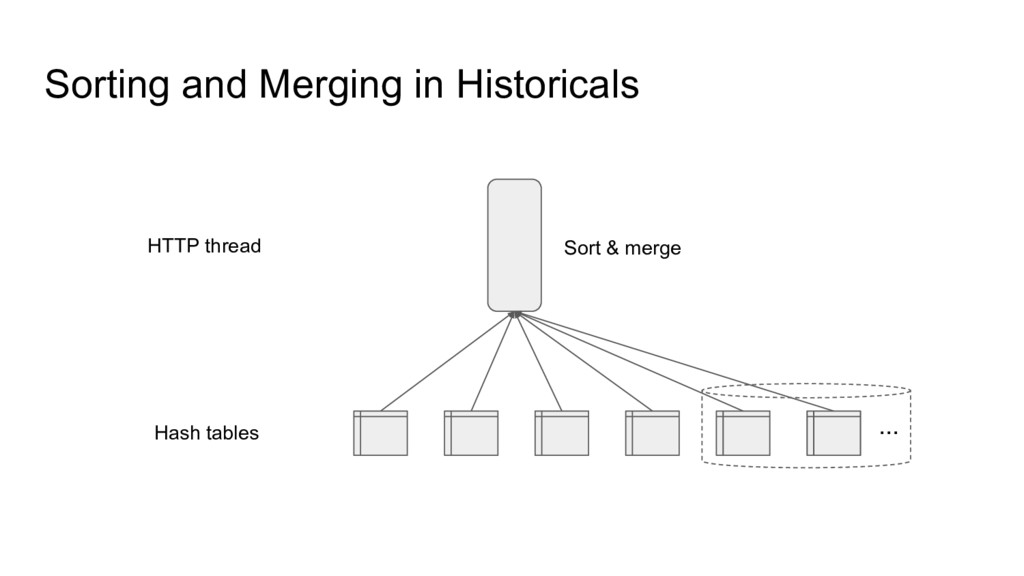

9. Sorting and Merging in Historicals Hash tables ... HTTP thread Sort & merge

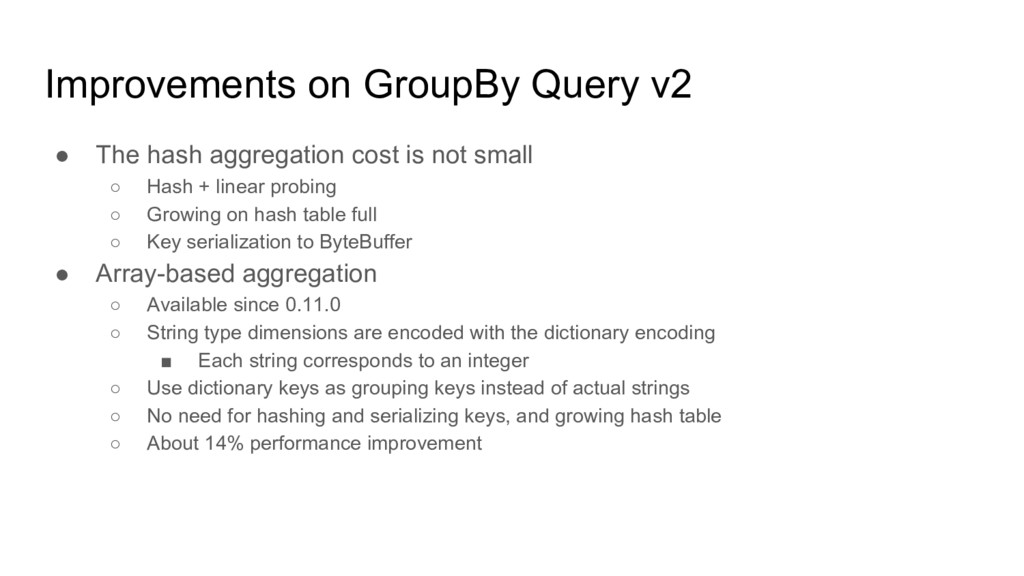

10. Improvements on GroupBy Query v2 • The hash aggregation cost is not small ◦ Hash + linear probing ◦ Growing on hash table full ◦ Key serialization to ByteBuffer • Array-based aggregation ◦ Available since 0.11.0 ◦ String type dimensions are encoded with the dictionary encoding ▪ Each string corresponds to an integer ◦ Use dictionary keys as grouping keys instead of actual strings ◦ No need for hashing and serializing keys, and growing hash table ◦ About 14% performance improvement
11. Improvements on GroupBy Query v2 • Parallel sort Hash tables ... HTTP thread Sort Processing threads Merge

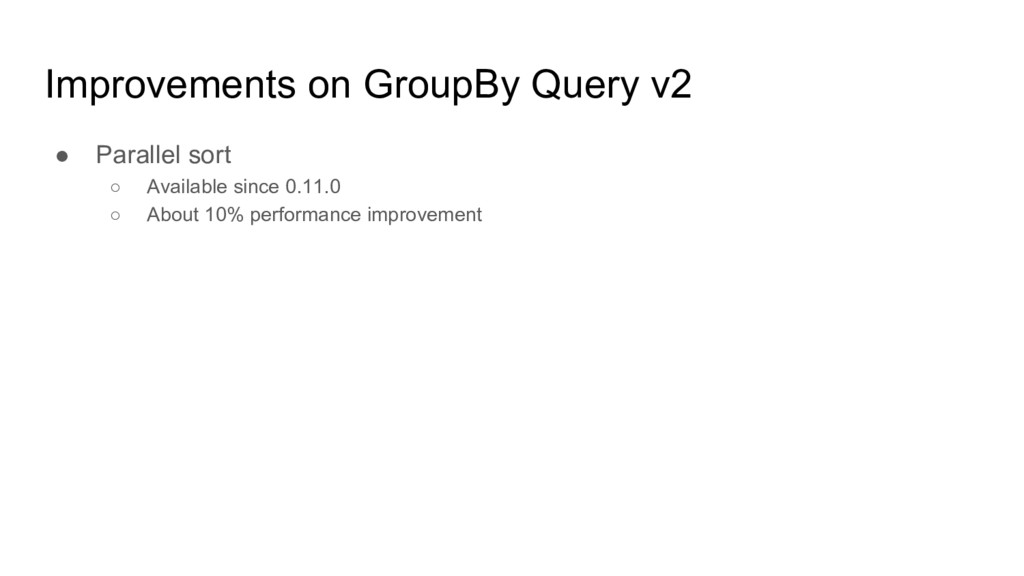

12. Improvements on GroupBy Query v2 • Parallel sort ◦ Available since 0.11.0 ◦ About 10% performance improvement

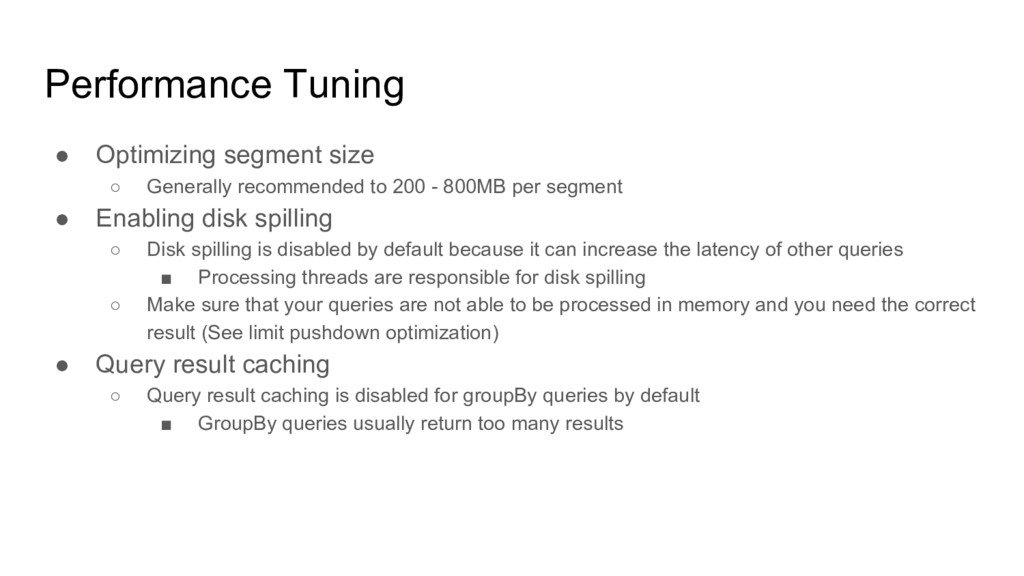

13. • Optimizing segment size ◦ Generally recommended to 200 - 800MB per segment • Enabling disk spilling ◦ Disk spilling is disabled by default because it can increase the latency of other queries ▪ Processing threads are responsible for disk spilling ◦ Make sure that your queries are not able to be processed in memory and you need the correct result (See limit pushdown optimization) • Query result caching ◦ Query result caching is disabled for groupBy queries by default ▪ GroupBy queries usually return too many results Performance Tuning

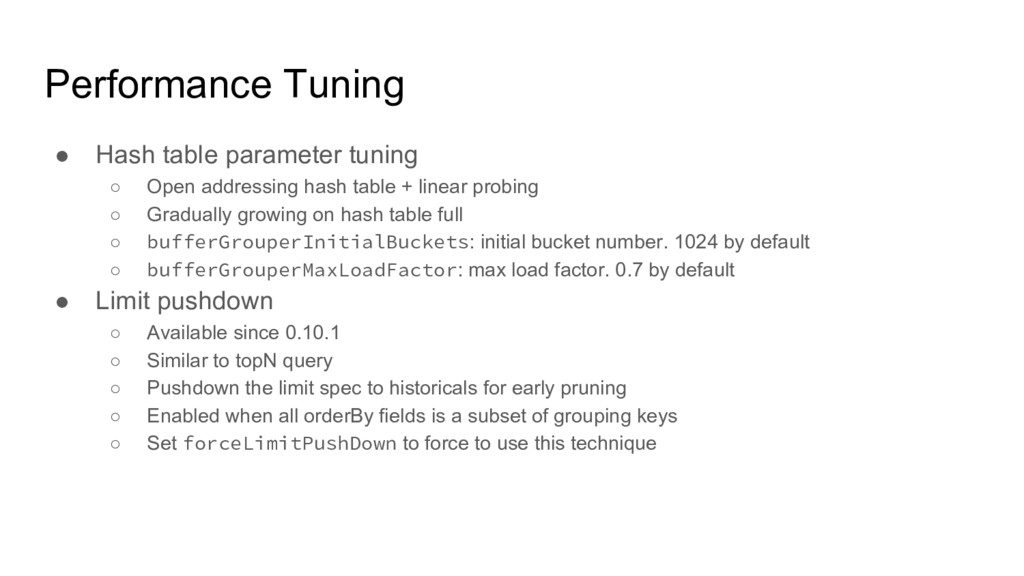

14. • Hash table parameter tuning ◦ Open addressing hash table + linear probing ◦ Gradually growing on hash table full ◦ bufferGrouperInitialBuckets: initial bucket number. 1024 by default ◦ bufferGrouperMaxLoadFactor: max load factor. 0.7 by default • Limit pushdown ◦ Available since 0.10.1 ◦ Similar to topN query ◦ Pushdown the limit spec to historicals for early pruning ◦ Enabled when all orderBy fields is a subset of grouping keys ◦ Set forceLimitPushDown to force to use this technique Performance Tuning

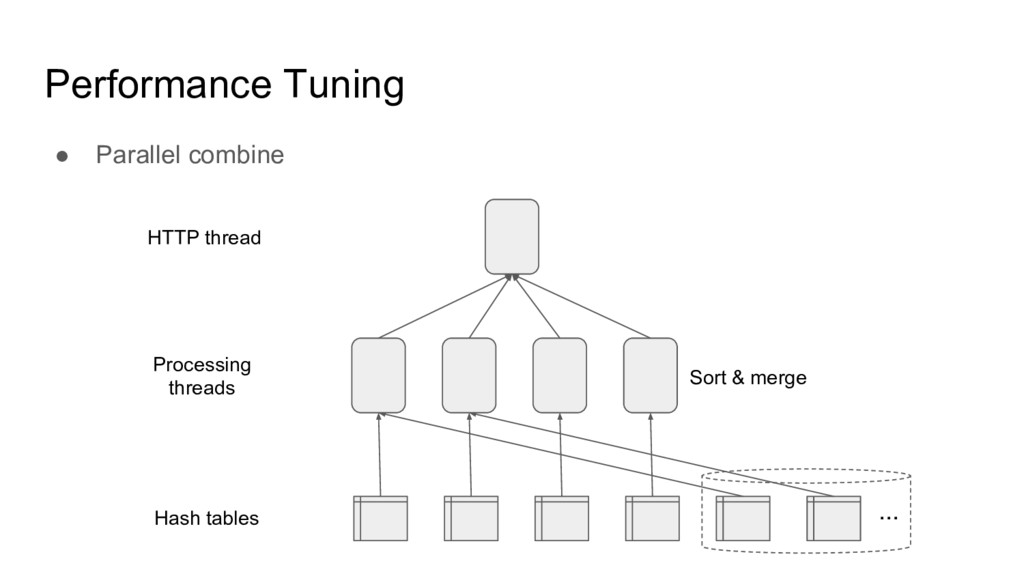

15. • Parallel combine Performance Tuning Hash tables ... HTTP thread Processing threads Sort & merge

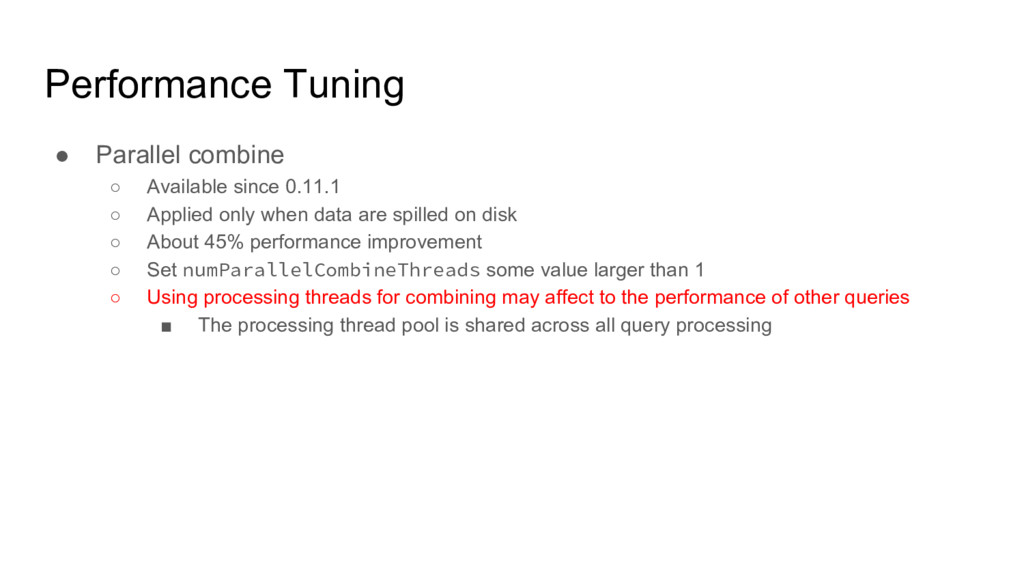

16. • Parallel combine ◦ Available since 0.11.1 ◦ Applied only when data are spilled on disk ◦ About 45% performance improvement ◦ Set numParallelCombineThreads some value larger than 1 ◦ Using processing threads for combining may affect to the performance of other queries ▪ The processing thread pool is shared across all query processing Performance Tuning
17. Q & A
