Cachirulo valley Bigtable and friends

Quick overview of NoSQL and some BigTable flavours.

Transcript

1. 9/13/12   BigTable  &  Friends   &  friends

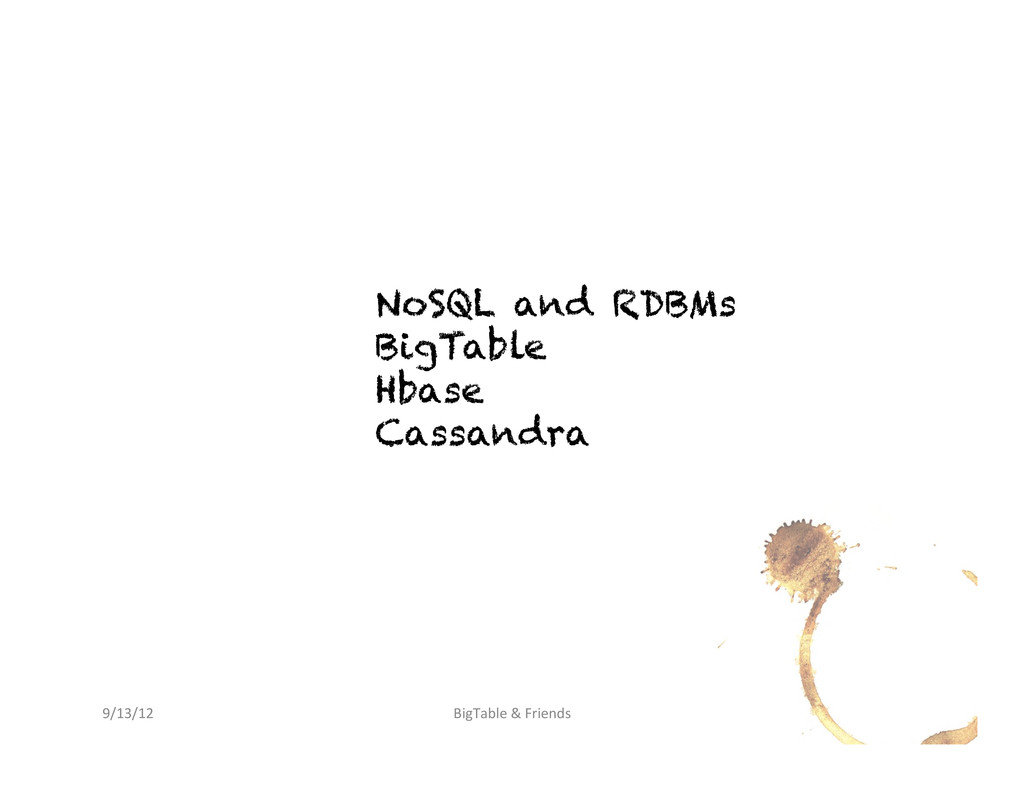

2. 9/13/12   BigTable  &  Friends   NoSQL and RDBMs BigTable Hbase Cassandra

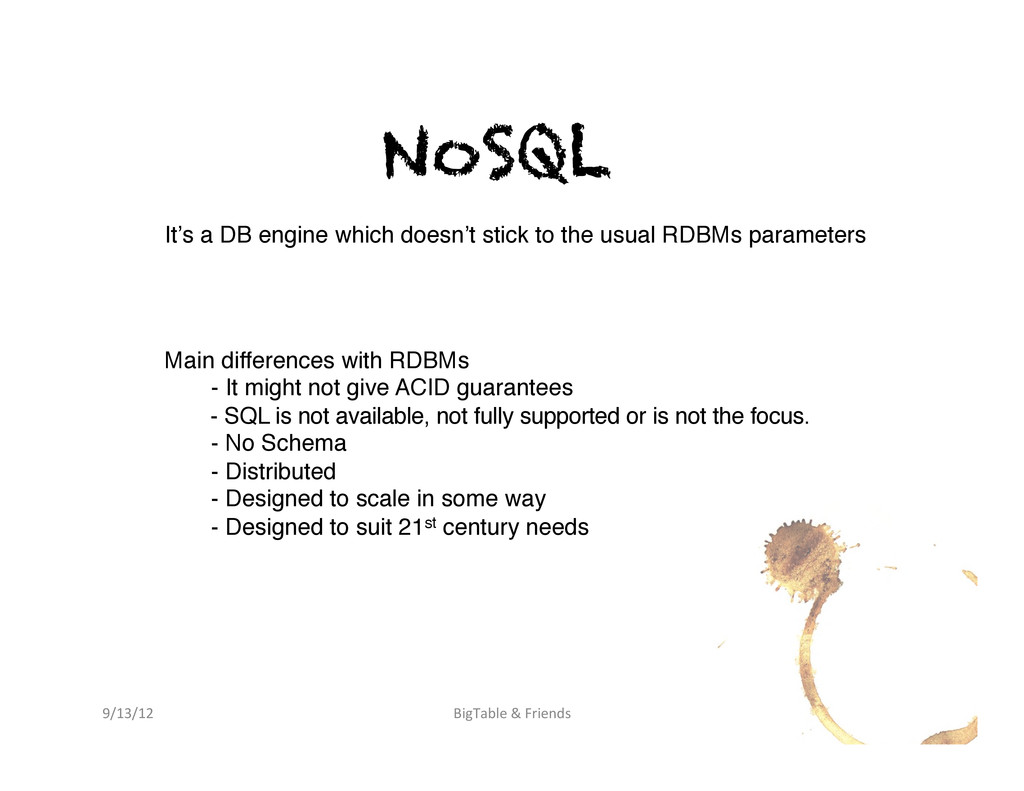

3. NoSQL It’s a DB engine which doesn’t stick to the usual RDBMs parameters! Main differences with RDBMs! !- It might not give ACID guarantees! !- SQL is not available, not fully supported or is not the focus.! !- No Schema! !- Distributed ! !- Designed to scale in some way! !- Designed to suit 21st century needs! ! ! 9/13/12   BigTable  &  Friends

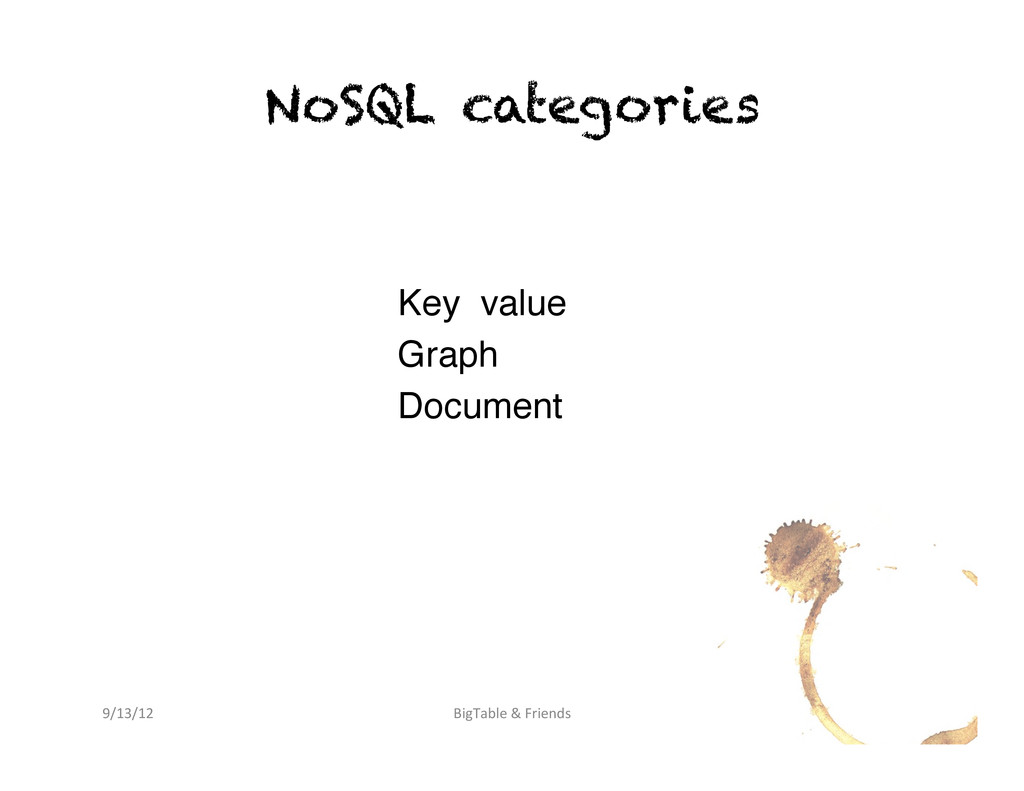

4. NoSQL categories Key value! Graph! Document! ! 9/13/12   BigTable  &  Friends

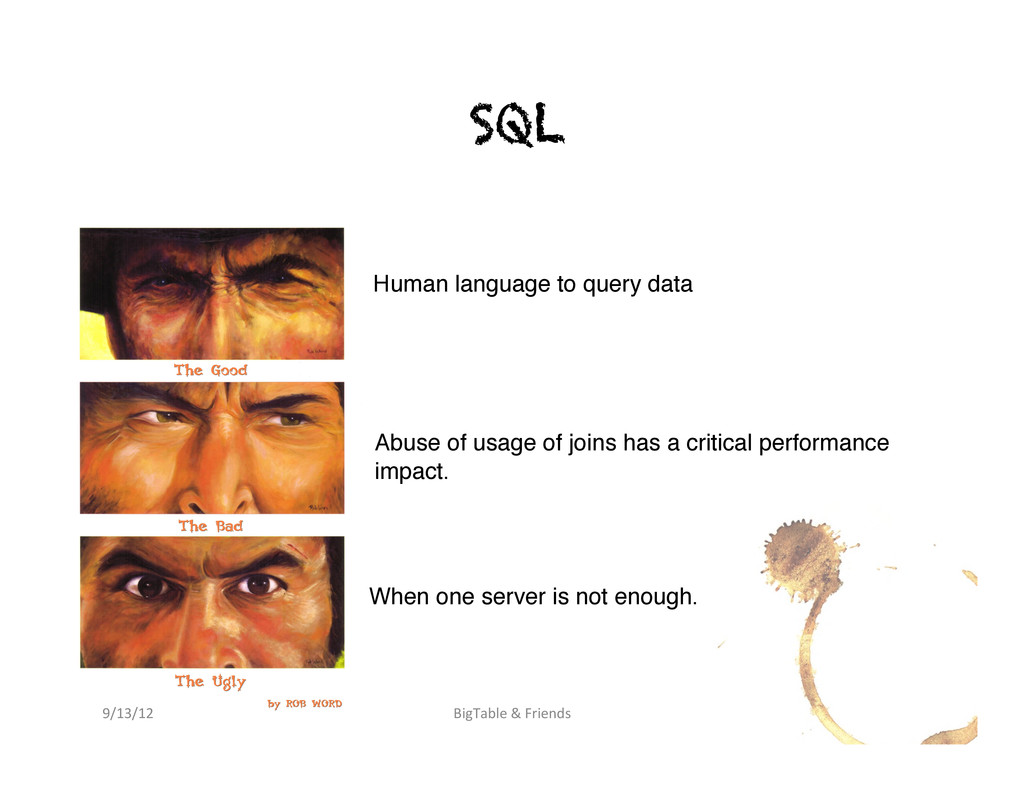

5.       Abuse of usage of joins has a critical performance impact. ! Human language to query data!     When one server is not enough. !   SQL 9/13/12   BigTable  &  Friends

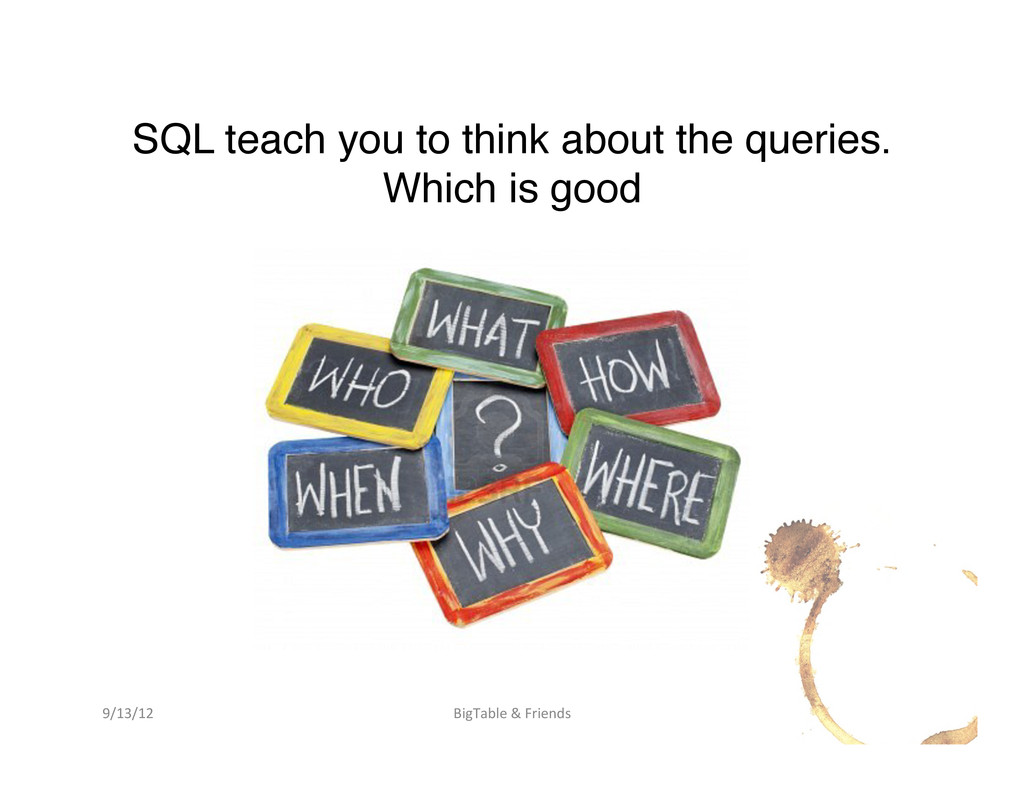

6. SQL teach you to think about the queries.
 Which is good! 9/13/12   BigTable  &  Friends

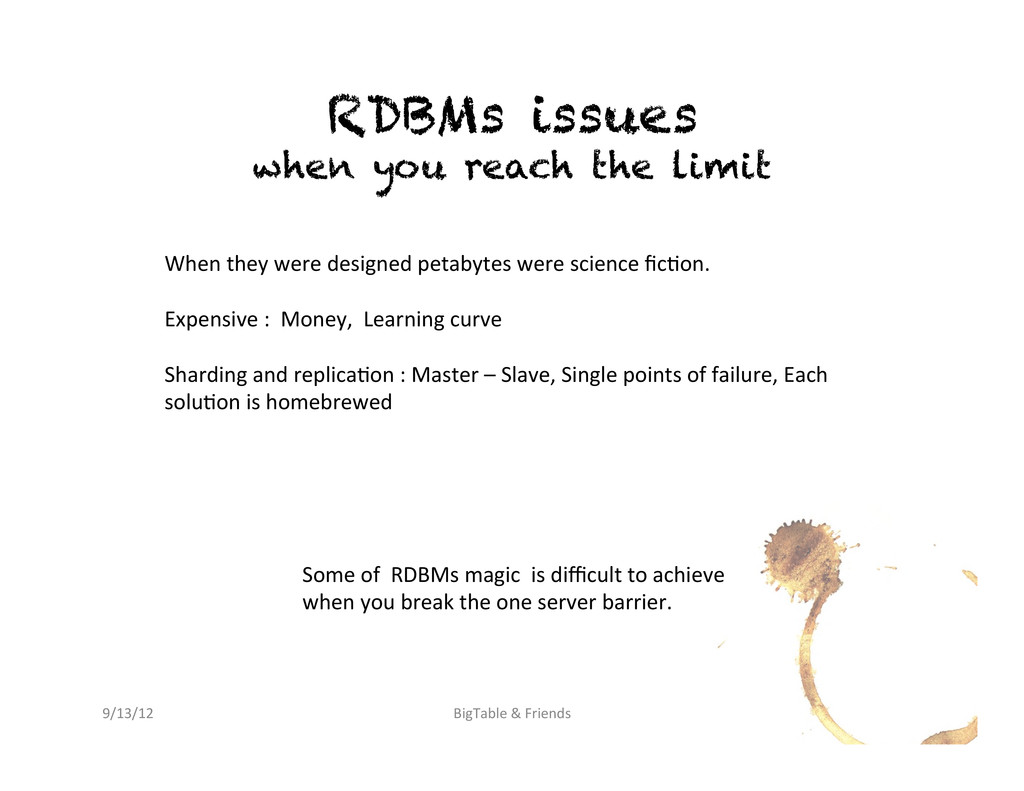

7. RDBMs issues when you reach the limit When  they  were  designed  petabytes  were  science  fic>on.     Expensive  :    Money,    Learning  curve     Sharding  and  replica>on  :  Master  –  Slave,  Single  points  of  failure,  Each   solu>on  is  homebrewed       Some  of    RDBMs  magic    is  difficult  to  achieve   when  you  break  the  one  server  barrier.   9/13/12   BigTable  &  Friends

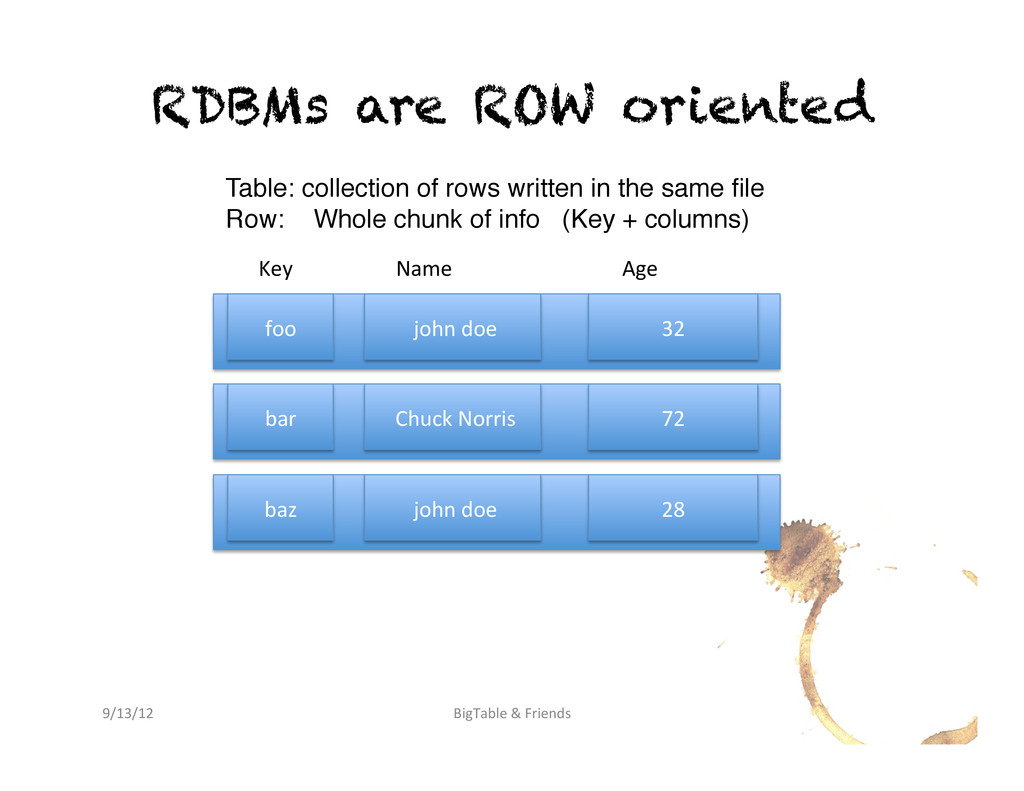

8. RDBMs are ROW oriented Table: collection of rows written in the same file! Row: Whole chunk of info (Key + columns)! foo    john  doe   32   bar    Chuck  Norris   72   baz    john  doe   28   Key   Name   Age   9/13/12   BigTable  &  Friends

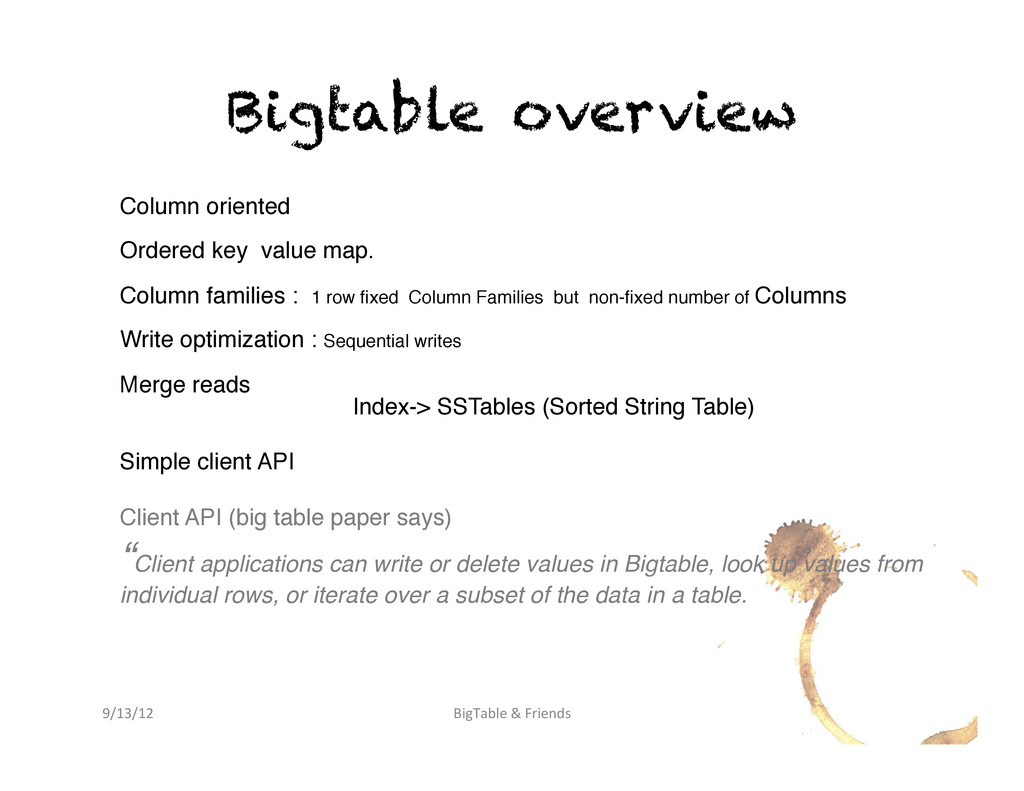

9. Bigtable overview Column oriented! ! Ordered key value map.! ! Column families : 1 row fixed Column Families but non-fixed number of Columns! ! Write optimization : Sequential writes! ! Merge reads! ! ! ! ! !Index-> SSTables (Sorted String Table)! ! Simple client API! ! Client API (big table paper says)! “Client applications can write or delete values in Bigtable, look up values from individual rows, or iterate over a subset of the data in a table.! ! 9/13/12   BigTable  &  Friends

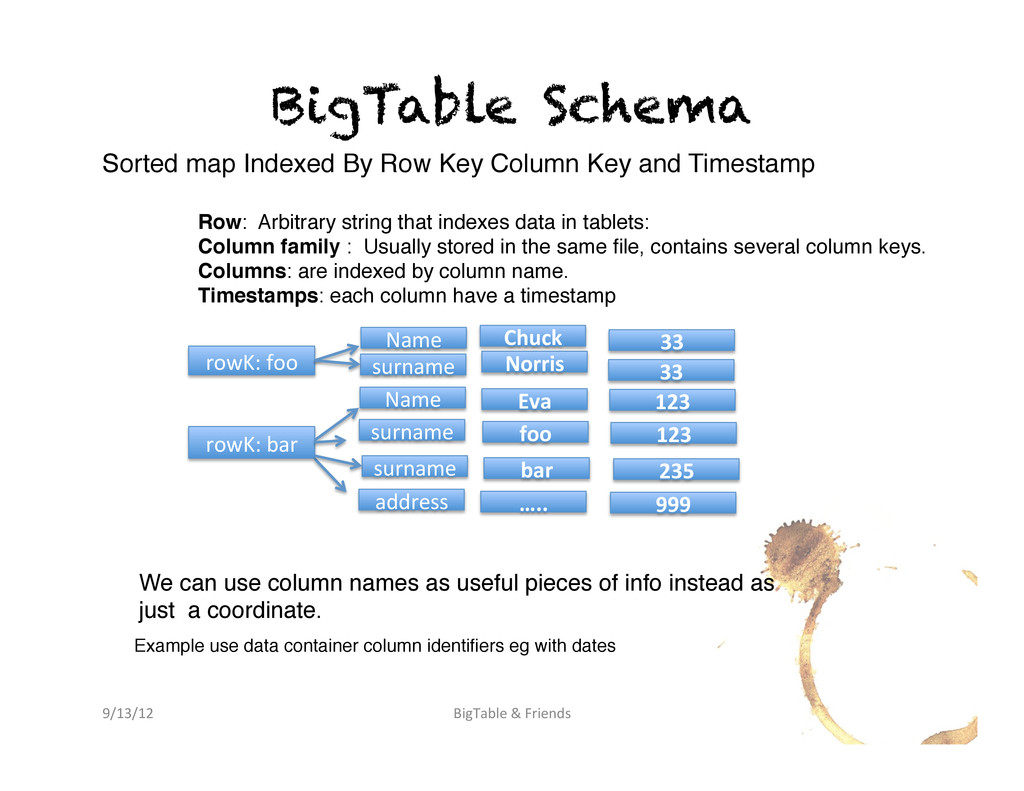

10. BigTable Schema Sorted map Indexed By Row Key Column Key and Timestamp! ! Row: Arbitrary string that indexes data in tablets:! Column family : Usually stored in the same file, contains several column keys. ! Columns: are indexed by column name.! Timestamps: each column have a timestamp! ! ! Name   surname   Name   surname   Chuck   Norris   Eva   foo   33   33   123   123   rowK:  foo   rowK:  bar   surname   bar   235   address   …..   999   Example use data container column identifiers eg with dates! 9/13/12   BigTable  &  Friends   We can use column names as useful pieces of info instead as just a coordinate.!

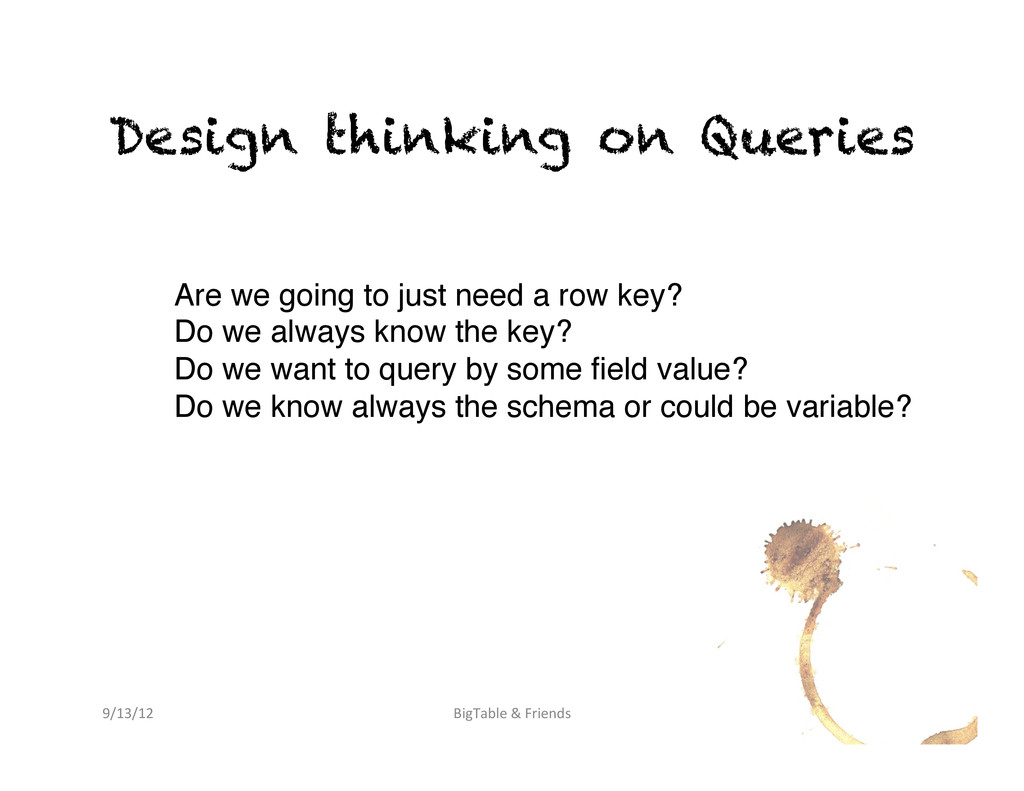

11. Design thinking on Queries Are we going to just need a row key? ! Do we always know the key?! Do we want to query by some field value?! Do we know always the schema or could be variable?! 9/13/12   BigTable  &  Friends

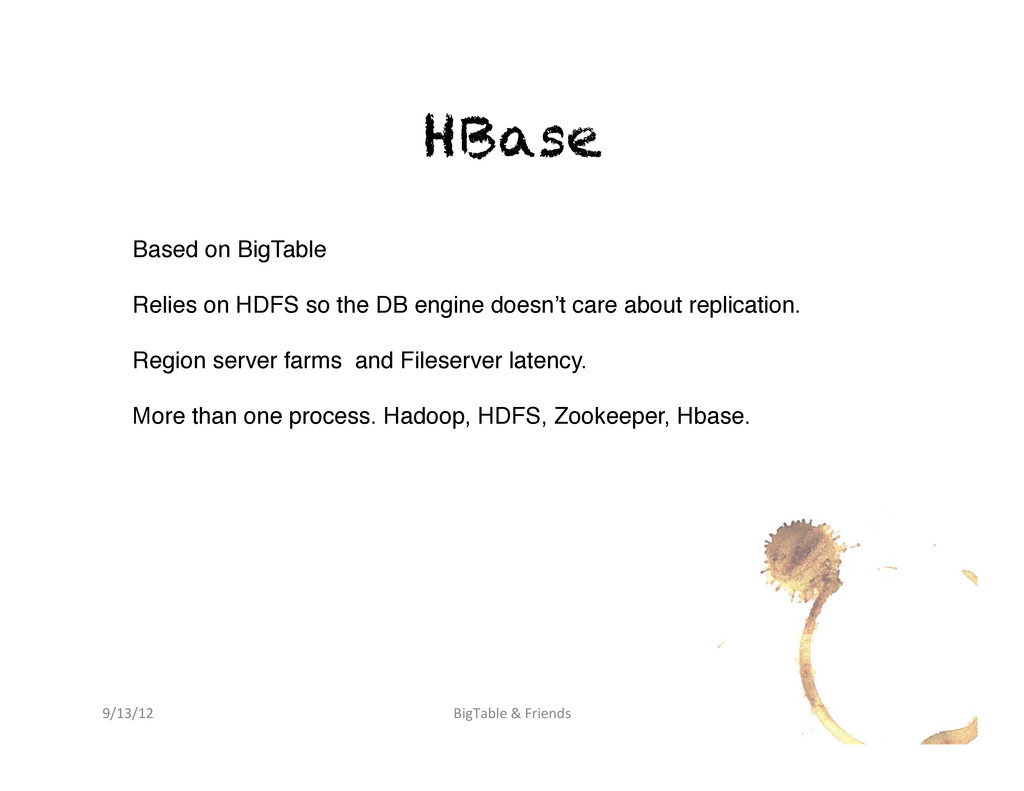

12. HBase Based on BigTable! ! Relies on HDFS so the DB engine doesn’t care about replication.! ! Region server farms and Fileserver latency.! ! More than one process. Hadoop, HDFS, Zookeeper, Hbase.! ! ! 9/13/12   BigTable  &  Friends

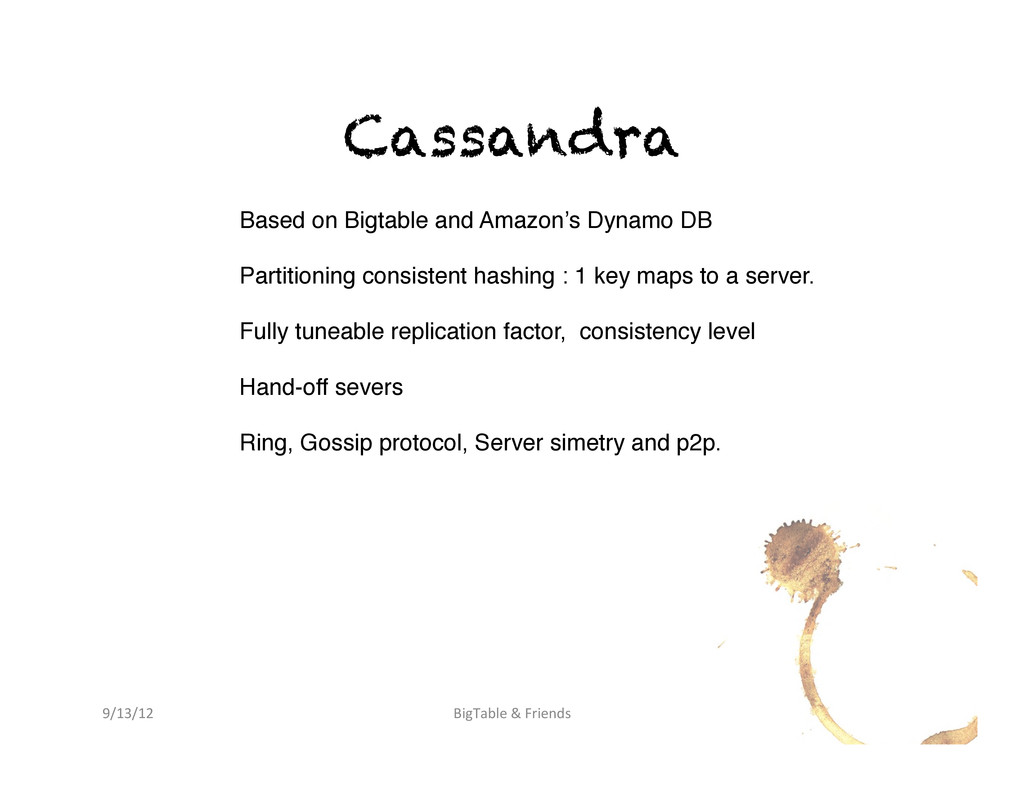

13. Cassandra Based on Bigtable and Amazon’s Dynamo DB! ! Partitioning consistent hashing : 1 key maps to a server.! ! Fully tuneable replication factor, consistency level! ! Hand-off severs! ! Ring, Gossip protocol, Server simetry and p2p.! ! ! ! ! 9/13/12   BigTable  &  Friends

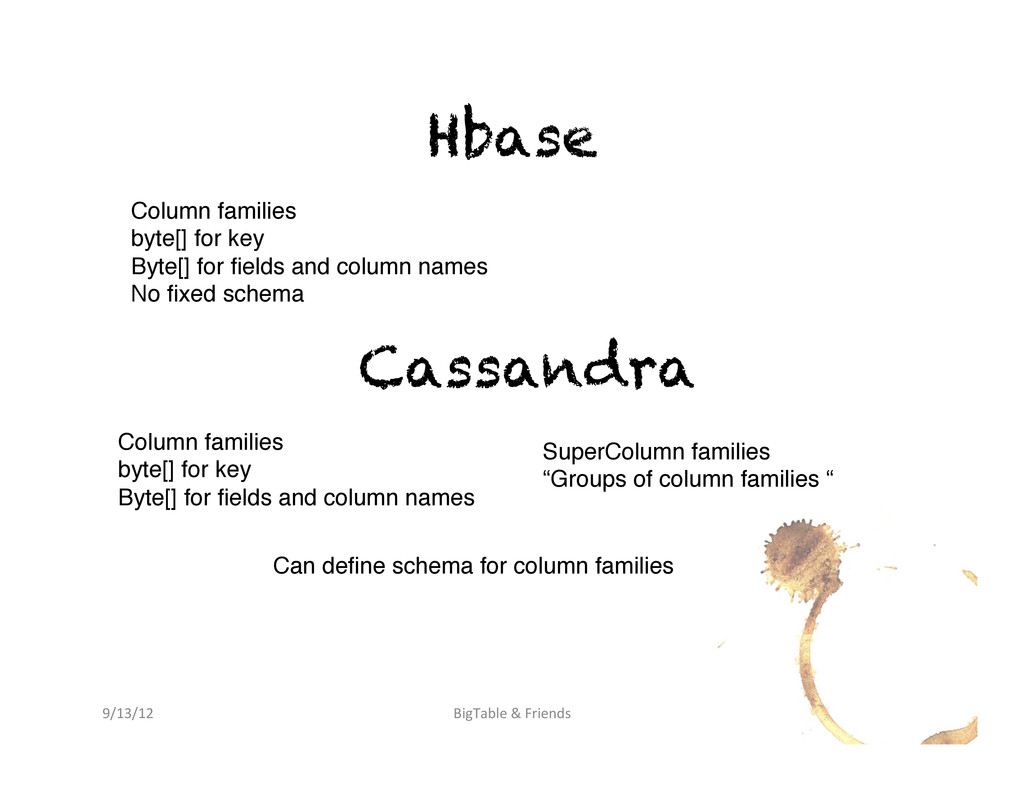

14. Hbase Column families! byte[] for key! Byte[] for fields and column names! No fixed schema! Cassandra Column families! byte[] for key! Byte[] for fields and column names! ! SuperColumn families! “Groups of column families “! Can define schema for column families! 9/13/12   BigTable  &  Friends
15. 9/13/12   BigTable  &  Friends

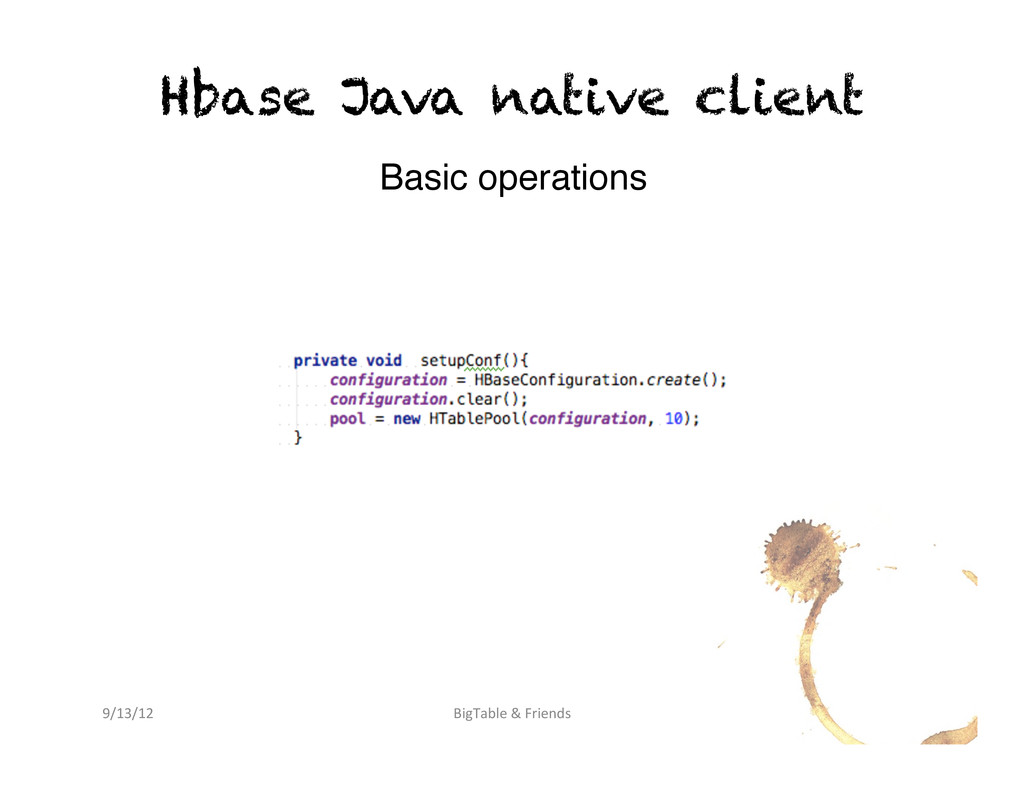

16. Hbase Java native client     9/13/12   BigTable  &  Friends   Basic operations!

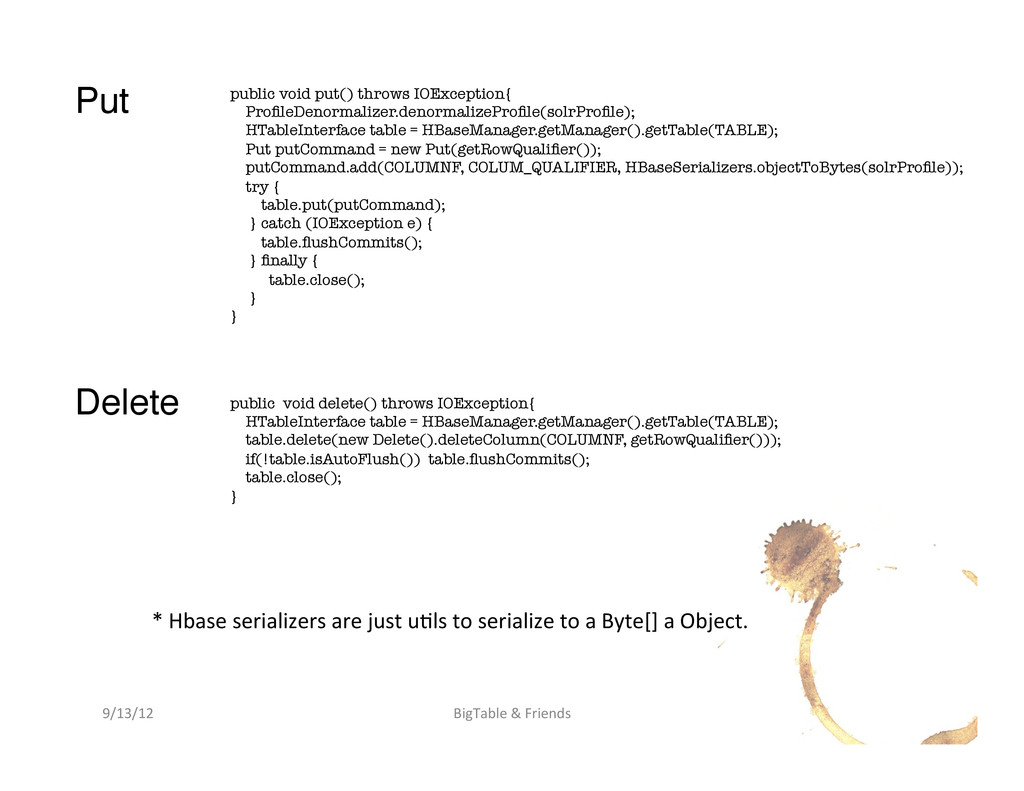

17. public void put() throws IOException{ ProfileDenormalizer.denormalizeProfile(solrProfile); HTableInterface table = HBaseManager.getManager().getTable(TABLE); Put putCommand = new Put(getRowQualifier()); putCommand.add(COLUMNF, COLUM_QUALIFIER, HBaseSerializers.objectToBytes(solrProfile)); try { table.put(putCommand); } catch (IOException e) { table.flushCommits(); } finally { table.close(); } } 9/13/12   BigTable  &  Friends   public void delete() throws IOException{ HTableInterface table = HBaseManager.getManager().getTable(TABLE); table.delete(new Delete().deleteColumn(COLUMNF, getRowQualifier())); if(!table.isAutoFlush()) table.flushCommits(); table.close(); } Put! Delete! *  Hbase  serializers  are  just  u>ls  to  serialize  to  a  Byte[]  a  Object.

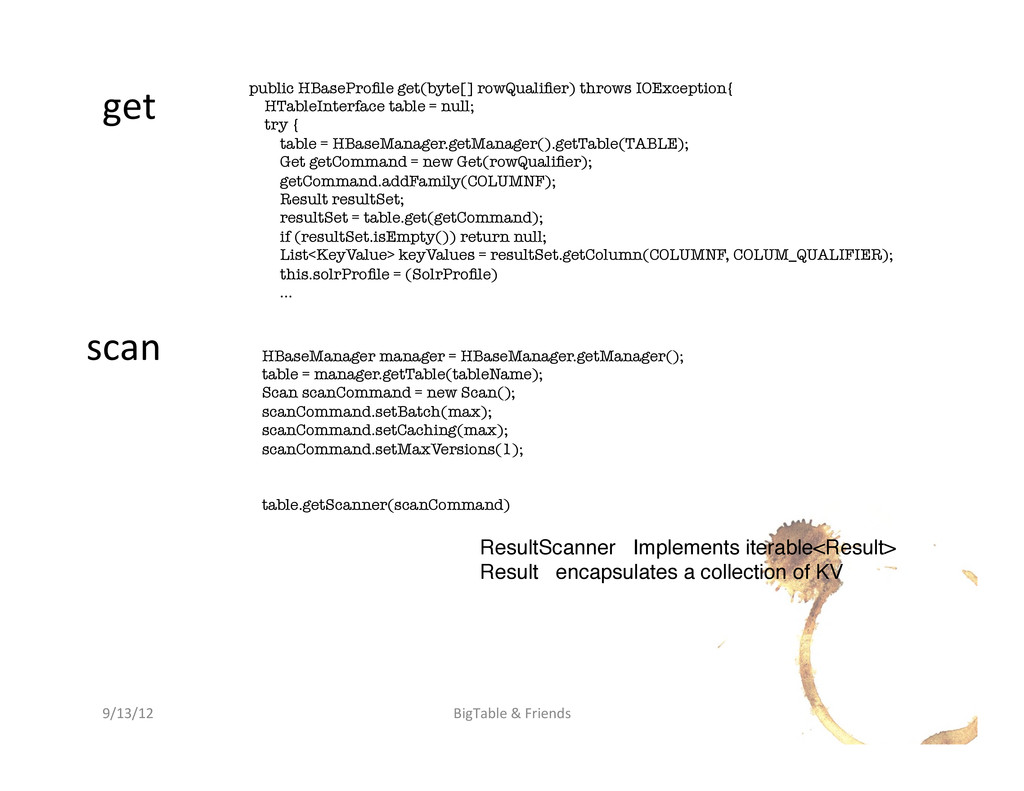

18. 9/13/12   BigTable  &  Friends   public HBaseProfile get(byte[] rowQualifier) throws IOException{ HTableInterface table = null; try { table = HBaseManager.getManager().getTable(TABLE); Get getCommand = new Get(rowQualifier); getCommand.addFamily(COLUMNF); Result resultSet; resultSet = table.get(getCommand); if (resultSet.isEmpty()) return null; List<KeyValue> keyValues = resultSet.getColumn(COLUMNF, COLUM_QUALIFIER); this.solrProfile = (SolrProfile) … get   HBaseManager manager = HBaseManager.getManager(); table = manager.getTable(tableName); Scan scanCommand = new Scan(); scanCommand.setBatch(max); scanCommand.setCaching(max); scanCommand.setMaxVersions(1); table.getScanner(scanCommand)             scan     ResultScanner Implements iterable<Result>! Result encapsulates a collection of KV! ! ! ! !
19. 9/13/12   BigTable  &  Friends   Table ≅ Map<Byte[], Map<Byte[],Byte[]>>!

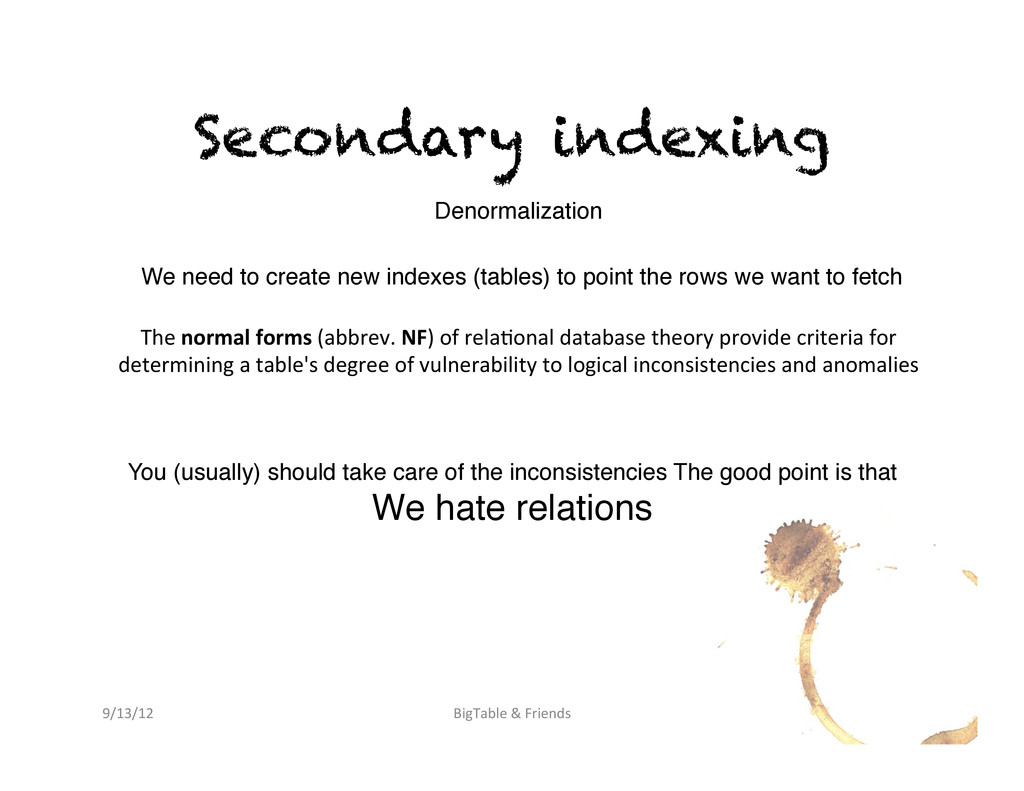

20. Secondary indexing We need to create new indexes (tables) to point the rows we want to fetch! Denormalization! ! The  normal  forms  (abbrev.  NF)  of  rela>onal  database  theory  provide  criteria  for   determining  a  table's  degree  of  vulnerability  to  logical  inconsistencies  and  anomalies     You (usually) should take care of the inconsistencies The good point is that! We hate relations! 9/13/12   BigTable  &  Friends
21. Design thinking on Queries! I  have  700MM  rows  and  30  TB  on  my  DB  and  I  need  to  build  a  new  secondary   index…     9/13/12   BigTable  &  Friends

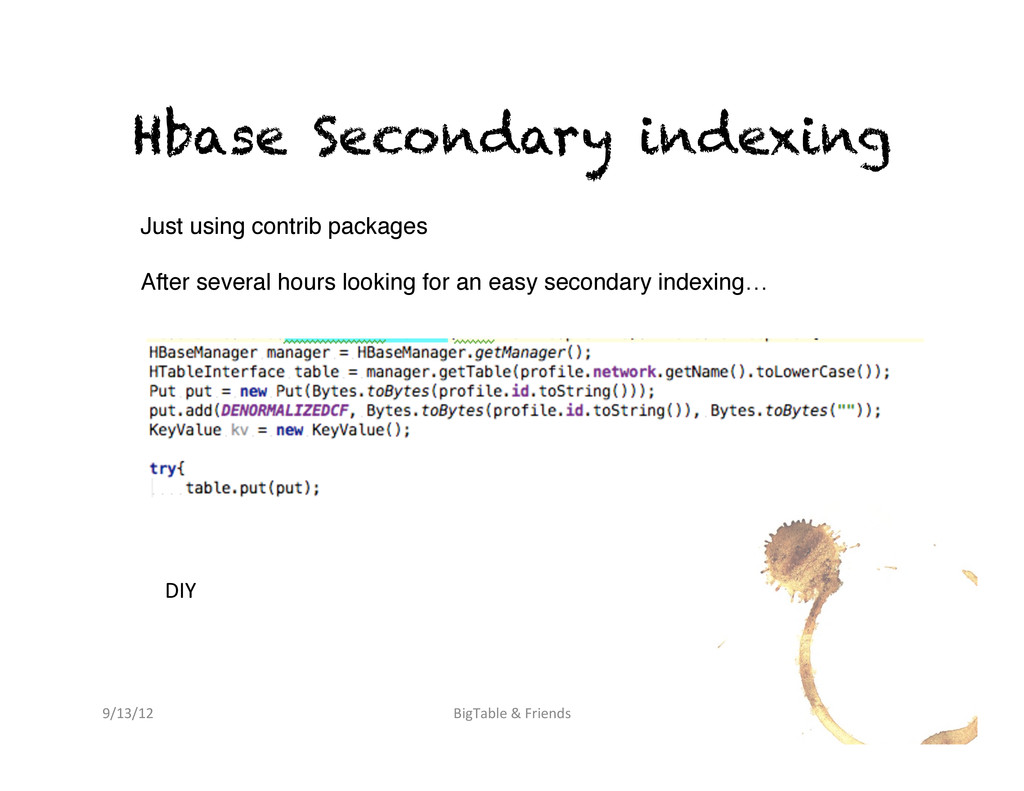

22. Hbase Secondary indexing Just using contrib packages! ! After several hours looking for an easy secondary indexing…! DIY   9/13/12   BigTable  &  Friends

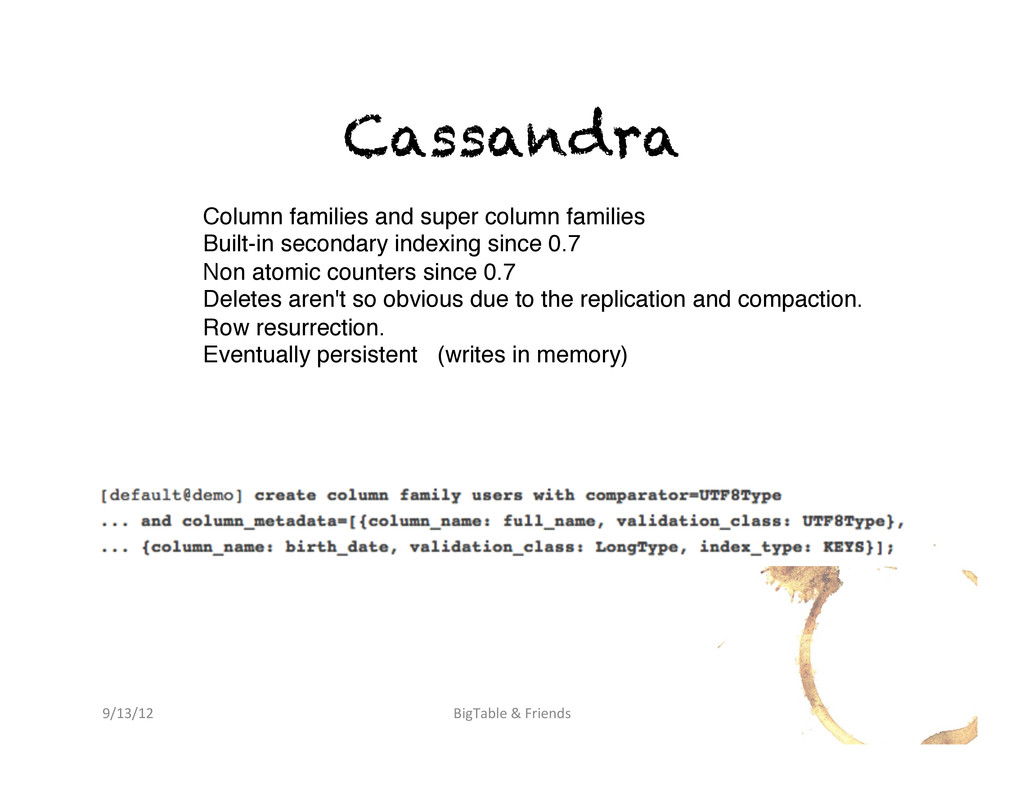

23. Cassandra Column families and super column families! Built-in secondary indexing since 0.7! Non atomic counters since 0.7! Deletes aren't so obvious due to the replication and compaction.! Row resurrection.! Eventually persistent (writes in memory)! ! ! 9/13/12   BigTable  &  Friends
24. Cassandra’s Comunity 9/13/12   BigTable  &  Friends

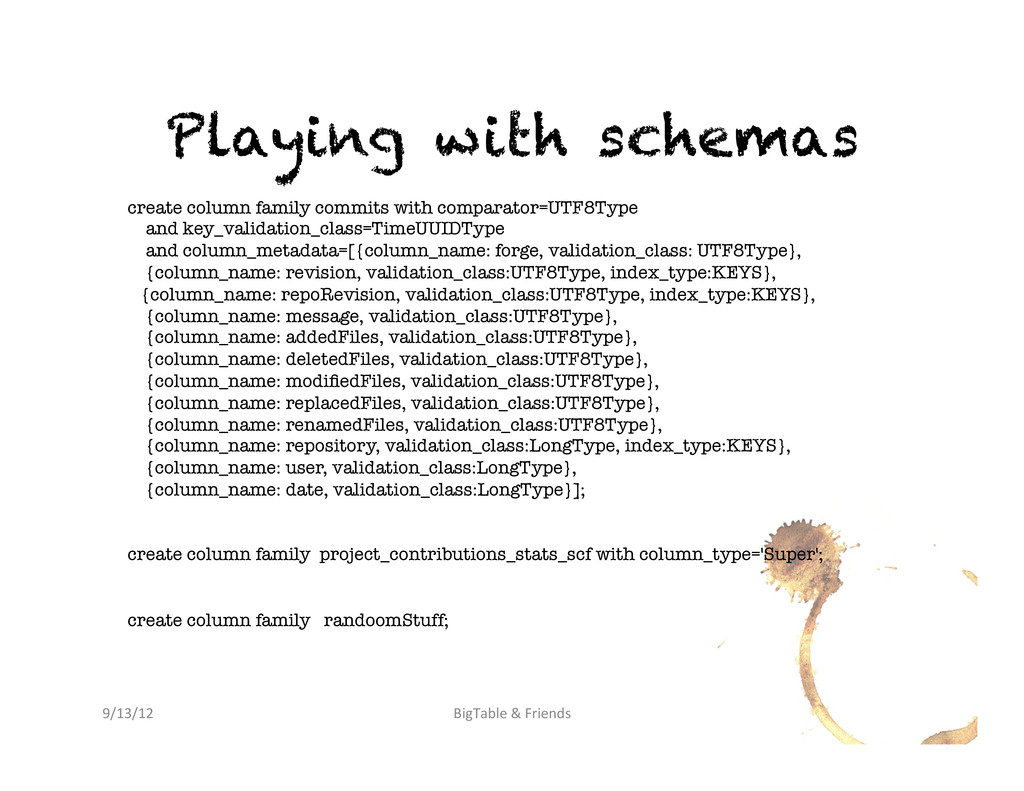

25. Playing with schemas create column family commits with comparator=UTF8Type and key_validation_class=TimeUUIDType and column_metadata=[{column_name: forge, validation_class: UTF8Type}, {column_name: revision, validation_class:UTF8Type, index_type:KEYS}, {column_name: repoRevision, validation_class:UTF8Type, index_type:KEYS}, {column_name: message, validation_class:UTF8Type}, {column_name: addedFiles, validation_class:UTF8Type}, {column_name: deletedFiles, validation_class:UTF8Type}, {column_name: modifiedFiles, validation_class:UTF8Type}, {column_name: replacedFiles, validation_class:UTF8Type}, {column_name: renamedFiles, validation_class:UTF8Type}, {column_name: repository, validation_class:LongType, index_type:KEYS}, {column_name: user, validation_class:LongType}, {column_name: date, validation_class:LongType}]; create column family project_contributions_stats_scf with column_type='Super'; create column family randoomStuff; 9/13/12   BigTable  &  Friends

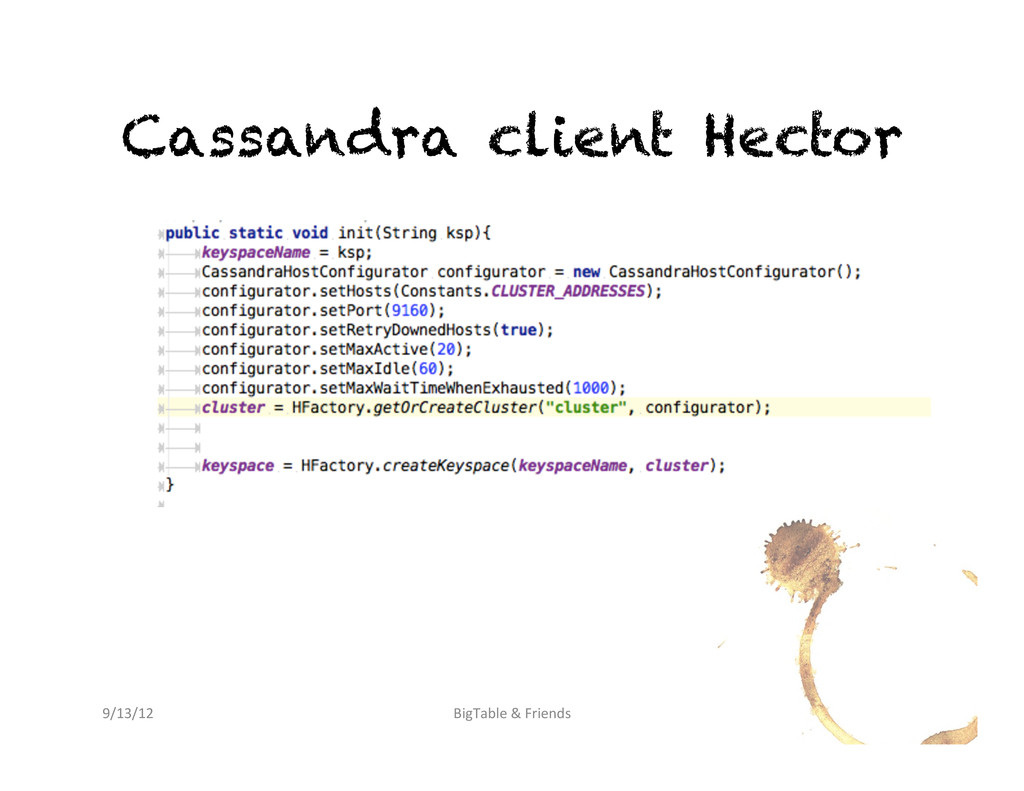

26. Cassandra client Hector 9/13/12   BigTable  &  Friends

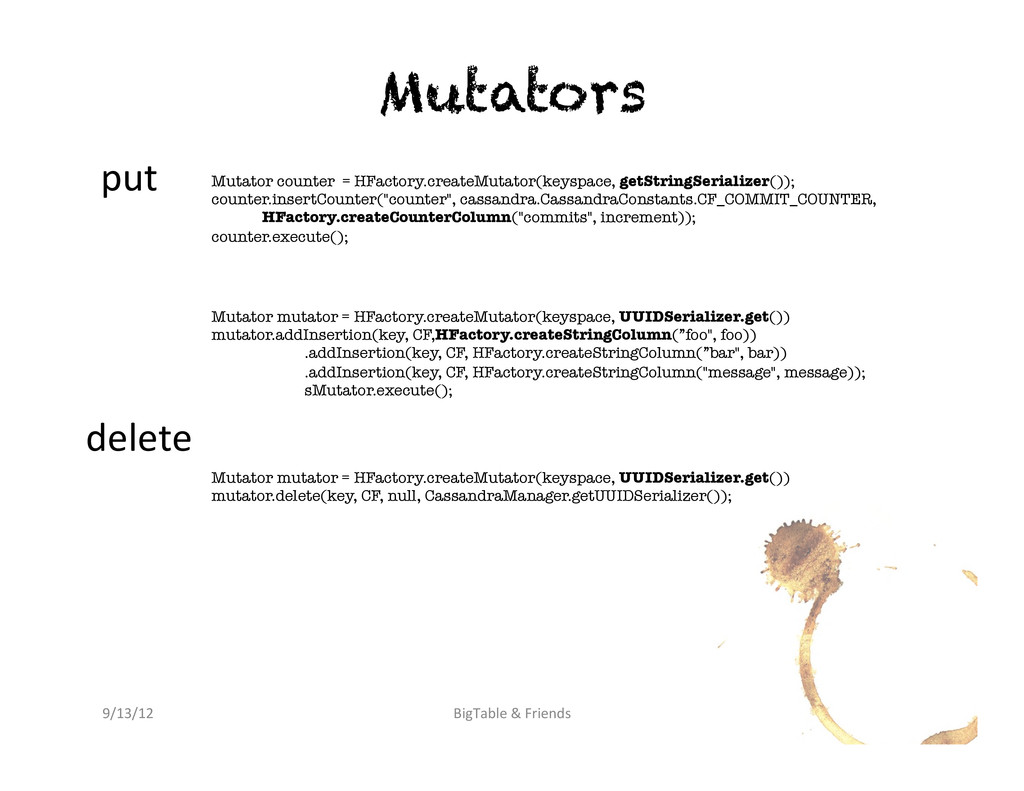

27. Mutators Mutator counter = HFactory.createMutator(keyspace, getStringSerializer()); counter.insertCounter("counter", cassandra.CassandraConstants.CF_COMMIT_COUNTER, HFactory.createCounterColumn("commits", increment)); counter.execute(); 9/13/12   BigTable  &  Friends   put   Mutator mutator = HFactory.createMutator(keyspace, UUIDSerializer.get()) mutator.addInsertion(key, CF,HFactory.createStringColumn(”foo", foo)) .addInsertion(key, CF, HFactory.createStringColumn(”bar", bar)) .addInsertion(key, CF, HFactory.createStringColumn("message", message)); sMutator.execute(); Mutator mutator = HFactory.createMutator(keyspace, UUIDSerializer.get()) mutator.delete(key, CF, null, CassandraManager.getUUIDSerializer()); delete

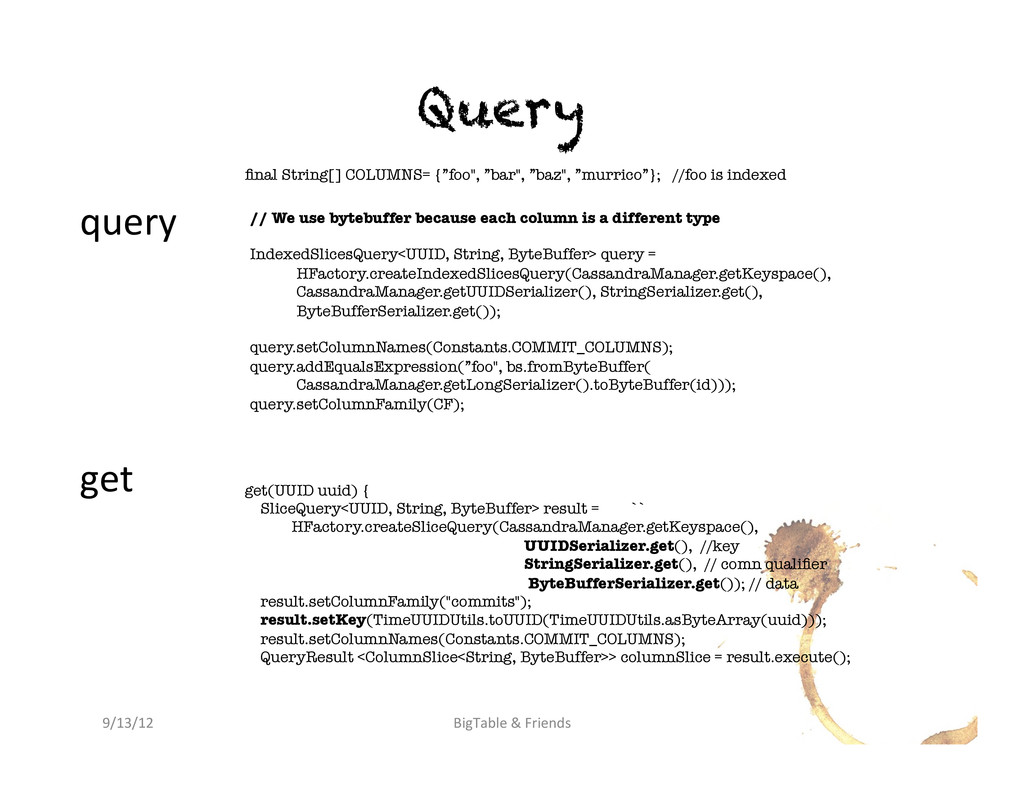

28. // We use bytebuffer because each column is a different type IndexedSlicesQuery<UUID, String, ByteBuffer> query = HFactory.createIndexedSlicesQuery(CassandraManager.getKeyspace(), CassandraManager.getUUIDSerializer(), StringSerializer.get(), ByteBufferSerializer.get()); query.setColumnNames(Constants.COMMIT_COLUMNS); query.addEqualsExpression(”foo", bs.fromByteBuffer( CassandraManager.getLongSerializer().toByteBuffer(id))); query.setColumnFamily(CF); 9/13/12   BigTable  &  Friends   final String[] COLUMNS= {”foo", ”bar", ”baz", ”murrico”}; //foo is indexed query   get   get(UUID uuid) { SliceQuery<UUID, String, ByteBuffer> result = `` HFactory.createSliceQuery(CassandraManager.getKeyspace(), UUIDSerializer.get(), //key StringSerializer.get(), // comn qualifier ByteBufferSerializer.get()); // data result.setColumnFamily("commits"); result.setKey(TimeUUIDUtils.toUUID(TimeUUIDUtils.asByteArray(uuid))); result.setColumnNames(Constants.COMMIT_COLUMNS); QueryResult <ColumnSlice<String, ByteBuffer>> columnSlice = result.execute(); Query

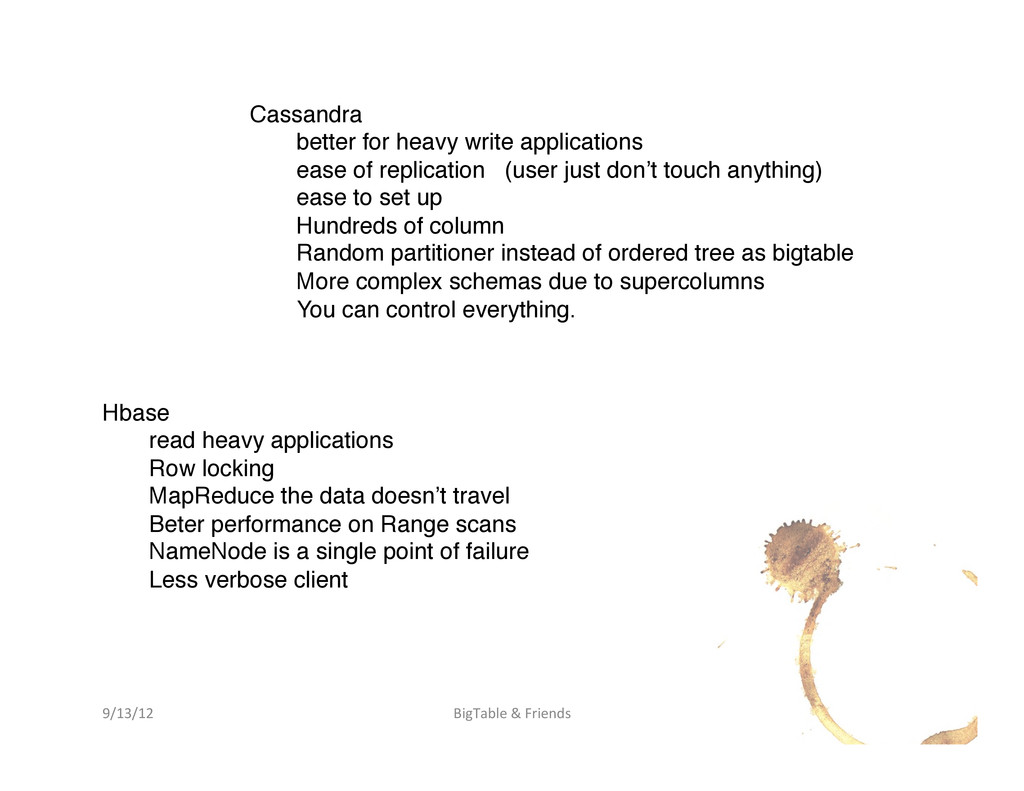

29. Cassandra! !better for heavy write applications! !ease of replication (user just don’t touch anything)! !ease to set up! !Hundreds of column! !Random partitioner instead of ordered tree as bigtable! !More complex schemas due to supercolumns! !You can control everything.! ! Hbase! !read heavy applications ! !Row locking! !MapReduce the data doesn’t travel! !Beter performance on Range scans! !NameNode is a single point of failure! !Less verbose client! ! ! 9/13/12   BigTable  &  Friends
30. 9/13/12   BigTable  &  Friends
31. 9/13/12   BigTable  &  Friends   Agradecida Y emocionaada Solamente puedo decir… GRACIAS POR VENIR
