Vector Impact on Similarity Extraction: Movie Data Analysis

Vector generation methods and their dimensionality play a crucial role in determining the results of data similarity extraction.
In this presentation, I will explore how different vectorization techniques and dimensional configurations influence similarity search outcomes. To do this, I will compare Gemini, ChatGPT, and several other vector generation methods using movie data.

My analysis demonstrates that selecting appropriate vector generation methods significantly enhances the accuracy of data retrieval and information extraction.
This presentation is tailored to be accessible even for beginners who have no prior experience with vector indexes.

Transcript

1. FOSSASIA Summit 2025, March 14 2025 17:00-17:20 Vector Impact on Similarity Extraction: Movie Data Analysis Koji Annoura ҊӜߒೋ koji@annoura.com 4PVSDF
   /FPK
   IUUQTOFPKDPNCMPHHFOBJHSBQISBHNBOJGFTUP
2. Who am I ❖ Koji Annoura ❖ I live in Fukuoka Japan ❖ I love ❖ Neo4j Graph Database ❖ Neo4j Users Group Tokyo ❖ I am one of the founders. ❖ Graph Community MVP ❖ Apache Hop ❖ Data Orchestration App ❖ Apache User Group Japan ❖ I am a founder
3. Agenda ❖ View ❖ Vector ❖ Movies on Vector $PQZSJHIU
   ˜
   ͍Β͢ͱ΍
4. View 4PVSDF
   /FPK
   IUUQTOFPKDPNHFOFSBUJWFBJ

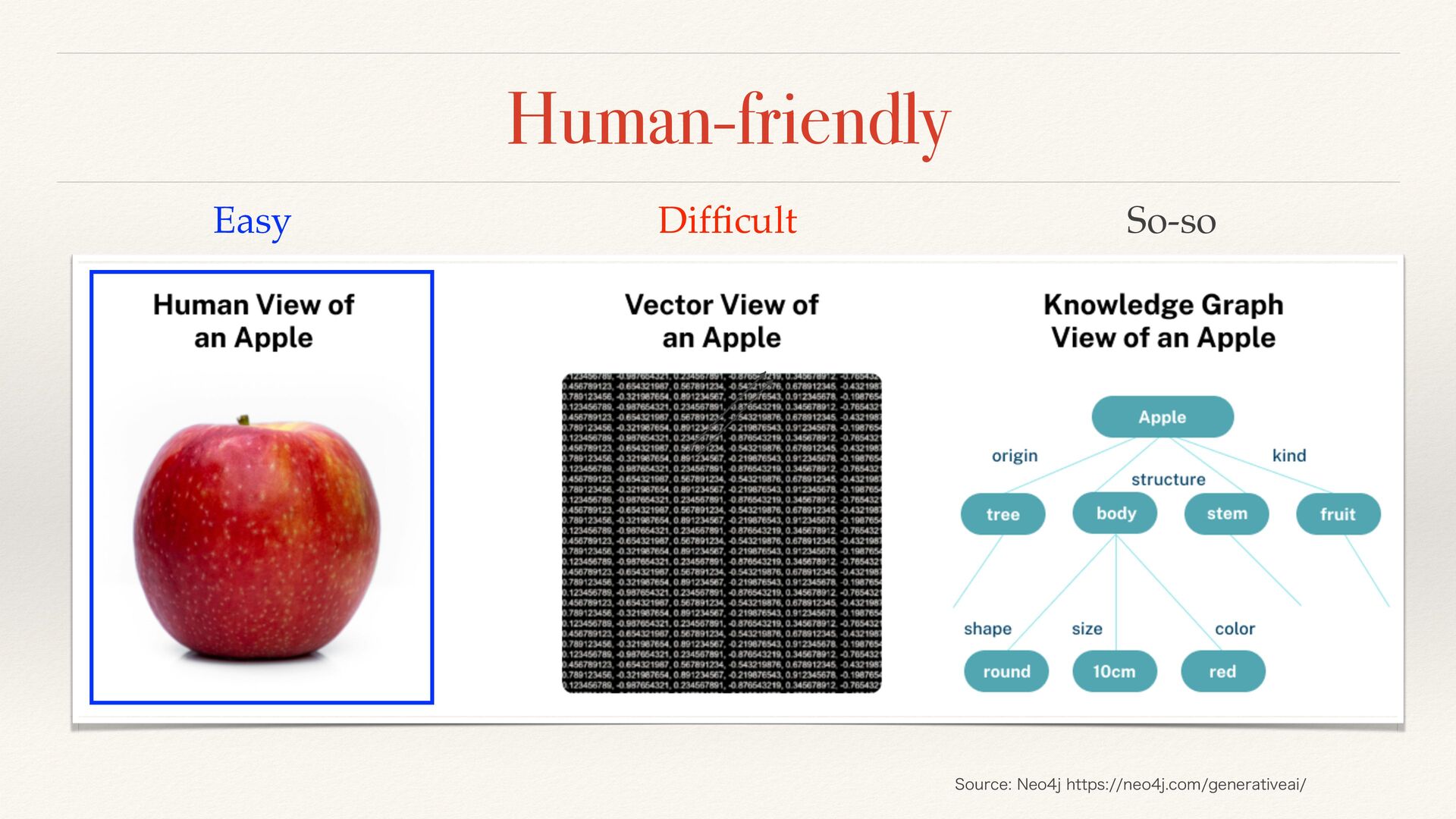

5. Human-friendly 4PVSDF
   /FPK
   IUUQTOFPKDPNHFOFSBUJWFBJ Easy Dif fi cult So-so

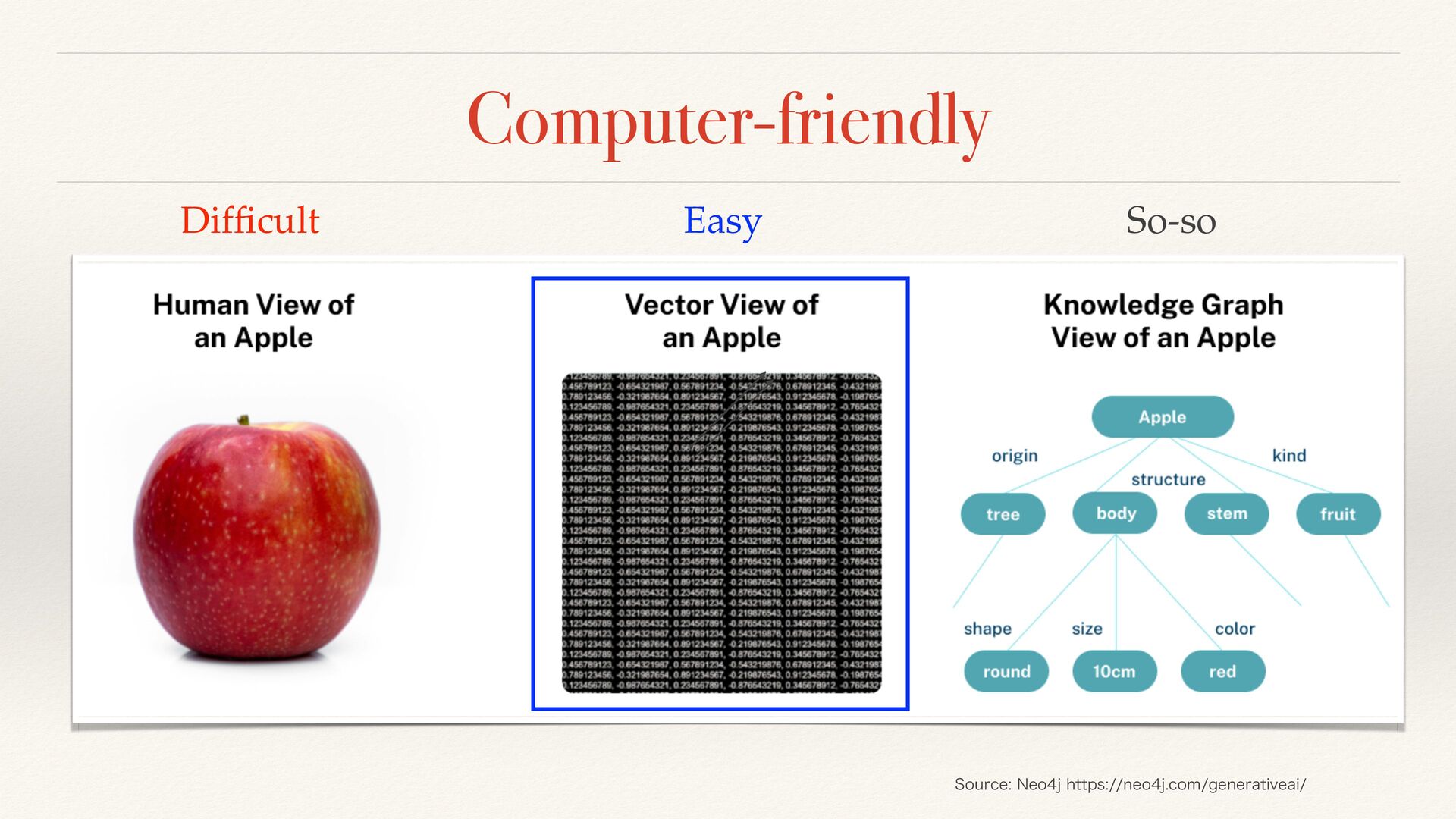

6. Computer-friendly 4PVSDF
   /FPK
   IUUQTOFPKDPNHFOFSBUJWFBJ Easy Dif fi cult So-so
7. Vector (Computer-friendly)

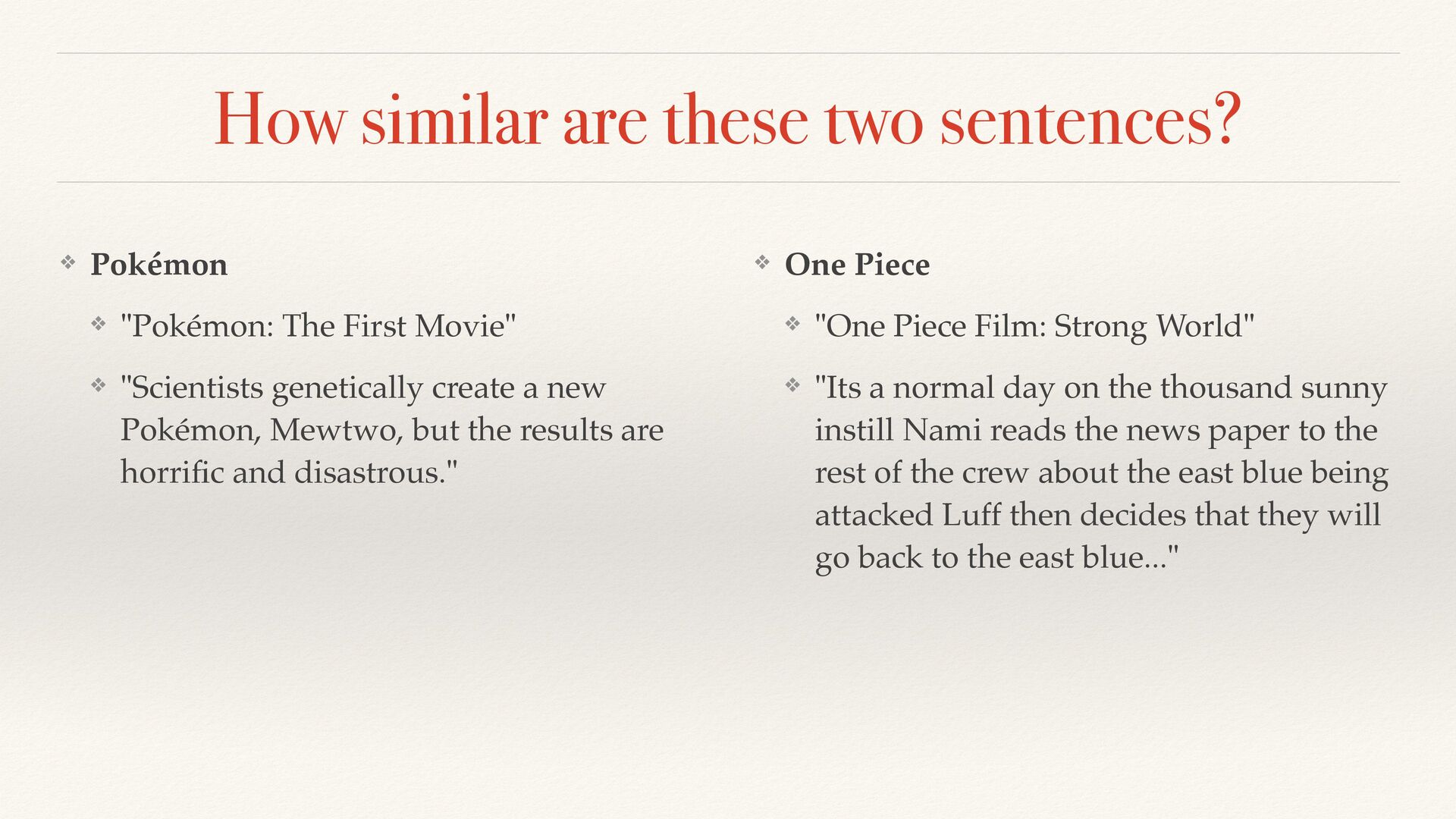

8. How similar are these two sentences? ❖ Pokémon ❖ "Pokémon: The First Movie" ❖ "Scientists genetically create a new Pokémon, Mewtwo, but the results are horri fi c and disastrous." ❖ One Piece ❖ "One Piece Film: Strong World" ❖ "Its a normal day on the thousand sunny instill Nami reads the news paper to the rest of the crew about the east blue being attacked Luff then decides that they will go back to the east blue..."

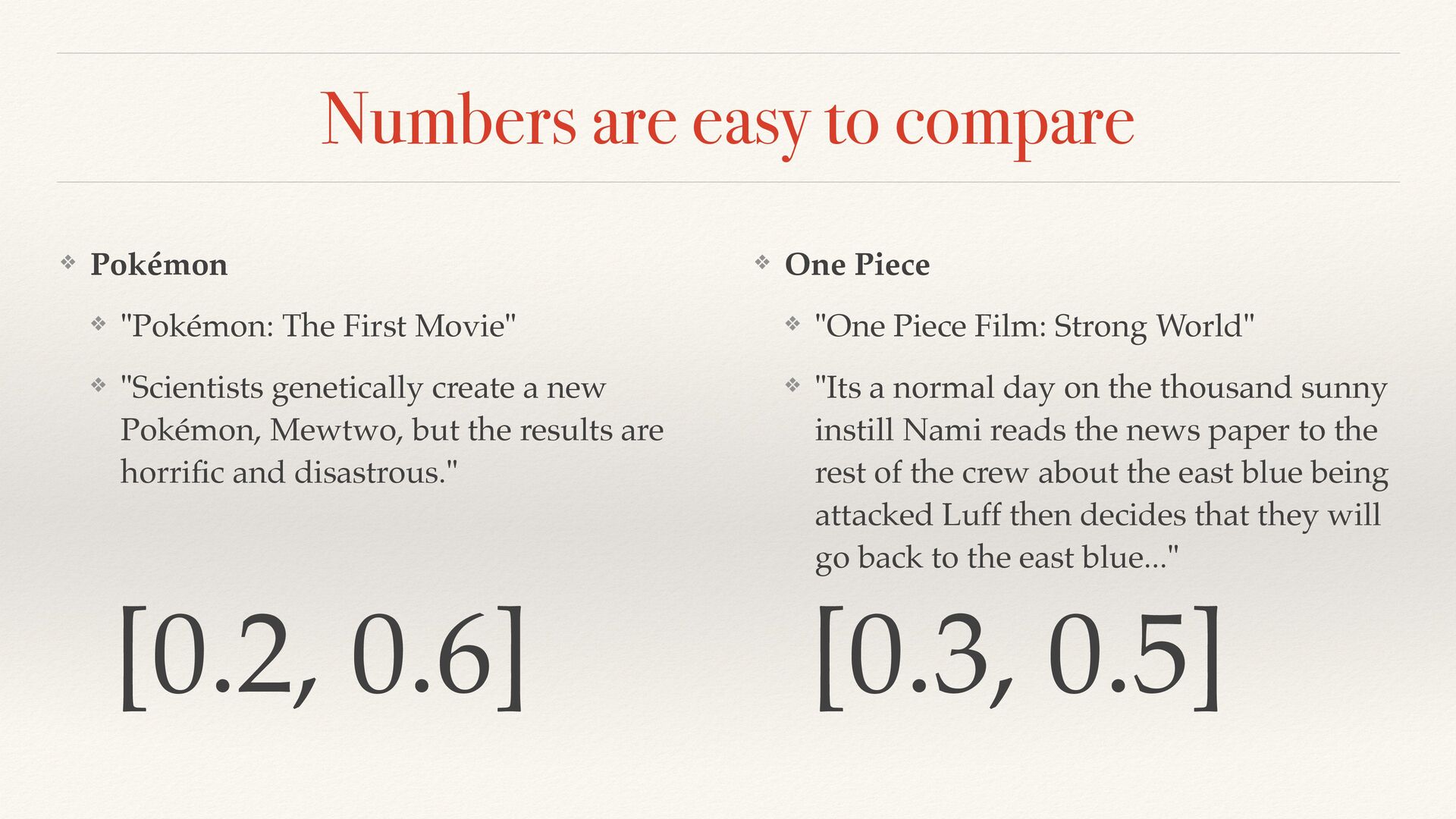

9. Numbers are easy to compare ❖ Pokémon ❖ "Pokémon: The First Movie" ❖ "Scientists genetically create a new Pokémon, Mewtwo, but the results are horri fi c and disastrous." ❖ One Piece ❖ "One Piece Film: Strong World" ❖ "Its a normal day on the thousand sunny instill Nami reads the news paper to the rest of the crew about the east blue being attacked Luff then decides that they will go back to the east blue..." [0.2, 0.6] [0.3, 0.5]

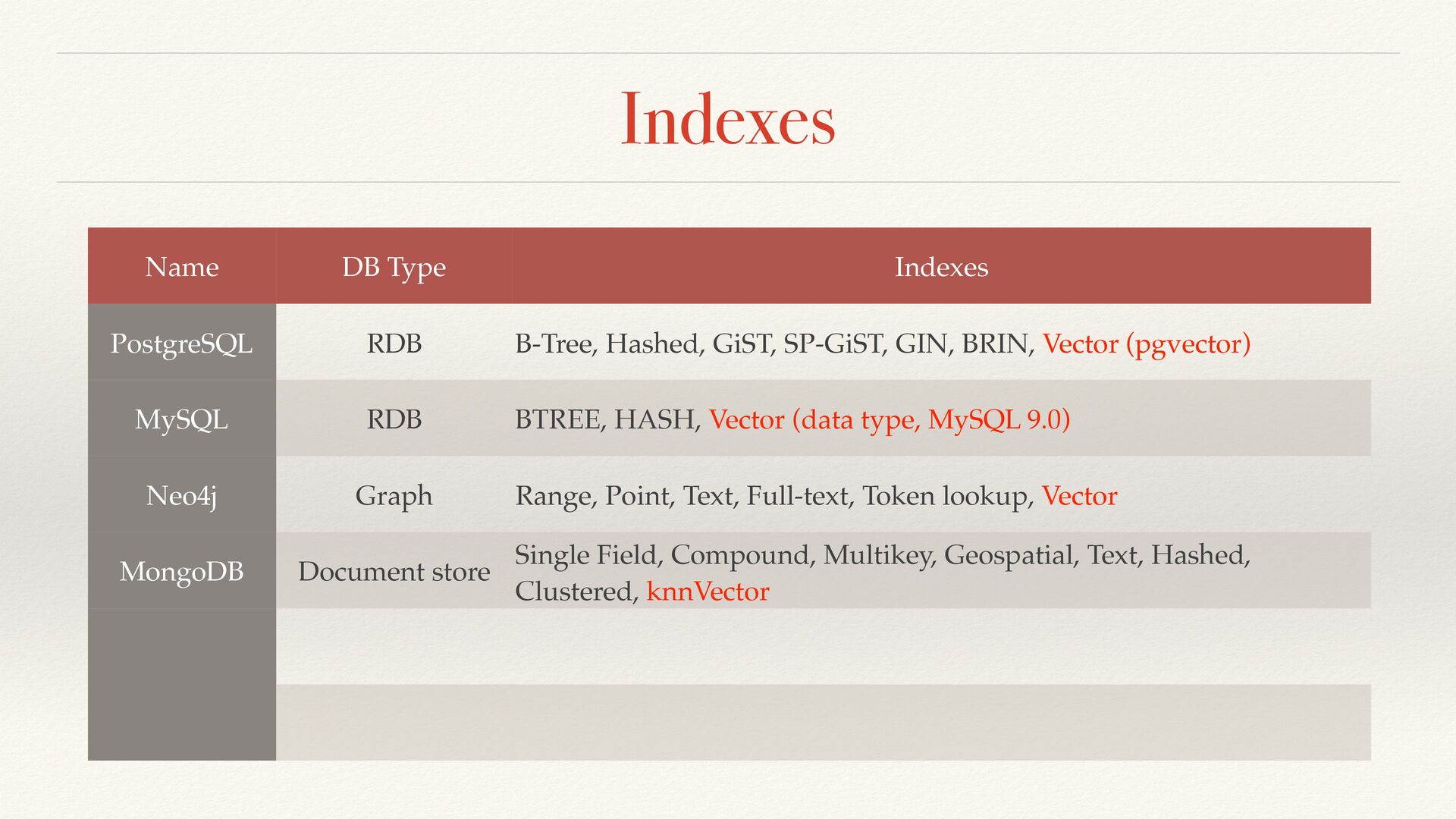

10. Indexes Name DB Type Indexes PostgreSQL RDB B-Tree, Hashed, GiST, SP-GiST, GIN, BRIN, Vector (pgvector) MySQL RDB BTREE, HASH, Vector (data type, MySQL 9.0) Neo4j Graph Range, Point, Text, Full-text, Token lookup, Vector MongoDB Document store Single Field, Compound, Multikey, Geospatial, Text, Hashed, Clustered, knnVector

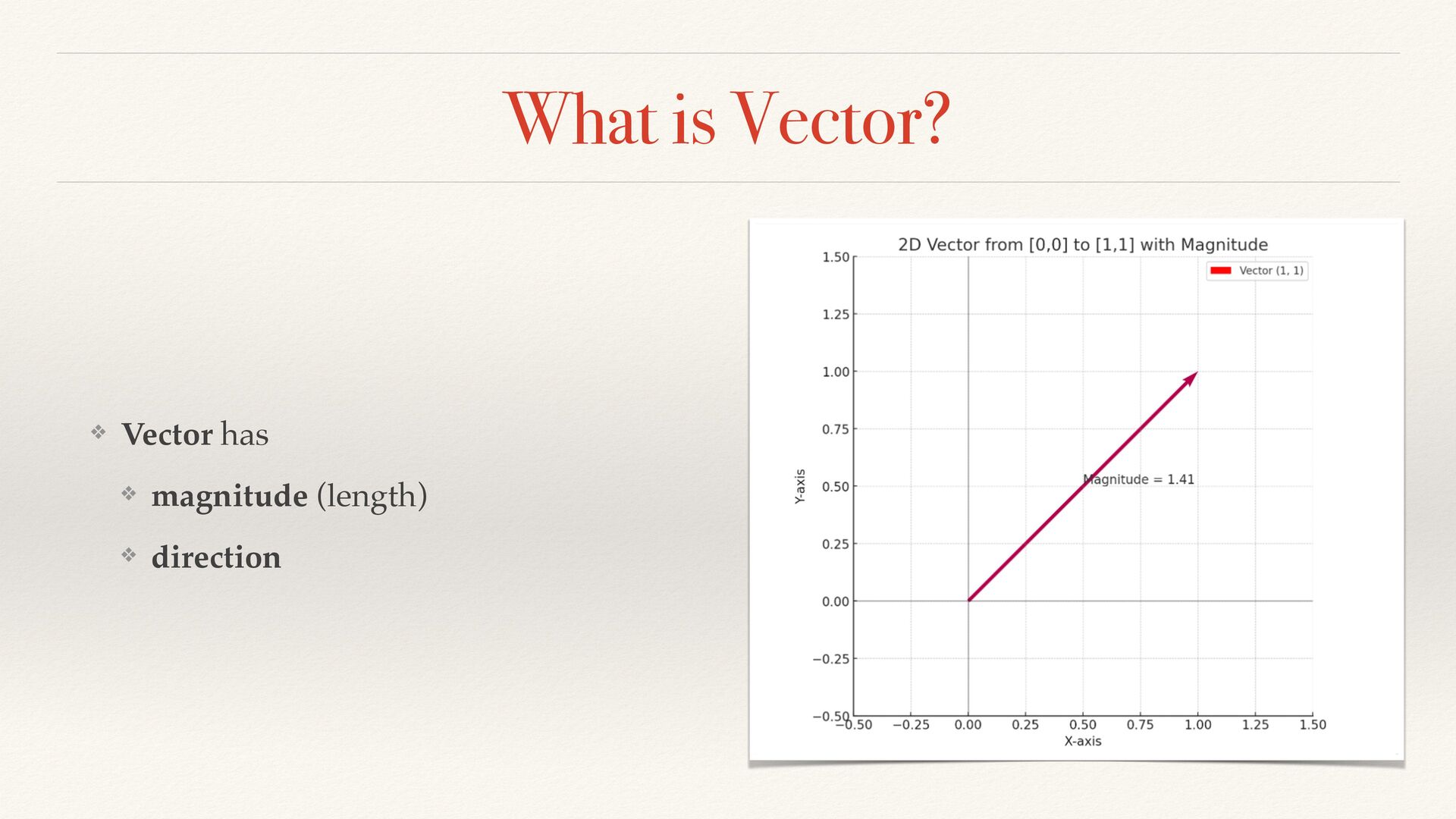

11. What is Vector? ❖ Vector has ❖ magnitude (length) ❖ direction

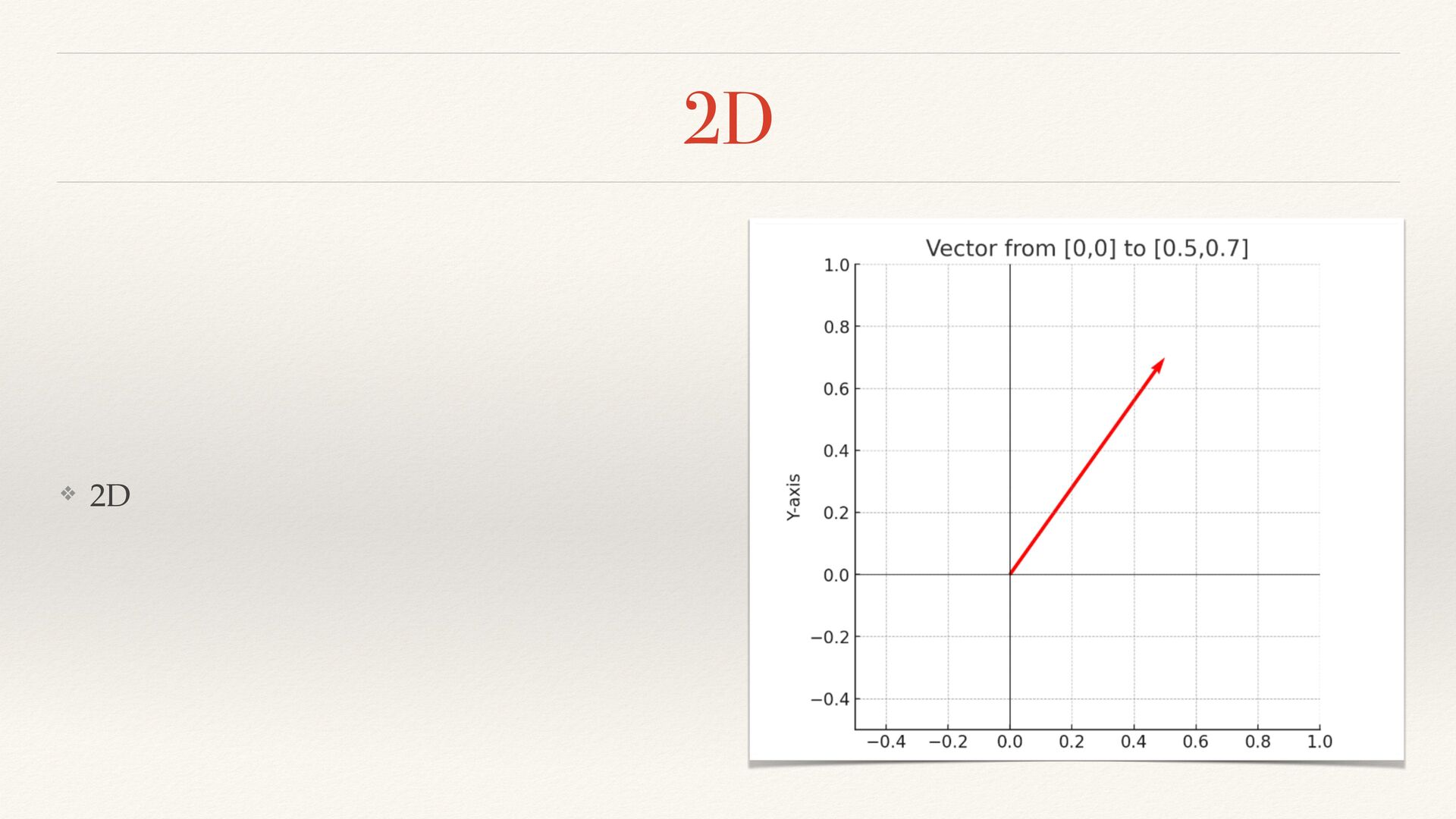

12. 2D ❖ 2D

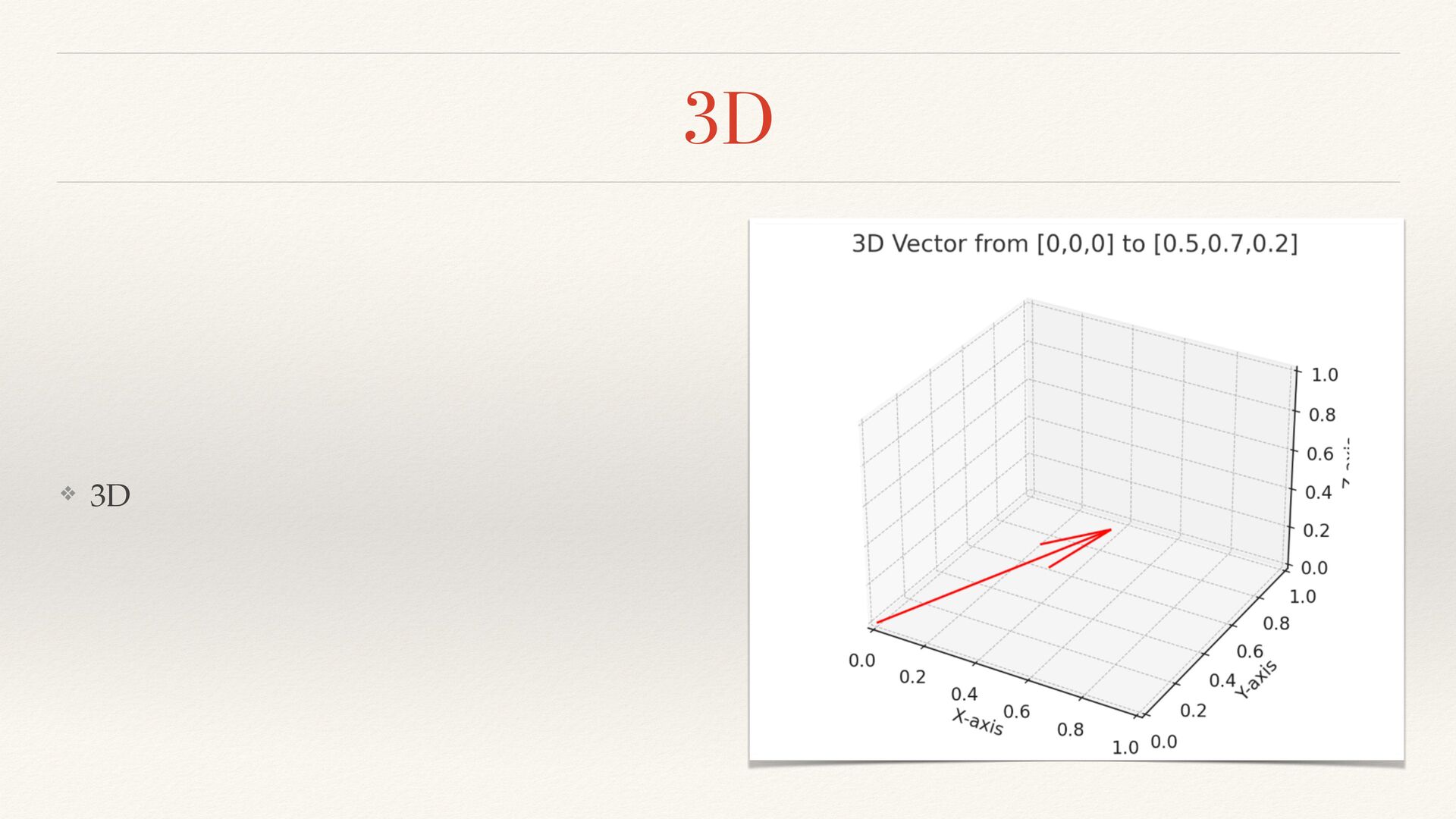

13. 3D ❖ 3D

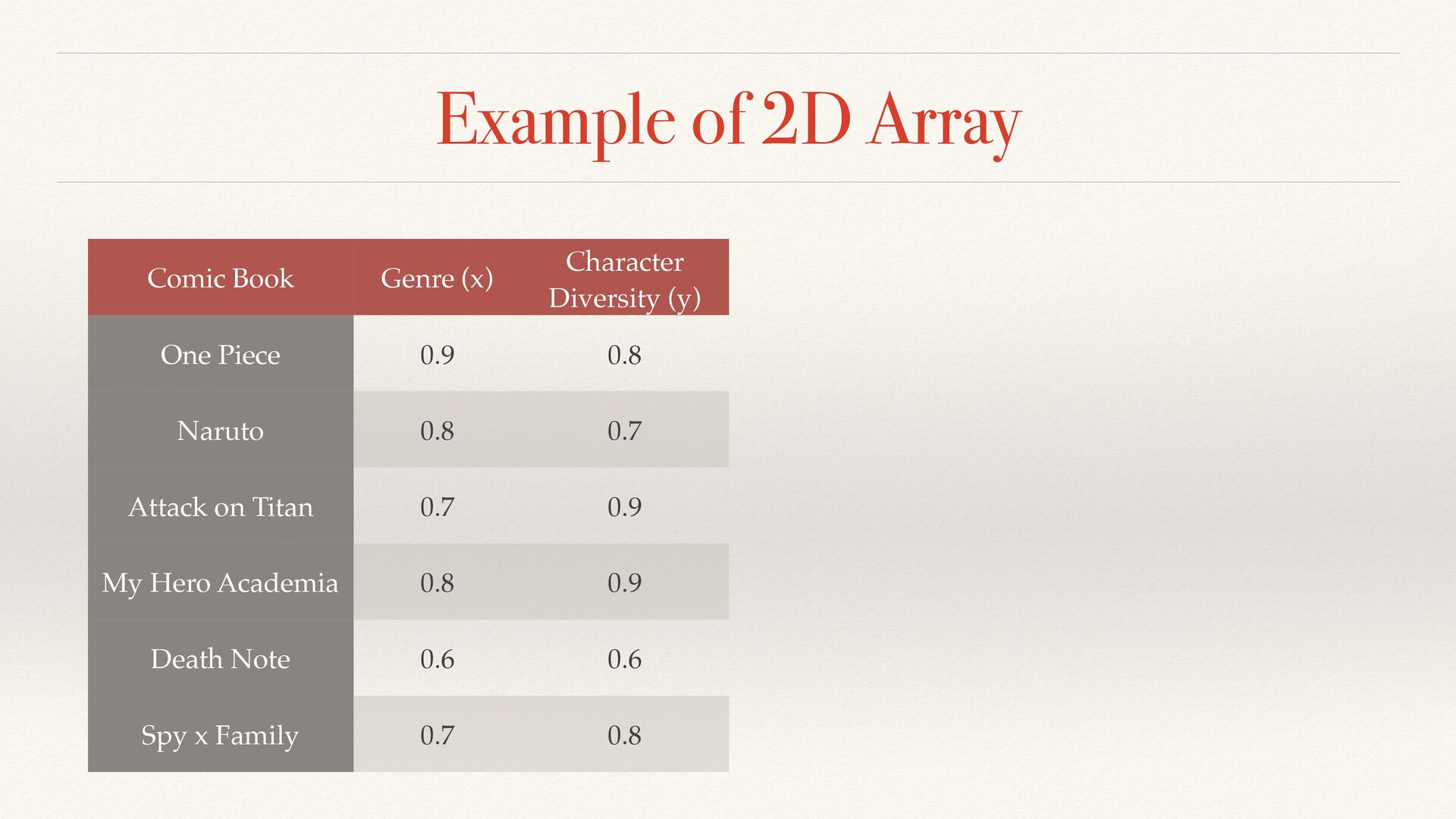

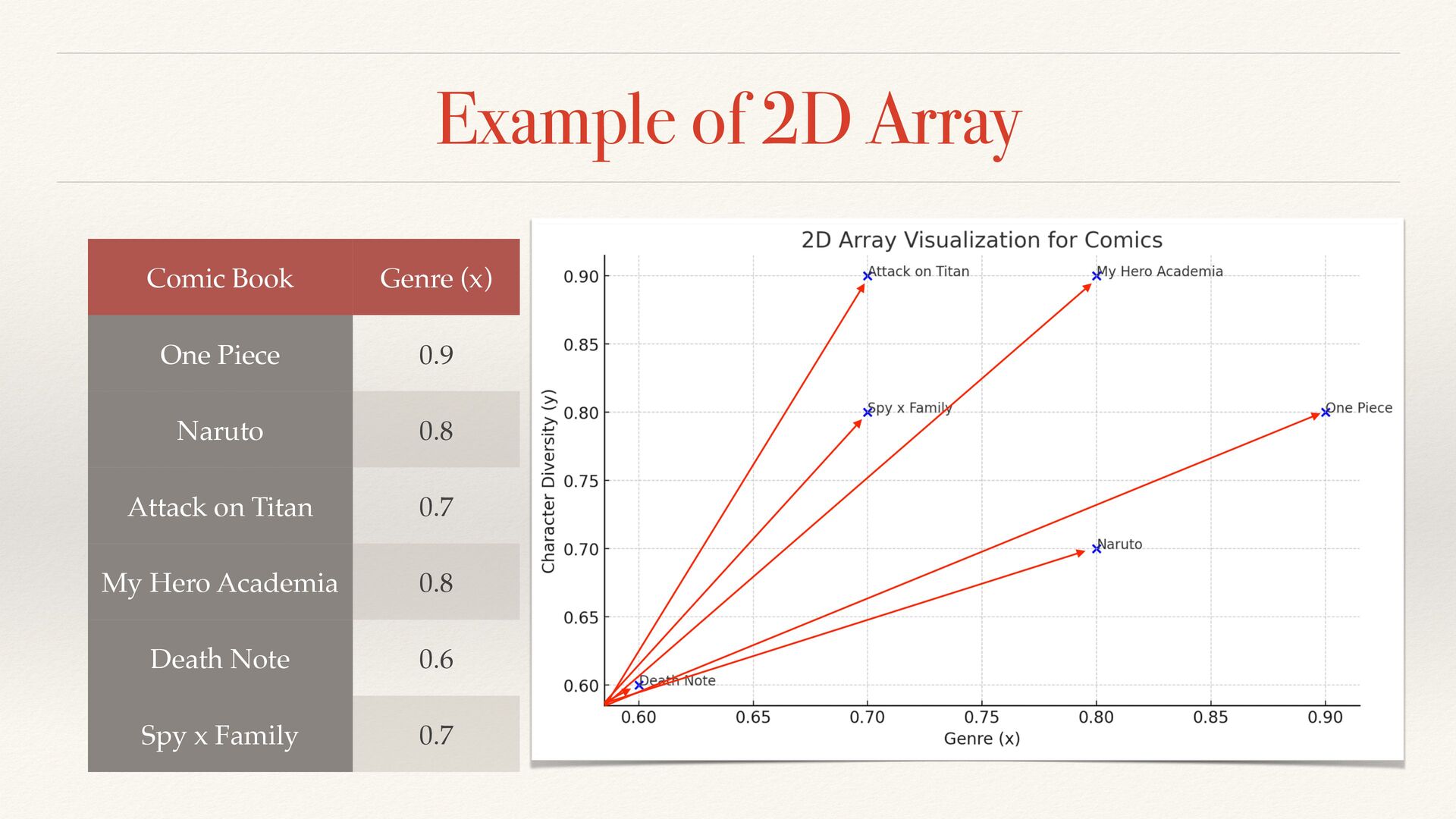

14. Example of 2D Array Comic Book Genre (x) Character Diversity (y) One Piece 0.9 0.8 Naruto 0.8 0.7 Attack on Titan 0.7 0.9 My Hero Academia 0.8 0.9 Death Note 0.6 0.6 Spy x Family 0.7 0.8
15. Example of 2D Array Comic Book Genre (x) One Piece 0.9 Naruto 0.8 Attack on Titan 0.7 My Hero Academia 0.8 Death Note 0.6 Spy x Family 0.7

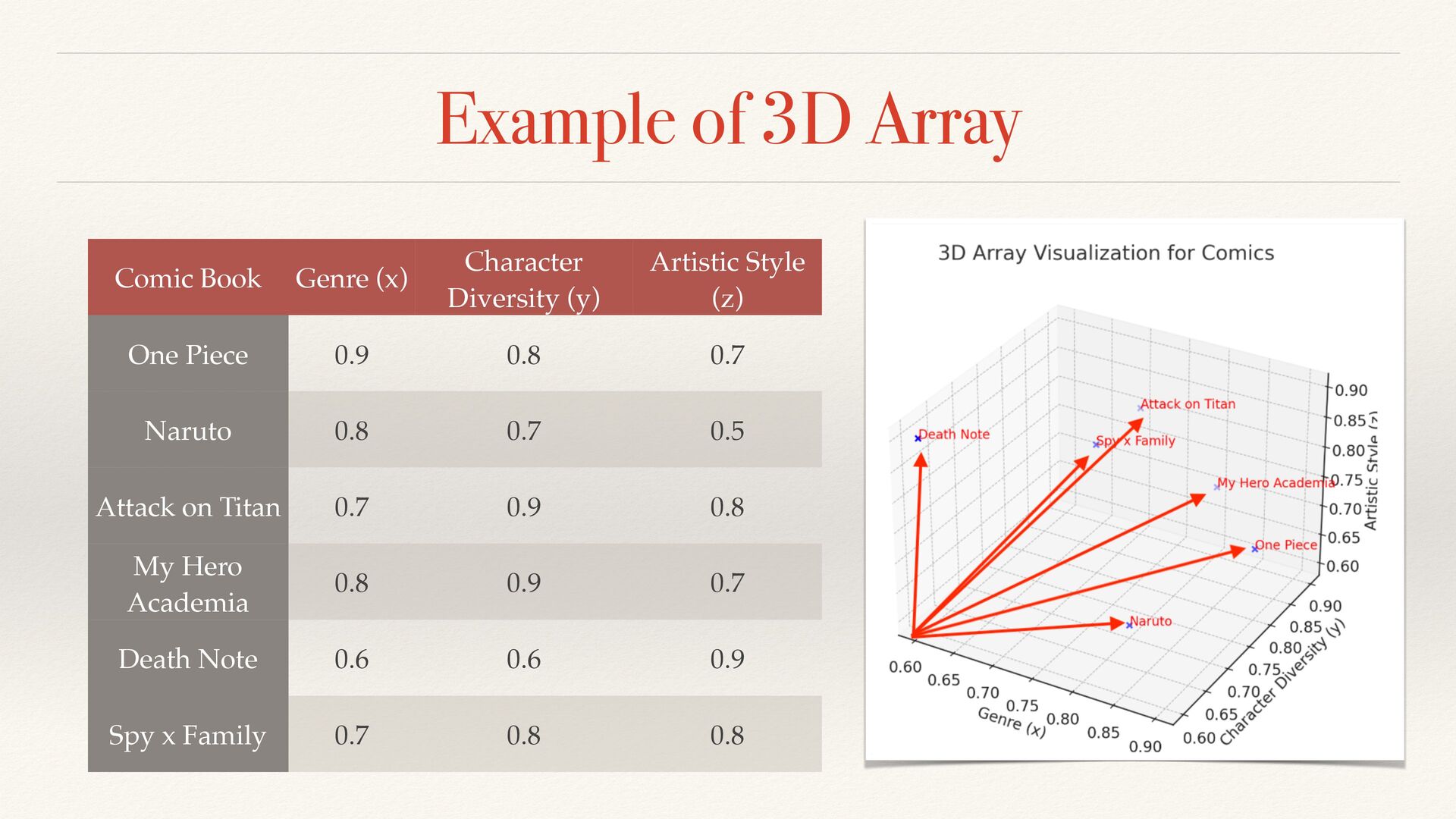

16. Example of 3D Array Comic Book Genre (x) Character Diversity (y) Artistic Style (z) One Piece 0.9 0.8 0.7 Naruto 0.8 0.7 0.5 Attack on Titan 0.7 0.9 0.8 My Hero Academia 0.8 0.9 0.7 Death Note 0.6 0.6 0.9 Spy x Family 0.7 0.8 0.8

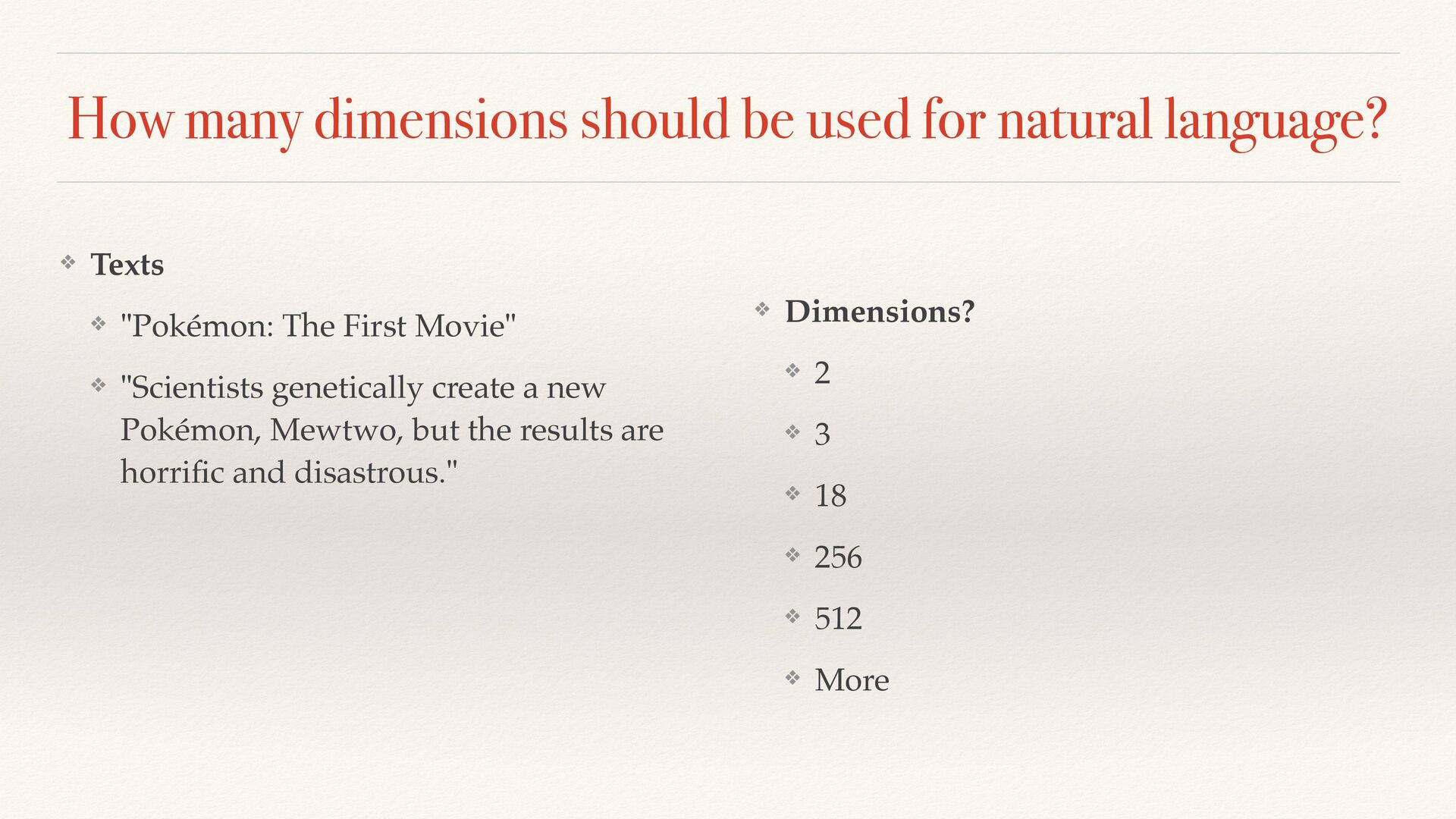

17. How many dimensions should be used for natural language? ❖ Texts ❖ "Pokémon: The First Movie" ❖ "Scientists genetically create a new Pokémon, Mewtwo, but the results are horri fi c and disastrous." ❖ Dimensions? ❖ 2 ❖ 3 ❖ 18 ❖ 256 ❖ 512 ❖ More
18. high-dimensional vector ❖ Texts ❖ "Pokémon: The First Movie" ❖ "Scientists genetically create a new Pokémon, Mewtwo, but the results are horri fi c and disastrous." ❖ Dimensions !! 1536
19. Embeddings Model (OpenAI) Source: OpenAI, https://platform.openai.com/docs/models/embeddings

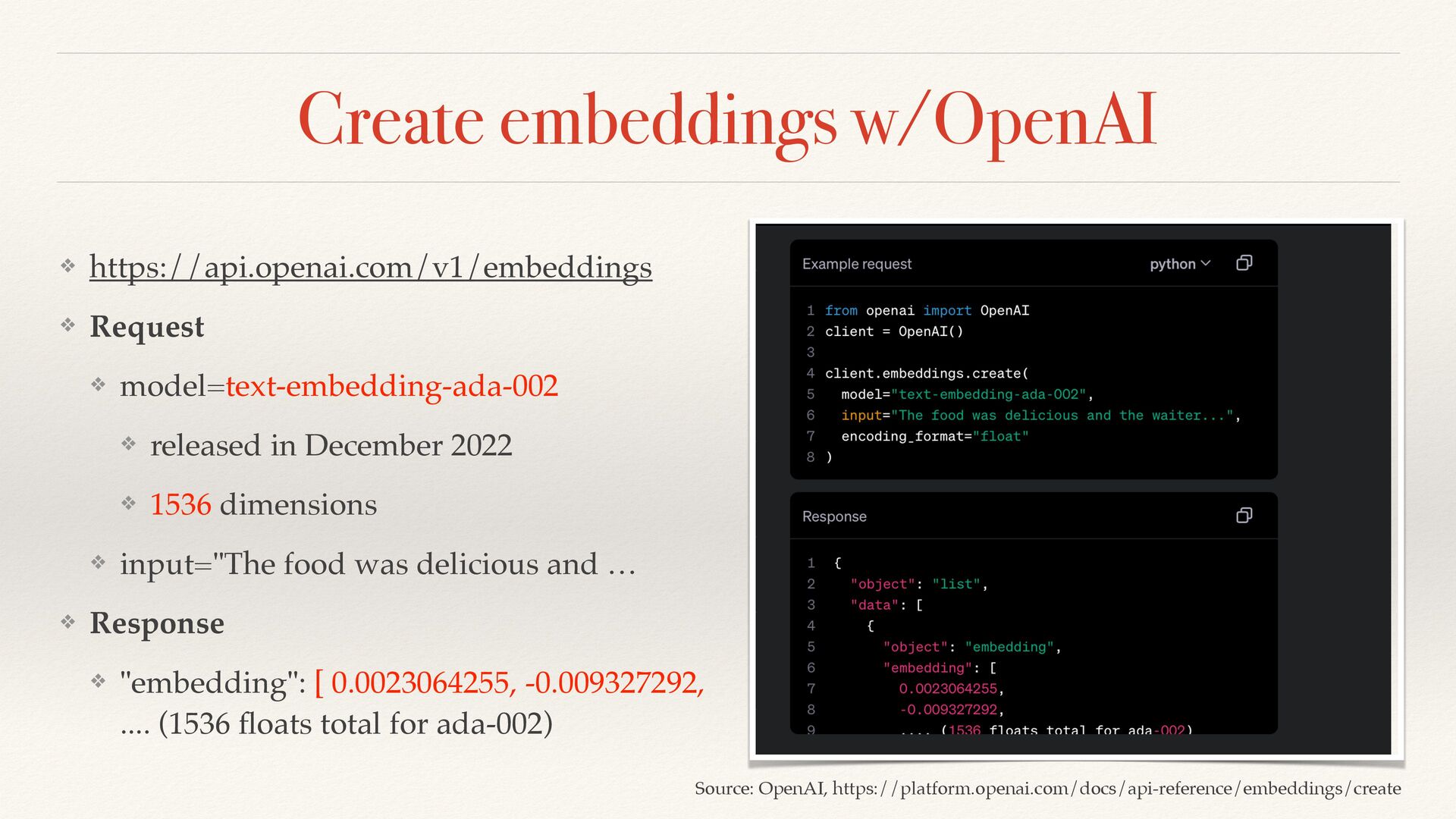

20. Create embeddings w/OpenAI ❖ https://api.openai.com/v1/embeddings ❖ Request ❖ model=text-embedding-ada-002 ❖ released in December 2022 ❖ 1536 dimensions ❖ input="The food was delicious and … ❖ Response ❖ "embedding": [ 0.0023064255, -0.009327292, .... (1536 fl oats total for ada-002) Source: OpenAI, https://platform.openai.com/docs/api-reference/embeddings/create

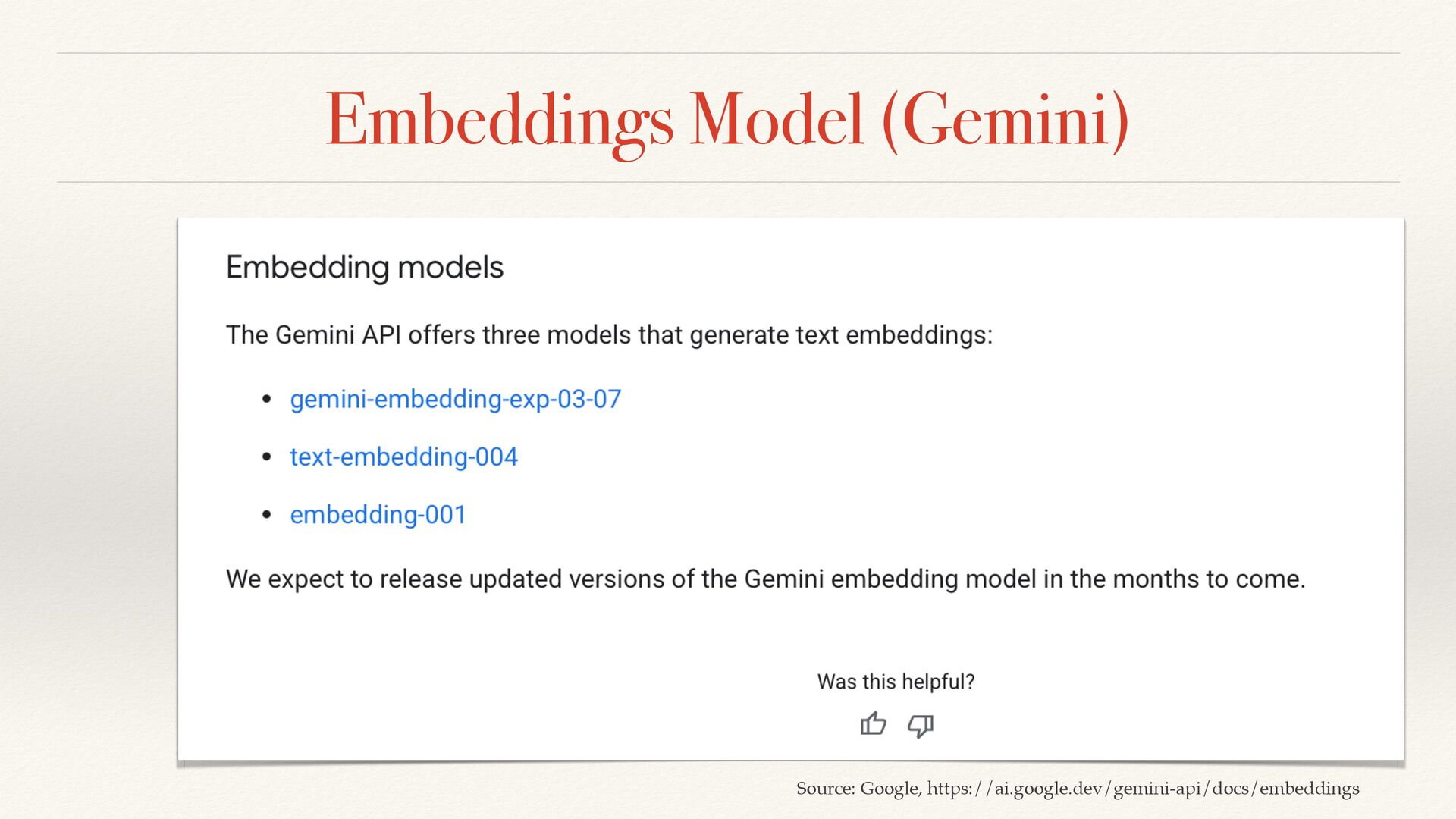

21. Embeddings Model (Gemini) Source: Google, https://ai.google.dev/gemini-api/docs/embeddings

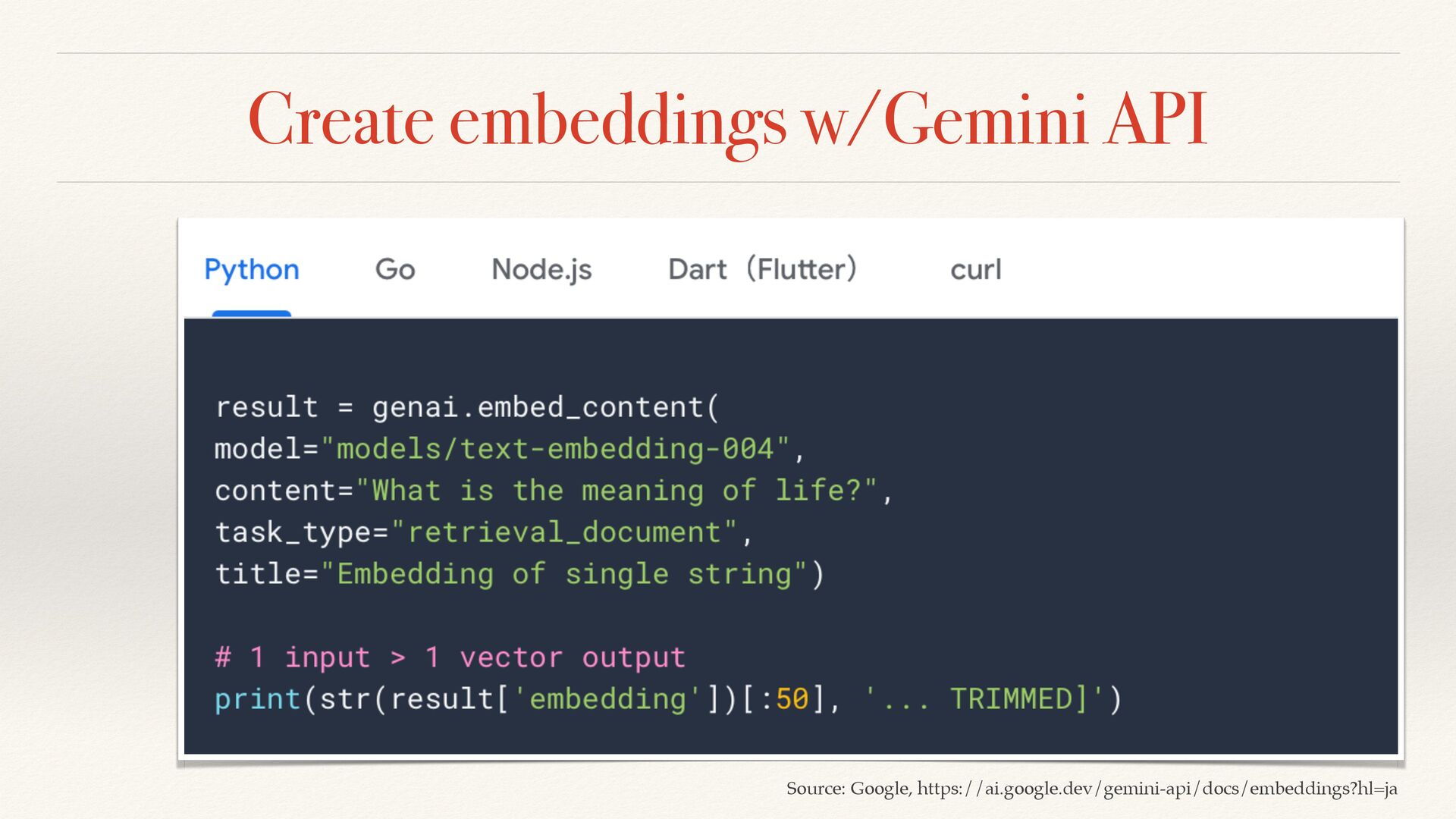

22. Create embeddings w/Gemini API Source: Google, https://ai.google.dev/gemini-api/docs/embeddings?hl=ja

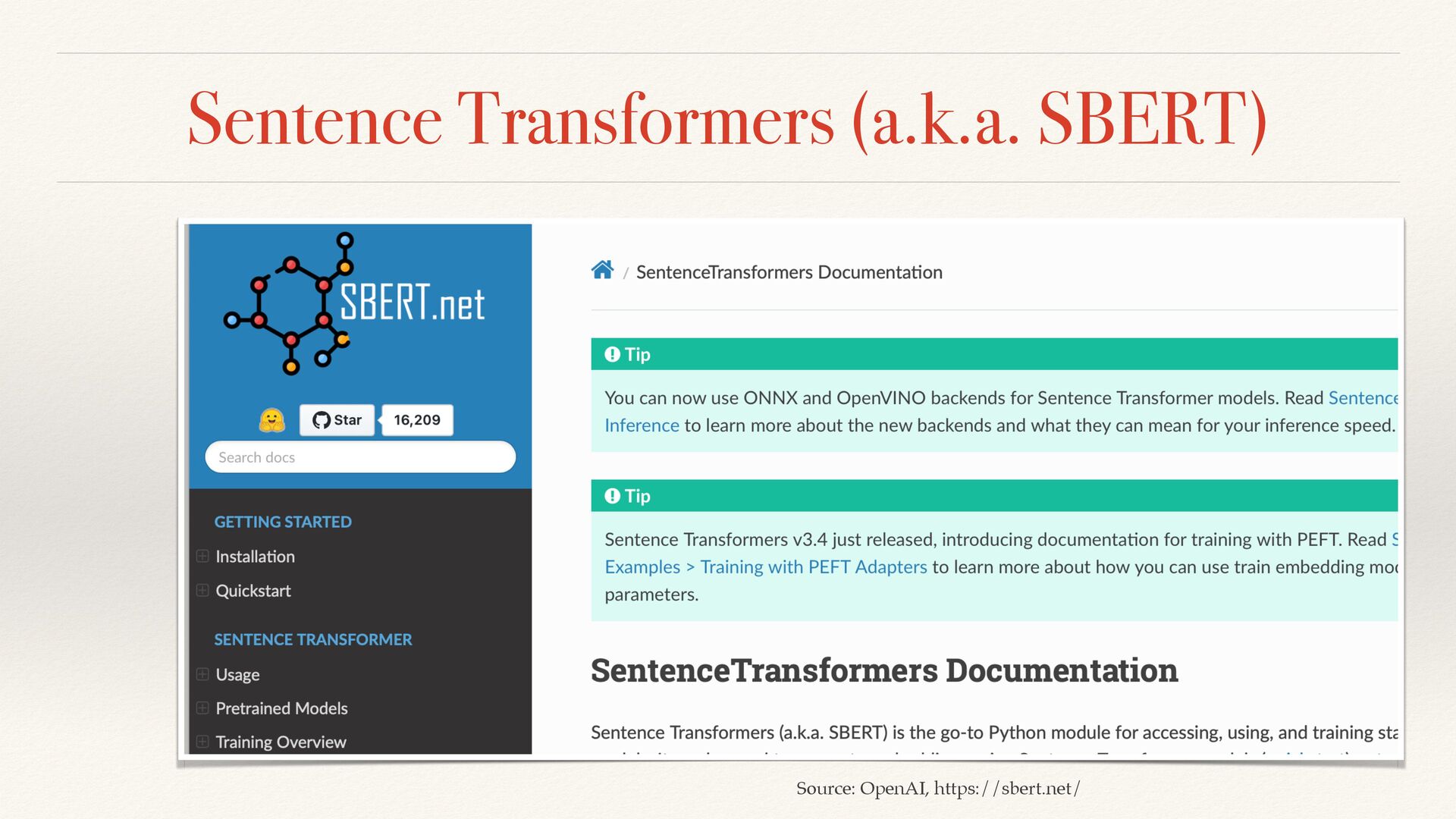

23. Sentence Transformers (a.k.a. SBERT) Source: OpenAI, https://sbert.net/

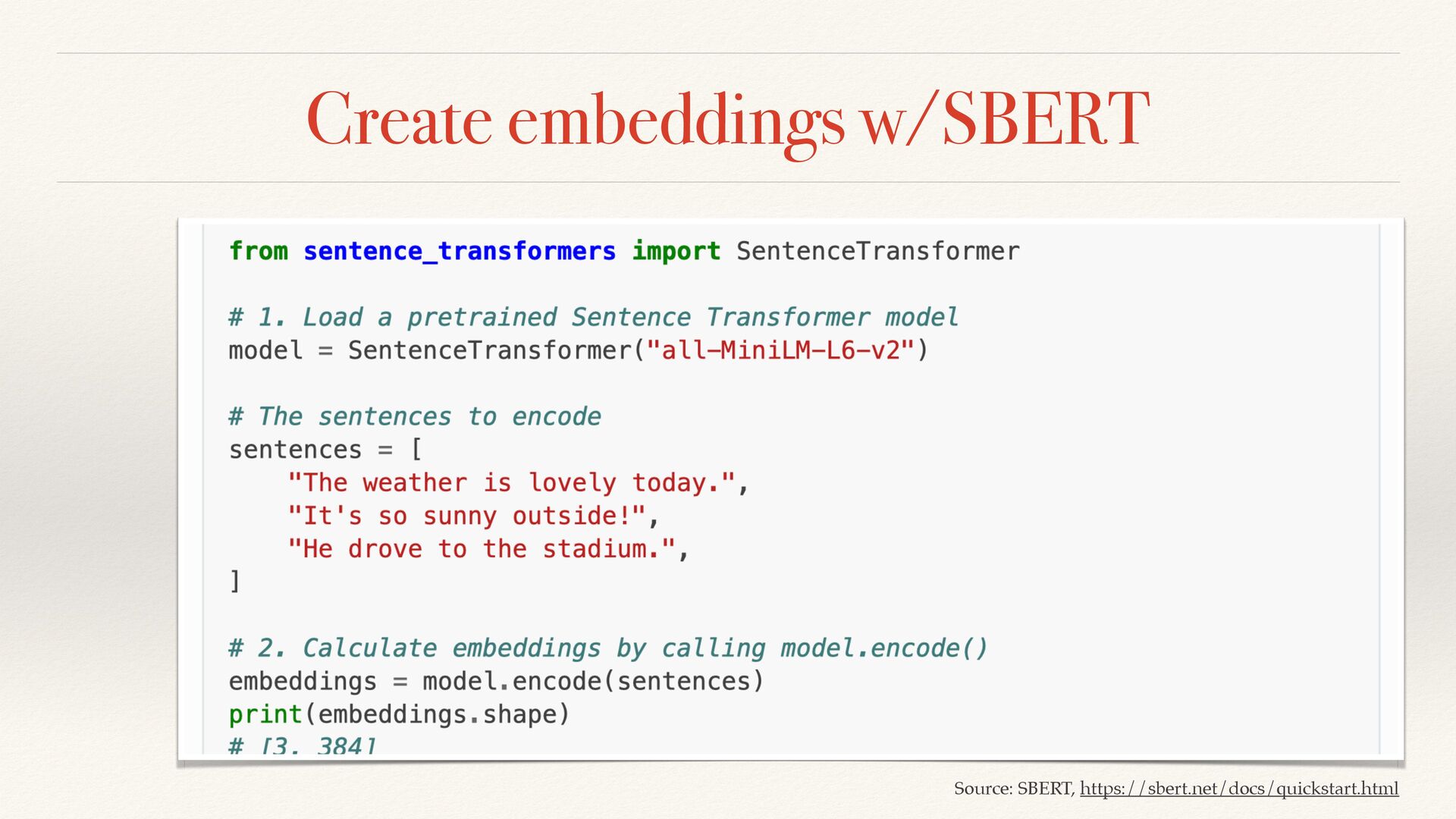

24. Create embeddings w/SBERT Source: SBERT, https://sbert.net/docs/quickstart.html

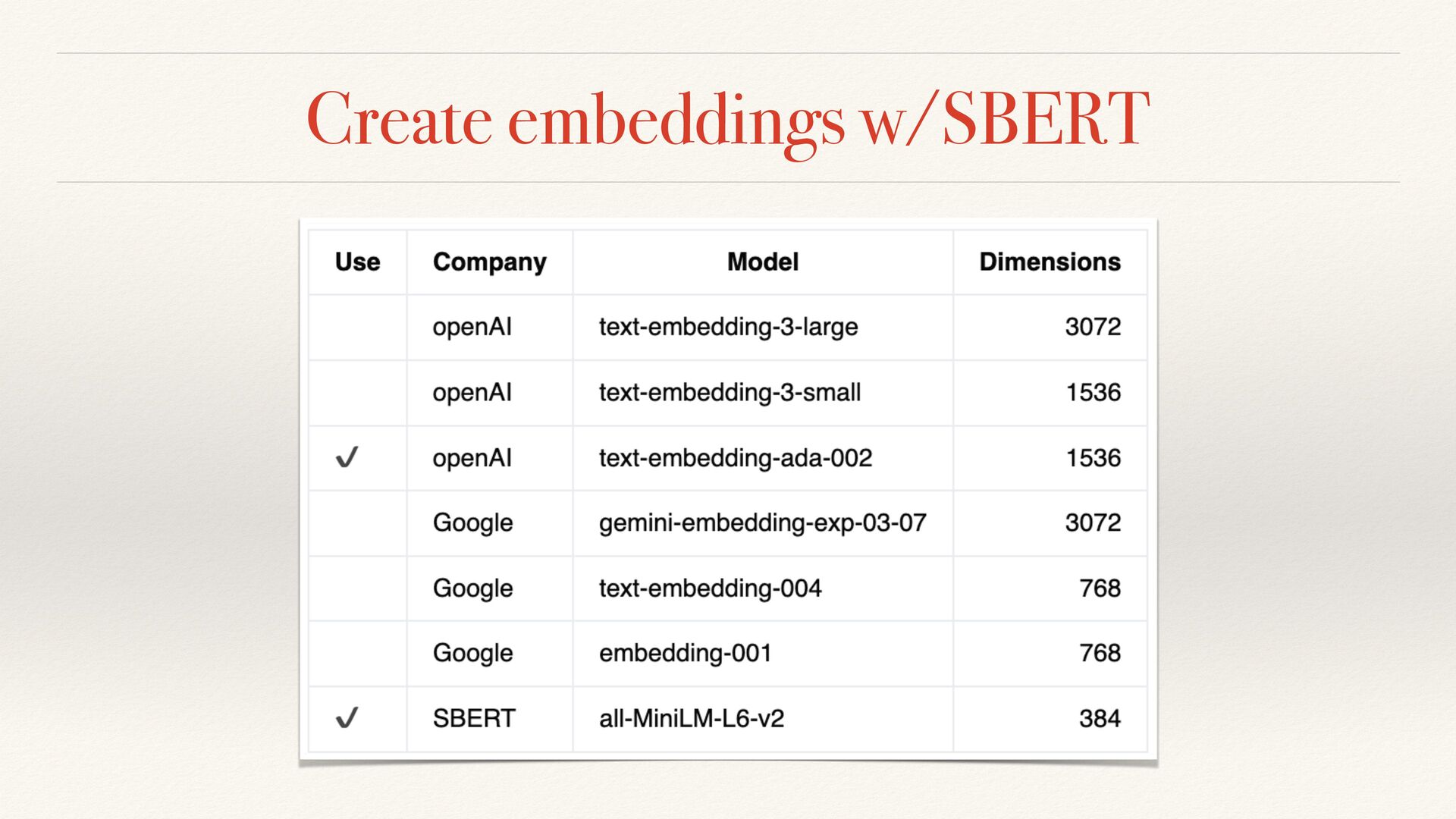

25. Create embeddings w/SBERT

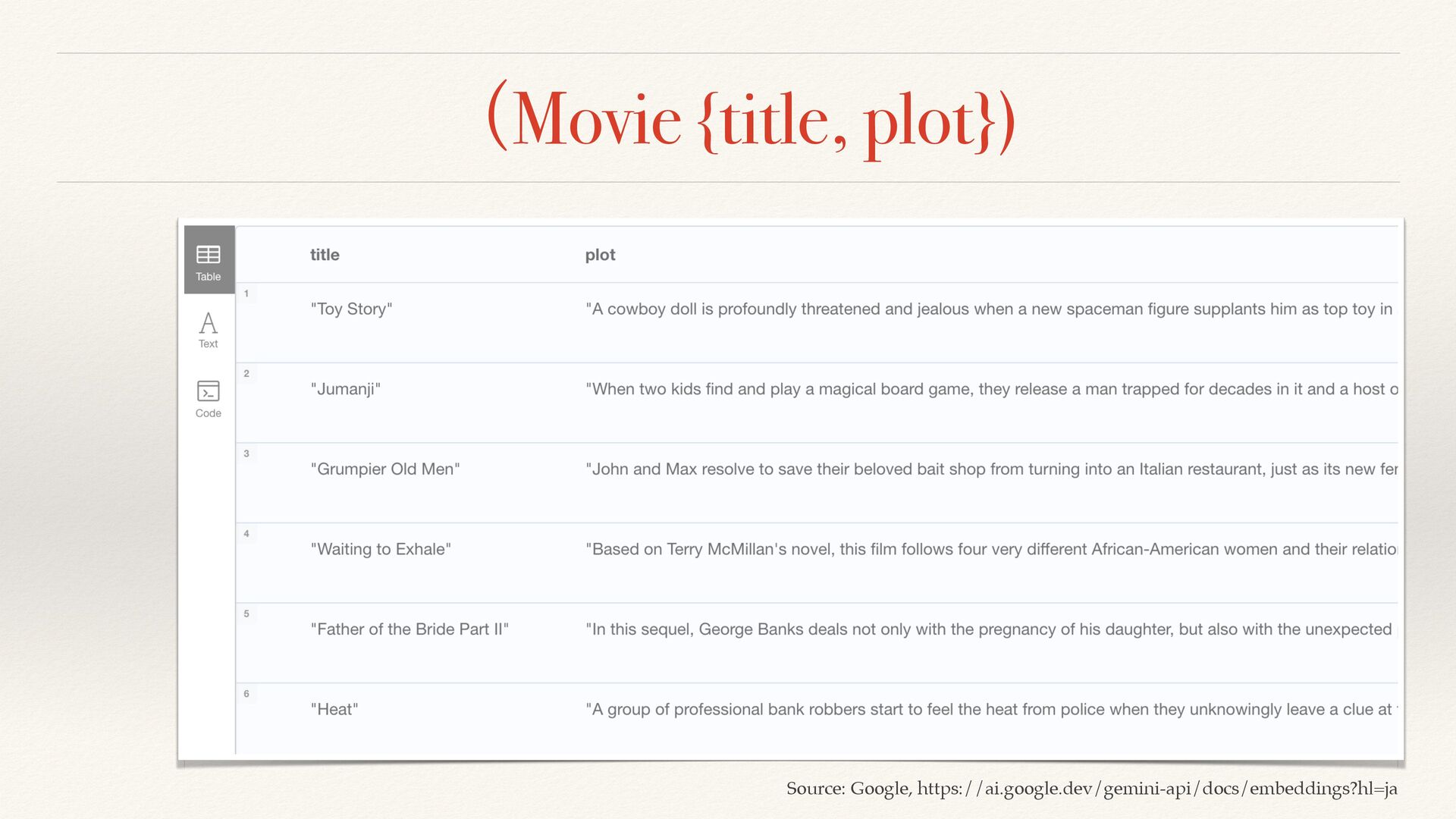

26. ʢMovie {title, plot}) Source: Google, https://ai.google.dev/gemini-api/docs/embeddings?hl=ja

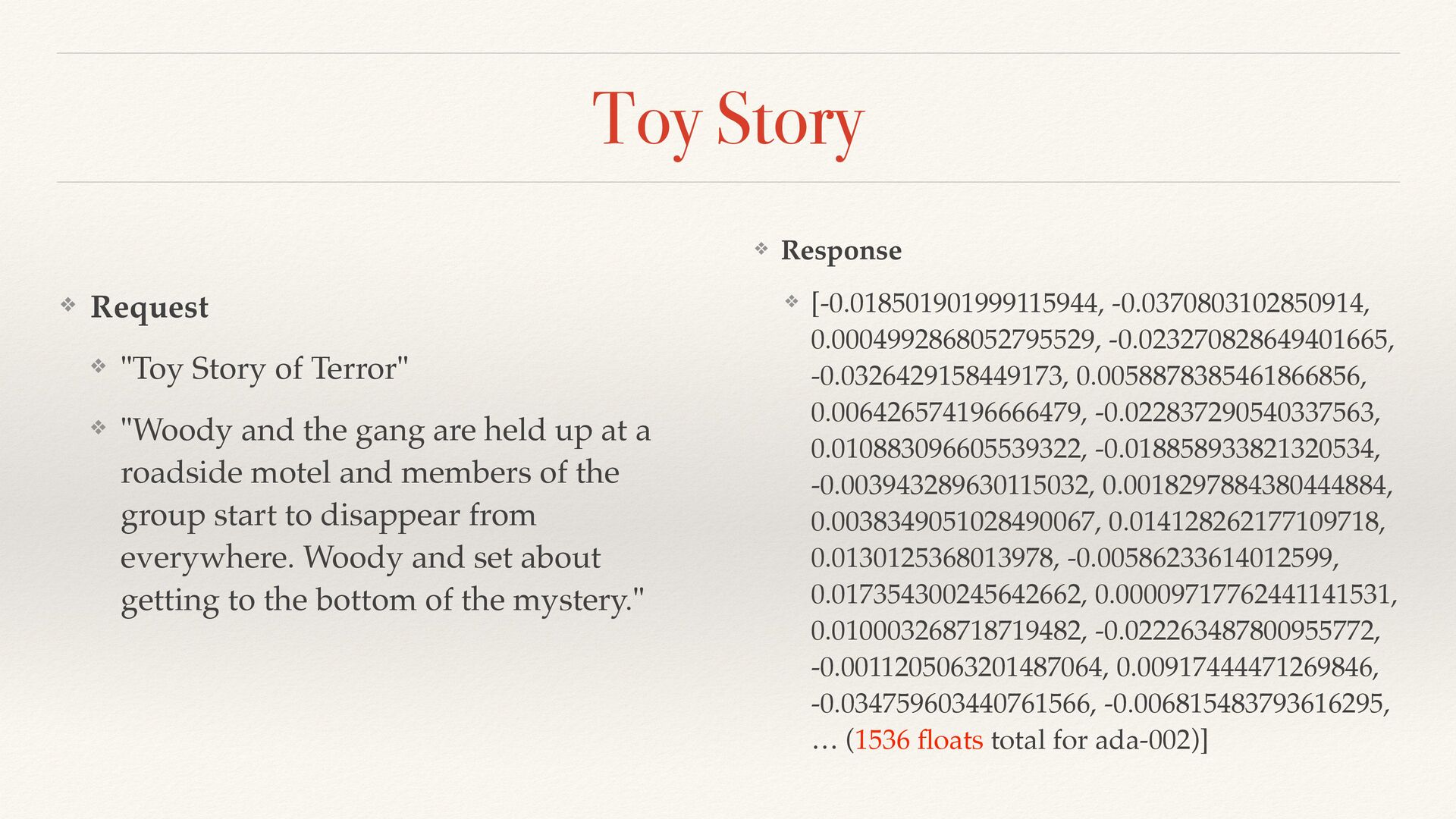

27. Toy Story ❖ Request ❖ "Toy Story of Terror" ❖ "Woody and the gang are held up at a roadside motel and members of the group start to disappear from everywhere. Woody and set about getting to the bottom of the mystery." ❖ Response ❖ [-0.018501901999115944, -0.0370803102850914, 0.0004992868052795529, -0.023270828649401665, -0.0326429158449173, 0.0058878385461866856, 0.006426574196666479, -0.022837290540337563, 0.010883096605539322, -0.018858933821320534, -0.003943289630115032, 0.0018297884380444884, 0.0038349051028490067, 0.014128262177109718, 0.0130125368013978, -0.00586233614012599, 0.017354300245642662, 0.00009717762441141531, 0.010003268718719482, -0.022263487800955772, -0.0011205063201487064, 0.00917444471269846, -0.034759603440761566, -0.006815483793616295, … (1536 fl oats total for ada-002)]

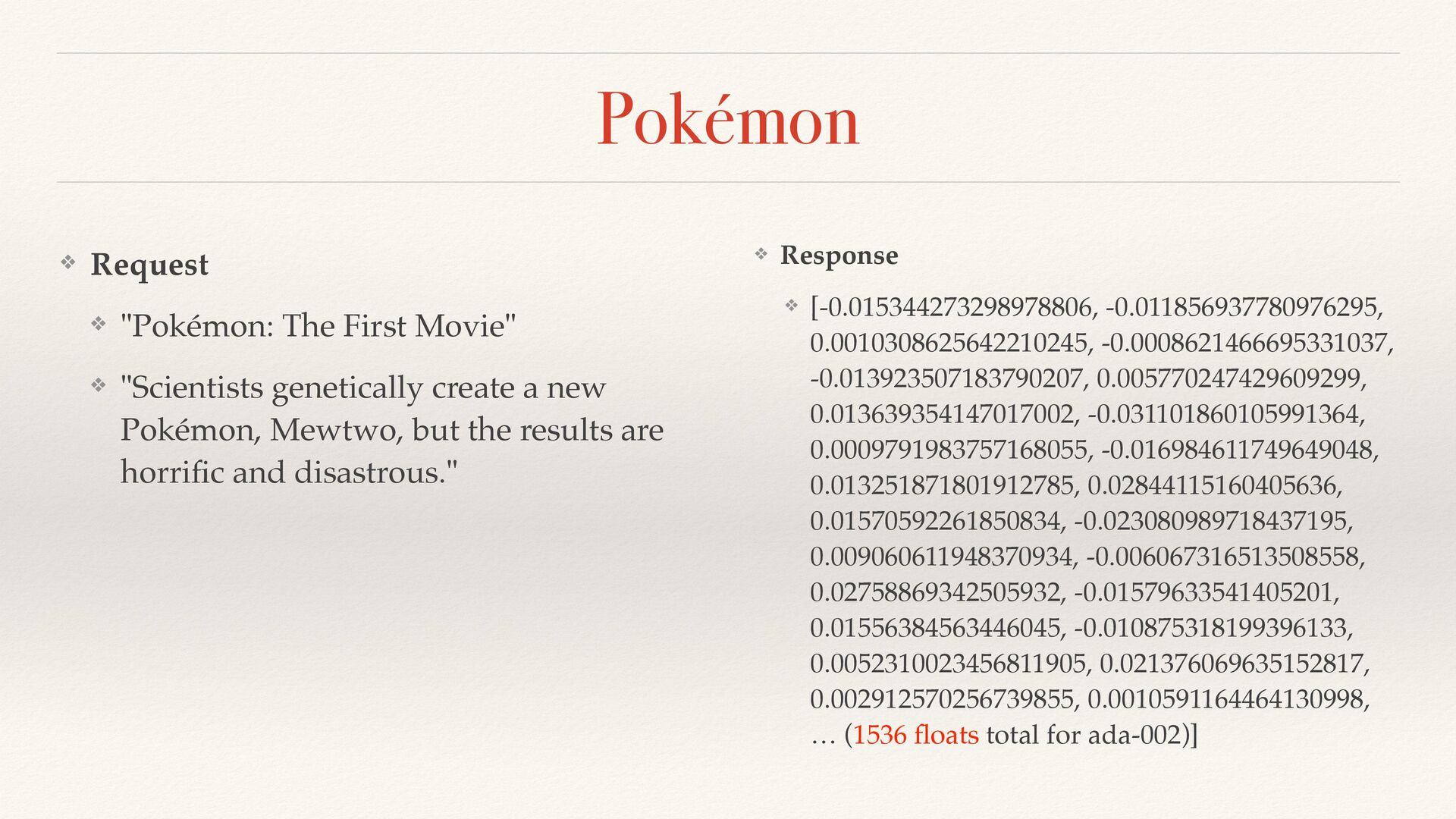

28. Pokémon ❖ Request ❖ "Pokémon: The First Movie" ❖ "Scientists genetically create a new Pokémon, Mewtwo, but the results are horri fi c and disastrous." ❖ Response ❖ [-0.015344273298978806, -0.011856937780976295, 0.0010308625642210245, -0.0008621466695331037, -0.013923507183790207, 0.005770247429609299, 0.013639354147017002, -0.031101860105991364, 0.0009791983757168055, -0.016984611749649048, 0.013251871801912785, 0.02844115160405636, 0.01570592261850834, -0.023080989718437195, 0.009060611948370934, -0.006067316513508558, 0.02758869342505932, -0.01579633541405201, 0.01556384563446045, -0.010875318199396133, 0.0052310023456811905, 0.021376069635152817, 0.002912570256739855, 0.0010591164464130998, … (1536 fl oats total for ada-002)]

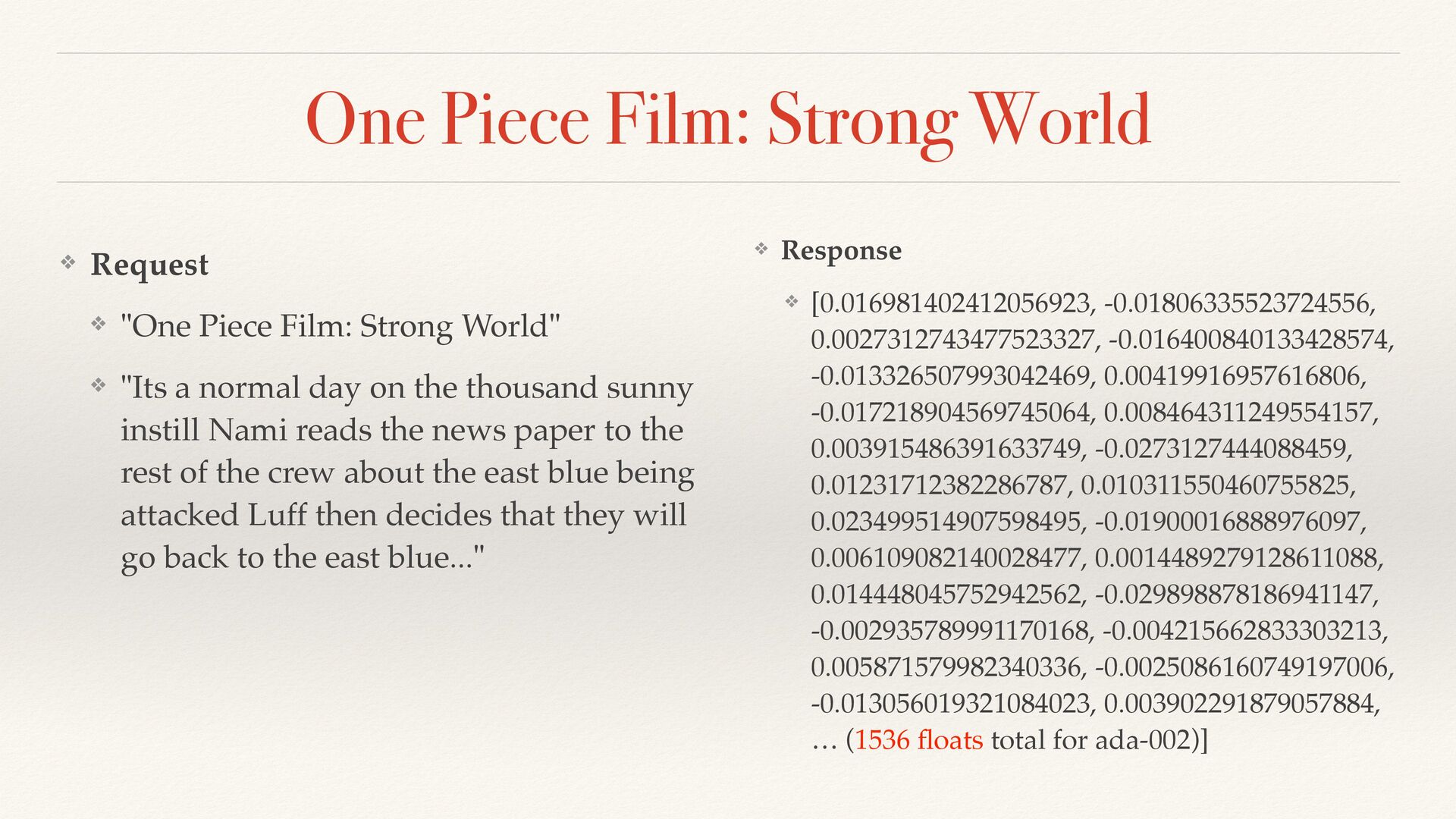

29. One Piece Film: Strong World ❖ Request ❖ "One Piece Film: Strong World" ❖ "Its a normal day on the thousand sunny instill Nami reads the news paper to the rest of the crew about the east blue being attacked Luff then decides that they will go back to the east blue..." ❖ Response ❖ [0.016981402412056923, -0.01806335523724556, 0.0027312743477523327, -0.016400840133428574, -0.013326507993042469, 0.00419916957616806, -0.017218904569745064, 0.008464311249554157, 0.003915486391633749, -0.0273127444088459, 0.01231712382286787, 0.010311550460755825, 0.023499514907598495, -0.01900016888976097, 0.006109082140028477, 0.0014489279128611088, 0.014448045752942562, -0.029898878186941147, -0.002935789991170168, -0.004215662833303213, 0.005871579982340336, -0.0025086160749197006, -0.013056019321084023, 0.003902291879057884, … (1536 fl oats total for ada-002)]

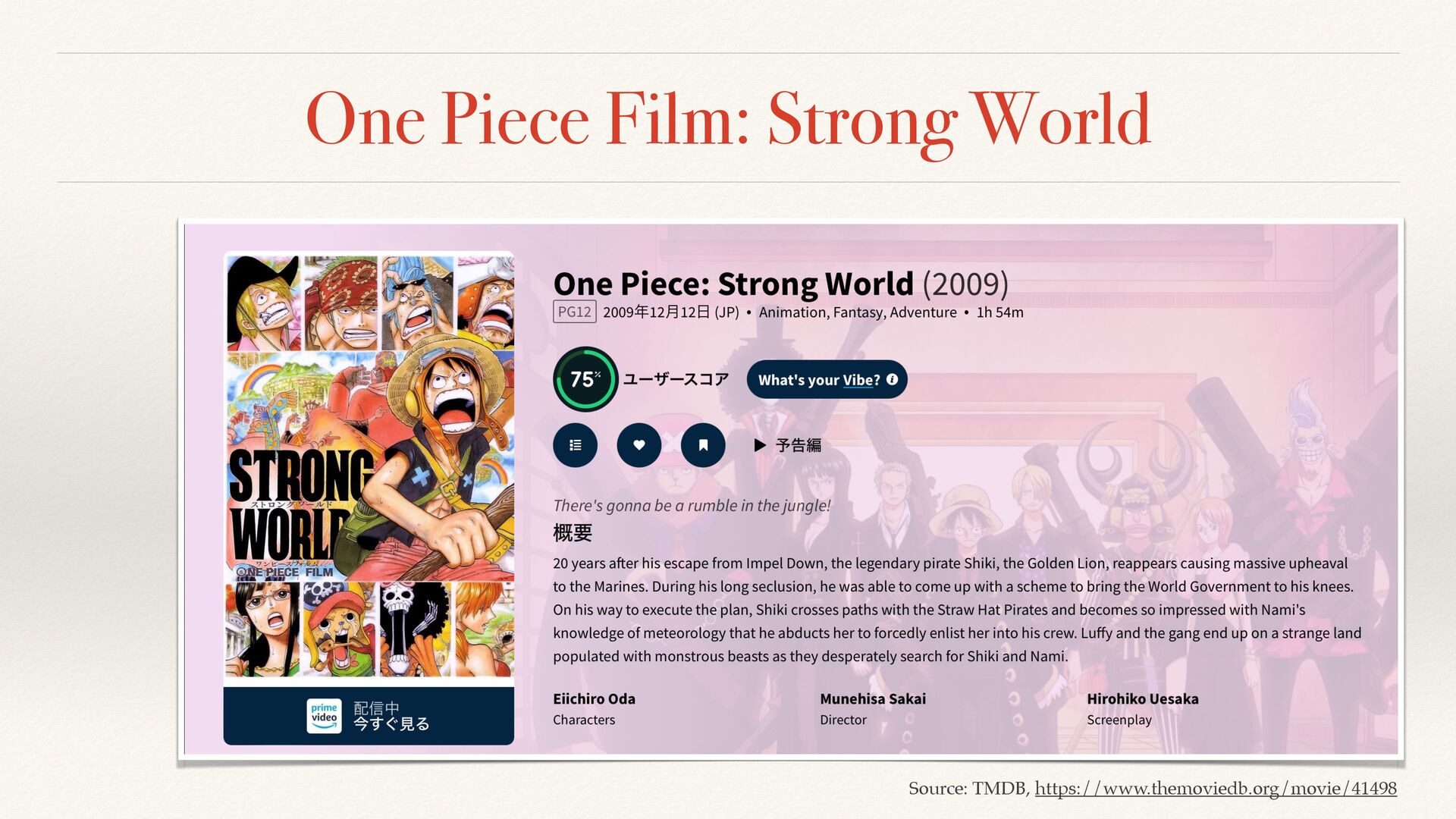

30. One Piece Film: Strong World Source: TMDB, https://www.themoviedb.org/movie/41498

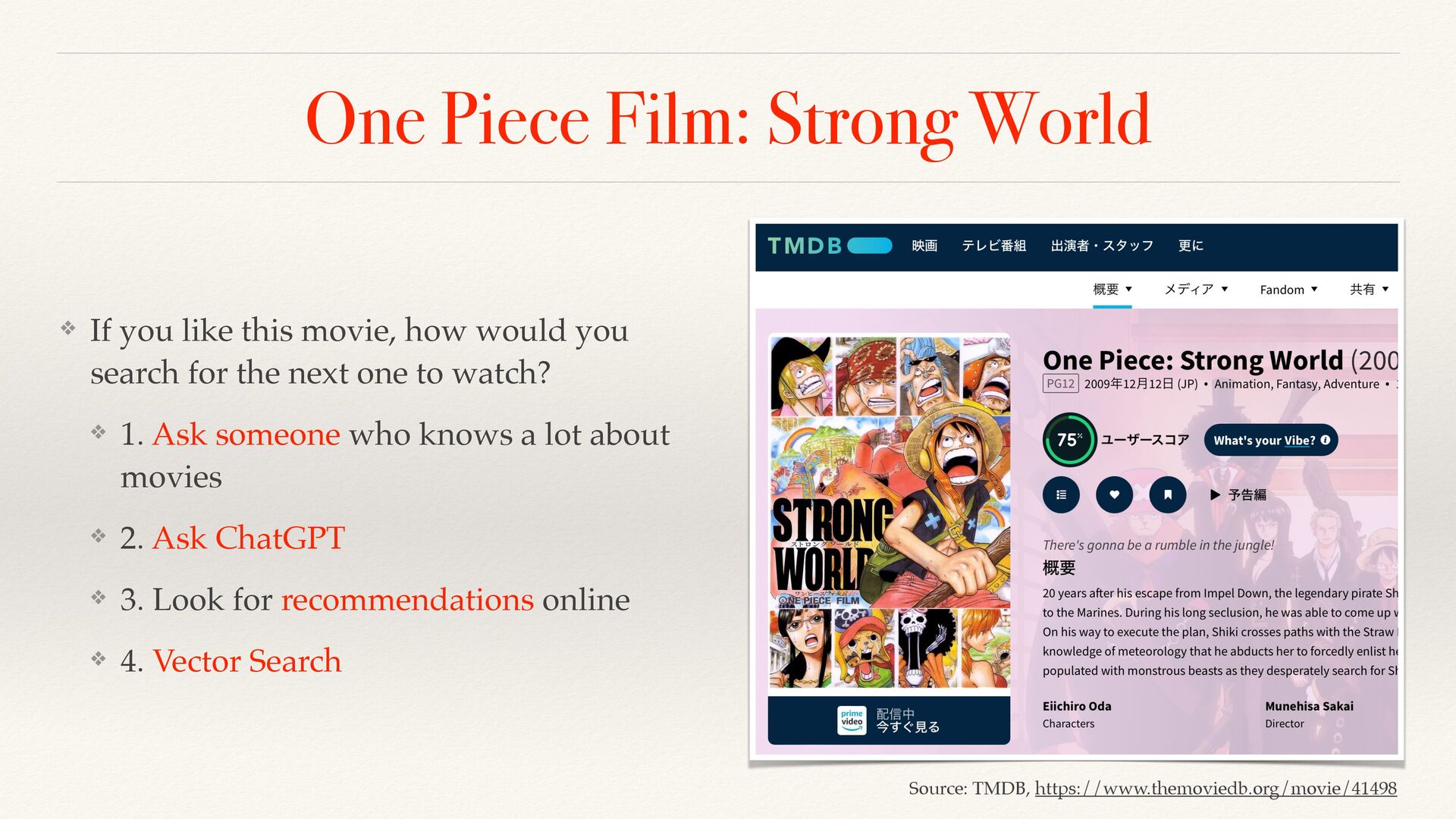

31. ❖ If you like this movie, how would you search for the next one to watch? ❖ 1. Ask someone who knows a lot about movies ❖ 2. Ask ChatGPT ❖ 3. Look for recommendations online ❖ 4. Vector Search Source: TMDB, https://www.themoviedb.org/movie/41498 One Piece Film: Strong World

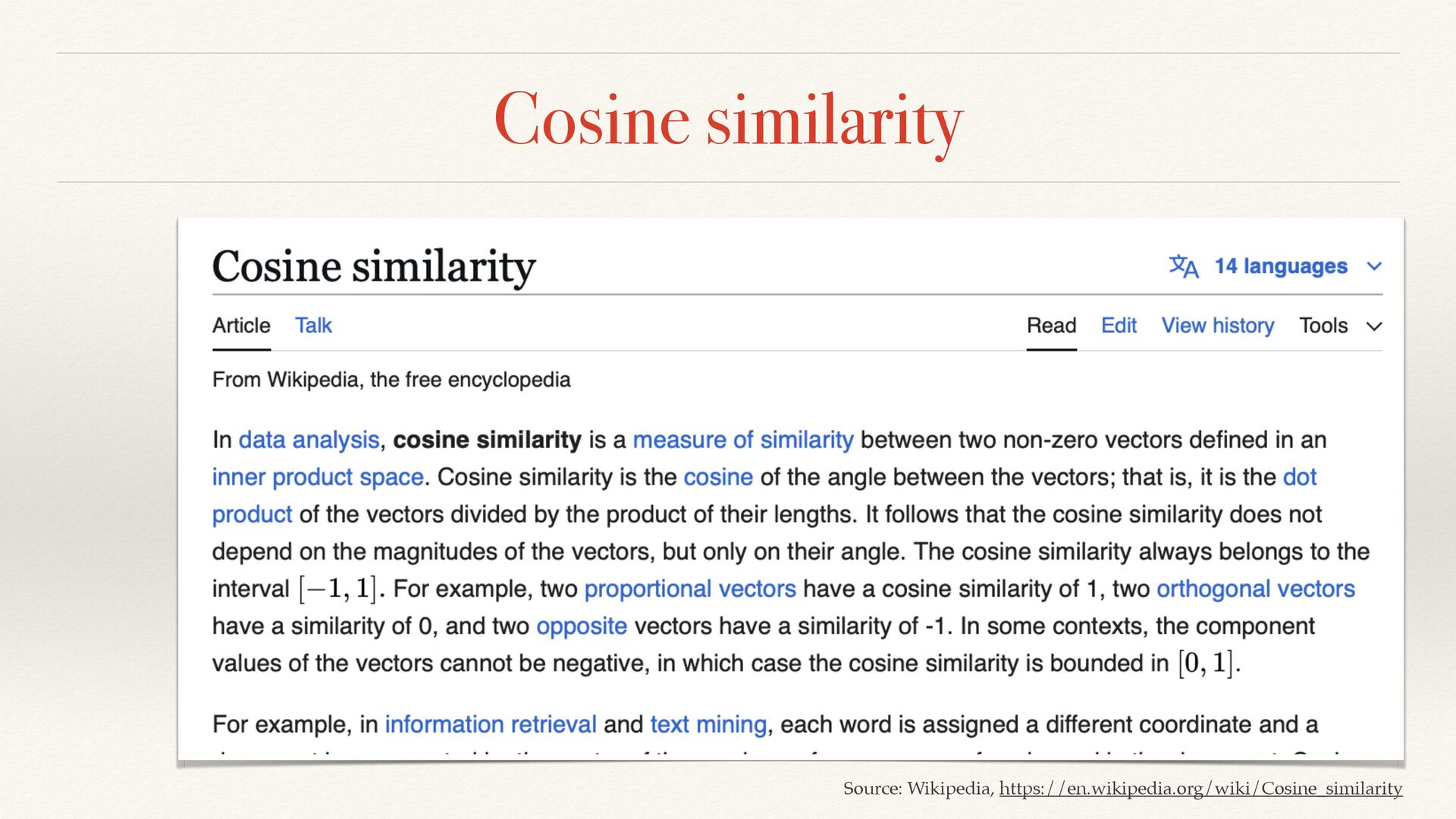

32. Cosine similarity Source: Wikipedia, https://en.wikipedia.org/wiki/Cosine_similarity

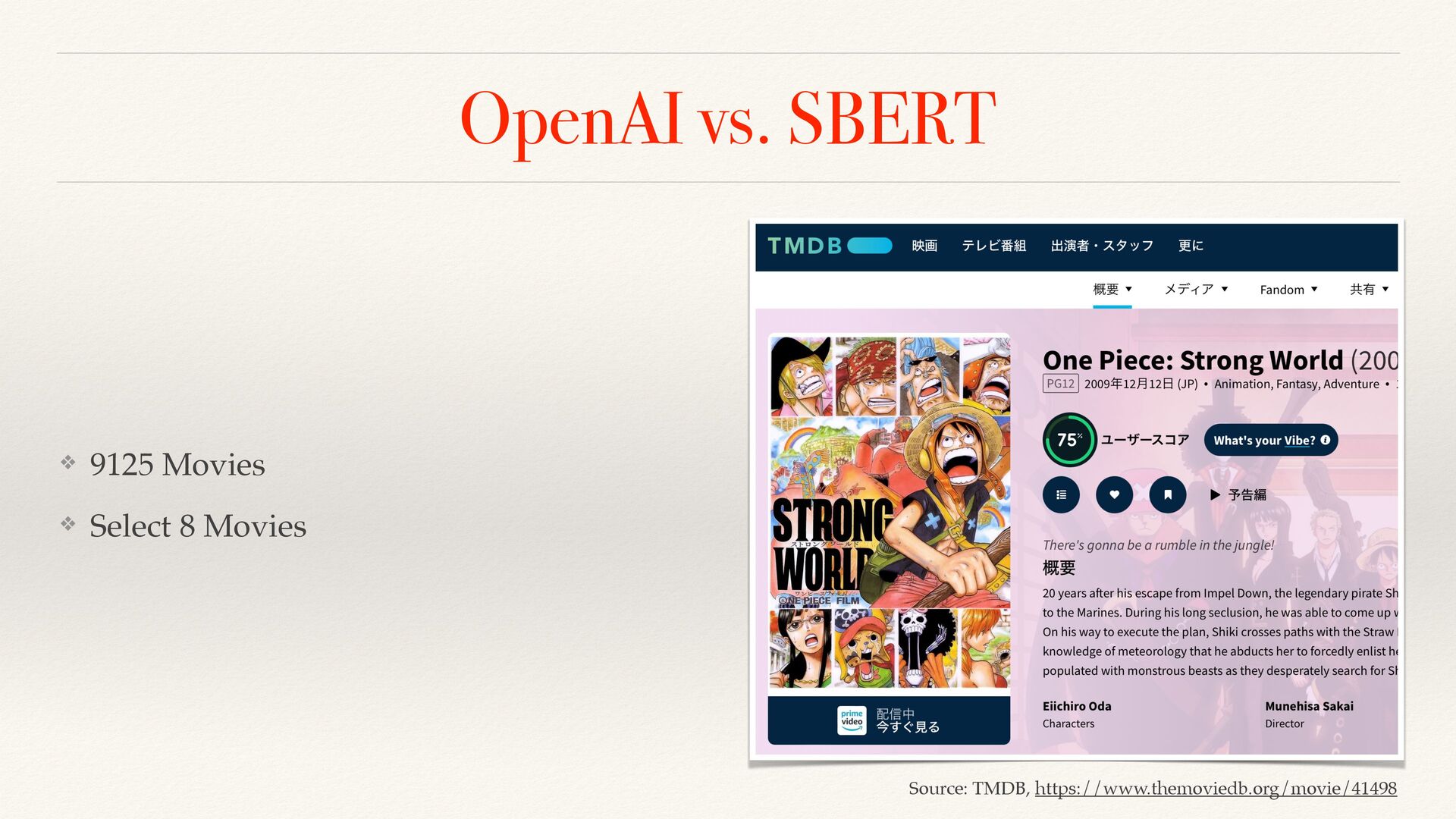

33. ❖ 9125 Movies ❖ Select 8 Movies Source: TMDB, https://www.themoviedb.org/movie/41498 OpenAI vs. SBERT

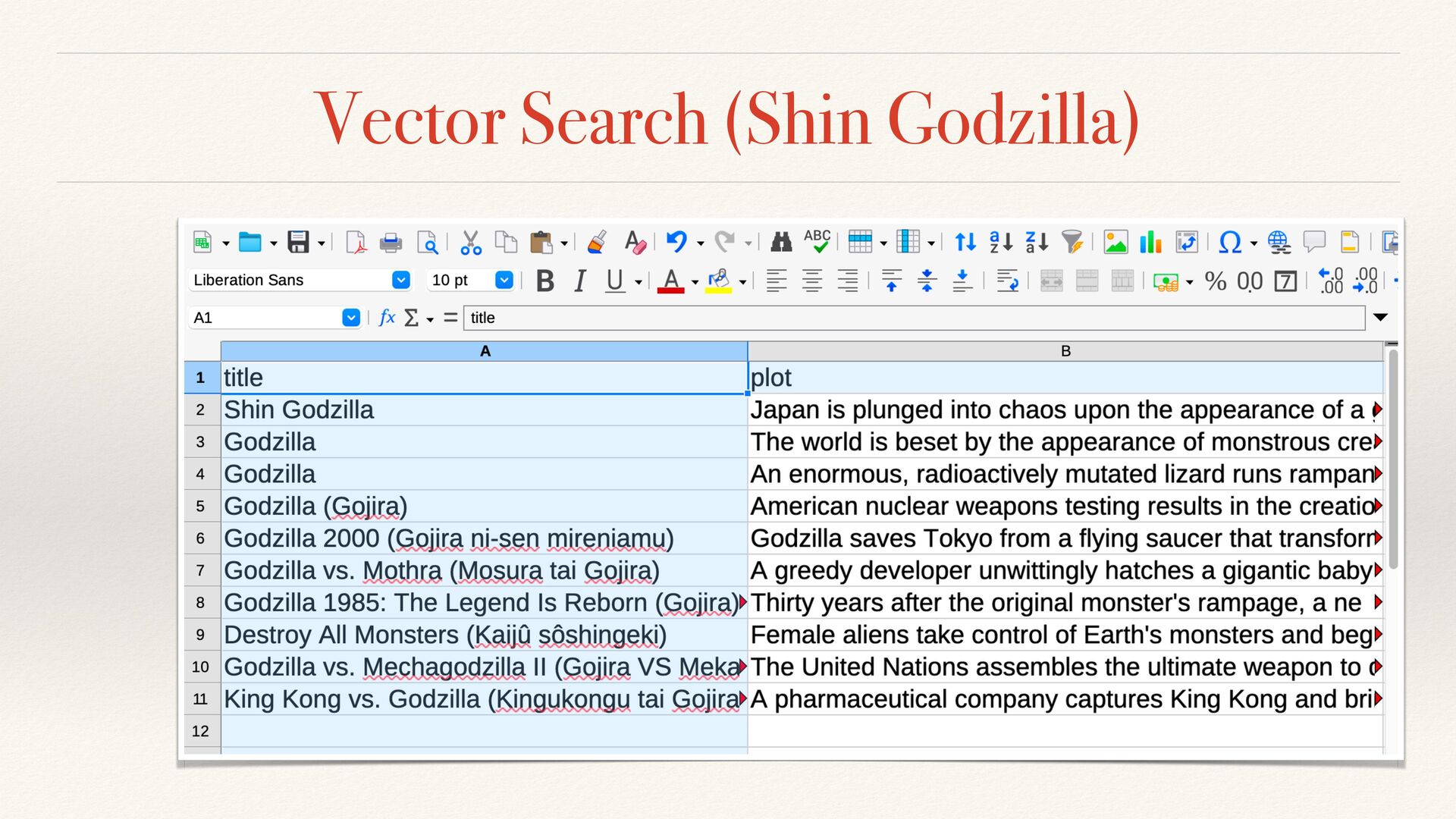

34. Vector Search (Shin Godzilla)

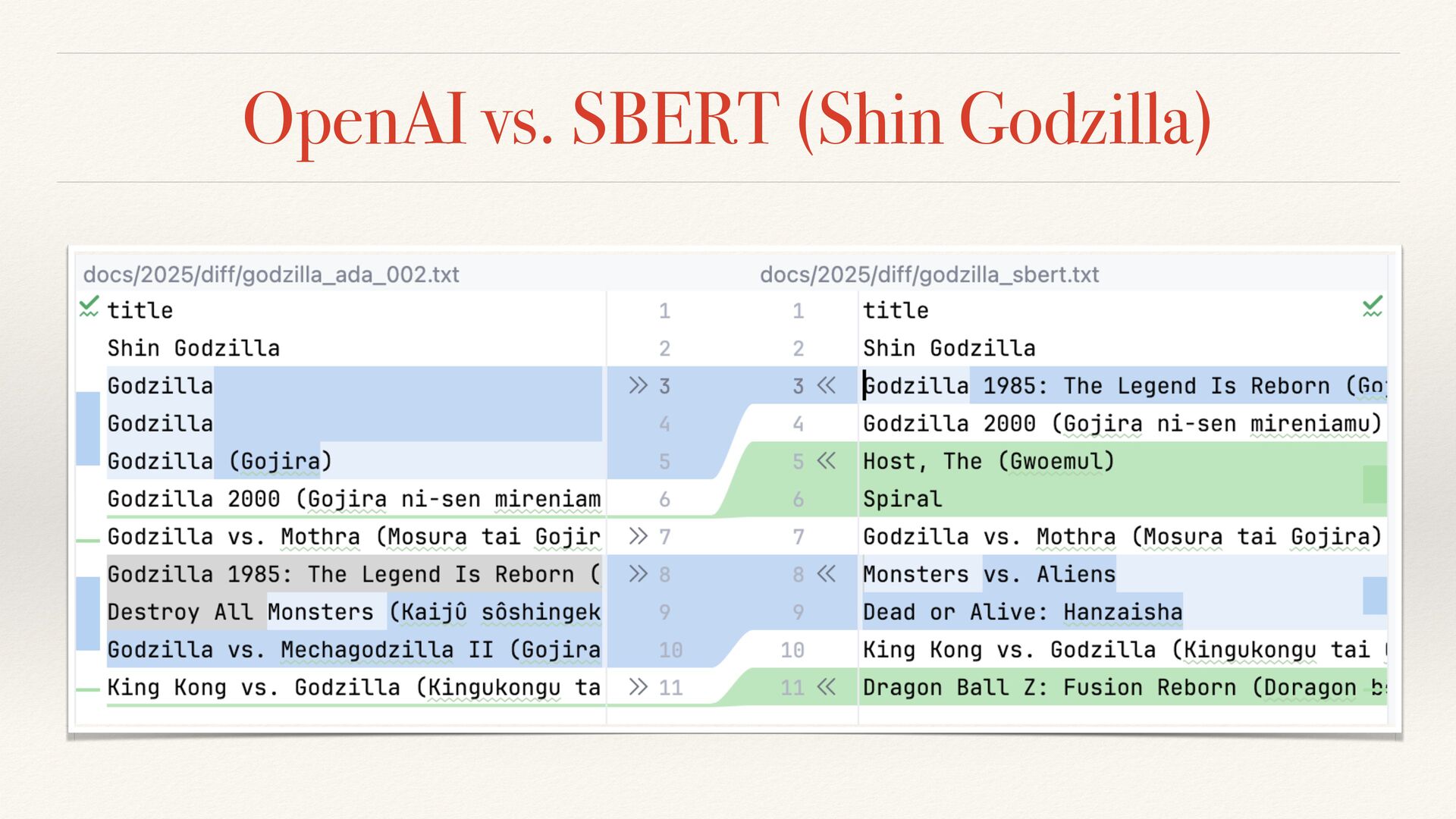

35. OpenAI vs. SBERT (Shin Godzilla)

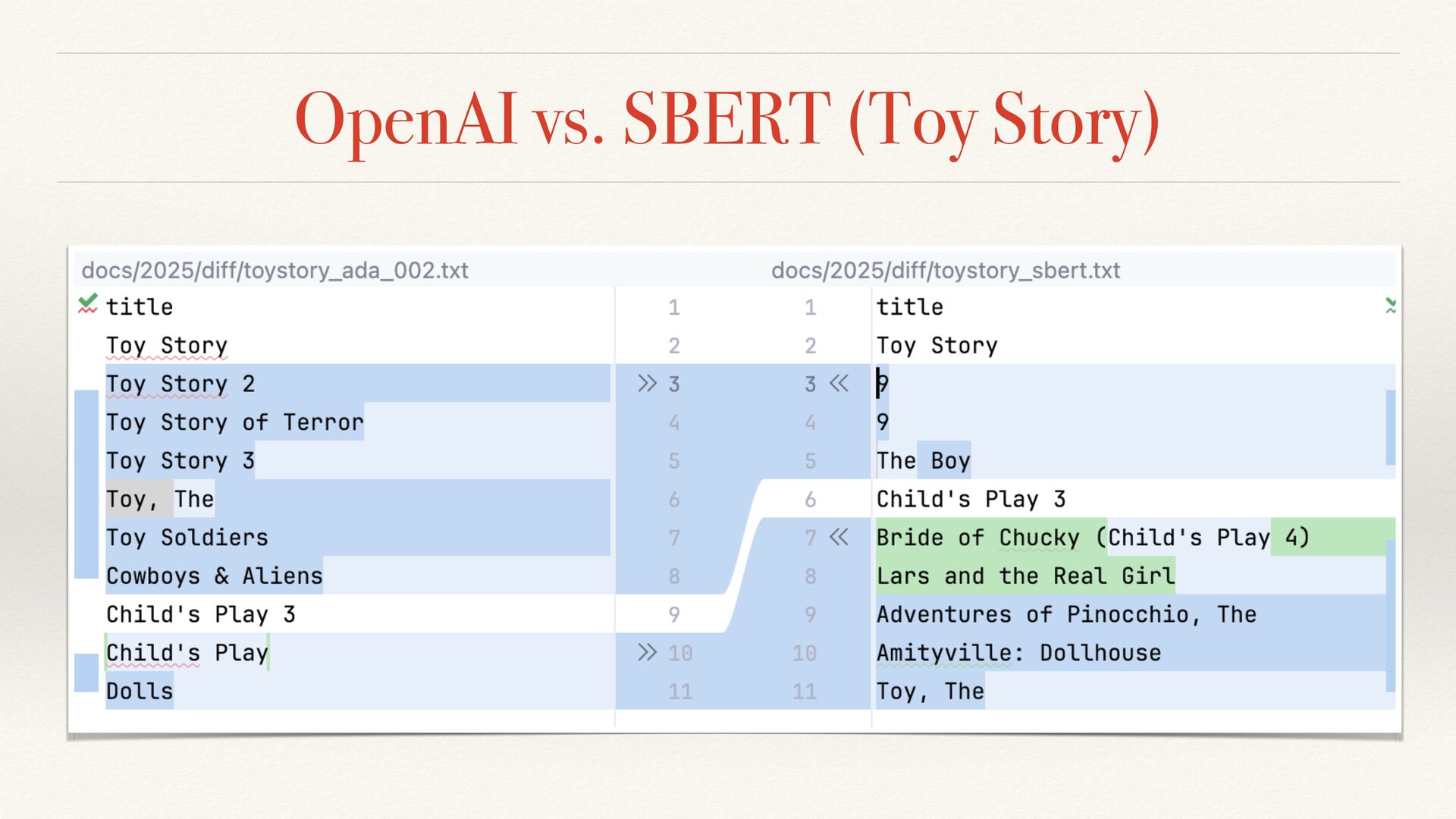

36. OpenAI vs. SBERT (Toy Story)

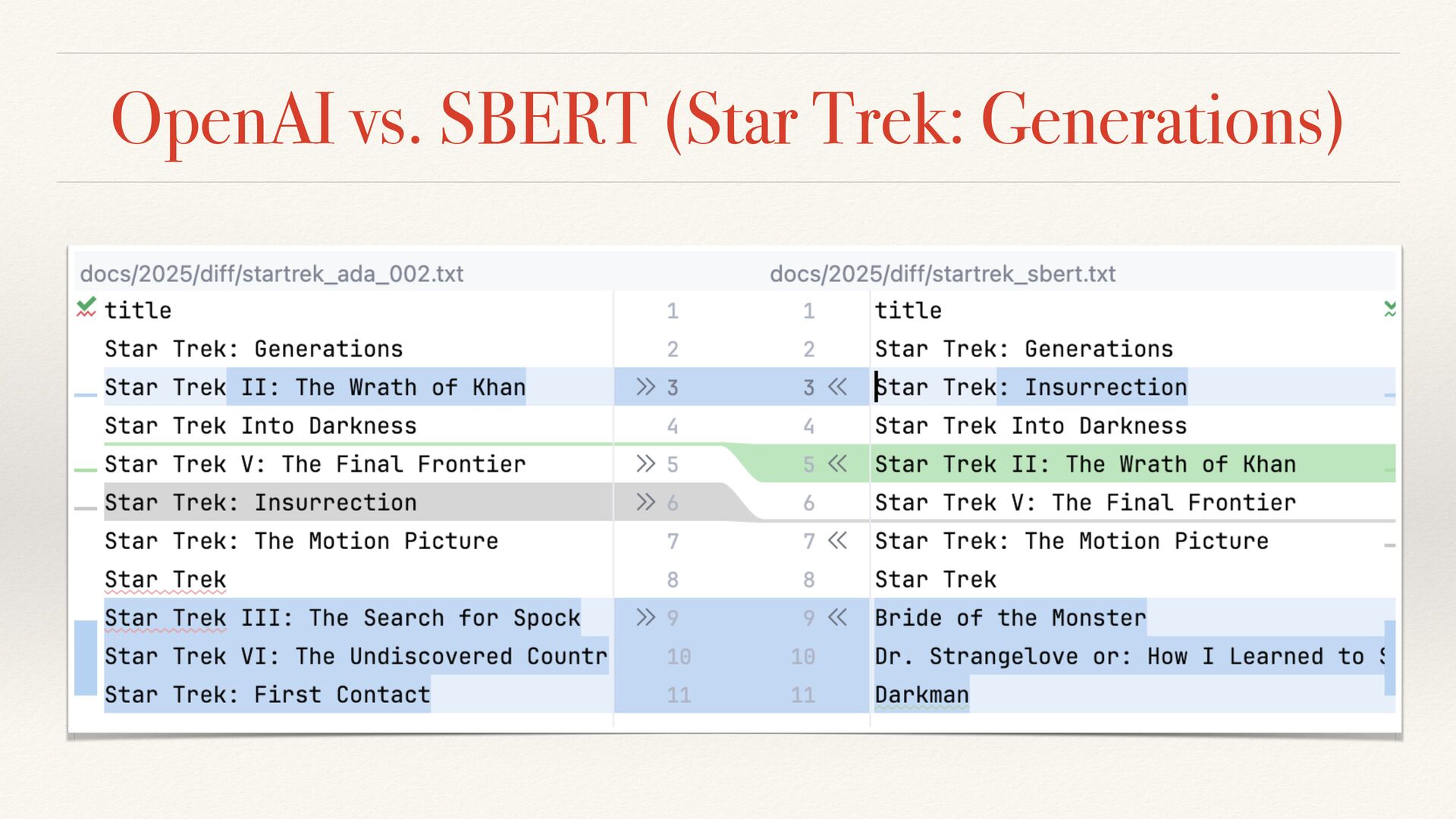

37. OpenAI vs. SBERT (Star Trek: Generations)

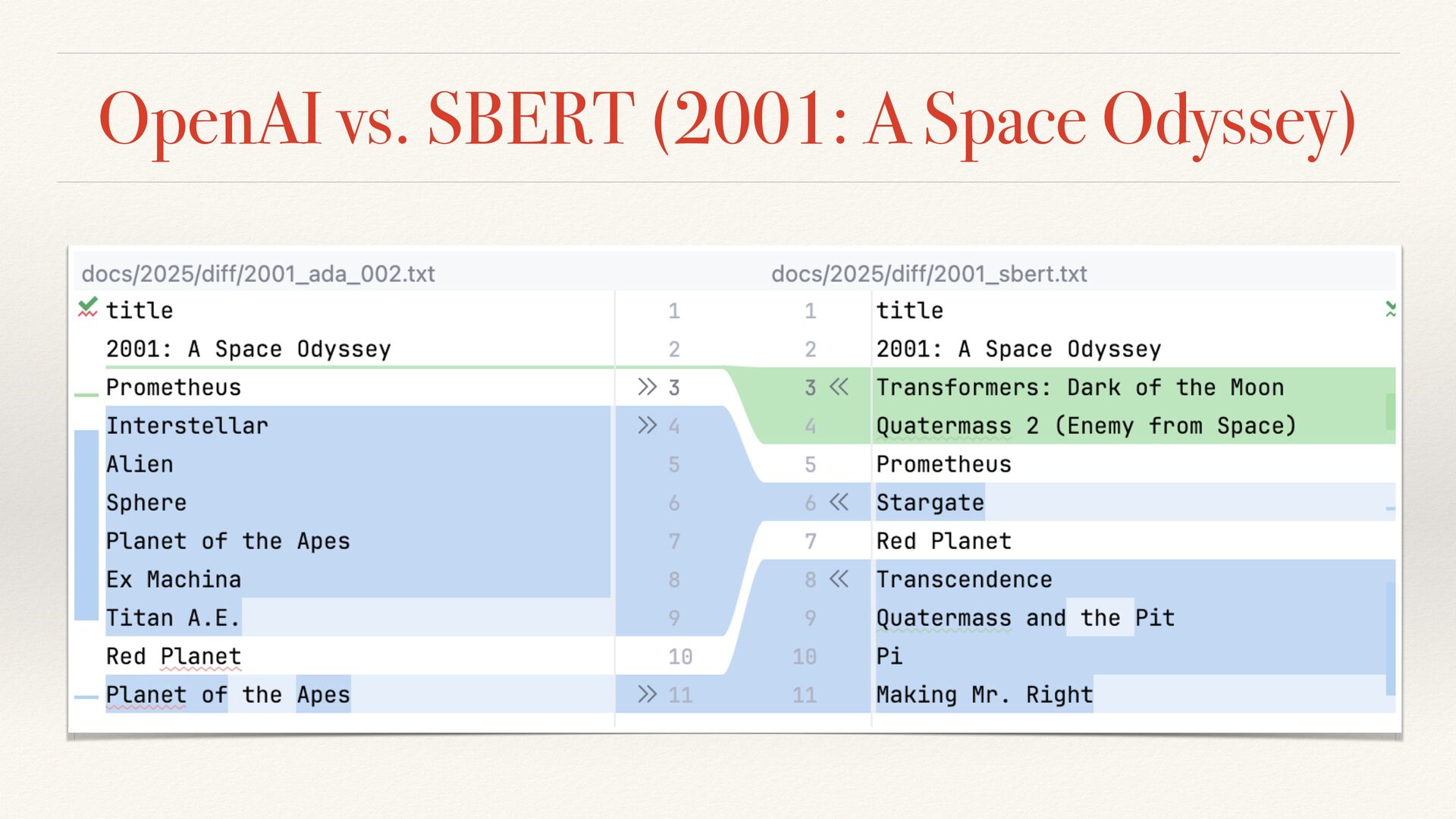

38. OpenAI vs. SBERT (2001: A Space Odyssey)

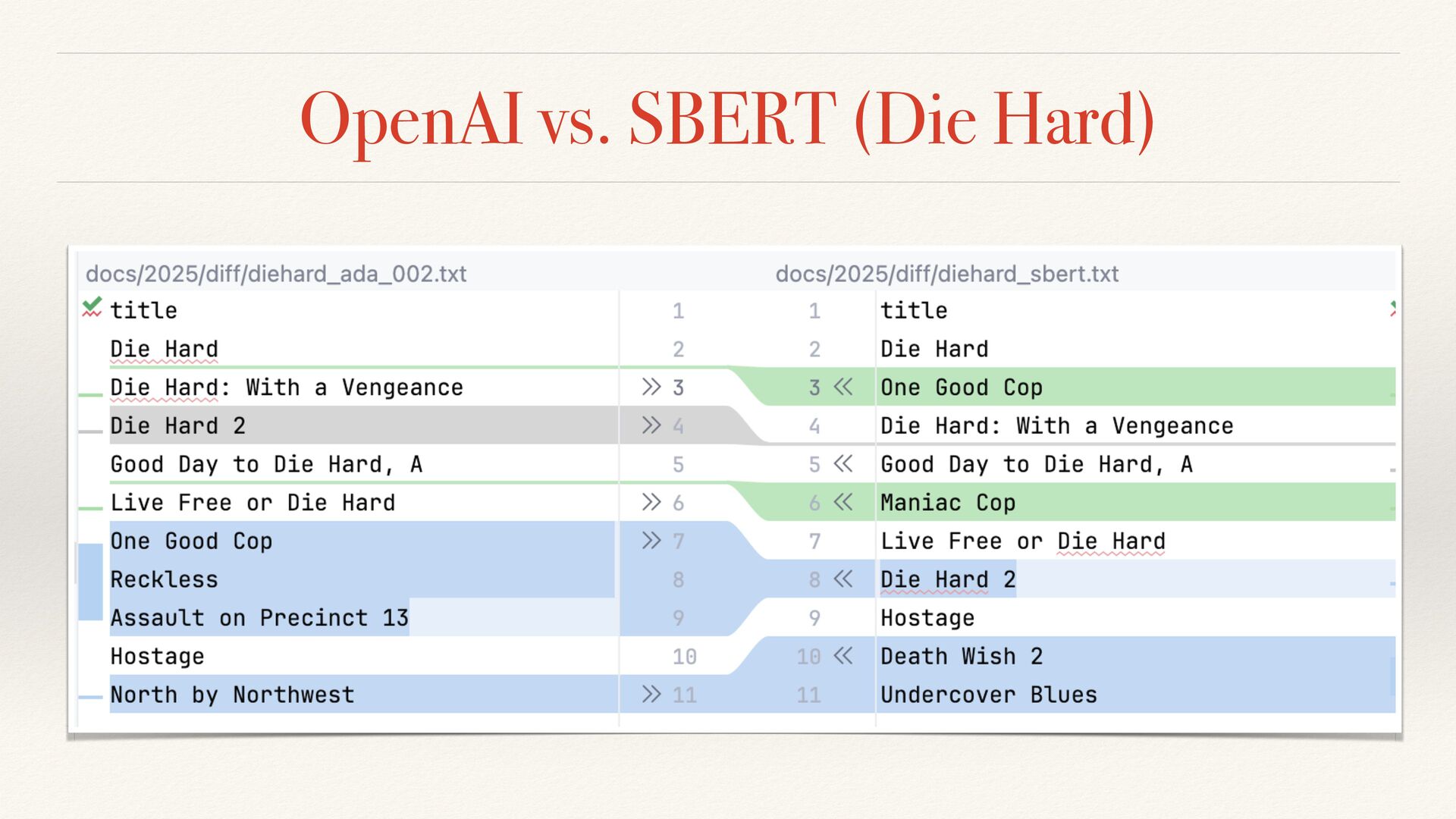

39. OpenAI vs. SBERT (Die Hard)

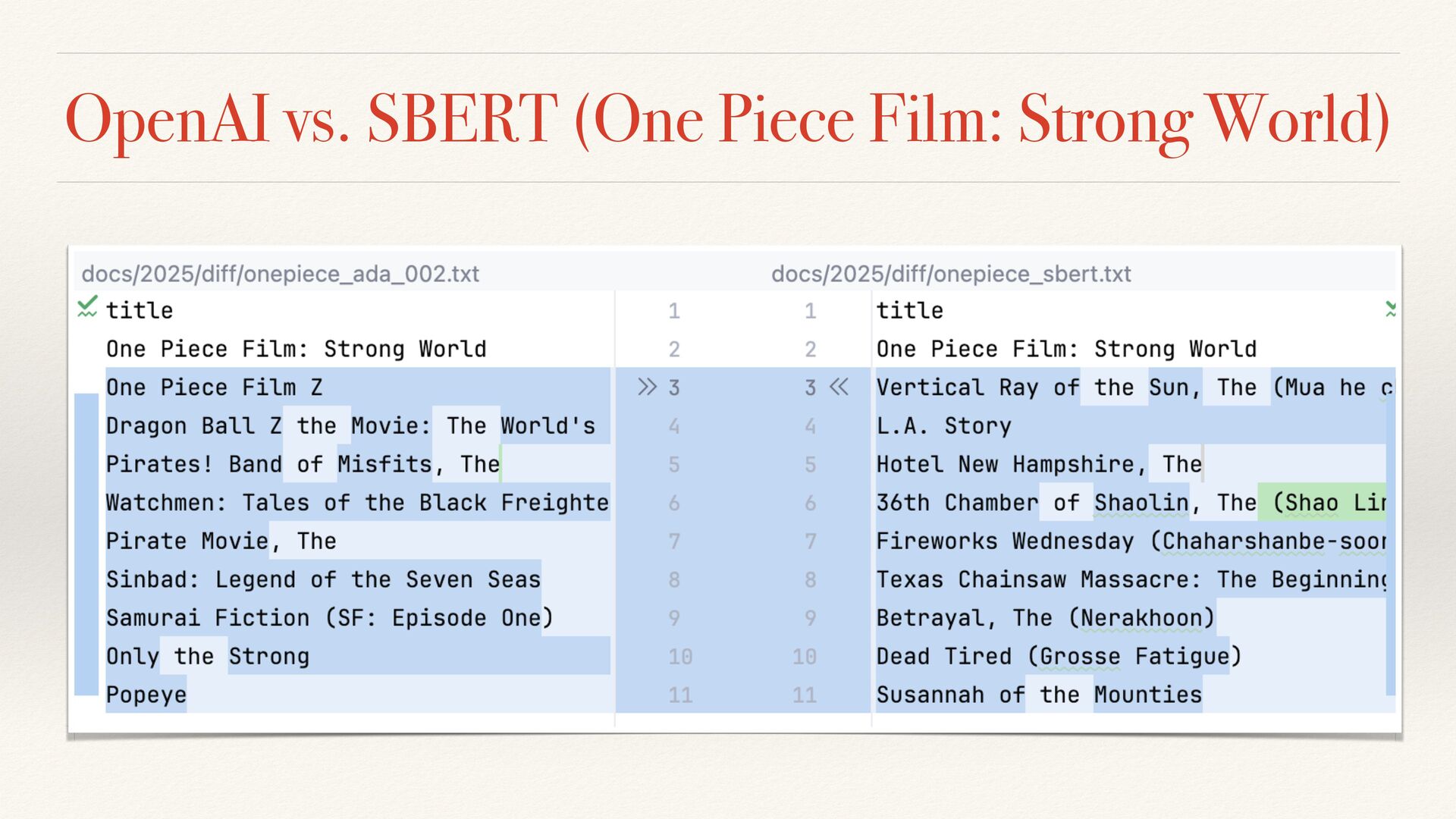

40. OpenAI vs. SBERT (One Piece Film: Strong World)

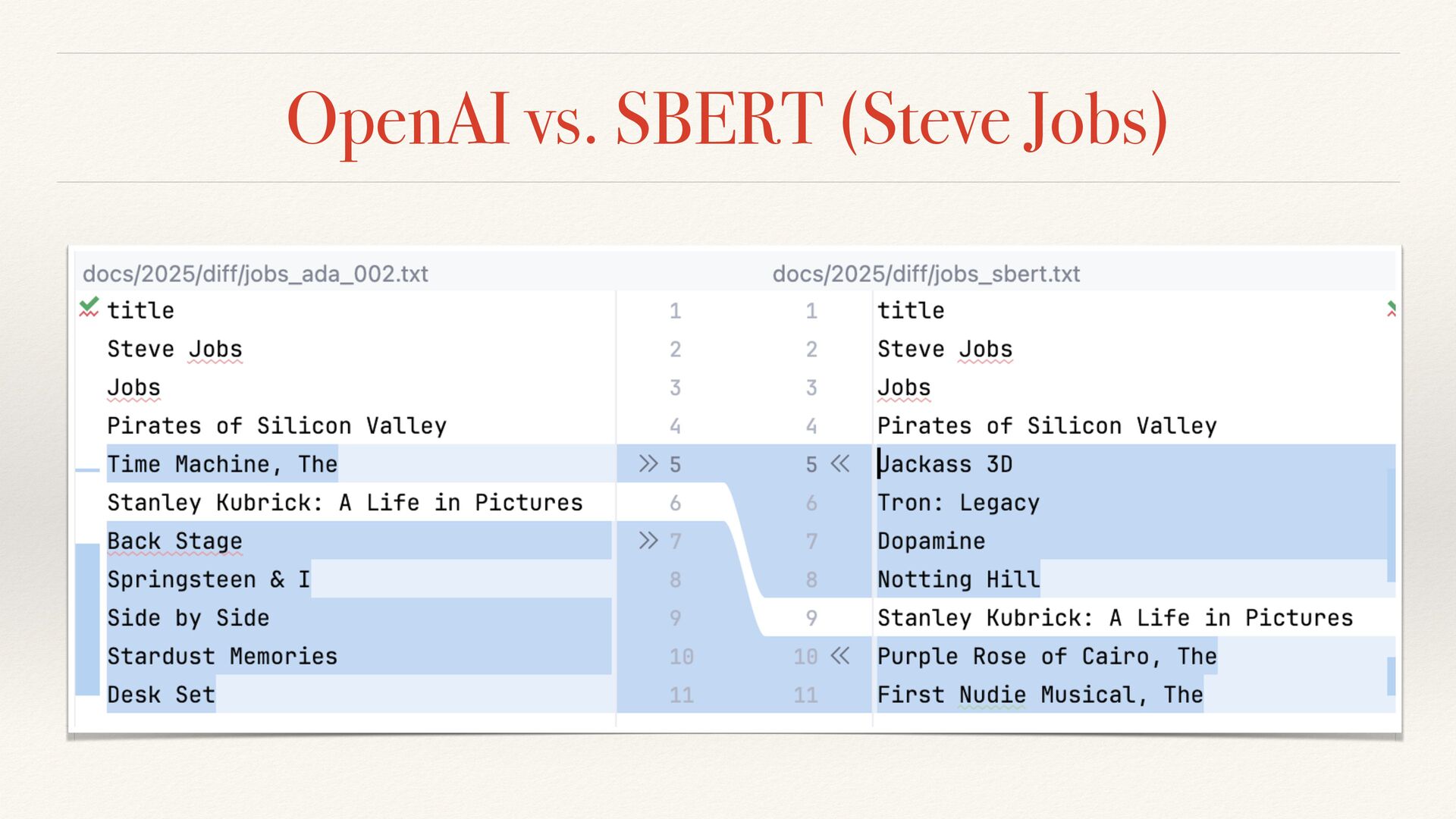

41. OpenAI vs. SBERT (Steve Jobs)

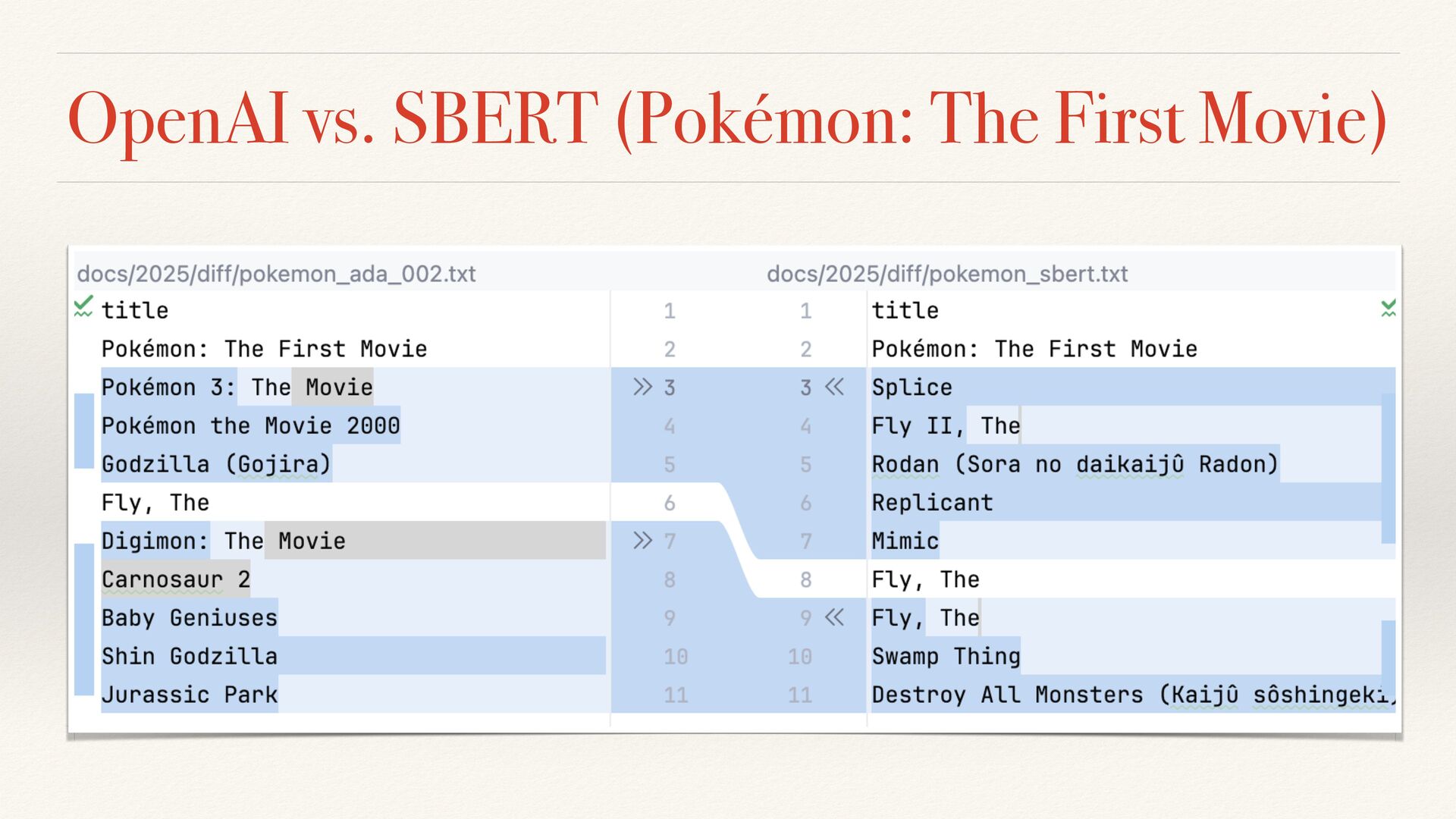

42. OpenAI vs. SBERT (Pokémon: The First Movie)
43. Thanks ❖ Name ❖ Koji Annoura ❖ Linkedin ❖ kojiannoura ❖ X (Twitter) ❖ @kojiannoura
