1. Déploiement continu dans le Cloud - tour d’horizon des solutions du moment LAURENT GRANGEAU - @laurentgrangeau ADRIEN BLIND - @adrienblind LUDOVIC PIOT - @lpiot
2. #devoxxma @laurentgrangeau Who are we ? Laurent Grangeau Adrien Blind Ludovic Piot
3. Agenda Today, we are going to see how to do CI/CD, from the first one (TravisCI), to a more modern pipeline (GitlabCI) and to finish with Cloud-native one (Azure DevOps) Lots of demos, lots of tools to use !! #devoxxma @laurentgrangeau
4. Nowadays, everything is code, and stored in a single source of truth - pipeline-as-code - configuration-as-code - infrastructure-as-code #devoxxma @laurentgrangeau
5. TravisCI #Hashtag @twitter
6. Travis-CI is an ‘old-timer’. It’s the historical CI-CD SaaS platform to automate your Github repositories - pipeline-as-code - on-demand runners - docker capabilities - Github smooth integration #devoxxma @laurentgrangeau
7. Travis-CI integrates with your Github repository Read events happening onto your Github repo, and then apply actions described into your .travis.yaml file #devoxxma @laurentgrangeau
8. Done! #devoxxma @laurentgrangeau
9. Every event in the repository is now track by Travis-CI. And Travis-CI activity is visible directly in Github. #devoxxma @laurentgrangeau
10. Pipeline executions can easily be monitored in Travis-CI WebUI or CLI Or integrated into GitHub. #devoxxma @laurentgrangeau
11. Our demo application: DockerCoin A micro-service app relying on • orchestration • auto-discovery #devoxxma @laurentgrangeau
12. Travis-CI pipeline-as-code dist: bionic sudo: false language: generic git: depth: 5 jobs: include: - stage: deploy if: branch = master script: - bash -c 'docker run --volume "$(pwd)/secrets":/secrets --volume "$(pwd)/scripts":/scripts --volume "$(pwd)/k8s-resources":/k8s-resources --env GOOGLE_PROJECT=travis-ci-example-258722 --env GOOGLE_APPLICATION_CREDENTIALS="/secrets/gcp-keyfile.json" --workdir /k8s-resources thegaragebandofit/infra-as-code-tools:gcl270-ter0.12.13-pac1.4.5 /scripts/deploy.sh' stages: - deploy before_install: - openssl aes-256-cbc -K $encrypted_f735c1e13263_key -iv $encrypted_f735c1e13263_iv -in ./secrets/gcp-keyfile.json.enc -out ./secrets/gcp-keyfile.json -d #devoxxma @laurentgrangeau Managing secrets is an issue! Let’s explain how to do that
13. deployment script #!/bin/sh echo "Retrieve credentials so that Gcloud is able to request the right GCP project…" gcloud auth activate-service-account --key-file=/secrets/gcp-keyfile.json --project=travis-ci-example-258722 echo "Check that a Kubernetes cluster is there…" gcloud container clusters list echo "Retrieve credentials so that kubectl is able to request the Kubernetes cluster" gcloud container clusters get-credentials travis-ci-cluster --zone=us-central1-a kubectl get nodes echo "Deploy DockerCoins app" kubectl apply --recursive=true -f /k8s-resources #devoxxma @laurentgrangeau

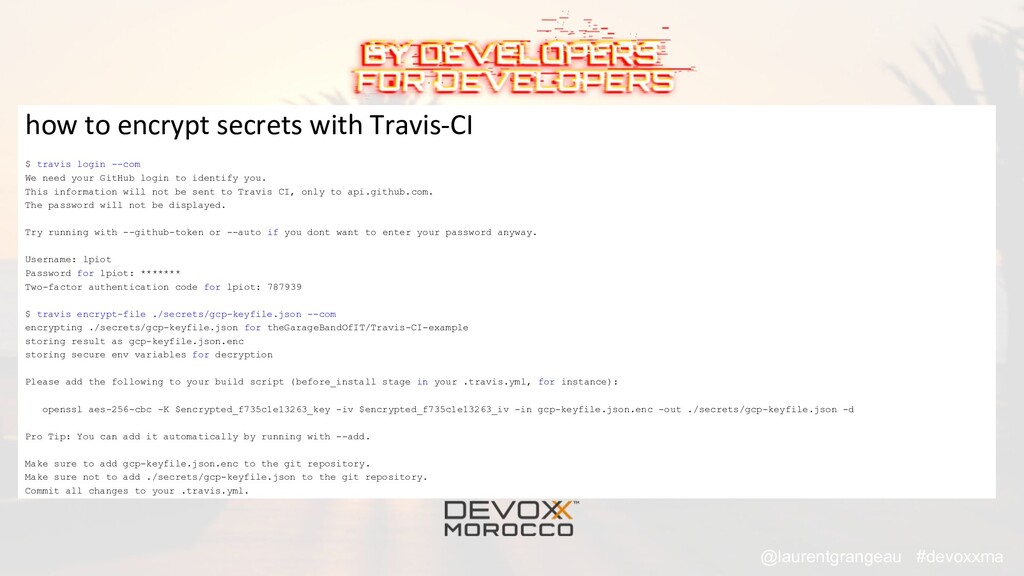

14. how to encrypt secrets with Travis-CI $ travis login --com We need your GitHub login to identify you. This information will not be sent to Travis CI, only to api.github.com. The password will not be displayed. Try running with --github-token or --auto if you dont want to enter your password anyway. Username: lpiot Password for lpiot: ******* Two-factor authentication code for lpiot: 787939 $ travis encrypt-file ./secrets/gcp-keyfile.json --com encrypting ./secrets/gcp-keyfile.json for theGarageBandOfIT/Travis-CI-example storing result as gcp-keyfile.json.enc storing secure env variables for decryption Please add the following to your build script (before_install stage in your .travis.yml, for instance): openssl aes-256-cbc -K $encrypted_f735c1e13263_key -iv $encrypted_f735c1e13263_iv -in gcp-keyfile.json.enc -out ./secrets/gcp-keyfile.json -d Pro Tip: You can add it automatically by running with --add. Make sure to add gcp-keyfile.json.enc to the git repository. Make sure not to add ./secrets/gcp-keyfile.json to the git repository. Commit all changes to your .travis.yml. #devoxxma @laurentgrangeau
15. #devoxxma @laurentgrangeau
16. GitlabCI #Hashtag @twitter
17. Gitlab-CI is a huge challenger to Github and its ecosystem. It relies on very similar concepts. It comes with a more all-inclusive philosophy. For example, it knows how to manage your own Kubernetes cluster. #devoxxma @laurentgrangeau
18. You can add an already existing cluster… • …in the Cloud or on-premise… • …or part of a cluster (by playing with RBAC). #devoxxma @laurentgrangeau
19. You can also let Gitlab create and manage its own GKE cluster… #devoxxma @laurentgrangeau
20. … and even a subset of Kubernetes-based utilities such as • service mesh • serverless framework • PKI • datascience notebook env. • monitoring • any middleware deployable by Helm #devoxxma @laurentgrangeau
21. Pipeline is described in a very similar way than Travis-CI And monitoring too #devoxxma @laurentgrangeau
22. Pipeline is described in a very similar way than Travis-CI And monitoring too #devoxxma @laurentgrangeau
23. #devoxxma @laurentgrangeau
24. TektonCD #Hashtag @twitter
25. Tekton is composed of many projects: - Tekton operator - Tekton pipelines - Tekton trigger - Tekton dashboard - Tekton catalog #devoxxma @laurentgrangeau
26. Install Tekton pipelines with operator and CRDs It will create 5 different sort of kind: - Task - TaskRun - Pipeline - PipelineRun - PipelineResource #devoxxma @laurentgrangeau
27. Tekton Pipelines are Cloud Native: - Run on Kubernetes - Have Kubernetes clusters as a first class type - Use containers as their building blocks #devoxxma @laurentgrangeau
28. Tekton Pipelines are Decoupled: - One Pipeline can be used to deploy to any k8s cluster - The Tasks which make up a Pipeline can easily be run in isolation - Resources such as git repos can easily be swapped between runs #devoxxma @laurentgrangeau
29. Tekton Pipelines are Typed: The concept of typed resources means that for a resource such as an Image, implementations can easily be swapped out (e.g. building with kaniko v.s. buildkit) #devoxxma @laurentgrangeau
30. A Task (or a ClusterTask) is a collection of sequential steps you would want to run as part of your continuous integration flow. A task will run inside a pod on your cluster. A Task declares: - Inputs - Outputs - Steps #devoxxma @laurentgrangeau
31. Use the TaskRun resource object to create and run on-cluster processes to completion. To create a TaskRun, you must first create a Task which specifies one or more container images that you have implemented to perform and complete a task. A TaskRun runs until all steps have completed or until a failure occurs. #devoxxma @laurentgrangeau
32. A Pipeline will execute a graph of Tasks. A valid Pipeline declaration must include a reference to at least one Task. Pipelines can declare input parameters that must be supplied to the Pipeline during a PipelineRun. #devoxxma @laurentgrangeau
33. On its own, a Pipeline declares what Tasks to run, and the order they run in. To execute the Tasks in the Pipeline, you must create a PipelineRun. Creation of a PipelineRun will trigger the creation of TaskRuns for each Task in your pipeline. #devoxxma @laurentgrangeau
34. PipelineResources in a pipeline are the set of objects that are going to be used as inputs to a Task and can be output by a Task. A Task can have multiple inputs and outputs. #devoxxma @laurentgrangeau
35. The build system supports two types of authentication, using Kubernetes' first-class Secret types: - kubernetes.io/basic-auth - kubernetes.io/ssh-auth #devoxxma @laurentgrangeau
36. First, create your Secret #devoxxma @laurentgrangeau
37. Then, define a ServiceAccount and direct it to use your secret #devoxxma @laurentgrangeau
38. And use your ServiceAccount in your TaskRun or PipelineRun #devoxxma @laurentgrangeau
39. Triggers enables users to map fields from an event payload into resource templates. Put another way, this allows events to both model and instantiate themselves as Kubernetes resources. In the case of pipeline, this makes it easy to encapsulate configuration into PipelineRuns and PipelineResources. #devoxxma @laurentgrangeau
40. A TriggerTemplate is a resource that can template resources. TriggerTemplates have parameters that can be substituted anywhere within the resource template. #devoxxma @laurentgrangeau
41. As per the name, TriggerBindings bind against events/triggers. TriggerBindings enable you to capture fields from an event and store them as parameters. The separation of TriggerBindings from TriggerTemplates was deliberate to encourage reuse between them. #devoxxma @laurentgrangeau
42. #devoxxma @laurentgrangeau
43. JenkinsX #Hashtag @twitter
44. JenkinsX It use GitOps as a first-class paradigm It can be deployed on any kubernetes cluster (AKS/EKS/GKE/IKS/OKE), but also on cluster created with kops, and even on minishift and minikube It uses different projects from different vendors: - Prow as the notification manager - Kaniko as the builder - Tekton as the pipeline as code
45. Jenkins-X architecture Many components: - deck (ui) - hook (prow hook listens for Git hooks) - crier (status of pipeline builds) - tide (managing PRs) - nexus (registry) - chartmuseum (helm charts) - tekton (pipeline) #devoxxma @laurentgrangeau
46. #devoxxma @laurentgrangeau
47. Basically, it creates 2 projects on Github to manage applications: - staging - production Each deployment are handled with PR from Github. JenkinsX then received a webhook, and validate the PR. #devoxxma @laurentgrangeau
48. The build system is based on two projects from Google: - Skaffold - Kaniko Skaffold is a command line tool that facilitates continuous development for Kubernetes applications. Kaniko is a tool to build container images from a Dockerfile, inside a container or Kubernetes cluster. #devoxxma @laurentgrangeau
49. #devoxxma @laurentgrangeau
50. Spinnaker & Github Actions #Hashtag @twitter
51. Why both ? Spinnaker is only CD. It can deploy Jenkins though. You have to hook Spinnaker with a CI tool I choose Github Actions #devoxxma @laurentgrangeau
52. GitHub Actions enables you to create custom software development life cycle (SDLC) workflows directly in your GitHub repository. #devoxxma @laurentgrangeau
53. It is based on YAML file. It has lots of community workflows. It works for any language. #devoxxma @laurentgrangeau
54. Can be launch for every PR You can edit the actions directly on Github #devoxxma @laurentgrangeau
55. Secrets in Github Actions can be stored inside Github settings #devoxxma @laurentgrangeau
56. It can be then manipulated with Github Actions We can send it also in an environment variable #devoxxma @laurentgrangeau
57. #devoxxma @laurentgrangeau
58. Spinnaker architecture Can be installed everywhere On k8s: - Halyard - Helm #devoxxma @laurentgrangeau
59. #devoxxma @laurentgrangeau
60. With Halyard, you have to enable: - Enable Pipeline as Code - Enable Kubernetes manifest - Enable Kayenta With these features enabled, you can start your deployments #devoxxma @laurentgrangeau
61. You have to create every service account you want to use. For example, you have to create service account for: - Docker hub - Github - Kubernetes cluster #devoxxma @laurentgrangeau
62. Github #devoxxma @laurentgrangeau
63. Docker hub #devoxxma @laurentgrangeau
64. Kubernetes #devoxxma @laurentgrangeau
65. Deploy everything ! #devoxxma @laurentgrangeau
66. #devoxxma @laurentgrangeau
67. Azure DevOps #Hashtag @twitter
68. Azure DevOps Server is a Microsoft product that provides version control, reporting, requirements management, project management, automated builds, lab management, testing and release management capabilities. It covers the entire application lifecycle, and enables DevOps capabilities. It’s based on Team Foundation Server and is the online devops tools from Microsoft. #devoxxma @laurentgrangeau
69. In order to use Kubernetes integration, you have to first enable Multi-stage pipeline. From here, you can start using CD with YAML file. #devoxxma @laurentgrangeau
70. You can then create a “azure-pipeline.yml” file which contains all your steps For the build part, you can use the Docker task to build and push your image. For the deploy part, you can use the Kubernetes task. You can then manipulate your cluster. #devoxxma @laurentgrangeau
71. The Kubernetes task manifest is open-source and on Github.com https://github.com/microsoft/azure-pipelines-tasks/tree/master/Tasks/Kubern etesManifestV0 Task Deploy to Kubernetes : https://docs.microsoft.com/en-us/azure/devops/pipelines/ecosystems/kubern etes/deploy?view=azure-devops #devoxxma @laurentgrangeau
72. The Kubernetes manifest task has multiples verbs, like : - Action: deploy/promote/reject/bake/scale/patch/delete - Strategy: Deployment strategy to be used while applying manifest files on the cluster. Currently, 'canary' is the only acceptable deployment strategy #devoxxma @laurentgrangeau
73. Azure DevOps has access to AKS (and Azure) through a ServicePrincipal It can then creates some service account inside the AKS cluster. It’s based on RBAC role of the cluster, and the ServicePrincipal created for Azure DevOps. #devoxxma @laurentgrangeau
74. To access ACR, a new command has been integrated in the CLI. It uses the ServicePrincipal to authenticate everything in Azure. #devoxxma @laurentgrangeau
75. #devoxxma @laurentgrangeau
76. #devoxxma @laurentgrangeau
77. Cloud build #Hashtag @twitter
78. #devoxxma @laurentgrangeau Thank you ! Questions ?
