Bringing Your App to the Living Room: Android Development on Amazon Fire TV

Mobile development is not just about mobile devices anymore: Android scaled up from mobile devices to the TV screen, and developers have now the occasion to start building for a brand new use case: the 10-foot experience. In this session, we cover what's needed to bring your Android app to the living room: we’ll dive into the Leanback Android support library and understand how to take advantage of the big TV screen while using new UI patterns for app navigation through the remote, and how to run your first TV app on Amazon Fire TV.

Transcript

1. MARIO VIVIANI T E C H N O L O G Y E V A N G E L I S T, A M A Z O N A P P S T O R E U K @mariuxtheone http://www.linkedin.com/in/marioviviani ANDROID DEVELOPMENT ON AMAZ ON FIRE TV
2. I T ’ S A - M E ! Ma r io V ivia n i Technology Evangelist, Amazon Appstore UK @mariuxtheone Android Developer from 2010 95+ apps published 12,000,000+ downloads Google Developer Expert 2013-15 Startup Founder, Co-Worker Speaker at: Droidcon, Android Dev Days, Google I/O 2015
3. Android is Not Just for Mobile Devices
4. Android Android TV Apps based on Fire OS Fire TV Apps based on
5. OS 5 Based on Android Lollipop Android Studio

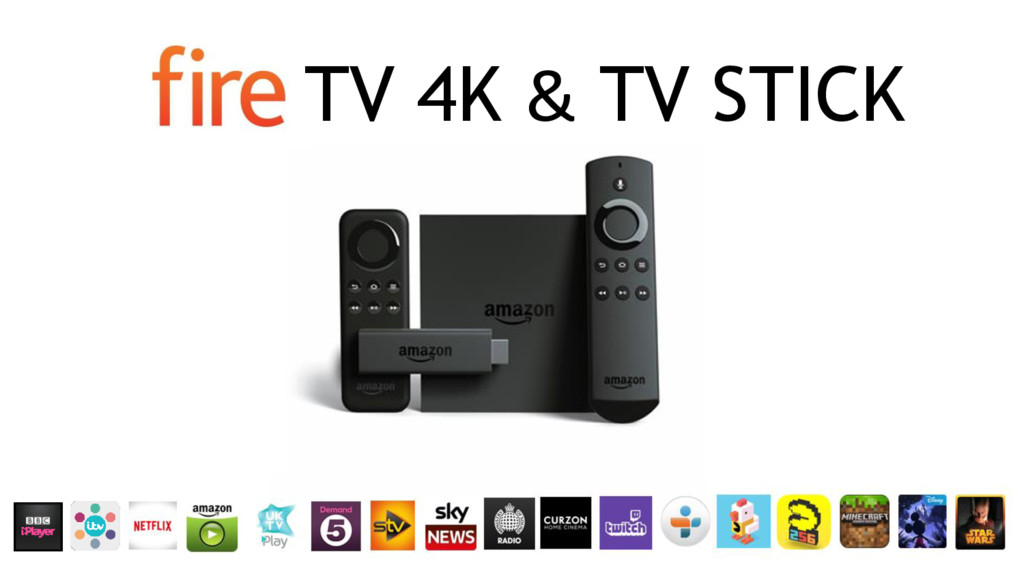

6. TV 4K & TV STICK

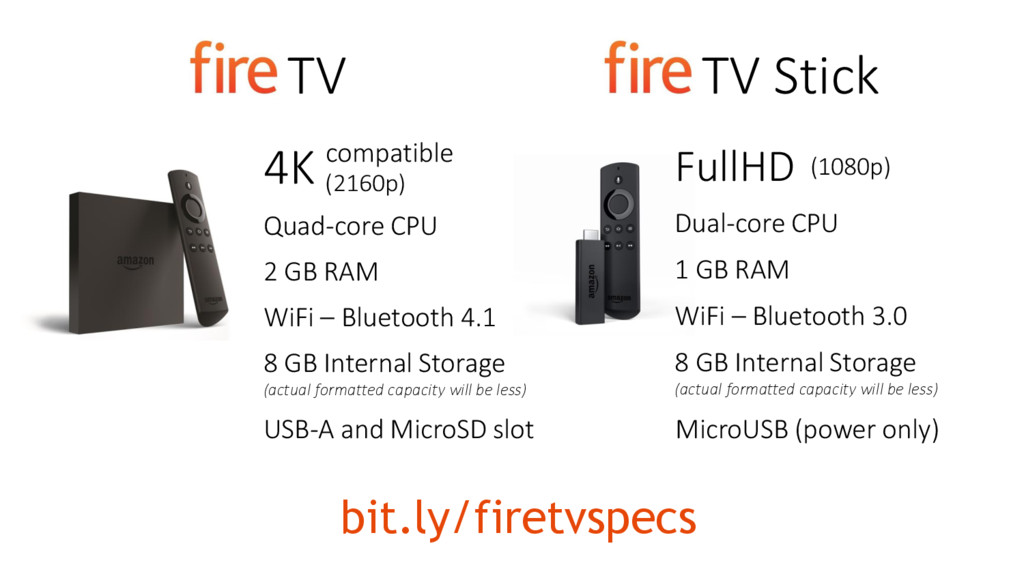

7. bit.ly/firetvspecs TV TV Stick 4K compatible FullHD Quad-core CPU Dual-core CPU 2 GB RAM 1 GB RAM (2160p) (1080p) WiFi – Bluetooth 4.1 WiFi – Bluetooth 3.0 8 GB Internal Storage (actual formatted capacity will be less) 8 GB Internal Storage (actual formatted capacity will be less) USB-A and MicroSD slot MicroUSB (power only)
8. TV APPS

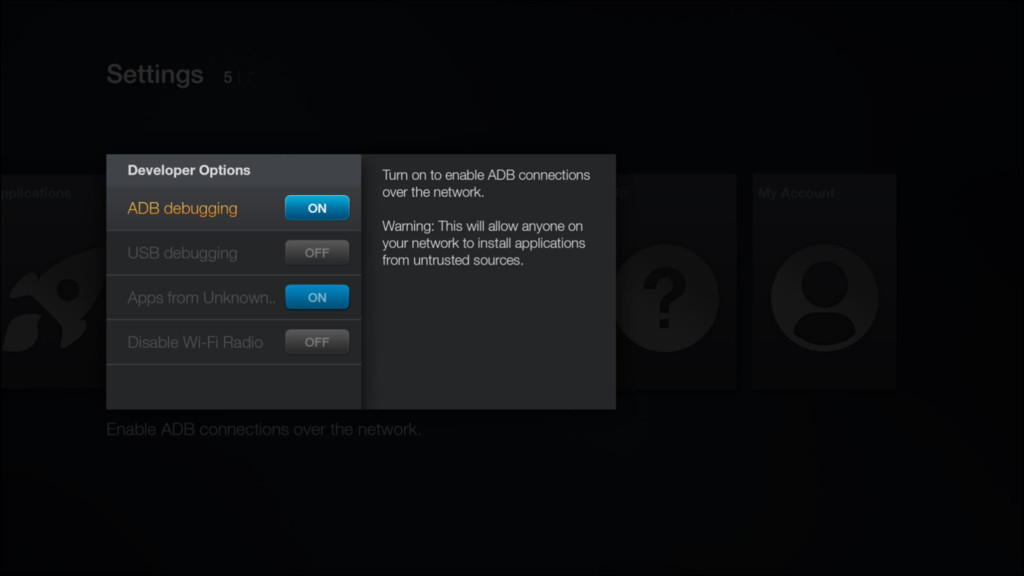

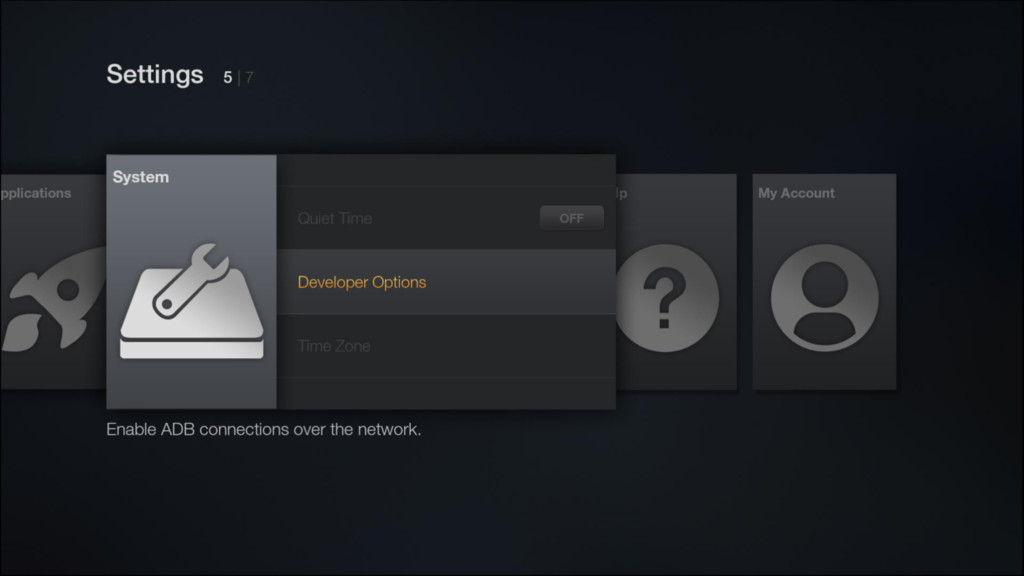

9. Development on Fire TV ADB Setup

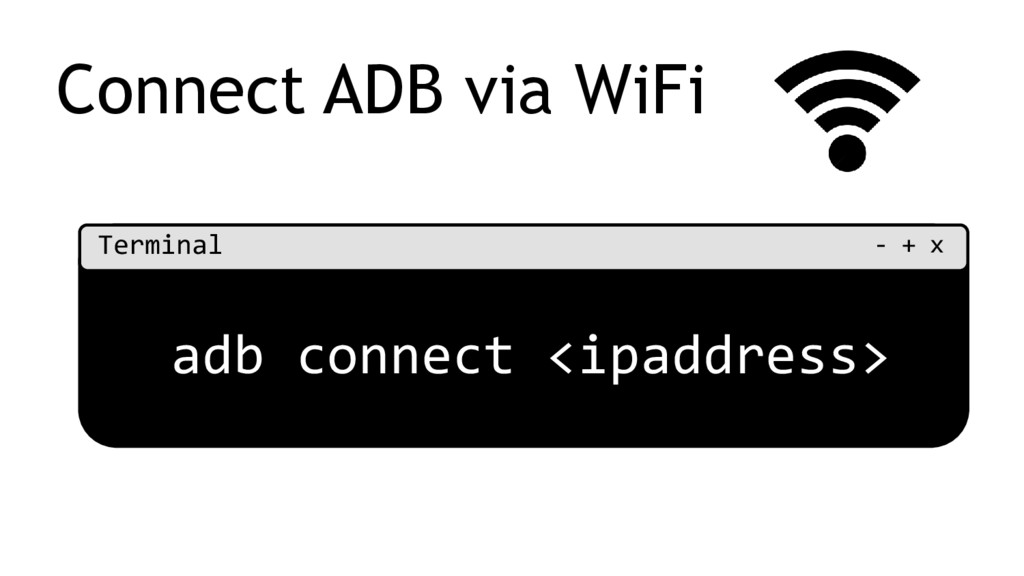

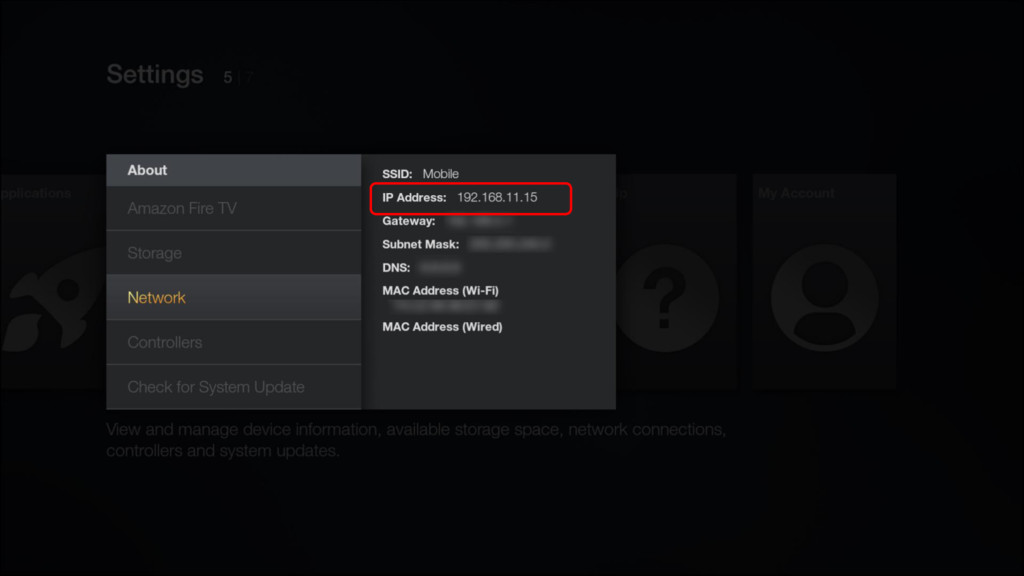

13. Development on Fire TV Connect ADB via WiFi adb connect <ipaddress> - + x Terminal
14. Development on Fire TV Project Setup: Media Streaming App
15. TV APPS DEVELOPMENT Fire TV SDK add-on v17 Leanback Library Fire TV SDK add-on

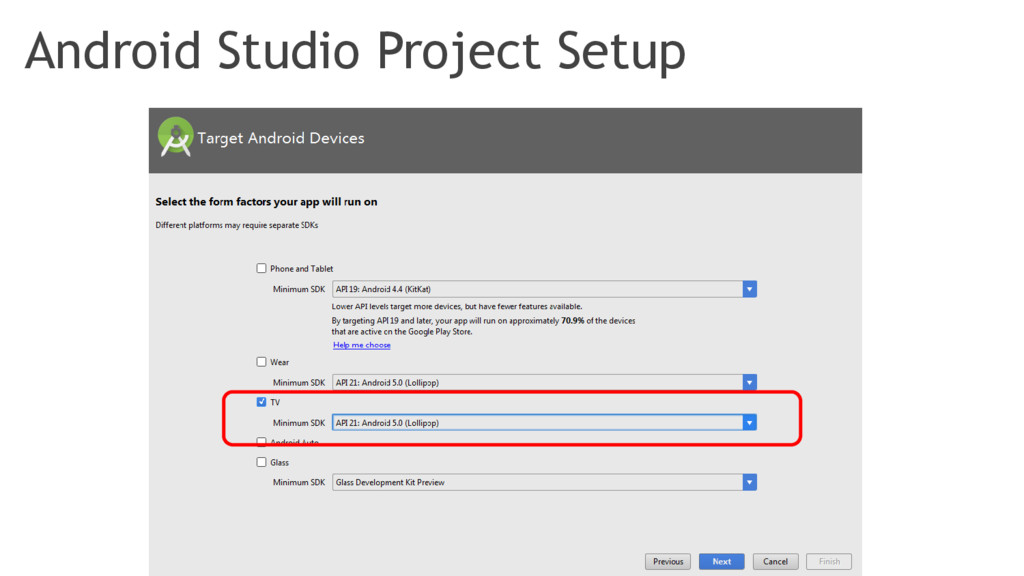

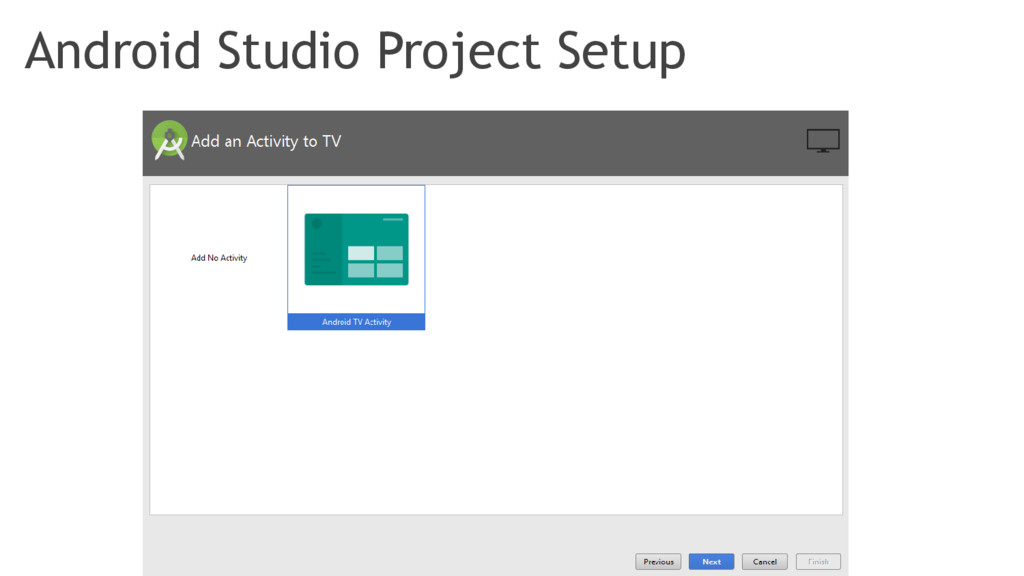

16. Android Studio Project Setup
17. Android Studio Project Setup

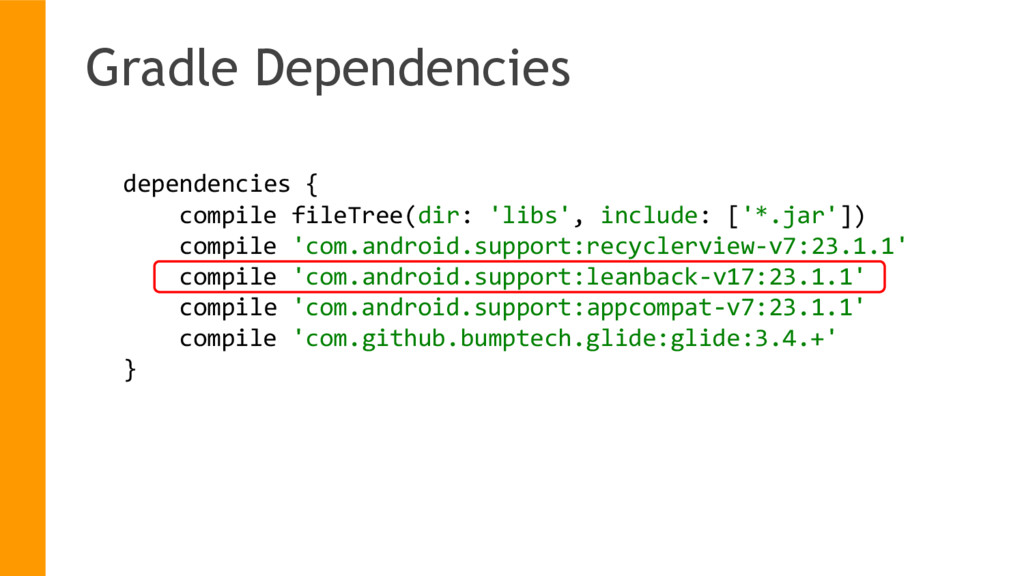

18. dependencies { compile fileTree(dir: 'libs', include: ['*.jar']) compile 'com.android.support:recyclerview-v7:23.1.1' compile 'com.android.support:leanback-v17:23.1.1' compile 'com.android.support:appcompat-v7:23.1.1' compile 'com.github.bumptech.glide:glide:3.4.+' } Gradle Dependencies

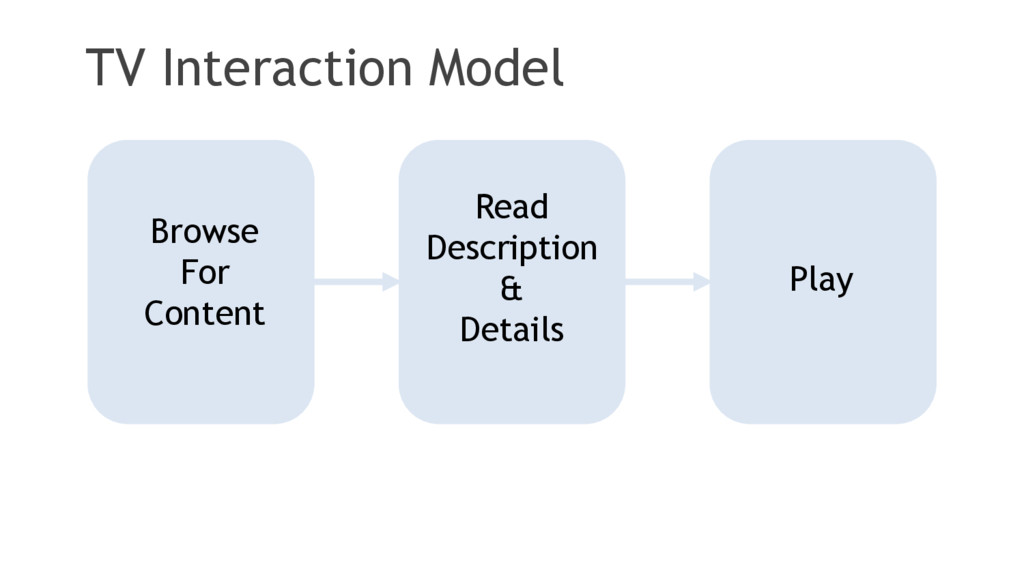

19. Browse For Content Read Description & Details Play TV Interaction Model

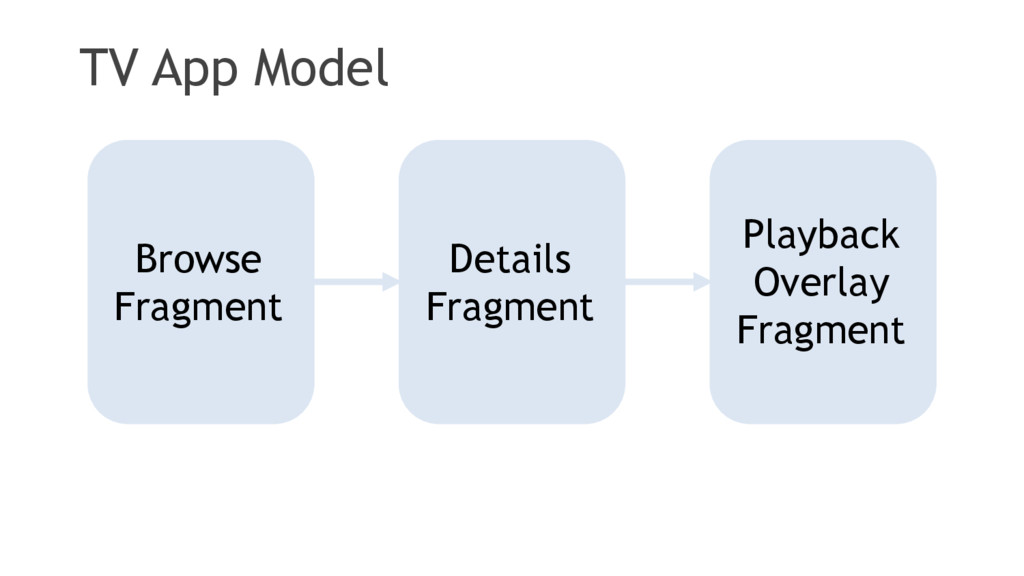

20. Browse Fragment Details Fragment Playback Overlay Fragment TV App Model

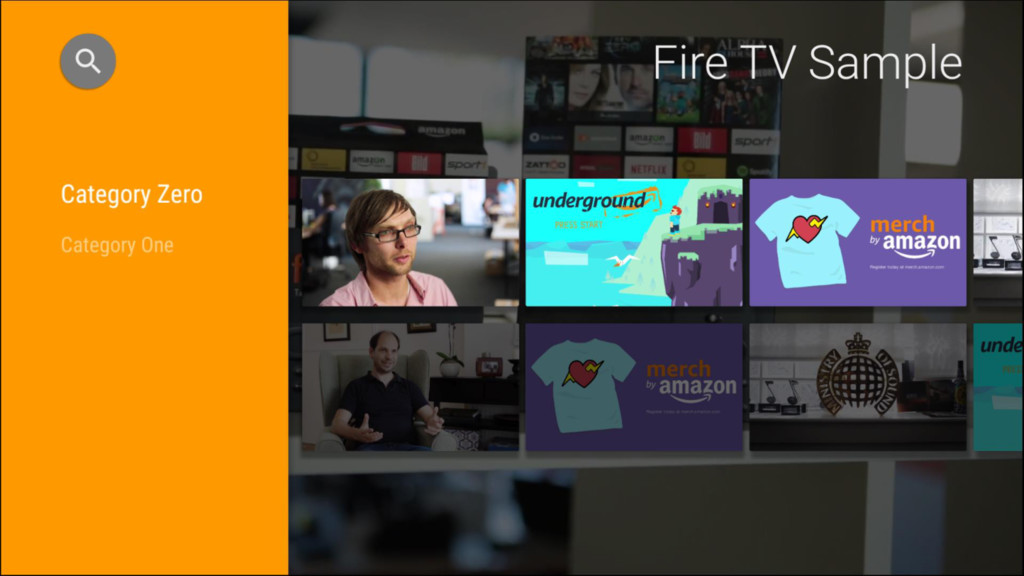

21. Development on Fire TV BrowseFragment

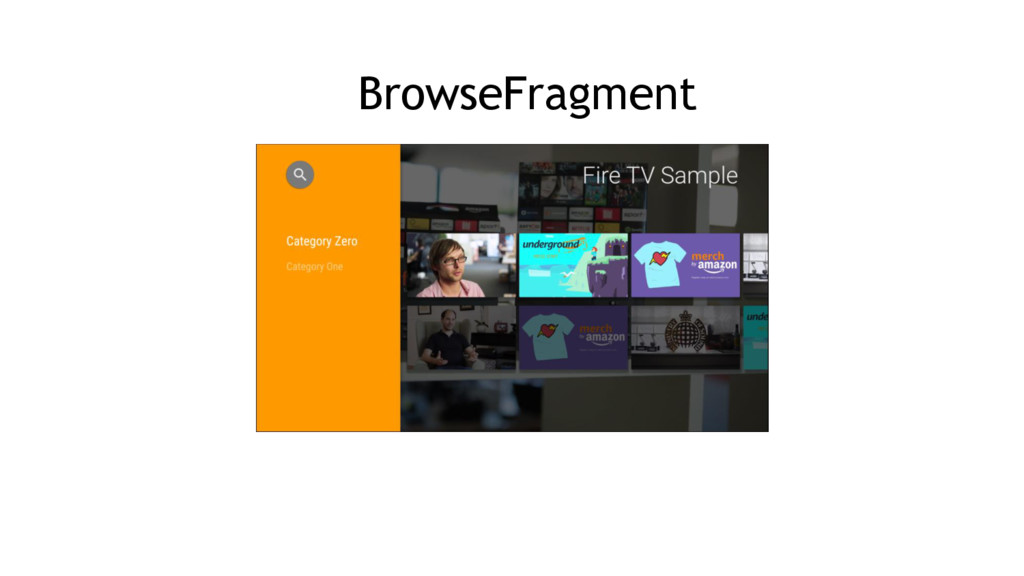

23. BrowseFragment

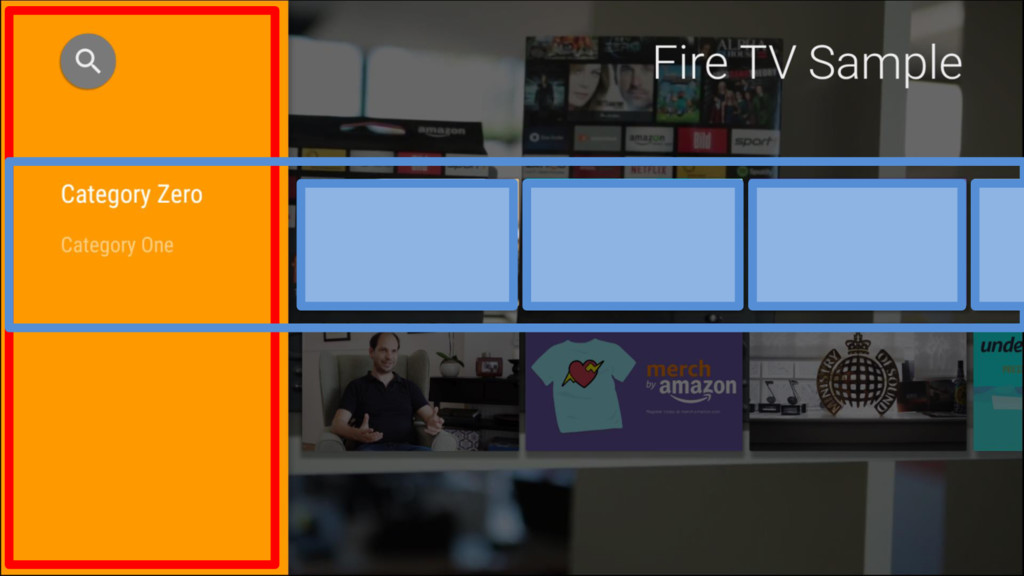

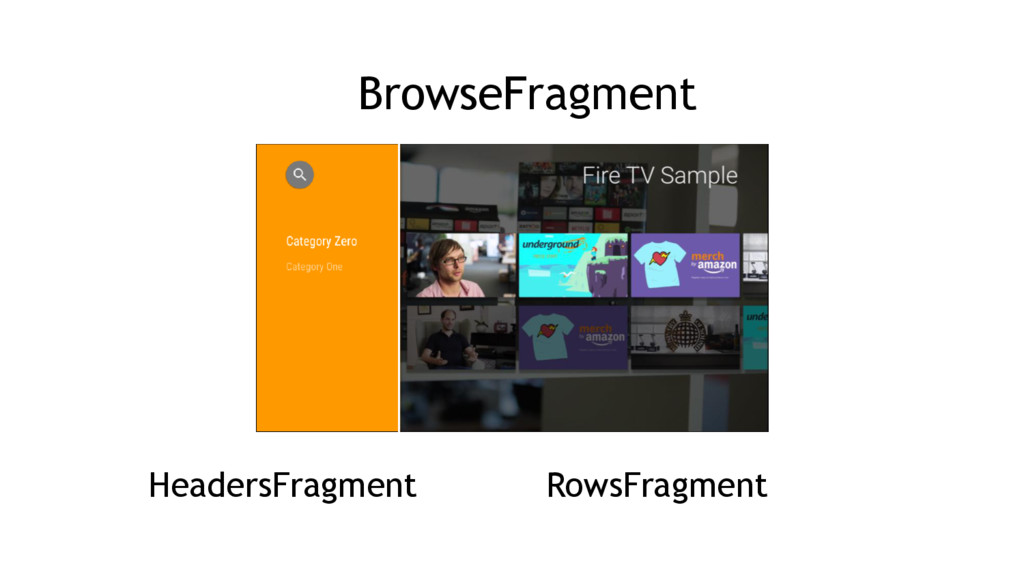

24. HeadersFragment RowsFragment BrowseFragment

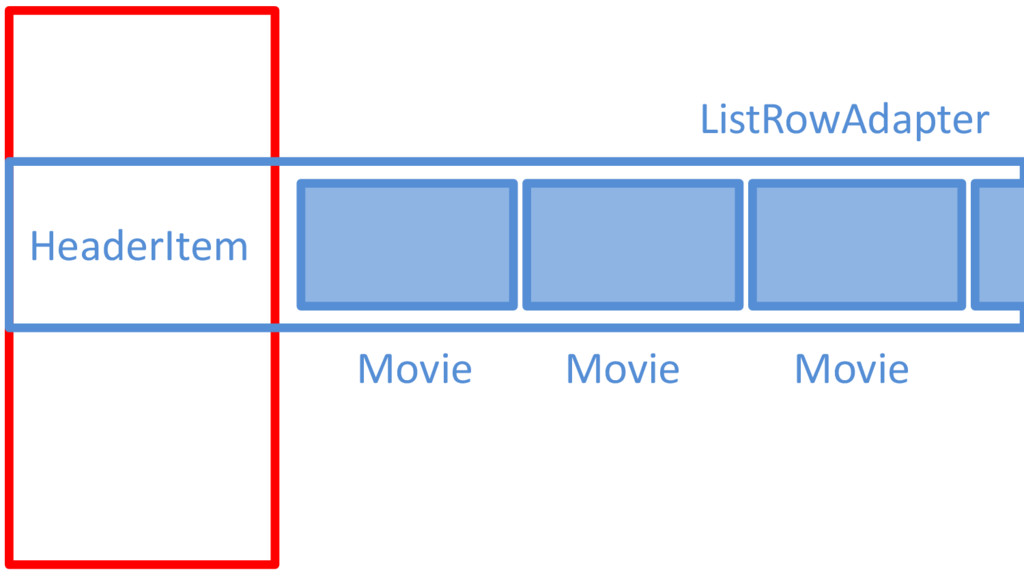

26. ListRowAdapter HeaderItem Movie Movie Movie

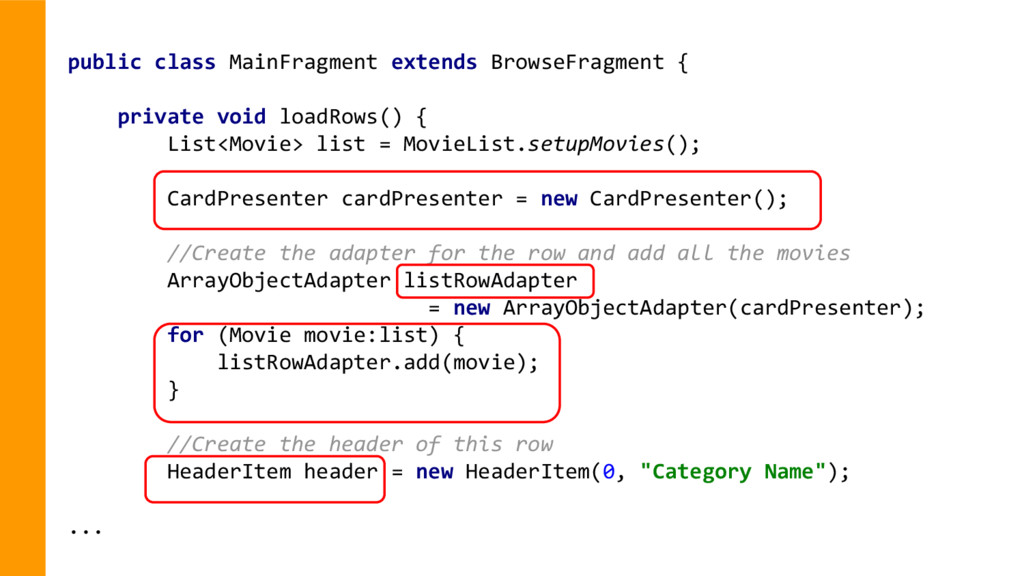

27. public class MainFragment extends BrowseFragment { private void loadRows() { List<Movie> list = MovieList.setupMovies(); CardPresenter cardPresenter = new CardPresenter(); //Create the adapter for the row and add all the movies ArrayObjectAdapter listRowAdapter = new ArrayObjectAdapter(cardPresenter); for (Movie movie:list) { listRowAdapter.add(movie); } //Create the header of this row HeaderItem header = new HeaderItem(0, "Category Name"); ...

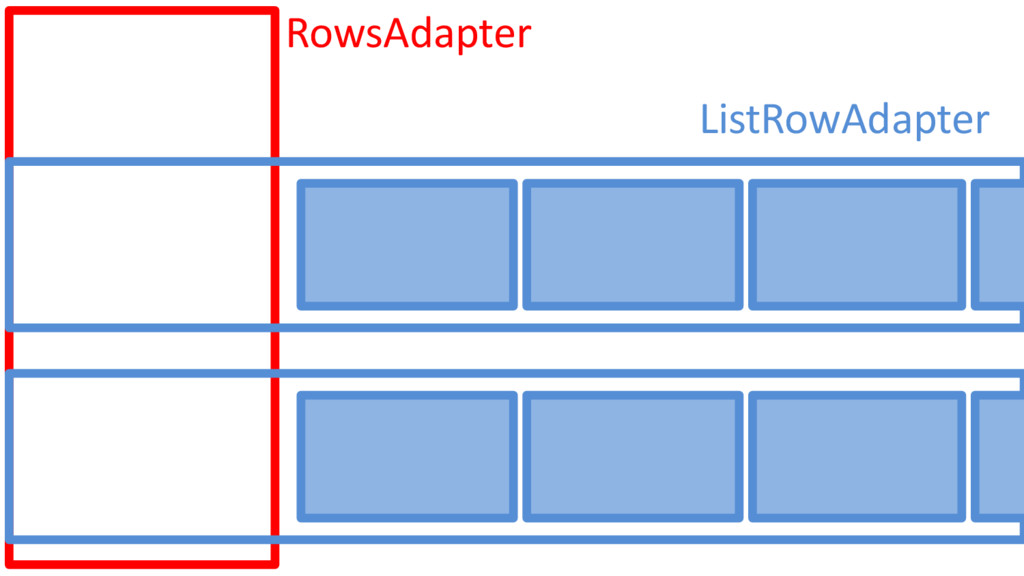

28. ListRowAdapter RowsAdapter

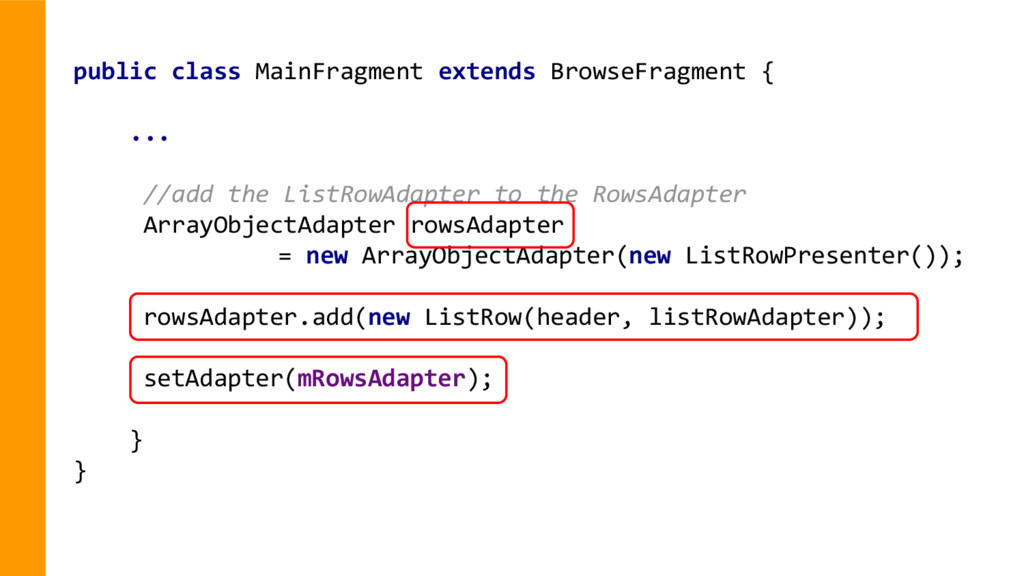

29. public class MainFragment extends BrowseFragment { ... //add the ListRowAdapter to the RowsAdapter ArrayObjectAdapter rowsAdapter = new ArrayObjectAdapter(new ListRowPresenter()); rowsAdapter.add(new ListRow(header, listRowAdapter)); setAdapter(mRowsAdapter); } }
30. Title Description

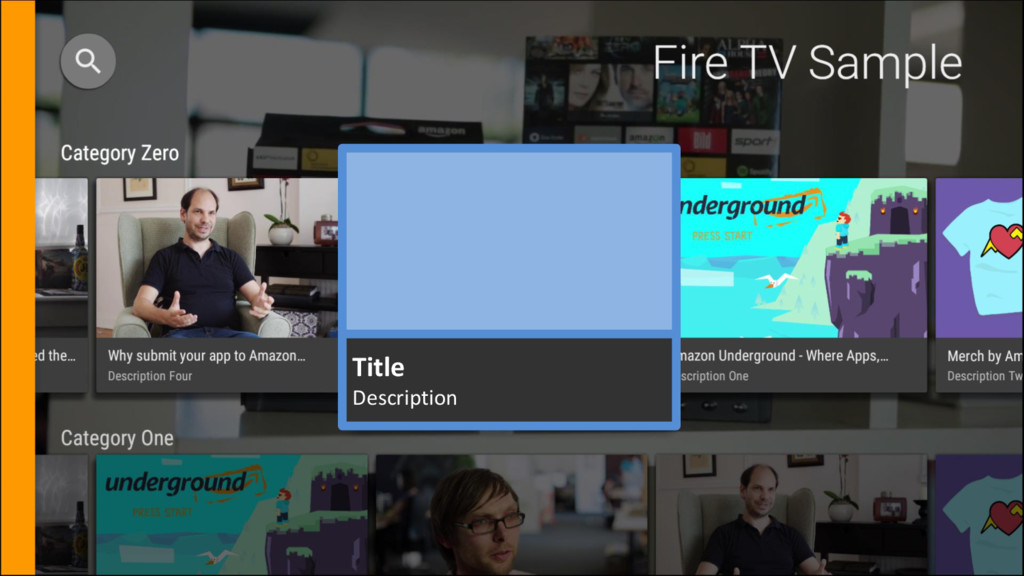

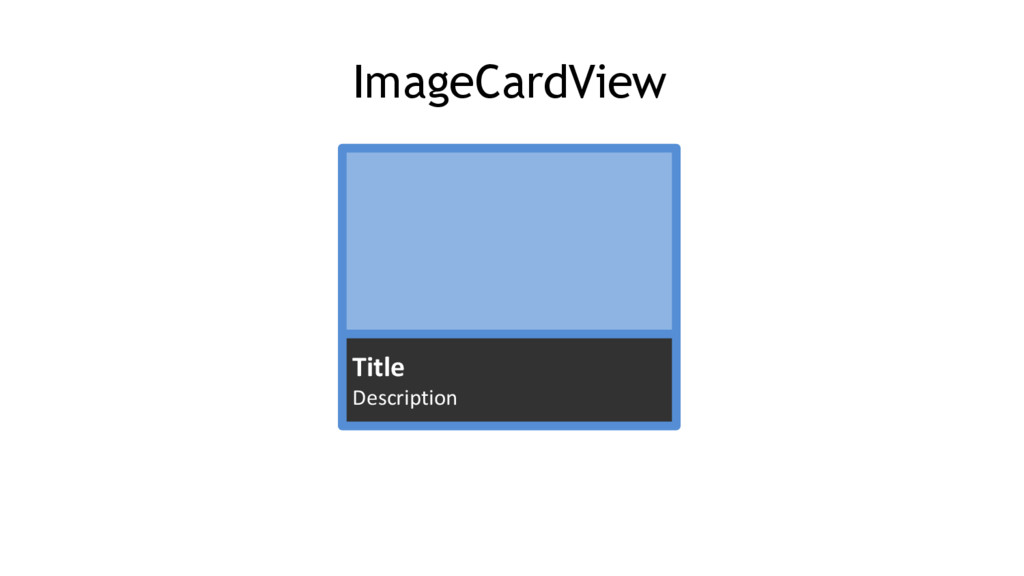

31. Title Description ImageCardView

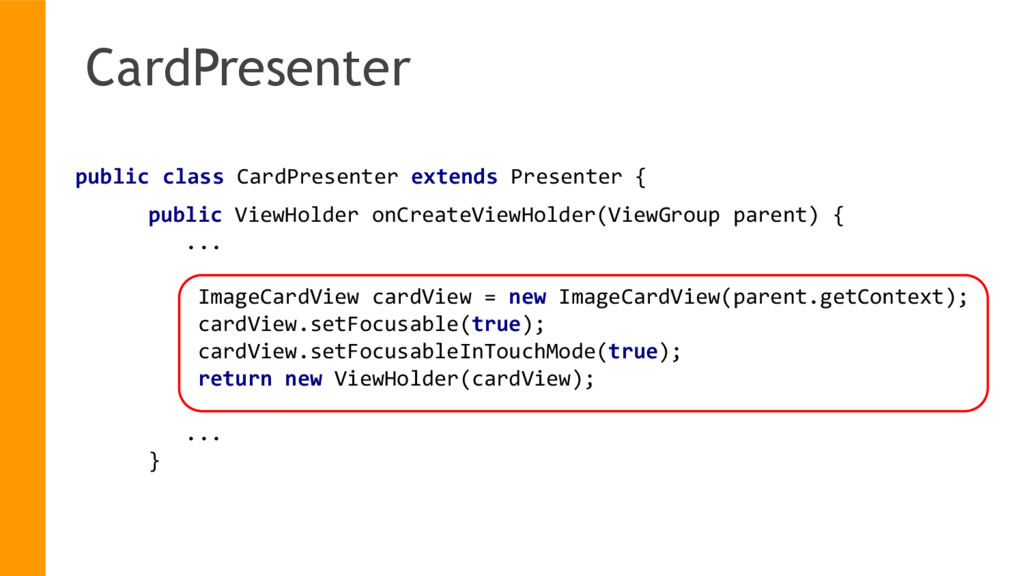

32. public ViewHolder onCreateViewHolder(ViewGroup parent) { ... ImageCardView cardView = new ImageCardView(parent.getContext); cardView.setFocusable(true); cardView.setFocusableInTouchMode(true); return new ViewHolder(cardView); ... } public class CardPresenter extends Presenter { CardPresenter

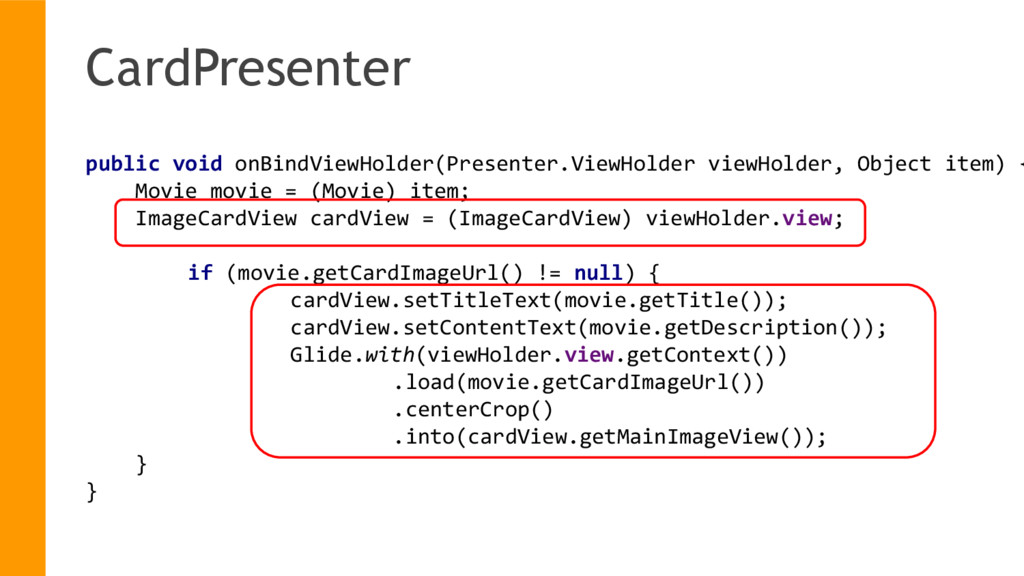

33. CardPresenter public void onBindViewHolder(Presenter.ViewHolder viewHolder, Object item) { Movie movie = (Movie) item; ImageCardView cardView = (ImageCardView) viewHolder.view; if (movie.getCardImageUrl() != null) { cardView.setTitleText(movie.getTitle()); cardView.setContentText(movie.getDescription()); Glide.with(viewHolder.view.getContext()) .load(movie.getCardImageUrl()) .centerCrop() .into(cardView.getMainImageView()); } }
34. Development on Fire TV DetailsFragment

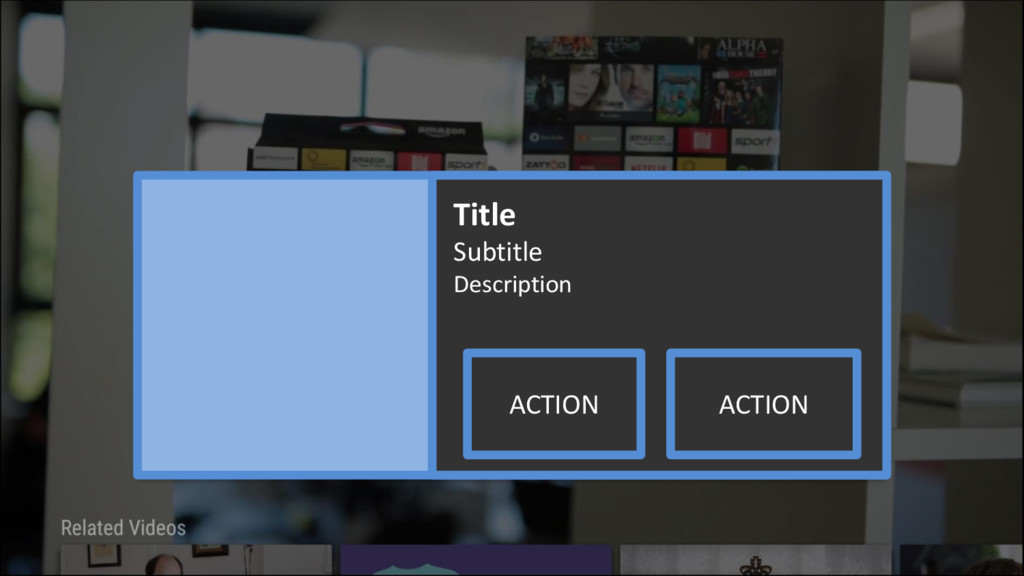

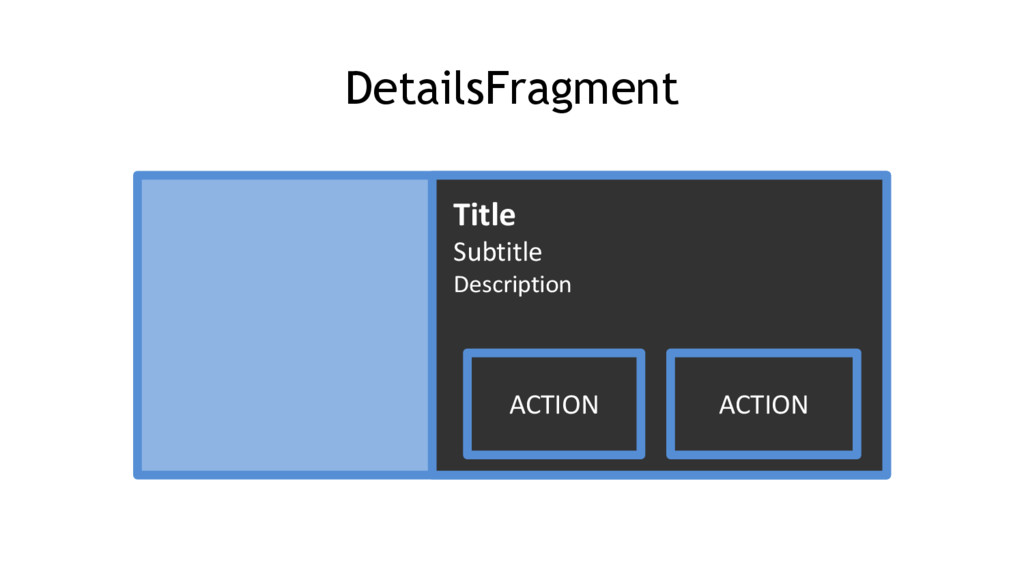

35. Title Subtitle Description ACTION ACTION
36. DetailsFragment Title Subtitle Description ACTION ACTION

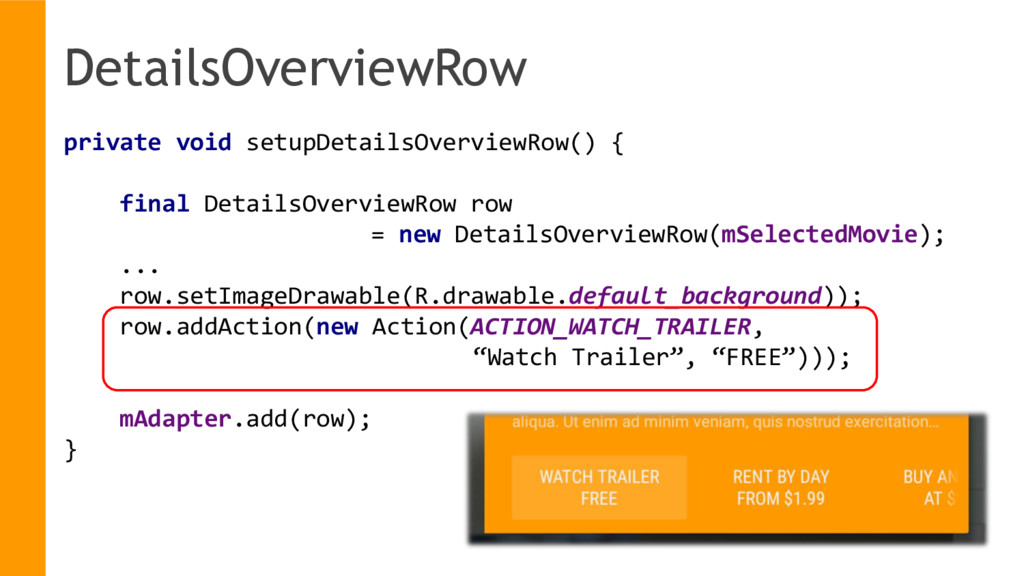

37. private void setupDetailsOverviewRow() { final DetailsOverviewRow row = new DetailsOverviewRow(mSelectedMovie); ... row.setImageDrawable(R.drawable.default_background)); row.addAction(new Action(ACTION_WATCH_TRAILER, “Watch Trailer”, “FREE”))); mAdapter.add(row); } DetailsOverviewRow
38. public class DetailsDescriptionPresenter extends AbstractDetailsDescriptionPresenter { @Override protected void onBindDescription(ViewHolder viewHolder, Object item) { Movie movie = (Movie) item; if (movie != null) { viewHolder.getTitle().setText(movie.getTitle()); viewHolder.getSubtitle().setText(movie.getStudio()); viewHolder.getBody().setText(movie.getDescription()); } } } DescriptionPresenter

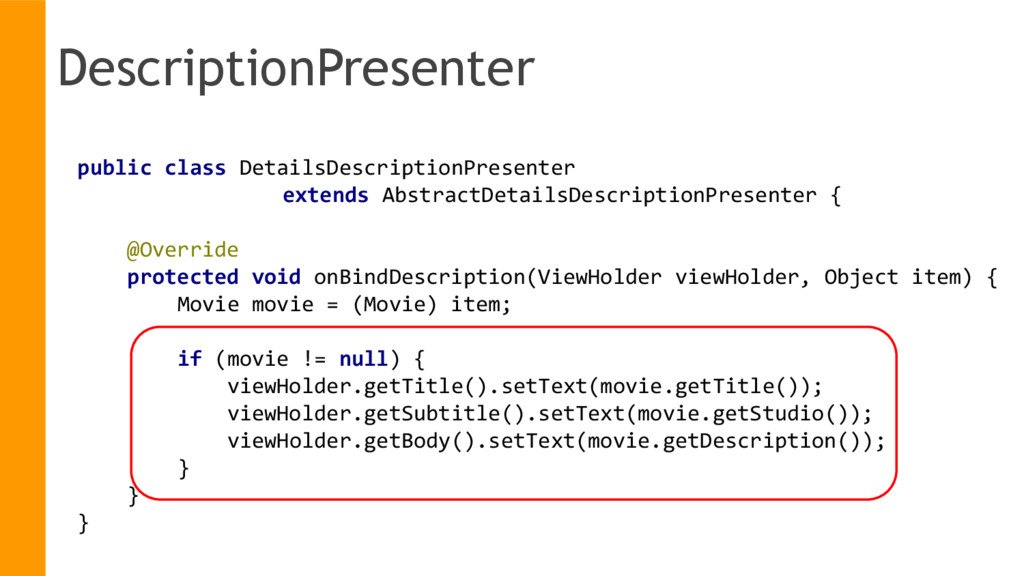

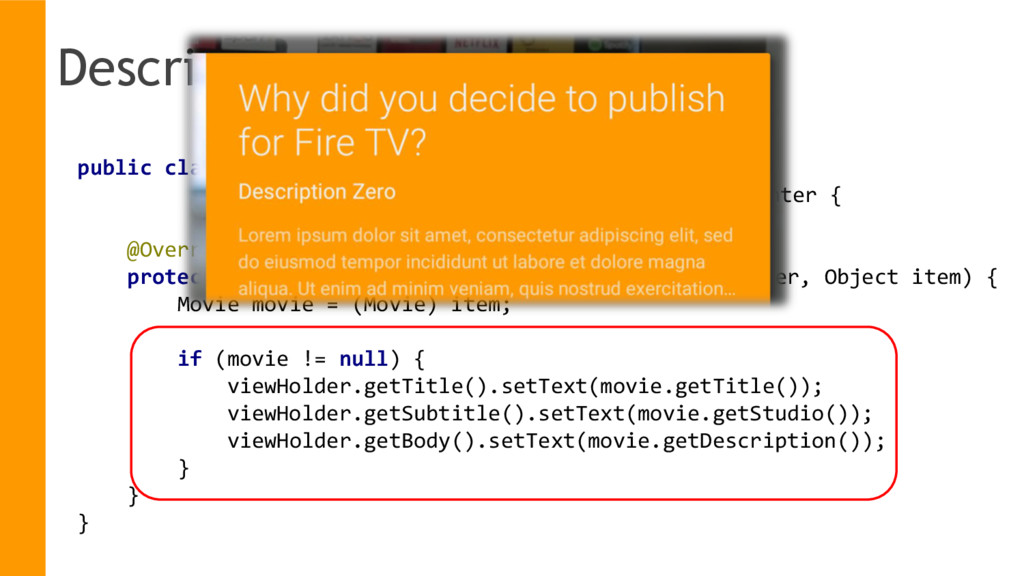

39. public class DetailsDescriptionPresenter extends AbstractDetailsDescriptionPresenter { @Override protected void onBindDescription(ViewHolder viewHolder, Object item) { Movie movie = (Movie) item; if (movie != null) { viewHolder.getTitle().setText(movie.getTitle()); viewHolder.getSubtitle().setText(movie.getStudio()); viewHolder.getBody().setText(movie.getDescription()); } } } DescriptionPresenter

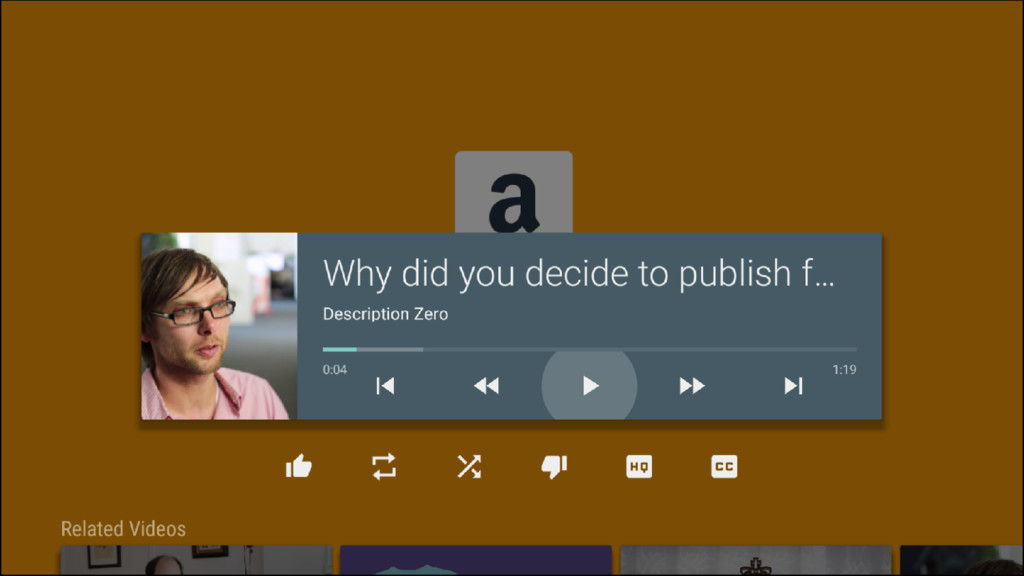

40. Development on Fire TV Video Overlay

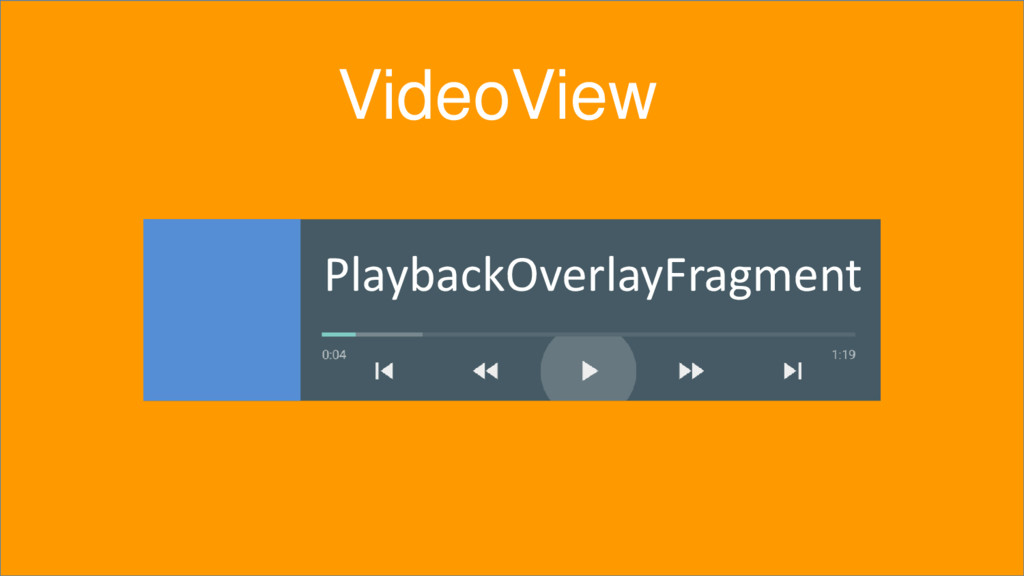

42. VideoView PlaybackOverlayFragment

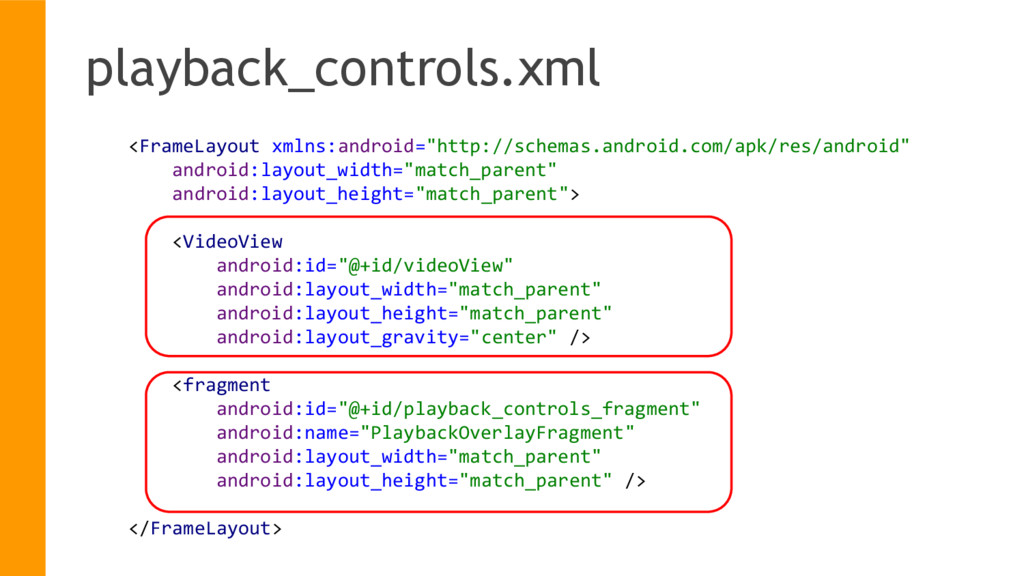

43. playback_controls.xml <FrameLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="match_parent" android:layout_height="match_parent"> <VideoView android:id="@+id/videoView" android:layout_width="match_parent" android:layout_height="match_parent" android:layout_gravity="center" /> <fragment android:id="@+id/playback_controls_fragment" android:name="PlaybackOverlayFragment" android:layout_width="match_parent" android:layout_height="match_parent" /> </FrameLayout>

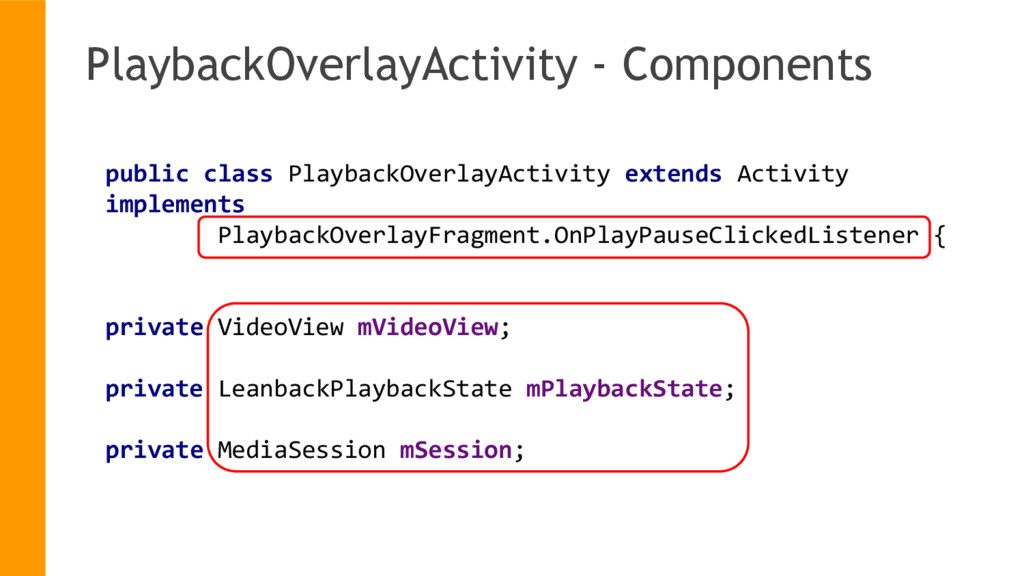

44. PlaybackOverlayActivity - Components public class PlaybackOverlayActivity extends Activity implements PlaybackOverlayFragment.OnPlayPauseClickedListener { private VideoView mVideoView; private LeanbackPlaybackState mPlaybackState; private MediaSession mSession;

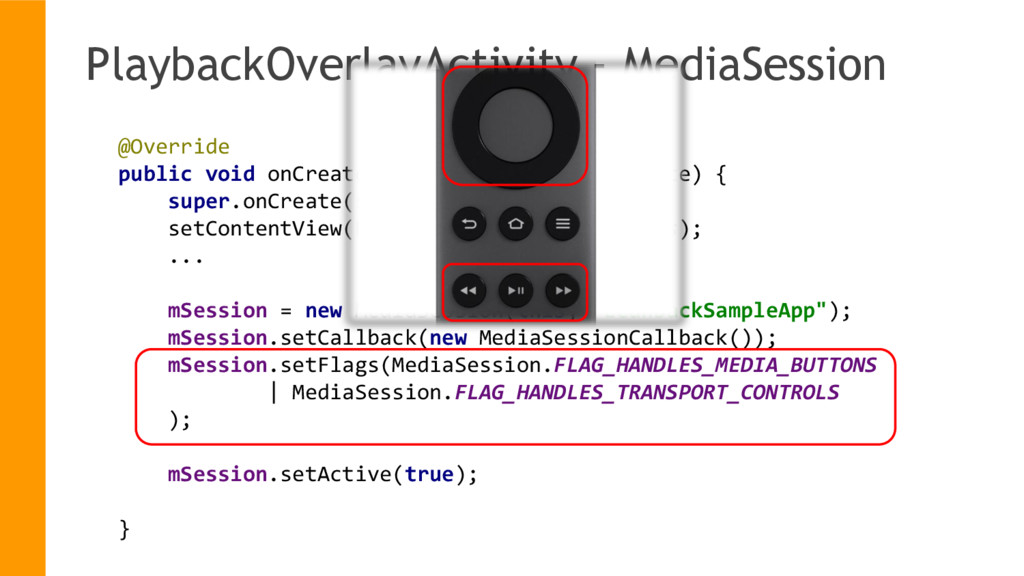

46. PlaybackOverlayActivity - MediaSession @Override public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.playback_controls); ... mSession = new MediaSession(this, "LeanbackSampleApp"); mSession.setCallback(new MediaSessionCallback()); mSession.setFlags(MediaSession.FLAG_HANDLES_MEDIA_BUTTONS | MediaSession.FLAG_HANDLES_TRANSPORT_CONTROLS ); mSession.setActive(true); }

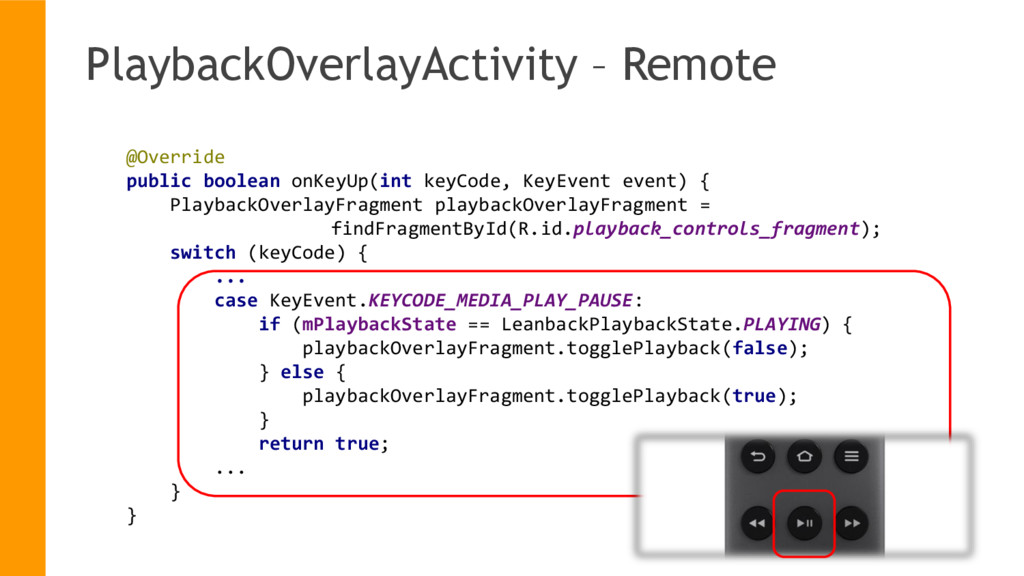

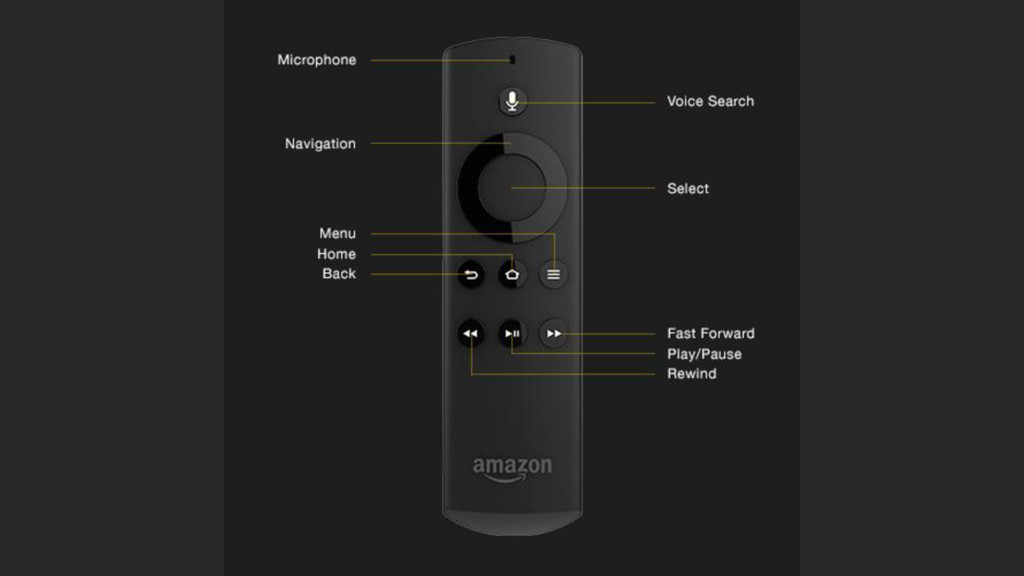

47. PlaybackOverlayActivity – Remote @Override public boolean onKeyUp(int keyCode, KeyEvent event) { PlaybackOverlayFragment playbackOverlayFragment = findFragmentById(R.id.playback_controls_fragment); switch (keyCode) { ... case KeyEvent.KEYCODE_MEDIA_PLAY_PAUSE: if (mPlaybackState == LeanbackPlaybackState.PLAYING) { playbackOverlayFragment.togglePlayback(false); } else { playbackOverlayFragment.togglePlayback(true); } return true; ... } }

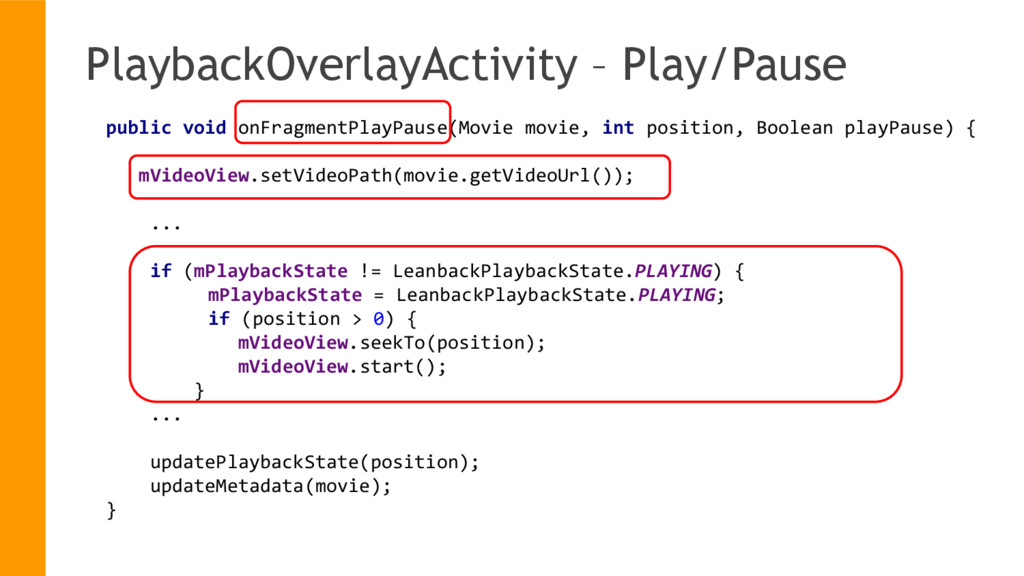

48. PlaybackOverlayActivity – Play/Pause public void onFragmentPlayPause(Movie movie, int position, Boolean playPause) { mVideoView.setVideoPath(movie.getVideoUrl()); ... if (mPlaybackState != LeanbackPlaybackState.PLAYING) { mPlaybackState = LeanbackPlaybackState.PLAYING; if (position > 0) { mVideoView.seekTo(position); mVideoView.start(); } ... updatePlaybackState(position); updateMetadata(movie); }

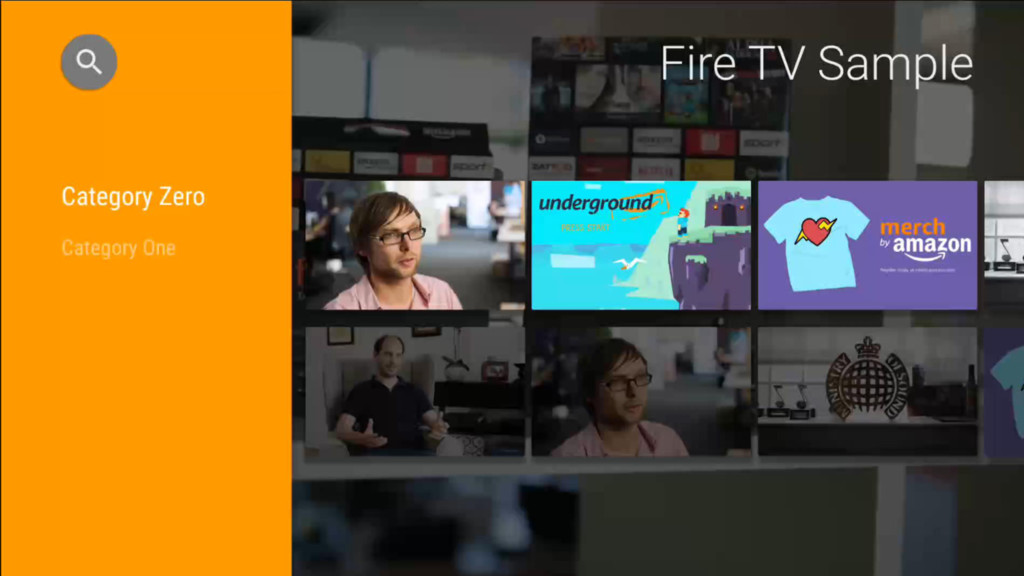

49. The Final Result
51. CREATE NEW EXPERIENCES ON FIRE TV

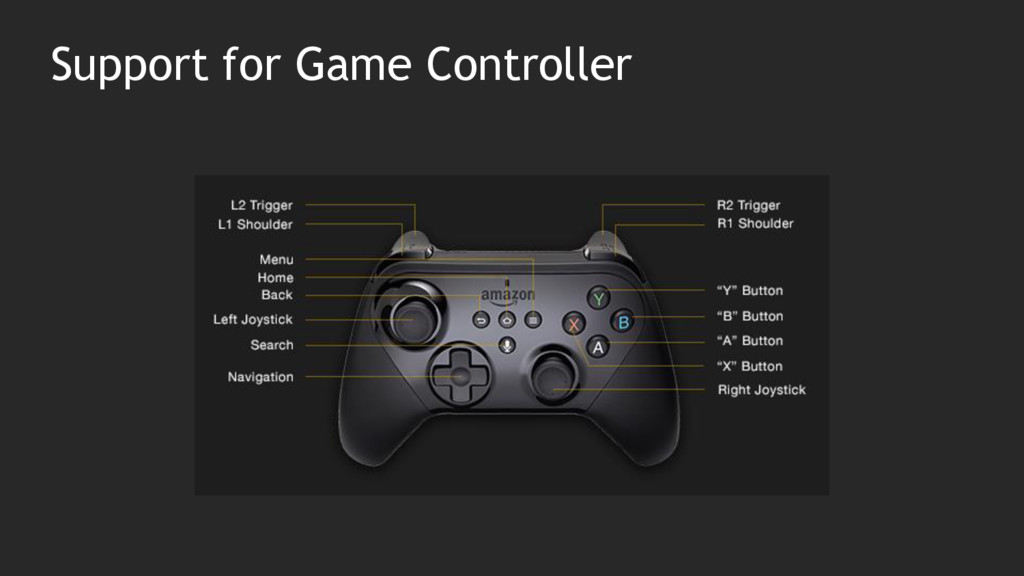

52. Support for Game Controller
53. Amazon Fling bit.ly/amazonfling

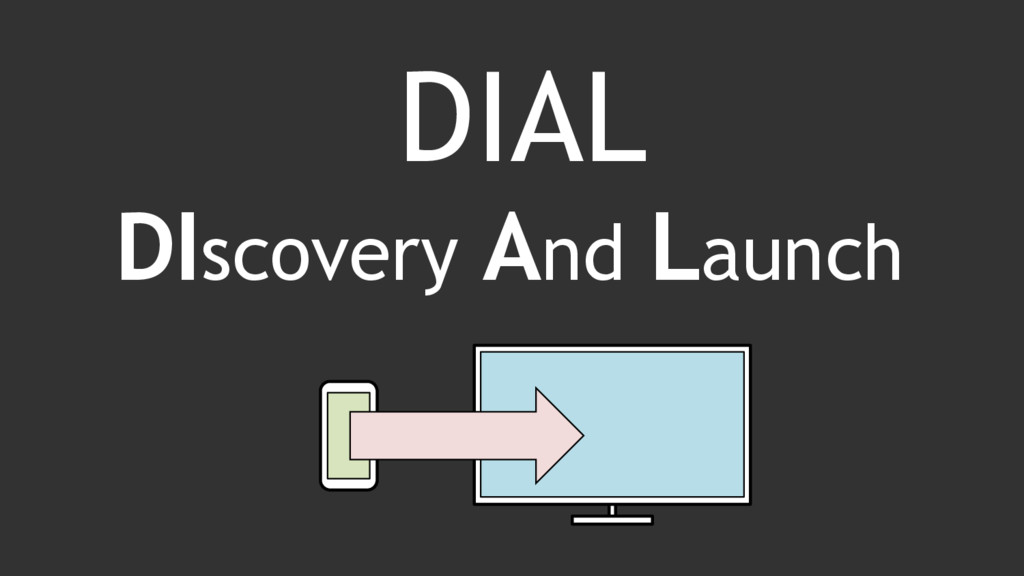

54. DIAL DIscovery And Launch

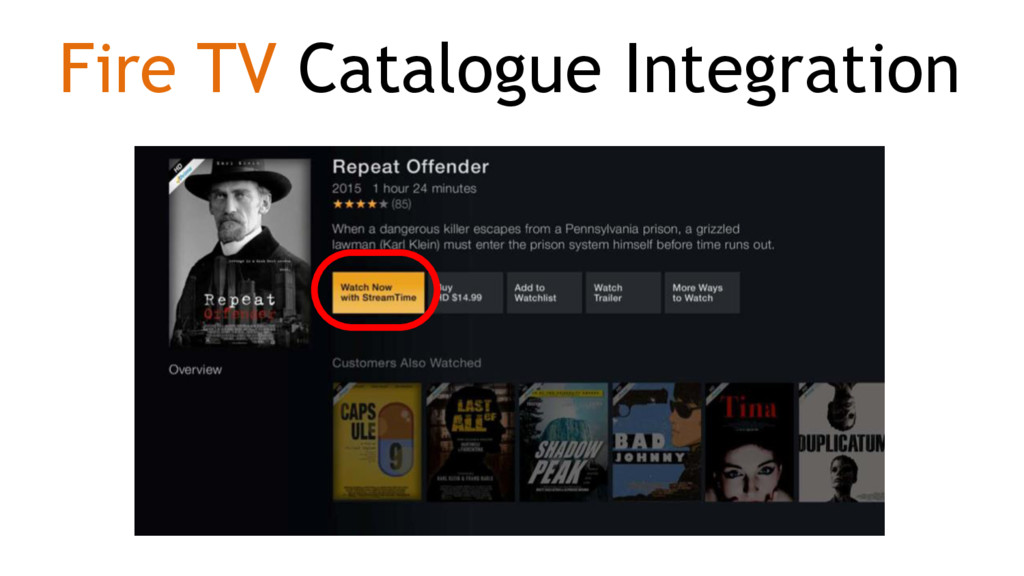

55. Fire TV Catalogue Integration

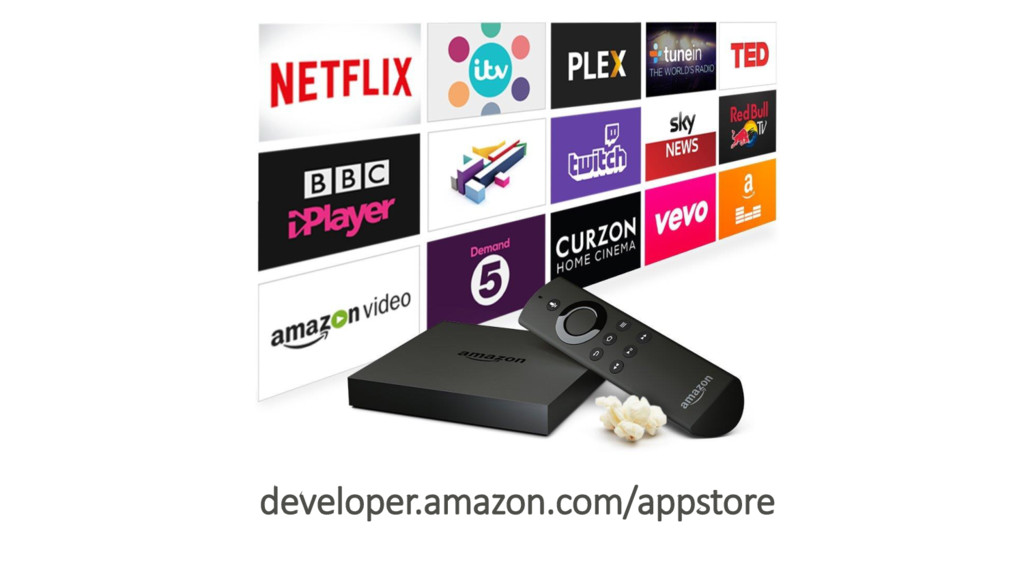

57. developer.amazon.com/appstore
58. THANK YOU! Mario Viviani @mariuxtheone @AmazonAppDev vivianim@amazon.co.uk developer.amazon.com/appstore
