Kafka jako strumień i co się z tym wiąże

Stream Processing staje się coraz bardziej popularnym paradygmatem przetwarzania danych.
Na przykładzie mobilnej gry w klocki, pokażę Wam na jakie ciekawe problemy ze świata przetwarzania strumieni możemy się natkąć i jak je rozwiązać.
Opowiem czym jest Apache Kafka i Kafka Streams oraz jak przy ich pomocy tworzyć systemy reaktywne.

Transcript

1. Kafka jako strumień i co się z tym wiąże Wojciech Marusarz // nexocode
3. Programiści...

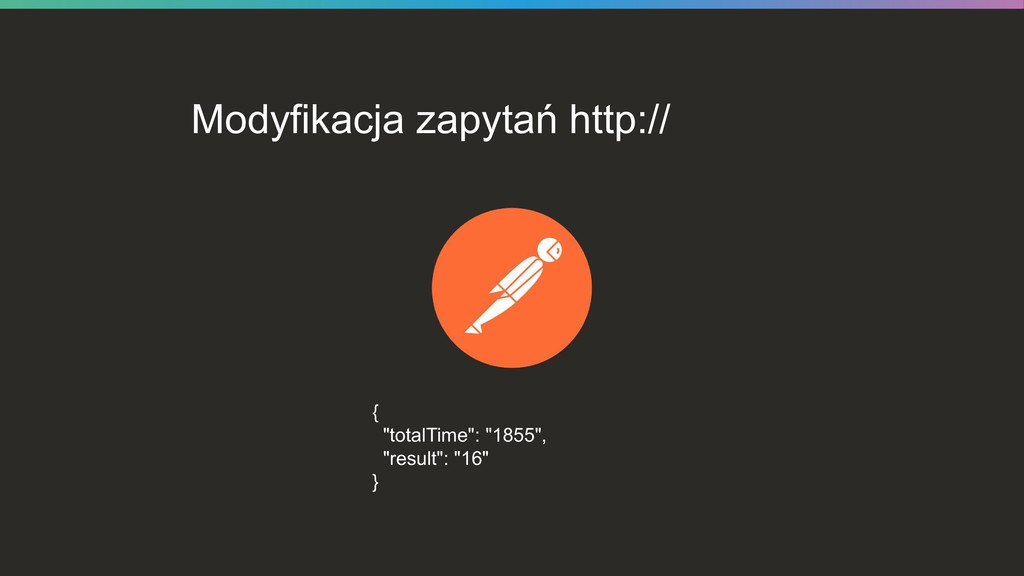

4. Modyfikacja zapytań http:// { "totalTime": "1855", "result": "16" }

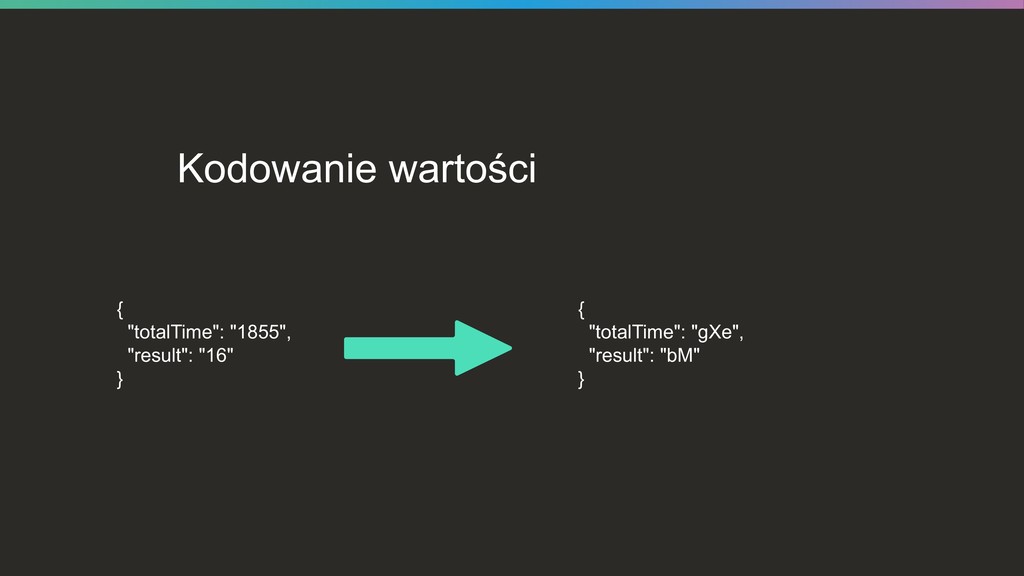

5. Kodowanie wartości { "totalTime": "gXe", "result": "bM" } { "totalTime": "1855", "result": "16" }
6. Obfuskacja

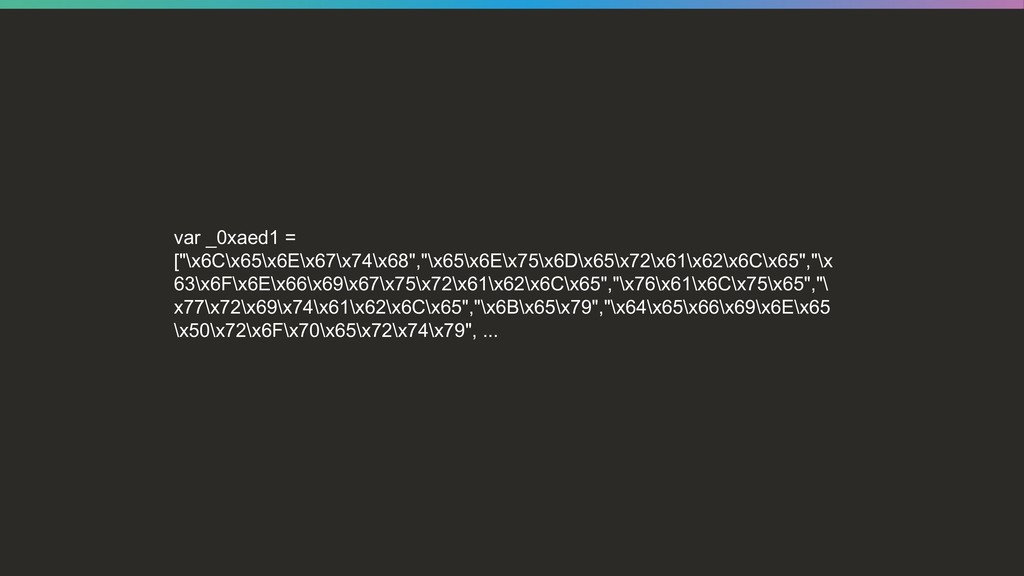

7. var _0xaed1 = ["\x6C\x65\x6E\x67\x74\x68","\x65\x6E\x75\x6D\x65\x72\x61\x62\x6C\x65","\x 63\x6F\x6E\x66\x69\x67\x75\x72\x61\x62\x6C\x65","\x76\x61\x6C\x75\x65","\ x77\x72\x69\x74\x61\x62\x6C\x65","\x6B\x65\x79","\x64\x65\x66\x69\x6E\x65 \x50\x72\x6F\x70\x65\x72\x74\x79", ...
8. Uparci programiści...

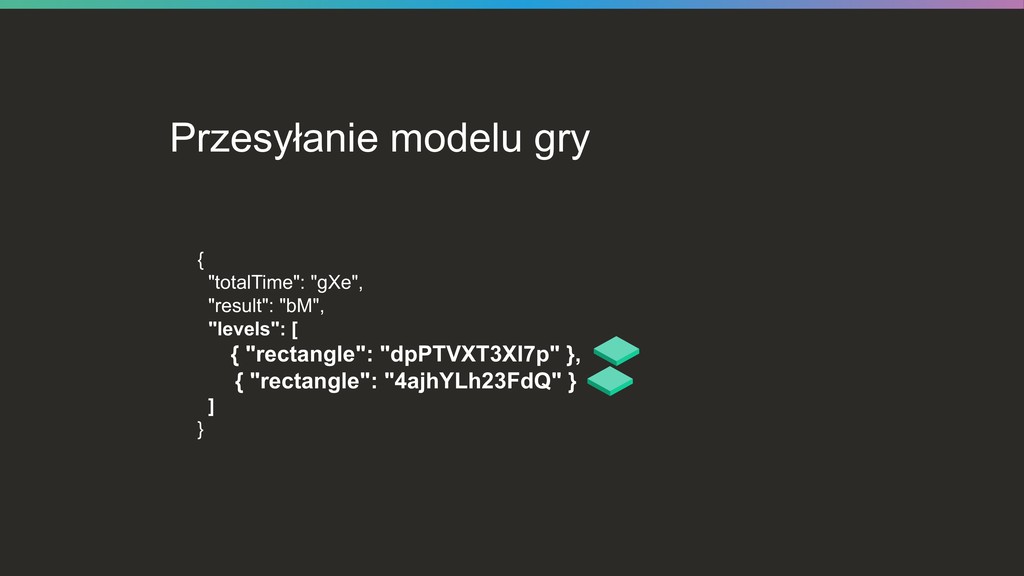

9. Przesyłanie modelu gry { "totalTime": "gXe", "result": "bM", "levels": [ { "rectangle": "dpPTVXT3XI7p" }, { "rectangle": "4ajhYLh23FdQ" } ] }

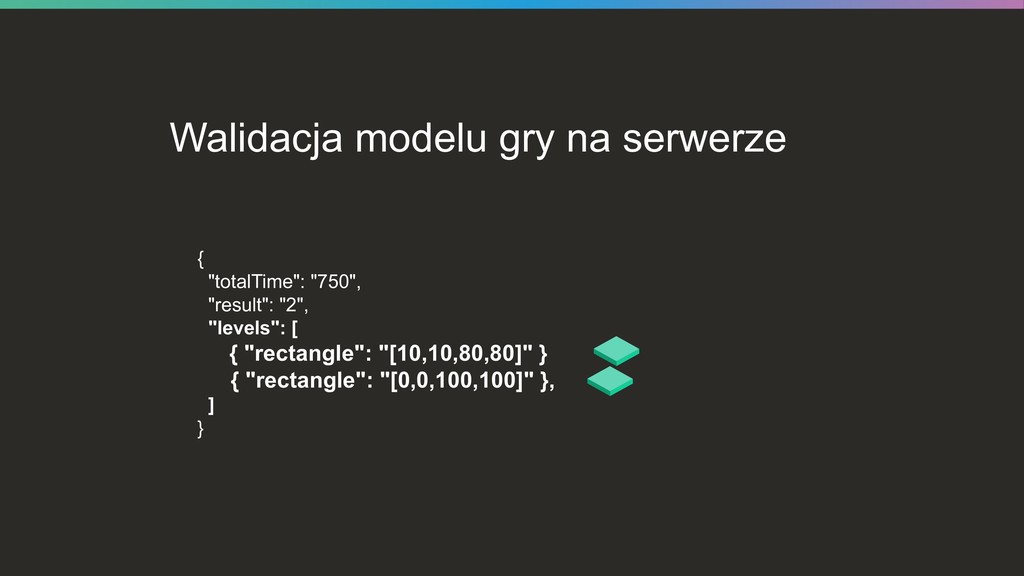

10. Walidacja modelu gry na serwerze { "totalTime": "750", "result": "2", "levels": [ { "rectangle": "[10,10,80,80]" } { "rectangle": "[0,0,100,100]" }, ] }

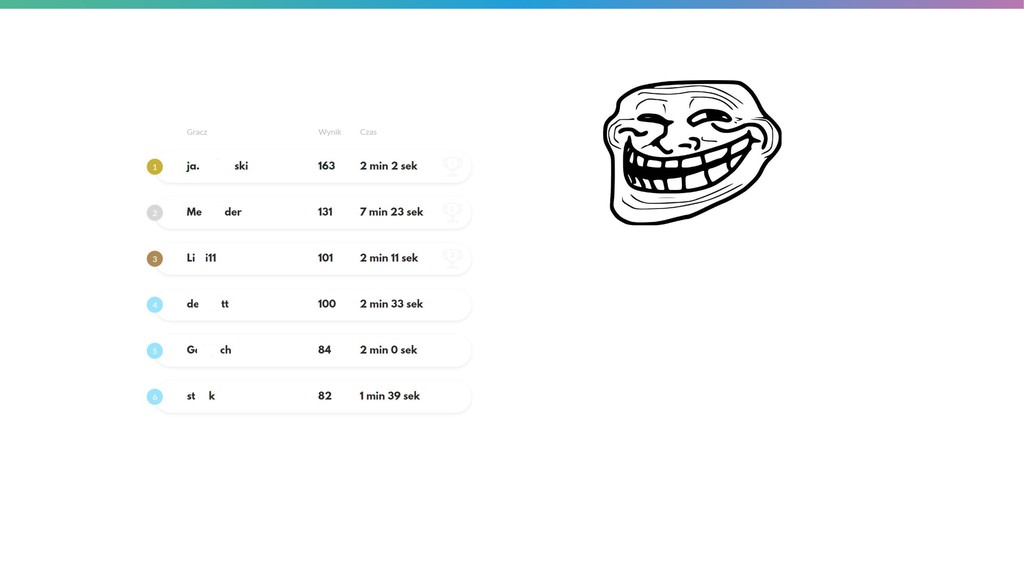

11. Brace yourself, gra nadchodzi...

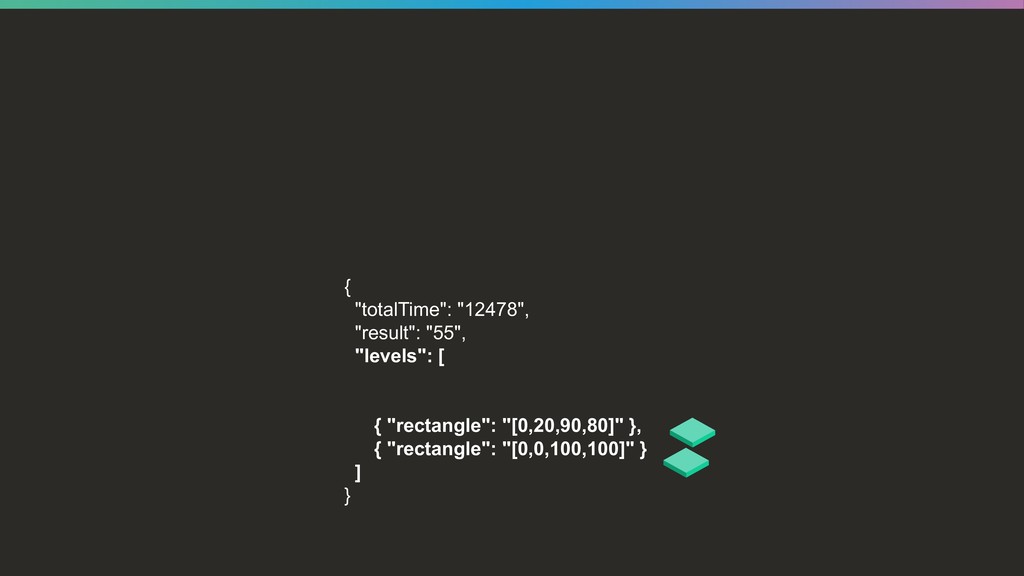

13. { "totalTime": "12478", "result": "55", "levels": [ { "rectangle": "[0,20,90,80]" }, { "rectangle": "[0,0,100,100]" } ] }

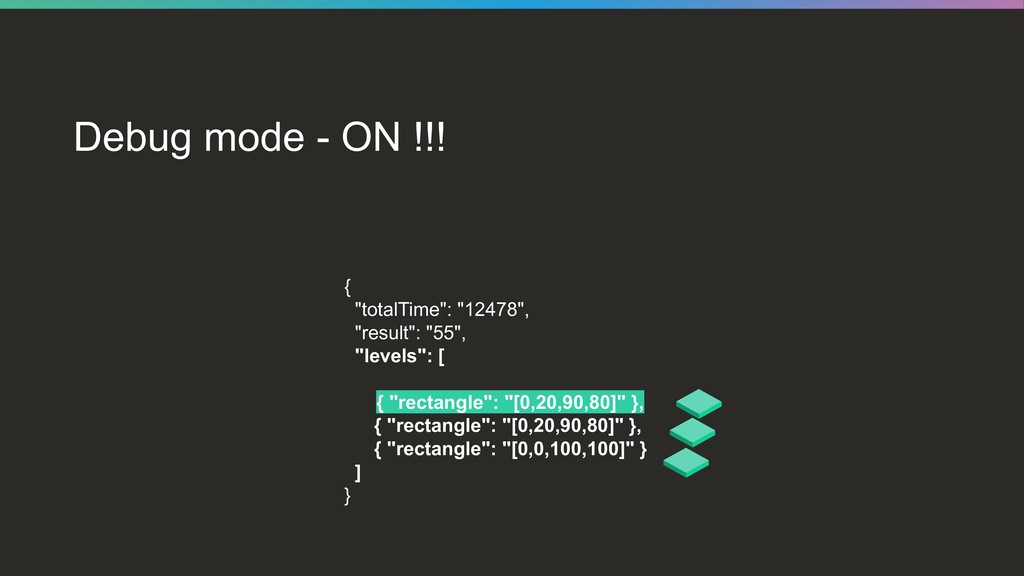

14. Debug mode - ON !!! { "totalTime": "12478", "result": "55", "levels": [ { "rectangle": "[0,20,90,80]" }, { "rectangle": "[0,20,90,80]" }, { "rectangle": "[0,0,100,100]" } ] }

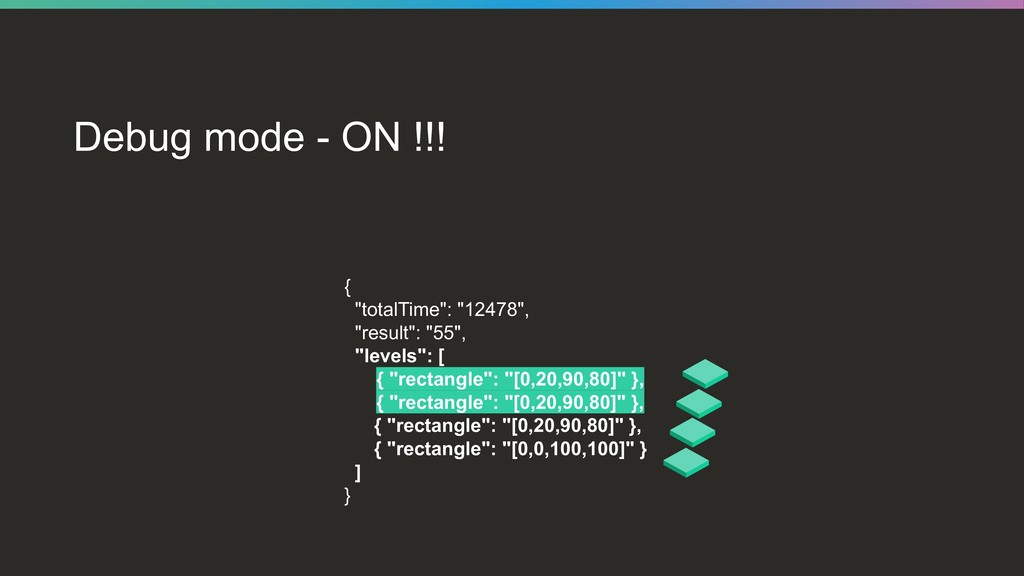

15. Debug mode - ON !!! { "totalTime": "12478", "result": "55", "levels": [ { "rectangle": "[0,20,90,80]" }, { "rectangle": "[0,20,90,80]" }, { "rectangle": "[0,20,90,80]" }, { "rectangle": "[0,0,100,100]" } ] }
16. Challenge accepted…
17. •Przesyłanie klocków pojedynczo

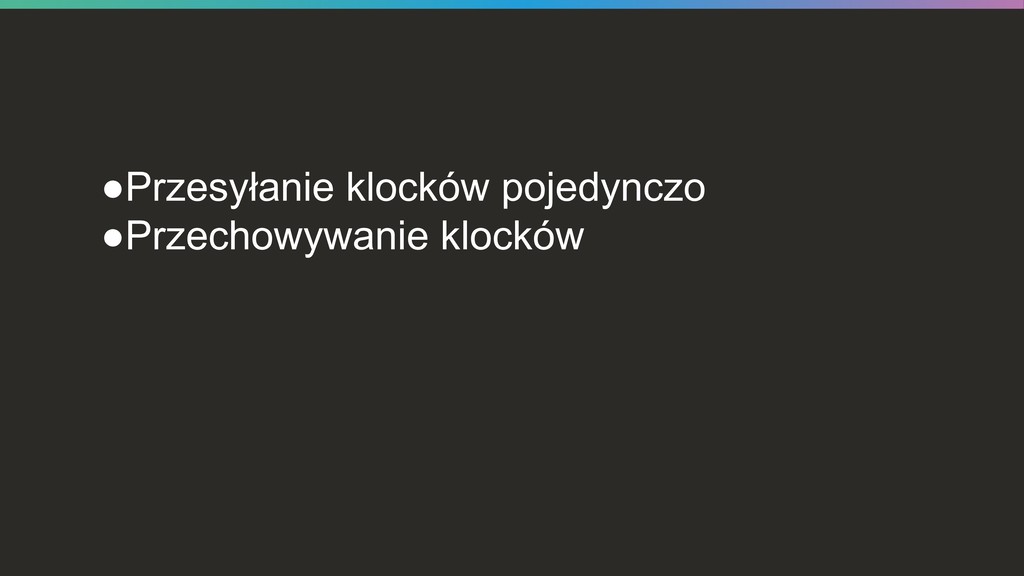

18. •Przesyłanie klocków pojedynczo •Przechowywanie klocków
19. •Przesyłanie klocków pojedynczo •Przechowywanie klocków •Budowa modelu gry

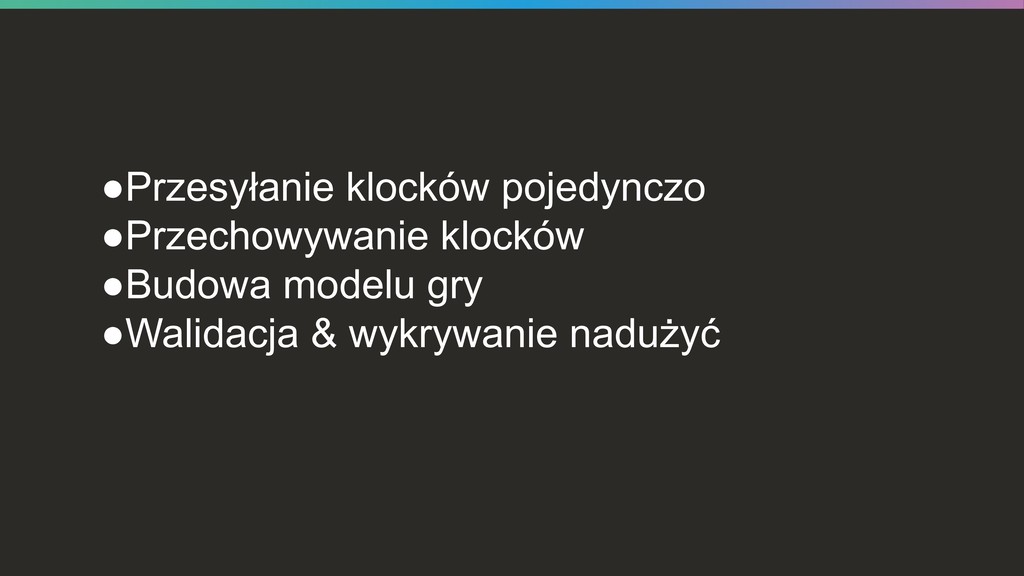

20. •Przesyłanie klocków pojedynczo •Przechowywanie klocków •Budowa modelu gry •Walidacja & wykrywanie nadużyć

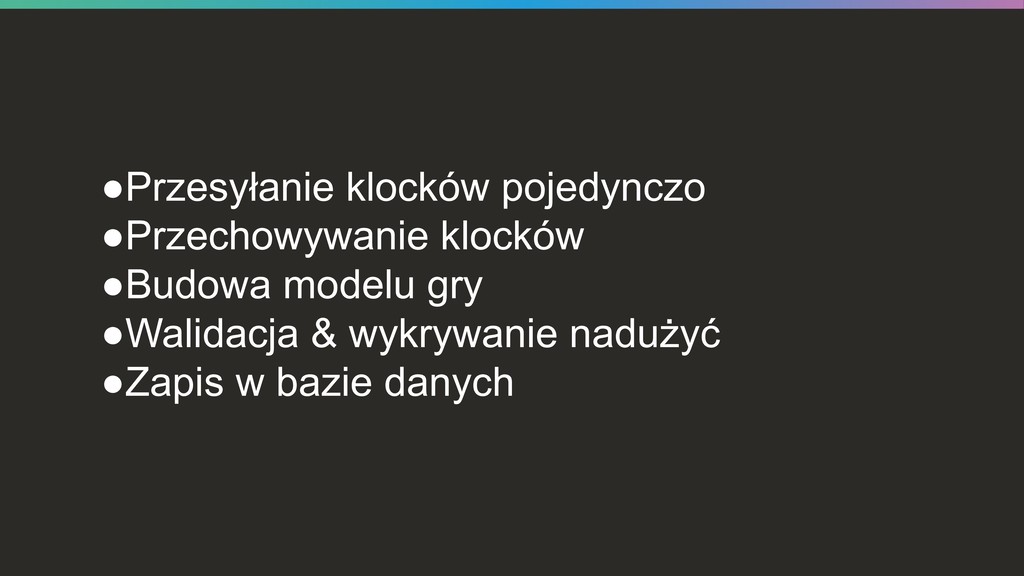

21. •Przesyłanie klocków pojedynczo •Przechowywanie klocków •Budowa modelu gry •Walidacja & wykrywanie nadużyć •Zapis w bazie danych

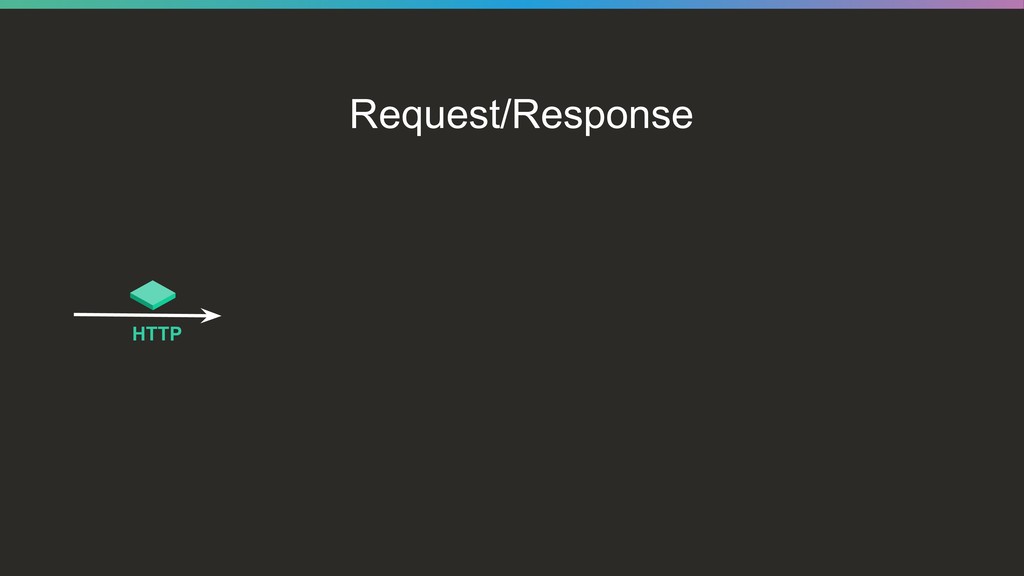

22. Request/Response HTTP

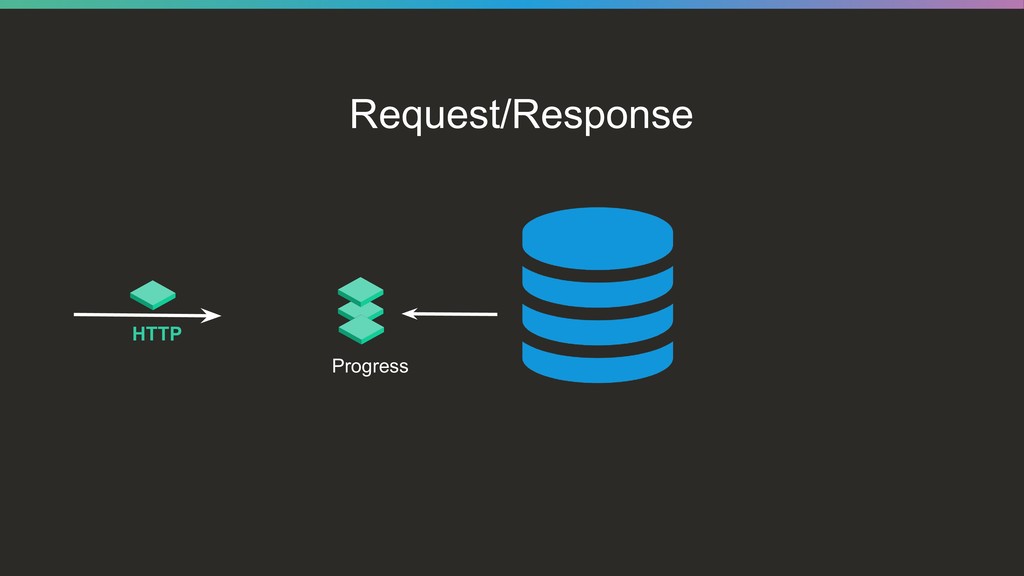

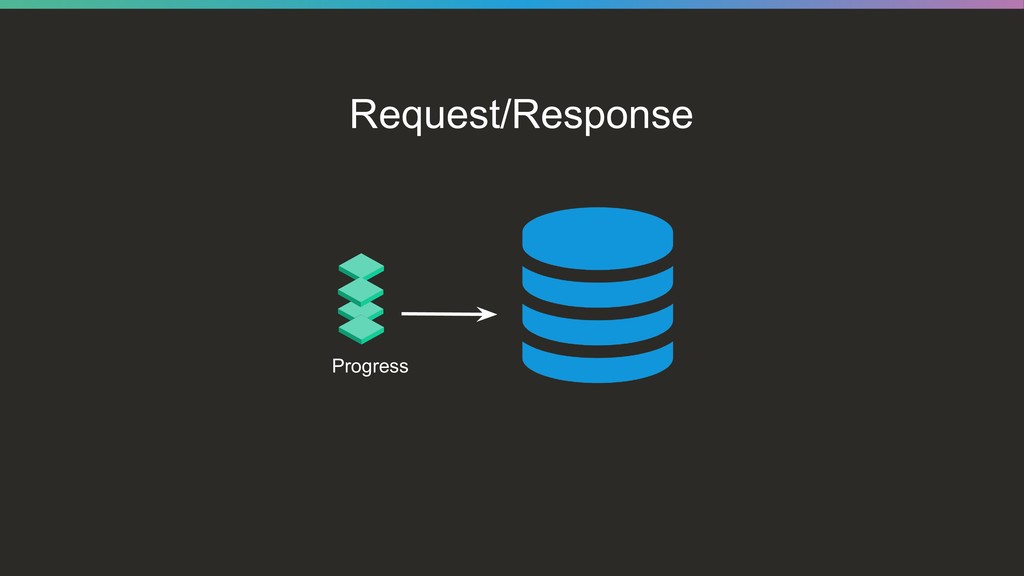

23. Request/Response HTTP Progress
24. Request/Response Progress
25. Przechowywanie klocków

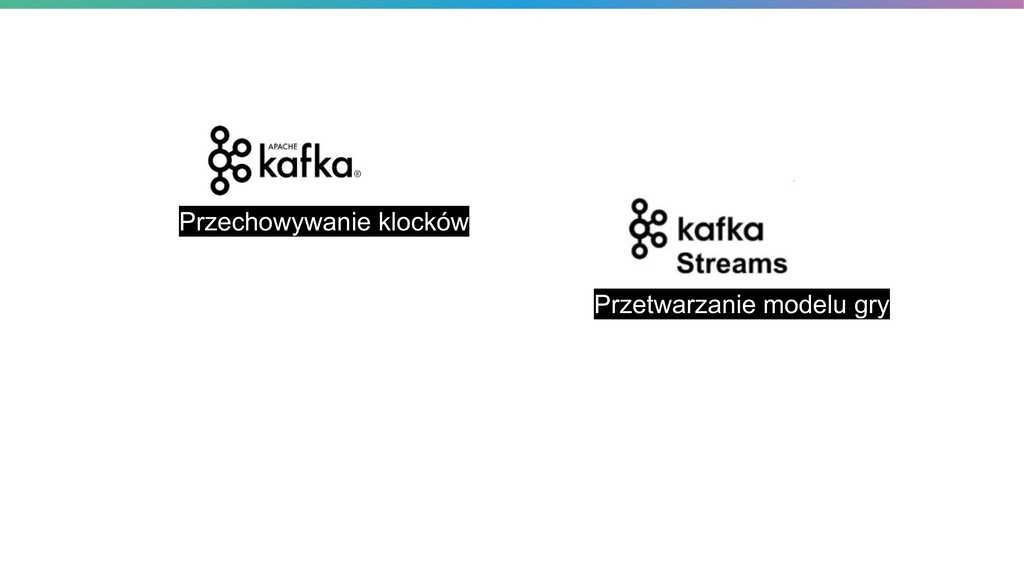

26. Przechowywanie klocków Przetwarzanie modelu gry

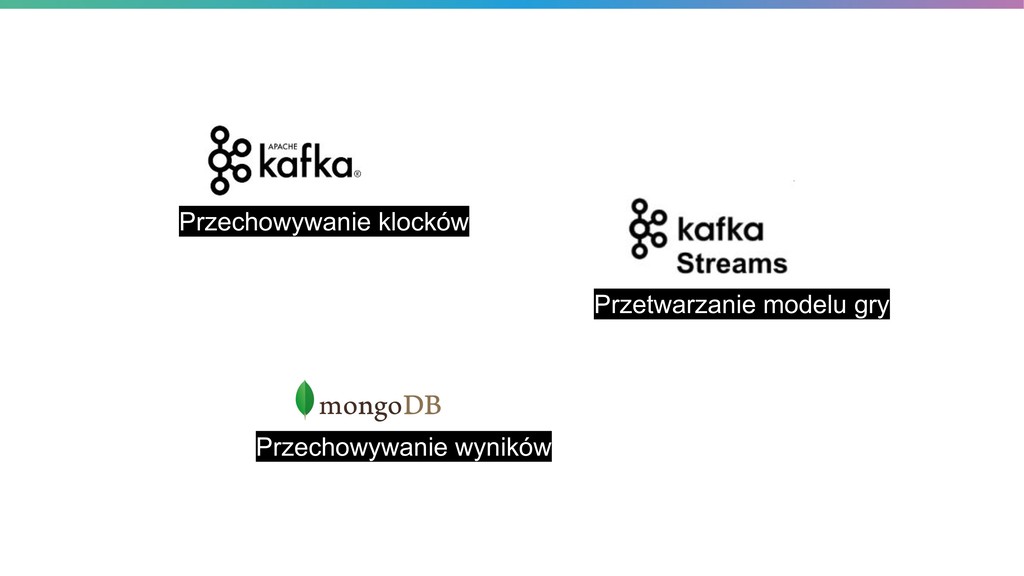

27. Przechowywanie klocków Przetwarzanie modelu gry Przechowywanie wyników
28. Over engineering ?
29. Po co Apache Kafka ?
30. Szyna danych z warstwą persystencji
31. Szyna danych z warstwą persystencji cechująca się wysoką dostępnością oraz szybkością działania 99.999%
32. Szyna danych z warstwą persystencji cechująca się wysoką dostępnością oraz szybkością działania
39. 12 000 /s
40. 500 /s
41. Technikalia
42. #1 Problem - Architektura

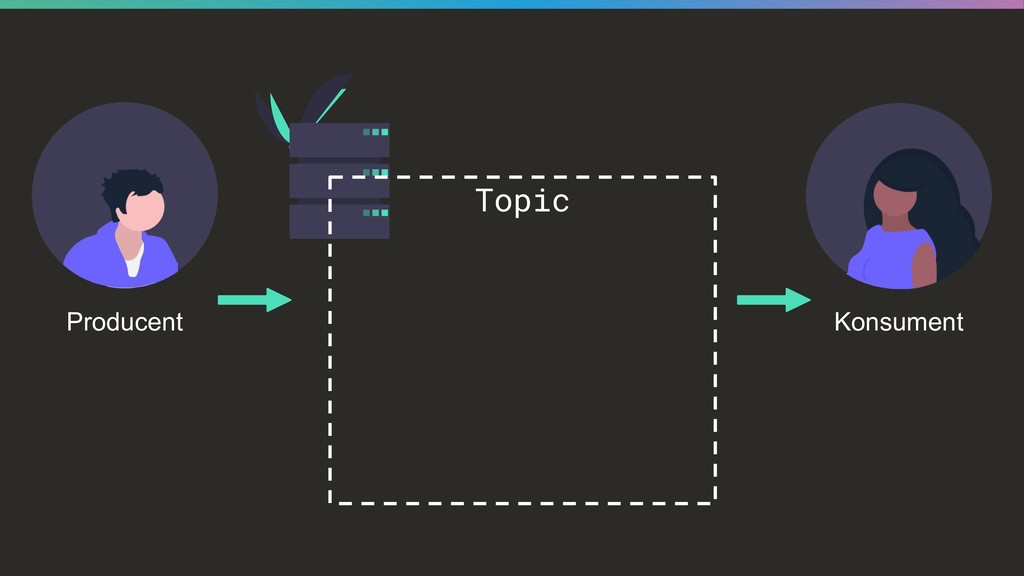

43. Producent Konsument Topic

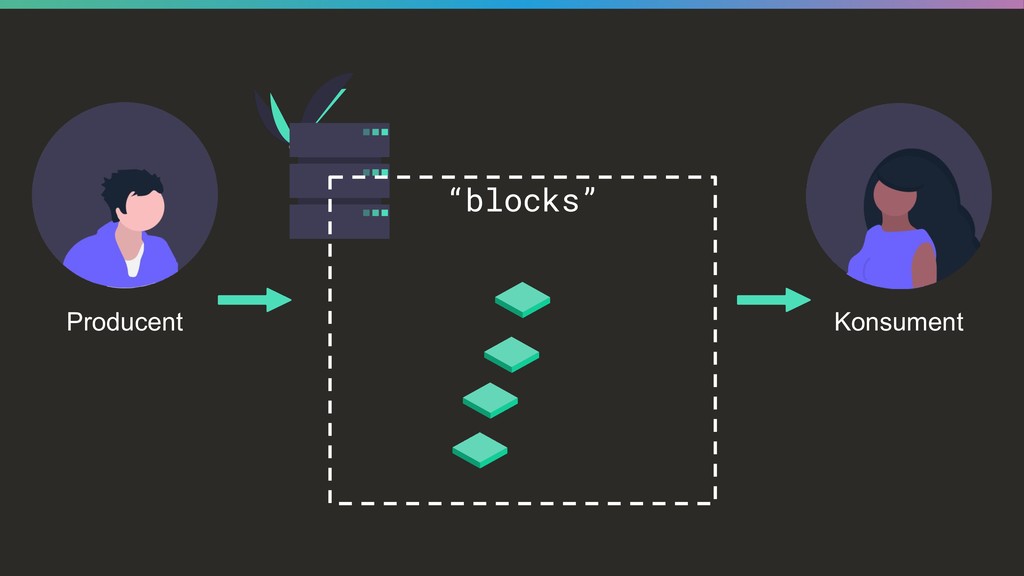

44. Producent Konsument “blocks”

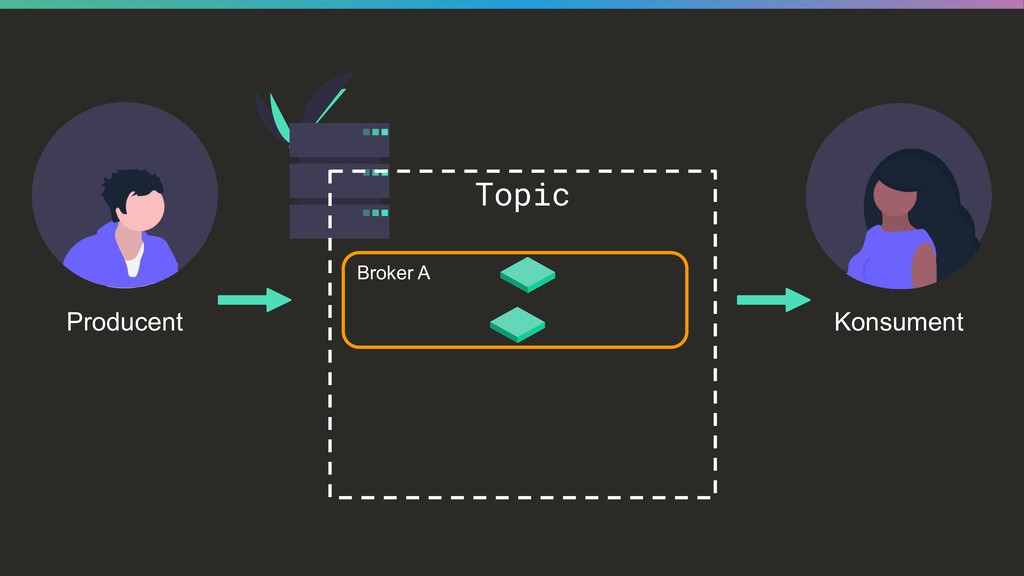

45. Broker A Producent Konsument Topic

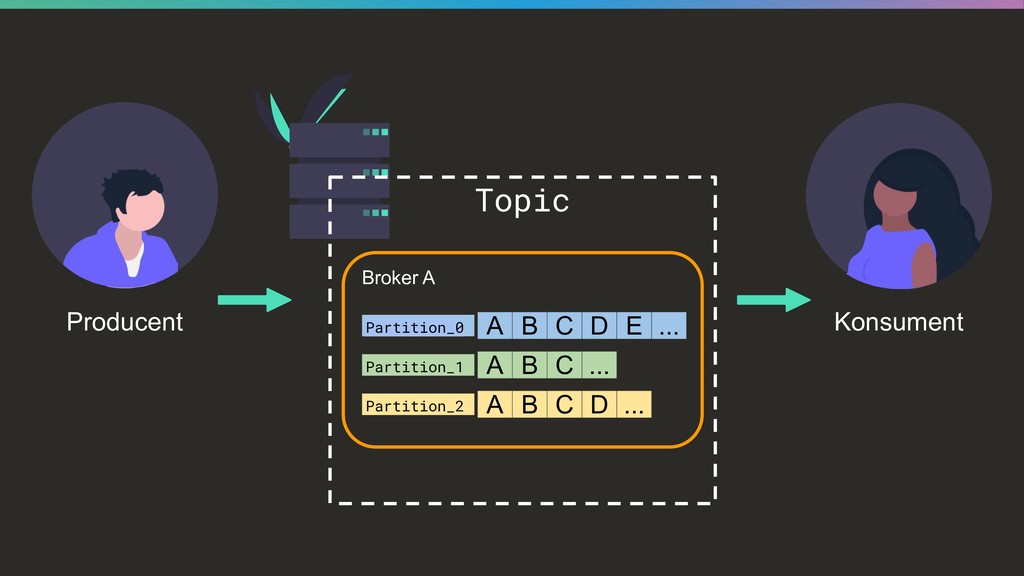

46. Broker A Topic A B C D E ... A B C ... A B C D ... Partition_0 Partition_1 Partition_2 Producent Konsument

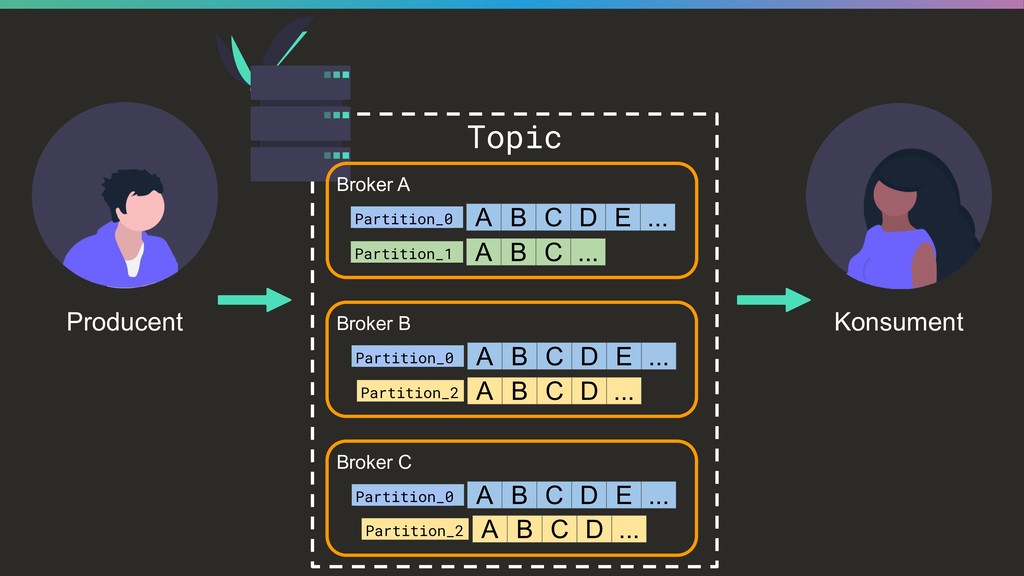

47. Topic Broker C Broker B Broker A A B C D E ... A B C ... Partition_0 Partition_1 A B C D E ... A B C D ... Partition_0 Partition_2 Producent Konsument A B C D ... Partition_2 A B C D E ... Partition_0

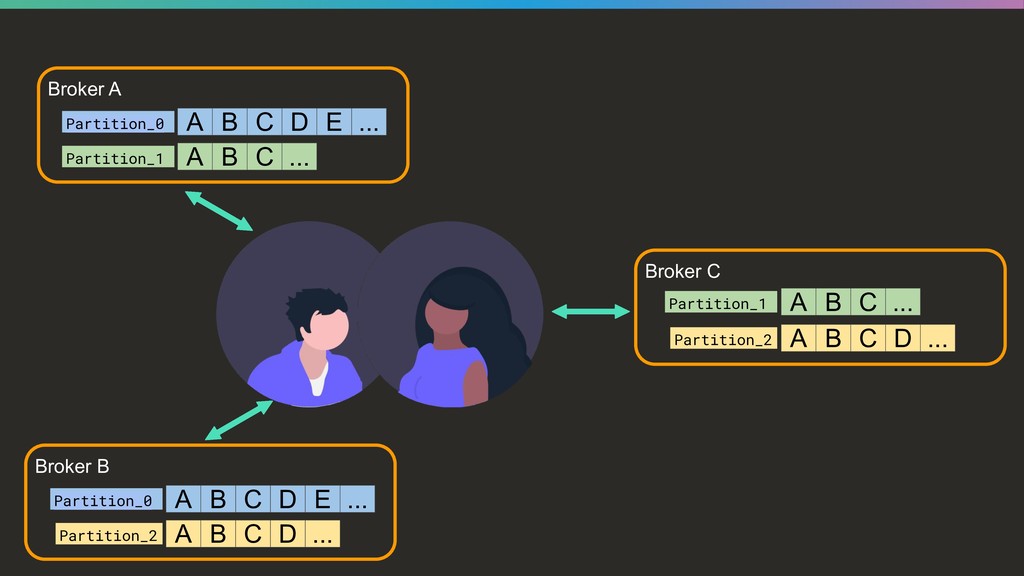

48. Topic Broker C Broker B Broker A A B C D E ... A B C D Partition_0 Partition_1 A B C D E ... Partition_0 Producent Konsument A B C D E ... Partition_0
49. Broker A A B C D E ... A B C ... Partition_0 Partition_1 Broker B Broker C A B C ... A B C D ... Partition_1 Partition_2 A C D E ... A B C D ... Partition_0 Partition_2 B

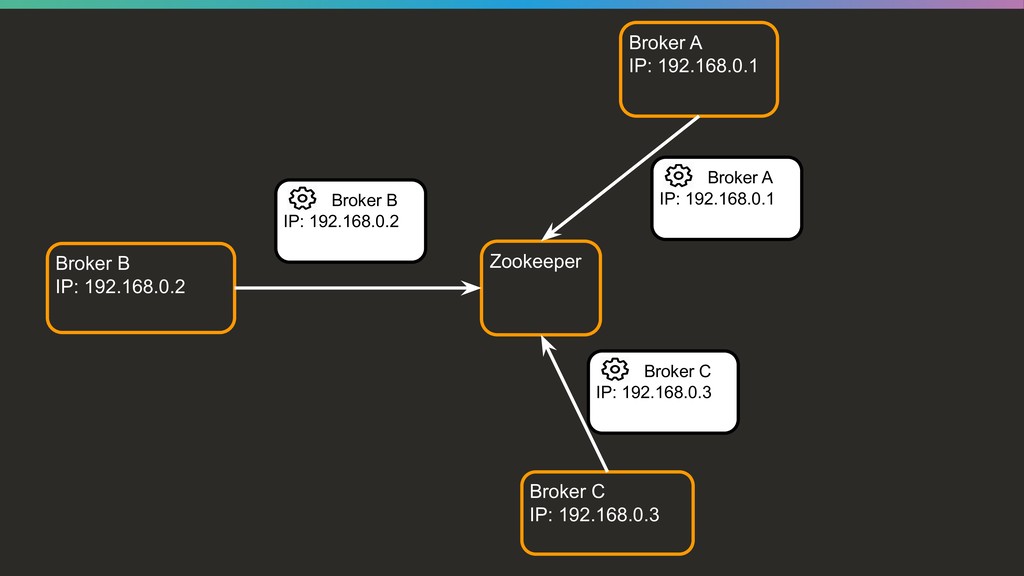

50. Broker B IP: 192.168.0.2 Broker C IP: 192.168.0.3 Broker B IP: 192.168.0.2 Broker A IP: 192.168.0.1 Zookeeper Broker A IP: 192.168.0.1 Broker C IP: 192.168.0.3
51. IP: 192.168.0.1 IP: 192.168.0.3 Broker C IP: 192.168.0.3 Broker B IP: 192.168.0.2 Broker A IP: 192.168.0.1 Zookeeper IP: 192.168.0.2 IP: 192.168.0.3 IP: 192.168.0.1 IP: 192.168.0.2

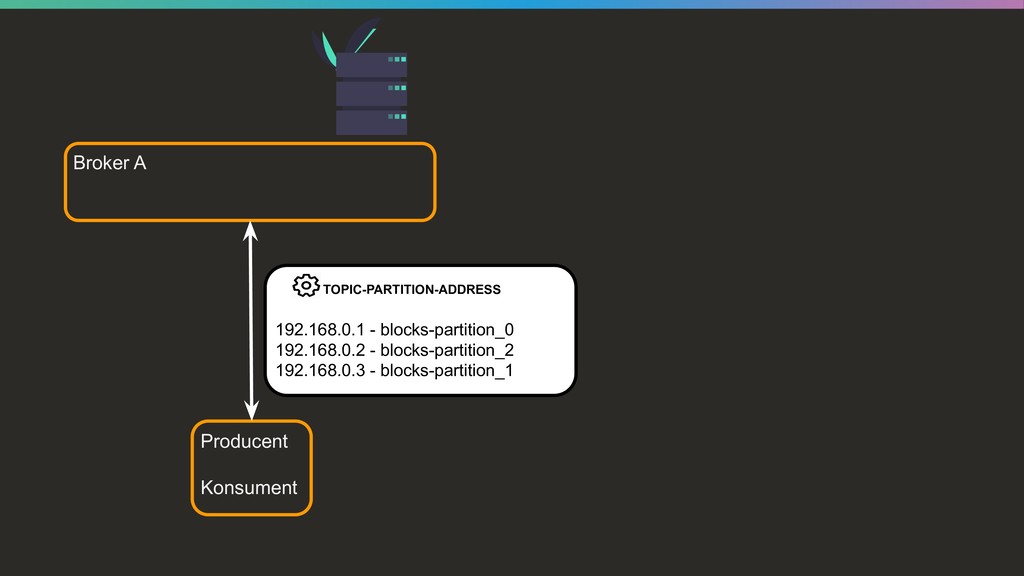

52. Broker A Producent Konsument TOPIC-PARTITION-ADDRESS 192.168.0.1 - blocks-partition_0 192.168.0.2 - blocks-partition_2 192.168.0.3 - blocks-partition_1
53. A B C D E Partition_0 Partition_1 B C D A E

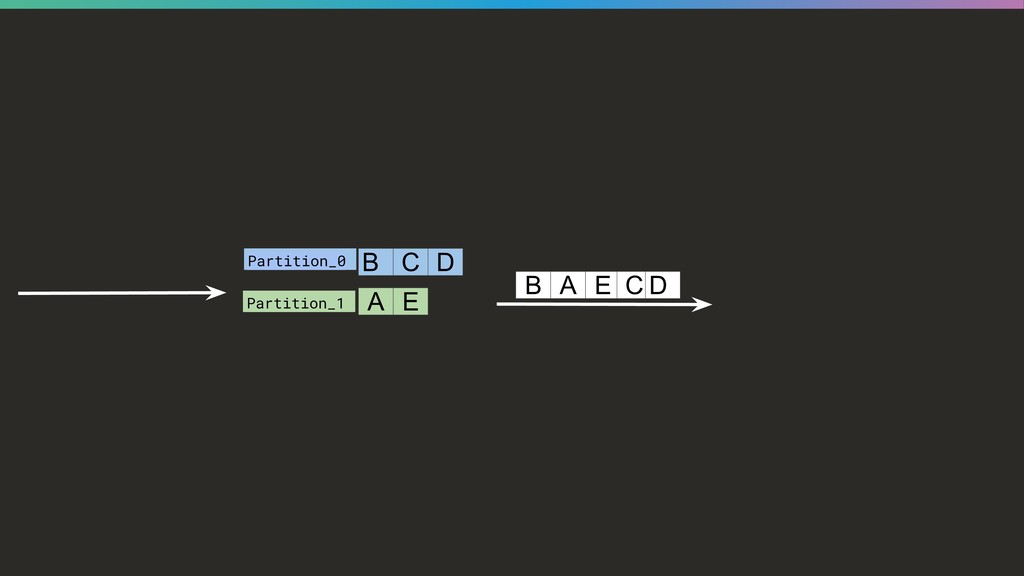

54. B A E C D Partition_0 Partition_1 B C D A E

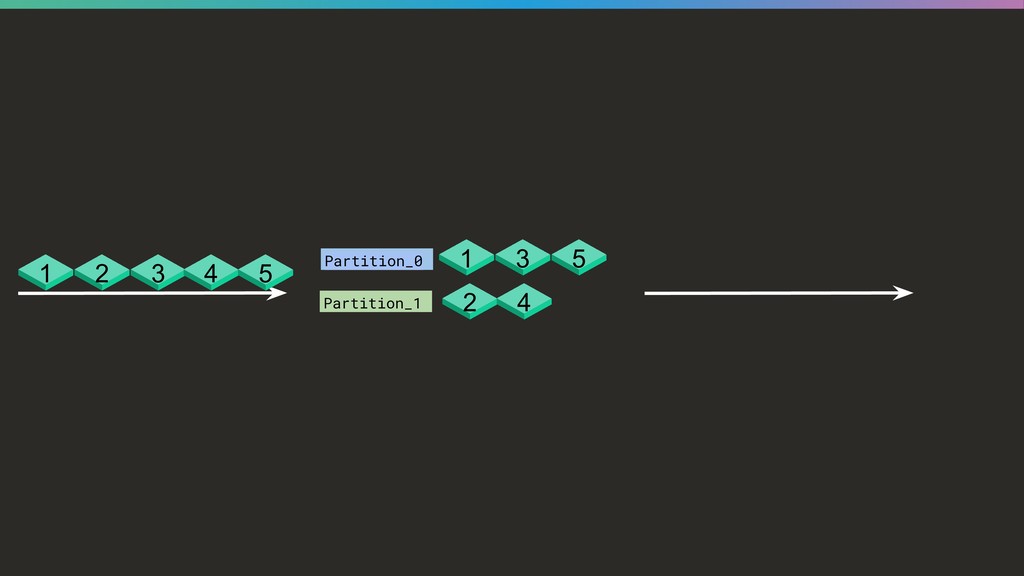

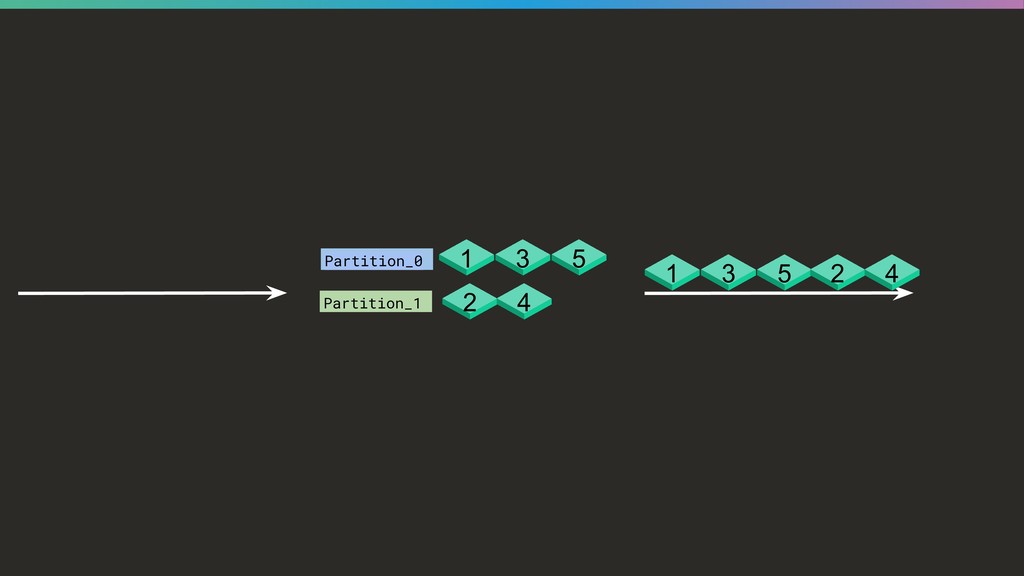

55. Partition_0 Partition_1 1 2 3 4 5 1 3 5 2 4
56. Partition_0 Partition_1 1 3 5 2 4 1 3 5 2 4

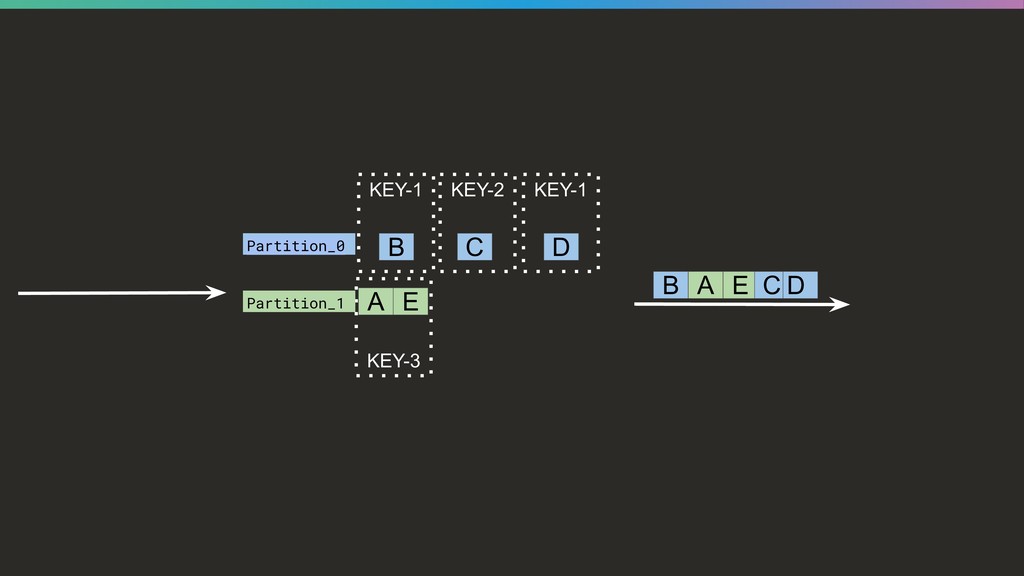

57. KEY-3 KEY-2 Partition_0 Partition_1 C A E B A E C D B A E C D Partition_0 Partition_1 A E KEY-1 B KEY-1 D D

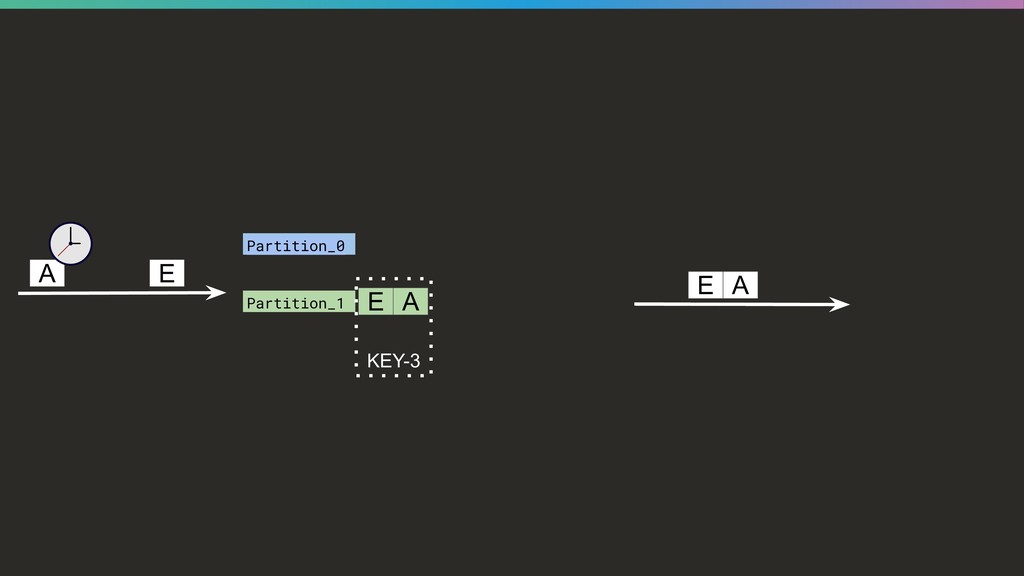

58. A E Partition_0 Partition_1 E E A E E A Partition_0 Partition_1 A KEY-3

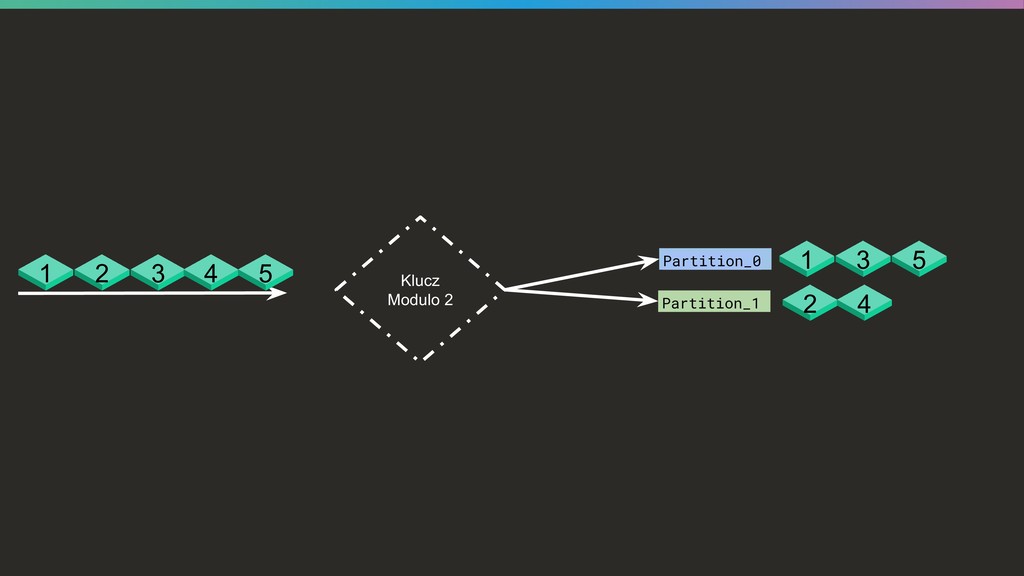

59. Partition_0 Partition_1 Klucz Modulo 2 1 2 3 4 5 1 3 5 2 4

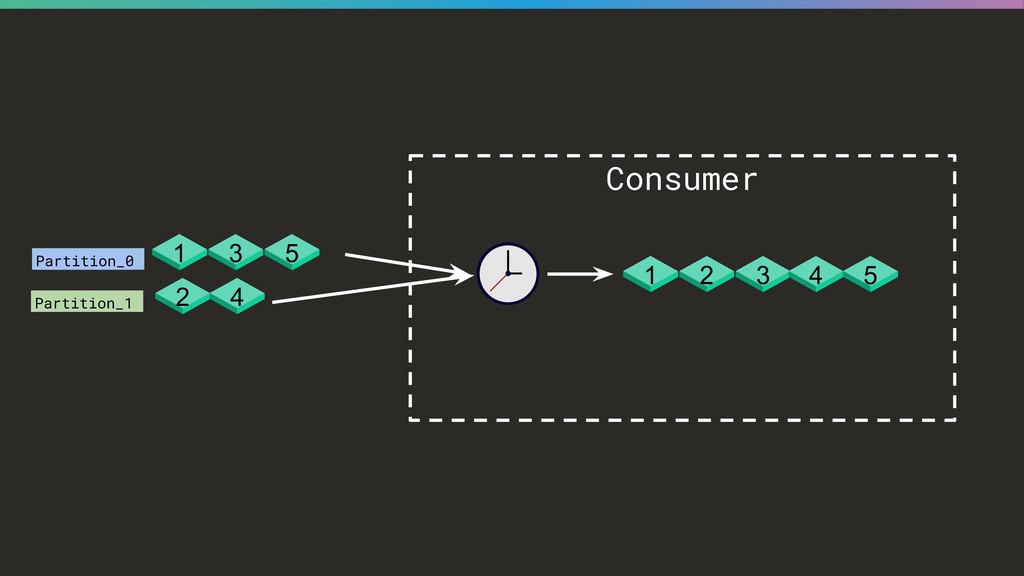

60. Consumer Partition_0 Partition_1 1 3 5 2 4
61. Consumer Partition_0 Partition_1 1 3 5 2 4 1 2 3 4 5

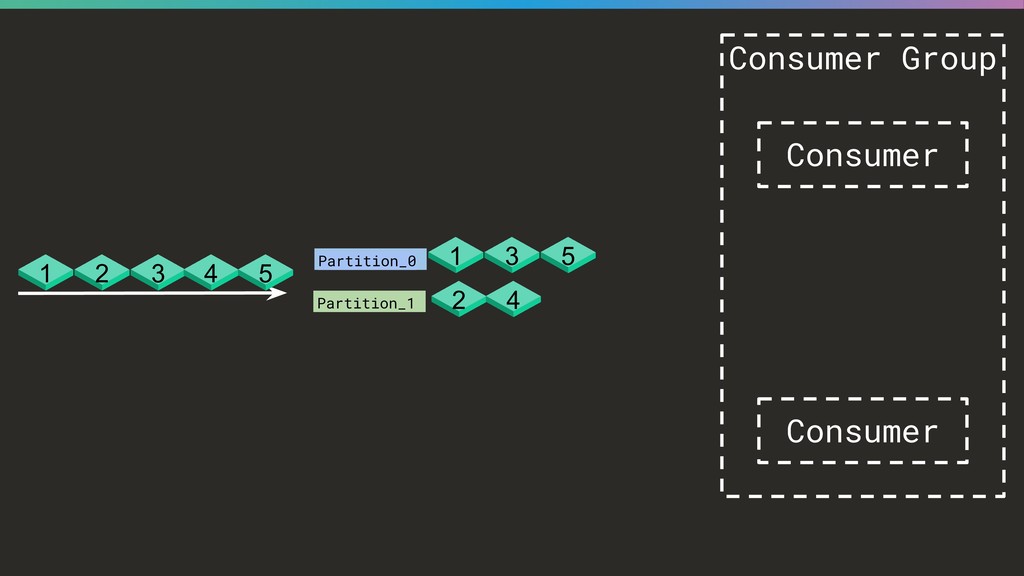

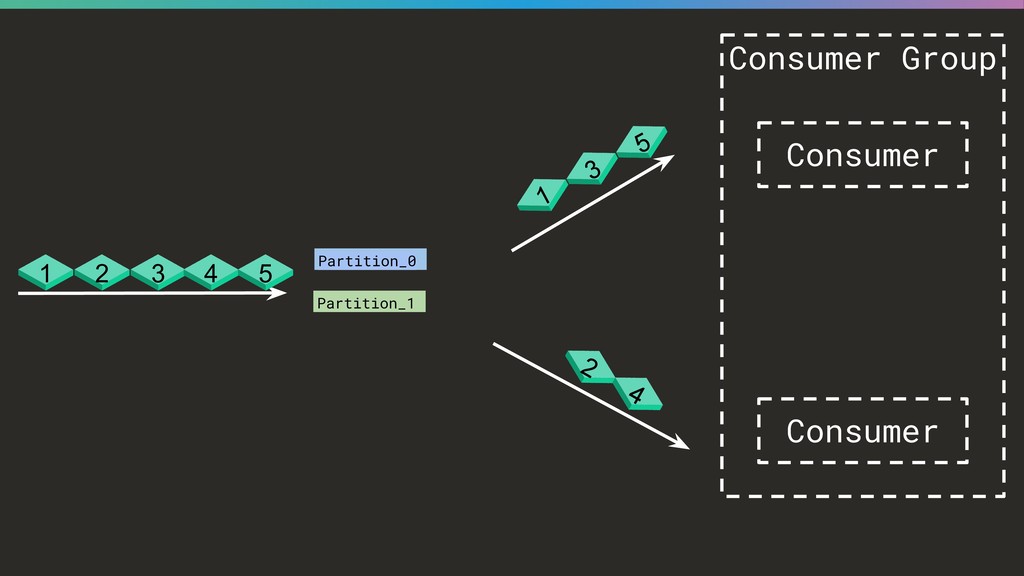

62. Partition_0 Partition_1 Consumer Group Consumer Consumer 1 2 3 4 5 1 3 5 2 4
63. Partition_0 Partition_1 Consumer Group Consumer Consumer 1 2 3 4 5 2 4 1 3 5

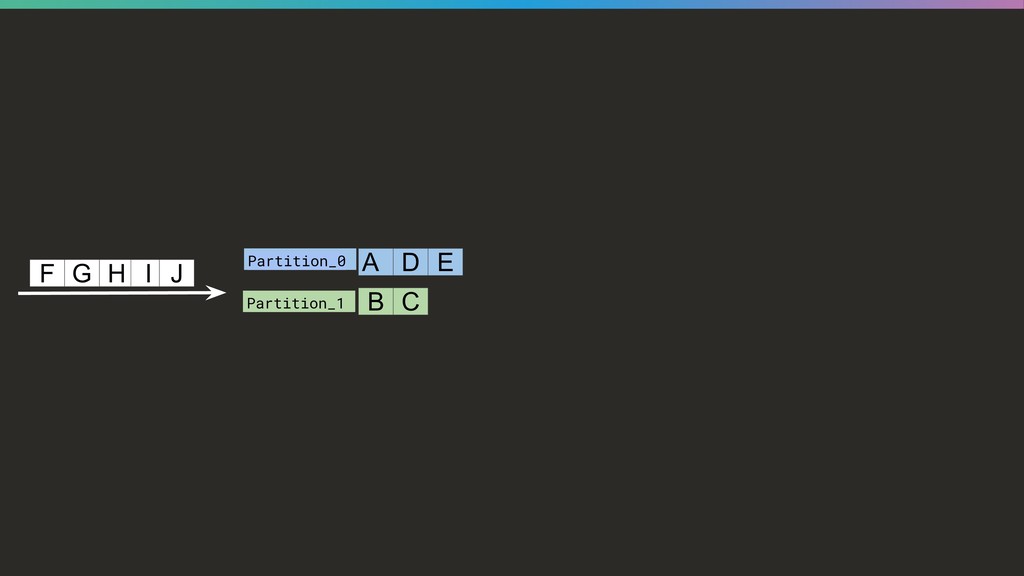

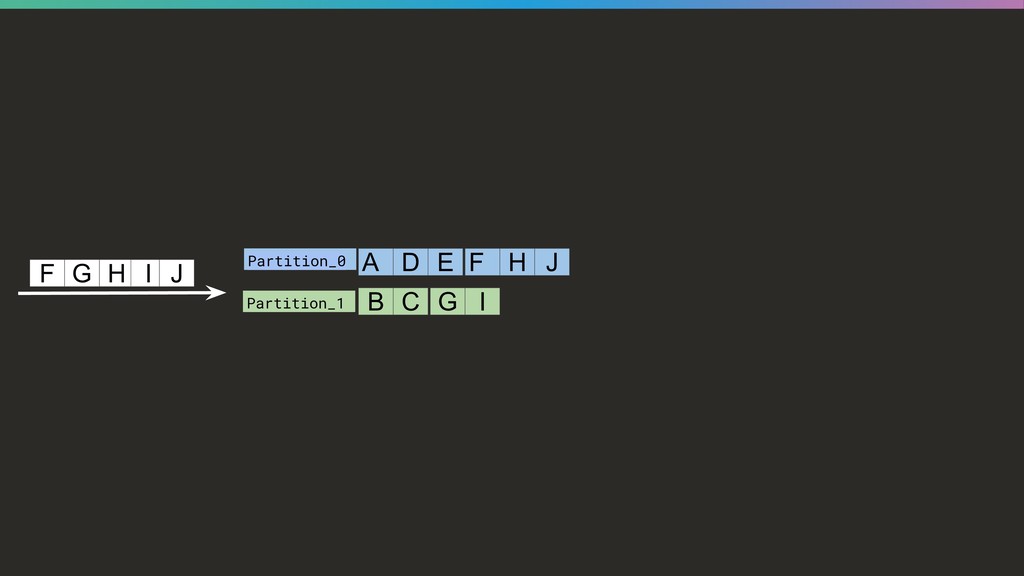

64. F G H I J Partition_0 Partition_1 A D E B C
65. F G H I J Partition_0 Partition_1 A D E B C F H J G I

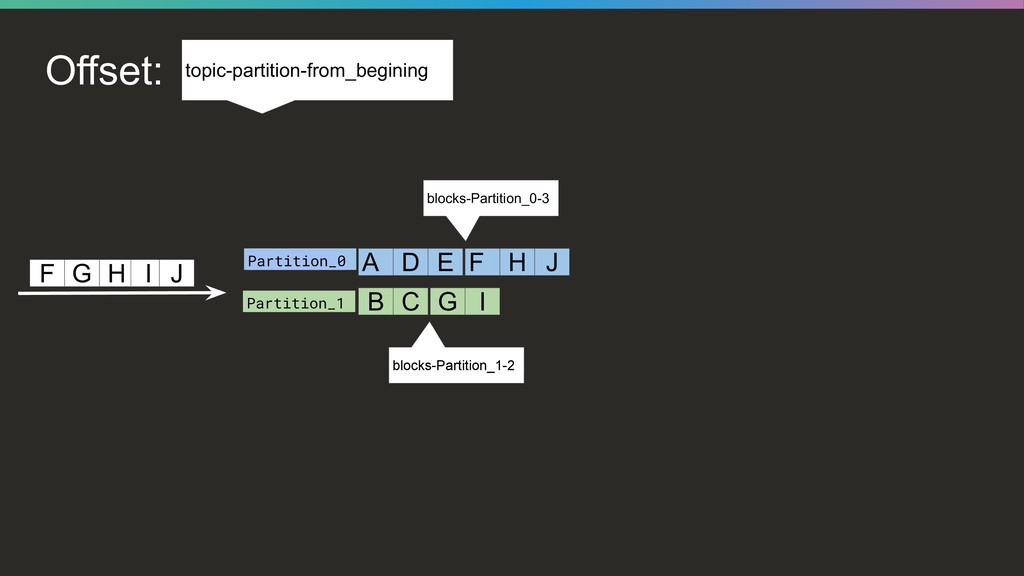

66. F G H I J Partition_0 Partition_1 A D E B C F H J G I blocks-Partition_0-3 blocks-Partition_1-2 topic-partition-from_begining Offset:
70. #1 Problem - Architektura
71. Po co Kafka Streams ?

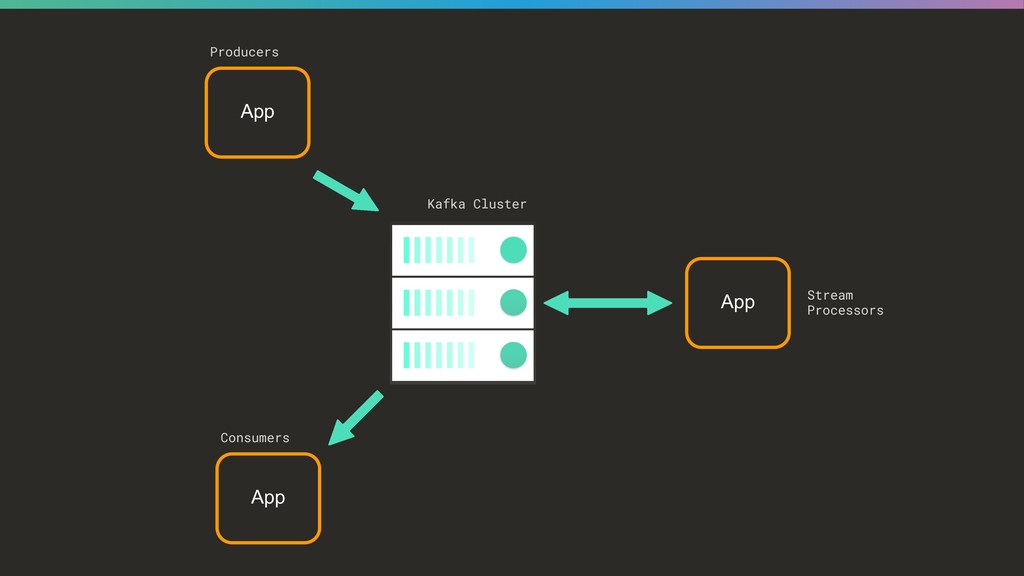

72. App App App Consumers Producers Stream Processors Kafka Cluster

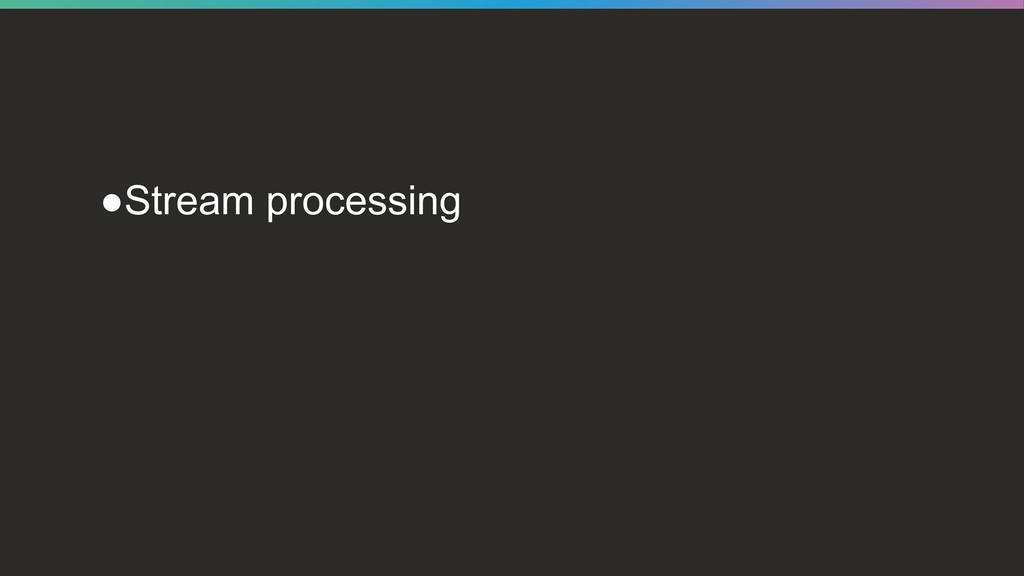

73. •Stream processing
74. •Stream processing •Request/Response •Batch processing
75. •Stream processing •Request/Response •Batch processing

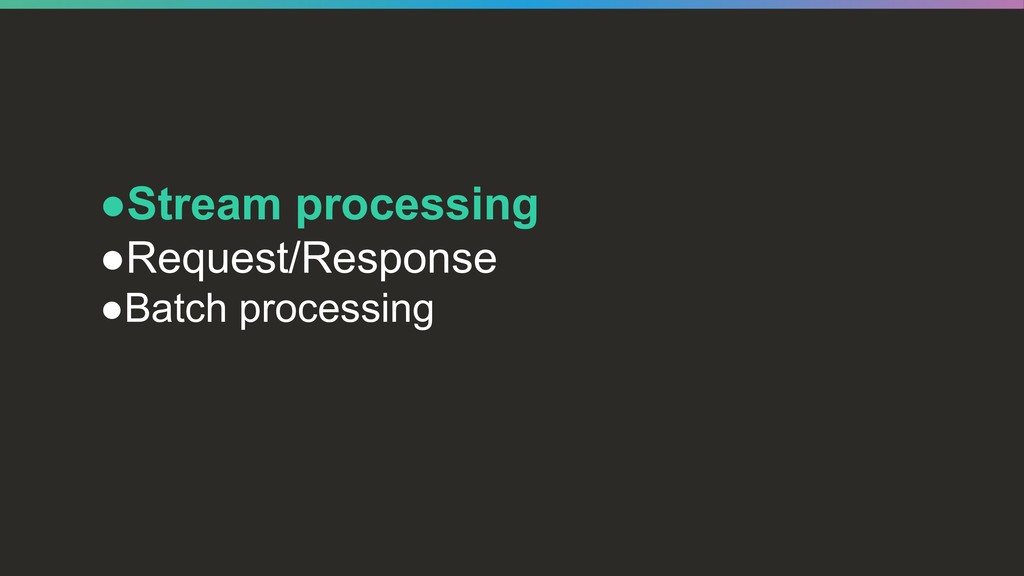

76. •Stream processing •Request/Response •Batch processing
77. •Stream processing •Request/Response •Batch processing
78. #2 Problem - Stream Processing
79. Single event-processing

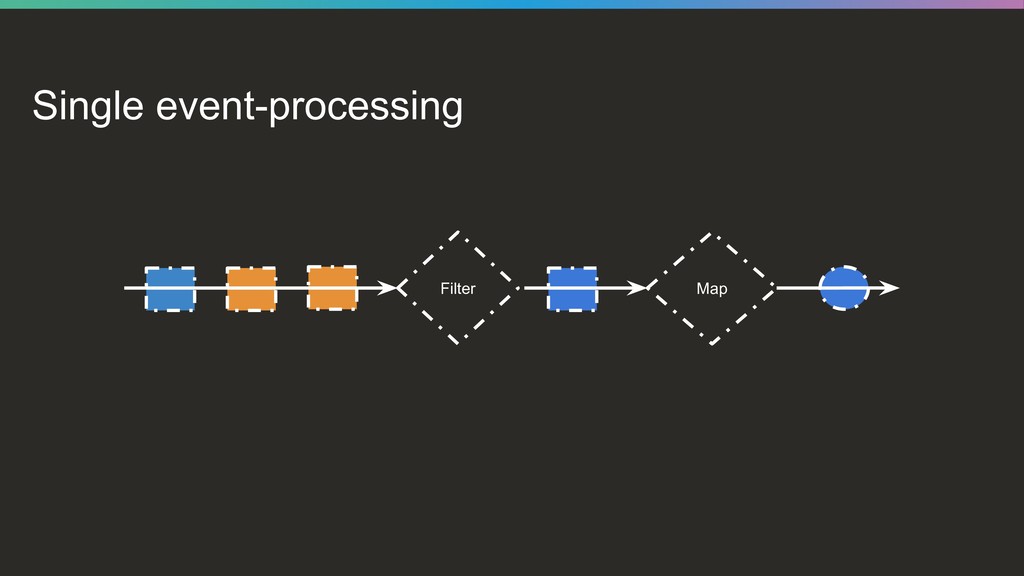

80. Single event-processing Filter Map

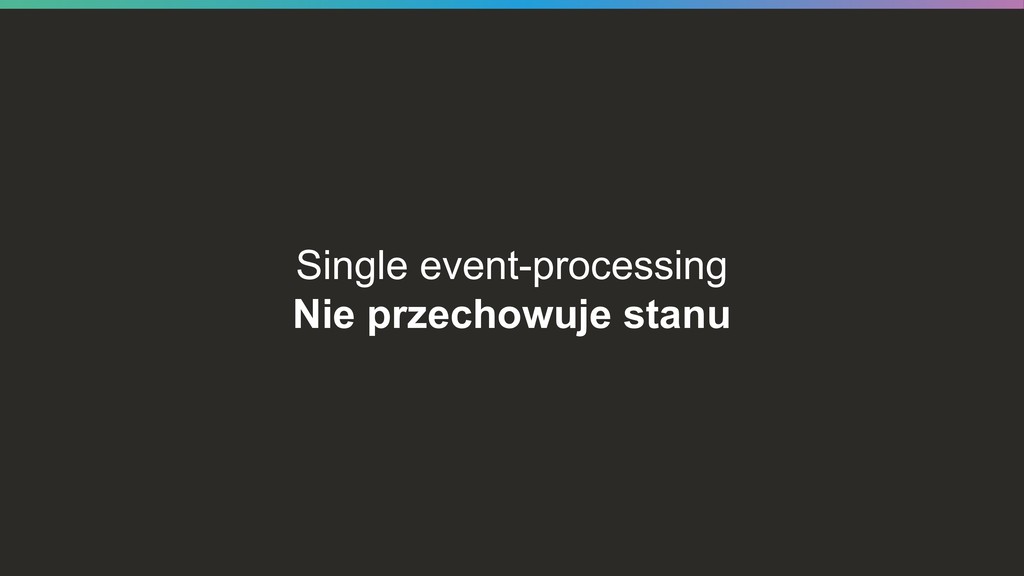

81. Single event-processing Nie przechowuje stanu
82. Processing with local state

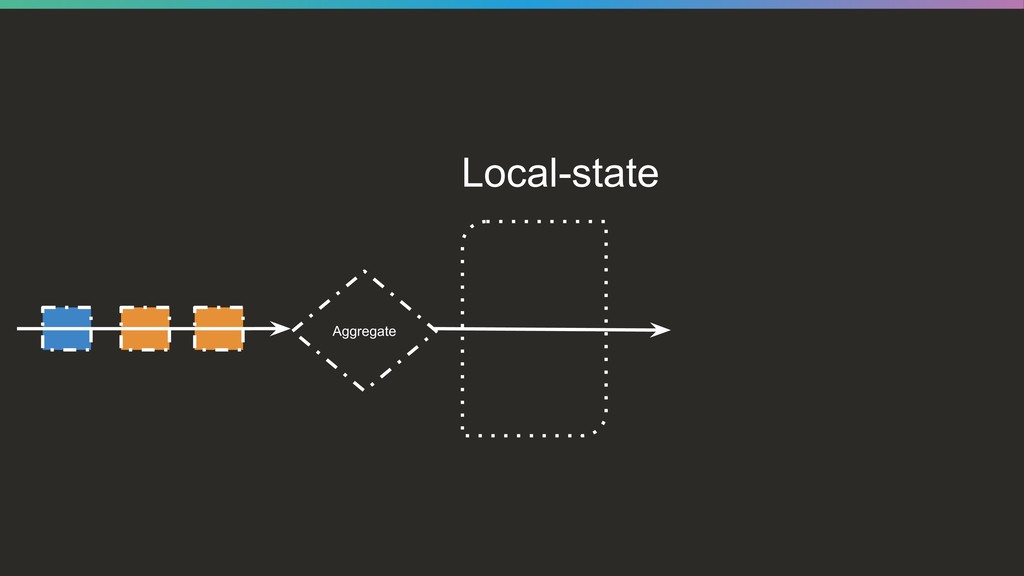

83. Local-state Aggregate

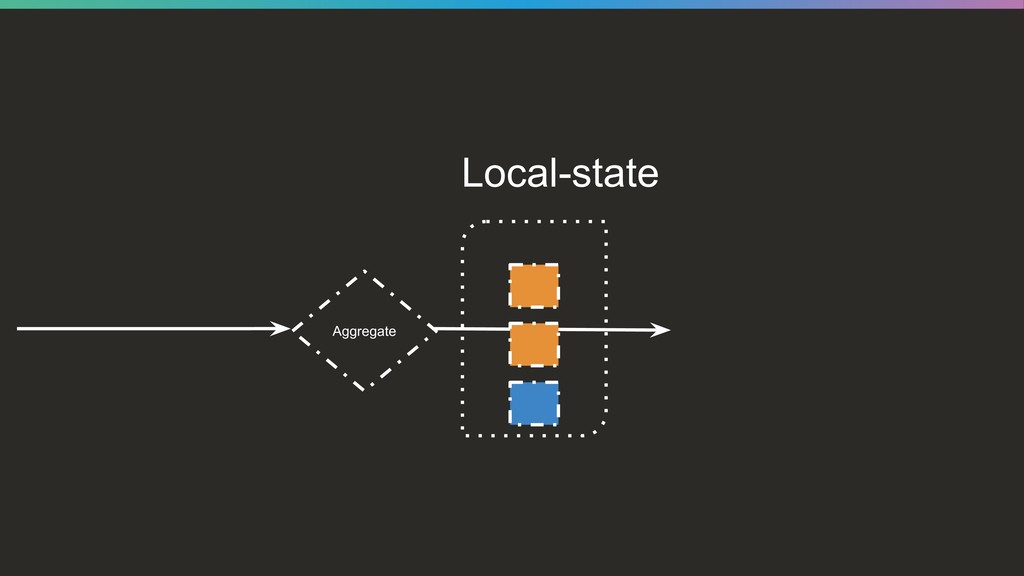

84. Local-state Aggregate

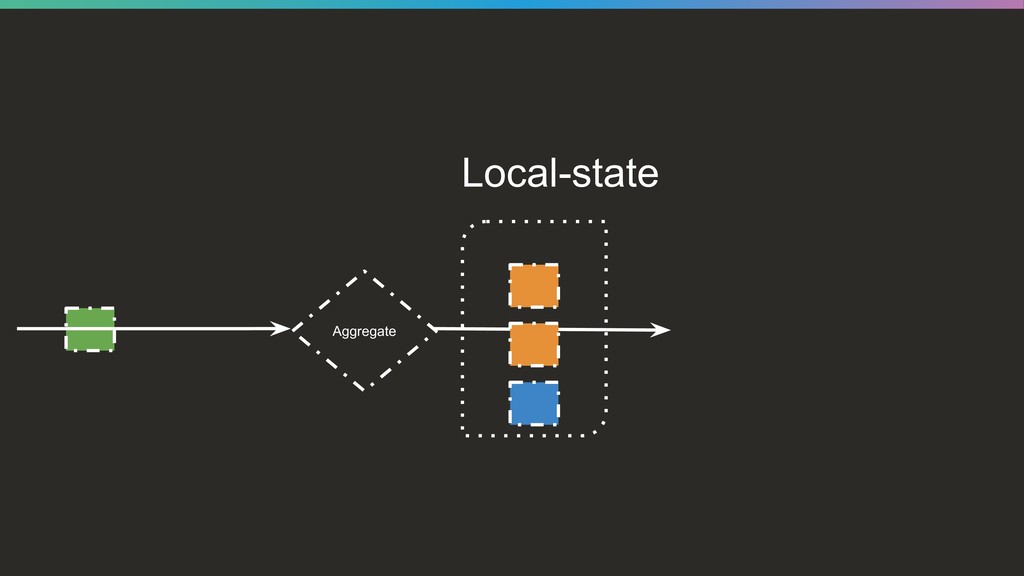

86. Local-state Aggregate

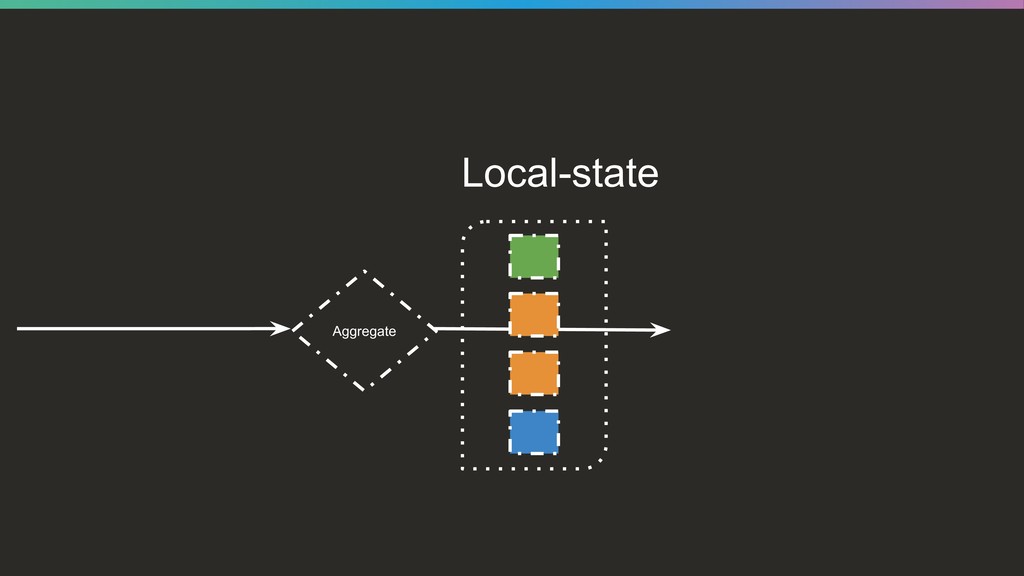

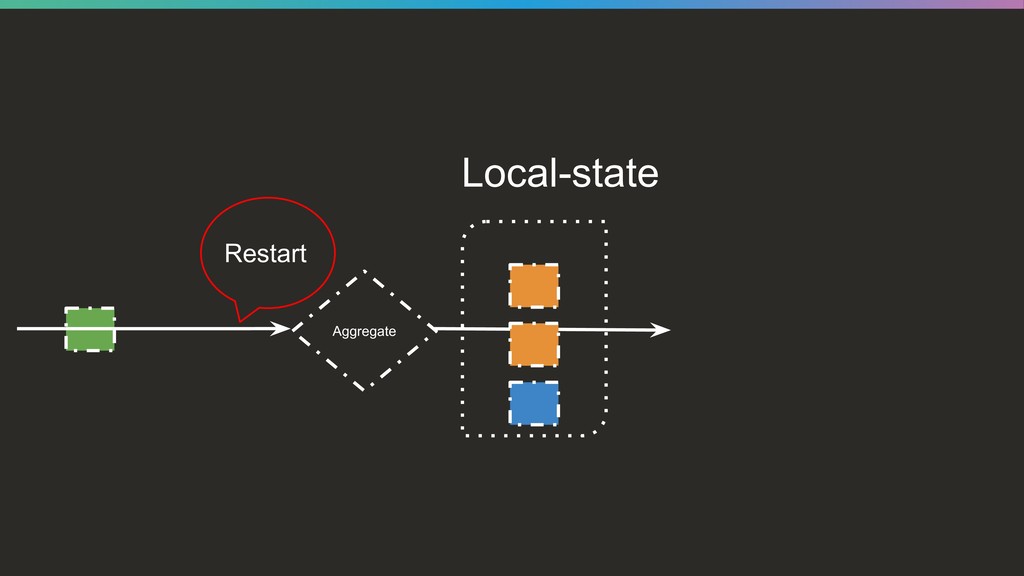

87. Local-state Aggregate Restart
88. Local-state Aggregate

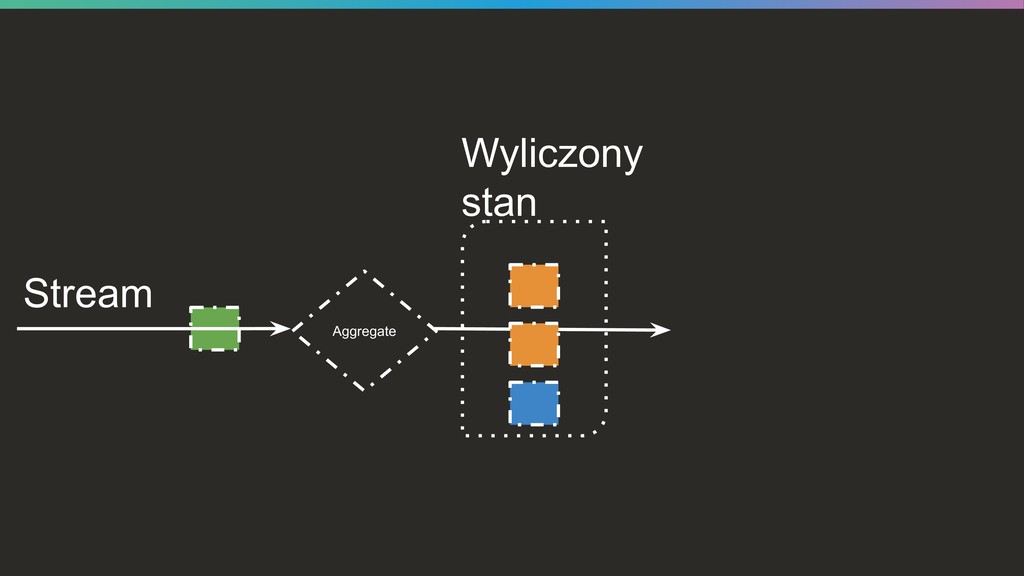

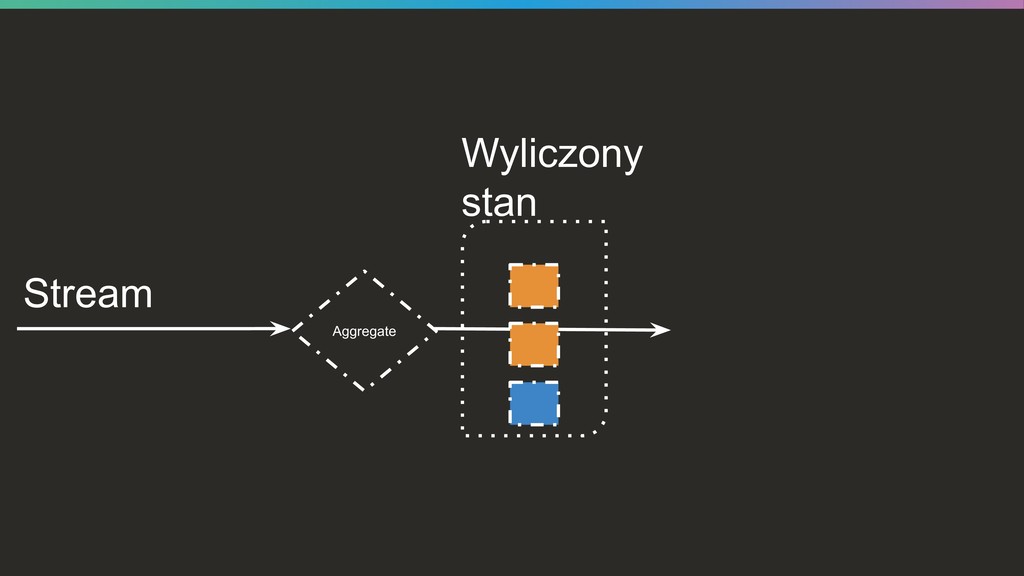

90. Stream Wyliczony stan Aggregate
91. Stream Wyliczony stan Aggregate

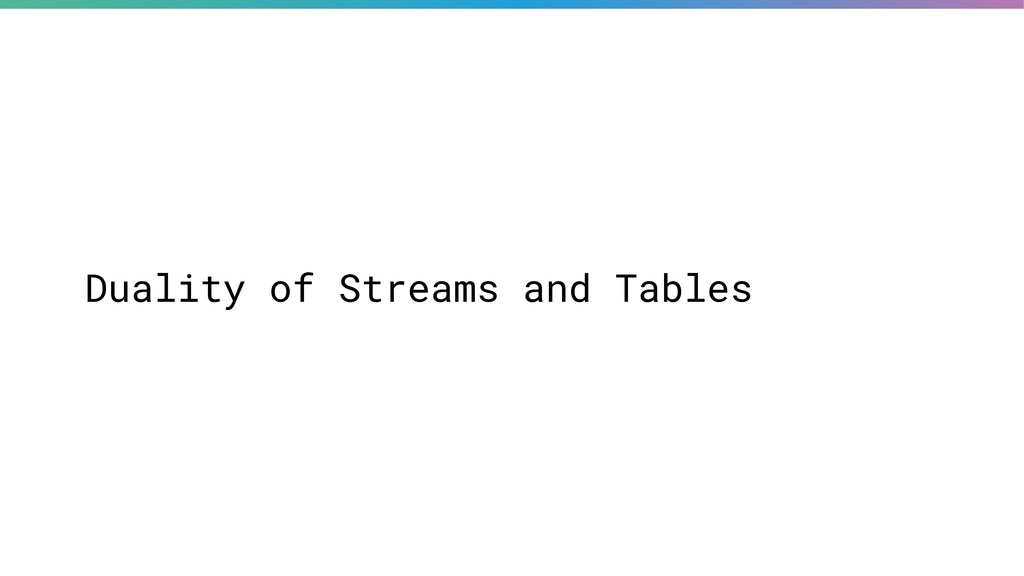

92. Duality of Streams and Tables

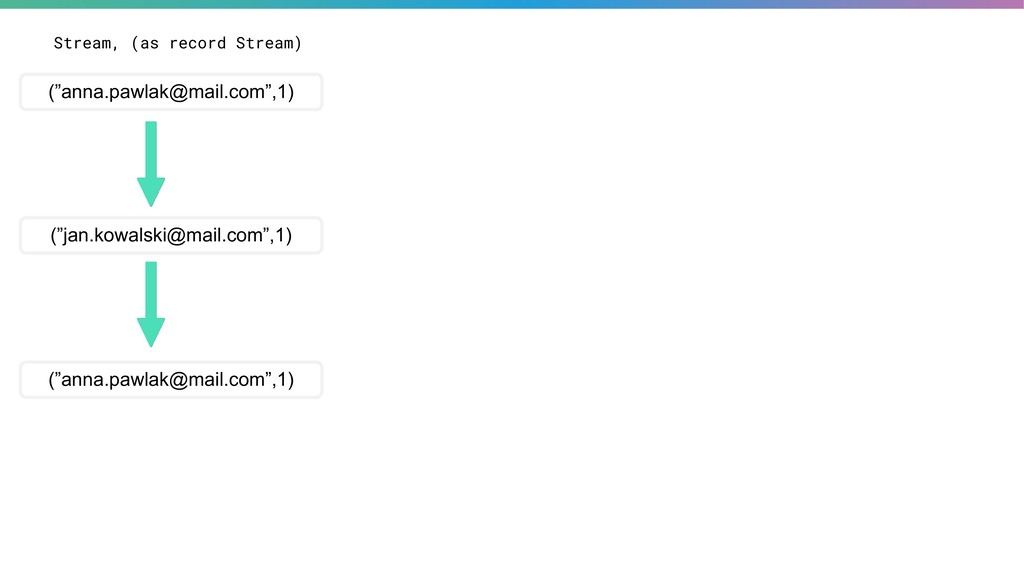

93. Stream, (as record Stream) (”anna.pawlak@mail.com”,1) (”jan.kowalski@mail.com”,1) (”anna.pawlak@mail.com”,1)

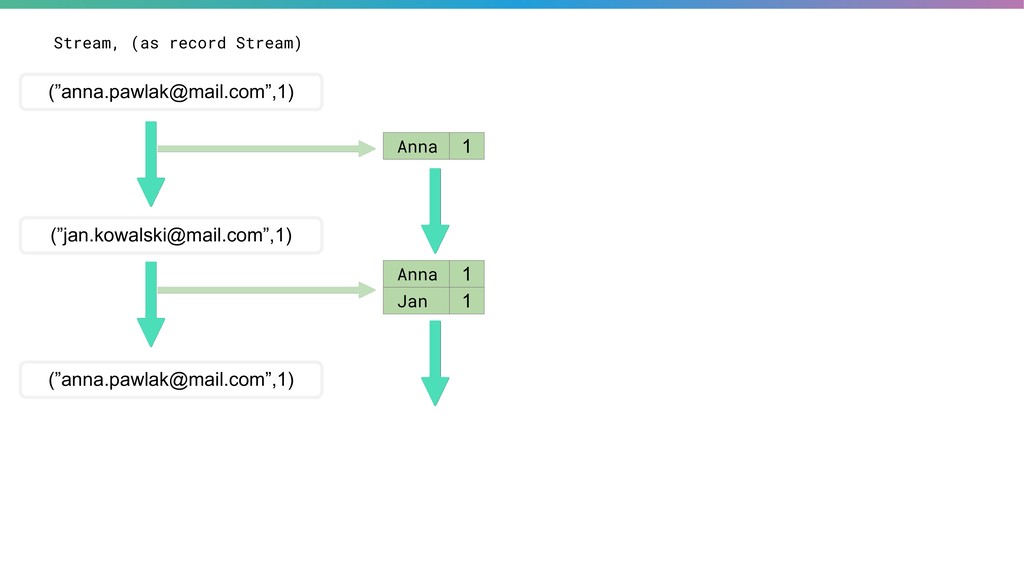

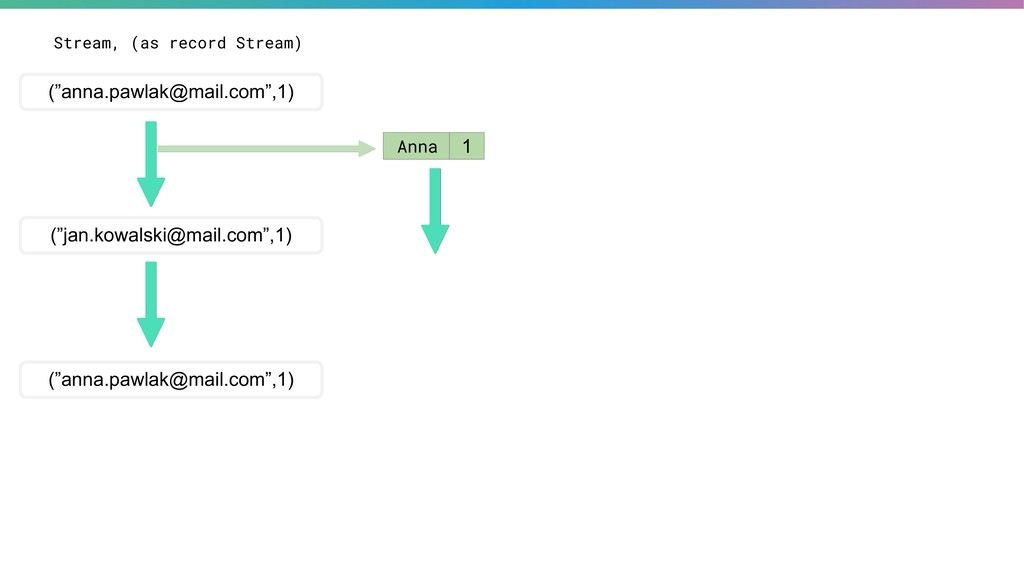

94. Stream, (as record Stream) (”anna.pawlak@mail.com”,1) (”jan.kowalski@mail.com”,1) (”anna.pawlak@mail.com”,1) Anna 1
95. Stream, (as record Stream) (”anna.pawlak@mail.com”,1) (”jan.kowalski@mail.com”,1) (”anna.pawlak@mail.com”,1) Anna 1 Anna 1 Jan 1

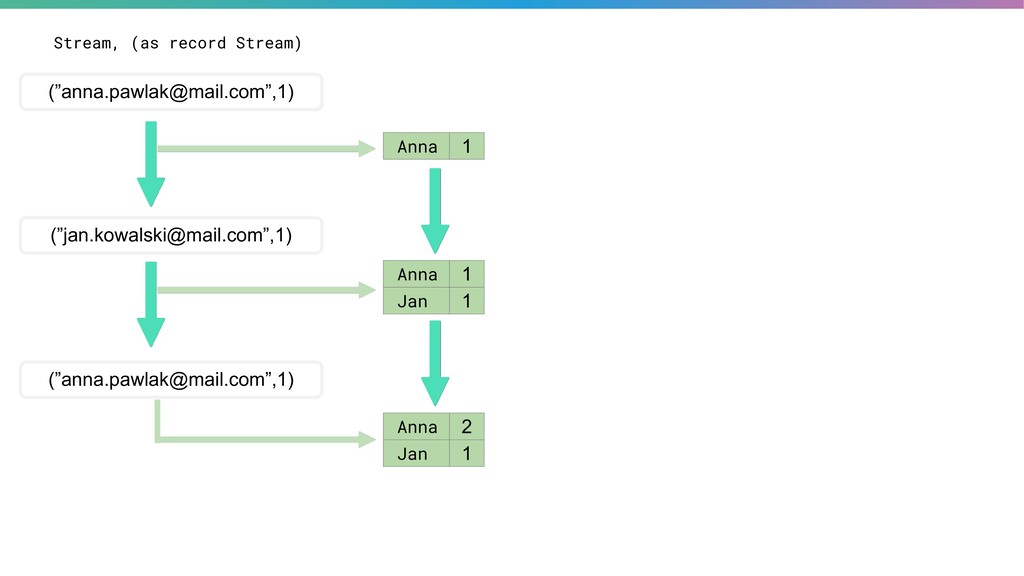

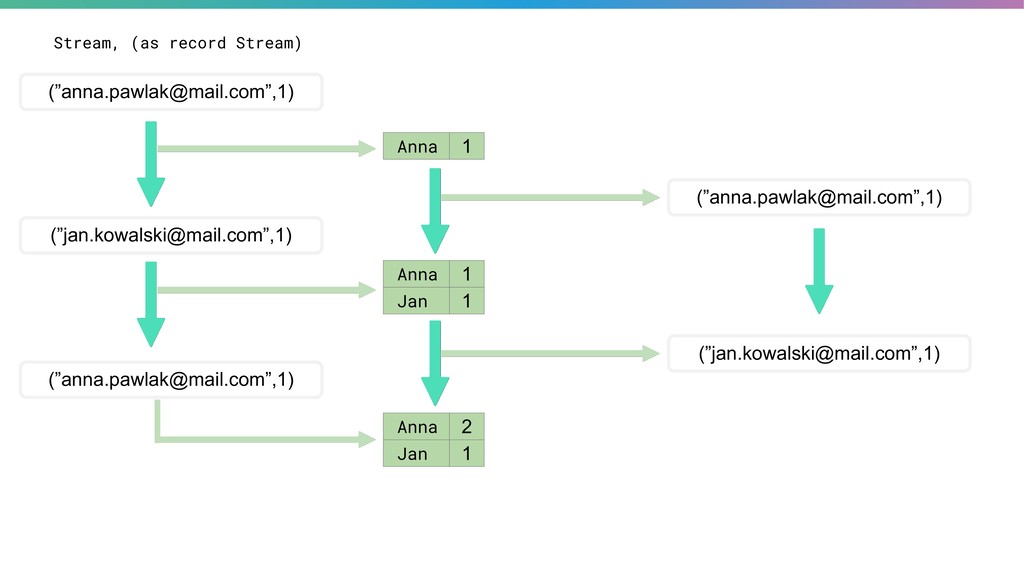

96. Stream, (as record Stream) (”anna.pawlak@mail.com”,1) (”jan.kowalski@mail.com”,1) (”anna.pawlak@mail.com”,1) Anna 1 Anna 1 Jan 1 Anna 2 Jan 1

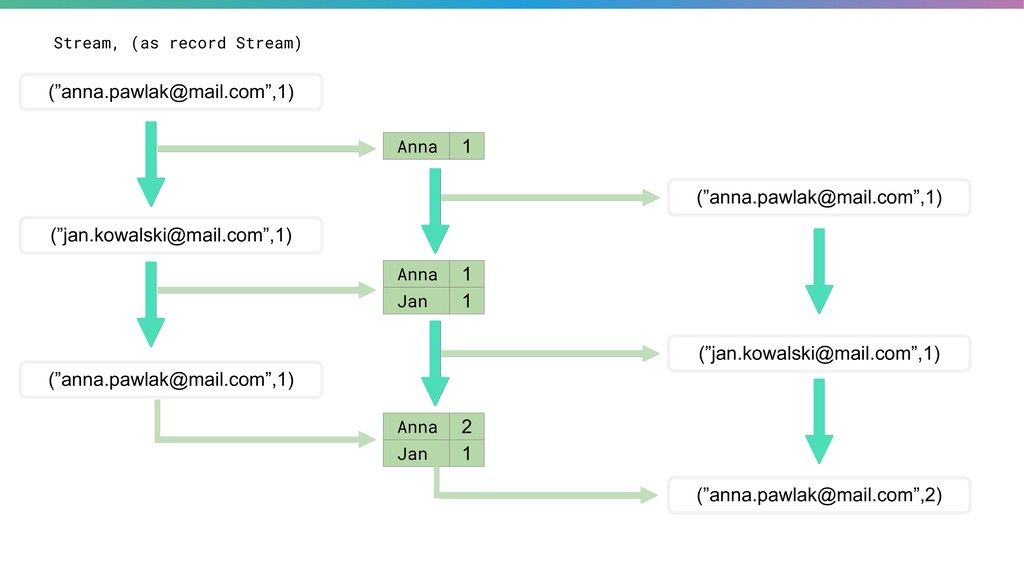

97. Stream, (as record Stream) (”anna.pawlak@mail.com”,1) (”jan.kowalski@mail.com”,1) (”anna.pawlak@mail.com”,1) Anna 1 Anna 1 Jan 1 Anna 2 Jan 1 (”anna.pawlak@mail.com”,1) (”jan.kowalski@mail.com”,1)
98. Stream, (as record Stream) (”anna.pawlak@mail.com”,1) (”jan.kowalski@mail.com”,1) (”anna.pawlak@mail.com”,1) Anna 1 Anna 1 Jan 1 Anna 2 Jan 1 (”anna.pawlak@mail.com”,1) (”anna.pawlak@mail.com”,2) (”jan.kowalski@mail.com”,1)
99. Source code

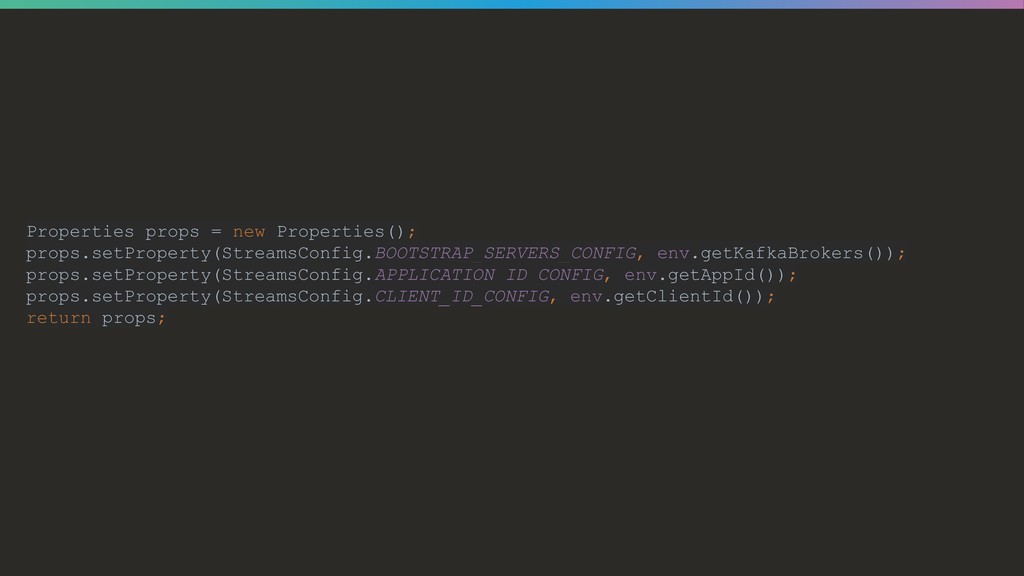

100. Properties props = new Properties(); props.setProperty(StreamsConfig.BOOTSTRAP_SERVERS_CONFIG, env.getKafkaBrokers()); props.setProperty(StreamsConfig.APPLICATION_ID_CONFIG, env.getAppId()); props.setProperty(StreamsConfig.CLIENT_ID_CONFIG, env.getClientId()); return props;
101. Zapis bloków

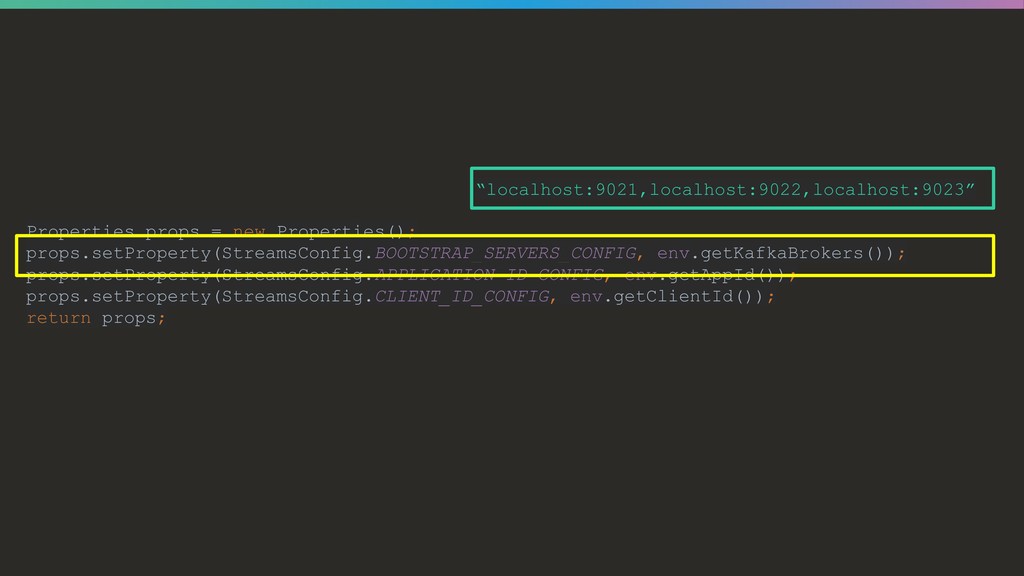

102. Properties props = new Properties(); props.setProperty(StreamsConfig.BOOTSTRAP_SERVERS_CONFIG, env.getKafkaBrokers()); props.setProperty(StreamsConfig.APPLICATION_ID_CONFIG, env.getAppId()); props.setProperty(StreamsConfig.CLIENT_ID_CONFIG, env.getClientId()); return props; “localhost:9021,localhost:9022,localhost:9023”

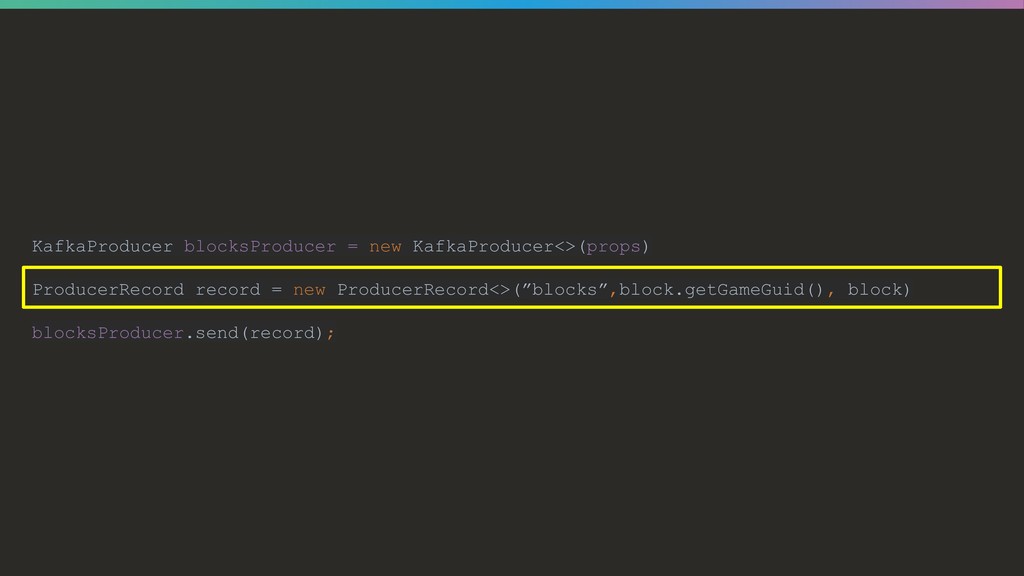

103. KafkaProducer blocksProducer = new KafkaProducer<>(props) ProducerRecord record = new ProducerRecord<>(”blocks”,block.getGameGuid(), block) blocksProducer.send(record);

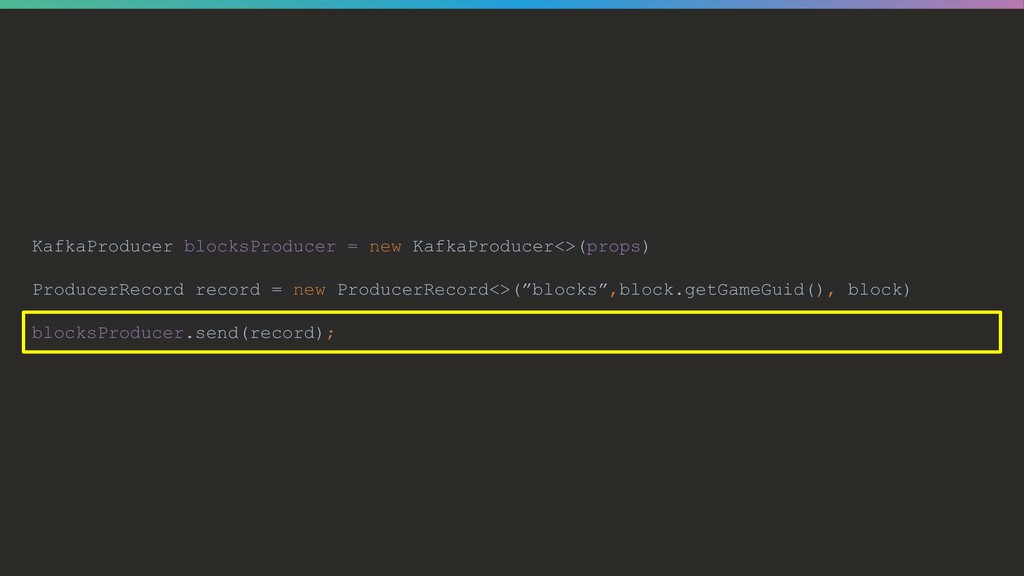

104. KafkaProducer blocksProducer = new KafkaProducer<>(props) ProducerRecord record = new ProducerRecord<>(”blocks”,block.getGameGuid(), block) blocksProducer.send(record);
105. KafkaProducer blocksProducer = new KafkaProducer<>(props) ProducerRecord record = new ProducerRecord<>(”blocks”,block.getGameGuid(), block) blocksProducer.send(record);
106. Topologia: przetwarzanie bloków

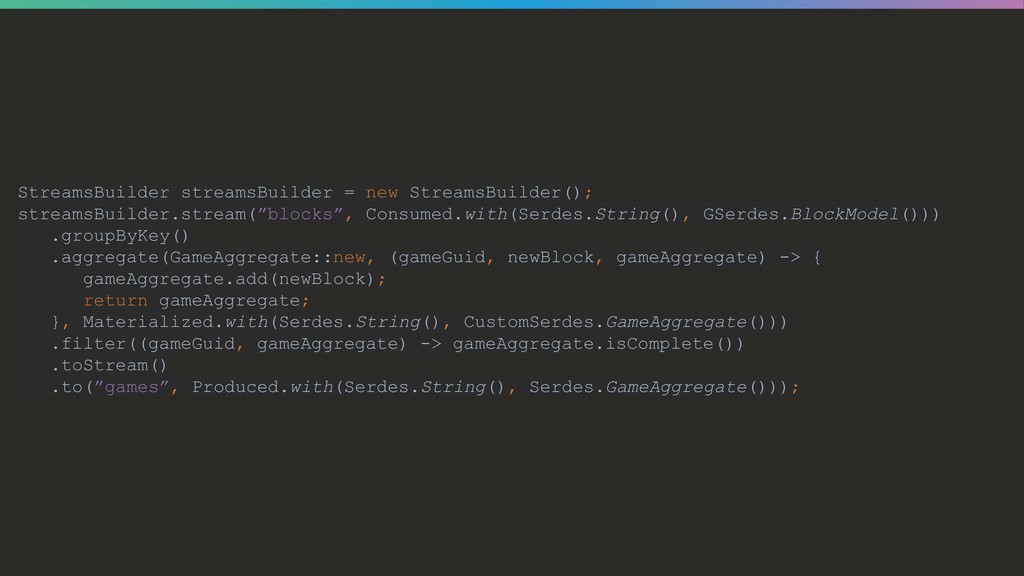

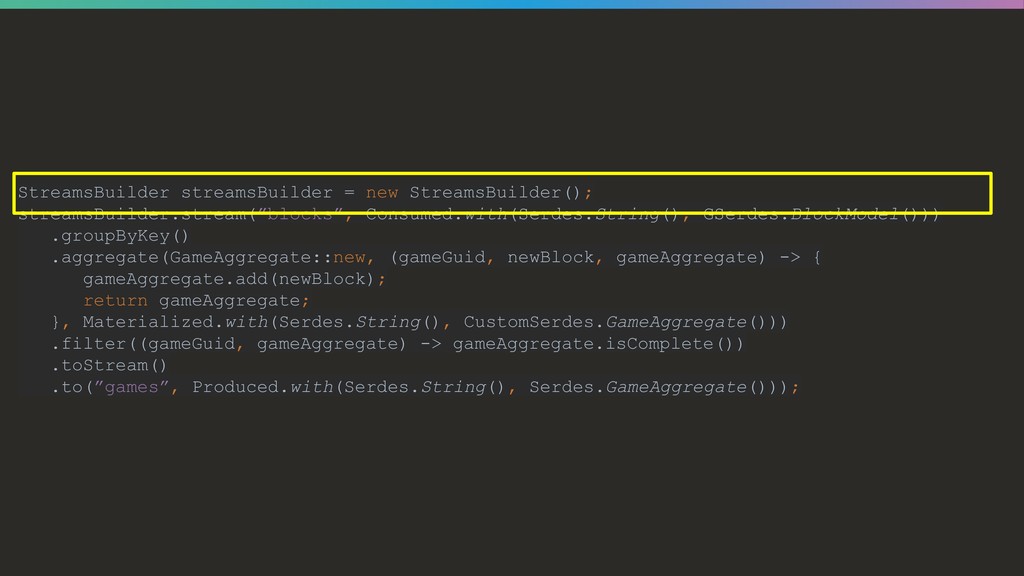

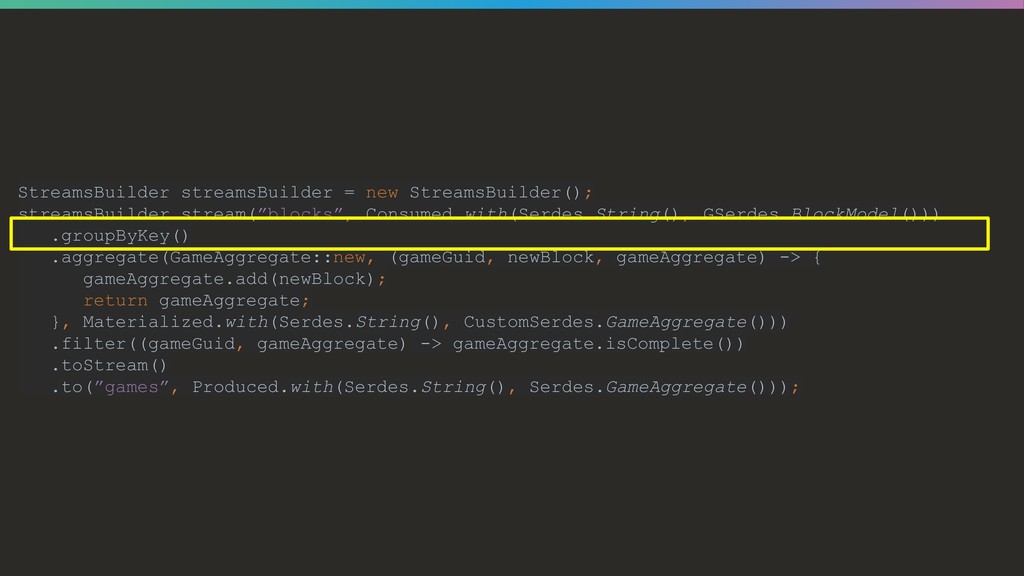

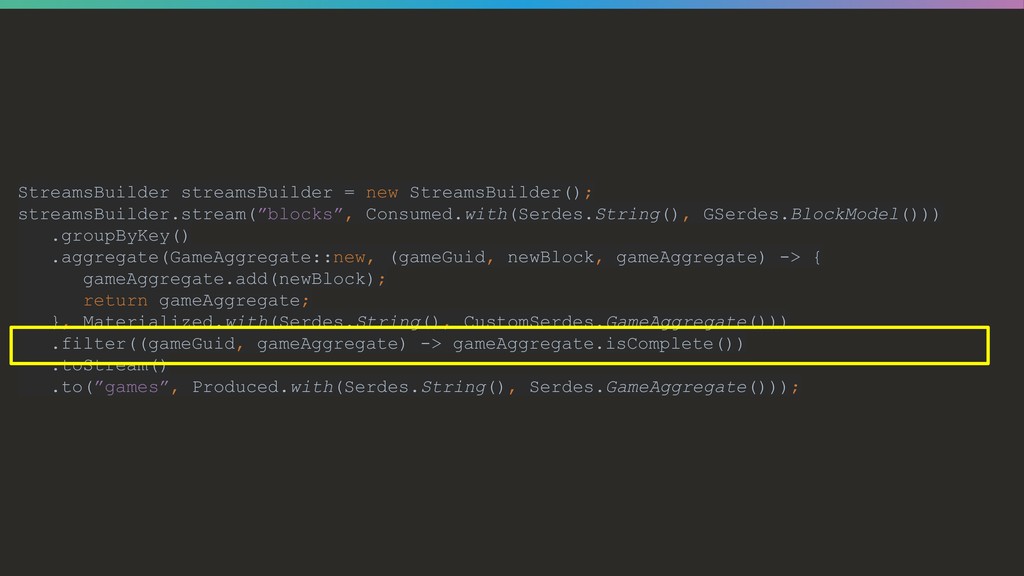

107. StreamsBuilder streamsBuilder = new StreamsBuilder(); streamsBuilder.stream(”blocks”, Consumed.with(Serdes.String(), GSerdes.BlockModel())) .groupByKey() .aggregate(GameAggregate::new, (gameGuid, newBlock, gameAggregate) -> { gameAggregate.add(newBlock); return gameAggregate; }, Materialized.with(Serdes.String(), CustomSerdes.GameAggregate())) .filter((gameGuid, gameAggregate) -> gameAggregate.isComplete()) .toStream() .to(”games”, Produced.with(Serdes.String(), Serdes.GameAggregate()));

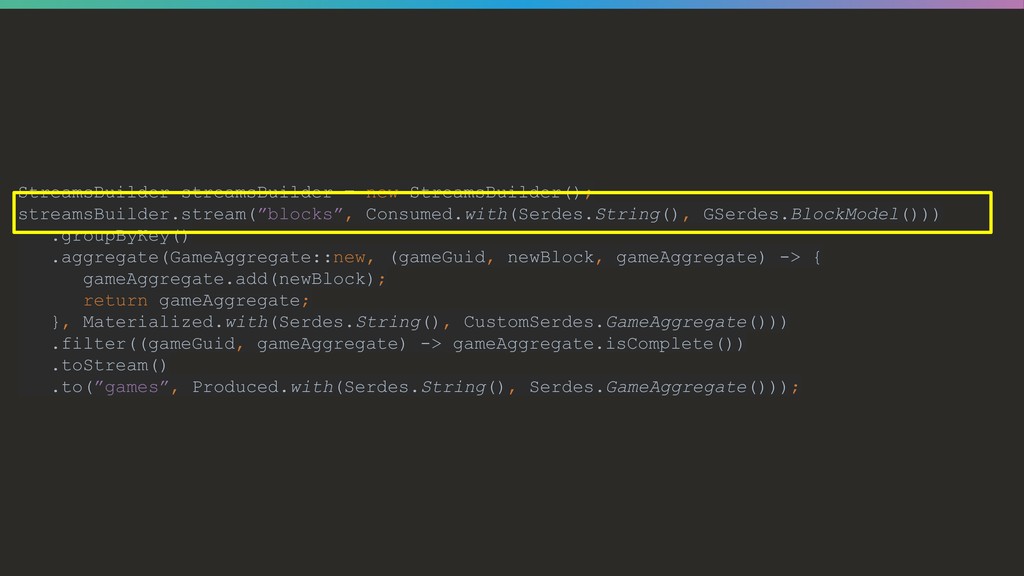

108. StreamsBuilder streamsBuilder = new StreamsBuilder(); streamsBuilder.stream(”blocks”, Consumed.with(Serdes.String(), GSerdes.BlockModel())) .groupByKey() .aggregate(GameAggregate::new, (gameGuid, newBlock, gameAggregate) -> { gameAggregate.add(newBlock); return gameAggregate; }, Materialized.with(Serdes.String(), CustomSerdes.GameAggregate())) .filter((gameGuid, gameAggregate) -> gameAggregate.isComplete()) .toStream() .to(”games”, Produced.with(Serdes.String(), Serdes.GameAggregate()));
109. StreamsBuilder streamsBuilder = new StreamsBuilder(); streamsBuilder.stream(”blocks”, Consumed.with(Serdes.String(), GSerdes.BlockModel())) .groupByKey() .aggregate(GameAggregate::new, (gameGuid, newBlock, gameAggregate) -> { gameAggregate.add(newBlock); return gameAggregate; }, Materialized.with(Serdes.String(), CustomSerdes.GameAggregate())) .filter((gameGuid, gameAggregate) -> gameAggregate.isComplete()) .toStream() .to(”games”, Produced.with(Serdes.String(), Serdes.GameAggregate()));

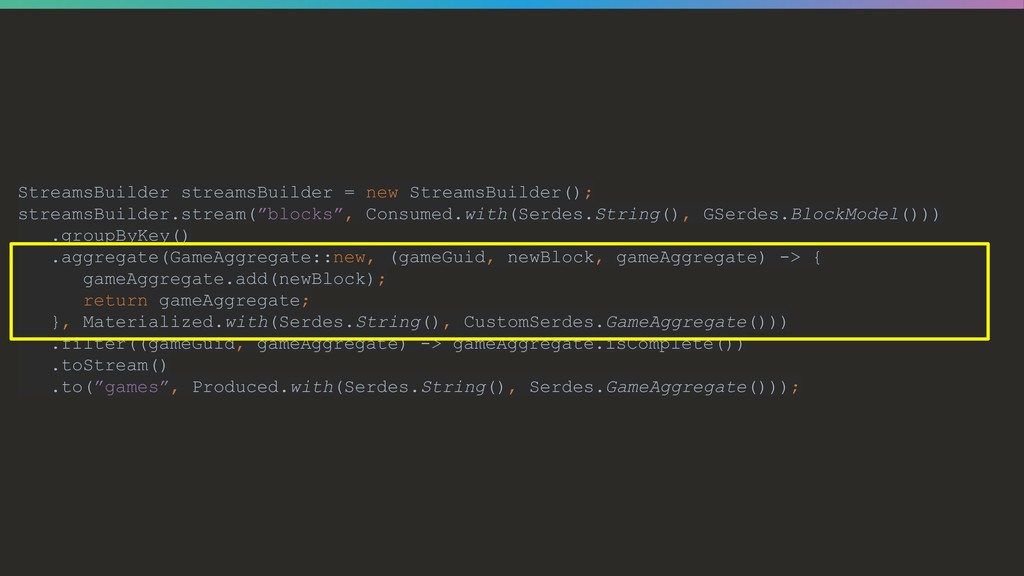

110. StreamsBuilder streamsBuilder = new StreamsBuilder(); streamsBuilder.stream(”blocks”, Consumed.with(Serdes.String(), GSerdes.BlockModel())) .groupByKey() .aggregate(GameAggregate::new, (gameGuid, newBlock, gameAggregate) -> { gameAggregate.add(newBlock); return gameAggregate; }, Materialized.with(Serdes.String(), CustomSerdes.GameAggregate())) .filter((gameGuid, gameAggregate) -> gameAggregate.isComplete()) .toStream() .to(”games”, Produced.with(Serdes.String(), Serdes.GameAggregate()));
111. StreamsBuilder streamsBuilder = new StreamsBuilder(); streamsBuilder.stream(”blocks”, Consumed.with(Serdes.String(), GSerdes.BlockModel())) .groupByKey() .aggregate(GameAggregate::new, (gameGuid, newBlock, gameAggregate) -> { gameAggregate.add(newBlock); return gameAggregate; }, Materialized.with(Serdes.String(), CustomSerdes.GameAggregate())) .filter((gameGuid, gameAggregate) -> gameAggregate.isComplete()) .toStream() .to(”games”, Produced.with(Serdes.String(), Serdes.GameAggregate()));

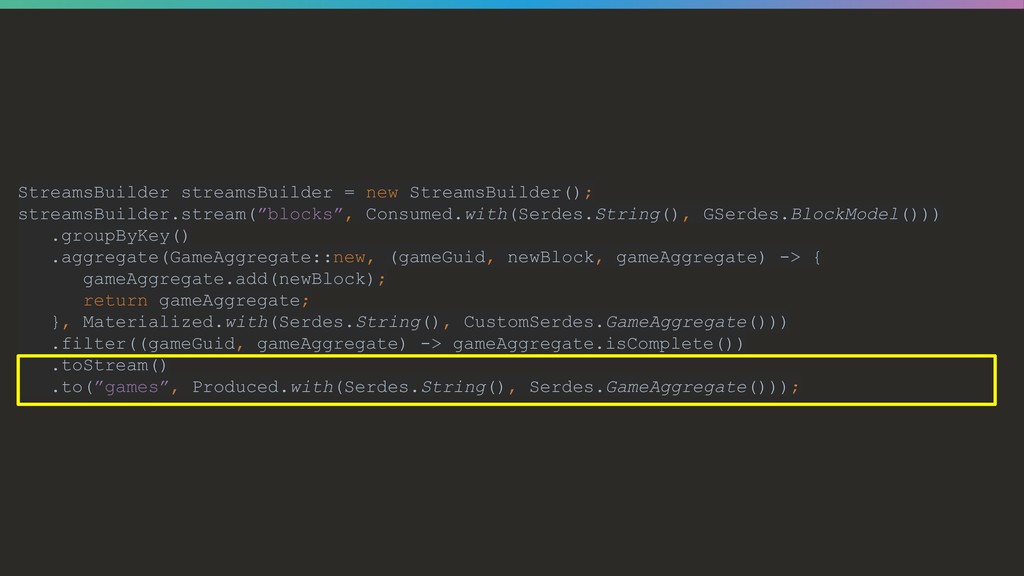

112. StreamsBuilder streamsBuilder = new StreamsBuilder(); streamsBuilder.stream(”blocks”, Consumed.with(Serdes.String(), GSerdes.BlockModel())) .groupByKey() .aggregate(GameAggregate::new, (gameGuid, newBlock, gameAggregate) -> { gameAggregate.add(newBlock); return gameAggregate; }, Materialized.with(Serdes.String(), CustomSerdes.GameAggregate())) .filter((gameGuid, gameAggregate) -> gameAggregate.isComplete()) .toStream() .to(”games”, Produced.with(Serdes.String(), Serdes.GameAggregate()));
113. StreamsBuilder streamsBuilder = new StreamsBuilder(); streamsBuilder.stream(”blocks”, Consumed.with(Serdes.String(), GSerdes.BlockModel())) .groupByKey() .aggregate(GameAggregate::new, (gameGuid, newBlock, gameAggregate) -> { gameAggregate.add(newBlock); return gameAggregate; }, Materialized.with(Serdes.String(), CustomSerdes.GameAggregate())) .filter((gameGuid, gameAggregate) -> gameAggregate.isComplete()) .toStream() .to(”games”, Produced.with(Serdes.String(), Serdes.GameAggregate()));

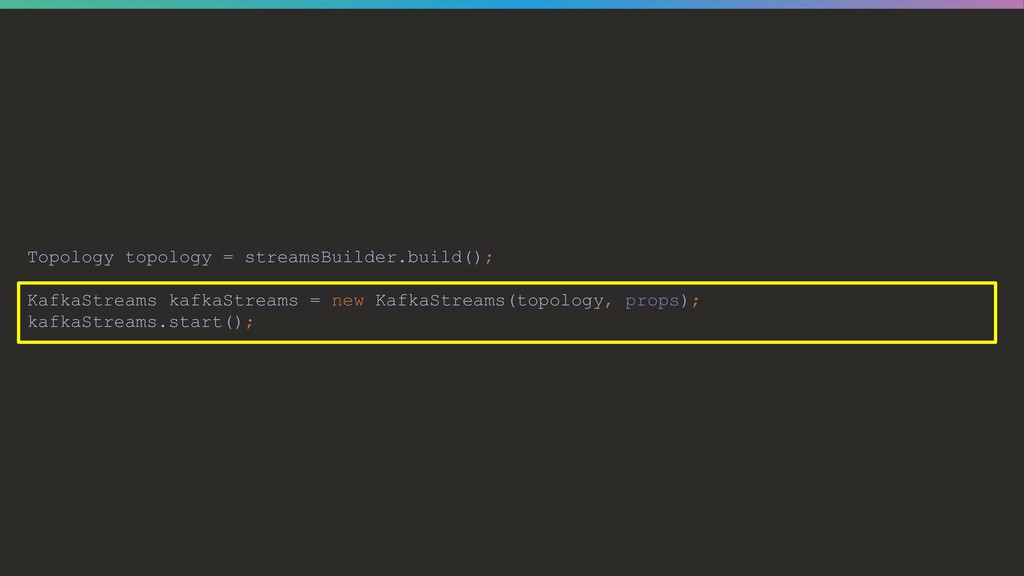

114. Topology topology = streamsBuilder.build(); KafkaStreams kafkaStreams = new KafkaStreams(topology, props); kafkaStreams.start();
115. Topology topology = streamsBuilder.build(); KafkaStreams kafkaStreams = new KafkaStreams(topology, props); kafkaStreams.start();
116. Topologia: przetwarzanie gry

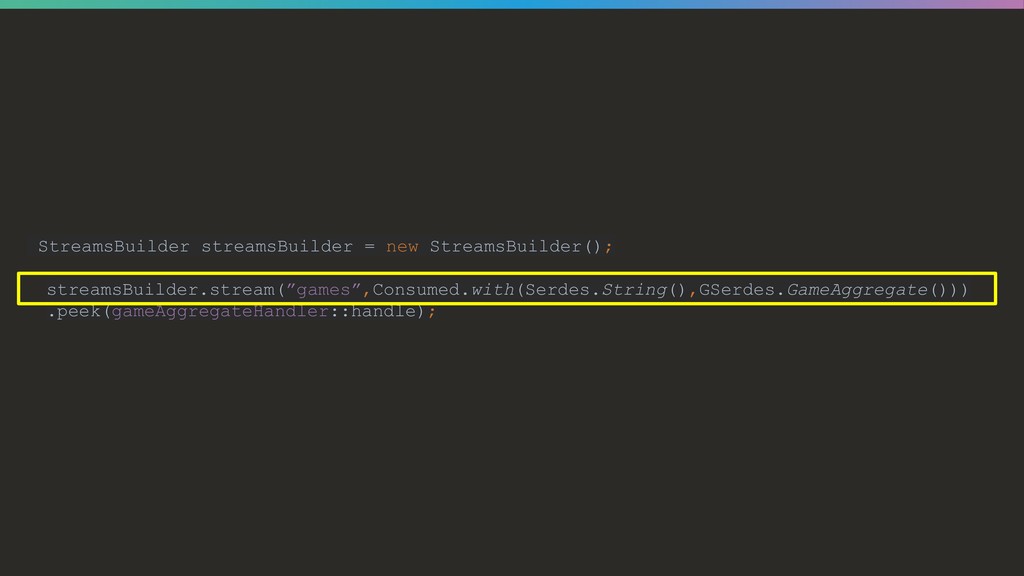

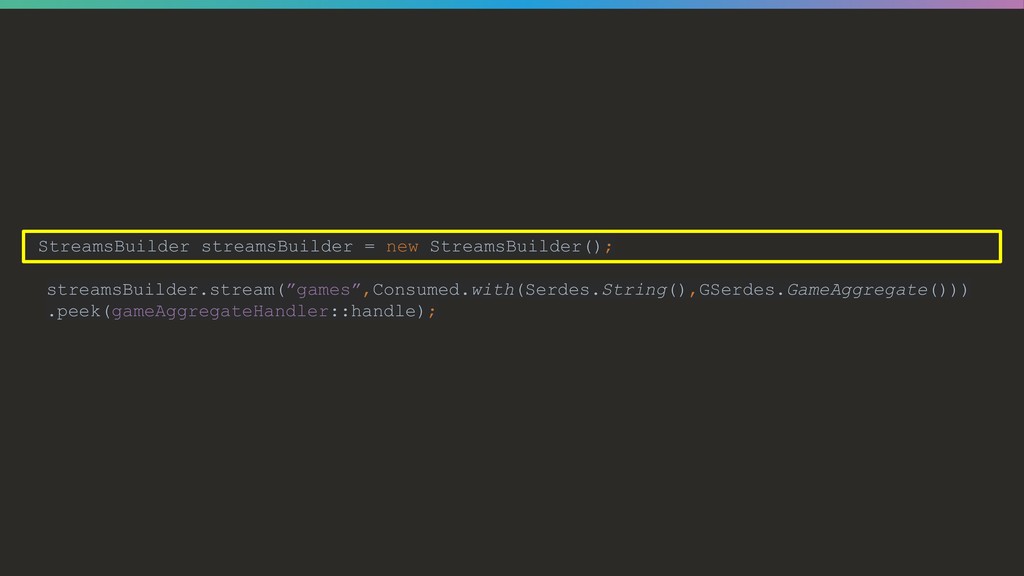

117. StreamsBuilder streamsBuilder = new StreamsBuilder(); streamsBuilder.stream(”games”,Consumed.with(Serdes.String(),GSerdes.GameAggregate())) .peek(gameAggregateHandler::handle);

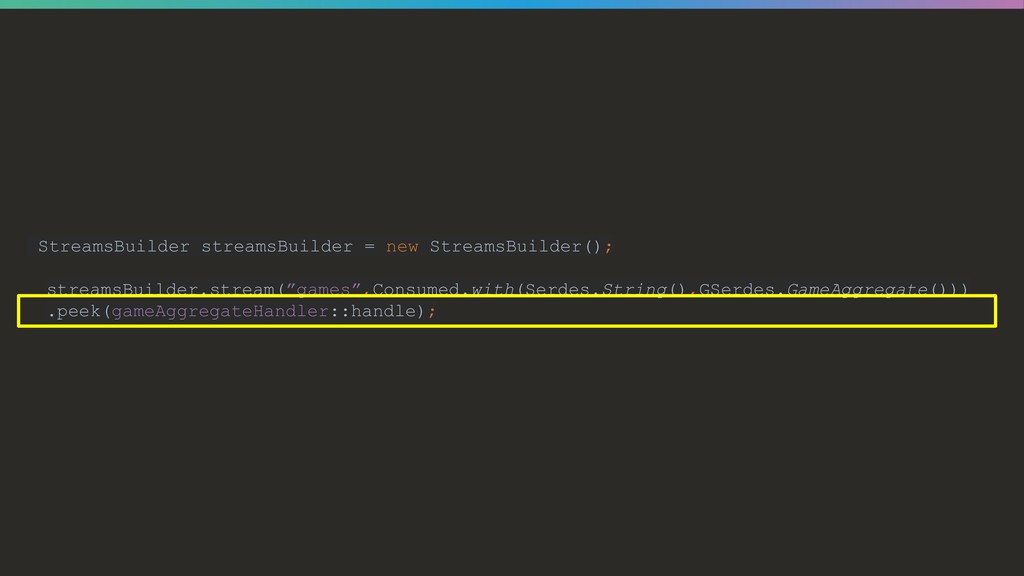

118. StreamsBuilder streamsBuilder = new StreamsBuilder(); streamsBuilder.stream(”games”,Consumed.with(Serdes.String(),GSerdes.GameAggregate())) .peek(gameAggregateHandler::handle);
119. StreamsBuilder streamsBuilder = new StreamsBuilder(); streamsBuilder.stream(”games”,Consumed.with(Serdes.String(),GSerdes.GameAggregate())) .peek(gameAggregateHandler::handle);

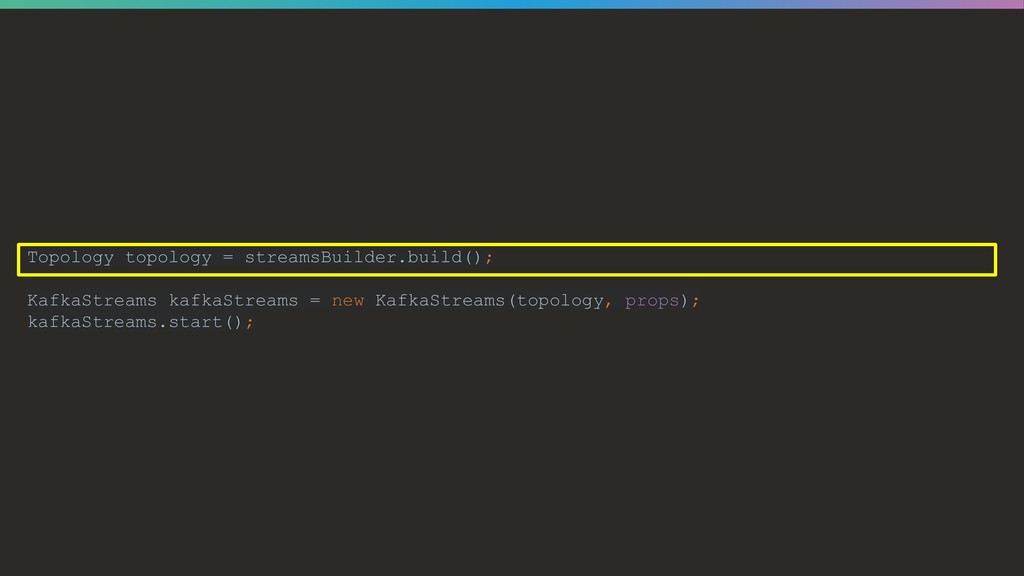

120. Topology topology = streamsBuilder.build(); KafkaStreams kafkaStreams = new KafkaStreams(topology, props); kafkaStreams.start();
121. Topology topology = streamsBuilder.build(); KafkaStreams kafkaStreams = new KafkaStreams(topology, props); kafkaStreams.start();
123. #2 Problem - Stream Processing

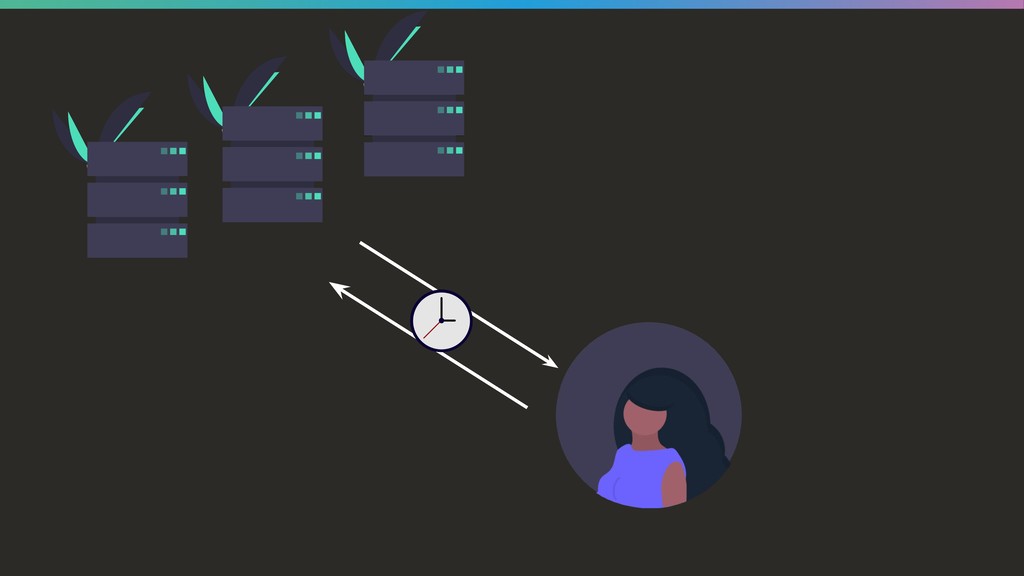

124. System reaktywny

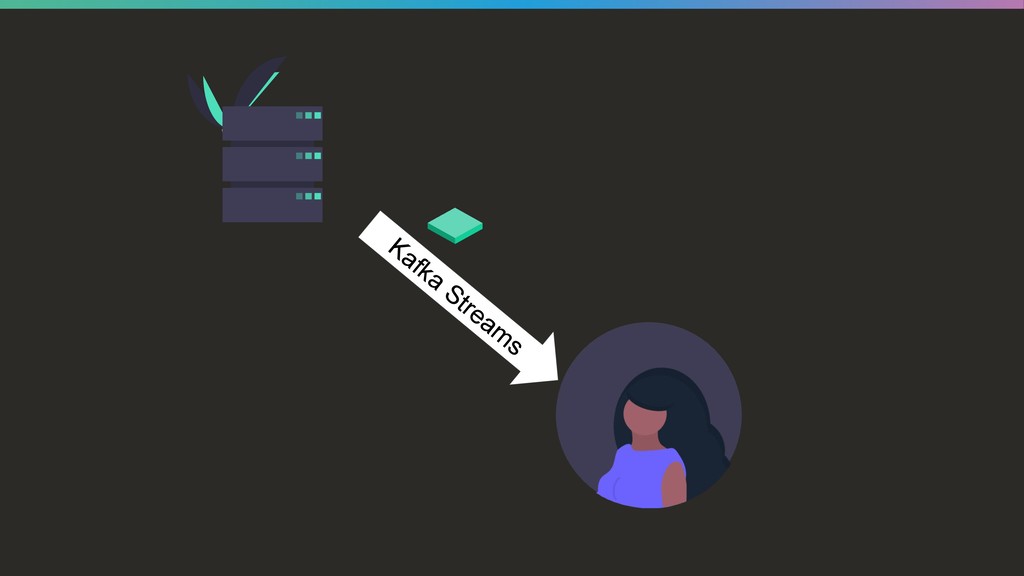

129. Kafka Stream s
130. #3 Problem - nadmiar danych
131. Kafka Stream s

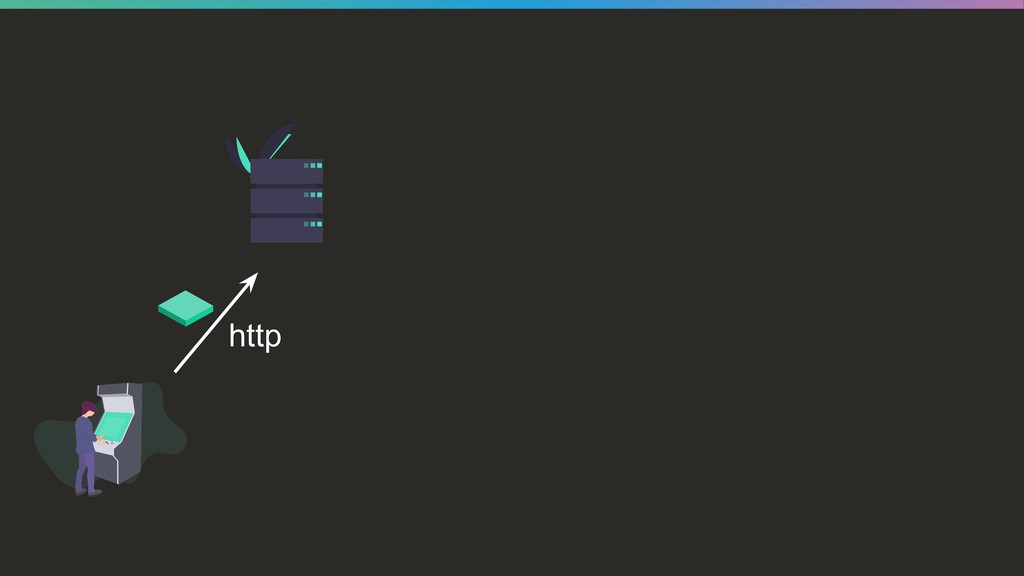

132. http

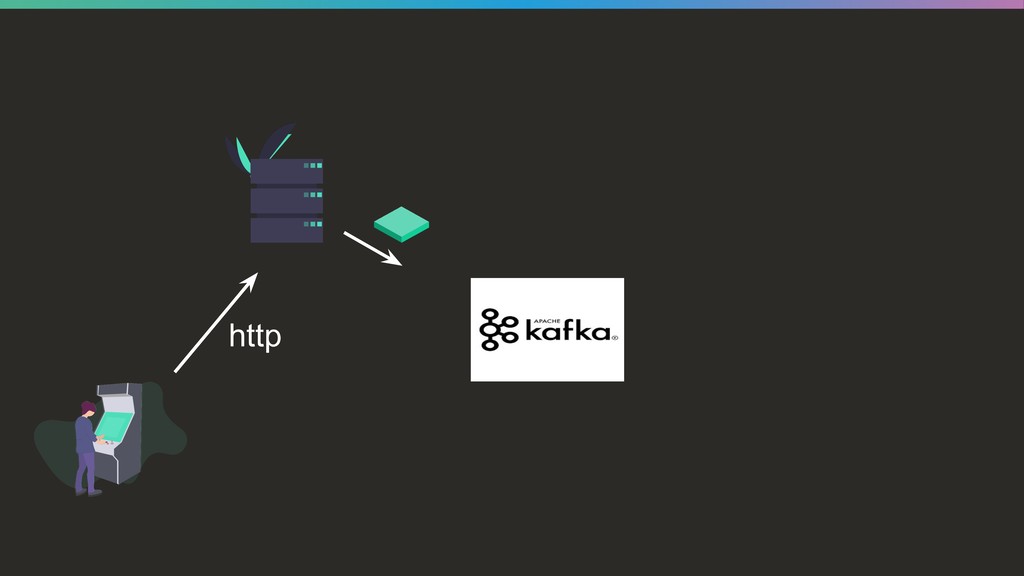

133. http

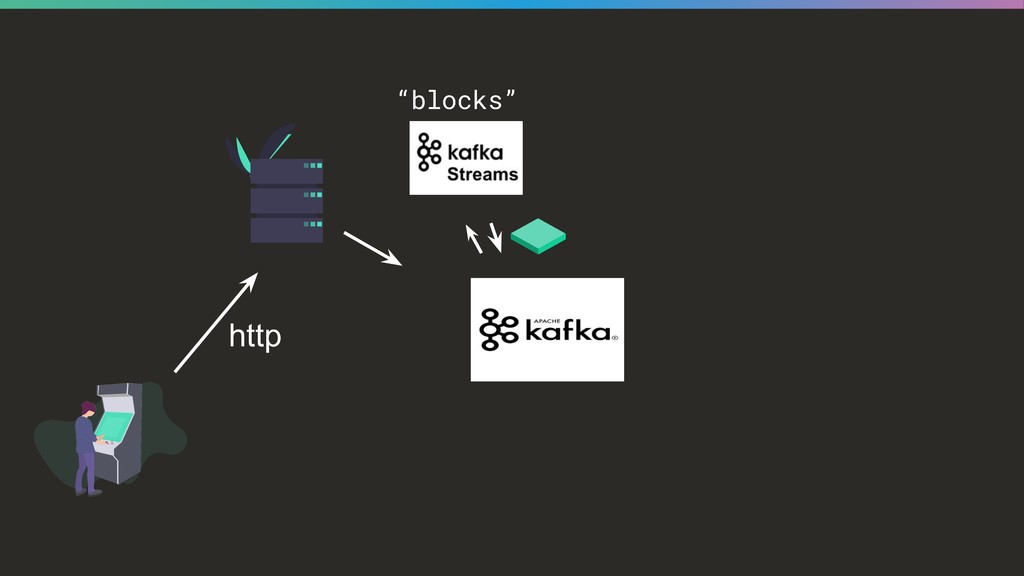

134. http “blocks”

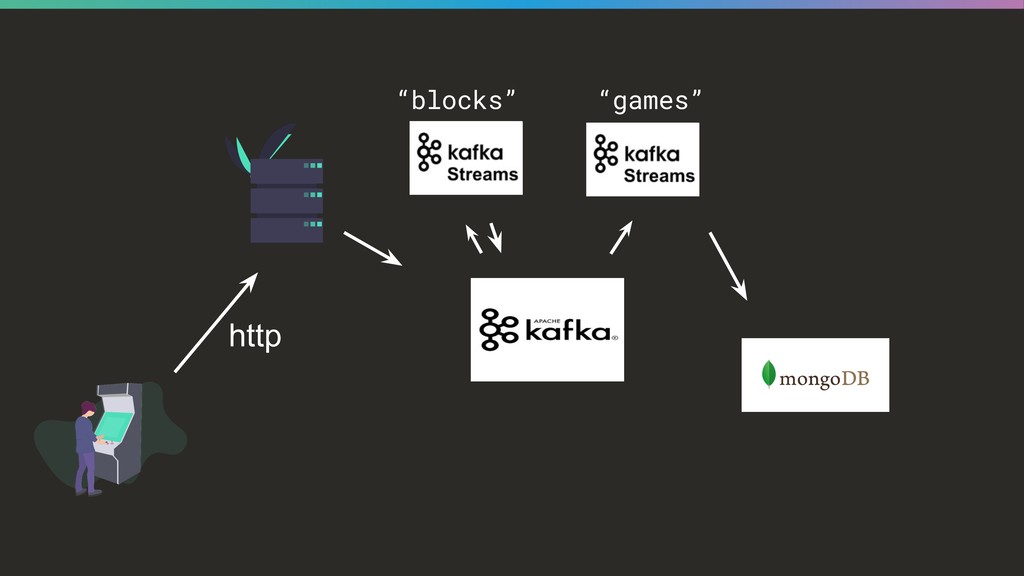

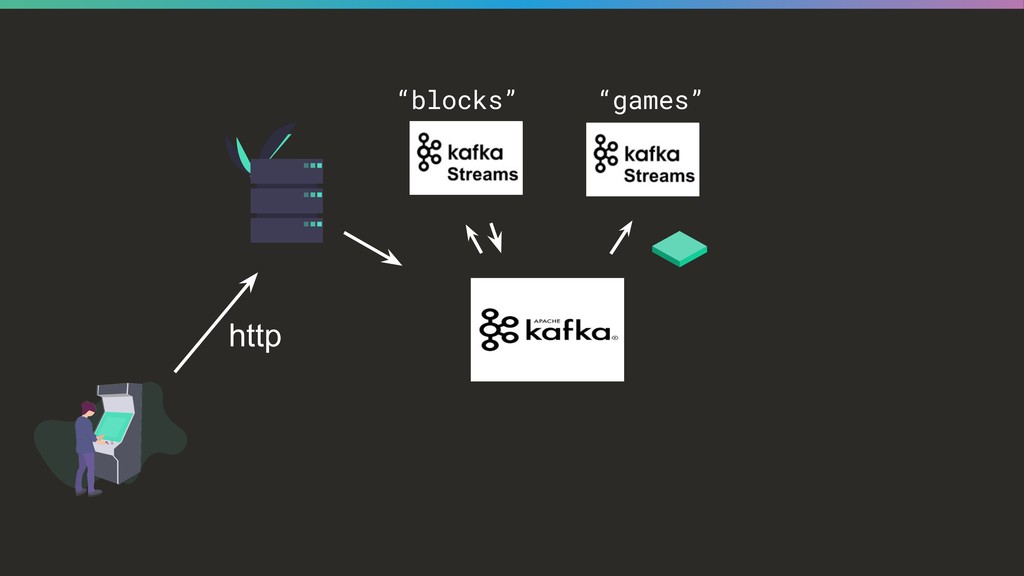

135. http “blocks” “games”
136. http “blocks” “games”
138. nexoblocks https://bit.ly/2WQcHmz
139. nexoblocks https://bit.ly/2WQcHmz

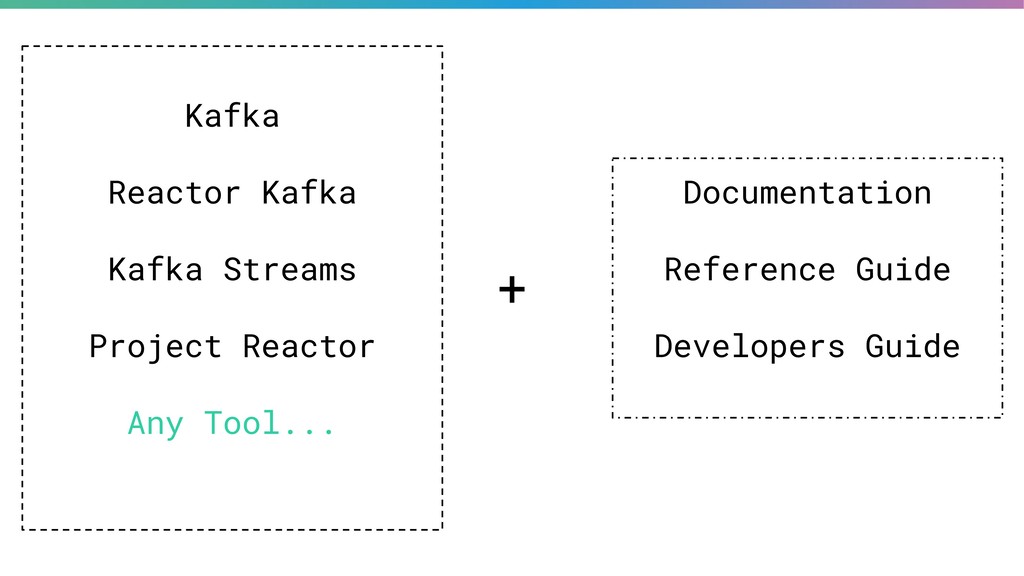

140. Documentation Reference Guide Developers Guide Kafka Reactor Kafka Kafka Streams Project Reactor Any Tool... +
141. nexoblocks https://bit.ly/2WQcHmz Dziękuję! Wojciech Marusarz // nexocode
