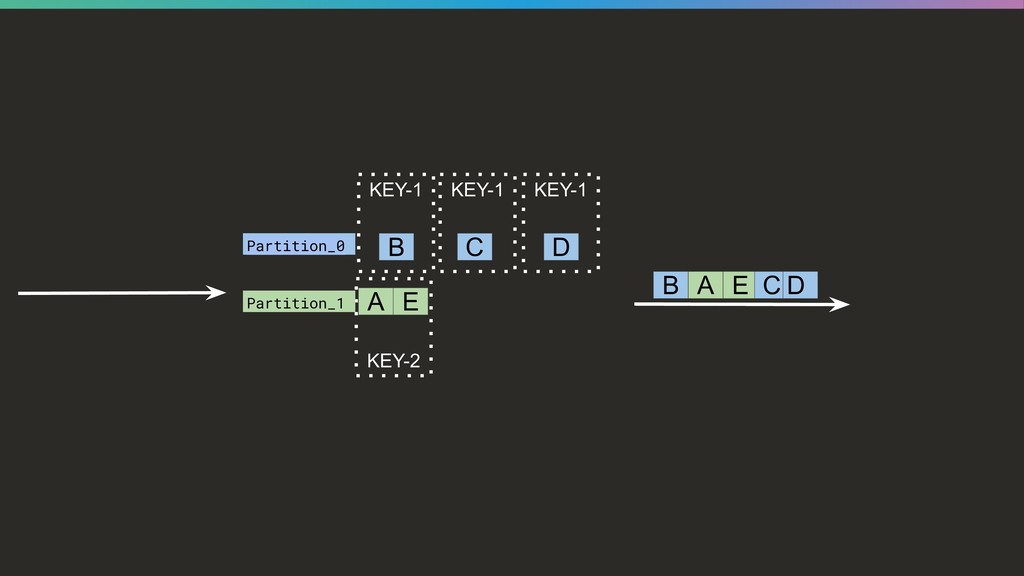

登壇資料を作る時に意識していること #登壇資料_findy
Avatar for konifar konifar
4

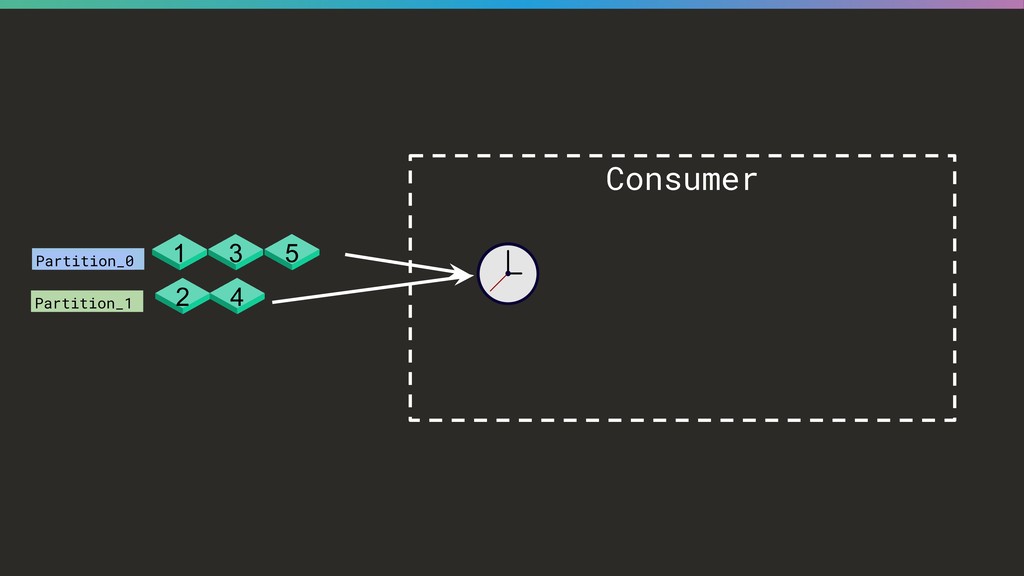

1.7k
dchart: charts from deck markup
Avatar for Anthony Starks ajstarks
3
1k
疑似コードによるプロンプト記述、どのくらい正確に実行される？
Avatar for kokuyouwind kokuyouwind
0
390

Featured

See All Featured
RailsConf & Balkan Ruby 2019: The Past, Present, and Future of Rails at GitHub
Avatar for Eileen M. Uchitelle eileencodes
141
34k
Save Time (by Creating Custom Rails Generators)
Avatar for Garrett Dimon garrettdimon
PRO
32
2.1k
StorybookのUI Testing Handbookを読んだ
Avatar for Shingo Yamazaki zakiyama
31
6.6k
Connecting the Dots Between Site Speed, User Experience & Your Business [WebExpo 2025]
Avatar for Tammy Everts tammyeverts
11
830
The Psychology of Web Performance [Beyond Tellerrand 2023]
Avatar for Tammy Everts tammyeverts
49
3.3k
Ruling the World: When Life Gets Gamed
Avatar for Sebastian Deterding codingconduct
0
150
Visualizing Your Data: Incorporating Mongo into Loggly Infrastructure
Avatar for mongodb mongodb
49
9.9k

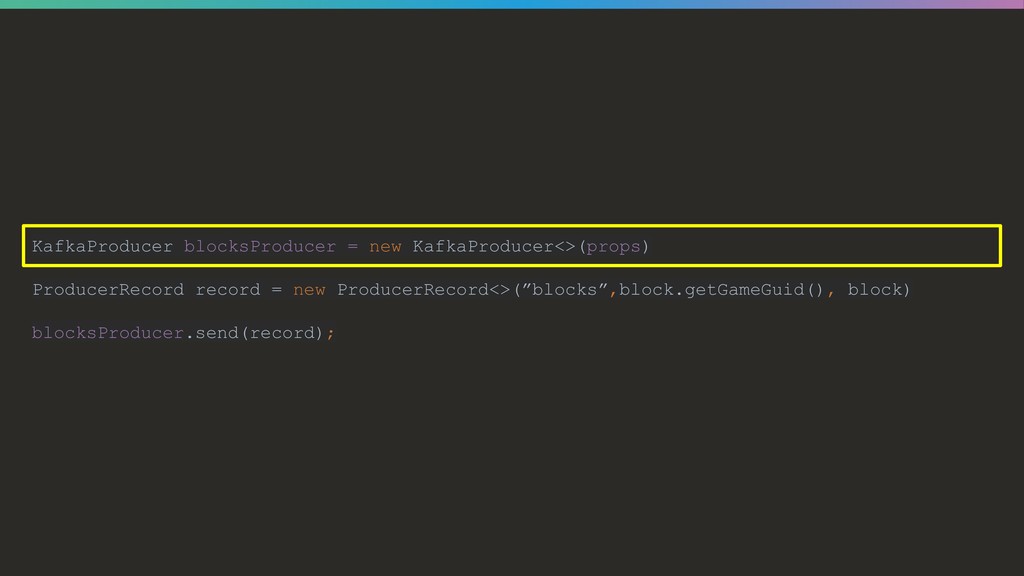

[Rails World 2023 - Day 1 Closing Keynote] - The Magic of Rails
Avatar for Eileen M. Uchitelle eileencodes
38
2.7k
Cheating the UX When There Is Nothing More to Optimize - PixelPioneers
Avatar for Stéphanie Walter stephaniewalter
287
14k
GraphQLとの向き合い方2022年版
Avatar for Yosuke Kurami quramy
50
14k
Chrome DevTools: State of the Union 2024 - Debugging React & Beyond
Avatar for Addy Osmani addyosmani
10
1.1k
<Decoding/> the Language of Devs - We Love SEO 2024
Avatar for Nikki Halliwell nikkihalliwell
1
130

Transcript

  1. Kafka jako strumień i co się z tym wiąże Wojciech

    Marusarz // nexocode

  2. Kafka jako strumień i co się z tym wiąże Wojciech

    Marusarz // nexocode
  3. None

  4. Programiści...

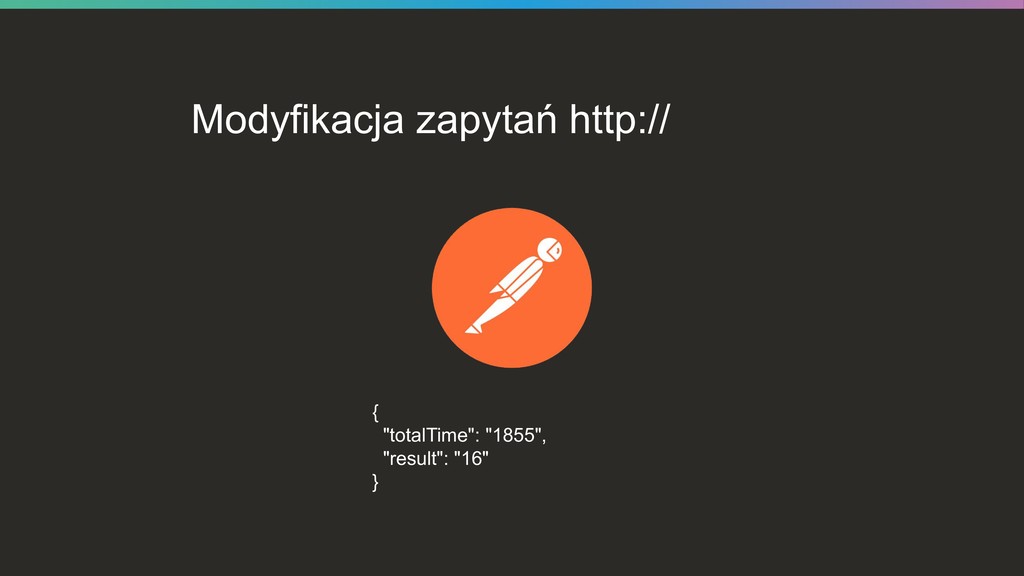

  5. Modyfikacja zapytań http:// { "totalTime": "1855", "result": "16" }

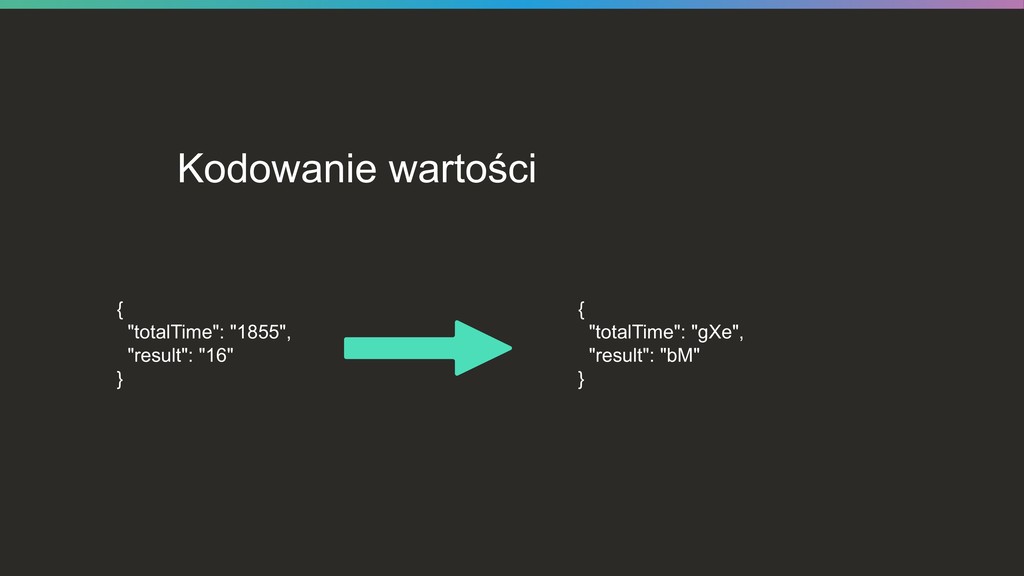

  6. Kodowanie wartości { "totalTime": "gXe", "result": "bM" } { "totalTime":

    "1855", "result": "16" }

  7. Obfuskacja

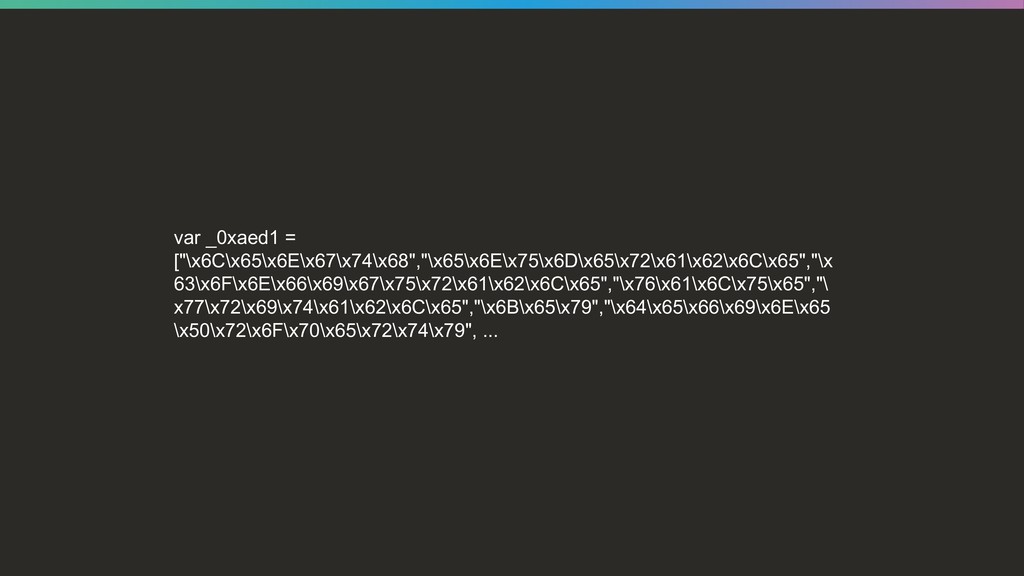

  8. var _0xaed1 = ["\x6C\x65\x6E\x67\x74\x68","\x65\x6E\x75\x6D\x65\x72\x61\x62\x6C\x65","\x 63\x6F\x6E\x66\x69\x67\x75\x72\x61\x62\x6C\x65","\x76\x61\x6C\x75\x65","\ x77\x72\x69\x74\x61\x62\x6C\x65","\x6B\x65\x79","\x64\x65\x66\x69\x6E\x65 \x50\x72\x6F\x70\x65\x72\x74\x79", ...

  9. Uparci programiści...

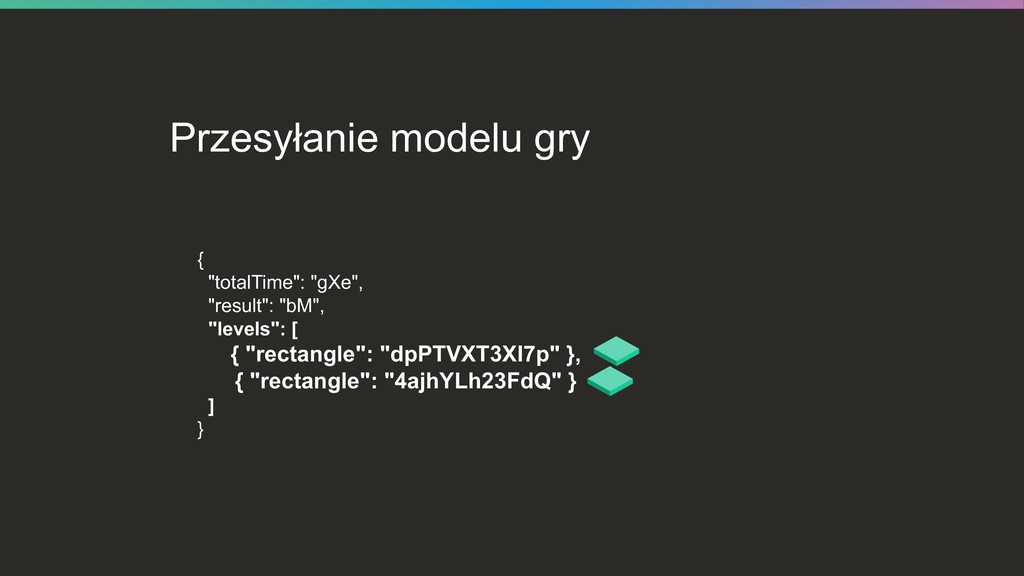

  10. Przesyłanie modelu gry { "totalTime": "gXe", "result": "bM", "levels": [

    { "rectangle": "dpPTVXT3XI7p" }, { "rectangle": "4ajhYLh23FdQ" } ] }

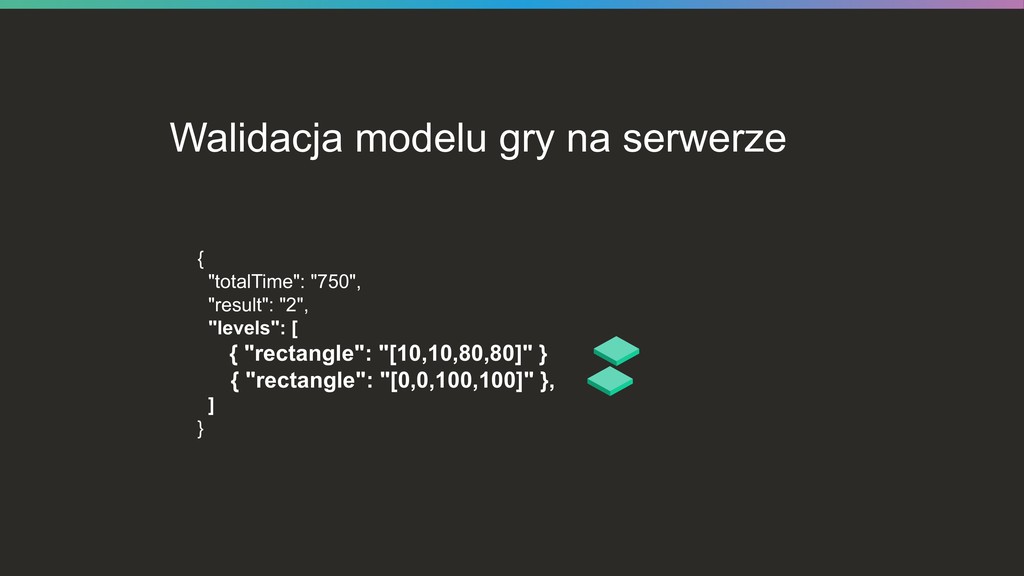

  11. Walidacja modelu gry na serwerze { "totalTime": "750", "result": "2",

    "levels": [ { "rectangle": "[10,10,80,80]" } { "rectangle": "[0,0,100,100]" }, ] }

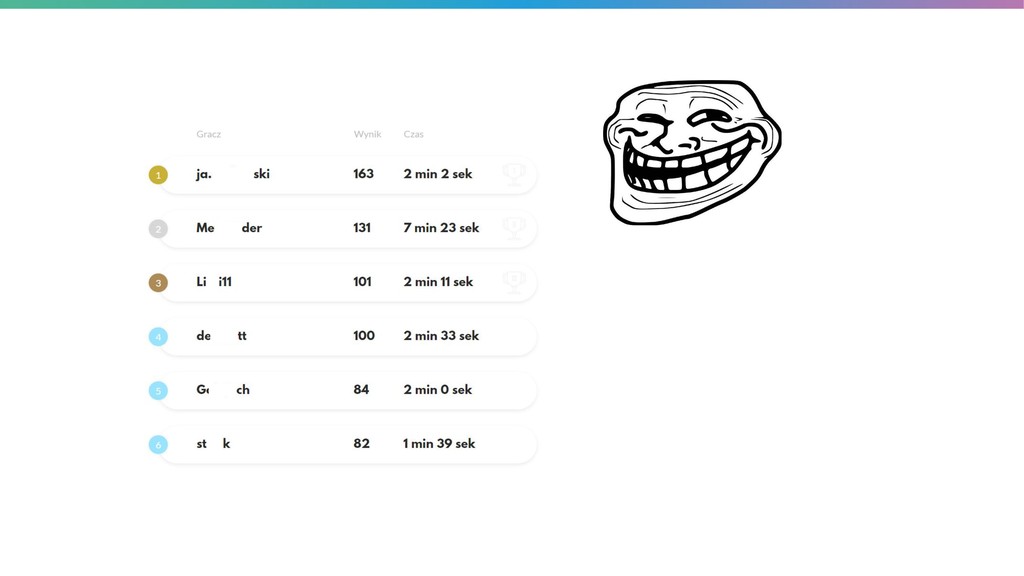

  12. Brace yourself, gra nadchodzi...

  13. None

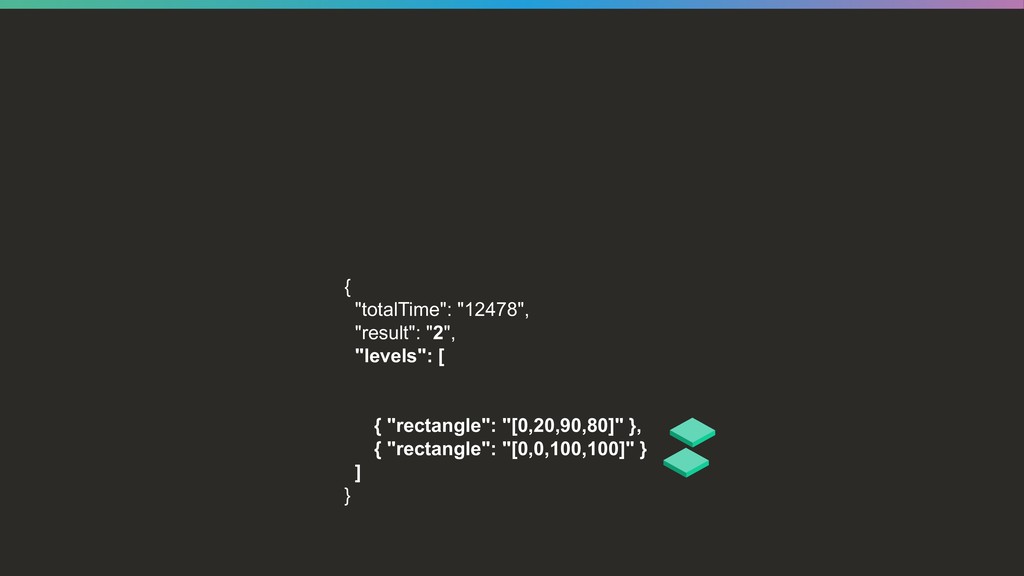

  14. { "totalTime": "12478", "result": "2", "levels": [ { "rectangle": "[0,20,90,80]"

    }, { "rectangle": "[0,0,100,100]" } ] }

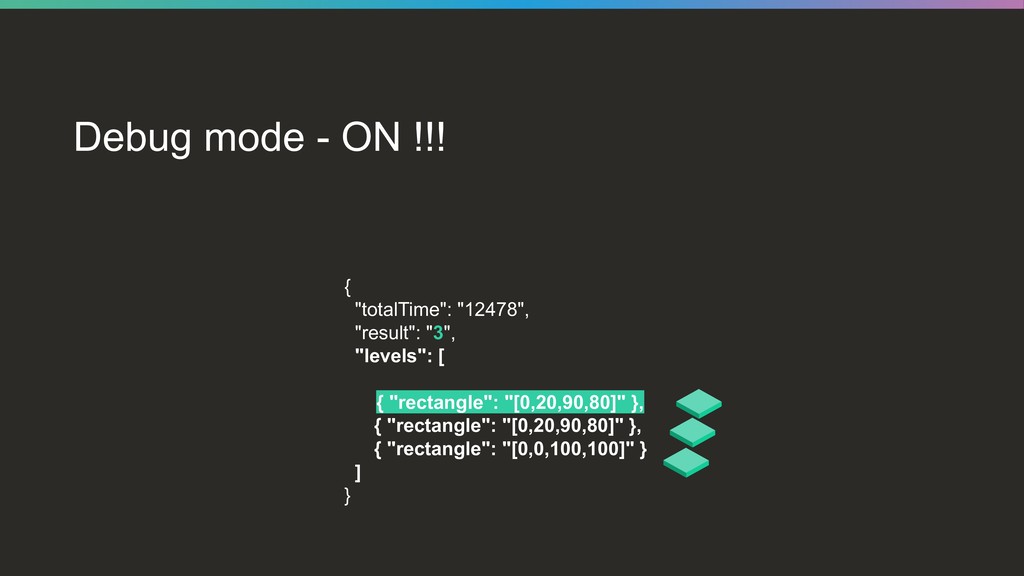

  15. Debug mode - ON !!! { "totalTime": "12478", "result": "3",

    "levels": [ { "rectangle": "[0,20,90,80]" }, { "rectangle": "[0,20,90,80]" }, { "rectangle": "[0,0,100,100]" } ] }

  16. Debug mode - ON !!! { "totalTime": "12478", "result": "4",

    "levels": [ { "rectangle": "[0,20,90,80]" }, { "rectangle": "[0,20,90,80]" }, { "rectangle": "[0,20,90,80]" }, { "rectangle": "[0,0,100,100]" } ] }

  17. Challenge accepted…

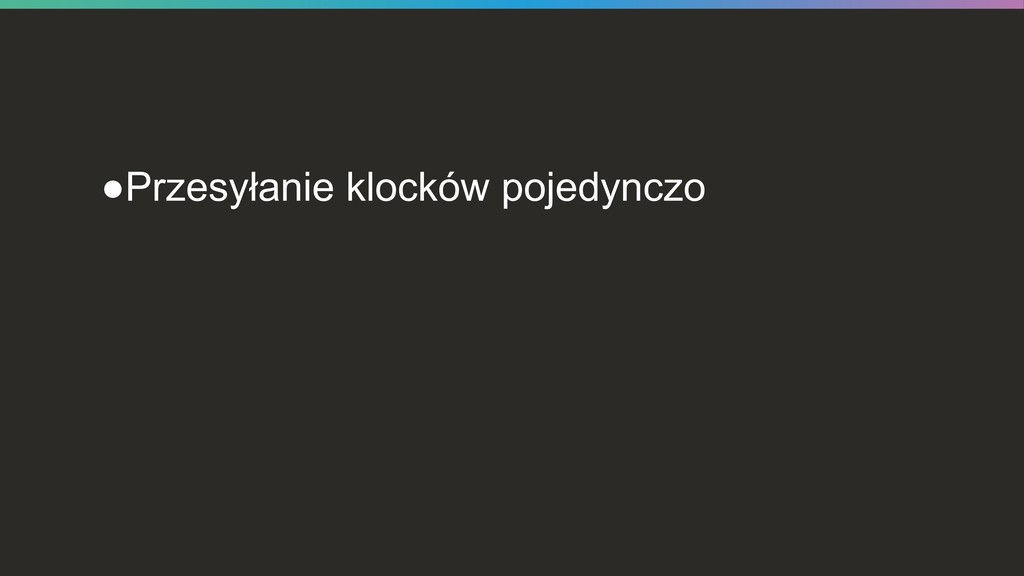

  18. •Przesyłanie klocków pojedynczo

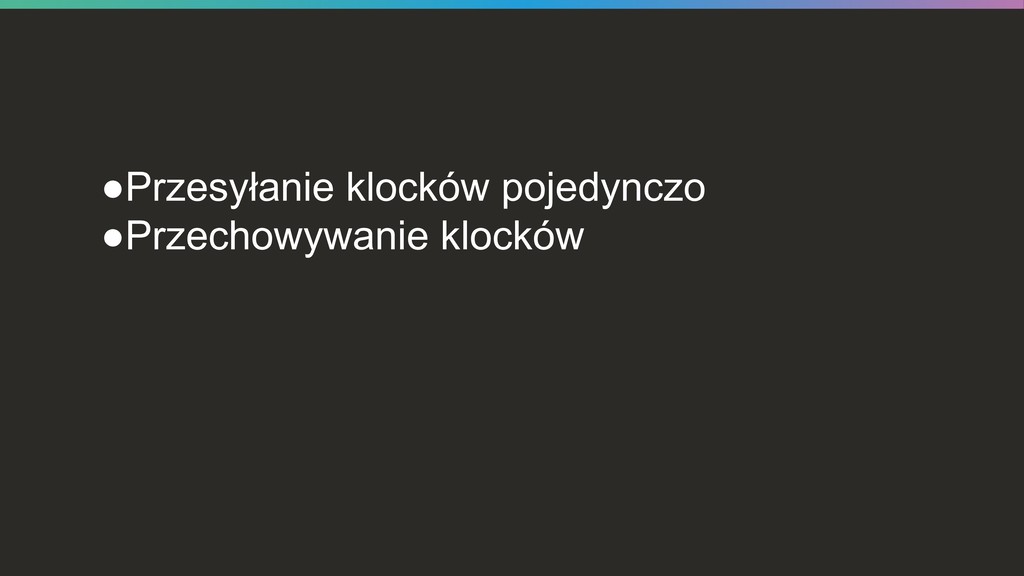

  19. •Przesyłanie klocków pojedynczo •Przechowywanie klocków

  20. •Przesyłanie klocków pojedynczo •Przechowywanie klocków •Budowa modelu gry

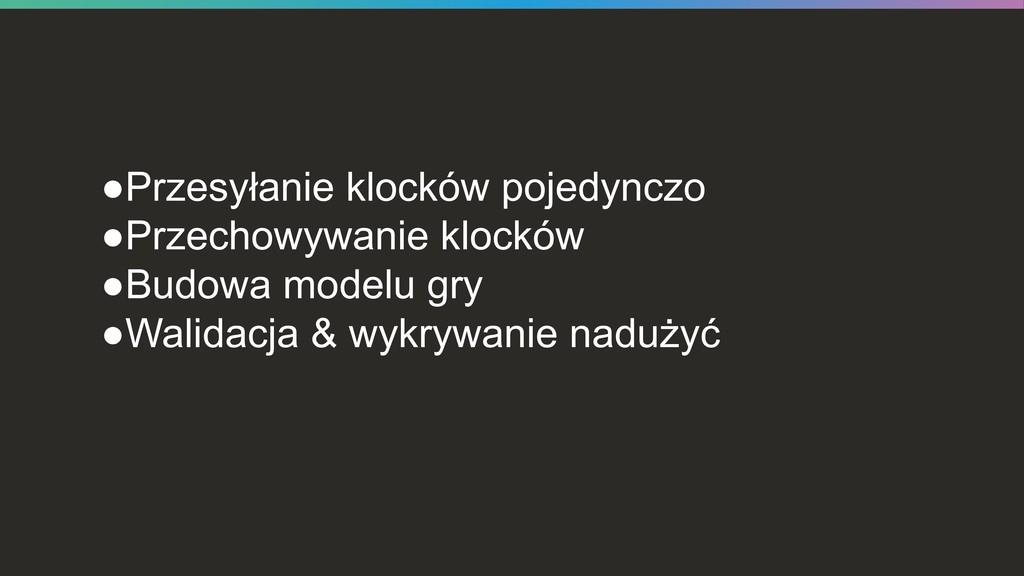

  21. •Przesyłanie klocków pojedynczo •Przechowywanie klocków •Budowa modelu gry •Walidacja &

    wykrywanie nadużyć

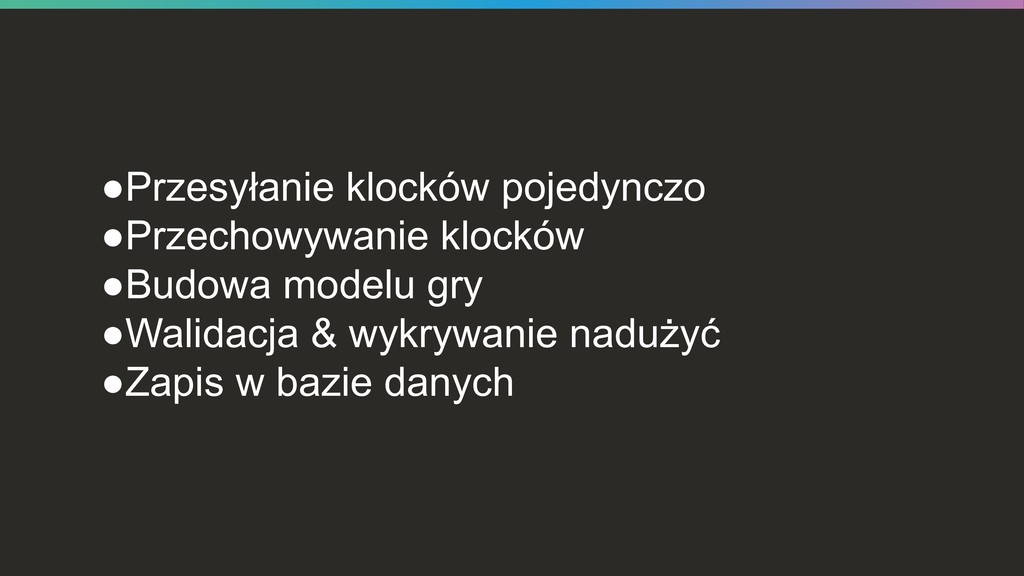

  22. •Przesyłanie klocków pojedynczo •Przechowywanie klocków •Budowa modelu gry •Walidacja &

    wykrywanie nadużyć •Zapis w bazie danych

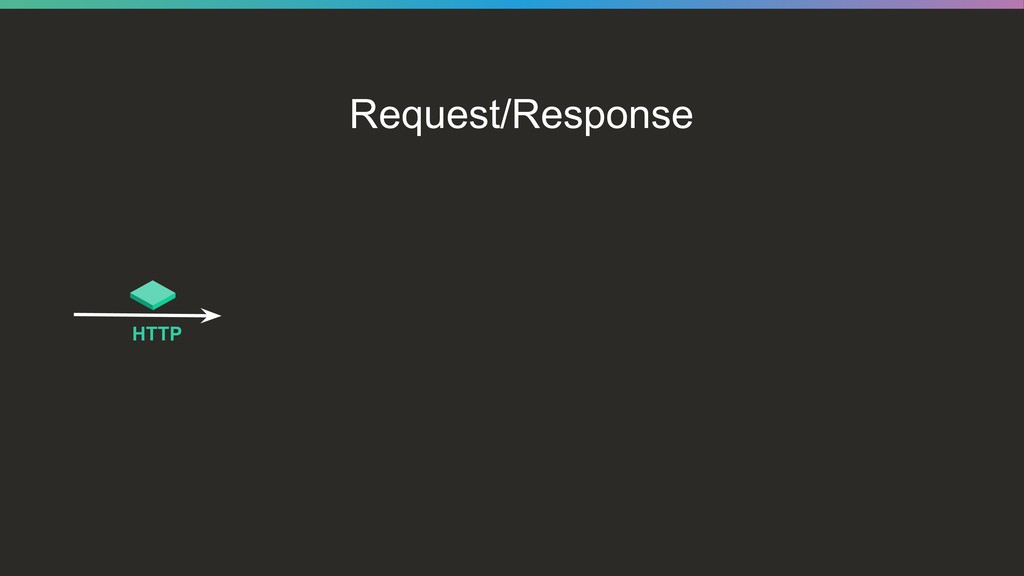

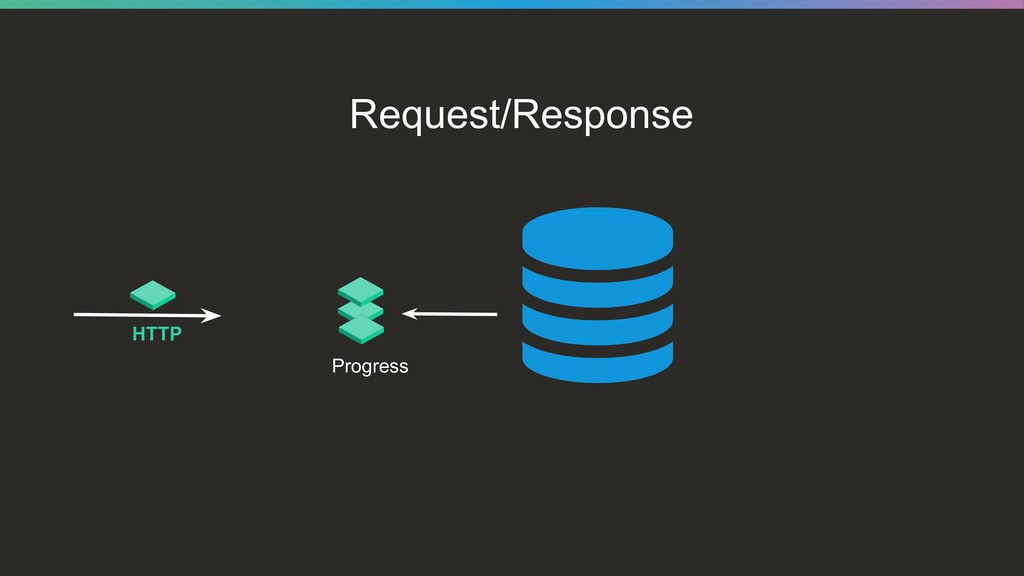

  23. Request/Response HTTP

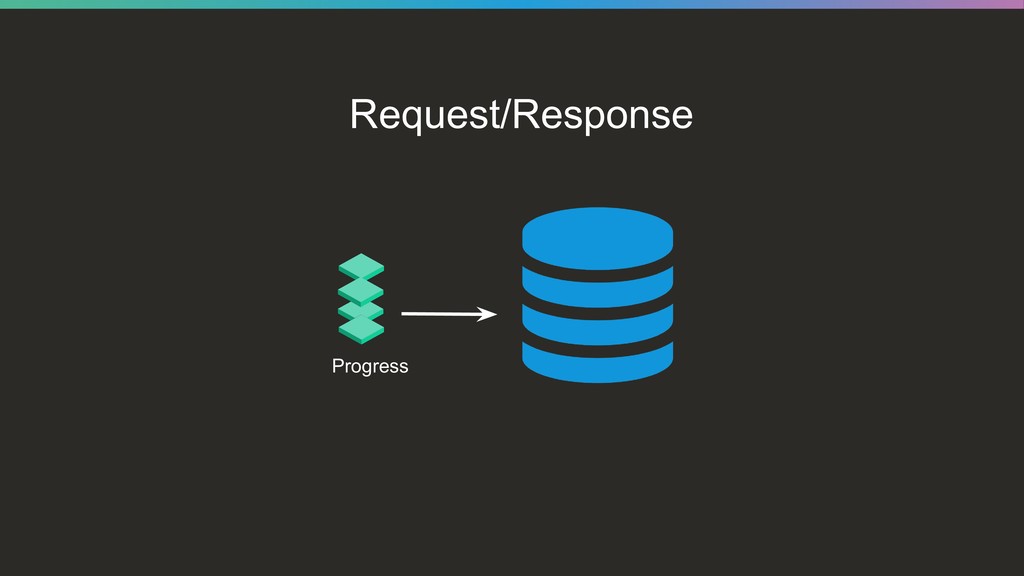

  24. Request/Response HTTP Progress

  25. Request/Response Progress

  26. Przechowywanie klocków

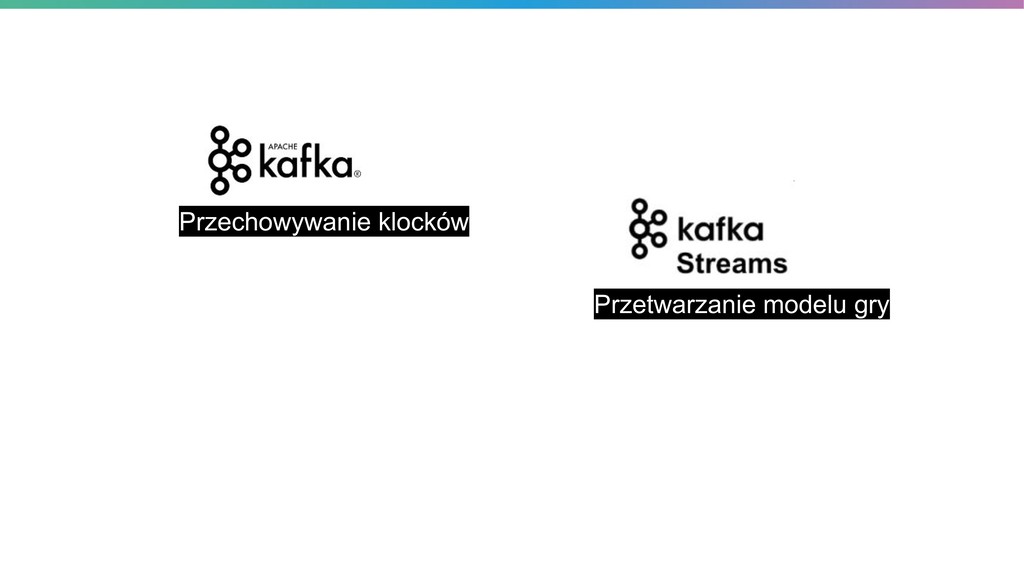

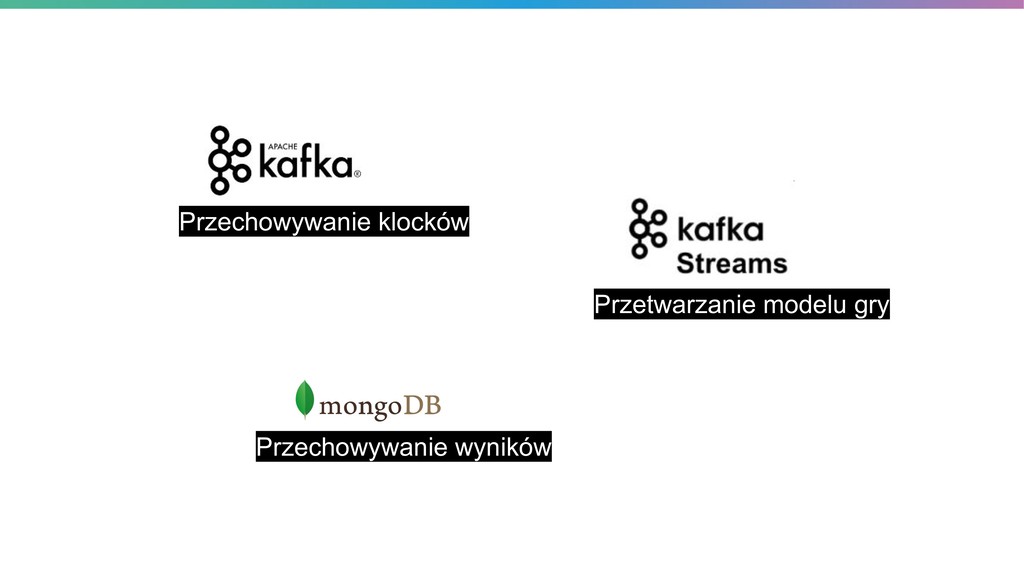

  27. Przechowywanie klocków Przetwarzanie modelu gry

  28. Przechowywanie klocków Przetwarzanie modelu gry Przechowywanie wyników

  29. Czy takie rozwiązanie ma sens?

  30. Po co Apache Kafka ?

  31. Szyna danych z warstwą persystencji

  32. Szyna danych z warstwą persystencji cechująca się wysoką dostępnością oraz

    szybkością działania 99.999%

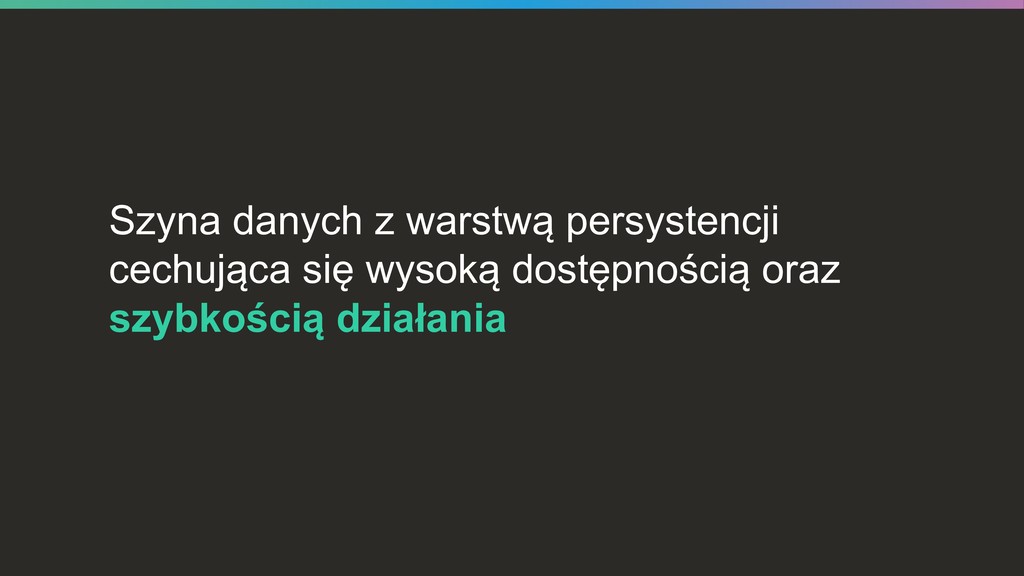

  33. Szyna danych z warstwą persystencji cechująca się wysoką dostępnością oraz

    szybkością działania
  34. None
  35. None
  36. None
  37. None
  38. None
  39. None

  40. 12 000 /s

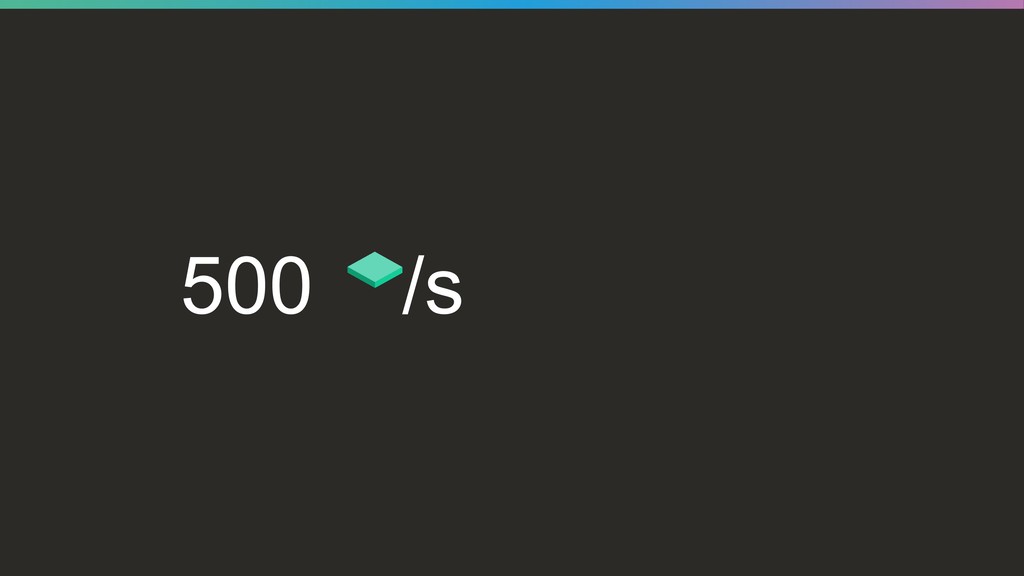

  41. 500 /s

  42. Technikalia

  43. #1 Problem - Architektura

  44. Producent Konsument Topic

  45. Producent Konsument “blocks”

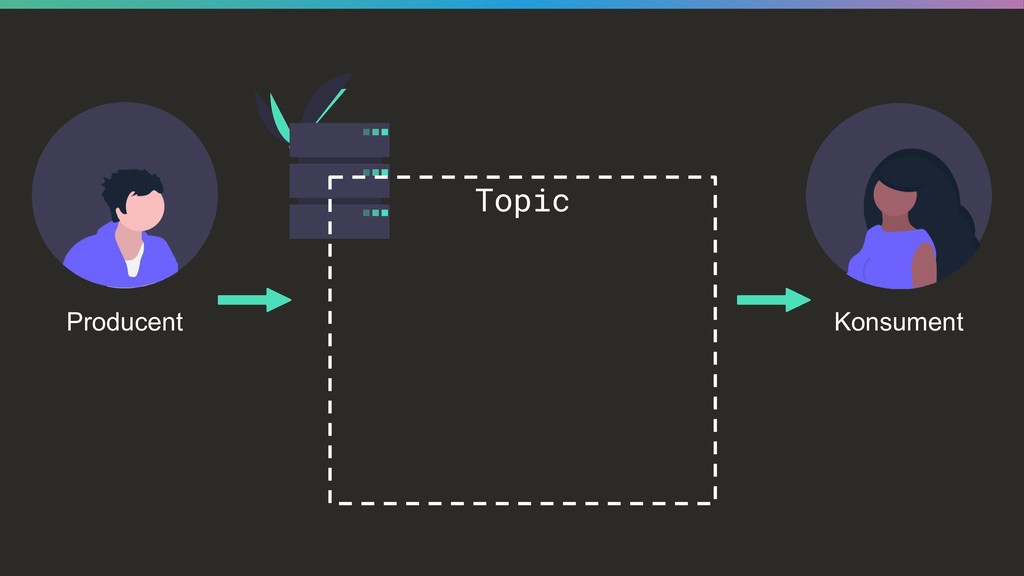

  46. Broker A Producent Konsument Topic

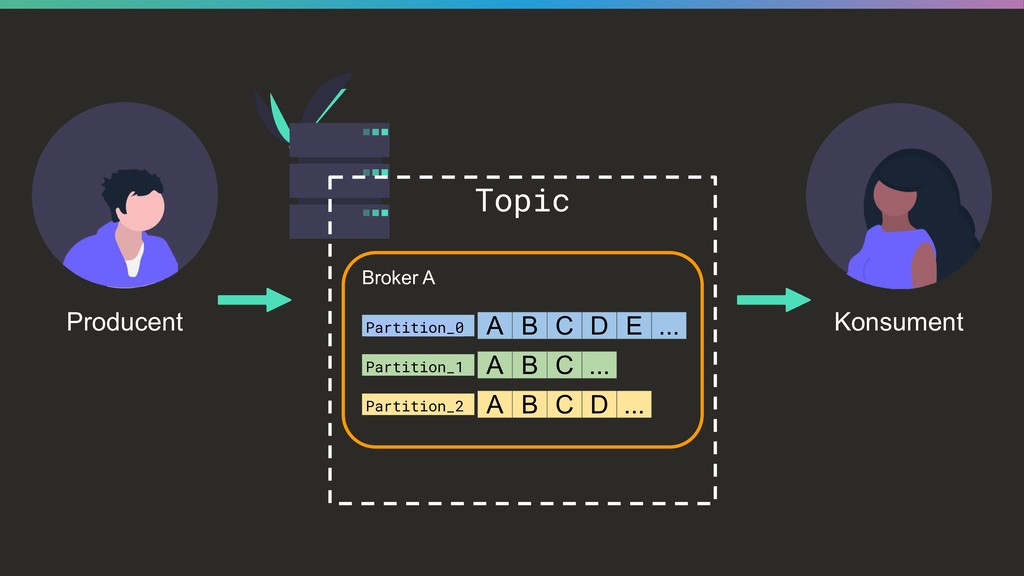

  47. Broker A Topic A B C D E ... A

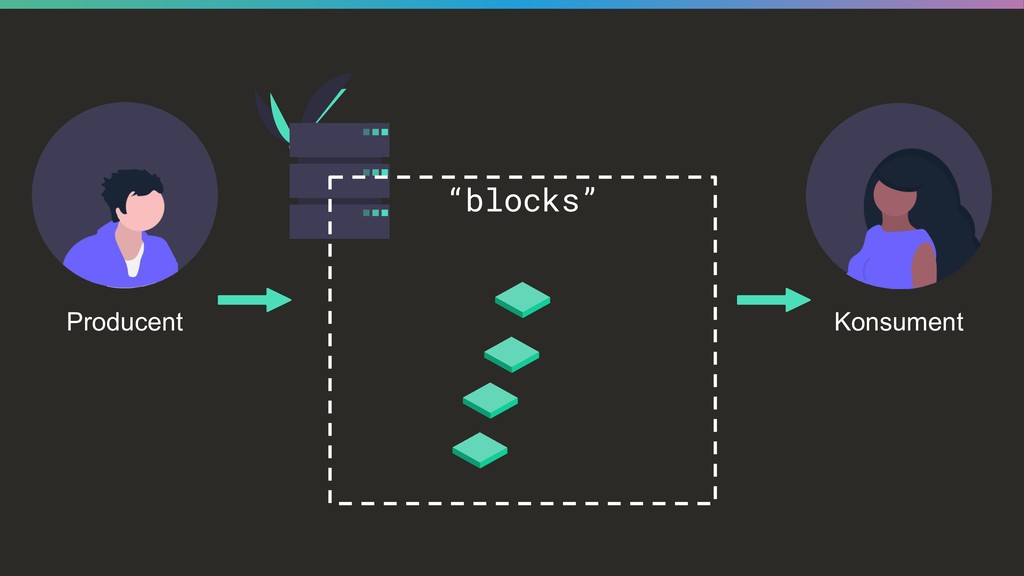

    B C ... A B C D ... Partition_0 Partition_1 Partition_2 Producent Konsument

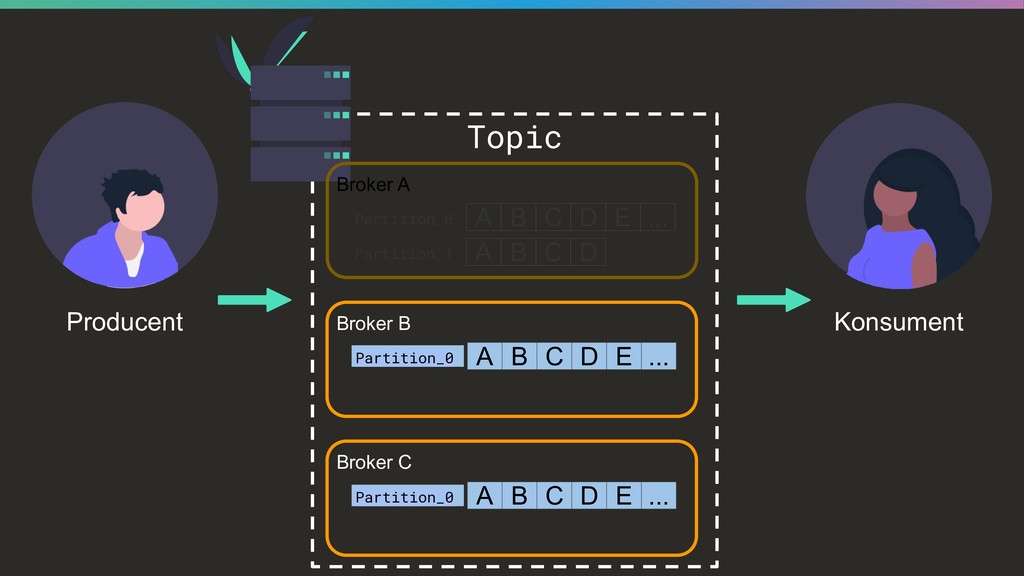

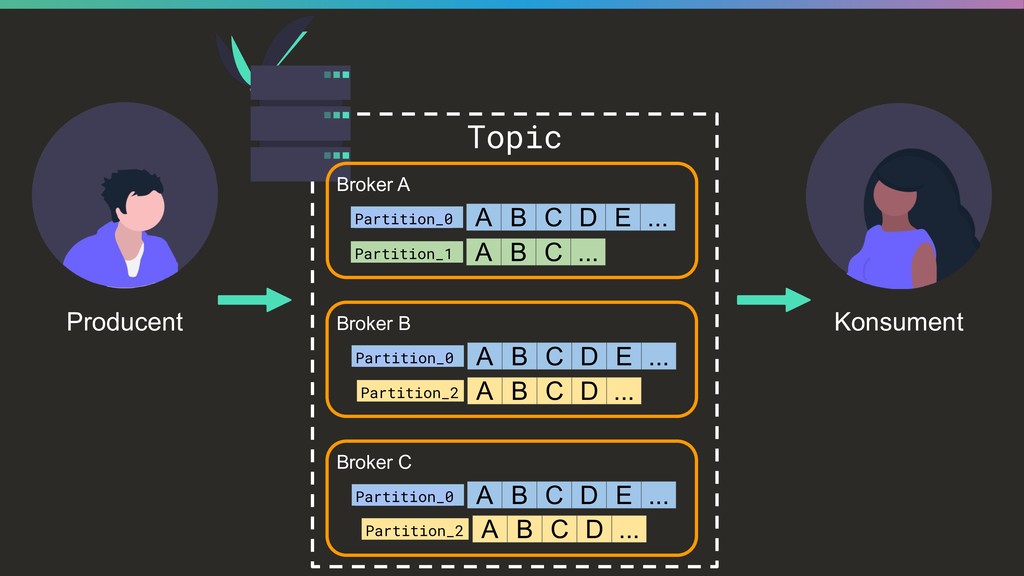

  48. Topic Broker C Broker B Broker A A B C

    D E ... A B C ... Partition_0 Partition_1 A B C D E ... A B C D ... Partition_0 Partition_2 Producent Konsument A B C D ... Partition_2 A B C D E ... Partition_0

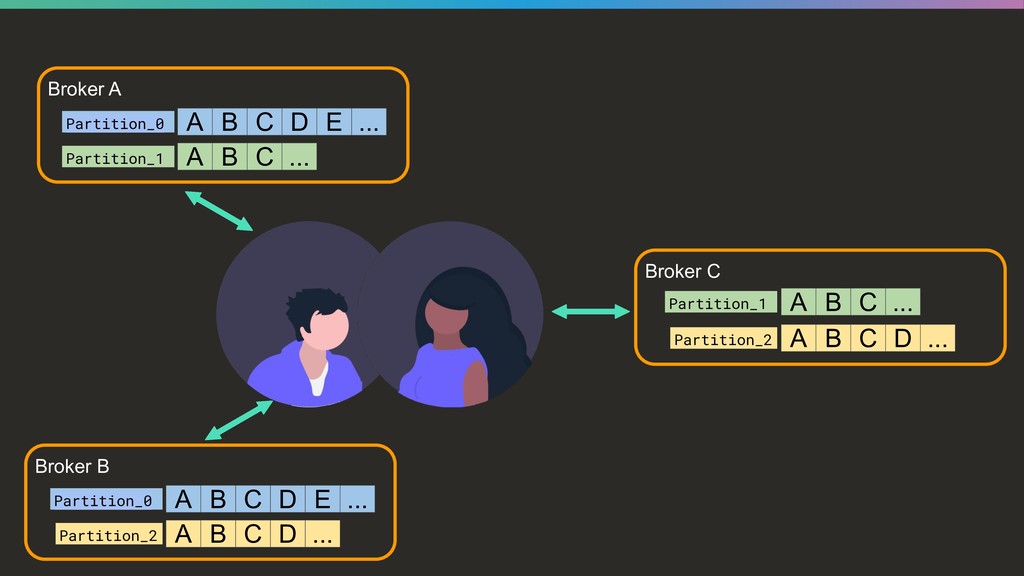

  49. Topic Broker C Broker B Broker A A B C

    D E ... A B C D Partition_0 Partition_1 A B C D E ... Partition_0 Producent Konsument A B C D E ... Partition_0

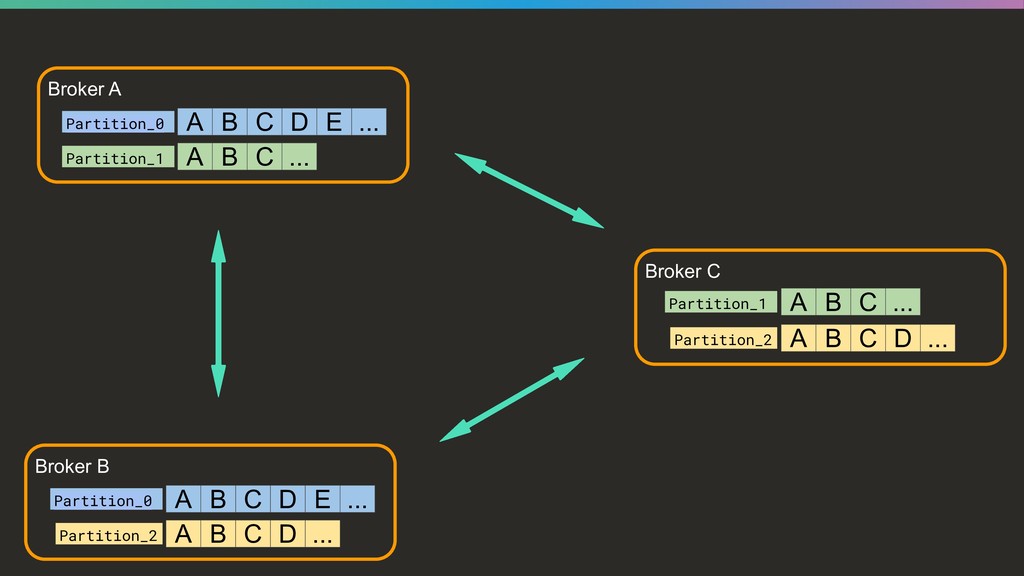

  50. Broker A A B C D E ... A B

    C ... Partition_0 Partition_1 Broker B Broker C A B C ... A B C D ... Partition_1 Partition_2 A C D E ... A B C D ... Partition_0 Partition_2 B

  51. Broker A A B C D E ... A B

    C ... Partition_0 Partition_1 Broker B Broker C A B C ... A B C D ... Partition_1 Partition_2 A C D E ... A B C D ... Partition_0 Partition_2 B

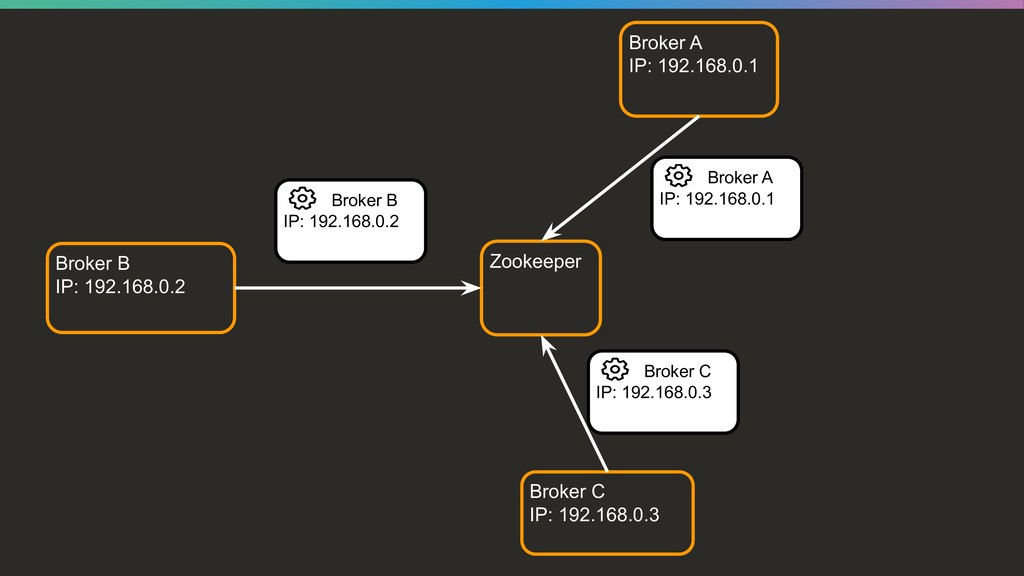

  52. Broker B IP: 192.168.0.2 Broker C IP: 192.168.0.3 Broker B

    IP: 192.168.0.2 Broker A IP: 192.168.0.1 Zookeeper Broker A IP: 192.168.0.1 Broker C IP: 192.168.0.3

  53. IP: 192.168.0.1 IP: 192.168.0.3 Broker C IP: 192.168.0.3 Broker B

    IP: 192.168.0.2 Broker A IP: 192.168.0.1 Zookeeper IP: 192.168.0.2 IP: 192.168.0.3 IP: 192.168.0.1 IP: 192.168.0.2

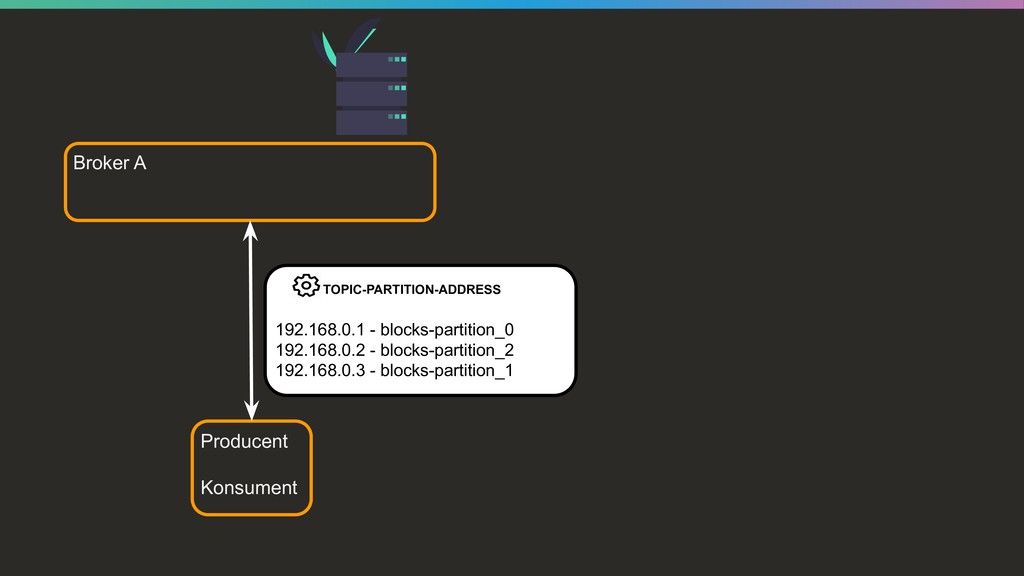

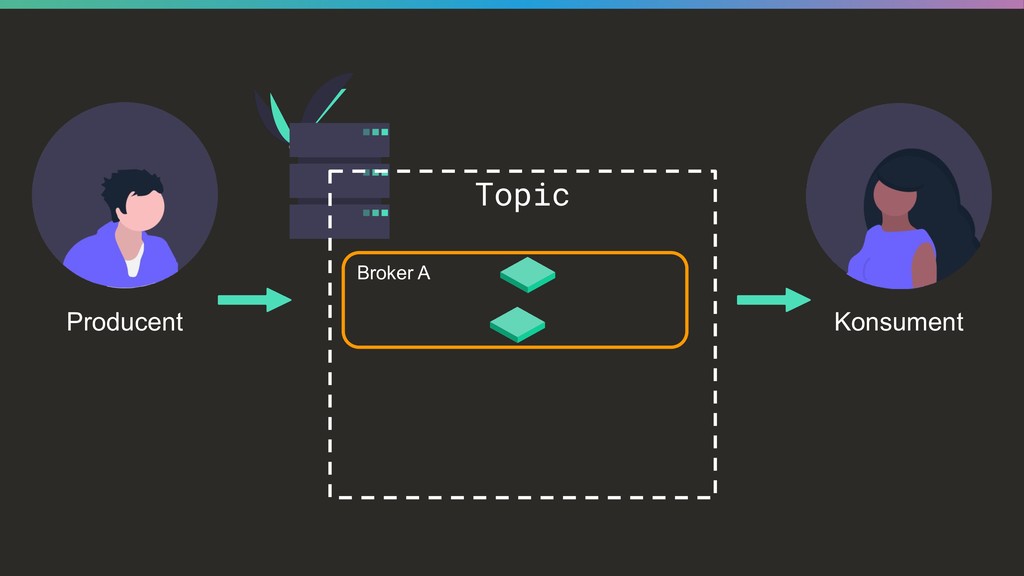

  54. Broker A Producent Konsument TOPIC-PARTITION-ADDRESS 192.168.0.1 - blocks-partition_0 192.168.0.2 -

    blocks-partition_2 192.168.0.3 - blocks-partition_1

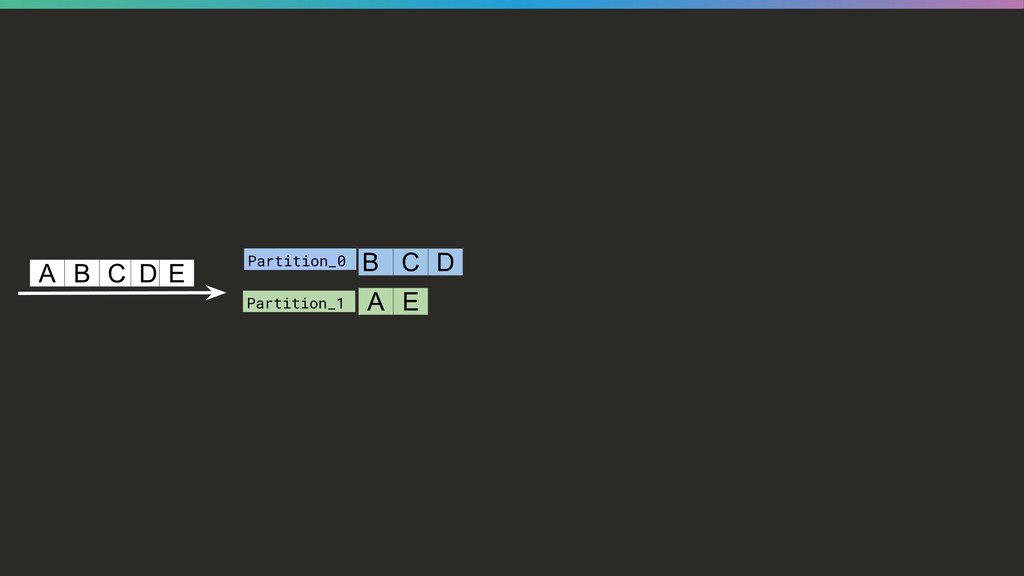

  55. A B C D E Partition_0 Partition_1 B C D

    A E

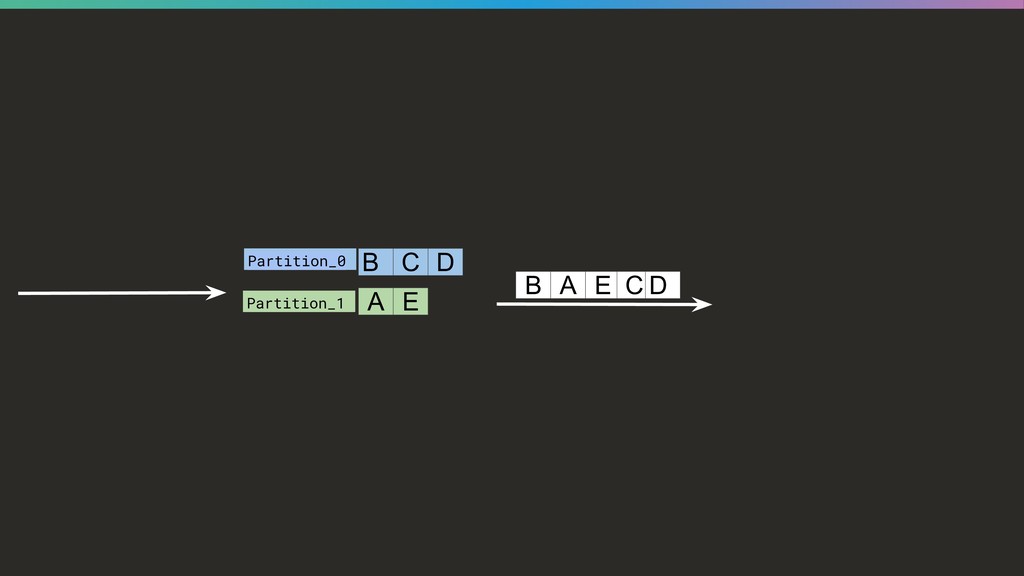

  56. B A E C D Partition_0 Partition_1 B C D

    A E

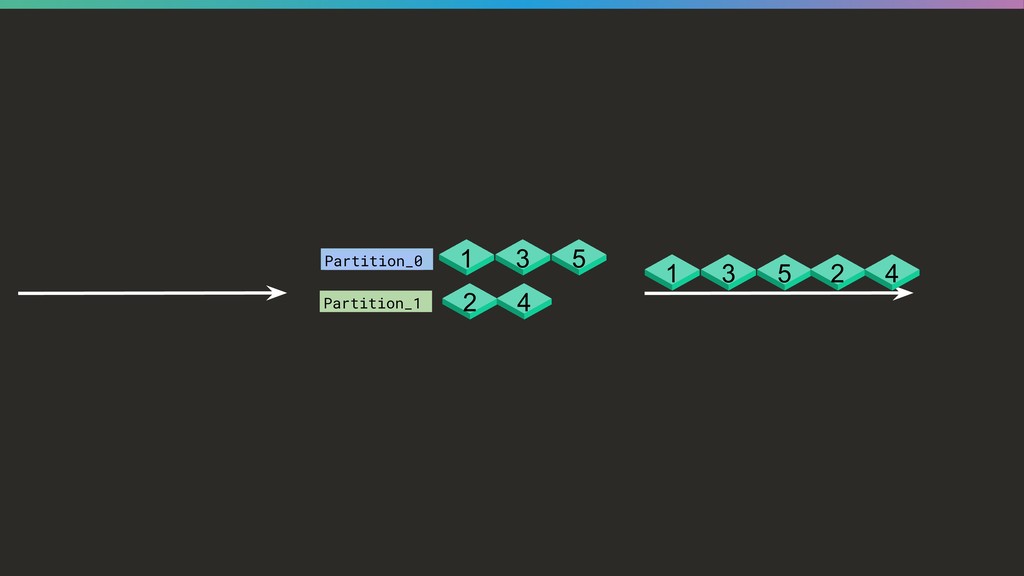

  57. Partition_0 Partition_1 1 2 3 4 5 1 3 5

    2 4

  58. Partition_0 Partition_1 1 3 5 2 4 1 3 5

    2 4

  59. KEY-2 KEY-1 Partition_0 Partition_1 C A E B A E

    C D B A E C D Partition_0 Partition_1 A E KEY-1 B KEY-1 D D

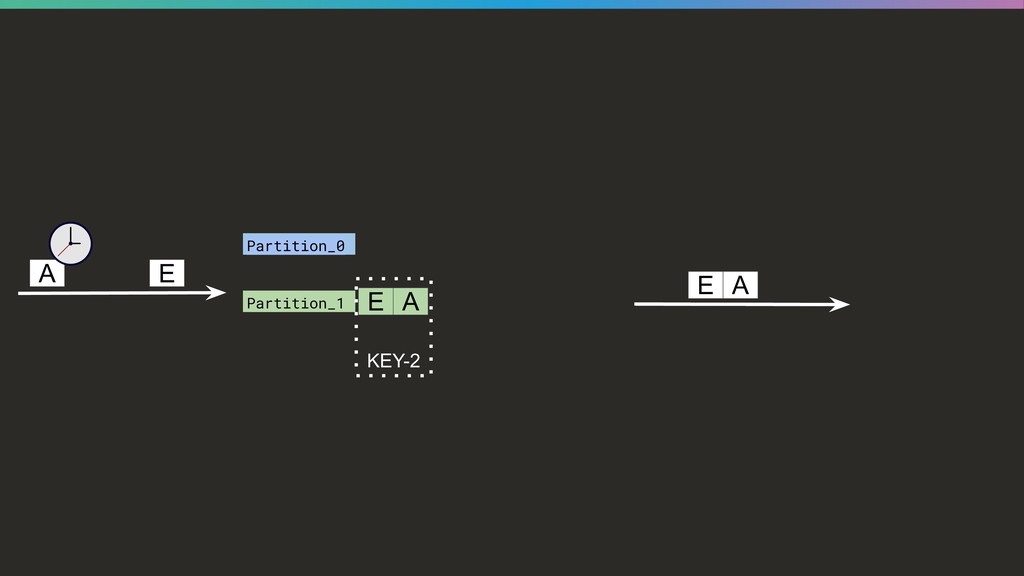

  60. A E Partition_0 Partition_1 E E A E E A

    Partition_0 Partition_1 A KEY-2

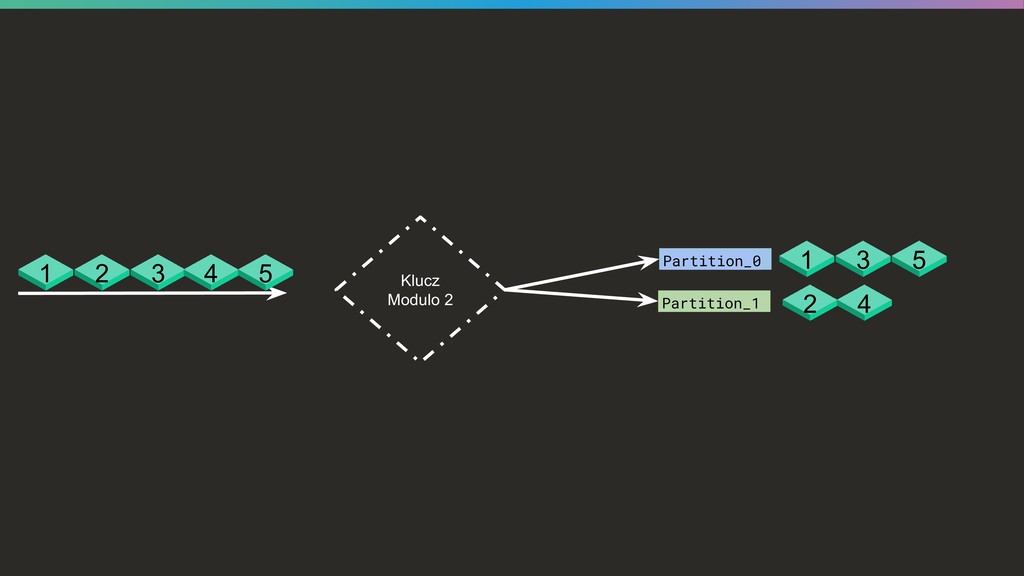

  61. Partition_0 Partition_1 Klucz Modulo 2 1 2 3 4 5

    1 3 5 2 4

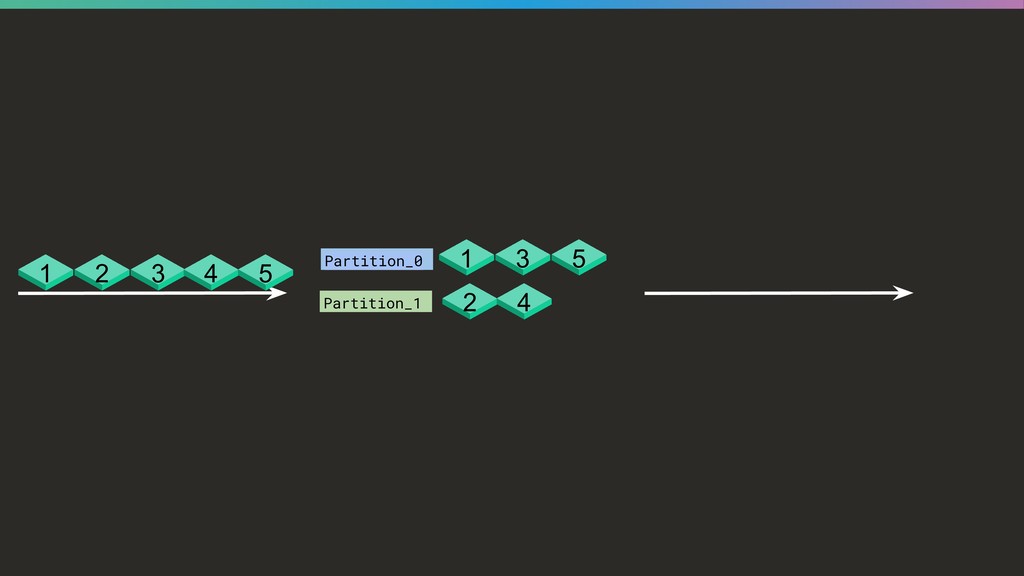

  62. Consumer Partition_0 Partition_1 1 3 5 2 4

  63. Consumer Partition_0 Partition_1 1 3 5 2 4 1 2

    3 4 5

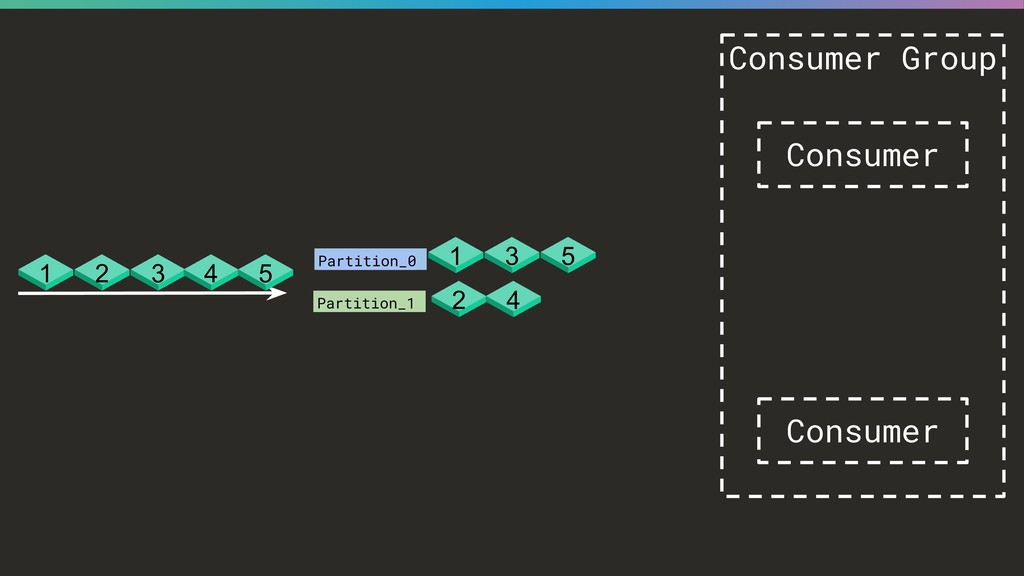

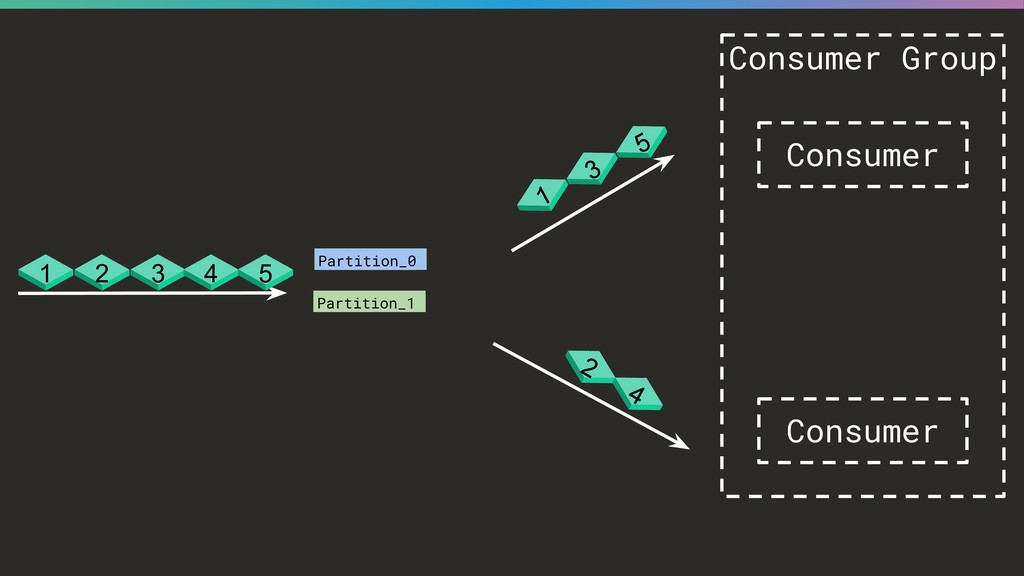

  64. Partition_0 Partition_1 Consumer Group Consumer Consumer 1 2 3 4

    5 1 3 5 2 4

  65. Partition_0 Partition_1 Consumer Group Consumer Consumer 1 2 3 4

    5 2 4 1 3 5
  66. None
  67. None

  68. #1 Problem - Architektura

  69. Po co Kafka Streams ?

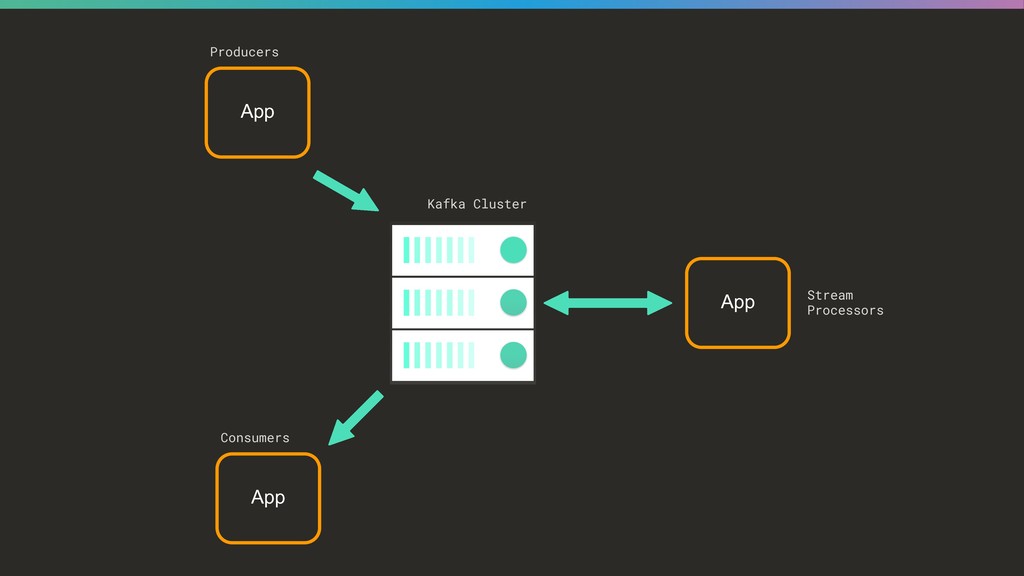

  70. App App App Consumers Producers Stream Processors Kafka Cluster

  71. •Stream processing

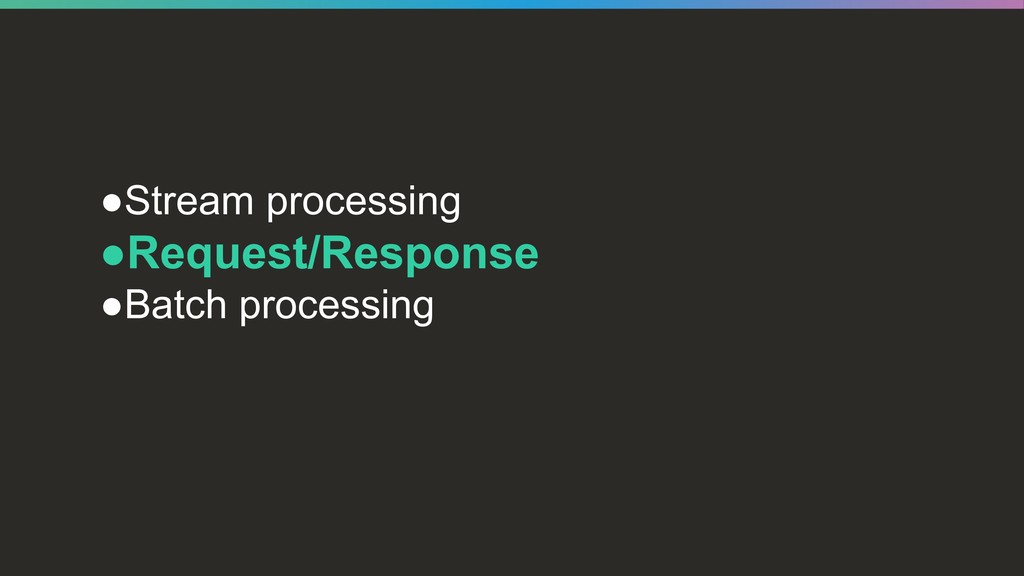

  72. •Stream processing •Request/Response •Batch processing

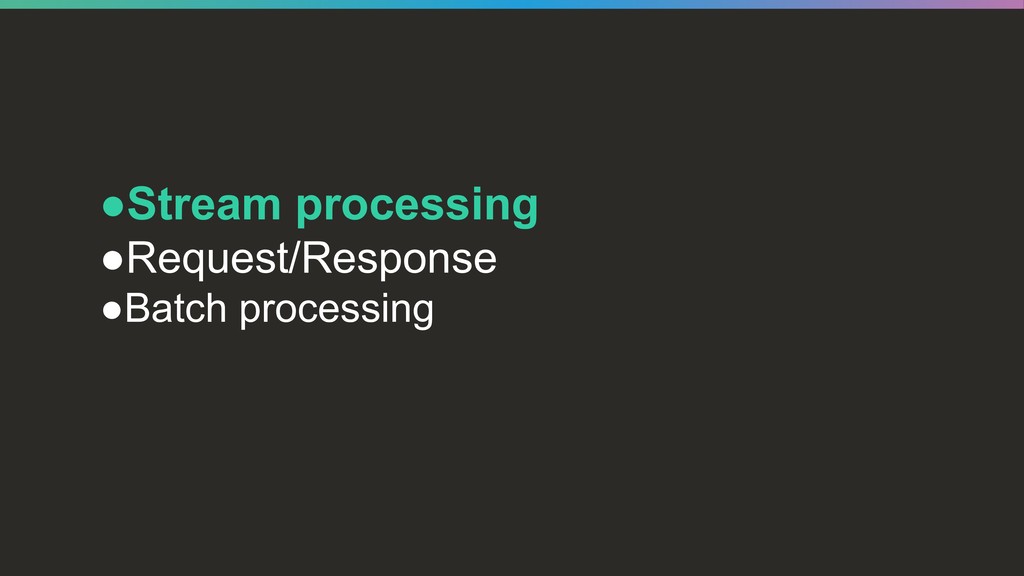

  73. •Stream processing •Request/Response •Batch processing

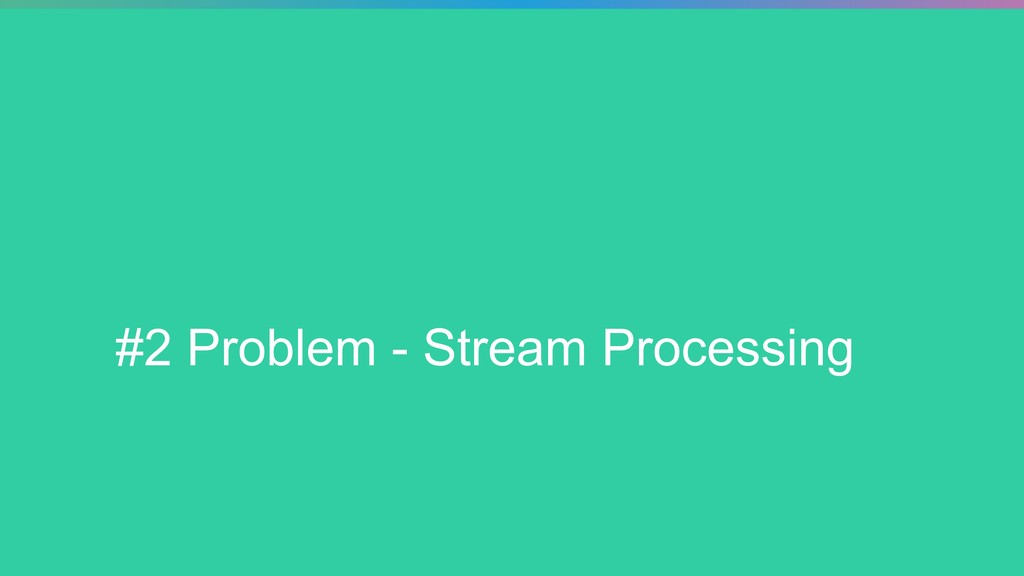

  74. •Stream processing •Request/Response •Batch processing

  75. •Stream processing •Request/Response •Batch processing

  76. #2 Problem - Stream Processing

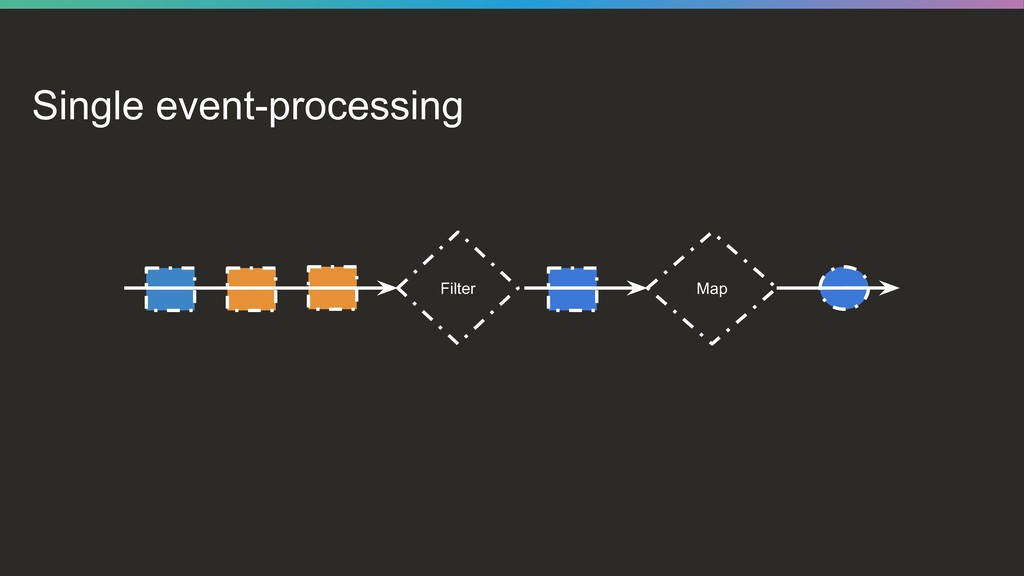

  77. Single event-processing

  78. Single event-processing Filter Map

  79. Single event-processing Nie przechowuje stanu

  80. Processing with local state

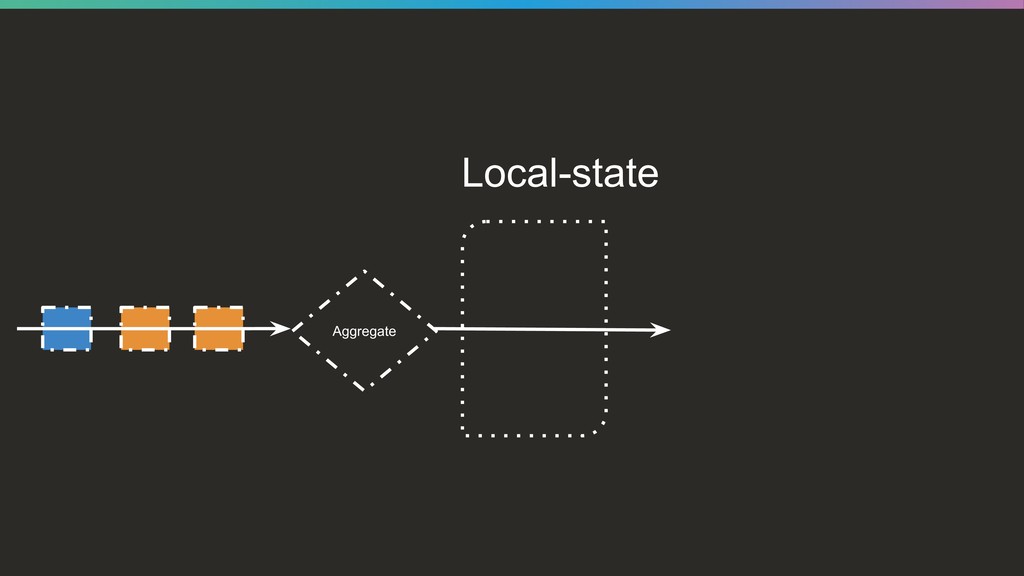

  81. Local-state Aggregate

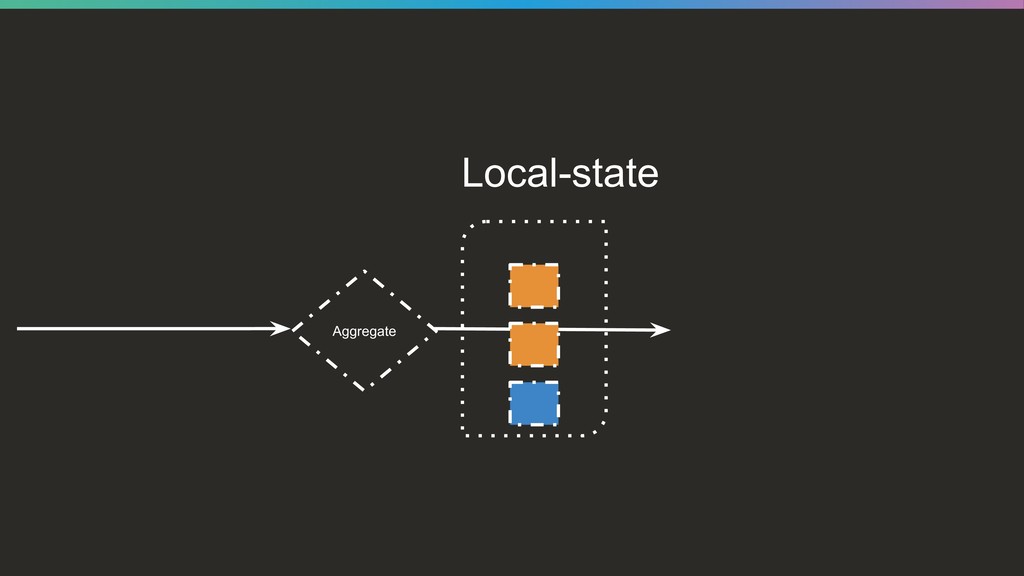

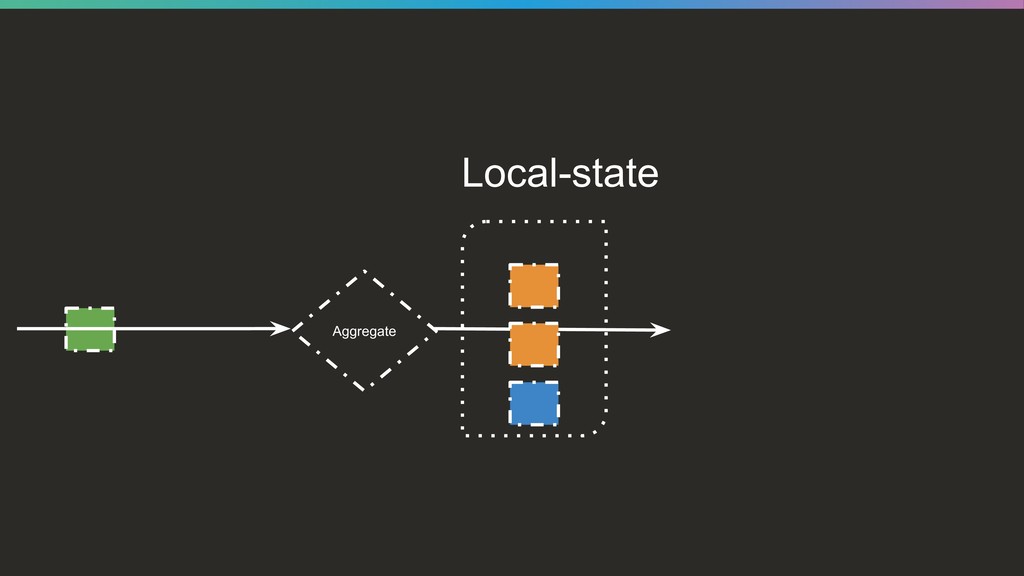

  82. Local-state Aggregate

  83. None

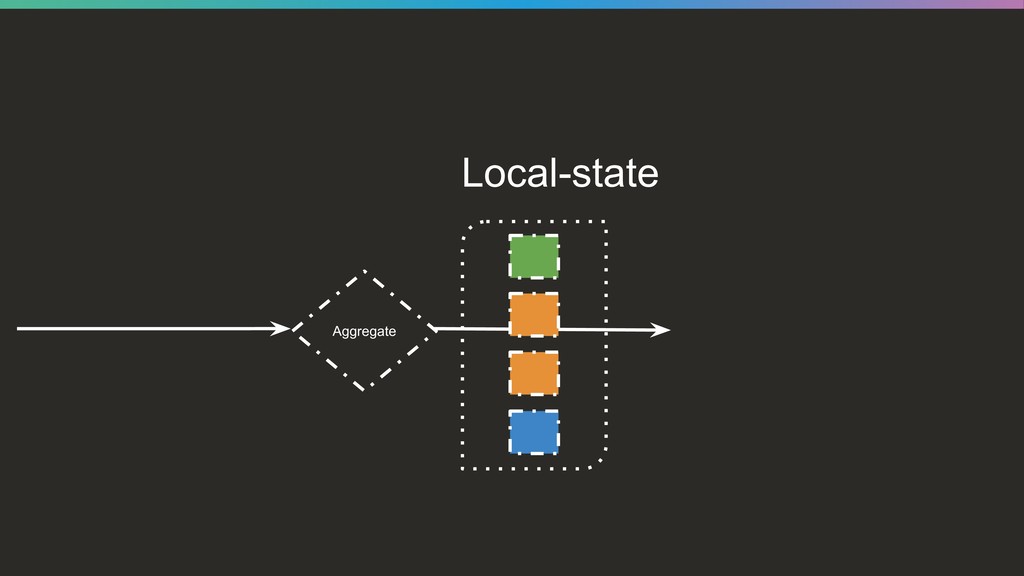

  84. Local-state Aggregate

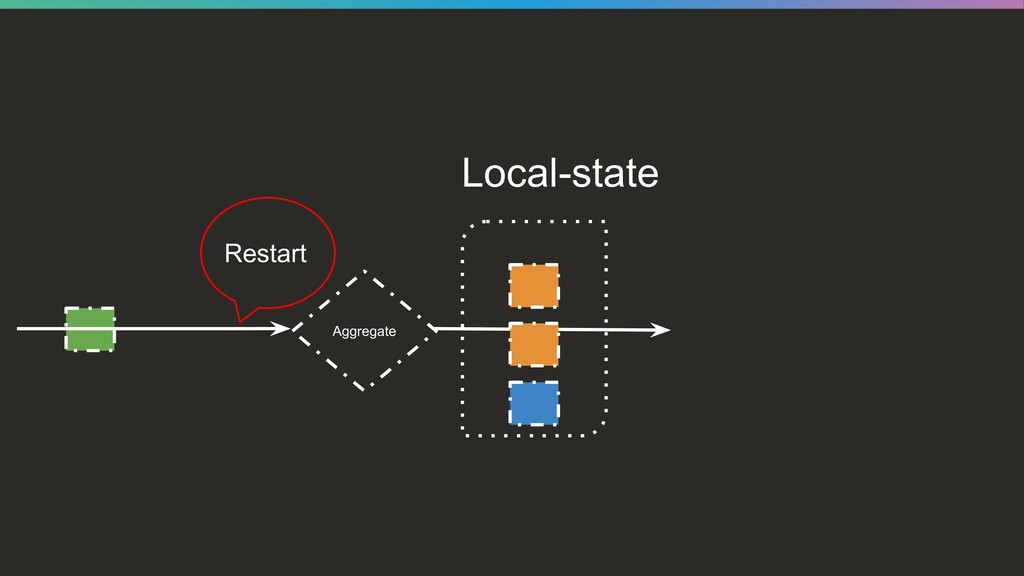

  85. Local-state Aggregate Restart

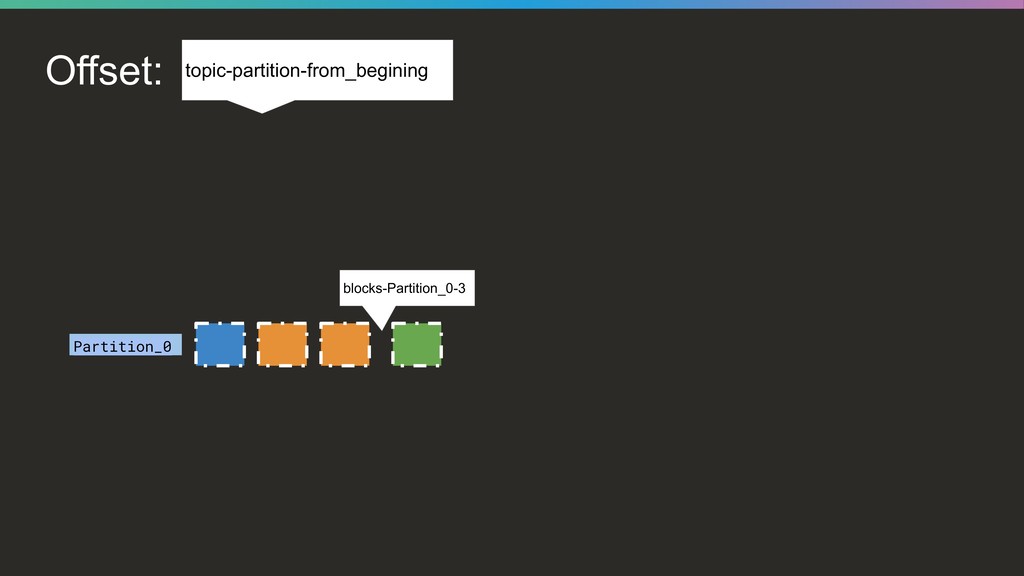

  86. topic-partition-from_begining Offset: blocks-Partition_0-3 Partition_0

  87. Local-state Aggregate

  88. None

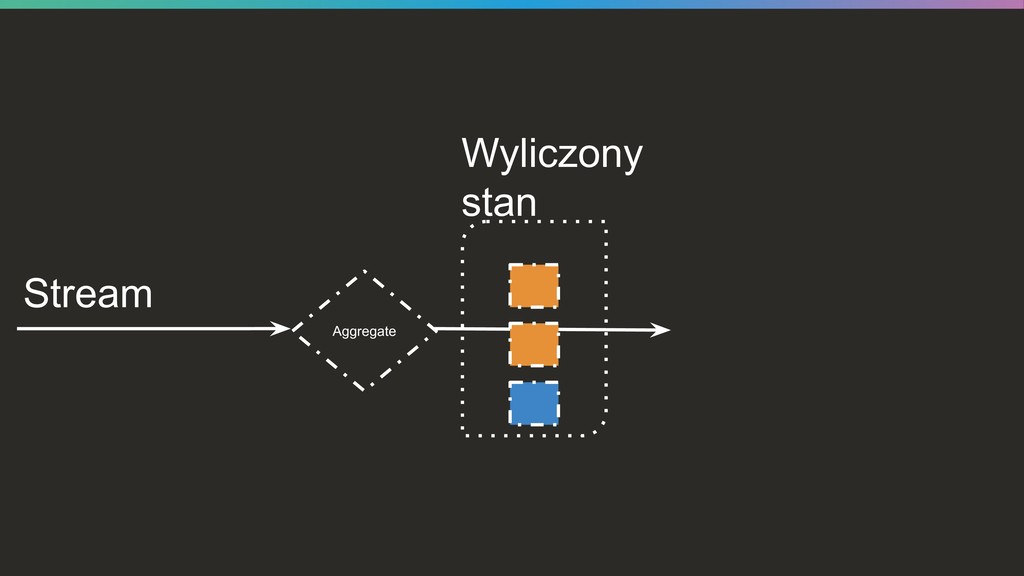

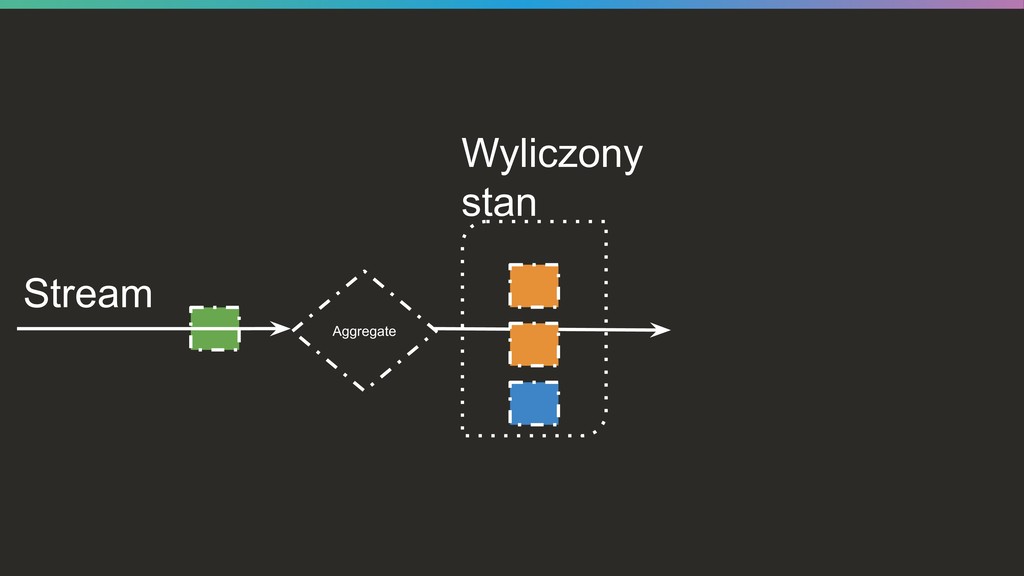

  89. Stream Wyliczony stan Aggregate

  90. Stream Wyliczony stan Aggregate

  91. Duality of Streams and Tables

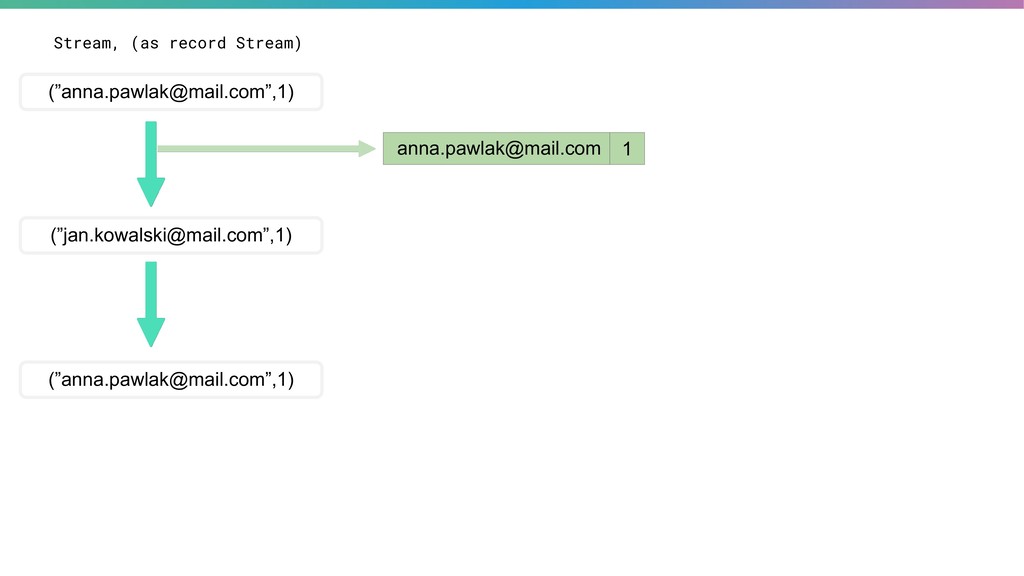

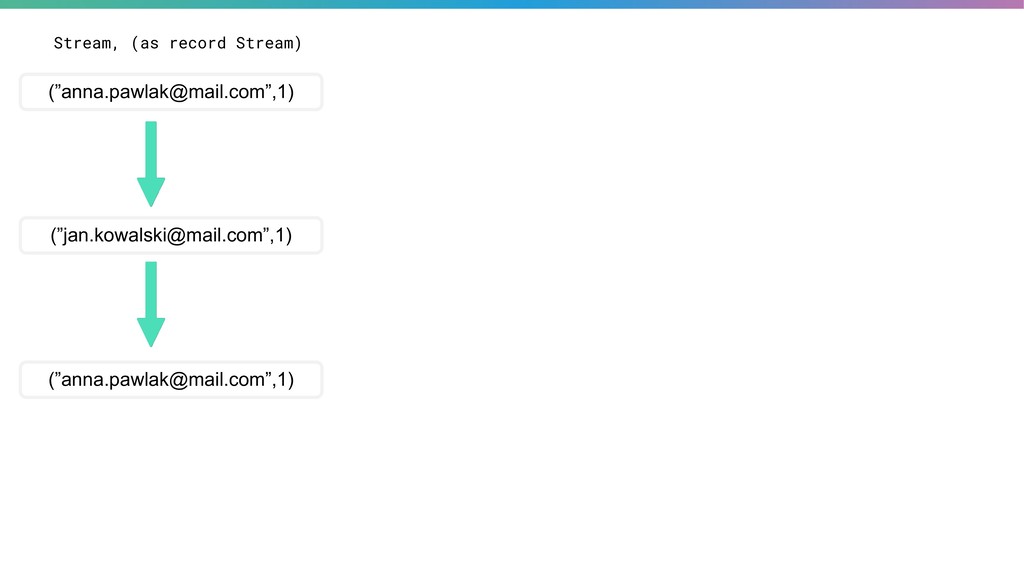

  92. Stream, (as record Stream) (”[email protected]”,1) (”[email protected]”,1) (”[email protected]”,1)

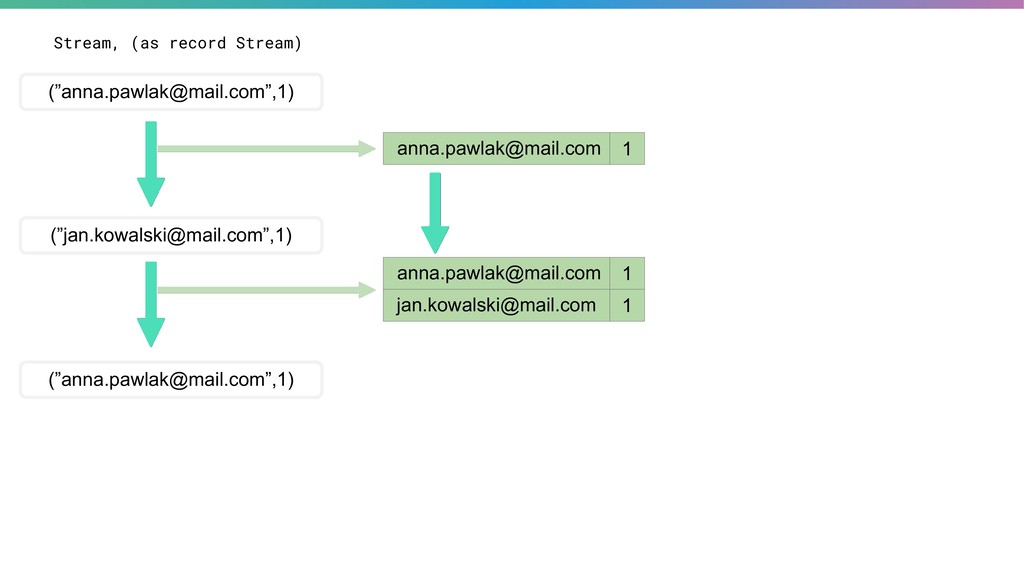

  93. Stream, (as record Stream) (”[email protected]”,1) (”[email protected]”,1) (”[email protected]”,1) [email protected] 1

  94. Stream, (as record Stream) (”[email protected]”,1) (”[email protected]”,1) (”[email protected]”,1) [email protected] 1 [email protected]

    1 [email protected] 1

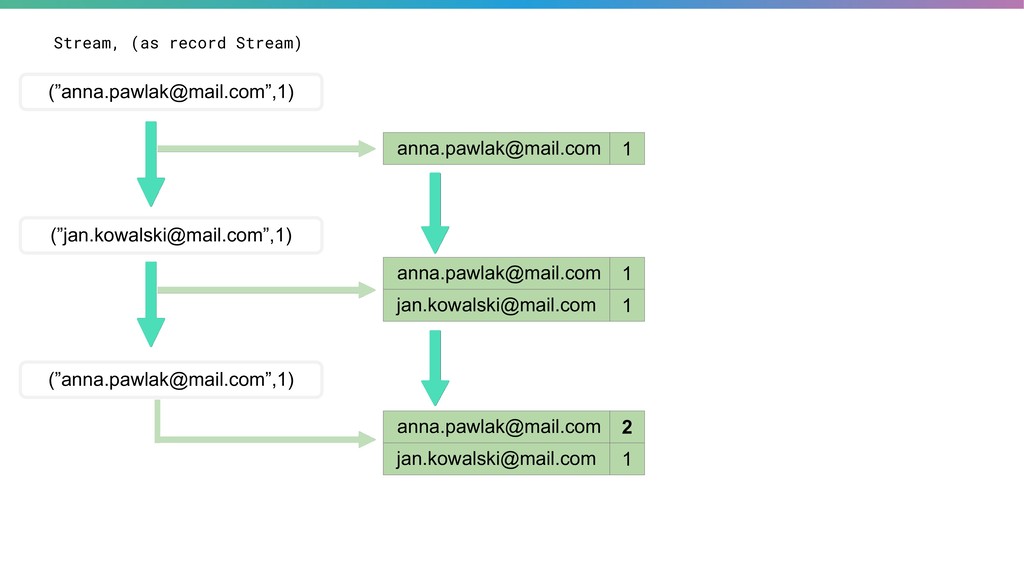

  95. Stream, (as record Stream) (”[email protected]”,1) (”[email protected]”,1) (”[email protected]”,1) [email protected] 1 [email protected]

    1 [email protected] 1 [email protected] 2 [email protected] 1

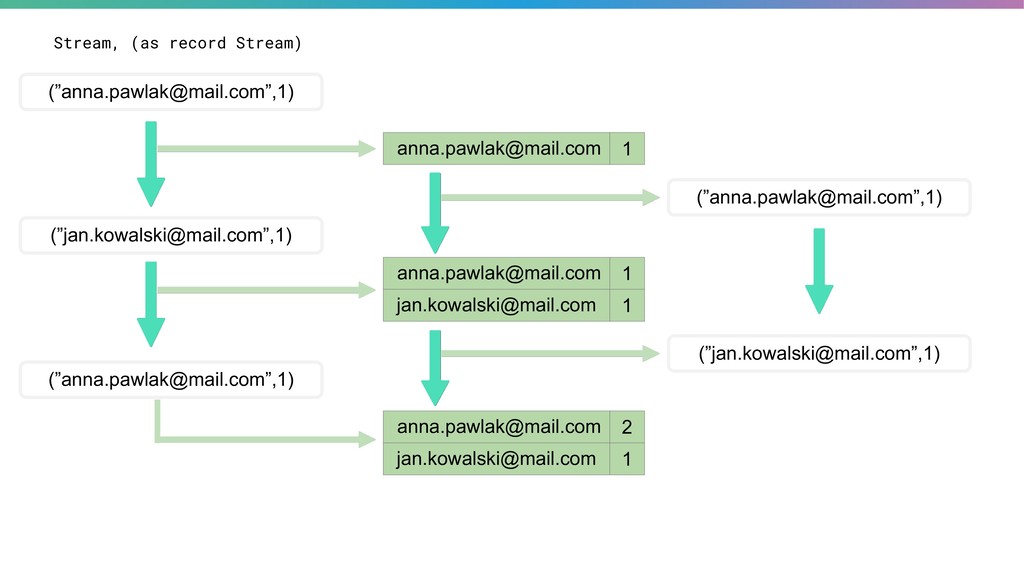

  96. Stream, (as record Stream) (”[email protected]”,1) (”[email protected]”,1) (”[email protected]”,1) [email protected] 1 (”[email protected]”,1)

    (”[email protected]”,1) [email protected] 1 [email protected] 1 [email protected] 2 [email protected] 1

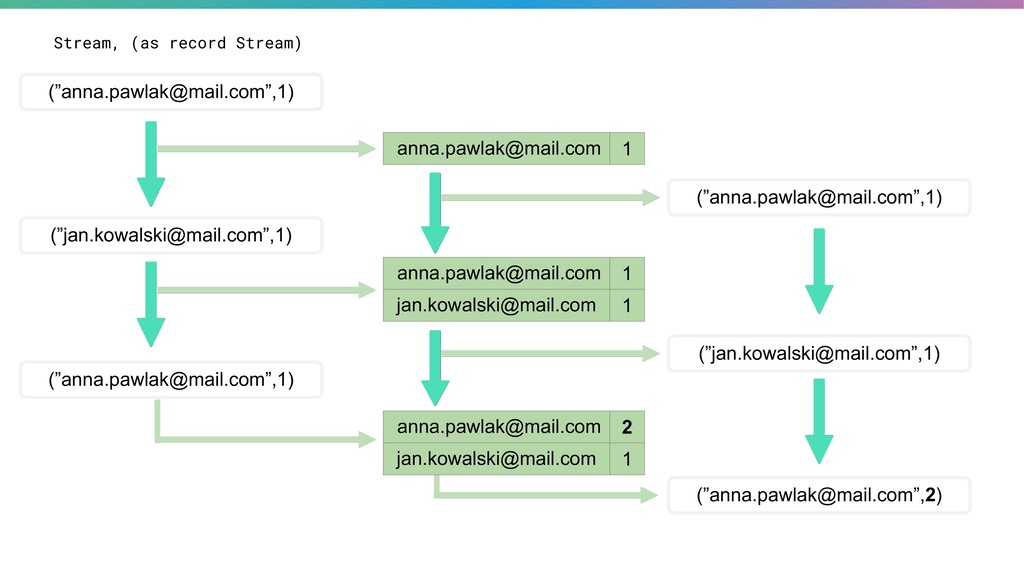

  97. Stream, (as record Stream) (”[email protected]”,1) (”[email protected]”,1) (”[email protected]”,1) [email protected] 1 (”[email protected]”,1)

    (”[email protected]”,2) (”[email protected]”,1) [email protected] 1 [email protected] 1 [email protected] 2 [email protected] 1

  98. Source code

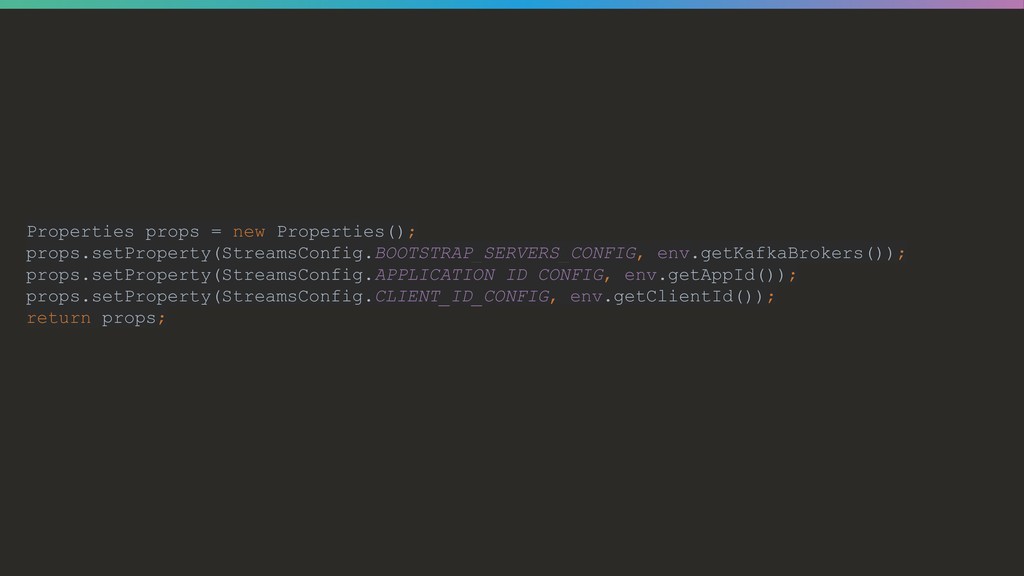

  99. Properties props = new Properties(); props.setProperty(StreamsConfig.BOOTSTRAP_SERVERS_CONFIG, env.getKafkaBrokers()); props.setProperty(StreamsConfig.APPLICATION_ID_CONFIG, env.getAppId()); props.setProperty(StreamsConfig.CLIENT_ID_CONFIG,

    env.getClientId()); return props;

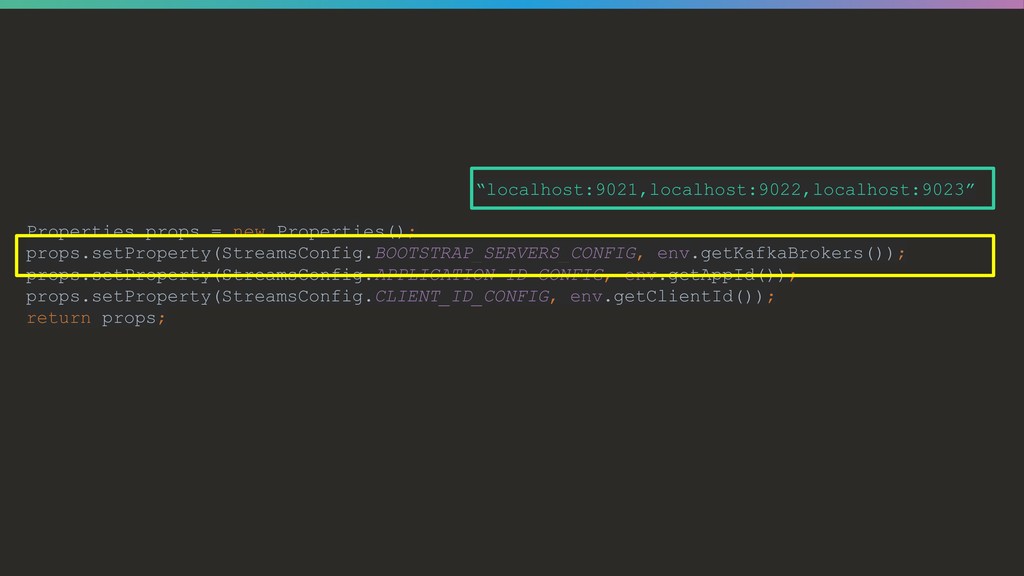

  100. Properties props = new Properties(); props.setProperty(StreamsConfig.BOOTSTRAP_SERVERS_CONFIG, env.getKafkaBrokers()); props.setProperty(StreamsConfig.APPLICATION_ID_CONFIG, env.getAppId()); props.setProperty(StreamsConfig.CLIENT_ID_CONFIG,

    env.getClientId()); return props; “localhost:9021,localhost:9022,localhost:9023”

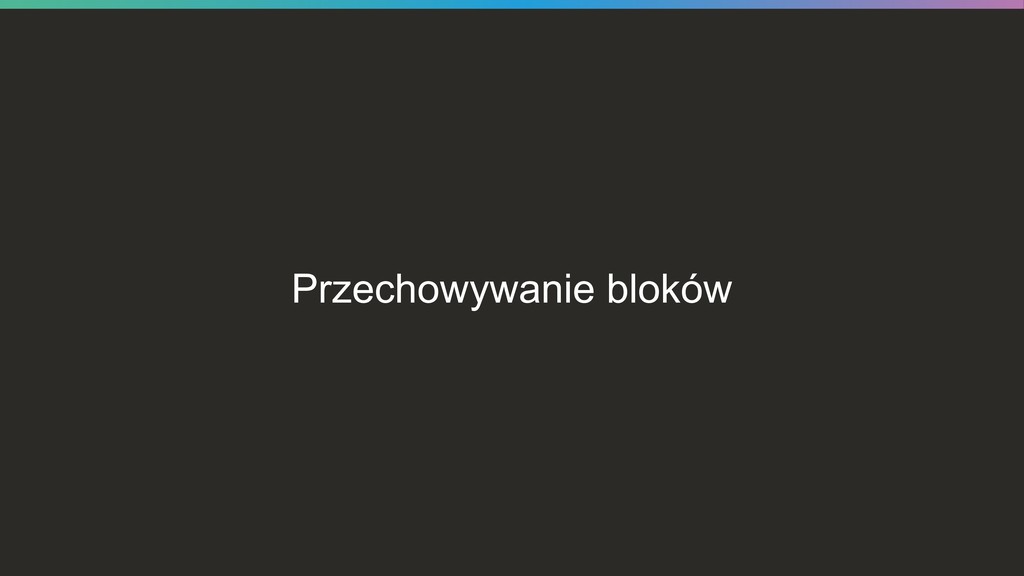

  101. Przechowywanie bloków

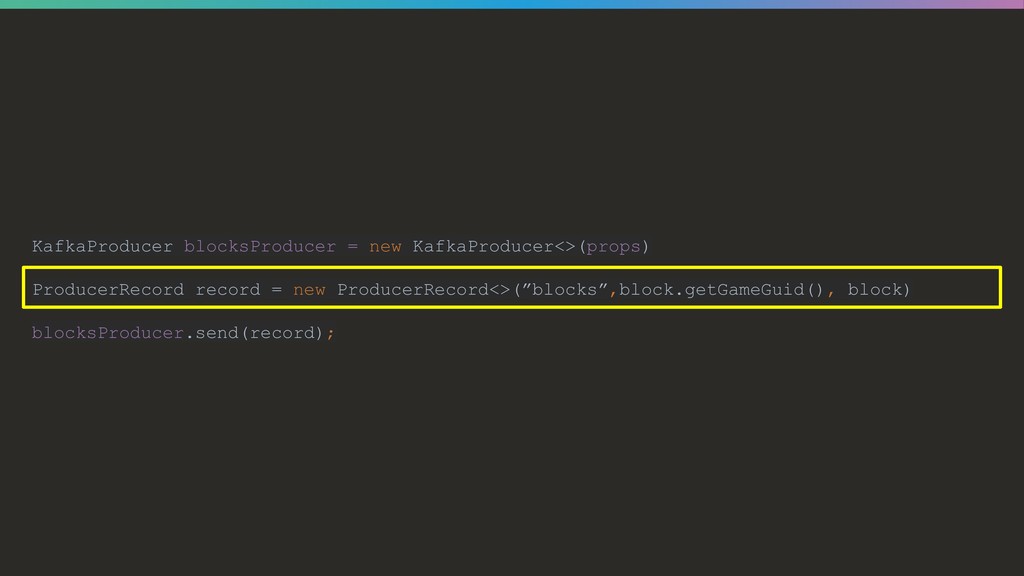

  102. KafkaProducer blocksProducer = new KafkaProducer<>(props) ProducerRecord record = new ProducerRecord<>(”blocks”,block.getGameGuid(),

    block) blocksProducer.send(record);

  103. KafkaProducer blocksProducer = new KafkaProducer<>(props) ProducerRecord record = new ProducerRecord<>(”blocks”,block.getGameGuid(),

    block) blocksProducer.send(record);

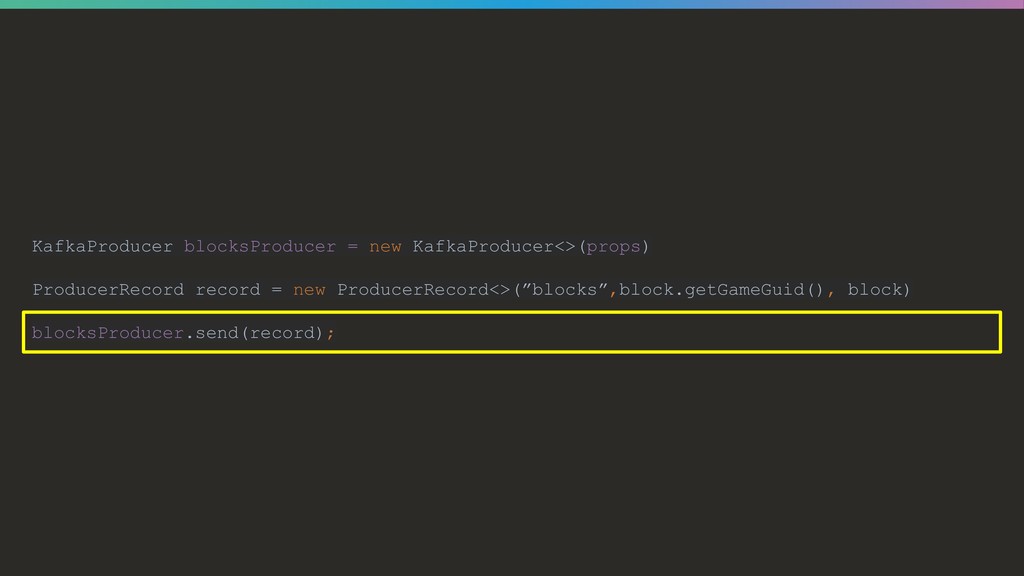

  104. KafkaProducer blocksProducer = new KafkaProducer<>(props) ProducerRecord record = new ProducerRecord<>(”blocks”,block.getGameGuid(),

    block) blocksProducer.send(record);

  105. Topologia: przetwarzanie bloków

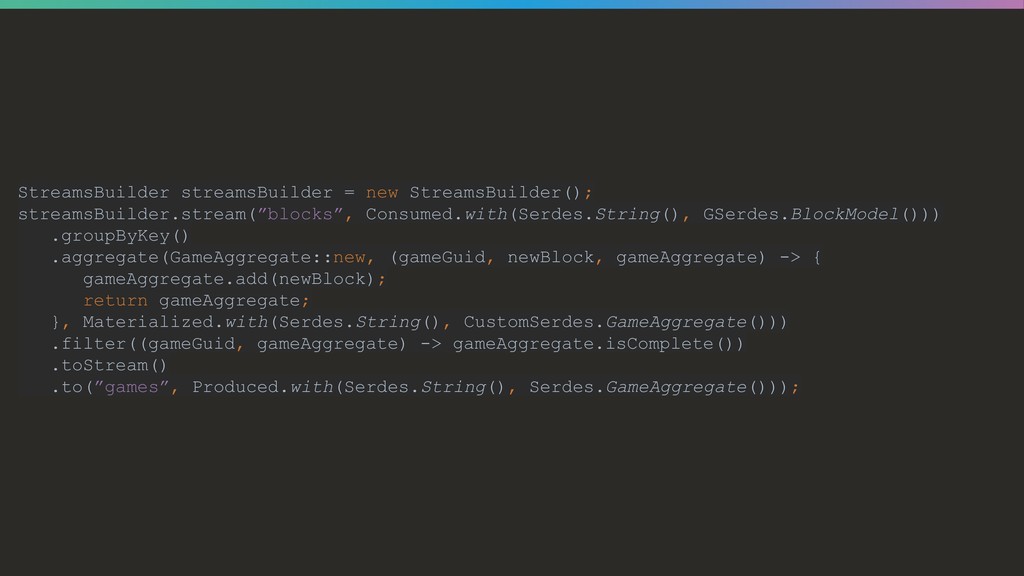

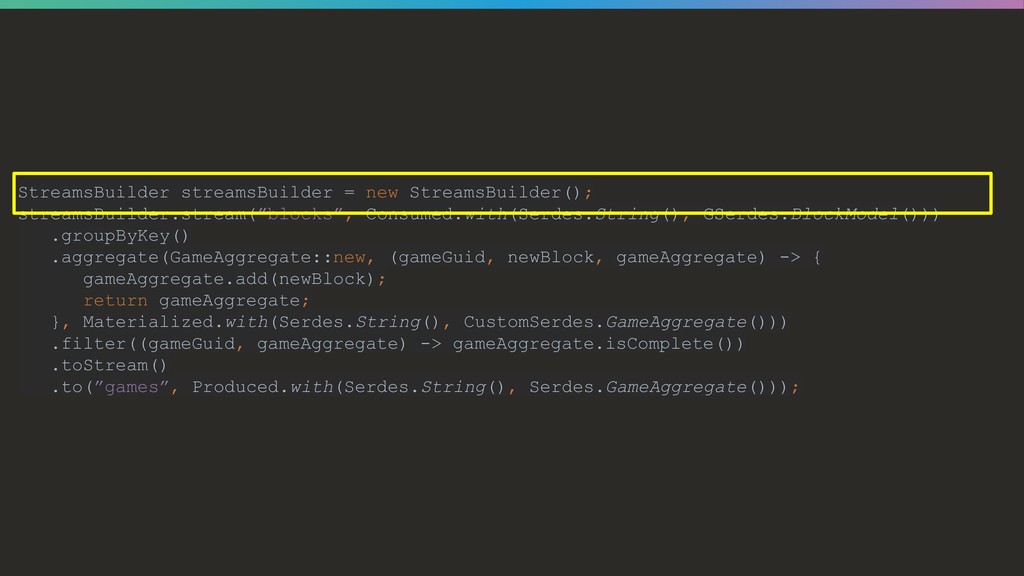

  106. StreamsBuilder streamsBuilder = new StreamsBuilder(); streamsBuilder.stream(”blocks”, Consumed.with(Serdes.String(), GSerdes.BlockModel())) .groupByKey() .aggregate(GameAggregate::new,

    (gameGuid, newBlock, gameAggregate) -> { gameAggregate.add(newBlock); return gameAggregate; }, Materialized.with(Serdes.String(), CustomSerdes.GameAggregate())) .filter((gameGuid, gameAggregate) -> gameAggregate.isComplete()) .toStream() .to(”games”, Produced.with(Serdes.String(), Serdes.GameAggregate()));

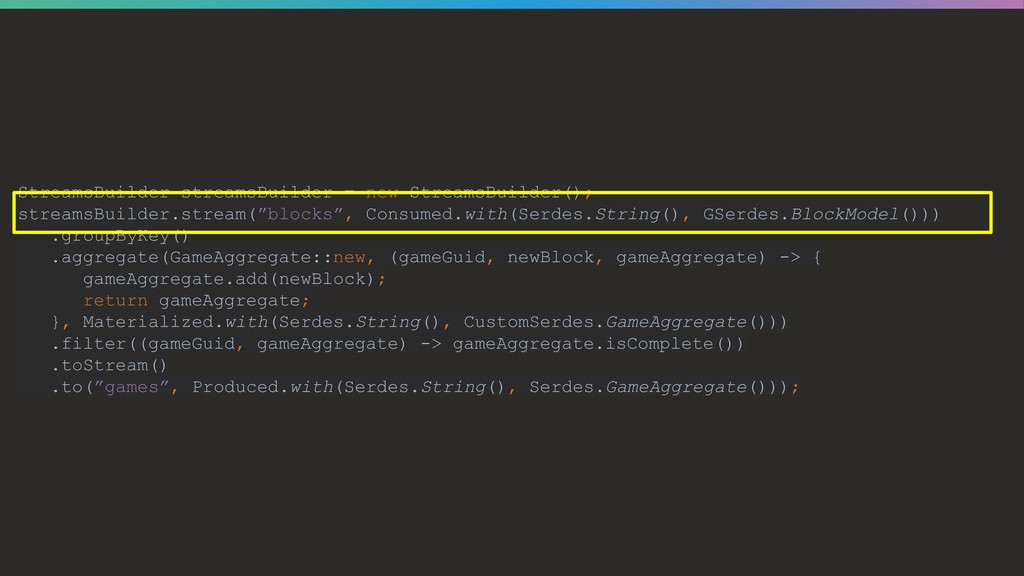

  107. StreamsBuilder streamsBuilder = new StreamsBuilder(); streamsBuilder.stream(”blocks”, Consumed.with(Serdes.String(), GSerdes.BlockModel())) .groupByKey() .aggregate(GameAggregate::new,

    (gameGuid, newBlock, gameAggregate) -> { gameAggregate.add(newBlock); return gameAggregate; }, Materialized.with(Serdes.String(), CustomSerdes.GameAggregate())) .filter((gameGuid, gameAggregate) -> gameAggregate.isComplete()) .toStream() .to(”games”, Produced.with(Serdes.String(), Serdes.GameAggregate()));

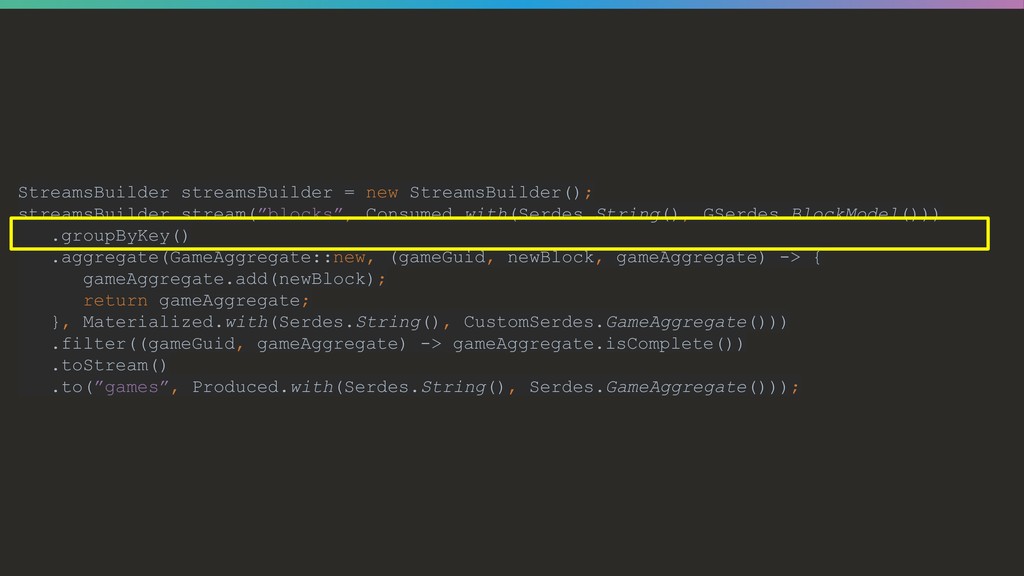

  108. StreamsBuilder streamsBuilder = new StreamsBuilder(); streamsBuilder.stream(”blocks”, Consumed.with(Serdes.String(), GSerdes.BlockModel())) .groupByKey() .aggregate(GameAggregate::new,

    (gameGuid, newBlock, gameAggregate) -> { gameAggregate.add(newBlock); return gameAggregate; }, Materialized.with(Serdes.String(), CustomSerdes.GameAggregate())) .filter((gameGuid, gameAggregate) -> gameAggregate.isComplete()) .toStream() .to(”games”, Produced.with(Serdes.String(), Serdes.GameAggregate()));

  109. StreamsBuilder streamsBuilder = new StreamsBuilder(); streamsBuilder.stream(”blocks”, Consumed.with(Serdes.String(), GSerdes.BlockModel())) .groupByKey() .aggregate(GameAggregate::new,

    (gameGuid, newBlock, gameAggregate) -> { gameAggregate.add(newBlock); return gameAggregate; }, Materialized.with(Serdes.String(), CustomSerdes.GameAggregate())) .filter((gameGuid, gameAggregate) -> gameAggregate.isComplete()) .toStream() .to(”games”, Produced.with(Serdes.String(), Serdes.GameAggregate()));

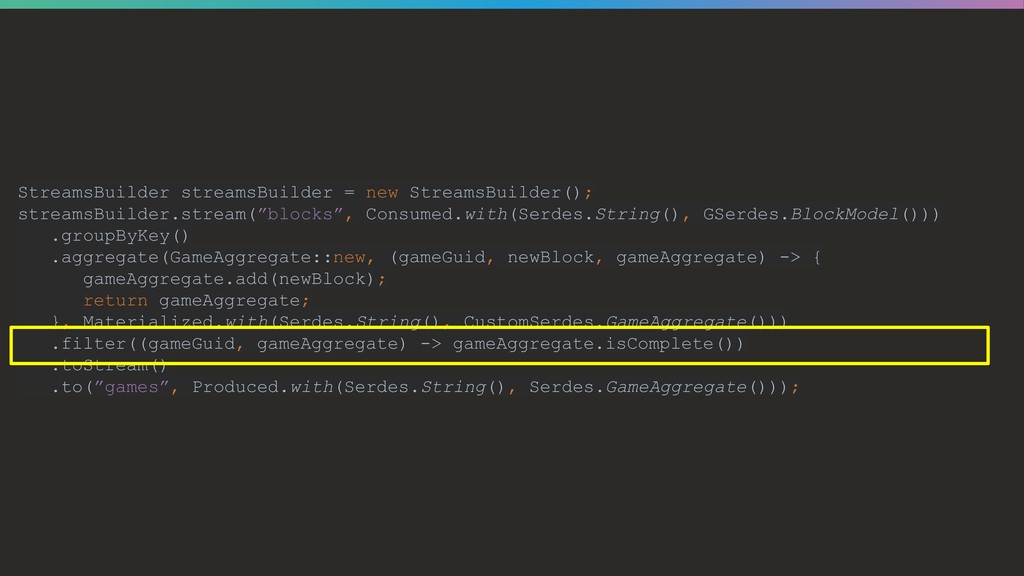

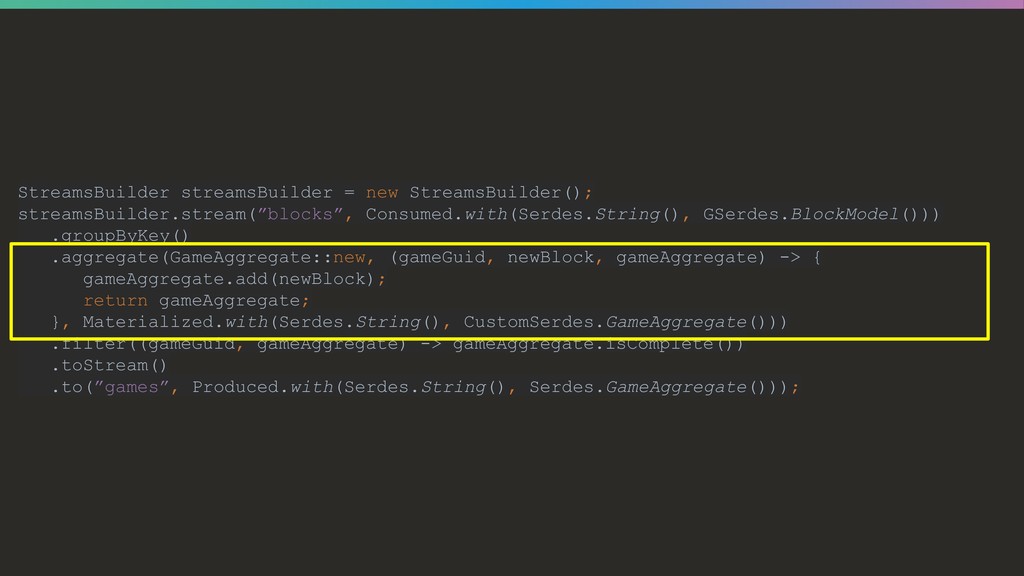

  110. StreamsBuilder streamsBuilder = new StreamsBuilder(); streamsBuilder.stream(”blocks”, Consumed.with(Serdes.String(), GSerdes.BlockModel())) .groupByKey() .aggregate(GameAggregate::new,

    (gameGuid, newBlock, gameAggregate) -> { gameAggregate.add(newBlock); return gameAggregate; }, Materialized.with(Serdes.String(), CustomSerdes.GameAggregate())) .filter((gameGuid, gameAggregate) -> gameAggregate.isComplete()) .toStream() .to(”games”, Produced.with(Serdes.String(), Serdes.GameAggregate()));

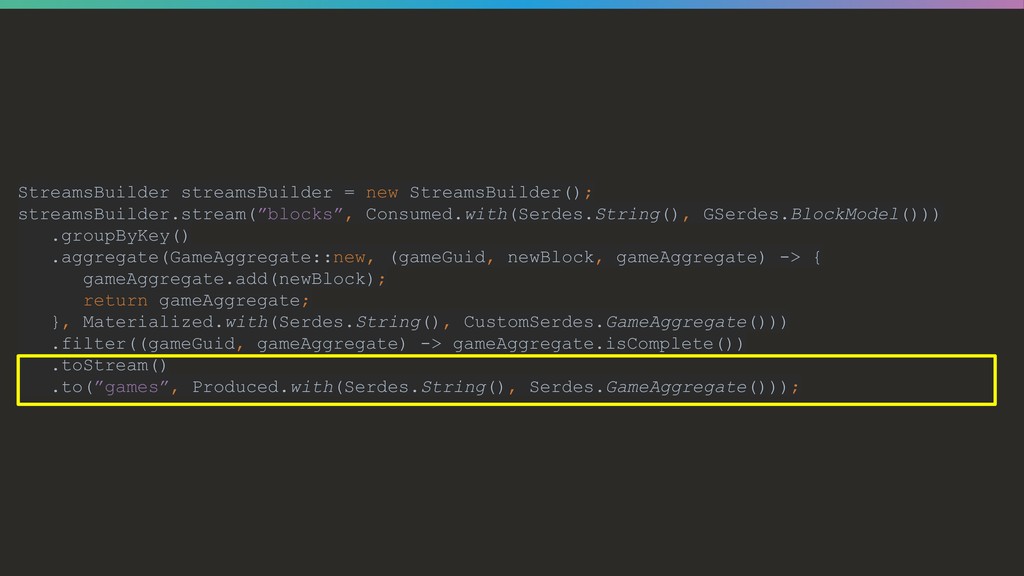

  111. StreamsBuilder streamsBuilder = new StreamsBuilder(); streamsBuilder.stream(”blocks”, Consumed.with(Serdes.String(), GSerdes.BlockModel())) .groupByKey() .aggregate(GameAggregate::new,

    (gameGuid, newBlock, gameAggregate) -> { gameAggregate.add(newBlock); return gameAggregate; }, Materialized.with(Serdes.String(), CustomSerdes.GameAggregate())) .filter((gameGuid, gameAggregate) -> gameAggregate.isComplete()) .toStream() .to(”games”, Produced.with(Serdes.String(), Serdes.GameAggregate()));

  112. StreamsBuilder streamsBuilder = new StreamsBuilder(); streamsBuilder.stream(”blocks”, Consumed.with(Serdes.String(), GSerdes.BlockModel())) .groupByKey() .aggregate(GameAggregate::new,

    (gameGuid, newBlock, gameAggregate) -> { gameAggregate.add(newBlock); return gameAggregate; }, Materialized.with(Serdes.String(), CustomSerdes.GameAggregate())) .filter((gameGuid, gameAggregate) -> gameAggregate.isComplete()) .toStream() .to(”games”, Produced.with(Serdes.String(), Serdes.GameAggregate()));

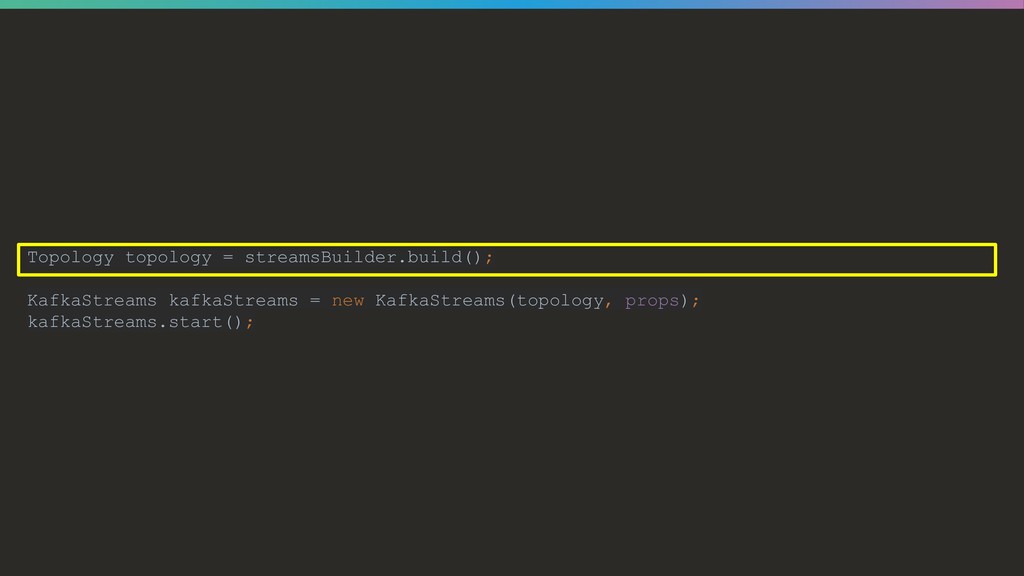

  113. Topology topology = streamsBuilder.build(); KafkaStreams kafkaStreams = new KafkaStreams(topology, props);

    kafkaStreams.start();

  114. Topology topology = streamsBuilder.build(); KafkaStreams kafkaStreams = new KafkaStreams(topology, props);

    kafkaStreams.start();

  115. Topologia: przetwarzanie gry

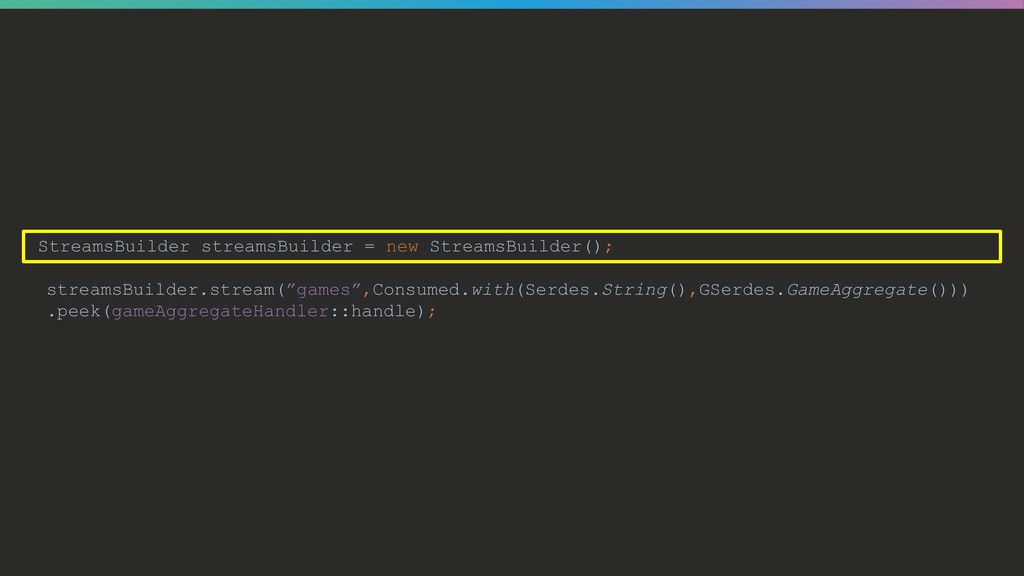

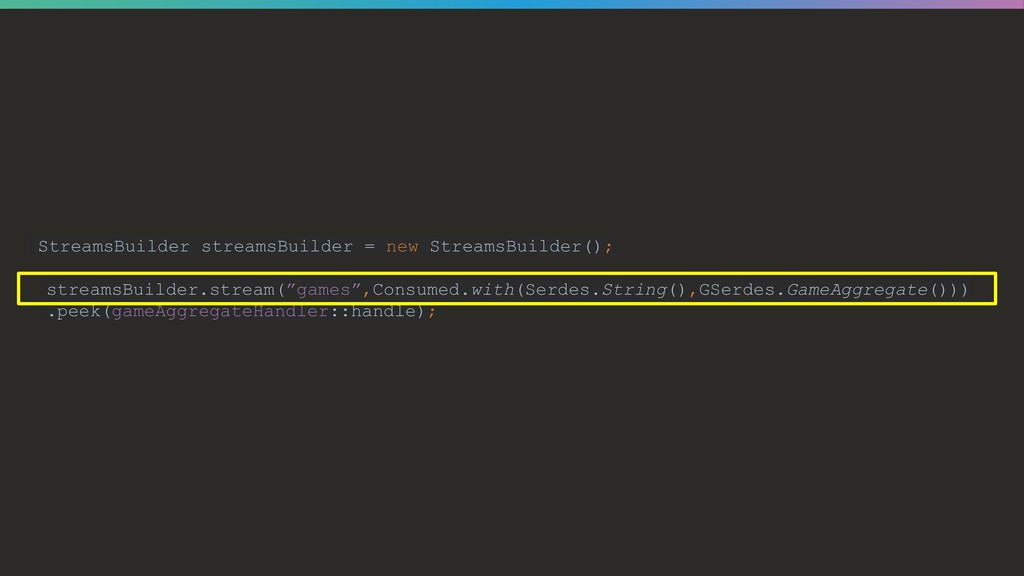

  116. StreamsBuilder streamsBuilder = new StreamsBuilder(); streamsBuilder.stream(”games”,Consumed.with(Serdes.String(),GSerdes.GameAggregate())) .peek(gameAggregateHandler::handle);

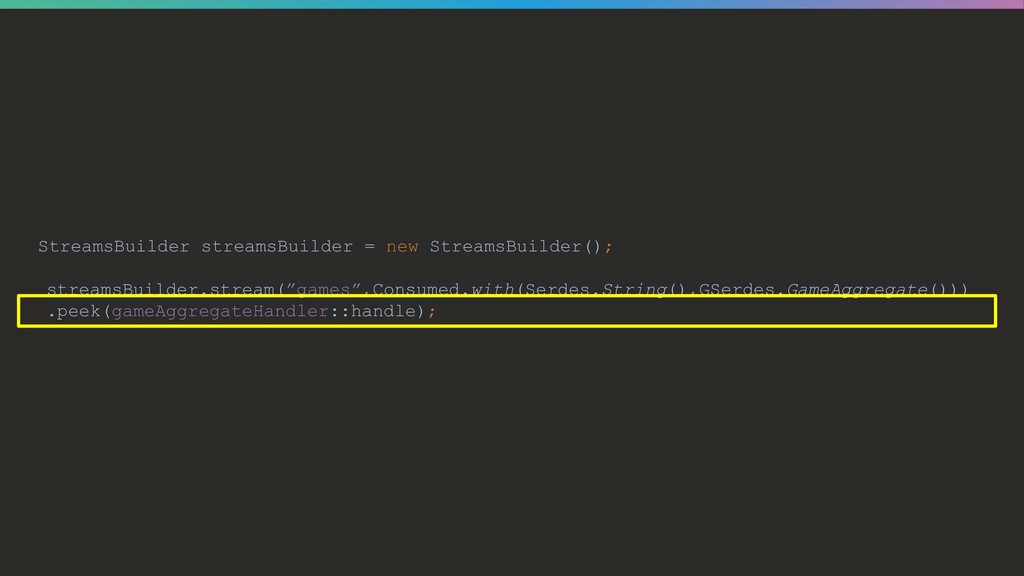

  117. StreamsBuilder streamsBuilder = new StreamsBuilder(); streamsBuilder.stream(”games”,Consumed.with(Serdes.String(),GSerdes.GameAggregate())) .peek(gameAggregateHandler::handle);

  118. StreamsBuilder streamsBuilder = new StreamsBuilder(); streamsBuilder.stream(”games”,Consumed.with(Serdes.String(),GSerdes.GameAggregate())) .peek(gameAggregateHandler::handle);

  119. Topology topology = streamsBuilder.build(); KafkaStreams kafkaStreams = new KafkaStreams(topology, props);

    kafkaStreams.start();

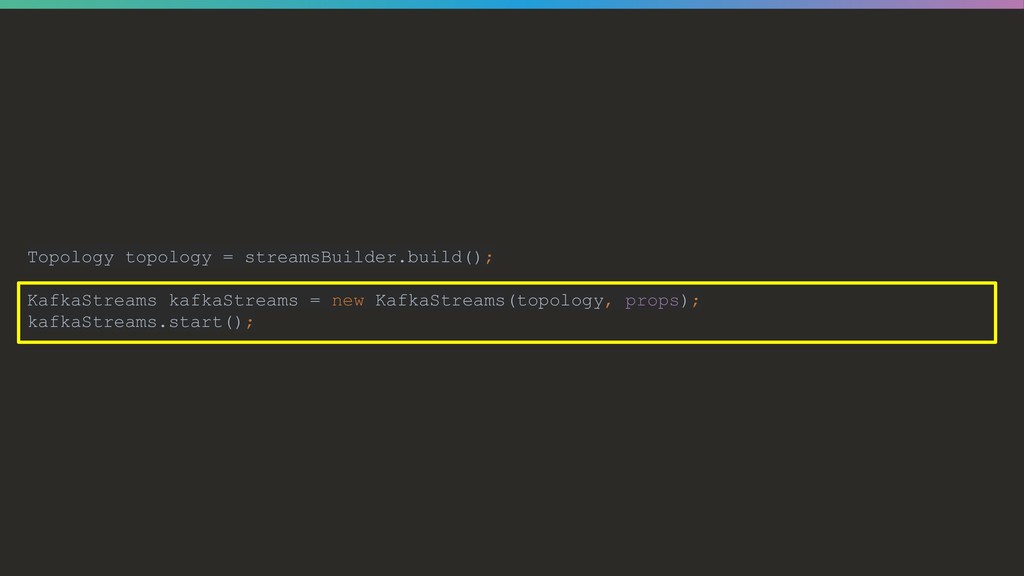

  120. Topology topology = streamsBuilder.build(); KafkaStreams kafkaStreams = new KafkaStreams(topology, props);

    kafkaStreams.start();
  121. None

  122. #2 Problem - Stream Processing

  123. System reaktywny

  124. None
  125. None
  126. None
  127. None

  128. Kafka Stream s

  129. #3 Problem - nadmiar danych

  130. Kafka Stream s

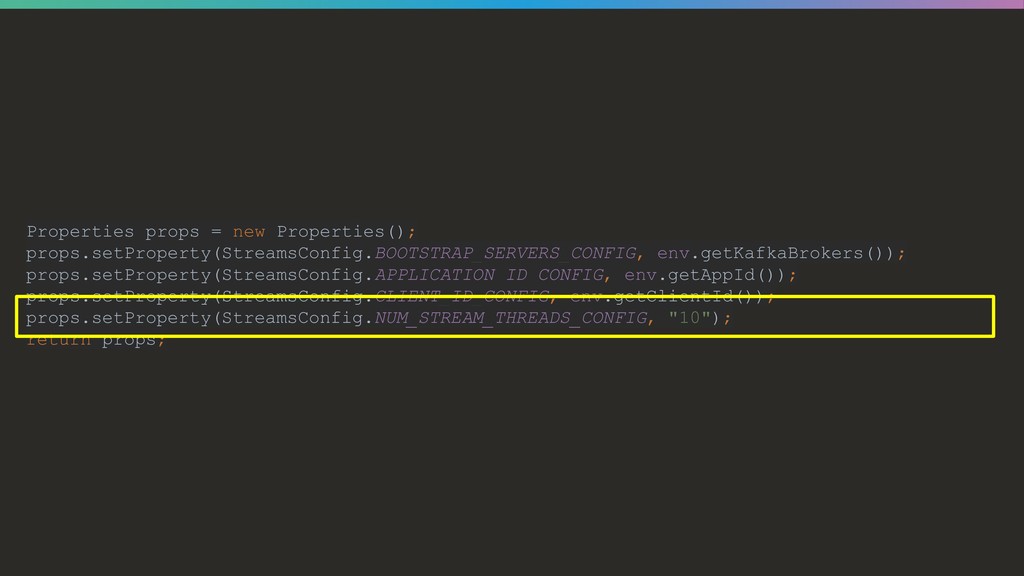

  131. Properties props = new Properties(); props.setProperty(StreamsConfig.BOOTSTRAP_SERVERS_CONFIG, env.getKafkaBrokers()); props.setProperty(StreamsConfig.APPLICATION_ID_CONFIG, env.getAppId()); props.setProperty(StreamsConfig.CLIENT_ID_CONFIG,

    env.getClientId()); props.setProperty(StreamsConfig.NUM_STREAM_THREADS_CONFIG, "10"); return props;

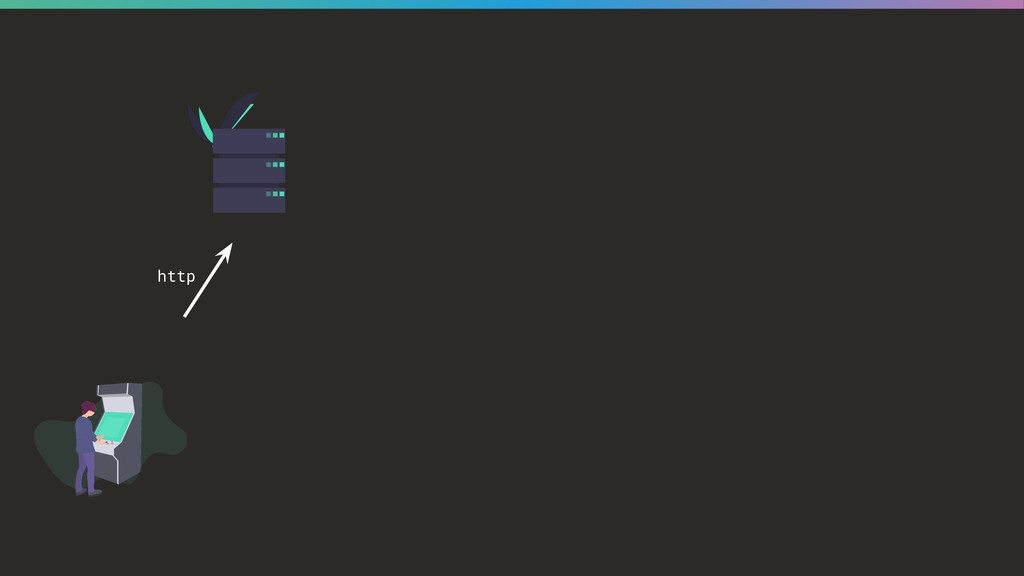

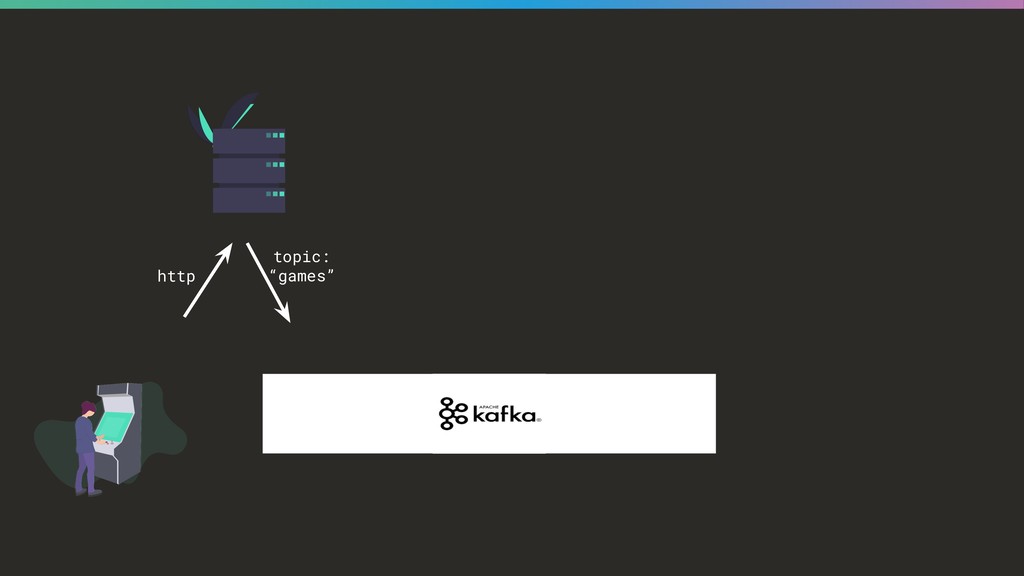

  132. http

  133. http topic: “games”

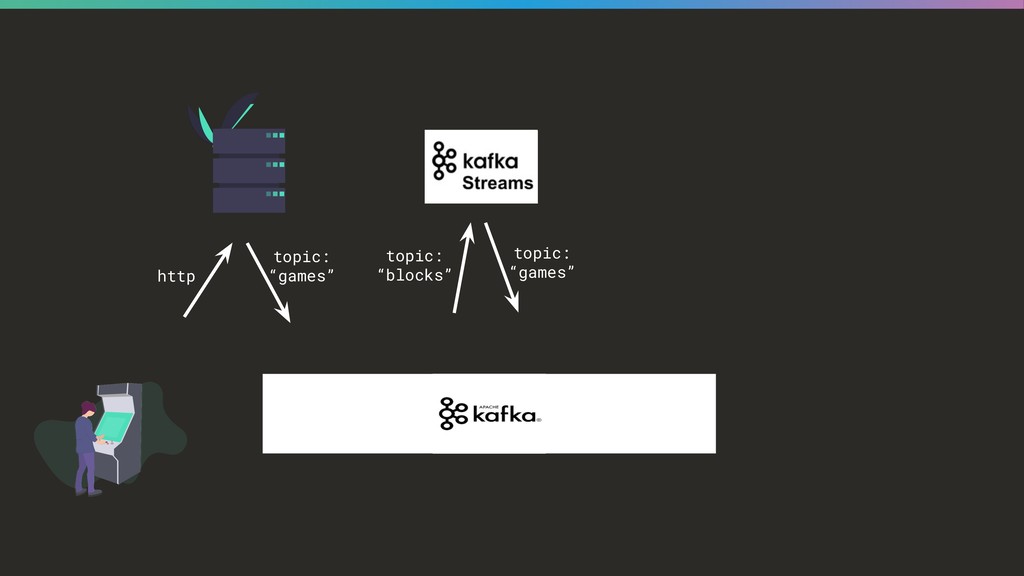

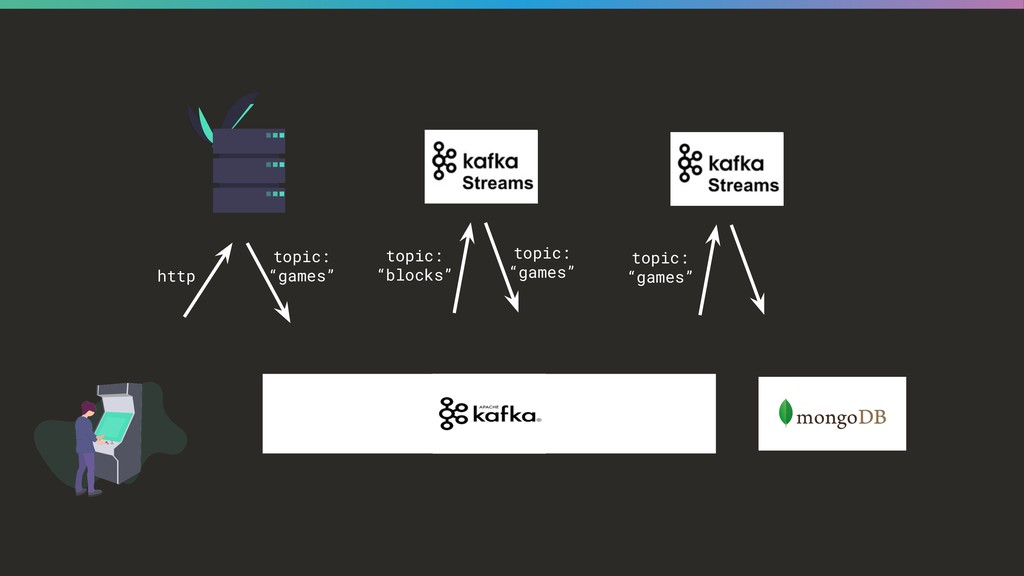

  134. topic: “blocks” topic: “games” http topic: “games”

  135. topic: “blocks” topic: “games” http topic: “games” topic: “games”

  136. Testy

  137. •API Blokujące - wątek zapytania

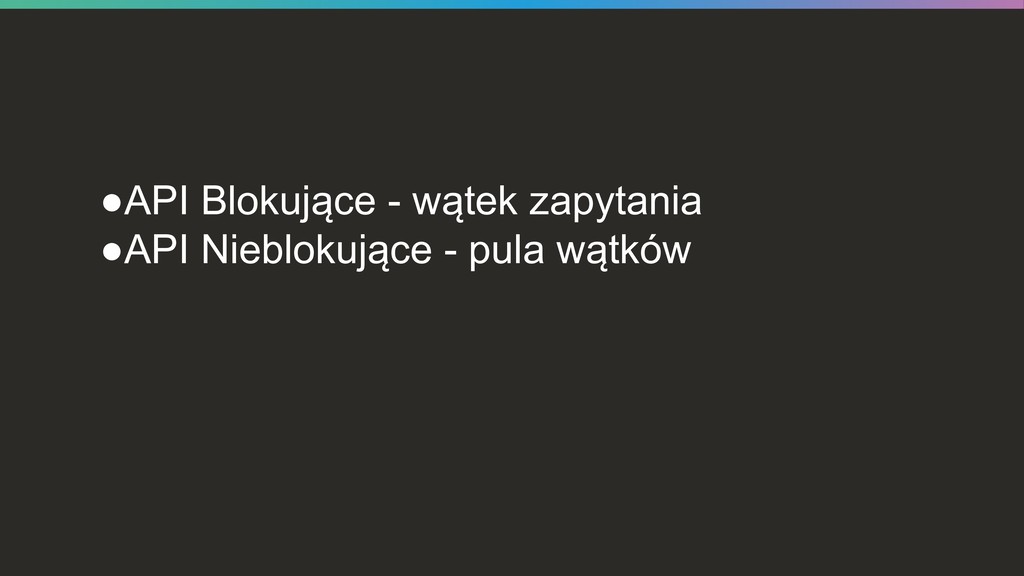

  138. •API Blokujące - wątek zapytania •API Nieblokujące - pula wątków

  139. •API Blokujące - wątek zapytania •API Nieblokujące - pula wątków

    •Kafka Streams

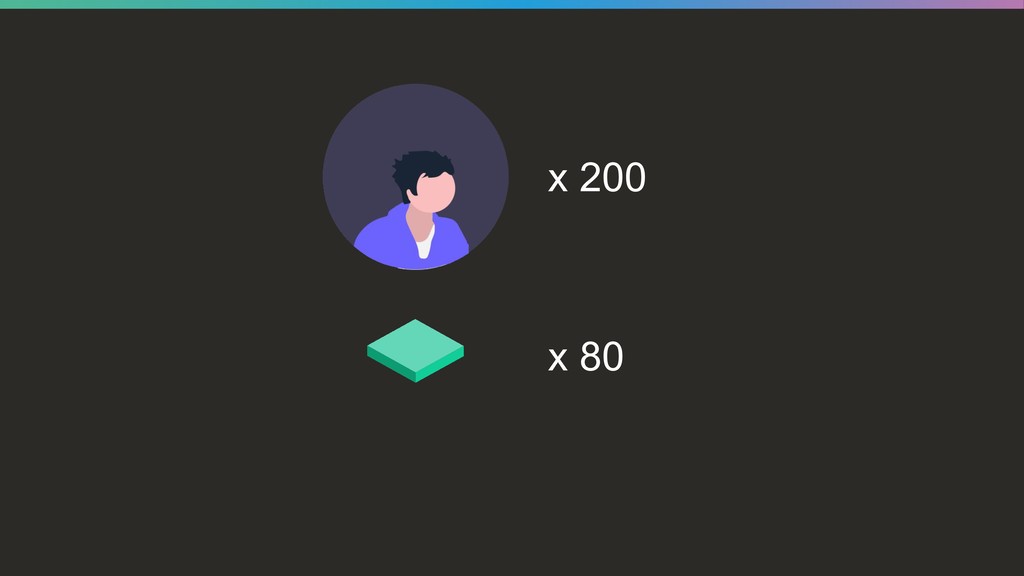

  140. x 200 x 80

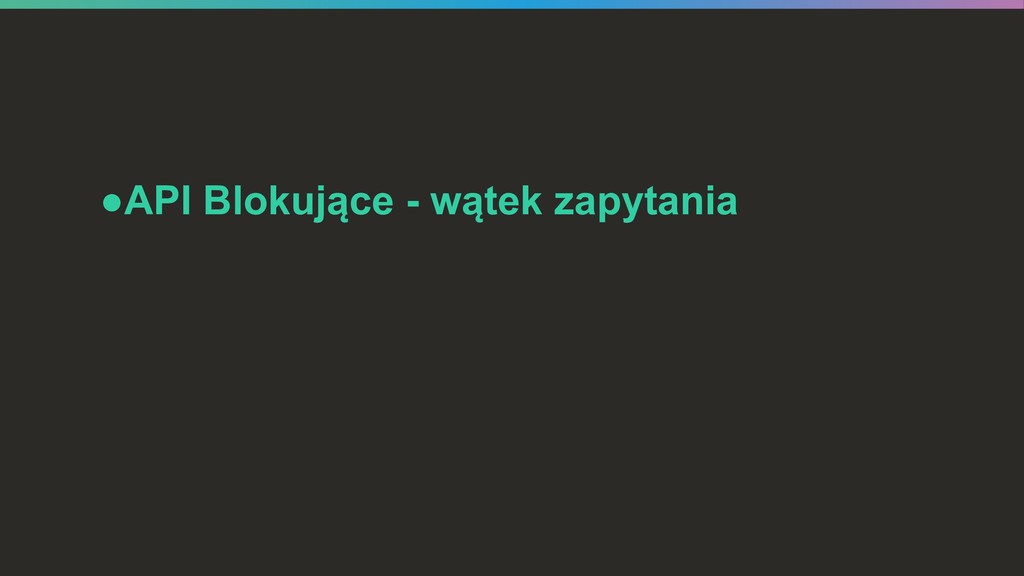

  141. •API Blokujące - wątek zapytania

  142. None
  143. None

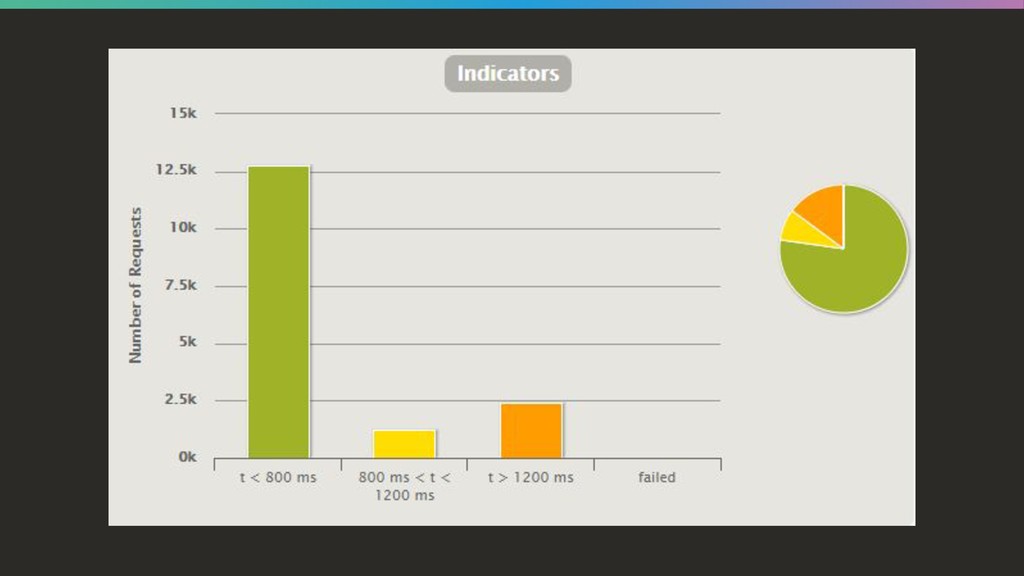

  144. •API Blokujące - wątek zapytania •API Nieblokujące - pula wątków

  145. None
  146. None

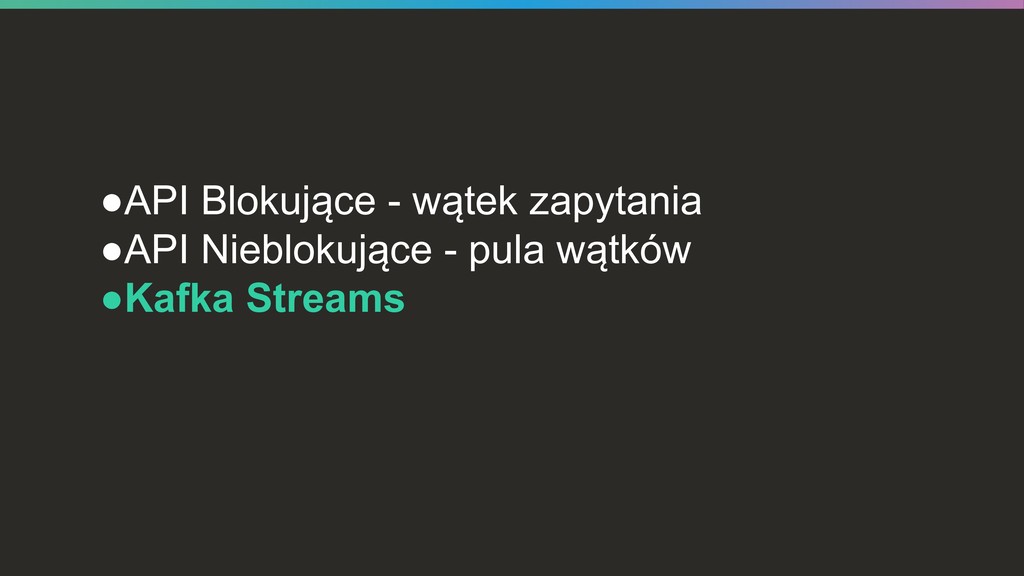

  147. •API Blokujące - wątek zapytania •API Nieblokujące - pula wątków

    •Kafka Streams

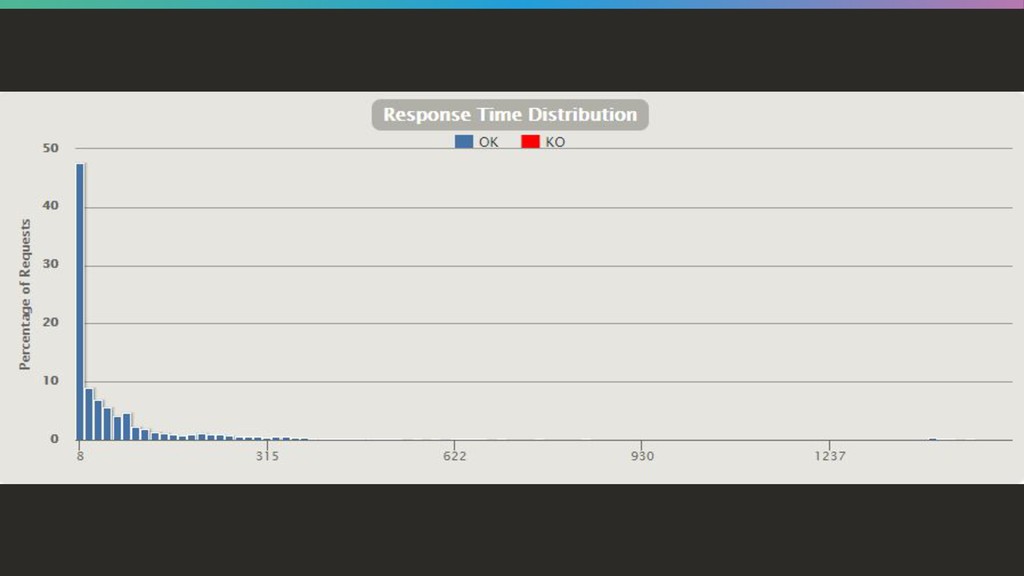

  148. None
  149. None
  150. None

  151. nexoblocks https://bit.ly/2oN3L2q

  152. nexoblocks https://bit.ly/2oN3L2q

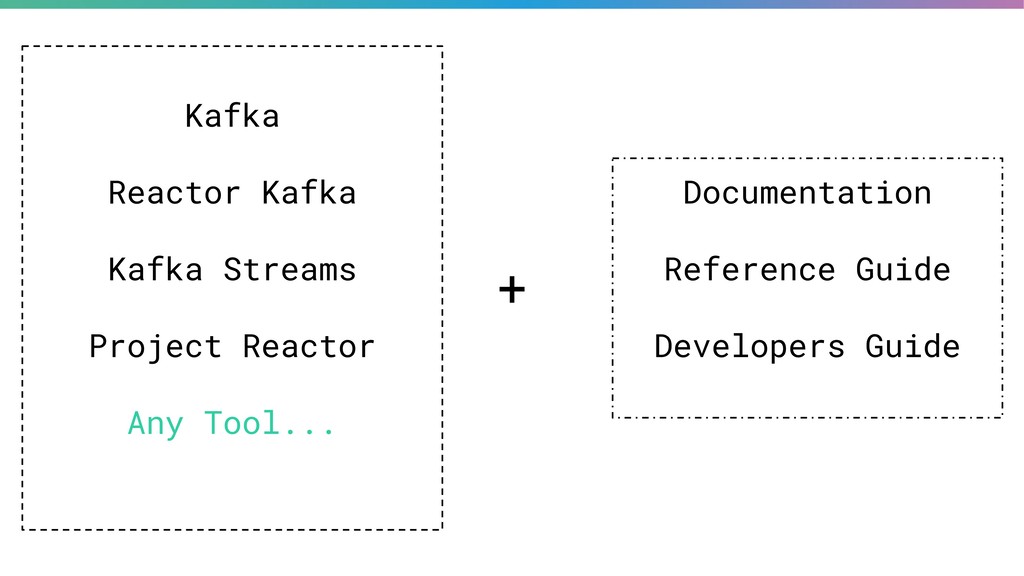

  153. Documentation Reference Guide Developers Guide Kafka Reactor Kafka Kafka Streams

    Project Reactor Any Tool... +

  154. nexoblocks https://bit.ly/2oN3L2q Dziękuję! Wojciech Marusarz // nexocode
