Software metrics

Software metrics

When designing a bridge, an architect has al sorts of tools & techniques to verify it won't collapse.

Us software developers... We build. And with a bit of luck, we'll even test. And then we pray it doesn’t collapse :)

Can we measure software? Can we compare code objectively? Can we predict problems?

54b2d1838a911e14c4b7b46bb8e0e8ff?s=128

Matthias Mullie

May 17, 2016
Tweet

Transcript

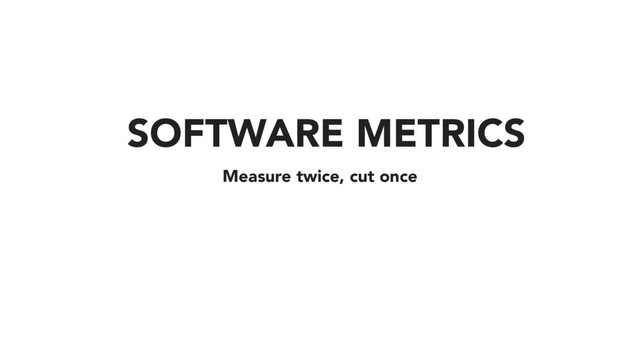

  1. Measure twice, cut once SOFTWARE METRICS

  2. @matthiasmullie Software metrics

  3. Make software measurable instead of relying on intuition. Software metrics

  4. Presentation title Software metrics

  5. Presentation title Software metrics

  6. Presentation title Software metrics

  7. Software metrics COMPLEXITY

  8. Every code path adds complexity Counts # of code paths

    Software metrics » Complexity Cyclomatic complexity
  9. • Analyze control flow • Start at 1 • Increase

    at every decision path
 (if, for, case, …) Software metrics » Complexity Cyclomatic complexity
  10. if ($user->isLoggedIn()) { echo 'Welcome back, ' . $user->getName(); }

    else { echo 'Hi there, stranger!'; } Cyclomatic complexity = 2 Software metrics » Complexity Cyclomatic complexity
  11. Every code path adds complexity Counts # possible outcomes Software

    metrics » Complexity NPath complexity
  12. Software metrics » Complexity NPath complexity if ($user->getSalutation()) { echo

    $user->getSalutation().' '; } if ($user->getName()) { echo $user->getName(); } else { echo 'anon'; } Outcomes: • $salutation anon • anon • $salutation $name • $name
  13. Every operation adds complexity Software metrics » Complexity Halstead measures

  14. • Analyze vocabulary • Count amount of operators
 (+, -,

    =, &&, ... and reserved words,
 like if and for) • Count amount of operands
 (values, variables & function names) Software metrics » Complexity Halstead measures
  15. if ($user->isLoggedIn()) { echo 'Welcome back, ' . $user->getName(); }

    else { echo 'Hi there, stranger!'; } Operands = 4 (4 unique) Software metrics » Complexity Halstead measures
  16. if ($user->isLoggedIn()) { echo 'Welcome back, ' . $user->getName(); }

    else { echo 'Hi there, stranger!'; } Operators = 11 (7 unique) Software metrics » Complexity Halstead measures
  17. Engineered to match human analysis Software metrics » Complexity Maintainability

    index
  18. Combination of: • Cyclomatic complexity • Halstead measures • Lines

    of code Software metrics » Complexity Maintainability index
  19. Metrics for matthiasmullie/minify, MatthiasMullie\Minify\JS::stripWhitespace See https://www.cauditor.org/matthiasmullie/minify/c17eb048daa44b43fa98bfa405147e77a040df76/metrics Software metrics » Complexity

    Maintainability index
  20. Questions? Software metrics » Complexity

  21. Software metrics COUPLING

  22. Amount of incoming dependencies = other classes using this one

    Common for core functionality Software metrics » Coupling Afferent coupling
  23. class Afferent { function __construct() {} } class Efferent {

    function __construct(Afferent $a) {} } Afferent: 1, Efferent: 0 Software metrics » Coupling Afferent coupling
  24. Changes here may break things elsewhere Must be stable &

    thoroughly tested Software metrics » Coupling Afferent coupling
  25. Amount of outgoing dependencies = other classes being used Common

    for controllers Software metrics » Coupling Efferent coupling
  26. class Afferent { function __construct() {} } class Efferent {

    function __construct(Afferent $a) {} } Afferent: 0, Efferent: 1 Software metrics » Coupling Efferent coupling
  27. • Harder to read/maintain • Harder to reuse • Harder

    to test in isolation • Brittle Software metrics » Coupling Efferent coupling
  28. Changes elsewhere may break things here Probably violates single responsibility

    principle Software metrics » Coupling Efferent coupling
  29. = efferent coupling / total coupling = efferent coupling /

    (efferent + afferent) Resilience to change Software metrics » Coupling Instability
  30. High efferent coupling = likely to be impacted by changes

    in
 = other classes = not stable Software metrics » Coupling Instability
  31. Low afferent coupling = change is easy because there isn’t

    much
 = that depends on this = not stable Software metrics » Coupling Instability
  32. Stable = good … as long as you don’t need

    to change the implementation! Software metrics » Coupling Instability
  33. Aim for extremes, make classes as stable or unstable as

    possible! Unstables can be refactored/decomposed later. Better than having dependencies everywhere. Software metrics » Coupling Instability
  34. Counts # of ancestors Software metrics » Coupling Depth of

    inheritance
  35. class Ancestor {} DIT: 0 class Descendant1 extends Ancestor {}

    DIT: 1 class Descendant2 extends Descendant1 {} DIT: 2 Software metrics » Coupling Depth of inheritance
  36. Inheritance is not bad! • Code reuse • Polymorphism Software

    metrics » Coupling Depth of inheritance
  37. But too much is! • Less stable: change in ancestor

    can affect descendants • More complexity: methods of all ancestors are inherited Software metrics » Coupling Depth of inheritance
  38. Questions? Software metrics » Coupling

  39. WHY WOULD I CARE? Software metrics

  40. Presentation title Software metrics » Usage Which would you rather

    maintain?
  41. Presentation title Software metrics » Usage

  42. Software metrics » Usage Complexity This guy has something going

    on! Let’s see…
  43. It’s not too crazy! But: • Recursion • 3 loops

    • 4 conditions • Callback function Software metrics » Usage Complexity
  44. Method does too much: • Data transformation • Processing •

    Cleanup Hard to test & prove right! Software metrics » Usage Complexity
  45. Software metrics » Usage Complexity This guy has a lot

    going on…
  46. Presentation title Software metrics

  47. Software metrics » Usage Coupling • Lots of outgoing dependencies

    • Some inheritance Very brittle!
  48. Changes in any of these could affect this class! Software

    metrics » Usage Coupling
  49. Software metrics » Usage Refactoring • 1000+ LOC class •

    Pretty complex • Very unstable • Self-contained, barely reusable
  50. Software metrics » Observations Software metrics » Usage Reduced complexity

    everywhere Decreased + increased stability
  51. Software metrics » Observations Refactoring • Greatly reduced “monster class”

    • Split into multiple reusable pieces Software metrics » Usage
  52. Questions? Software metrics » Usage

  53. OBSERVATIONS Software metrics

  54. Software metrics » Observations Spikes!

  55. Complexity often caused by a few commits! Watch out with

    new features & rewrites. Software metrics » Observations Spikes!
  56. Presentation title Software metrics » Observations

  57. Software metrics » Observations No evolution

  58. • No change over time • No change across projects

    Do developers have a “signature”? Software metrics » Observations No evolution
  59. Software metrics » Observations Personalities? 2 guys working on same

    project: • One was very fast (but messier) • One was a lot more thorough Who’s who?
  60. Software metrics » Observations Personalities?

  61. Software metrics » Observations Personalities? M essy Thorough

  62. Software metrics » Observations Personalities? Can metrics show personality traits?

    Please help me figure that out! https://www.cauditor.org/user/feedback
  63. Presentation title

  64. Questions? Software metrics

  65. mullie.eu • mullie.eu/measuring-software-complexity • mullie.eu/measuring-software-coupling • cauditor.org/help/metrics Software metrics Resources
