Event Streaming Architecture with Symfony Messenger

This talk explores event streaming architecture using the Symfony Messenger component. The talk will answer what event streaming is and when it's worth using. Then the talk dives into the code, showing how to design and implement event streaming with Messenger through practical examples.

Transcript

1. Event Streaming Architecture with Symfony Messenger From State to History
2. Max Beckers • Solutions Architect @ PAYONE • Building highly available systems in the payment industry • Working with Symfony since version 2 • Open-Source Contributor • Father of 2 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 2
3. Understanding Event Streaming Through a Bank Account 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 3

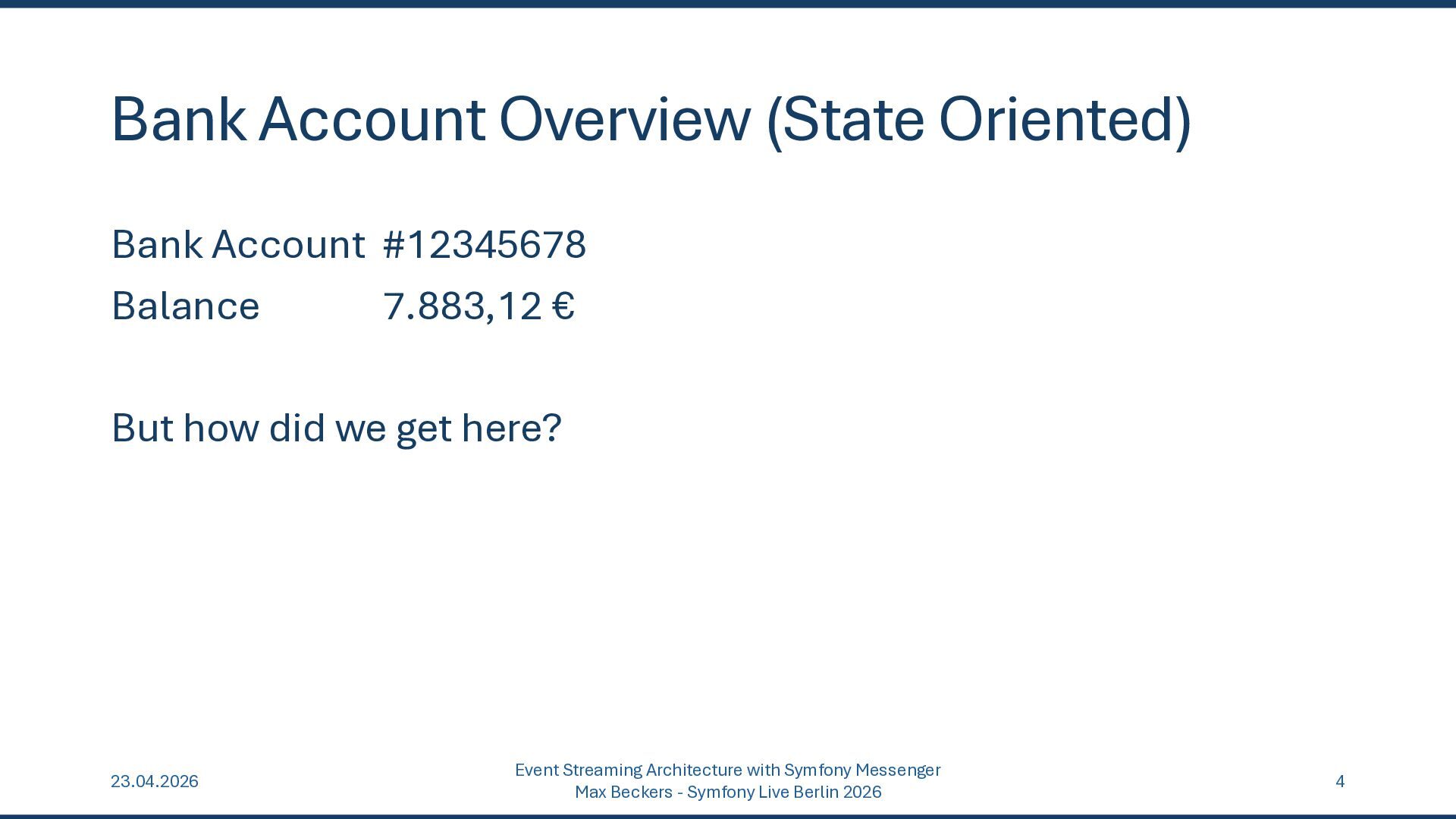

4. Bank Account Overview (State Oriented) Bank Account #12345678 Balance 7.883,12 € But how did we get here? 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 4

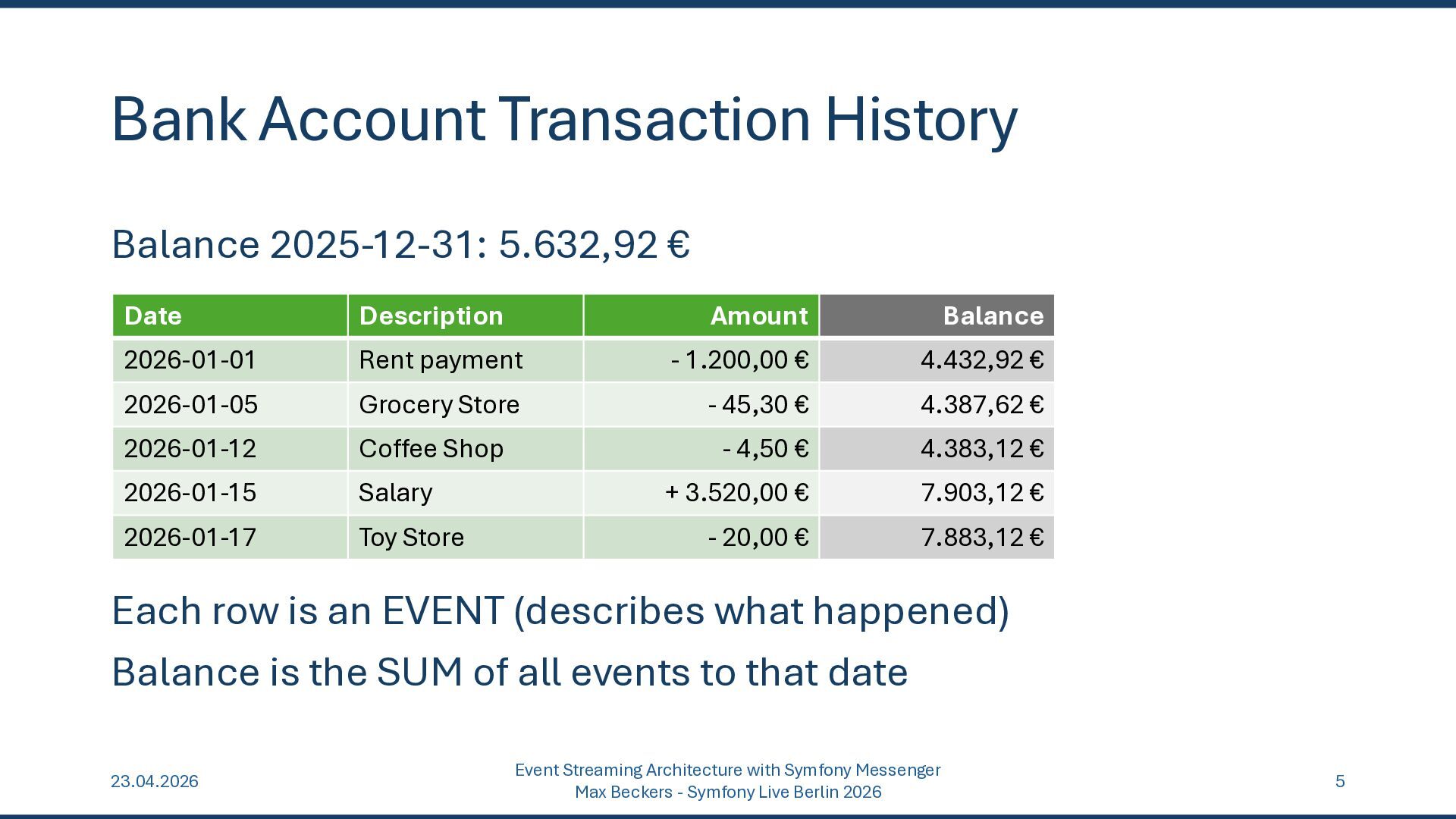

5. Bank Account Transaction History Balance 2025-12-31: 5.632,92 € Each row is an EVENT (describes what happened) Balance is the SUM of all events to that date Date Description Amount Balance 2026-01-01 Rent payment - 1.200,00 € 4.432,92 € 2026-01-05 Grocery Store - 45,30 € 4.387,62 € 2026-01-12 Coffee Shop - 4,50 € 4.383,12 € 2026-01-15 Salary + 3.520,00 € 7.903,12 € 2026-01-17 Toy Store - 20,00 € 7.883,12 € 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 5

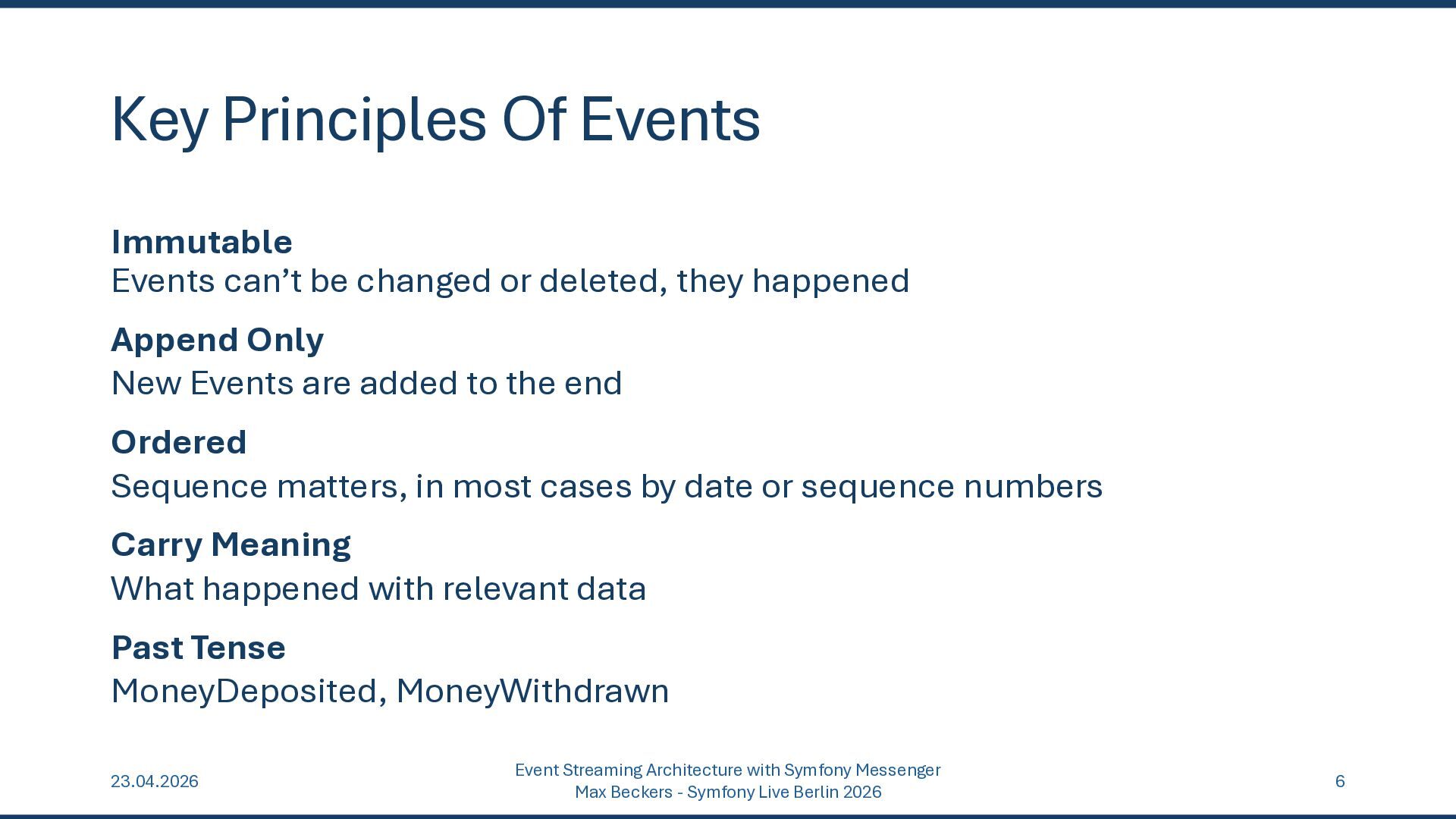

6. Key Principles Of Events Immutable Events can’t be changed or deleted, they happened Append Only New Events are added to the end Ordered Sequence matters, in most cases by date or sequence numbers Carry Meaning What happened with relevant data Past Tense MoneyDeposited, MoneyWithdrawn 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 6

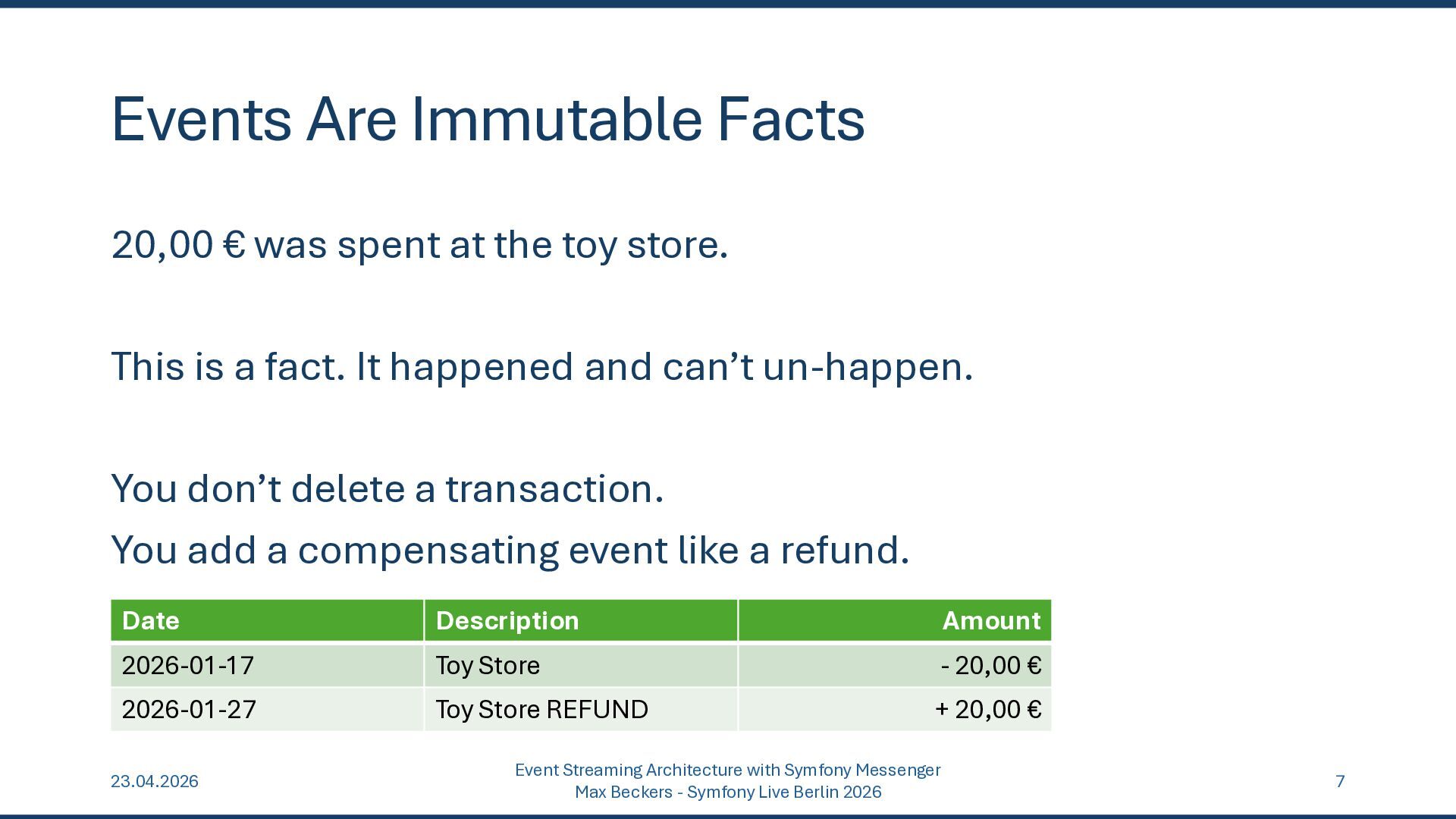

7. Events Are Immutable Facts 20,00 € was spent at the toy store. This is a fact. It happened and can’t un-happen. You don’t delete a transaction. You add a compensating event like a refund. Date Description Amount 2026-01-17 Toy Store - 20,00 € 2026-01-27 Toy Store REFUND + 20,00 € 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 7

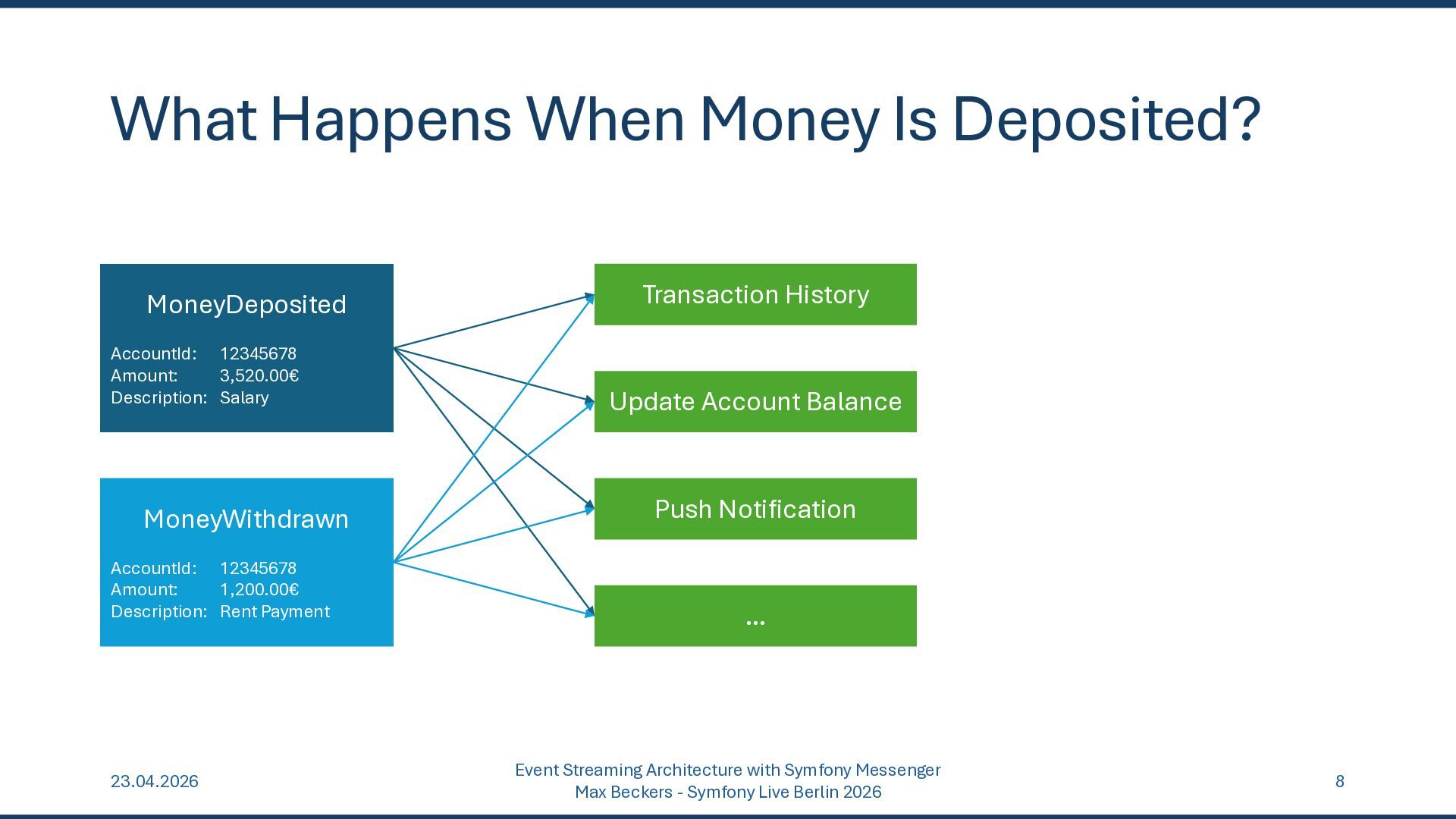

8. What Happens When Money Is Deposited? 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 8 MoneyDeposited AccountId: 12345678 Amount: 3,520.00€ Description: Salary Transaction History Update Account Balance Push Notification … MoneyWithdrawn AccountId: 12345678 Amount: 1,200.00€ Description: Rent Payment

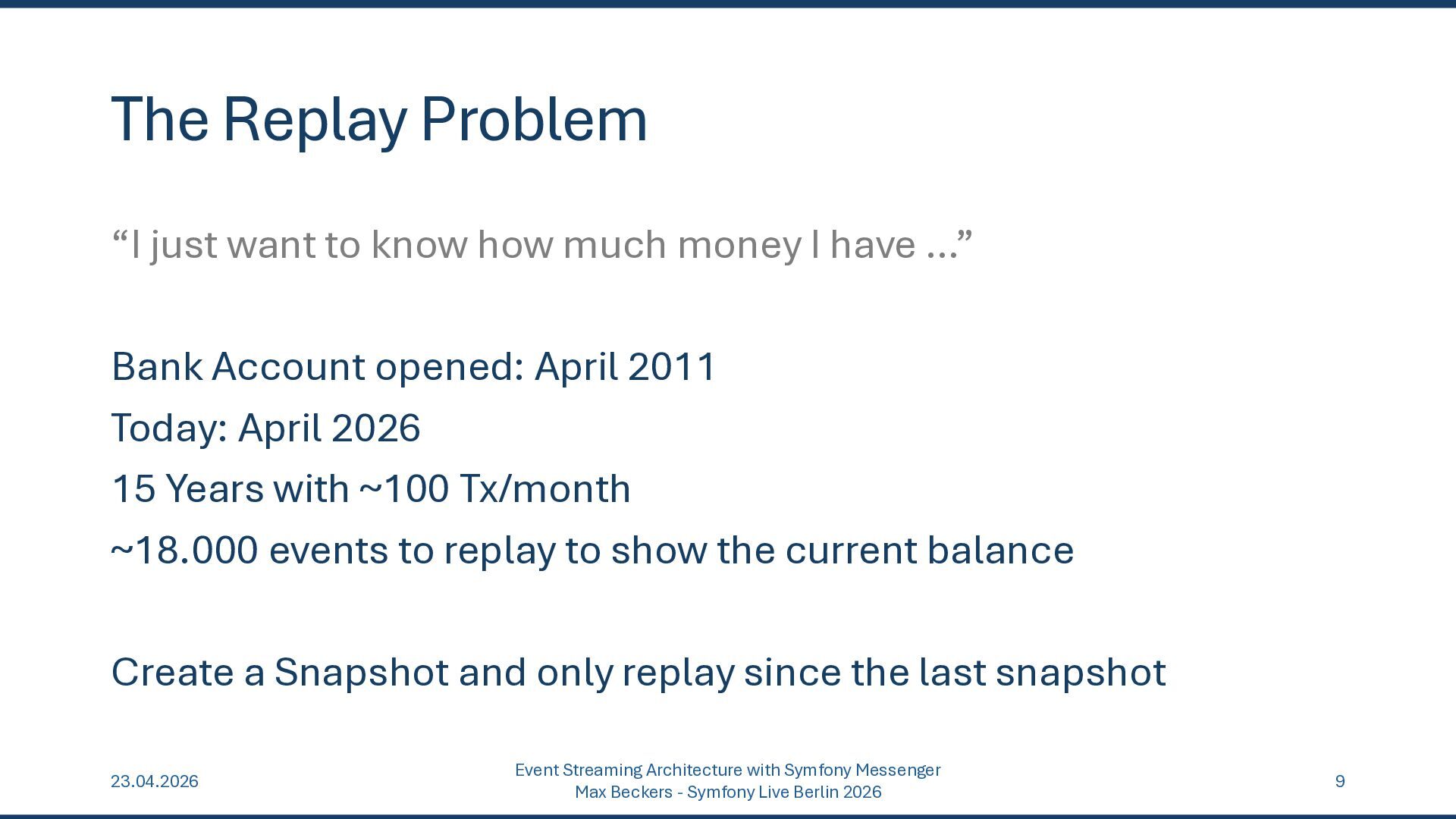

9. The Replay Problem “I just want to know how much money I have …” Bank Account opened: April 2011 Today: April 2026 15 Years with ~100 Tx/month ~18.000 events to replay to show the current balance Create a Snapshot and only replay since the last snapshot 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 9

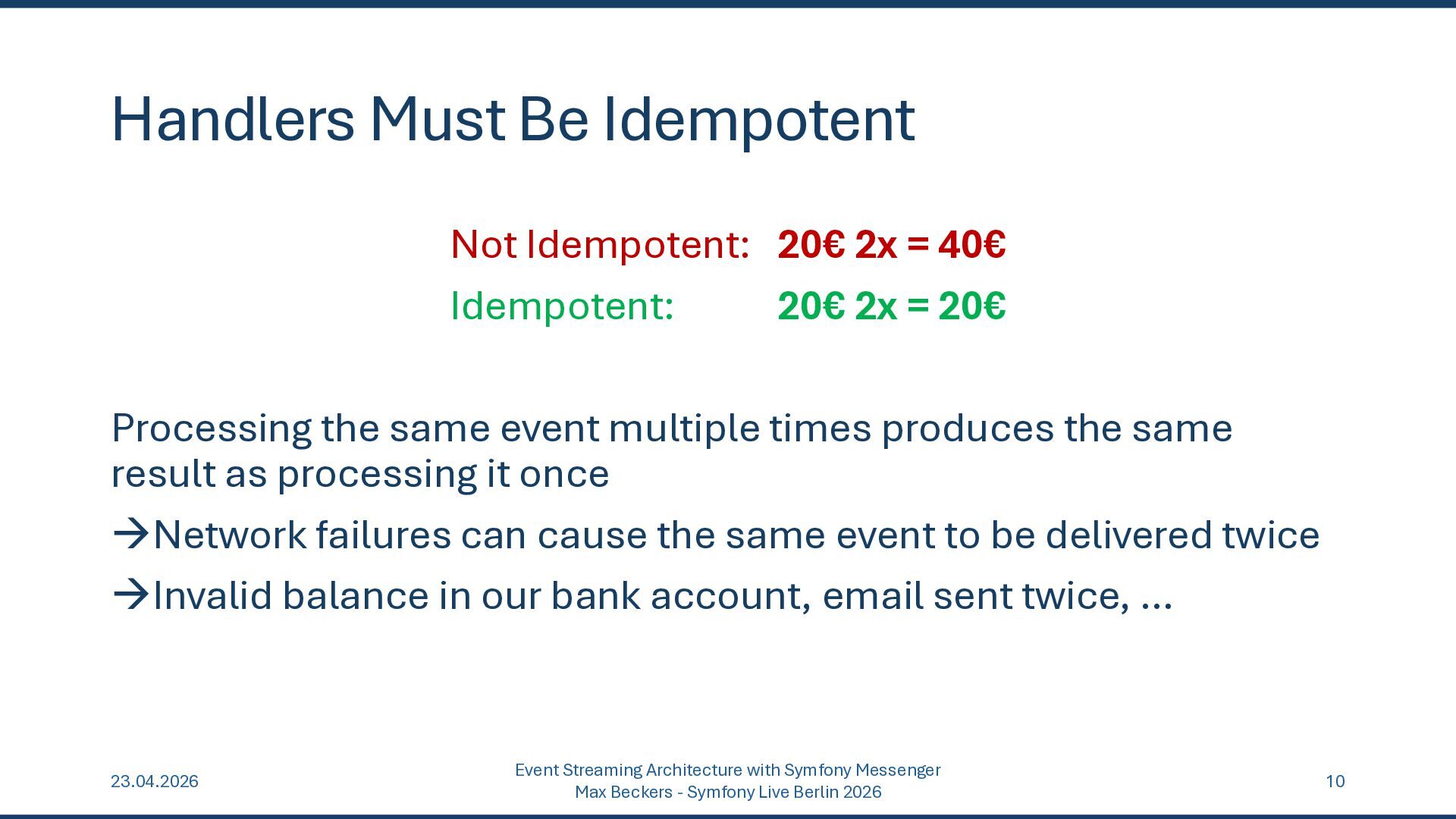

10. Handlers Must Be Idempotent Not Idempotent: 20€ 2x = 40€ Idempotent: 20€ 2x = 20€ Processing the same event multiple times produces the same result as processing it once →Network failures can cause the same event to be delivered twice →Invalid balance in our bank account, email sent twice, … 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 10

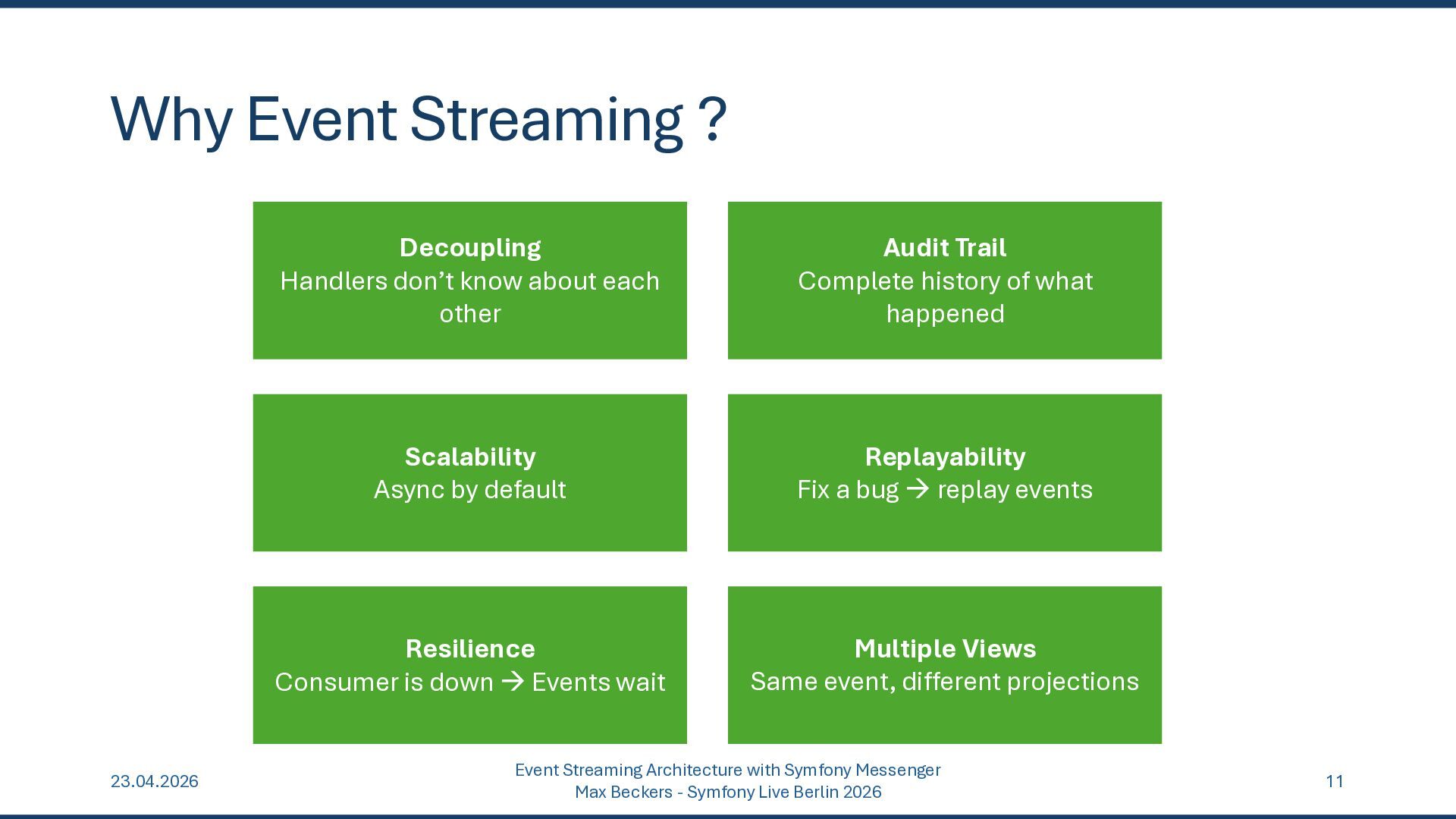

11. Why Event Streaming ? 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 11 Decoupling Handlers don’t know about each other Scalability Async by default Resilience Consumer is down → Events wait Audit Trail Complete history of what happened Replayability Fix a bug → replay events Multiple Views Same event, different projections
12. This was the theoretical part … 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 12

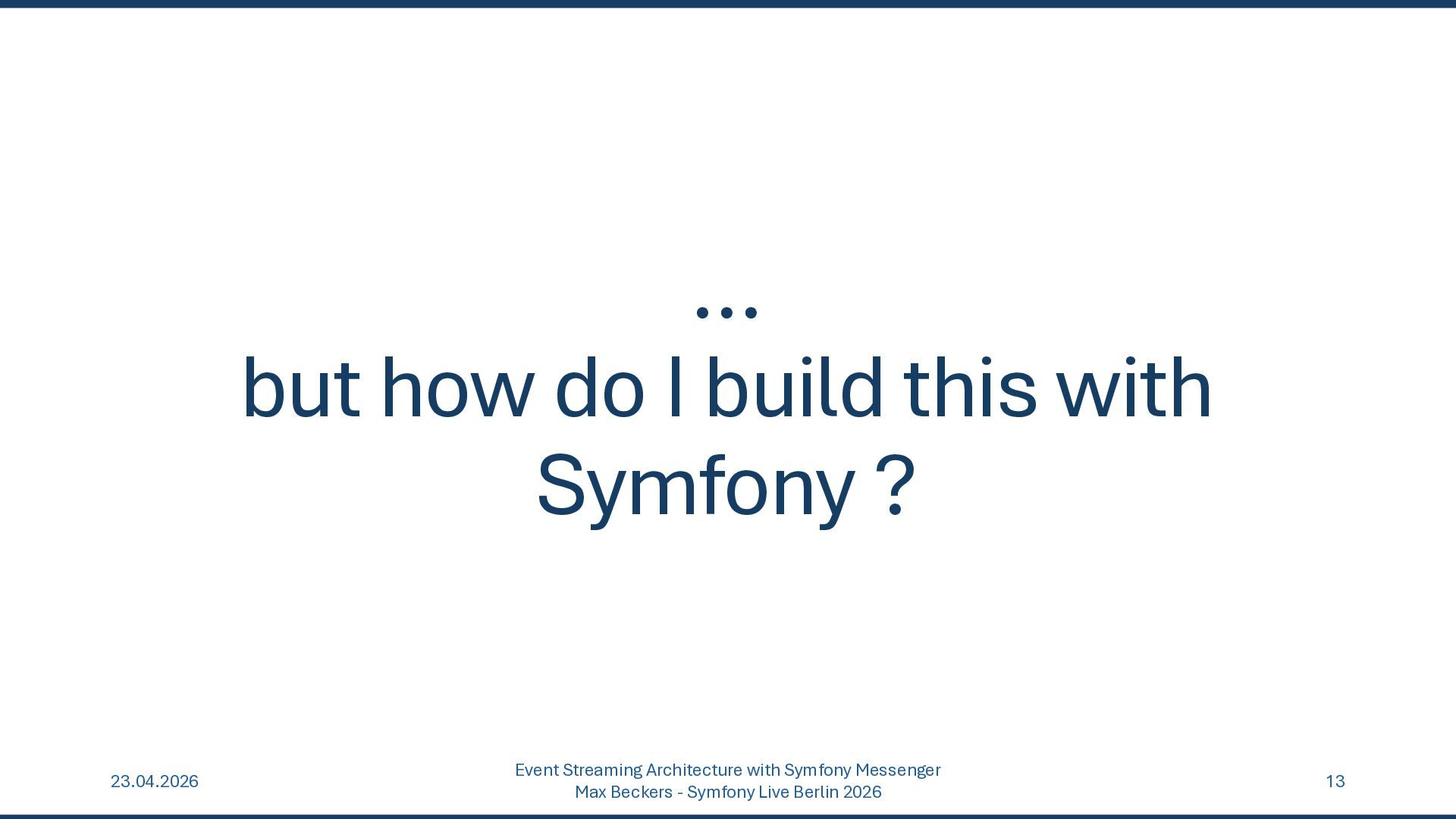

13. … but how do I build this with Symfony ? 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 13

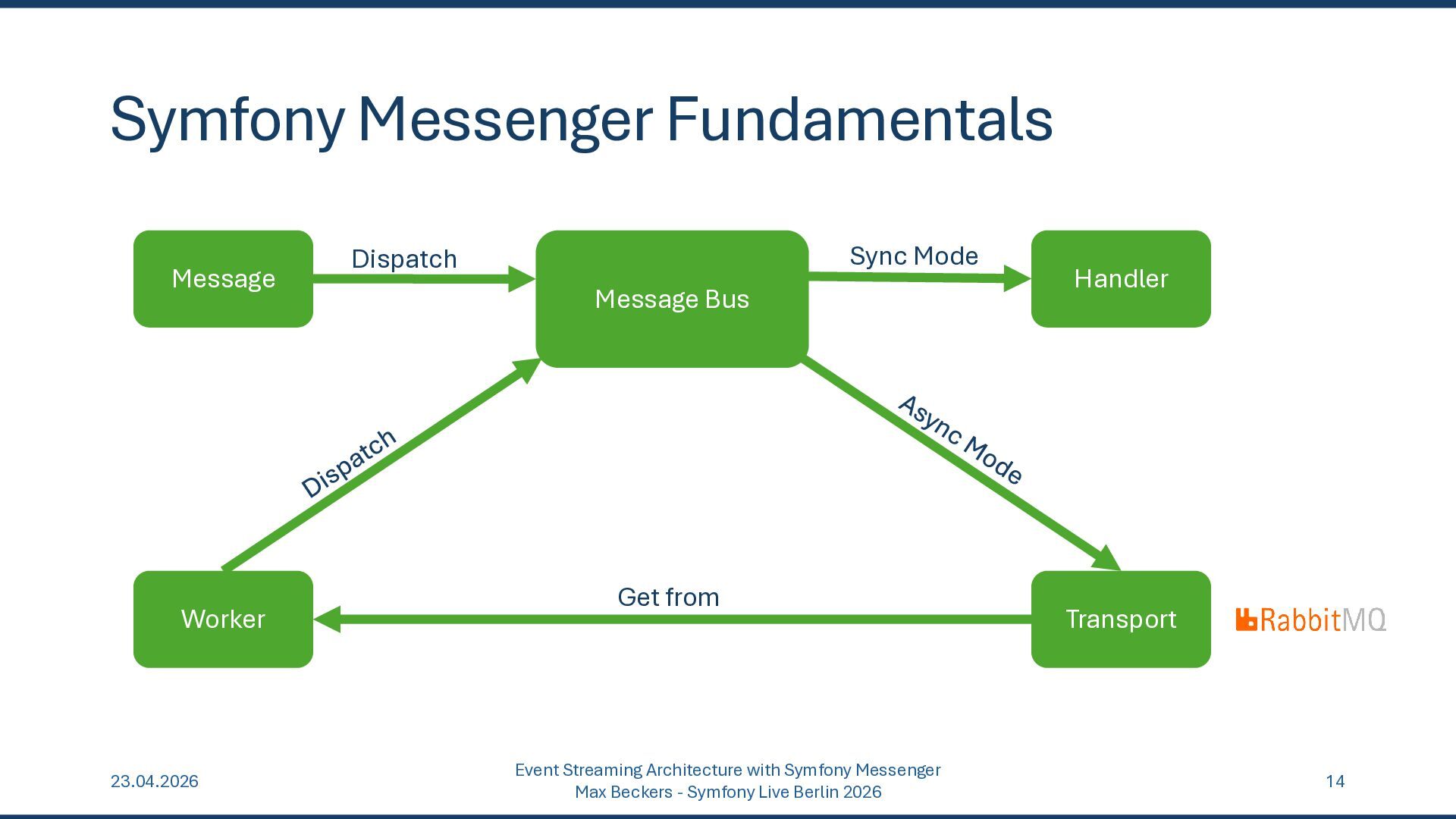

14. Symfony Messenger Fundamentals Message Handler Transport Worker Message Bus Dispatch Sync Mode Get from 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 14

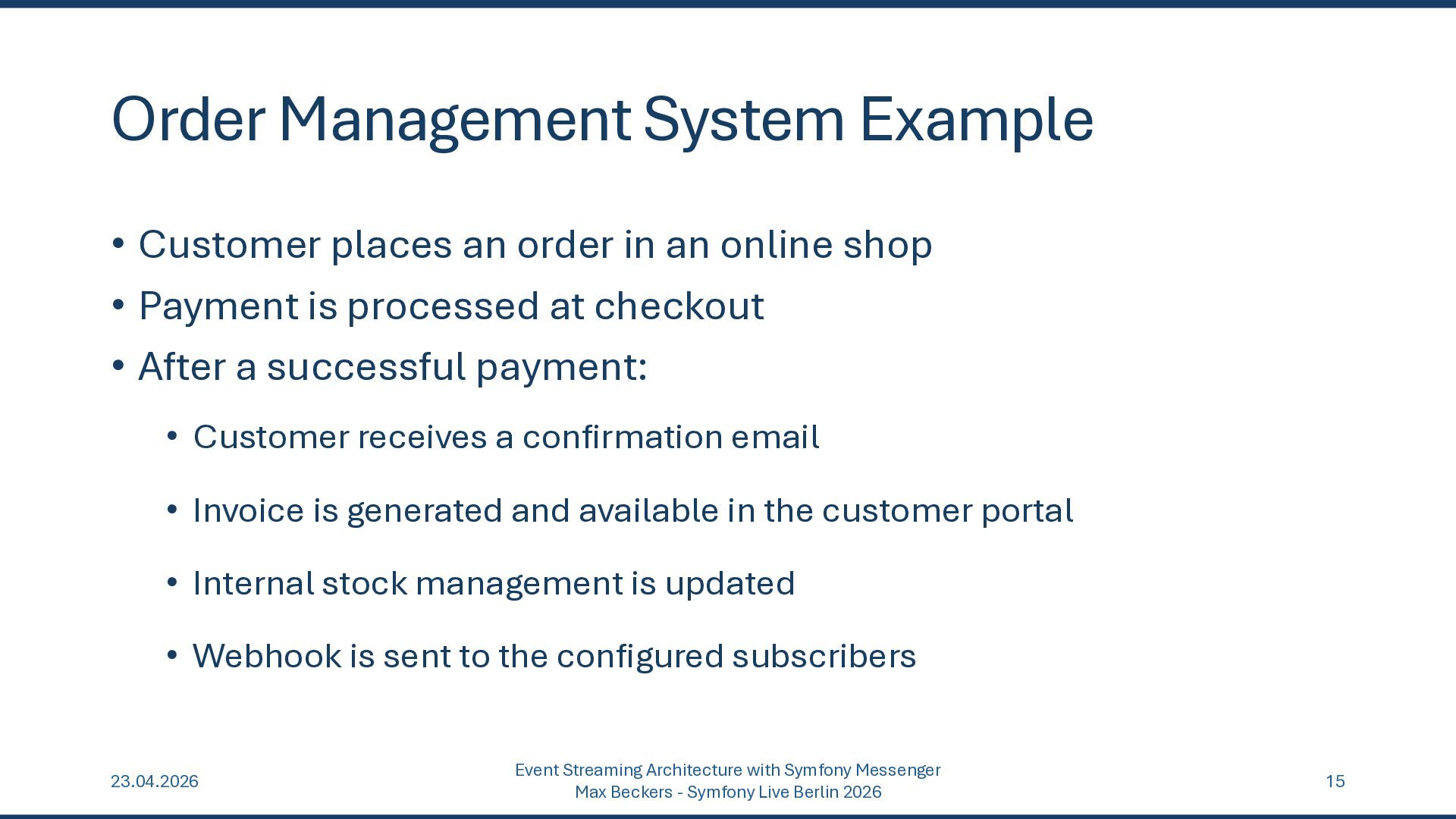

15. Order Management System Example • Customer places an order in an online shop • Payment is processed at checkout • After a successful payment: • Customer receives a confirmation email • Invoice is generated and available in the customer portal • Internal stock management is updated • Webhook is sent to the configured subscribers 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 15

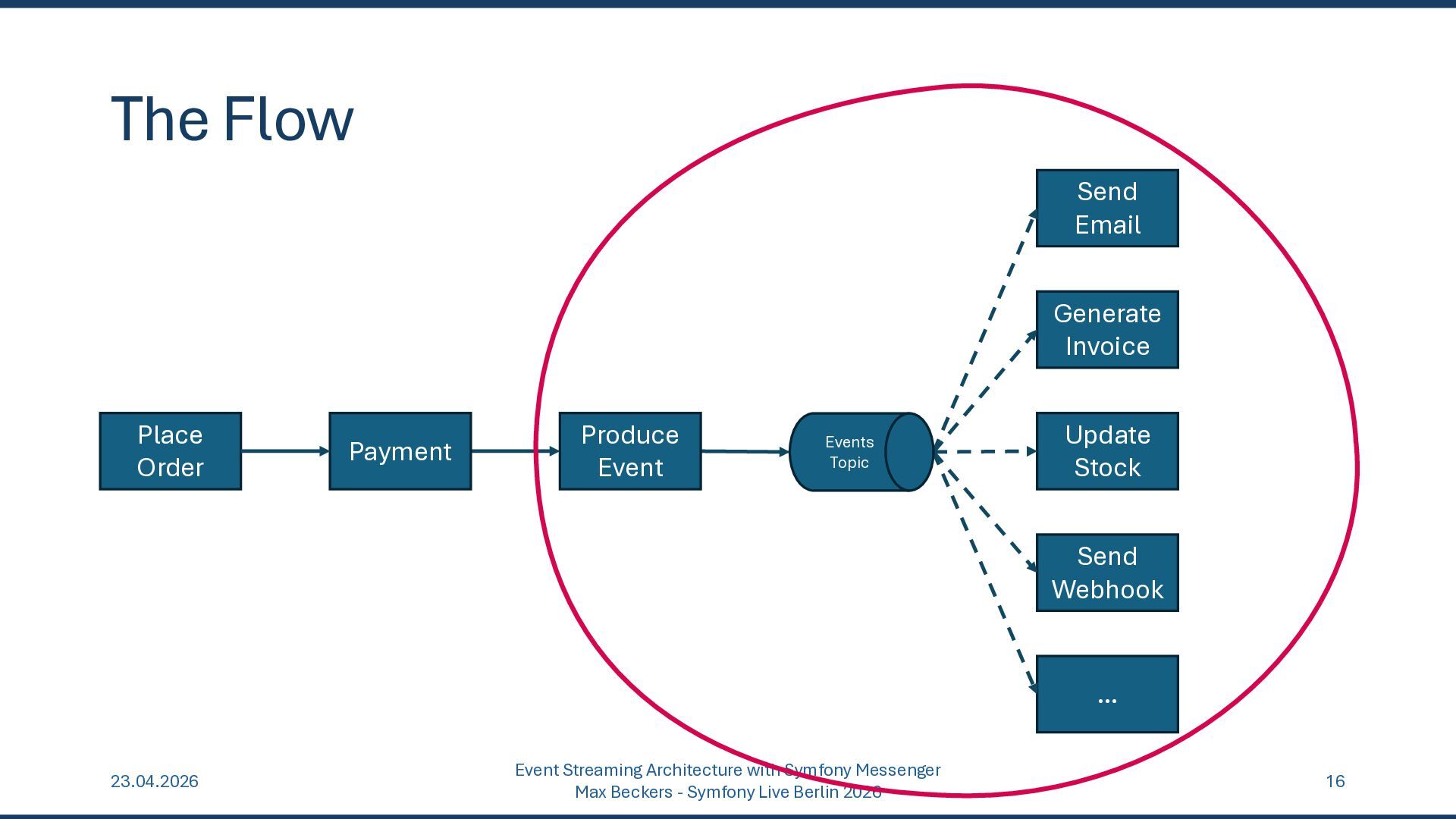

16. The Flow 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 16 Place Order Payment Produce Event Send Email Generate Invoice Update Stock Send Webhook … Events Topic

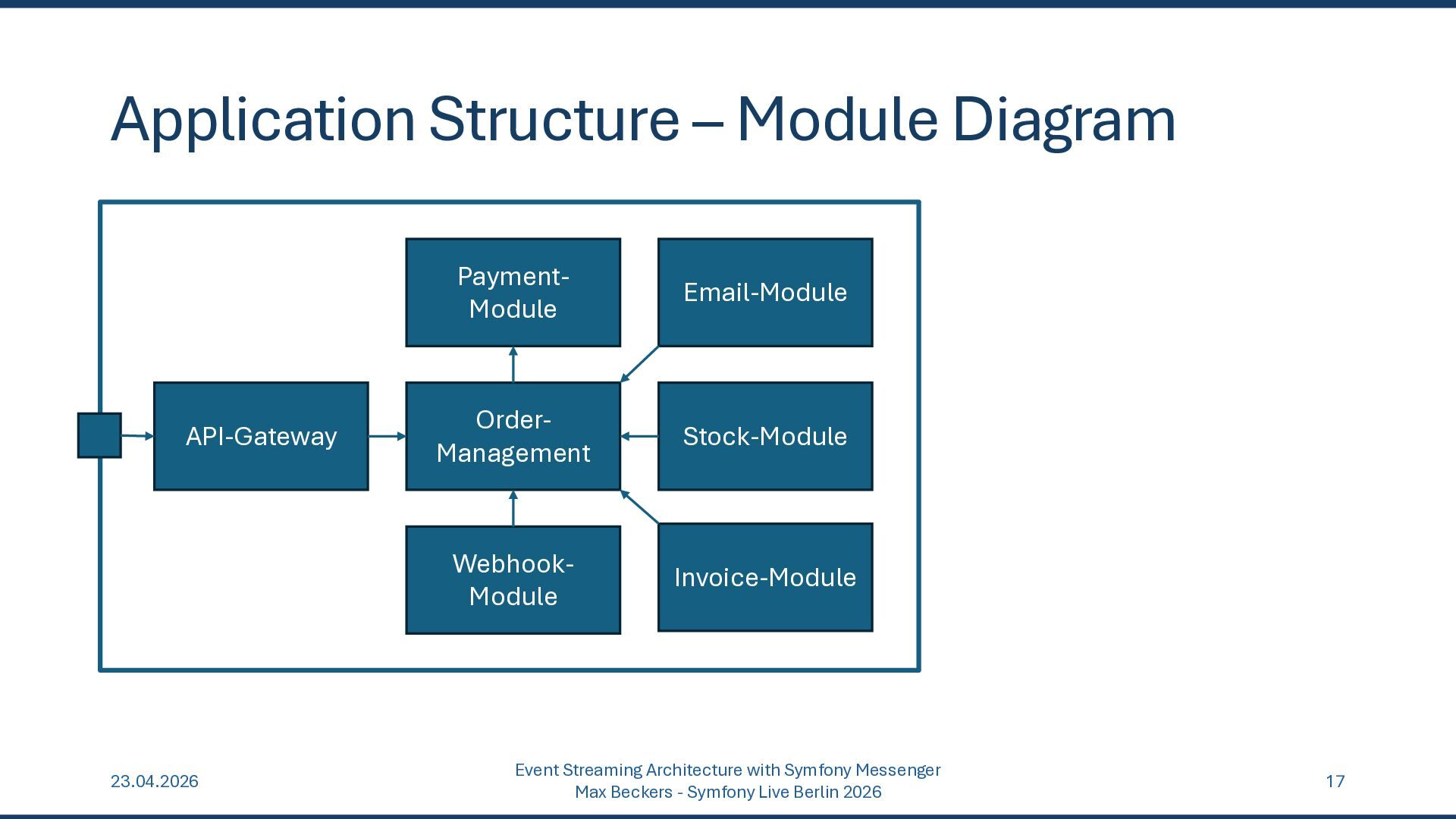

17. Application Structure – Module Diagram 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 17 API-Gateway Payment- Module Webhook- Module Invoice-Module Stock-Module Email-Module Order- Management

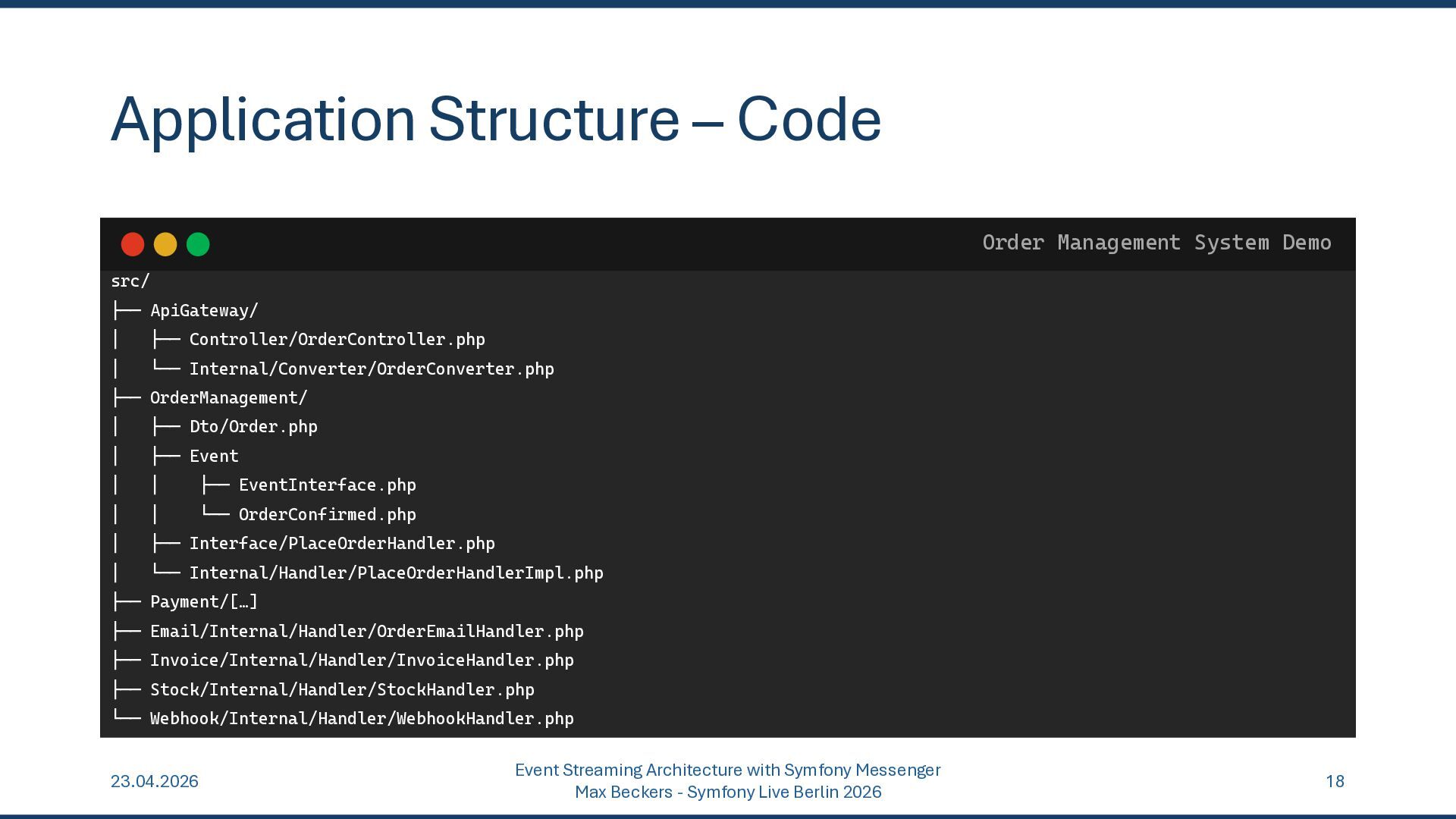

18. Application Structure – Code src/ ├── ApiGateway/ │ ├── Controller/OrderController.php │ └── Internal/Converter/OrderConverter.php ├── OrderManagement/ │ ├── Dto/Order.php │ ├── Event │ │ ├── EventInterface.php │ │ └── OrderConfirmed.php │ ├── Interface/PlaceOrderHandler.php │ └── Internal/Handler/PlaceOrderHandlerImpl.php ├── Payment/[…] ├── Email/Internal/Handler/OrderEmailHandler.php ├── Invoice/Internal/Handler/InvoiceHandler.php ├── Stock/Internal/Handler/StockHandler.php └── Webhook/Internal/Handler/WebhookHandler.php 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 18 Order Management System Demo

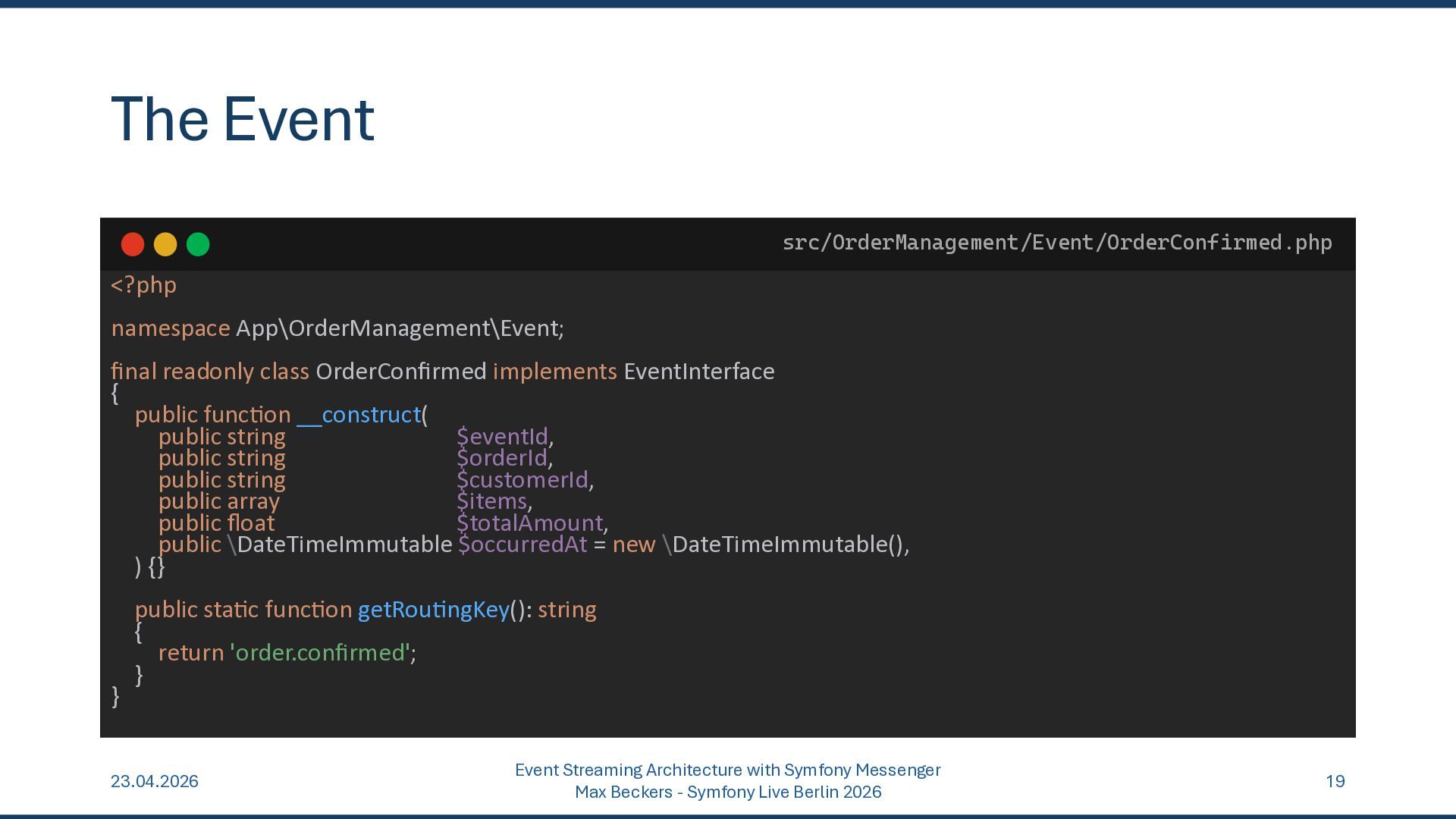

19. The Event <?php namespace App\OrderManagement\Event; final readonly class OrderConfirmed implements EventInterface { public function __construct( public string $eventId, public string $orderId, public string $customerId, public array $items, public float $totalAmount, public \DateTimeImmutable $occurredAt = new \DateTimeImmutable(), ) {} public static function getRoutingKey(): string { return 'order.confirmed'; } } 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 19 src/OrderManagement/Event/OrderConfirmed.php

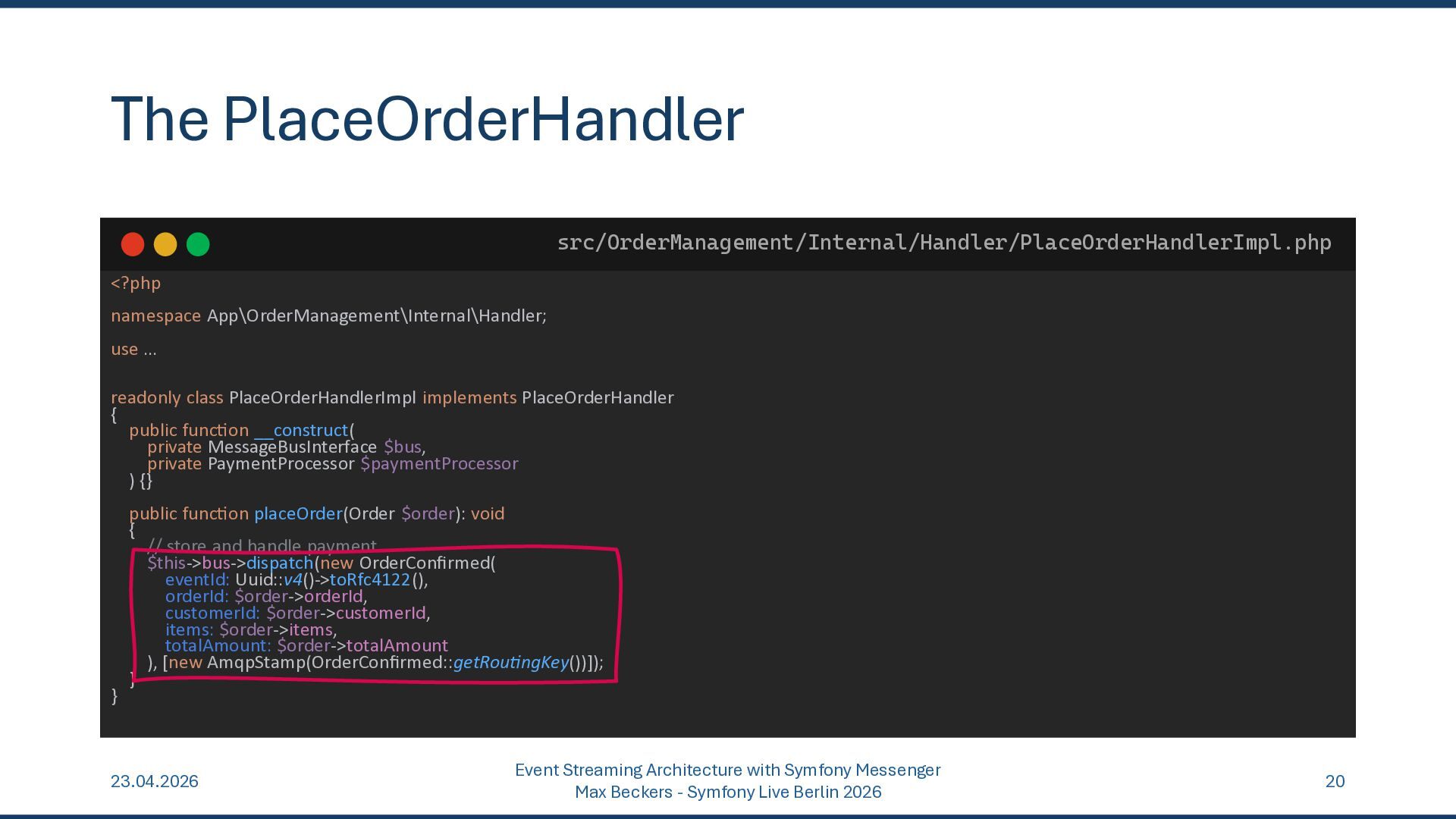

20. The PlaceOrderHandler <?php namespace App\OrderManagement\Internal\Handler; use … readonly class PlaceOrderHandlerImpl implements PlaceOrderHandler { public function __construct( private MessageBusInterface $bus, private PaymentProcessor $paymentProcessor ) {} public function placeOrder(Order $order): void { // store and handle payment $this->bus->dispatch(new OrderConfirmed( eventId: Uuid::v4()->toRfc4122(), orderId: $order->orderId, customerId: $order->customerId, items: $order->items, totalAmount: $order->totalAmount ), [new AmqpStamp(OrderConfirmed::getRoutingKey())]); } } 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 20 src/OrderManagement/Internal/Handler/PlaceOrderHandlerImpl.php

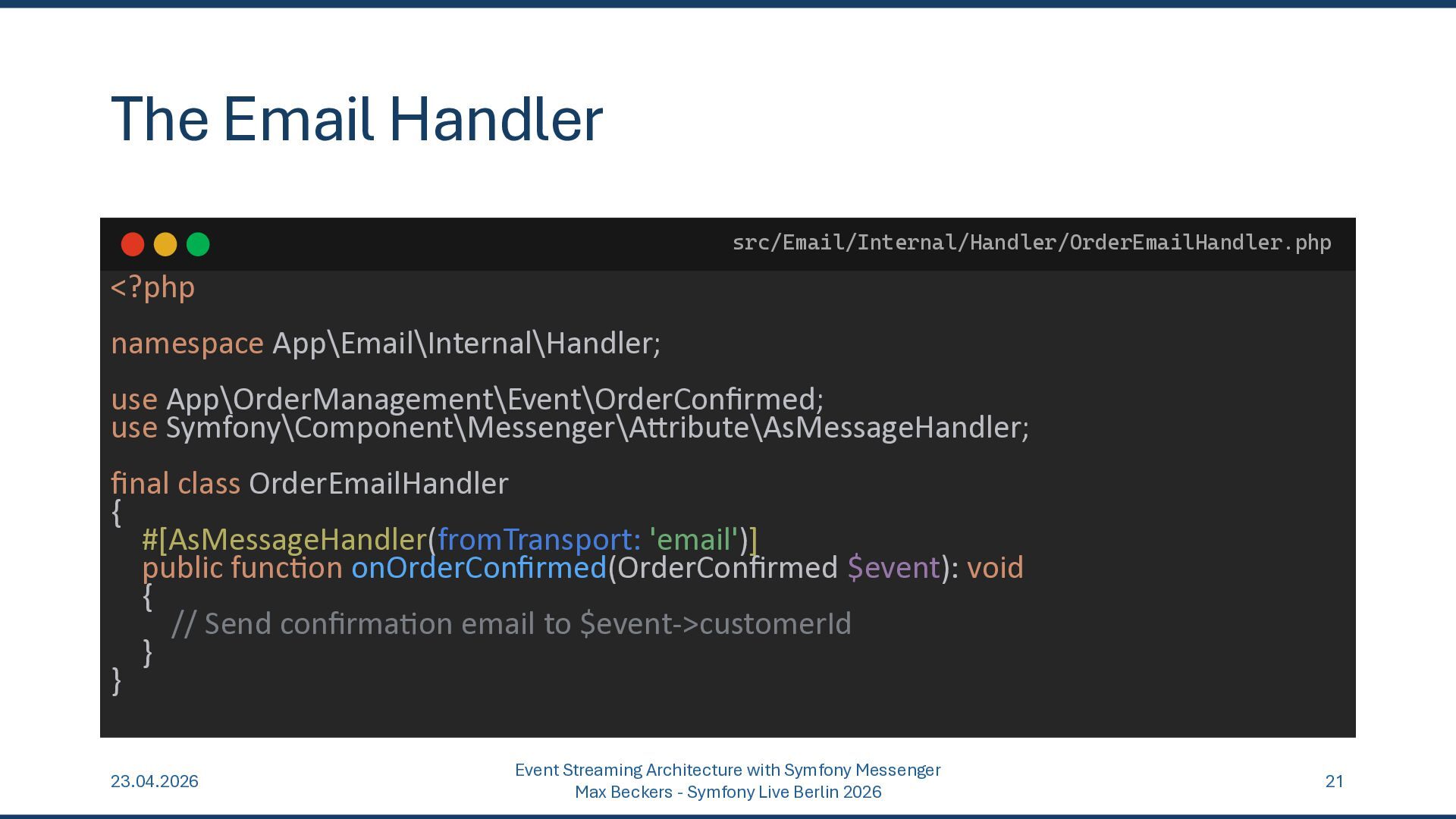

21. The Email Handler <?php namespace App\Email\Internal\Handler; use App\OrderManagement\Event\OrderConfirmed; use Symfony\Component\Messenger\Attribute\AsMessageHandler; final class OrderEmailHandler { #[AsMessageHandler(fromTransport: 'email')] public function onOrderConfirmed(OrderConfirmed $event): void { // Send confirmation email to $event->customerId } } 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 21 src/Email/Internal/Handler/OrderEmailHandler.php

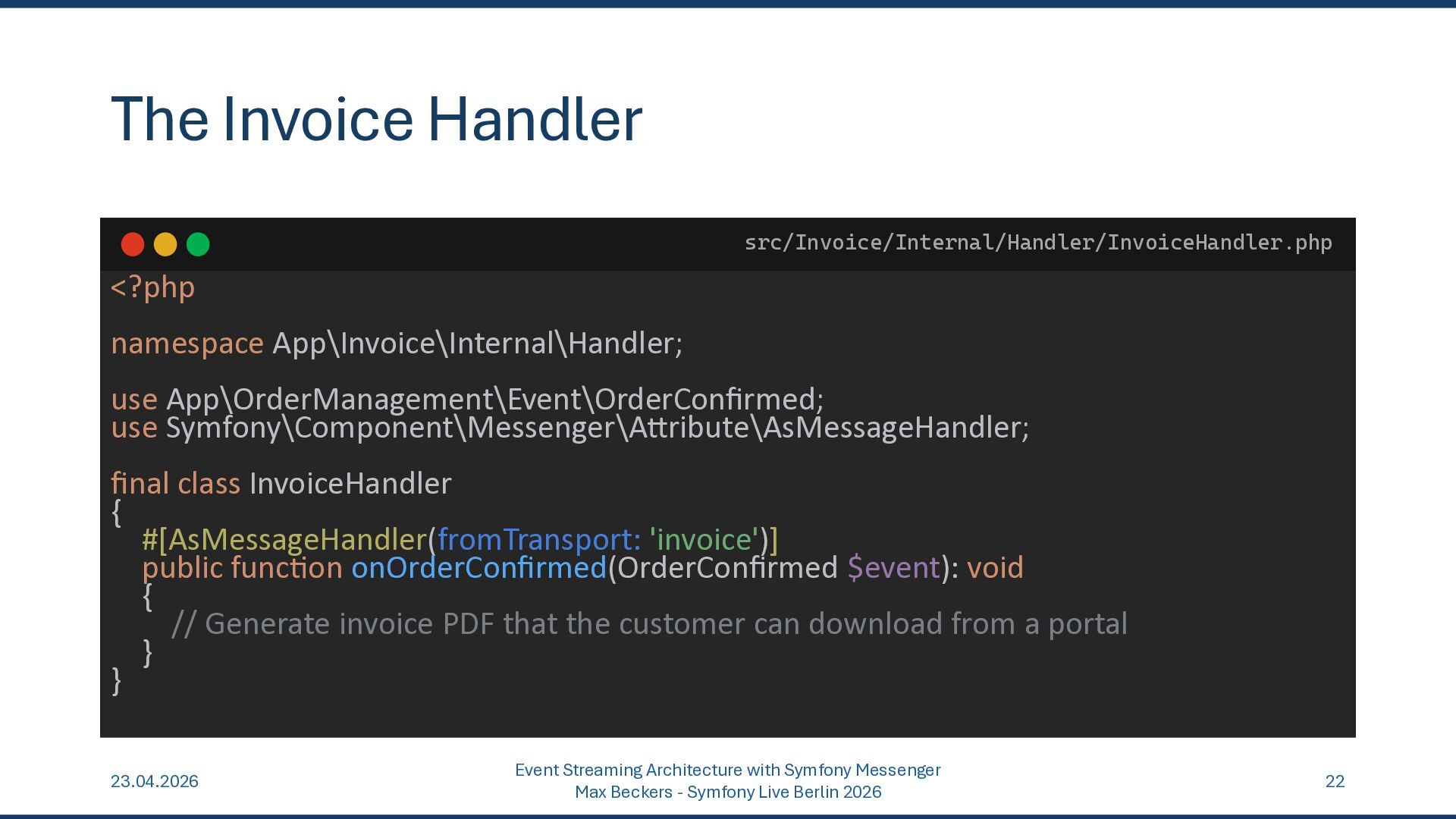

22. The Invoice Handler <?php namespace App\Invoice\Internal\Handler; use App\OrderManagement\Event\OrderConfirmed; use Symfony\Component\Messenger\Attribute\AsMessageHandler; final class InvoiceHandler { #[AsMessageHandler(fromTransport: 'invoice')] public function onOrderConfirmed(OrderConfirmed $event): void { // Generate invoice PDF that the customer can download from a portal } } 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 22 src/Invoice/Internal/Handler/InvoiceHandler.php

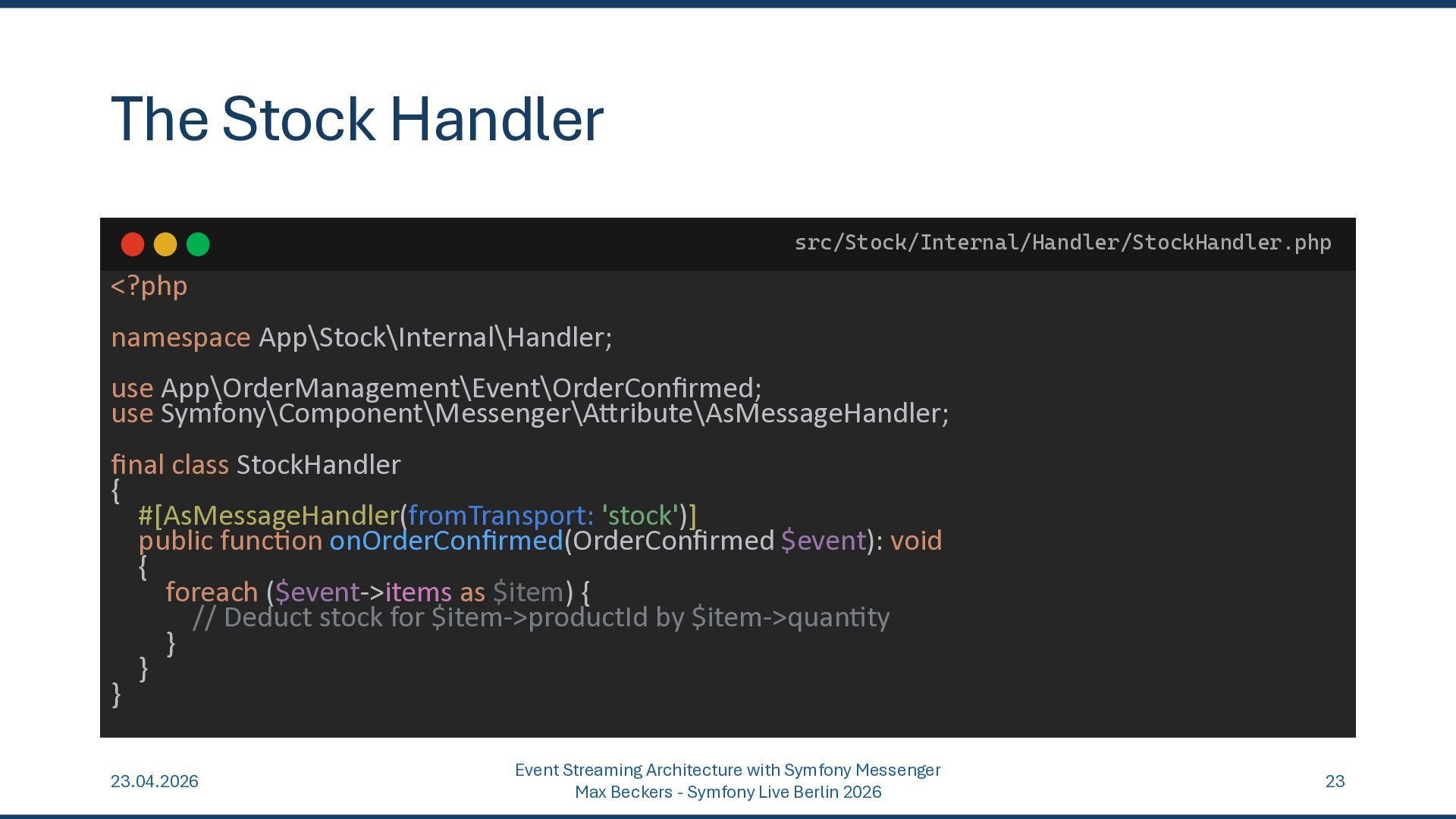

23. The Stock Handler <?php namespace App\Stock\Internal\Handler; use App\OrderManagement\Event\OrderConfirmed; use Symfony\Component\Messenger\Attribute\AsMessageHandler; final class StockHandler { #[AsMessageHandler(fromTransport: 'stock')] public function onOrderConfirmed(OrderConfirmed $event): void { foreach ($event->items as $item) { // Deduct stock for $item->productId by $item->quantity } } } 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 23 src/Stock/Internal/Handler/StockHandler.php

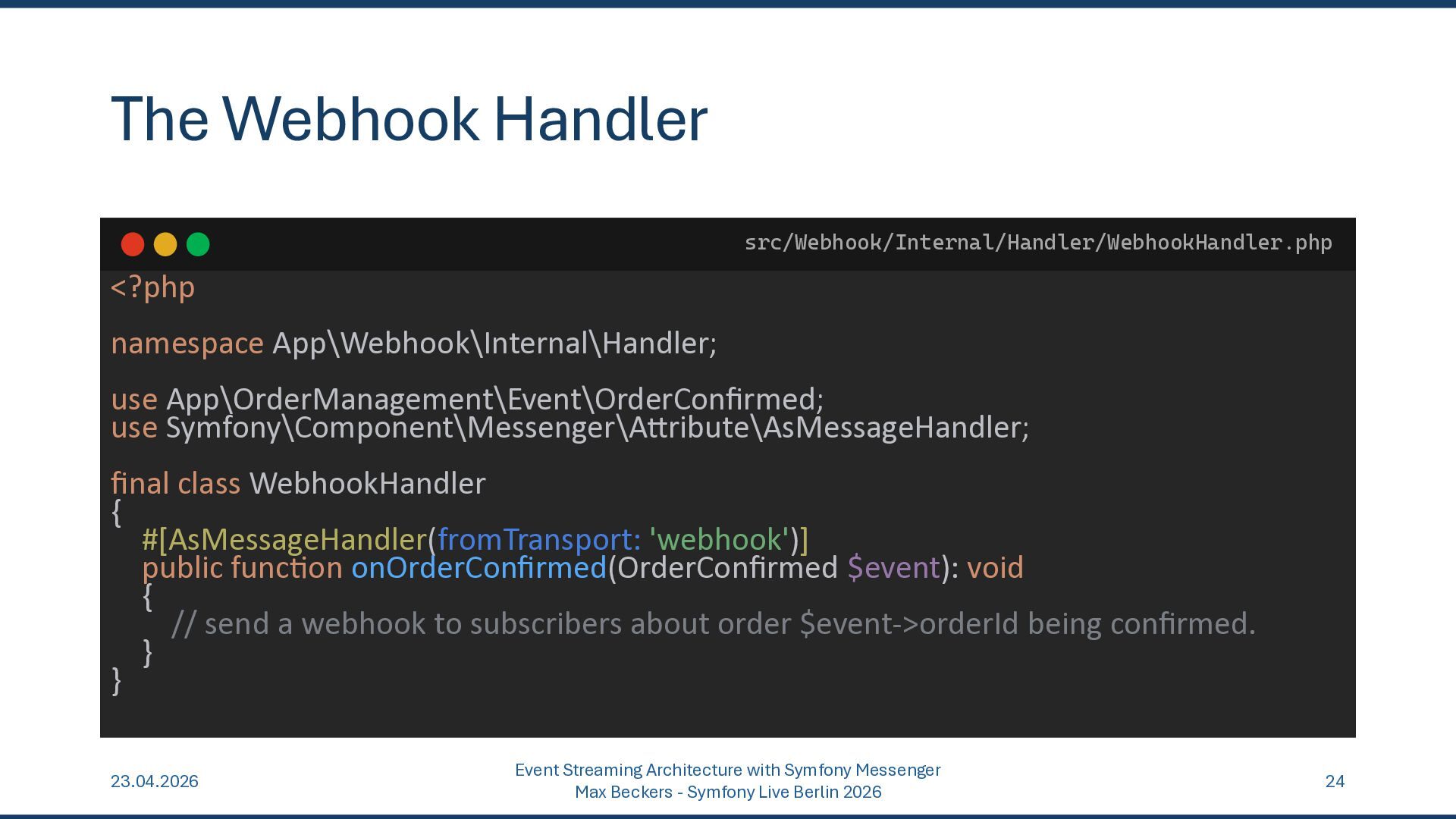

24. The Webhook Handler <?php namespace App\Webhook\Internal\Handler; use App\OrderManagement\Event\OrderConfirmed; use Symfony\Component\Messenger\Attribute\AsMessageHandler; final class WebhookHandler { #[AsMessageHandler(fromTransport: 'webhook')] public function onOrderConfirmed(OrderConfirmed $event): void { // send a webhook to subscribers about order $event->orderId being confirmed. } } 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 24 src/Webhook/Internal/Handler/WebhookHandler.php

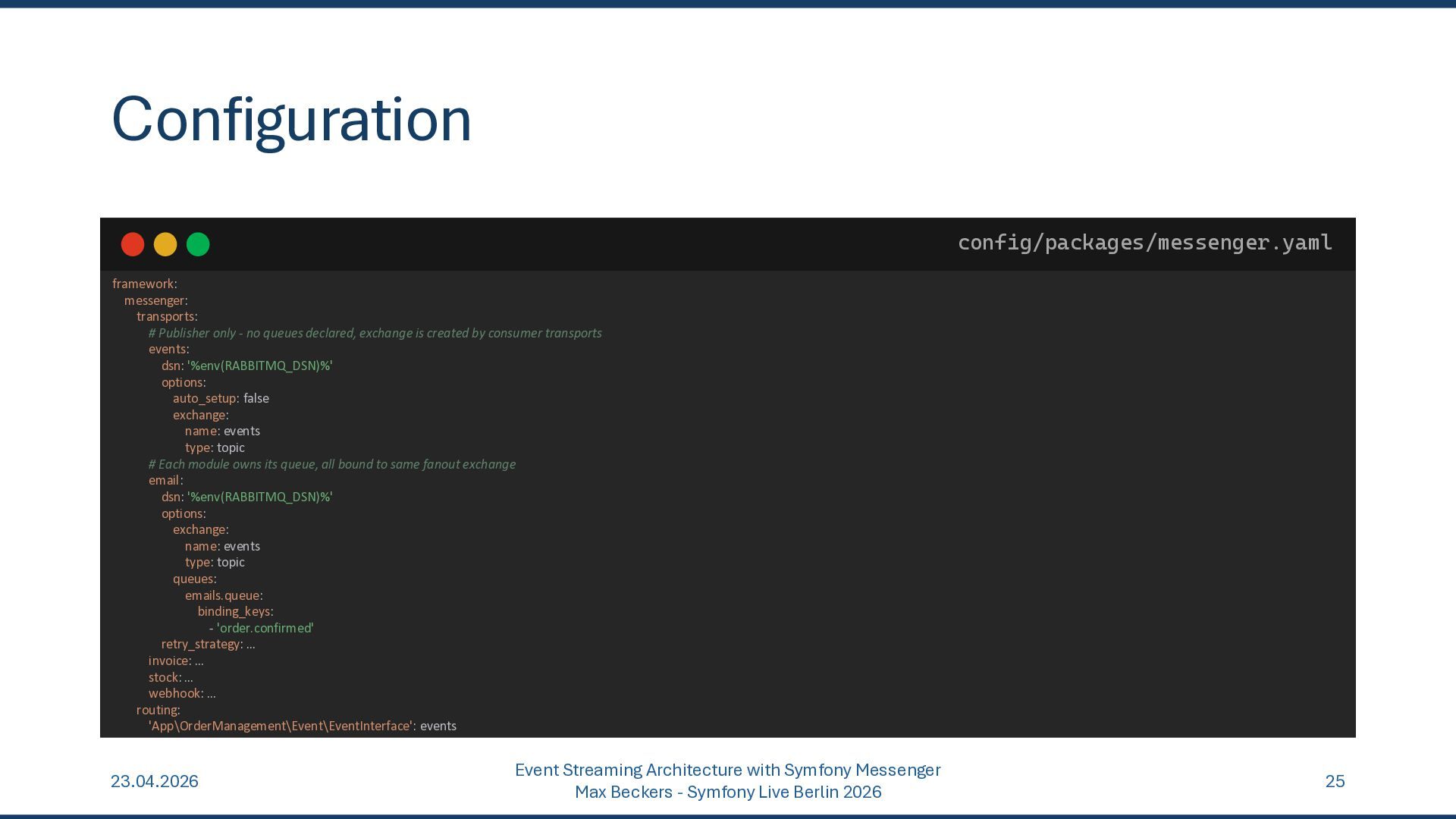

25. Configuration 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 25 config/packages/messenger.yaml framework: messenger: transports: # Publisher only - no queues declared, exchange is created by consumer transports events: dsn: '%env(RABBITMQ_DSN)%' options: auto_setup: false exchange: name: events type: topic # Each module owns its queue, all bound to same fanout exchange email: dsn: '%env(RABBITMQ_DSN)%' options: exchange: name: events type: topic queues: emails.queue: binding_keys: - 'order.confirmed' retry_strategy: … invoice: … stock: … webhook: … routing: 'App\OrderManagement\Event\EventInterface': events

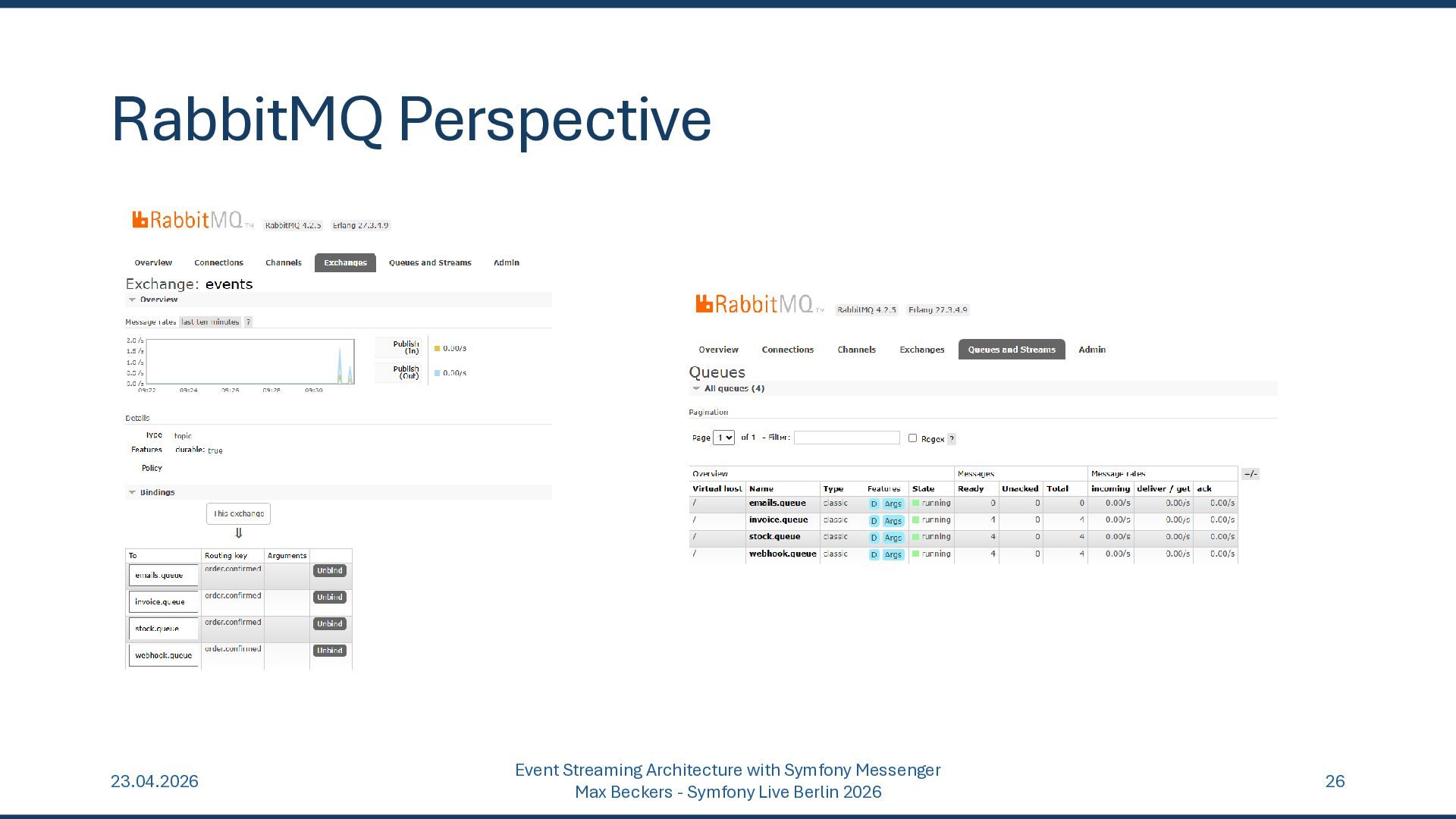

26. RabbitMQ Perspective 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 26

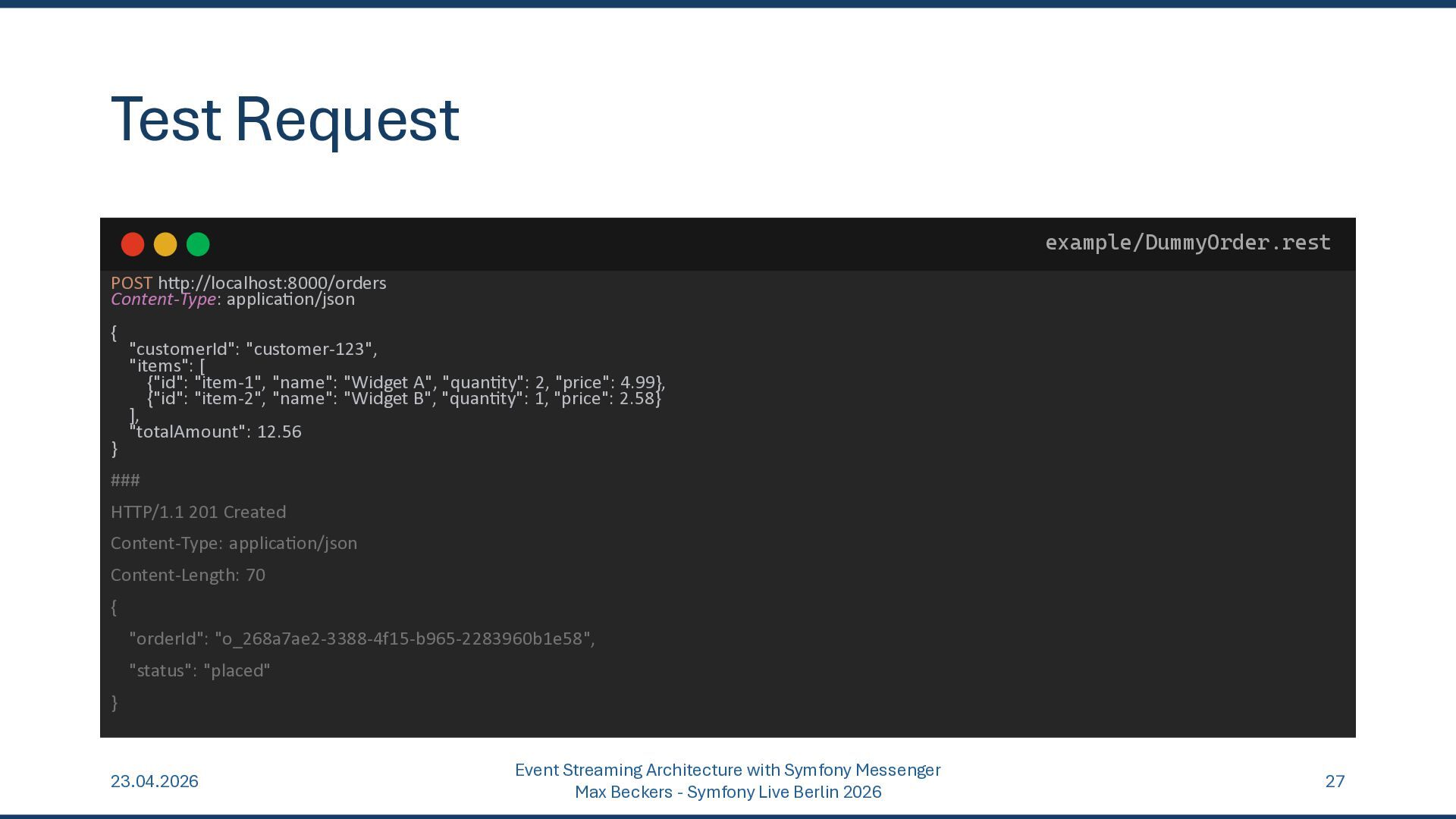

27. Test Request POST http://localhost:8000/orders Content-Type: application/json { "customerId": "customer-123", "items": [ {"id": "item-1", "name": "Widget A", "quantity": 2, "price": 4.99}, {"id": "item-2", "name": "Widget B", "quantity": 1, "price": 2.58} ], "totalAmount": 12.56 } ### HTTP/1.1 201 Created Content-Type: application/json Content-Length: 70 { "orderId": "o_268a7ae2-3388-4f15-b965-2283960b1e58", "status": "placed" } 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 27 example/DummyOrder.rest

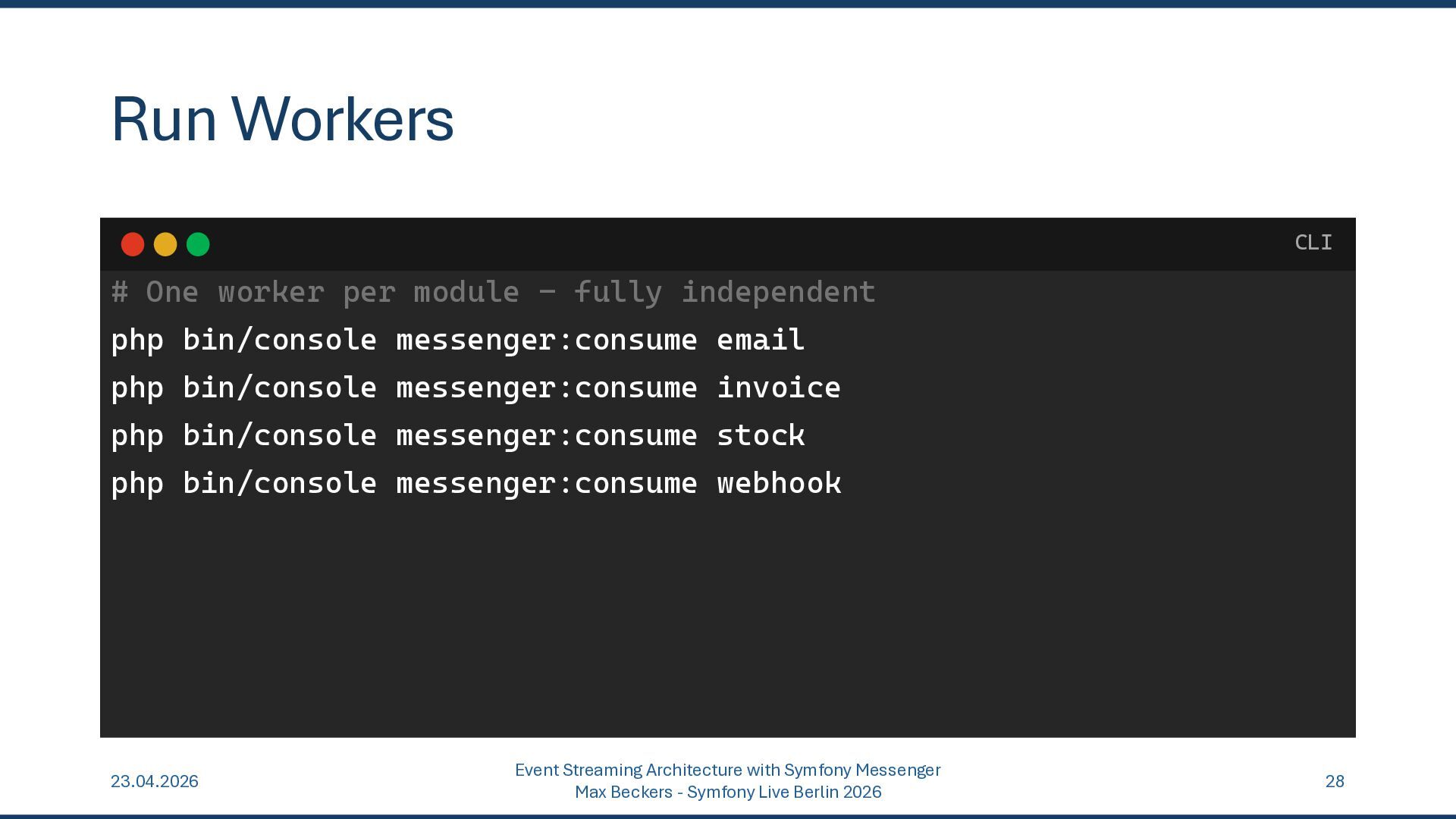

28. Run Workers # One worker per module - fully independent php bin/console messenger:consume email php bin/console messenger:consume invoice php bin/console messenger:consume stock php bin/console messenger:consume webhook 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 28 CLI

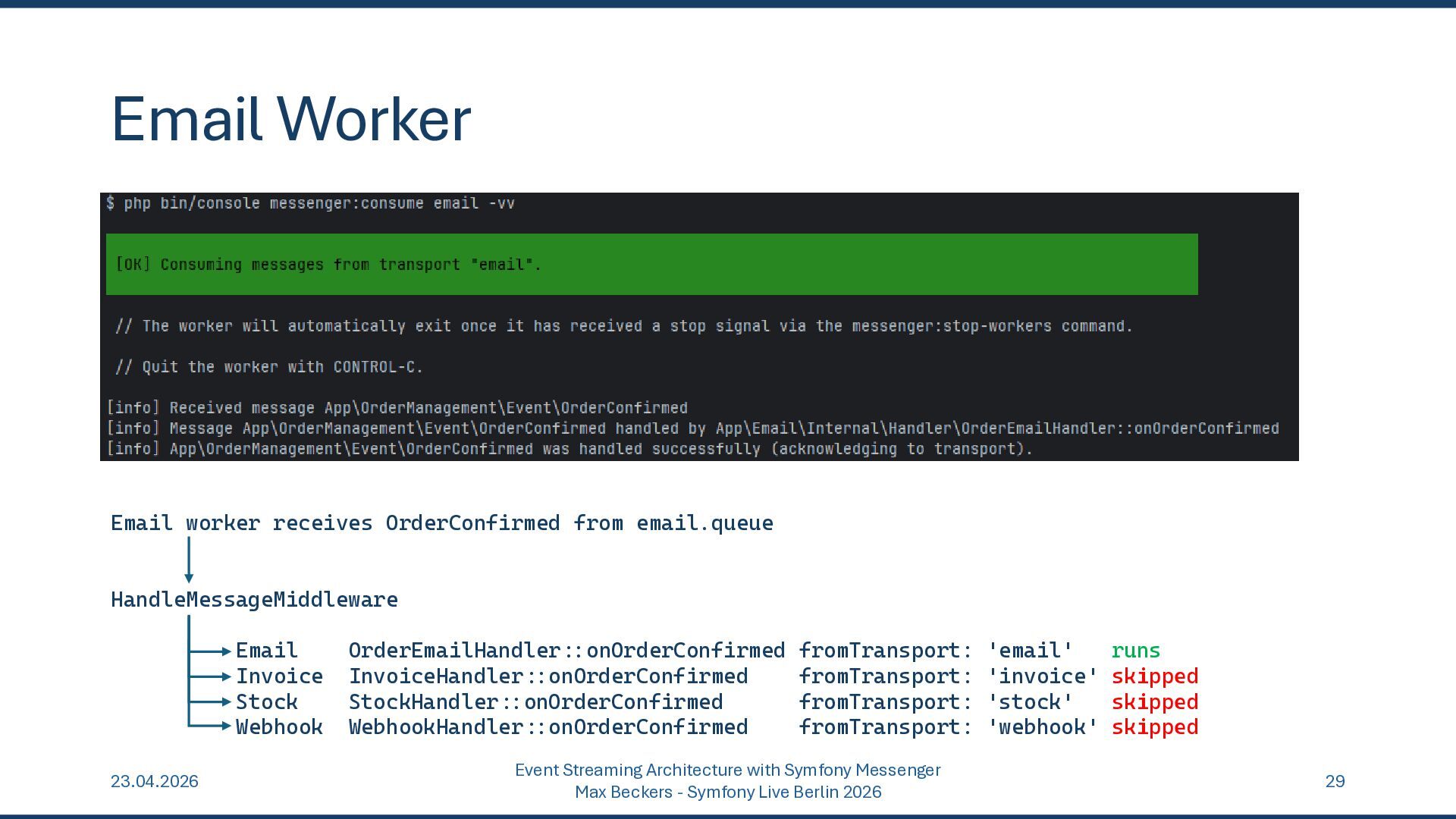

29. Email Worker 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 29 Email worker receives OrderConfirmed from email.queue HandleMessageMiddleware Email OrderEmailHandler::onOrderConfirmed fromTransport: 'email' runs Invoice InvoiceHandler::onOrderConfirmed fromTransport: 'invoice' skipped Stock StockHandler::onOrderConfirmed fromTransport: 'stock' skipped Webhook WebhookHandler::onOrderConfirmed fromTransport: 'webhook' skipped

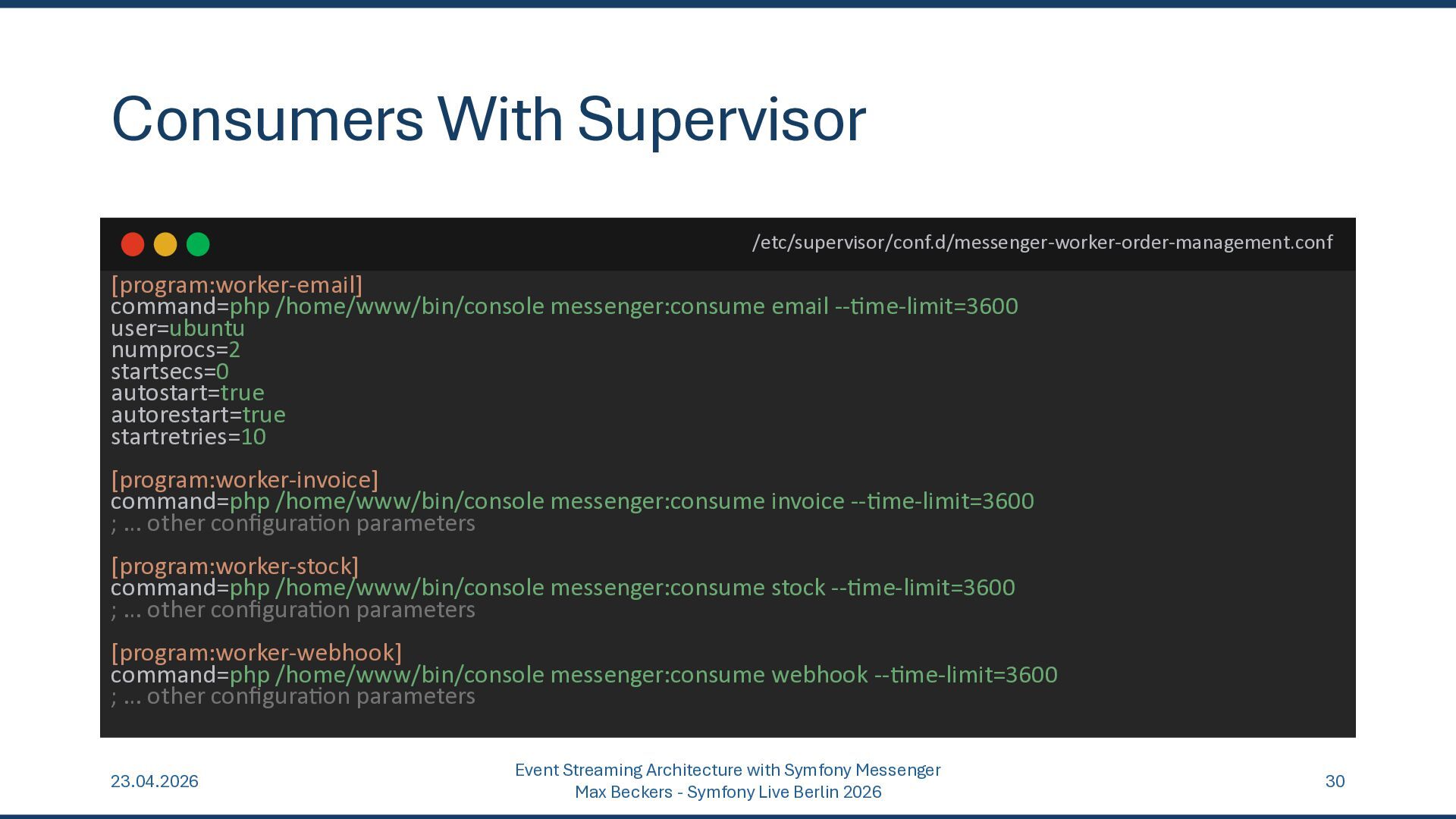

30. Consumers With Supervisor [program:worker-email] command=php /home/www/bin/console messenger:consume email --time-limit=3600 user=ubuntu numprocs=2 startsecs=0 autostart=true autorestart=true startretries=10 [program:worker-invoice] command=php /home/www/bin/console messenger:consume invoice --time-limit=3600 ; … other configuration parameters [program:worker-stock] command=php /home/www/bin/console messenger:consume stock --time-limit=3600 ; … other configuration parameters [program:worker-webhook] command=php /home/www/bin/console messenger:consume webhook --time-limit=3600 ; … other configuration parameters 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 30 /etc/supervisor/conf.d/messenger-worker-order-management.conf
31. Happy path working ☺ 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 31
32. Event Streaming Across Different Services 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 32
33. Modules To Deployed Services 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 33 API-Gateway Payment- Module Webhook- Module Invoice-Module Stock-Module Email-Module Order- Management Email Service Stock Service Invoice Service
34. Error Handling In Event Consumers 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 34

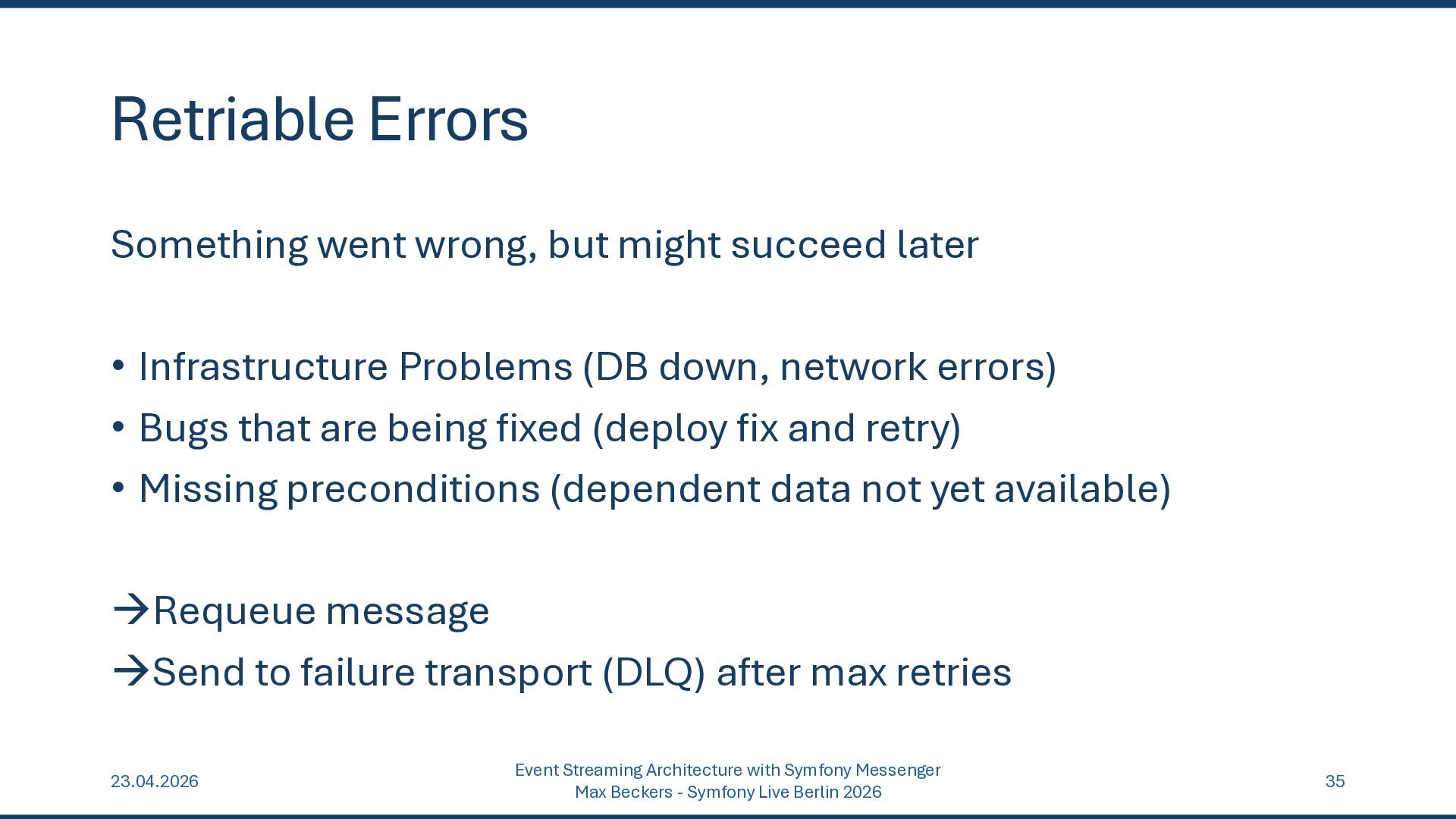

35. Retriable Errors Something went wrong, but might succeed later • Infrastructure Problems (DB down, network errors) • Bugs that are being fixed (deploy fix and retry) • Missing preconditions (dependent data not yet available) →Requeue message →Send to failure transport (DLQ) after max retries 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 35

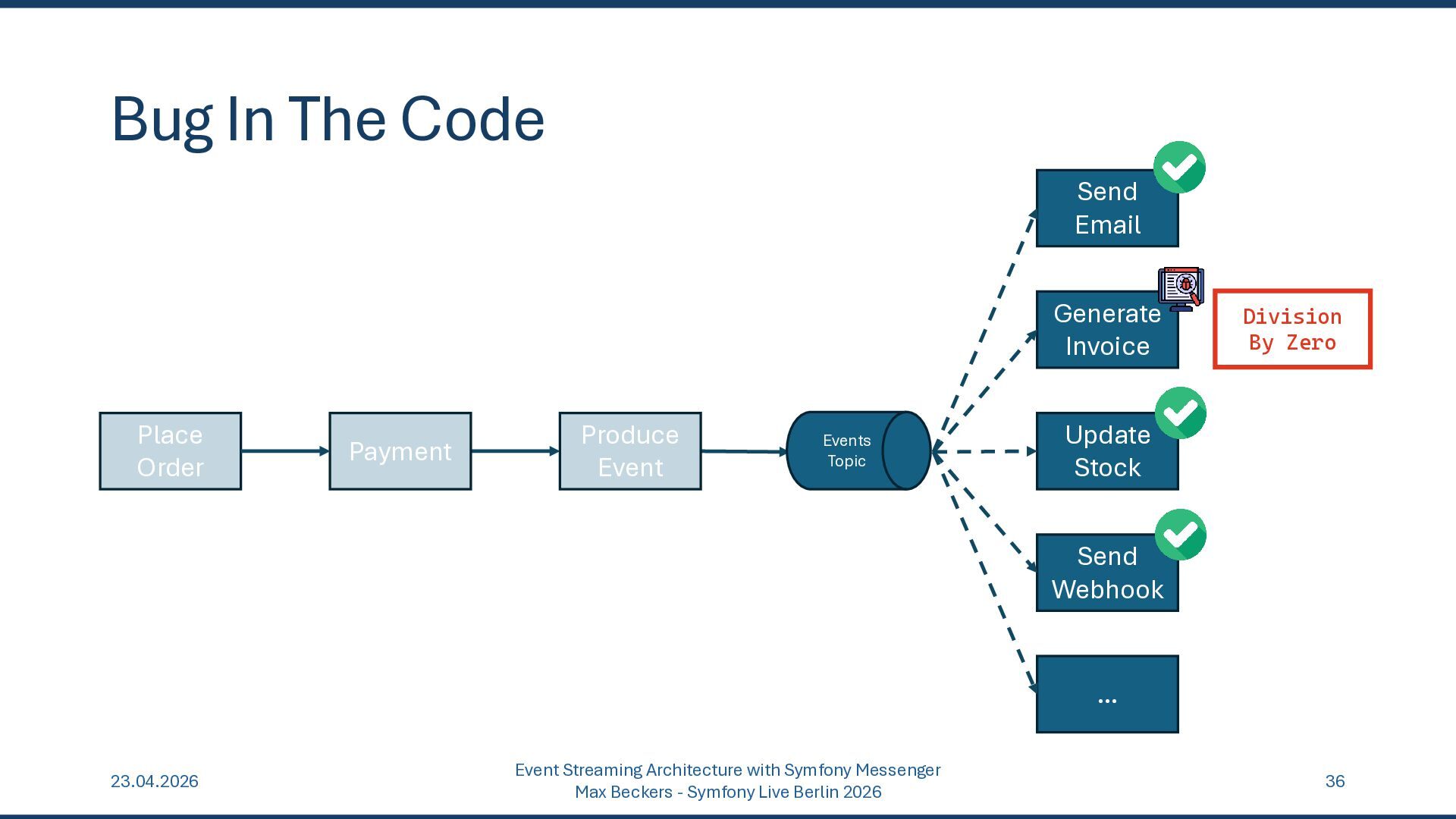

36. Bug In The Code 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 36 Place Order Payment Produce Event Send Email Generate Invoice Update Stock Send Webhook … Division By Zero Events Topic

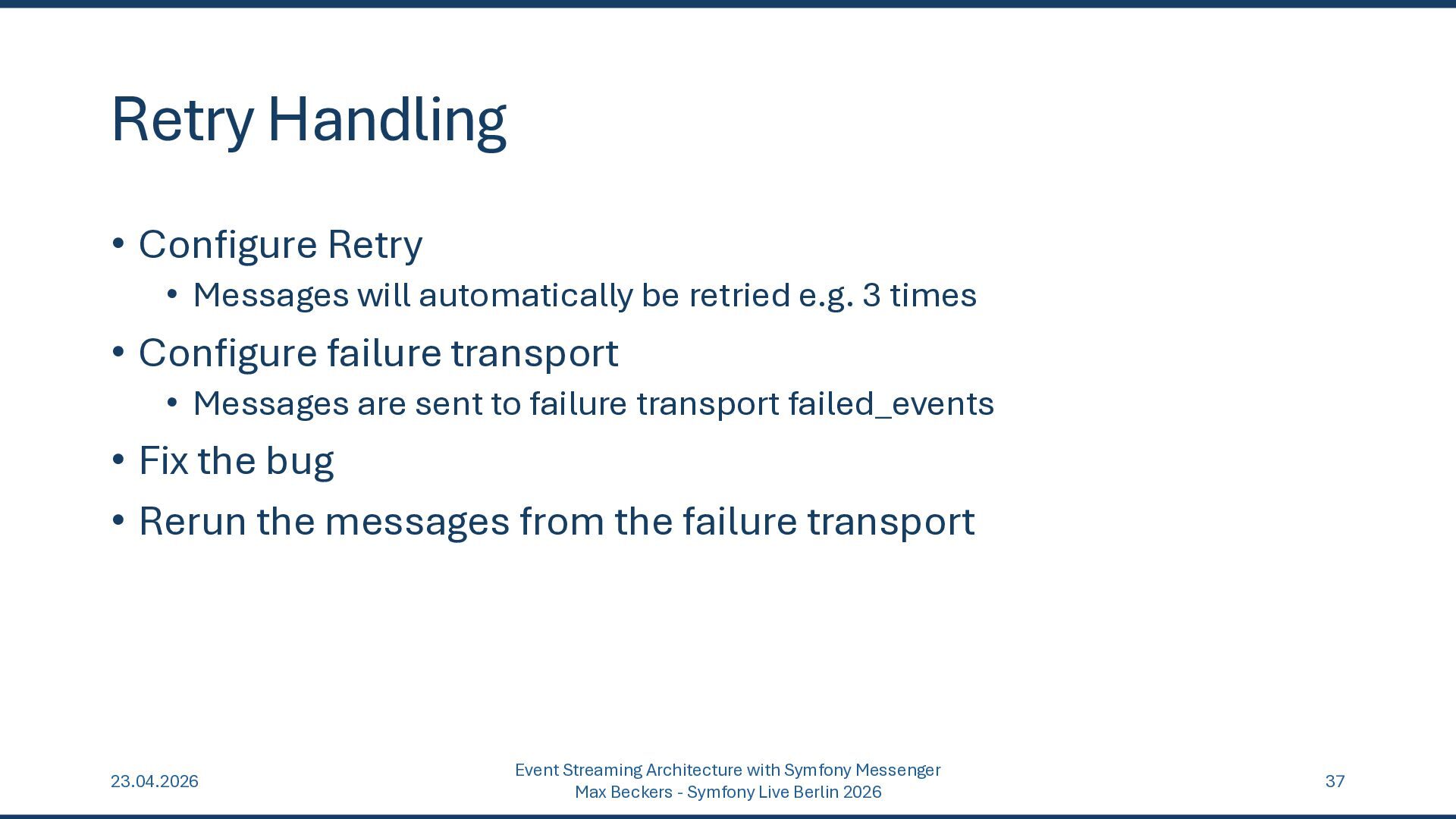

37. Retry Handling • Configure Retry • Messages will automatically be retried e.g. 3 times • Configure failure transport • Messages are sent to failure transport failed_events • Fix the bug • Rerun the messages from the failure transport 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 37

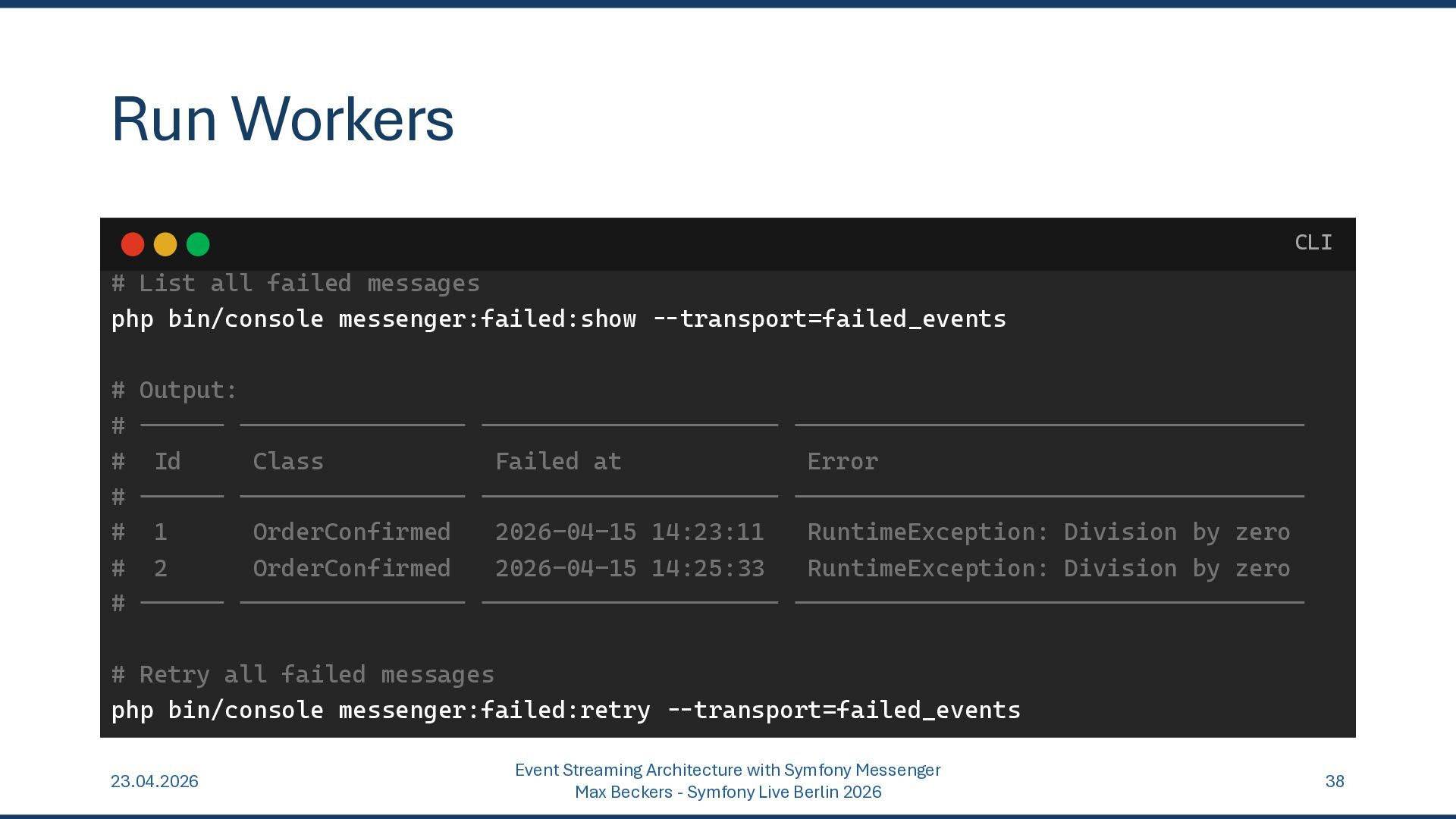

38. Run Workers # List all failed messages php bin/console messenger:failed:show -:transport=failed_events # Output: # ------ ---------------- --------------------- ------------------------------------ # Id Class Failed at Error # ------ ---------------- --------------------- ------------------------------------ # 1 OrderConfirmed 2026-04-15 14:23:11 RuntimeException: Division by zero # 2 OrderConfirmed 2026-04-15 14:25:33 RuntimeException: Division by zero # ------ ---------------- --------------------- ------------------------------------ # Retry all failed messages php bin/console messenger:failed:retry -:transport=failed_events 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 38 CLI

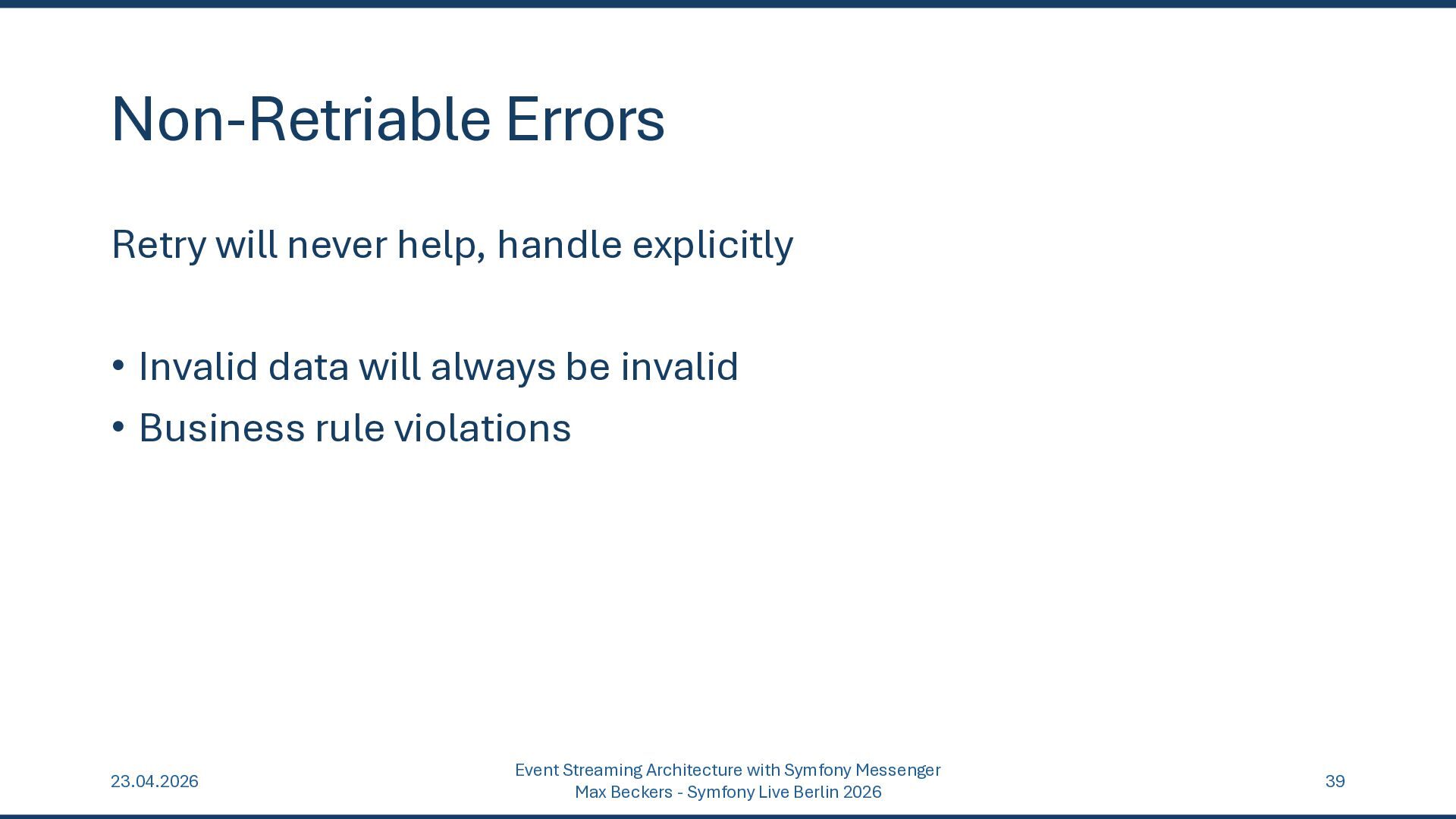

39. Non-Retriable Errors Retry will never help, handle explicitly • Invalid data will always be invalid • Business rule violations 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 39

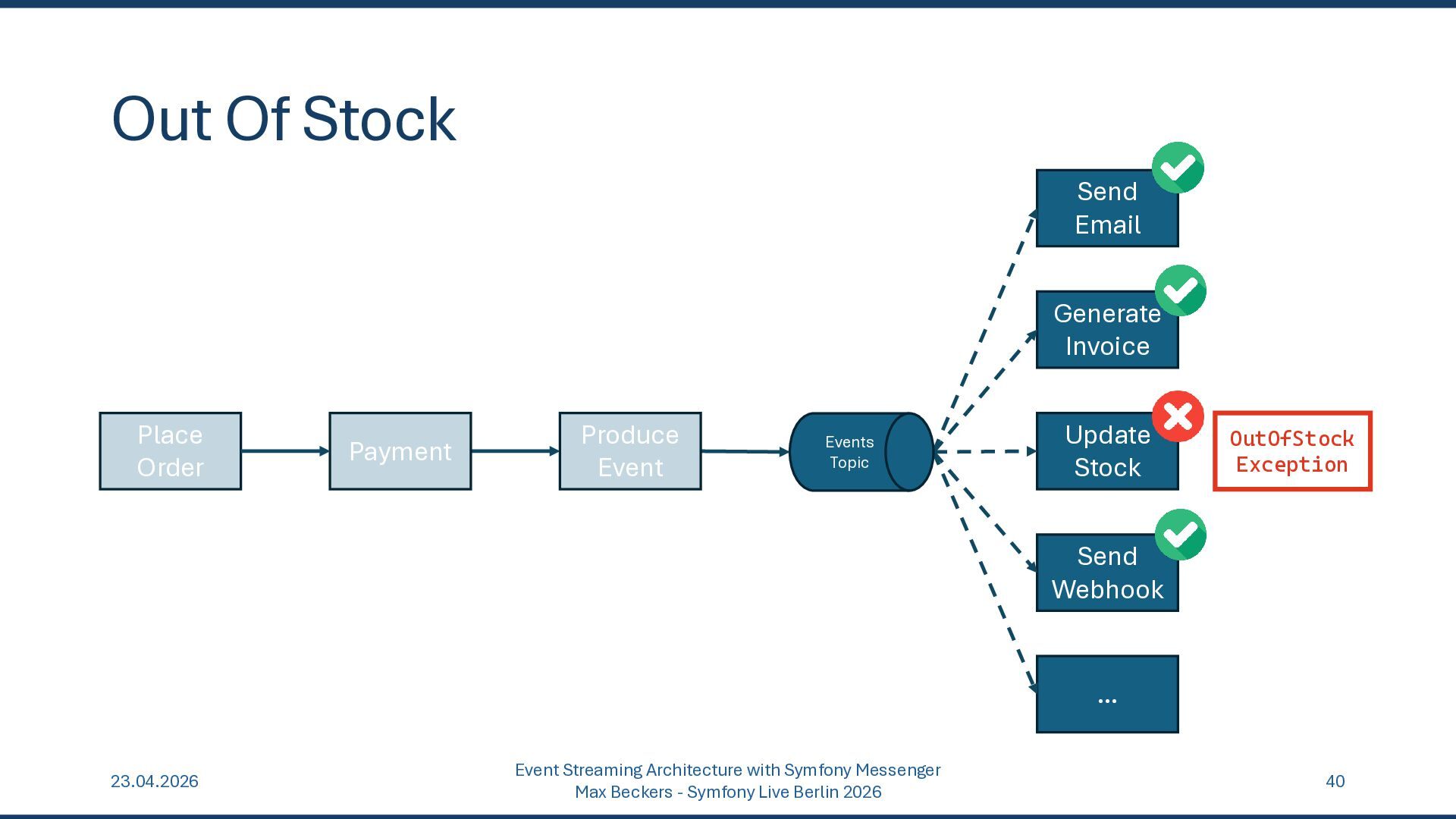

40. Out Of Stock 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 40 Place Order Payment Produce Event Send Email Generate Invoice Update Stock Send Webhook … OutOfStock Exception Events Topic

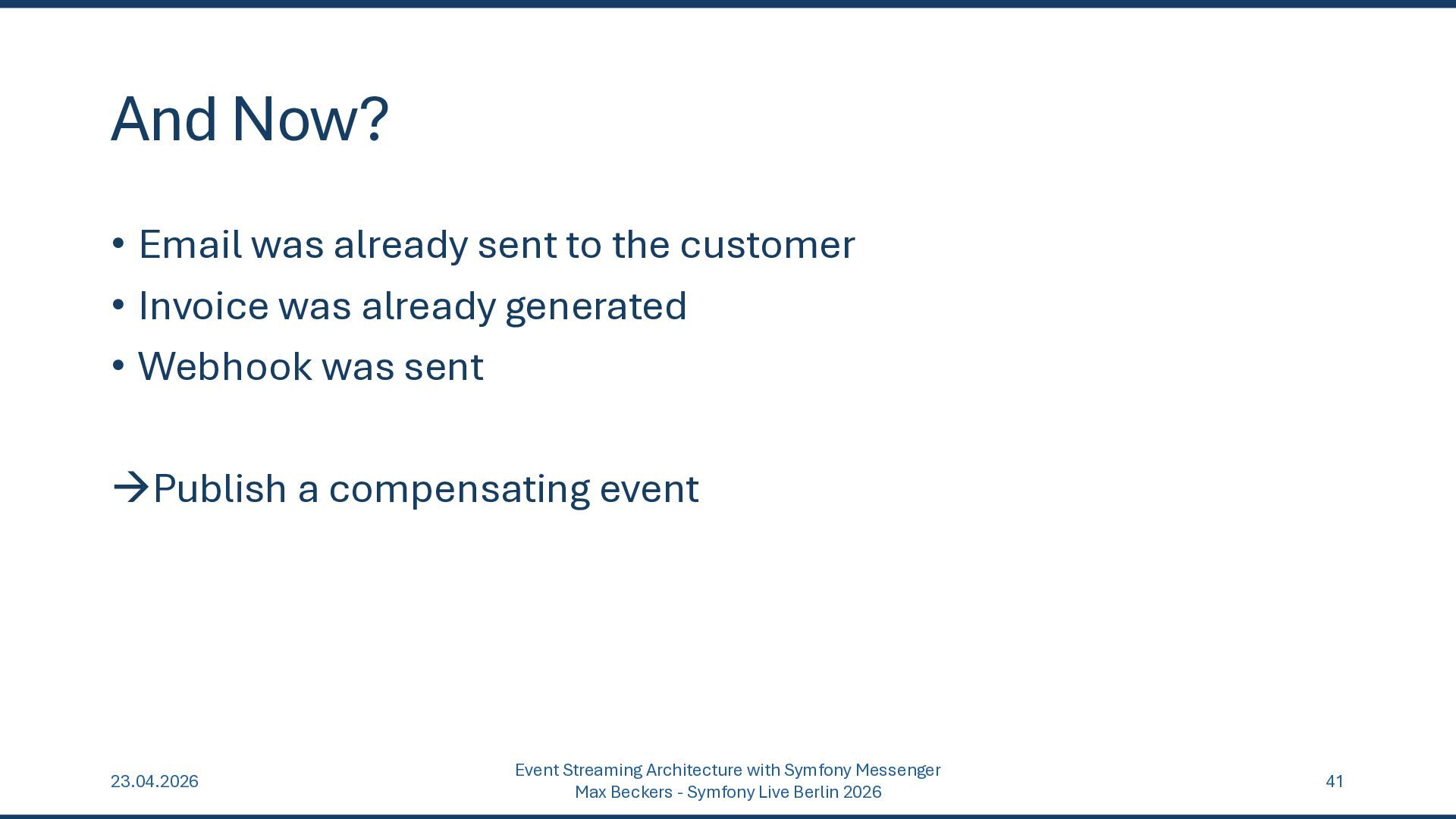

41. And Now? • Email was already sent to the customer • Invoice was already generated • Webhook was sent →Publish a compensating event 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 41

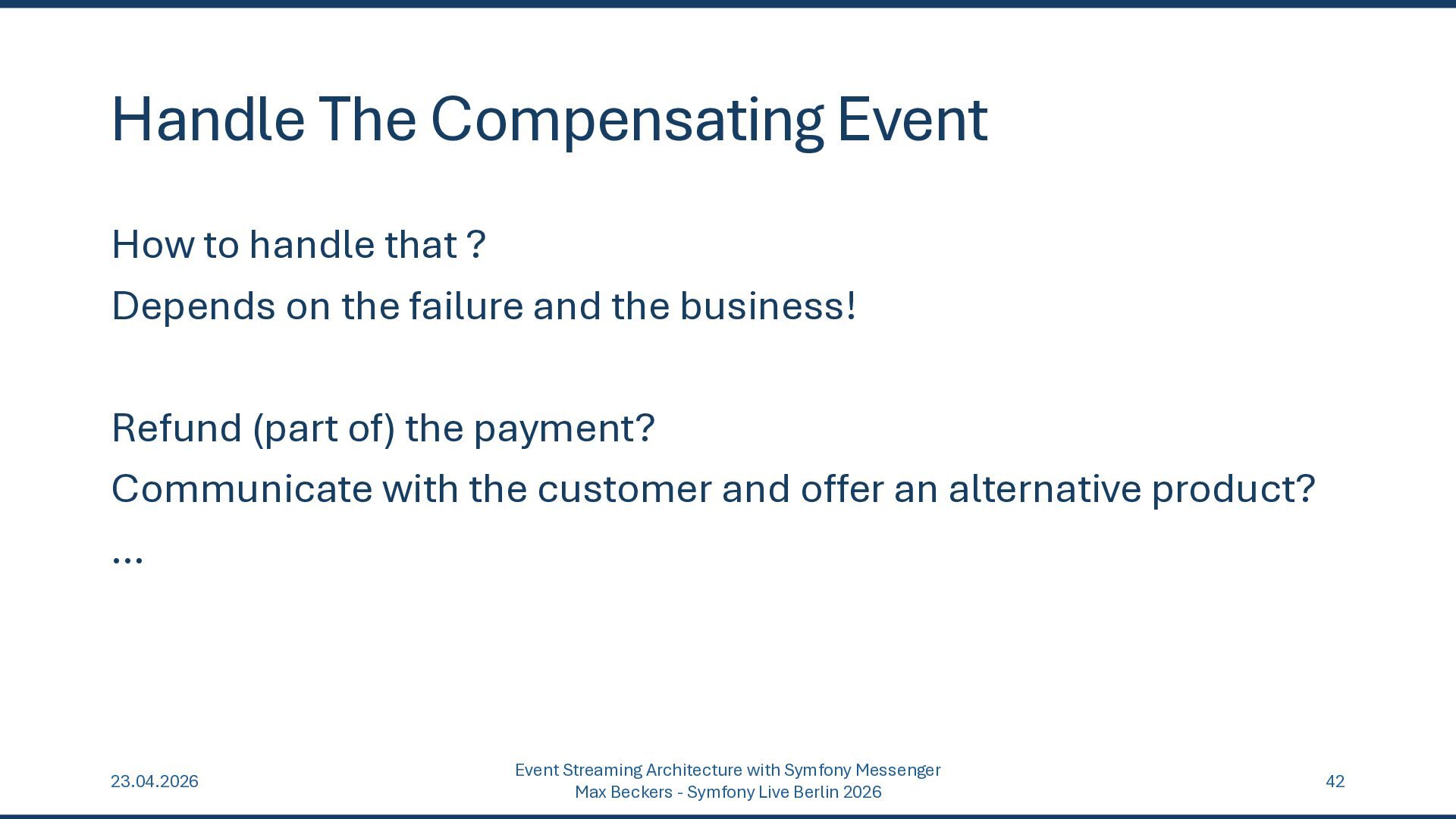

42. Handle The Compensating Event How to handle that ? Depends on the failure and the business! Refund (part of) the payment? Communicate with the customer and offer an alternative product? … 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 42
43. The Compensating Event <?php namespace App\OrderManagement\Event; final readonly class StockUpdateFailed implements EventInterface { public function __construct( public string $eventId, public string $orderId, public string $customerId, public array $items, public float $totalAmount, public \DateTimeImmutable $occurredAt = new \DateTimeImmutable(), ) {} public static function getRoutingKey(): string { return 'stock.update_failed'; } } 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 43 src/OrderManagement/Event/StockUpdateFailed.php

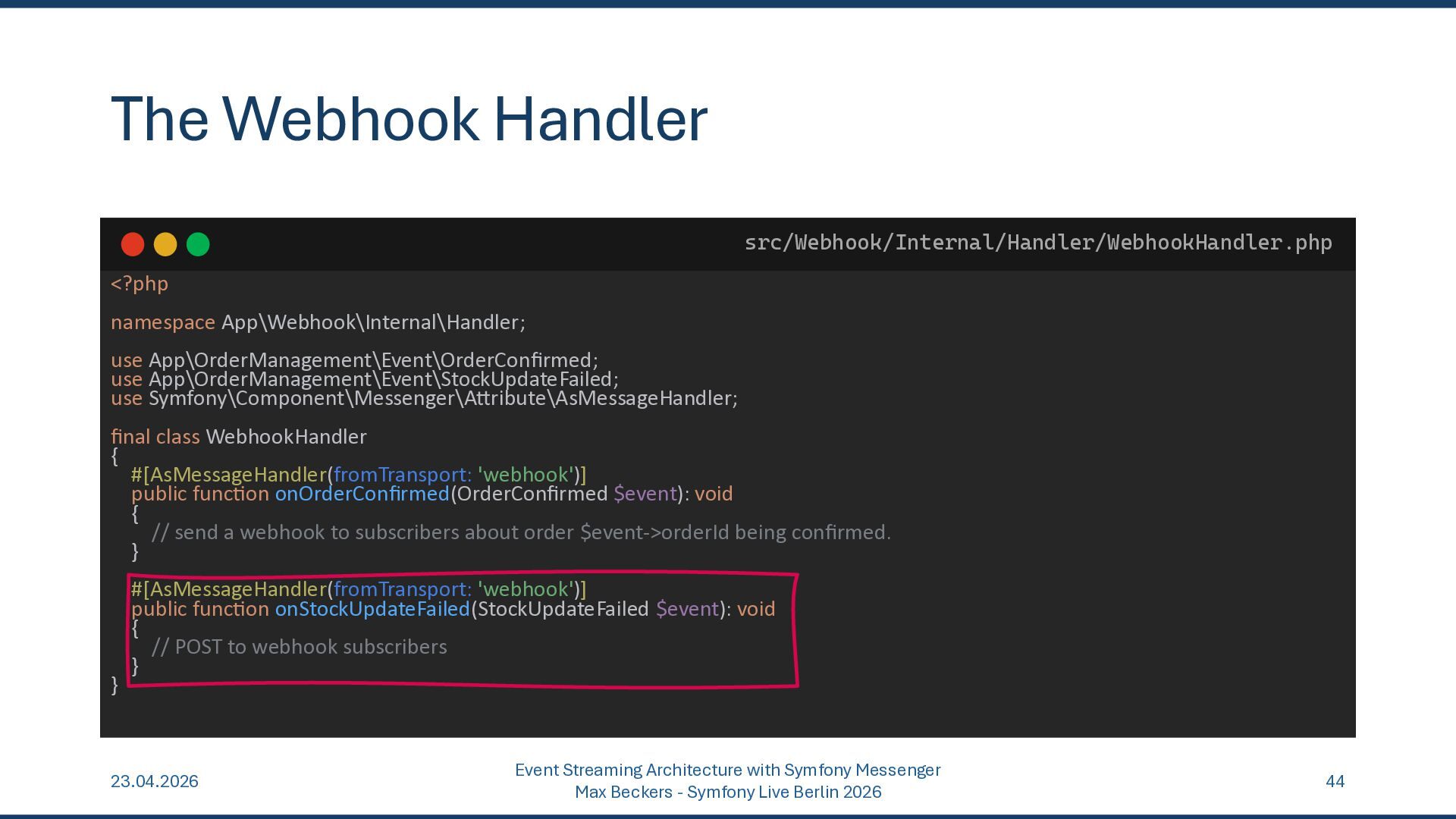

44. The Webhook Handler <?php namespace App\Webhook\Internal\Handler; use App\OrderManagement\Event\OrderConfirmed; use App\OrderManagement\Event\StockUpdateFailed; use Symfony\Component\Messenger\Attribute\AsMessageHandler; final class WebhookHandler { #[AsMessageHandler(fromTransport: 'webhook')] public function onOrderConfirmed(OrderConfirmed $event): void { // send a webhook to subscribers about order $event->orderId being confirmed. } #[AsMessageHandler(fromTransport: 'webhook')] public function onStockUpdateFailed(StockUpdateFailed $event): void { // POST to webhook subscribers } } 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 44 src/Webhook/Internal/Handler/WebhookHandler.php

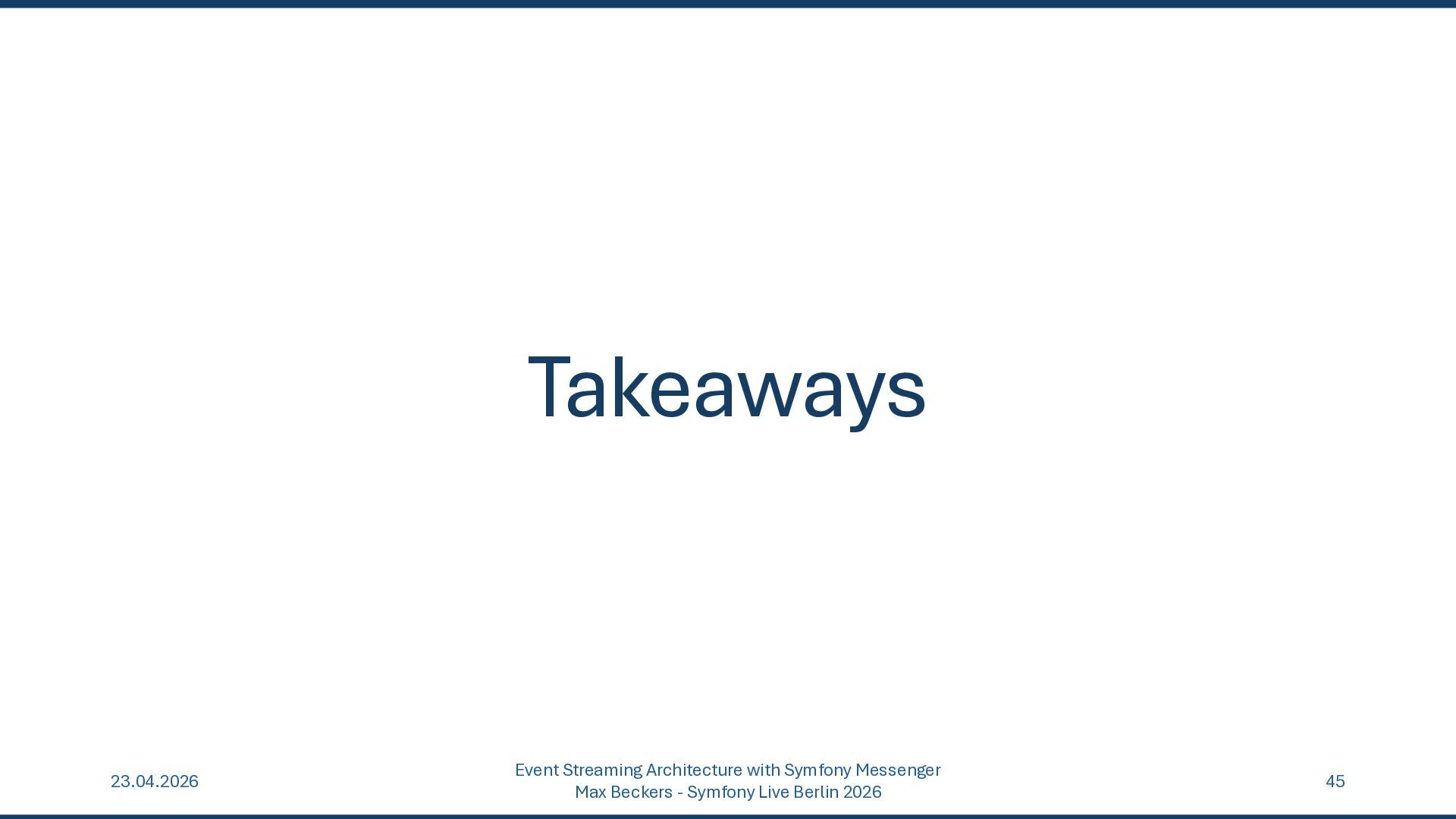

45. Takeaways 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 45

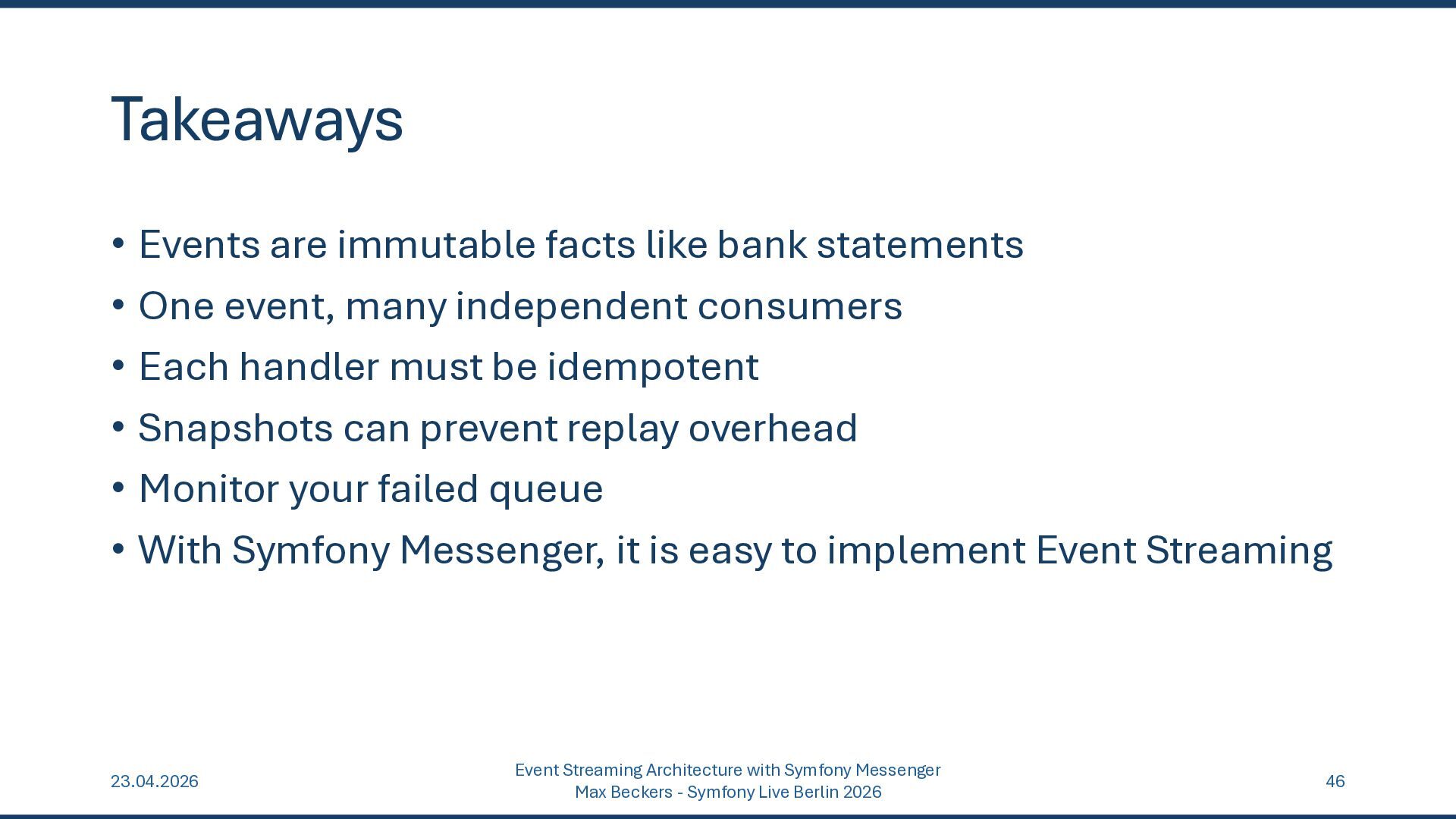

46. Takeaways • Events are immutable facts like bank statements • One event, many independent consumers • Each handler must be idempotent • Snapshots can prevent replay overhead • Monitor your failed queue • With Symfony Messenger, it is easy to implement Event Streaming 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 46

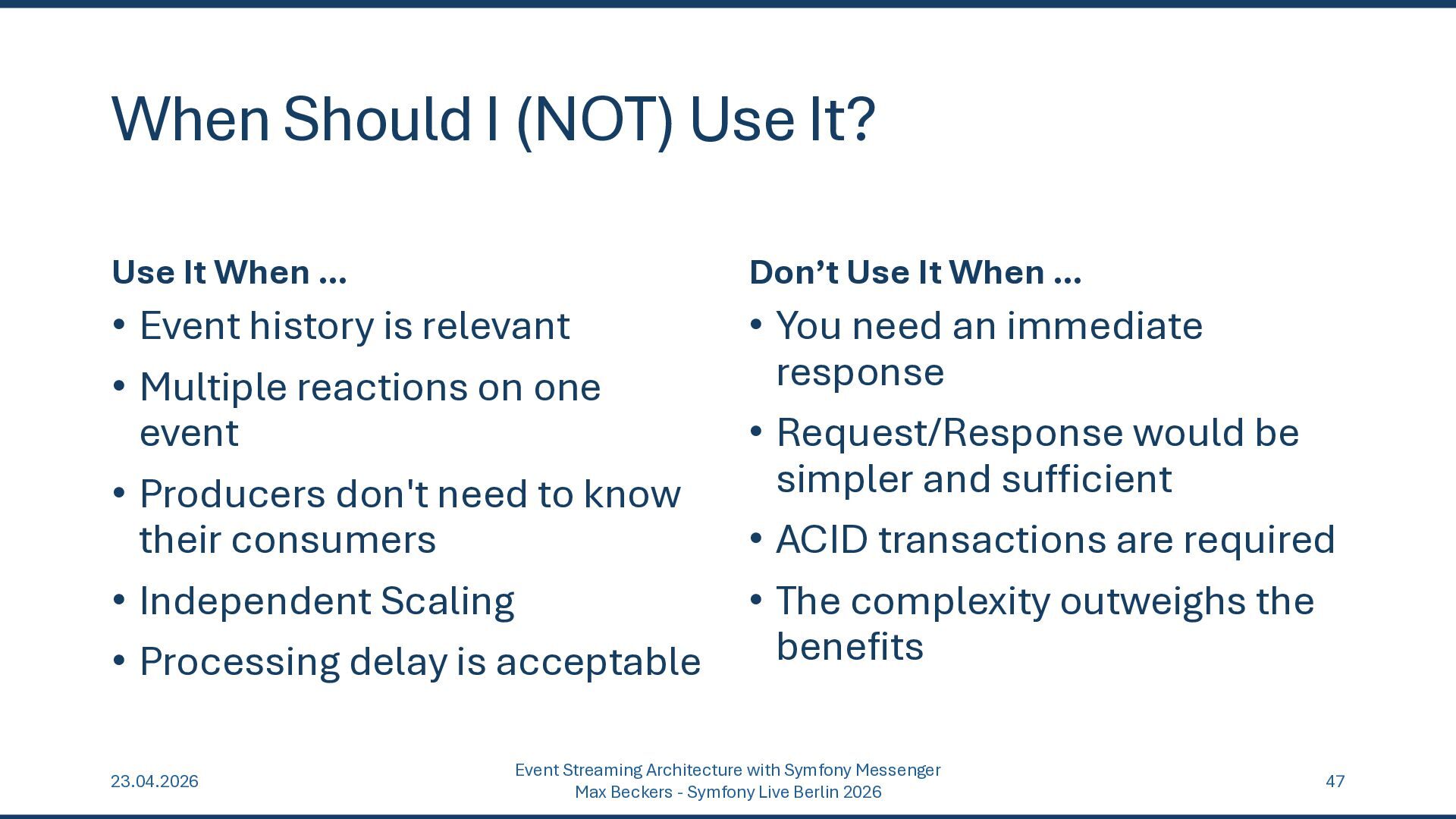

47. When Should I (NOT) Use It? Use It When … • Event history is relevant • Multiple reactions on one event • Producers don't need to know their consumers • Independent Scaling • Processing delay is acceptable Don’t Use It When … • You need an immediate response • Request/Response would be simpler and sufficient • ACID transactions are required • The complexity outweighs the benefits 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 47
48. Thanks for listening ☺ 23.04.2026 Event Streaming Architecture with Symfony Messenger Max Beckers - Symfony Live Berlin 2026 48
