Xamarin Vs. React Native

Presentation on Xamarin Vs. React Native by Michael Williams at the Melbourne Xamarin Meetup.

Michael discusses the differences between React Native and Xamarin, as well as lessons learnt and DevOps on both the platforms.

Transcript

1. Xamarin vs. React Native
4. Michael Williams – Technical Solutions Professional (APAC) A little about me: - Over 8 years in Mobile development - 3 years with architectural design in the cloud (Azure, AWS and Google Cloud). - CQRS system design - Latest focus: Data Science, TensorFlow and machine learning Something interesting: - Currently studying a bachelor of science - highly focused on Physics - I’ve been to North Korea
5. Building native apps is hard – If anyone ever shows you this as an intro slide I suggest leaving. – First sign of a high-level presentation. Personally, I disagree with this statement, building native apps is easy. IF YOU KNOW HOW TO DO IT.

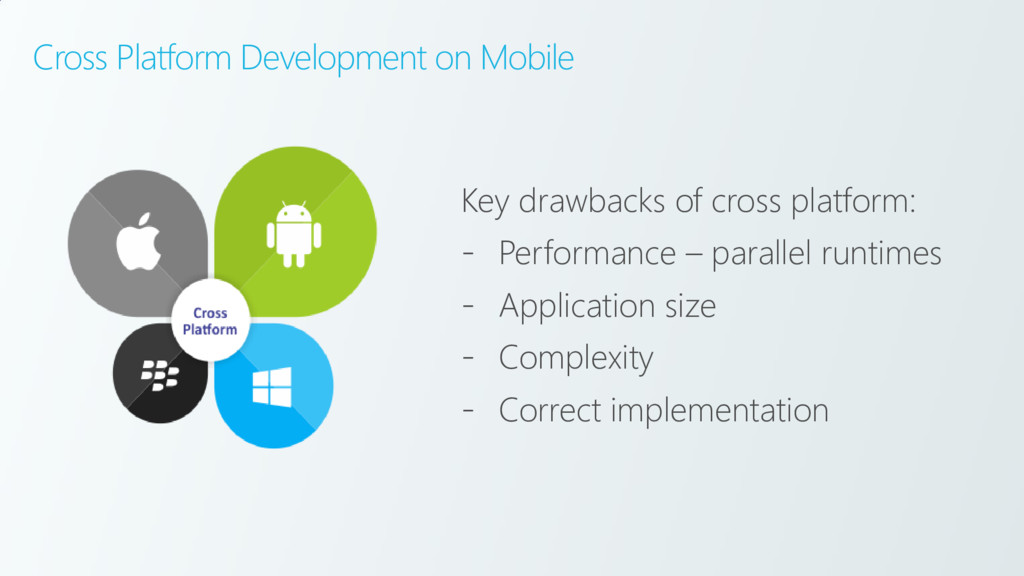

6. Cross Platform Development on Mobile Key drawbacks of cross platform: - Performance – parallel runtimes - Application size - Complexity - Correct implementation
8. The Xamarin Approach – Model-View View-Model UI Architecture – Two Approaches – Xamarin Traditional and Xamarin.Forms – iOS – AOT (Ahead of time) compilation – Android – JIT (Just in time) compilation
9. UI Architecture: Model-View View-Model MVVM Library Options: – ReactiveUI (Personal favourite) – MVVMCross – MVVMLight – FreshMVVM

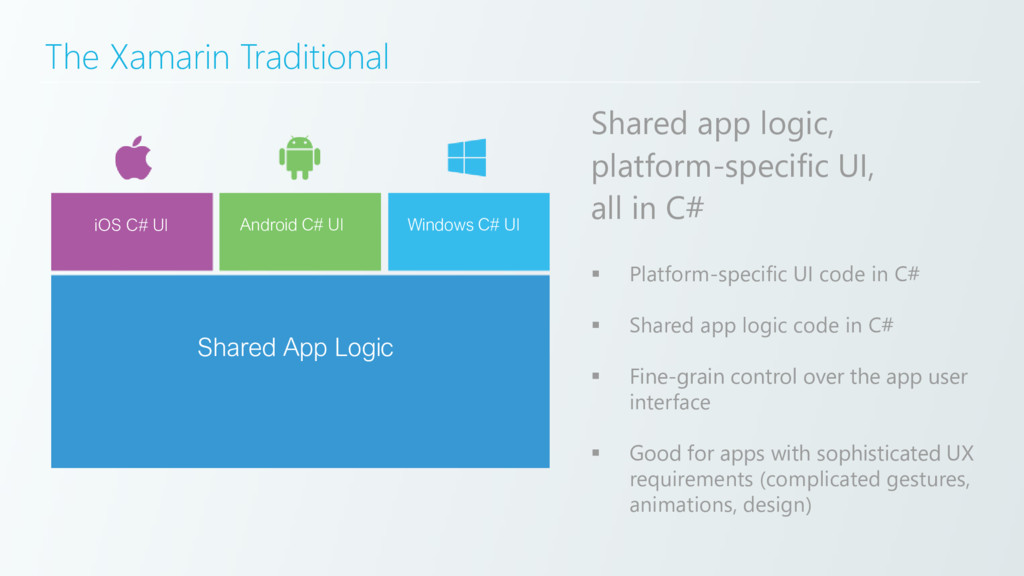

10. The Xamarin Traditional Shared app logic, platform-specific UI, all in C# Shared App Logic in C# iOS C# UI Android C# UI Windows C# UI Shared App Logic ▪ Platform-specific UI code in C# ▪ Shared app logic code in C# ▪ Fine-grain control over the app user interface ▪ Good for apps with sophisticated UX requirements (complicated gestures, animations, design)
11. Xamarin.Forms Shared App Logic Xamarin.Forms Increase Code Sharing Up to 100% and Deliver a Fully Native App ▪ Shared UI code in C# ▪ Shared app logic code in C# ▪ Mix-and-Match the use of Xamarin.Forms with platform-specific code. ▪ Good for forms-based, apps with a lot of data entry screens ▪ Easy to learn API makes you productive immediately, without platform-specific knowledge
12. Under the hood: Xamarin.iOS – Mono execution environment runs side-by-side with the Objective-C Runtime – Ahead of Time (AOT) compiles managed code which produces a native iOS binary that can be deployed on Apple’s ARM-based processor – Apple’s iOS APIs made available through the use of bindings
13. Under the hood: Xamarin.Android – Mono execution environment runs side-by-side with android runtime (ART) virtual machine – Android callable wrappers used by android runtime to invoke managed code – Managed callable wrappers (MCW) (generated via jar bindings) used to invoke android code – Android APIs exposed via android runtime using a bridge (wrappers setup through a JNI bride)
14. Difference between AOT and JIT We don’t have to precomiple a native binary, we can run MSIL at runtime. Limitation of AOT https://developer.xamarin.co m/guides/ios/advanced_topi cs/limitations/

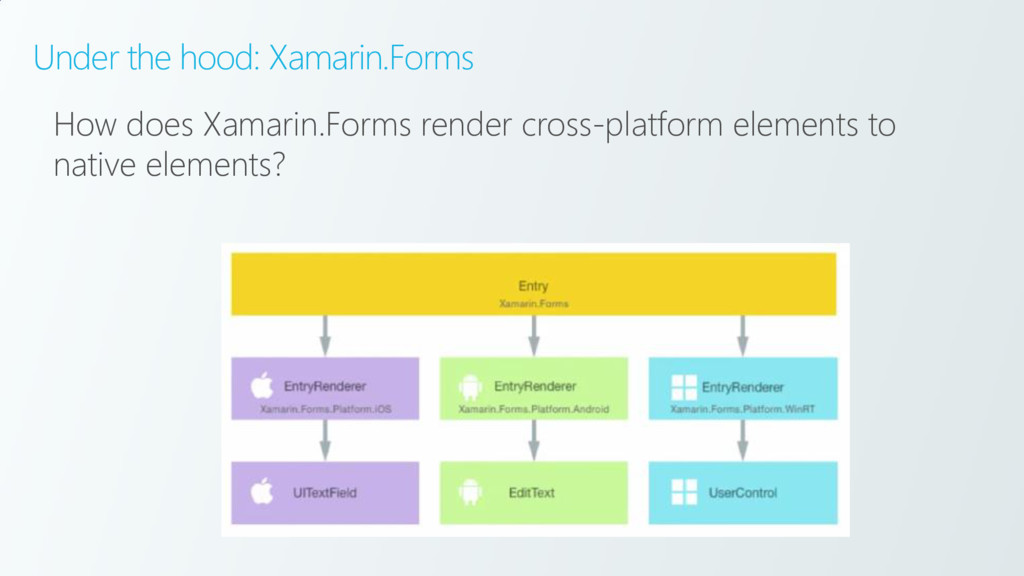

15. Under the hood: Xamarin.Forms How does Xamarin.Forms render cross-platform elements to native elements?

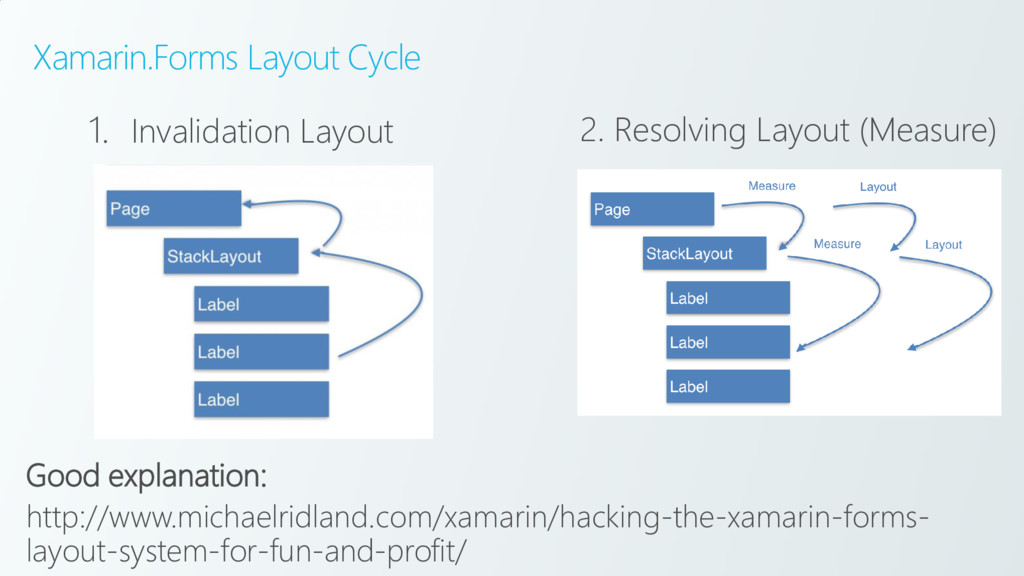

16. Xamarin.Forms Layout Cycle Good explanation: http://www.michaelridland.com/xamarin/hacking-the-xamarin-forms- layout-system-for-fun-and-profit/ 1. Invalidation Layout 2. Resolving Layout (Measure)
17. Xamarin.Forms 3.0 - The huge amount of improvements coming in Xamarin.Forms 3.0 announced at Build – Layout compression
18. Disadvantages of Xamarin.Forms - Developers with no mobile experience - Up to “95% code sharing” way of thinking – a trap for young players - Scope creep - Incorrect implementation - Can be confusing for developers
19. The React Native Approach – Flux and Redux UI Architecture – Two Approaches –Platform specific and cross-platform – JS Runtime Environment used to execute JavaScript code – JSCore Runtime uses a Bridge to communicate JavaScript with operating system

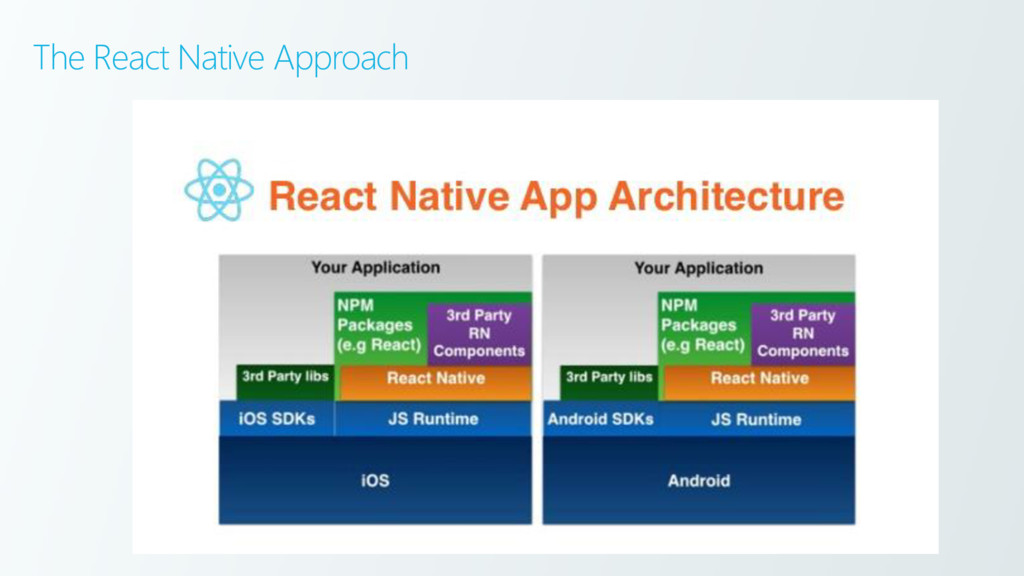

20. The React Native Approach

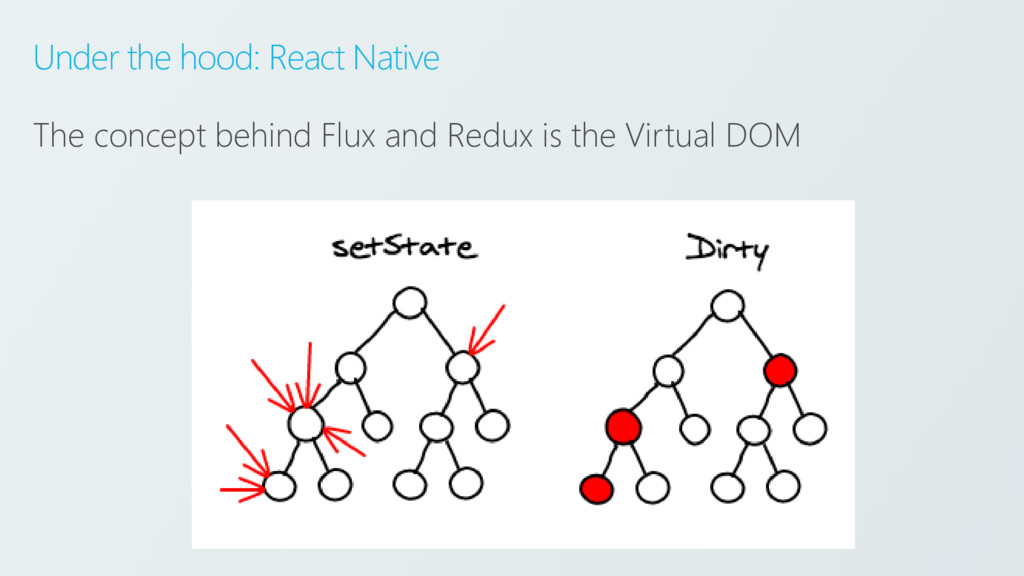

21. Under the hood: React Native The concept behind Flux and Redux is the Virtual DOM

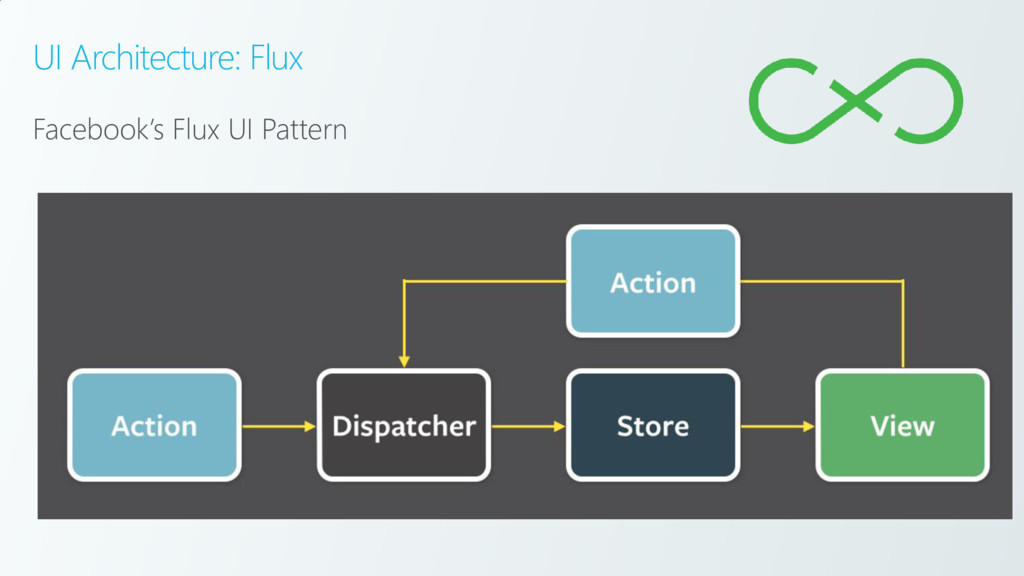

22. UI Architecture: Flux Facebook’s Flux UI Pattern

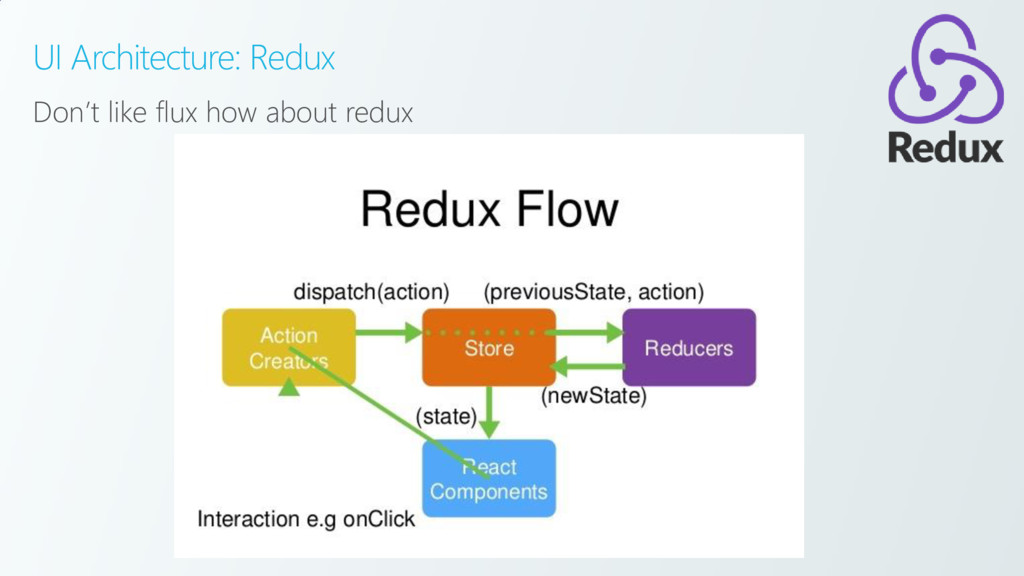

23. UI Architecture: Redux Don’t like flux how about redux

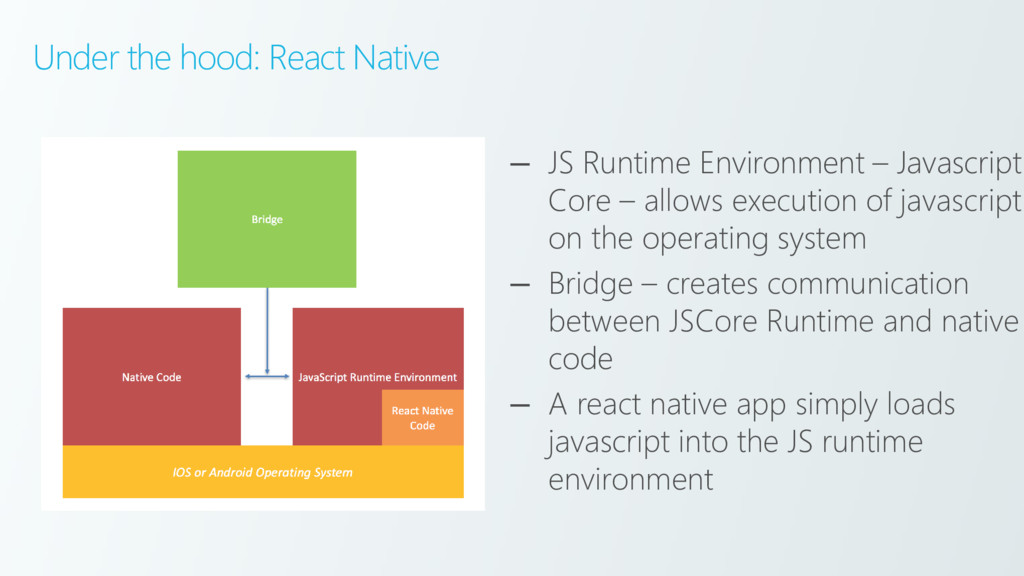

24. Under the hood: React Native – JS Runtime Environment – Javascript Core – allows execution of javascript on the operating system – Bridge – creates communication between JSCore Runtime and native code – A react native app simply loads javascript into the JS runtime environment

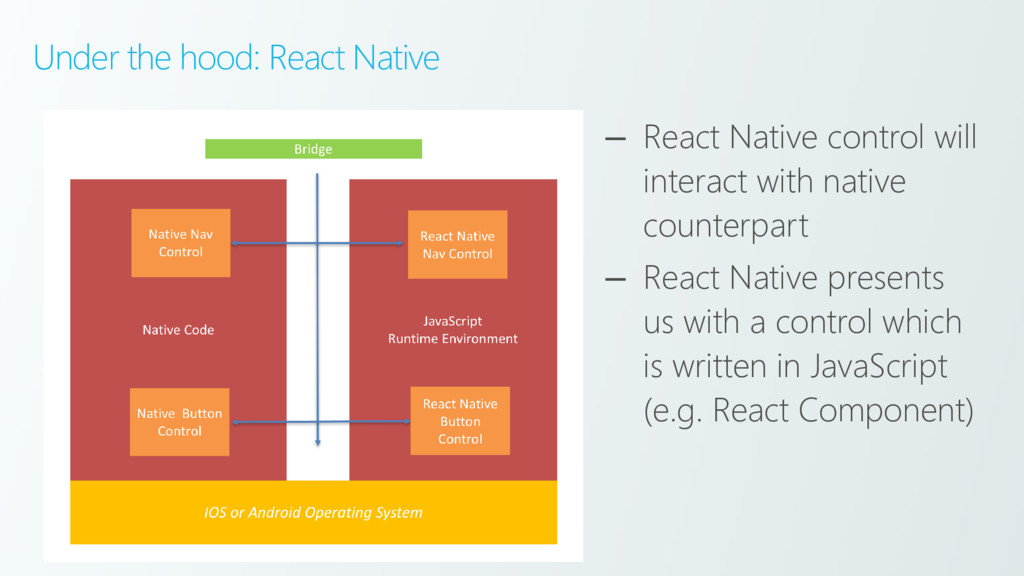

25. Under the hood: React Native – React Native control will interact with native counterpart – React Native presents us with a control which is written in JavaScript (e.g. React Component)
26. Under the hood: React Native – React Native control will interact with native counterpart – React Native presents us with a control which is written in JavaScript (e.g. React Component)
27. Under the hood: React Native Uses up to 4 parallel threads. 1. UI Thread (main thread): native android or iOS UI rendering e.g. android measure/layout/draw happens 2. JavaScript thread: where your JS code is actually running - business logic 3. Native Modules Thread - access to platform API 3. Render Thread: used to generate OpenGL commands to draw your UI (Android 5.0)

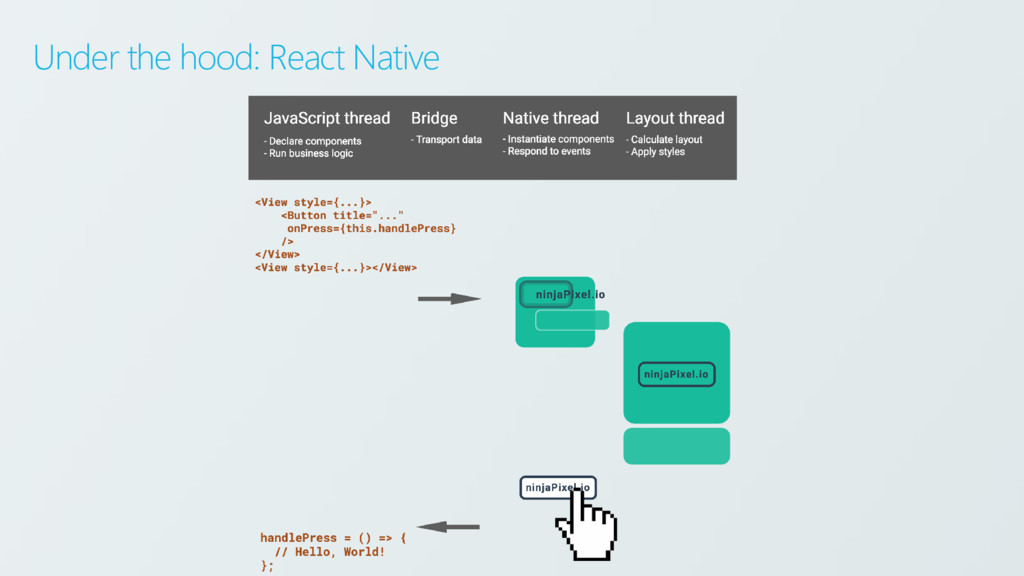

28. Under the hood: React Native
29. Under the hood: React Native Ideally, we want to keep the transactions across the bridge to a minimum
30. Under the hood: React Native A healthy react native app – all work is balanced accordingly - no thread is working close to the frame boundary

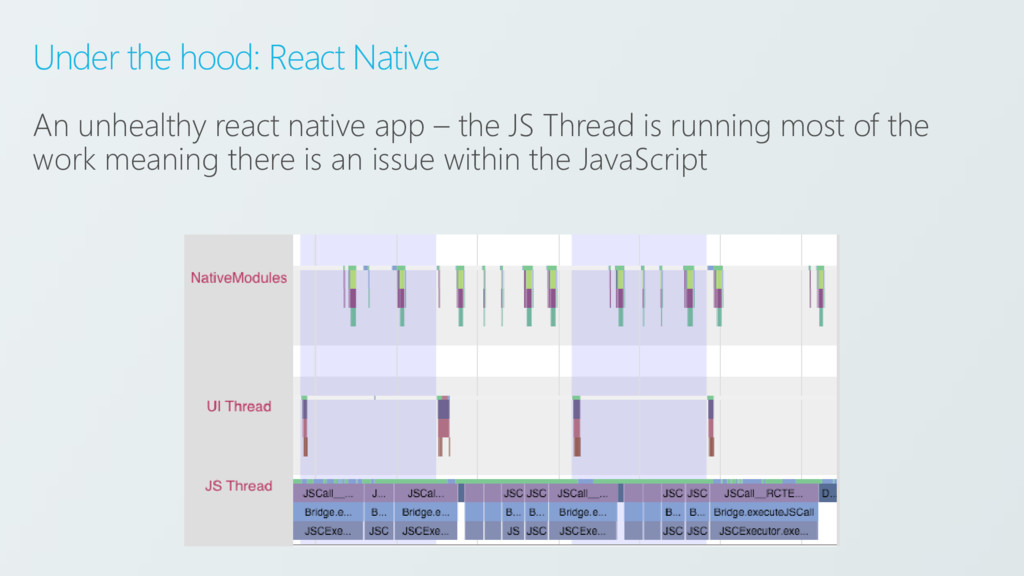

31. Under the hood: React Native An unhealthy react native app – the JS Thread is running most of the work meaning there is an issue within the JavaScript
32. Major disadvantages of React Native - Coding in two languages – swift/javascript & java/javascript - Native embedding for new developers is tricky - JavaScript is unsafe, technically defective and slowly evolving

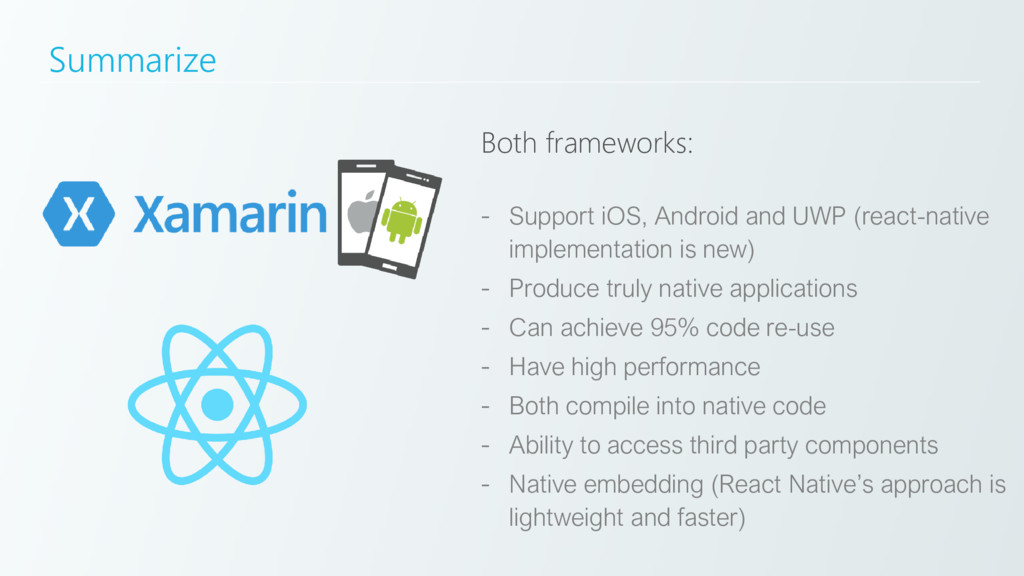

33. Summarize Both frameworks: - Support iOS, Android and UWP (react-native implementation is new) - Produce truly native applications - Can achieve 95% code re-use - Have high performance - Both compile into native code - Ability to access third party components - Native embedding (React Native’s approach is lightweight and faster)

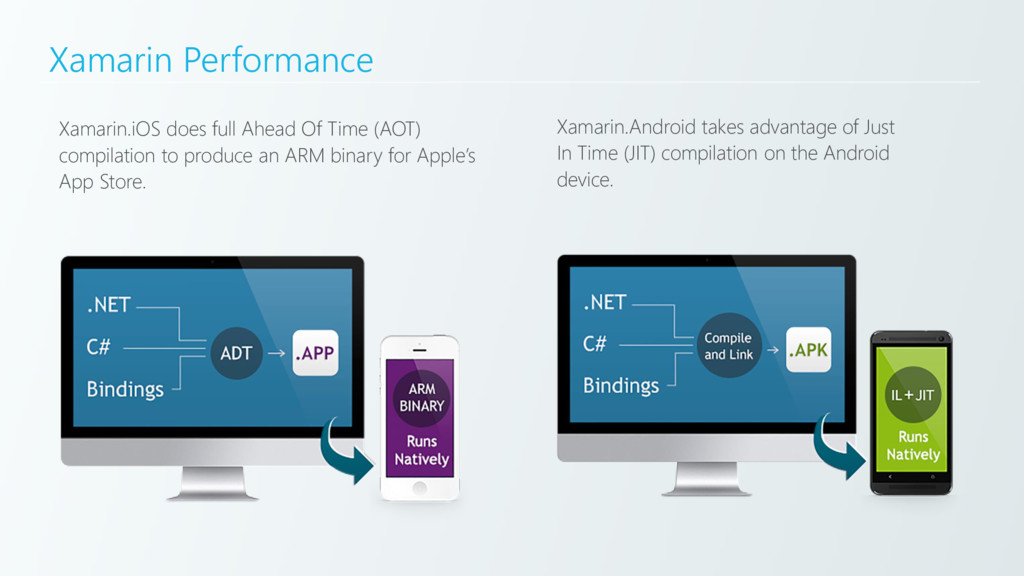

35. Xamarin Performance Xamarin.iOS does full Ahead Of Time (AOT) compilation to produce an ARM binary for Apple’s App Store. Xamarin.Android takes advantage of Just In Time (JIT) compilation on the Android device.

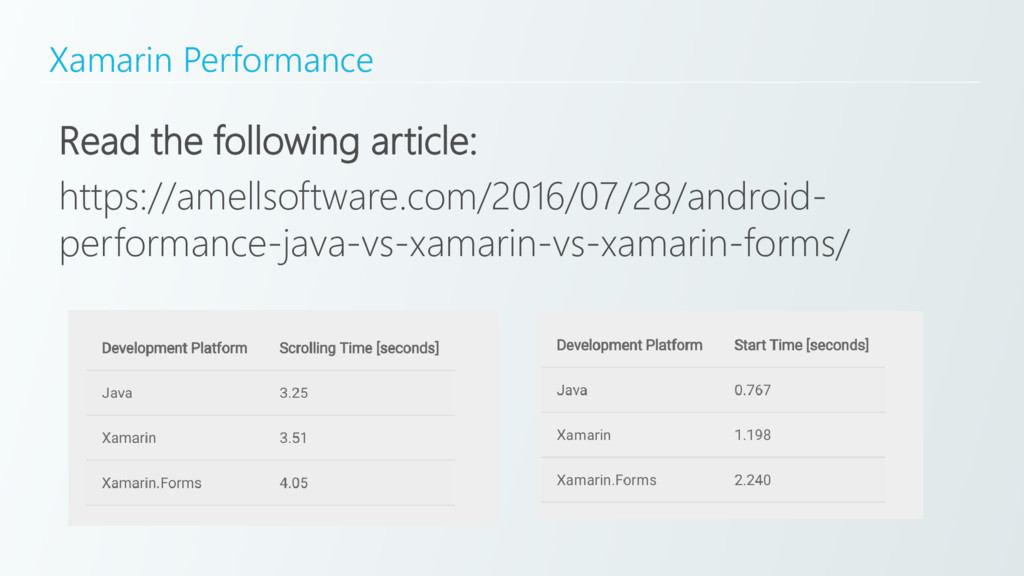

36. Xamarin Performance Read the following article: https://amellsoftware.com/2016/07/28/android- performance-java-vs-xamarin-vs-xamarin-forms/

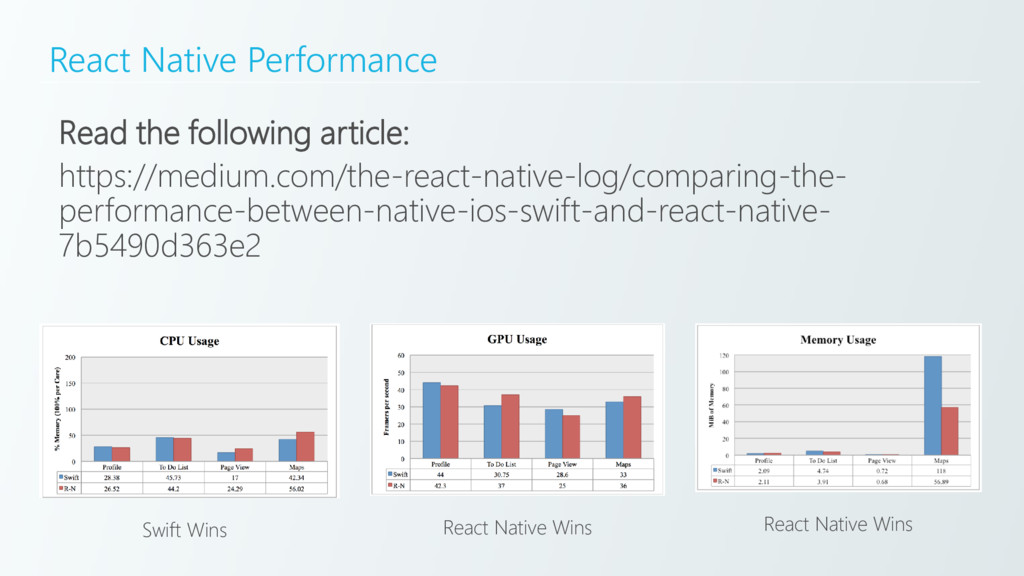

37. React Native Performance Read the following article: https://medium.com/the-react-native-log/comparing-the- performance-between-native-ios-swift-and-react-native- 7b5490d363e2 React Native Wins Swift Wins React Native Wins

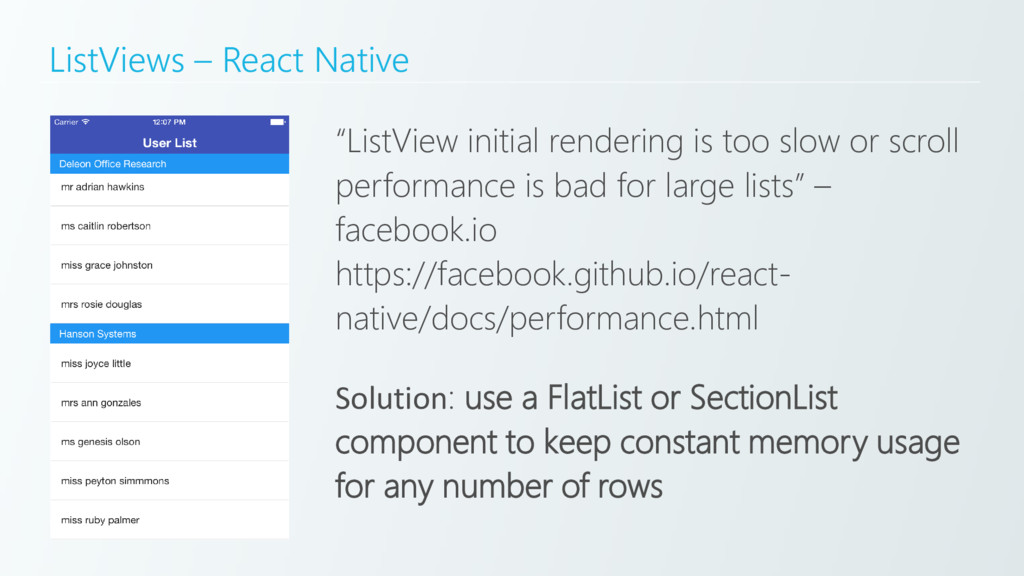

38. ListViews – React Native “ListView initial rendering is too slow or scroll performance is bad for large lists” – facebook.io https://facebook.github.io/react- native/docs/performance.html Solution: use a FlatList or SectionList component to keep constant memory usage for any number of rows

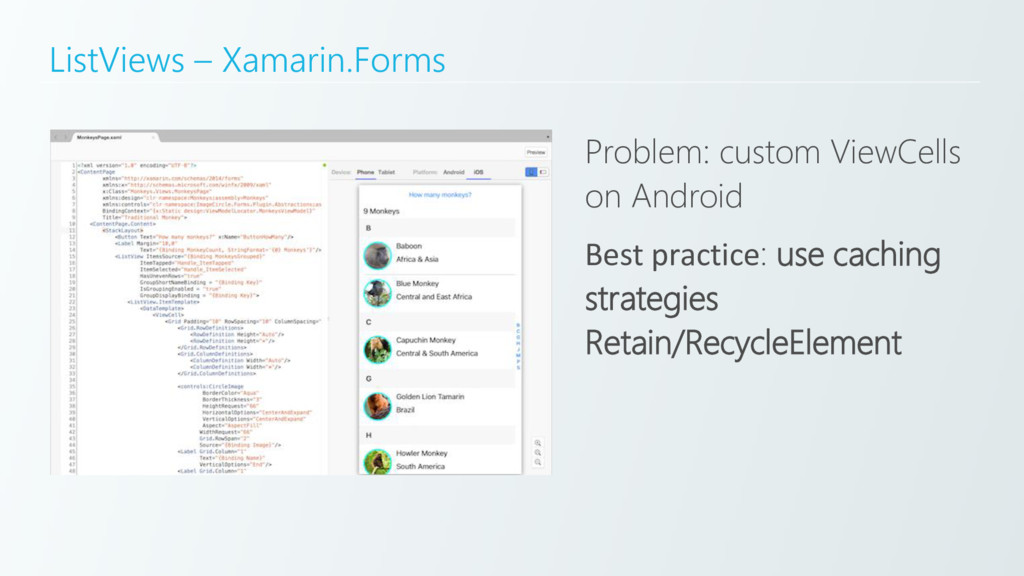

39. ListViews – Xamarin.Forms Problem: custom ViewCells on Android Best practice: use caching strategies Retain/RecycleElement

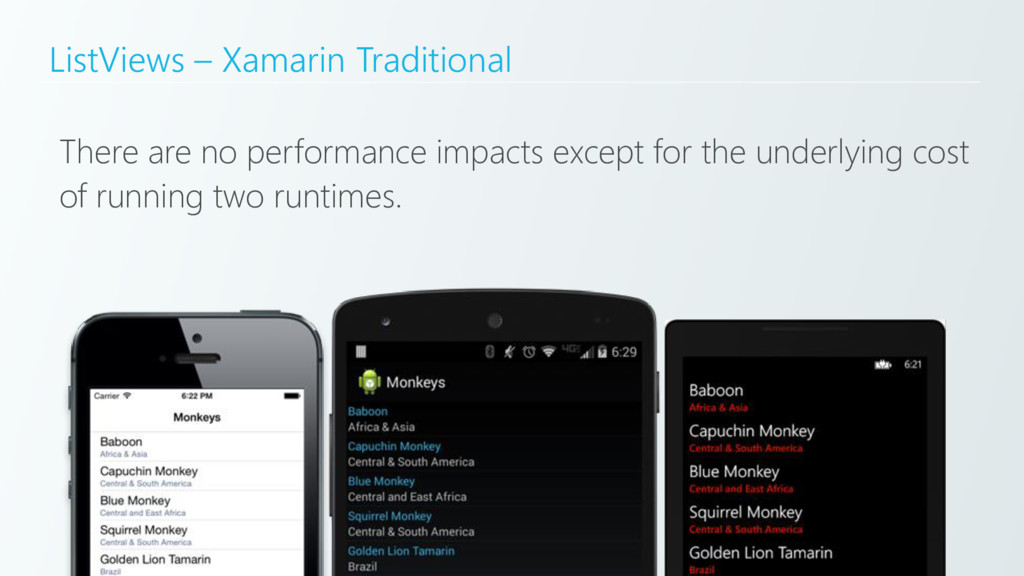

40. ListViews – Xamarin Traditional There are no performance impacts except for the underlying cost of running two runtimes.
41. Navigation – React Native Navigation in React Native is terrible: - No standard, all open source libraries do it differently - Its confusing for newbies - Page transition is slow.
42. Navigation – React Native “we started scheduling the animation using the InteractionManager. While making the transition, we load lesser content and render the remaining content, once the transition is complete. It helped us provide a smoother experience to our users.” Good article: - https://hashnode.com/post/what-we- learned-after-using-react-native-for- a-year-civdr8zv6058l3853wqud7hqp

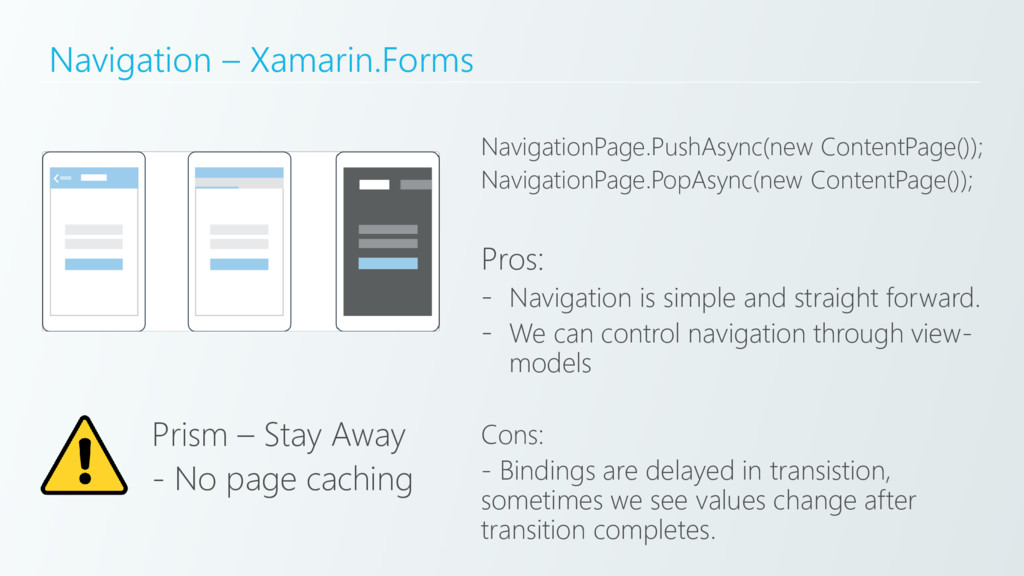

43. Navigation – Xamarin.Forms NavigationPage.PushAsync(new ContentPage()); NavigationPage.PopAsync(new ContentPage()); Pros: - Navigation is simple and straight forward. - We can control navigation through view- models Cons: - Bindings are delayed in transistion, sometimes we see values change after transition completes. Prism – Stay Away - No page caching
44. Navigation – Xamarin Traditional Piece of cake
45. UI Animation React Animation APIs all run on JSThread causing performance issues. Xamarin.Forms Pretty good as long as there isn’t too much animation. Xamarin Traditional As good as native
46. Summarise All platforms are highly performant when applied correctly. – Xamarin Traditional runs great on android – Xamarin.Forms and React Native both have draw backs. – Xamarin Traditional, Xamarin.Forms and React Native all run great on iOS

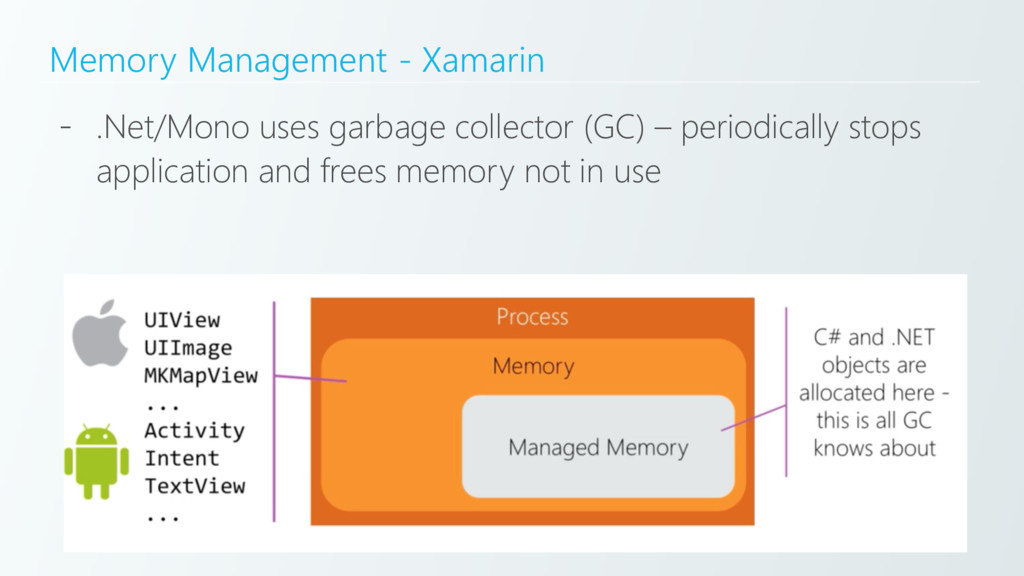

48. Memory Management - Xamarin - .Net/Mono uses garbage collector (GC) – periodically stops application and frees memory not in use
49. Memory Management - Xamarin - Objects live in both managed and native world, objects can’t be removed until both sides

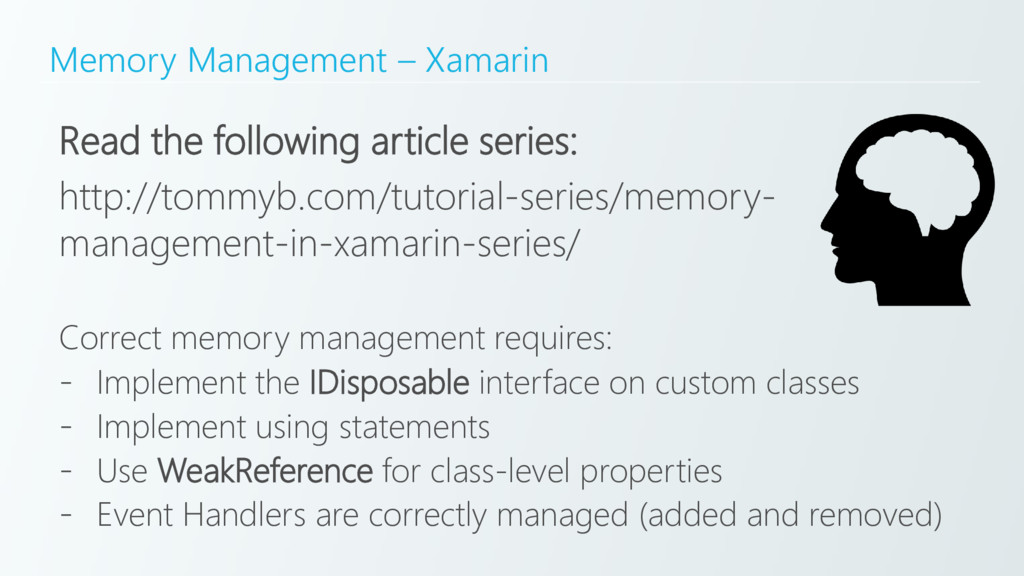

50. Memory Management – Xamarin Read the following article series: http://tommyb.com/tutorial-series/memory- management-in-xamarin-series/ Correct memory management requires: - Implement the IDisposable interface on custom classes - Implement using statements - Use WeakReference for class-level properties - Event Handlers are correctly managed (added and removed)

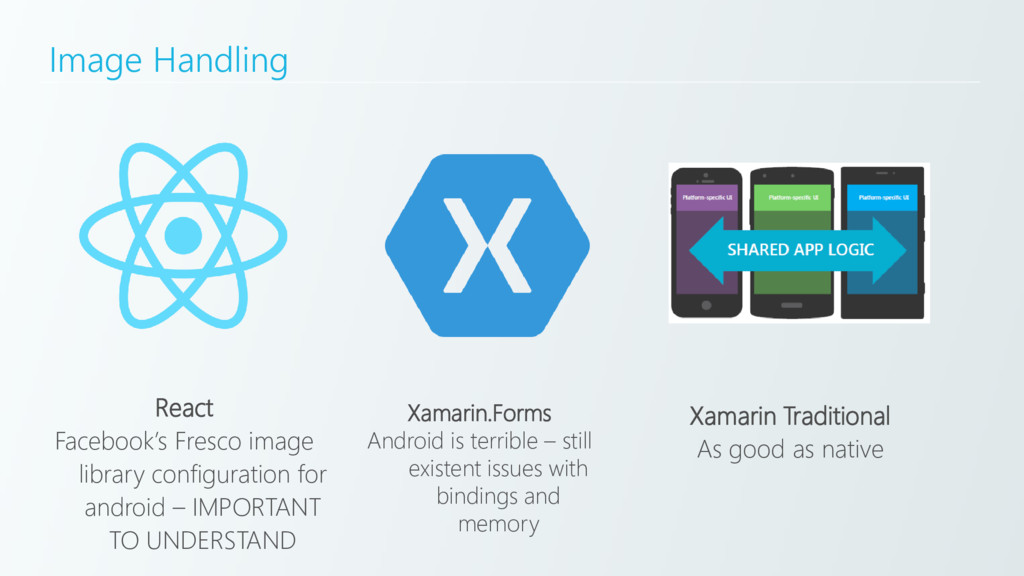

51. Image Handling React Facebook’s Fresco image library configuration for android – IMPORTANT TO UNDERSTAND Xamarin.Forms Android is terrible – still existent issues with bindings and memory Xamarin Traditional As good as native
52. Image Handling React Native readings: - https://medium.com/in-the-hudl/configure- fresco-in-react-native-28c2bc7dcc4d - https://shift.infinite.red/react-native-android-app- memory-investigation-55695625da9c
54. Debugging – React Native Debugging JavaScript is not nice. React Native has many options: - Remote JS Debugging – Chrome - systrace – android - Hot Reloading – keep the app running whilst changing java script - We can even use android device monitor and memory analyzer
55. Profiling – React Native iOS - Instruments Android – Android Device Monitor or systrace
56. Debugging – Xamarin Xamarin uses Mono Soft Debugger - co-operative debugger that is built into the Mono runtime Inspector Previewer

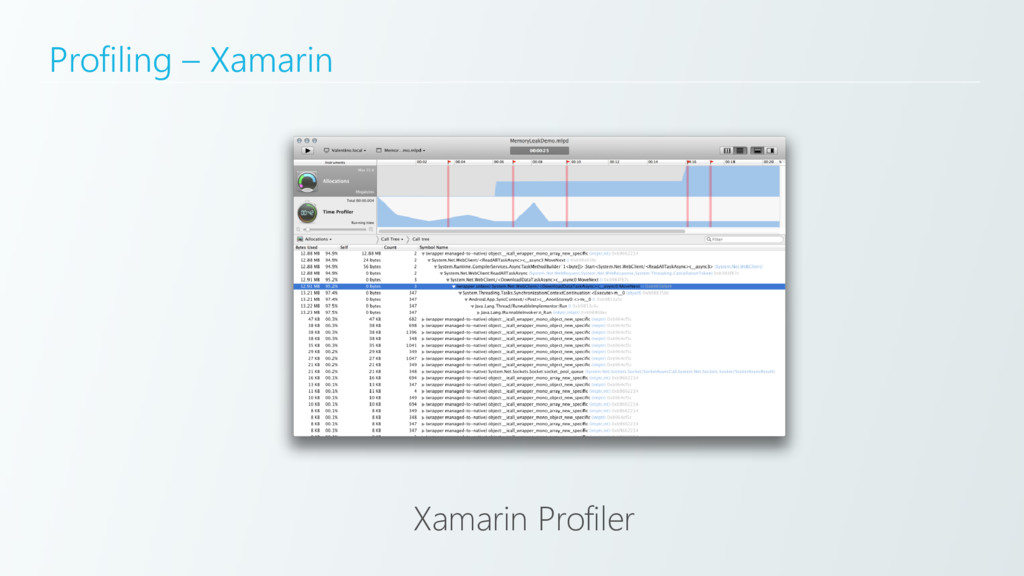

57. Profiling – Xamarin Xamarin Profiler

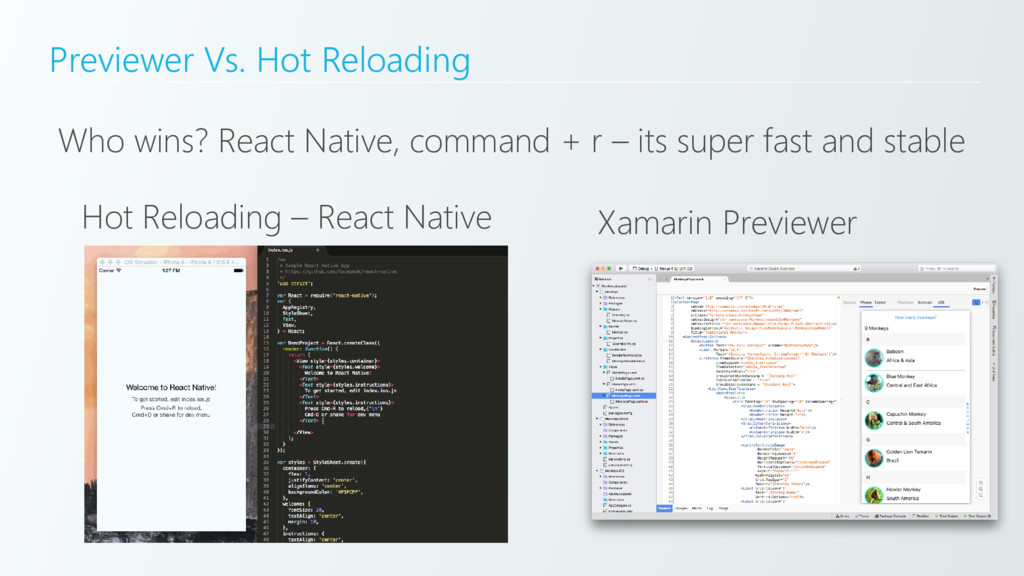

58. Previewer Vs. Hot Reloading Who wins? React Native, command + r – its super fast and stable Hot Reloading – React Native Xamarin Previewer
60. Deployment Who wins? React Native – instantaneous deployment to the app store once released using CodePush or AppHub
62. Xamarin – The Good
63. React Native – The Good
64. Xamarin – The Ugly
65. React Native – The Ugly
66. 1. If you (or an affiliate) file a patent claim against, or a patent claim that involves a product or service of, Facebook (or an affiliate), or a patent claim that involves the React software, then your React patent license will terminate automatically. 2. Uncertain roadmap – no enterprise support
68. Developer Experience - Xamarin Microsoft has full integration across all areas
69. Developer Experience – React Native React Native has a lot of the stack missing.
72. Code Repository Backlog Build + Deploy Monitor and improve App Testing Beta Testing Telemetry Collection

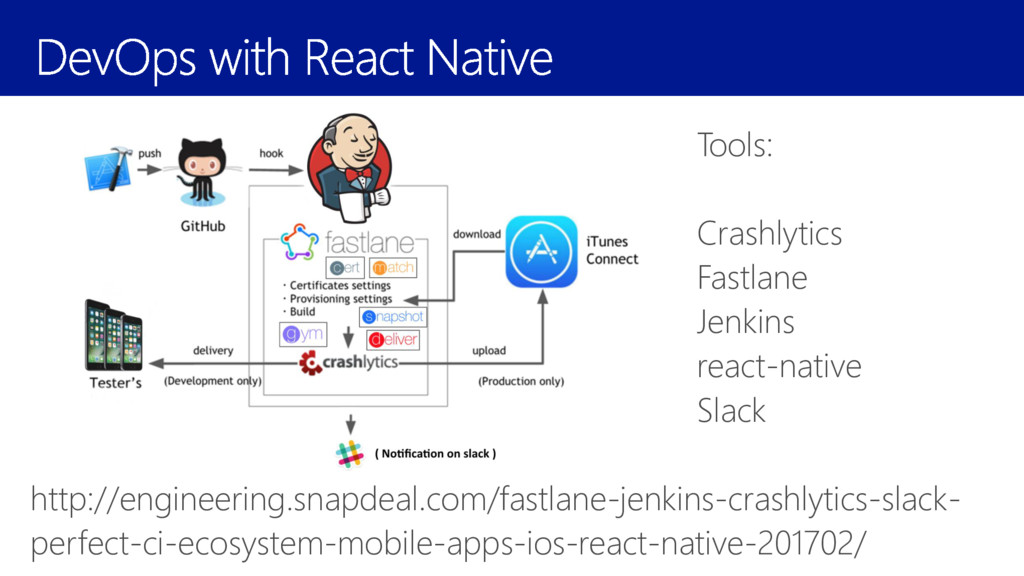

73. Tools: Crashlytics Fastlane Jenkins react-native Slack http://engineering.snapdeal.com/fastlane-jenkins-crashlytics-slack- perfect-ci-ecosystem-mobile-apps-ios-react-native-201702/
74. HockeyApp Xamarin Test Cloud Xamarin Insights Distribute • Crashes • Analytics Device Tests Crashes • Analytics Azure Mobile Engagement Azure App Service CodePush Analytics • Push Tables • Auth • Push Distribution Visual Studio Mobile Center Microsoft Confidential
76. What do I choose? Ask yourself this - Are you web or .Net?
77. Let’s weight up all the main areas Based on the following areas: - Complexity – Xamarin Traditional wins - Performance – Xamarin Traditional & React Native (but it requires experienced developers) wins - Memory Management – Xamarin Traditional & React Native wins - Developer Experience – Xamarin wins on tooling Integration - Debugging – Xamarin wins - App Store Deployment – React Native wins - DevOps – Xamarin wins on integration

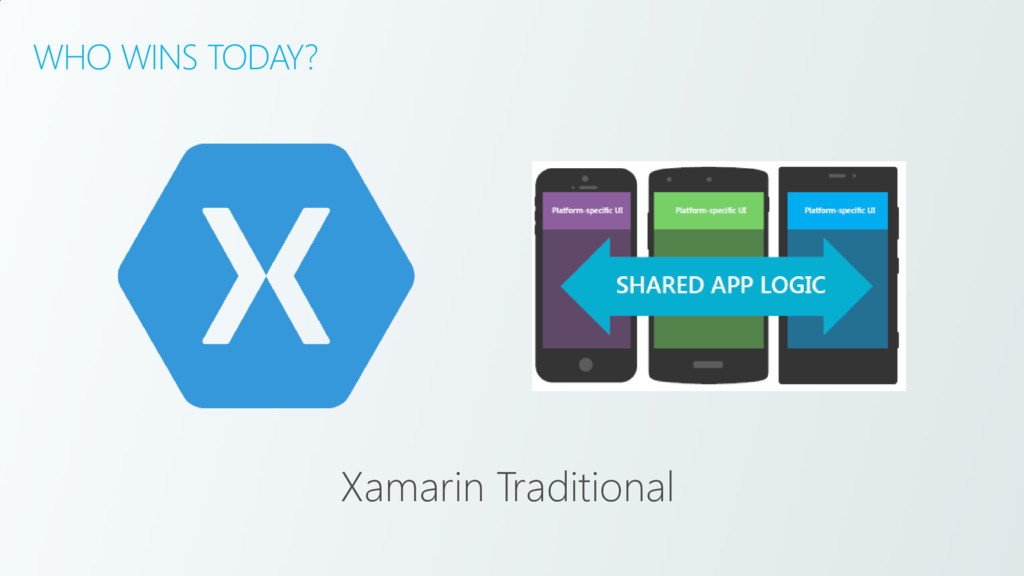

78. WHO WINS TODAY? Xamarin Traditional
79. What makes a good cross-platform developer? A developer who understands: - Native development - Understands what is happening behind the UI – AOT, JIT, JSCore - Correct implementation – i.e. correct memory management, performance enhancements, etc. LEARN BEST PRACTICES

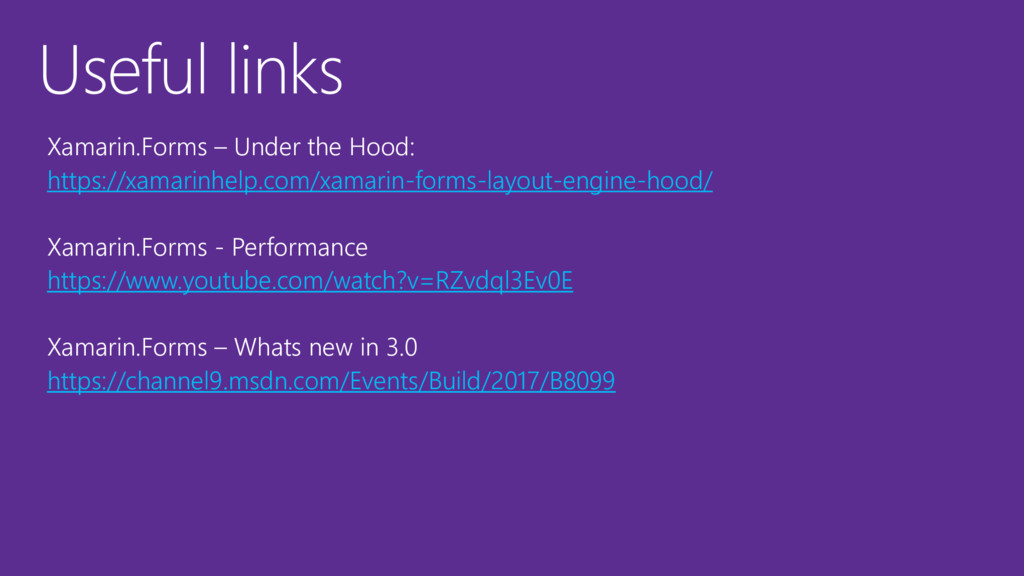

80. Useful links Xamarin.Forms – Under the Hood: https://xamarinhelp.com/xamarin-forms-layout-engine-hood/ Xamarin.Forms - Performance https://www.youtube.com/watch?v=RZvdql3Ev0E Xamarin.Forms – Whats new in 3.0 https://channel9.msdn.com/Events/Build/2017/B8099
81. Useful links React Native – Reducing JSbridge passes https://medium.com/@talkol/performance-limitations-of-react-native- and-how-to-overcome-them-947630d7f440 React Native – Performance Documents: https://facebook.github.io/react-native/docs/performance.html React Native Architecture https://www.logicroom.co/react-native-architecture-explained/ Good arguments against React Native and JavaScript: https://arielelkin.github.io/articles/why-im-not-a-react-native- developer.html
