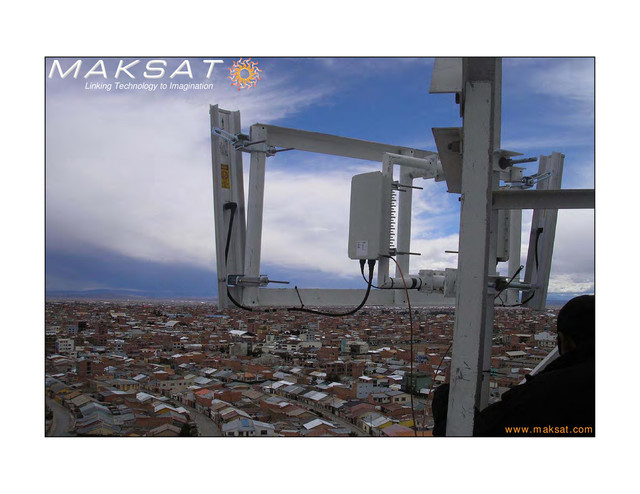

1. M A K S A T M A K S A T Linking Technology to Imagination www.maksat.com
2. M A K S A T M A K S A T www.maksat.com 2 A Broadband Wireless Equipment company with robust, cost effective and scalable solutions for carrier class networks. ISO 9001:2000 Company Profile Company Profile Over 10 yrs of intensive research in partner- -ship with laboratories and chip manufacturers around the world coupled with extensive field experience. TLA with Atheros, Wavesat, Ralink and Paradom Leading Last Mile solutions provider Using OFDM based 802.11a/g, 802.11-N (2x2) and 802.16 WiMAX and MIMO technologies. Solutions made for harsh and rugged environment and capable of PTMP, MTMP, and MESH topologies. Part of 120 Cr plus Maksat Coral Group, 28 offices in India, presence in Middle East, Africa and Europe. Maksat has deployed and been supporting approximately 40,000++ Maksat Radios in India and around the world. These include long distance links, BTS--CPE links, Campus WIFI and Indoor WIFI. Software design centre in German and hardware design centre in Taiwan One of the leading collaborators in open source community

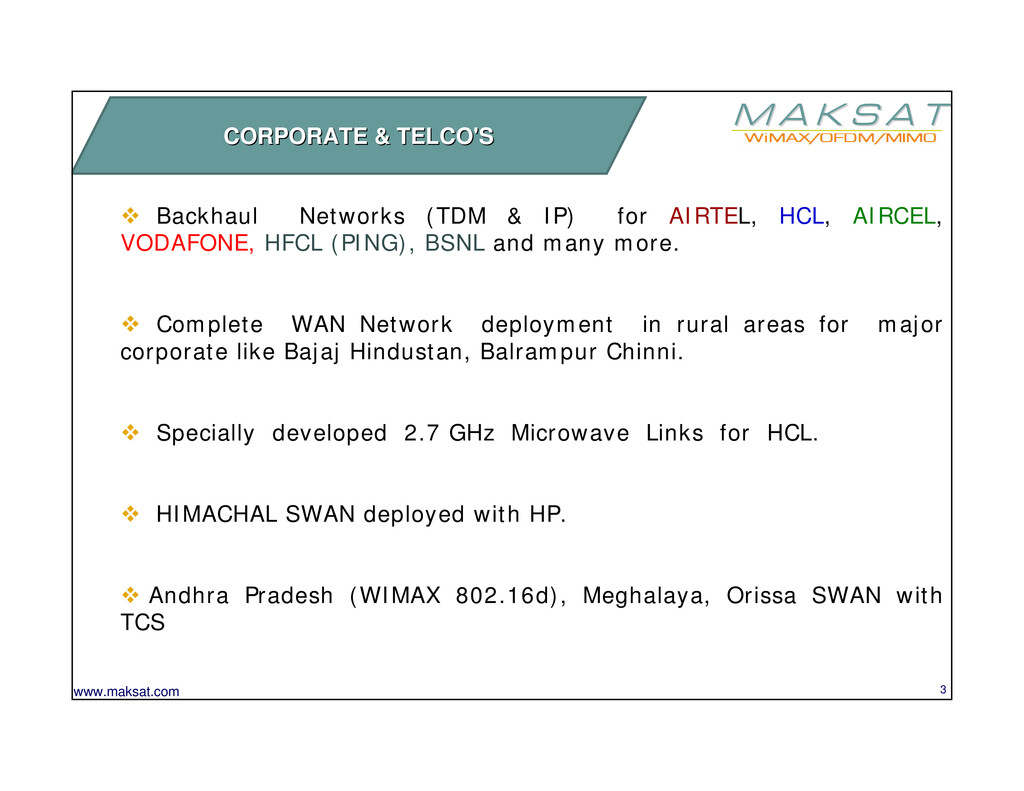

3. M A K S A T M A K S A T www.maksat.com 3 ™ Backhaul Networks (TDM & IP) for AIRTEL, HCL, AIRCEL, VODAFONE, HFCL (PING), BSNL and many more. ™ Complete WAN Network deployment in rural areas for major corporate like Bajaj Hindustan, Balrampur Chinni. ™ Specially developed 2.7 GHz Microwave Links for HCL. ™ HIMACHAL SWAN deployed with HP. ™ Andhra Pradesh (WIMAX 802.16d), Meghalaya, Orissa SWAN with TCS CORPORATE & TELCO'S CORPORATE & TELCO'S
4. M A K S A T M A K S A T www.maksat.com 4 ¾ Deployed more than 25,000 RF Microwave links and Base Stations and more than 30,000 Wifi deployments all over India, South East Asia, Middle East, Africa and Europe . ¾ Developed the only in the world Metro Train Diagnostic Info Access solution based on wireless for Mitsubishi Electric and is being deployed at Delhi Metro. ¾ Deployed and operational for the last 2 years the first SWAN (State wide area Network) network for the state of Himachal Pradesh, connecting about 1000 remote Locations together on wireless links . ¾DMRR Project for AIRFORCE completely based on specially developed 4.7-6.1 Wimax product. ¾Multiple projects for Northern Command and Southern Command of Army ¾ Deployed India’s largest Rural Wireless network for Bajaj Hindustan Ltd spanning an area spreading 1200 kms and Connecting all locations on wireless links, These links also include India’s longest Point to point link of 75km. SOME UNIQUE PROJECTS SOME UNIQUE PROJECTS
5. M A K S A T M A K S A T www.maksat.com 5 ‰ Multi Frequency Band Support including the free ISM bands, based on OFDM technology ‰ MAN Networks with high speed Data / Voice Transmission ‰ Last-mile Urban / Rural Internet Connectivity ‰ VPNs for SMEs ‰ Video over IP Applications ‰ Wireless Back-haul for Wifi Hot-spots ‰ Wireless Communication Data Networks and VOIP Integration Better Bandwidths KEY APPLICATIONS KEY APPLICATIONS
6. M A K S A T M A K S A T www.maksat.com 6 ‰ Maksat’s own RF Driver that allows full control over the MAC and PHY ‰ Specially fine tuned rate algorithm to provide exceptional data throuputs. ‰ Dynamic modulation with unique error control and management ‰ Unique and very efficient Auto/ Dynamic Noise Immunity to allow interference resistance thus allowing Maksat’s link to work in heavy noise congestion areas ‰ Dynamic ACK window that allows no degradation of bandwidth with increase in distance ‰ MIMO support with 2 x 2 RF streams and soon 3 x 3 RF streams allowing data rates exceeding 300Mbps ‰ 5Mhz, 10Mhz, 20mhz, 40mhz, 20/40mhz different channel width options allowing maximum spectral efficiency. ‰ 1.75, 3.5, 5, 7 and 10mhz channel width options in 802.16d product range ‰ Maximum Bandwidth throughput varying from minimum 25mbps to as high as 150mbps. ‰ Multipoint to multipoint, Any Point to Any point topology ‰ AES, WPA and WPA2 encryption, Security, VPN and firewall ‰ -40 to +85°C of operating temperature, all INDUSTRIAL/ MILLITARY GRADE. ‰ Very high sensitivity of -105 dB (XR – Extended Range Technology) ‰ Powerful QoS with Packet Aggregation to optimize the data rate usage of links using VOIP ‰ Dynamic ACK adjustment for long range ‰ Frequency options available: 700mhz, 900Mhz, 2.1-2.5ghz, 2.7-2.9ghz, 3.3-3.7ghz, 4.7-6.1ghz OUR SPECIALIZATION OUR SPECIALIZATION

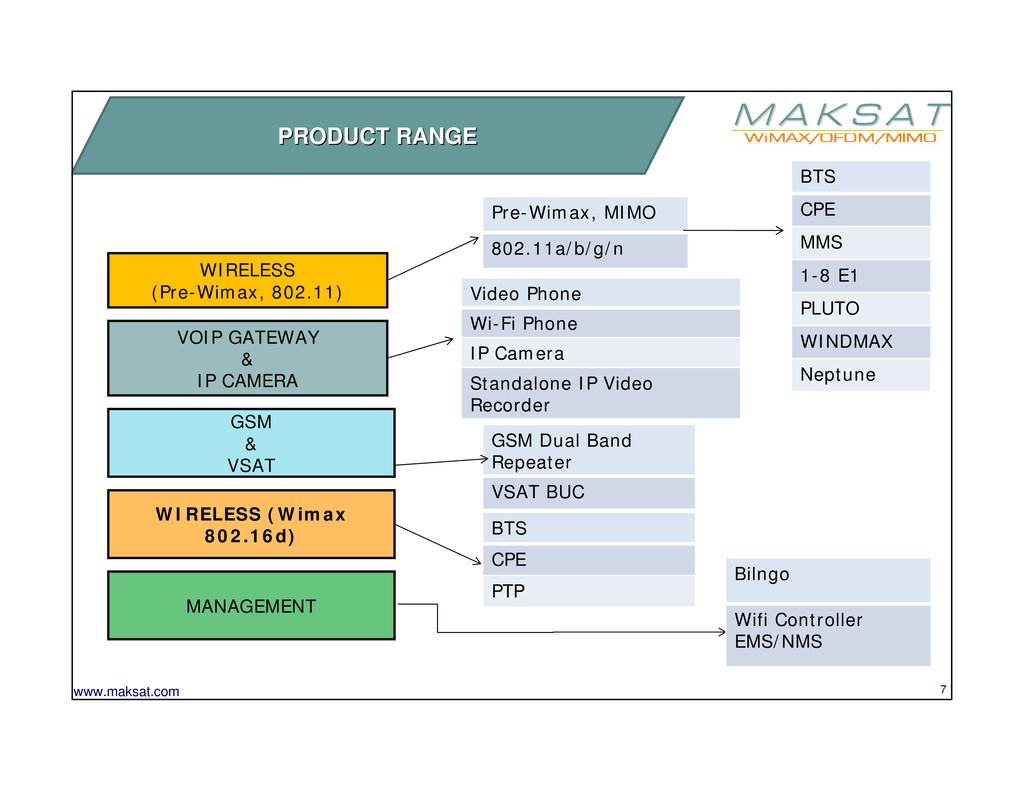

7. M A K S A T M A K S A T www.maksat.com 7 WIRELESS (Pre-Wimax, 802.11) Pre-Wimax, MIMO 802.11a/b/g/n BTS CPE MMS 1-8 E1 PLUTO WINDMAX Neptune VOIP GATEWAY & IP CAMERA Video Phone Wi-Fi Phone IP Camera Standalone IP Video Recorder GSM & VSAT GSM Dual Band Repeater VSAT BUC WIRELESS (Wimax 802.16d) MANAGEMENT BTS CPE PTP Bilngo Wifi Controller EMS/NMS PRODUCT RANGE PRODUCT RANGE

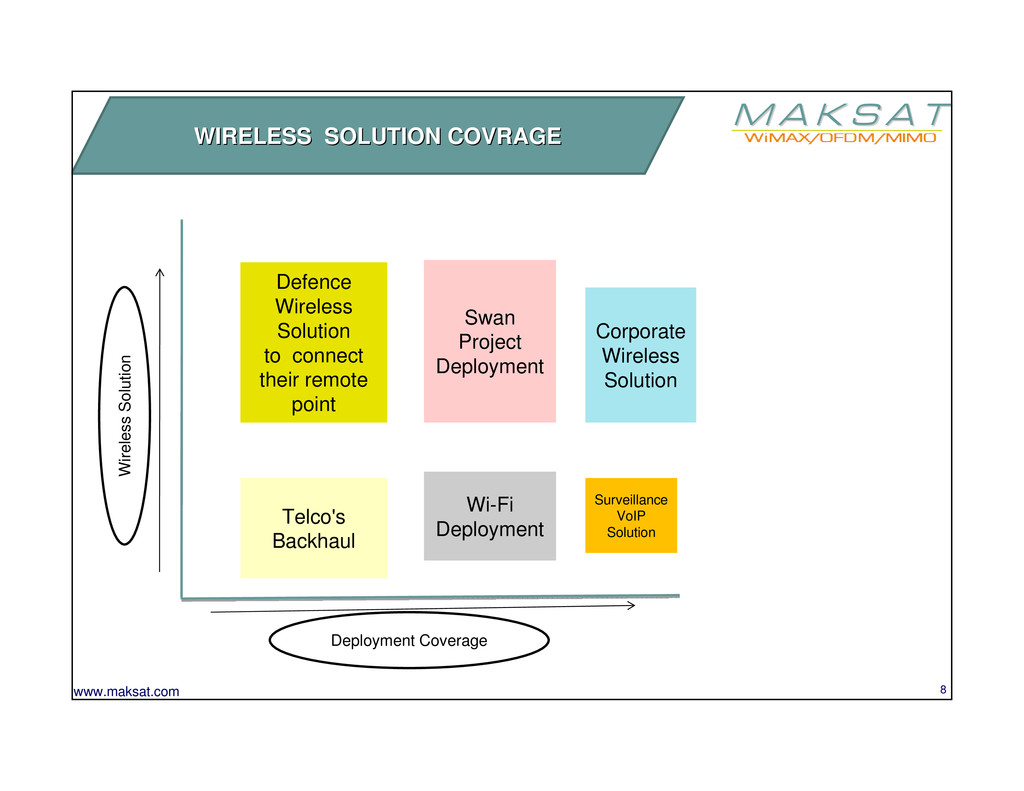

8. M A K S A T M A K S A T www.maksat.com 8 Wireless Solution Deployment Coverage Defence Wireless Solution to connect their remote point Corporate Wireless Solution Telco's Backhaul Wi-Fi Deployment Swan Project Deployment Surveillance VoIP Solution WIRELESS SOLUTION COVRAGE WIRELESS SOLUTION COVRAGE

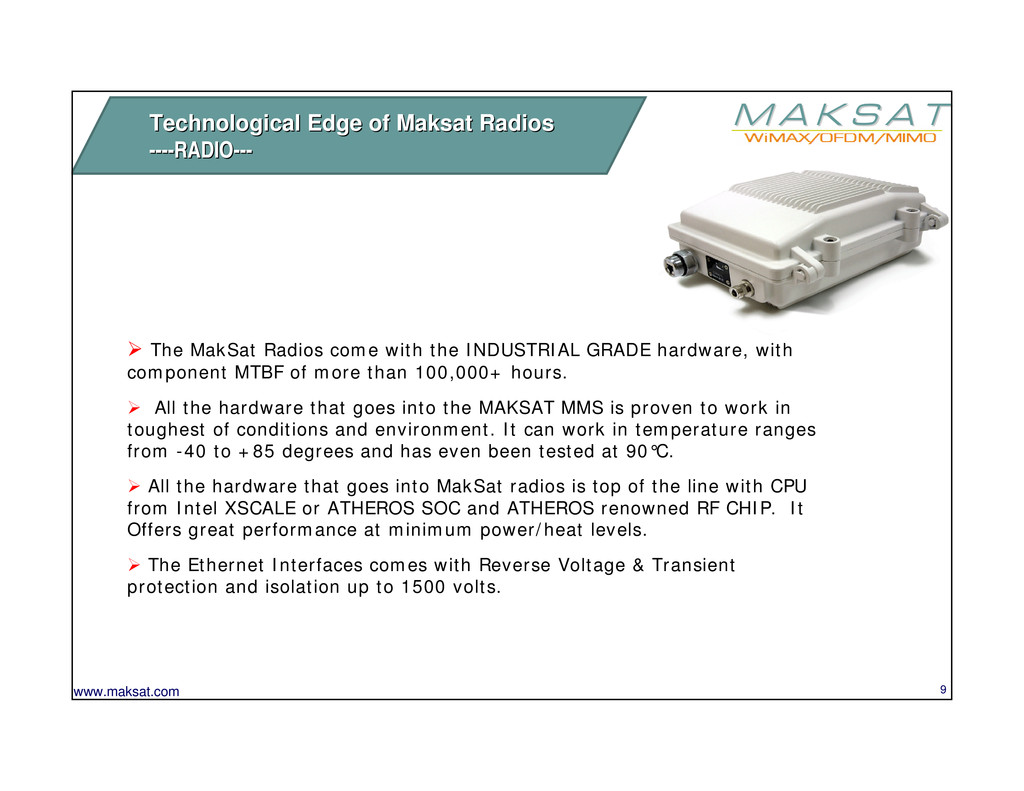

9. M A K S A T M A K S A T www.maksat.com 9 Technological Edge of Maksat Radios Technological Edge of Maksat Radios ---- ----RADIO RADIO--- --- ¾ The MakSat Radios come with the INDUSTRIAL GRADE hardware, with component MTBF of more than 100,000+ hours. ¾ All the hardware that goes into the MAKSAT MMS is proven to work in toughest of conditions and environment. It can work in temperature ranges from -40 to +85 degrees and has even been tested at 90°C. ¾ All the hardware that goes into MakSat radios is top of the line with CPU from Intel XSCALE or ATHEROS SOC and ATHEROS renowned RF CHIP. It Offers great performance at minimum power/heat levels. ¾ The Ethernet Interfaces comes with Reverse Voltage & Transient protection and isolation up to 1500 volts.

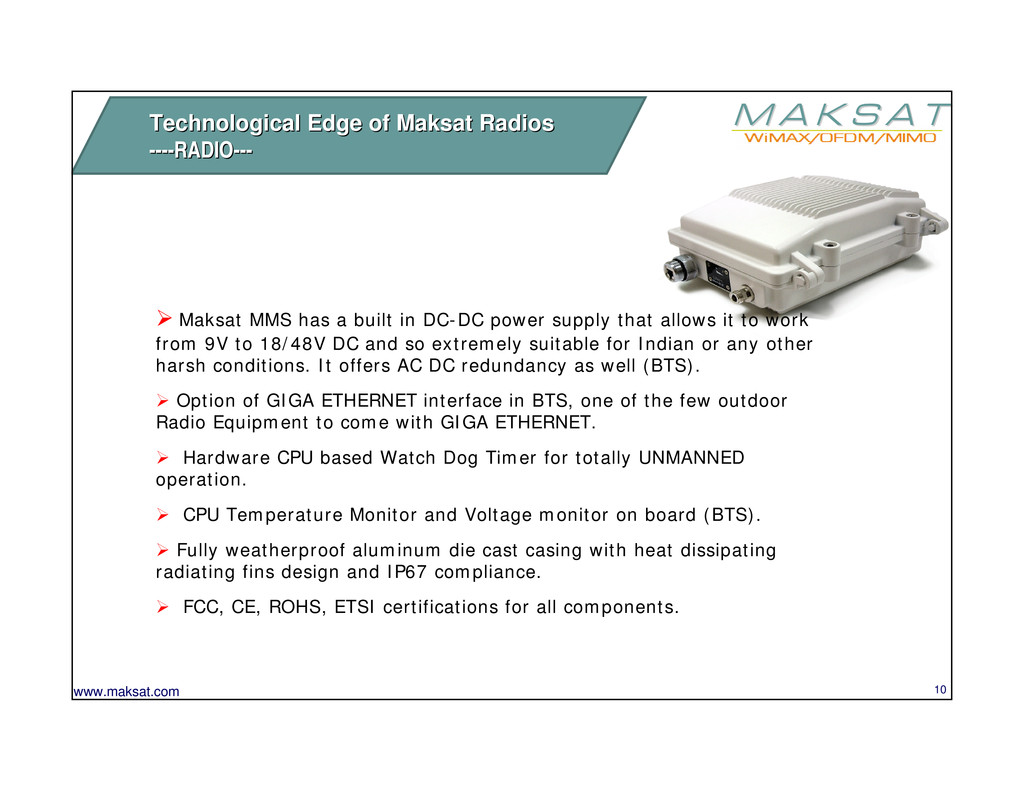

10. M A K S A T M A K S A T www.maksat.com 10 Technological Edge of Maksat Radios Technological Edge of Maksat Radios ---- ----RADIO RADIO--- --- ¾ Maksat MMS has a built in DC-DC power supply that allows it to work from 9V to 18/48V DC and so extremely suitable for Indian or any other harsh conditions. It offers AC DC redundancy as well (BTS). ¾ Option of GIGA ETHERNET interface in BTS, one of the few outdoor Radio Equipment to come with GIGA ETHERNET. ¾ Hardware CPU based Watch Dog Timer for totally UNMANNED operation. ¾ CPU Temperature Monitor and Voltage monitor on board (BTS). ¾ Fully weatherproof aluminum die cast casing with heat dissipating radiating fins design and IP67 compliance. ¾ FCC, CE, ROHS, ETSI certifications for all components.
11. M A K S A T M A K S A T www.maksat.com 11 ¾ Maksat Radio’s Core is based of world standards and open source. This allows them to be completely technology FUTURE proof with almost no End of Life. It also allows it to incorporate the latest technology, innovations and newer standard like 11n MIMO & 802.16d/e WIMAX to be incorporated, as and when they are available, in a very short span of time. ¾ The core is totally based on HAL/source access to the RF and system core. This allows highest level of control over performance, flexibility and error free long-term operation. ¾ They are Based on IEEE standards, 802.11a/b/g, G-turbo, A-turbo and also 802.1n MIMO and coming soon 802.16 WIMAX. ¾ All Maksat radios come with Maksat’s own super tuned Wireless Driver Technological Edge of Maksat Radios Technological Edge of Maksat Radios ---- ----RADIO RADIO--- ---

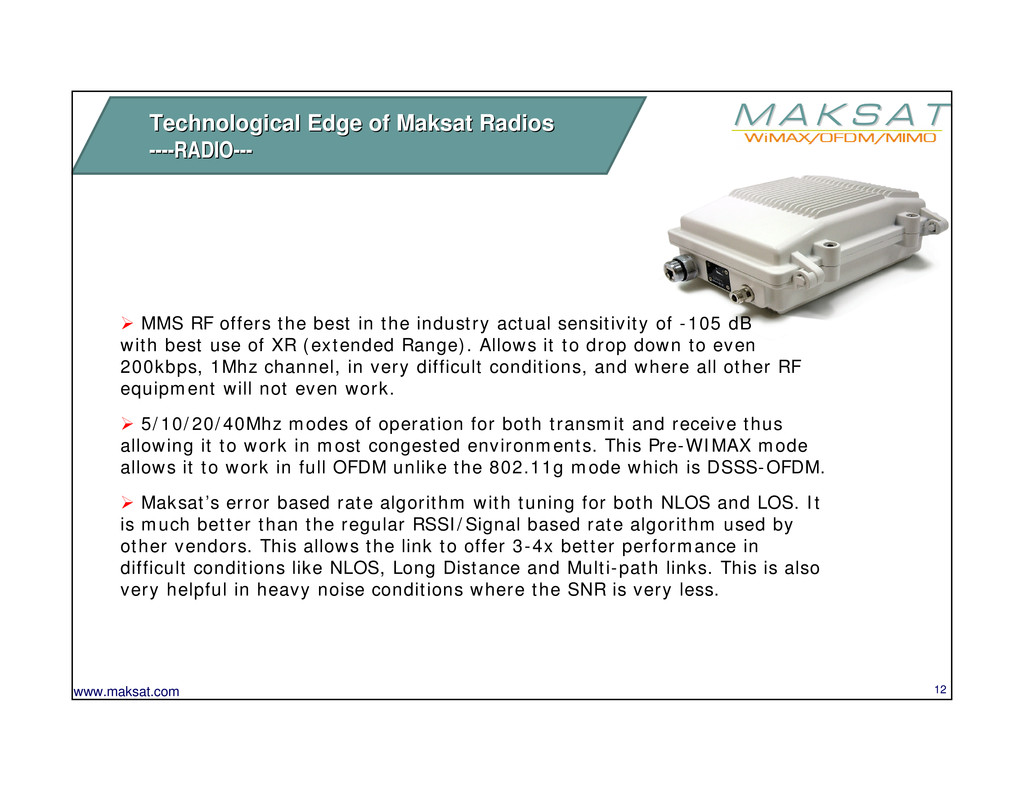

12. M A K S A T M A K S A T www.maksat.com 12 ¾ MMS RF offers the best in the industry actual sensitivity of -105 dB with best use of XR (extended Range). Allows it to drop down to even 200kbps, 1Mhz channel, in very difficult conditions, and where all other RF equipment will not even work. ¾ 5/10/20/40Mhz modes of operation for both transmit and receive thus allowing it to work in most congested environments. This Pre-WIMAX mode allows it to work in full OFDM unlike the 802.11g mode which is DSSS-OFDM. ¾ Maksat’s error based rate algorithm with tuning for both NLOS and LOS. It is much better than the regular RSSI/Signal based rate algorithm used by other vendors. This allows the link to offer 3-4x better performance in difficult conditions like NLOS, Long Distance and Multi-path links. This is also very helpful in heavy noise conditions where the SNR is very less. Technological Edge of Maksat Radios Technological Edge of Maksat Radios ---- ----RADIO RADIO--- ---
13. M A K S A T M A K S A T www.maksat.com 13 ¾ Data rates exceeding 40Mbps in 2ghz and 70Mbps in 5ghz. This is way ahead than any other 802.11g/a device since Maksat radios can do packet aggregation, frame aggregation and compression over the air. ¾ Multi-band operation, 2312---2732; 4920---6100gGHz ¾ Distance based ACK management, this allows maximum throughput at even 100kms link distance. Allows the equipment to offer data rates with no relation to distance by increasing the ACK window size. ¾ Built in Transmit Power control for EIRP limitations as per regulatory requirements. ¾ Antenna Diversity option for MESH deployment Technological Edge of Maksat Radios Technological Edge of Maksat Radios ---- ----RADIO RADIO--- ---

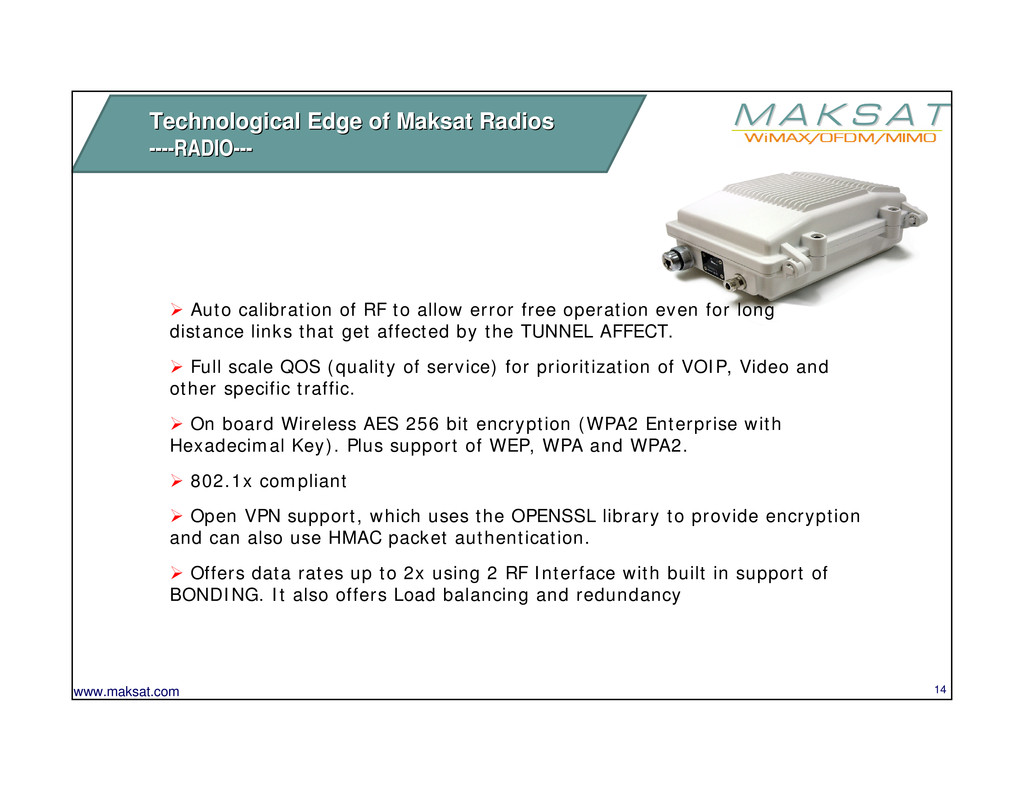

14. M A K S A T M A K S A T www.maksat.com 14 ¾ Auto calibration of RF to allow error free operation even for long distance links that get affected by the TUNNEL AFFECT. ¾ Full scale QOS (quality of service) for prioritization of VOIP, Video and other specific traffic. ¾ On board Wireless AES 256 bit encryption (WPA2 Enterprise with Hexadecimal Key). Plus support of WEP, WPA and WPA2. ¾ 802.1x compliant ¾ Open VPN support, which uses the OPENSSL library to provide encryption and can also use HMAC packet authentication. ¾ Offers data rates up to 2x using 2 RF Interface with built in support of BONDING. It also offers Load balancing and redundancy Technological Edge of Maksat Radios Technological Edge of Maksat Radios ---- ----RADIO RADIO--- ---
15. M A K S A T M A K S A T www.maksat.com 15 Base Station Frequency Range of MMS: 2.3 to 2.5Ghz 5.1 to 6.1Ghz Up to 5 Km radius WiFi Phones With inbuilt Wireless LAN/HOTSPOT and Network Management System With inbuilt router and Network Management System Omni Directional Antenna 20 km 15 km RF Port 1 RF Port 3 RF Port 2 Backbone connectivity using WiMAX CPE Backhaul connectivity on FIBER WiFi Card CPE Ethernet Connectivity further upto 45 km WiMax BTS VOIP GATEWAY Telephone lines Distribution on 802.11n BTS - CPE Solution SWAN Network SWAN Network
16. M A K S A T M A K S A T www.maksat.com 16 SWAN Solution State Wide Area Network * Currently being deployed for HIMSWAN & WBSWAN SWAN Network SWAN Network – –DHQ DHQ- -
17. M A K S A T M A K S A T www.maksat.com 17 WAN NETWORK on RF WAN NETWORK on RF
18. M A K S A T M A K S A T www.maksat.com 18 Defense Communication project Defense Communication project Deployment Deployment
19. M A K S A T M A K S A T www.maksat.com 19 Windmax inside the train 2/3 Wireless box connected to switch providing coverage at metro station Delhi Metro Project with Mitsubishi Delhi Metro Project with Mitsubishi
20. M A K S A T M A K S A T www.maksat.com 20 E1 ptp link E1 ptp link ODU ODU IDU IDU BEU (Encryption unit) BEU (Encryption unit)
21. M A K S A T M A K S A T www.maksat.com 21
22. M A K S A T M A K S A T www.maksat.com 22 Base Station Frequency Range of MMS: 2.3 to 2.5Ghz 5.1 to 6.1Ghz Up to 5 Km radius WiFi Phones With inbuilt Wireless LAN/HOTSPOT and Network Management System With inbuilt router and Network Management System Omni Directional Antenna 20 km 15 km RF Port 1 RF Port 3 RF Port 2 Backbone connectivity using WiMAX Three port CPE Backhaul connectivity on FIBER WiFi Card CPE Ethernet Connectivity further upto 45 km WiMax BTS VOIP GATEWAY Telephone lines Distribution on 802.11n BTS - CPE Solution SWAN Network SWAN Network

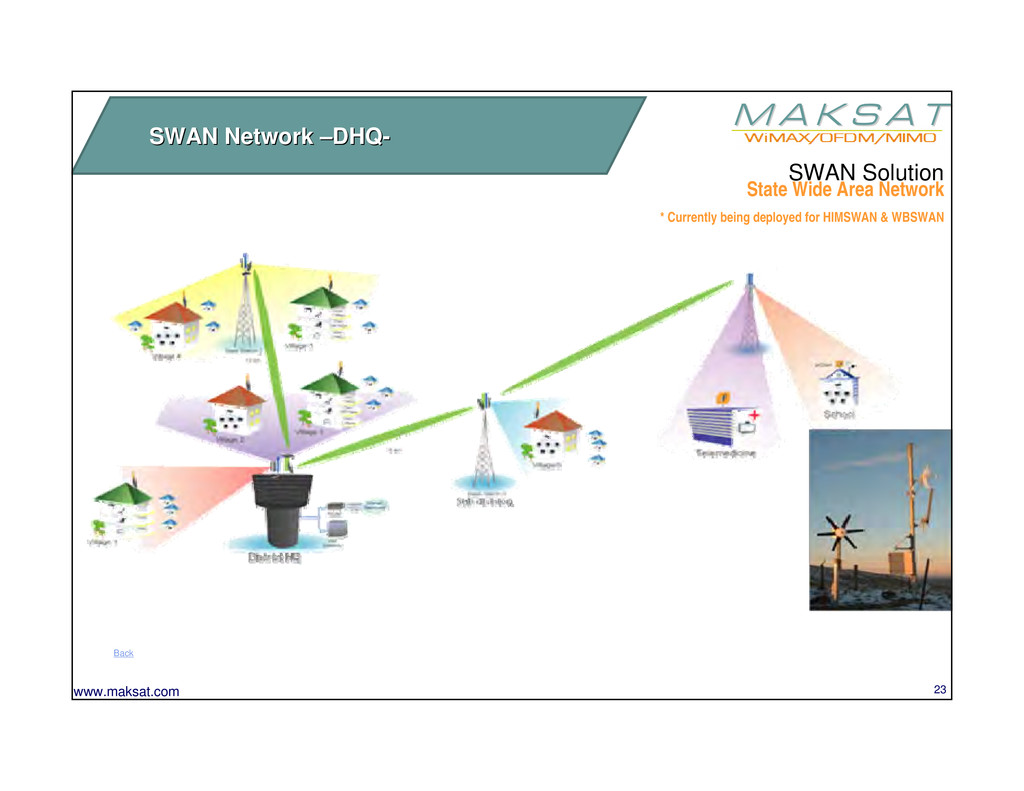

23. M A K S A T M A K S A T www.maksat.com 23 SWAN Solution State Wide Area Network * Currently being deployed for HIMSWAN & WBSWAN SWAN Network SWAN Network – –DHQ DHQ- - Back

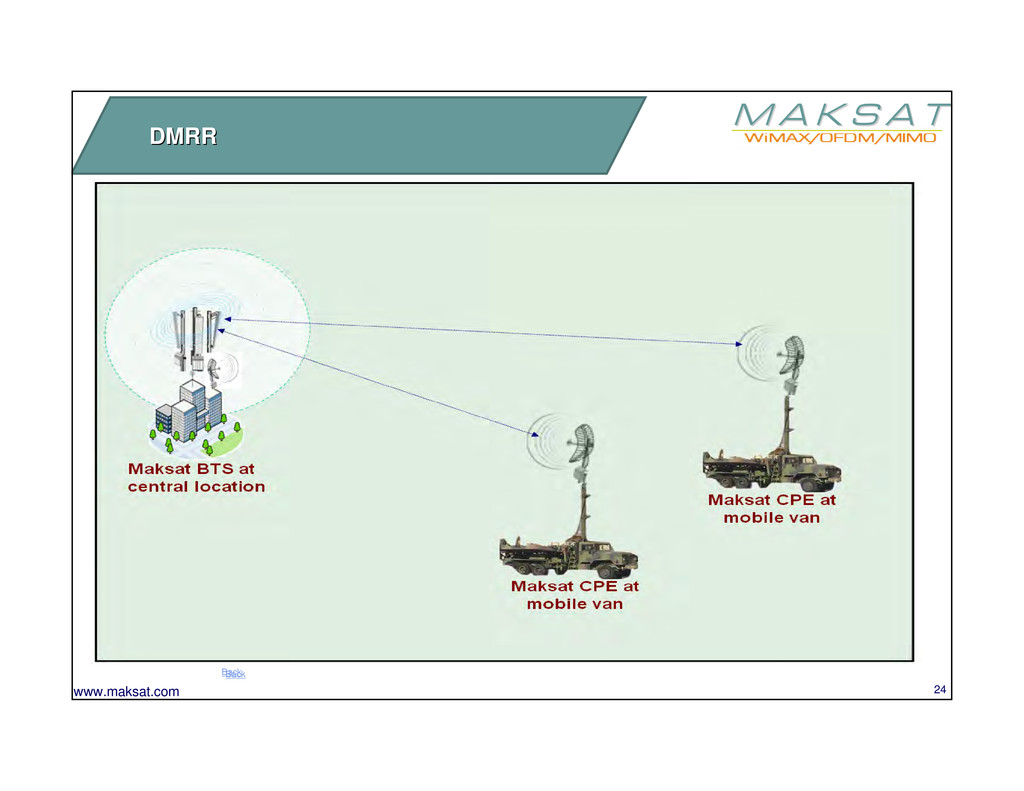

24. M A K S A T M A K S A T www.maksat.com 24 DMRR DMRR Back Back

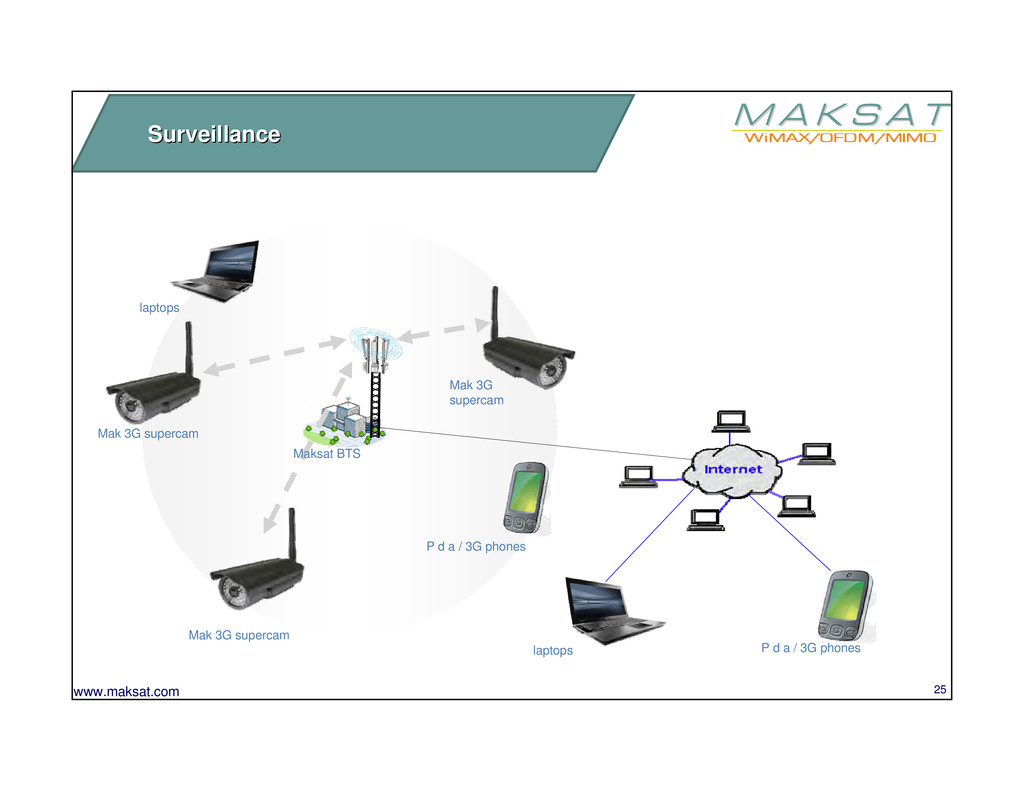

25. M A K S A T M A K S A T www.maksat.com 25 Surveillance Surveillance P d a / 3G phones laptops Maksat BTS Mak 3G supercam Mak 3G supercam Mak 3G supercam P d a / 3G phones laptops
26. M A K S A T M A K S A T www.maksat.com 26 SOLAR AND WIND POWERED WIRELESS SOLAR AND WIND POWERED WIRELESS SURVILLIANCE SURVILLIANCE Maksat Pluto Maksat Pluto
27. M A K S A T M A K S A T www.maksat.com 27 Surveillance Surveillance

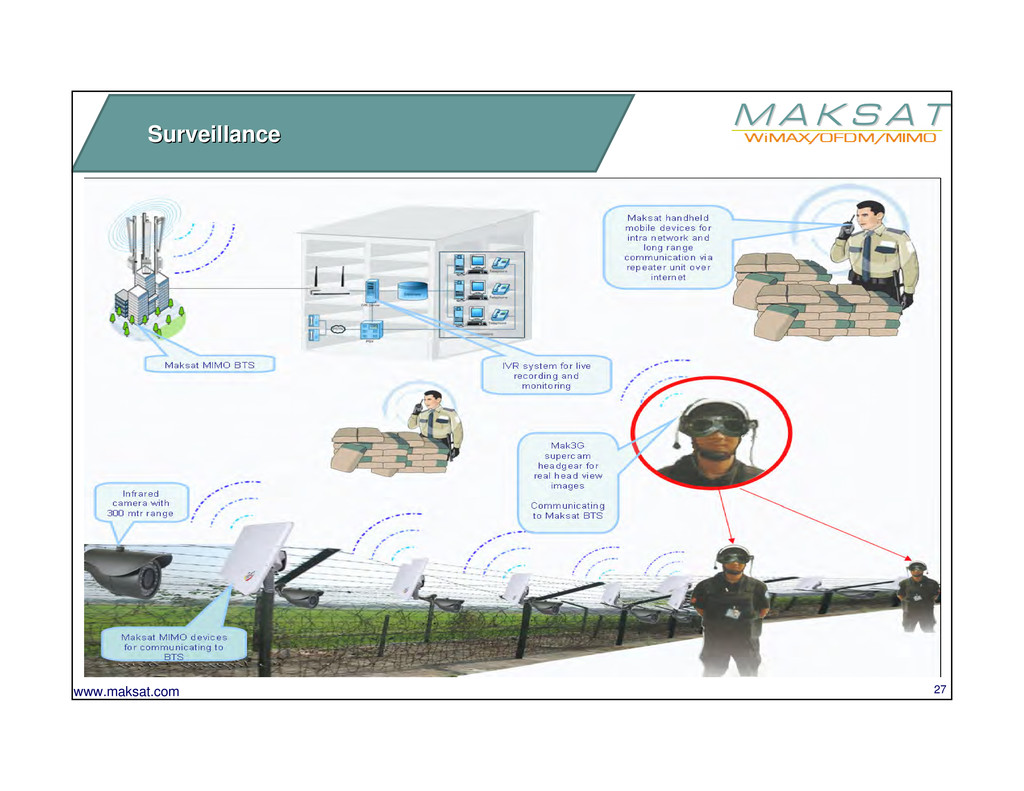

28. M A K S A T M A K S A T www.maksat.com 28 Surveillance Surveillance

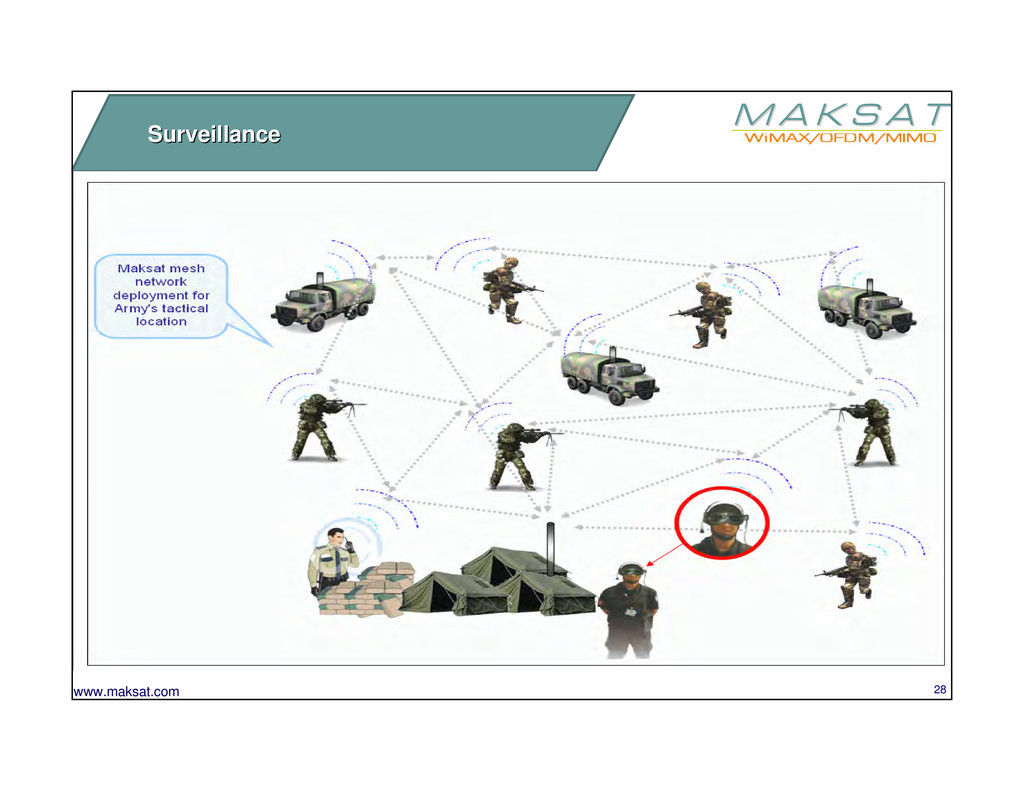

29. M A K S A T M A K S A T www.maksat.com 29 Surveillance Surveillance

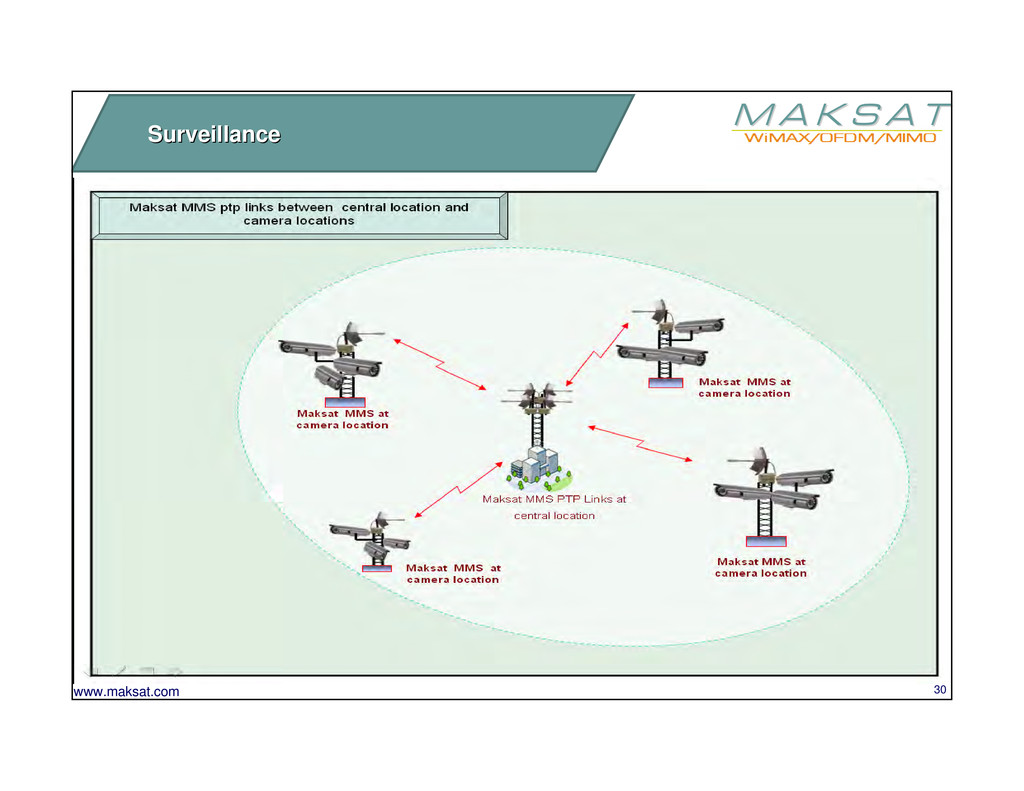

30. M A K S A T M A K S A T www.maksat.com 30 Surveillance Surveillance
31. M A K S A T M A K S A T www.maksat.com 31 Surveillance Surveillance
32. M A K S A T M A K S A T www.maksat.com 32 CLIENT LIST CLIENT LIST

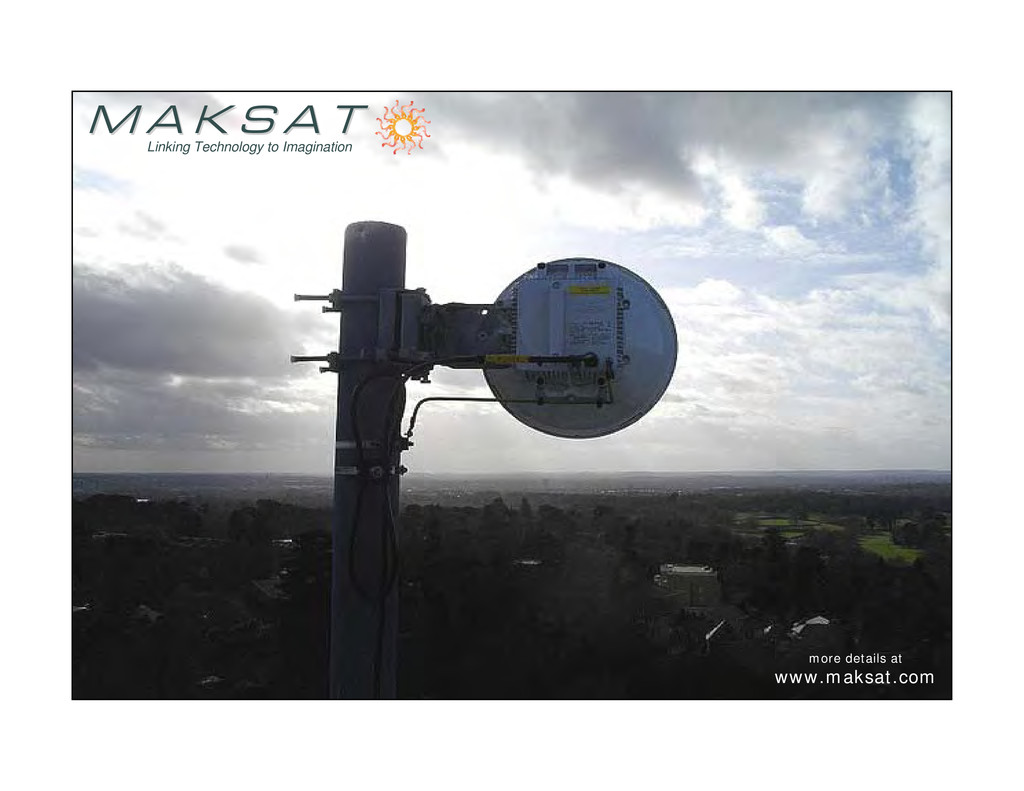

33. M A K S A T M A K S A T www.maksat.com 33 Linking Technology to Imagination M A K S A T M A K S A T more details at www.maksat.com
