Артём Малышев (Positive Technologies) - Django Channels - ответ современному вебу

Доклад с Moscow Python Conf 2016 (http://conf.python.ru)
Видео: https://conf.python.ru/django-channels-otvet-sovremennomu-vebu/

Я senior python developer в компании Positive Technologies. Последние два года занимаюсь разработкой распределённых систем. Спикер PyCon Russia, MoscowPython и Rannts Meetup. В докладе я расскажу о назначение и устройстве Django Channels. Давно прошли времена, когда все сайты работали в режиме "запрос-ответ". Пользователи хотят интерактивности и отзывчивости, программисты хотят websocket'ы, HTTP/2 стремительно набирает популярность. Классические WSGI фреймворки перестают соответствовать реалиям жизни. Вы узнаете каким образом в Django реализована поддержка асинхронных протоколов, решение каких задач можно отдать этой технологии, а где лучше использовать tornado или aiohttp.

Transcript

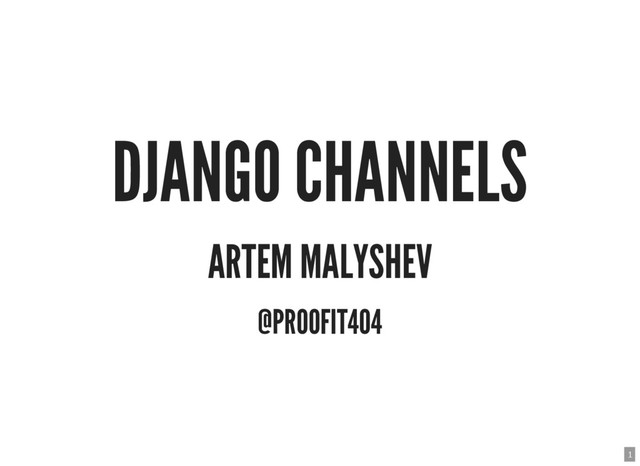

1. 1
   DJANGO CHANNELS
   ARTEM MALYSHEV
   @PROOFIT404


   View Slide

2. 2
   BRING DJANGO
   TO THE ASYNC
   NETWORKING


   View Slide

3. 3
   BUT WE ARE ALREADY THERE
   twisted
   eventlet
   gevent
   tornado
   asyncio


   View Slide

4. 4
   AND DJANGO
   IS SYNC IN
   ITS CORE


   View Slide

5. 5
   WSGI
   def app(environ, callback):
   status, headers = '200 OK', []
   callback(status, headers)
   return ['Hello world!\n']


   View Slide

6. View Slide

7. 7
   OK, BUT IT IS
   2016
   DUDE


   View Slide

8. 8
   PROGRESSIVE WEB APPS
   interactive communication
   responsive design
   push notifications
   works offline


   View Slide

9. View Slide

10. 10
    IT'S ALL DIFFERENT
    PERSISTENT
    STATEFUL
    CONNECTIONS


    View Slide

11. View Slide

12. View Slide

13. View Slide

14. View Slide

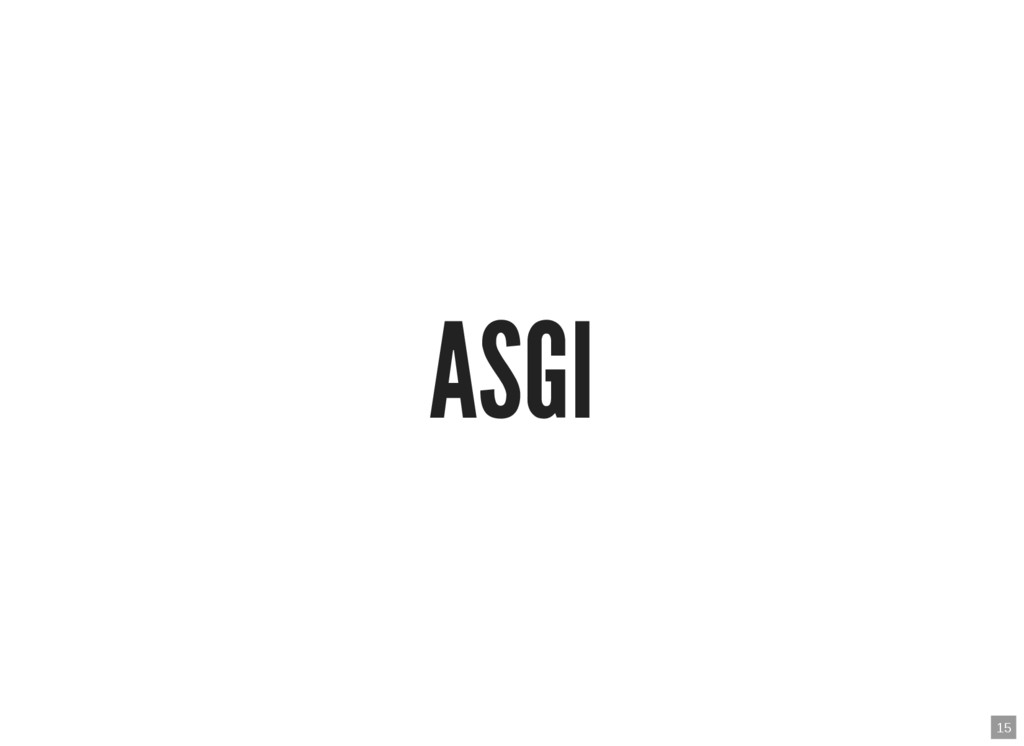

15. 15
    ASGI


    View Slide

16. 16
    ASGI IS
    a standard interface between
    network protocol servers
    and Python applications


    View Slide

17. 17
    CHANNEL


    View Slide

18. 18
    CHANNEL IS
    an ordered,
    first-in first-out queue
    with message expiry
    and at-most-once delivery
    to only one listener at a time


    View Slide

19. 19
    CONSUMERS


    View Slide

20. 20
    ACCEPT WEBSOCKET MESSAGE
    def ws_message(message):
    message.reply_channel.send({
    'text': message.content['text'],
    })


    View Slide

21. 21
    ROUTING
    from channels.routing import route
    from myapp.consumers import ws_message
    channel_routing = [
    route('websocket.receive', ws_message),
    ]


    View Slide

22. 22
    SETTINGS
    CHANNEL_LAYERS = {
    'default': {
    'BACKEND': 'asgiref.inmemory',
    'ROUTING': 'myproject.routing',
    },
    }


    View Slide

23. 23
    ASGI APP
    import os
    from channels.asgi import get_channel_layer
    os.environ.setdefault(
    'DJANGO_SETTINGS_MODULE',
    'myproject.settings',
    )
    channel_layer = get_channel_layer()


    View Slide

24. 24
    DEPLOY
    $ gunicorn myproject.wsgi
    $ daphne myproject.asgi:channel_layer
    $ django-admin runworker


    View Slide

25. 25
    REPLY CHANNEL


    View Slide

26. View Slide

27. 27
    GROUPS


    View Slide

28. 28
    CONSUMERS
    from channels import Group
    def ws_connect(message):
    Group('chat').add(message.reply_channel)
    def ws_disconnect(message):
    Group('chat').discard(message.reply_channel)
    def ws_message(message):
    Group('chat').send({
    'text': message.content['text'],
    })


    View Slide

29. 29
    ROUTING
    from channels.routing import route
    from myapp.consumers import *
    channel_routing = [
    route('websocket.connect', ws_connect),
    route('websocket.disconnect', ws_disconnect),
    route('websocket.receive', ws_message),
    ]


    View Slide

30. 30
    GENERIC CONSUMERS


    View Slide

31. 31
    BASE CONSUMER
    from channels.generic import BaseConsumer
    class MyConsumer(BaseConsumer):
    method_mapping = {
    'channel.name.here': 'method_name',
    }
    def method_name(self, message, **kwargs):
    pass


    View Slide

32. 32
    WEBSOCKET CONSUMER
    from channels.generic import WebsocketConsumer
    class MyConsumer(WebsocketConsumer):
    def connection_groups(self):
    return ['chat']
    def connect(self, message):
    pass
    def receive(self, text=None, bytes=None):
    self.send(text=text, bytes=bytes)


    View Slide

33. 33
    ROUTING
    from channels import route_class
    from myapp import consumers
    channel_routing = [
    route_class(consumers.MyConsumer),
    ]


    View Slide

34. 34
    ROUTING


    View Slide

35. 35
    FILTERS
    // app.js
    s = new WebSocket('ws://localhost:8000/chat/')
    # routing.py
    route('websocket.connect', ws_connect,
    path=r'^/chat/$')


    View Slide

36. 36
    INCLUDES
    from channels import route, include
    blog_routes = [
    route('websocket.connect', blog,
    path=r'^/stream/'),
    ]
    routing = [
    include(blog_routes, path=r'^/blog'),
    ]


    View Slide

37. 37
    MULTIPLEXING


    View Slide

38. 38
    DEFINE MAPPING
    from channels import WebsocketDemultiplexer
    class Demultiplexer(WebsocketDemultiplexer):
    mapping = {
    'intval': 'binding.intval',
    }


    View Slide

39. 39
    ROUTING
    from channels import route_class, route
    from .consumers import Demultiplexer, ws_message
    channel_routing = [
    route_class(Demultiplexer, path='^/binding/'),
    route('binding.intval', ws_message),
    ]


    View Slide

40. 40
    MESSAGE CONTENT
    {
    "stream": "intval",
    "payload": {
    ...
    }
    }


    View Slide

41. 41
    SESSIONS


    View Slide

42. 42
    CHANNEL SESSION
    from channels.sessions import channel_session
    @channel_session
    def ws_connect(message):
    room = message.content['path']
    message.channel_session['room'] = room
    Group('chat-%s' % room).add(
    message.reply_channel
    )


    View Slide

43. 43
    HTTP SESSION
    from channels.sessions import http_session_user
    @http_session_user
    def ws_connect(message):
    message.http_session['room'] = room
    if message.user.username:
    ...


    View Slide

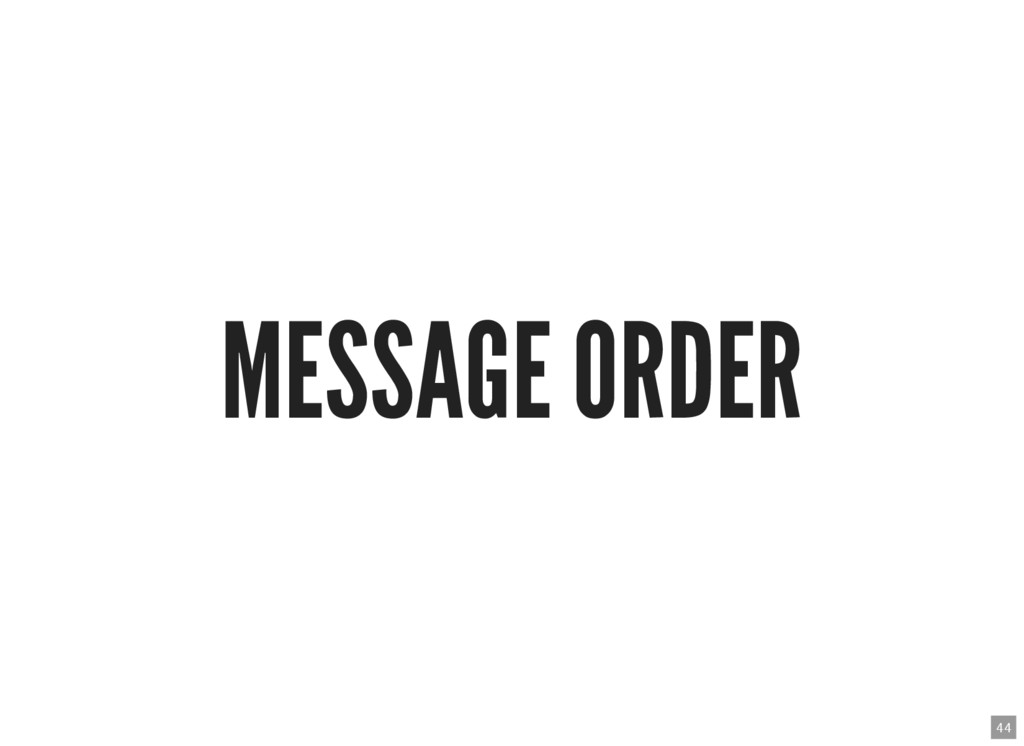

44. 44
    MESSAGE ORDER


    View Slide

45. 45
    ENFORCE ORDERING
    from channels.generic import WebsocketConsumer
    class MyConsumer(WebsocketConsumer):
    http_user = True
    slight_ordering = True
    strict_ordering = False
    def connection_groups(self, **kwargs):
    return ['chat']


    View Slide

46. 46
    DATA BINDING


    View Slide

47. 47
    BIND MODEL
    class IntegerValueBinding(WebsocketBinding):
    model = IntegerValue
    stream = 'intval'
    fields = ['name', 'value']
    def group_names(self, instance, action):
    return ['intval-updates']
    def has_permission(self, user, action, pk):
    return True


    View Slide

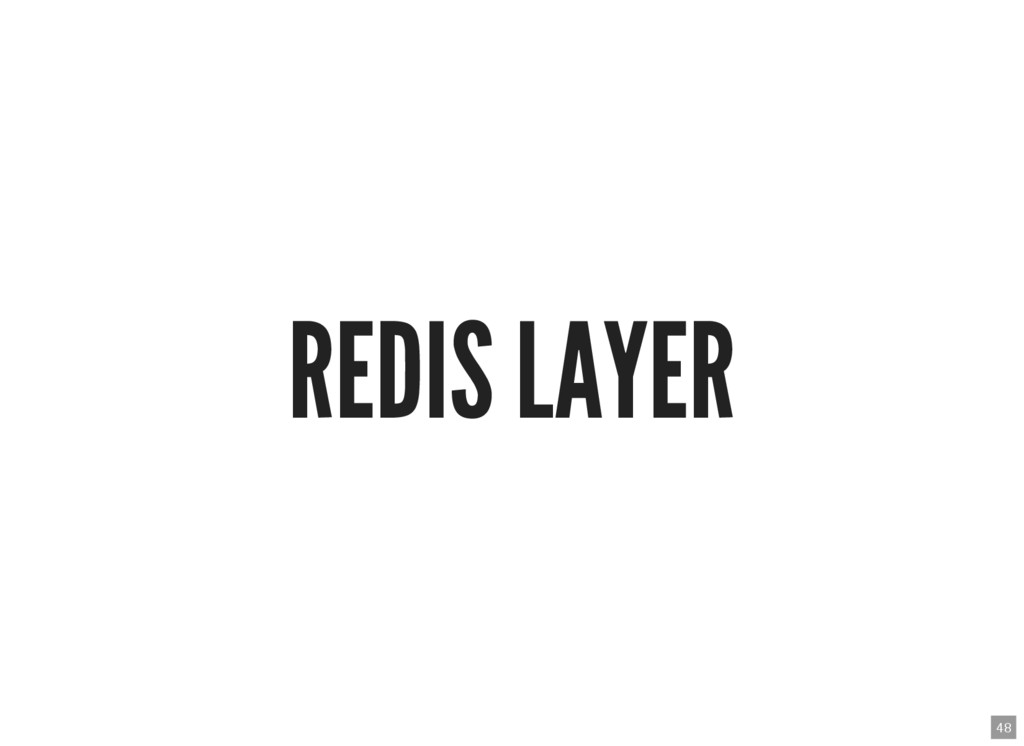

48. 48
    REDIS LAYER


    View Slide

49. 49
    REDIS LAYER
    SINC ON WORKERS
    ASYNC ON DAPHNE
    MSGPACK
    SHARDING


    View Slide

50. 50
    CHANNEL IMPLEMENTATION
    >> SET "b6dc0dfce" "\x81\xa4text\xachello"
    >> RPUSH "websocket.send!sGOpfny" "b6dc0dfce"
    >> EXPIRE "b6dc0dfce" "60"
    >> EXPIRE "websocket.send!sGOpfny" "61"


    View Slide

51. 51
    GROUP IMPLEMENTATION
    >> type group:chat
    zset
    >> ZRANGE group:chat 0 1 WITHSCORES
    1) "websocket.send!sGOpfny"
    2) "1476199781.8159261"


    View Slide

52. 52
    PROBLEMS


    View Slide

53. 53
    CALLBACK
    HELL


    View Slide

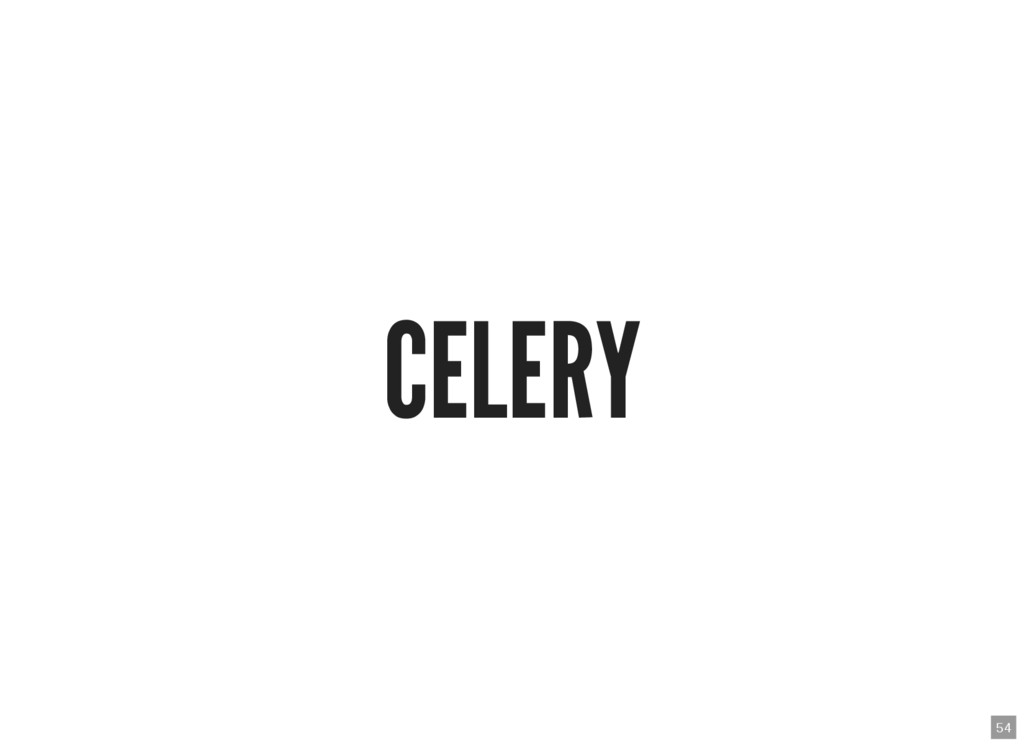

54. 54
    CELERY


    View Slide

55. 55
    CHANNELS
    IS NOT A
    TASK QUEUE


    View Slide

56. 56
    CHANNELS CAN'T
    RETRY
    CANVAS
    ETA


    View Slide

57. 57
    DJANGO
    FOR TODAY'S WEB


    View Slide

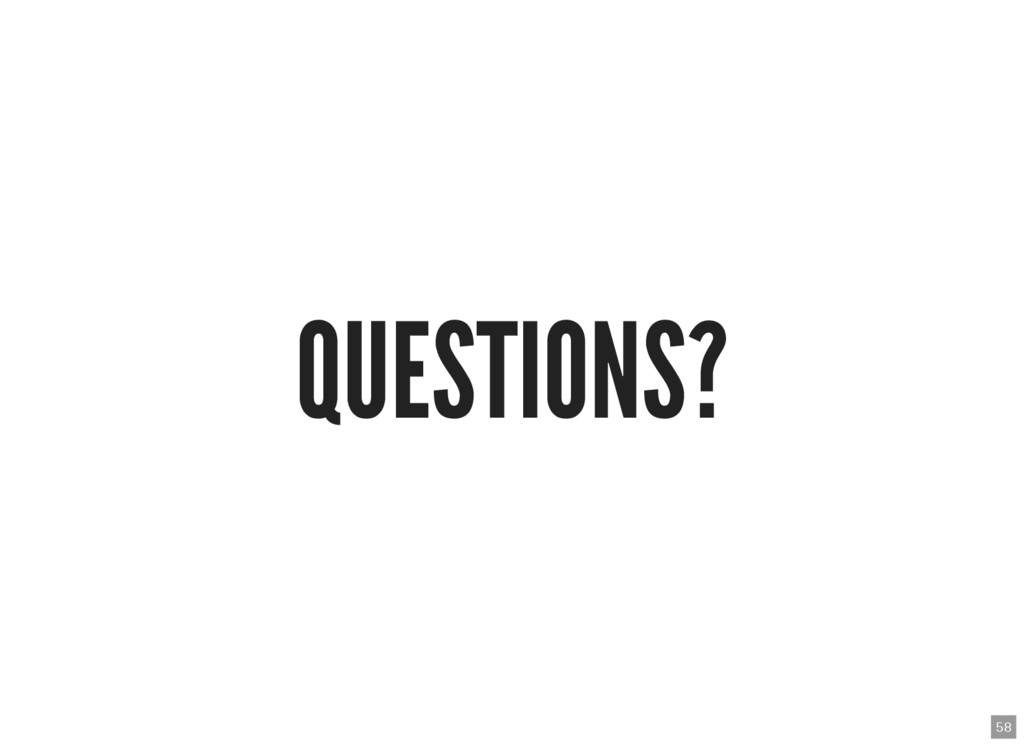

58. 58
    QUESTIONS?


    View Slide
