dex 039 или куда катится Android

Александр Ефременков, Yandex.Taxi – MOSDROID #7 Nitrogen

Transcript

2. Александр Ефременков dex 039 или куда катится Android
3. Доклад о том, как в Android добавляли полноценную поддержку MethodHandle. Продолжение доклада “Invokedynamic in Oreo” и что изменилось с того времени. Познавательный, не про архитектуру. О чём 3
4. Как это было Вспомнить всё
5. What is invokedynamic? 5 “[invokedynamic] improves implementations of compilers and runtime systems for dynamic languages on the JVM. It does this by allowing the language implementer to define custom linkage behavior. This contrasts with other JVM instructions such as invokevirtual, in which linkage behavior specific to Java classes and interfaces is hard-wired by the JVM.” official Oracle documentation
6. invoke-virtual (virtual methods = Java’s invokevirtual)
 invoke-static (static methods = Java’s invokestatic)
 invoke-interface (interface types methods = Java’s invokeinterface) invoke-super (super-class methods = Java’s invokespecial)
 invoke-direct (constructors = Java’s invokespecia)
 invoke-polymorphic (method handle invoke = 1/2 of Java’s invokedynamic) invoke-custom (call site resolve/invoke = 2/2 of Java’s invokedynamic) Какие invok’и есть 6
7. Что пришло в dex 038 Вспомнить всё
8. Invoke-polymorphic Вспомнить всё
9. • Делает половину invokedynamic из Java
 • Вызывает методы которые были bootstrapped
 • Полезно для альтернативы reflection (side effect) invoke-polymorphic 9
10. Dispatch
 10 Resolve Bootstrap Method Caller Constant Pool Method Handle Search Execute
 Method Handle Call Method
11. invoke-polymorphic 11 public class MainActivity extends Activity { @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); dynamicMethod(); } void dynamicMethod() { MethodHandles.lookup() .findVirtual(MainActivity.class, "virtualMethod", MethodType.methodType(void.class)) .invoke(); } private void virtualMethod() { Log.d("logger", "virtual"); } }
12. invoke-polymorphic 12 public class MainActivity extends Activity { @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); dynamicMethod(); } void dynamicMethod() { MethodHandles.lookup() .findVirtual(MainActivity.class, "virtualMethod", MethodType.methodType(void.class)) .invoke(); } private void virtualMethod() { Log.d("logger", "virtual"); } }
13. invoke-polymorphic 13 public class MainActivity extends Activity { @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); dynamicMethod(); } void dynamicMethod() { MethodHandles.lookup() .findVirtual(MainActivity.class, "virtualMethod", MethodType.methodType(void.class)) .invoke(); } private void virtualMethod() { Log.d("logger", "virtual"); } }

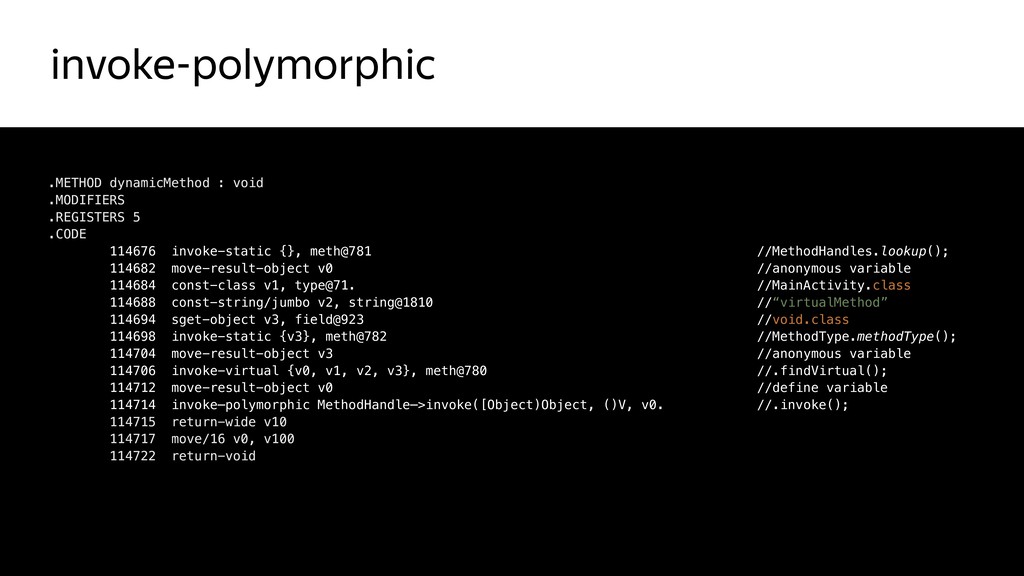

14. invoke-polymorphic 14 .METHOD dynamicMethod : void .MODIFIERS .REGISTERS 5 .CODE 114676 invoke-static {}, meth@781 //MethodHandles.lookup(); 114682 move-result-object v0 //anonymous variable 114684 const-class v1, type@71. //MainActivity.class 114688 const-string/jumbo v2, string@1810 //“virtualMethod” 114694 sget-object v3, field@923 //void.class 114698 invoke-static {v3}, meth@782 //MethodType.methodType(); 114704 move-result-object v3 //anonymous variable 114706 invoke-virtual {v0, v1, v2, v3}, meth@780 //.findVirtual(); 114712 move-result-object v0 //define variable 114714 invoke—polymorphic MethodHandle—>invoke([Object)Object, ()V, v0. //.invoke(); 114715 return-wide v10 114717 move/16 v0, v100 114722 return-void

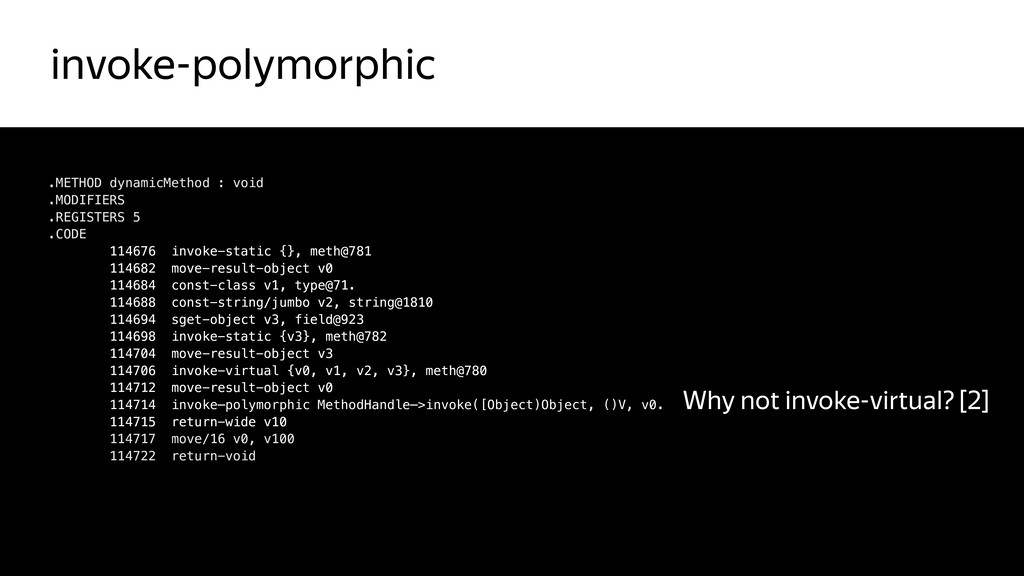

15. invoke-polymorphic 15 .METHOD dynamicMethod : void .MODIFIERS .REGISTERS 5 .CODE 114676 invoke-static {}, meth@781 114682 move-result-object v0 114684 const-class v1, type@71. 114688 const-string/jumbo v2, string@1810 114694 sget-object v3, field@923 114698 invoke-static {v3}, meth@782 114704 move-result-object v3 114706 invoke-virtual {v0, v1, v2, v3}, meth@780 114712 move-result-object v0 114714 invoke—polymorphic MethodHandle—>invoke([Object)Object, ()V, v0. 114715 return-wide v10 114717 move/16 v0, v100 114722 return-void Why not invoke-virtual? [2]
16. java.lang.invoke.MethodHandle.java 16 public final native @PolymorphicSignature Object invoke(Object... args) throws Throwable;
17. java.lang.invoke.MethodHandle.java 17 /** * Internal marker interface which distinguishes (to the Java compiler) * those methods which are <a href="MethodHandle.html#sigpoly">signature polymorphic</a>. */ @java.lang.annotation.Target({java.lang.annotation.ElementType.METHOD}) @java.lang.annotation.Retention(java.lang.annotation.RetentionPolicy.RUNTIME) @interface PolymorphicSignature { }
18. java.lang.invoke.MethodHandle.java 18 /** * Internal marker interface which distinguishes (to the Java compiler) * those methods which are <a href="MethodHandle.html#sigpoly">signature polymorphic</a>. */ @java.lang.annotation.Target({java.lang.annotation.ElementType.METHOD}) @java.lang.annotation.Retention(java.lang.annotation.RetentionPolicy.RUNTIME) @interface PolymorphicSignature { } Interface now marked as package-private
19. Invoke-custom Вспомнить всё
20. • Делает вторую половину invokedynamic из Java (бОльшую) • Создаёт CallSite ссылающийся на MethodHandle • Использует MethodHandle для вызова целевого метода • Полезен для лябмд invoke-custom 20
21. Dispatch
 21 Resolve Call Site Caller Exec Call Site Execute
 Method Handle Call Method Const Pool Method Handle Search Call Site Linkage
22. Dispatch
 22 Resolve Call Site Caller Exec Call Site Execute
 Method Handle Call Method Const Pool Method Handle Search Call Site Linkage Lambda Prepare
23. Dispatch
 23 Resolve Call Site Caller Exec Call Site Execute
 Method Handle Call Method Const Pool Method Handle Search Call Site Linkage Lambda Body
24. • D8, DX делает десахароз даже с minSdkVersion 26 • Jack compiler ПОДДЕРЖИВАЕТ(!) компиляцию с invoke-custom (@CalledByInvokeCustom) • Smali до сих пор не поддерживает invoke-custom/invoke-polymorphic 24 invoke-custom
25. Но нашлись отважные 25 invoke-custom
26. Очень отважные 26 invoke-custom
27. invoke-custom 27 public class MainActivity extends Activity { @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); MethodHandles.lookup() .findStatic(MainActivity.class, "add", MethodType.methodType(int.class, int.class, int.class)) .invoke(2, 3); } static int add(int a, int b) { BiFunction<Integer, Integer, Integer> f = new BiFunction<Integer, Integer, Integer>() { @Override public Integer apply(Integer integer, Integer integer2) { return add0(a, b); } }; return f.apply(a, b); } @CalledByInvokeCustom(invokeMethodHandle = @LinkerMethodHandle(kind = MethodHandleKind.INVOKE_STATIC, enclosingType = MainActivity.class, name = "linkerMethod", argumentTypes = {MethodHandles.Lookup.class, String.class, MethodType.class}), name = "add0", returnType = Integer.class, argumentTypes = {Integer.class, Integer.class}) static Integer add0(Integer a, Integer b) { return a + b; } private static CallSite linkerMethod(MethodHandles.Lookup caller, String name, MethodType methodType) throws NoSuchMethodException, IllegalAccessException { return new ConstantCallSite(caller.findStatic(caller.lookupClass(), name, methodType)); } }
28. invoke-custom 28 public class MainActivity extends Activity { @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); MethodHandles.lookup() .findStatic(MainActivity.class, "add", MethodType.methodType(int.class, int.class, int.class)) .invoke(2, 3); } static int add(int a, int b) { BiFunction<Integer, Integer, Integer> f = new BiFunction<Integer, Integer, Integer>() { @Override public Integer apply(Integer integer, Integer integer2) { return add0(a, b); } }; return f.apply(a, b); } @CalledByInvokeCustom(invokeMethodHandle = @LinkerMethodHandle(kind = MethodHandleKind.INVOKE_STATIC, enclosingType = MainActivity.class, name = "linkerMethod", argumentTypes = {MethodHandles.Lookup.class, String.class, MethodType.class}), name = "add0", returnType = Integer.class, argumentTypes = {Integer.class, Integer.class}) static Integer add0(Integer a, Integer b) { return a + b; } private static CallSite linkerMethod(MethodHandles.Lookup caller, String name, MethodType methodType) throws NoSuchMethodException, IllegalAccessException { return new ConstantCallSite(caller.findStatic(caller.lookupClass(), name, methodType)); } }
29. invoke-custom 29 public class MainActivity extends Activity { @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); MethodHandles.lookup() .findStatic(MainActivity.class, "add", MethodType.methodType(int.class, int.class, int.class)) .invoke(2, 3); } static int add(int a, int b) { BiFunction<Integer, Integer, Integer> f = new BiFunction<Integer, Integer, Integer>() { @Override public Integer apply(Integer integer, Integer integer2) { return add0(a, b); } }; return f.apply(a, b); } @CalledByInvokeCustom(invokeMethodHandle = @LinkerMethodHandle(kind = MethodHandleKind.INVOKE_STATIC, enclosingType = MainActivity.class, name = "linkerMethod", argumentTypes = {MethodHandles.Lookup.class, String.class, MethodType.class}), name = "add0", returnType = Integer.class, argumentTypes = {Integer.class, Integer.class}) static Integer add0(Integer a, Integer b) { return a + b; } private static CallSite linkerMethod(MethodHandles.Lookup caller, String name, MethodType methodType) throws NoSuchMethodException, IllegalAccessException { return new ConstantCallSite(caller.findStatic(caller.lookupClass(), name, methodType)); } }
30. invoke-custom 30 public class MainActivity extends Activity { @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); MethodHandles.lookup() .findStatic(MainActivity.class, "add", MethodType.methodType(int.class, int.class, int.class)) .invoke(2, 3); } static int add(int a, int b) { BiFunction<Integer, Integer, Integer> f = new BiFunction<Integer, Integer, Integer>() { @Override public Integer apply(Integer integer, Integer integer2) { return add0(a, b); } }; return f.apply(a, b); } @CalledByInvokeCustom(invokeMethodHandle = @LinkerMethodHandle(kind = MethodHandleKind.INVOKE_STATIC, enclosingType = MainActivity.class, name = "linkerMethod", argumentTypes = {MethodHandles.Lookup.class, String.class, MethodType.class}), name = "add0", returnType = Integer.class, argumentTypes = {Integer.class, Integer.class}) static Integer add0(Integer a, Integer b) { return a + b; } private static CallSite linkerMethod(MethodHandles.Lookup caller, String name, MethodType methodType) throws NoSuchMethodException, IllegalAccessException { return new ConstantCallSite(caller.findStatic(caller.lookupClass(), name, methodType)); } }
31. invoke-custom 31 public class MainActivity extends Activity { @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); MethodHandles.lookup() .findStatic(MainActivity.class, "add", MethodType.methodType(int.class, int.class, int.class)) .invoke(2, 3); } static int add(int a, int b) { BiFunction<Integer, Integer, Integer> f = new BiFunction<Integer, Integer, Integer>() { @Override public Integer apply(Integer integer, Integer integer2) { return add0(a, b); } }; return f.apply(a, b); } @CalledByInvokeCustom(invokeMethodHandle = @LinkerMethodHandle(kind = MethodHandleKind.INVOKE_STATIC, enclosingType = MainActivity.class, name = "linkerMethod", argumentTypes = {MethodHandles.Lookup.class, String.class, MethodType.class}), name = "add0", returnType = Integer.class, argumentTypes = {Integer.class, Integer.class}) static Integer add0(Integer a, Integer b) { return a + b; } private static CallSite linkerMethod(MethodHandles.Lookup caller, String name, MethodType methodType) throws NoSuchMethodException, IllegalAccessException { return new ConstantCallSite(caller.findStatic(caller.lookupClass(), name, methodType)); } }
32. invoke-custom 32 public class MainActivity extends Activity { @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); MethodHandles.lookup() .findStatic(MainActivity.class, "add", MethodType.methodType(int.class, int.class, int.class)) .invoke(2, 3); } static int add(int a, int b) { BiFunction<Integer, Integer, Integer> f = new BiFunction<Integer, Integer, Integer>() { @Override public Integer apply(Integer integer, Integer integer2) { return add0(a, b); } }; return f.apply(a, b); } @CalledByInvokeCustom(invokeMethodHandle = @LinkerMethodHandle(kind = MethodHandleKind.INVOKE_STATIC, enclosingType = MainActivity.class, name = "linkerMethod", argumentTypes = {MethodHandles.Lookup.class, String.class, MethodType.class}), name = "add0", returnType = Integer.class, argumentTypes = {Integer.class, Integer.class}) static Integer add0(Integer a, Integer b) { return a + b; } private static CallSite linkerMethod(MethodHandles.Lookup caller, String name, MethodType methodType) throws NoSuchMethodException, IllegalAccessException { return new ConstantCallSite(caller.findStatic(caller.lookupClass(), name, methodType)); } }

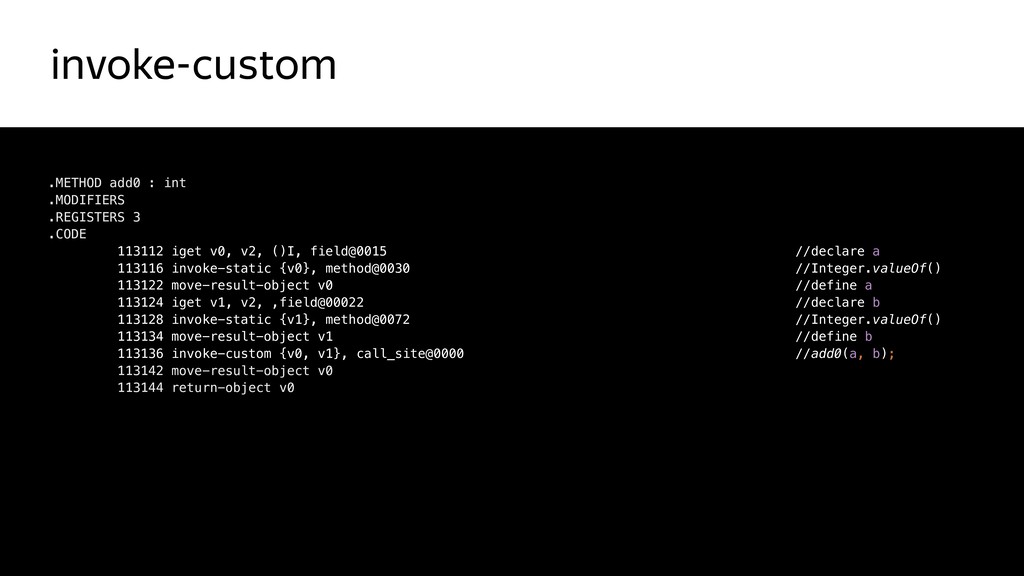

33. invoke-custom 33 .METHOD add0 : int .MODIFIERS .REGISTERS 3 .CODE 113112 iget v0, v2, ()I, field@0015 //declare a 113116 invoke-static {v0}, method@0030 //Integer.valueOf() 113122 move-result-object v0 //define a 113124 iget v1, v2, ,field@00022 //declare b 113128 invoke-static {v1}, method@0072 //Integer.valueOf() 113134 move-result-object v1 //define b 113136 invoke-custom {v0, v1}, call_site@0000 //add0(a, b); 113142 move-result-object v0 113144 return-object v0
34. New Method Handle OP’s (dex 039) Новинки
35. • const-method-handle vAA, method_handle@BBBB • const-method-type vAA, proto@BBBB new op’s 35
36. • Инструкции для получения Method Handle’s (Очень похоже на function pointers в C) • Инструкции для получения прототипов методов • Данные коды операций просто запрашивают прототипы и обрабатывают пулы. new op’s 36
37. • Не оптимизированный DEX instruction set занимает 0 to 0xFF, в неопределённом диапазоне: 3E-43, 73, 79-7A, E3-FF • DEX 38 определяет диапазон FA-FD (4 новые invoke-xxx кода) • DEX 39 определяет диапазон FE-FF для новых кодов (2 новых const- method-xxx) Эволюция 37
38. const-method-handle Подробнее
39. Move a reference to the method handle specified by the given index into the specified register. const-method-handle 39
40. Move a reference to the method handle specified by the given index into the specified register. const-method-handle vAA, method_handle@BBBB A: destination register (8 bits) B: method handle index (16 bits) const-method-handle 40
41. const-method-type Подробнее
42. Move a reference to the method prototype specified by the given index into the specified register. const-method-type 42
43. Move a reference to the method prototype specified by the given index into the specified register. const-method-type vAA, proto@BBBB A: destination register (8 bits) B: method prototype reference (16 bits) const-method-type 43
44. VCS Лезем в кишки
45. Добавлены лайауты для новых dex 40, 41 DEX 40, 41 45
46. DEX 40, 41 46
47. Появился полноценный рантаймовый обработчик для ссылок и прототипов методов Method Handle/Type Resolving 47
48. Method Handle/Type Resolving 48
49. Добавлены прототипы Method Handles в структуру dex (038) Method Handle Dex Layouting 49
50. Method Handle Dex Layouting 50
51. Method Handle Dex Layouting 51
52. В платформенный рантайм наконец-то добавили полноценное api для работы с динамическим кодом и работы с прототипами и обработчиками функций. Итог 52
53. iamironz iamironz Any questions?
