Pure Intonation on Browser: Building a Sequencer with Ruby

The talk in RubyKaigi 2026.
Explore pure intonation, microtonal music theory, and ruby.wasm interoperability to create a modular synthesizer and sequencer running in the browser using Web Audio API and Ruby.

nagachika

April 23, 2026

Transcript

38 slides
  1. ˒ @nagachika ˒ CRuby committer / CRuby stable branch maintainer

    (3.4) ˒ Write "ruby trunk changes” every day ˒ ANDPAD Inc ˒ Fukuoka.rb ˒ Sound Programmer Wannabe WHO AM I
  2. ˒ @nagachika ˒ CRuby committer / CRuby stable branch maintainer

    (3.4) ˒ Write "ruby trunk changes” every day ˒ ANDPAD Inc ˒ Fukuoka.rb ˒ Sound Programmer Wannabe ← Today’s Theme WHO AM I

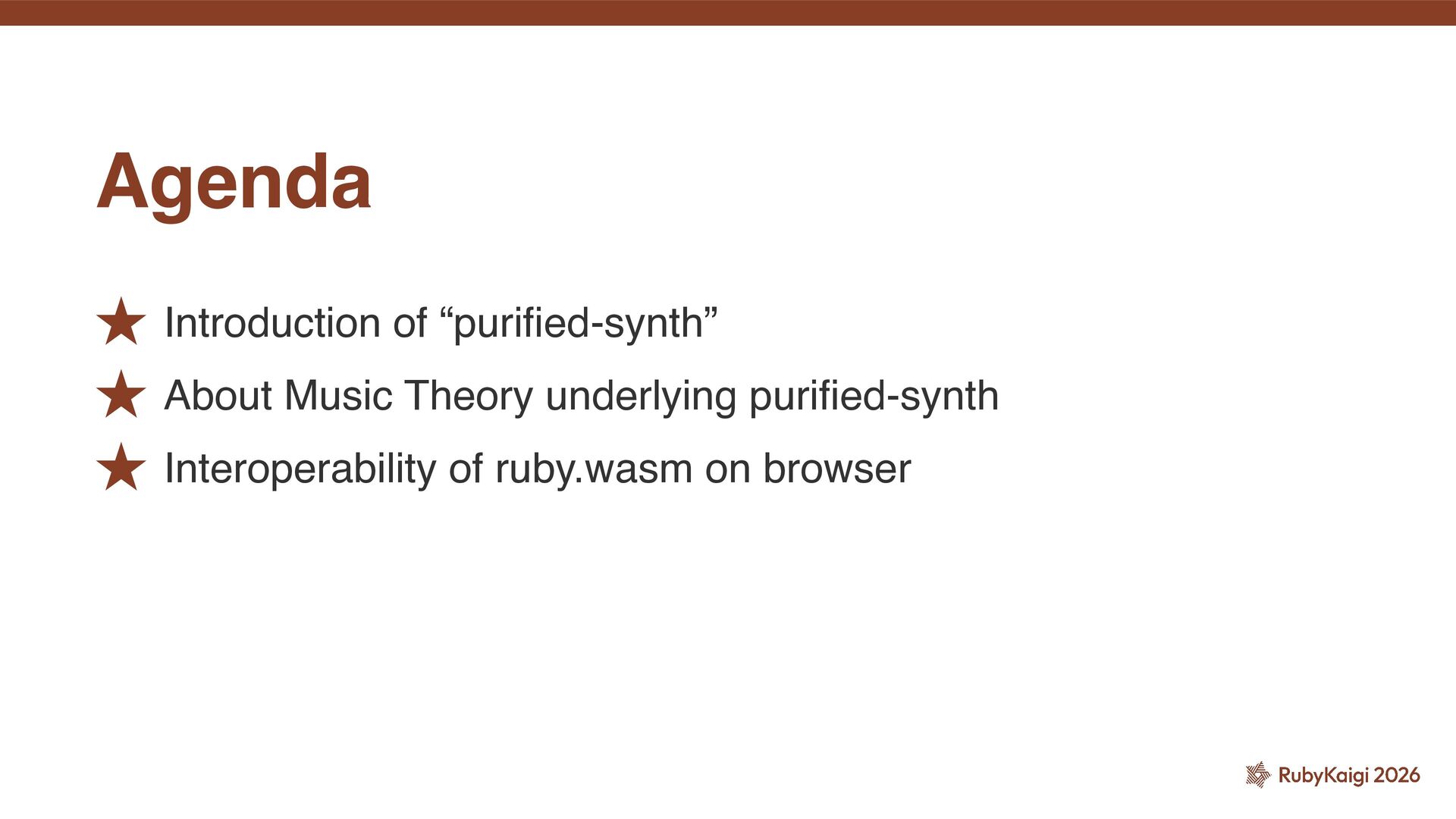

  3. ˒ Introduction of “puri fi ed-synth” ˒ About Music Theory

    underlying puri fi ed-synth ˒ Interoperability of ruby.wasm on browser Agenda

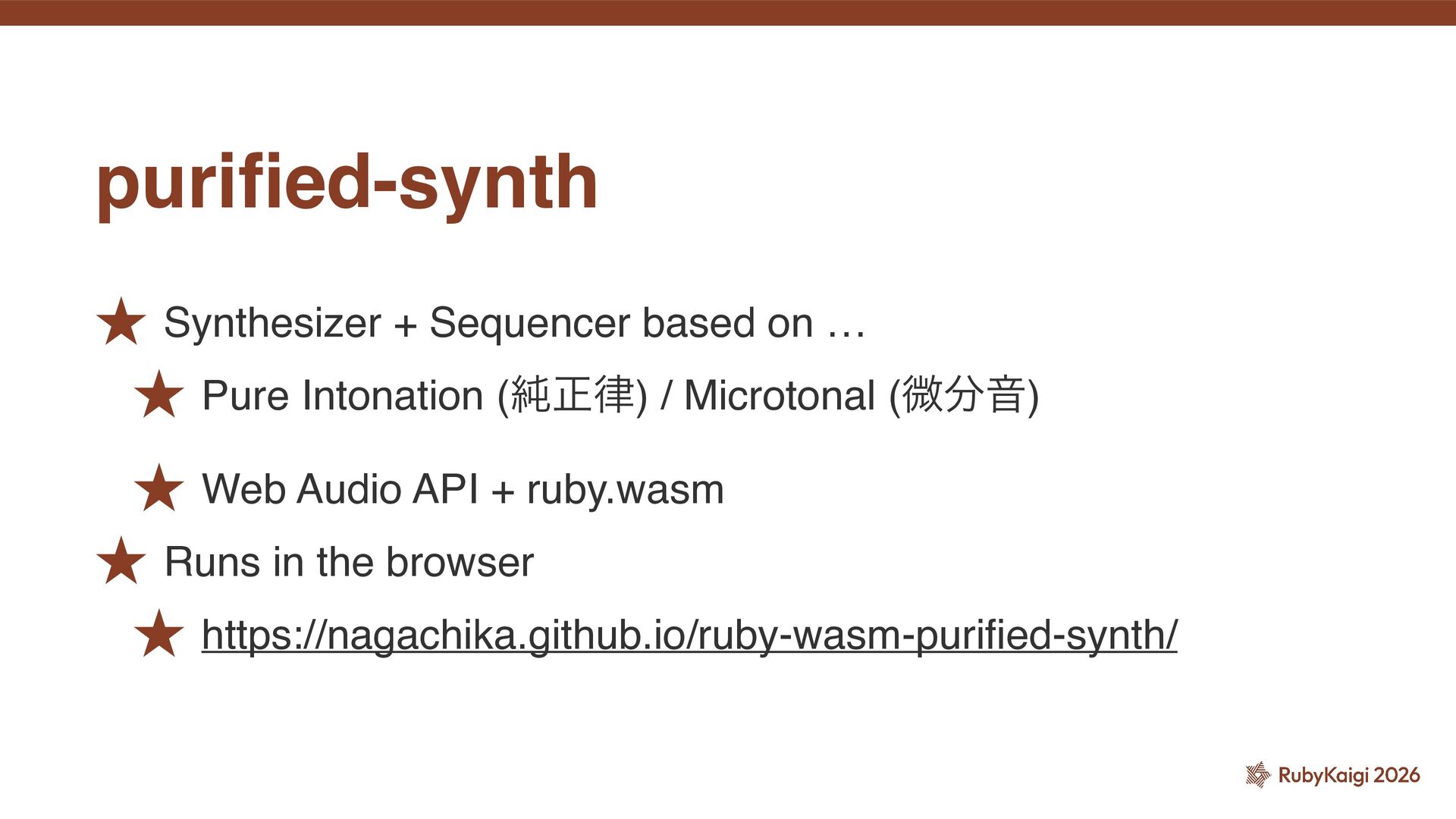

  4. ˒ Synthesizer + Sequencer based on … ˒ Pure Intonation

    (७ਖ਼཯) / Microtonal (ඍ෼Ի) ˒ Web Audio API + ruby.wasm ˒ Runs in the browser ˒ https://nagachika.github.io/ruby-wasm-puri fi ed-synth/ puri fi ed-synth

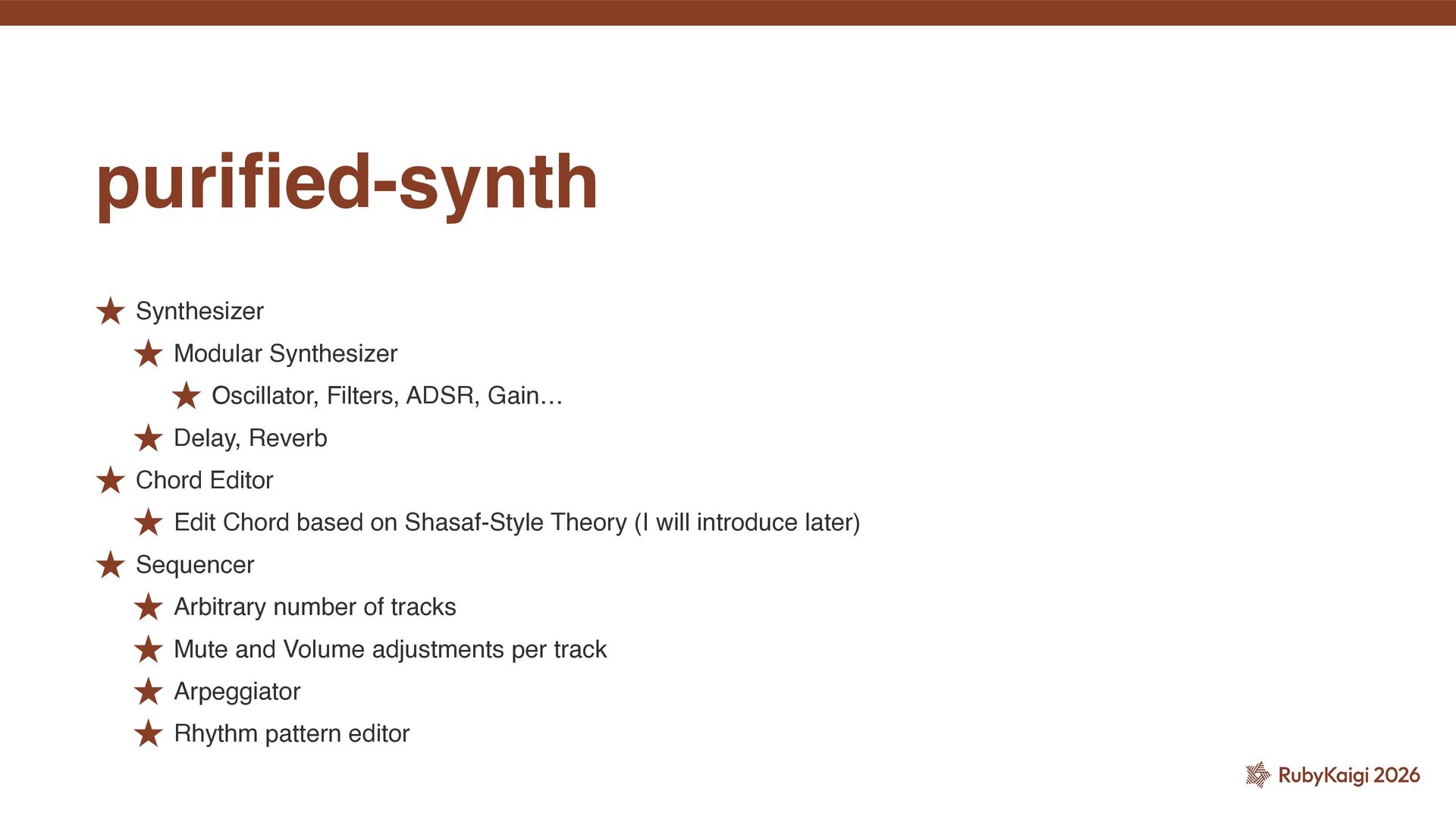

  5. ˒ Synthesizer ˒ Modular Synthesizer ˒ Oscillator, Filters, ADSR, Gain…

    ˒ Delay, Reverb ˒ Chord Editor ˒ Edit Chord based on Shasaf-Style Theory (I will introduce later) ˒ Sequencer ˒ Arbitrary number of tracks ˒ Mute and Volume adjustments per track ˒ Arpeggiator ˒ Rhythm pattern editor puri fi ed-synth

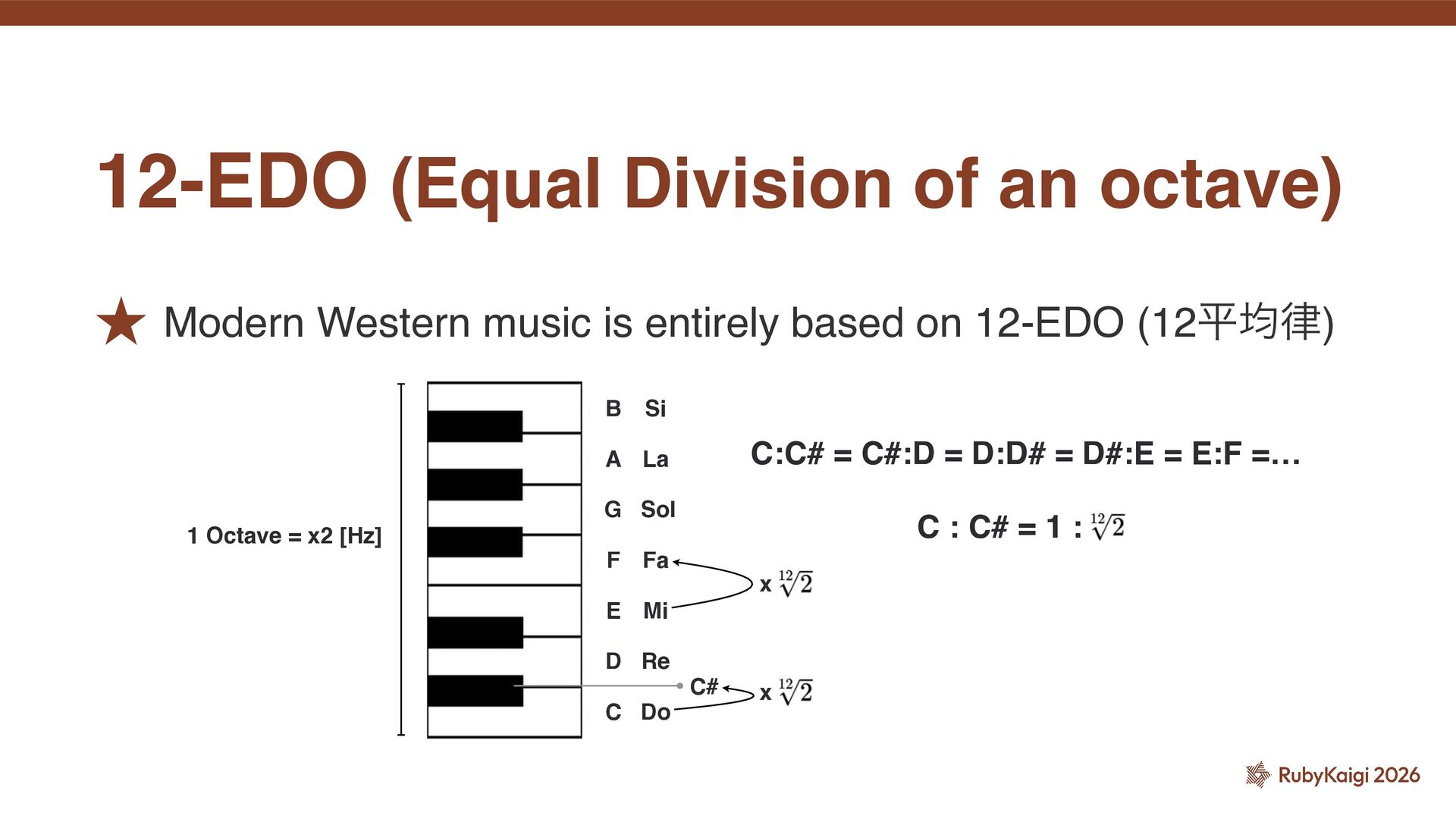

  6. ˒ Modern Western music is entirely based on 12-EDO (12ฏۉ཯)

    12-EDO (Equal Division of an octave) C D E F G A B Do Re Mi Fa Sol La Si C# 1 Octave = x2 [Hz] C:C# = C#:D = D:D# = D#:E = E:F =… x x C : C# = 1 :

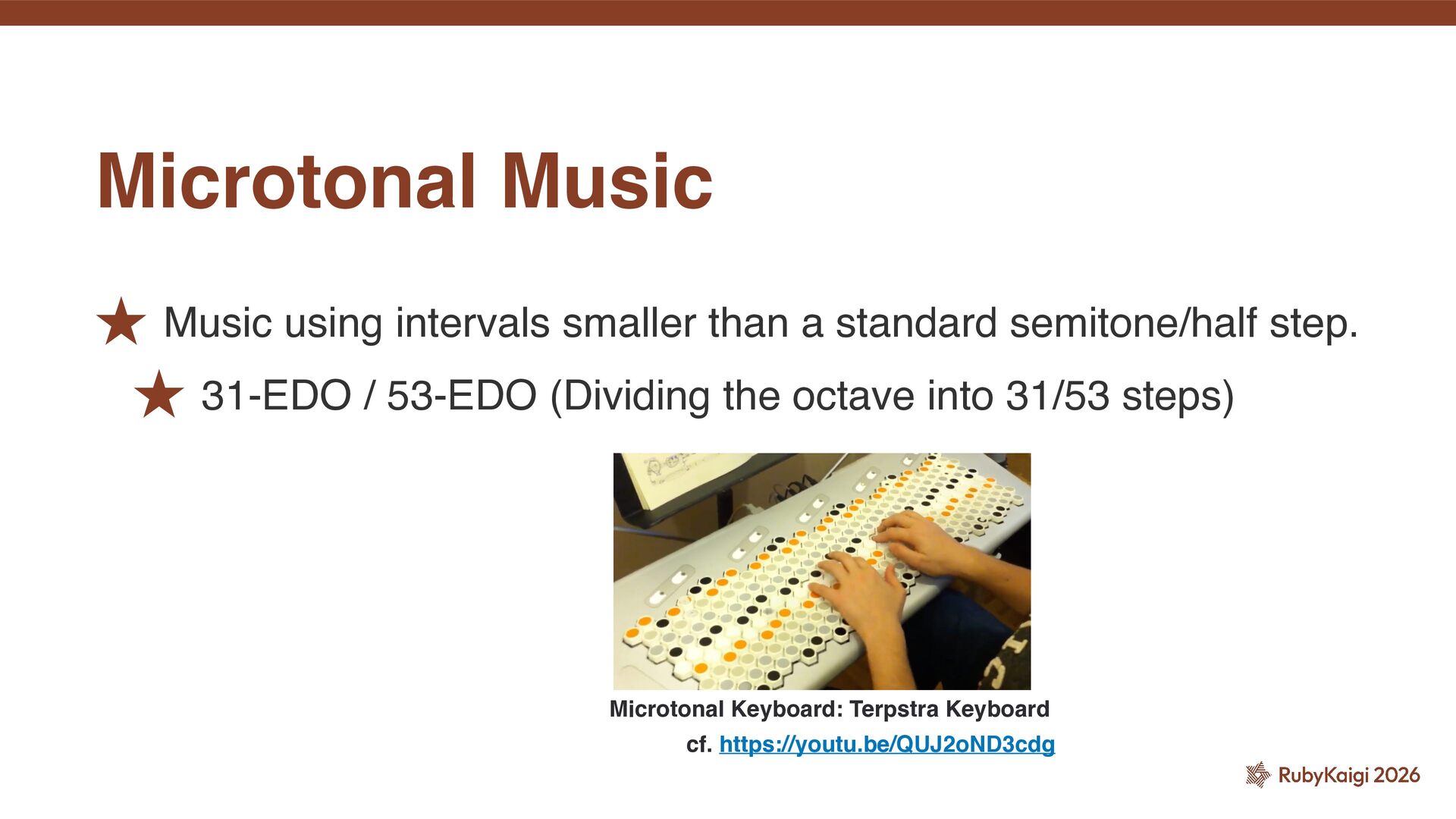

  7. ˒ Music using intervals smaller than a standard semitone/half step.

    ˒ 31-EDO / 53-EDO (Dividing the octave into 31/53 steps) Microtonal Music cf. https://youtu.be/QUJ2oND3cdg Microtonal Keyboard: Terpstra Keyboard

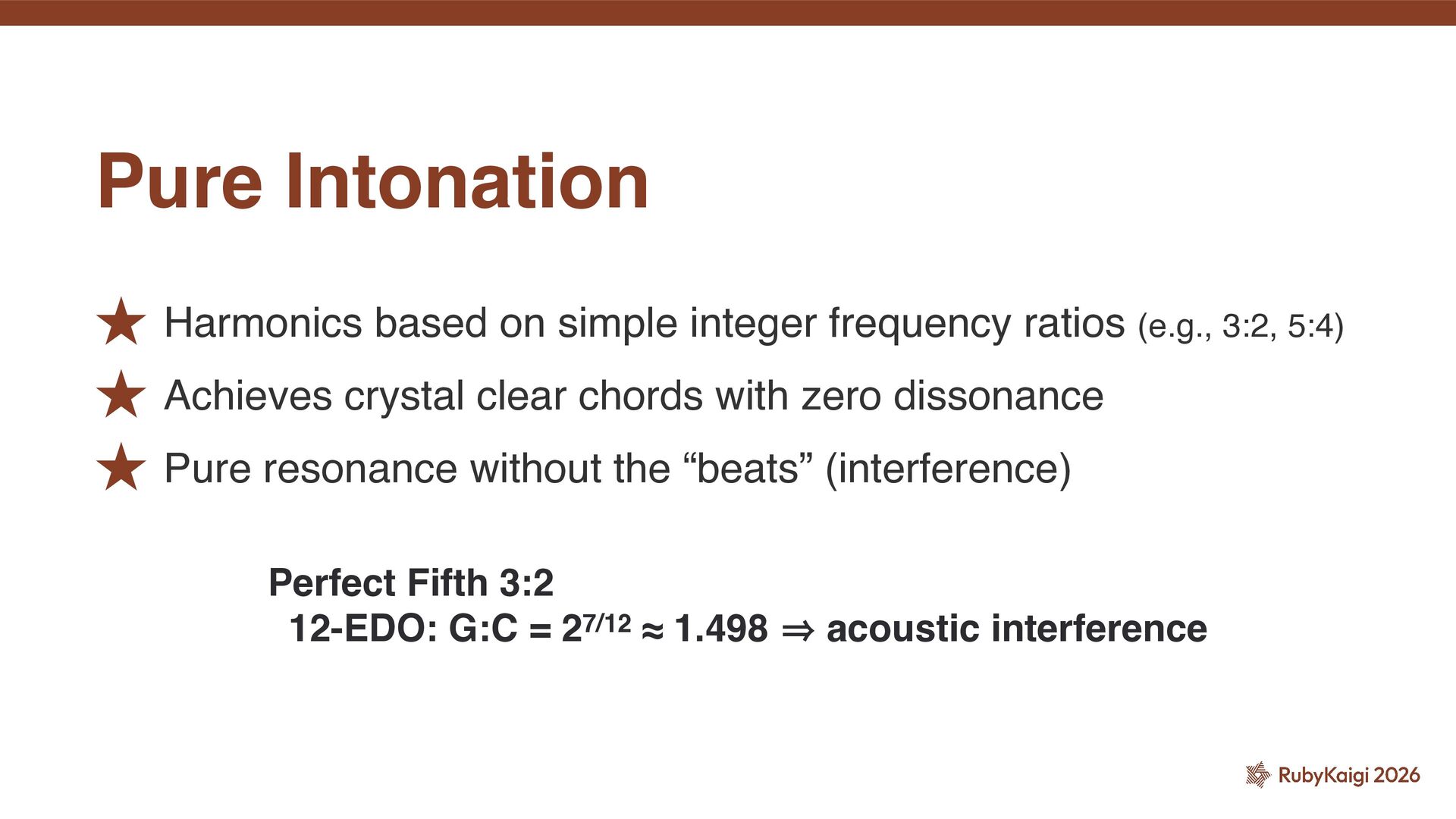

  8. ˒ Harmonics based on simple integer frequency ratios (e.g., 3:2,

    5:4) ˒ Achieves crystal clear chords with zero dissonance ˒ Pure resonance without the “beats” (interference) Pure Intonation Perfect Fifth 3:2
 12-EDO: G:C = 27/12 ≈ 1.498 㱺 acoustic interference

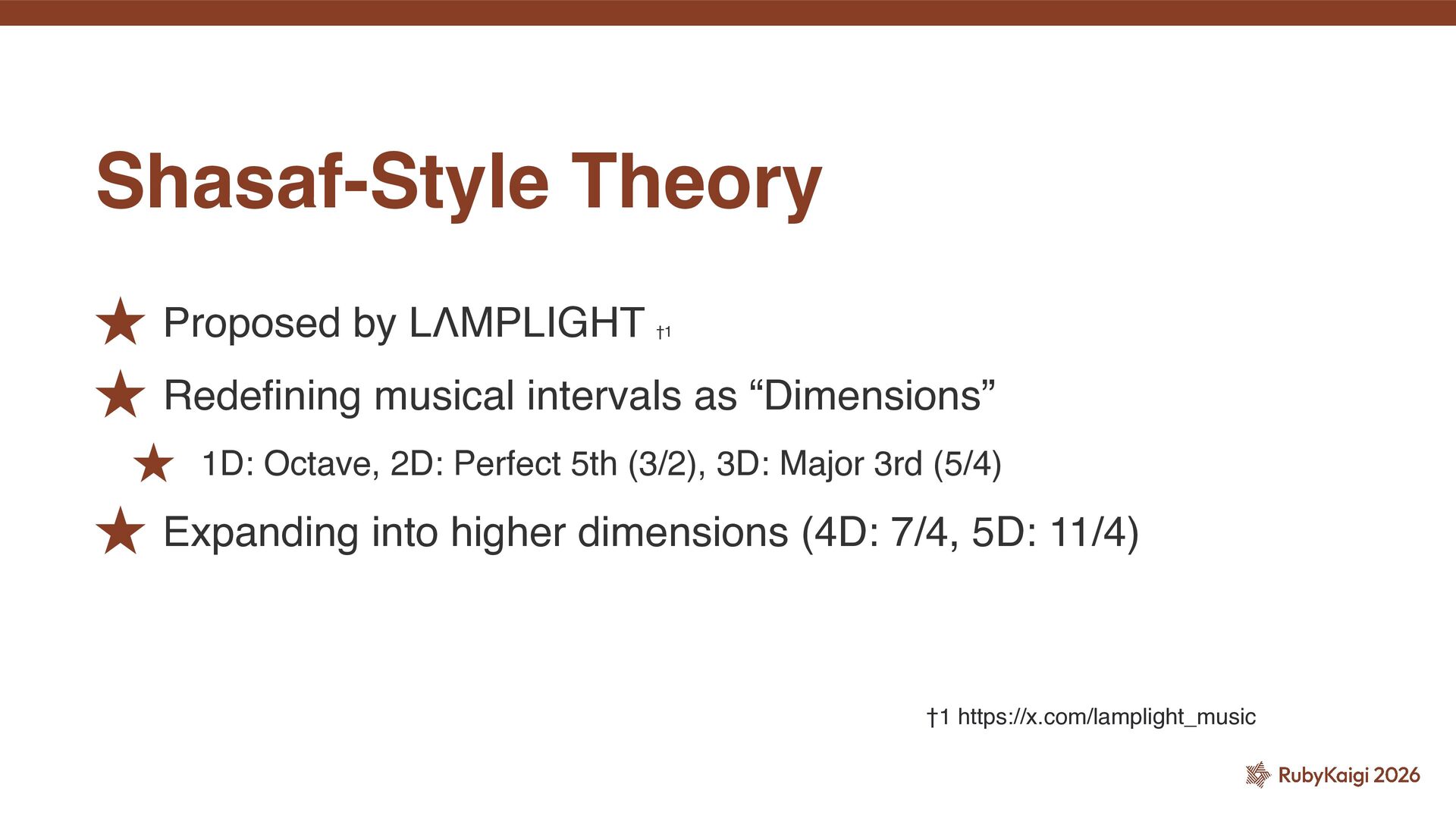

  9. ˒ Proposed by LΛMPLIGHT †1 ˒ Rede fi ning musical

    intervals as “Dimensions” ˒ 1D: Octave, 2D: Perfect 5th (3/2), 3D: Major 3rd (5/4) ˒ Expanding into higher dimensions (4D: 7/4, 5D: 11/4) Shasaf-Style Theory †1 https://x.com/lamplight_music

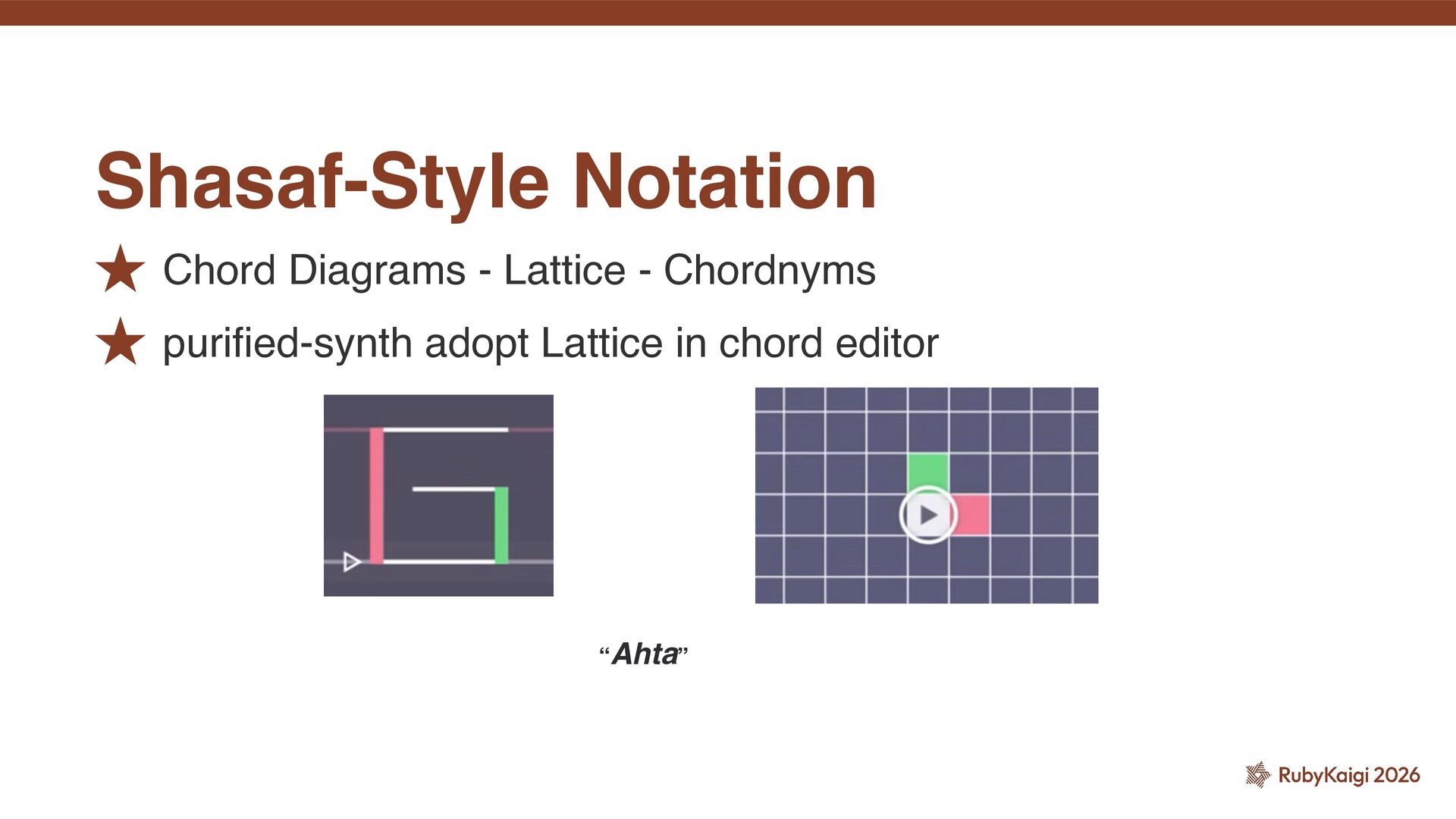

  10. ˒ Chord Diagrams - Lattice - Chordnyms ˒ puri fi

    ed-synth adopt Lattice in chord editor Shasaf-Style Notation “Ahta”

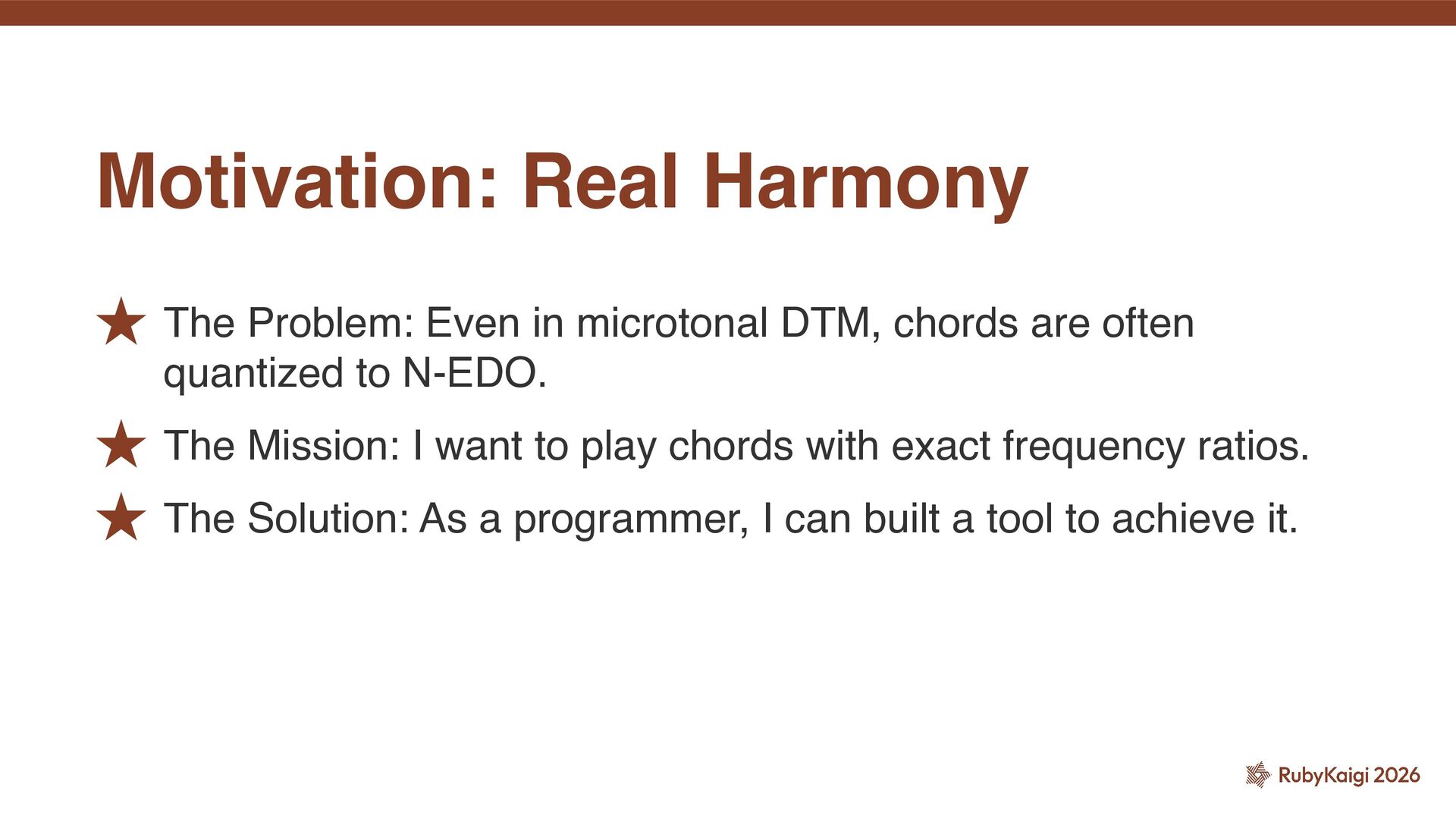

  11. ˒ The Problem: Even in microtonal DTM, chords are often

    quantized to N-EDO. ˒ The Mission: I want to play chords with exact frequency ratios. ˒ The Solution: As a programmer, I can built a tool to achieve it. Motivation: Real Harmony

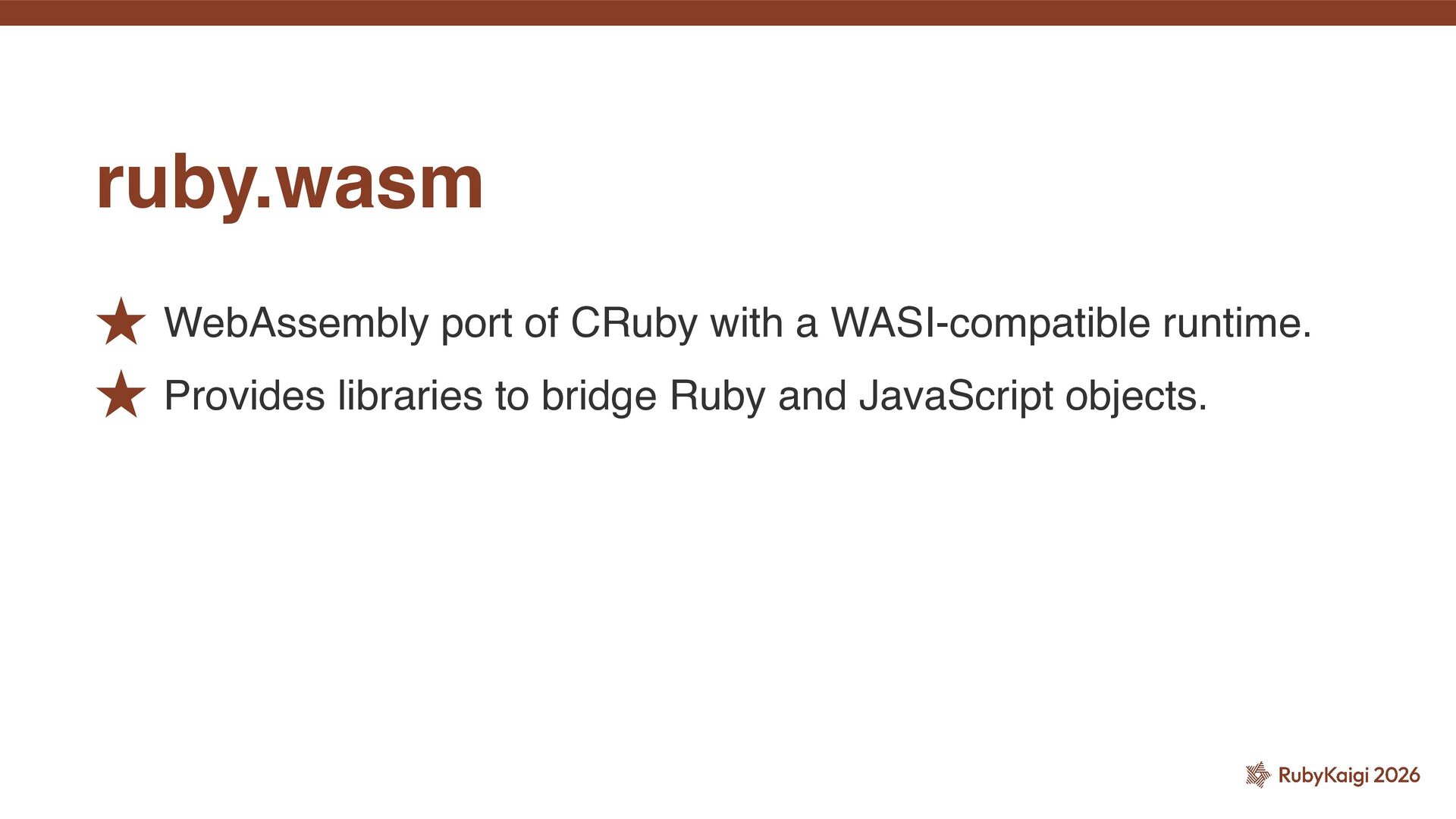

  12. ˒ WebAssembly port of CRuby with a WASI-compatible runtime. ˒

    Provides libraries to bridge Ruby and JavaScript objects. ruby.wasm

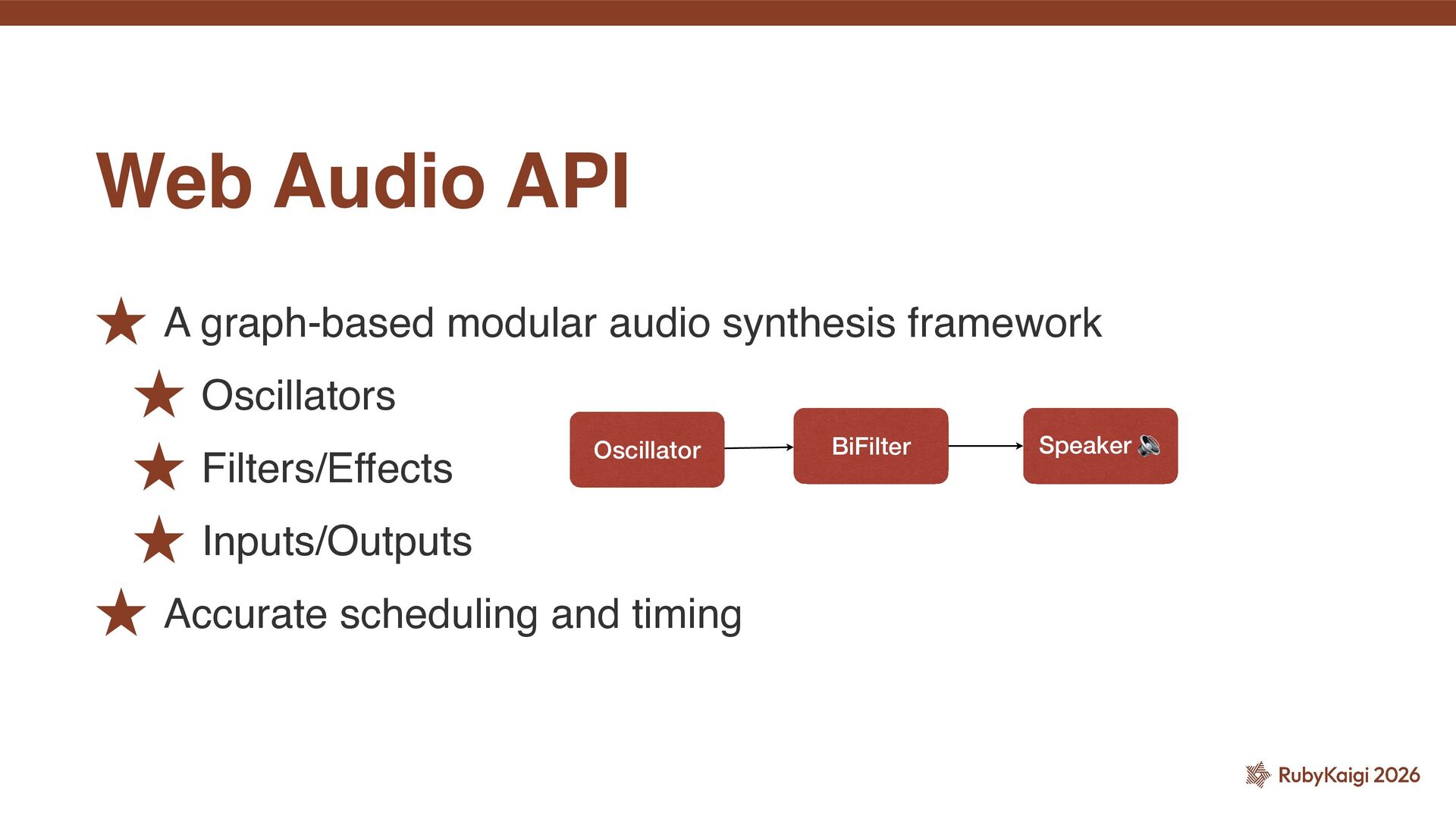

  13. ˒ A graph-based modular audio synthesis framework ˒ Oscillators ˒

    Filters/Effects ˒ Inputs/Outputs ˒ Accurate scheduling and timing Web Audio API Oscillator BiFilter Speaker 🔉

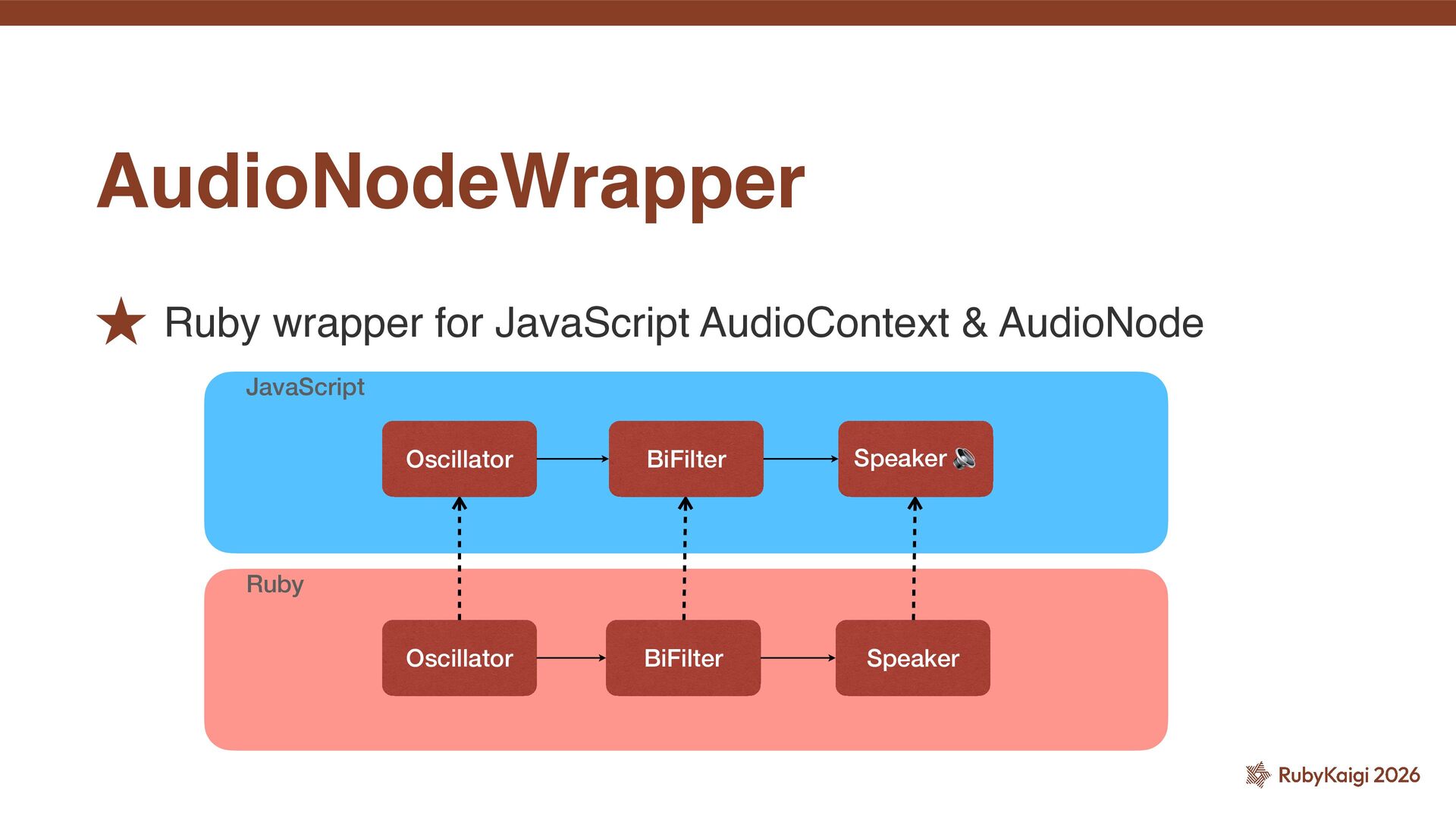

  14. ˒ Ruby wrapper for JavaScript AudioContext & AudioNode JavaScript AudioNodeWrapper

    Oscillator BiFilter Speaker 🔉 Ruby Oscillator BiFilter Speaker

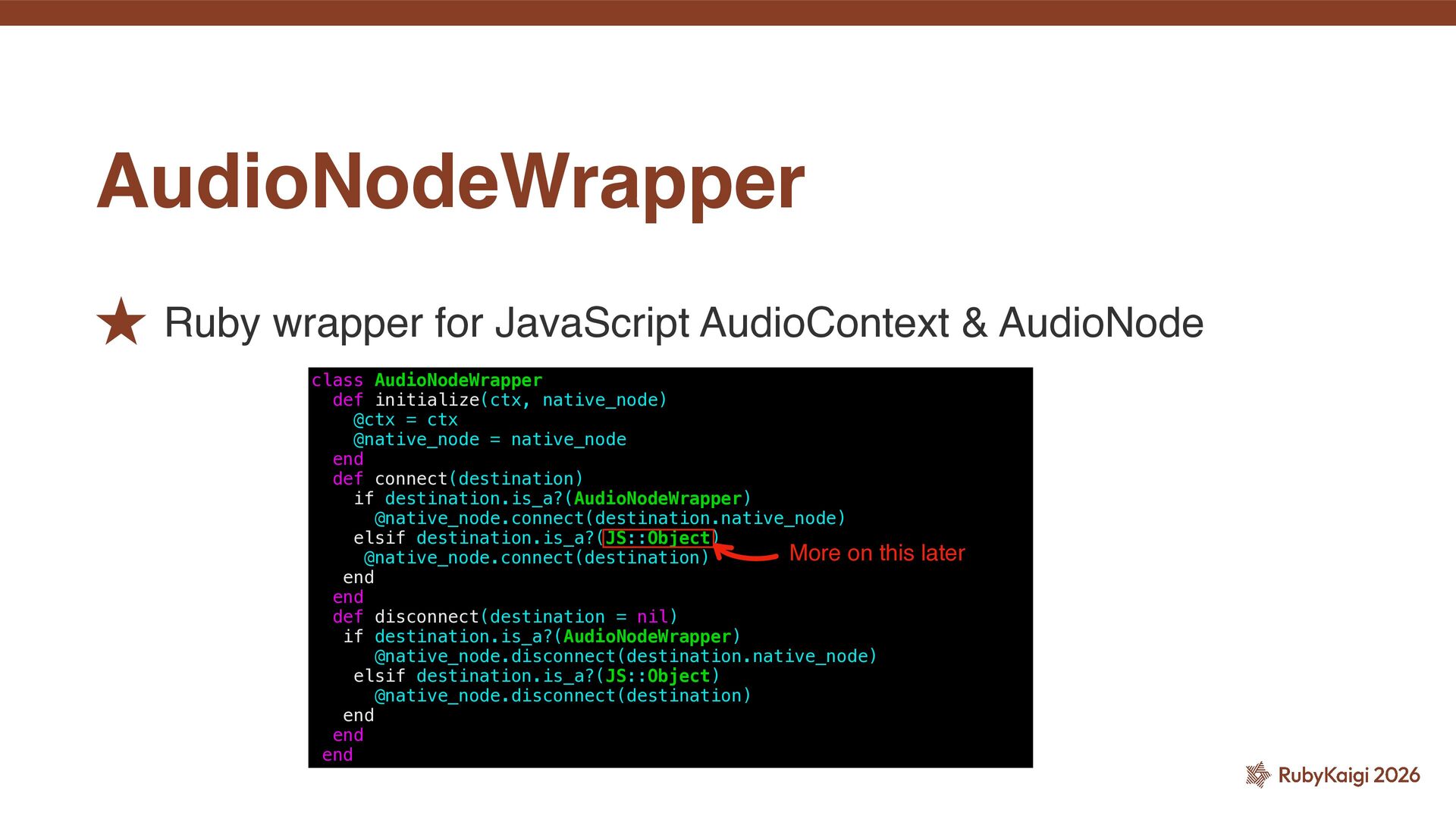

  15. ˒ Ruby wrapper for JavaScript AudioContext & AudioNode AudioNodeWrapper class

    AudioNodeWrapper def initialize(ctx, native_node) @ctx = ctx @native_node = native_node end def connect(destination) if destination.is_a?(AudioNodeWrapper) @native_node.connect(destination.native_node) elsif destination.is_a?(JS::Object) @native_node.connect(destination) end end def disconnect(destination = nil) if destination.is_a?(AudioNodeWrapper) @native_node.disconnect(destination.native_node) elsif destination.is_a?(JS::Object) @native_node.disconnect(destination) end end end More on this later

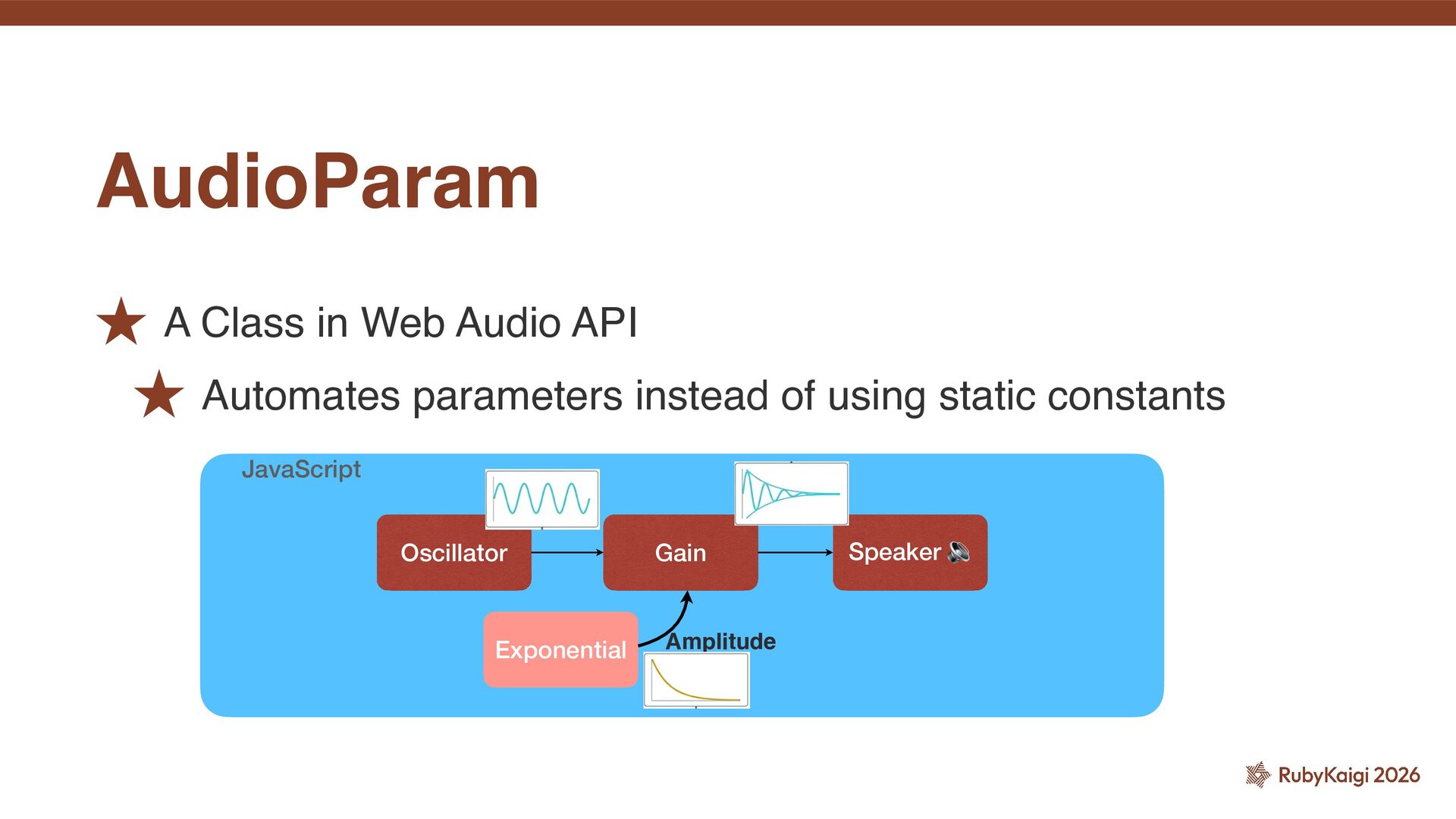

  16. ˒ A Class in Web Audio API ˒ Automates parameters

    instead of using static constants JavaScript AudioParam Oscillator Gain Speaker 🔉 Exponential Amplitude

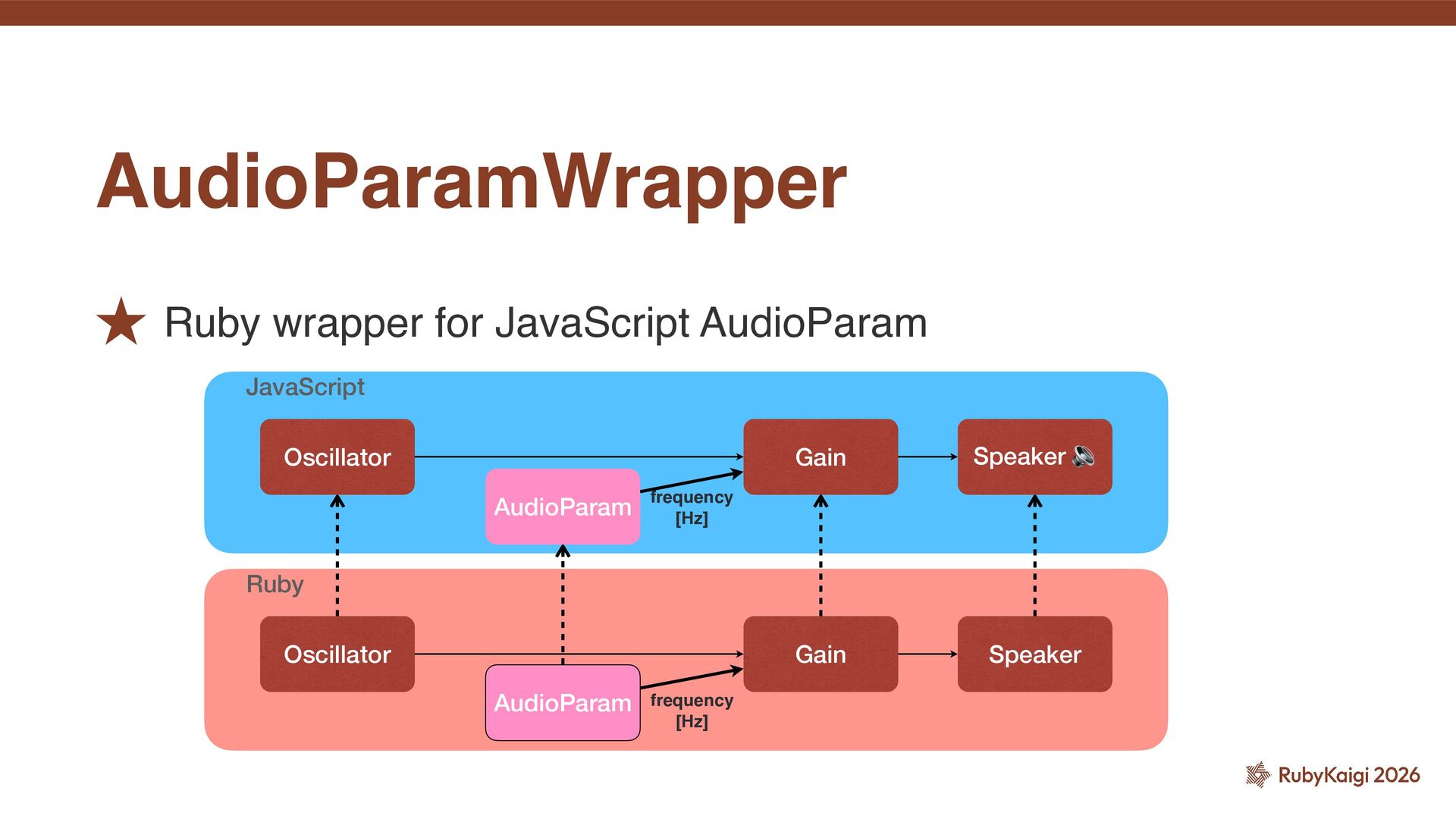

  17. ˒ Ruby wrapper for JavaScript AudioParam JavaScript AudioParamWrapper Ruby Gain

    Speaker 🔉 AudioParam frequency
 [Hz] Oscillator Gain Speaker AudioParam frequency
 [Hz] Oscillator

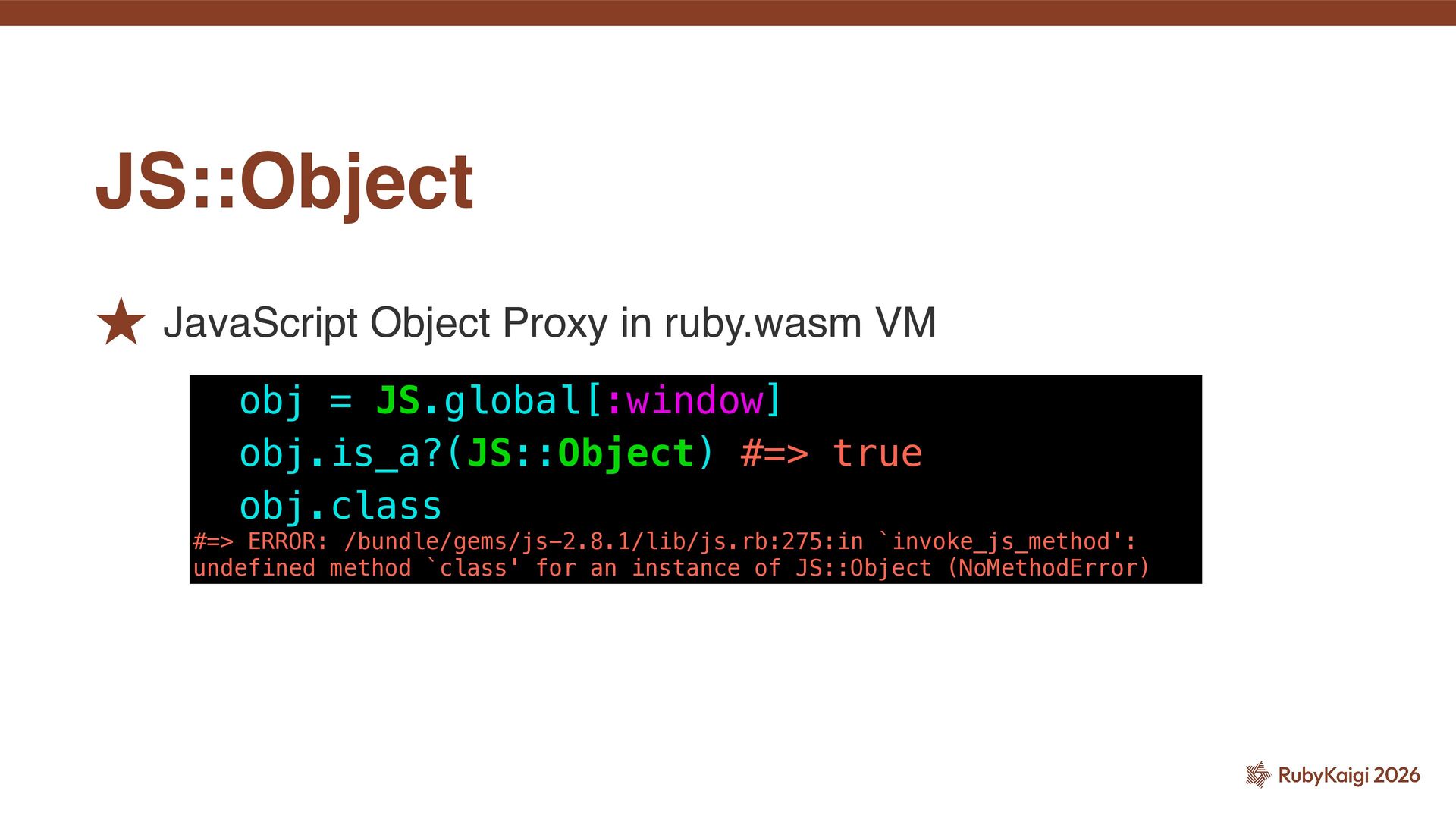

  18. ˒ JavaScript Object Proxy in ruby.wasm VM JS::Object obj =

    JS.global[:window] obj.is_a?(JS::Object) #=> true obj.class #=> ERROR: /bundle/gems/js-2.8.1/lib/js.rb:275:in `invoke_js_method': undefined method `class' for an instance of JS::Object (NoMethodError)

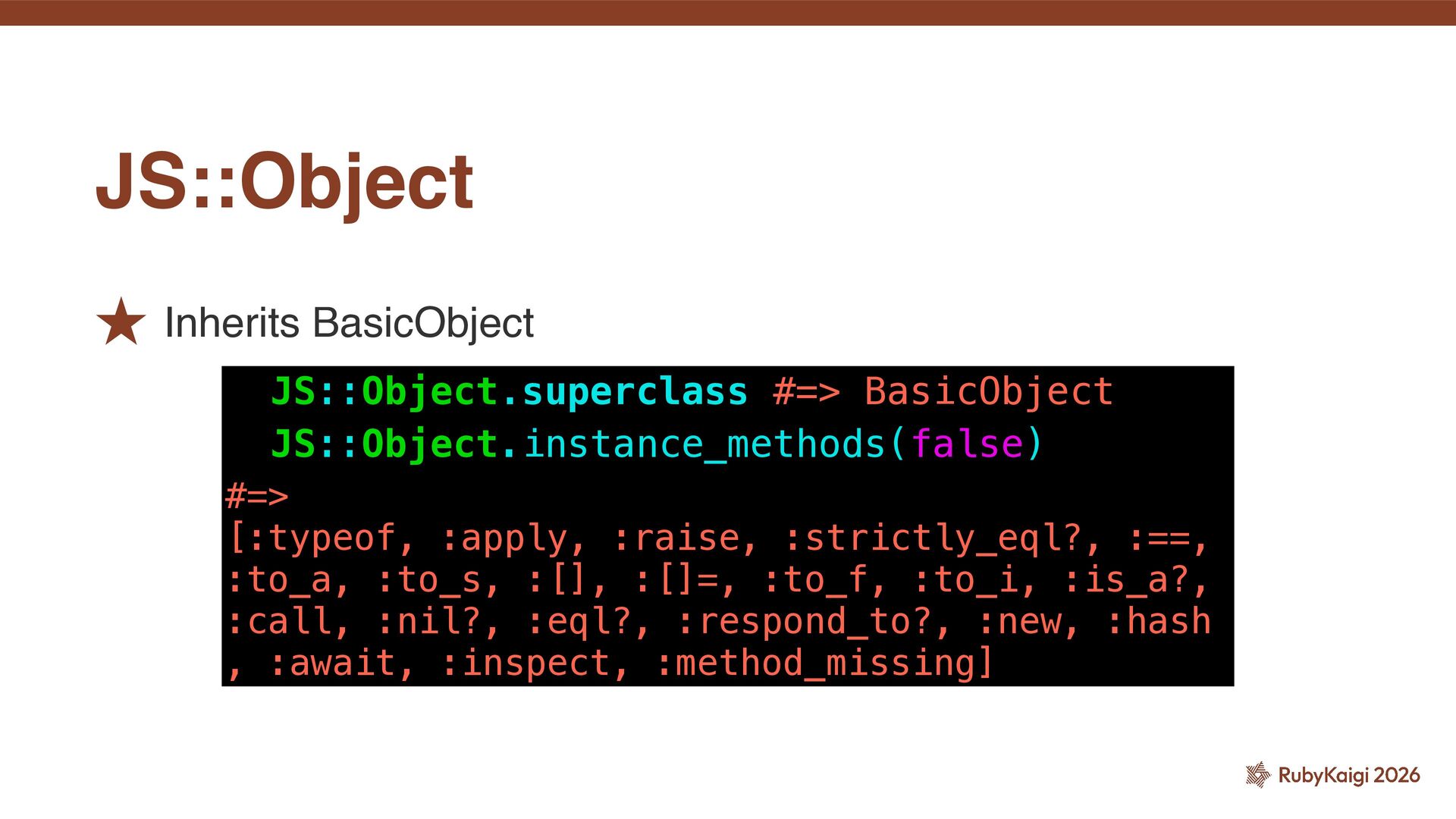

  19. ˒ Inherits BasicObject JS::Object JS::Object.superclass #=> BasicObject JS::Object.instance_methods(false) #=> [:typeof,

    :apply, :raise, :strictly_eql?, :==, :to_a, :to_s, :[], :[]=, :to_f, :to_i, :is_a?, :call, :nil?, :eql?, :respond_to?, :new, :hash , :await, :inspect, :method_missing]

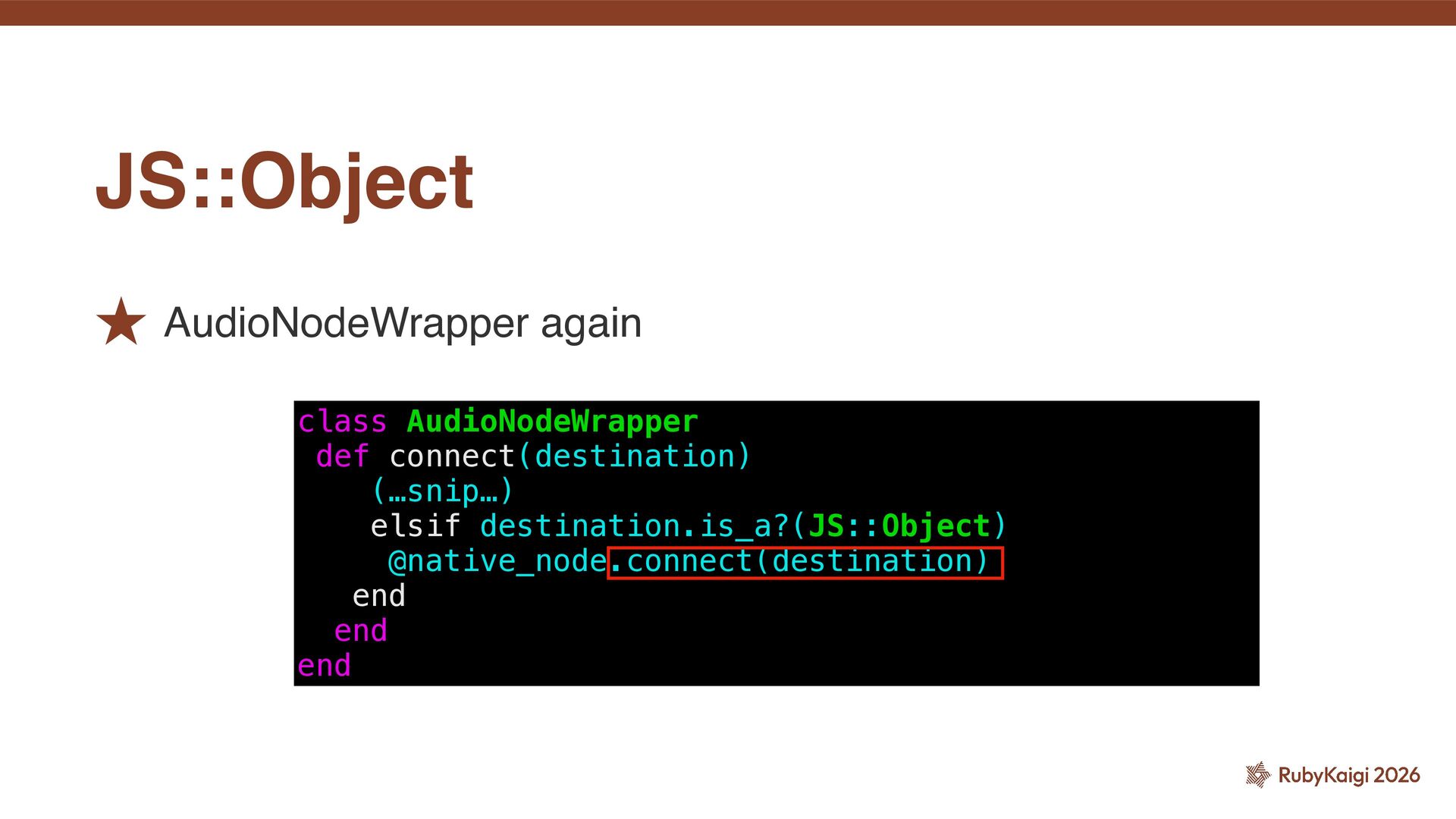

  20. ˒ AudioNodeWrapper again JS::Object class AudioNodeWrapper def connect(destination) (…snip…) elsif

    destination.is_a?(JS::Object) @native_node.connect(destination) end end end
  21. ˒ Inherits BasicObject JS::Object JS::Object.superclass #=> BasicObject JS::Object.instance_methods(false) #=> [:typeof,

    :apply, :raise, :strictly_eql?, :==, :to_a, :to_s, :[], :[]=, :to_f, :to_i, :is_a?, :call, :nil?, :eql?, :respond_to?, :new, :hash , :await, :inspect, :method_missing]

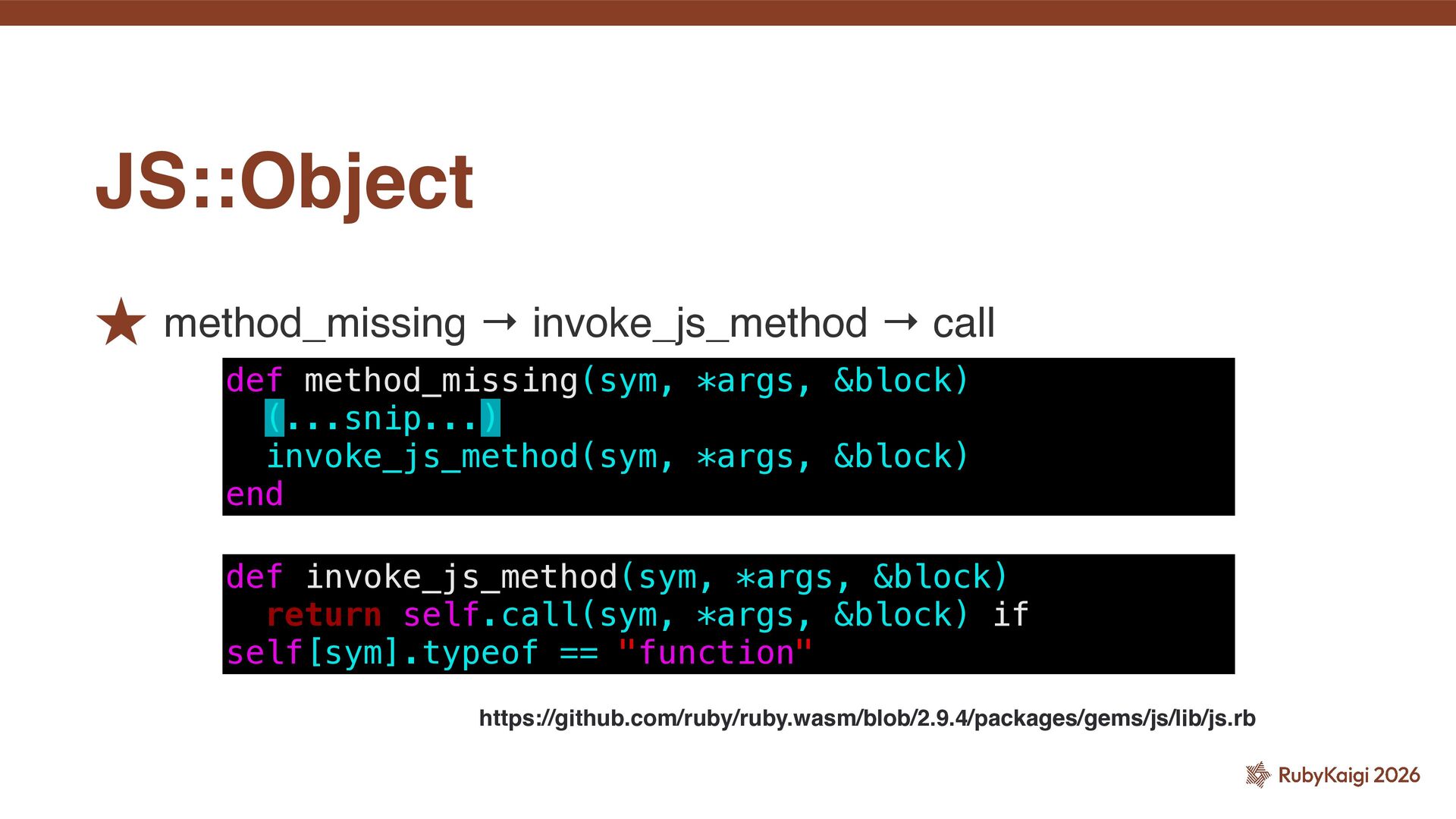

  22. ˒ method_missing → invoke_js_method → call JS::Object def method_missing(sym, *args,

    &block) (...snip...) invoke_js_method(sym, *args, &block) end def invoke_js_method(sym, *args, &block) return self.call(sym, *args, &block) if self[sym].typeof == "function" https://github.com/ruby/ruby.wasm/blob/2.9.4/packages/gems/js/lib/js.rb

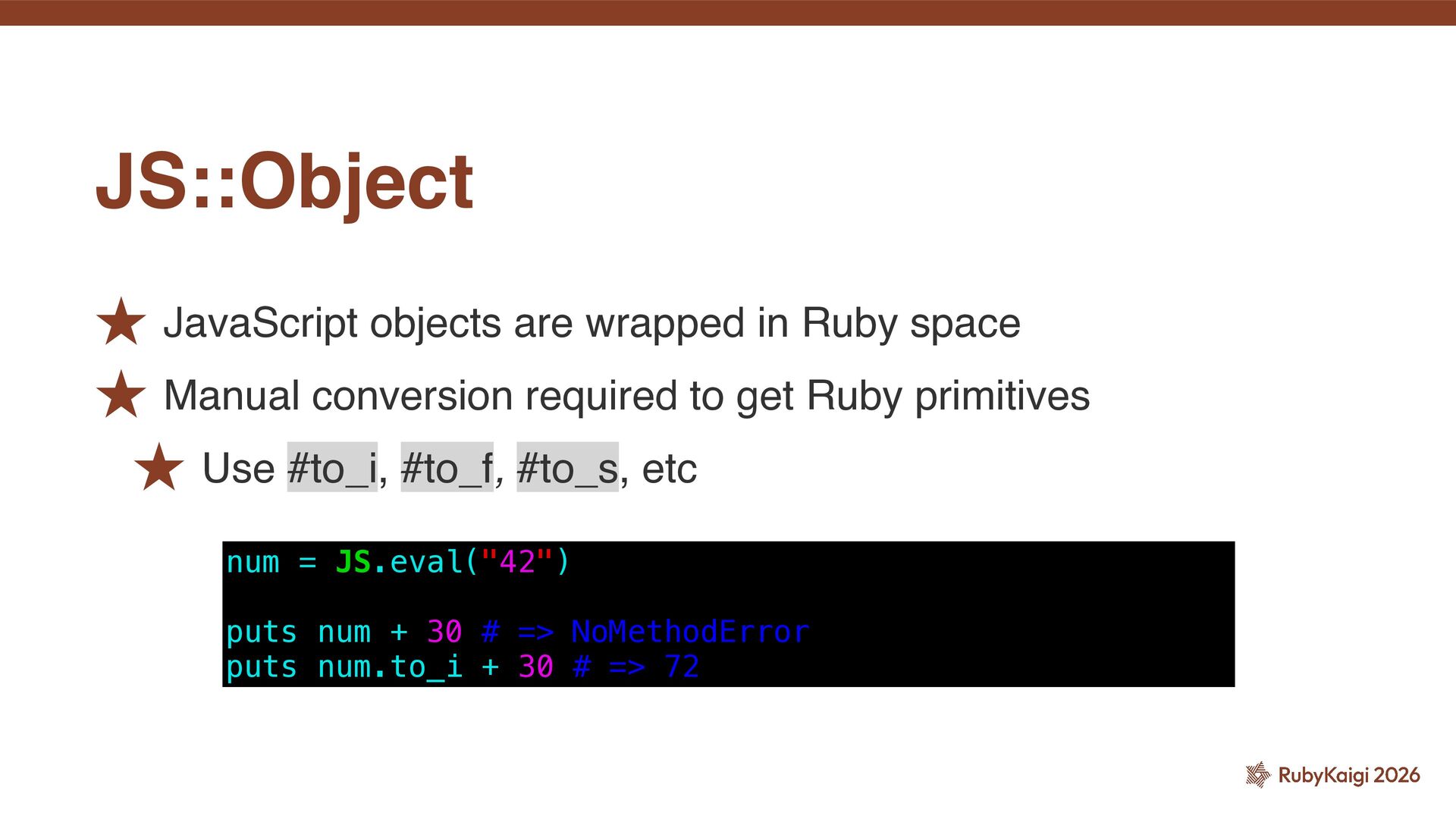

  23. ˒ JavaScript objects are wrapped in Ruby space ˒ Manual

    conversion required to get Ruby primitives ˒ Use #to_i, #to_f, #to_s, etc JS::Object num = JS.eval("42") puts num + 30 # => NoMethodError puts num.to_i + 30 # => 72

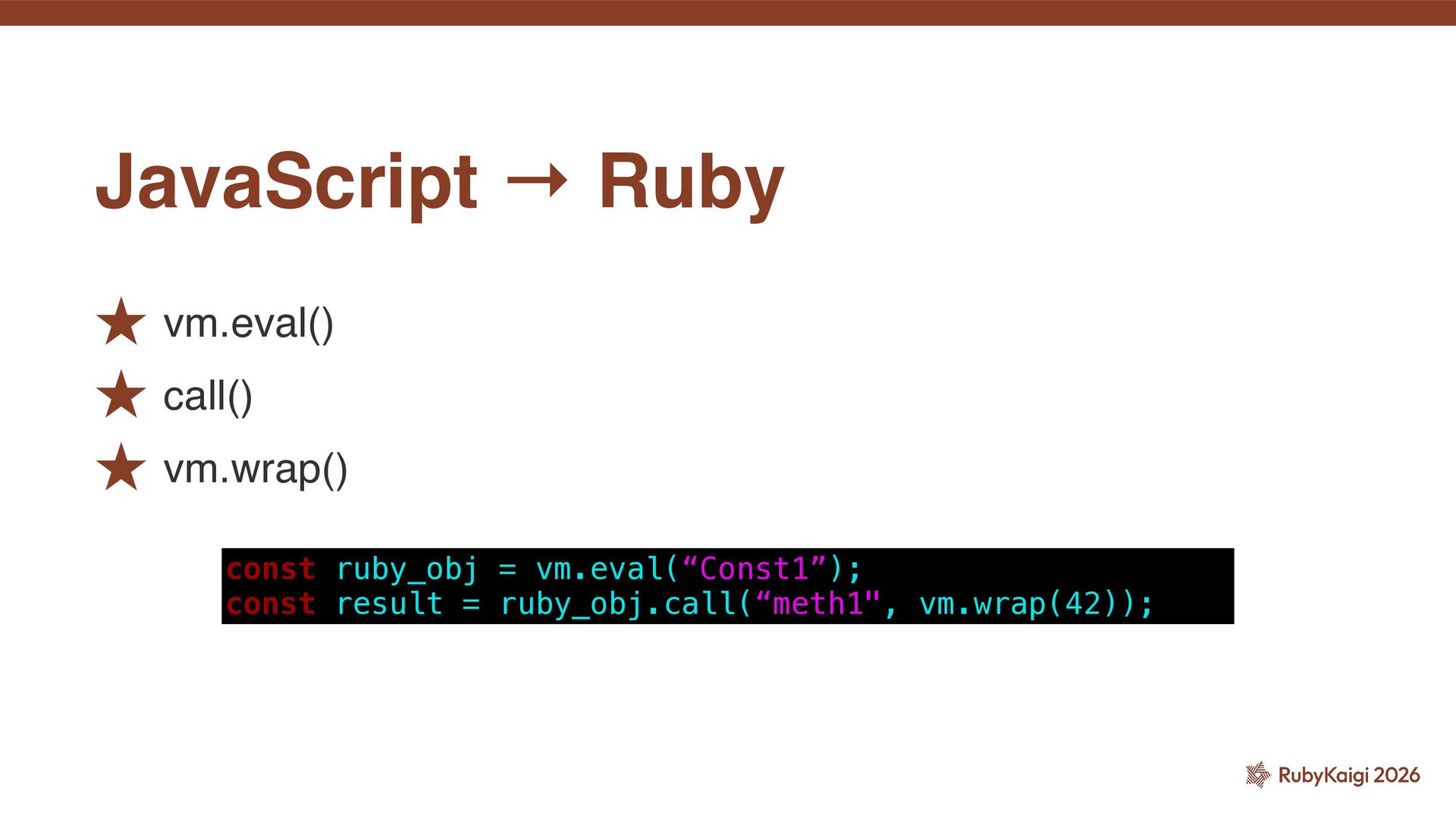

  24. ˒ vm.eval() ˒ call() ˒ vm.wrap() JavaScript → Ruby const

    ruby_obj = vm.eval(“Const1”); const result = ruby_obj.call(“meth1", vm.wrap(42));

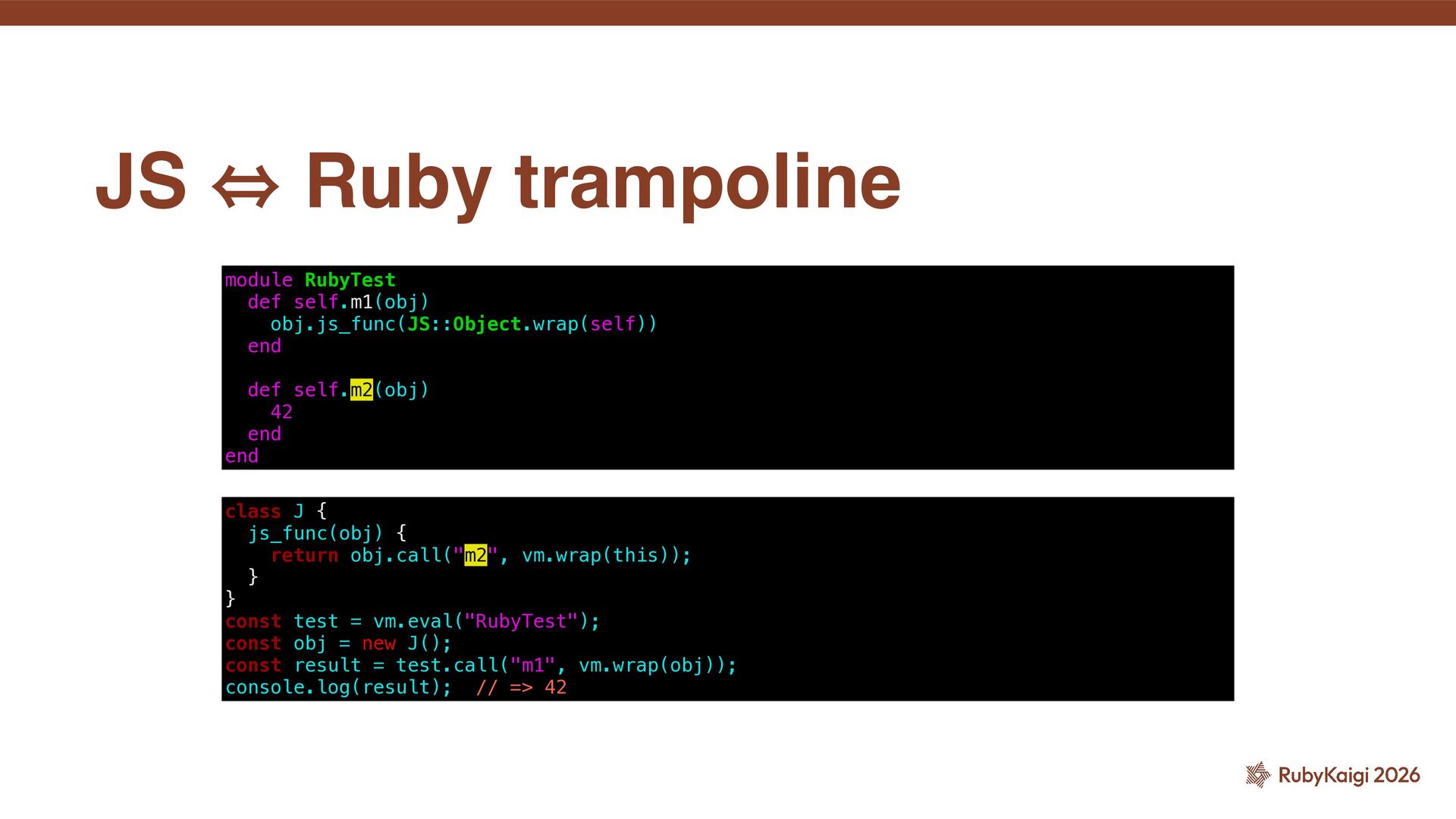

  25. JS 㱻 Ruby trampoline module RubyTest def self.m1(obj) obj.js_func(JS::Object.wrap(self)) end

    def self.m2(obj) 42 end end class J { js_func(obj) { return obj.call("m2", vm.wrap(this)); } } const test = vm.eval("RubyTest"); const obj = new J(); const result = test.call("m1", vm.wrap(obj)); console.log(result); // => 42

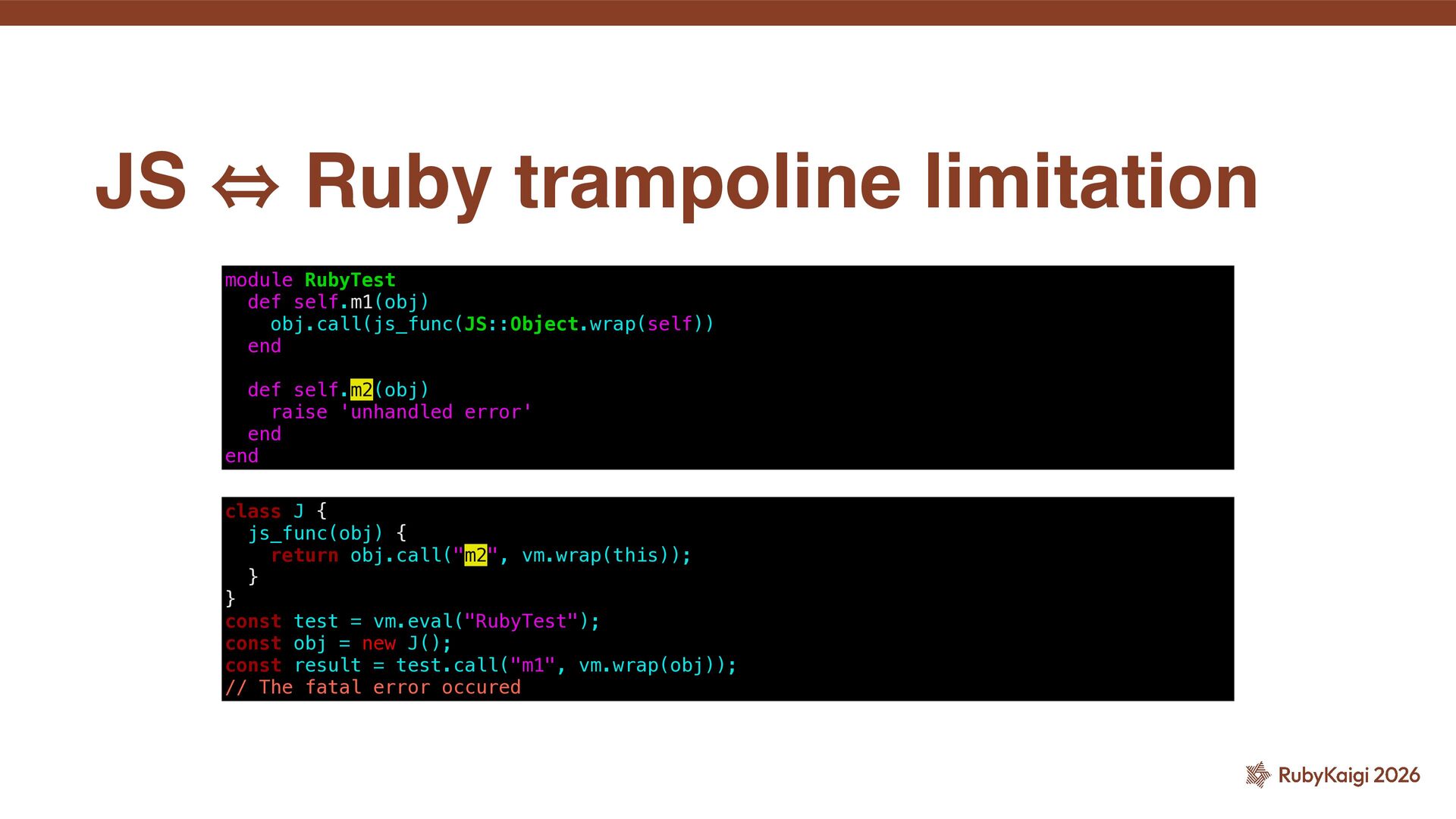

  26. JS 㱻 Ruby trampoline limitation module RubyTest def self.m1(obj) obj.call(js_func(JS::Object.wrap(self))

    end def self.m2(obj) raise 'unhandled error' end end class J { js_func(obj) { return obj.call("m2", vm.wrap(this)); } } const test = vm.eval("RubyTest"); const obj = new J(); const result = test.call("m1", vm.wrap(obj)); // The fatal error occured

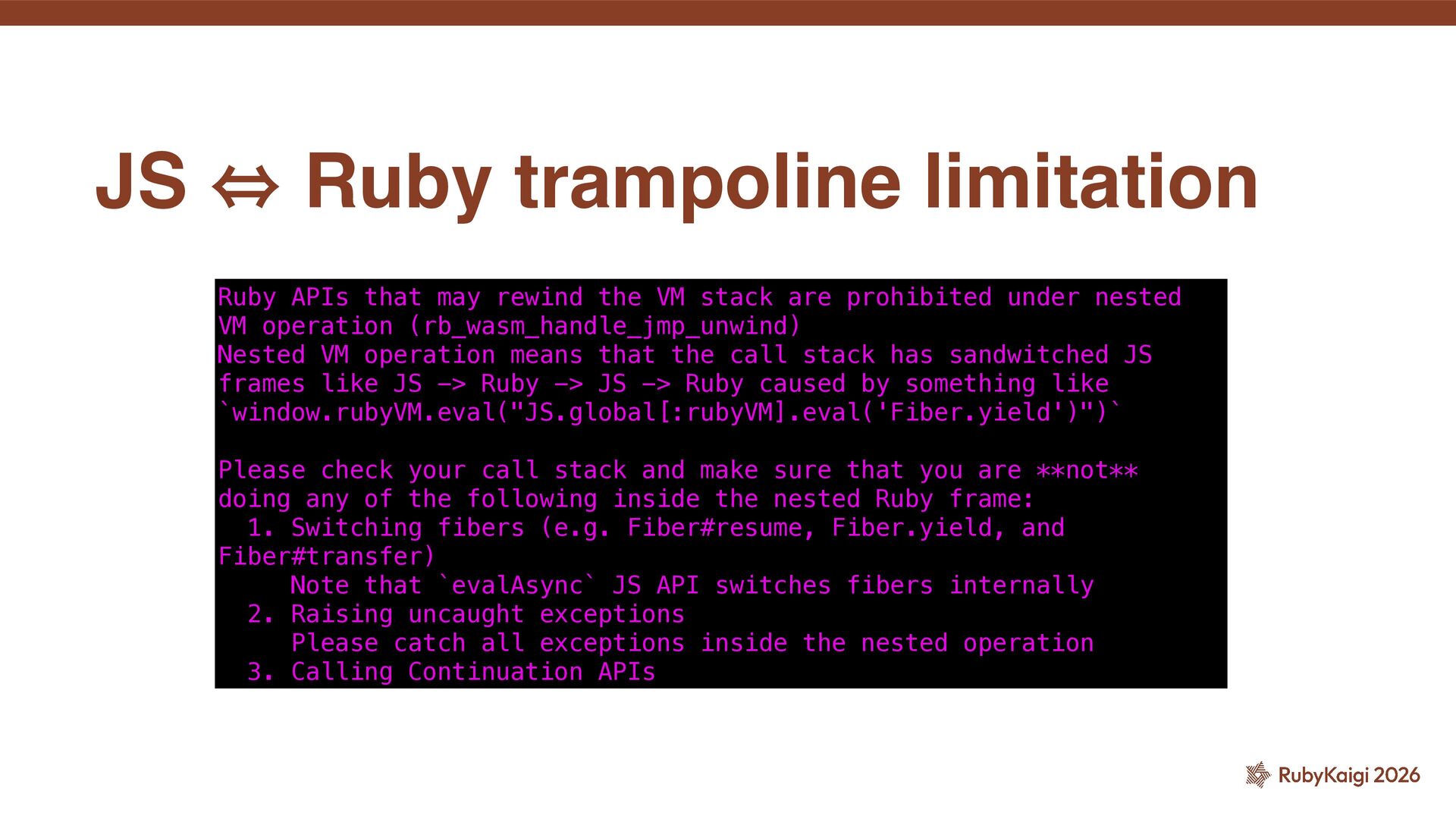

  27. JS 㱻 Ruby trampoline limitation Ruby APIs that may rewind

    the VM stack are prohibited under nested VM operation (rb_wasm_handle_jmp_unwind) Nested VM operation means that the call stack has sandwitched JS frames like JS -> Ruby -> JS -> Ruby caused by something like `window.rubyVM.eval("JS.global[:rubyVM].eval('Fiber.yield')")` Please check your call stack and make sure that you are **not** doing any of the following inside the nested Ruby frame: 1. Switching fibers (e.g. Fiber#resume, Fiber.yield, and Fiber#transfer) Note that `evalAsync` JS API switches fibers internally 2. Raising uncaught exceptions Please catch all exceptions inside the nested operation 3. Calling Continuation APIs

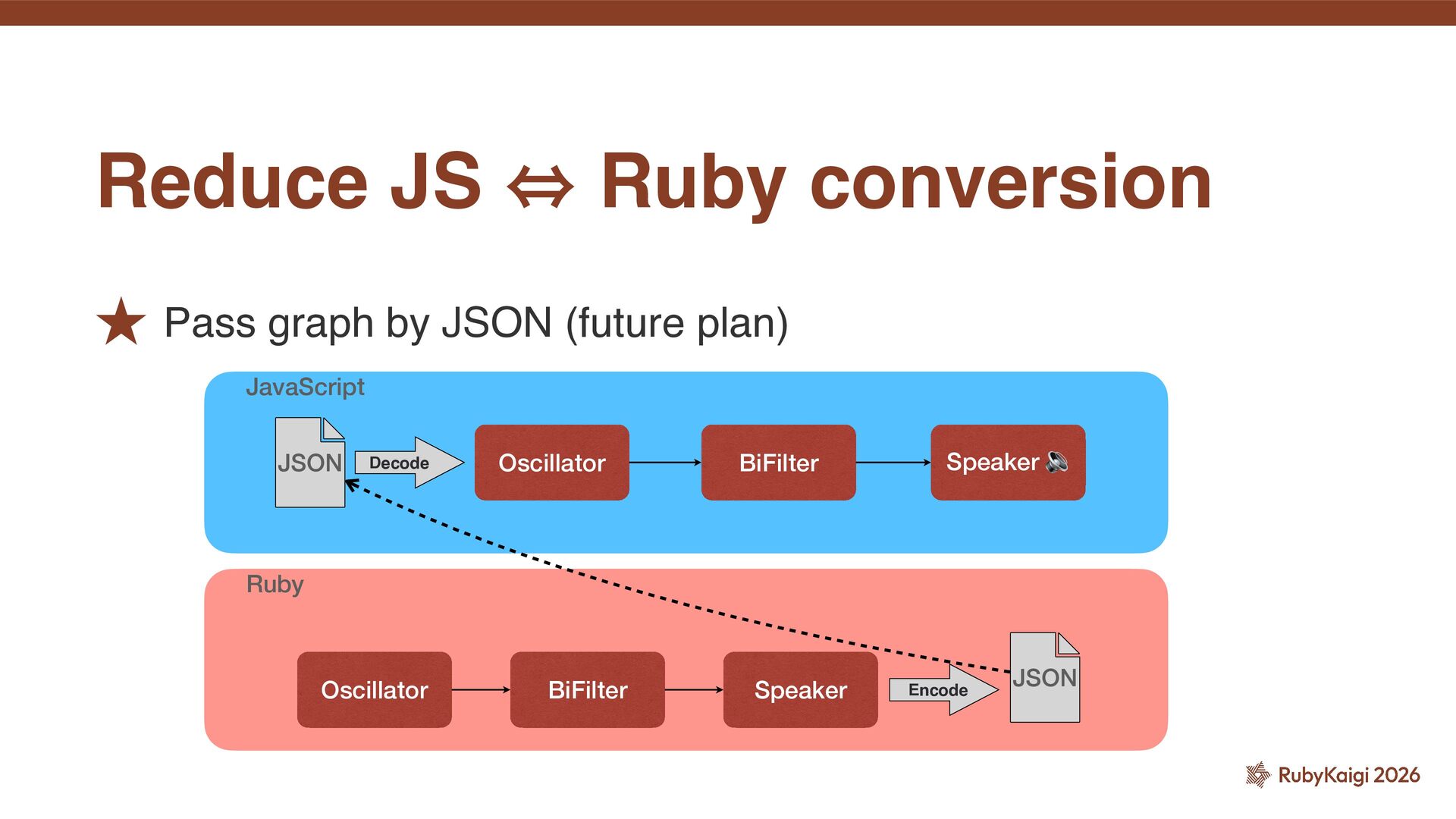

  28. ˒ Pass graph by JSON (future plan) Reduce JS 㱻

    Ruby conversion JavaScript Oscillator BiFilter Speaker 🔉 Ruby Oscillator BiFilter Speaker JSON JSON Encode Decode

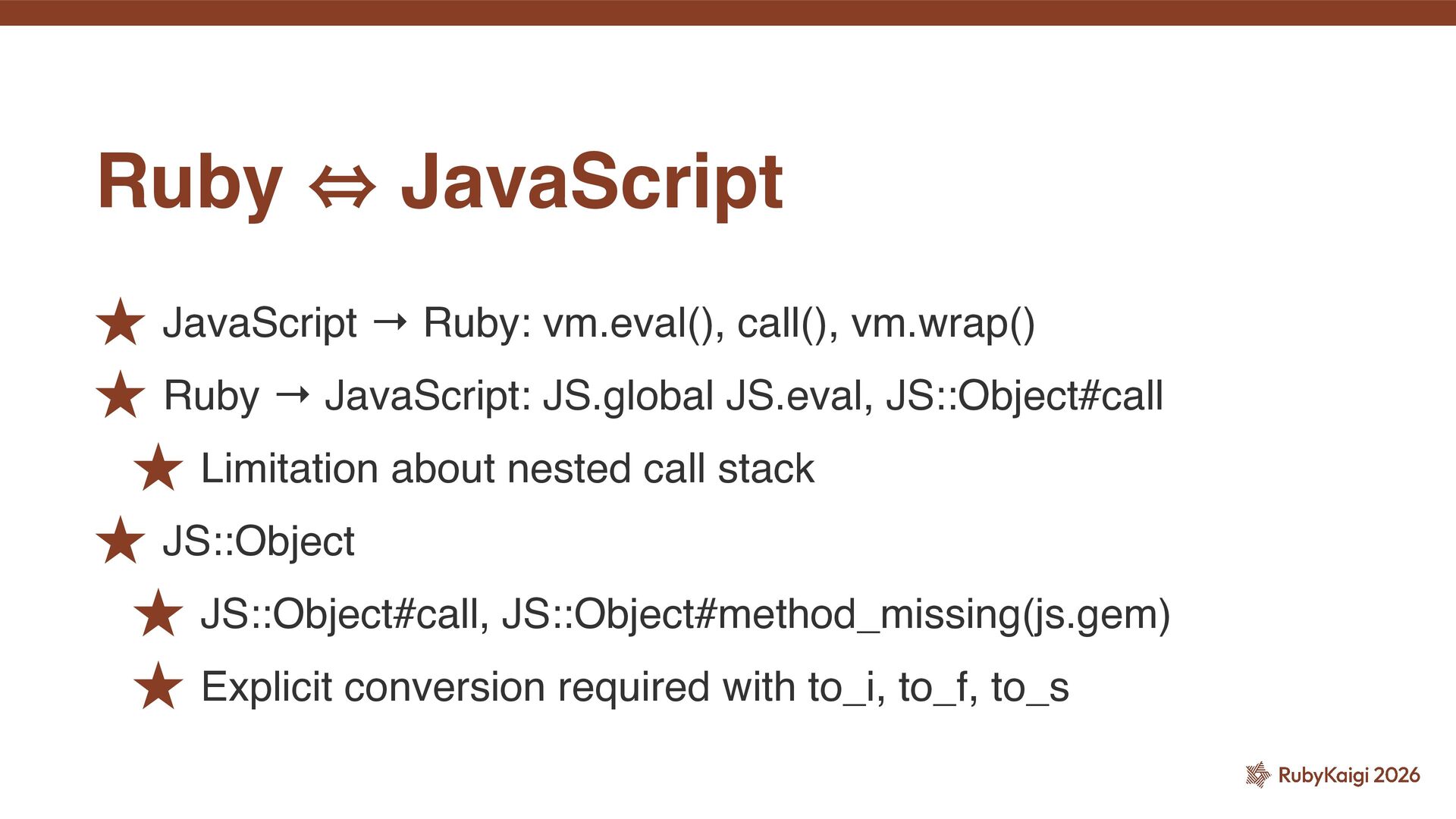

  29. ˒ JavaScript → Ruby: vm.eval(), call(), vm.wrap() ˒ Ruby →

    JavaScript: JS.global JS.eval, JS::Object#call ˒ Limitation about nested call stack ˒ JS::Object ˒ JS::Object#call, JS::Object#method_missing(js.gem) ˒ Explicit conversion required with to_i, to_f, to_s Ruby 㱻 JavaScript
