FenixEdu Training: Part one - Introduction, Concepts and Architecture

Transcript

1. FenixEdu Part One Introduction, Concepts and Arquitecture
2. Your speakers Artur Ventura João Carvalho artur.ventura@tecnico.ulisboa.pt @arturventura joao.pedro.carvalho@tecnico.ulisboa.pt @johnkarva

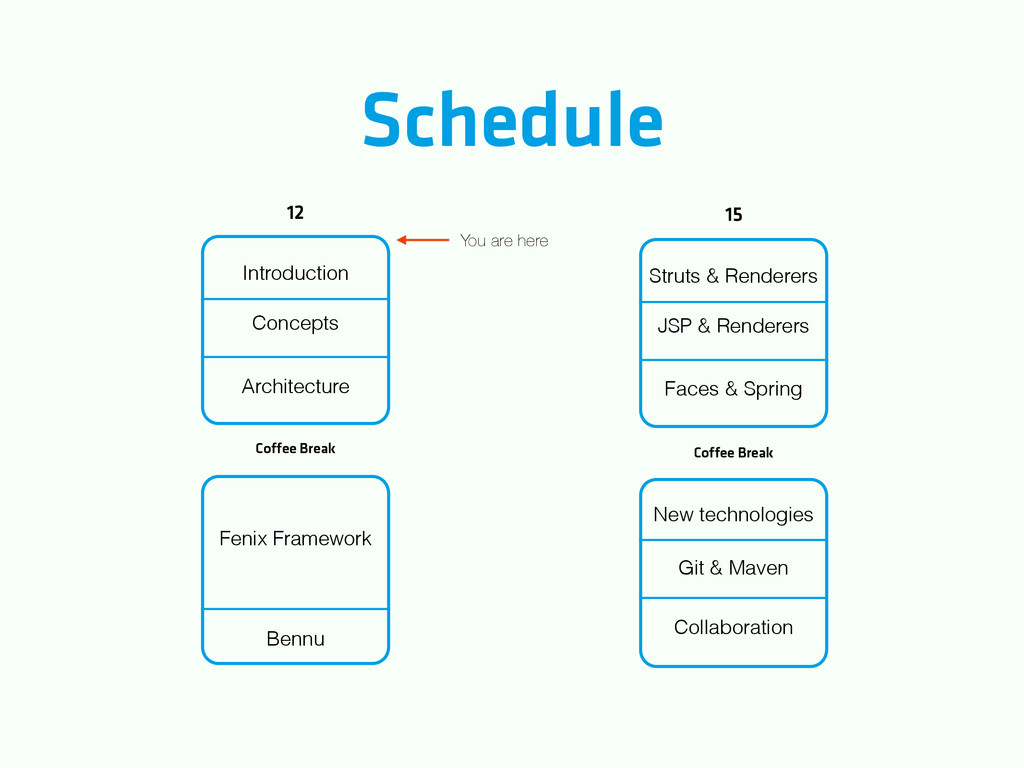

3. Schedule 12 15 Introduction Concepts Architecture Bennu Fenix Framework Struts & Renderers JSP & Renderers Faces & Spring New technologies Git & Maven Collaboration You are here Coffee Break Coffee Break
4. The Bible • A compendium of information about FenixEdu. • Relative to Version 2, most parts still apply • Contributions welcomed:
 github.com/FenixEdu/bible
5. You get a T-shirt! And you get a T-shirt! • Everyone gets a T-shirt!

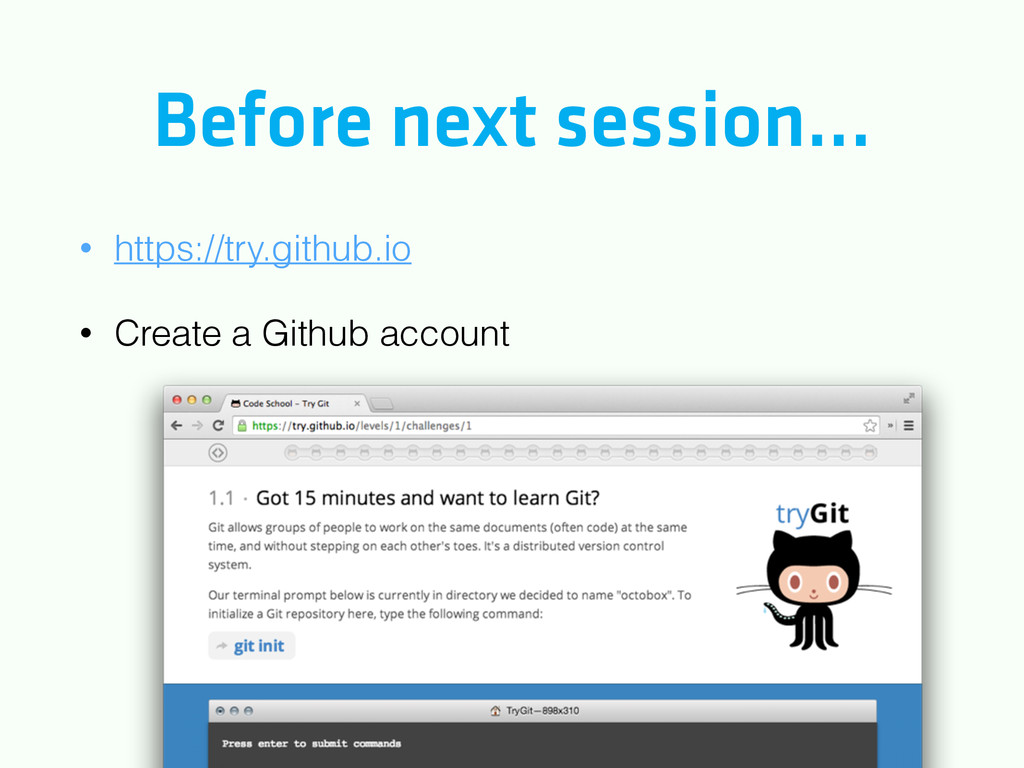

6. Before next session… • https://try.github.io • Create a Github account

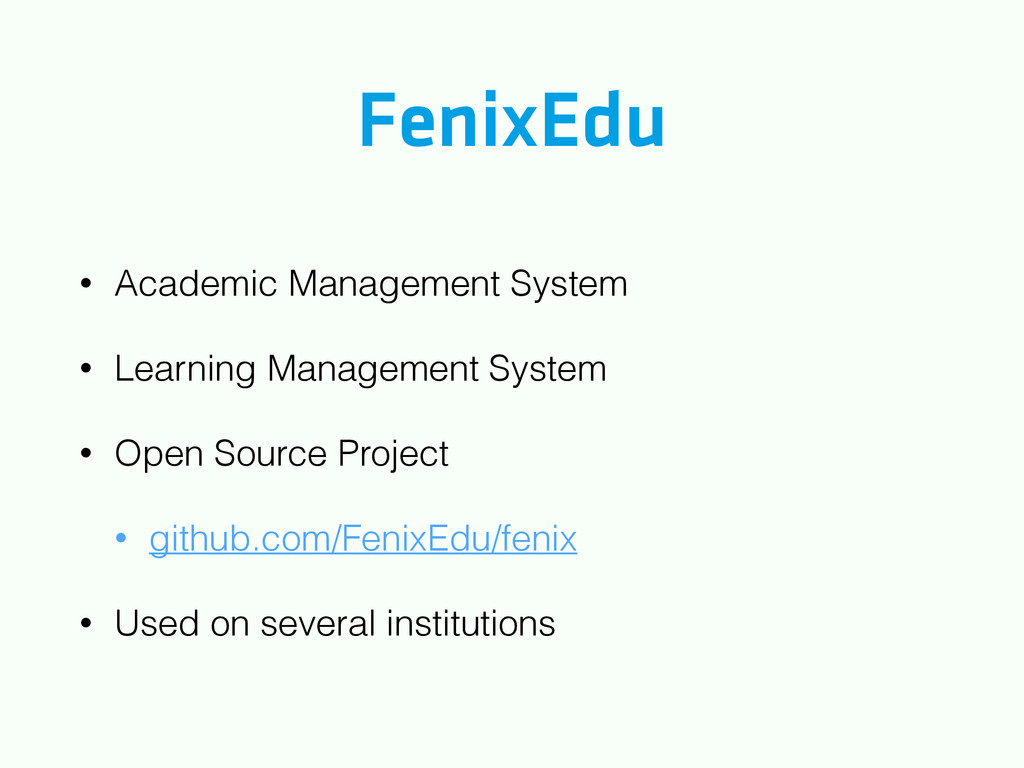

7. FenixEdu • Academic Management System • Learning Management System • Open Source Project • github.com/FenixEdu/fenix • Used on several institutions

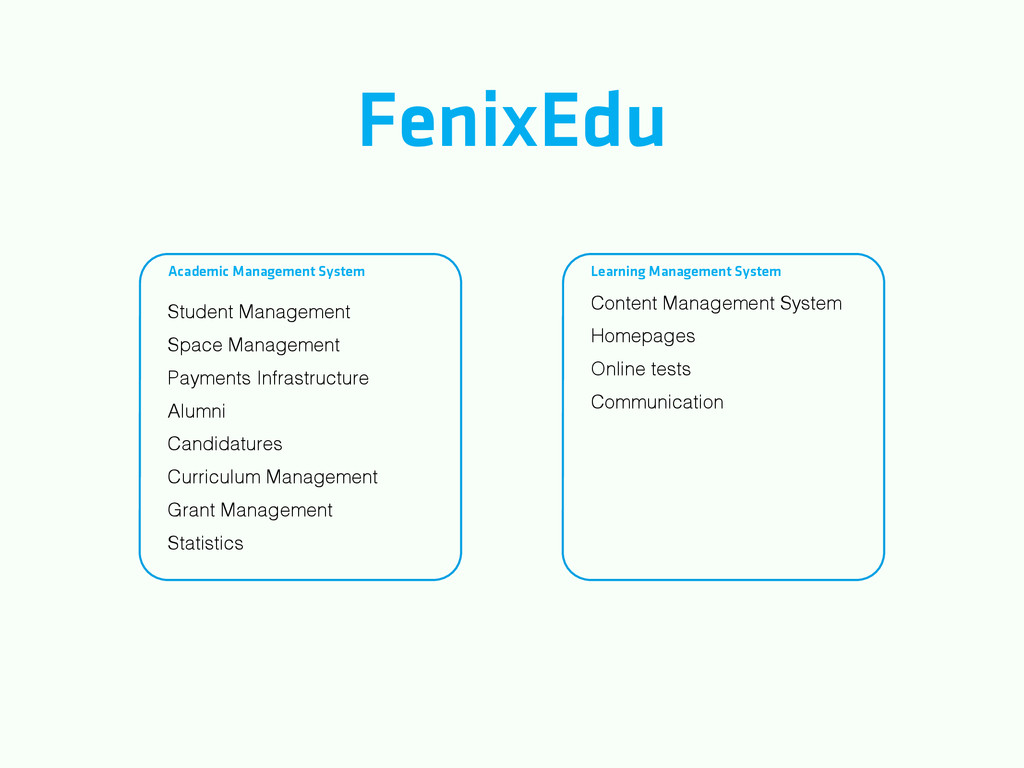

8. FenixEdu Academic Management System Learning Management System Student Management Space Management Payments Infrastructure Alumni Candidatures Curriculum Management Grant Management Statistics Content Management System Homepages Online tests Communication
16. You are here

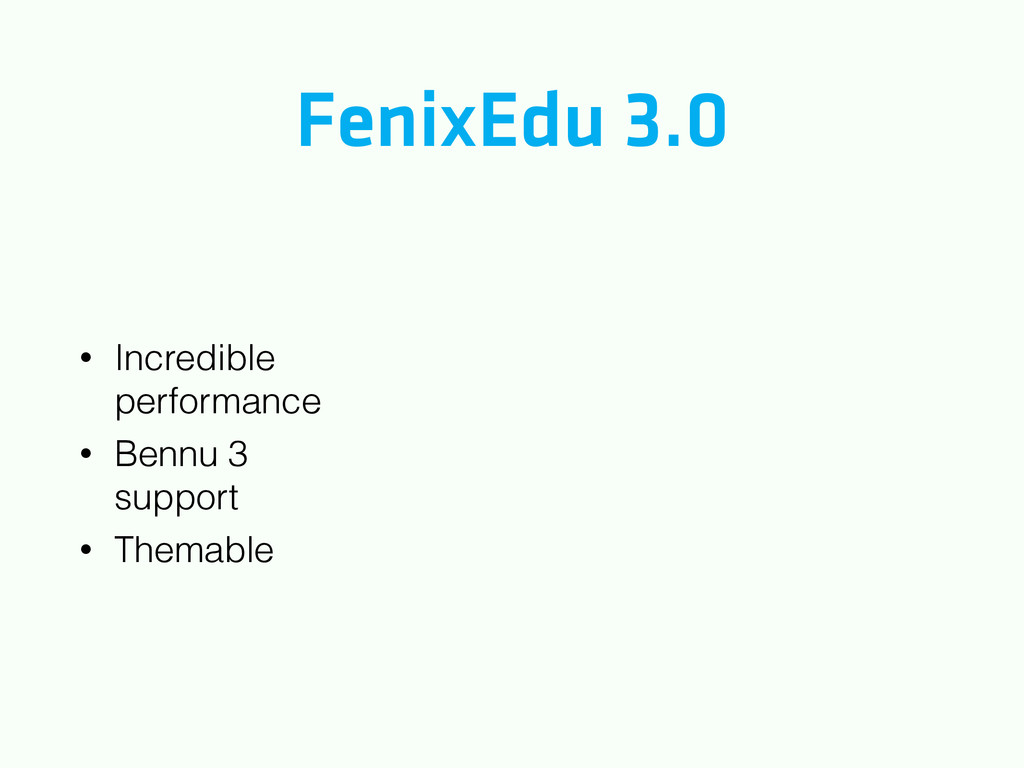

17. FenixEdu 3.0 • Incredible performance • Bennu 3 support • Themable

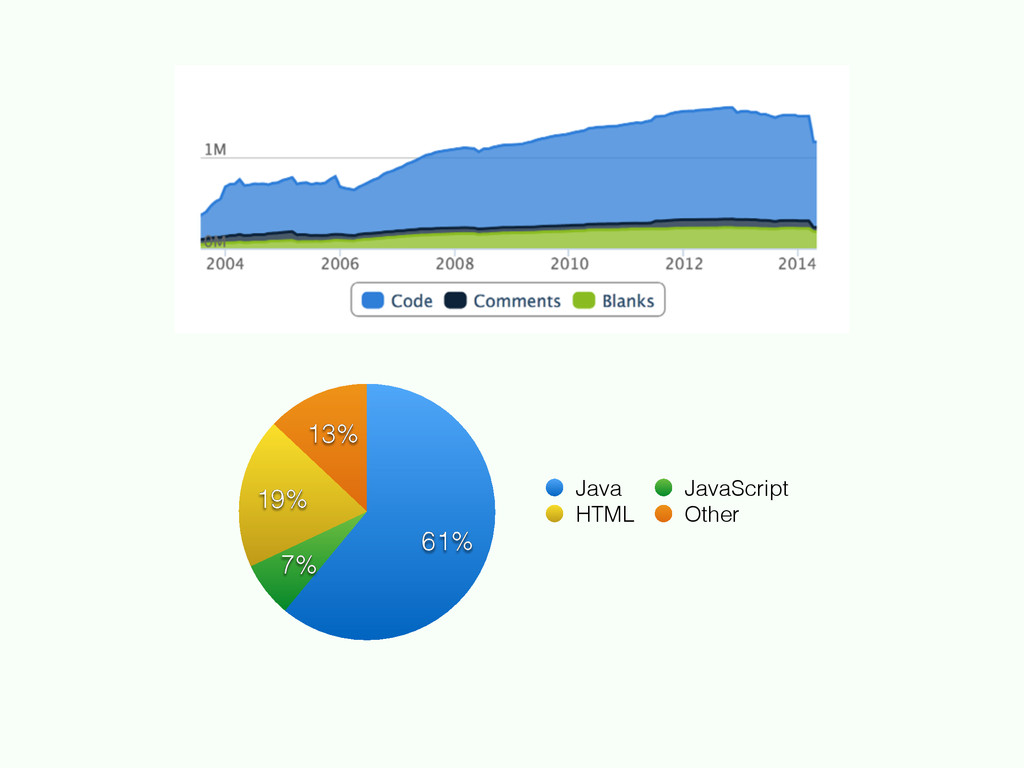

18. 13% 19% 7% 61% Java JavaScript HTML Other

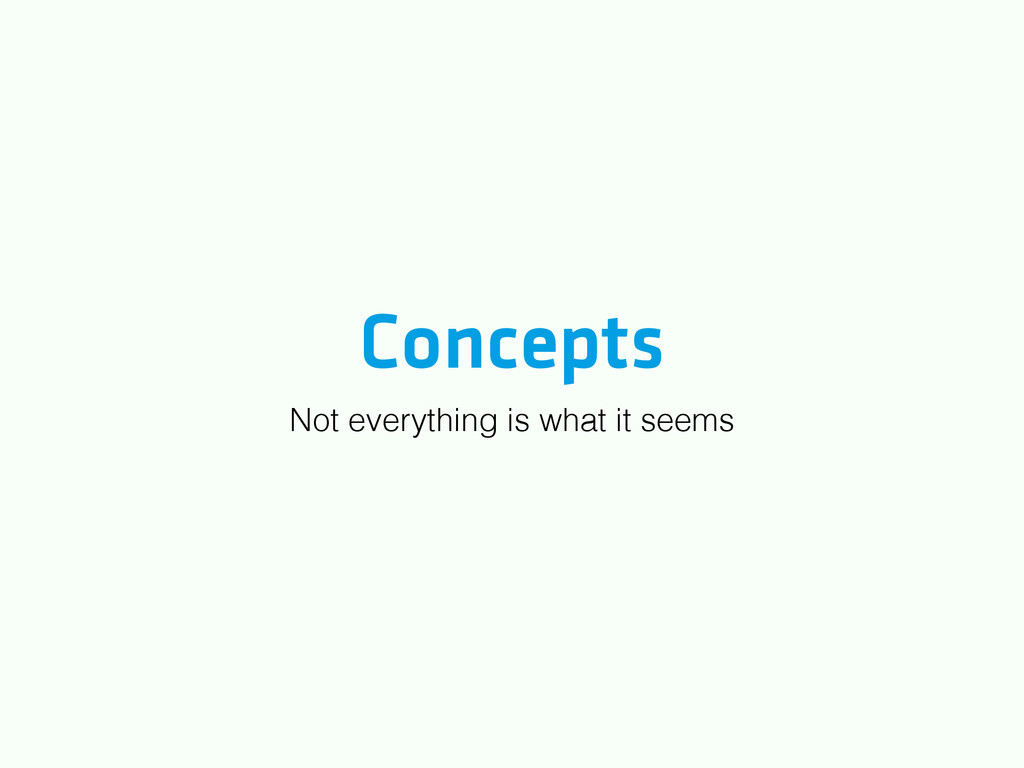

20. Concepts Not everything is what it seems

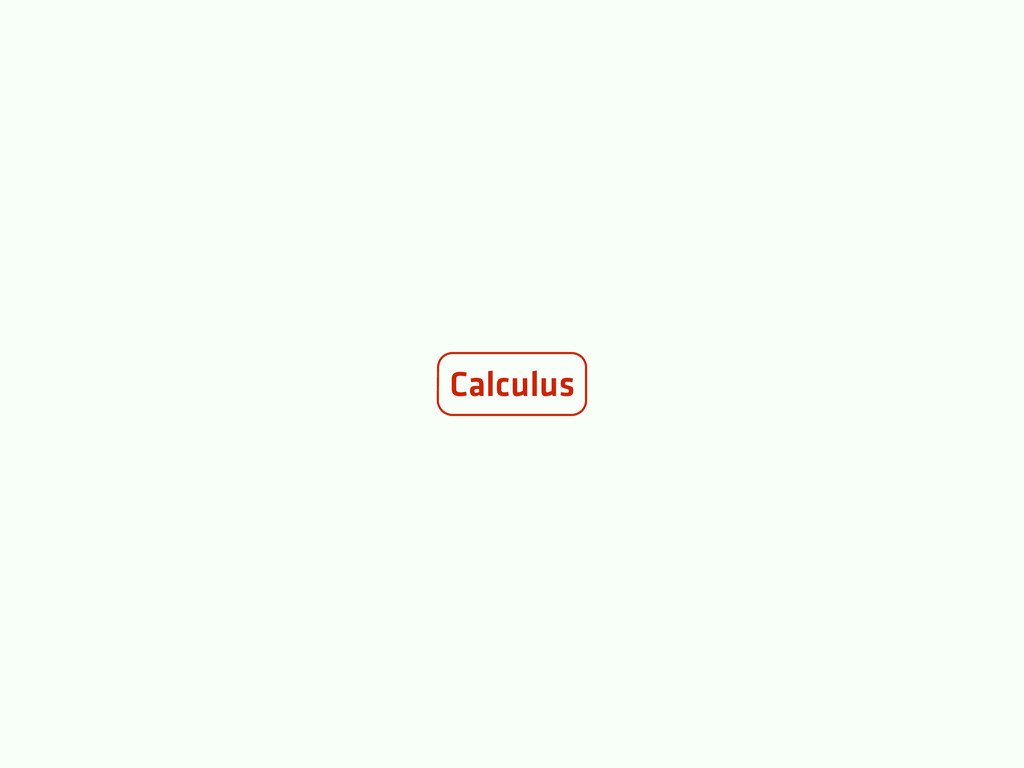

21. What is a Course?
22. Calculus
23. Calculus Degree Student Teacher

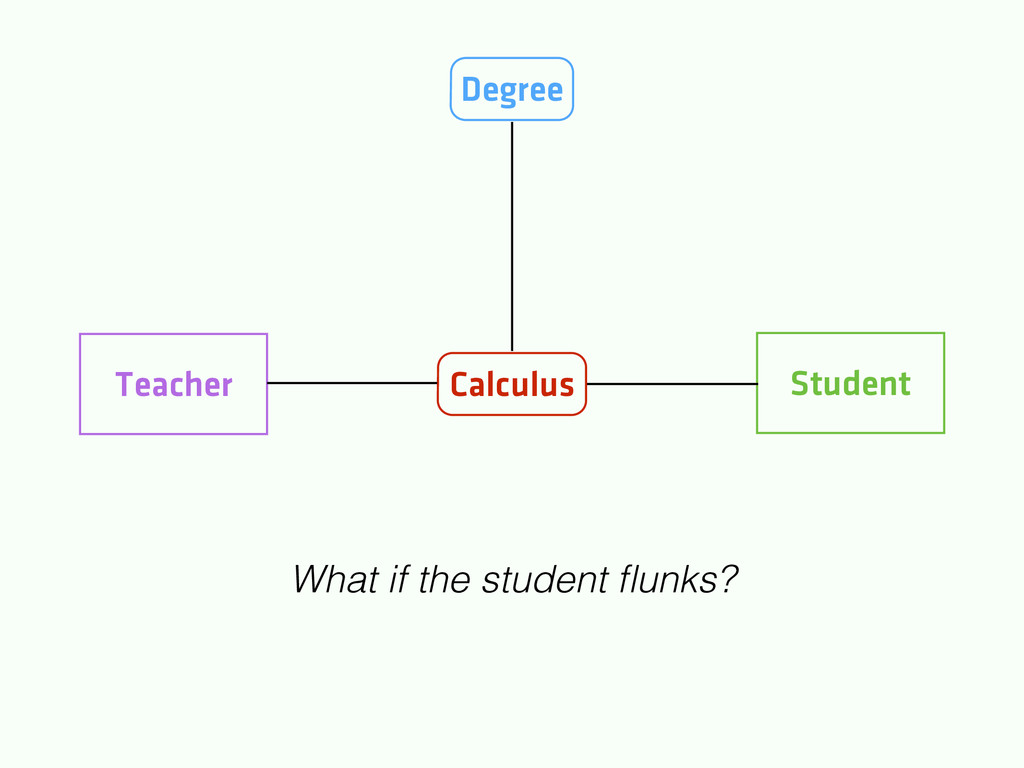

24. Calculus Student Teacher What if the student flunks? Degree

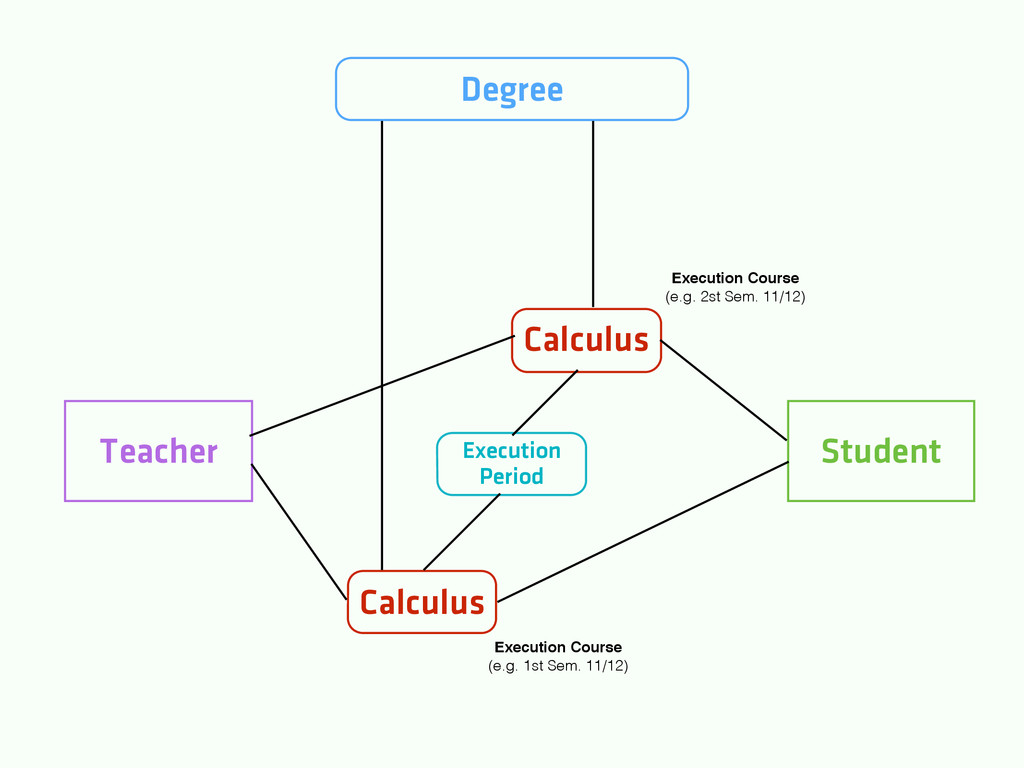

25. Calculus Degree Student Teacher Calculus Execution Period Execution Course ! (e.g. 1st Sem. 11/12) Execution Course ! (e.g. 2st Sem. 11/12)

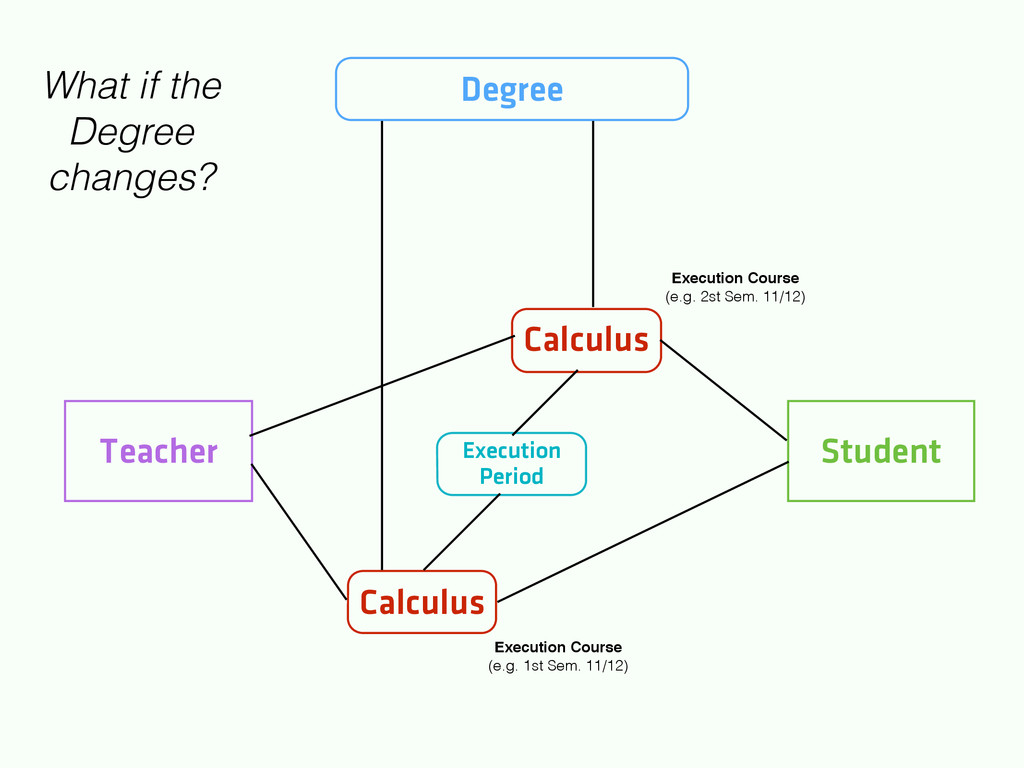

26. Calculus Degree Student Teacher Calculus Execution Period Execution Course ! (e.g. 1st Sem. 11/12) Execution Course ! (e.g. 2st Sem. 11/12) What if the Degree changes?

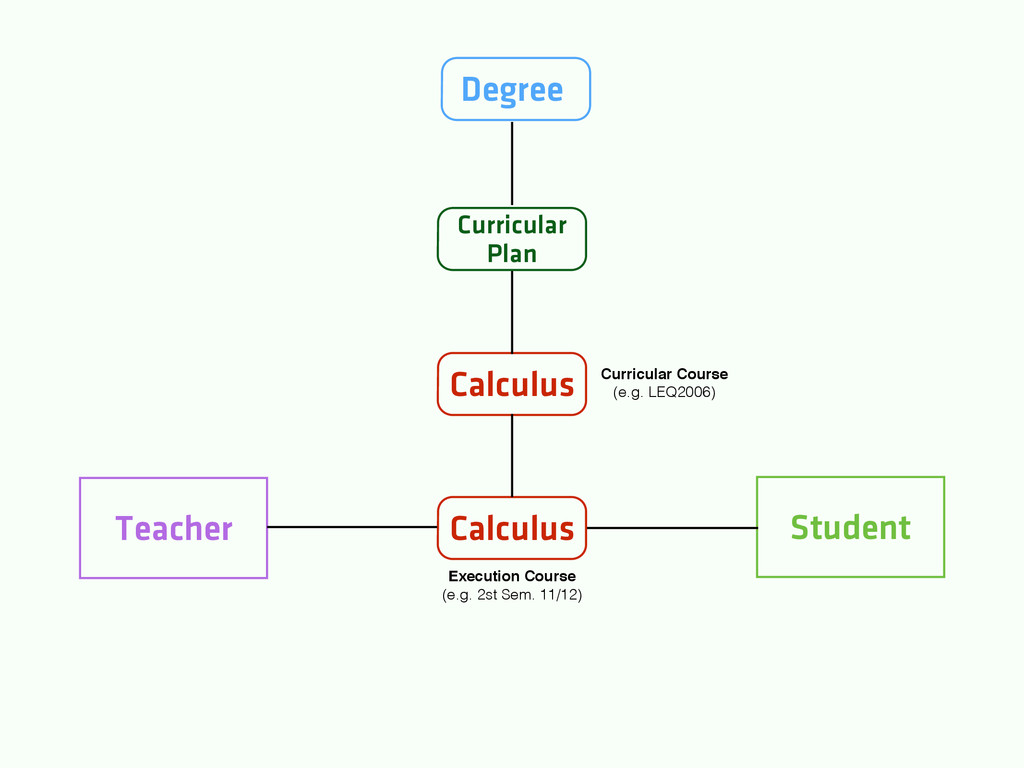

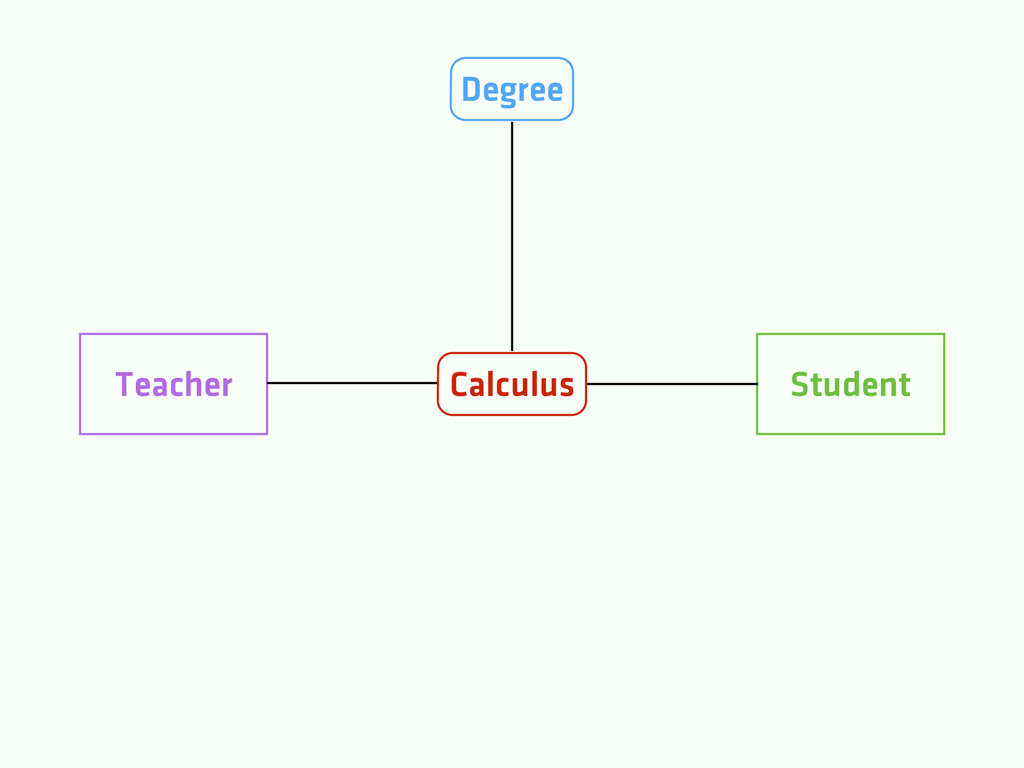

27. Calculus Degree Student Teacher Curricular Plan Calculus Execution Course ! (e.g. 2st Sem. 11/12) Curricular Course! (e.g. LEQ2006)

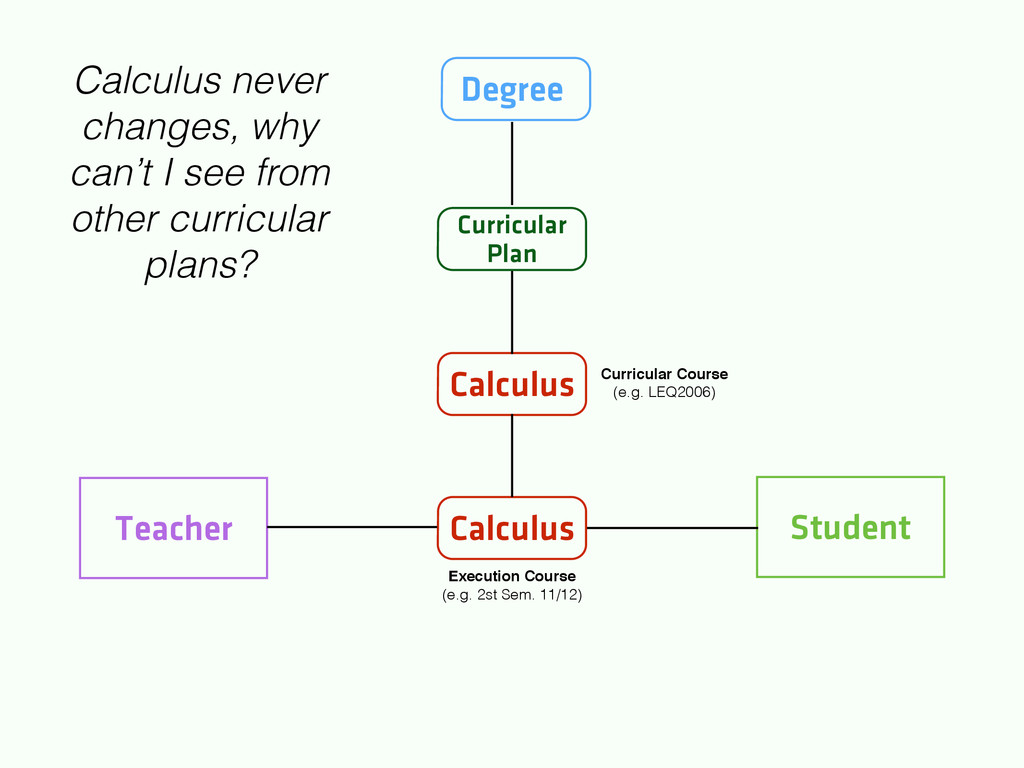

28. Calculus Degree Student Teacher Curricular Plan Calculus Execution Course ! (e.g. 2st Sem. 11/12) Curricular Course! (e.g. LEQ2006) Calculus never changes, why can’t I see from other curricular plans?

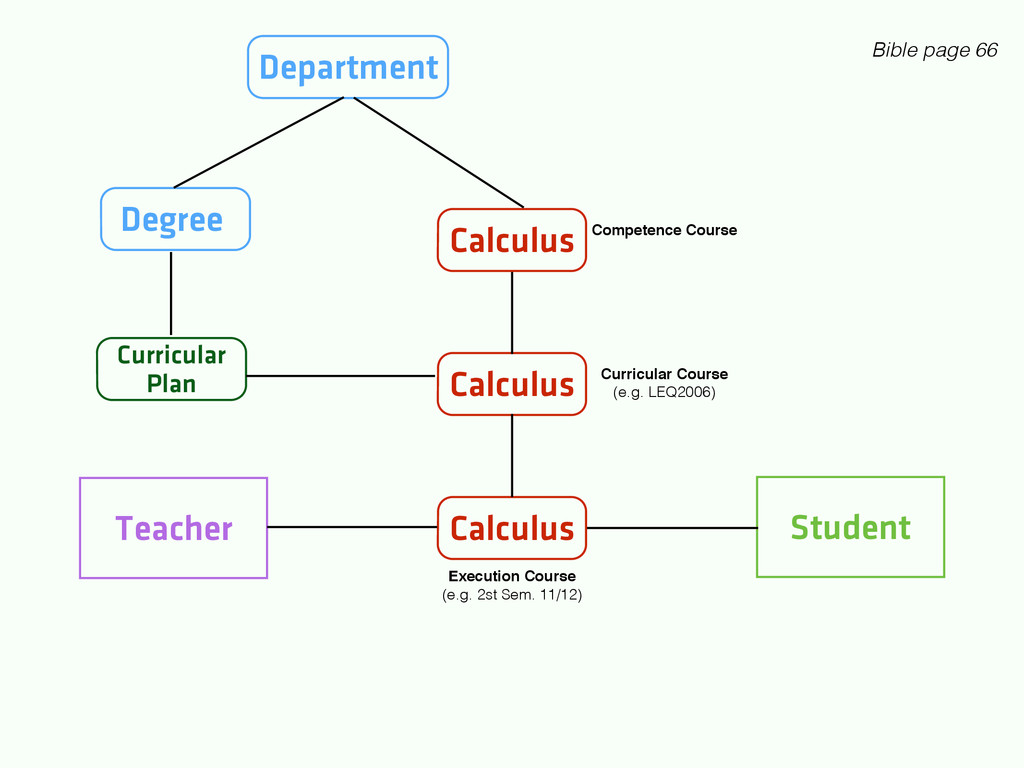

29. Calculus Degree Student Teacher Curricular Plan Calculus Execution Course ! (e.g. 2st Sem. 11/12) Curricular Course! (e.g. LEQ2006) Department Calculus Competence Course! Bible page 66

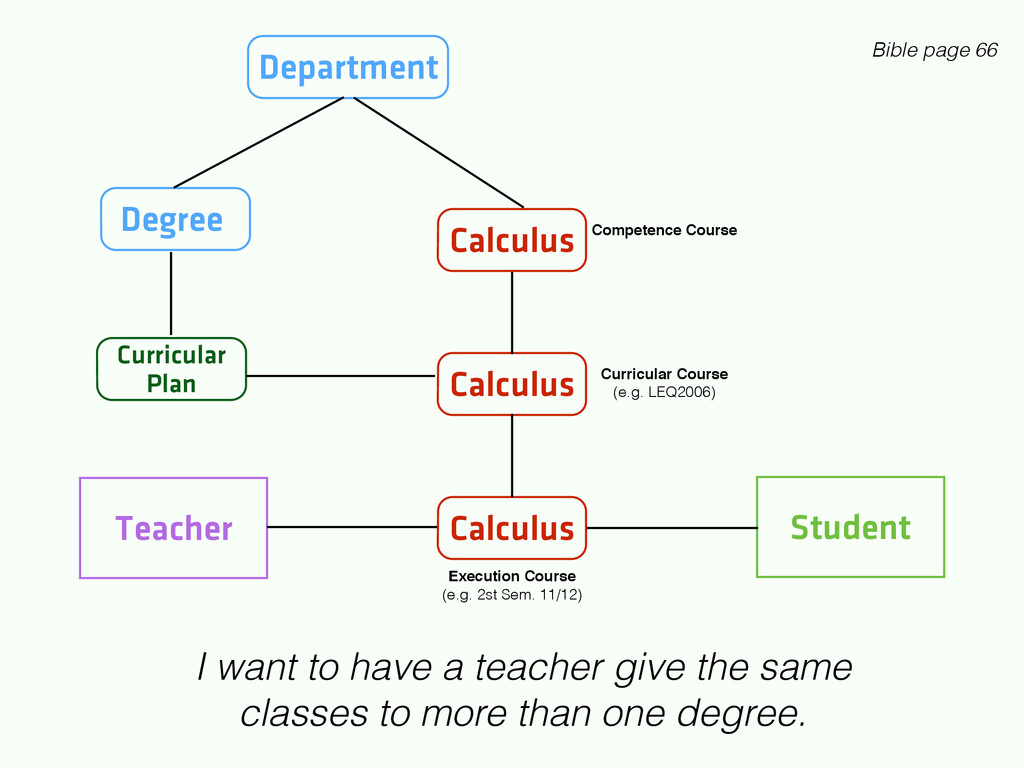

30. Calculus Degree Student Teacher Curricular Plan Calculus Execution Course ! (e.g. 2st Sem. 11/12) Curricular Course! (e.g. LEQ2006) Department Calculus Competence Course! Bible page 66 I want to have a teacher give the same classes to more than one degree.

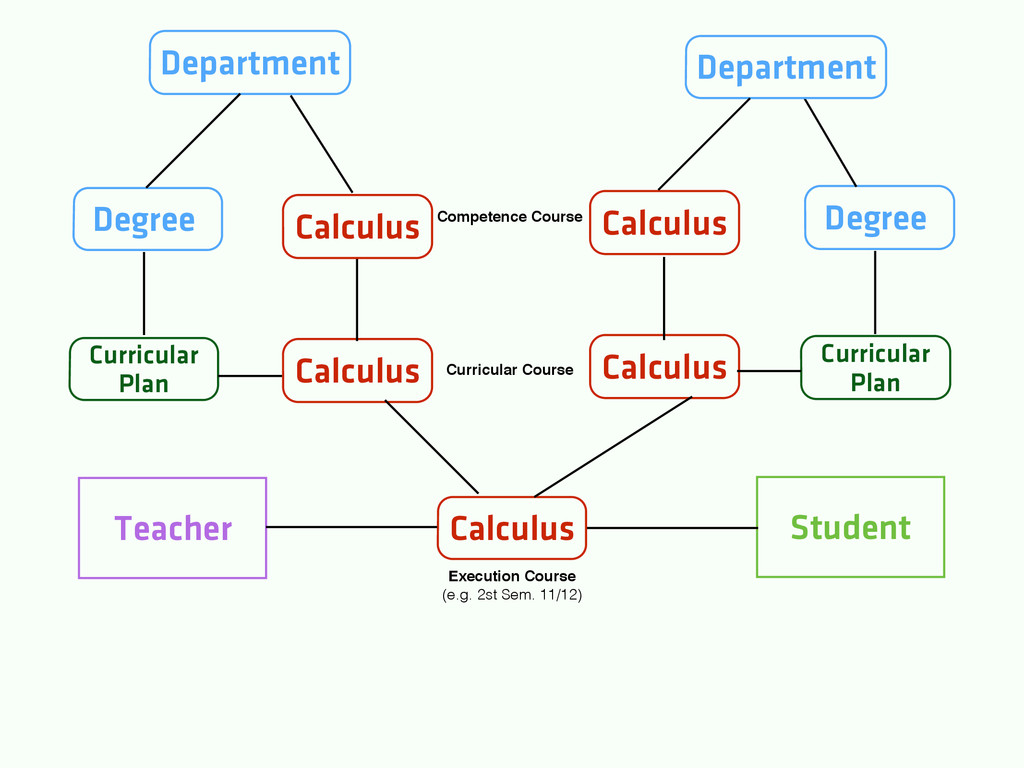

31. Calculus Degree Student Teacher Curricular Plan Calculus Execution Course ! (e.g. 2st Sem. 11/12) Curricular Course Department Calculus Competence Course! Calculus Calculus Degree Curricular Plan Department

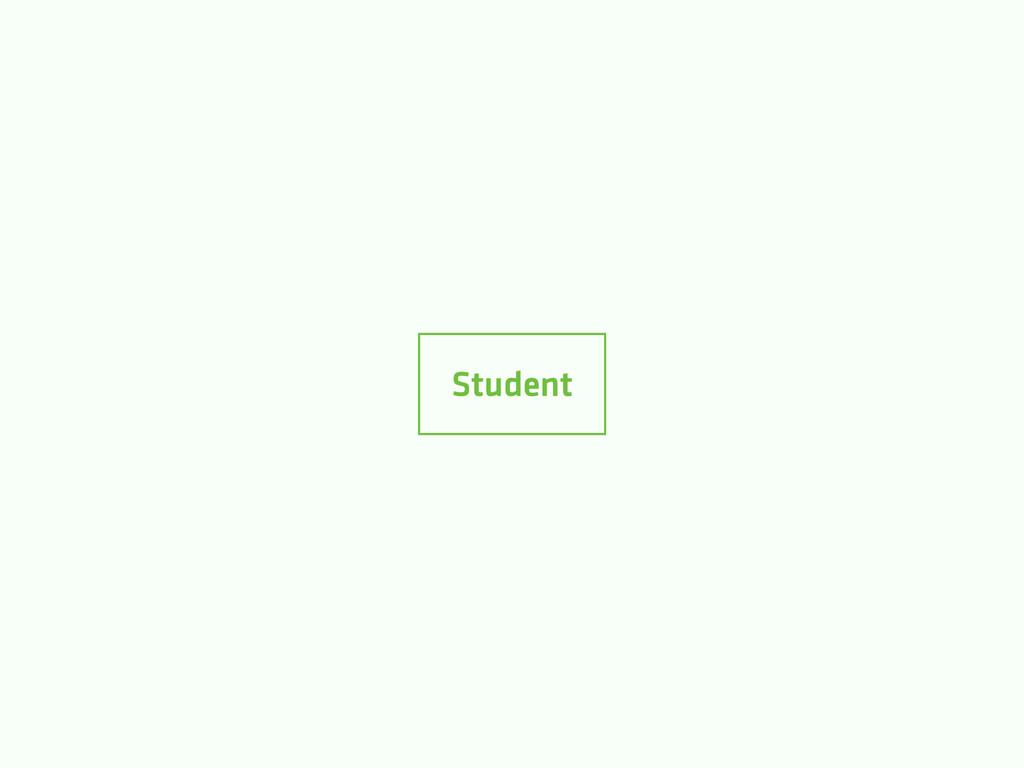

32. Student

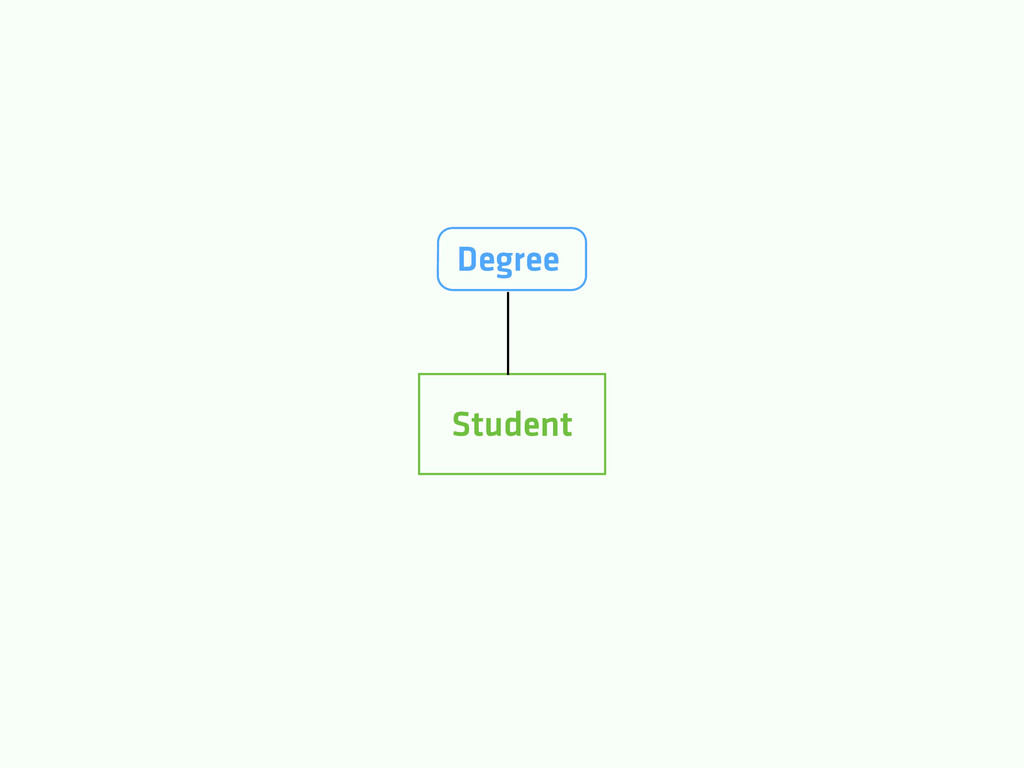

33. Student Degree

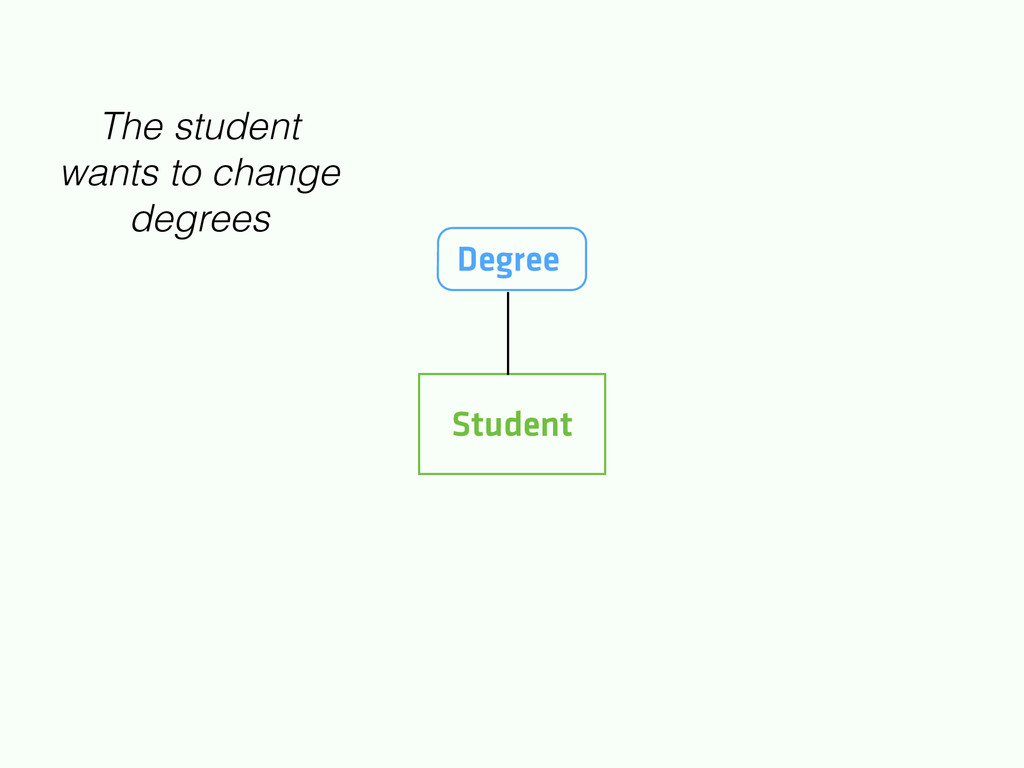

34. Student Degree The student wants to change degrees

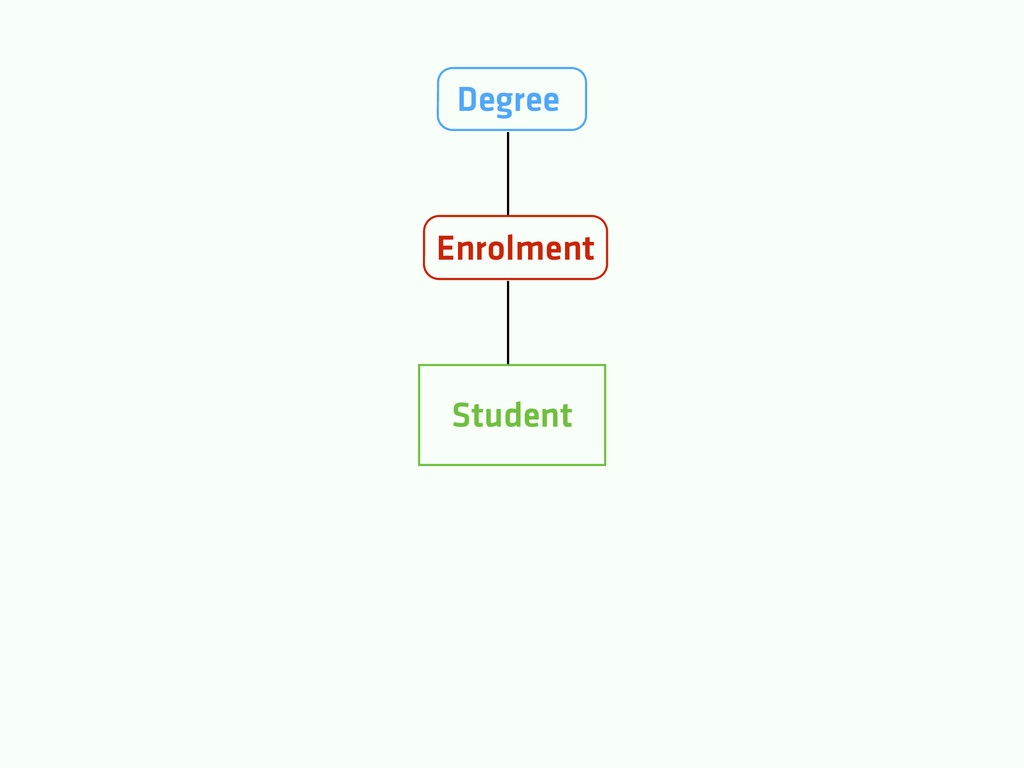

35. Student Degree Enrolment

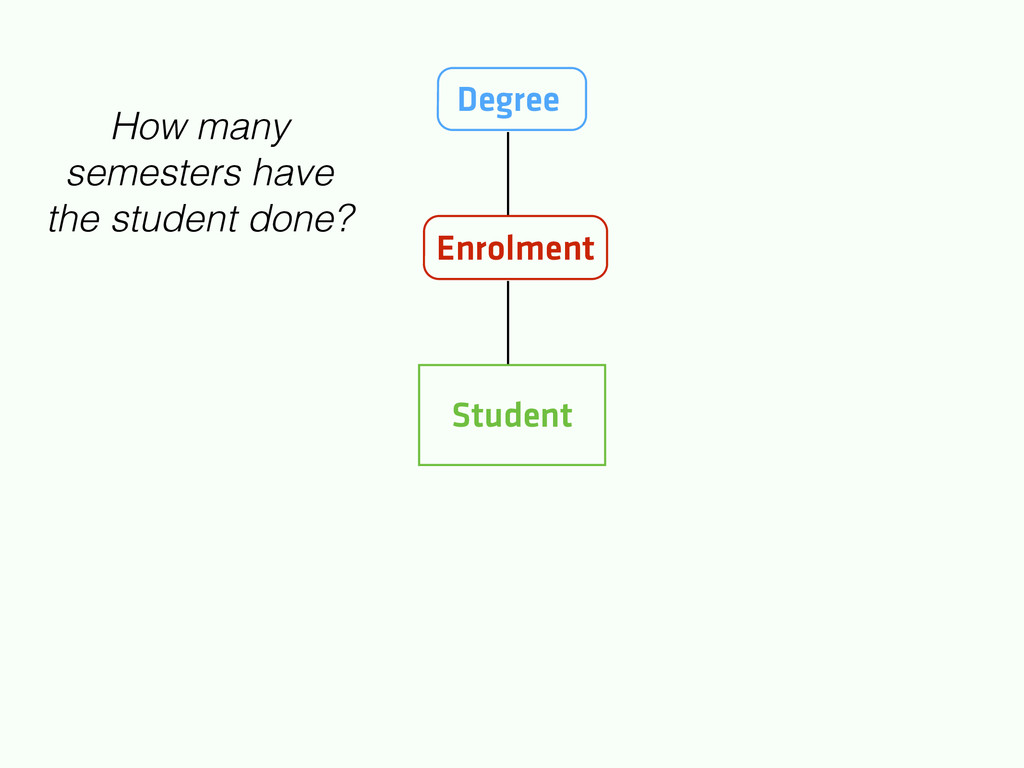

36. Student Degree Enrolment How many semesters have the student done?

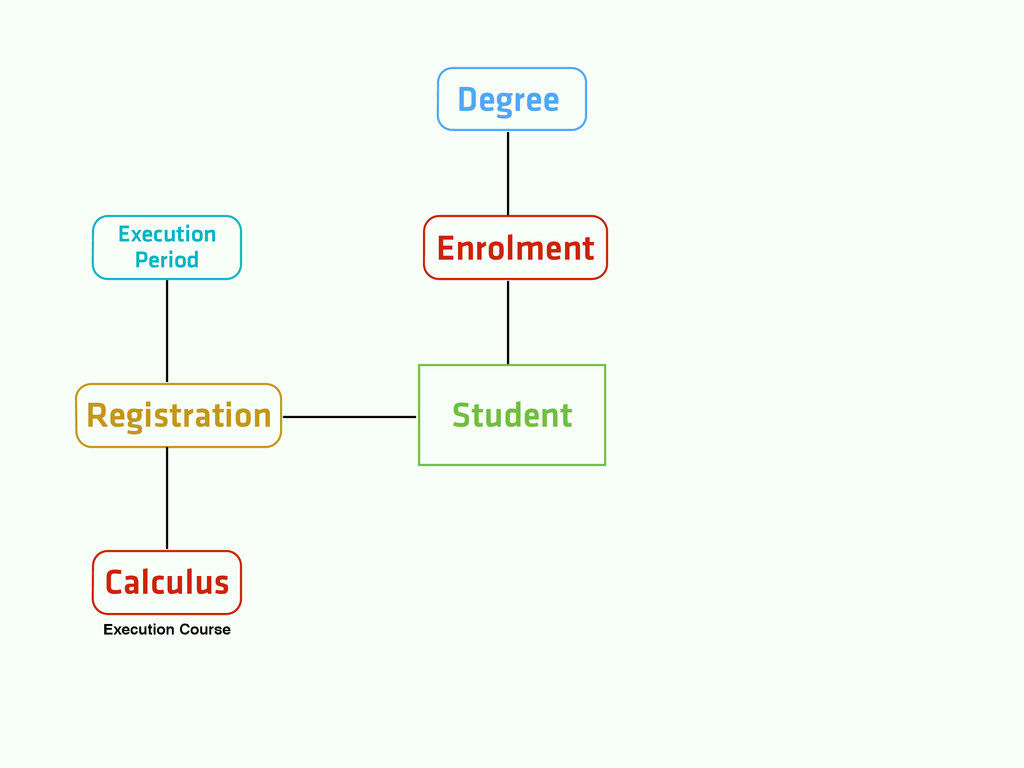

37. Student Degree Enrolment Registration Execution Period Calculus Execution Course !
38. Teacher Calculus Execution Course !

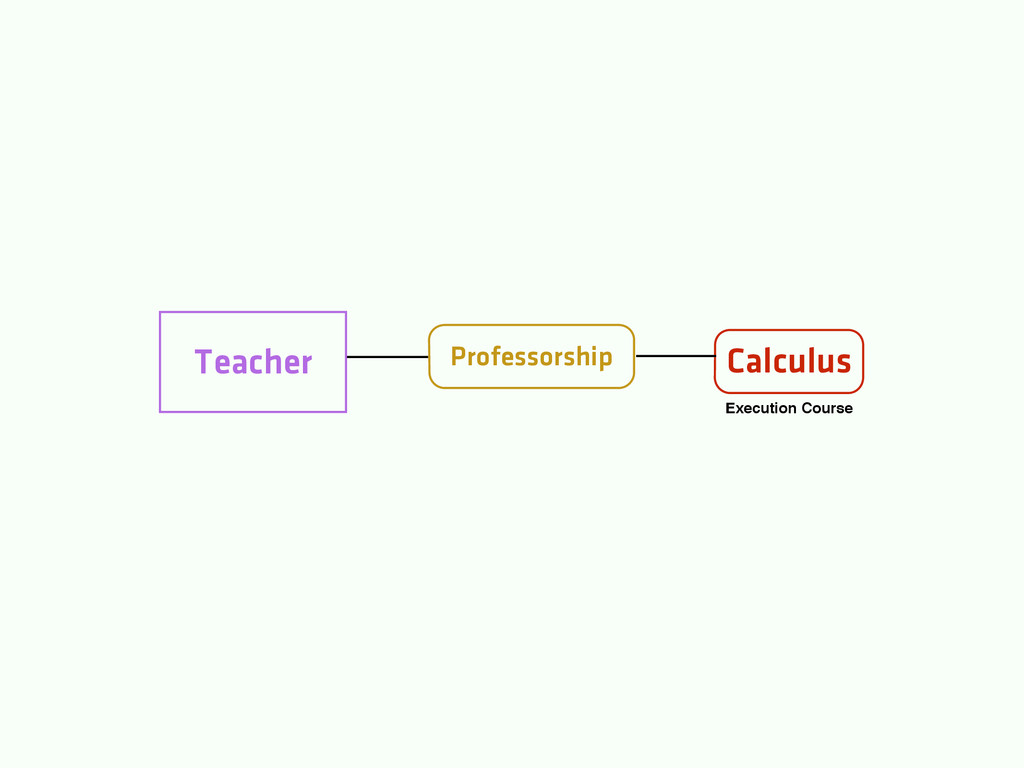

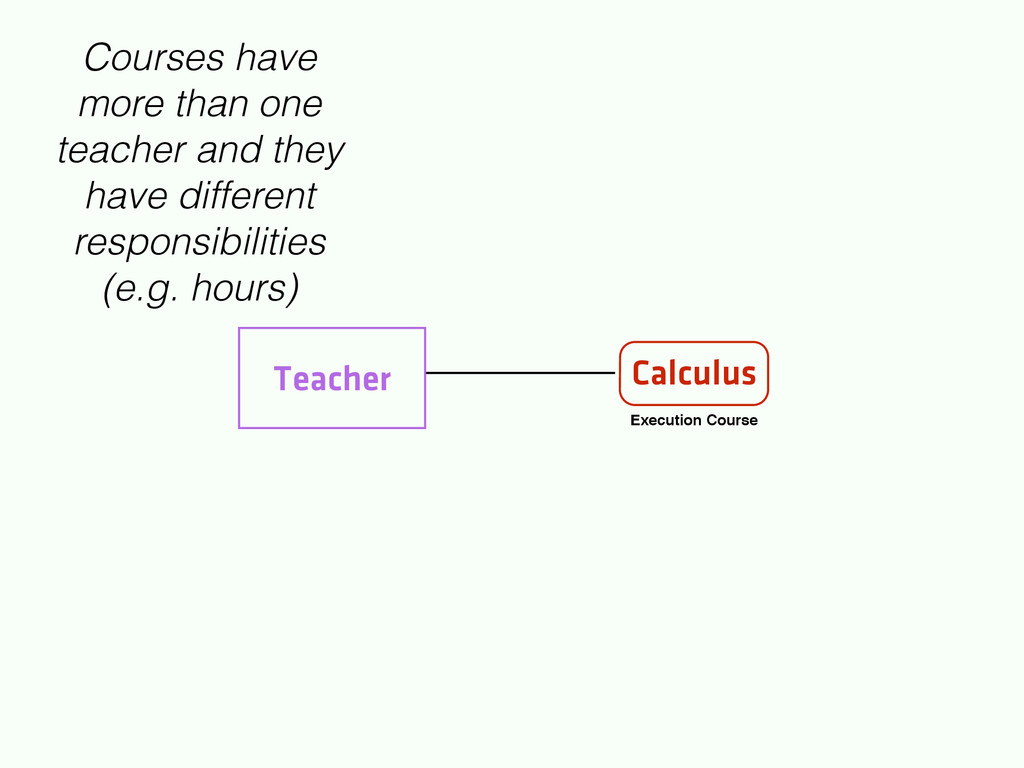

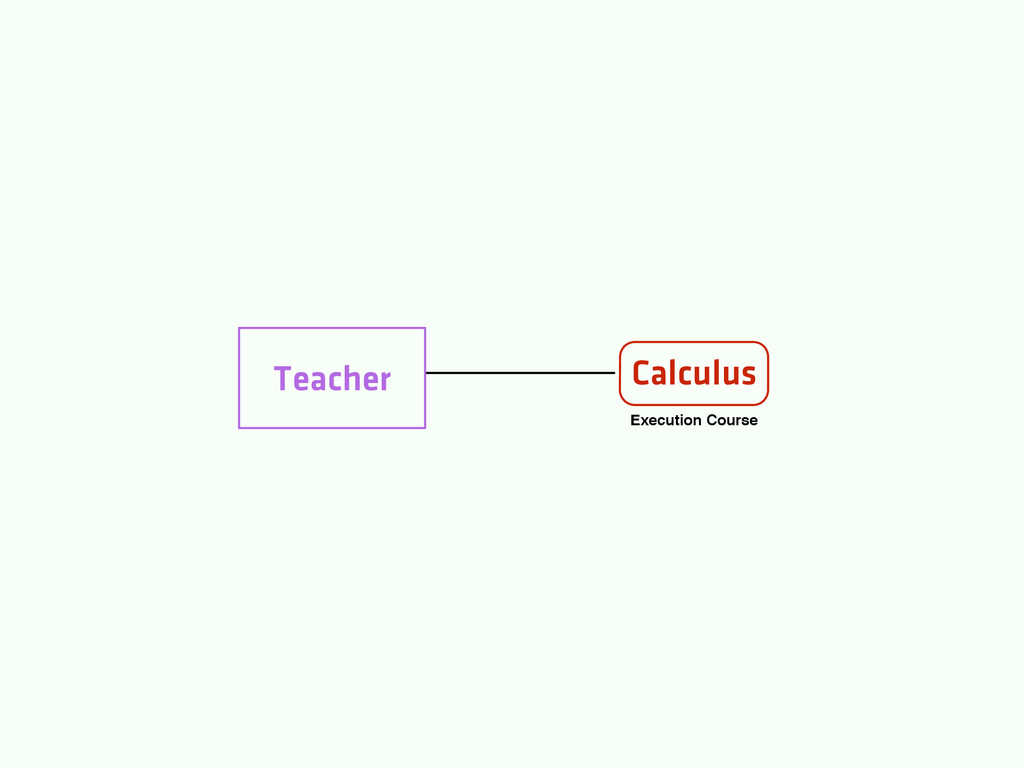

39. Teacher Calculus Execution Course ! Courses have more than one teacher and they have different responsibilities (e.g. hours)
40. Teacher Calculus Execution Course ! Professorship

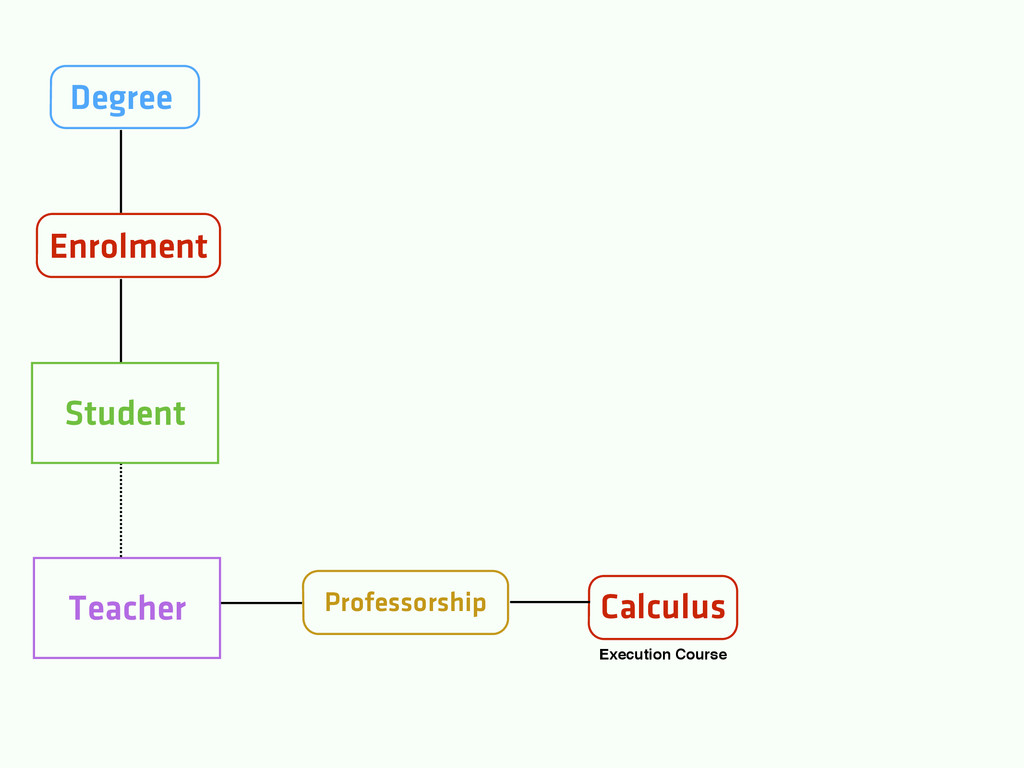

41. Student Degree Enrolment Teacher Calculus Execution Course ! Professorship

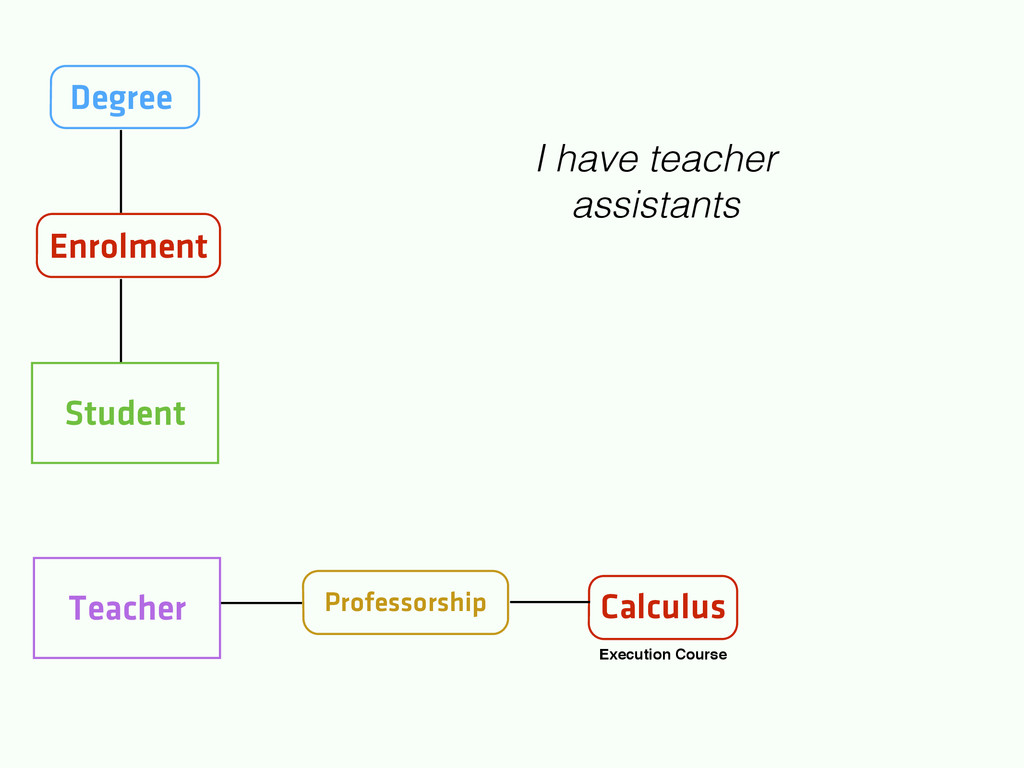

42. Student Degree Enrolment Teacher Calculus Execution Course ! Professorship I have teacher assistants
43. Student Degree Enrolment Teacher Calculus Execution Course ! Professorship

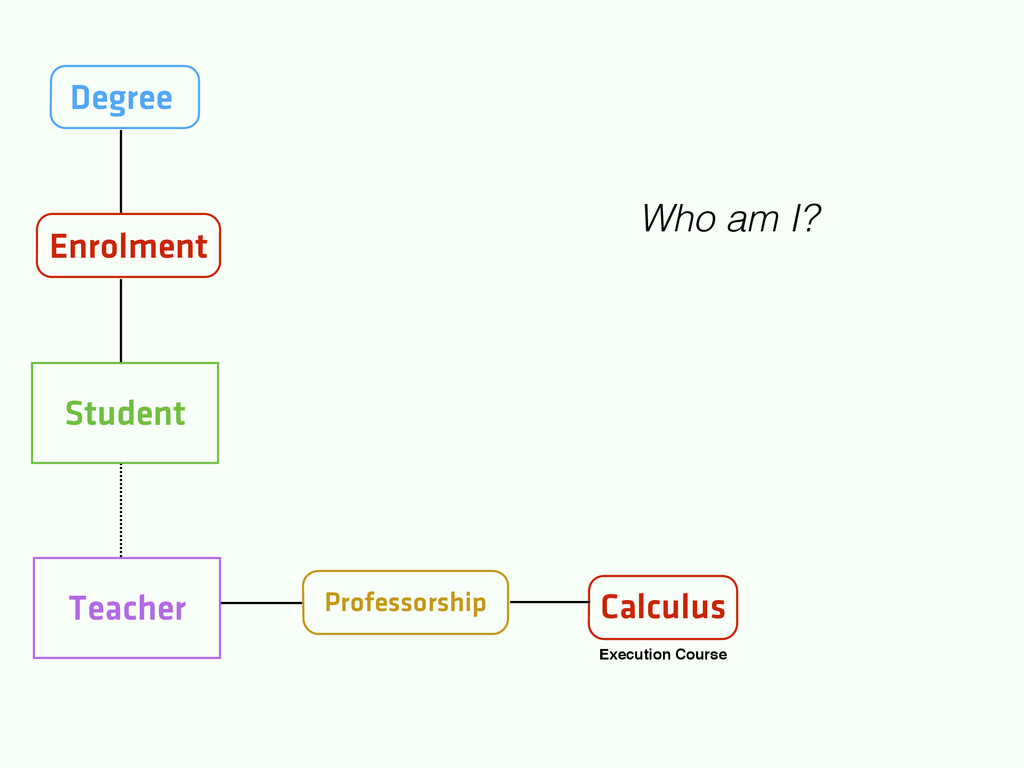

44. Student Degree Enrolment Teacher Calculus Execution Course ! Professorship Who am I?

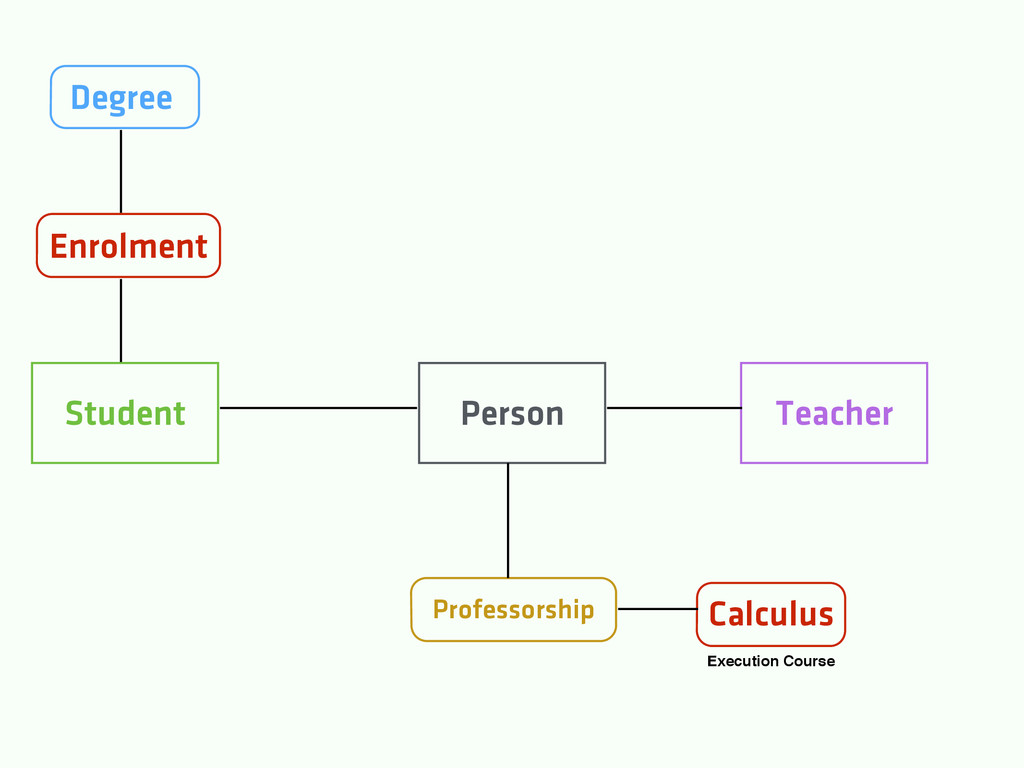

45. Student Degree Enrolment Teacher Calculus Execution Course ! Professorship Person

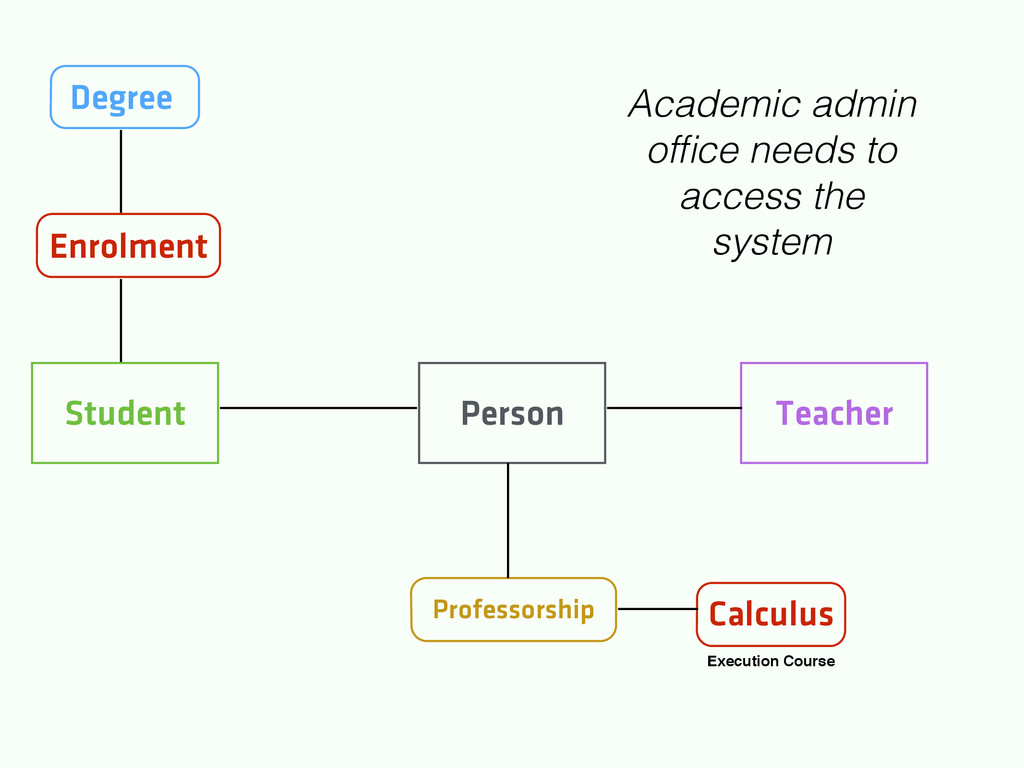

46. Student Degree Enrolment Teacher Calculus Execution Course ! Professorship Person Academic admin office needs to access the system

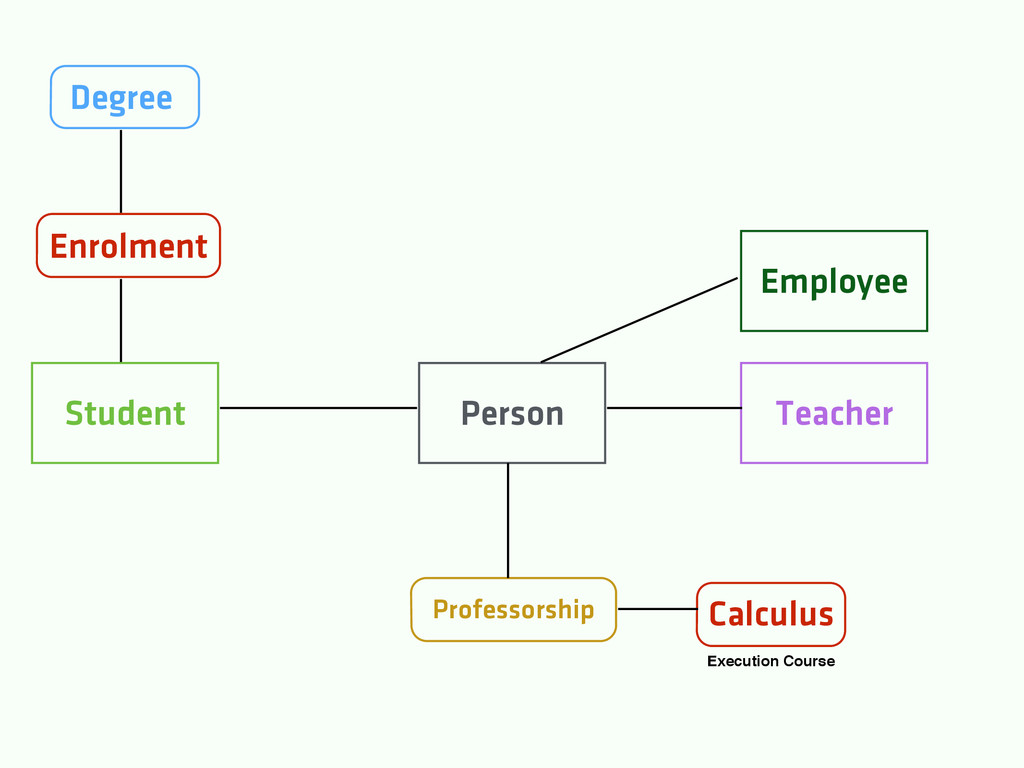

47. Student Degree Enrolment Teacher Calculus Execution Course ! Professorship Person Employee

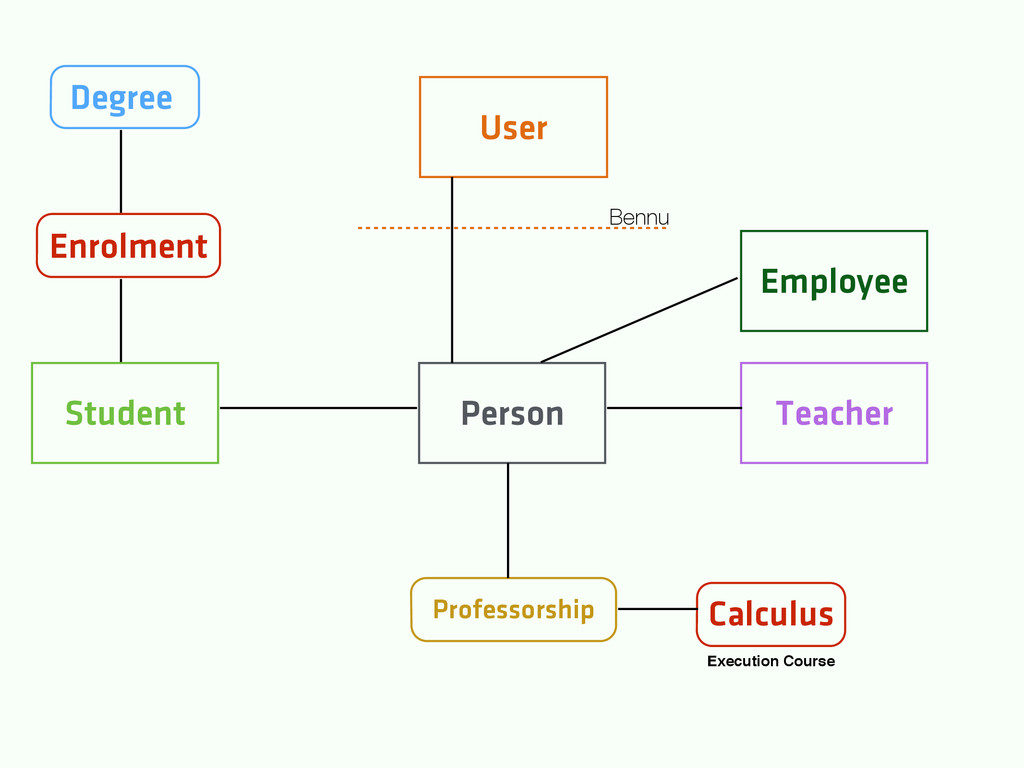

48. Student Degree Enrolment Teacher Calculus Execution Course ! Professorship Person Employee User Bennu
49. Complex
52. Architecture
53. 12 Years Ago

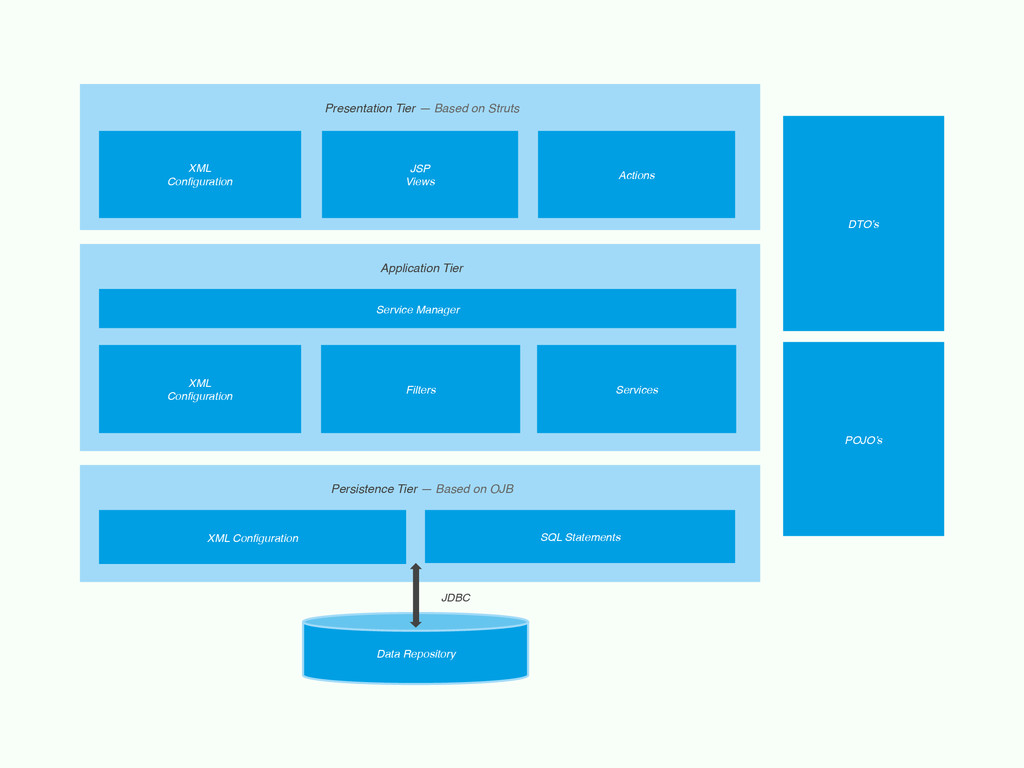

54. Presentation Tier — Based on Struts Application Tier POJO’s Persistence Tier — Based on OJB XML Configuration Service Manager Services Filters XML! Configuration DTO’s XML! Configuration Data Repository JDBC JSP! Views Actions SQL Statements

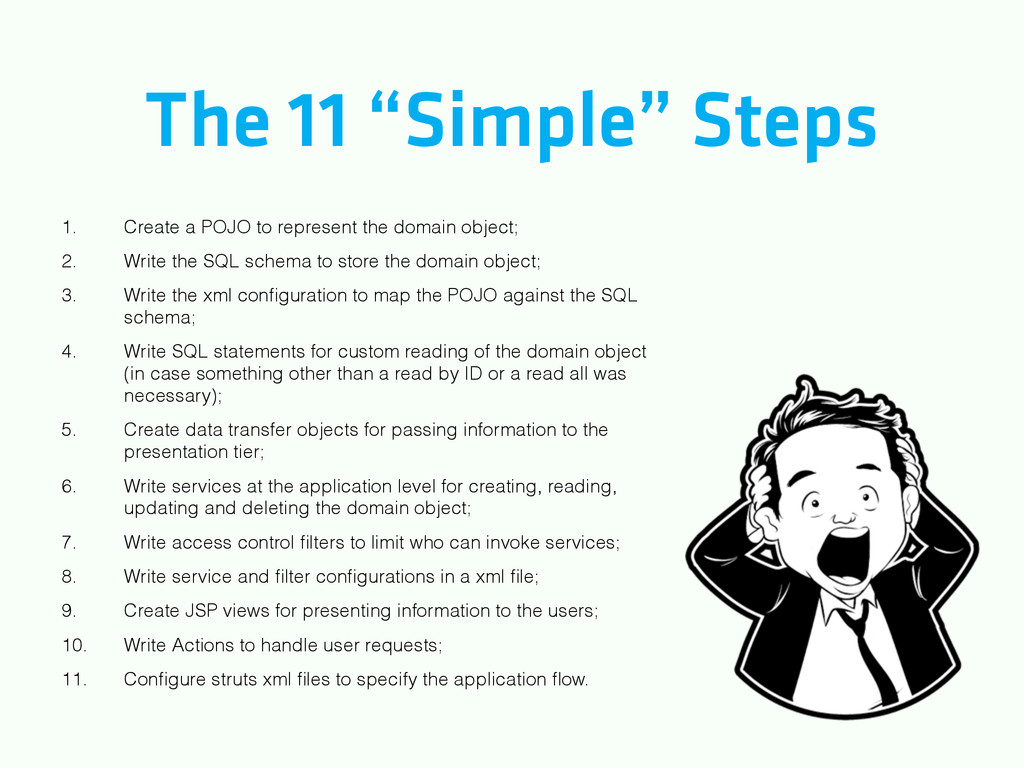

55. The 11 “Simple” Steps 1. Create a POJO to represent the domain object; 2. Write the SQL schema to store the domain object; 3. Write the xml configuration to map the POJO against the SQL schema; 4. Write SQL statements for custom reading of the domain object (in case something other than a read by ID or a read all was necessary); 5. Create data transfer objects for passing information to the presentation tier; 6. Write services at the application level for creating, reading, updating and deleting the domain object; 7. Write access control filters to limit who can invoke services; 8. Write service and filter configurations in a xml file; 9. Create JSP views for presenting information to the users; 10. Write Actions to handle user requests; 11. Configure struts xml files to specify the application flow.

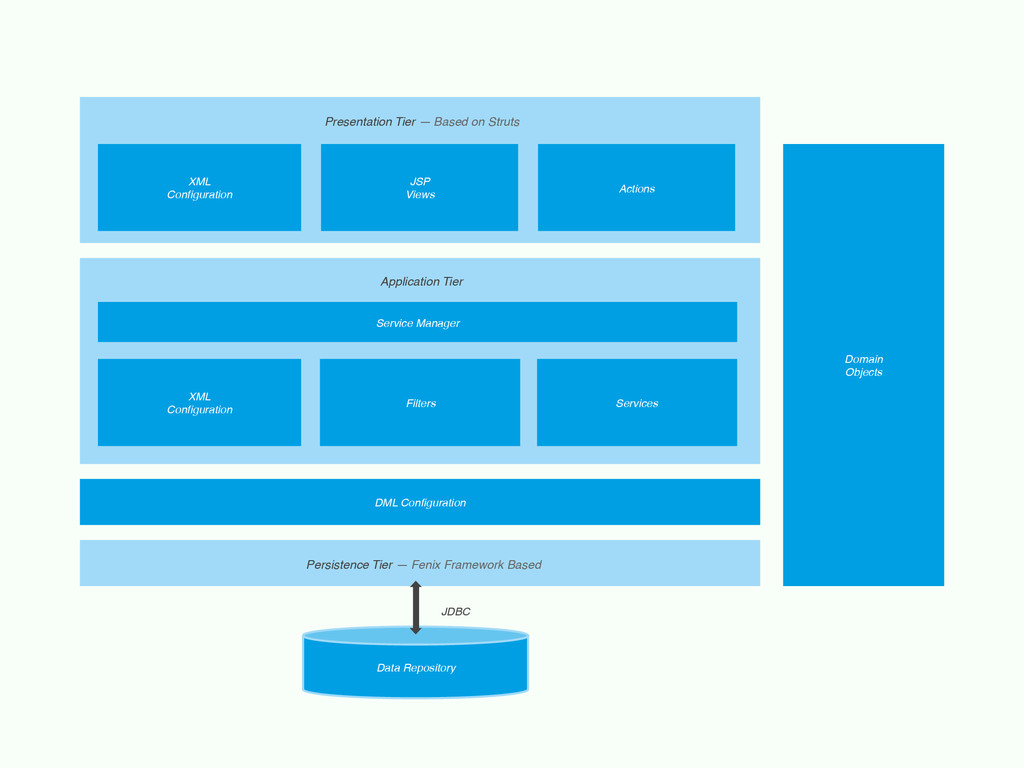

56. Presentation Tier — Based on Struts Application Tier Persistence Tier — Fenix Framework Based Service Manager Services Filters XML! Configuration Domain! Objects XML! Configuration Data Repository JDBC JSP! Views Actions DML Configuration
57. This allowed the application to grow

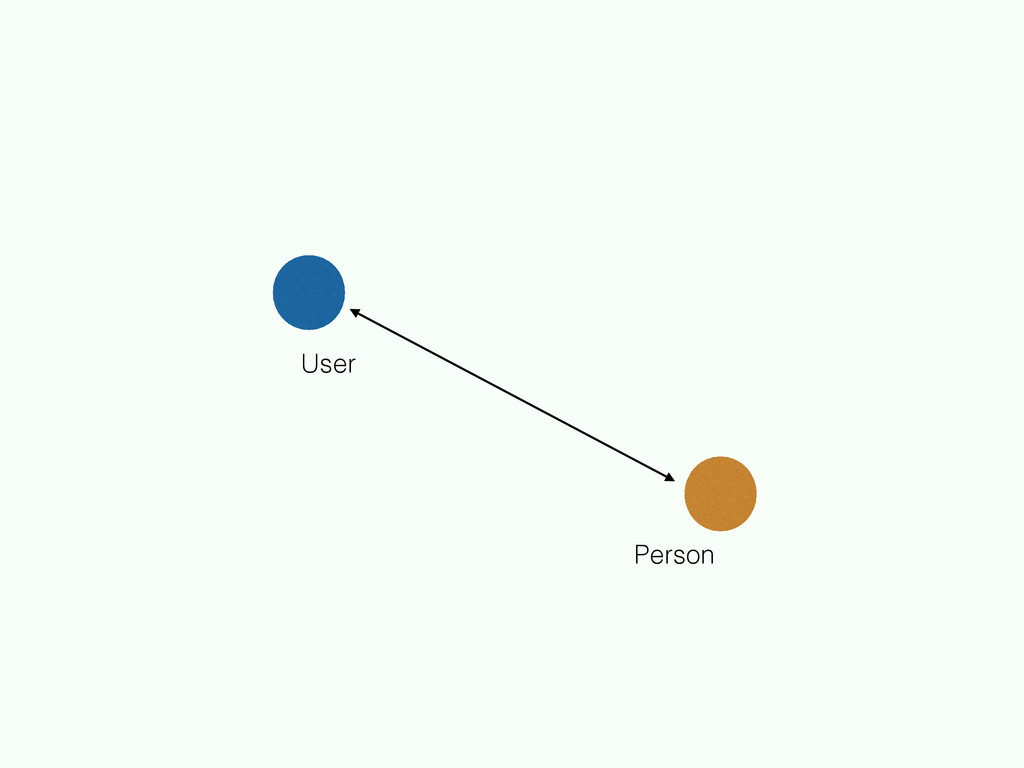

58. User Person
59. • Long compilation times • Large memory requirements • Poor expansibility • Poor encapsulation • It becomes easy to break domain constraints
60. Modularisation
61. Divide and Conquer

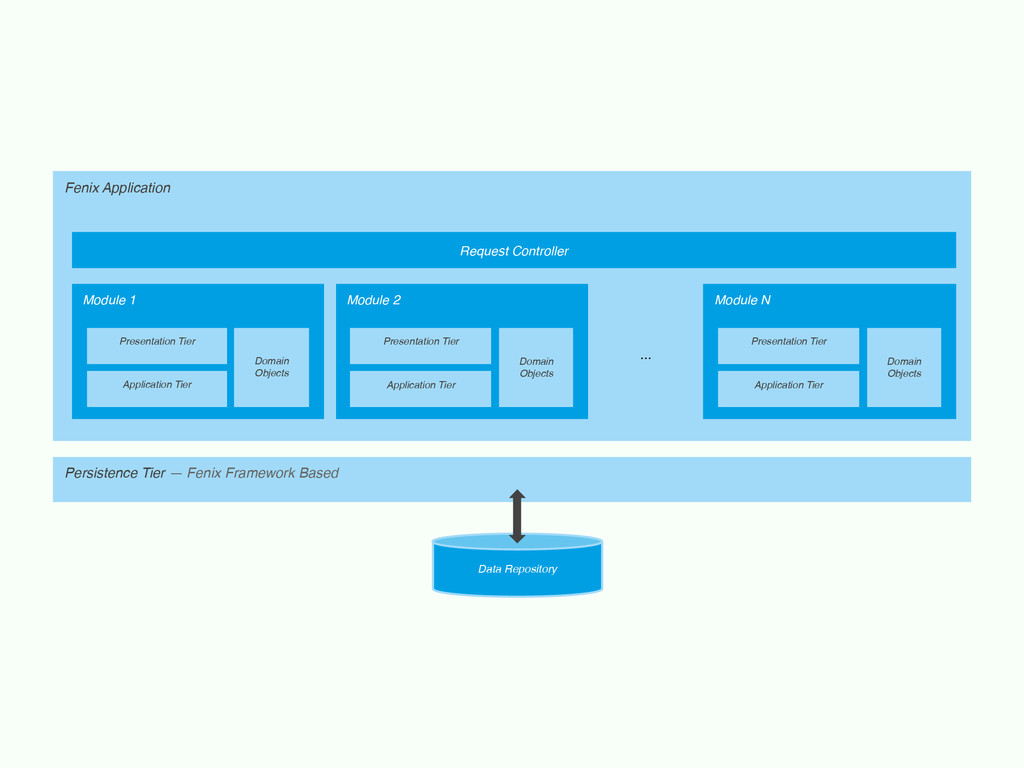

62. Persistence Tier — Fenix Framework Based Data Repository Fenix Application Request Controller Module 1 Presentation Tier Application Tier Domain Objects Module 2 Presentation Tier Application Tier Domain Objects ... Module N Presentation Tier Application Tier Domain Objects

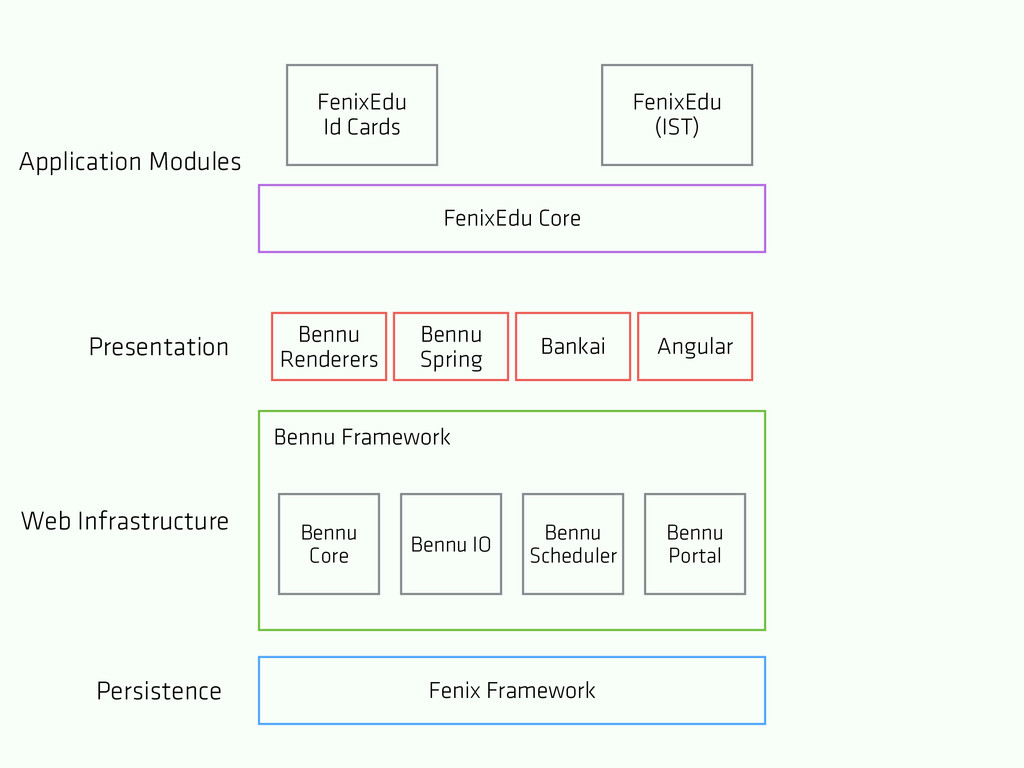

63. Fenix Framework Bennu Framework Bennu Core Bennu IO Bennu Scheduler Bennu Portal Bennu Renderers Bennu Spring Bankai Angular Persistence Web Infrastructure Presentation Application Modules FenixEdu (IST) FenixEdu Id Cards FenixEdu Core
64. Domain Modularisation
65. Each module may define its own domain
66. Modular Presentation
67. Per-module presentation layer
68. Bennu Portal More on that later
69. How does this all come together?

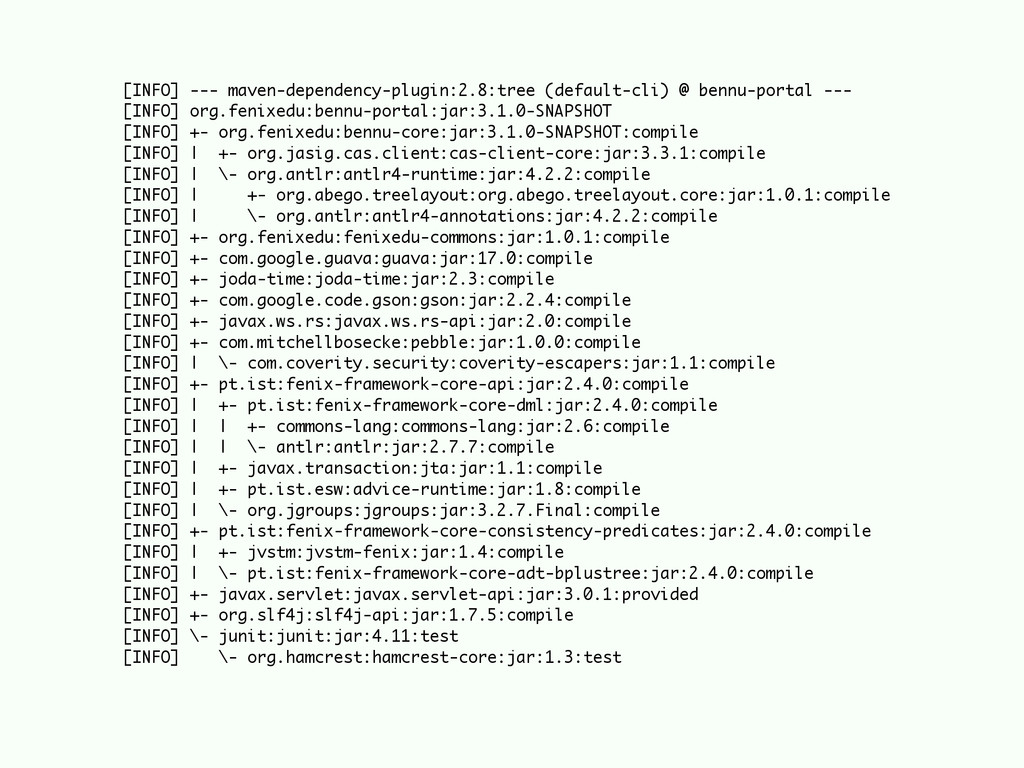

71. [INFO] --- maven-dependency-plugin:2.8:tree (default-cli) @ bennu-portal --- [INFO] org.fenixedu:bennu-portal:jar:3.1.0-SNAPSHOT [INFO] +- org.fenixedu:bennu-core:jar:3.1.0-SNAPSHOT:compile [INFO] | +- org.jasig.cas.client:cas-client-core:jar:3.3.1:compile [INFO] | \- org.antlr:antlr4-runtime:jar:4.2.2:compile [INFO] | +- org.abego.treelayout:org.abego.treelayout.core:jar:1.0.1:compile [INFO] | \- org.antlr:antlr4-annotations:jar:4.2.2:compile [INFO] +- org.fenixedu:fenixedu-commons:jar:1.0.1:compile [INFO] +- com.google.guava:guava:jar:17.0:compile [INFO] +- joda-time:joda-time:jar:2.3:compile [INFO] +- com.google.code.gson:gson:jar:2.2.4:compile [INFO] +- javax.ws.rs:javax.ws.rs-api:jar:2.0:compile [INFO] +- com.mitchellbosecke:pebble:jar:1.0.0:compile [INFO] | \- com.coverity.security:coverity-escapers:jar:1.1:compile [INFO] +- pt.ist:fenix-framework-core-api:jar:2.4.0:compile [INFO] | +- pt.ist:fenix-framework-core-dml:jar:2.4.0:compile [INFO] | | +- commons-lang:commons-lang:jar:2.6:compile [INFO] | | \- antlr:antlr:jar:2.7.7:compile [INFO] | +- javax.transaction:jta:jar:1.1:compile [INFO] | +- pt.ist.esw:advice-runtime:jar:1.8:compile [INFO] | \- org.jgroups:jgroups:jar:3.2.7.Final:compile [INFO] +- pt.ist:fenix-framework-core-consistency-predicates:jar:2.4.0:compile [INFO] | +- jvstm:jvstm-fenix:jar:1.4:compile [INFO] | \- pt.ist:fenix-framework-core-adt-bplustree:jar:2.4.0:compile [INFO] +- javax.servlet:javax.servlet-api:jar:3.0.1:provided [INFO] +- org.slf4j:slf4j-api:jar:1.7.5:compile [INFO] \- junit:junit:jar:4.11:test [INFO] \- org.hamcrest:hamcrest-core:jar:1.3:test
72. Semantic Versioning http://semver.org - Version 2.0.0

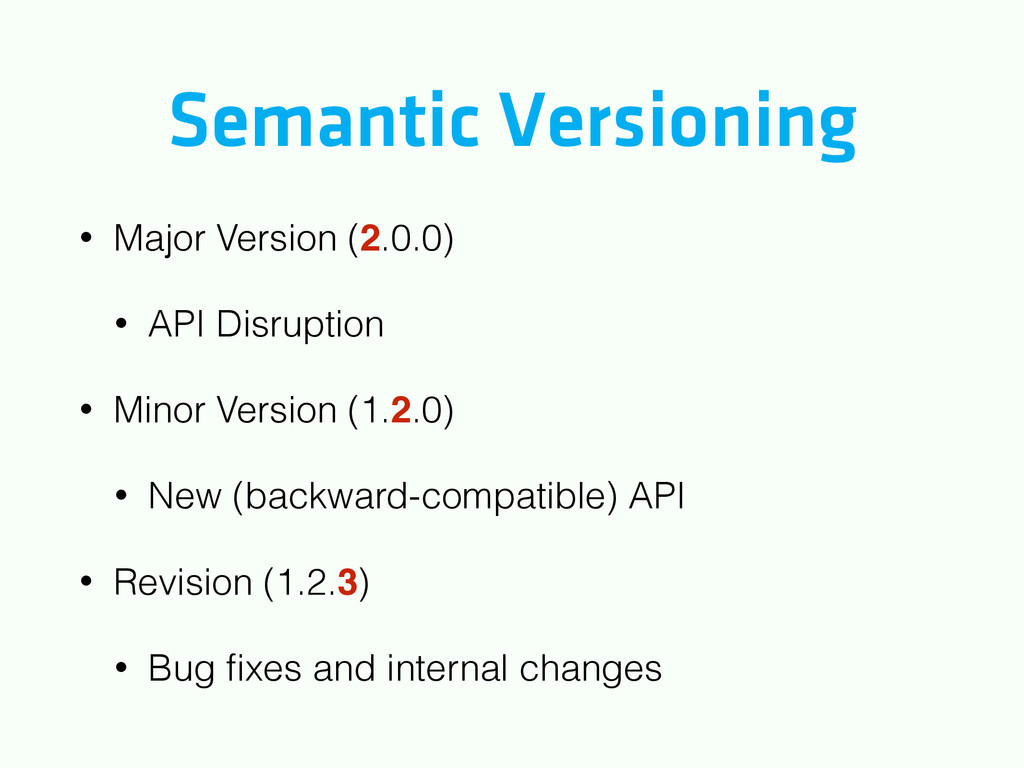

73. Semantic Versioning • Major Version (2.0.0) • API Disruption • Minor Version (1.2.0) • New (backward-compatible) API • Revision (1.2.3) • Bug fixes and internal changes
74. Questions?
75. Coffee Break
