Training: Day Four - Struts, Tiles, Renders and Faces.

This is the fourth in our four part training sessions introducing FenixEdu development for new collaborators.

In this last session, we introduce our two presentation frameworks present in fenix, Struts and Faces, the presentation plugin Tiles and our rendering library Renders

Transcript

1. Presentation Layer Sérgio Silva October 2013

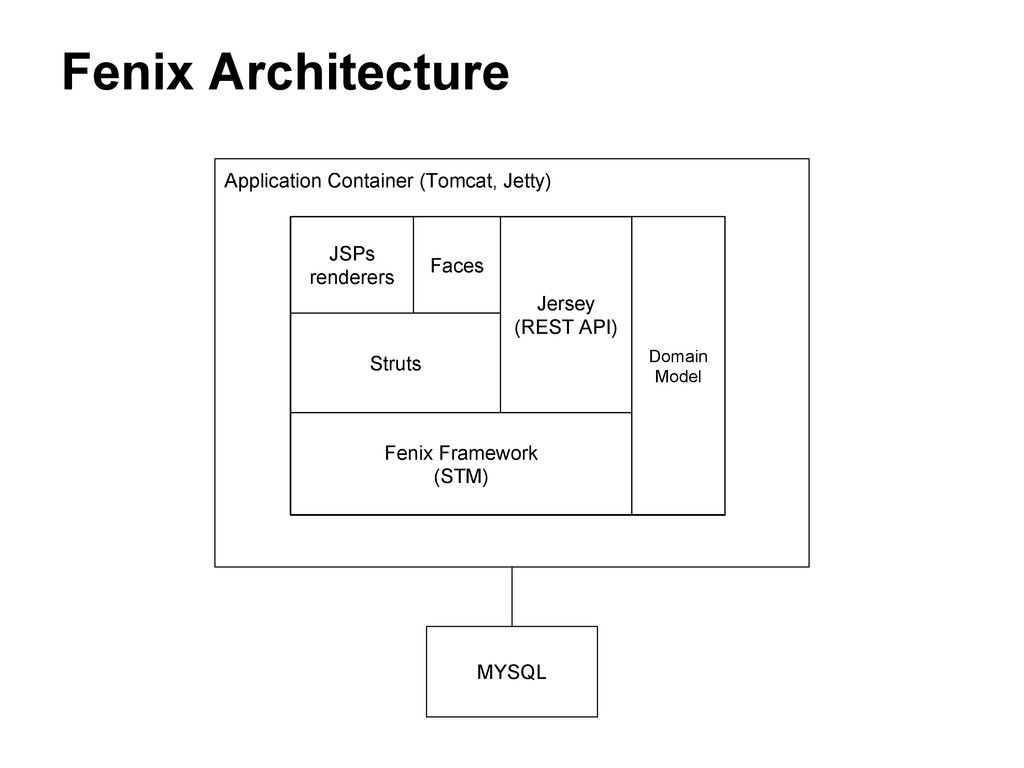

2. Fenix Architecture MYSQL Application Container (Tomcat, Jetty) Fenix Framework (STM) Domain Model JSPs renderers Struts Faces Jersey (REST API)

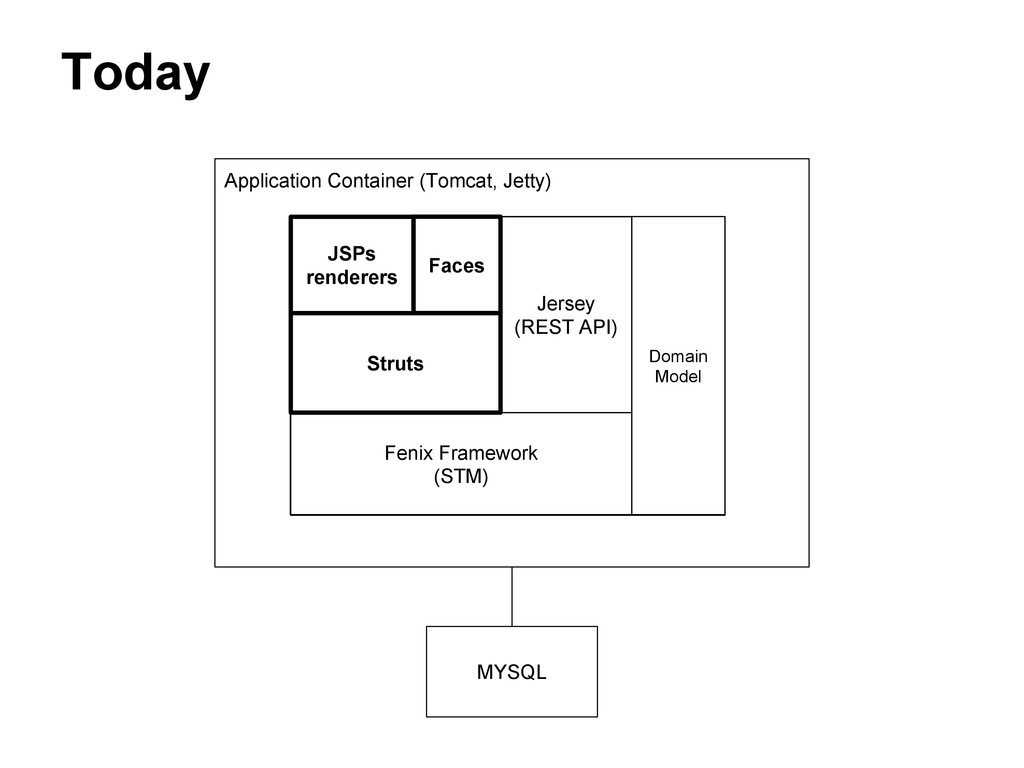

3. Today MYSQL Application Container (Tomcat, Jetty) Fenix Framework (STM) Domain Model JSPs renderers Struts Faces Jersey (REST API)

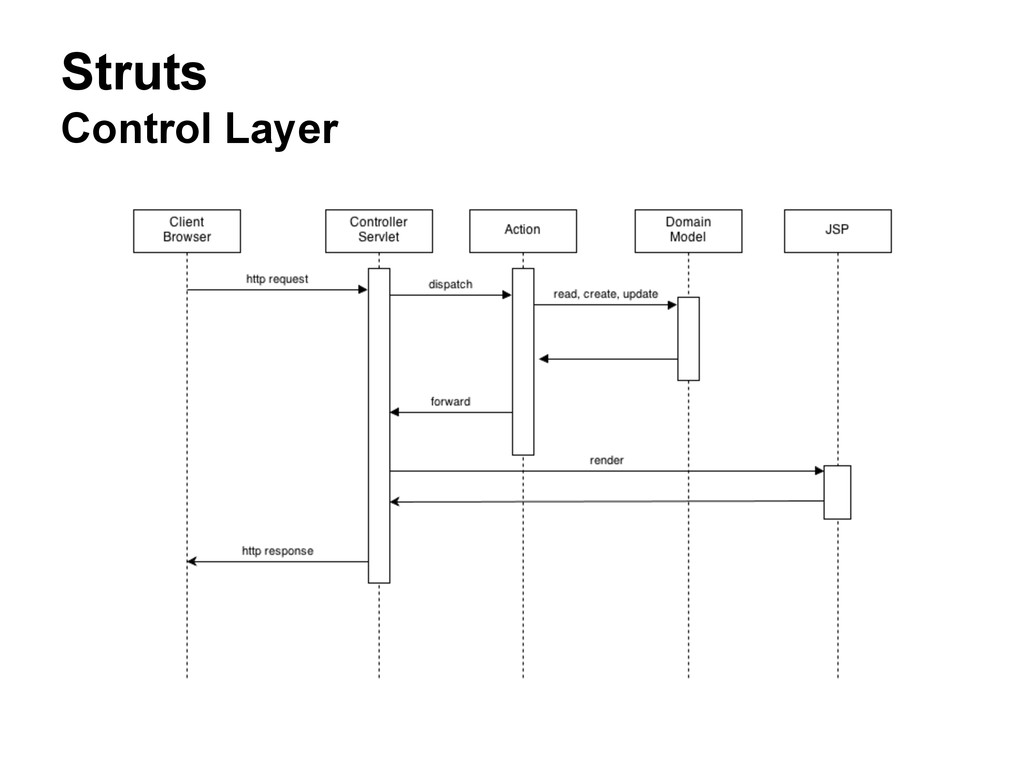

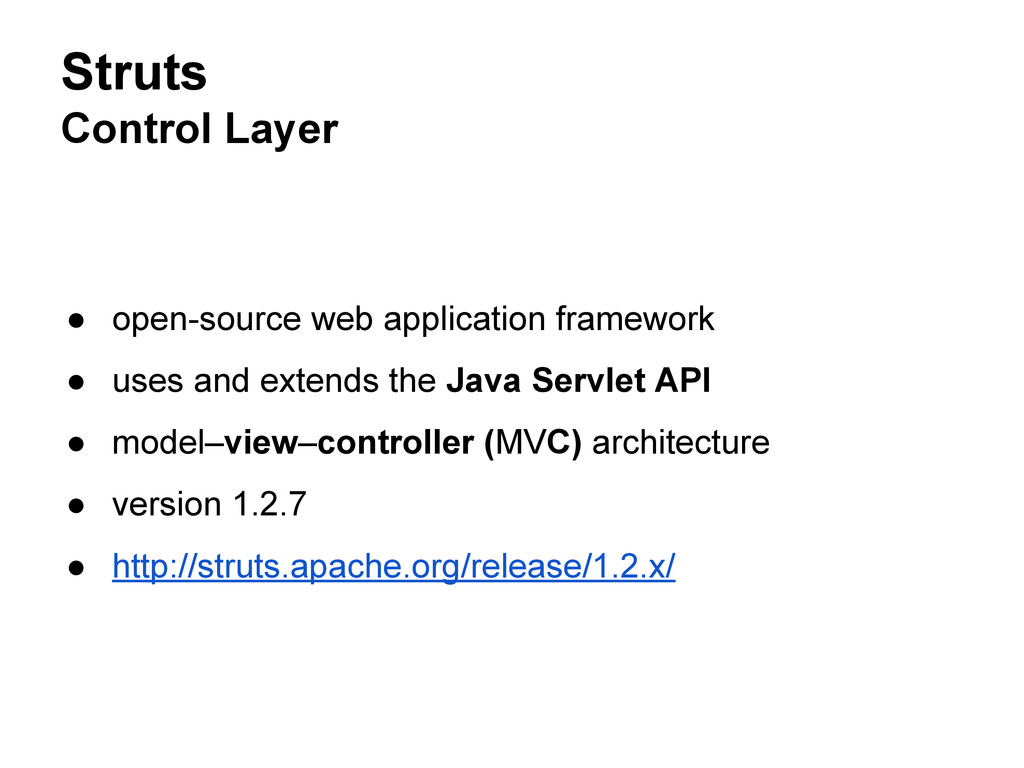

4. Struts Control Layer • open-source web application framework • uses and extends the Java Servlet API • model–view–controller (MVC) architecture • version 1.2.7 • http://struts.apache.org/release/1.2.x/

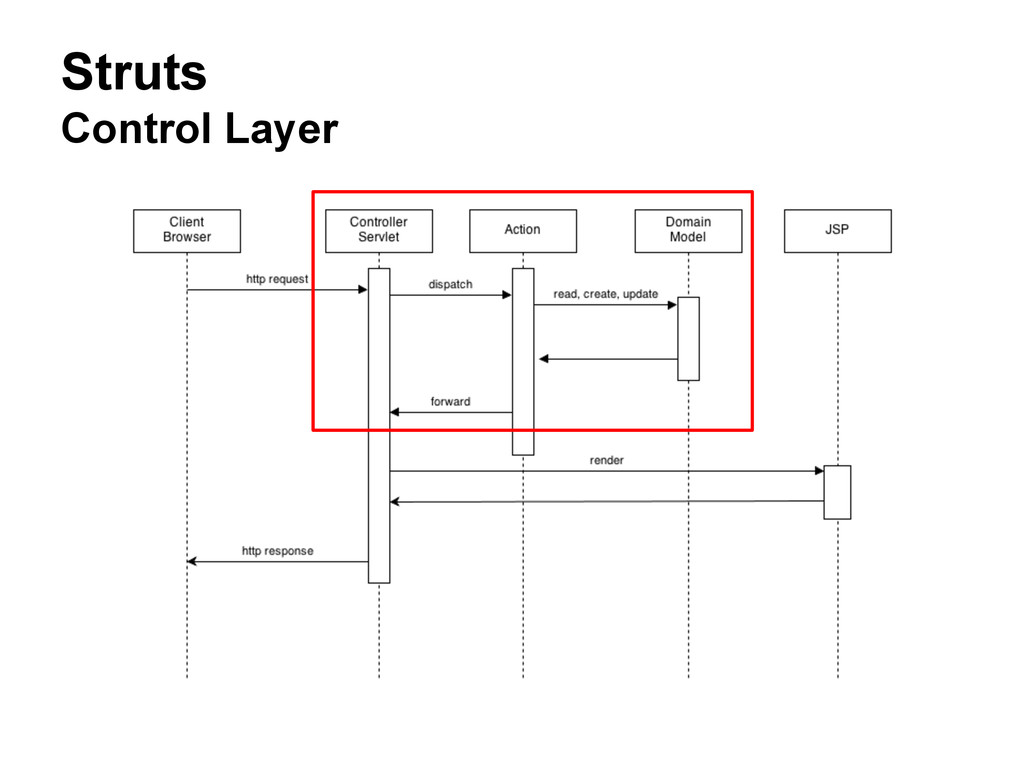

5. Struts Control Layer
6. Struts Control Layer

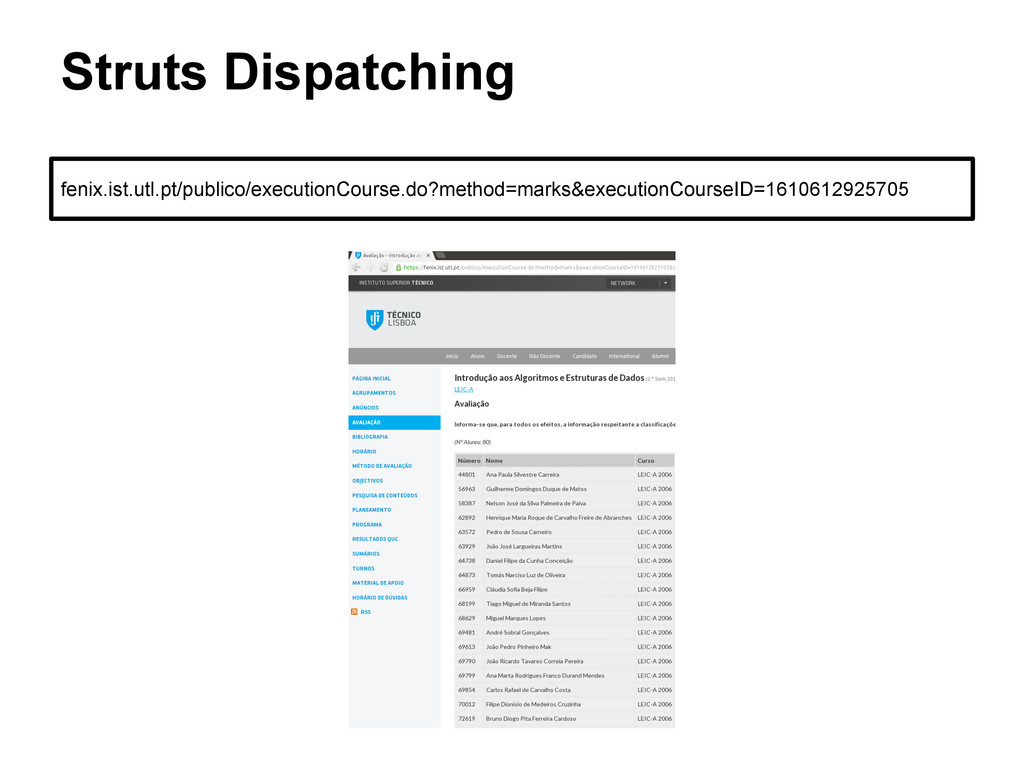

7. Struts Dispatching fenix.ist.utl.pt/publico/executionCourse.do?method=marks&executionCourseID=1610612925705

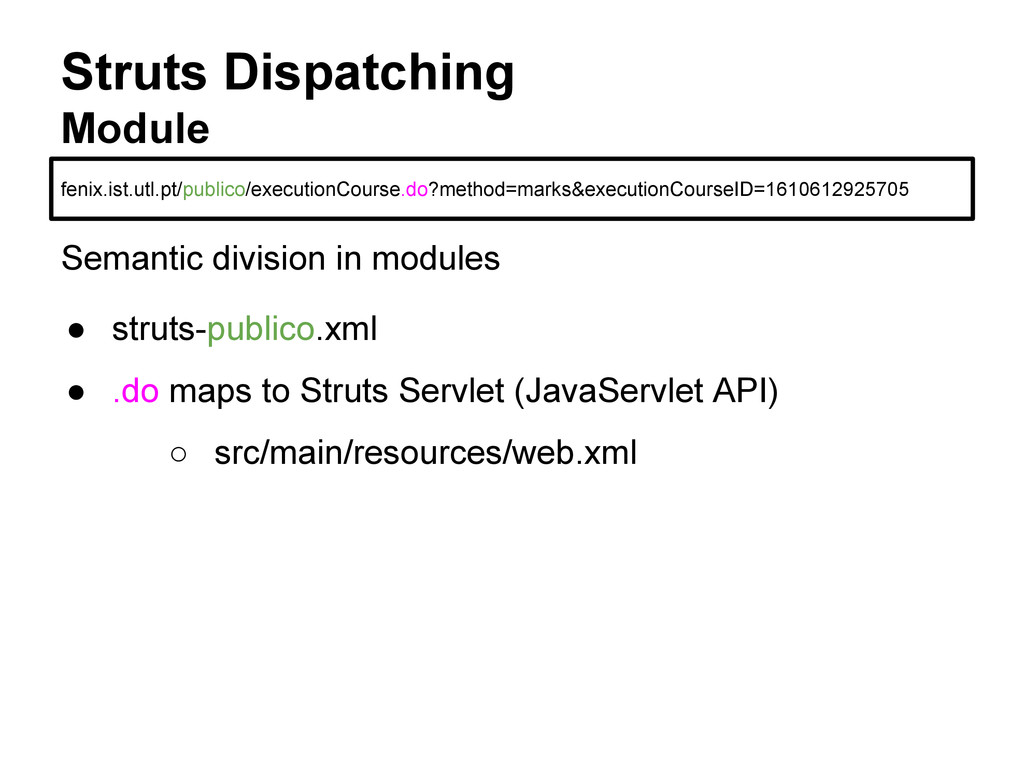

8. Struts Dispatching Module Semantic division in modules • struts-publico.xml • .do maps to Struts Servlet (JavaServlet API) ◦ src/main/resources/web.xml fenix.ist.utl.pt/publico/executionCourse.do?method=marks&executionCourseID=1610612925705

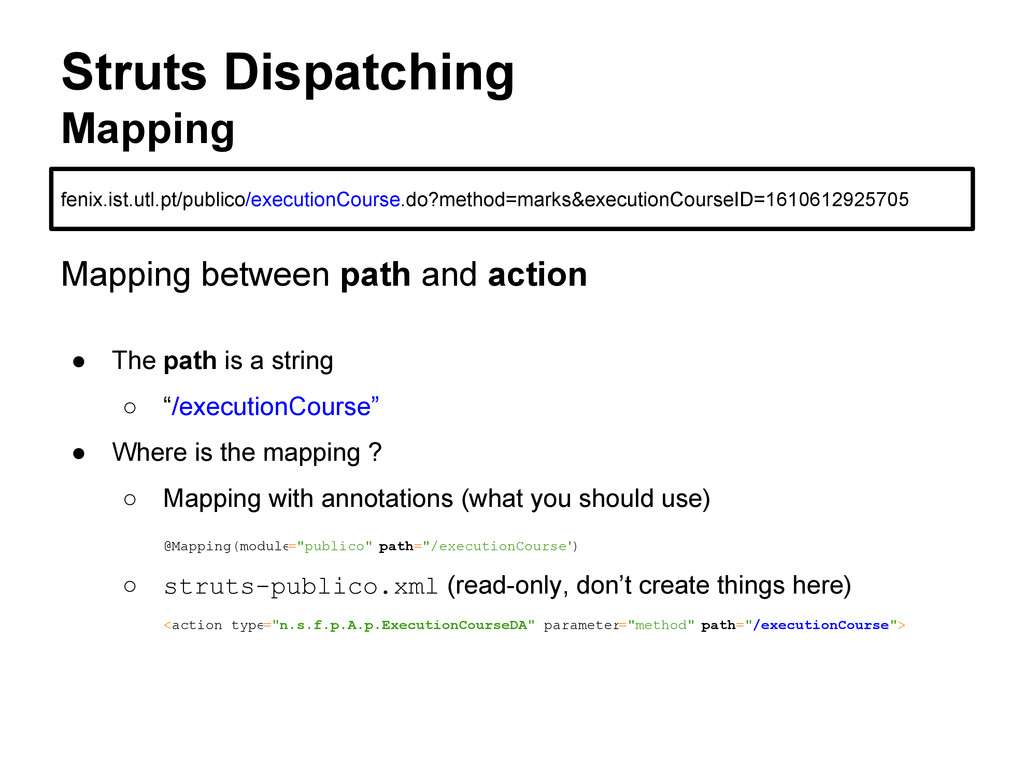

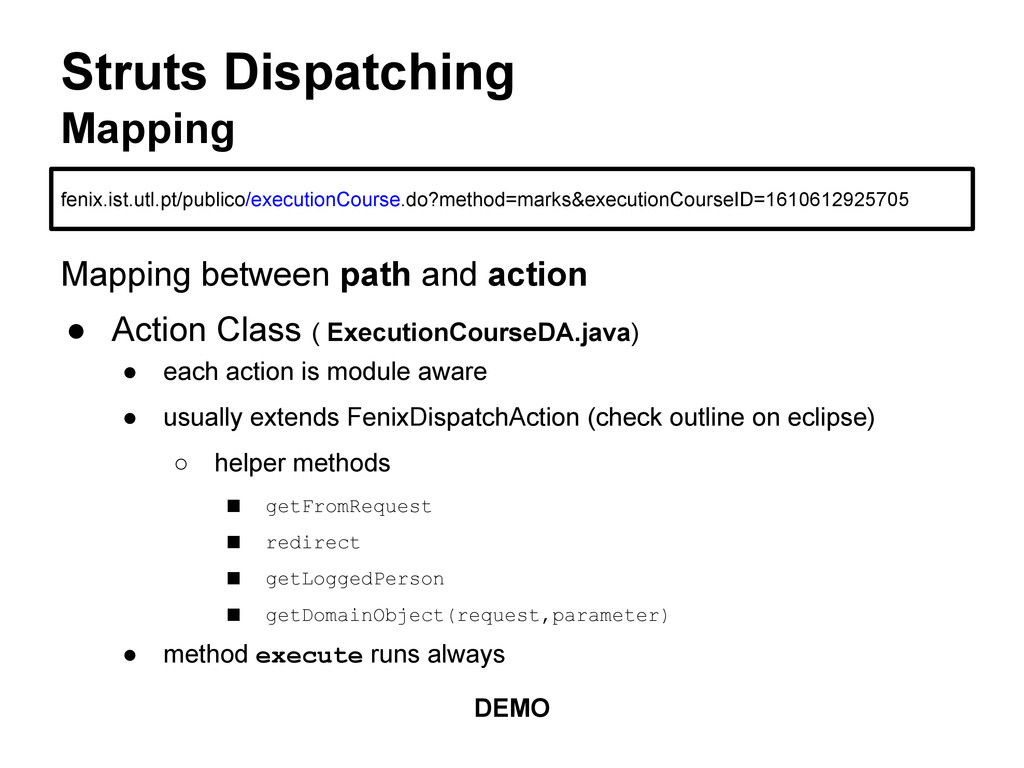

9. Struts Dispatching Mapping Mapping between path and action • The path is a string ◦ “/executionCourse” • Where is the mapping ? ◦ Mapping with annotations (what you should use) @Mapping(module ="publico" path="/executionCourse" ) ◦ struts-publico.xml (read-only, don’t create things here) <action type="n.s.f.p.A.p.ExecutionCourseDA" parameter="method" path="/executionCourse"> fenix.ist.utl.pt/publico/executionCourse.do?method=marks&executionCourseID=1610612925705

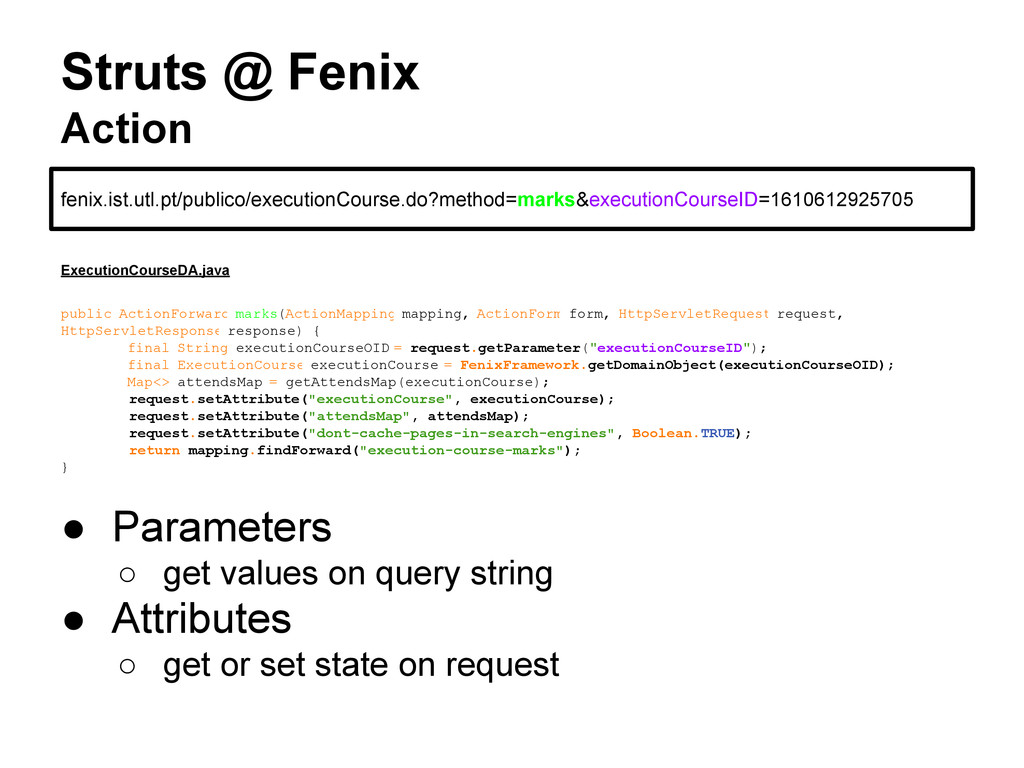

10. Struts Dispatching Mapping Mapping between path and action • Action Class ( ExecutionCourseDA.java) • each action is module aware • usually extends FenixDispatchAction (check outline on eclipse) ◦ helper methods ▪ getFromRequest ▪ redirect ▪ getLoggedPerson ▪ getDomainObject(request,parameter) • method execute runs always DEMO fenix.ist.utl.pt/publico/executionCourse.do?method=marks&executionCourseID=1610612925705
11. ExecutionCourseDA.java public ActionForward marks(ActionMapping mapping, ActionForm form, HttpServletRequest request, HttpServletResponse response) { final String executionCourseOID = request.getParameter("executionCourseID"); final ExecutionCourse executionCourse = FenixFramework.getDomainObject(executionCourseOID); Map<> attendsMap = getAttendsMap(executionCourse); request.setAttribute("executionCourse", executionCourse); request.setAttribute("attendsMap", attendsMap); request.setAttribute("dont-cache-pages-in-search-engines", Boolean.TRUE); return mapping.findForward("execution-course-marks"); } • Parameters ◦ get values on query string • Attributes ◦ get or set state on request Struts @ Fenix Action fenix.ist.utl.pt/publico/executionCourse.do?method=marks&executionCourseID=1610612925705

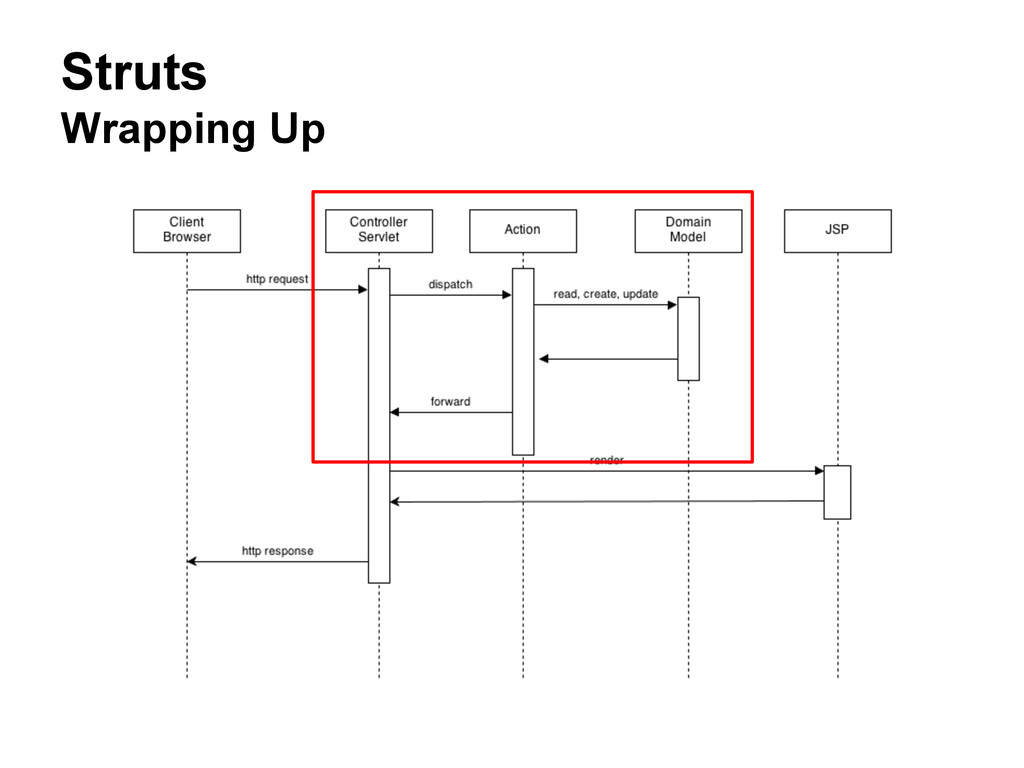

12. Struts Wrapping Up

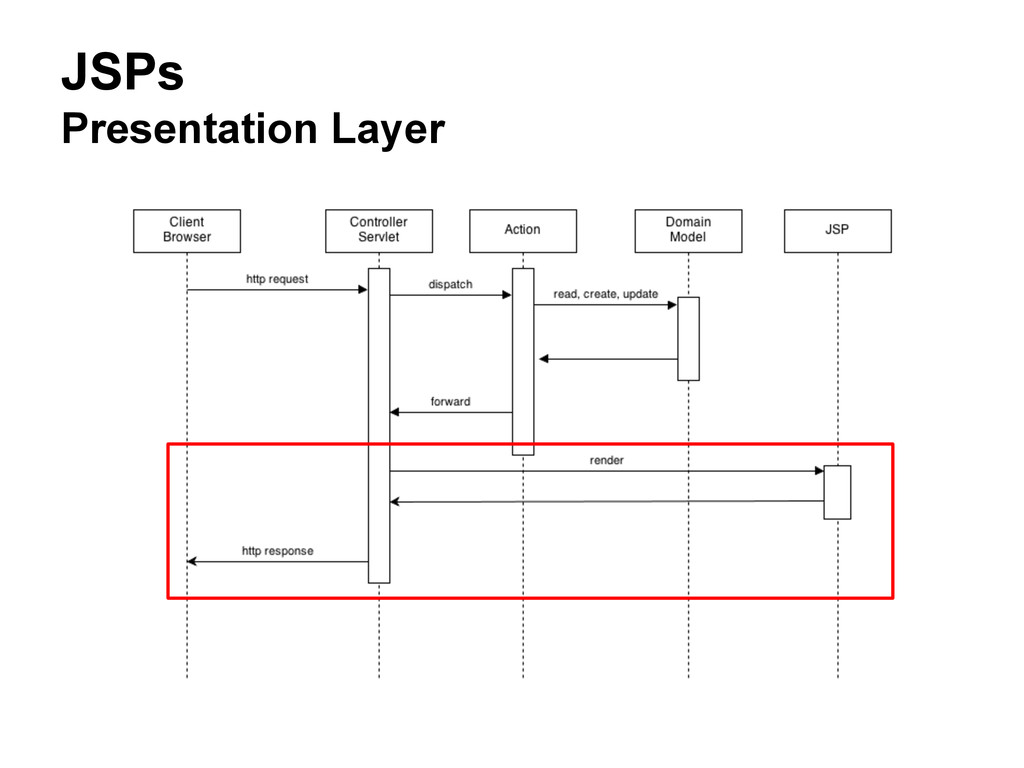

13. JSPs Presentation Layer

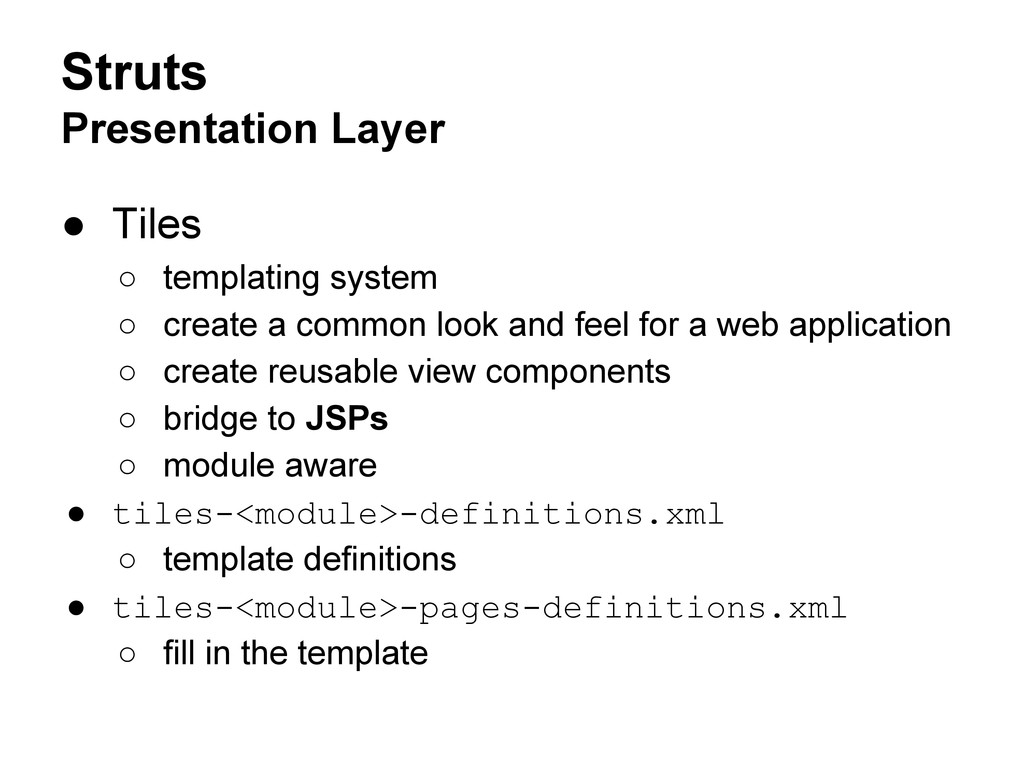

14. Struts Presentation Layer • Tiles ◦ templating system ◦ create a common look and feel for a web application ◦ create reusable view components ◦ bridge to JSPs ◦ module aware • tiles-<module>-definitions.xml ◦ template definitions • tiles-<module>-pages-definitions.xml ◦ fill in the template

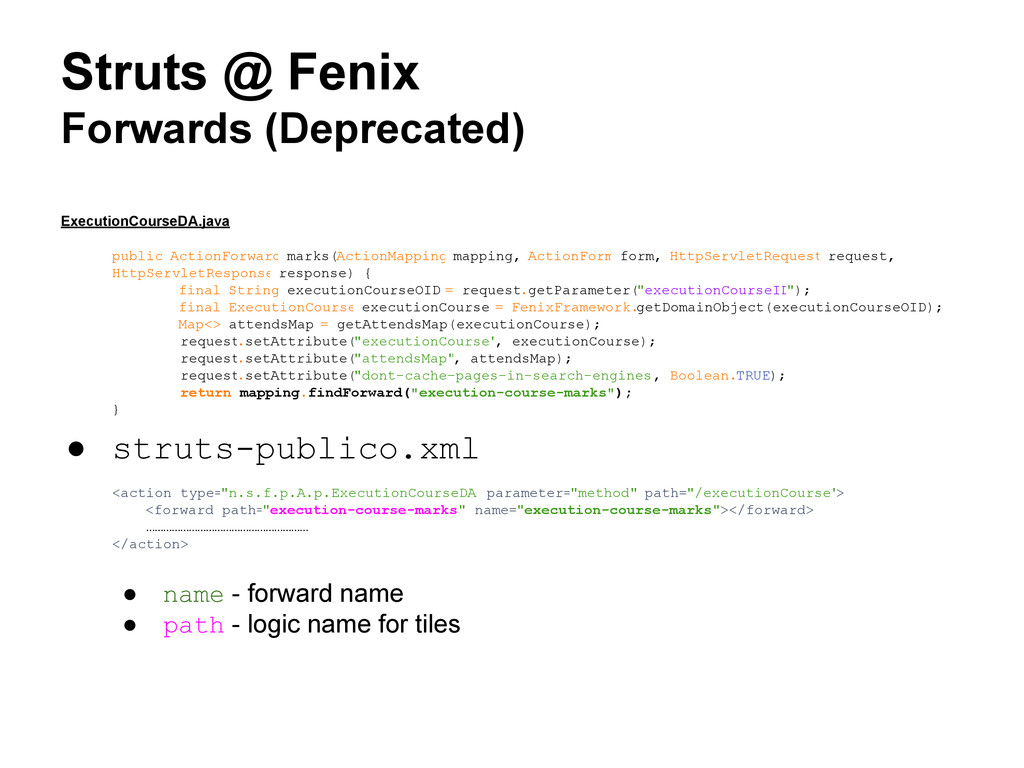

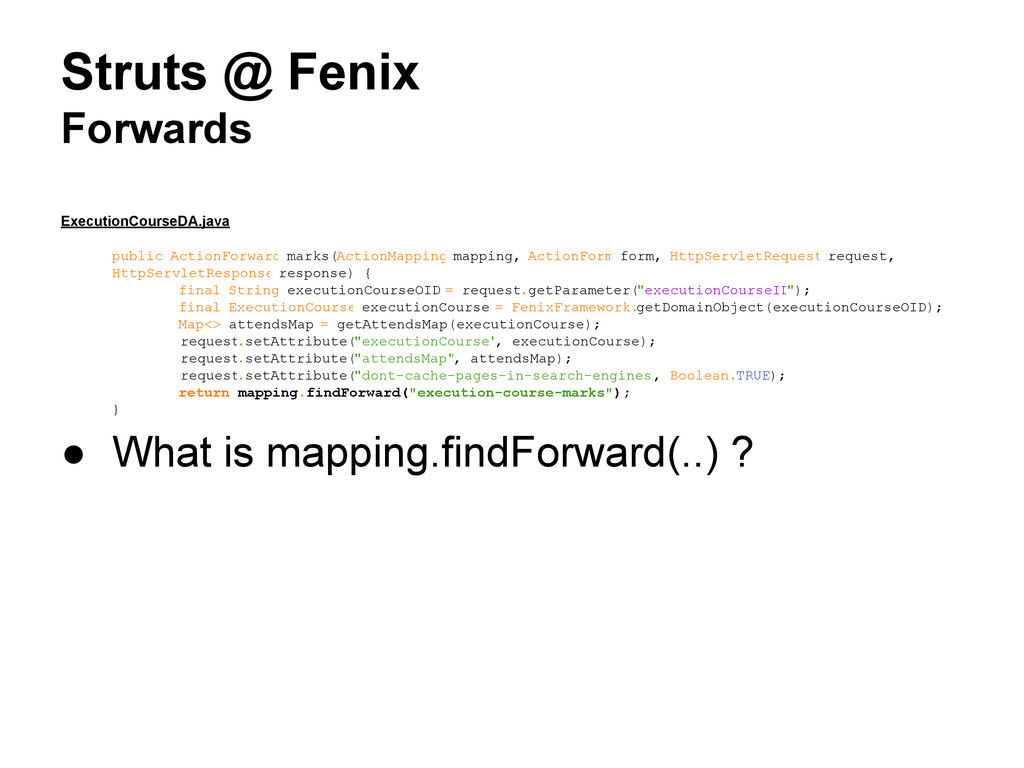

15. ExecutionCourseDA.java public ActionForward marks(ActionMapping mapping, ActionForm form, HttpServletRequest request, HttpServletResponse response) { final String executionCourseOID = request.getParameter("executionCourseID" ); final ExecutionCourse executionCourse = FenixFramework. getDomainObject(executionCourseOID); Map<> attendsMap = getAttendsMap(executionCourse); request .setAttribute("executionCourse" , executionCourse); request .setAttribute("attendsMap", attendsMap); request .setAttribute("dont-cache-pages-in-search-engines" , Boolean.TRUE); return mapping.findForward("execution-course-marks" ); } Struts @ Fenix Forwards
16. ExecutionCourseDA.java public ActionForward marks(ActionMapping mapping, ActionForm form, HttpServletRequest request, HttpServletResponse response) { final String executionCourseOID = request.getParameter("executionCourseID "); final ExecutionCourse executionCourse = FenixFramework. getDomainObject(executionCourseOID); Map<> attendsMap = getAttendsMap(executionCourse); request .setAttribute("executionCourse" , executionCourse); request .setAttribute("attendsMap", attendsMap); request .setAttribute("dont-cache-pages-in-search-engines" , Boolean.TRUE); return mapping.findForward("execution-course-marks"); } • What is mapping.findForward(..) ? Struts @ Fenix Forwards
17. ExecutionCourseDA.java public ActionForward marks(ActionMapping mapping, ActionForm form, HttpServletRequest request, HttpServletResponse response) { final String executionCourseOID = request.getParameter("executionCourseID "); final ExecutionCourse executionCourse = FenixFramework. getDomainObject(executionCourseOID); Map<> attendsMap = getAttendsMap(executionCourse); request .setAttribute("executionCourse" , executionCourse); request .setAttribute("attendsMap", attendsMap); request .setAttribute("dont-cache-pages-in-search-engines" , Boolean.TRUE); return mapping.findForward("execution-course-marks"); } • Forwards annotation (what you should use) @Forwards({ @Forward(name = "execution-course-marks", path = "/publico/executionCourse/marks.jsp") }) public class ExecutionCourseDA extends FenixDispatchAction { … } • name - forward name • path - logic name for tiles Struts @ Fenix Forwards

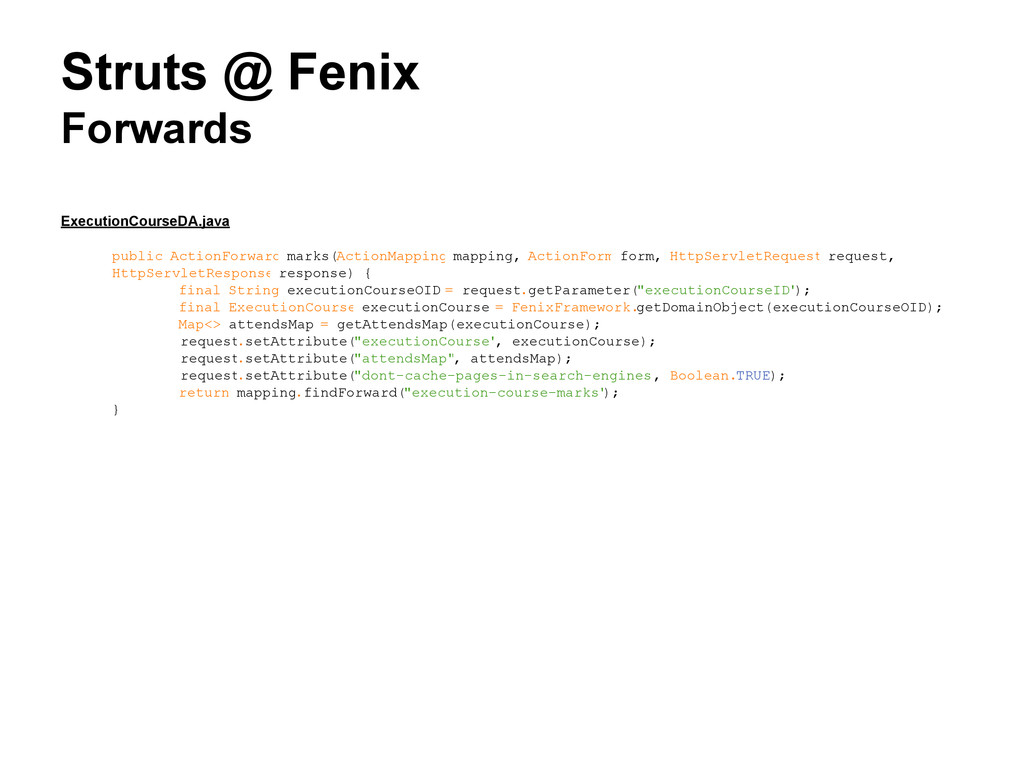

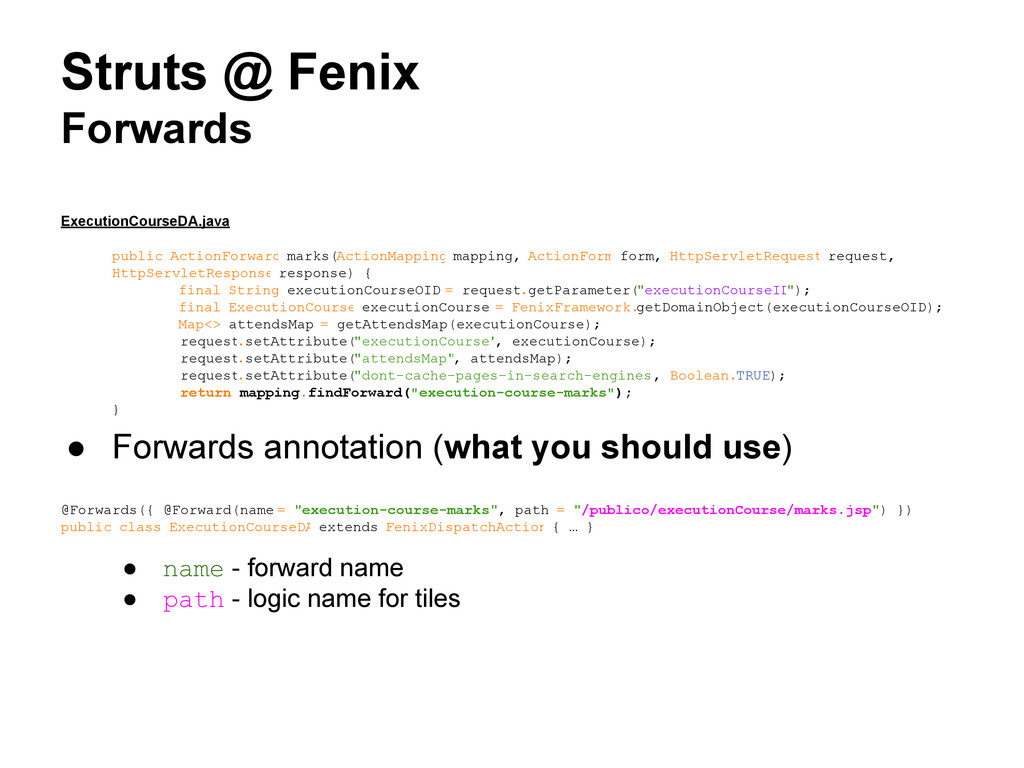

18. ExecutionCourseDA.java public ActionForward marks(ActionMapping mapping, ActionForm form, HttpServletRequest request, HttpServletResponse response) { final String executionCourseOID = request.getParameter("executionCourseID "); final ExecutionCourse executionCourse = FenixFramework. getDomainObject(executionCourseOID); Map<> attendsMap = getAttendsMap(executionCourse); request .setAttribute("executionCourse" , executionCourse); request .setAttribute("attendsMap", attendsMap); request .setAttribute("dont-cache-pages-in-search-engines" , Boolean.TRUE); return mapping.findForward("execution-course-marks"); } • struts-publico.xml <action type="n.s.f.p.A.p.ExecutionCourseDA" parameter="method" path="/executionCourse" > <forward path= "execution-course-marks" name="execution-course-marks"></forward> ………………………………………………… </action> • name - forward name • path - logic name for tiles Struts @ Fenix Forwards (Deprecated)

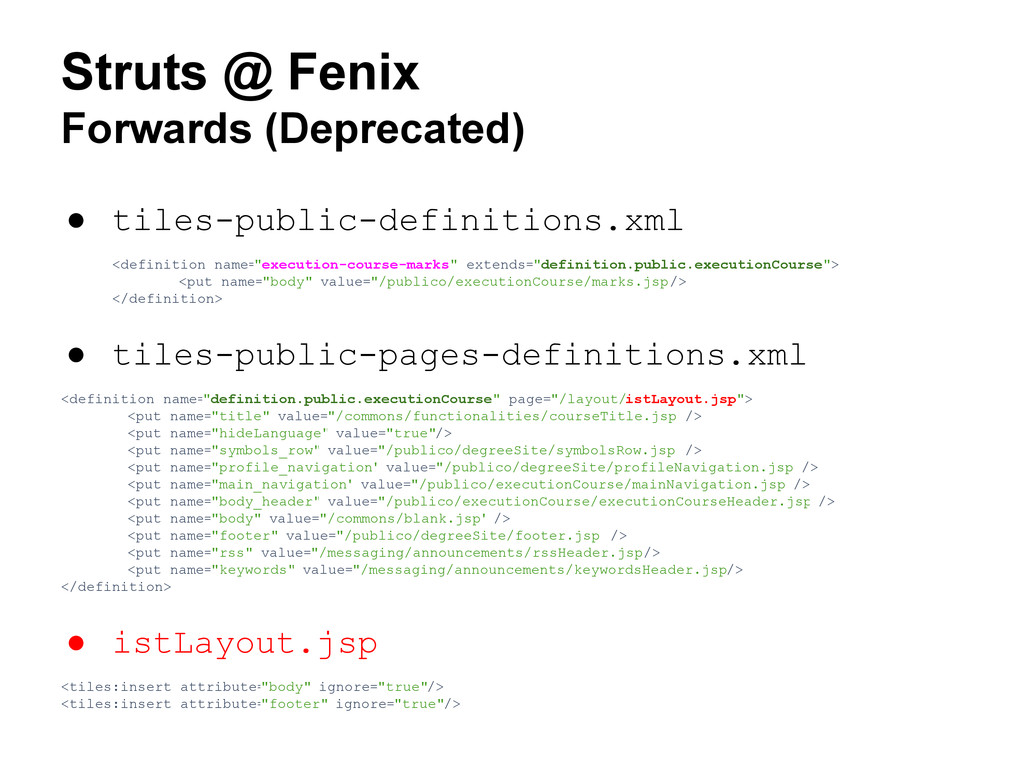

19. • tiles-public-definitions.xml <definition name= "execution-course-marks" extends="definition.public.executionCourse"> <put name="body" value="/publico/executionCourse/marks.jsp" /> </definition> • tiles-public-pages-definitions.xml <definition name= "definition.public.executionCourse" page="/layout/istLayout.jsp"> <put name="title" value="/commons/functionalities/courseTitle.jsp" /> <put name="hideLanguage" value="true"/> <put name="symbols_row" value="/publico/degreeSite/symbolsRow.jsp" /> <put name="profile_navigation" value="/publico/degreeSite/profileNavigation.jsp" /> <put name="main_navigation" value="/publico/executionCourse/mainNavigation.jsp" /> <put name="body_header" value="/publico/executionCourse/executionCourseHeader.jsp" /> <put name="body" value="/commons/blank.jsp" /> <put name="footer" value="/publico/degreeSite/footer.jsp" /> <put name="rss" value="/messaging/announcements/rssHeader.jsp" /> <put name="keywords" value="/messaging/announcements/keywordsHeader.jsp" /> </definition> • istLayout.jsp <tiles:insert attribute= "body" ignore="true"/> <tiles:insert attribute= "footer" ignore="true"/> Struts @ Fenix Forwards (Deprecated)

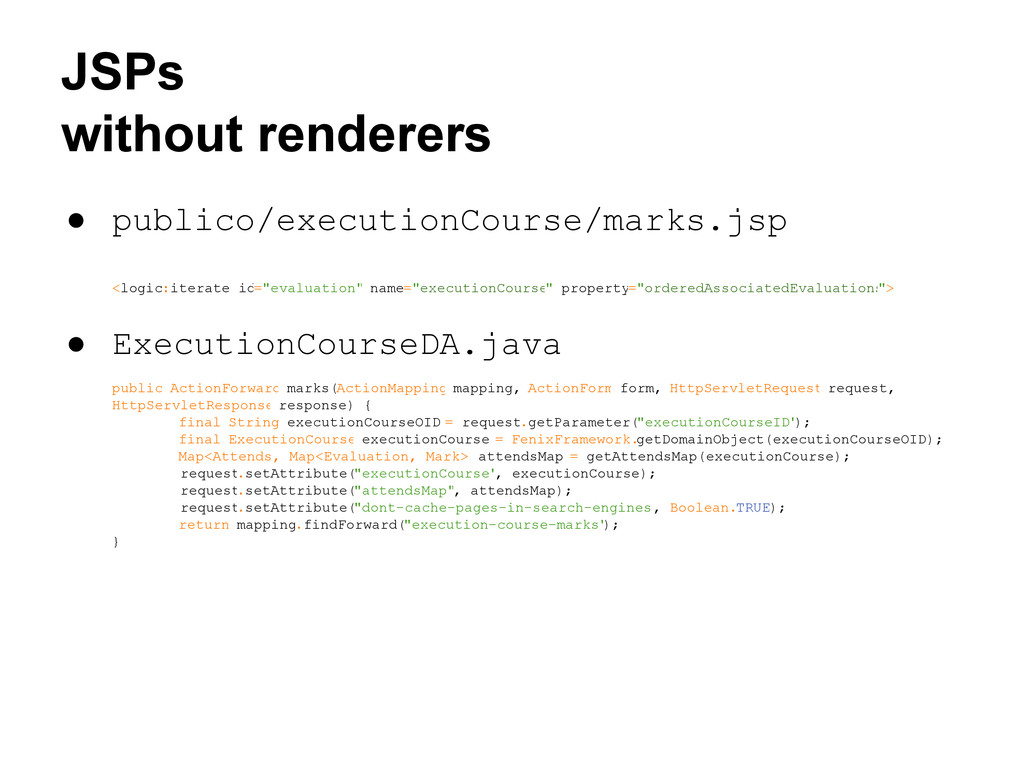

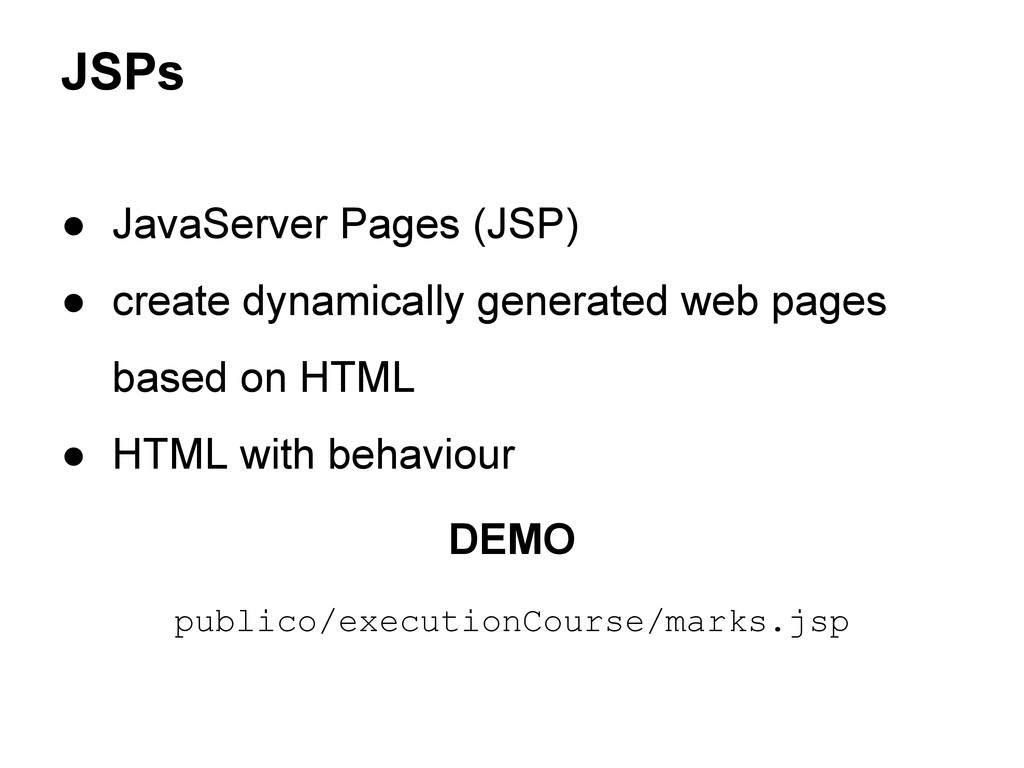

20. JSPs • JavaServer Pages (JSP) • create dynamically generated web pages based on HTML • HTML with behaviour DEMO publico/executionCourse/marks.jsp

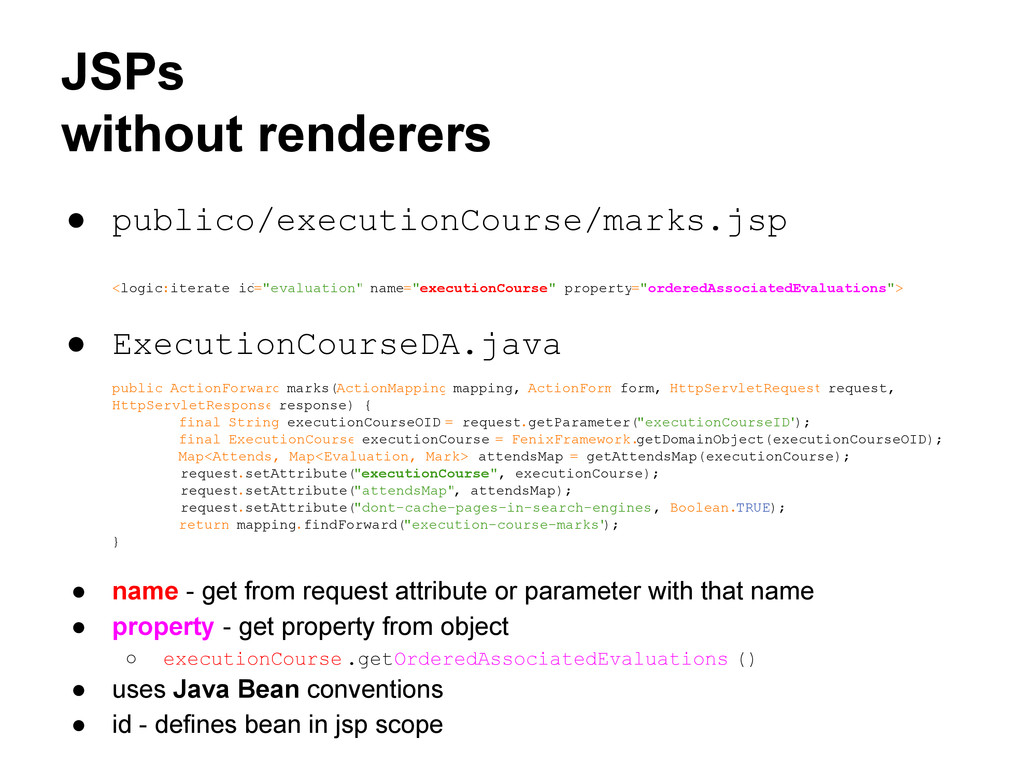

21. • publico/executionCourse/marks.jsp <logic:iterate id="evaluation" name="executionCourse " property="orderedAssociatedEvaluations "> • ExecutionCourseDA.java public ActionForward marks(ActionMapping mapping, ActionForm form, HttpServletRequest request, HttpServletResponse response) { final String executionCourseOID = request.getParameter("executionCourseID" ); final ExecutionCourse executionCourse = FenixFramework. getDomainObject(executionCourseOID); Map<Attends, Map<Evaluation, Mark>> attendsMap = getAttendsMap(executionCourse); request .setAttribute("executionCourse" , executionCourse); request .setAttribute("attendsMap", attendsMap); request .setAttribute("dont-cache-pages-in-search-engines" , Boolean.TRUE); return mapping.findForward("execution-course-marks" ); } JSPs without renderers
22. • publico/executionCourse/marks.jsp <logic:iterate id="evaluation" name="executionCourse" property="orderedAssociatedEvaluations"> • ExecutionCourseDA.java public ActionForward marks(ActionMapping mapping, ActionForm form, HttpServletRequest request, HttpServletResponse response) { final String executionCourseOID = request.getParameter("executionCourseID" ); final ExecutionCourse executionCourse = FenixFramework. getDomainObject(executionCourseOID); Map<Attends, Map<Evaluation, Mark>> attendsMap = getAttendsMap(executionCourse); request .setAttribute("executionCourse", executionCourse); request .setAttribute("attendsMap", attendsMap); request .setAttribute("dont-cache-pages-in-search-engines" , Boolean.TRUE); return mapping.findForward("execution-course-marks" ); } • name - get from request attribute or parameter with that name • property - get property from object ◦ executionCourse .getOrderedAssociatedEvaluations () • uses Java Bean conventions • id - defines bean in jsp scope JSPs without renderers

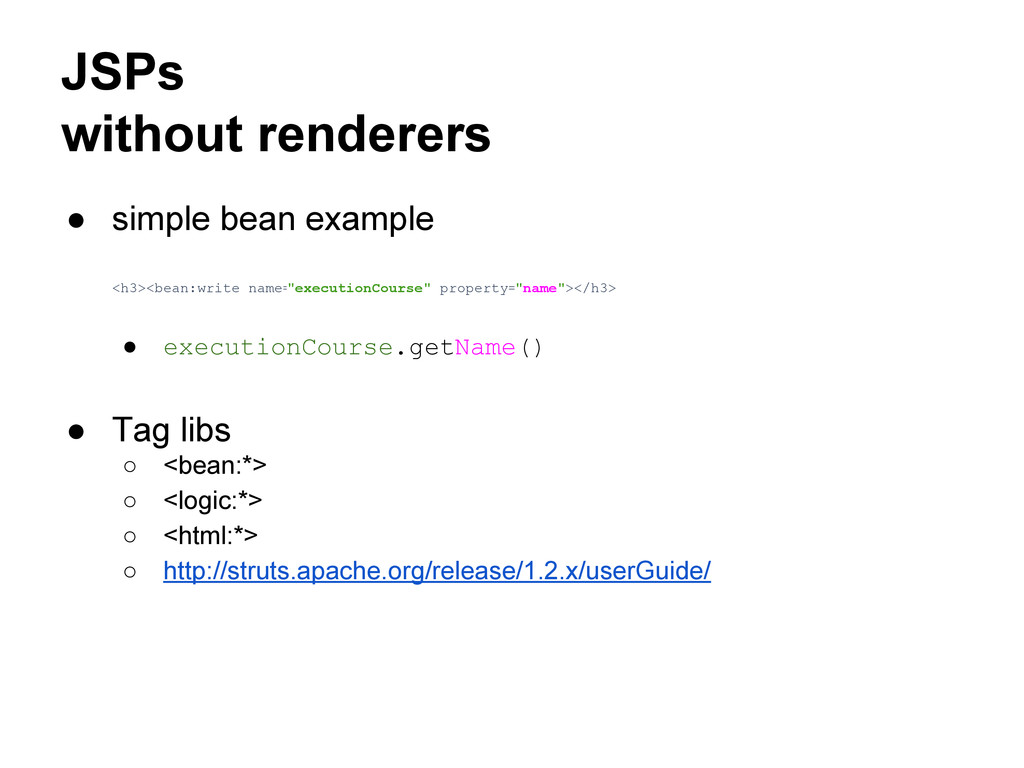

23. • simple bean example <h3><bean:write name= "executionCourse" property="name"></h3> • executionCourse.getName() • Tag libs ◦ <bean:*> ◦ <logic:*> ◦ <html:*> ◦ http://struts.apache.org/release/1.2.x/userGuide/ JSPs without renderers

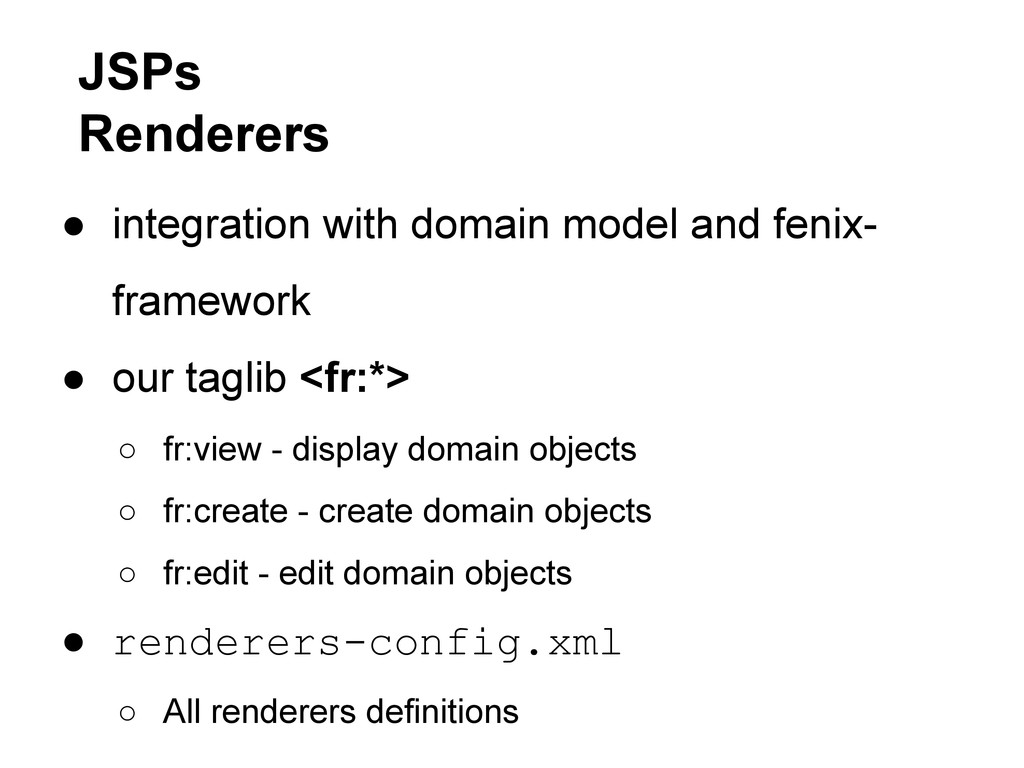

24. • integration with domain model and fenix- framework • our taglib <fr:*> ◦ fr:view - display domain objects ◦ fr:create - create domain objects ◦ fr:edit - edit domain objects • renderers-config.xml ◦ All renderers definitions JSPs Renderers

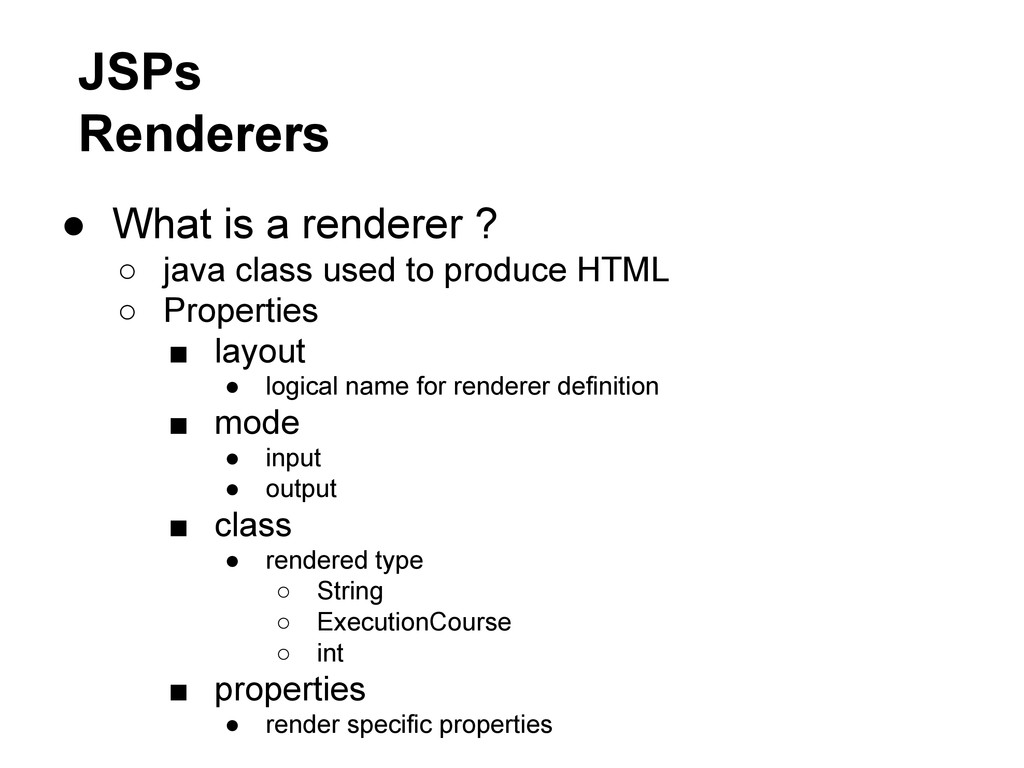

25. • What is a renderer ? ◦ java class used to produce HTML ◦ Properties ▪ layout • logical name for renderer definition ▪ mode • input • output ▪ class • rendered type ◦ String ◦ ExecutionCourse ◦ int ▪ properties • render specific properties JSPs Renderers

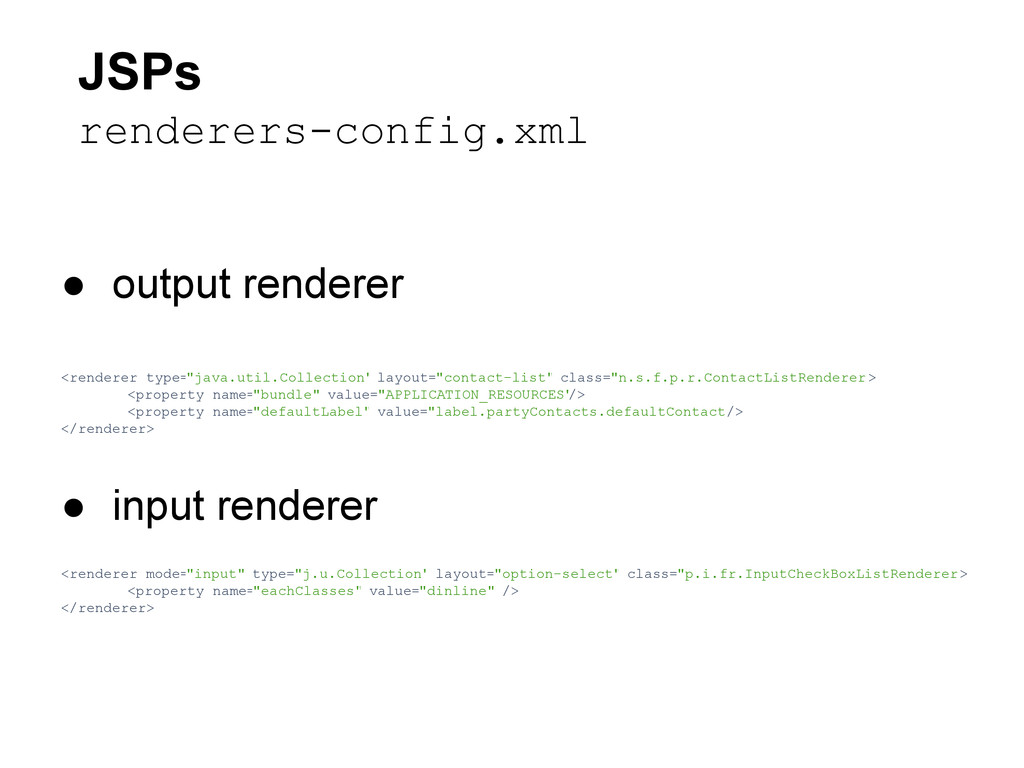

26. • output renderer <renderer type= "java.util.Collection" layout="contact-list" class="n.s.f.p.r.ContactListRenderer" > <property name= "bundle" value="APPLICATION_RESOURCES" /> <property name= "defaultLabel" value="label.partyContacts.defaultContact" /> </renderer> • input renderer <renderer mode= "input" type="j.u.Collection" layout="option-select" class="p.i.fr.InputCheckBoxListRenderer" > <property name= "eachClasses" value="dinline" /> </renderer> JSPs renderers-config.xml

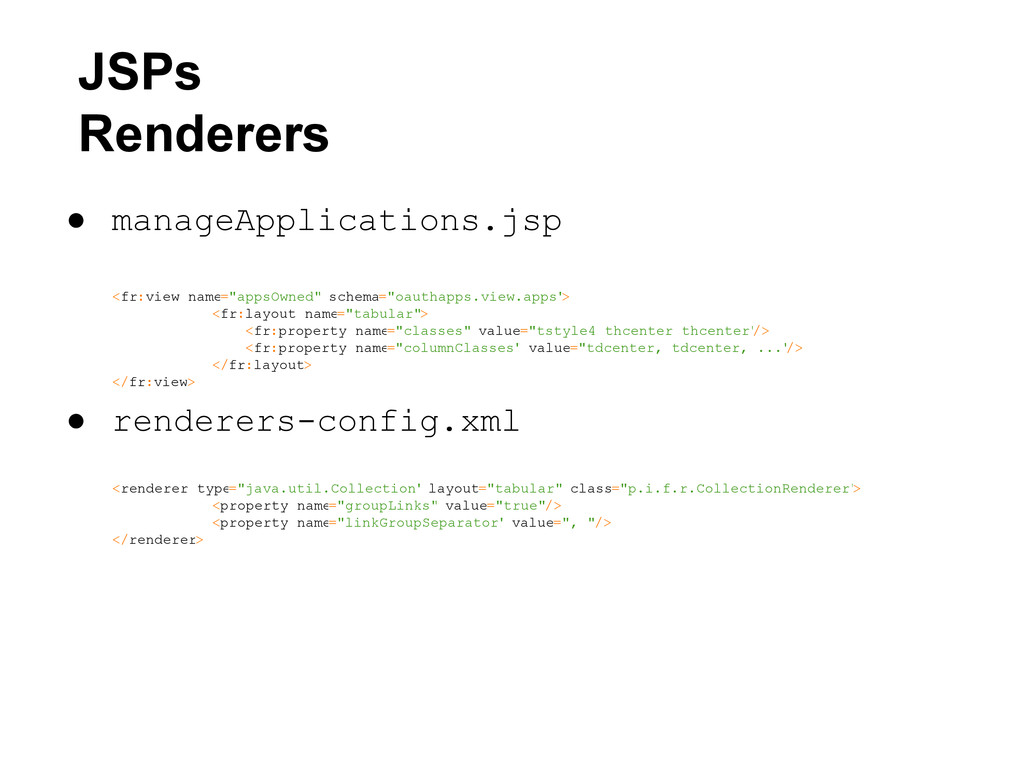

27. • manageApplications.jsp <fr:view name="appsOwned" schema="oauthapps.view.apps" > <fr:layout name="tabular"> <fr:property name="classes" value="tstyle4 thcenter thcenter" /> <fr:property name="columnClasses" value="tdcenter, tdcenter, ..." /> </fr:layout> </fr:view> • renderers-config.xml <renderer type="java.util.Collection" layout="tabular" class="p.i.f.r.CollectionRenderer" > <property name="groupLinks" value="true"/> <property name="linkGroupSeparator" value=", "/> </renderer> JSPs Renderers
28. • manageApplications.jsp <fr:view name="appsOwned" schema="oauthapps.view.apps" > <fr:layout name="tabular"> <fr:property name="classes" value="tstyle4 thcenter thcenter" /> <fr:property name="columnClasses" value="tdcenter, tdcenter, ..." /> </fr:layout> </fr:view> • renderers-config.xml <renderer type="java.util.Collection" layout="tabular" class="p.i.f.r.CollectionRenderer" > <property name="groupLinks" value="true"/> <property name="linkGroupSeparator" value=", "/> </renderer> JSPs Renderers

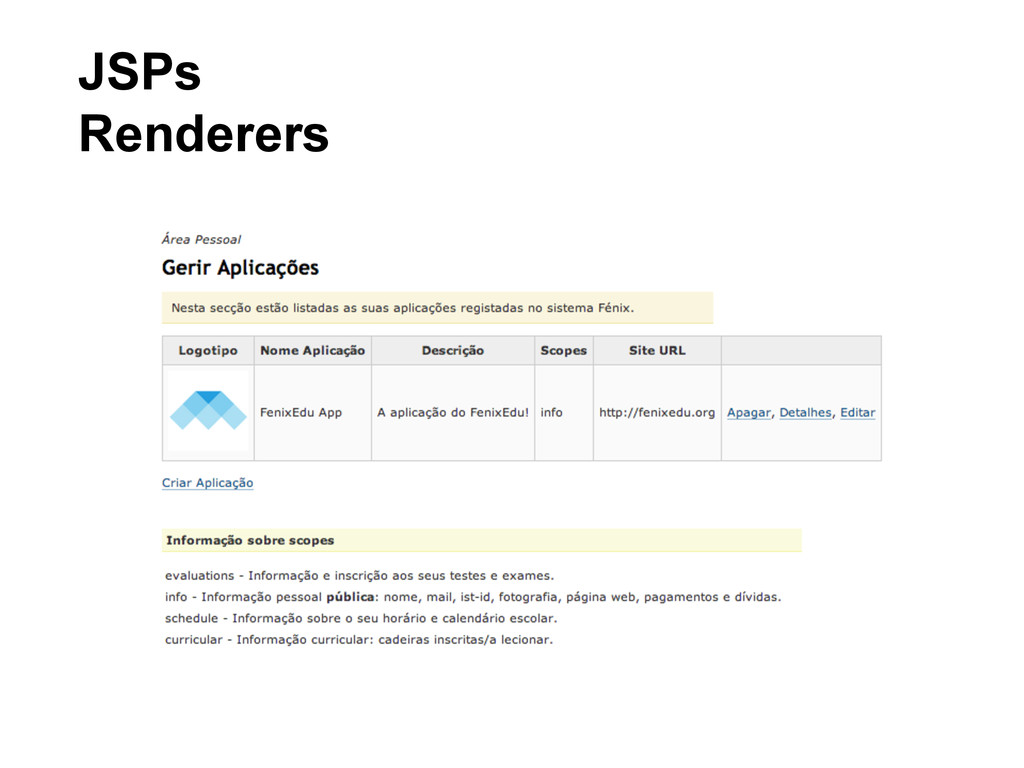

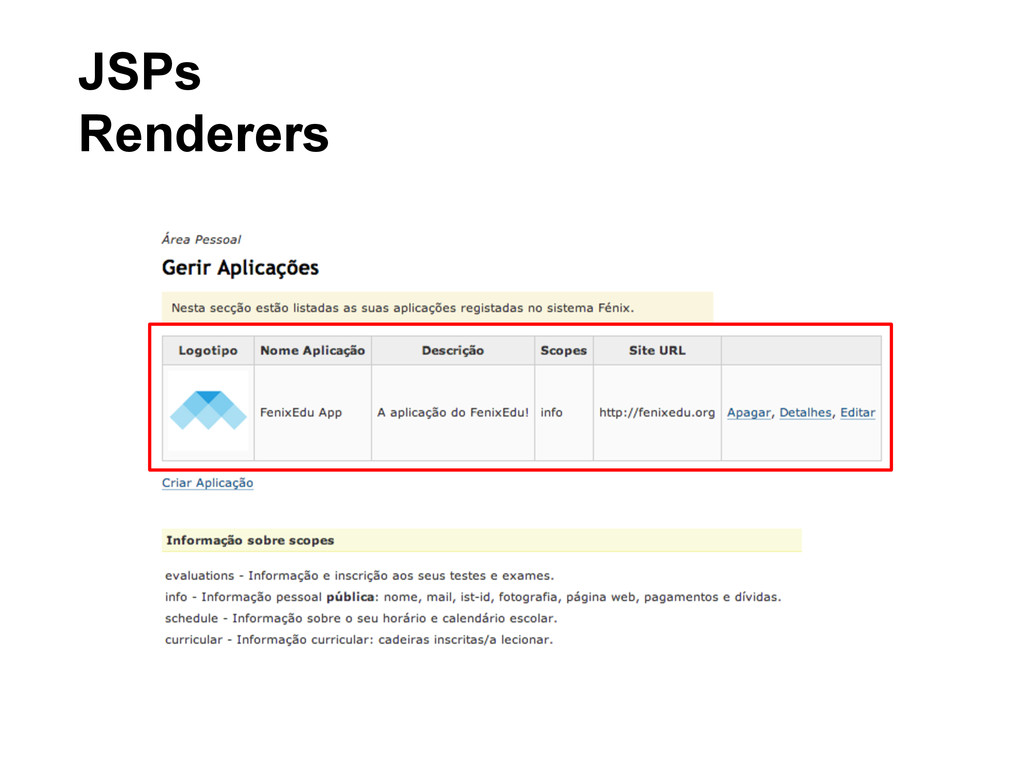

29. JSPs Renderers
30. JSPs Renderers

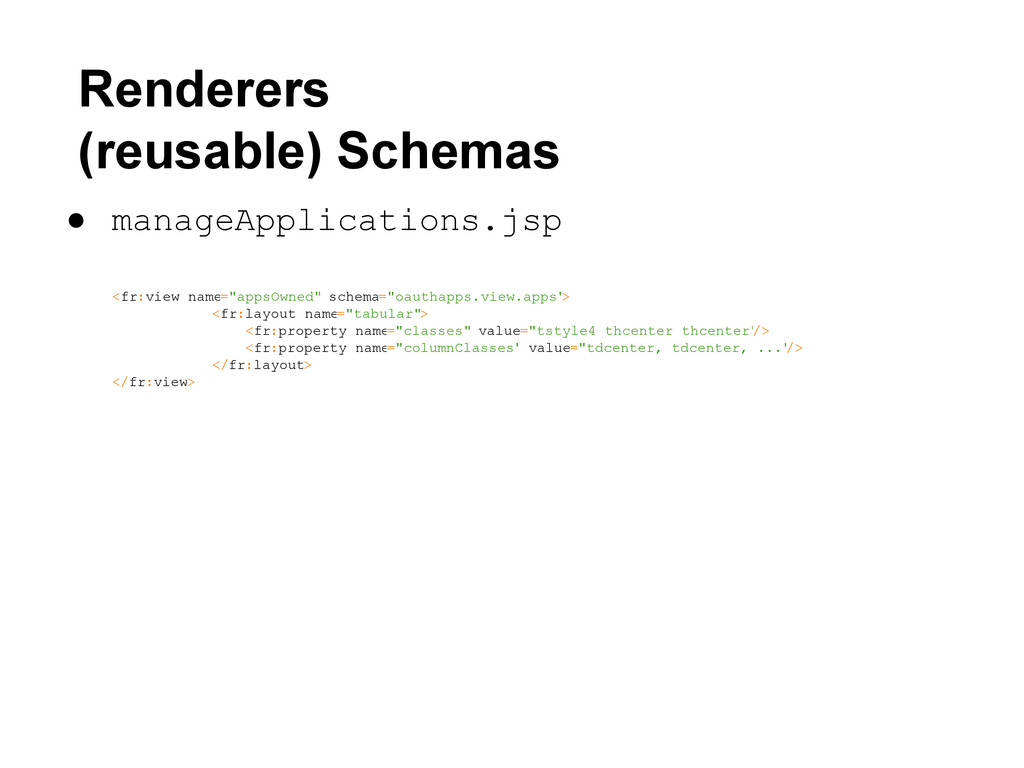

31. • manageApplications.jsp <fr:view name="appsOwned" schema="oauthapps.view.apps" > <fr:layout name="tabular"> <fr:property name="classes" value="tstyle4 thcenter thcenter" /> <fr:property name="columnClasses" value="tdcenter, tdcenter, ..." /> </fr:layout> </fr:view> Renderers (reusable) Schemas
32. • manageApplications.jsp <fr:view name="appsOwned" schema="oauthapps.view.apps"> <fr:layout name="tabular"> <fr:property name="classes" value="tstyle4 thcenter thcenter" /> <fr:property name="columnClasses" value="tdcenter, tdcenter, ..." /> </fr:layout> </fr:view> Renderers (reusable) Schemas

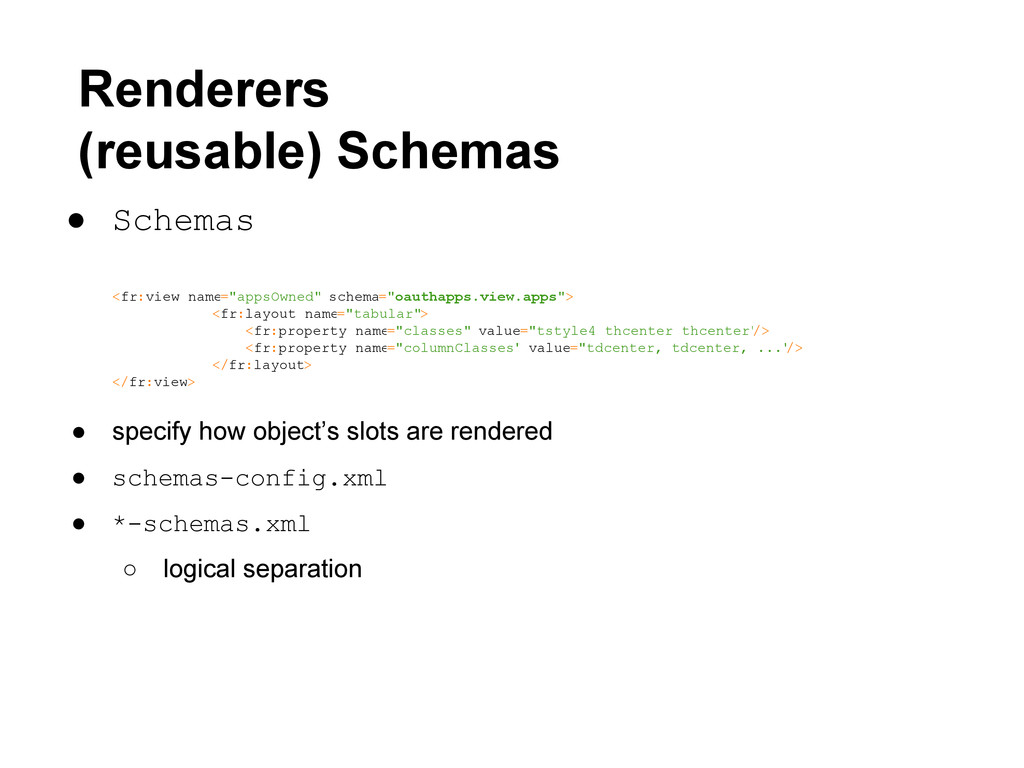

33. • Schemas <fr:view name="appsOwned" schema="oauthapps.view.apps"> <fr:layout name="tabular"> <fr:property name="classes" value="tstyle4 thcenter thcenter" /> <fr:property name="columnClasses" value="tdcenter, tdcenter, ..." /> </fr:layout> </fr:view> • specify how object’s slots are rendered • schemas-config.xml • *-schemas.xml ◦ logical separation Renderers (reusable) Schemas

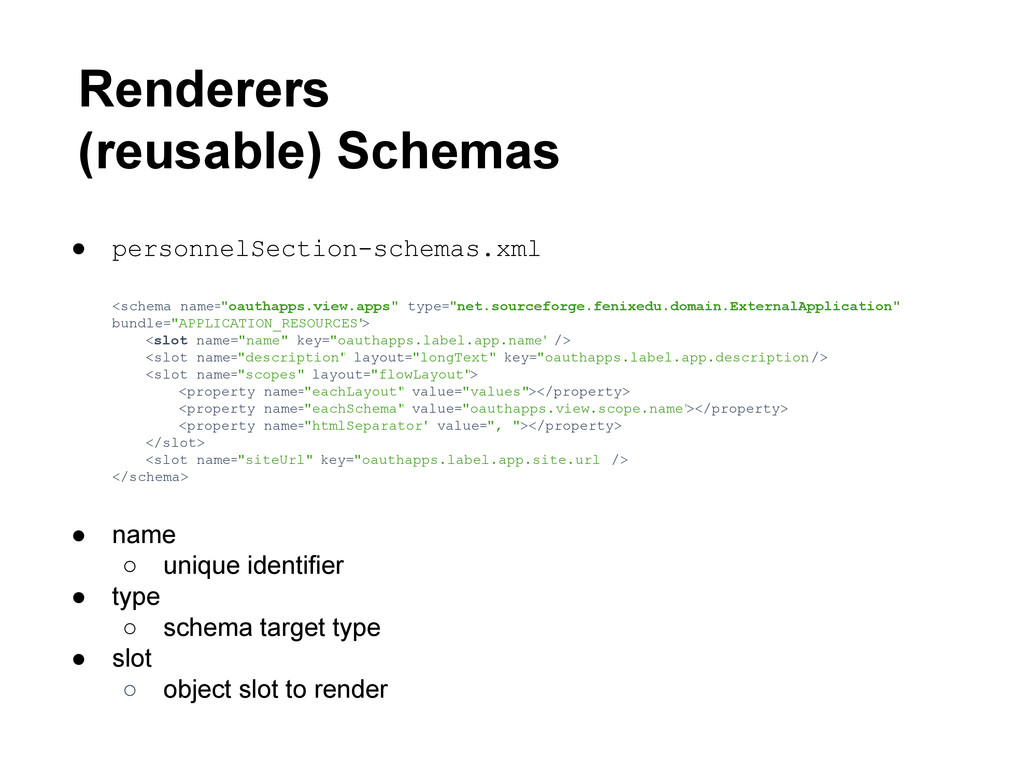

34. • personnelSection-schemas.xml <schema name="oauthapps.view.apps" type="net.sourceforge.fenixedu.domain.ExternalApplication" bundle="APPLICATION_RESOURCES" > <slot name="name" key="oauthapps.label.app.name" /> <slot name="description" layout="longText" key="oauthapps.label.app.description" /> <slot name="scopes" layout="flowLayout"> <property name= "eachLayout" value="values"></property> <property name= "eachSchema" value="oauthapps.view.scope.name" ></property> <property name= "htmlSeparator" value=", "></property> </slot> <slot name="siteUrl" key="oauthapps.label.app.site.url" /> </schema> • name ◦ unique identifier • type ◦ schema target type • slot ◦ object slot to render Renderers (reusable) Schemas

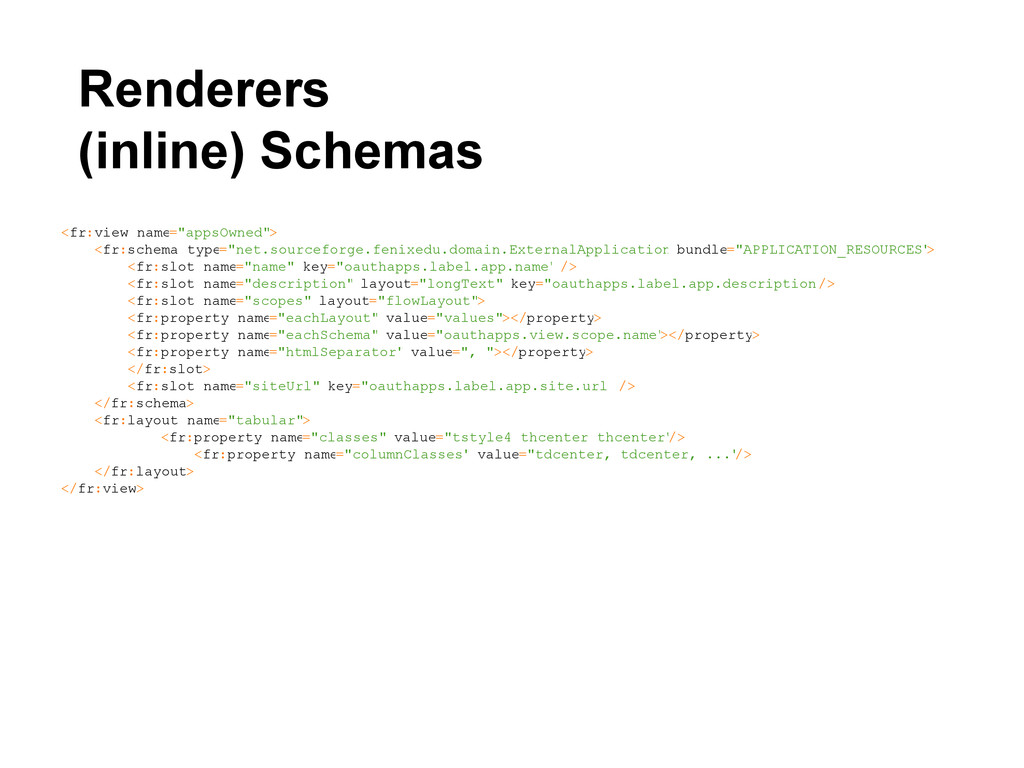

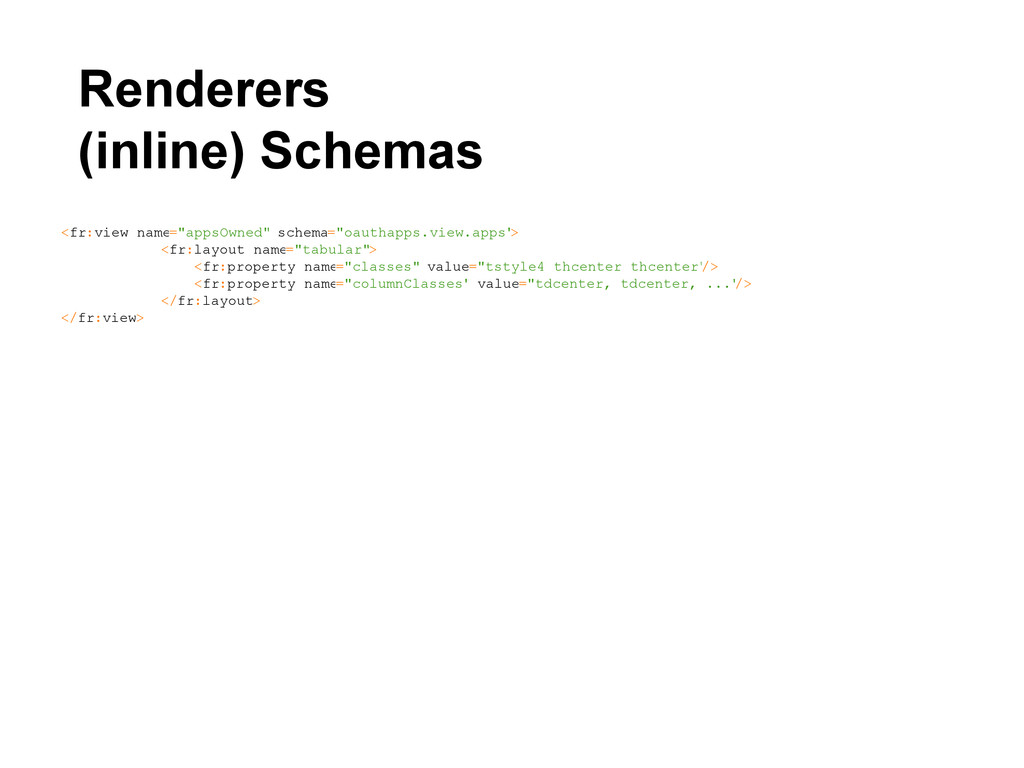

35. <fr:view name="appsOwned" schema="oauthapps.view.apps" > <fr:layout name="tabular"> <fr:property name="classes" value="tstyle4 thcenter thcenter" /> <fr:property name="columnClasses" value="tdcenter, tdcenter, ..." /> </fr:layout> </fr:view> Renderers (inline) Schemas
36. <fr:view name="appsOwned"> <fr:schema type="net.sourceforge.fenixedu.domain.ExternalApplication" bundle="APPLICATION_RESOURCES" > <fr:slot name="name" key="oauthapps.label.app.name" /> <fr:slot name="description" layout="longText" key="oauthapps.label.app.description" /> <fr:slot name="scopes" layout="flowLayout"> <fr:property name="eachLayout" value="values"></property> <fr:property name="eachSchema" value="oauthapps.view.scope.name" ></property> <fr:property name="htmlSeparator" value=", "></property> </fr:slot> <fr:slot name="siteUrl" key="oauthapps.label.app.site.url" /> </fr:schema> <fr:layout name="tabular"> <fr:property name="classes" value="tstyle4 thcenter thcenter" /> <fr:property name="columnClasses" value="tdcenter, tdcenter, ..." /> </fr:layout> </fr:view> Renderers (inline) Schemas

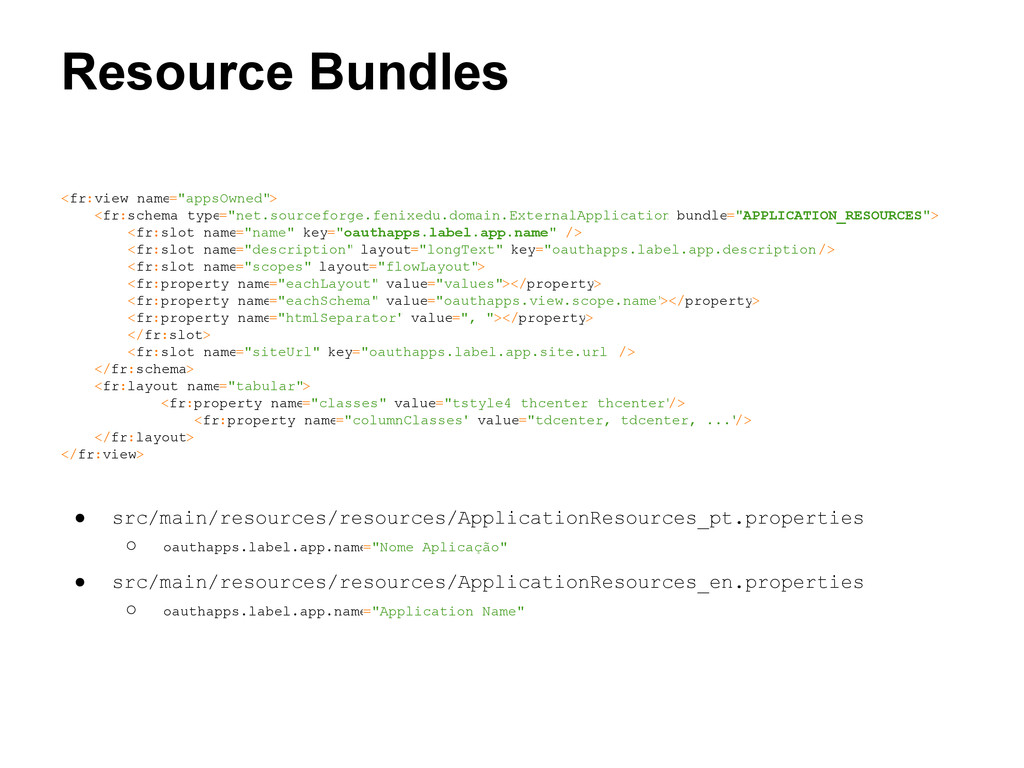

37. Resource Bundles <fr:view name="appsOwned"> <fr:schema type="net.sourceforge.fenixedu.domain.ExternalApplication" bundle="APPLICATION_RESOURCES"> <fr:slot name="name" key="oauthapps.label.app.name" /> <fr:slot name="description" layout="longText" key="oauthapps.label.app.description" /> <fr:slot name="scopes" layout="flowLayout"> <fr:property name="eachLayout" value="values"></property> <fr:property name="eachSchema" value="oauthapps.view.scope.name" ></property> <fr:property name="htmlSeparator" value=", "></property> </fr:slot> <fr:slot name="siteUrl" key="oauthapps.label.app.site.url" /> </fr:schema> <fr:layout name="tabular"> <fr:property name="classes" value="tstyle4 thcenter thcenter" /> <fr:property name="columnClasses" value="tdcenter, tdcenter, ..." /> </fr:layout> </fr:view> • src/main/resources/resources/ApplicationResources_pt.properties ◦ oauthapps.label.app.name ="Nome Aplicação" • src/main/resources/resources/ApplicationResources_en.properties ◦ oauthapps.label.app.name ="Application Name"

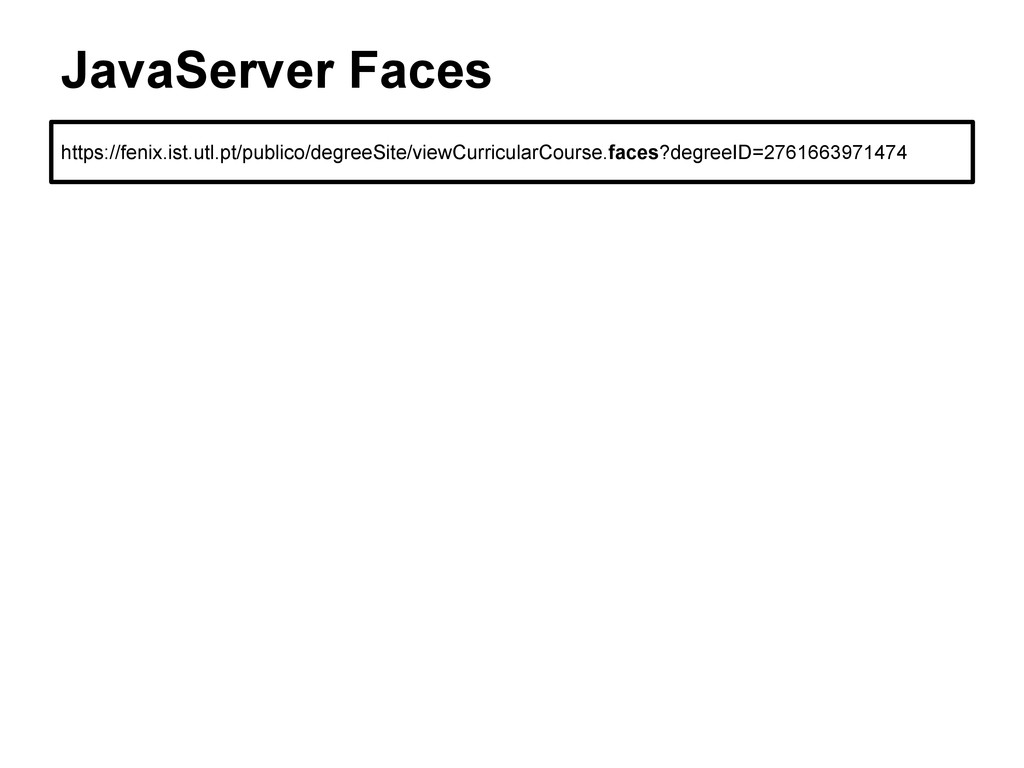

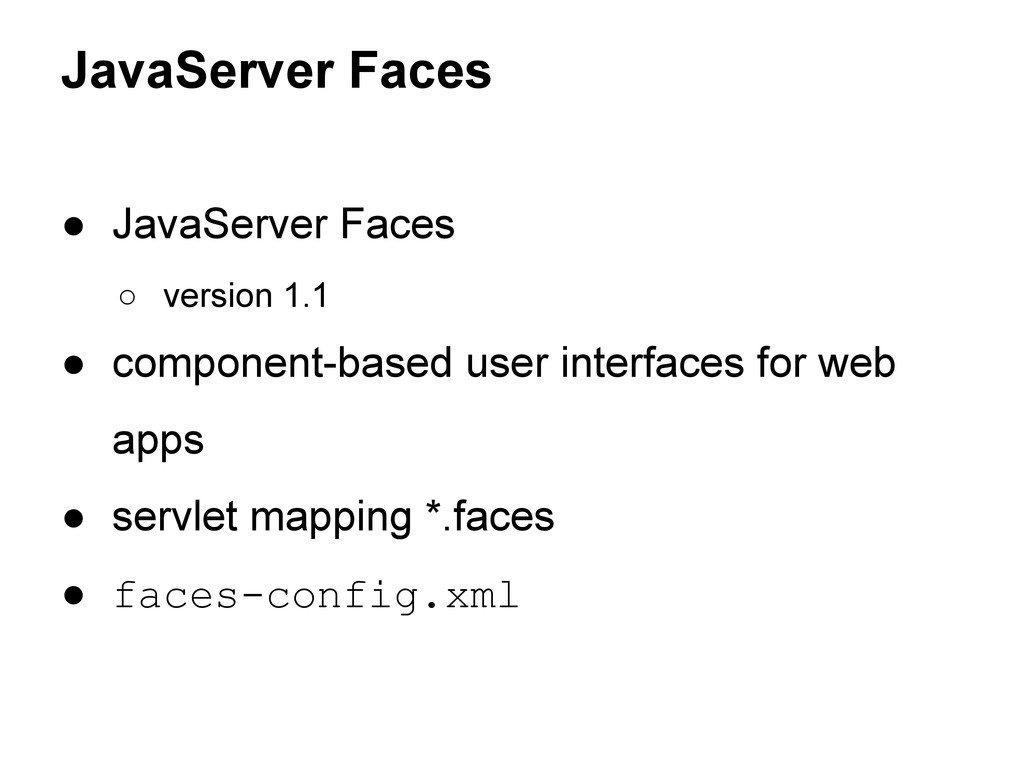

38. JavaServer Faces • JavaServer Faces ◦ version 1.1 • component-based user interfaces for web apps • servlet mapping *.faces • faces-config.xml
39. https://fenix.ist.utl.pt/publico/degreeSite/viewCurricularCourse.faces?degreeID=2761663971474 JavaServer Faces

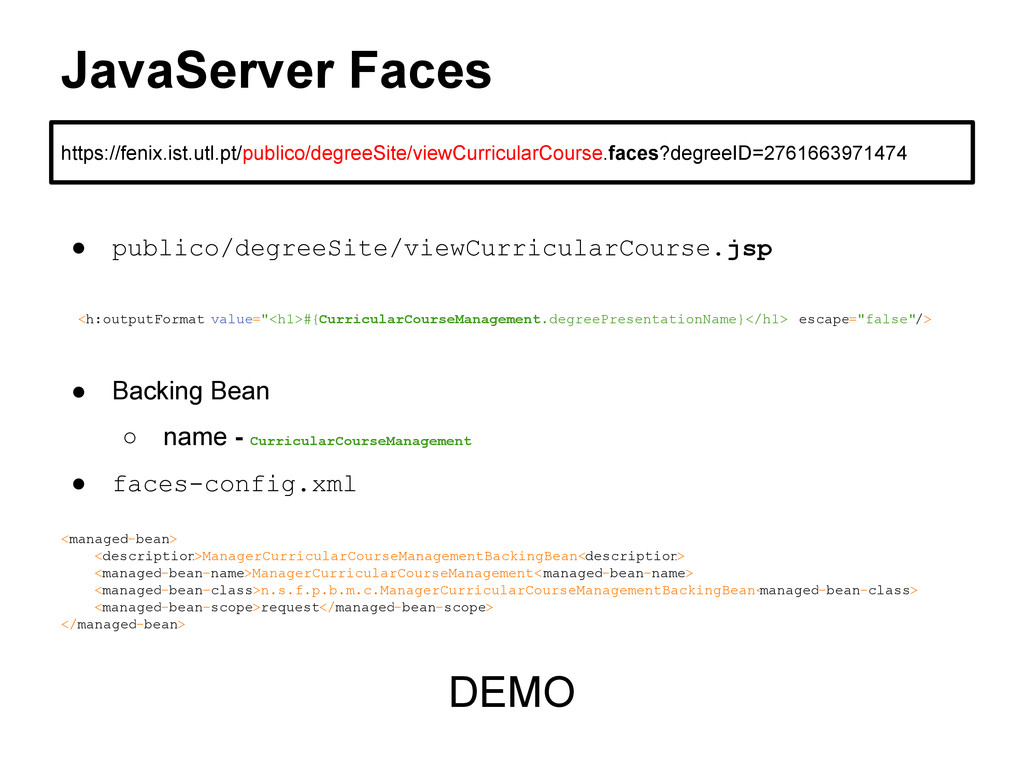

40. • publico/degreeSite/viewCurricularCourse.jsp <h:outputFormat value="<h1>#{CurricularCourseManagement.degreePresentationName}</h1>" escape="false"/> • Backing Bean ◦ name - CurricularCourseManagement • faces-config.xml <managed-bean> <description>ManagerCurricularCourseManagementBackingBean</ description> <managed-bean-name>ManagerCurricularCourseManagement</ managed-bean-name> <managed-bean-class>n.s.f.p.b.m.c.ManagerCurricularCourseManagementBackingBean</ managed-bean-class> <managed-bean-scope>request</managed-bean-scope> </managed-bean> DEMO https://fenix.ist.utl.pt/publico/degreeSite/viewCurricularCourse.faces?degreeID=2761663971474 JavaServer Faces

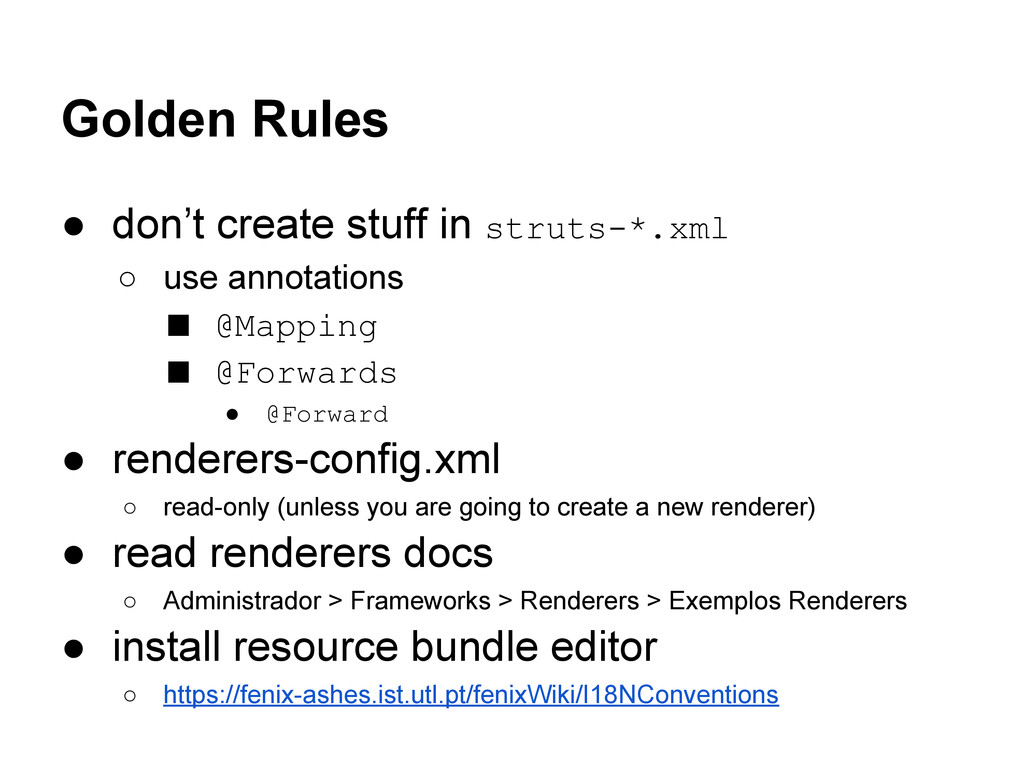

41. Golden Rules • don’t create stuff in struts-*.xml ◦ use annotations ▪ @Mapping ▪ @Forwards • @Forward • renderers-config.xml ◦ read-only (unless you are going to create a new renderer) • read renderers docs ◦ Administrador > Frameworks > Renderers > Exemplos Renderers • install resource bundle editor ◦ https://fenix-ashes.ist.utl.pt/fenixWiki/I18NConventions
