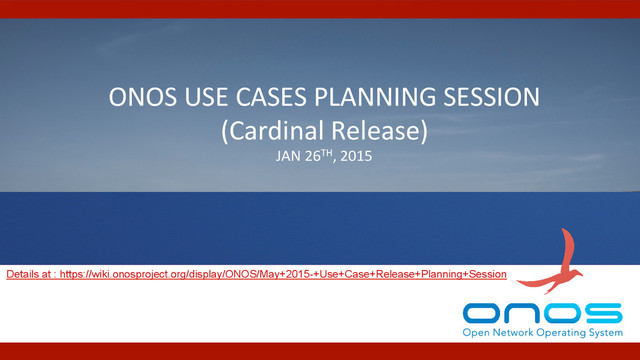

  1. ONOS  USE  CASES  PLANNING  SESSION   (Cardinal  Release)   JAN

     26TH,  2015     Details at : https://wiki.onosproject.org/display/ONOS/May+2015-+Use+Case+Release+Planning+Session
  2. Blackbird  release   Cardinal  Release   August  Release   November

     release   Nov   Sep   Aug   Jul   Jun   May   Mar   Feb   Jan’15   Dec’14   Apr   Oct   •  Target  for  use  cases  –Cardinal  release  (May  2015)   •  But  work  for  use  cases  is  already  in  progress.  Some  parts  get  into  master  in  Blackbird  and   majority  in  Cardinal.     ONOS  Use  Cases  Planning  Session:  Timelines
  3. 1 2 3 Goals  of  Use  Case  Planning  Session

    •  Sync  up  on  the  current  status  and  the   priori[zed  list  of  to-­‐do  items  for  each  use   case  (targeted  for  Cardinal  Release)   •  Introduce  the  Use  Cases  Steering  team   •  Tom  Anschutz,  AT&T   •  Yoichi  Sato,  NTT   •  Introduce  team  leads  for  each  use  case.   •  Iden[fy  concrete  ways  in  which  the  ONOS   community  can  par[cipate  and  collaborate   on  ONOS  use  cases.   COMMUNITY   PLANNING   STEERING  TEAM
  4. Use  Cases  Steering  Team  Intro   – Tom  Anschutz,  AT&T

    – Yoichi  Sato,  NTT   (  Please  view  video)
  5. ONOS  USE  CASES  –  PART  1   BLACKBIRD/CARDINAL  RELEASE

    USE  CASE  PLANNING  SESSION-­‐  JAN  26TH,  2015
  6. Use  Case  1-­‐  Mul[layer  SDN   Control  for  IP+Op[cal

    Marc  De  Leenheer,  ON.Lab   Tom  Tofigh,  AT&T
  7. Status  and  Goals   ¡  ONOS  to  handle  converged  control

     of  forwarding,  configura[on  and   monitoring  in  mul[-­‐layer  networks   ¡  Scale  out,  HA,  and  high  performance   ¡  Current  status   ¡  Demonstrated  converged  L0  and  L3  bandwidth  provisioning  and  restora[on   ¡  Running  on  emulated  network  (LINC-­‐OE,  OVS,  and  Mininet)   ¡  Southbound  fully  based  on  OpenFlow   ¡  Missing  features   ¡  No  real  hardware   ¡  No  real  scale
  8. Epics   ¡  Epic  1:  Proof  of  Concept   ¡ 

    Mul[-­‐vendor,  mul[-­‐layer  (L0  &  L3)  hardware  testbed   ¡  ROADMs  by  Ciena  &  Fujitsu,  TL1  southbound   ¡  Packet  switches  by  Corsa,  OF1.3  southbound   ¡  Demonstrate  bandwidth  provisioning  and  restora[on     ¡  Epic  2:  Scalable,  open  source  reference  pladorm  for  mul[-­‐layer  networks   ¡  Soeware  environment  to  prototype,  evaluate,  and  validate   ¡  Scale  &  HA  for  packet/op[cal  app   ¡  Enhanced  integra[on  of  LINC-­‐OE  in  Mininet   ¡  Dynamic  network  elements  (ROADM,  ports,  links)
  9. Areas  of  Community  Par[cipa[on   ¡  Epic  1   ¡ 

    External  PCE   ¡  External  service  for  ONOS’  intent  compiler  and  resource  manager   ¡  PCE  protocol   ¡  Enhanced  network  resiliency   ¡  1+1,  1:1,  1:N  considering  Shared  Risk  Groups   ¡  Automa[c  Protec[on  Switching   ¡  Epic  2   ¡  Neighbor  discovery   ¡  Based  on  ONF  Op[cal  Transport  WG:  OpenFlow  1.3  extensions   ¡  OTN  Layer   ¡  Physical  Impairments   ¡  Model  in  LINC,  observability  in  ONOS
  10. Related  Informa[on   Person Organization Email Marc De Leenheer ON.Lab

    [email protected] Tom Tofigh AT&T [email protected] Location Notes Link Wiki Docs, tutorial, videos https://wiki.onosproject.org/display/ ONOS/Packet+Optical Google Drive Slides for planning, design https://drive.google.com/drive/u/0/ #folders/ 0B1ROTy2_BxgKV3V2TDRCSzBmQU0 Jira Issue tracking, spring planning https://jira.onosproject.org/secure/ RapidBoard.jspa? rapidView=1&view=planning&select
  11. Use  Case  2:  SDN-­‐IP  /  Deployment-­‐  1:  Internet2

    Connec[ng  Internet2  islands  through  SDN   Pingping  Lin,  Luca  Prete,  Pavlin  Radoslavov     For  more  info,  please  write  to  [email protected]
  12. Use-­‐case  overview     Goal •  Connect external (legacy) networks

    through SDN •  Provide L3 functionalities using OF switches Features •  6 universities distributed around the country will communicate together through SDN •  The SDN will act as a transit network •  SDN-IP: the SDN and the external networks will exchange routes through BGP •  SDN benefits + ONOS added values •  43 switches of different vendors
  13. SDN-­‐IP      What  is  it?     •   SDN-­‐IP

     is  an  applica[on  running  on  top  of  ONOS            Features   •   It  allows  your  SDN  to  scale  and  connect  to  the  rest  of  the  Internet     •   You  can  migrate  your  exis[ng  network  to  SDN  incrementally     •   You  can  scale  your  SDN  control  plane        Technology   •   It  exchanges  routes  peering  with  external  edge  routers  (BGP  –  vendor  independent)     •   HA  func[onali[es  (both  in  data  plane  and  control  plane)
  14. I2  actual  progress   Today •  The code seems “quite”

    stable, even if it’s always the first ONOS release •  Integration automatic tests missed, but in progress •  Collaboration with I2: SDN-IP (almost) deployed in the Internet2 testlab •  Issues with a vendor not supporting dst_mac re-write (blocking) To be done •  Understand the feasibility of the deployment •  Internet2 would validate the platform before moving to the “official” deployment •  Involving interested universities. Deployment on AL2S with I2 support •  Performances improvements not needed for the specific deployment
  15. TBD:  Epics  and  stories  (Internet2)   Internet2 - ONOS-493 • 

    Finish the deployment in the Internet2 testlab - ONOS-494 o  More discussions on the feasibility of the deployment o  Validation of the solution and discussion with I2 •  Deploy on Internet2 AL2S - ONOS-495 o  Re-build with the Internet2 staff the production testbed o  Involve interested universities and support them along the deployment
  16. SDN-­‐IP  new  func[ons  (scheduled  by  May)   Here is where

    we would appreciate the help of the community! •  Performances tests and improvements (up to 600,000 routes) - ONOS-62 •  Understand the network modeling and configuration refactoring - ONOS-642/65 •  Security: explicit BGP configuration for SDN-IP - ONOS-2 •  Finish the integration with IPv6 (only tests needed) - ONOS-646 •  Disable LinkDiscovery on the access ports - ONOS-429 •  Cancel host monitoring in SDN-IP when it not longer has routes to the next hop – ONOS-424 •  Use intent replace operation instead of withdraw and submit - ONOS-430
  17. OpenFlow   Rou[ng,   Recovery,   Label  imposi[on   Requests

      SR  Labels   imposed  by   controller   OSR  FIB  built  by   controller   Rou[ng   Service   Requests   ONOS   Discovery   Service   Open   Segment   Routers   (OSR)   Forwarding   Service   Open   Segment   Routers   (OSR)   USE  CASE  OVERVIEW
  18. GOALS   •  Current  Status   •  Segment  Rou[ng  was

     demonstrated  on  a  development  version  of  ONOS  as  part  of   Dec  2014  Open  source  release   •  Dell  4810  Open  Networking  switches   •  hlps://wiki.onosproject.org/display/ONOS/Segment+Rou[ng     •  ONOS-­‐Cardinal  Release  Goals   •  Change  parts  of  official  ONOS  to  accommodate  SR  and  other  apps  that  need  OF1.3   features  -­‐-­‐  eg.  pipeline  support  in  drivers,  flow-­‐rule  subsystem   •  Introduce  new  features  in  official  ONOS  to  accommodate  SR  and  other  apps  that  need   such  capabili[es  -­‐-­‐  eg.  group-­‐subsystem  &  network-­‐config-­‐manager   •  Port  SR  applica[on  onto  official  version  of  ONOS   •  Con[nue  suppor[ng  Dell  4810  switches   •  ONS  demo  in  June  2015
  19. STORIES   •  High  level  work  items  for  Segment  Rou[ng

     use  case  in  Cardinal  Release   •  Mul[ple  table  support  for  Flow  Rule  subsystem  (ONOS-­‐682)   •  New  Group  subsystem  (ONOS-­‐679)   •  Network  configura[on  management  framework  (ONOS-­‐685)   •  Segment  Rou[ng  Applica[on     •  Default  Rou[ng  Handling  and  Recovery  (ONOS-­‐686,  687)   •  Default  Group  Handling  and  Recovery   •  Policy  Rou[ng  support  (ONOS-­‐688,  689,  690)   •  Policy  Group  Handling  and  Recovery   •  CLI  (ONOS-­‐691)   •  GUI  (ONOS-­‐692)
  20. COMMUNITY  CONTRIBUTION   •  Community  Contribu[on/Help   •  Policy

    -­‐  Segment   Rou[ng   allows   the   crea[on   of   policies   that   fall   into   several   categories:   tunnel-­‐flow,   load-­‐balance,   avoid,   deny   etc.   Help   us   make   these   policies   beler/stronger   and   more   feature-­‐full   (eg.   add   protec[on),   or   implement  a  new  policy!!   •  CLI   -­‐  SR  applica[on  currently  uses  a  CLI  from  a  different  project.  We  can  use  help  to   inves[gate   the   integra[on   of   that   CLI   with   ONOS-­‐Cardinal.   We   can   also   use   help  to  explore  possible  changes  to  the  Karaf  CLI   •  GUI   -­‐  We  need  help  to  figure  out  how  to  expose  SR  features  on  the  GUI
  21. CONTACTS  &  RESOURCES   •  Contacts   •  Sangho  Shin

     ([email protected])   •  Srikanth  Vavilapalli  ([email protected])   •  Saurav  Das  ([email protected])       •  Resources   •  Segment  Rou[ng  in  December  Release:   hlps://wiki.onosproject.org/display/ONOS/Segment+Rou[ng   •  ONOS  1.2  Segment  Rou[ng  Design:   hlps://wiki.onosproject.org/display/ONOS/Segment+Rou[ng+for+ONOS+1.2     •  ONOS  1.2  Segment  Rou[ng  JIRA  stories:  hlps://jira.onosproject.org
  22. Use  Case  4   Central  Office  Re-­‐architected     as

     a  Datacenter  (CORD)* Larry  Peterson     *(Reframing of NFaaS)
  23. OLT   Packet  SW  +  ROADM   Centralized  Control  &

     Management  Plane   29   Central  Office  as  a  Datacenter   Enterprise Customers VPN            WanEx            DSA            IDS     Residential Customers BNG            CDN            CG-­‐NAT          Firewall   Mobile Customers PGW          XCODE            NLA            CDN             Commodity  Servers,  Switches  and  Storage
  24. •  Three  Independently  Developed  Technologies   –  Cloud  –  Scale

     applica[ons   –  SDN  –  Programmable  control  plane   –  NFV  –  Programmable  data  plane   •  Bring  all  Three  Together  in  the  Central  Office   –  Leverage  cloud  technology  to  reduce  CAPEX/OPEX   •  e.g.,  virtual  machines,  virtual  networks,  elas[c  scaling   –  Offer  local  value-­‐add  to  global  cloud  services   •  e.g.,  CDN,  Object  Store,  NoSQL  DB,  Data  Analy[cs   –  Offer  control  plane  based  services   •  e.g.,  VPN,  Traffic  Engineering,  Firewall,  Load  Balancing   –  Offer  data  plane  based  services   •  e.g.,  BNG,  Web  Access  Control,  CG-­‐NAT,  WAN  Accelera[on   Opportunity  /  Challenge
  25. Centralized  Control  and  Management  Plane   XOS  (Services)  +  OVX

     (Virtual  Networks)  +  ONOS  (Network  ApplicaOons)     BNG   BNG   vSW   BNG   BNG   vSW   BNG   BNG   vSW   BNG   vSW   L2  ConnecOvity   IDS   WAN-­‐ Accel   Cache   Cache   Cache   vSW   vSW   L2VPN/L3VPN/   L3  ConnecOvity   EtherSW+  ROADM   NFV  chaining   Central  Office  as  a  Datacenter   Commodity  Servers  &  Storage   Service  Chaining   ONOS   ONOS   ONOS
  26. OS   Virtual  Net   (e.g.,  Big  Switch)   Service

     “S”  deployed   on  a  scalable  set  of  VMs   S   BNG   Access   Subscriber   …   Subscriber   AUTH   RR   HPC   Internet   Wide-­‐Area  Acquisi[on   Net  running  on  ONOS   Demonstra[on  Services   URL   Filter   SDN-­‐IP  running  as   an  ONOS  applica[on   (enterprise  VPN  in   a  similar  manner)   Caching  Hierarchy   running  on  ONOS   Scales  on  private   OVX-­‐based  VN   Explicit  OVX-­‐based   VN  interconnec[on
  27. Demonstra[on  Hardware   Management   Network   OpenFlow  capable

    External  Network   Cisco  3560   IBM  G8264   14  x  Cisco  220  M3   (16  cores  /  128GB  RAM)
  28. Technical  Summary   •  Services  managed  as  a  first-­‐class  abstrac[on

      –  XOS  provisions  each  service  as  a  scalable  set  of  VMs   –  OVX  provides  per-­‐service  VNs  for  scaling   –  ONOS  applica[ons  are  a  source  of  services   •  XOS  supports  arbitrary  service  composi[on   –  Expressed  in  terms  of  high-­‐level  specifica[on   –  Implies  isola[on  (security  policy)   •  OVX  manages  VNs  according  to  2  orthogonal  policies   –  Topology  of  the  VNs  associated  with  each  service   –  VN  interconnec[on  in  support  of  service  composi[on   •  XOS  manages  VM  placement  according  to  2  policies   –  Service-­‐specific:  to  meet  global  demands   –  Site-­‐specific:  to  op[mally  u[lize  Central  Office  resources
  29. ONOS  USE  CASES  –  PART  2   CARDINAL  RELEASE

      USE  CASE  PLANNING  SESSION-­‐  JAN  26TH,  2015
  30. SLIDE  1  -­‐  Status   ¡  DREAMER  in  one  sentence:

      ¡  Design  and  implement  an  east-­‐west  applica[on  for  ONOS  clusters  (each  one  made  by   mul[ple  ONOS  instances),  allowing  a  single  ISP  to  manage  a  geographically  distribute   control  plane.   ¡  Current  status:   ¡  ICONA  (Inter  Cluster  Onos  Network  App)  design  done.     ¡  Topology  discovery  done  (modifica[on  to  the  LLDP  discovery  to  include  cluster  id).   ¡  Messaging  system  between  clusters,  based  on  mul[cast  Hazelcast  done.   ¡  Currently  implemen[ng  MPLS-­‐based  tunnels  between  clusters.   ¡  Missing  features  (May  release  goals):   ¡  Finalize  the  tunneling  mechanism   ¡  Implement  the  recovery  mechanism  to  manage  data-­‐plane  failures
  31. SLIDE  2  -­‐  Epics   ¡  Epic  1:  Tunneling  mechanism

      ¡  Descrip[on:  Michele  extended  the  ONOS  Intent  framework,  adding  the  MPLS  intent  (currently  under   review  -­‐  hlps://jira.onosproject.org/browse/ONOS-­‐631  ).  Leveraging  on  this  new  Intent,  we  are  currently   sexng  up  the  mul[  cluster  tunneling  mechanism.   ¡  Stories:   ¡  Implement  the  distributed  mechanism  to  install/update/remove  pseudo-­‐wires  (e.g.  tunnels)  crossing   mul[ple  clusters.   ¡  Test  the  features  in  real  environments,  such  as  OFELIA  and  GEANT  testbeds.   ¡  Epic  2:  Recovery  mechanism  to  manage  data-­‐plane  failures   ¡  Descrip[on:  we  already  leverage  on  ONOS  to  automa[cally  redirect  traffic  inside  a  single  cluster.  With   ICONA,  we  need  to  take  care  of  the  inter-­‐clusters  links  and  switches.  To  minimize  the  down[me,  we  have   designed  a  solu[on  that  preinstall  some  backup  paths.  (more  details  if  required…)   ¡  Stories:   ¡  Implement  a  two-­‐stack  MPLS  Intent  (ICONA  only,  not  ONOS).   ¡  Implement  the  failure  detec[on  and  recovery  in  ICONA.   ¡  Test  the  solu[on  both  with  Mininet  and  real  testbeds.
  32. Areas  for  Community  par[cipa[on   ¡  Epic  2:   ¡ 

    Helping  in  the  design  and  implementa[on  of  the  data  plane  recovery  mechanism.   ¡  Epic  1:   ¡  Improving  the  MPLS  Intent  designing  and  implemen[ng  a  general  purpose  intent   with  mul[ple  tags  (e.g.  VLAN,  MPLS,  GRE,  …)   ¡  Tes[ng  of  ICONA.
  33. SLIDE  4  -­‐  Contacts   ¡  Maleo  Gerola   ¡ 

    [email protected]   ¡  maleo.gerola@create-­‐net.org   ¡  Michele  Santuari  (developer)   ¡  michele.santuari@create-­‐net.org   ¡  Documenta[on  is  available  offline  (European  project),  just  ask  and  I’ll  send   to  you   ¡  Some  slides  are  available  in  the  ONOS  Google  drive
  34. Goals   ¡  Deploy  ONOS  in  a  small  network  running

     produc[on  traffic   ¡  We  have  a  deployment  opportunity  set  up  for  March,  to  be  presented  at  a   conference  on  March  24/25   ¡  This  deployment  is  to  take  one  Corsa  switch  and  turn  it  into  a  BGP-­‐speaking   IP  router   ¡  Corsa  switch  has  a  OF1.3  mul[-­‐table  pipeline  that  ONOS  needs  to  work  with
  35. Stories   ¡  Write  a  Corsa  switch  driver  that  implements

     the  specific  pipeline   ¡  Needs  to  set  up  sta[c  flows  in  correct  tables  on  switch  join   ¡  Needs  to  place  dynamic  flows  in  the  correct  table   ¡  Introduce  no[on  of  group  in  the  flow  API  alongside  selectors  and  treatments   ¡  Modify  SDN-­‐IP  to  set  up  a  new  group  when  a  new  next  hop  is  resolved   ¡  Introduce  abstract  table  no[on  in  flow  API   ¡  Extend  flow{mod,entry}  builders  for  groups  and  mul[ple  tables   ¡  Allow  BGP  packet  tunnelling  through  OpenFlow  pk[n/pktout   ¡  Extend  IP  edge  configura[on  to  support  VLANs   ¡  proxyarp  needs  to  take  VLANs  into  account   ¡  Set  up  an  automated  integra[on  testbed  for  this  specific  deployment   ¡  Test  &  Debug  on  the  Corsa  switch
  36. Yuta  HIGUCHI  (NEC)     Toru  FURUSAWA  (NTT  Communica[ons)

    Naoki  SHIOTA  (NEC)   Use  Case  6  :  NTT  Communica[ons/NEC   Mul[-­‐domain,  Mul[-­‐layer  and  Mul[-­‐vender   WAN  use  case  (N2M3  use  case)
  37. Background We’ve  been  developing  SDN  Framework:  ODENOS,      which

     provides  hierarchical  network  abstrac[on  model,      to  enable  easily  extensible  &  customizable  SDN  deployment   Applica[on  A 48   Packet  Transport  Network PTN   This  research  is  executed  under  a  part  of  a   “Research  and  Development  of  Network   Virtualiza[on  Technology”  program   commissioned  by  the  Ministry  of  Internal   Affairs  and  Communica[ons.
  38. Example:  L3  rou[ng  on  mul[-­‐domain  network   Hierarchical network abstraction

    model PTN  Driver� L3  rou[ng� LinkLayerizer� WDM  Driver� Aggregator� 49
  39. Short term goal toward ONS 2015 mul[-­‐domain,  mul[-­‐layer  and  mul[-­‐vender

     WAN  use  case   using  ODENOS  and  ONOS   ONOS ODENOS L0  Topo LinkLayerizer L2  Topo (Layerized)   L2  Topo WDM  Network Packet  Transport  Network OpenFlow  Network ü  Makes  best  use  of  ODENOS  network  abstracOon  feature  into  ONOS     ü  Models  pracOcal  telecom  carriers’  and  service  providers’  network  systems   50
  40. Long term goal ONOS ODENOS Toward  ONS2015  [meframe   Post

     ONS2015   L2  Topo LinkLayerizer L0  Topo (Layerized )   L2  Topo ONOS abstrac[on  model Enable  applica[on  developers  to  u[lize   hierarchical  network  abstrac[on  model  on  ONOS   L2   To po LinkLa yerize r L0   To po (La yer ize d)   L2   To po 51
  41. Planned Schedule ONS  2015   June   Ø  N2  team

     (NTT  Communica[ons  and  NEC)     integrates  ONOS  and  ODENOS  to  provide   network  abstrac[on  features  into  ONOS.   Ø  Tes[ng  its  feasibili[es  and  effec[veness     Open  the  project  to  discuss  how  to  bring  in     the  key  essence  of  ODENOS  network  abstrac[on   into  ONOS   We’re  looking  forward  to   collaborate  with  ON.lab  and    ONOS  community   52   Today   26th  Jan
  42. Use-Case Overview Use  Case   IP  Mul[cast  in  a  hybrid

     network  (SDN  &  Legacy)       ConfiguraOon  Support   Following  configura[ons  should  be  possible  for  Mul[cast  with  legacy  devices  at   the  core   •  Mul[cast  source  behind  SDN  network,  Receivers  behind  legacy  network   •  Source  behind  legacy  network,  Receivers  behind  SDN  network   •  Both  sources  and  receivers  behind  SDN  networks
  43. Multicast Flow Configuration Legacy  Core  Network  (MulOcast  Flow)   Sender

     2   Receiver  1   Sender  1   SDN  Controller   Receiver  2   OF  Switch   Legacy  Router   IP  MulOcast
  44. Goals May  Release   •  Support  for  Mul[cast  including  PIM-­‐SSM

     &  IGMP     •  Controller  capabili[es  to  receive  and  interpret  IGMP  join  requests  from  the   receivers  (receivers  behind  SDN  network)   •  Controller   capabili[es   to   install   mul[cast   flows   depending   on   ac[ve   join   requests  by  the  receivers  (source  behind  SDN  switch)
  45. Community Contribution •  Design  for  IP  mul[cast  support  in  ONOS

      •  Implementa[on     •  Tes[ng,  troubleshoo[ng  and  deployment
  46. Current Status 1.  Focus on PoC of L3VPN service, demoed

    on ONOS summit 2014 2.  Current Status q  Huawei SNC(in-house controller) integration solution (NB/SB Agent) q  PCE is implemented in App q  Service Data Model (e.g. L3VPN, LB) q  NB Flow Rule API Extension (Ready for Code Review) q  SB Provider for Huawei Devices
  47. Goal & Stories May Release •  Team up with community

    and ON.LAB ONOS team on the following Stories q  Service Data Installation (FlowRule Service Extension) q  MPLS Label Service/Management (New) q  Broadcast Network Topology Support (Topology Manager Enhancement) q  Packet In/Out Service q  MPLS Tunnel Priority
  48. Community Contribution q  MPLS Label Service/Management (New) q  Broadcast Network

    Topology Support (Topology Manager Enhancement) q  Packet In/Out Service q  MPLS Tunnel
  49. •  PCEP-­‐based  SDN  control  for  IP+Op[cal  (evolu[onal  approach  for  service

     providers)   •  NB:  external  ML-­‐PCE  leverages  global  topology  provided  by  ONOS  for  E2E  op[mized  TE-­‐LSP   computa[on  by  considering  rich  policies   •  Core:  integra[ng  ONOS  distributed  core  for  HA,  global  database  (e.g,  to  accommodate  TEDB/LSPDB)   •  SB:    using  the  PCEP/IGP  protocols  for  mul[-­‐layer  topology  auto-­‐discovery  to  support  commercial  IP/ Op[cal  NEs   •  Current  Status   ü  External  ML-­‐PCE    implementa[on   ü  Internal  NB/SB  soeware  agent   ü  NB  API  Extension   ü  Intent  Extension   ü  SB  Provider  PCEP/IGP  protocols     v  System  Integra[on/Test  for  a  Testbed  (not  finished  yet)       Current Status
  50. Community Contribution May  Release q  NB/SB API extensions for PCEP

    support in ONOS q  New Intent for PCEP q  LSP event notifications mechanism q  Packet In/Packet out
  51. Closing  notes   ¡  Tom  Anschutz,  AT&T   ¡  Yoichi

     Sato,  NTT   ¡  Bill  Snow,  VP  Engineering,  ON.Lab   (  Please  view  video)
